DFI SB331-D User Manual

Page 1
SB331-D
System Board User’s Manual
A19500137
Page 2
Copyright
This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transfor­mation/adaptation without the prior written permission from the copyright hold­ers.
This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.
© 2011. All Rights Reserved.
Trademarks
All trademarks and registered trademarks of products appearing in this manual are the properties of their respective holders.
Page 3
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televi­sion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.
Page 4
1
4
Introduction
Table of Contents
Copyright ...........................................................................................2
Trademarks ........................................................................................2
FCC and DOC Statement on Class B ..............................................3
About this Manual .............................................................................6
Warranty ..........................................................................................6
Static Electricity Precautions .............................................................7
Safety Measures .................................................................................7
About the Package ............................................................................8
Before Using the System Board ........................................................8
Chapter 1 - Introduction ..................................................................9
Specifications ..................................................................................9
Features ...................................................................................... 11
Chapter 2 - Hardware Installation ..................................................14
System Board Layout .................................................................... 14
System Memory ........................................................................... 15
Installing the DIM Module ......................................................... 17
CPU ............................................................................................ 19
Installing the CPU .................................................................... 20
Jumper Settings ............................................................................. 24
Clear CMOS Data ..................................................................... 24
PS/2 Power Select .................................................................... 25
USB Power Select ..................................................................... 26
Power-on Select ....................................................................... 27
COM1/COM2 RS232/RS422/RS485 Select.................................... 28
COM1/COM2 RS232/Power Select............................................... 29
Rear Panel I/O Ports ..................................................................... 30
COM (Serial) Ports ................................................................... 31
HDMI Port ............................................................................... 32
DVI-I Port ............................................................................... 33
RJ45 LAN Ports ........................................................................ 34
USB Ports................................................................................ 35
Audio ...................................................................................... 37
Page 5
1
5
Introduction
I/O Connectors ............................................................................ 38
S/PDIF Connector ..................................................................... 38
SATA (Serial ATA) Connectors .................................................... 39
Cooling Fan Connectors ............................................................. 40
Power Connectors ....................................................................41
Standby Power LED .................................................................. 42
Front Panel Connectors ............................................................. 43
Expansion Slots .......................................................................44
Battery ................................................................................... 45
SPI JTAG Connector..................................................................46
Digital I/O Connector ................................................................ 47
Chassis Intrusion Connector ...................................................... 49
PS/2 Keyboard/ Mouse Connector .............................................. 50
Chapter 3 - BIOS Setup .................................................................. 52
Overview .............................................................................................................. 52
AMI BIOS Setup Utility ................................................................. 54
Main ....................................................................................... 54
Advanced ................................................................................ 55
Chipset ................................................................................... 69
Boot ....................................................................................... 75
Security .................................................................................. 76
Save & Exit ............................................................................. 77
Updating the BIOS ........................................................................ 78
Chapter 4 - Supported Software ................................................... 79
Appendix A - Watchdog Sample Code ......................................... 102
Appendix B - System Error Message ............................................ 103
Appendix C - Troubleshooting ...................................................... 105
Page 6
1
6
Introduction
About this Manual
An electronic file of this manual is included in the CD. To view the user’s manual in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click “User’s Manual” on the main menu.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered.
Page 7
1
7
Introduction
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical dis­charge can damage computer components without causing any signs of physical damage. You must take extra care in handling them to ensure against electro­static build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the compo­nents, contacts or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or connectors by their ends.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for instal­lation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.
Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufac­turer.
• Dispose of used batteries according to local ordinance.
Page 8
1
8
Introduction
About the Package
The system board package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for as­sistance.
One system board Two Serial ATA data cables Two Serial ATA power cables Two USB cables One PS2 cable One bracket mounted with a COM port cable One I/O shield One DVD One QR (Quick Reference)
The system board and accessories in the package may not come similar to the information listed above. This may differ in accordance to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.
Before Using the System Board
Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will need at least the following internal components.
• A CPU
• Memory module
• Storage devices such as hard disk drive, CD-ROM, etc.
You will also need external system peripherals you intend to use which will nor­mally include at least a keyboard, a mouse and a video display monitor.
Page 9
1
9
Introduction
Processor
Chipset System Memory
Expansion Slots
Graphics
Audio
LAN
Serial ATA
Chapter 1 - Introduction
• LGA 1155 socket for:
- Intel
®
Core
TM
i7-2600 (3.4GHz, 95W)
- Intel
®
Core
TM
i5-2400 (3.1GHz, 95W)
- Intel
®
Core
TM
i3-2120 (3.3GHz, 65W)
- Intel
®
Pentium® G850
• New microarchitecture on 32nm process technology
• Intel
®
Advanced Vector Extensions (Intel® AVX) Instructions
• Intel
®
Turbo Boost Technology
• Intel
®
H61 Express Chipset
• Two 240-pin DDR3 DIMM sockets
• Supports DDR3 1066/1333MHz
• Supports dual channel memory interface
• Supports up to 16GB system memory
• DRAM device technologies: 1Gb, 2GB and 4Gb DDR3 DRAM technologies are supported for x8 and x16 devices, unbuf­fered, non-ECC
• 2 PCI Express Gen 2 x16 slots (PCIe 2.0)
- 1 x16 signal and 1 x2 signal
• 2 PCI Express x1 slots (PCIe 2.0)
• Intel
®
HD Graphics
• Display ports:
- DVI-I (RGB and TMDS signals) - ASMedia1442
- HDMI (TMDS signal) - ASMedia1442
• DVI and HDMI display resolution up to 1920x1200
• Supports 6 Graphics Execution Units (EUs)
• Intel
®
Clear Video Technology
• DirectX Video Acceleration (DXVA) support for accelerating video processing
• Realtek ALC262 2-channel High Definition Audio
• DACs with 100dB SNR; two stereo DACs support 24-bit PCM format for stereo audio playback
• ADCs with 90dB SNR; three stereo ADCs support 20-bit PCM format for multiple input streaming
• S/PDIF audio interface
• 1 Intel W82579LM with iAMT7.0 Gigabit Ethernet Phy
• 1 Intel W82574 PCI Express Gigabit Ethernet controller
• Integrated 10/100/1000 transceiver
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports wire management
• 4 SATA 2.0 ports with data transfer rate up to 3Gb/s
Specifications
Page 10
1
10
Introduction
TPM (optional)
Rear Panel I/O Ports
I/O Connectors
BIOS
Energy Efficient Design
Damage Free Intelligence
• Infineon SLB9635
• Provides a Trusted PC for secure transactions
• Provides software license protection, enforcement and pass­word protection
• 2 DB-9 serial ports
- Supports RS232/422/485
- Pins 1 and 9 of RS232 functions as RS232 signal or power
(selectable via jumper)
• 1 DVI-I port
• 1 HDMI port
• 2 RJ45 LAN ports
• 6 USB 2.0/1.1 ports
• 2 connectors for 4 external USB 2.0/1.1 ports
• 1 PS/2 KB/Mouse connector
• 1 36-bit Digital I/O connector
• 1 front audio connector for line-out and mic-in jacks
• 1 S/PDIF connector
• 4 Serial ATA ports
• 1 24-pin ATX power connector
• 1 8-pin 12V power connector
• 1 chassis intrusion connector
• 1 front panel connector
• 2 fan connectors
• AMI BIOS
• 64Mbit SPI BIOS
• Supports ErP Lot6 power saving (optional)
• Supports ACPI
• System Power Management
• Wake-On-Events include:
- Wake-On-PS/2 KB/Mouse
- Wake-On-USB KB/Mouse
- Wake-On-LAN
- RTC timer to power-on the system
• CPU stopped clock control
• AC power failure recovery
• Monitors CPU/system temperature and overheat alarm
• Monitors VCORE/5V/3.3V/V_DIMM/12V/5VSB voltages and failure alarm
• Monitors CPU/system fan speed and failure alarm
• Read back capability that displays temperature, voltage and fan speed
• Watchdog timer function
Temperature
Humidity
PCB
• 0oC to 60oC
• 10% to 90%
• microATX form factor
• 244mm (9.6”) x 244mm (9.6”)
Page 11
1
11
Introduction
Features
Watchdog Timer
The Watchdog Timer function allows your application to regularly “clear” the sys­tem at the set time interval. If the system hangs or fails to function, it will reset at the set time interval so that your system will continue to operate.
DDR3
DDR3 delivers increased system bandwidth and improved performance. It offers peak data transfer rate of up to 21 Gb/s bandwidth. The advantages of DDR3 are its higher bandwidth and its increase in performance at a lower power than DDR2.
Graphics
The integrated Intel HD graphics for graphics intensive applications delivers ex­ceptional 3D, 2D and video capabilities. It supports VGA and DVI interfaces.
DVI
DVI (Digital Visual Interface) is a form of video interface technology made to maximize the quality of flat panel LCD monitors and modern video graphics cards. Data is transmitted using the TMDS (Transition Minimized Differential Sig­naling) protocol, providing a digital signal from the PC’s graphics subsystem to the display.
PCI Express
PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds by forming multiple lanes. The x4 PCI Express lane supports trans­fer rate of 1 Gigabyte per second. The PCI Express architecture also provides a high performance graphics infrastructure by enhancing the capability of a x16 PCI Express lane to provide 8 Gigabytes per second transfer rate.
Audio
The Realtek ALC262 audio codec provides 2-channel High Definition audio output.
Page 12
1
12
Introduction
Serial ATA
Serial ATA is a storage interface that is compliant with SATA 1.0a specifica­tion. SATA 3.0 supports speed up to 6Gb/s while SATA 2.0 supports speed up to 3Gb/s. This improves hard drive performance faster than the standard parallel ATA whose data transfer rate is 100MB/s.
Gigabit LAN
The Intel W82579LM PHY and Intel W82574L PCI Express Gigabit controllers sup­port up to 1Gbps data transmission.
USB
The system board supports USB 2.0 and USB 1.1 ports. USB 1.1 supports 12Mb/ second bandwidth while USB 2.0 supports 480Mb/second bandwidth providing a marked improvement in device transfer speeds between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.
Wake-On-LAN
This feature allows the network to remotely wake up a Soft Power Down (Soft­Off) PC. It is supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Management Event) signal. However, if your system is in the Suspend mode, you can power-on the system only through an IRQ or DMA inter­rupt.
Important:
The 5V_standby power source of your power supply must support 720mA.
Wake-On-PS/2
This function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system.
Important:
The 5V_standby power source of your power supply must support 720mA.
Wake-On-USB
This function allows you to use a USB keyboard or USB mouse to wake up a sys­tem from the S3 (STR - Suspend To RAM) state.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the 5V_standby power source of your power supply must support 1.5A. For 3 or more USB ports, the 5V_standby power source of your power supply must support ≥2A.
Page 13
1
13
Introduction
RTC Timer
The RTC installed on the system board allows your system to automatically pow­er-on on the set date and time.
ACPI STR
The system board is designed to meet the ACPI (Advanced Configuration and Power Interface) specification. ACPI has energy saving features that enables PCs to implement Power Management and Plug-and-Play with operating systems that support OS Direct Power Management. ACPI when enabled in the Power Manage­ment Setup will allow you to use the Suspend to RAM function.
With the Suspend to RAM function enabled, you can power-off the system at once by pressing the power button or selecting “Standby” when you shut down Windows
®
without having to go through the sometimes tiresome process of closing files, applications and operating system. This is because the system is capable of storing all programs and data files during the entire operating session into RAM (Random Access Memory) when it powers-off. The operating session will resume exactly where you left off the next time you power-on the system.
Important:
The 5V_standby power source of your power supply must support 720mA.
Power Failure Recovery
When power returns after an AC power failure, you may choose to either power­on the system manually or let the system power-on automatically.
Page 14
14
2
Hardware Installation
System Board Layout
Chapter 2 - Hardware Installation
12 1
24
ATX p ow e r
13
DDR3_2
DDR3_1
1
Front panel
1
CPU fan
Intel
W82574L
LGA 1155
PCIe x1
PCIe x1
PCIe x16
7
8
SPI
2 1
USB 2-3
1
SATA 5
1
SATA 4
1
1
System
fan
1
Battery
Intel
H61
SATA 0
1
SATA 1
1
Realtek ALC262
S/PDIF
1
2
9
10
1
Front audio
USB 4-5
PS/2 power select (J )P7
USB 4-5/2-3 power select (JP9)
SATA 2.0
Clear CMOS
(J )P10
Power-on select ( )JP11
PS/2 KB/Mouse Connector
DIO
PCIe x16 (x2 signal)
1
2
19
1
LAN 3
USB 8-9
USB 10-11
LAN 1
USB 0-1
DVI-I
HDMI
COM 1 COM 2
JP2
JP1
1
2
6 5
1
2
6 5
151
5
JP6
91
ASMedia
1442
Fintek
F71879F
1
4
5
8
+12V power
1
Intel W82579LM
1
COM1 RS232/422/485 select ( )JP5
COM2 RS232/422/485 select ( )JP6
COM1 RS232/Power select ( )JP1
COM2 RS232/Power select ( )JP2
USB 0-1/10-11 power select (JP3)
USB 8-9 power select (JP4)
Chassis intrusion
ASMedia
1442
2
6
JP5
2
6
10
2
1
11
-
Standby Power LED
SPI Flash
BIOS
1
12
11
SATA 2.0
Page 15
15
2
Hardware Installation
1
2
19
System Memory
Important:
Electrostatic discharge (ESD) can damage your system board, processor, disk drives, add-in boards, and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD pro­tection.
DDR3-1
DDR3-2
Important:
1. When the Standby Power LED lit red, it indicates that there is power on the system board. Power-off the PC then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.
2. When buying the DDR3, please consider the thickness of the memory to avoid problems with the ATX power connector at the moment of their installation.
Features
• DRAM device technologies: 1Gb, 2Gb and 4Gb DDR3 DRAM technologies are
supported for x8 and x16 devices, unbuffered, non-ECC
• Dual channel memory interface
• Maximum of 16GB system memory
Page 16
16
2
Hardware Installation
DIMMs are on the same channel.
DIMMs in a channel can be identical or com­pletely different. However, we highly recommend using identical DIMMs.
Not all slots need to be populated.
DIMMs of the same memory confi guration are on different channels.
Single Channel
Dual Channel
The system board supports the following memory interface.
Single Channel (SC)
Data will be accessed in chunks of 64 bits (8B) from the memory channels.
Dual Channel (DC)
Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides better system performance because it doubles the data transfer rate.
Important:
1. You can populate either Channel A or Channel B fi rst.
2. When installing a DIMM in Channel A or Channel B, always populate the socket that is farthest the CPU. In this case, it will mean popu­lating DDR3-2 and/or DDR3-4 fi rst.
3. If you intend to use dual channel, the same rule applies - always the socket farthest the CPU. Populate DDR3-2 and/or DDR3-4 fi rst; not DDR3-2 and DDR3-3 and not DDR3-1 and DDR3-4.
Page 17
17
2
Hardware Installation
Note:
The system board used in the following illustrations may not resemble the actual board. These illustrations are for reference only.
Installing the DIM Module
1. Make sure the PC and all other peripheral devices connected to it has been powered down.
2. Disconnect all power cords and cables.
3. Locate the DIMM socket on the system board.
4. Push the “ejector tabs” which are at the ends of the socket to the side.
Ejector tab
Ejector tab
5. Note how the module is keyed to the socket.
Key
Notch
Page 18
18
2
Hardware Installation
7. Seat the module vertically, pressing it down fi rmly until it is completely seat- ed in the socket.
6. Grasping the module by its edges, position the module above the socket with the “notch” in the module aligned with the “key” on the socket. The keying mechanism ensures the module can be plugged into the socket in only one way.
8. The ejector tabs at the ends of the socket will automatically snap into the locked position to hold the module in place.
Page 19
19
2
Hardware Installation
CPU
The system board is equipped with a surface mount LGA 1155 socket. This sock­et is exclusively designed for installing a LGA 1155 packaged Intel CPU.
Important:
1. Before you proceed, make sure (1) the LGA 1155 socket comes with a protective cap, (2) the cap is not damaged and (3) the socket’s contact pins are not bent. If the cap is missing or the cap and/or contact pins are damaged, contact your dealer immediately.
2. Make sure to keep the protective cap. RMA requests will be accepted and processed only if the LGA 1155 socket comes with the protective cap.
Protective cap
Note:
The system board used in the following illustrations may not resemble the actual board. These illustrations are for reference only.
Page 20
20
2
Hardware Installation
Installing the CPU
1. Make sure the PC and all other peripheral devices connected to it has been powered down.
2. Disconnect all power cords and cables.
3. Locate the LGA 1155 CPU socket on the system board.
Important:
The CPU socket must not come in contact with any­thing other than the CPU. Avoid unnecessary expo­sure. Remove the protec­tive cap only when you are about to install the CPU.
4. Unlock the socket by push­ing the load lever down, moving it sideways until it is released from the reten­tion tab; then lift the load lever up.
Retention tab
Load lever
1
2
19
Page 21
21
2
Hardware Installation
6. Remove the protective cap from the CPU socket. The cap is used to protect the CPU socket against dust and harmful particles. Re­move the protective cap only when you are about to install the CPU.
Load lever
Load
plate
5. Lifting the load lever will at the same time lift the load plate.
Lift the load lever up to
the angle shown on the photo.
Protective cap
Page 22
22
2
Hardware Installation
7. Insert the CPU into the socket. The gold triangu­lar mark on the CPU must align with the corner of the CPU socket shown on the photo.
The CPU’s notch will at
the same time fi t into the socket’s alignment key.
Important:
The CPU will fi t in only one orientation and can easily be inserted without exert­ing any force.
Alignment key
Alignment key
Gold triangular mark
Page 23
23
2
Hardware Installation
8. Close the load plate then push the load lever down.
While closing the load
plate, make sure the front edge of the load plate slides under the retention knob.
Retention knob
9. Hook the load lever under the retention tab.
Load lever
Retention tab
Page 24
24
2
Hardware Installation
1
2
19
Jumper Settings

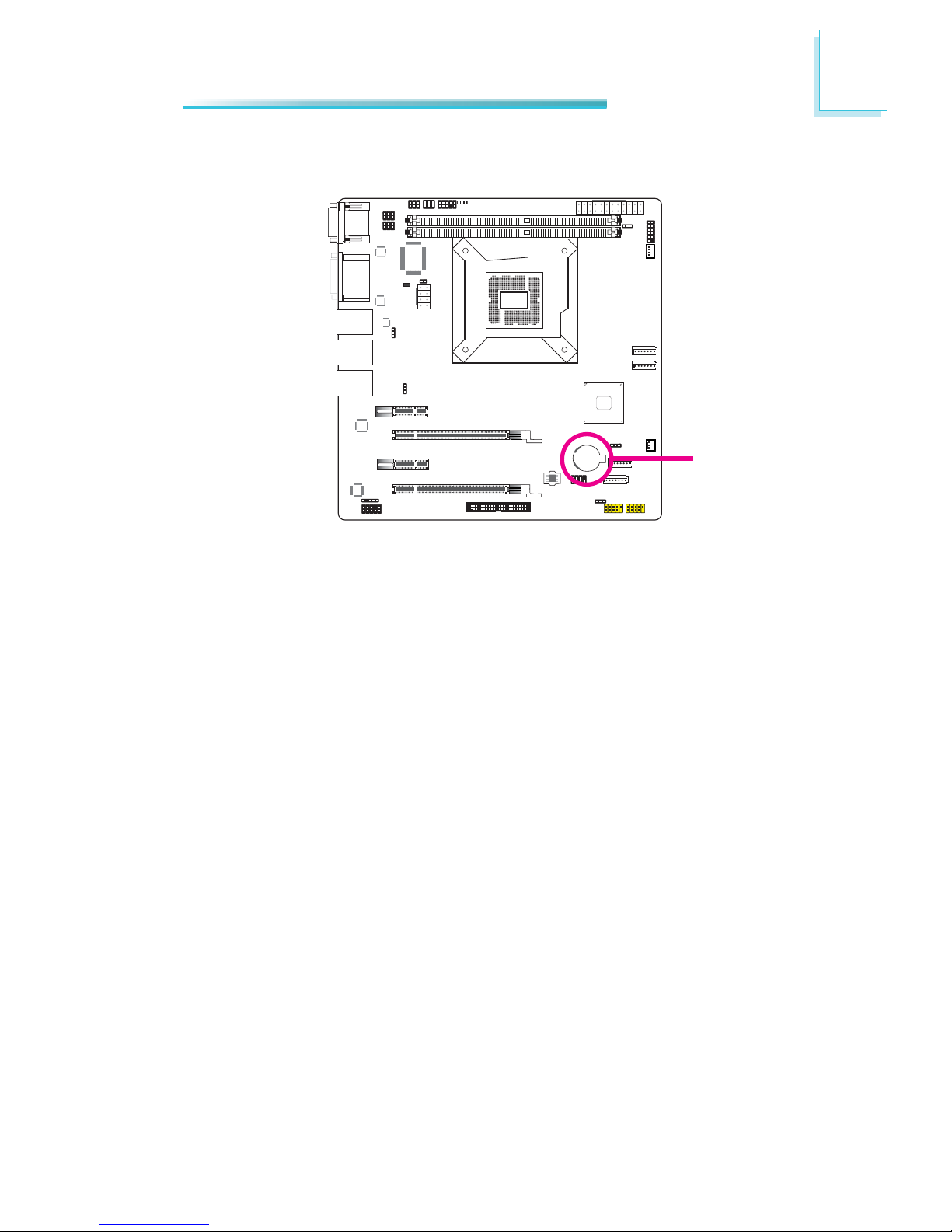

Clear CMOS Data
If you encounter the following,
a) CMOS data becomes corrupted. b) You forgot the supervisor or user password.
you can reconfi gure the system with the default values stored in the ROM BIOS.
To load the default values stored in the ROM BIOS, please follow the steps below.
1. Power-off the system and unplug the power cord.
2. Set JP10 pins 2 and 3 to On. Wait for a few seconds and set JP10 back to its default setting, pins 1 and 2 On.
3. Now plug the power cord and power-on the system.
JP7
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
312
312
JP10
Page 25
25
2
Hardware Installation
1
2
19
JP7 is used to select the power of the PS/2 keyboard and PS/2 mouse ports. Se­lecting +5V_standby will allow you to use the PS/2 keyboard or PS/2 mouse to wake up the system.
PS/2 Power Select
JP7
2-3 On:
+5V_standby
1-2 On: +5V
(default)
Important:
The +5VSB power source of your power supply must support ≥720mA.
1
3
2
1
3
2
Page 26
26
2
Hardware Installation
1
2
19
These jumpers are used to select the power of the USB ports. Selecting +5V_standby will allow you to use a USB device to wake up the system.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the +5V_standby power source of your power supply must sup­port 1.5A. For 3 or more USB ports, the +5V_standby power source of your power supply must support ≥2A.
USB Power Select
USB 0-1/10-11 (JP3)
2-3 On:
+5V_standby
1-2 On: +5V
(default)
2-3 On:
+5V_standby
1-2 On: +5V
(default)
3
1
2
3
1
2
USB 4-5/2-3 (JP9)
312
312
USB 8-9 (JP4)
Page 27
27
2
Hardware Installation
1
2
19
Power-on Select
To power-on via WOL after G3:
1. Set JP11 pins 2 and 3 to On.
2. Set the “After G3” fi eld to Power Off/WOL.
3. Set the “GbE Wake Up From S5” to Enabled.
The BIOS fi elds are in the “South Bridge Confi guration” submenu (Chipset menu) of the AMI BIOS utility.
To power-on via AC Power:
1. Set JP11 pins 2 and 3 to On.
2. Set the “After G3” fi eld to Power On.
1-2 On: Power-on via power button (default)
2-3 On: Power-on via AC power; or Power-on via WOL after G3
JP11
312
312
Page 28
28
2
Hardware Installation
1
2
19
COM1/COM2 RS232/RS422/RS485 Select
1-2 On: RS232
(default)
3-4 On: RS422
Full Duplex
5-6 On: RS485
64
2
531
JP5 (for COM1) and JP6 (for COM2) are used to confi gure the COM ports to RS232, RS422 (Full Duplex) or RS485.
The pin function of the COM ports will vary according to the jumper’s setting.
JP5 / JP6
64
2
64
2
531531
COM 1
COM 2
JP5 JP6
RS232 RS422
Full Duplex
RS485
COM 1 / COM 2
DCD-TDRD
DTR-
GND
12345
RTS-
RI-
DSR-
CTS-
6789
DATA+
N.C.
DATA-
N.C.
N.C.
12345
N.C.
N.C.
N.C.
N.C.
6789
RXD+
TXD+
RXD-
TXD-
N.C.
12345
N.C.
N.C.
N.C.
N.C.
6789
Page 29
29
2
Hardware Installation
1
2
19
COM1/COM2 RS232/Power Select
JP1
JP2
1-3 (RI), 2-4 (DCD) On: RS232 (default)
3-5 (+5V), 4-6 (+12V) On: RS232 with power
JP1 and JP2 are used to confi gure COM 1 and COM 2 to pure RS232 or RS232 with power.
The pin function of COM 1 and COM 2 will vary according to JP1’s and JP2’s set­ting respectively.
JP1 / JP2
64
2
531
64
2
531
Page 30
30
2
Hardware Installation
Rear Panel I/O Ports
The rear panel I/O ports consist of the following:
• 2 COM ports
• HDMI port
• DVI-I port
• 2 LAN ports
• 6 USB ports
COM 1 USB 10-11USB 0-1
HDMI
LAN1
COM 2
DVI-I
LAN3
USB 8-9
Page 31
31
2
Hardware Installation
COM 2

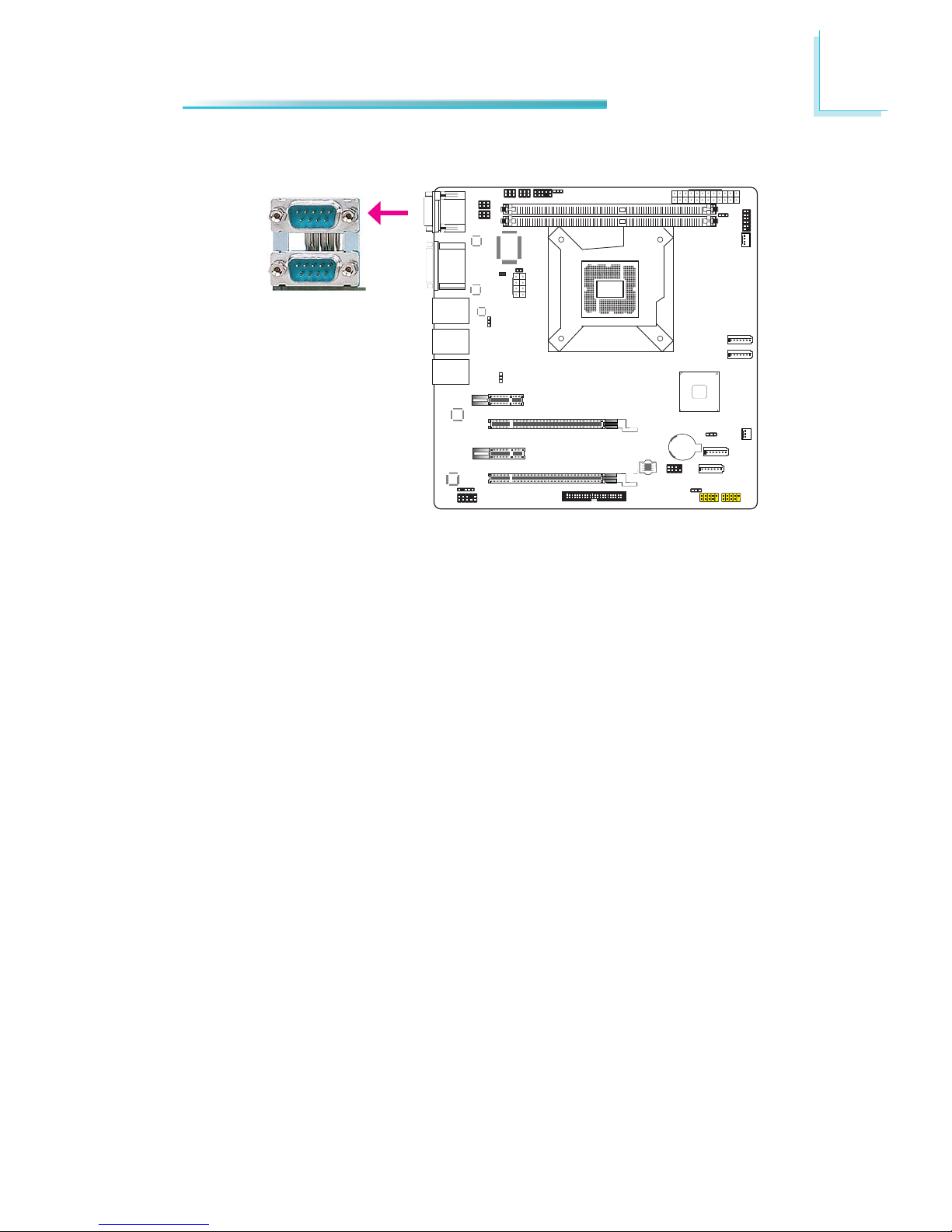

COM (Serial) Ports
COM 1
COM 1 to COM 2 are fi xed at RS232.
The pin function of COM 1 and COM 2 ports will vary according to JP5/JP6’s set­ting. Refer to “COM1/COM2 RS232/RS422/RS485 Select” in this chapter for more information.
The serial ports are asynchronous communication ports with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices.
Connecting External Serial Ports
Your COM port may come mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then insert the se­rial port cable to the COM connector. Make sure the colored stripe on the ribbon cable is aligned with pin 1 of the COM connector.
BIOS Setting
Confi gure the serial ports in the Advanced menu (“Super IO Confi guration” sub- menu) of the BIOS. Refer to chapter 3 for more information.
COM 1 and COM 2:
RS232/422/485
1
2
19
Page 32
32
2
Hardware Installation
HDMI Port
HDMI

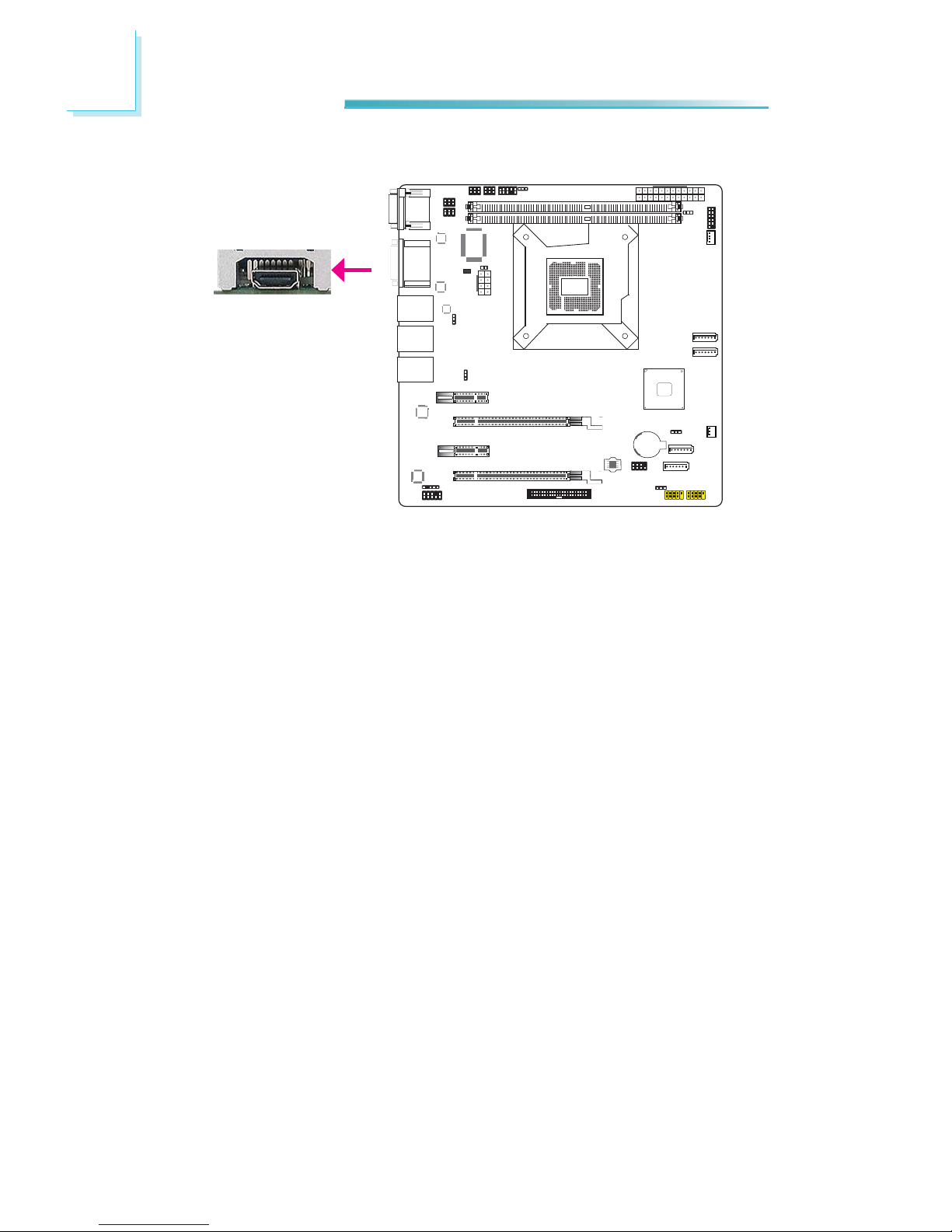

The HDMI port which carries both digital audio and video signals is used to con­nect a LCD monitor or digital TV that has the HDMI port.
1
2
19
Page 33
33
2
Hardware Installation

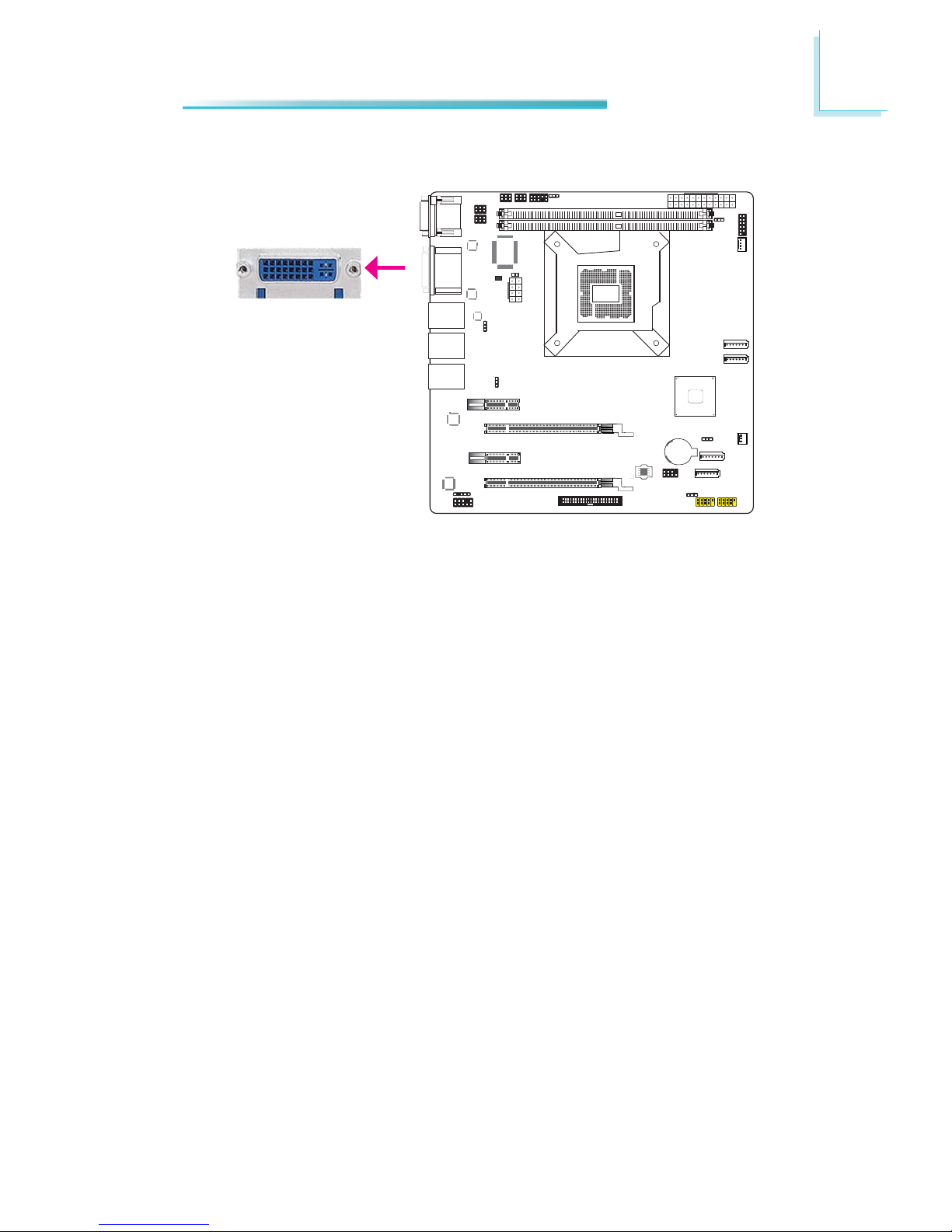

DVI-I
DVI-I Port
The DVI-I port is used to connect an LCD monitor.
Connect the display device’s cable connector to the DVI-I port. After you plug the cable connector into the port, gently tighten the cable screws to hold the connec­tor in place.
BIOS Setting
Confi gure the display device in the Chipset menu (“North Bridge Confi guration” submenu) of the BIOS. Refer to chapter 3 for more information.
1
2
19
Page 34
34
2
Hardware Installation

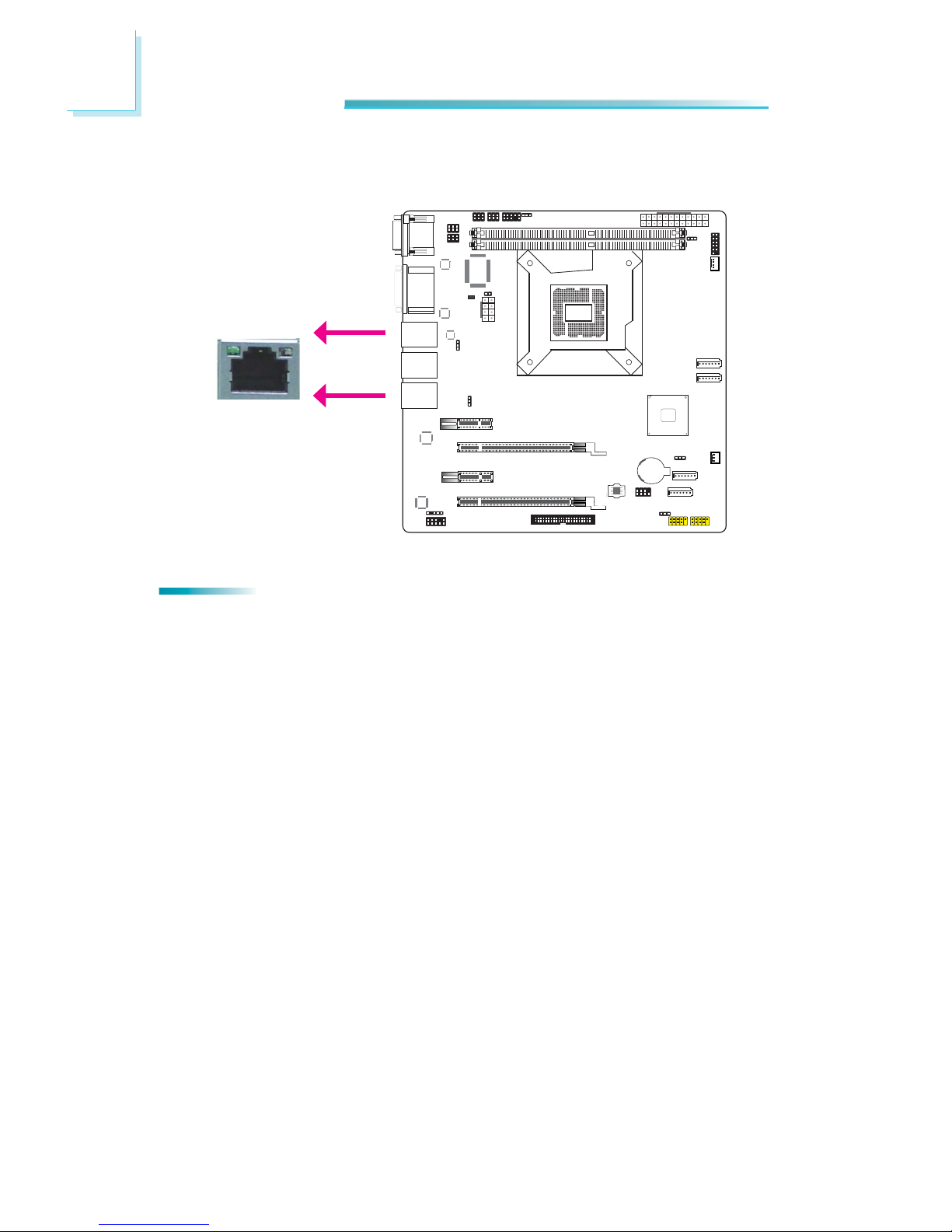

RJ45 LAN Ports
The LAN ports allow the system board to connect to a local area network by means of a network hub.
BIOS Setting
Confi gure the onboard LAN in the Chipset menu (“South Bridge Confi guration” submenu) of the BIOS. Refer to chapter 3 for more information.
Driver Installation
Install the LAN drivers. Refer to chapter 4 for more information.
Features
• Intel W82579LM with iAMT7.0 Gigabit Ethernet Phy
• Intel W82574L PCI Express Gigabit Ethernet controller
LAN Ports
1
2
19
Page 35
35
2
Hardware Installation
1
2
19

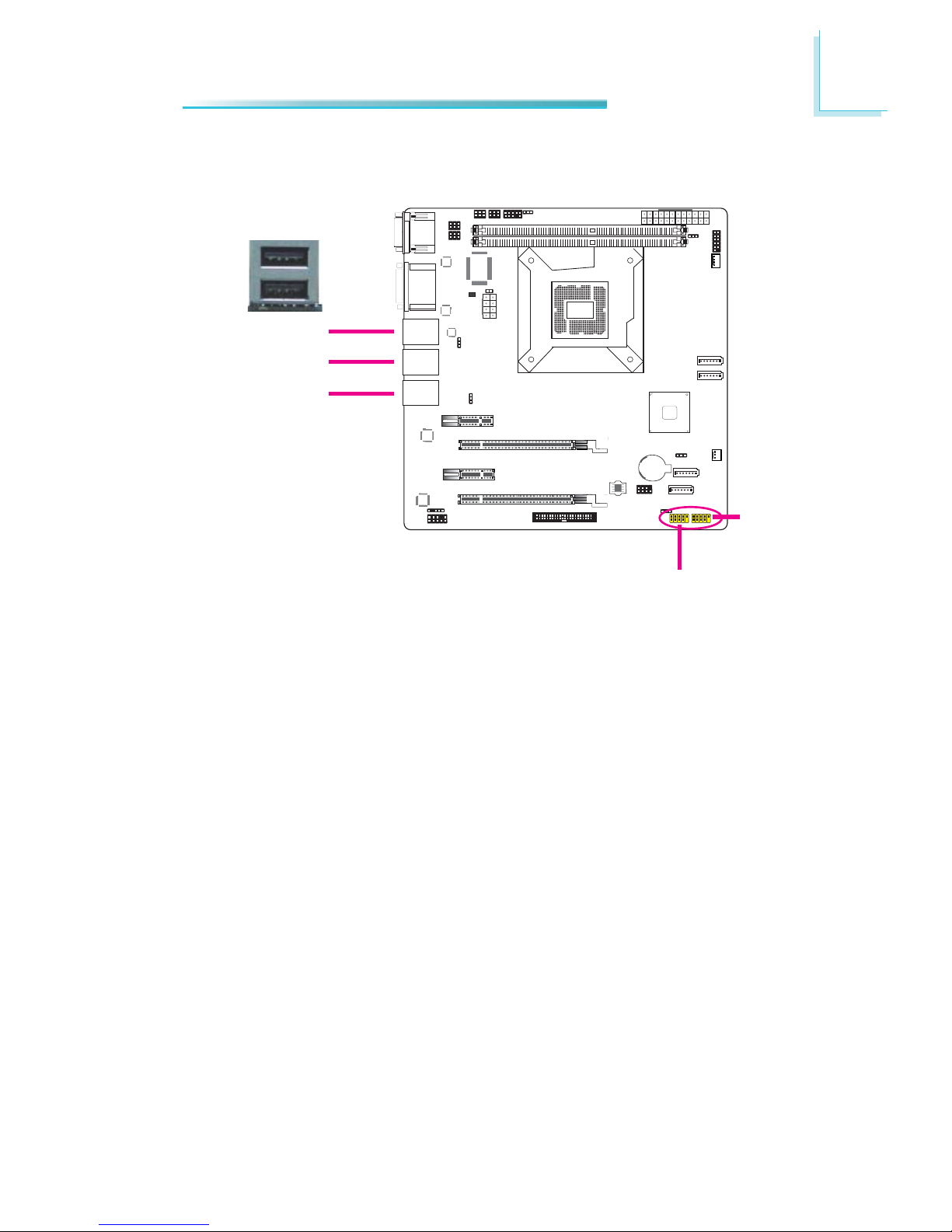

USB Ports
USB allows data exchange between your computer and a wide range of simulta­neously accessible external Plug and Play peripherals.
The system board is equipped with four onboard USB 2.0/1.1 ports. The four 10-pin connectors allow you to connect 8 additional USB 2.0/1.1 ports. The ad­ditional USB ports may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis and then insert the USB port cables to a connector.
BIOS Setting
Confi gure the onboard USB in the Advanced menu (“USB Confi guration” sub- menu) of the BIOS. Refer to chapter 3 for more information.
Driver Installation
You may need to install the proper drivers in your operating system to use the USB device. Refer to your operating system’s manual or documentation for more information.
USB 0-1
USB 10-11
USB 8-9
USB 4-5
USB 2-3
Page 36
36
2
Hardware Installation
Wake-On-USB Keyboard/Mouse
The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state. To use this function:
• Jumper Setting
JP3, JP4 and/or JP9 must be set to “2-3 On: +5V_standby”. Refer to “USB
Power Select” in this chapter for more information.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the 5V_standby power source of your power supply must support 1.5A. For 3 or more USB ports, the 5V_standby power source of your power supply must support ≥2A.
Page 37
37
2
Hardware Installation
1
2
19
Audio
1
Mic2-L
Line2-R
Front_IO_Sense
GND
N.C.
Key
2
10
Mic2-JD
Line2-JD
9
Mic2-R
Line2-L
Front Audio
The front audio connector allows you to connect to the second line-out and mic­in jacks that are at the front panel of your system.
BIOS Setting
Confi gure the onboard audio in the Chipset menu (“South Bridge Confi guration” submenu) of the BIOS. Refer to chapter 7 for more information.
Driver Installation

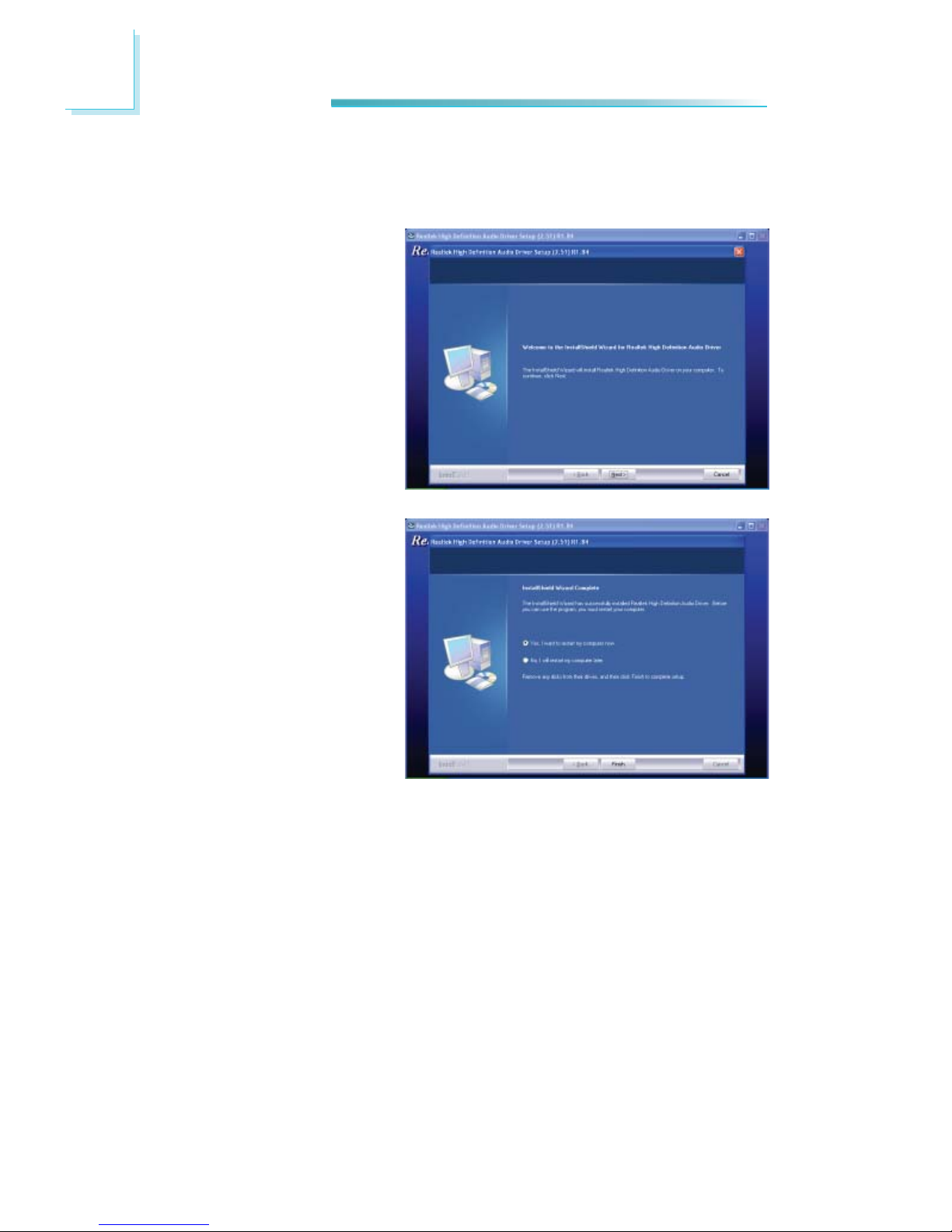

Install the audio driver. Refer to chapter 8 for more information.
Page 38
38
2
Hardware Installation
I/O Connectors
S/PDIF Connector
The S/PDIF connector is used to connect an external S/PDIF port. Your S/PDIF port may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then connect the audio cable to the S/PDIF connector. Make sure pin 1 of the audio cable is aligned with pin 1 of the S/PDIF connector.
15
+5V
Key
SPDIF out
Ground
SPDIF in
1
2
19
Page 39
39
2
Hardware Installation
1
2
19

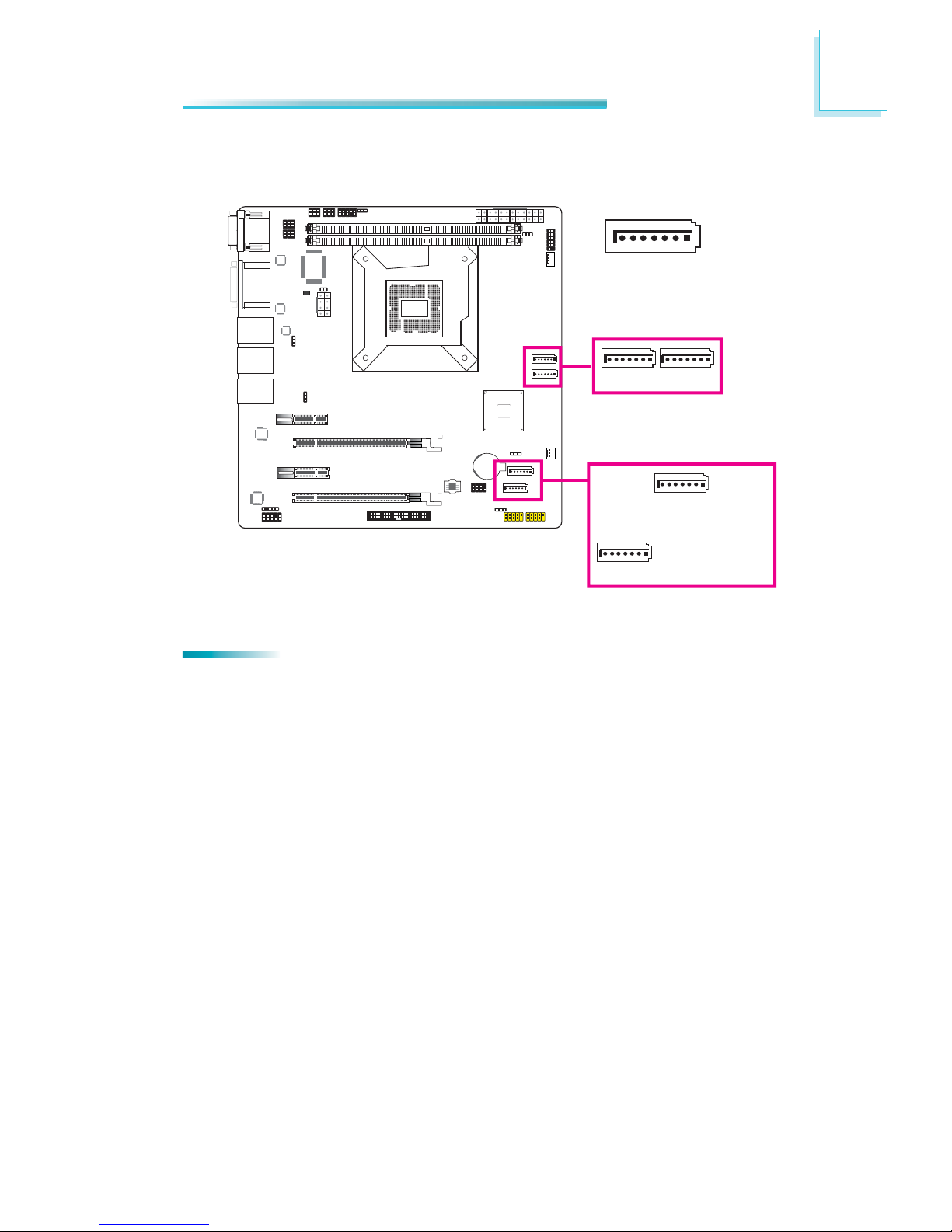

The Serial ATA connectors are used to connect Serial ATA devices. Connect one end of the Serial ATA cable to a SATA connector and the other end to your Serial ATA device.
BIOS Setting
Confi gure the Serial ATA drives in the Advanced menu (“IDE Confi guration” sub- menu) of the BIOS. Refer to chapter 3 for more information.
SATA (Serial ATA) Connectors
7
RXN
GND
TXP
TXN
GND
1
RXP
GND
SATA 4
SATA 5
SATA 2.0 3Gb/s
Features
• SATA 0, SATA 1, SATA 4 and SATA 5 support data transfer rate up to 3Gb/s
SATA 4 provides adequate space for SATA DOM
SATA 1
SATA 0
Page 40
40
2
Hardware Installation
1
2
19
Cooling Fan Connectors

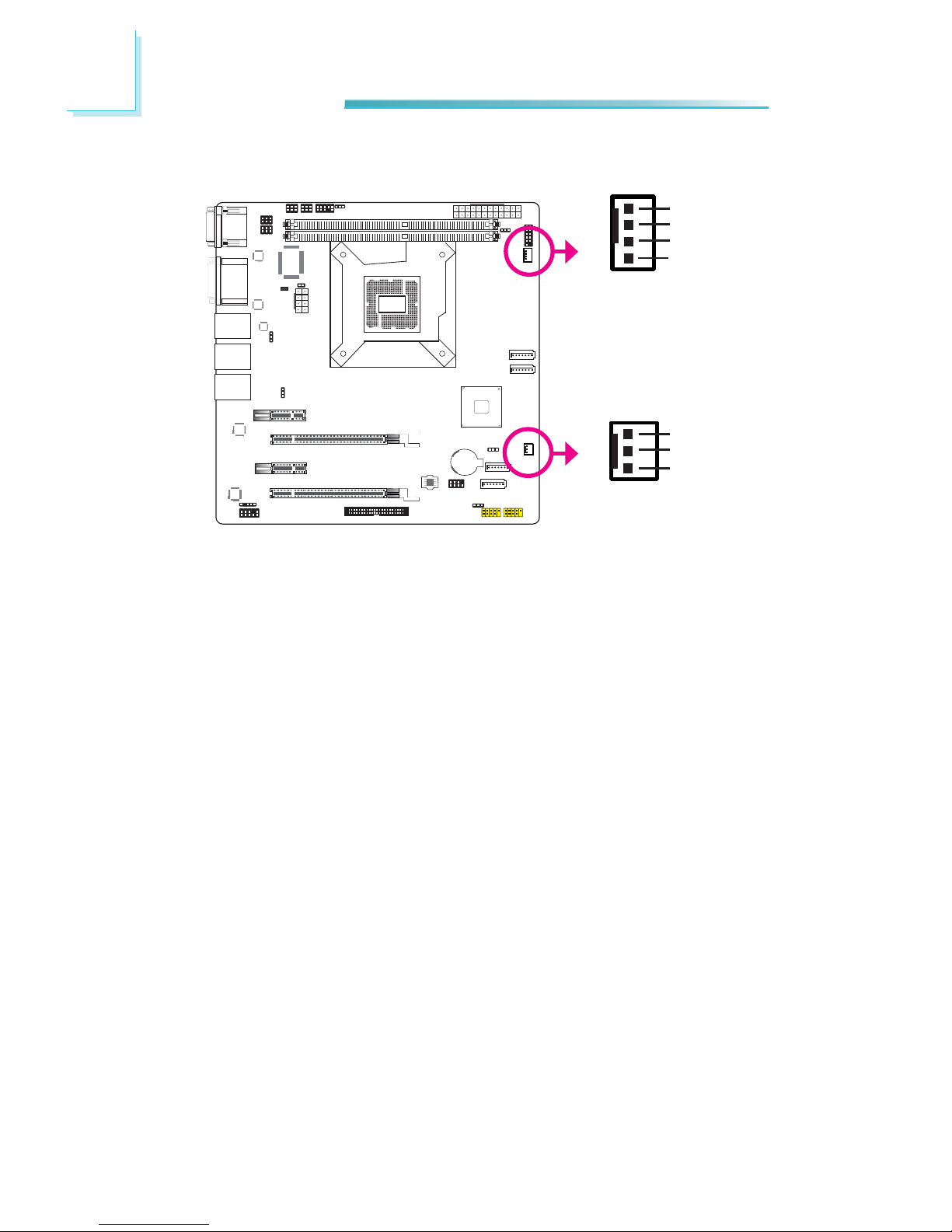

The fan connectors are used to connect cooling fans. The cooling fans will provide adequate airfl ow throughout the chassis to prevent overheating the CPU and sys- tem board components.
BIOS Setting
The Advanced menu (“Hardware Health Confi guration” submenu) of the BIOS will display the current speed of the cooling fans. Refer to chapter 3 for more infor­mation.
System fan
CPU fan
1
3
Sense
Power
Ground
1
4
Sense
Power
Ground
Speed Control
Page 41
41
2
Hardware Installation
1
2
19

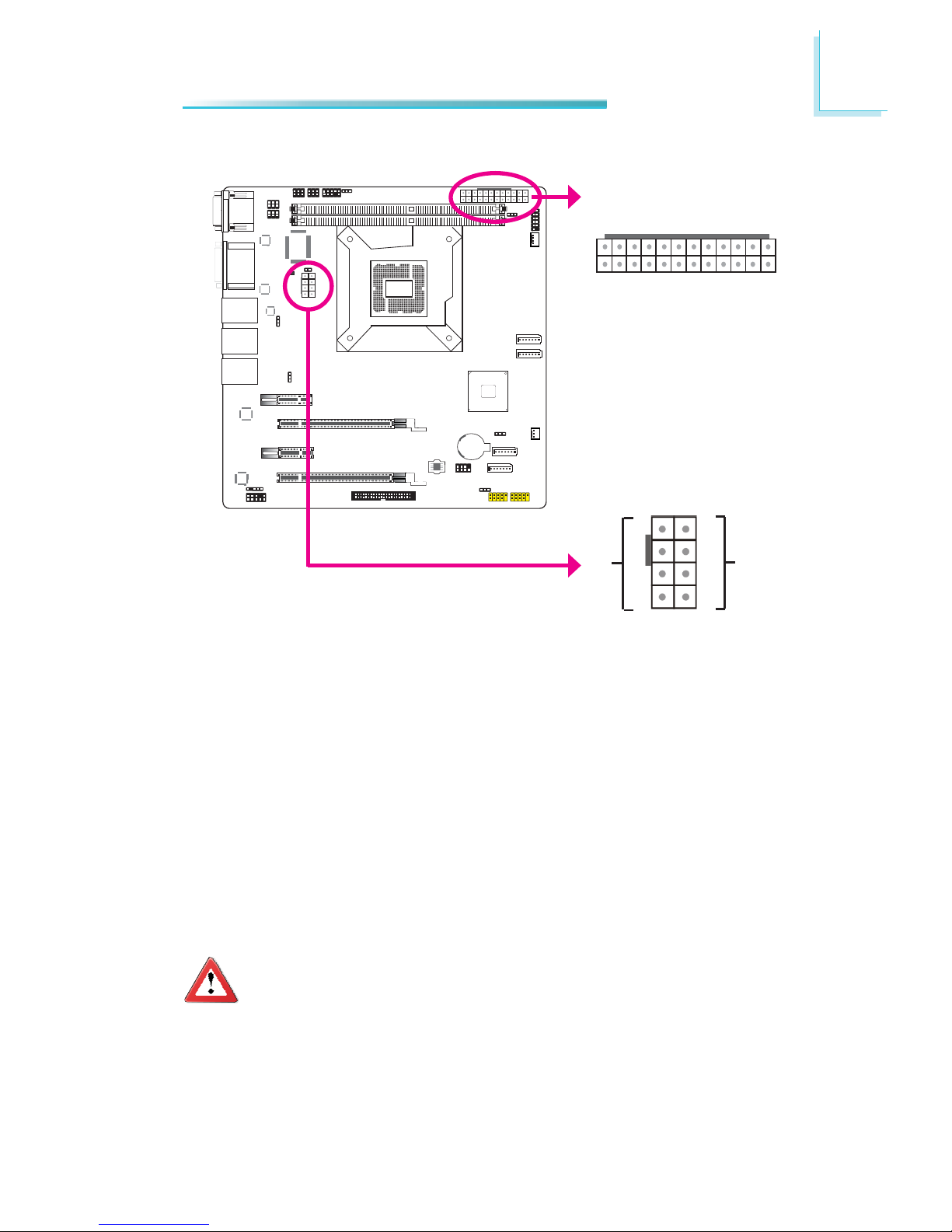

Power Connectors
Use a power supply that complies with the ATX12V Power Supply Design Guide Version 1.1. An ATX12V power supply unit has a standard 24-pin ATX main power connector that must be inserted into the 24-pin connector. The 8-pin +12V power connector enables the delivery of more +12VDC current to the processor’s Volt­age Regulator Module (VRM).
The power connectors from the power supply unit are designed to fi t the 24-pin and 8-pin connectors in only one orientation. Make sure to fi nd the proper orien- tation before plugging the connectors.
The system board requires a minimum of 300 Watt power supply to operate. Your system confi guration (CPU power, amount of memory, add-in cards, peripherals, etc.) may exceed the minimum power requirement. To ensure that adequate power is provided, we strongly recommend that you use a minimum of 400 Watt (or greater) power supply.
Important:
Insuffi cient power supplied to the system may result in instability or the add-in boards and peripherals not functioning properly. Calculating the system’s approximate power usage is important to ensure that the power supply meets the system’s consumption requirements.
Ground
ATX power
12V power
12V
8
5
4
1
24
12
13
1
+3.3VDC
-12VDC
GND
PS_ON#
GND
GND
GND
NC
+5VDC
+5VDC
+5VDC
GND
+3.3VDC
+3.3VDC
GND
+5VDC
GND
+5VDC
GND
PWR_OK
+5VSB
+12VDC
+12VDC
+3.3VDC
Page 42
42
2
Hardware Installation
1
2
19
This LED will lit red when the system is in the standby mode. It indicates that there is power on the system board. Power-off the PC then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.
Standby Power LED
Standby Power LED
Page 43
43
2
Hardware Installation
1
2
19

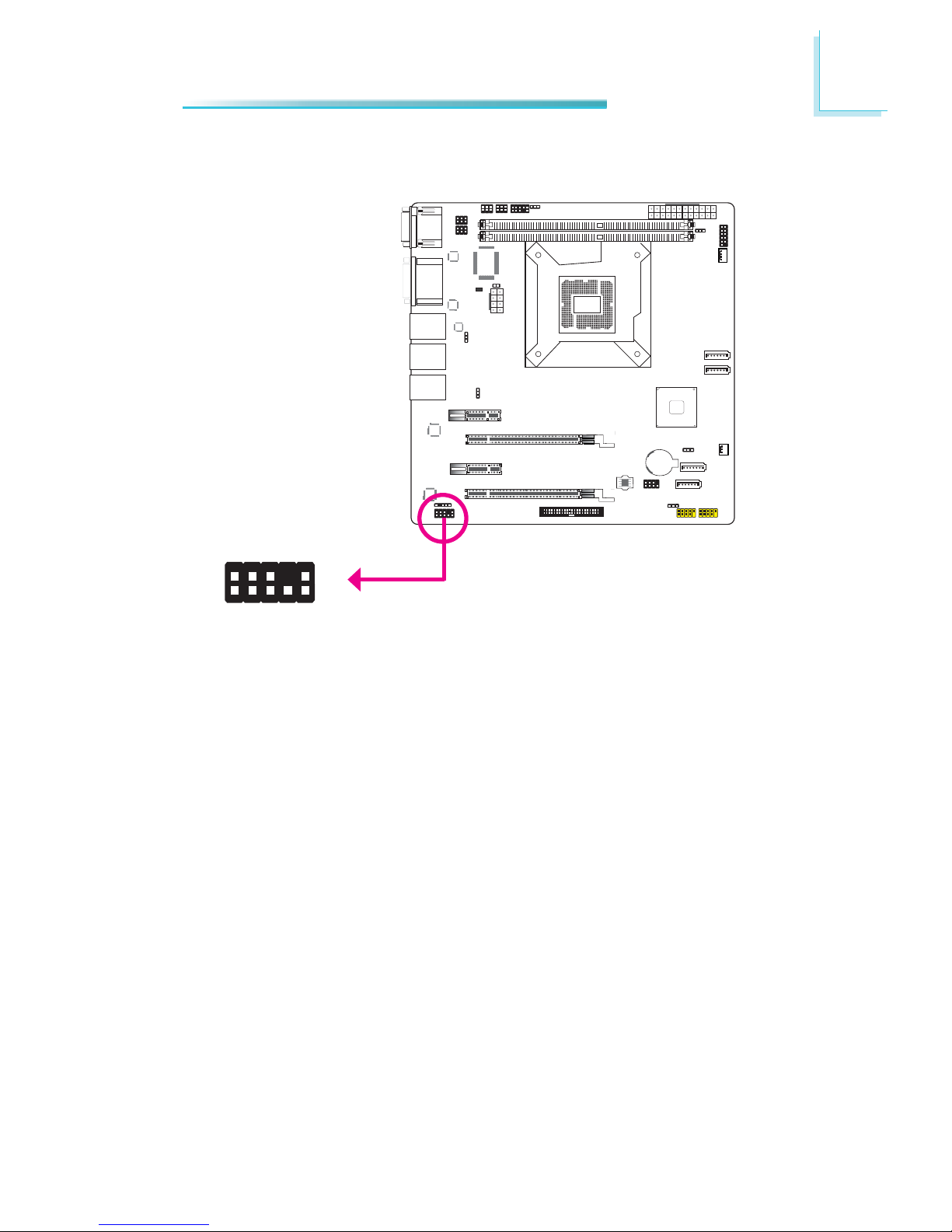

Front Panel Connectors
HDD-LED - HDD LED
This LED will light when the hard drive is being accessed.
RESET SW - Reset Switch
This switch allows you to reboot without having to power off the system.
PWR-BTN - Power Switch
This switch is used to power on or off the system.
PWR-LED - Power/Standby LED
When the system’s power is on, this LED will light. When the system is in the S1 (POS - Power On Suspend) state, it will blink every second. When the system is in the S3 (STR - Suspend To RAM) state, it will blink every 4 seconds.
HDD-LED
RESET-SW
PWR-LED
PWR-BTN
12
11
21
Pin Pin Assignment Pin Pin Assignment
HDD-LED
3 HDD Power PWR-LED 2 LED Power
5 Signal 4 LED Power
RESET SW 7 Ground 6 Signal
9 RST Signal
PWR-BTN 8 Ground
11 N.C. 10 Signal
Page 44
44
2
Hardware Installation
1
2
19

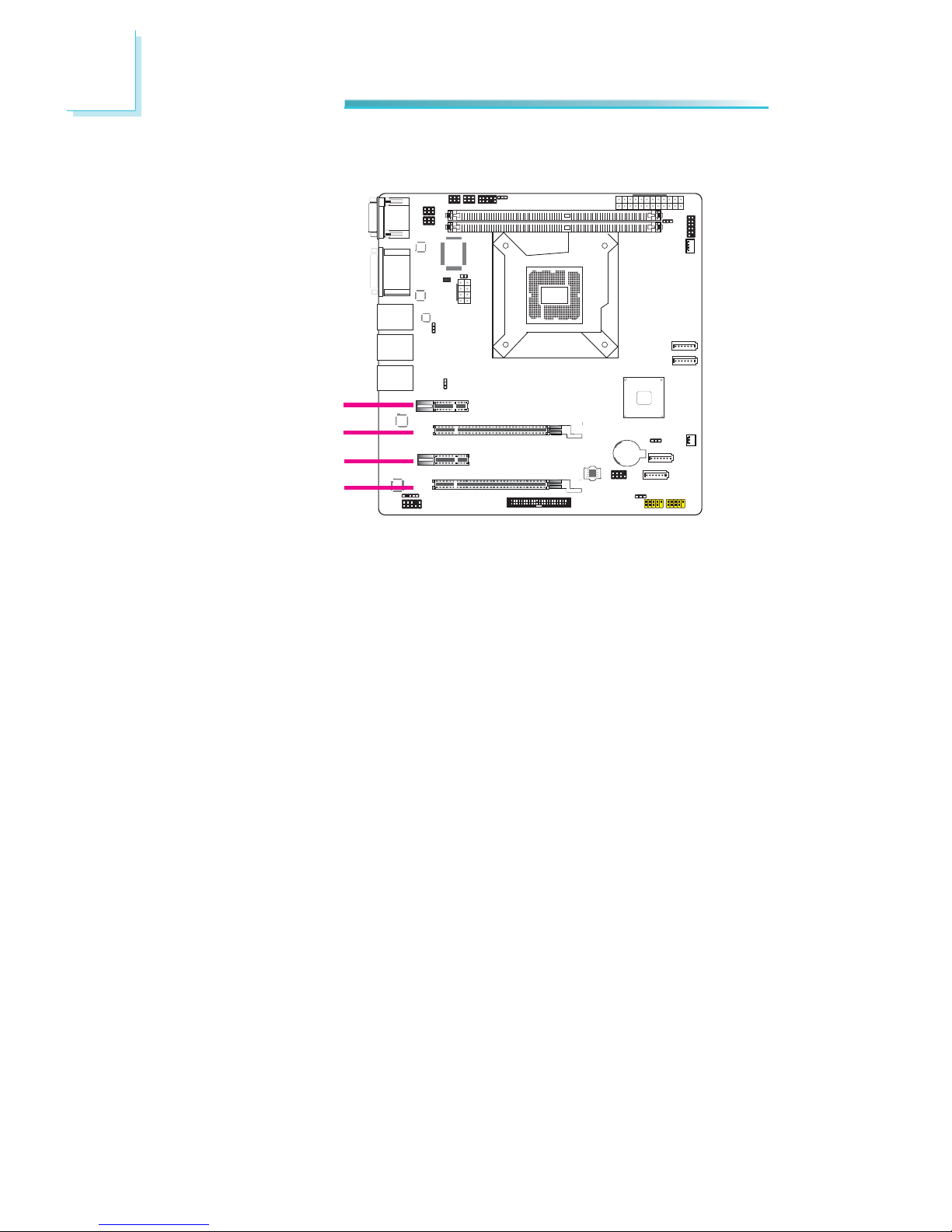

Expansion Slots
PCI Express x16 Slot
Install PCI Express x16 graphics card, that comply to the PCI Express specifi ca- tions, into the PCI Express x16 slot. To install a graphics card into the x16 slot, align the graphics card above the slot then press it down fi rmly until it is com- pletely seated in the slot. The retaining clip of the slot will automatically hold the graphics card in place.
PCI Express x1 Slot
Install PCI Express cards such as network cards or other cards that comply to the PCI Express specifi cations into the PCI Express x1 slot.
PCI Express x1
PCI Express x16
PCI Express x1
PCI Express x16
(x2 signal)
Page 45
45
2
Hardware Installation
1
2
19
The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source of power when the main power is shut off.
Safety Measures
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufac­turer.
• Dispose of used batteries according to local ordinance.
Battery
Battery
Page 46
46
2
Hardware Installation
1
2
19

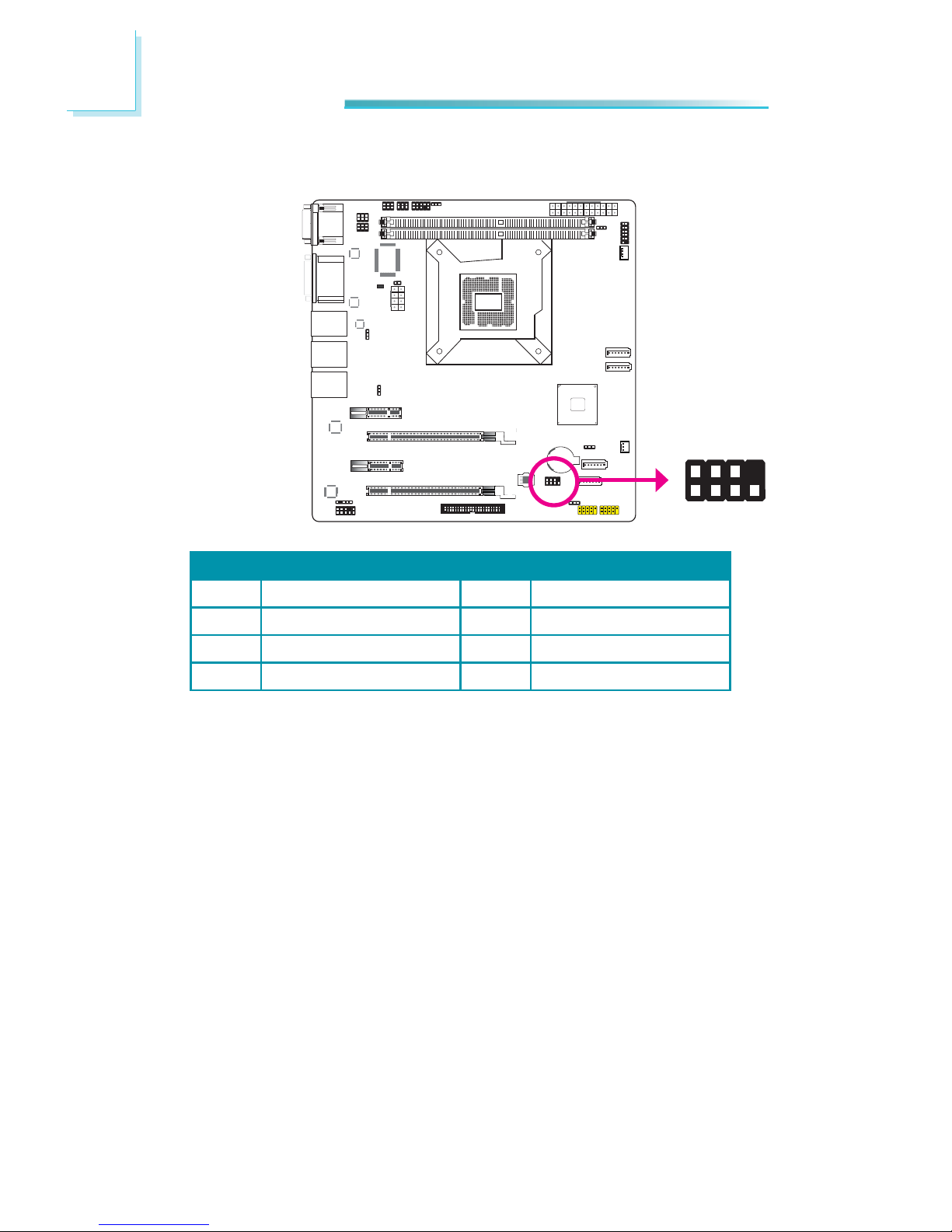

SPI JTAG Connector
1
2
7
Pin Pin Assignment Pin Pin Assignment
1 3V_standby 2 Ground
3 CS 4 CK
5SO 6SI
7 HOLOD- 8
Page 47
47
2
Hardware Installation
1
2
19

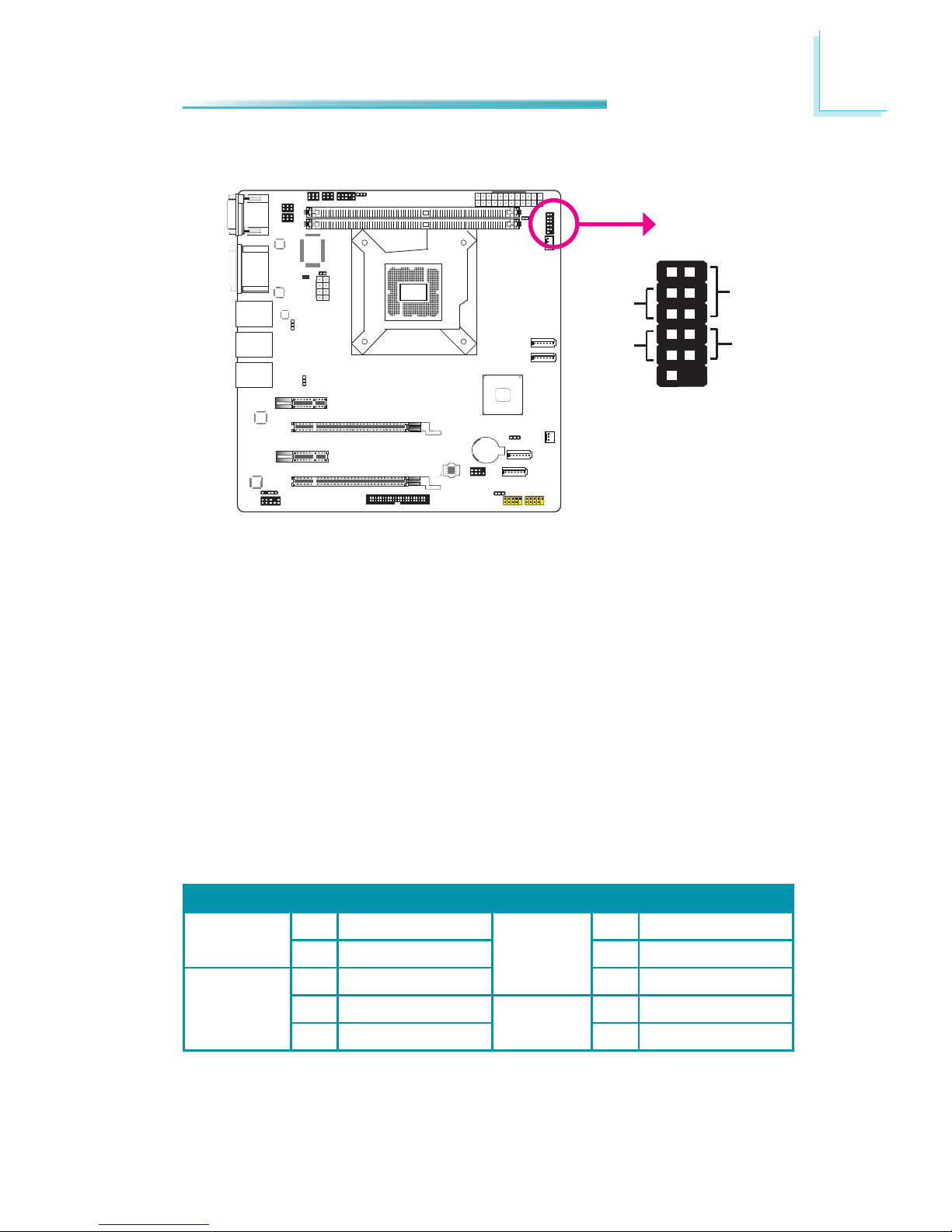

Digital I/O Connector

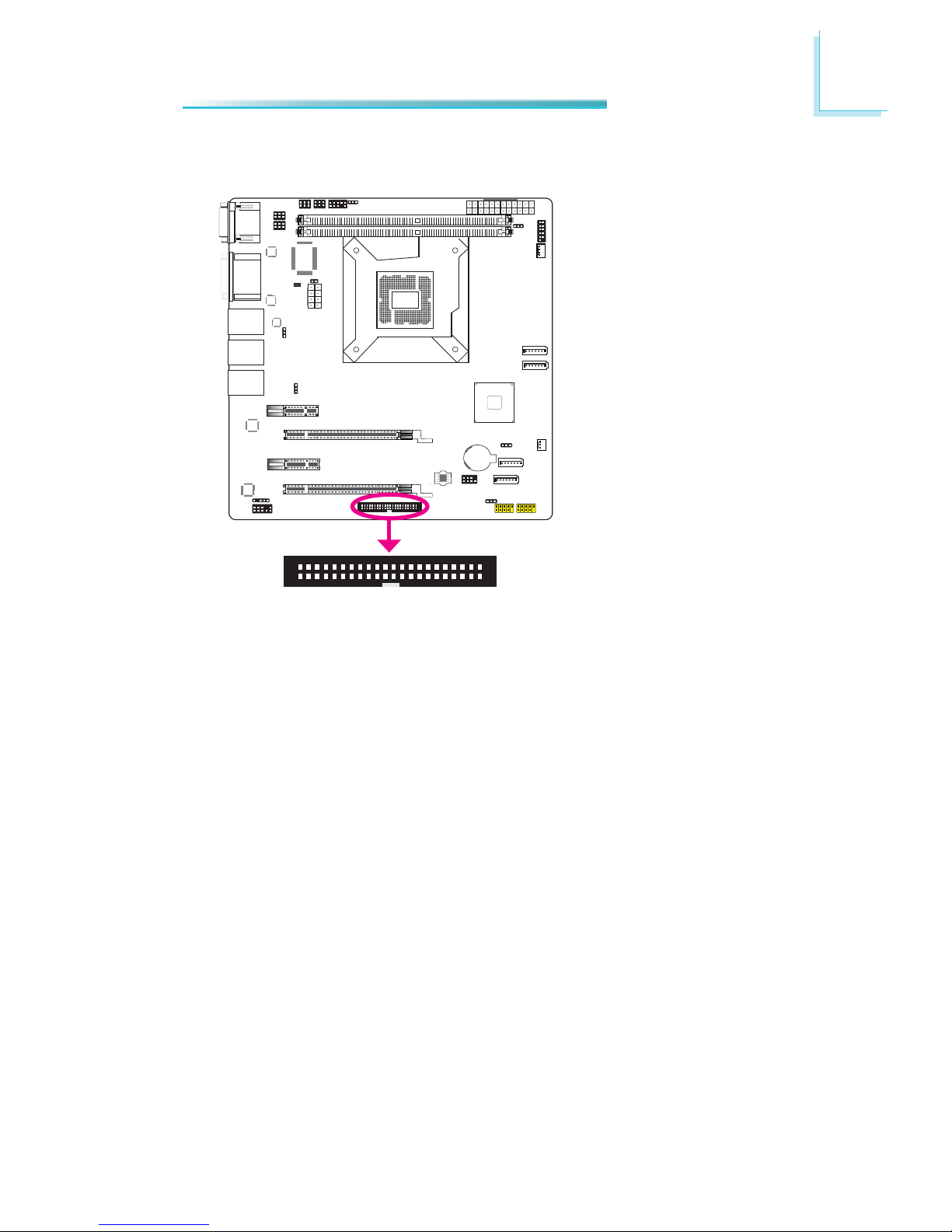

The 36-bit Digital I/O connector provides powering-on function to external de­vices that are connected to these connectors.
2
143
44
Page 48
48
2
Hardware Installation
Pin Pin Assignment Pin Pin Assignment
1 PCA_GPIO0 2 PCA_GPIO22
3 PCA_GPIO1 4 PCA_GPIO23
5 PCA_GPIO2 6 PCA_GPIO24
7 PCA_GPIO3 8 PCA_GPIO25
9 PCA_GPIO4 10 PCA_GPIO26
11 PCA_GPIO5 12 PCA_GPIO27
13 PCA_GPIO6 14 PCA_GPIO28
15 PCA_GPIO7 16 PCA_GPIO29
17 PCA_GPIO8 18 PCA_GPIO30
19 PCA_GPIO9 20 PCA_GPIO31
21 PCA_GPIO10 22 PCA_GPIO32
23 PCA_GPIO11 24 PCA_GPIO33
25 PCA_GPIO12 26 PCA_GPIO34
27 PCA_GPIO13 28 PCA_GPIO35
29 PCA_GPIO14 30 N.C.
31 PCA_GPIO15 32 PCA_INT-
33 PCA_GPIO16 34 PCA_OE-
35 PCA_GPIO17 36 +12V
37 PCA_GPIO18 38 5VDU
39 PCA_GPIO19 40 5V
41 PCA_GPIO20 42 Ground
43 PCA_GPIO21 44 Ground
Page 49
49
2
Hardware Installation
1
2
19

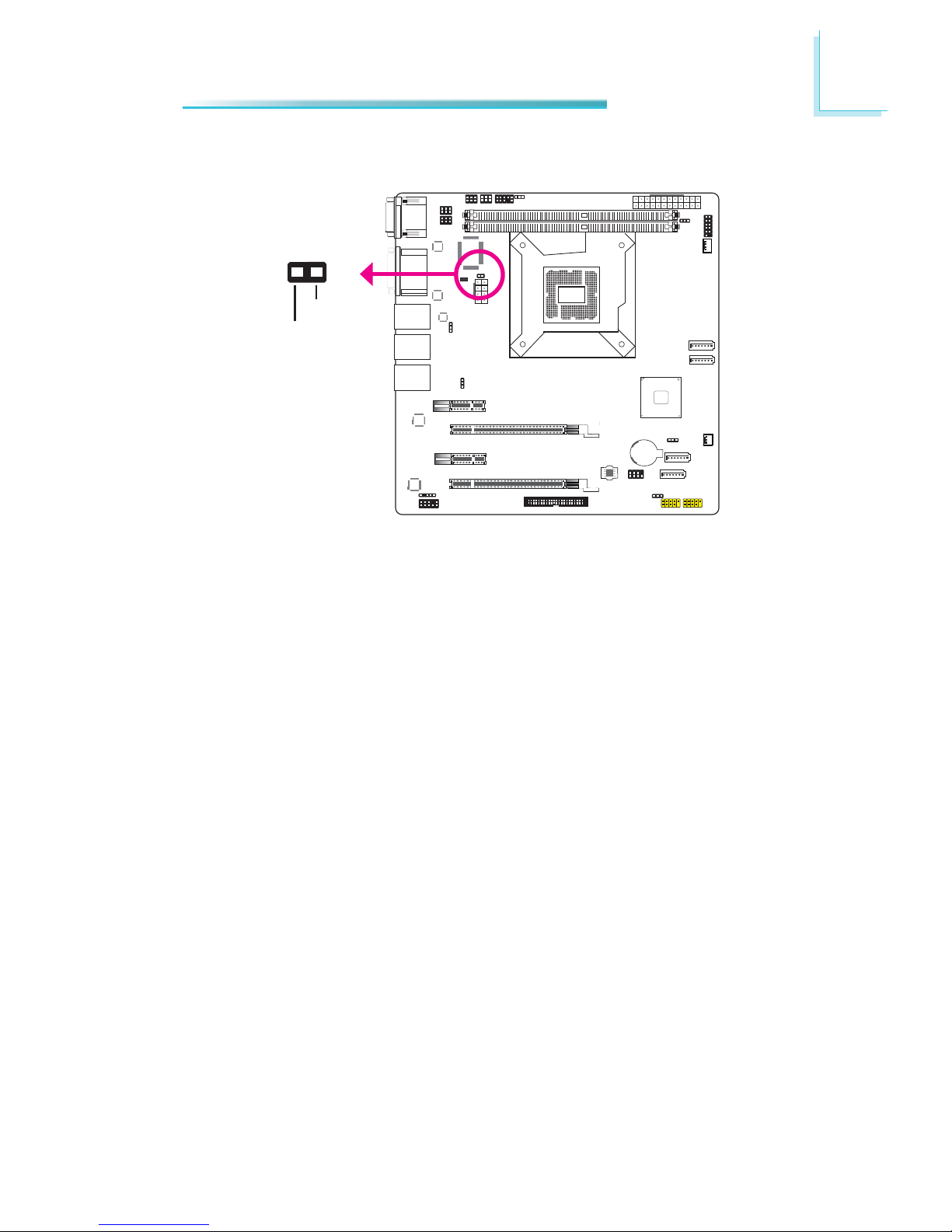

Chassis Intrusion Connector

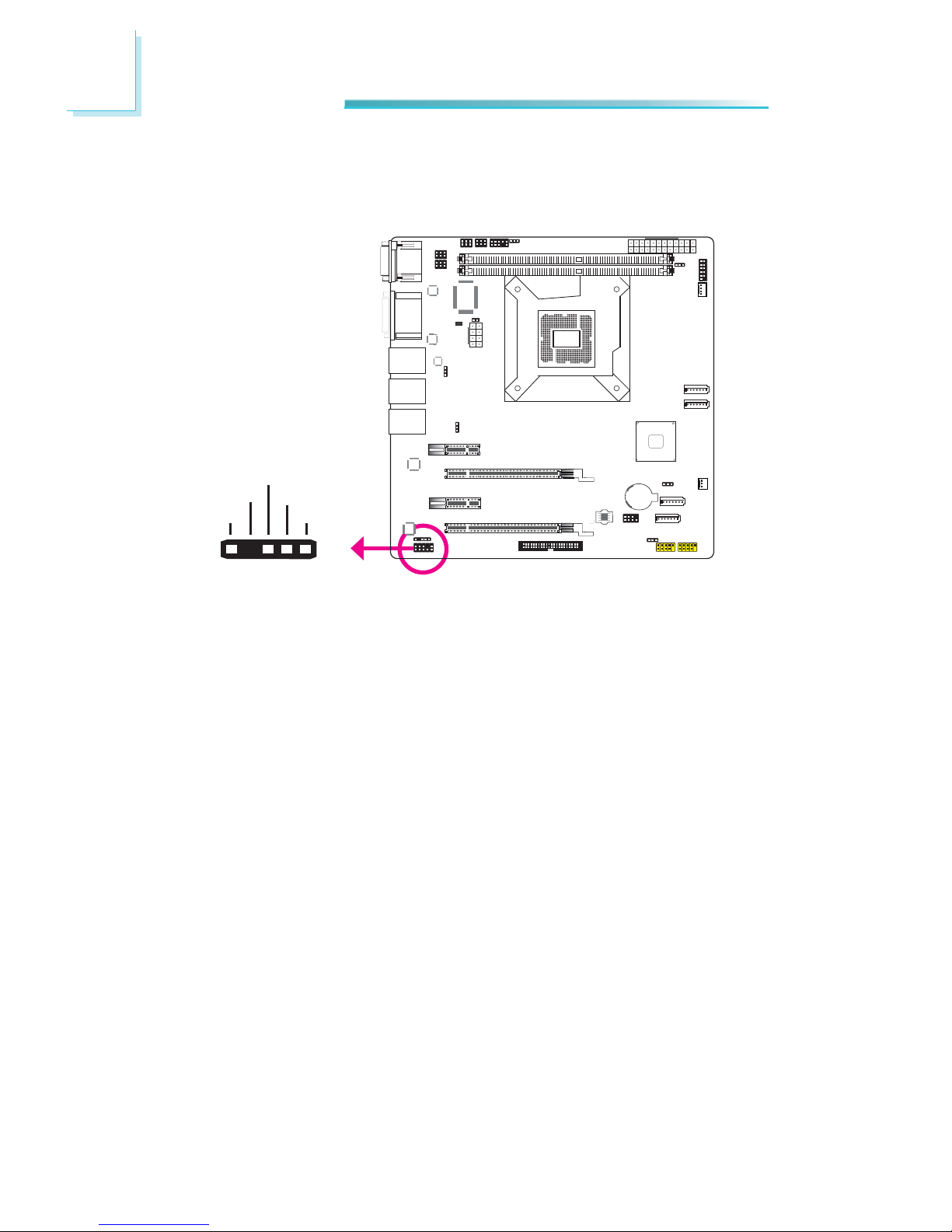

The board supports the chassis intrusion detection function. Connect the chas­sis intrusion sensor cable from the chassis to this connector. When the system’s power is on and a chassis intrusion occurred, an alarm will sound. When the system’s power is off and a chassis intrusion occurred, the alarm will sound only when the system restarts.
MyGuard Hardware Monitor
Install the “MyGuard Hardware Monitor” utility. By default, the chassis intrusion detection function is disabled. When enabled, a warning message will appear when the chassis is open. The utility can also be confi gured so that a beeping alarm will sound when the chassis is open. Refer to the “MyGuard Hardware Monitor” section in chapter 4 for more information.
Chassis
signal
Ground
12
Page 50
50
2
Hardware Installation
PS/2 Keyboard/Mouse Connector
1
2
19
10
9
1
2
KBCLK
GND
KEY
KBDATA
KBMS POWER
MSCLK
MSDATA
GND
GND
KBMS POWER

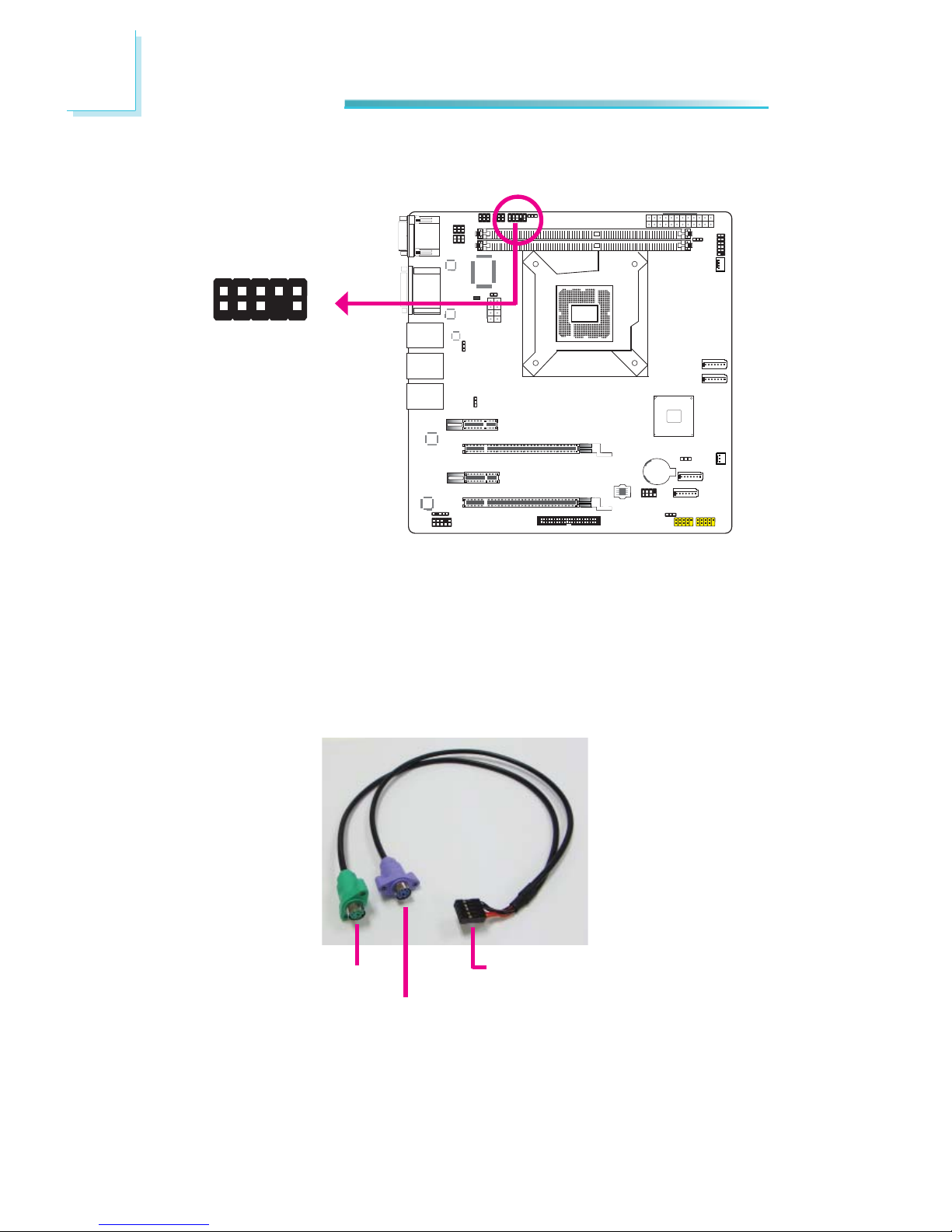

The KB/Mouse connector is used to connect PS/2 keyboard and PS/2 mouse by means of a PS/2 cable.
Connecting the PS/2 Cable
The system board package comes with a PS/2 cable. Connect one end of the cable to the KB/Mouse connector. The other ends are used to connect a PS/2 keyboard and a PS/2 mouse.
PS/2 keyboard port
PS/2 mouse
port
Connect to the board’s KB/Mouse connector
Page 51
51
2
Hardware Installation
Wake-On-PS/2 Keyboard/Mouse
The Wake-On-PS/2 Keyboard/Mouse function allows you to use the PS/2 key­board or PS/2 mouse to power-on the system. To use this function:
• Jumper Setting
JP7 must be set to “2-3 On: 5V_standby”. Refer to “PS/2 Power Select” in
this chapter for more information.
Important:
The 5V_standby power source of y
our power supply must support
720mA.
Page 52
52
3
BIOS Setup
Chapter 3 - BIOS Setup
Overview
The BIOS is a program that takes care of the basic level of communication be­tween the CPU and peripherals. It contains codes for various advanced features found in this system board. The BIOS allows you to confi gure the system and save the confi guration in a battery-backed CMOS so that the data retains even when the power is off. In general, the information stored in the CMOS RAM of the EEPROM will stay unchanged unless a confi guration change has been made such as a hard drive replaced or a device added.
It is possible that the CMOS battery will fail causing CMOS data loss. If this hap­pens, you need to install a new CMOS battery and reconfi gure the BIOS settings.
Note:
The BIOS is constantly updated to impro
ve the performance of the sys­tem board; therefore the BIOS screens in this chapter may not appear the same as the actual one. These screens are for reference purpose only.
Default Configuration
Most of the confi guration settings are either predefi ned according to the Load Op- timal Defaults settings which are stored in the BIOS or are automatically detected and confi gured without requiring any actions. There are a few settings that you may need to change depending on your system confi guration.
Entering the BIOS Setup Utility
The BIOS Setup Utility can only be operated from the keyboard and all com­mands are keyboard commands. The commands are available at the right side of each setup screen.
The BIOS Setup Utility does not require an operating system to run. After you power up the system, the BIOS message appears on the screen and the memory count begins. After the memory test, the message “Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously.
Page 53
53
3
BIOS Setup
Legends
Keys
Right and Left arrows
Up and Down arrows
<Esc> + (plus k
ey)
- (minus key)
Tab <F1> <F4> <Enter>
Function
Moves the highlight left or right to select a menu.
Mo
ves the highlight up or down
between submenus or fi elds. Exits to the BIOS Setup Utility. Scrolls forward through the values
or options of the highlighted fi eld. Scrolls backward through the values
or options of the highlighted fi eld. Selects a fi eld. Displays General Help. Saves and exits the Setup program. Press <Enter> to enter the high-
lighted submenu.
Scroll Bar
When a scroll bar appears to the right of the setup screen, it indicates that there are more available fi elds not shown on the screen. Use the up and down arrow keys to scroll through all the available fi elds.
Submenu
When ““ appears on the left of a particular fi eld, it indicates that a submenu which contains additional options are available for that fi eld. To display the sub- menu, move the highlight to that fi eld and press <Enter>.
Page 54
54
3
BIOS Setup
Main
The Main menu is the fi rst screen that you will see when you enter the BIOS Setup Utility.
System Language
Choose the system default language.
System Date
The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunda
y to Saturday. Month displays the month, from January to December. Date
displays the date, from 1 to 31. Year displays the year, from 1980 to 2099.
System Time
The time format is <hour>, <minute>, <second>. The time is based on the 24­hour military
-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.
Choose the system default language.
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Save & ExitChipset
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
BIOS Information BIOS Vendor Core Version Compliency Project Version Build Date and Time
Memory Information Total Memory
System Language
System Date System Time
Access Level
American Megatrends
4.6.4.1 UEFI 2.0 1AOQI 0.17 x64 01/13/2011 12:05:12
2048 MB (DDR3 1333)
[English]
[Fri 01/14/2011] [09:50:57]
Administrator
Advanced
Boot Security
Main
AMI BIOS Setup Utility
Page 55
55
3
BIOS Setup
Advanced
The Advanced menu allows you to confi gure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features ac­cording to your preference.
Important:
Setting incorrect
eld values may cause the system to malfunction.
Launch PXE OpROM
Enables or disables the boot option for legacy network devices.
Launch Storage OpROM
Enables or disables the boot option for legacy mass storage devices with option ROM.
Enable or Disable Boot Option for Legacy Net­work Devices.
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Legacy OpROM Support
Launch PXE OpROM Launch Storage OpROM
ACPI Power Management Con guration
Trusted Computing
PC Health Status
CPU Con guration
SATA Con guration
Intel IGD SWSCI OpRegion
Intel TXT(LT) Con guration
USB Con guration
F71879 Super IO Con guration
[Disabled] [Enabled]
Save & ExitChipset Boot Security
Main
Advanced
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Page 56
56
3
BIOS Setup
ACPI Power Management Confi guration
This section is used to con
gure the ACPI Power Management.
Select the highest ACPI sleep state the system will enter, when the SUSPEND button is pressed.
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
ACPI Power Management Confi guration
ACPI Sleep State
Resume by PME Resume by Ring Resume by RTC Alarm
Advanced
[S3 (Suspend to RAM) ]
[Disabled] [Disabled] [Disabled]
ACPI Sleep State
Selects the highest ACPI sleep state the system will enter when the Suspend button is pressed.
S1(POS)
Enables the Power On Suspend function.
S3(STR) Enables the Suspend to RAM function.
Resume by PME
Enable this
eld to use the PME signal to wake up the system.
Resume by Ring
Set this
eld to Enabled to use the modem ring-on function. This will allow your system to power-on to respond to calls coming through an external or internal modem.
Resume by RTC Alarm
When Enabled, the system uses the RTC to generate a wakeup event.
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Page 57
57
3
BIOS Setup
Trusted Computing (optional)
This section con
gures settings relevant to Trusted Computing innovations.
Enables or Disables TPM support. O.S. will not show TPM. Reset of platform is required.
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
TPM Confi guration
TPM Support
Current TPM
Status Information
No TPM Hardware
Advanced
TPM Support
Enables or Disables TPM. O.S. will not show TPM. Resetting the platform is required.
[Disabled]
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Page 58
58
3
BIOS Setup
PC Health Status
This section displays the SIO hardware health monitor.
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Smart Fan Function
Case Open System Hardware Monitor
CPU
Temperature System Temperature CPU FAN Speed System FAN Speed VCore +5.0V +12V VDIMM +3.3V VSB5V VSB3V VBAT
Advanced
[Disabled]
: +53 C : +32 C : 3401 RPM : N/A : +1.192
V : +5.112 V : +12.056V : +1.536 V : +3.376 V : +5.032 V : +3.376 V : +3.312 V
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Smart Fan Function CPU Smart Fan Control
Boundary
1 Boundary 2 Boundary 3 Boundary 4 Speed Count 1 Speed Count 2 Speed Count 3 Speed Count 4 Speed Count 5
Advanced
[Automatic]
60 50 40 30 100 75 50 40 30
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Smart Fan Function
CPU Smart Fan Control
When this feature is set to Automatic, the CPU’
s fan speed will rotate ac­cording to the CPU’s temperature. The higher the temperature, the faster the speed of rotation.
Smart Fan Function
Enable CPU SmartFan
Page 59
59
3
BIOS Setup
Boundary 1 to Boundary 4
The range is from 0-127.
Speed Count 1 to Speed Count 5
The range is from 1-100.
Case Open
Set this
eld to Enabled to allow the system to alert you of a chassis intru-
sion event.
CPU Temperature to VBAT
These
elds will show the temperature, fan speed and output voltage of the
monitored devices or components.
Page 60
60
3
BIOS Setup
CPU Confi guration
This section is used to con
gure the CPU. It will also display the detected CPU
information.
Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled only one thread per enabled core is enabled.
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
CPU Confi guration
Socket 0 CPU Information
CPU Speed 64-bit
Limit CPUID Maximum Intel Virtualization Technology Power Technology
Advanced
3100 MHz Supported
[Disabled] [Disabled] [Energy Effi cient]
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled only one thread per enabled core is enabled.
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Socket 0 CPU Information
Intel(R) Core(TM) i5-2400 CPU @ 3.10GHz CPU Signature
Microcode Patch Max CPU Speed Min CPU Speed Processor Cores Intel HT Technology Intel VT-x Technology Intel SMX Technology
L1 Data Cache L1 Code Cache L2 Cache L3 Cache
Advanced
206a7 14 3100 MHz 1600 MHz
4 Not Supported Supported Supported
32 kB x 4 32 kB x 4 256 kB x 4 6144 kB
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Page 61
61
3
BIOS Setup
Limit CPUID Maximum
The CPUID instruction of some newer CPUs will return a value greater than
3. The default is Disabled because this problem does not exist in the Win­dows series oper
ating systems. If you are using an operating system other than Windows, this problem may occur. To avoid this problem, enable this eld to limit the return value to 3 or less than 3.
Intel Virtualization Technology
When this
eld is set to Enabled, the VMM can utilize the additional hardware
capabilities provided by Vanderpool Technology.
Power Technology
Enables the power management features.
Page 62
62
3
BIOS Setup
SATA Confi guration
This section is used to con
gure SATA functions.
(1) IDE Mode. (2) AHCI Mode. (3) RAID Mode.
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
SATA Confi guration
SATA Mode
Serial-A
TA Controller 0
Serial-ATA Controller 1
SATA Port 0 SATA Port 1 SATA Port 4 SATA Port 5
Advanced
[IDE Mode]
[Compatible] [Enhanced]
Not Present Not Present ST3160815AS Not Present
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
SATA Mode
IDE Mode
This option con
gures the Serial ATA drives as Parallel ATA storage devices.
AHCI Mode
This option allows the Serial ATA devices to use AHCI (Advanced Host Con­troller Interface).
RAID Mode
This option allows you to create RAID or Intel Matrix Storage confi guration on Serial ATA devices.
Serial-ATA Controller 0 and Serial-ATA Controller 1
These
elds are used to enable or disable the Serial ATA channels.
Page 63
63
3
BIOS Setup
If AHCI or RAID is selected in the SATA Mode fi eld, it will display the following information:
Serial ATA Port 0, Serial ATA Port 1, Serial ATA Port 4 and Serial ATA Port 5
These
elds are used to confi gure the connected SATA devices.
(1) IDE Mode. (2) AHCI Mode. (3) RAID Mode.
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
SATA Confi guration
SATA Mode
SA
TA Port 0
Hot Plug SATA Port 1
Hot Plug SATA Port 4
Hot Plug SATA Port 5
Hot Plug
Advanced
[RAID Mode]
Not Present
[Disabled]
Not Present
[Disabled]
Not Present
[Disabled]
Not Present
[Disabled]
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Page 64
64
3
BIOS Setup
Intel IGD SWSCI OpRegion
This section is used to confi gure the Intel graphics display.
DVMT Mode Select
This
eld shows the current DVMT mode.
DVMT/FIXED Memory
This
eld is used to select the graphics memory size used by DVMT/Fixed
mode.
Spread Spectrum Clock
Leave this
eld in its default setting. Do not alter this setting unless advised
by an engineer or technician.
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Intel IGD SWSCI OpRegion Confi guration
DVMT Mode Select
DVMT/FIXED Memory IGD - Boot Type Spread Spectrum Clock
Advanced
[DVMT Mode]
[256MB] [VBIOS DEFAULT] [Disabled]
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Select DVMT Mode used by Internal Graphics Device
Page 65
65
3
BIOS Setup
Intel TXT (LT) Confi guration
This section is used to con
gure the Intel Trusted Execution technology.
Intel TXT(LT) Support
The options are Enabled and Disabled.
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Intel Trusted Execution Technology Confi guration Intel TXT support only can be enabled/disabled if SMX
is enabled. VT and VT-d support must also be enabled prior to TXT.
Secure Mode Extension (SMX) Intel TXT(LT) Support
Advanced
Enabled [Disabled]
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Page 66
66
3
BIOS Setup
USB Confi guration
This section is used to confi gure
USB.
Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
USB Confi guration USB Devices:
1 Keyboard, 1 Mouse, 2 Hubs
Legacy USB Support
EHCI Hand-off
Advanced
[Enabled]
[Disabled]
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Legacy USB Support
Enabled
Enables legacy USB
.
Auto
Disables support for legacy when no USB devices are connected.
Disabled
Keeps USB devices available only for EFI applications.
EHCI Hand-off
This is a workaround for OSes that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driv
er.
Page 67
67
3
BIOS Setup
F71879 Super IO Confi guration
This section is used to con
gure the I/O functions supported by the onboard
Super I/O chip.
Restore AC Power Loss help.
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
F71879 Super IO Confi guration
Super IO Chip
Restore AC Power Loss WatchDog Timer Super IO WatchDog Timer
Serial Port 1 Con guration
Serial Port 2 Con guration
Advanced
Fintek F71879
[Power Off]
[Disabled]
10
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Restore AC Power Loss
Off
When power returns after an AC power failure, the system’
s power is off. You
must press the Power button to power-on the system.
On
When power returns after an AC power failure, the system will automatically power-on.
Last State
When power returns after an AC power failure, the system will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.
WatchDog Timer
This
eld is used to select the time interval of the Watchdog timer. If the system hangs or fails to function, it will reset at the set time interval so that your system will continue to operate.
Page 68
68
3
BIOS Setup
Enable or Disable Serial Port (COM)
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Serial Port 1 Confi guration
Serial Port
Device Settings
Change Settings
Advanced
[Enabled]
IO=3F8h; IRQ=4;
[Auto]
Serial Port 1 Confi guration to Serial Port 2 Confi guration
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Serial Port
Enables or disables the serial port.
Change Settings
Selects the IO/IRQ setting of the I/O device.
Enable or Disable Serial Port (COM)
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Serial Port 2 Confi guration
Serial Port
Device Settings
Change Settings
Advanced
[Enabled]
IO=2F8h; IRQ=3;
[Auto]
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Page 69
69
3
BIOS Setup
Chipset
Confi gures relevant chipset functions.
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.

North Bridge

South Bridge

ME Subsystem
Save & Exit
Advanced
Boot Security
Main
Chipset
North Bridge Parameters
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Page 70
70
3
BIOS Setup
North Bridge
VT-d Enable/Disable
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Memory Information T
otal Memory
Memory Slot0 Memory Slot1
VT-d
Initiate Graphic
Adapter IGD Memory IGD Multi-Monitor
PCI Express Port
2048 MB (DDR3 1333) 0 MB (DDR3 1333)
2048 MB (DDR3 1333)
[Disabled]
[PEG/IGD] [64M] [Disabled]
[Auto]
Chipset
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
VT-d
The options are Enabled and Disabled.
Initiate Graphic Adapter
Selects the graphics controller to use as the primary boot device.
When this
eld is set to “IGD Function”, you can use the display output from both the integrated graphics and PCIe x16 graphics card to support total of 4 multiple displays (Extended Mode).
IGD Memory
Selects the internal graphics device’s shared memory size.
IGD Multi-Monitor
Selects Enabled to support multiple monitors.
PCI Express Port
This
eld is used to enable or disable the PCI Express Port function.
Page 71
71
3
BIOS Setup
South Bridge
Enable/Disable GbE control PME in S5.
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
SB Chipset Confi guration GbE Controller
Wake on Lan from S5
After G3
Audio Confi guration
Azalia HD Audio Azalia internal HDMI codec

PCI Express Ports Confi guration

USB Confi guration
[Enabled]
[Enabled]
[Power On]
[Enabled] [Disabled]
Chipset
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
GbE Controller
Enables or disables the Gigabit LAN controller.
Wake on Lan from S5
When enabled, it allows the system to wake up from S5 via the network LAN.
After G3
Power Off / WOL
P
ower-on the system via WOL after G3.
Power On
Power-on the system after G3.
Azalia HD Audio
Enables or disables the Azalia HD audio.
Azalia internal HDMI codec
Enables or disables the Azalia internal HDMI codec.
Page 72
72
3
BIOS Setup
On Board LAN2
Enables or disables the onboard LAN.
PCI Express Ports Confi guration
Enable/Disable the PCI Express Ports in the Chipset.
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
PCI Express Ports Confi guration
On Board LAN2
[Auto]
Chipset
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
All USB Devices
Enables or disables all USB devices.
EHCI Controller 1 and EHCI Controller 2
These fi elds are used to enable or disable Enhanced Host Controller Interface (USB 2.0).
USB Confi guration
Enable/Disable All USB Devices
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
USB Confi guration
All USB Devices
EHCI Controller 1 EHCI Controller 2
USB Port 0 USB Port 1 USB Port 2 USB Port 3 USB Port 4 USB Port 5 USB Port 8 USB Port 9 USB Port 10 USB Port 1
1
[Enabled]
[Enabled] [Enabled]
[Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled]
Chipset
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Page 73
73
3
BIOS Setup
USB Port 0 to USB Port 11
Enables or disables the selected USB port.
Page 74
74
3
BIOS Setup
ME Subsystem
ME Subsystem Help
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Intel ME Subsystem Con
guration ME Version
ME Subsystem
Execute MEBx
7.0.4.1197
[Enabled]
[Enabled]
Chipset
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
ME Subsystem
The options are Enabled and Disabled.
Execute MEBx
Enables or disables Management Engine BIOS.
Page 75
75
3
BIOS Setup
Setup Prompt Timeout
Selects the number of seconds to wait for the setup activation key. 65535(0xFFFF) denotes indefi nite
waiting.
Bootup NumLock State
This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric k
eypad is the number keys. When set to Off, the function of the nu-
meric keypad is the arrow keys.
Quiet Boot
Enables or disables the quiet boot function.
Boot Option #1 and Boot Option #2
Selects the boot sequence of the device.
Hard Drive BBS Priorities
Selects the sequence of the legacy devices in this group.
Boot
Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefi nite waiting.
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Boot Confi guration
Setup Prompt Timeout
Bootup NumLock State Quiet Boot
CSM16 Module Version Boot Option Priorities
Boot Option #1
Hard Drive BBS Priorities
Save & ExitChipset
Advanced
Security
Main
Boot
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
1
[On] [Disabled]
07.64
[SATA: ST3160815AS]
Page 76
76
3
BIOS Setup
Security
Set Setup Administrator Password
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Password Description If ONLY the Administrator’s password is set,
then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password must be 3 to 20 characters long.
Administrator Password
User Password
HDD Security Confi guration: HDD 0:ST3160815AS
Save & ExitChipset
Advanced
Main
Boot Security
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Administrator Password
Sets the administrator password.
User Password
Sets the user password.
Page 77
77
3
BIOS Setup
Save & Exit
Reset the system after saving the changes.
Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
Save Changes and Reset
Discard Changes and Reset
Save Options
Restore Defaults Save as User Defaults Restore User Defaults
Boot Override
SATA: ST3160815AS Launch EFI Shell from fi le system device
Chipset
Advanced
Main
Boot Security Save & Exit
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Save Changes and Reset
To save the changes, select this
eld and then press <Enter>. A dialog box
will appear. Select Yes to reset the system after saving all changes made.
Discard Changes and Reset
To discard the changes, select this
eld and then press <Enter>. A dialog box
will appear. Select Yes to reset the system setup without saving any changes.
Restore Defaults
To restore and load the optimized default values, select this
eld and then press <Enter>. A dialog box will appear. Select Yes to restore the default val­ues of all the setup options.
Save as User Defaults
To save changes done so far as user default, select this
eld and then press
<Enter>. A dialog box will appear. Select Yes to save values as user default.
Restore User Defaults
To restore user default to all the setup options, select this
eld and then
press <Enter>. A dialog box will appear. Select Yes to restore user default.
Page 78
78
3
BIOS Setup
Updating the BIOS
To update the BIOS, you will need the new BIOS fi le and a fl ash utility, AFUDOS. EXE. Please contact technical support or your sales representative for the fi les.
To execute the utility, type:
A:> AFUDOS BIOS_File_Name /b /p /n
then press <Enter>.
C:\AFU\AFUDOS>afudos fi lename /B /P /N
+--------------------------------------------------------------------------------------------------------+
AMI Firmware Update Utility(APTIO) v2.25
Copyright (C)2008 American Megatrends Inc. All Rights Reserved.
+--------------------------------------------------------------------------------------------------------+
| |
| |
Reading fi le ..............................
Erasing fl ash .............................
Writing fl ash .............................
Verifying fl ash ..........................
Erasing BootBlock ....................
Writing BootBlock ....................
Verifying BootBlock .................
C:\AFU\AFUDOS>
done done done done done done done
Page 79
79
4
Supported Software
The CD that came with the system board contains drivers, utilities and software applications required to enhance the performance of the system board.

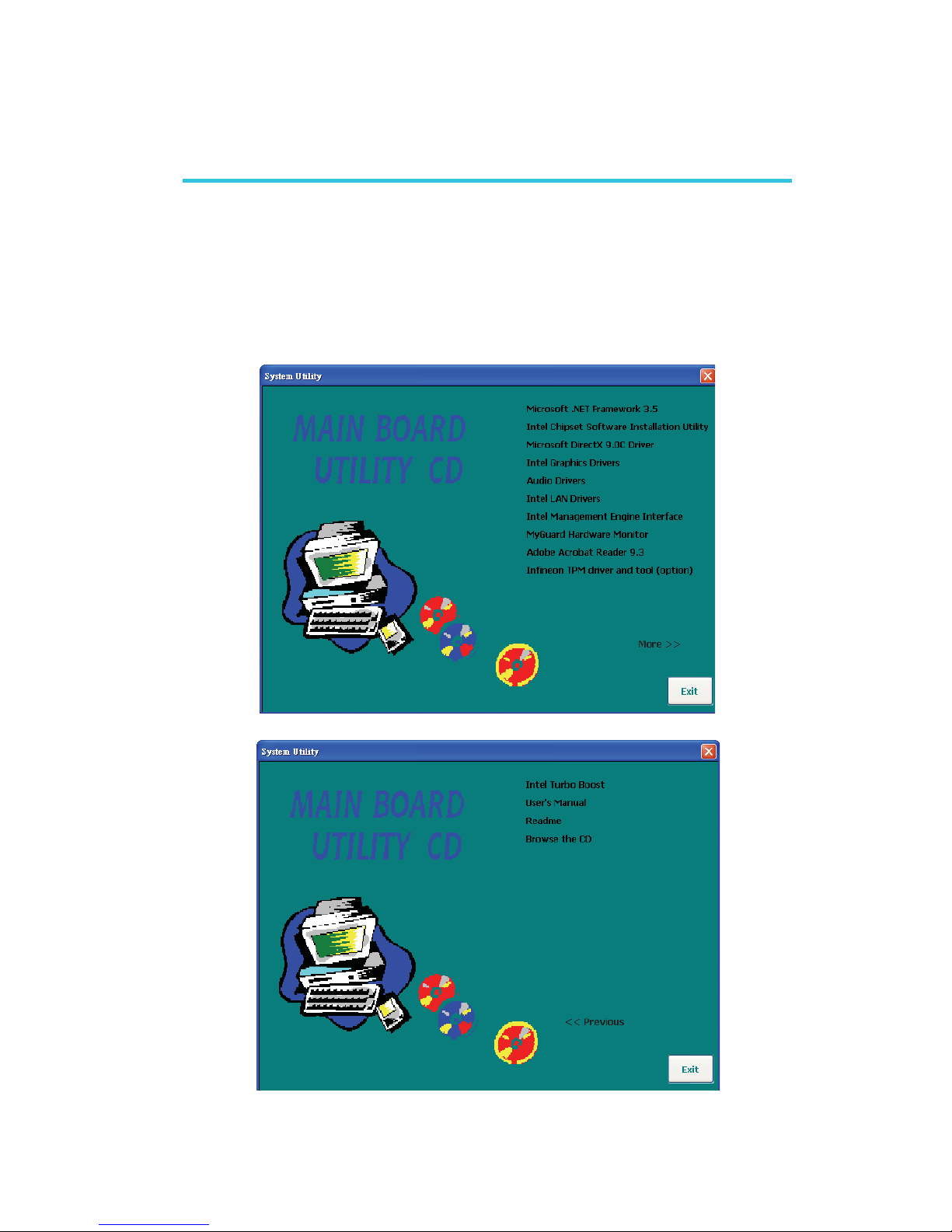

Insert the CD into a CD-ROM drive. The autorun screen (Mainboard Utility CD) will appear. If after inserting the CD, “Autorun” did not automatically start (which is, the Mainboard Utility CD screen did not appear), please go directly to the root directory of the CD and double-click “Setup”.
Chapter 4 - Supported Software
Page 80
80
4
Supported Software

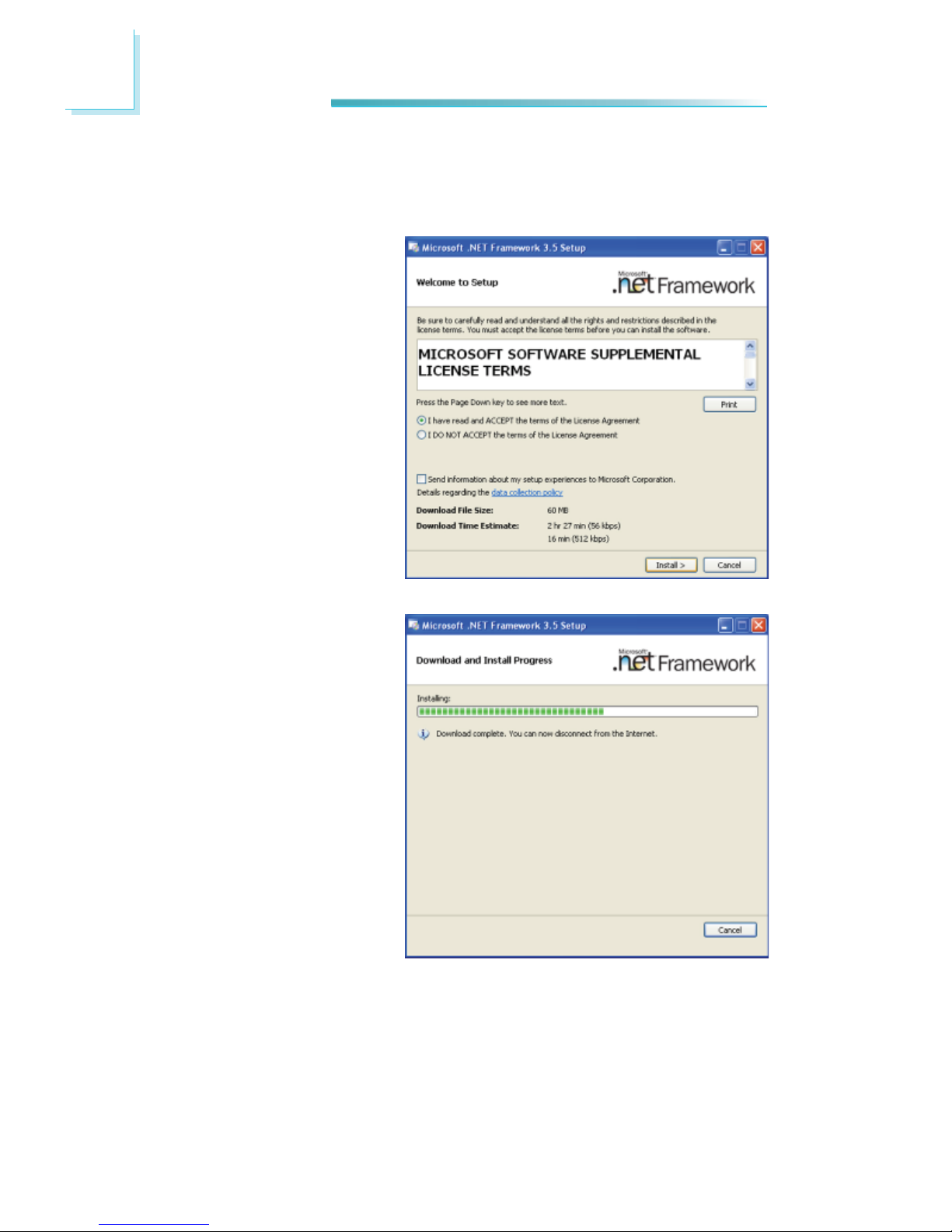

Microsoft .NET Framework 3.5
To install the driver, click “Microsoft .NET Framework 3.5” on the main menu.
1. Read the license agreement carefully.
Click “I have read and
accept the terms of the License Agreement” then click Install.
2. Setup is now installing the driver.
Page 81
81
4
Supported Software

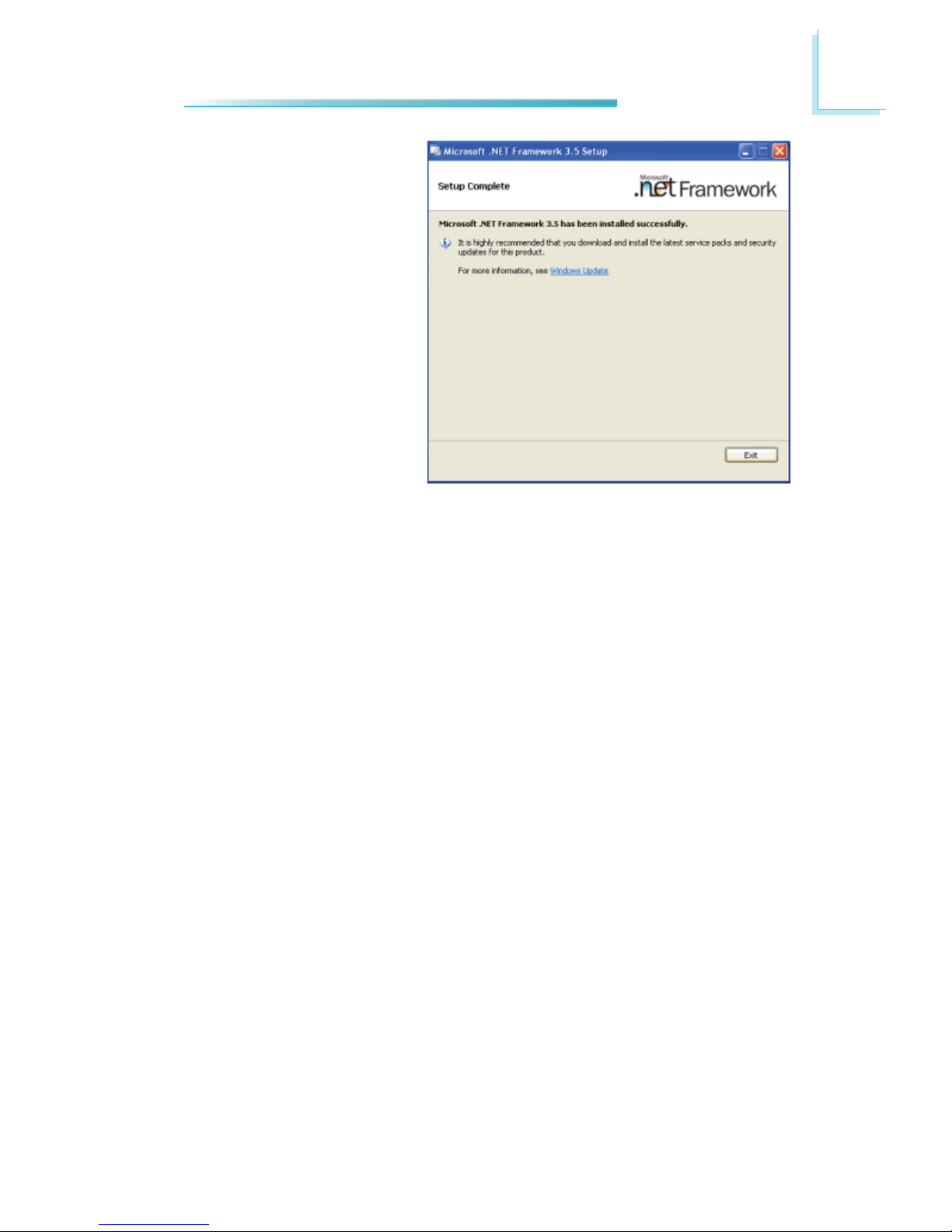

3. Click Exit.
Page 82
82
4
Supported Software

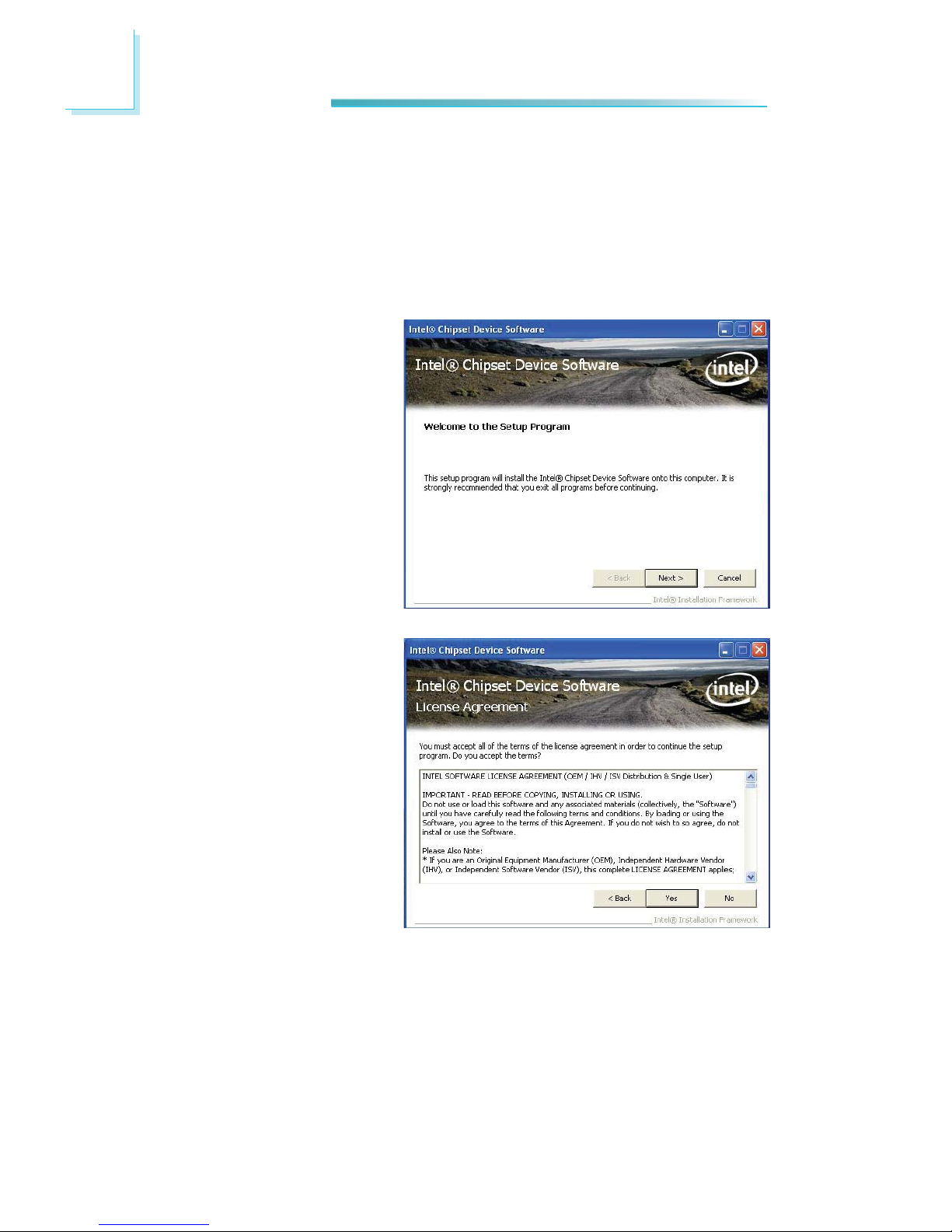

Intel Chipset Software Installation Utility
The Intel Chipset Software Installation Utility is used for updating Windows® INF les so that the Intel chipset can be recognized and confi gured properly in the system.
To install the utility, click “Intel Chipset Software Installation Utility” on the main menu.
1. Setup is now ready to in­stall the utility. Click Next.
2. Read the license agreement then click Yes.
Page 83
83
4
Supported Software

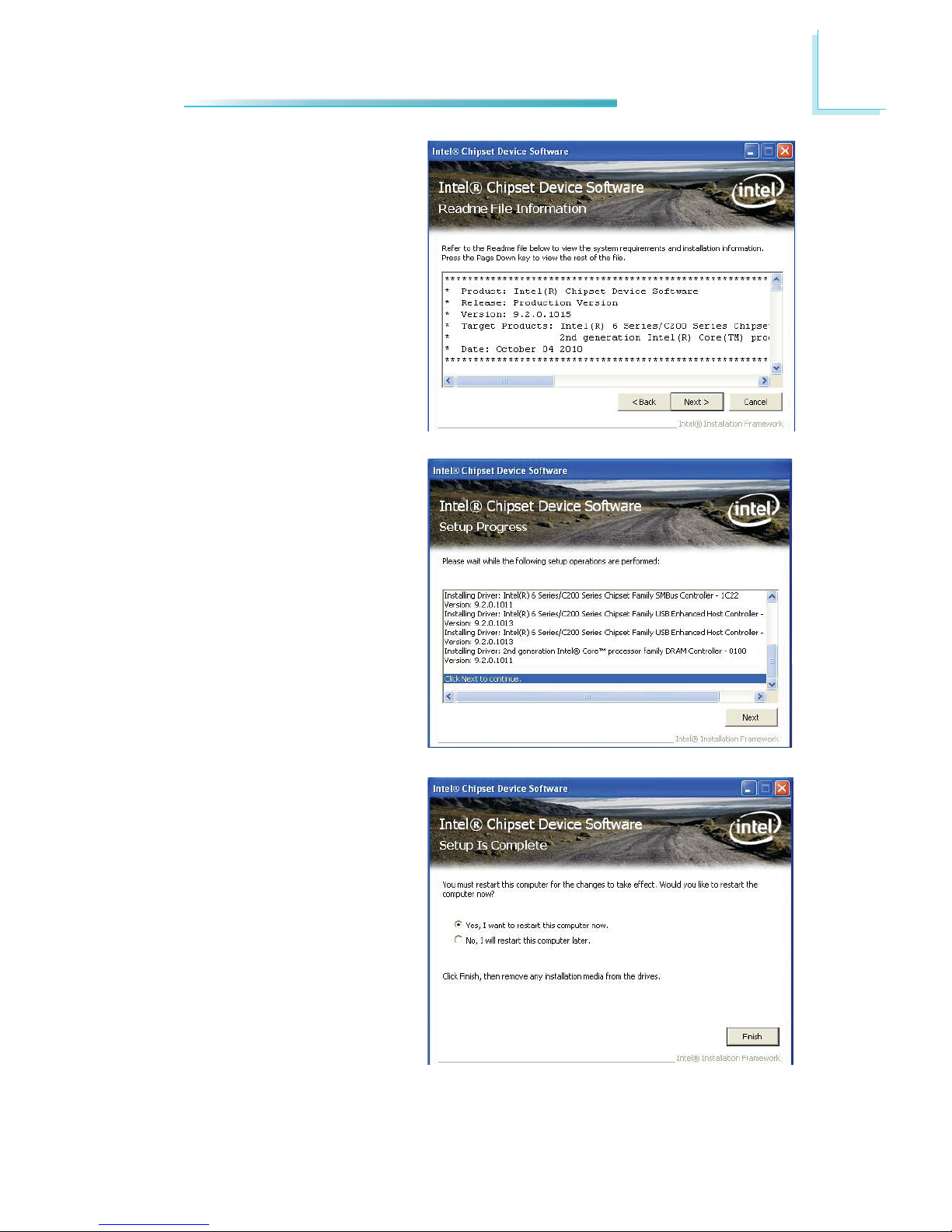

3. Go through the readme document for system re­quirements and installation tips then click Next.
4. Setup is now installing the driver. Click Next to con­tinue.
5. Click “Yes, I want to restart this computer now” then click Finish.
Restarting the system will
allow the new software in­stallation to take effect.
Page 84
84
4
Supported Software

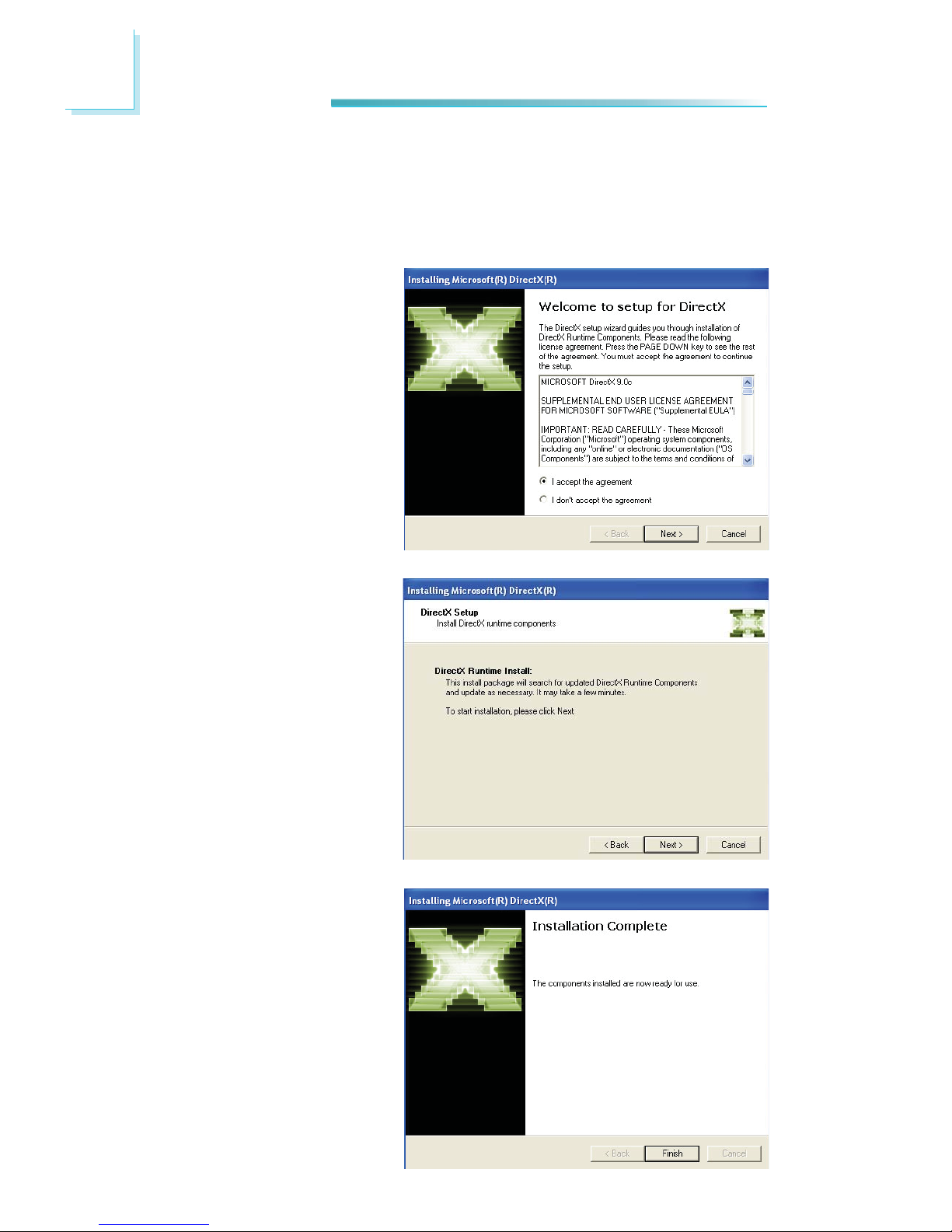

1. Click “I accept the agreement” then click Next.
Microsoft DirectX 9.0C Driver
To install the utility, click “Microsoft DirectX 9.0C Driver” on the main menu.
2. To start installation, click Next.
3. Click Finish. Reboot the system for DirectX to take effect.
Page 85
85
4
Supported Software
Intel Graphics Drivers
To install the driver, click “Intel Graphics Drivers” on the main menu.

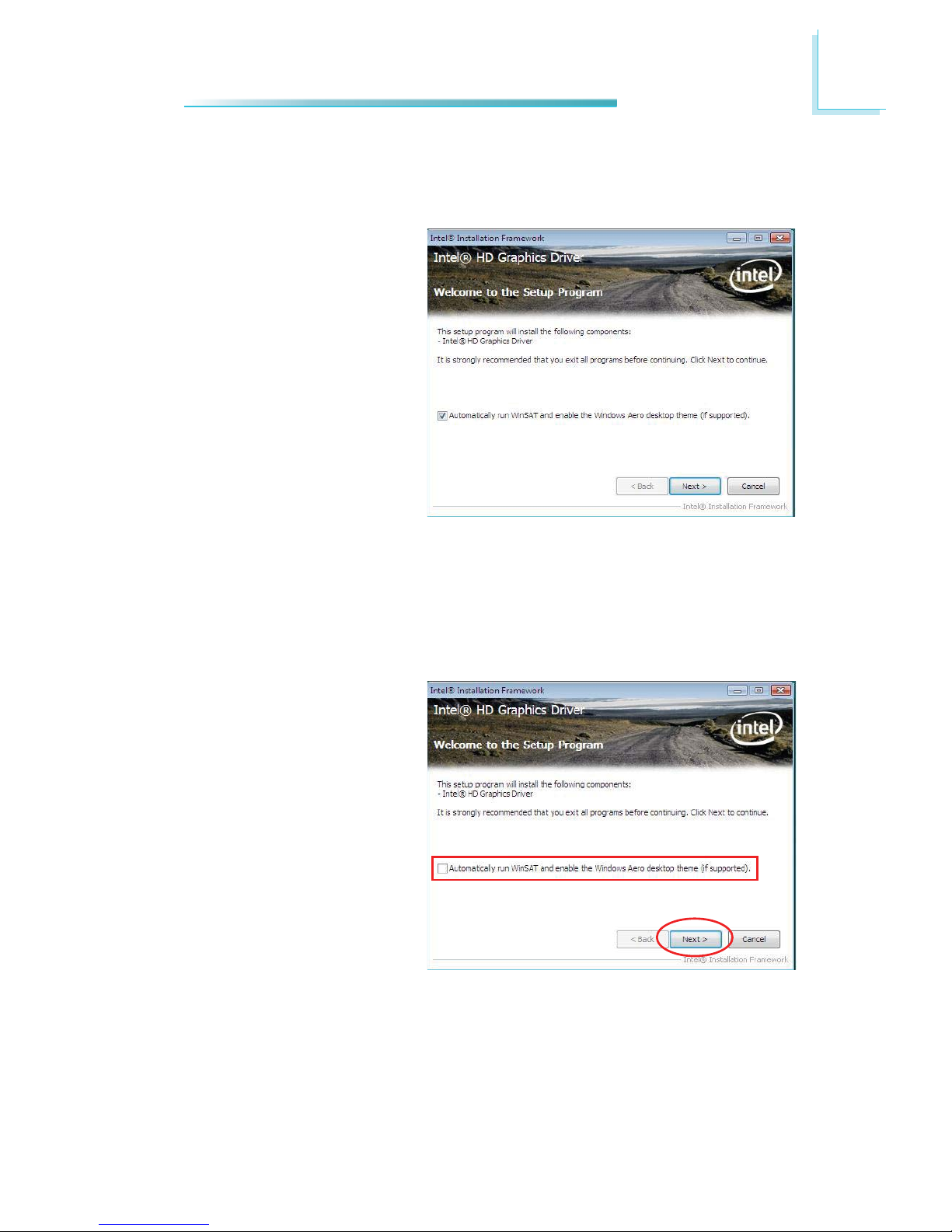

1. Setup is now ready to in­stall the graphics driver. Click Next.
By default, the “Automatically run WinSAT and enable the Windows Aero desktop theme” is enabled. With this enabled, after installing the graphics driver and the system rebooted, the screen will turn blank for 1 to 2 minutes (while WinSAT is running) before the Windows Vista desktop appears. The “blank screen” period is the time Windows is testing the graphics perfor­mance.
We recommend that you
skip this process by dis­abling this function then click Next.
Page 86
86
4
Supported Software

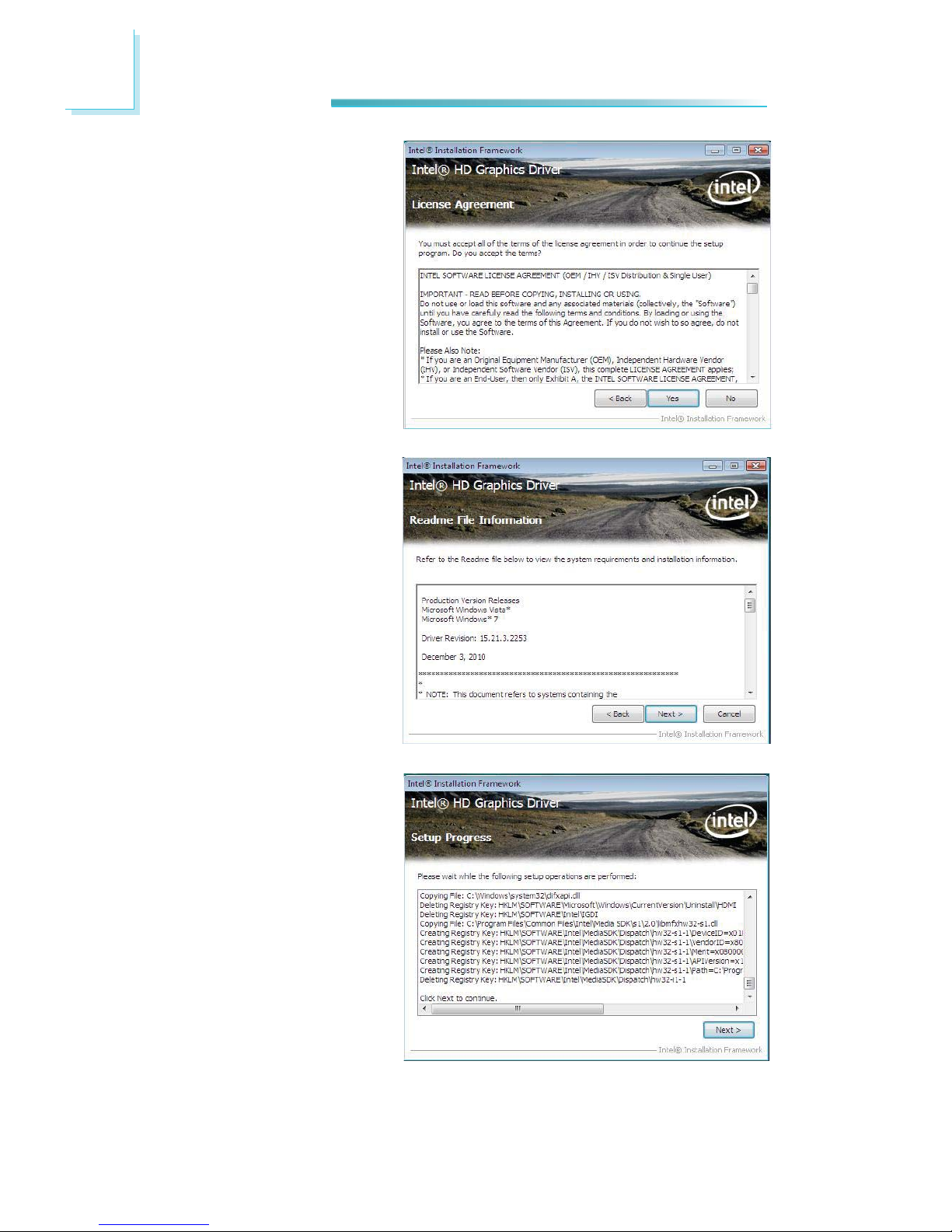

3. Go through the readme document for system re­quirements and installation tips then click Next.
2. Read the license agreement then click Yes.
4. Setup is currently installing the driver. After installation has completed, click Next.
Page 87
87
4
Supported Software

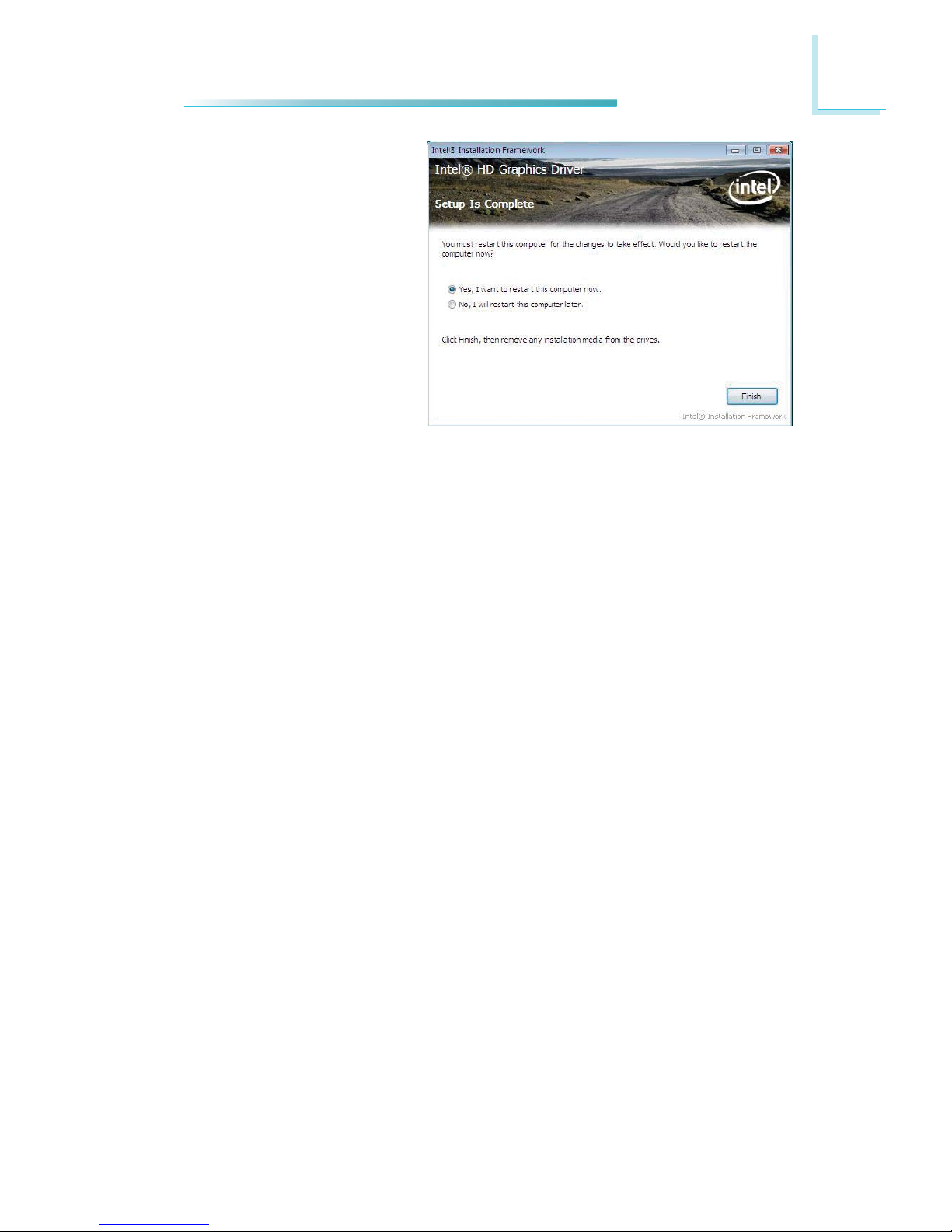

5. Click “Yes, I want to restart this computer now” then click Finish.
Restarting the system will
allow the new software in­stallation to take effect.
Page 88
88
4
Supported Software
Audio Drivers
To install the driver, click “Audio Drivers” on the main menu.
1. Setup is now ready to in­stall the audio driver. Click Next.
2. Follow the remainder of the steps on the screen; click­ing “Next” each time you nish a step.
3. Click “Yes, I want to restart my computer now” then click Finish.
Restarting the system will
allow the new software in­stallation to take effect.
Page 89
89
4
Supported Software
Intel LAN Drivers
To install the driver, click “Intel LAN Drivers” on the main menu.
1. Setup is ready to install the driver. Click Next.
2. Click “I accept the terms in the license agreement” then click “Next”.
3. Select the program featuers you want installed then click Next.
Page 90
90
4
Supported Software

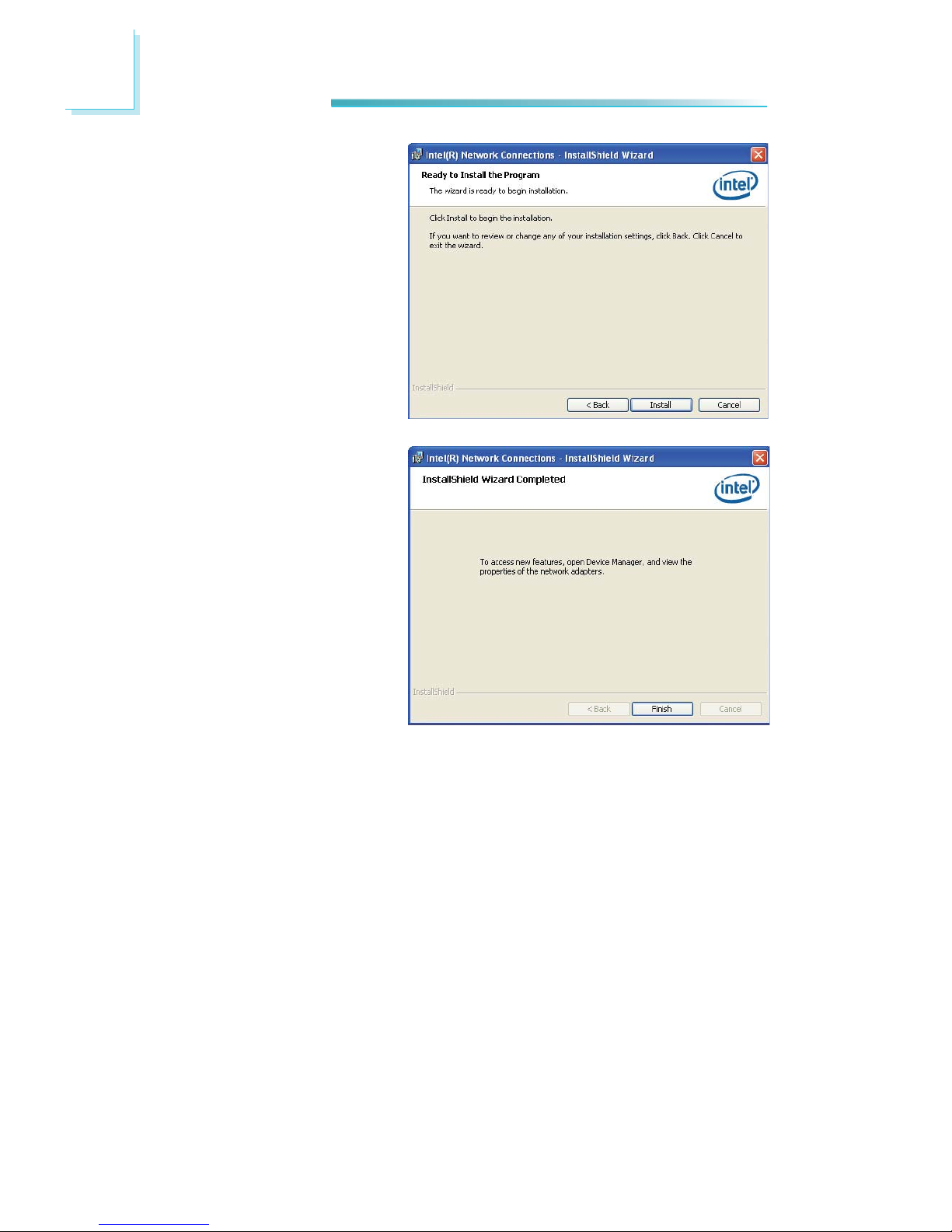

4. Click Install to begin the installation.
5. After completing installa­tion, click Finish.
Page 91
91
4
Supported Software
Intel Management Engine Interface
To install the driver, click “Intel Management Engine Interface” on the main menu.

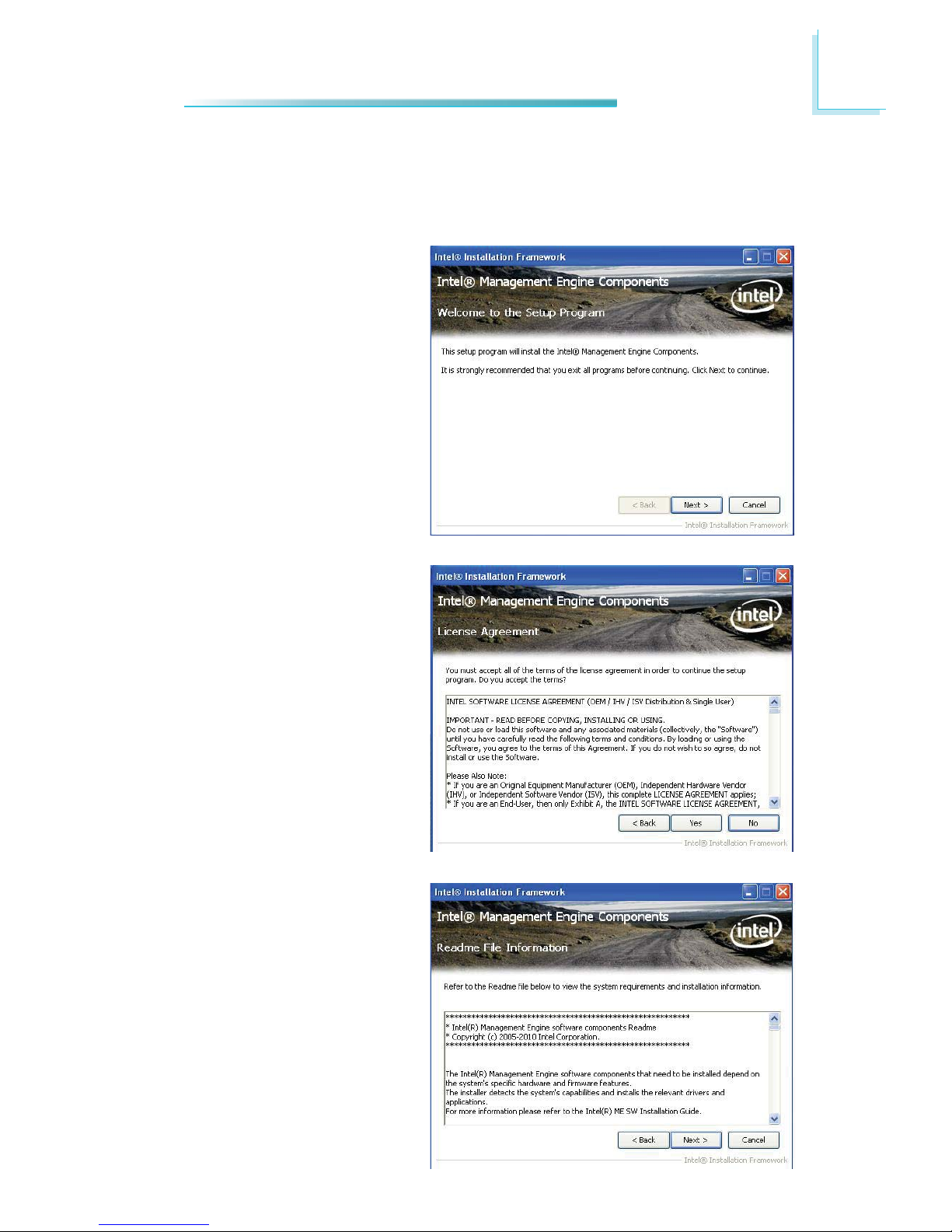

1. Setup is ready to install the driver. Click Next.
3. Go through the readme document for more installa­tion tips then click Next.
2. Read the license agreement then click Yes.
Page 92
92
4
Supported Software

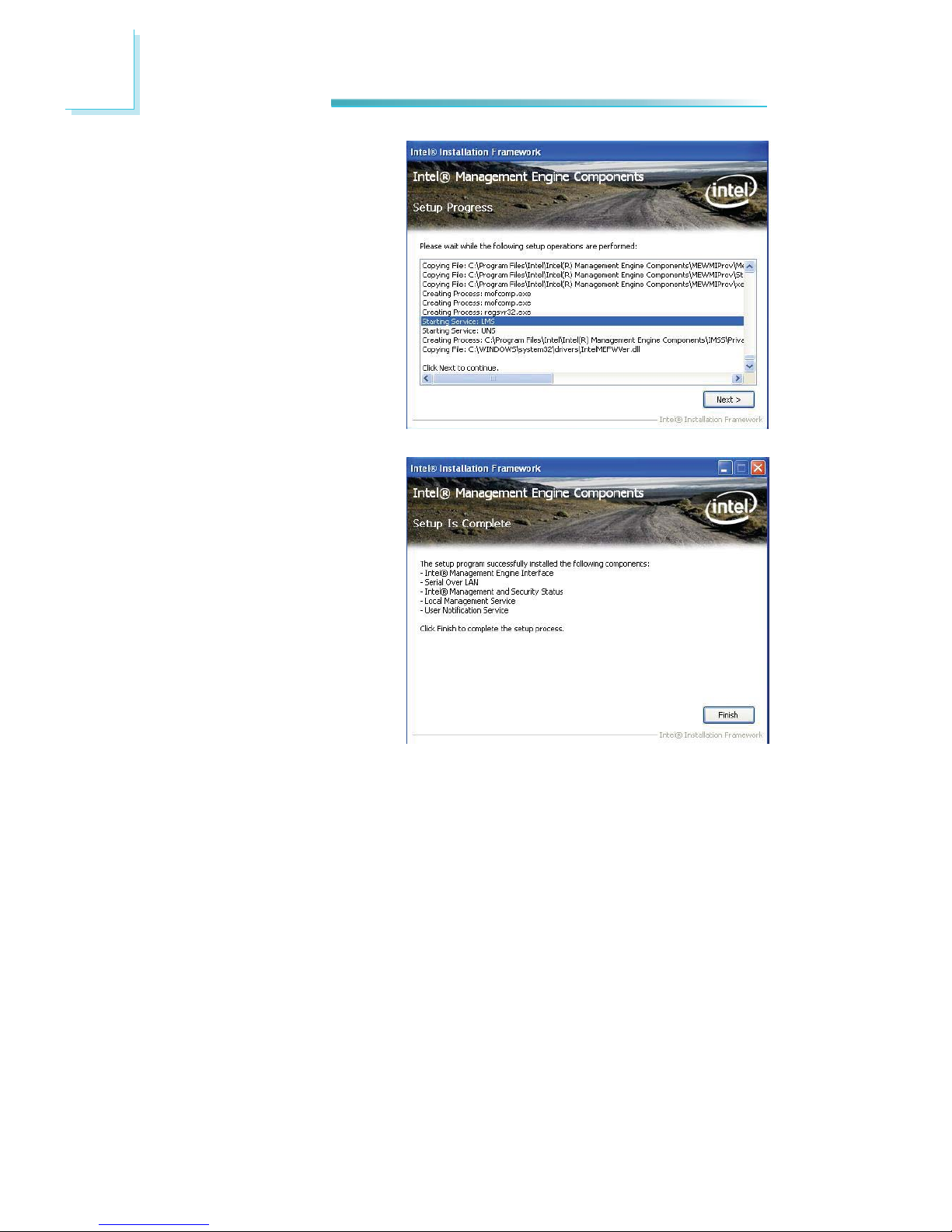

4. Setup is currently installing the driver. After installation has completed, click Next.
5. After completing installa­tion, click Finish.
Page 93
93
4
Supported Software
MyGuard Hardware Monitor
5. Setup is ready to install the utility. Click Next.
6. Click Install to begin instal­lation.
1. Locate for the MyGuard folder in the provided disc.
2. In the MyGuard folder, right-click on the “setup” le.
3. Select Run As Administra­tor.
4. Double-click Setup.
Important: P
erform steps 1-3 only when using Windows 7 or Windows Vista.
Page 94
94
4
Supported Software

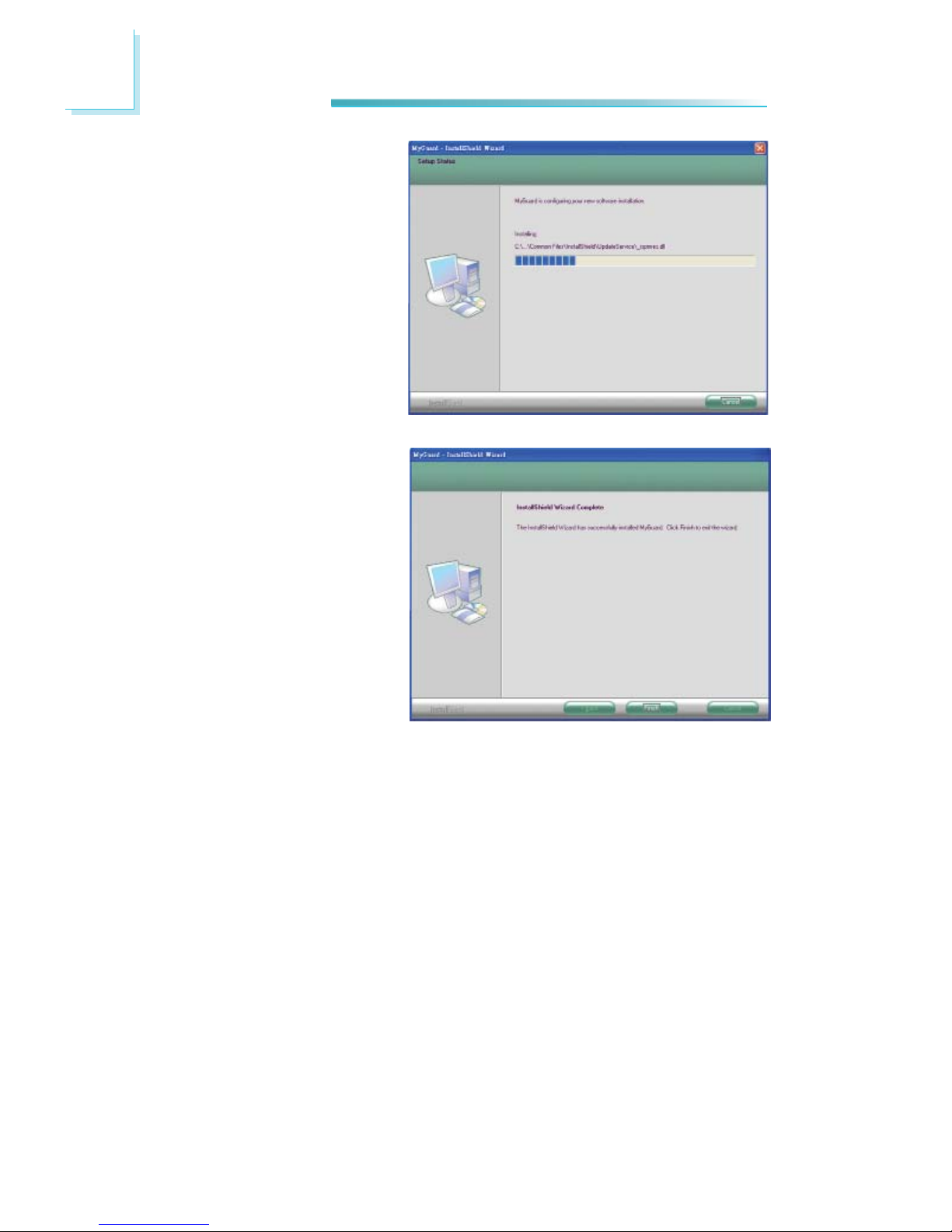

8. After completing instal­lation, click Finish to exit setup.
7. Setup is currently installing the utility.
Page 95
95
4
Supported Software

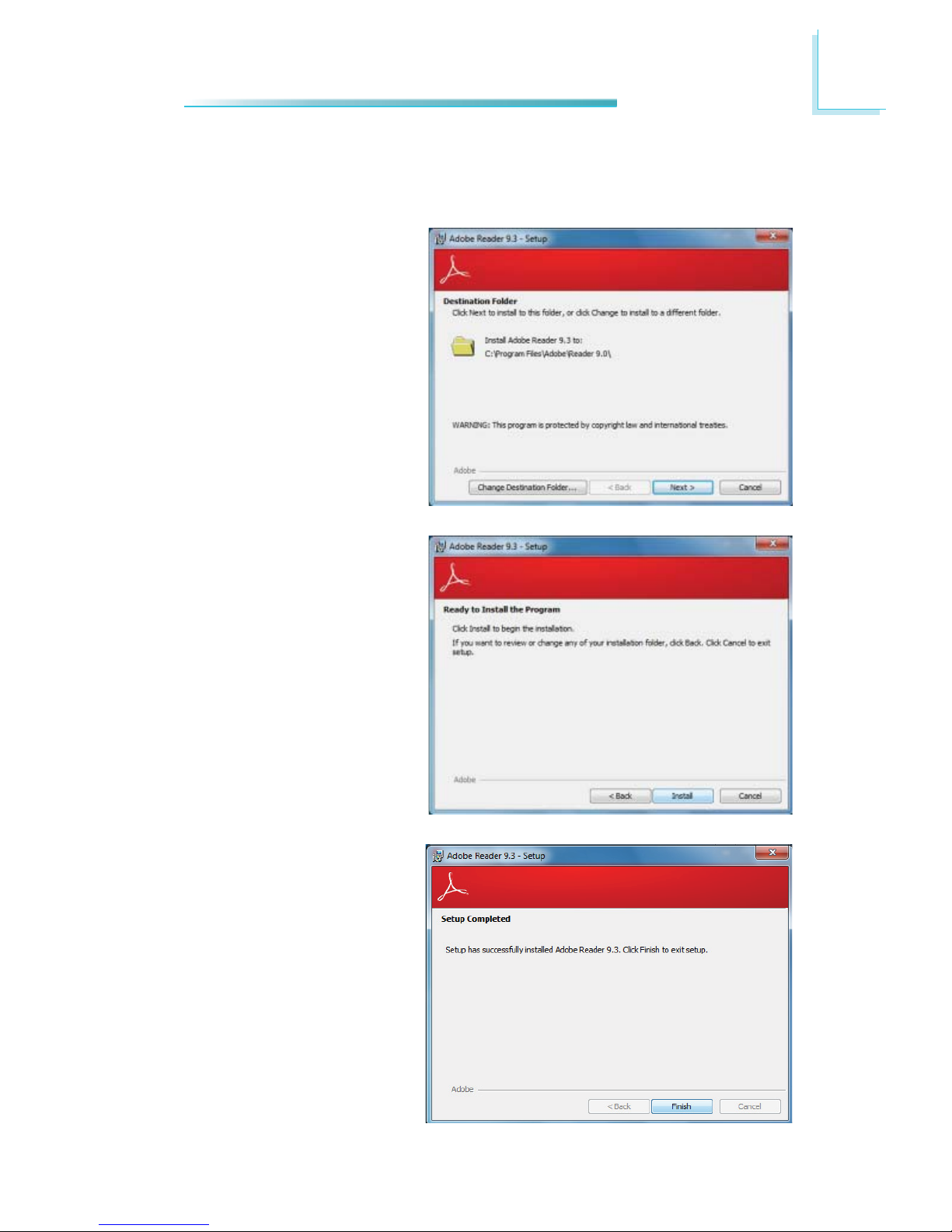

Adobe Acrobat Reader 9.3
To install the reader, click “Adobe Acrobat Reader 9.3” on the main menu.
1. Click Next to install or click Change Destination Folder to select another folder.
2. Click Install to begin instal­lation.
3. Click Finish to exit installa­tion.
Page 96
96
4
Supported Software

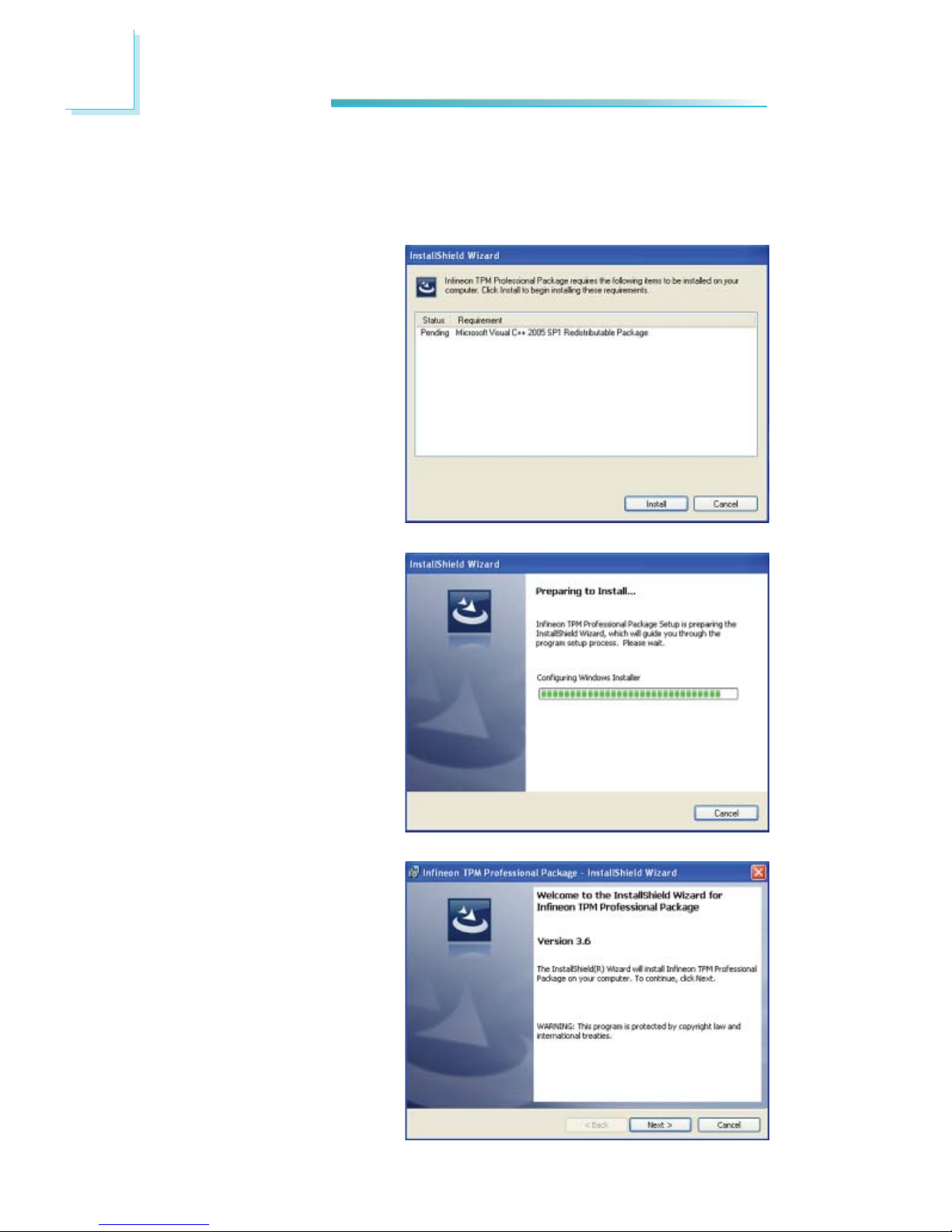

Infineon TPM Driver and Tool (optional)
To install the driver, click “Infi neon TPM driver and tool (option)” on the main menu.
1. TPM requires installing the Microsoft Visual C++ pack­age prior to installing the driver. Click Install.
2. The setup program is pre­paring to install the driver.
3. The setup program is ready to install the driver. Click Next.
Page 97
97
4
Supported Software

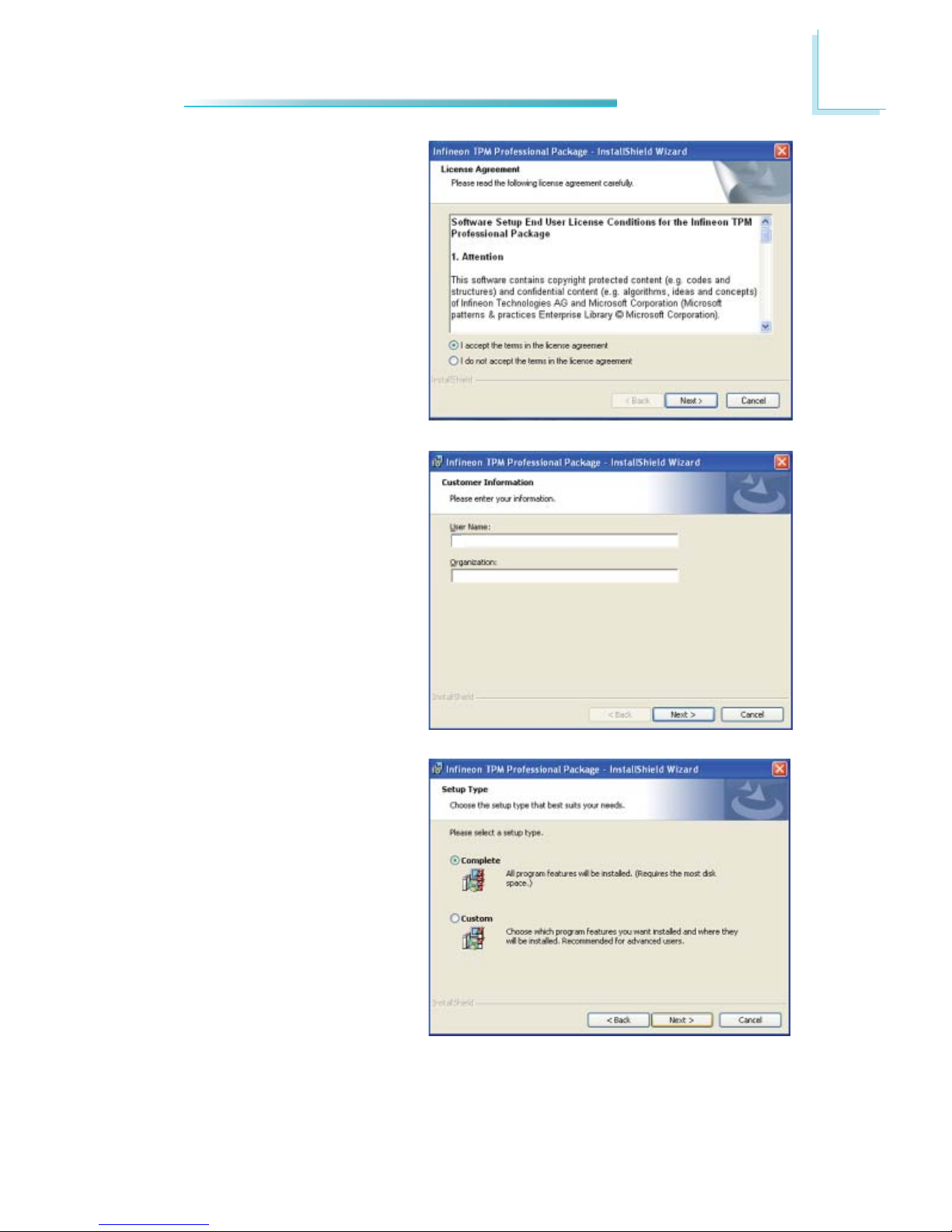

4. Click “I accept the terms in the license agreement” and then click “Next”.
5. Enter the necessary infor­mation and then click Next.
6. Select a setup type and then click Next.
Page 98
98
4
Supported Software

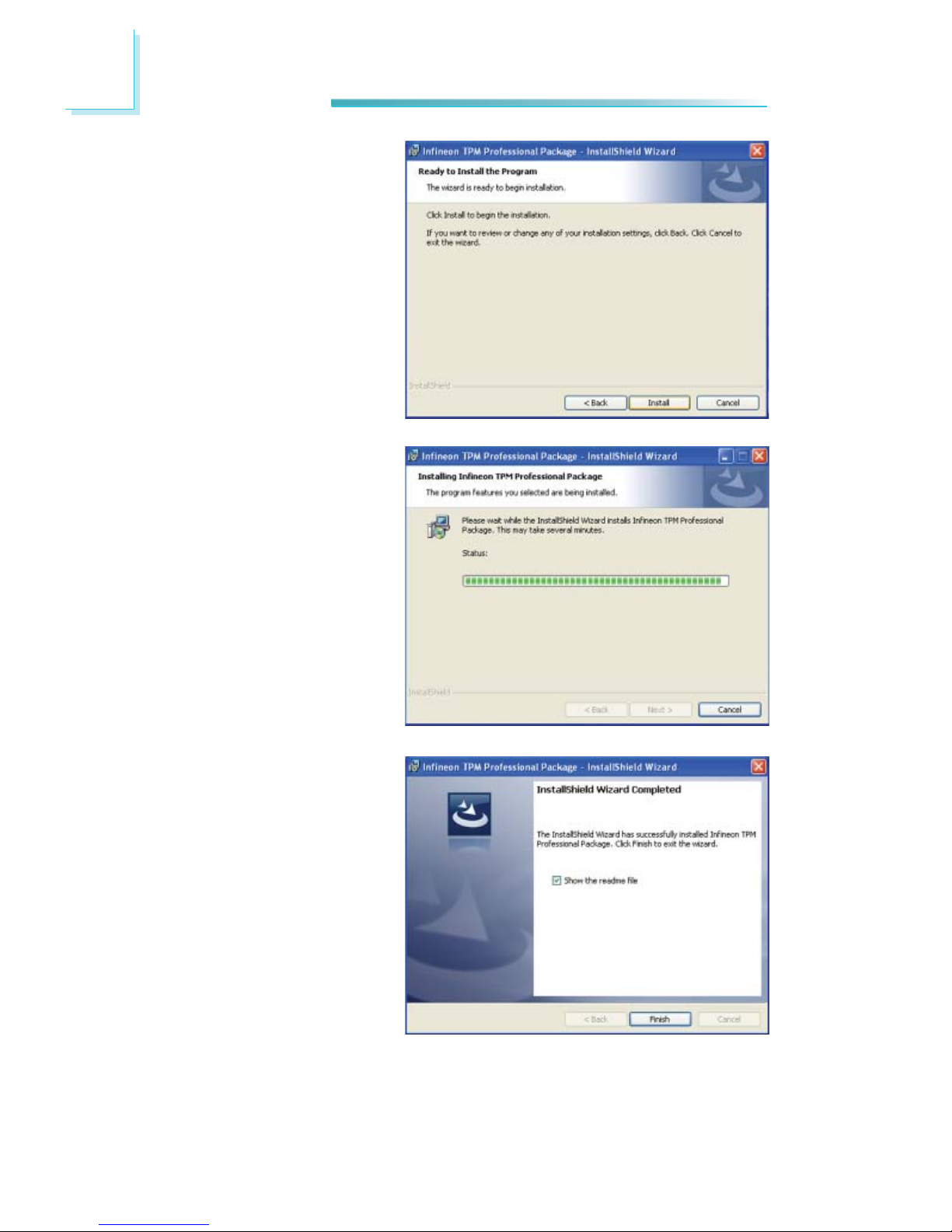

7. Click Install.
8. The setup program is cur­rently installing the driver.
9. Click Finish.
Page 99
99
4
Supported Software

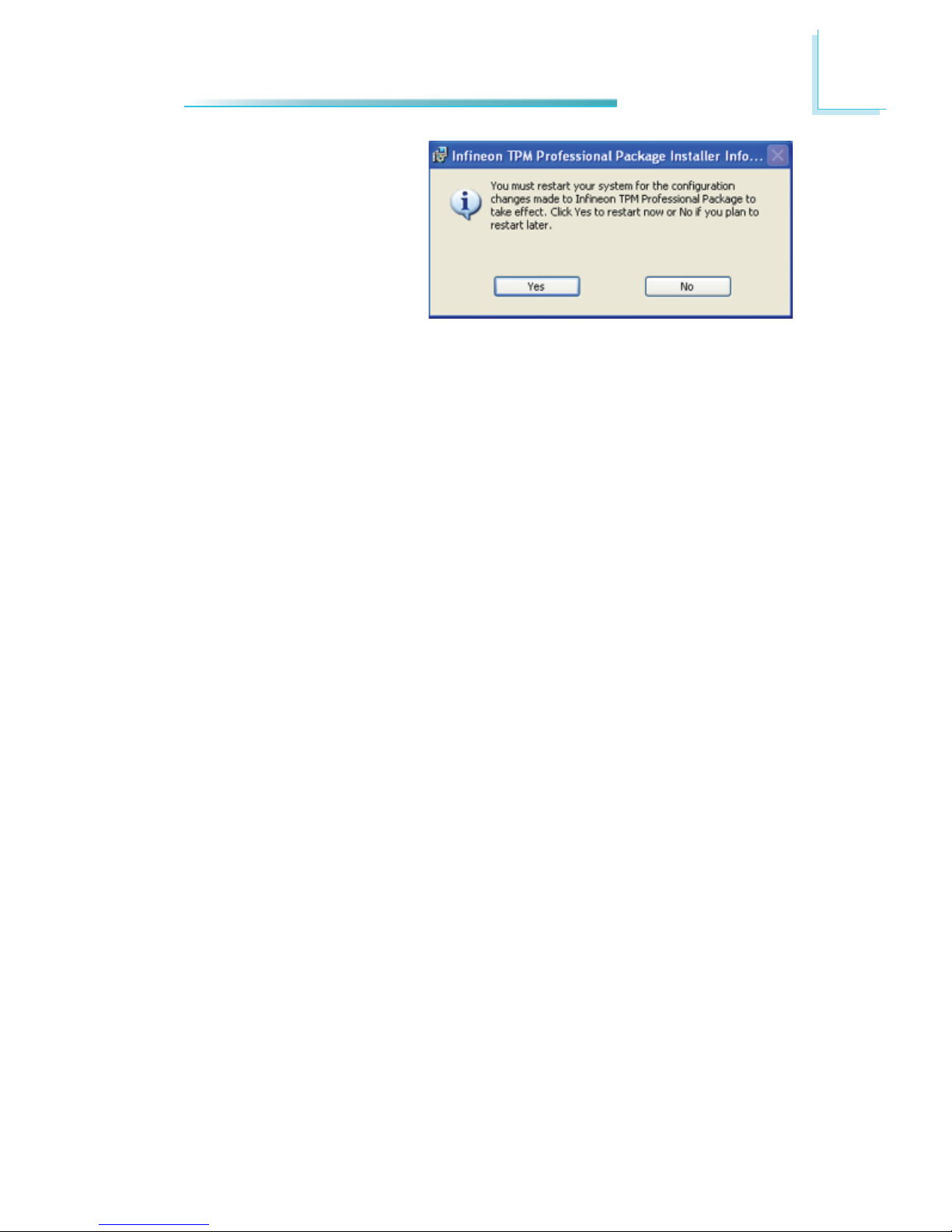

10. Click Yes to restart the system.
Restarting the system will
allow the new software installation to take effect.
Page 100
100
4
Supported Software

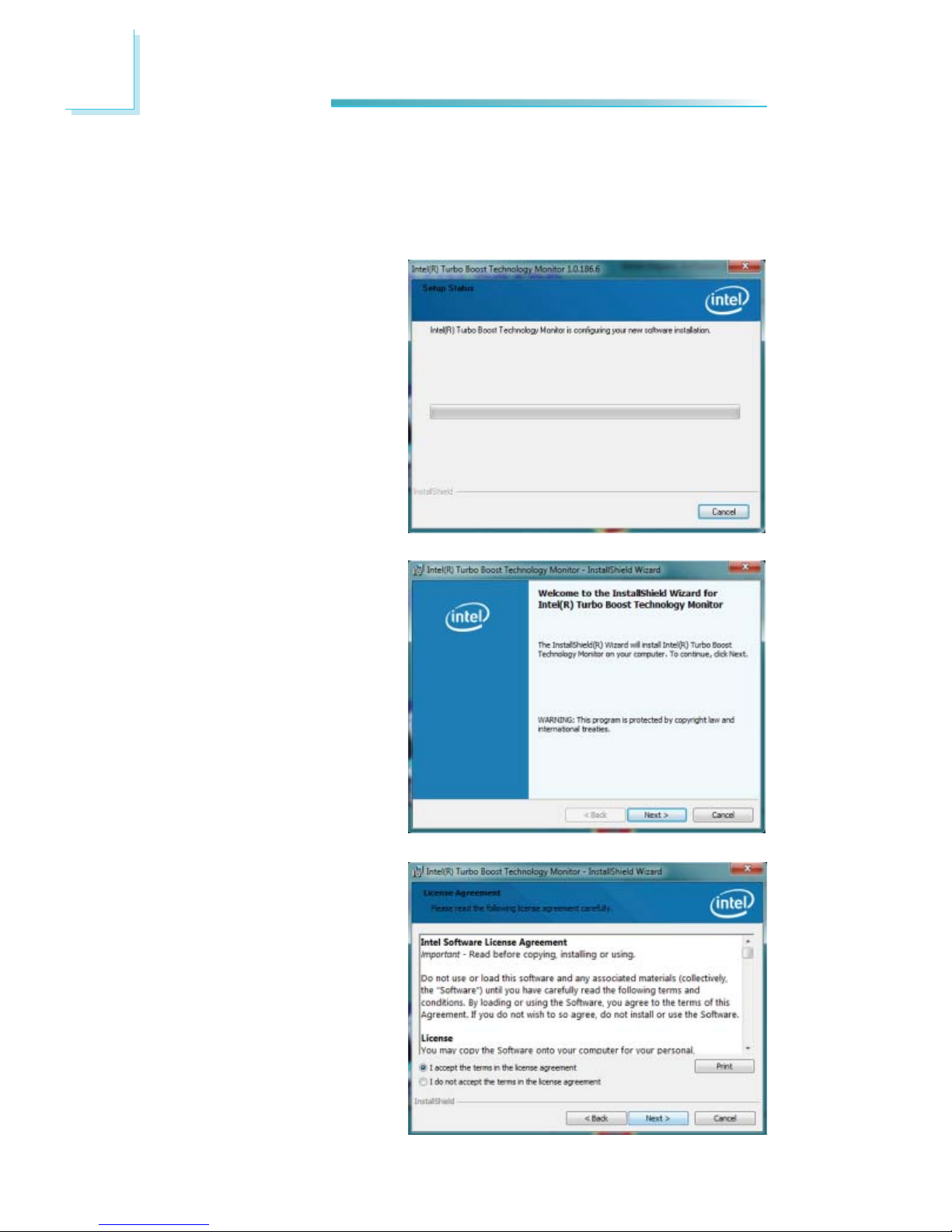

Intel Turbo Boost
To install the driver, click “Intel Turbo Boost” on the main menu.
1. The setup program is con­ guring the new software installation.
2. Click Next.
3. Read the license agreement and then click “I accept the terms in the license agree­ment”. Click Next.
Loading...
