DFI Q7X-151 User Manual

Page 1
Q7X-151
Qseven Carrier Board
User’s Manual
A32510511
1
www.d .comChapter 1 Introduction
Page 2

Copyright

FCC and DOC Statement on Class B

This publication contains information that is protected by copyright. No part of it may be re­produced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifi­cally disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this docu­ment. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.
Changes after the publication’s first release will be based on the product’s revision. The website will always provide the most updated information.
© 2015. All Rights Reserved.

Trademarks

Product names or trademarks appearing in this manual are for identification purpose only and are the properties of the respective owners.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason­able protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encour­aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli­ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.
2
www.dfi .comChapter 1 Introduction
Page 3

Table of Contents

Copyright .............................................................................................................2
Trademarks ........................................................................................................2
FCC and DOC Statement on Class B .....................................................2
About this Manual ..........................................................................................4
Warranty ............................................................................................................4
Static Electricity Precautions ......................................................................4
Safety Measures ..............................................................................................4
About the Package .........................................................................................5
Chapter 1 - Introduction .............................................................................6
Specifications (For BT700/BT701 Only) .................................................6
Chapter 2 - Hardware Installation ................................................ 7
Board Layout .................................................................................................7
Block Diagram ...............................................................................................7
Mechanical Diagram ....................................................................................8
Jumper Settings ...........................................................................................8
Clear CMOS Data ..........................................................................................8
USB Power Select ......................................................................................... 9
LCD/Inverter Power Select ............................................................................9
Panel Power Select ..................................................................................... 10
Backlight Power Select ................................................................................ 10
Auto Power-on Select ..................................................................................11
Super I/O Enable/Disable ............................................................................11
BIOS Select ................................................................................................12
SPI Switch..................................................................................................12
UART 2 Enable/Disable ............................................................................... 13
Dimming Mode Select ................................................................................. 13
LVDS Switch Setting ................................................................................... 14
Rear Panel I/O Ports .................................................................................15
12V DC-in ..................................................................................................15
Serial (COM) Ports ......................................................................................16
DisplayPort .................................................................................................16
RJ45 LAN Port ............................................................................................17
USB Ports ...................................................................................................17
Audio .........................................................................................................18
I/O Connectors ...........................................................................................19
Front Panel Connector ................................................................................19
Cooling Fan Connectors............................................................................... 20
CAN-Bus Connector ....................................................................................20
LVDS LCD Panel Connector ......................................................................... 21
LCD/Inverter Power Connector .................................................................... 21
SATA (Serial ATA) Connector .......................................................................22
SATA Power Connector ................................................................................22
LPC Debug Connector .................................................................................23
SMBus Connector .......................................................................................23
2
I
C Connector ............................................................................................. 24
UART Ports .................................................................................................24
Expansion Slots .......................................................................................... 25
Switches ....................................................................................................26
LEDs ..........................................................................................................26
Battery .......................................................................................................27
MXM Connector .......................................................................................... 27
Chapter 3 - Supported Software .......................................................... 29
3
www.dfi .comChapter 1 Introduction
Page 4

About this Manual

Static Electricity Precautions

An electronic file of this manual is included in the CD. To view the user’s manual in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click “User’s Manual” on the main menu.

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper instal­lation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum­stances, attempt to perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered.
It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in han­dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con­nectors by their ends.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other com­ponents. Perform the upgrade instruction procedures described at an ESD worksta­tion only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chas­sis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

Safety Measures

To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or servic­ing. After installation or servicing, cover the system chassis before plugging the power cord.
4
www.dfi .comChapter 1 Introduction
Page 5

About the Package

The package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.
• One Q7X-151 board
• One Serial ATA data with power cable
• One I/O shield
• One DVD
• One QR (Quick Reference)
Optional Items
• USB port cable
• I/O shield
• Power adapter (100W, 12V) The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance with the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

Before Using the System Board

Before using the system board, prepare basic system components. If you are installing the system board in a new system, you will need at least the following
internal components.
• A CPU
• Memory module
• Storage devices such as hard disk drive, CD-ROM, etc. You will also need external system peripherals you intend to use which will normally include at
least a keyboard, a mouse and a video display monitor.
5
www.dfi .comChapter 1 Introduction
Page 6

Chapter 1 - Introduction

Specifications (For BT700/BT701 Only)

Chapter 1
Graphics
Audio
USB Storage
Rear Panel IO Ports
I/O Connectors
• Display ports
- 1 dual channel LVDS
- 1 DP port
• Realtek ALC886 5.1-channel High Defi nition Audio
• Audio outputs: Mic-in/Center+Subwoofer, Line-in/Surround and Line-out
• 1 USB 3.0 and 6 USB 2.0 ports
• 1 SATA 3.0 port with data transfer rate up to 6Gb/s
- SATA port provides adequate space for SATA DOM
• 1 mSATA port
• 1 12V DC-in jack
• 2 DB-9 RS232 serial ports
• 1 DP port
• 1 RJ45 LAN port
• 1 USB 3.0 port
• 2 USB 2.0 type A ports
• Mic-in/Center+Subwoofer, Line-in/Surround and Line-out jacks
• 1 connector for 2 external USB 2.0/1.1 ports
• 2 UART ports
- 1 supports TX/RX signal only (UART 2)
• 1 LVDS LCD panel connector
• 1 LCD/inverter power connector
• 1 Serial ATA connector
• 1 Serial ATA power connector
• 1 mSATA port
• 1 LPC connector
2
• 1 I
C connector
• 1 SMBus connector
• 1 CAN-bus connector
• 1 front panel connector
• 3 fan connectors
Expansion Slots
WatchDog Timer
Damage Free Intelligence
ROM Interface
Temperature
Humidity Board to Board
Connector Dimensions
• 1 PCIe x4 slot
• 1 SDIO socket
• Watchdog timeout programmable via software from 1 to 255 seconds
• Monitors system temperature and overheat alarm
• Monitors system fan speed and failure alarm
• 1 SPI interface
- Supports up to 64Mbit
• Operating: 0oC to 60oC
• Storage: -20
• 5% to 90%
• One MXM connector
• Mini-ITX form factor
• 170mm (6.7") x 170mm (6.7")
o
C to 85oC
6
www.dfi .comChapter 1 Introduction
Page 7
Chapter 2 - Hardware Installation Board Layout
Clear CMOS Data (JP9)
2
1 1 1
Auto Power-on Select (JP8)
SPI Flash BIOS
1
LVDS Switch Setting - Channel B (JP5)
1
LVDS Switch Setting - Channel A (JP6)
DC-in
COM 4 COM 3
UART 2 Enable/Disable (JP3)
DisplayPort
LAN USB 0-1
USB 3.0
USB 2.0
USB 2-3
USB 2-3 Power
Line-in Line-out Mic-in
Note: The SATA port supports SATA DOM.
Realtek ALC886
UART 1
USB 0-1 Power
Select (JP1)
Select (JP2)
210
1
1
2
1
SATA 3.0
I2C
UART 2
9
56
1
SMBus
2
SATA Power
1
56
1
4
1
1
BIOS Select (J9)
1
1
SATA
MXM
1
Enable/Disable (JP7)
System Fan 1
SPI Switch (JP4)
1
Thermal Trip LED Low Power State LED
SDIO LED
PCIe x4
Super I/O
NUVOTON
NCT6106D
mSATA
1
Battery
1
CAN Bus
Lid Sleep
Buzzer
11 12
LPC
39
LVDS LCD Panel
Power Reset
1 2
Dimming Mode
Select (JP11)
LCD/Inverter
Power
1
40
Power Select (JP17)
21
9
10
1
LCD/Inverter
USB 2.0
USB 4-5
System Fan 3
Panel Power Select (JP21)
21
6
5
Backlight Power Select (JP16)
System Fan 2
1
1
1
USB 4-5 Power
Select (JP23)
1
1
Front Panel
2
1
11 12
1
Chapter 2
2

Block Diagram

SM Bus I2C Bus
Serial Port
CAN Bus
Display Port
SLP & LID
SDIO
Audio
COM 2x
SIO Fan
ALC886
Super I/O
LPC Bus
Connector
LPC
Q7
SATA 3.0
USB 3.0 port 0
USB 2.0 port 0-1
USB 2.0 port 2-5
GLAN
PCIe x4
SATA 1x
mSATA
SPI ROM
SPI Header
USB 3.0 1x
USB 2.0 4x
LVDS
7
www.dfi .comChapter 2 Hardware Installation
Page 8
Chapter 2

Mechanical Diagram

1.73
0.00
6.35
0.00
46.78
53.34
21.23
39.79
53.45
73.83
94.89
114.95
124.83

Jumper Settings

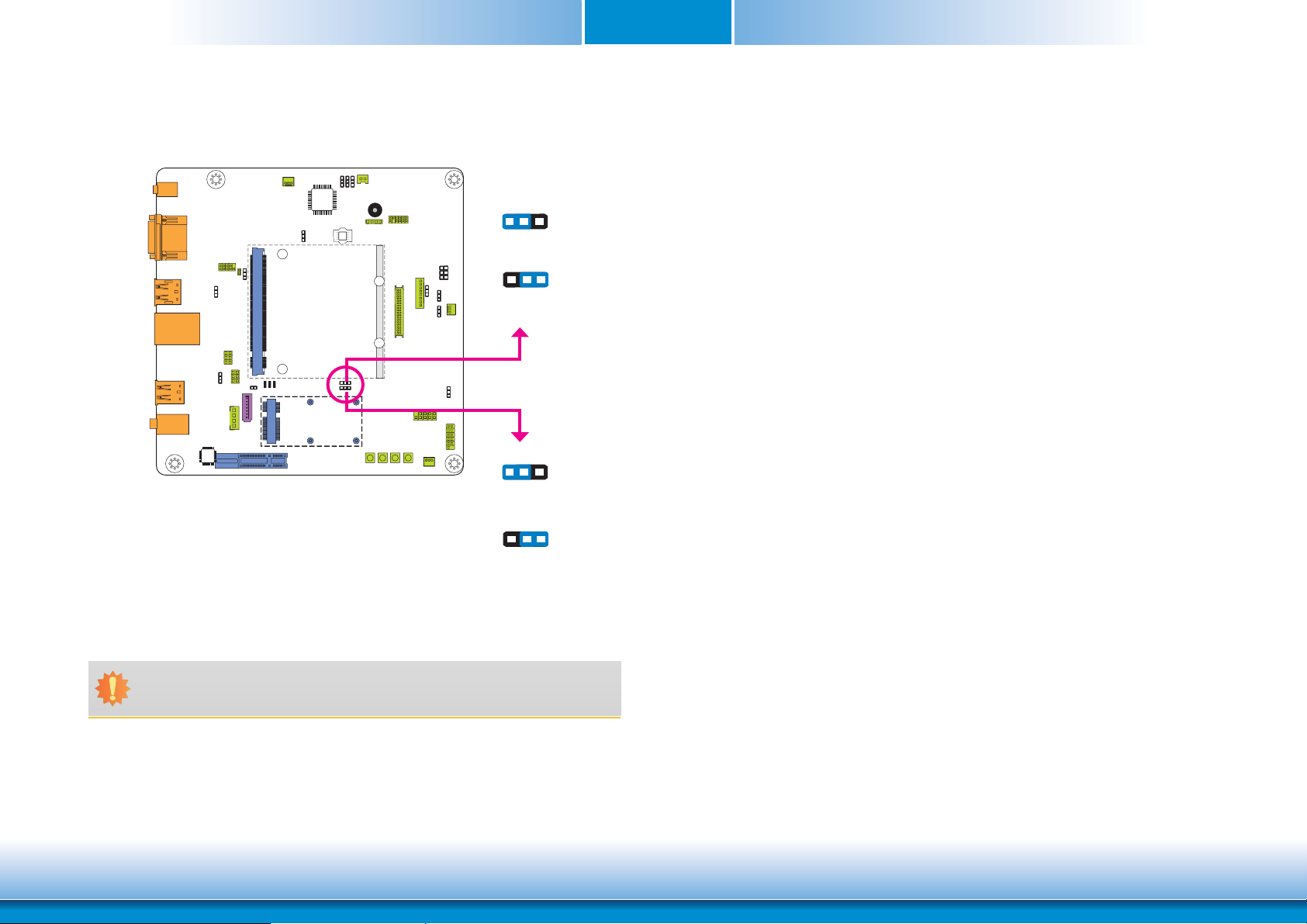

Clear CMOS Data
3
151.76
22.86
46.23
JP9
2 1
1-2 On: Normal
(default)
3 2 1
2-3 On:
Clear CMOS Data
154.94
0.00
10.19
35.19
157.48
154.94
If you encounter the following situations,
a) CMOS data becomes corrupted. b) You forgot the supervisor or user password.
you can reconfigure the system with the default values stored in the ROM BIOS.
To load the default values stored in the ROM BIOS, please follow the steps below:
1. Power-off the system and unplug the power cord.
2. Set JP9 pins 2 and 3 to On. Wait for a few seconds and set JP9 back to its default setting, pins 1 and 2 On.
3. Now plug the power cord and power-on the system.
8
www.dfi .comChapter 2 Hardware Installation
Page 9
Chapter 2
USB Power Select
USB 0-1 (JP1)
USB 2-3 (JP2)
USB 4-5 (JP23)
JP1 (for USB 0-1), JP2 (for USB 2-3) and JP23 (for USB 4-5) are used to select the power of USB ports. Selecting +5V_standby will allow you to use a USB keyboard to wake up the system.
3 2
1
1-2 On: +5V
(default)
3 2 1
2-3 On:
+5V_standby
LCD/Inverter Power Select
JP17
JP17 is designed to select the power level of the LCD/Inverter power connector.
1-2 On: +12V
2-3 On:
+5V (default)
3 2
1
3 2 1
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the +5V_standby power source of your power supply must support 1.5A. For 3 or more USB ports, the +5V_standby power source of your power supply must support ≥2A.
9
www.dfi .comChapter 2 Hardware Installation
Page 10
Chapter 2

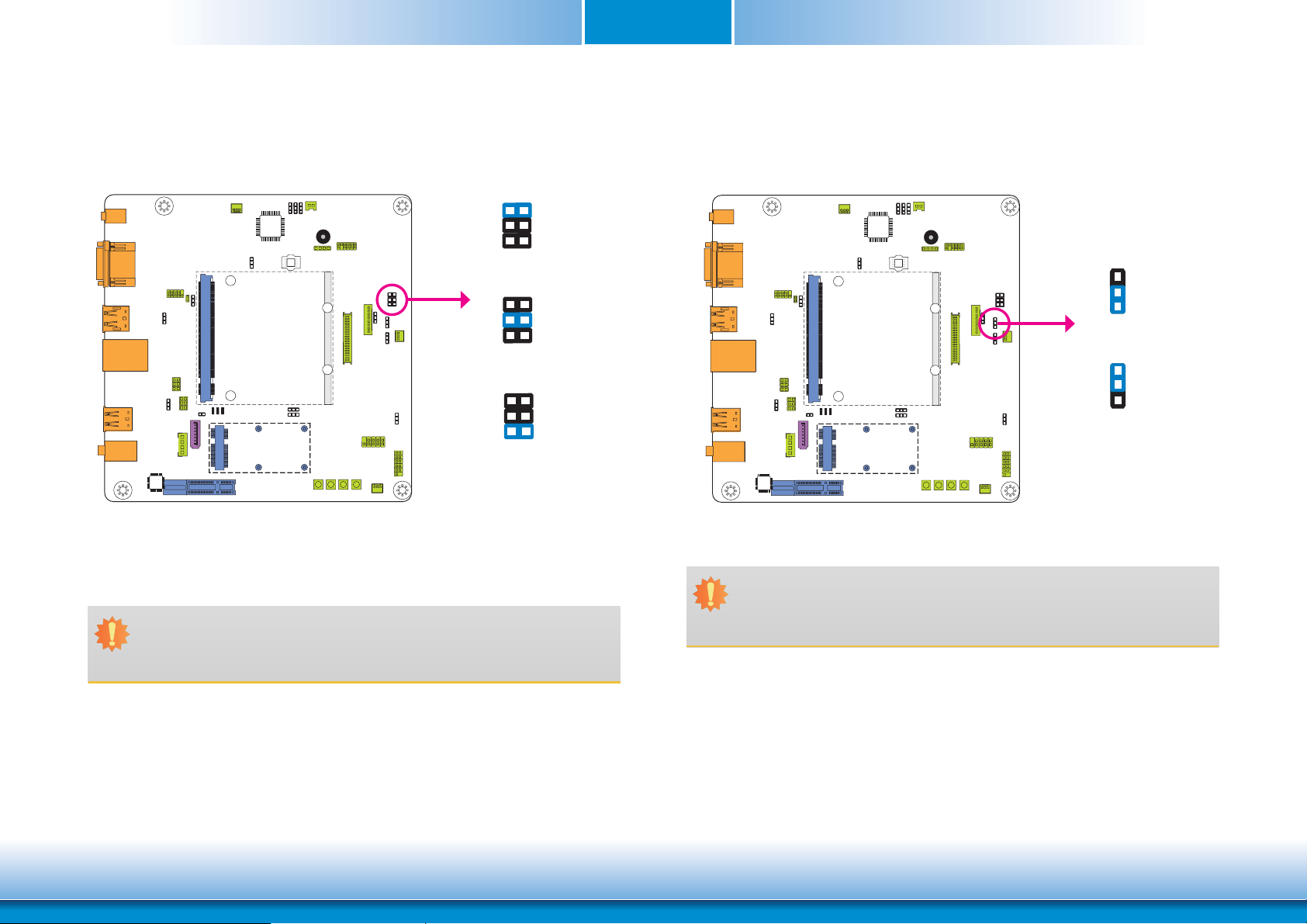

Panel Power Select
JP21
2
1
3
4
5
6
1-2 On: +12V
2
1
3
5
4 6
3-4 On:+5V
2
1
3
5-6 On: +3.3V
5
(default)
4 6
Backlight Power Select
JP16
JP16 is used to select the backlight power control: +5V or +3.3V.
3 2
1
1-2 On:
+3.3V (default)
3 2 1
2-3 On: +5V
JP21 is used to select the power supplied with the LCD panel.
Important:
Before powering-on the system, make sure that the power settings of JP21 match the LCD panel’s specification. Selecting the incorrect voltage will seriously damage the LCD panel.
Important:
Before powering-on the system, make sure that the power settings of JP16 match the power specification of backlight control. Selecting the incorrect voltage will seriously damage the backlight.
10
www.dfi .comChapter 2 Hardware Installation
Page 11
Chapter 2

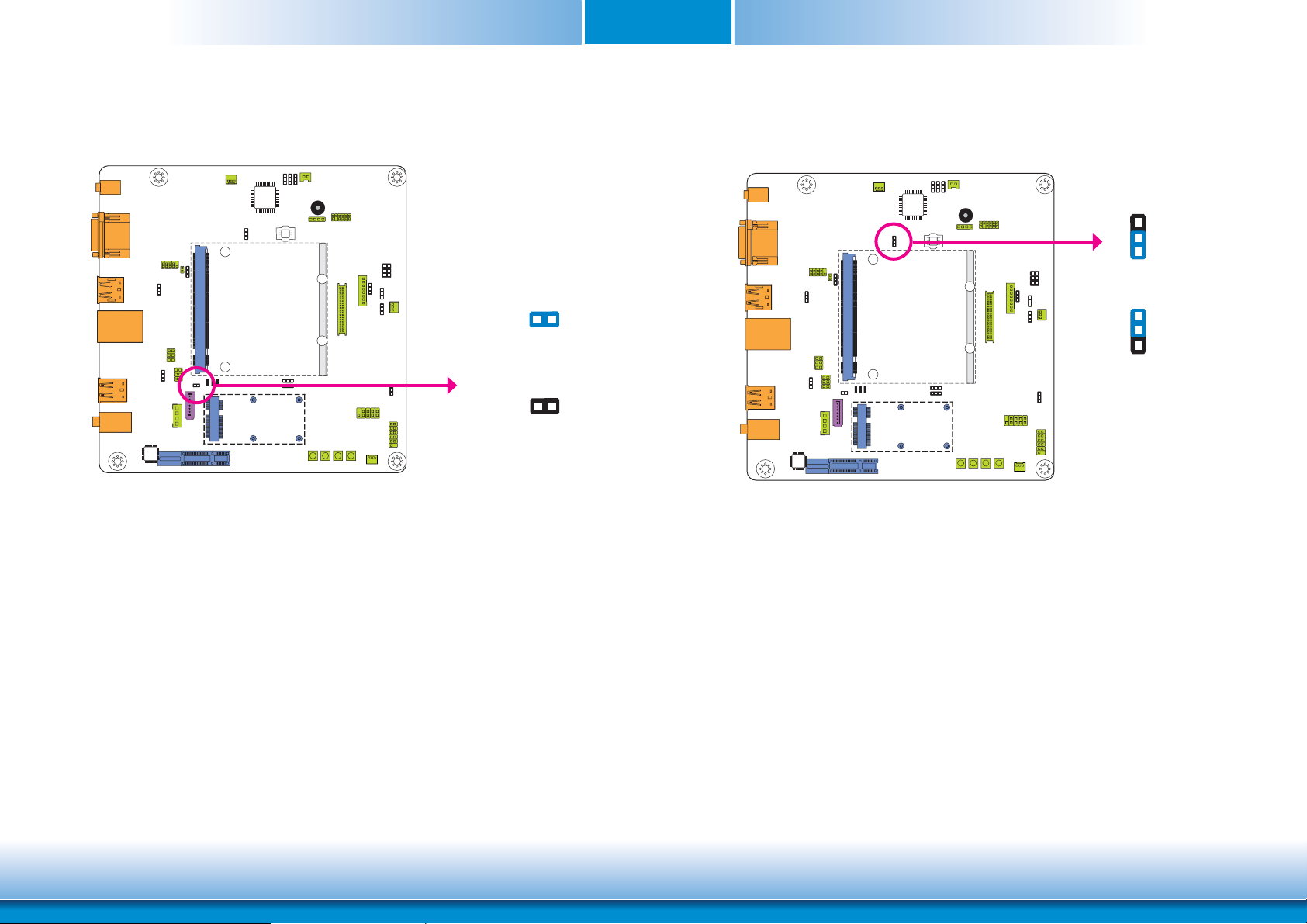

Auto Power-on Select
JP8 is used to select the method of powering on the system.
JP8
3 2
1
1-2 On: Power-on via Super I/O
3 2 1
2-3 On: Power-on via Module (default)
Super I/O Enable/Disable
JP7 is used to enable or disable the super IO chip.
JP7
3 2
1
1-2 On: Enable
3 2 1
2-3 On: Disable
(default)
11
www.dfi .comChapter 2 Hardware Installation
Page 12
Chapter 2
BIOS Select
J9 is used to determine the BIOS boot device.
SPI Switch
JP4
1
2
1-2 On:
Boot from carrier board
J9
SPI BIOS
1
2
1-2 Off:
Boot from module
SPI BIOS
JP4 allows you to select the SPI signal from the carrier board SPI BIOS.
3 2
1
1-2 On: Sensor
3 2 1
2-3 On: BIOS
(default)
12
www.dfi .comChapter 2 Hardware Installation
Page 13
Chapter 2

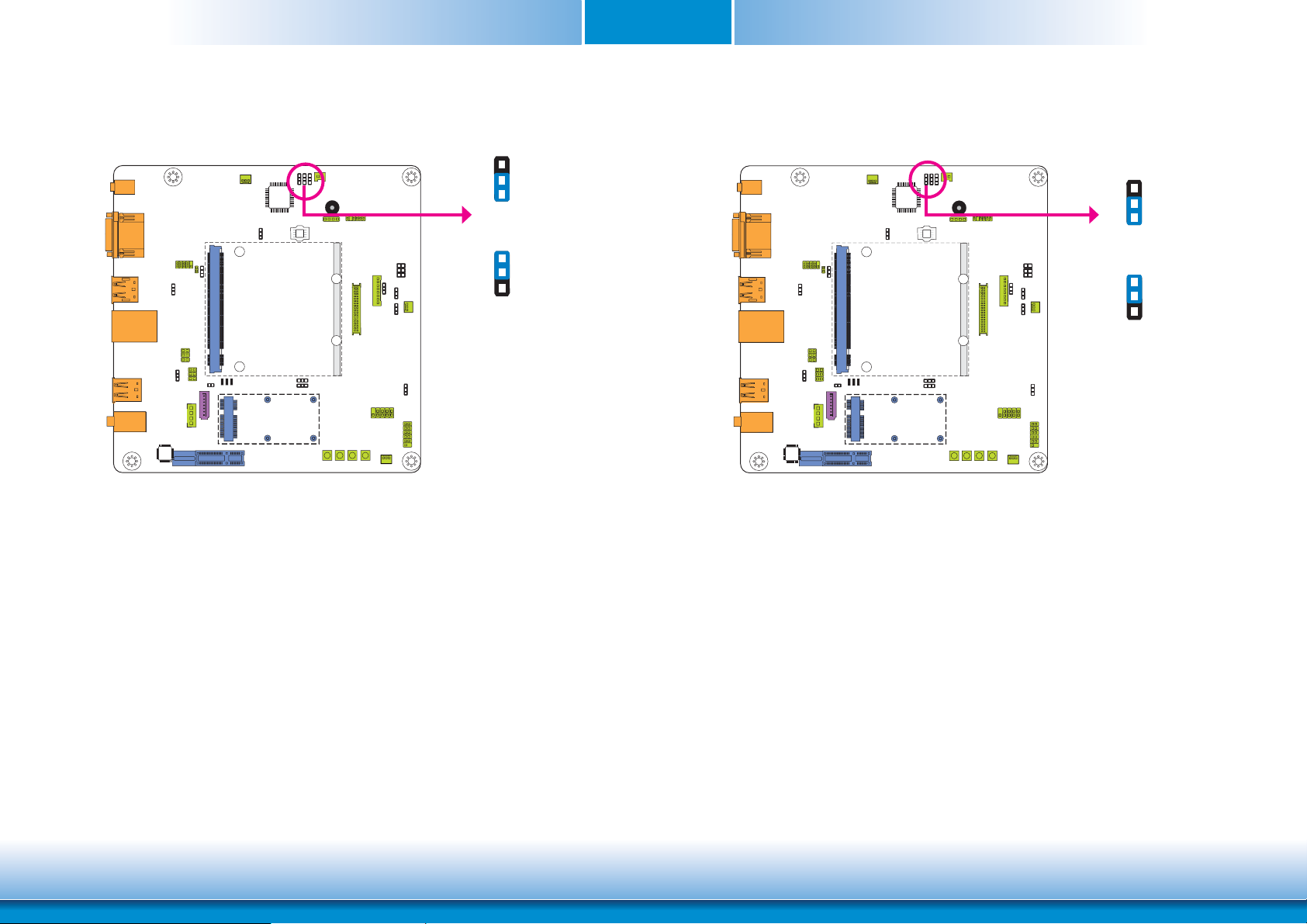

UART 2 Enable/Disable
JP3 is used to enable or disable the UART 2 port.
JP3
3 2
1
1-2 On: Enable
(default)
3 2 1
2-3 On: Disable
Dimming Mode Select
JP11
JP11 allows you to select the mode for the lightness control of the LVDS panel.
1-2 On: PWM Mode
(default)
2-3 On: Voltage Mode
3 2
1
3 2 1
Important:
You need to refer to your panel’s user guide to determine the type of mode (PWM or Voltage) most appropriate for your panel.
13
www.dfi .comChapter 2 Hardware Installation
Page 14
LVDS Switch Setting
Chapter 2
132
1-2 On: High
132
2-3 On: Low (default)
JP5 (Channel B)
JP6 (Channel A)
132
JP5 and JP6 are designed to select the signal for the LVDS panel.
Important:
You need to set JP5 and JP6 simultaneously.
1-2 On: High (default)
132
2-3 On: Low
14
www.dfi .comChapter 2 Hardware Installation
Page 15
Chapter 2

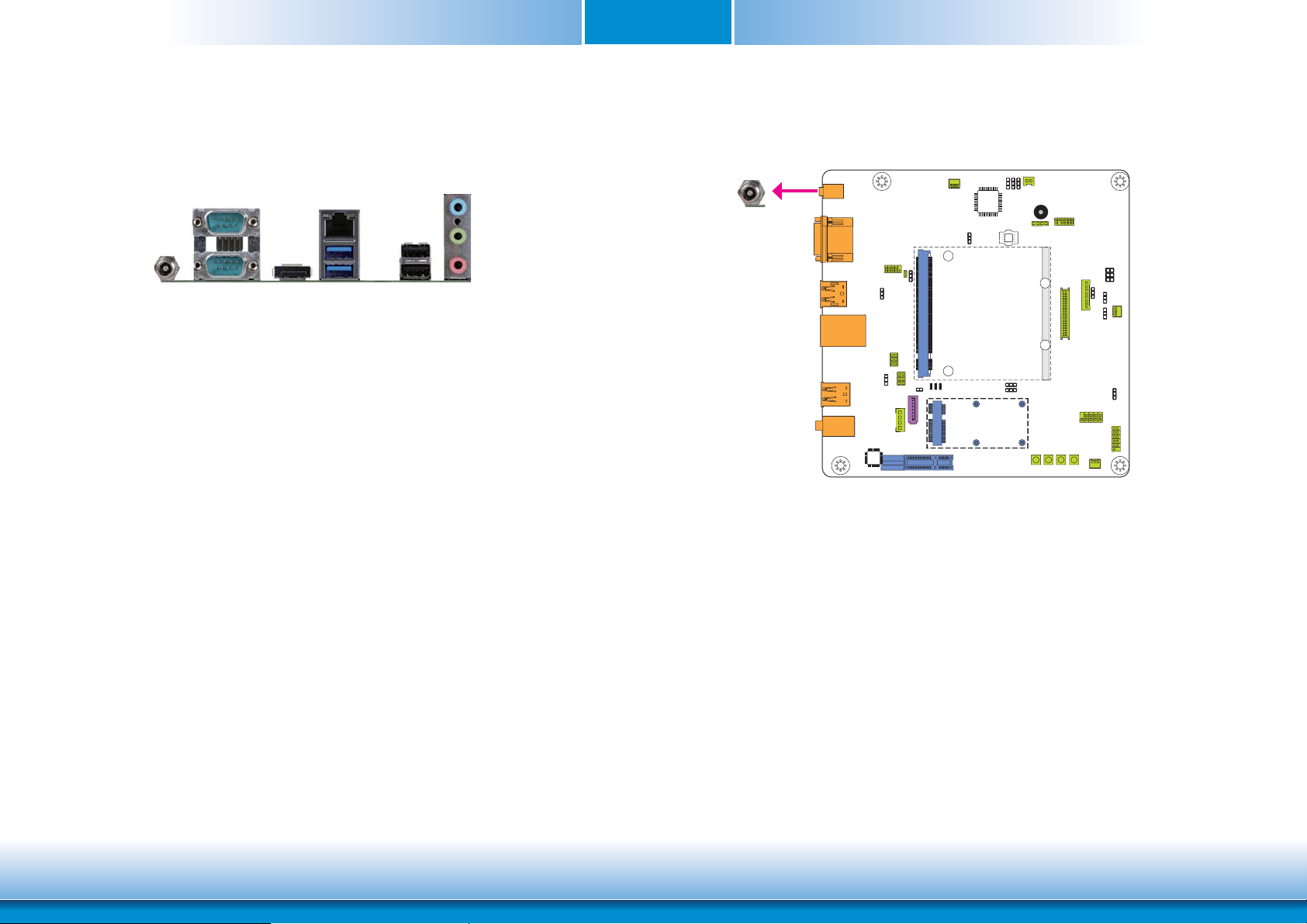

Rear Panel I/O Ports

COM 4
DC-in
COM 3
The rear panel I/O ports consist of the following:
• 1 12V DC-in jack
• 2 Serial (COM) ports
• 1 DP port
• 1 RJ45 LAN port
• 2 USB 3.0 ports
• 2 USB 2.0 type A ports
• Line-in/Surround jack
• Line-out jack
• Mic-in/Center+Subwoofer jack
DP
LAN
USB 3.0
USB 2.0
Line-in/Surround
Line-out
Mic-in/ Center+Subwoofer
12V DC-in
DC-in
This jack provides maximum of 100W power and is considered a low power solution. Connect a DC power cord to this jack. Use a power adapter with 12V DC output voltage. Using a volt­age higher than the recommended one may fail to boot the system or cause damage to the system board.
15
www.dfi .comChapter 2 Hardware Installation
Page 16
Chapter 2

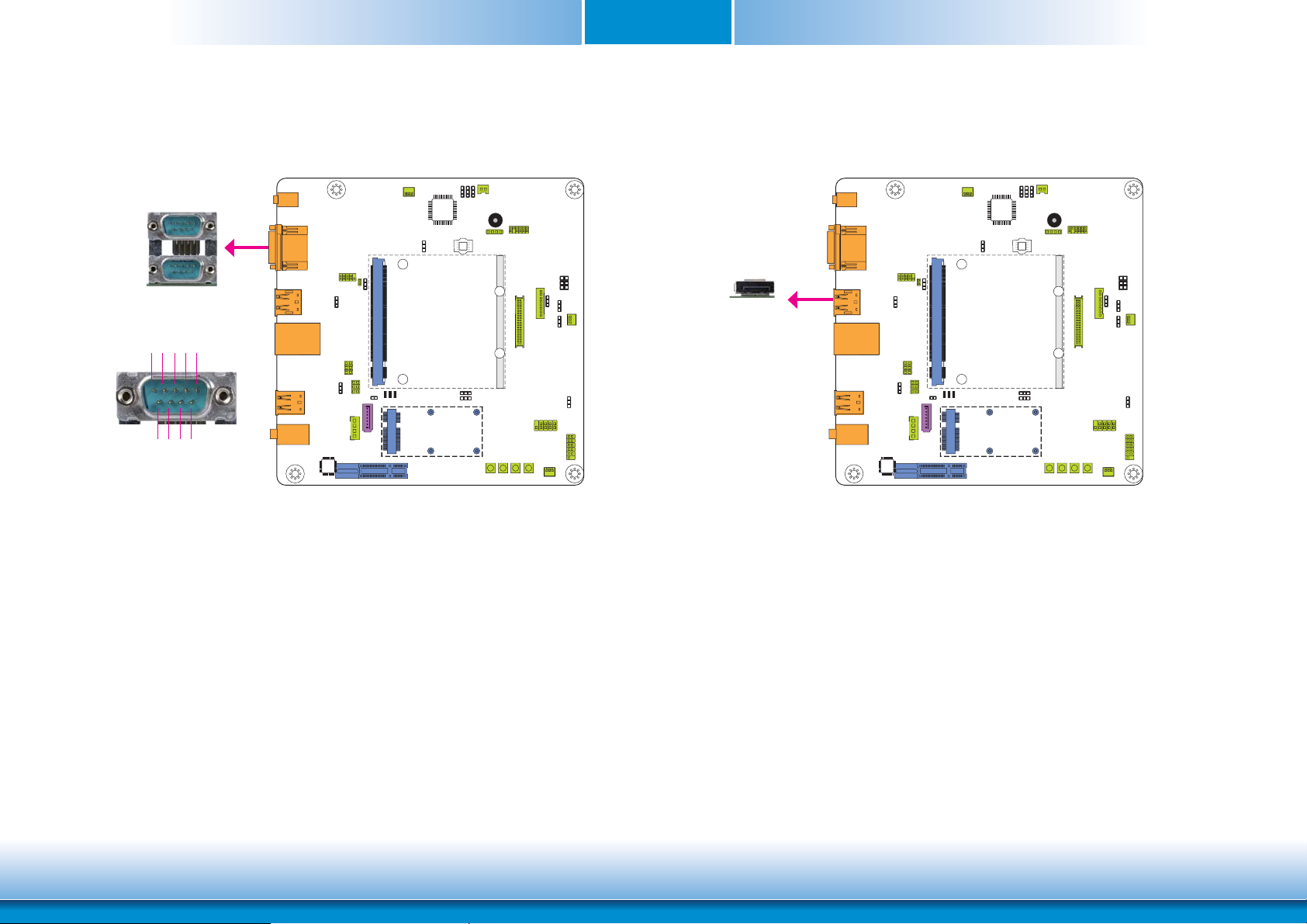

Serial (COM) Ports
COM 4
COM 3
TD
RD
DTR-
RTS-
DSR-
RS232
RI-
CTS-
GND
DCD-
2345
1
6789
COM 3/COM 4:
COM 3 and COM 4 are fixed at RS232.
The serial ports are asynchronous communication ports with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices.
DisplayPort
DisplayPort
DisplayPort is a digital display interface used to connect a display device such as a computer monitor. It is used to transmit audio and video simultaneously. The interface, which is devel­oped by VESA, delivers higher performance features than any other digital interface.
Connecting External Serial Ports
Your COM port may come mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then insert the serial port cable to the COM connector. Make sure the colored stripe on the ribbon cable is aligned with pin 1 of the COM connector.
16
www.dfi .comChapter 2 Hardware Installation
Page 17
Chapter 2

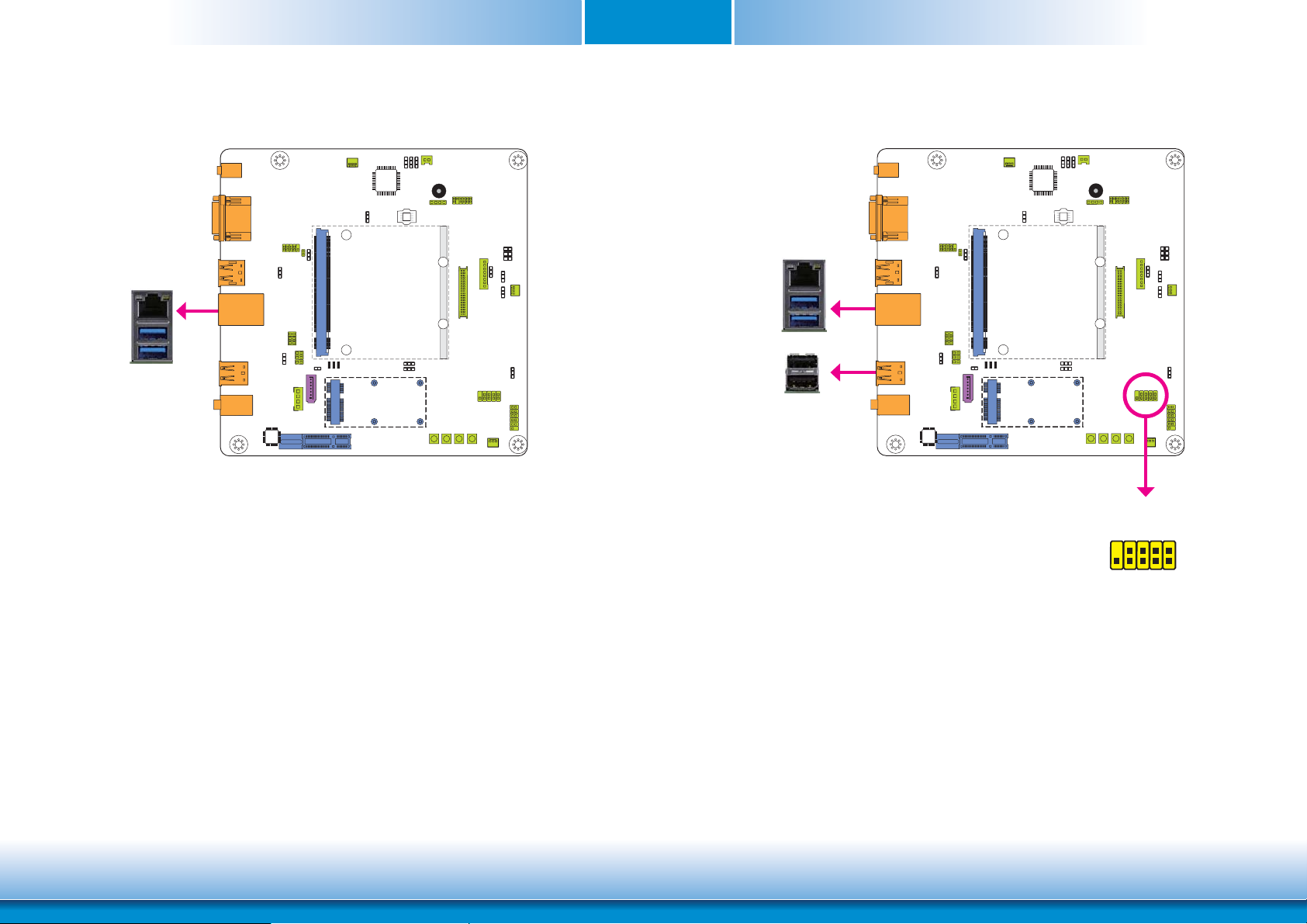

RJ45 LAN Port
LAN
The onboard RJ45 LAN port allows the system board to connect to a local area network by means of a network hub.
USB Ports
USB 1 USB 0
USB 3 USB 2
USB 3.0
USB 2.0
USB 4-5
Key
9
10
GND
+Data
VCC
-Data 1 2
N. C.
USB 2.0
The USB device allows data exchange between your computer and a wide range of simultane­ously accessible external Plug and Play peripherals.
The system board is equipped with two onboard USB 3.0 ports (USB 0-1) and two onboard USB 2.0 type A ports (USB 2-3). The 10-pin connector allows you to connect 2 additional USB
2.0/1.1 ports (USB 4-5). The additional USB port may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis and then insert the USB port cables to a connector.
Driver Installation
You may need to install the proper drivers in your operating system to use the USB device. Refer to your operating system’s manual or documentation for more information.
17
GND
www.dfi .comChapter 2 Hardware Installation
-Data
+Data
VCC
Page 18
Chapter 2
Wake-On-USB Keyboard/Mouse
The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state. To use this function:
• Jumper Setting
JP1 (for USB 0-1), JP2 (for USB 2-3) and JP23 (for USB 4-5) must be set to “2-3 On: +5V_ standby”. Refer to “USB Power Select” in this chapter for more information.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the +5V_standby power source of your power supply must support 1.5A. For 3 or more USB ports, the +5V_standby power source of your power supply must support ≥2A.

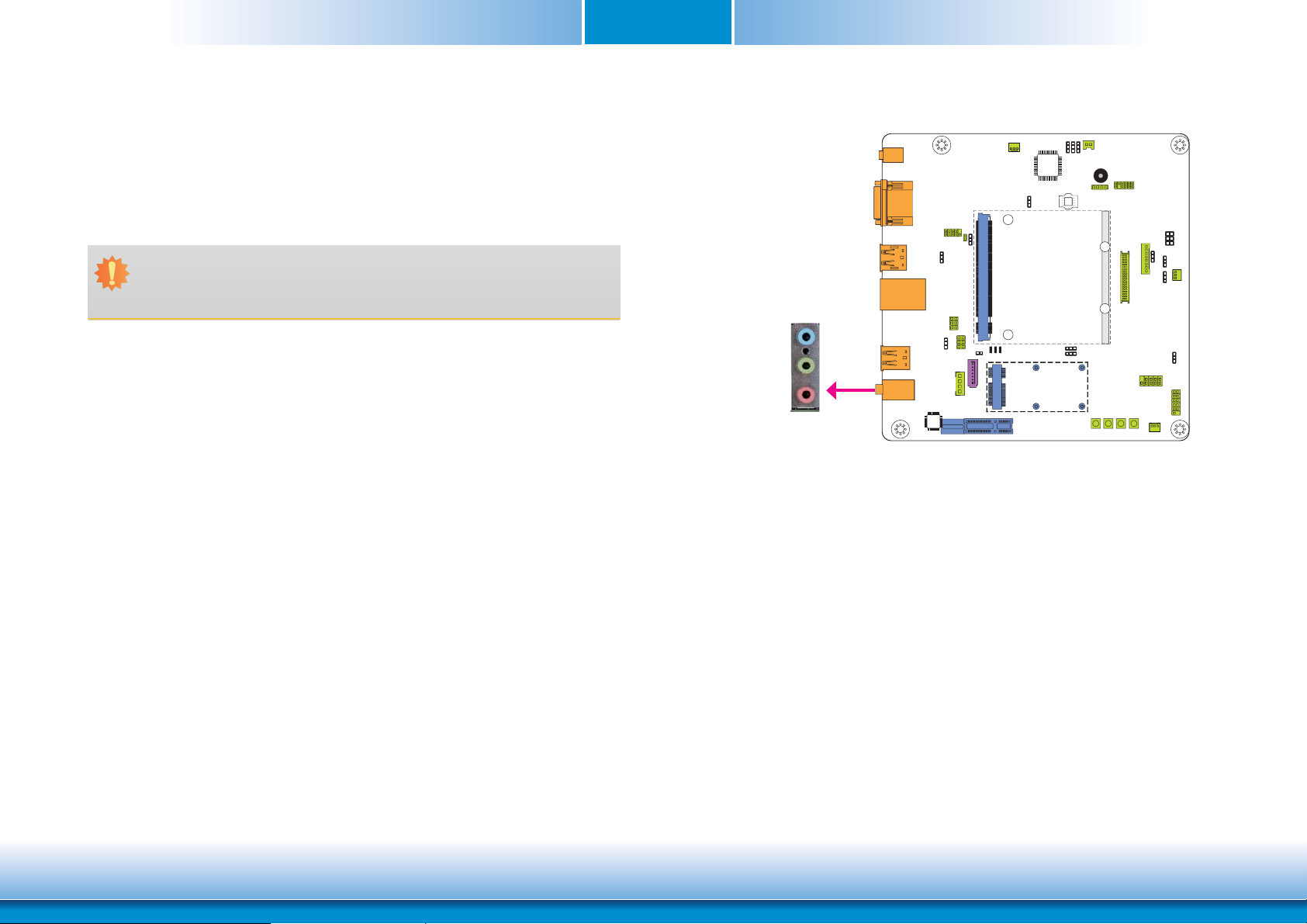

Audio
Rear Audio
Line-in/Surround
Line-out
Mic-in/
Center+Subwoofer
Rear Audio
The system board is equipped with 3 audio jacks. A jack is a one-hole connecting interface for inserting a plug.
• Line-in/Surround Jack (Light Blue) This jack is used to connect any audio devices such as Hi-fi set, CD player, tape player, AM/FM radio tuner, synthesizer, etc.
• Line-out Jack (Lime) This jack is used to connect a headphone or external speakers.
• Mic-in/Center+Subwoofer (Pink) This jack is used to connect to the center and subwoofer speakers of the audio system.
BIOS Setting
Refer to the module’s BIOS for more information.
18
www.dfi .comChapter 2 Hardware Installation
Page 19
Chapter 2

I/O Connectors

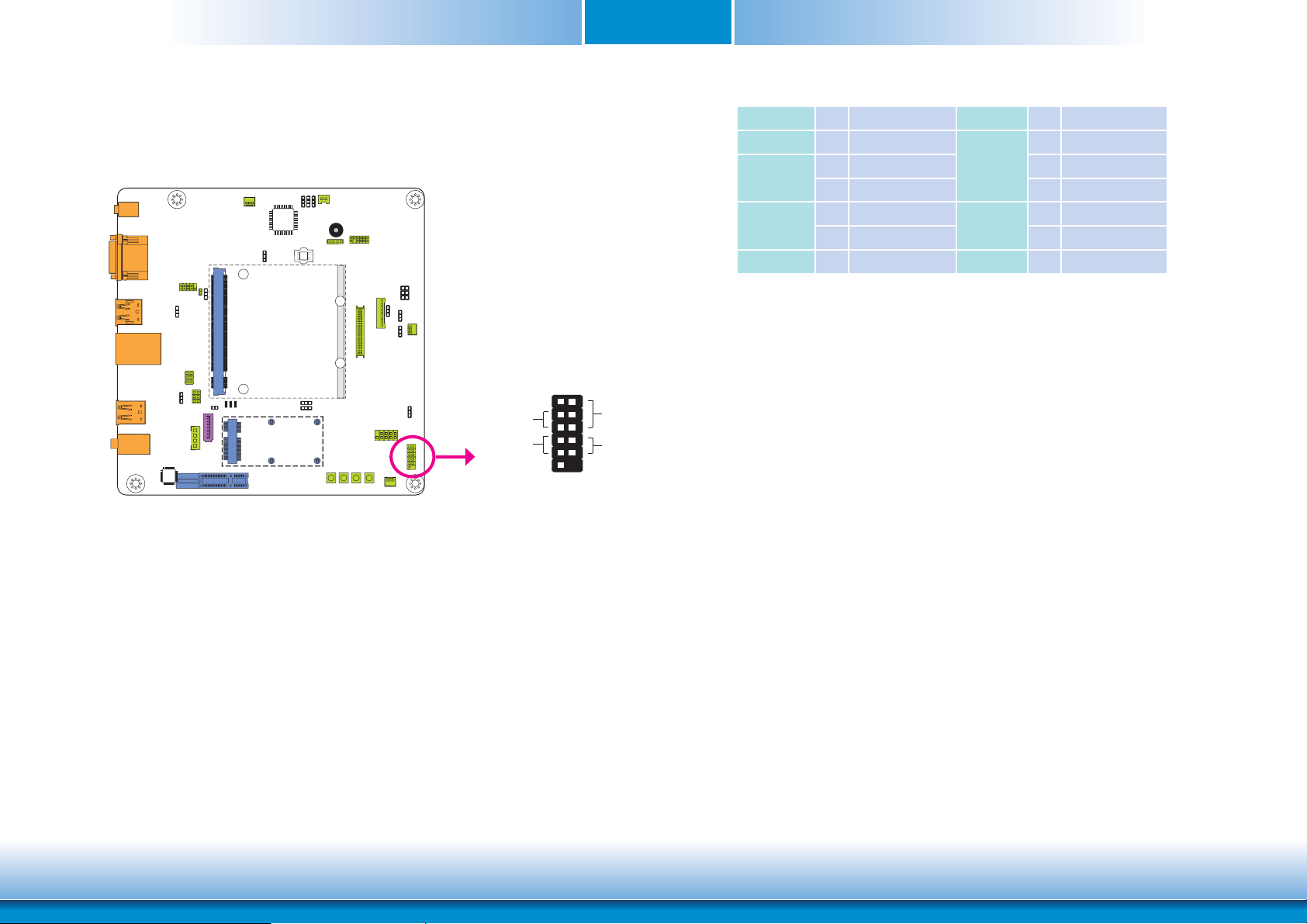

Front Panel Connector
HDD-LED - HDD LED
HDD-LED
RESET-SW
2
1
11 12
PWR-LED
ATX- SW
N.C.
HDD-LED
RESET-SW
N.C.
Pin Pin Assignment Pin Pin Assignment
1 N.C.
3 HDD Power 4 LED Power
5 Signal 6 Signal
7 Ground
9 RST Signal 10 Ground
11 N.C.
PWR-LED
ATX-SW
Key
2 LED Power
8 Signal
12 Key
This LED will light when the hard drive is being accessed.
RESET SW - Reset Switch
This switch allows you to reboot without having to power off the system.
ATX-SW - ATX Power Switch
This switch is used to power on or off the system.
PWR-LED - Power/Standby LED
When the system’s power is on, this LED will light. When the system is in the S1 (POS - Power On Suspend) state, it will blink every second. When the system is in the S3 (STR - Suspend To RAM) state, it will blink every 4 seconds.
19
www.dfi .comChapter 2 Hardware Installation
Page 20
Chapter 2

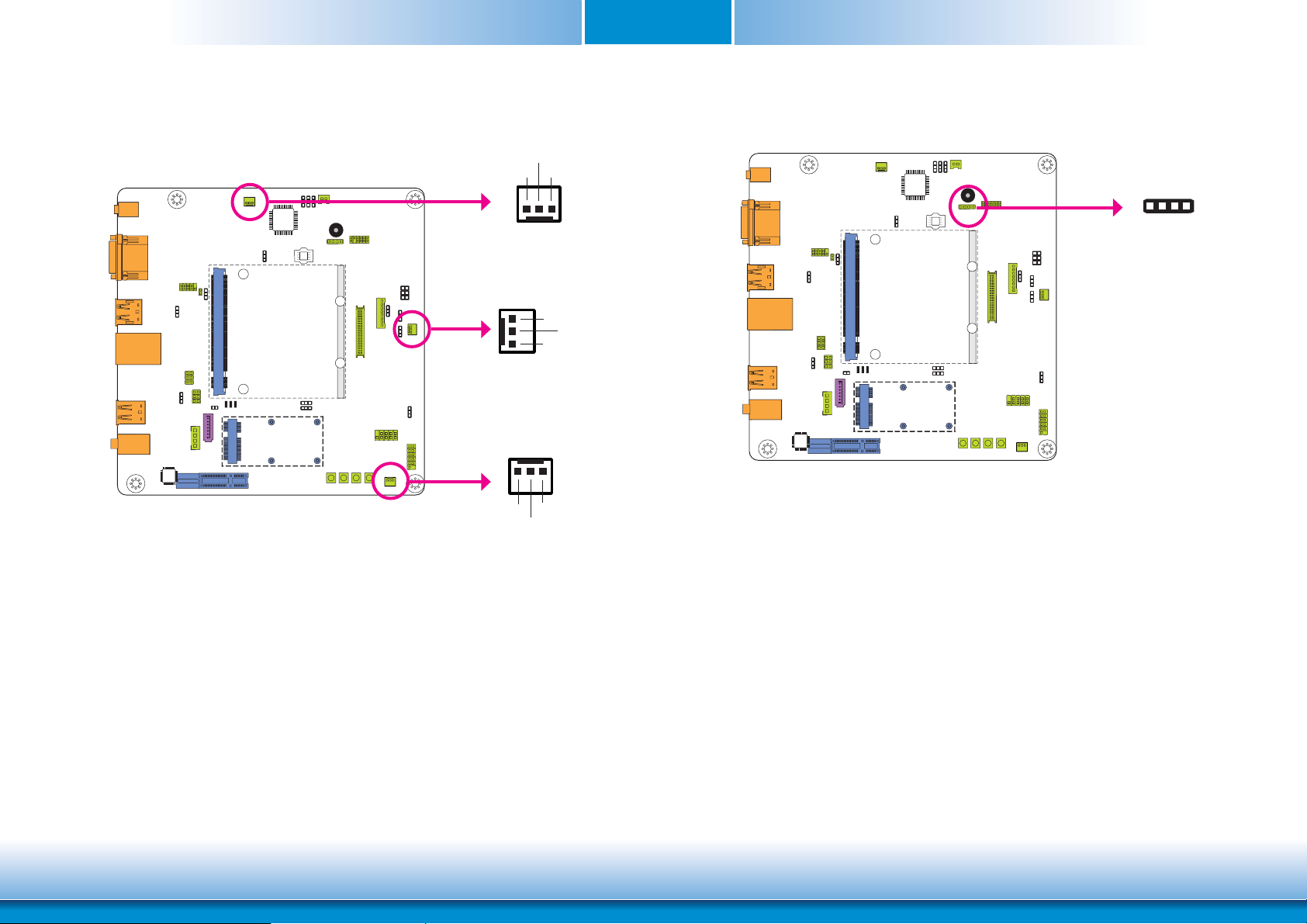

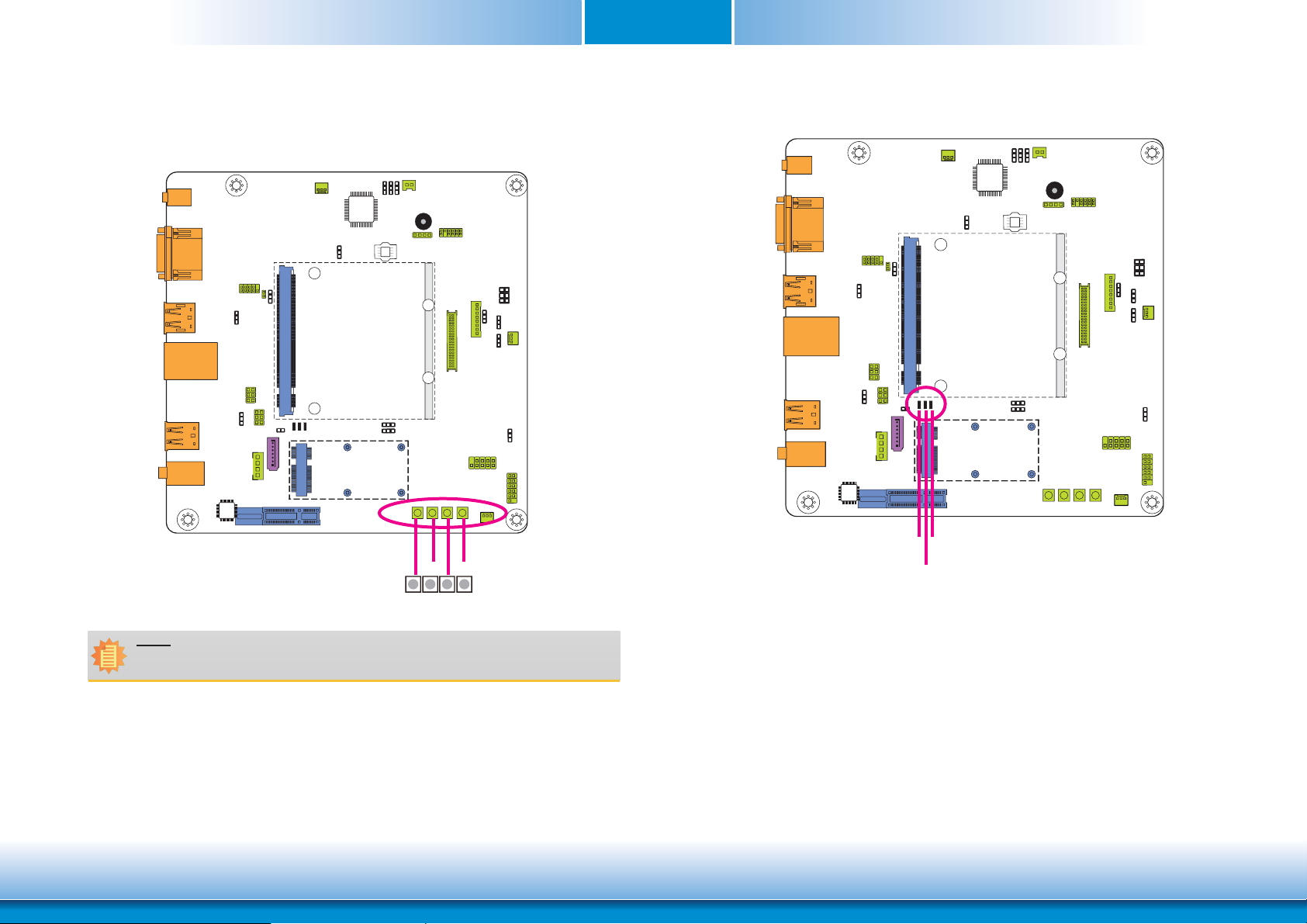

Cooling Fan Connectors
System Fan 1
System Fan 2
System Fan 3
1
1
3
Sense
Power
Power
Ground
Sense
Ground
Sense
13
Ground
3
Power
CAN-Bus Connector
CAN-Bus
The CAN controller performs communication in accordance with the BOSCH CAN Protocol Ver­sion 2.0B Active1 (standard format and extended format). The bit rate can be programmed to a maximum of 1Mbit/s. To connect the CAN controller module to the CAN bus, it is necessary to add transceiver hardware.
1
GND
CAN_TX
CAN_RX
NC
These fan connectors are used to connect a cooling fan. The cooling fan will provide adequate airflow throughout the chassis to prevent overheating the system board components.
When communicating in a CAN network, individual message objects are configured. The mes­sage objects and the identifier masks for the receive filter for the received messages are stored in the message RAM.
Controller Area Network (CAN or CAN-bus) is a message based protocol designed specifically for automotive applications but now is also used in other areas such as industrial automation and medical equipment.
20
www.dfi .comChapter 2 Hardware Installation
Page 21
Chapter 2
LVDS LCD Panel Connector LCD/Inverter Power Connector
1
LCD/Inverter power
8
LVDS LCD Panel
4039
21
The system board allows you to connect a LCD Display Panel by means of the LVDS LCD panel connector and the LCD/Inverter power connector. These connectors transmit video signals and power from the system board to the LCD Display Panel.
Refer to the right side for the pin functions of these connectors.
Jumper Settings
Refer to the “Jumper Settings” section in this chapter for settings relevant to the LCD panel.
LVDS LCD Panel Connector
Pins Function Pins Function
1
GND
3
LVDS_Out3+ LVDS_Out3- 6 LVDS_Out7-
5
GND 8 GND
7
LVDS_Out2+ 10 LVDS_Out6+
9
LVDS_Out2- 12 LVDS_Out6-
11
GND 14 GND
13
LVDS_Out1+ 16 LVDS_Out5+
15
LVDS_Out1- 18 LVDS_Out5-
17
GND 20 GND
19
LVDS_Out0+ 22 LVDS_Out4+
21
LVDS_Out0- 24 LVDS_Out4-
23
GND 26 GND
25
LVDS_CLK1+ 28 LVDS_CLK2+
27
LVDS_CLK1- 30 LVDS_CLK2-
29
GND 32 GND
31
LVDS_DDCCLK 34 N.C.
33
LVDS_DDCDAA 36 +3.3V
35
Panel Power 38 Panel Power
37
Panel Power 40 Panel Power
39
2
4
GND
LVDS_Out7+
LCD/Inverter Power Connector
Pins Function
1
2
Panel Inverter Brightness Voltage Control
3 4 5 6 7 8
Panel Backlight On/Off Control
GND
GND
Panel Power
+3.3V
LCD/Inverter Power
LCD/Inverter Power
Note:
DFI board's LVDS connector: Hirose DF13-40DP-1.25V(91)/40P/1.25mm; cable side connector: Hirose DF13-40DS-1.25C.
21
www.dfi .comChapter 2 Hardware Installation
Page 22
Chapter 2

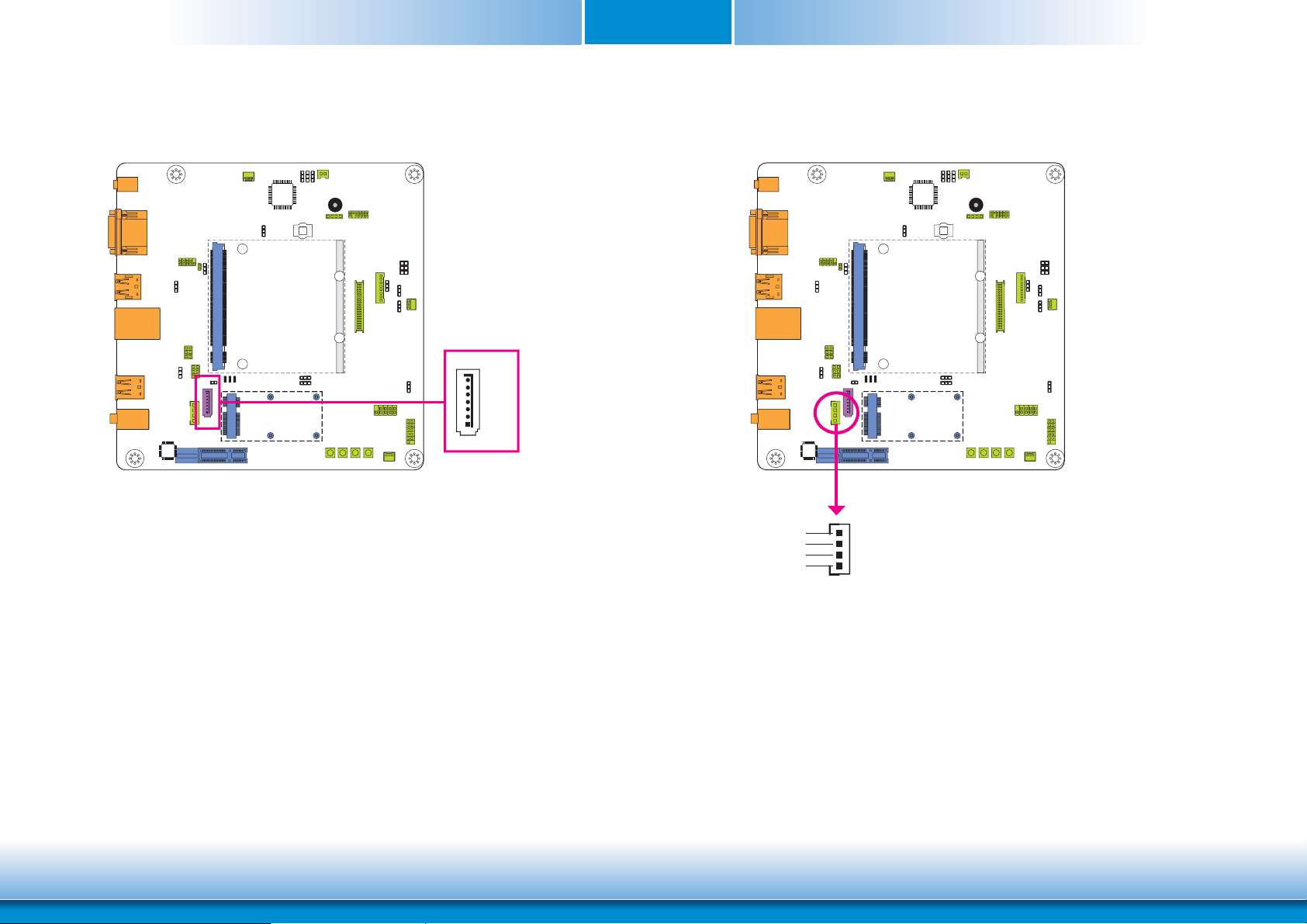

SATA (Serial ATA) Connector SATA (Serial ATA) Power Connector
7
GND RXP RXN GND TXN
TXP
GND
1
SATA 3.0 6Gb/s
(The SATA port provides adequate space for SATA DOM.)
SATA Power
The Serial ATA connector is used to connect the Serial ATA device. Connect one end of the Se­rial ATA cable to a SATA connector and the other end to your Serial ATA device.
BIOS Setting
Refer to the module’s BIOS for more information.
+5V Ground Ground
+12V
The SATA power connector supplies power to the SATA drive. Connect one end of the provided power cable to the SATA power connector and the other end to your storage device.
22
4
1
www.dfi .comChapter 2 Hardware Installation
Page 23
Chapter 2

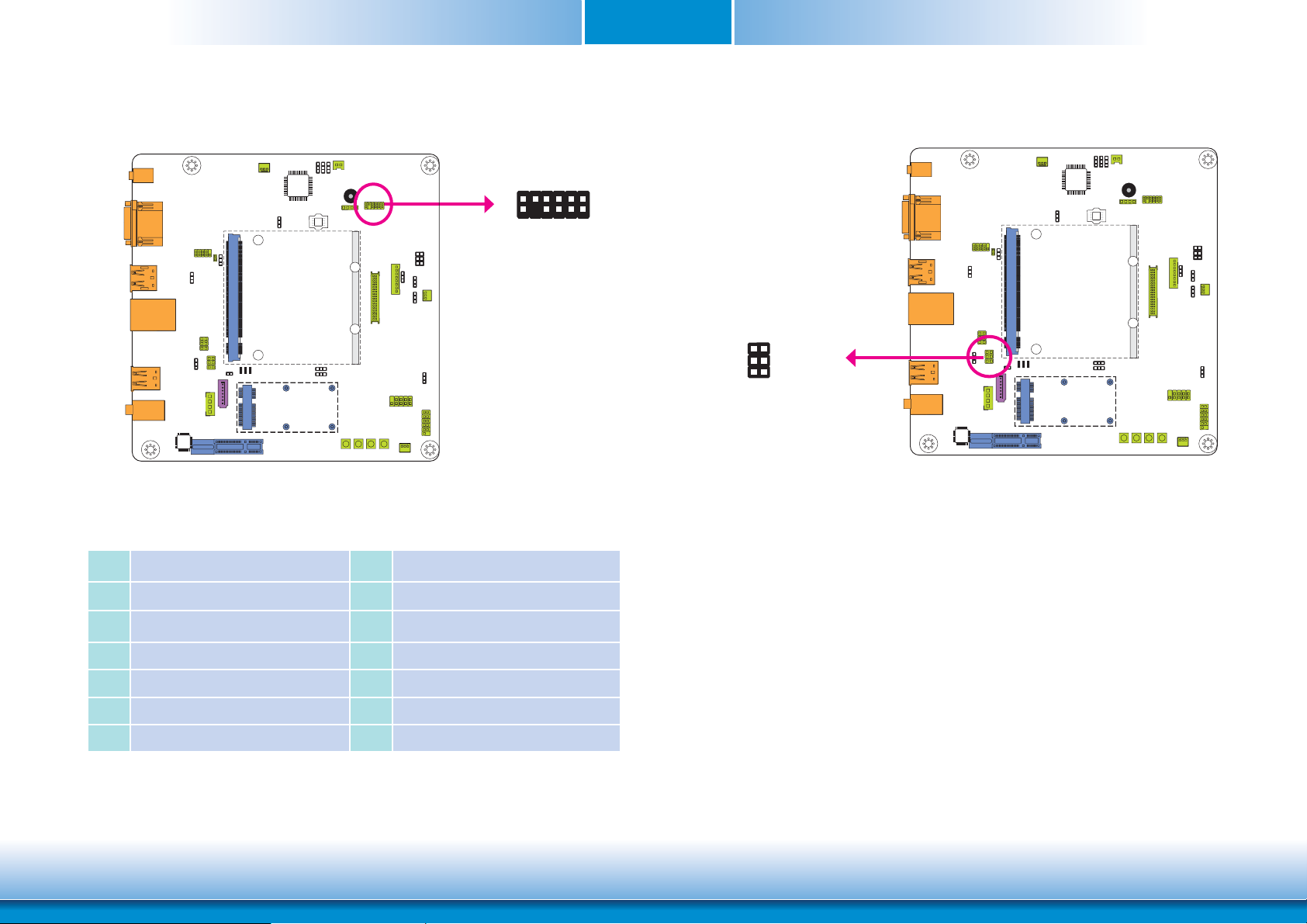

LPC Debug connector
LPC
11 12
The LPC connector is used for the debug function and its pin functions are listed below.
Pins Pin Assignment Pins Pin Assignment
SMBus Connector
1 2
56
NC
SMB_DATA
GND
The SMBus (System Management Bus) connectors are used to connect the SMBus device. It is a multiple device bus that allows multiple chips to connect to the same bus and enable each one to act as a master by initiating data transfer.
SMB_ALERT SMB_CLK
+3.3V_Standby
12
SMBus
CLK
1
3
RST#
FRAME#
5
LAD3
7
LAD2
9
SERIRQ
11
LAD1
2
4
LAD0
VCC_+3V
6
GND
8
NC
10
CLK_48MHz
12
23
www.dfi .comChapter 2 Hardware Installation
Page 24
Chapter 2
I2C Connector
56
NC
2
C_DATA
I
GND
The 1-channel I2C bus interface conforms to the version 2.1 I2C bus specification. It operates as a master or slave device and supports a multi-master bus.
12
NC
2
I
C_Clock
+3.3V
2
I
C
UART Ports
2 1
MFG_NC2_RX MFG_NC1_TX
The UART (Universal Asynchronous Receiver/Transmitter) port is the hardware component that transmits and receives the data of the serial communications. UART 2 port is the serial interface supporting TX/RX signal only to connect a simple UART for firmware and boot loader implementations.
10
UART 1
9
UART 2
1
UART 1
Pins Pin Assignment Pins Pin Assignment
NC
1
3
UART0_TX
GND
5
UART0_RTS-
7
NC
9
24
UART_RX
2
4
NC
NC
6
UART0_CTS-
8
www.dfi .comChapter 2 Hardware Installation
Page 25
Chapter 2
Expansion Slots
PCIe x4
TOP
mSATA
mSATA Port
The Mini PCIe socket is used to install a Mini PCIe card. Mini PCIe card is a small form factor PCI card with the same signal protocol, electrical definitions, and configuration definitions as the conventional PCI.
PCI Express x4 Slot
Install PCI Express cards such as network cards or other cards that comply to the PCI Express specifications into the PCI Express x4 slot.
SDIO Slot
This expansion port is used to insert a Secure Digital Input/Output (SDIO) or Multimedia Card (MMC) device. Aside from storing data files, an SDIO card is also capable of storing powerful software applications.
SDIO
Bottom
25
www.dfi .comChapter 2 Hardware Installation
Page 26
Chapter 2
Switches
Sleep
Reset
LEDs
SDIO LED
Low Power State LED
Thermal Trip LED
PowerLid
Note:
The Sleep and Lid functions are supported only when your operating system supports ACPI.
• Lid: it is used to turn the LVDS on or off.
• Sleep: it is used to set the system to “sleep” or “wake-up” mode.
Thermal Trip LED
This LED will light to indicate that the processor is on an overheating status.
Low Power State LED
This LED will light red when the system is in the standby mode. It indicates that the system will be entering a low power state soon.
SDIO LED
This LED will light when the SIOD card is installed into the SDIO slot.
26
www.dfi .comChapter 2 Hardware Installation
Page 27
Chapter 2
Battery
Battery
2
GND

MXM Connector

1
+3.3V
MXM Connector
The MXM connector is used to interface the carrier board with a Qseven board. Refer to the tables in the following page for the pin functions of the MXM connector.
Connect to the
Battery
The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source of power when the main power is shut off.
Safety Measures
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
battery connector
27
www.dfi .comChapter 2 Hardware Installation
Page 28
Chapter 2
Pin Q7 R2.0 Signal BT700 Signal Pin Q7 R2.0 Signal BT700 Signal
1 GND GND 2 GND GND 3 GBE_MDI3- GBE_MDI3- 4 GBE_MDI2- GBE_MDI2- 5 GBE_MDI3+ GBE_MDI3+ 6 GBE_MDI2+ GBE_MDI2+ 7 GBE_LINK100# GBE_LINK100# 8 GBE_LINK1000# GBE_LINK1000#
9 GBE_MDI1- GBE_MDI1- 10 GBE_MDI0- GBE_MDI0- 11 GBE_MDI1+ GBE_MDI1+ 12 GBE_MDI0+ GBE_MDI0+ 13 GBE_LINK# NC 14 GBE_ACT# GBE_ACT# 15 GBE_CTREF NC 16 SUS_S5# SUS_S4# 17 WAKE# WAKE# 18 SUS_S3# SUS_S3# 19 SUS_STAT# SUS_STAT# 20 PWRBTN# PWRBTN# 21 SLP_BTN# SLP_BTN# 22 LID_BTN# LID_BTN# 23 GND GND 24 GND GND
KEY KEY KEY KEY 25 GND GND 26 PWGIN PWGIN 27 BATLOW# BATLOW# 28 RSTBTN# RSTBTN# 29 SATA0_TX+ SATA0_TX+ 30 SATA1_TX+ SATA1_TX+ 31 SATA0_TX- SATA0_TX- 32 SATA1_TX- SATA1_TX- 33 SATA_ACT# SATA_ACT# 34 GND GND 35 SATA0_RX+ SATA0_RX+ 36 SATA1_RX+ SATA1_RX+ 37 SATA0_RX- SATA0_RX- 38 SATA1_RX- SATA1_RX- 39 GND GND 40 GND GND 41 BIOS_DISABLE# / BOOT_ALT# BIOS_DISABLE# 42 SDIO_CLK# SDIO_CLK# 43 SDIO_CD# SDIO_CD# 44 SDIO_LED NC 45 SDIO_CMD SDIO_CMD 46 SDIO_WP SDIO_WP 47 SDIO_PWR# SDIO_PWR# 48 SDIO_DAT1 SDIO_DAT1 49 SDIO_DAT0 SDIO_DAT0 50 SDIO_DAT3 SDIO_DAT3 51 SDIO_DAT2 SDIO_DAT2 52 SDIO_DAT5 NC 53 SDIO_DAT4 NC 54 SDIO_DAT7 NC 55 SDIO_DAT6 NC 56 RSVD NC 57 GND GND 58 GND GND 59 HDA_SYNC / I2S_WS HDA_SYNC 60 SMB_CLK / GP1_I2C_CLK SMB_CLK 61 HDA_RST# / I2S_RST# HDA_RST# 62 SMB_DAT / GP1_I2C_DAT SMB_DAT 63 HDA_BITCLK / I2S_CLK HDA_BITCLK 64 SMB_ALERT# SMB_ALERT# 65 HDA_SDI / I2S_SDI HDA_SDI 66 GP0_I2C_CLK GP0_I2C_CLK 67 HDA_SDO / I2S_SDO HDA_SDO 68 GP0_I2C_DAT GP0_I2C_DAT 69 THRM# THRM# 70 WDTRIG# WDTRIG# 71 THRMTRIP# THRMTRIP# 72 WDOUT WDOUT 73 GND GND 74 GND GND 75 USB_P7- / USB_SSTX0- USB_SSTX0- 76 USB_P6- / USB_SSRX0- USB_SSRX0- 77 USB_P7+ / USB_SSTX0+ USB_SSTX0+ 78 USB_P6+ / USB_SSRX0+ USB_SSRX0+ 79 USB_6_7_OC# USB_6_7_OC# 80 USB_4_5_OC# USB_4_5_OC# 81 USB_P5- / USB_SSTX1­83 USB_P5+ / USB_SSTX1+ USB_P5+ 84 USB_P4+ / USB_SSRX1+ USB_P4+ 85 USB_2_3_OC# USB_2_3_OC# 86 USB_0_1_OC# USB_0_1_OC# 87 USB_P3- USB_P3- 88 USB_P2- USB_P2- 89 USB_P3+ USB_P3+ 90 USB_P2+ USB_P2+ 91 USB_CC NC 92 USB_ID NC 93 USB_P1- USB_P1- 94 USB_P0- USB_P0- 95 USB_P1+ USB_P1+ 96 USB_P0+ USB_P0+ 97 GND GND 98 GND GND 99 eDP0_TX0+ / LVDS_A0+
101 eDP0_TX0- / LVDS_A0- LVDS_A0- 102 eDP1_TX0- / LVDS_B0- LVDS_B0- 103 eDP0_TX1+ / LVDS_A1+ LVDS_A1+ 104 eDP1_TX1+ / LVDS_B1+ LVDS_B1+ 105 eDP0_TX1- / LVDS_A1- LVDS_A1- 106 eDP1_TX1- / LVDS_B1- LVDS_B1- 107 eDP0_TX2+ / LVDS_A2+ LVDS_A2+ 108 eDP1_TX2+ / LVDS_B2+ LVDS_B2+ 109 eDP0_TX2- / LVDS_A2- LVDS_A2- 110 eDP1_TX2- / LVDS_B2- LVDS_B2- 111 LVDS_PPEN LVDS_PPEN 112 LVDS_BLEN LVDS_BLEN 113 eDP0_TX3+ / LVDS_A3+ LVDS_A3+ 114 eDP1_TX3+ / LVDS_B3+ LVDS_B3+ 115 eDP0_TX3- / LVDS_A3- LVDS_A3- 116 eDP1_TX3- / LVDS_B3- LVDS_B3-
USB_P5- 82 USB_P4- / USB_SSRX1- USB_P4-
LVDS_A0+ 100 eDP1_TX0+ / LVDS_B0+ LVDS_B0+
Pin Q7 R2.0 Signal BT700 Signal Pin Q7 R2.0 Signal BT700 Signal
117 GND GND 118 GND GND 119 eDP0_AUX+ / LVDS_A_CLK+ LVDS_A_CLK+ 120 eDP1_AUX+ / LVDS_B_CLK+ LVDS_B_CLK+ 121 eDP0_AUX- / LVDS_A_CLK- LVDS_A_CLK- 122 eDP1_AUX- / LVDS_B_CLK- LVDS_B_CLK- 123 LVDS_BLT_CTRL /GP_PWM_OUT0 LVDS_BLT_CTRL 124 GP_1-Wire_Bus GP_1-Wire_Bus 125 GP2_I2C_DAT / LVDS_DID_DAT LVDS_DID_DAT 126 eDP0_HPD# / LVDS_BLC_DAT NC 127 GP2_I2C_CLK / LVDS_DID_CLK LVDS_DID_CLK 128 eDP1_HPD# / LVDS_BLC_CLK NC 129 CAN0_TX NC 130 CAN0_RX NC 131 DP_LANE3+ / TMDS_CLK+ DP_LANE3+ 132 RSVD (Differential Pair) NC 133 DP_LANE3- / TMDS_CLK- DP_LANE3- 134 RSVD (Differential Pair) NC 135 GND GND 136 GND GND 137 DP_LANE1+ / TMDS_LANE1+ DP_LANE1+ 138 DP_AUX+ DP_AUX+ 139 DP_LANE1- / TMDS_LANE1- DP_LANE1- 140 DP_AUX- DP_AUX- 141 GND GND 142 GND GND 143 DP_LANE2+ / TMDS_LANE0+ DP_LANE2+ 144 RSVD (Differential Pair) NC 145 DP_LANE2- / TMDS_LANE0- DP_LANE2- 146 RSVD (Differential Pair) NC 147 GND GND 148 GND GND 149 DP_LANE0+ / TMDS_LANE2+ DP_LANE0+ 150 HDMI_CTRL_DAT HDMI_CTRL_DAT 151 DP_LANE0- / TMDS_LANE2- DP_LANE0- 152 HDMI_CTRL_CLK HDMI_CTRL_CLK 153 DP_HDMI_HPD# DP_HDMI_HPD# 154 RSVD NC 155 PCIE_CLK_REF+ PCIE_CLK_REF+ 156 PCIE_WAKE# PCIE_WAKE# 157 PCIE_CLK_REF- PCIE_CLK_REF- 158 PCIE_RST# PCIE_RST# 159 GND GND 160 GND GND 161 PCIE3_TX+ NC 162 PCIE3_RX+ NC 163 PCIE3_TX- NC 164 PCIE3_RX- NC 165 GND GND 166 GND GND 167 PCIE2_TX+ 169 PCIE2_TX- PCIE2_TX- 170 PCIE2_RX- PCIE2_RX- 171 UART0_TX UART0_TX 172 UART0_RTS# UART0_RTS# 173 PCIE1_TX+ PCIE1_TX+ 174 PCIE1_RX+ PCIE1_RX+ 175 PCIE1_TX- PCIE1_TX- 176 PCIE1_RX- PCIE1_RX- 177 UART0_RX UART0_RX 178 UART0_CTS# UART0_CTS# 179 PCIE0_TX+ PCIE0_TX+ 180 PCIE0_RX+ PCIE0_RX+ 181 PCIE0_TX- PCIE0_TX- 182 PCIE0_RX­183 GND GND 184 GND GND 185 LPC_AD0 / GPIO0 LPC_AD0 186 LPC_AD1 / GPIO1 LPC_AD1 187 LPC_AD2 / GPIO2 LPC_AD2 188 LPC_AD3 / GPIO3 LPC_AD3 189 LPC_CLK / GPIO4 LPC_CLK 190 LPC_FRAME# / GPIO5 LPC_FRAME# 191 SERIRQ / GPIO6 SERIRQ 192 LPC_LDRQ# / GPIO7 NC 193 VCC_RTC VCC_RTC 194 SPKR / GP_PWM_OUT2 SPKR 195 FAN_TACHOIN / GP_TIMER_IN FAN_TACHOIN 196 FAN_PWMOUT / GP_PWM_OUT1 FAN_PWMOUT 197 GND GND 198 GND GND 199 SPI_MOSI SPI_MOSI 200 SPI_CS0# SPI_CS0# 201 SPI_MISO SPI_MISO 202 SPI_CS1# NC 203 SPI_SCK SPI_SCK 204 MFG_NC4 NC 205 VCC_5V_SB VCC_5V_SB 206 VCC_5V_SB VCC_5V_SB 207 MFG_NC0 NC 208 MFG_NC2 UART1_RX 209 MFG_NC1 UART1_TX 210 MFG_NC3 NC 211 VCC VCC 212 VCC VCC 213 VCC VCC 214 VCC VCC 215 VCC VCC 216 VCC VCC 217 VCC VCC 219 VCC VCC 220 VCC VCC 221 VCC VCC 222 VCC VCC 223 VCC VCC 224 VCC VCC 225 VCC VCC 226 VCC VCC 227 VCC VCC 228 VCC VCC 229 VCC VCC 230 VCC VCC
28
PCIE2_TX+ 168 PCIE2_RX+ PCIE2_RX+
218 VCC VCC
PCIE0_RX-
www.dfi .comChapter 2 Hardware Installation
Page 29

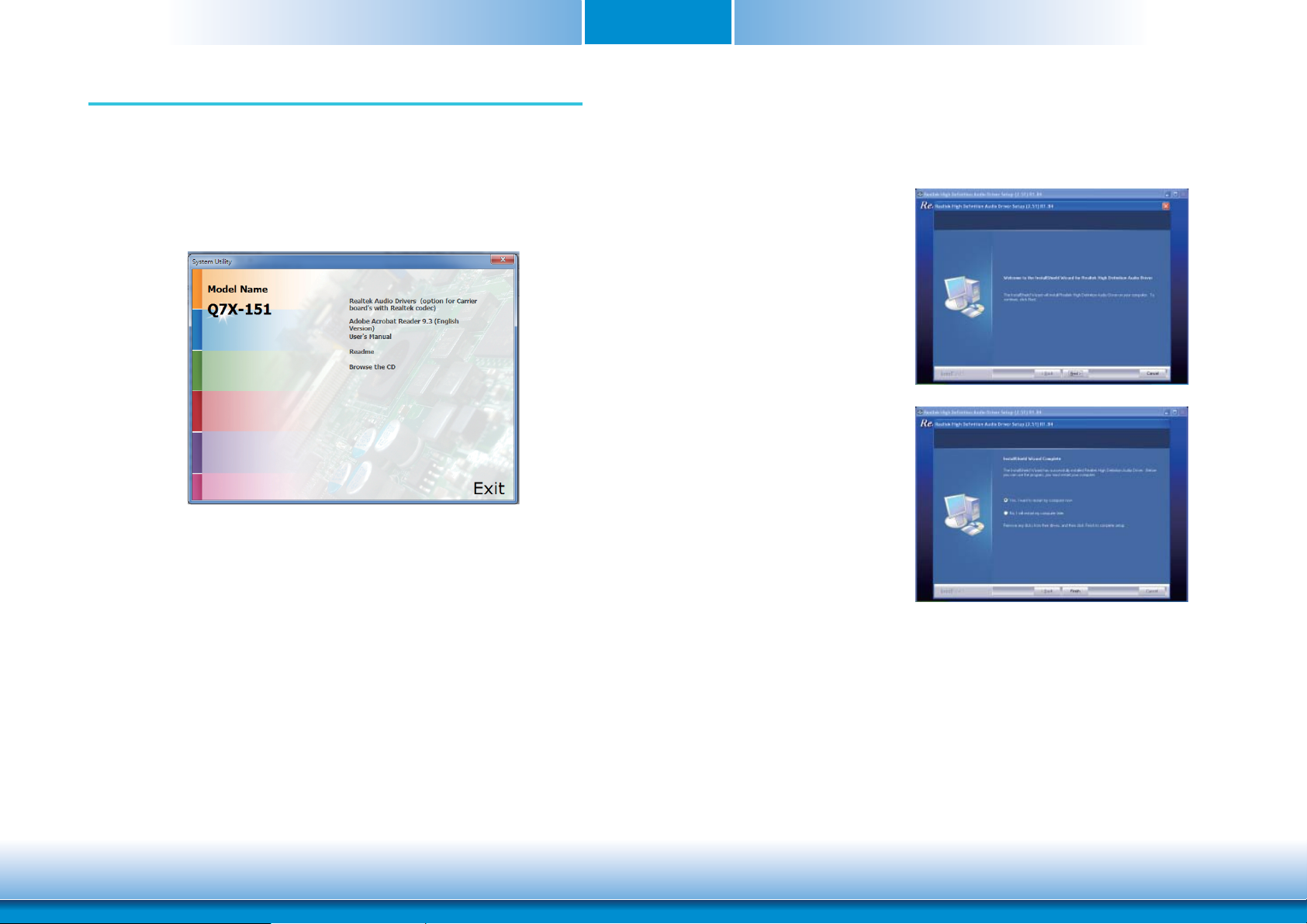

Chapter 3 - Supported Software

The CD that came with the system board contains drivers, utilities and software applications required to enhance the performance of the system board.
Insert the CD into a CD-ROM drive. The autorun screen (Mainboard Utility CD) will appear. If after inserting the CD, “Autorun” did not automatically start (which is, the Mainboard Utility CD screen did not appear), please go directly to the root directory of the CD and double-click “Setup”.
Chapter 3
Realtek Audio Drivers
To install the driver, click “Realtek Audio Drivers” on the main menu.
1. Setup is now ready to install the audio driver. Click Next.
2. Follow the remainder of the steps on the screen; clicking “Next” each time you finish a step.
3. Click “Yes, I want to restart my computer now” then click Finish.
Restarting the system will allow the new software installation to take effect.
29
www.dfi .comChapter 3 Supported Software
Page 30

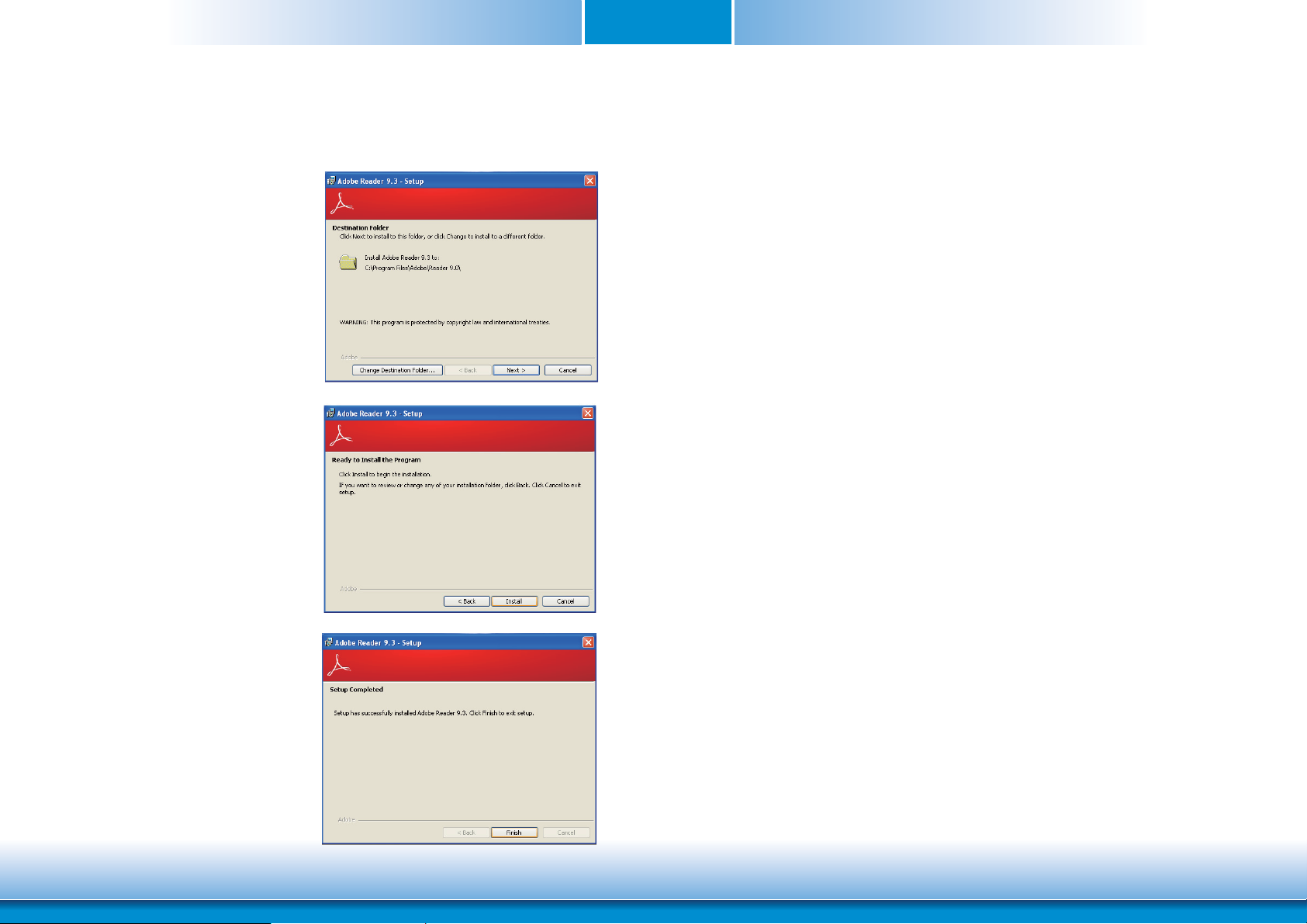

Adobe Acrobat Reader 9.3
To install the reader, click “Adobe Acrobat Reader 9.3” on the main menu.
1. Click Next to install or click Change Destination Folder to select another folder.
2. Click Install to begin installation.
Chapter 3
3. Click Finish to exit installation.
30
www.dfi .comChapter 3 Supported Software
Loading...
