DFI Q7-100 User Manual

Q7-100

Qseven Carrier Board

User’s Manual

A19810337

1

www.d.comChapter 1 Introduction

Copyright

FCC and DOC Statement on Class B

This publication contains information that is protected by copyright. No part of it may be re­produced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi­cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu­ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.

Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.

© 2013. All Rights Reserved.

Trademarks

Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason­able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour­aged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compli­ance could void the user’s authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

2

www.dfi .comChapter 1 Introduction

Table of Contents

Copyright .............................................................................................................2

Trademarks ........................................................................................................2

FCC and DOC Statement on Class B .....................................................2

About this Manual ..........................................................................................4

Warranty ............................................................................................................4

Static Electricity Precautions ......................................................................4

Safety Measures ..............................................................................................4

About the Package .........................................................................................5

Internal I/O Connectors .......................................................... 18

S/PDIF Connector .......................................................................................18

LVDS LCD Panel Connector and LCD/Inverter Power Connector ..................... 19

Digital I/O Connector and Digital I/O Power Connector................................. 20

Expansion Slots .......................................................................................... 20

SATA (Serial ATA) Connectors ...................................................................... 21

Cooling Fan Connectors............................................................................... 21

Chassis Intrusion Connector ........................................................................ 22

Standby Power LED .................................................................................... 22

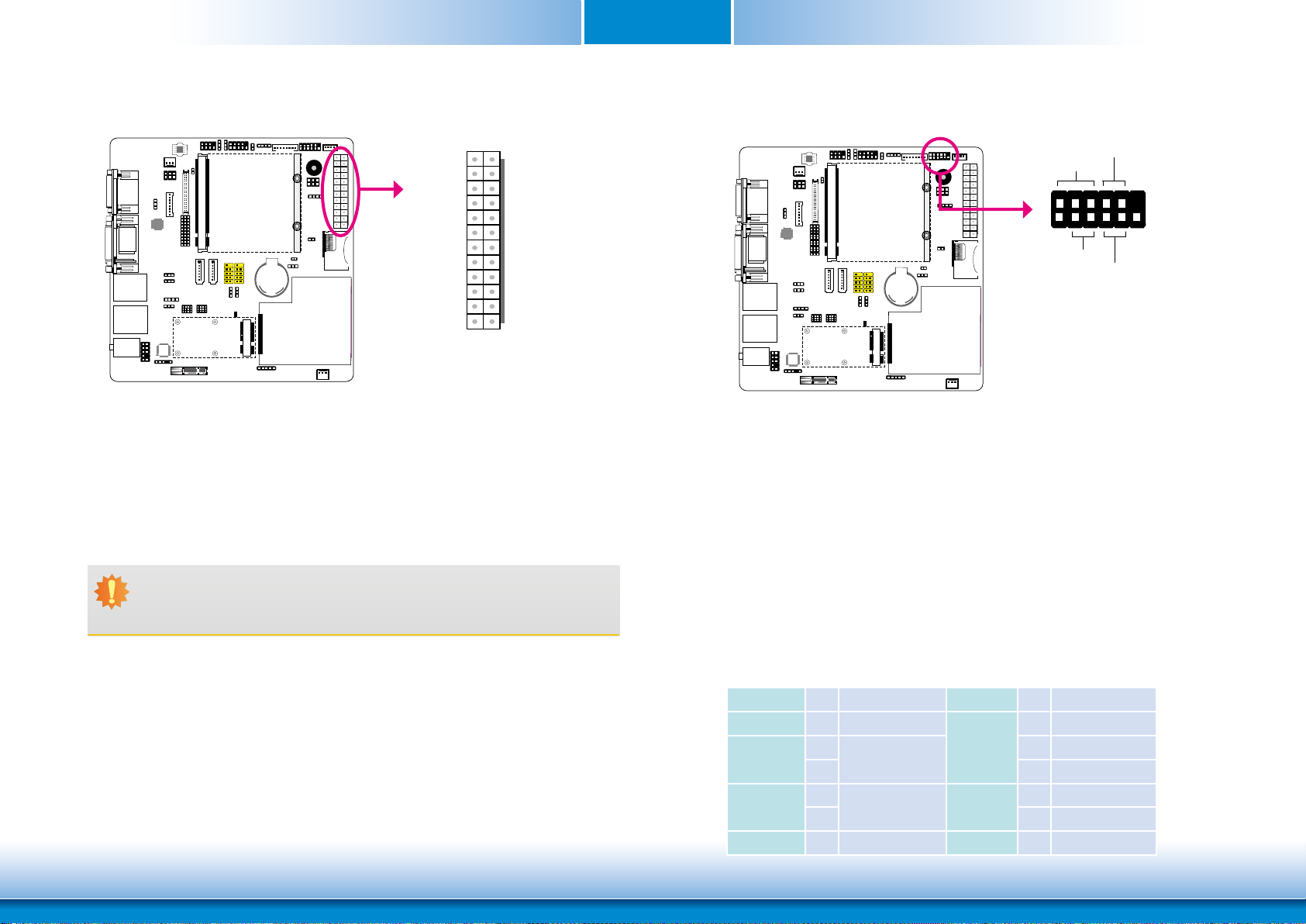

Power Connectors ....................................................................................... 23

Front Panel Connectors ...............................................................................23

Battery .......................................................................................................24

MXM Connector .......................................................................................... 24

2

I

C Connector ............................................................................................. 26

Can-bus Connector ..................................................................................... 26

USB Client Connector .................................................................................. 27

SM Bus ...................................................................................................... 27

LPC Connector ............................................................................................ 28

SD/MMC Slot ..............................................................................................28

SPI JTAG Connector ....................................................................................29

Battery Low ................................................................................................29

Chapter 1 - Introduction .............................................................................6

Specifications ................................................................................................6

Chapter 2 - Hardware Installation ................................................ 7

Board Layout .................................................................................................7

Block Diagram ...............................................................................................7

Mechanical Diagram ....................................................................................8

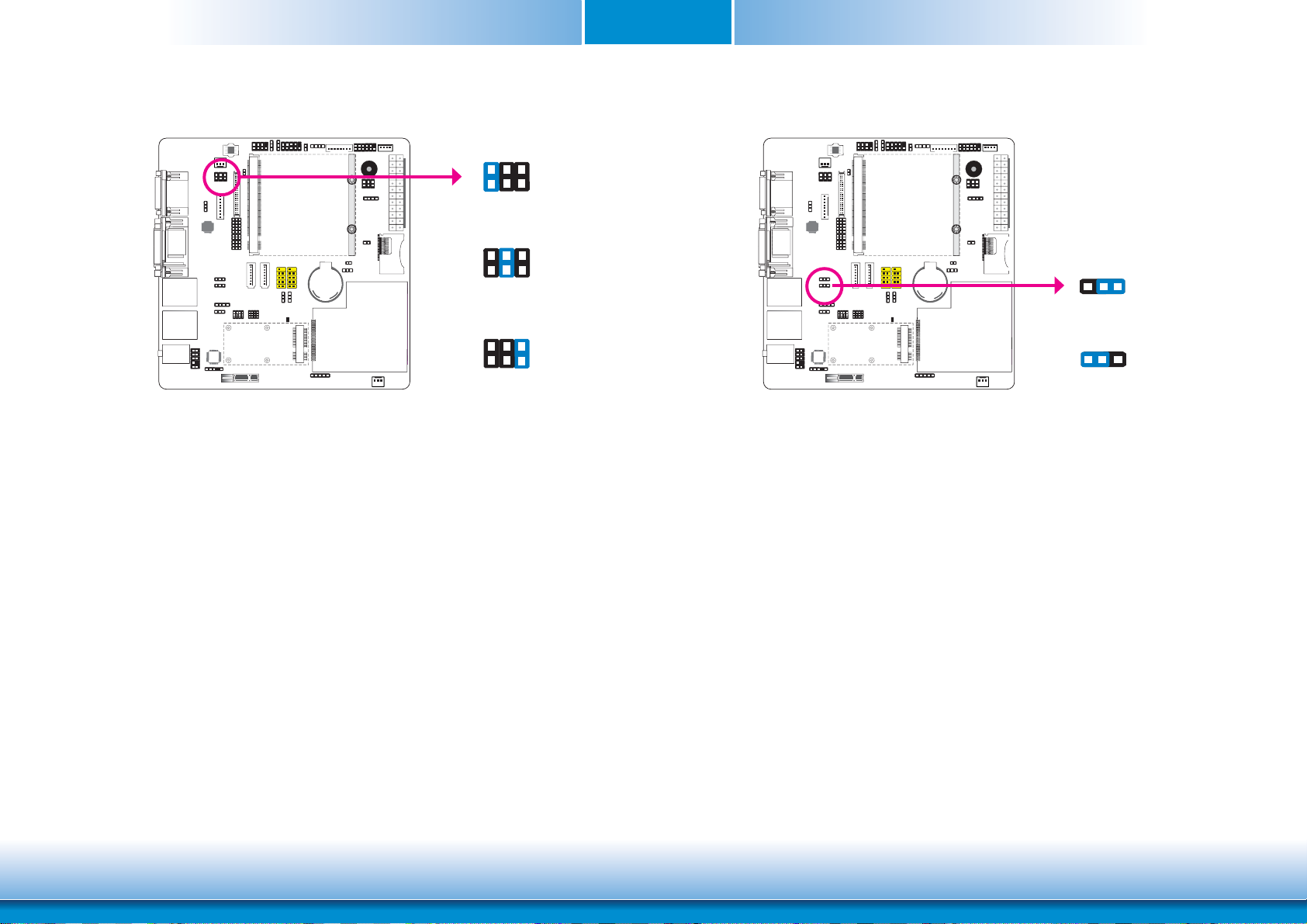

Jumper Settings ...........................................................................................9

COM 0 RS232 Select .....................................................................................9

USB Power Select ......................................................................................... 9

Clear CMOS Data ........................................................................................ 10

Super IO Select ..........................................................................................10

Backlight Control Level Select ......................................................................11

MXM 5V Power Select .................................................................................11

LVDS Power Select...................................................................................... 12

USB Host/Client Select ................................................................................12

VGA/DVI Select ..........................................................................................13

LAN 2/PCIe x1 Function Select ....................................................................13

BIOS Select ................................................................................................14

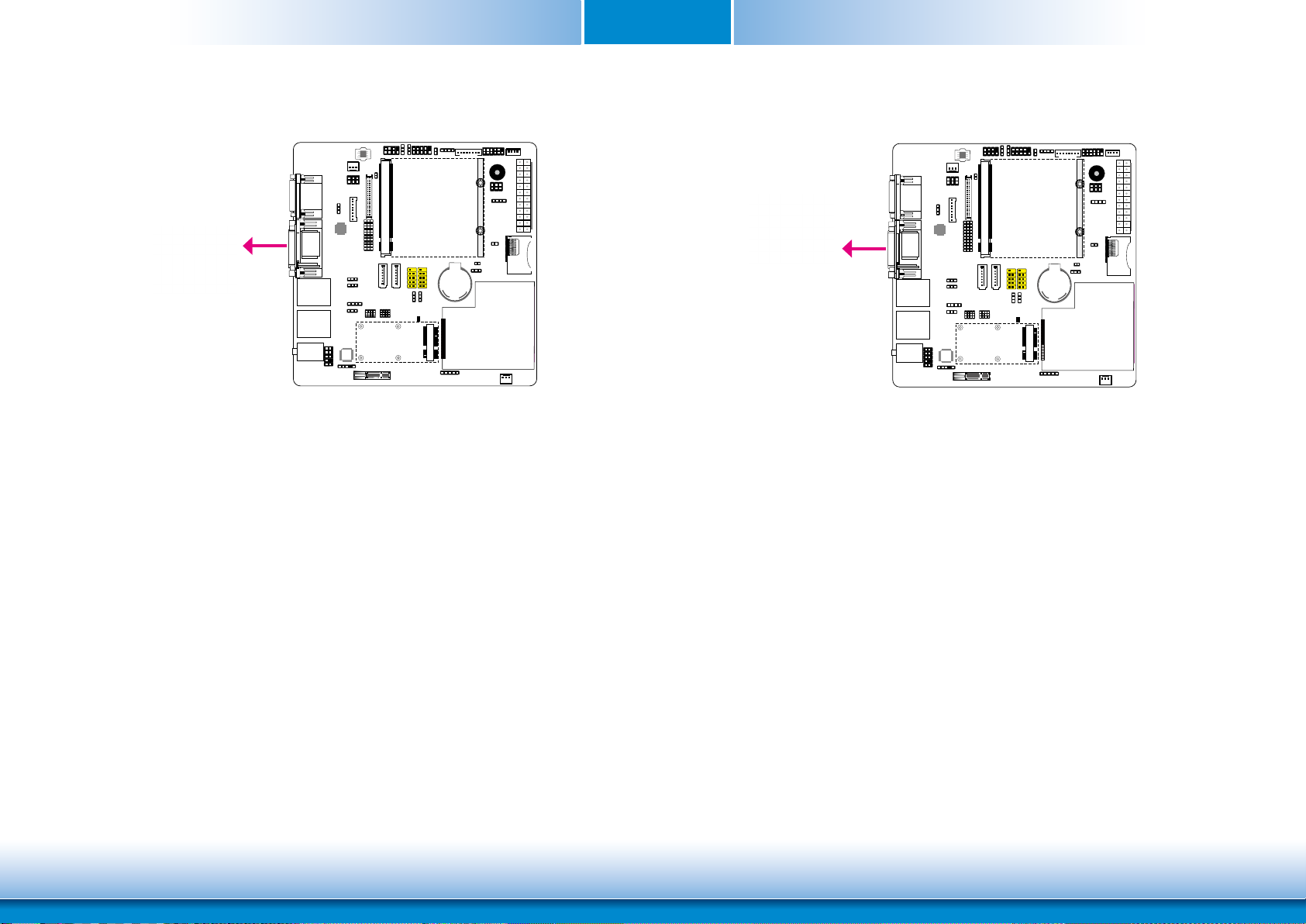

Rear Panel I/O Ports .......................................................................................15

Serial (COM) Ports ......................................................................................15

VGA Port ....................................................................................................16

DVI-I Port .................................................................................................. 16

RJ45 LAN Ports ...........................................................................................17

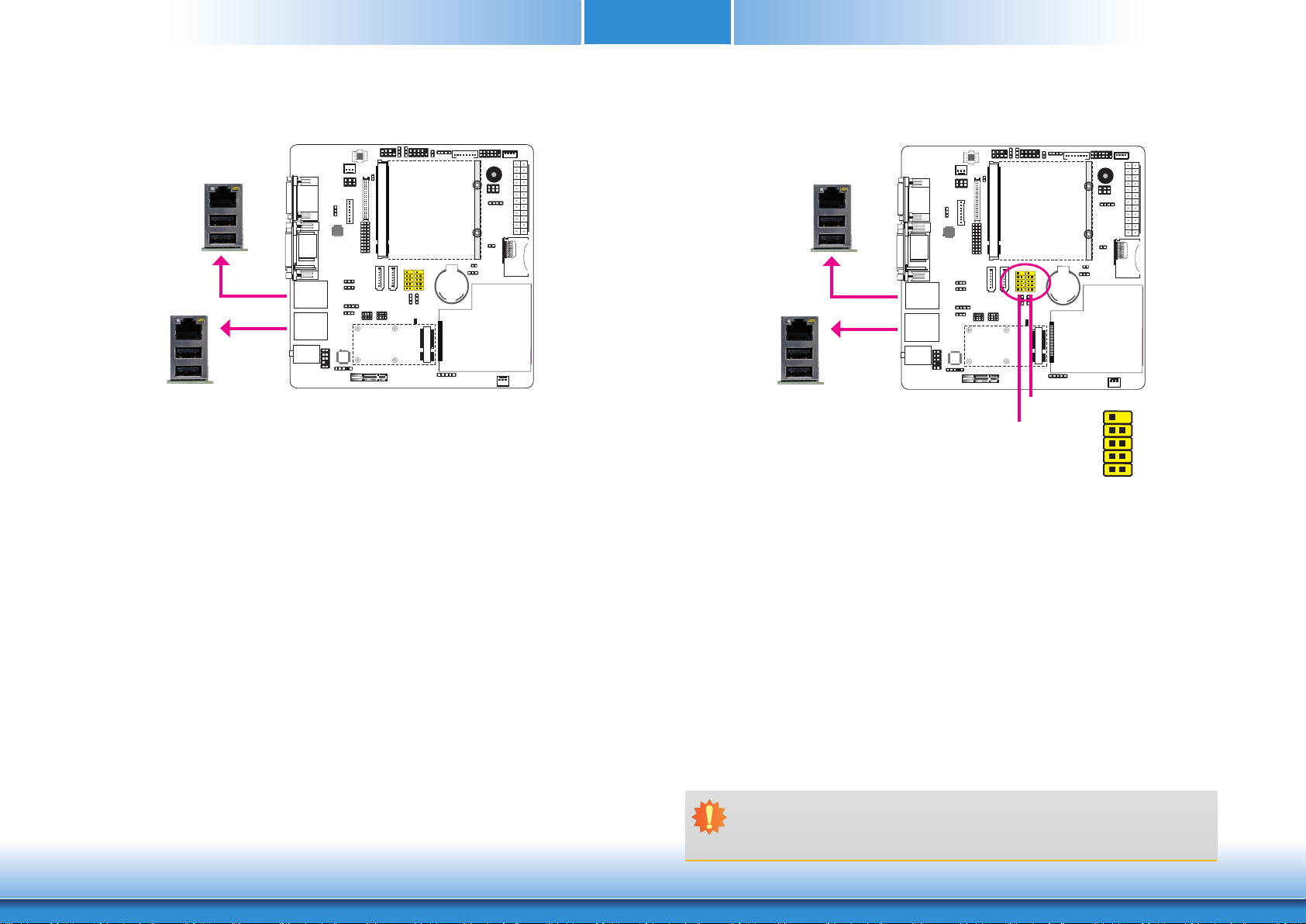

Universal Serial Bus Connectors ...................................................................17

Audio .........................................................................................................18

Chapter 3 - Supported Software .......................................................... 30

3

www.dfi .comChapter 1 Introduction

About this Manual

Static Electricity Precautions

An electronic file of this manual is included in the CD. To view the user’s manual in the CD,
insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear.
Click “User’s Manual” on the main menu.

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.

2. The warranty is void if the product has been subjected to physical abuse, improper instal­lation, modification, accidents or unauthorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may not, under any circum­stances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.

4. We will not be liable for any indirect, special, incidental or consequencial damages to the
product that has been modified or altered.

It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han­dling them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.

5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con­nectors by their ends.

Important:

Electrostatic discharge (ESD) can damage your processor, disk drive and other
components. Perform the upgrade instruction procedures described at an ESD
workstation only. If such a station is not available, you can provide some ESD pro­tection by wearing an antistatic wrist strap and attaching it to a metal part of the
system chassis. If a wrist strap is unavailable, establish and maintain contact with
the system chassis throughout any procedures requiring ESD protection.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range.

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installation or servic­ing. After installation or servicing, cover the system chassis before plugging the power
cord.

4

www.dfi .comChapter 1 Introduction

About the Package

The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.

• One Q7-100 board

• One Serial ATA data cable

• One IO shield

• One DVD

• One QR (Quick Reference)

Optional Items

• Serial ATA data cable

• USB port cable

• I/O shield

• Serial ATA power cable
The board and accessories in the package may not come similar to the information listed

above. This may differ in accordance with the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.

Before Using the System Board

Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will need at least the following

internal components.

• A CPU

• Memory module

• Storage devices such as hard disk drive, CD-ROM, etc.
You will also need external system peripherals you intend to use which will normally include at

least a keyboard, a mouse and a video display monitor.

5

www.dfi .comChapter 1 Introduction

Chapter 1 - Introduction

Specifications

Graphics

Audio

Storage

LAN

IO Chip

Damage Free
Intelligence

Temperature

Humidity
Rear Panel IO

Ports

• Chrontel CH7317B (SDVO to RGB DAC)

• Realtek ALC886 5.1-channel High Defi nition Audio

• Audio outputs: Mic-in/Center+Subwoofer, line-in/surround
and line out

• S/PDIF audio interface

• 2 SATA 3.0 ports with data transfer rate up to 6Gb/s

• 1 SD/MMC slot

• 2 LAN ports

- LAN1: Gigabit Ethernet supported by the Qseven module

- LAN2: Realtek RTL8111DL PCIe Gigabit Ethernet controller

• Winbond 83627DHG-P controller

• LPC interface

• Supports system fan

• Default I/O port address “2Eh”

• Monitors system temperature and overheat alarm

• Monitors system fan speed and failure alarm

• Operating: 0oC to 60oC

• Storage: -20

• Operating: 10% to 90%

• 2 DB-9 RS232 serial ports

• 1 DB-15 VGA port

• 1 DVI-I port (DVI-D signal)

• 2 RJ45 LAN ports

• 4 USB 2.0/1.1 ports

• Mic-in/Center+Subwoofer, line-in/surround and line out

o

C to 85oC

Chapter 1

IO Connectors

Expansion Slots

Board to board
Connectors

Dimensions

Certifi cation

• 2 connectors for 4 external USB 2.0/1.1 ports

• 1 LPC connector

2

• 1 I

C connector

• 1 CAN-bus connector

• 1 LVDS LCD panel connector

- 18/24-bit single channel

• 1 LCD/inverter power connector

• 1 8-bit Digital I/O connector

• 1 front audio connector for line-out and mic-in jacks

• 1 S/PDIF connector

• 2 Serial ATA connectors

• 1 24-pin ATX power connector

• 1 chassis intrusion connector

• 1 front panel connector

• 2 fan connectors

• 1 PCIe x1 slot

• 1 Mini PCIe slot

- Supports half/full size Mini PCIe card

• 1 ExpressCard slot

• One MXM connector

• Mini-ITX form factor

• 170mm (6.7”) x 170mm (6.7”)

• CE

• FCC Class B

• RoHS

6

www.dfi .comChapter 1 Introduction

Chapter 2 - Hardware Installation
Board Layout

Super IO

COM 1
COM 2

VGA

DVI-I

LAN 1
USB 1
USB 0

LAN 2

USB 2
USB 3

LVDS Power
Select (JP14)

LCD/ Inverter
power

1

Backlight control
level select (JP15)

CHRONTEL
CH7317B

-D signal only)

DVI-I port

(DVI

USB 2-3 Power
Select (JP3)

LAN2/PCIe x1

Slot Function
Select (JP18)

Realtek

2

1

ALC886

SPI Flash

BIOS

1

CPU Fan

2
1

5

1

8

VGA/DVI
display
(JP8)

USB 0-1 power
select (JP1)

1

USB Host/

1

Client Select
(JP7)

1

1

COM0

12

6

LVDS LCD panel

39

40

123

USB Client

3

2

1

SPI

1

J
I
H
G
F
E
D
C
B
A

SATA 1

3
2
1

COM0 RS232
Select (JP23)

2

1

MXM

171

USB 6-7 power
select (JP6)

Select (JP16)

8

1

1

7

USB 6-7

7

TA 0
SA

2

LAN2/PCIe x1 Slot
Function Select
(JP17)

2

1

1

1

LPC

10910

2

USB 4-5
power
select (JP5)

1

Standby
Power Led

9

1

Chassis
Intrusion

10

9

USB 4-5

1

2

IC

Battery

1

1

DIO

Battery Low

1

1

Clear CMOS
(JP12)

2

1

panel

Front

2
1

MXM 5V power
select (JP2)

CAN-bus

BIOS Select

(J1)

12

11

1

DIO Power
Select (J14)

6
5

1

Chapter 2

1

24

12

1

13

SD/MMC

Block Diagram

SPI

Interface

SPI

VGA

SDVO

DVI

Interface

LVDS

Interface

Q7

Connector

USB

Interface

Serial ATA

Interface

SDIO

Interface

PCIe x1
Interface

CH7317
CH7318

LVDS

ATX powe r

ALC886

Front

Audio

SPDIF

GLAN

(RTL8111DL)

GLAN

W83627DHG-P

USB 2.0 8x

SATA II 2x

SD CARD

Mini PCIe x1

PCIe x1

GPIO 8 Ports
H/W Monitor

CASE Open

CPU/SYS FAN

KB/MS

RS232 2x

Front audio

Line-in/ Surround
Line-out
Mic-in/ Center+Subwoofer

9

S/PDIF

1

PCIe x1

10

Mini PCIe

SM Bus

ExpressCard

1

System fan

1

7

www.dfi .comChapter 2 Hardware Installation

Mechanical Diagram

Chapter 2

10.16

0.00

46.94

6.35

0.00

1.57

17.75

36.91

59.43

89.62

125.71

151.78

148.65

157.48

163.83

10.16

17

1

1 2

5 6

3
2

1

22.86

54.80

68.30

85.90

149.90

154.94

160.02

6.35

3

1

0.00

1

8

2

1

122.30

A

C

154.94

160.02

85.90

100.90

134.90

149.90

157.48

163.83

8

www.dfi .comChapter 2 Hardware Installation

Chapter 2

Jumper Settings

COM 0 RS232 Select

COM 0

3
2
1

1-2 On: Disable

(default)

3
2
1

2-3 On: Enable

JP23 is used to configure COM 0 to RS232.
The pin function of COM 0 will vary according to the jumper’s setting.

USB Power Select

USB 0-1
(JP1)

USB 2-3
(JP3)

USB 4-5
(JP5)

USB 6-7
(JP6)

JP1 (for USB 0-1), JP3 (for USB 2-3), JP5 (for USB 4-5) and JP6 (for USB 6-7) are used to se­lect the power of the USB ports. Selecting +5V_standby will allow you to use a USB keyboard
to wake up the system.

2

1

3

1-2 On: +5V

(default)

2312

1

3

1-2 On: +5V

(default)

3
2
1

1-2 On: +5V

(default)

3
2
1

1-2 On: +5V

(default)

312

2-3 On:

+5V_standby

2-3 On:

+5V_standby

2-3 On: +5V_

standby

2-3 On: +5V_

standby

3
2
1

3

2
1

9

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the
+5V_standby power source of your power supply must support ≥1.5A. For 3 or
more USB ports, the +5V_standby power source of your power supply must sup­port ≥2A.

www.dfi .comChapter 2 Hardware Installation

Chapter 2

Clear CMOS Data

2

1

JP12

If you encounter the following,

a) CMOS data becomes corrupted.
b) You forgot the supervisor or user password.

you can reconfigure the system with the default values stored in the ROM BIOS.

To load the default values stored in the ROM BIOS, please follow the steps below.

1. Power-off the system and unplug the power cord.

3

1-2 On: Normal

(default)

2-3 On:

Clear CMOS Data

132

Super IO Select

JP6

JP16 is used to select enable or disable the super IO select.

JP16

3
2
1

1-2 On: Enable

3
2
1

2-3 On: Disable

(default)

2. Set JP12 pins 2 and 3 to On. Wait for a few seconds and set JP12 back to its default set­ting, pins 1 and 2 On.

3. Now plug the power cord and power-on the system.

10

www.dfi .comChapter 2 Hardware Installation

Chapter 2

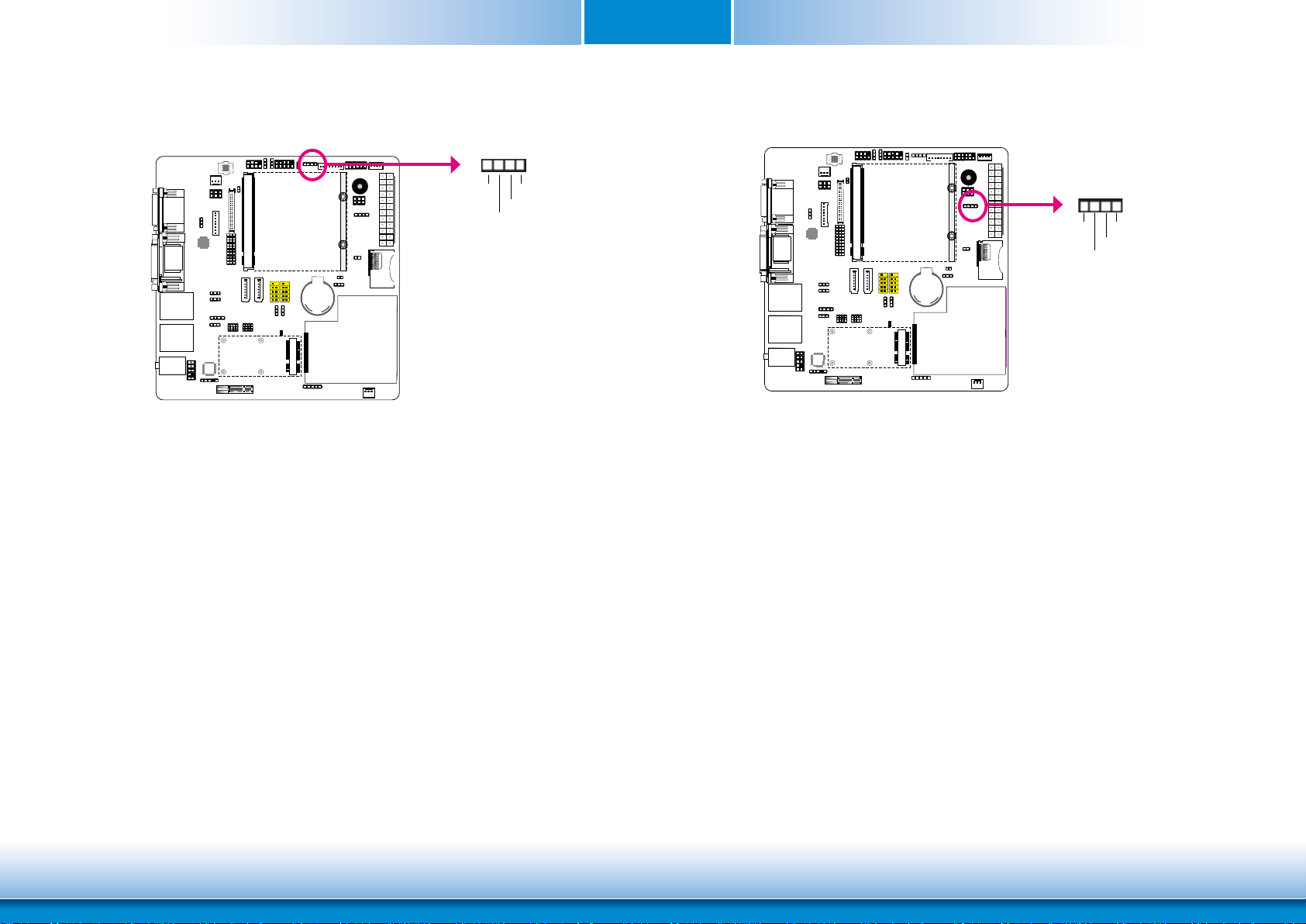

Backlight Control Level Select

JP15

JP15 is used to select the backlight control level +5V or +3.3V.

3

2

1

1-2 On: +5V

(default)

3
2
1

2-3 On: +3.3V

MXM 5V Power Select

JP2 is used to select the power of the MXM connector.

JP2

64

2

531

1-2 On: 5VSB

64

2

531

3-4 On: 5V

64

2

531

5-6 On: NC

11

www.dfi .comChapter 2 Hardware Installation

Chapter 2

LVDS Power Select

JP14 is used to select the power of the LVDS connector.

JP14

4

2

6

2

(default)

531

64

531

642

531

1-2 On: 12V

3-4 On: 5V

5-6 On: 3.3V

USB Host/Client Select

JP7 is used to select between USB Host and USB client.

JP7

1-2 On: USB Client

2-3 On: USB Host

132

132

(default)

12

www.dfi .comChapter 2 Hardware Installation

Chapter 2

VGA/DVI Select

J
I

H
G

JP8

A1-2, J1-2 On:

VGA (default)

A2-3, J2-3 On:

The system board allows connecting a device to either the DVI port or the VGA port at the
rear panel. Use JP8 to select between using VGA or DVI.

F
E

D
C

B
A

3

2

1

J
I

H
G
F
E

D
C

B
A

3

2

1

DVI

LAN2/PCIe x1 Slot Function Select

3
2
1

JP17

JP18

3
2
1

1-2 On:

LAN 2 (defaullt)

JP17 is used to select the function of PCIe x1 slot or LAN 2. JP18 is just used to select the
LAN 2 function when pin 1 and 2 are set to On.

1-2 On: LAN 2

3
2
1

2-3 On:

PCIe x1 slot (default)

13

www.dfi .comChapter 2 Hardware Installation

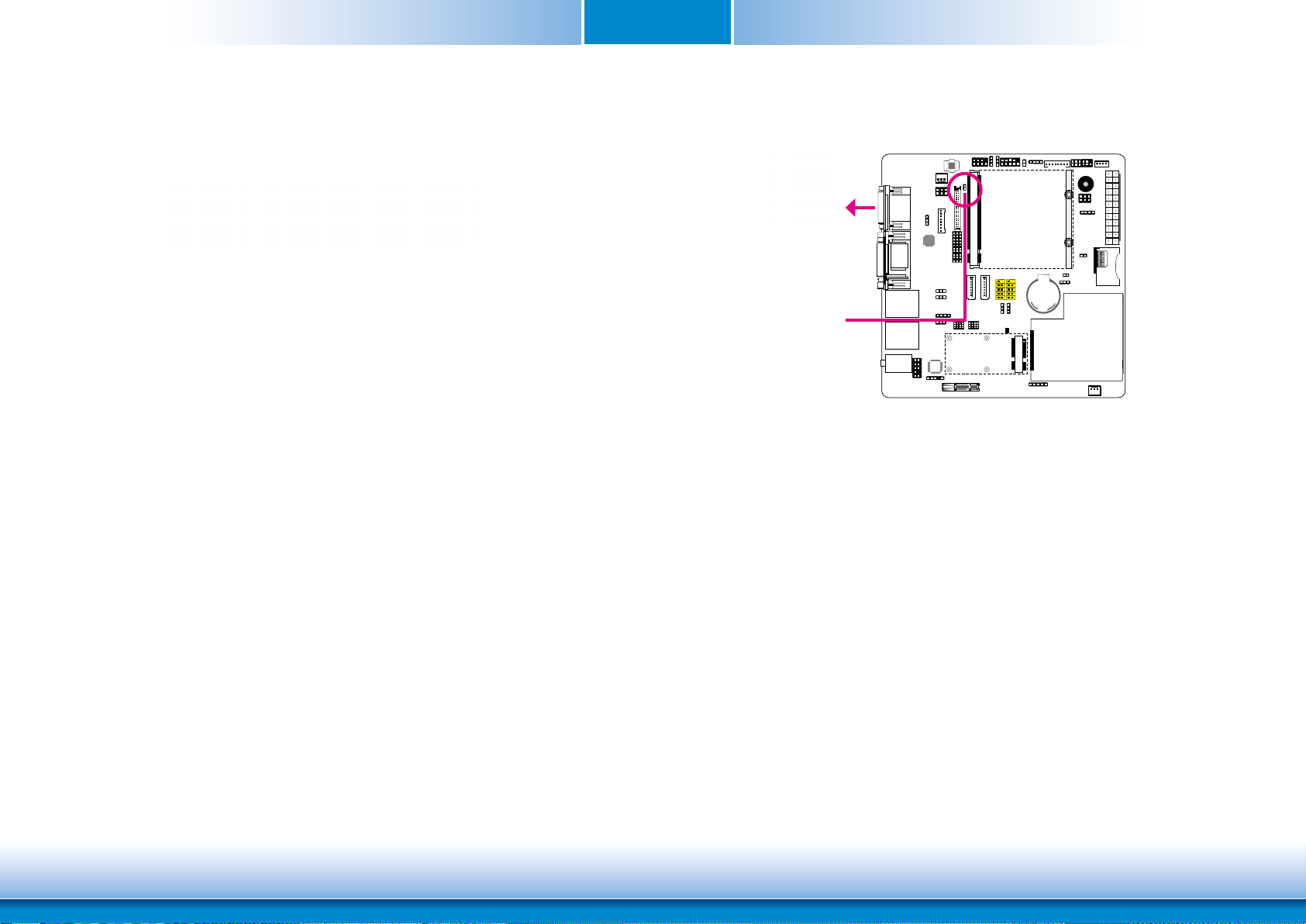

BIOS Select

Chapter 2

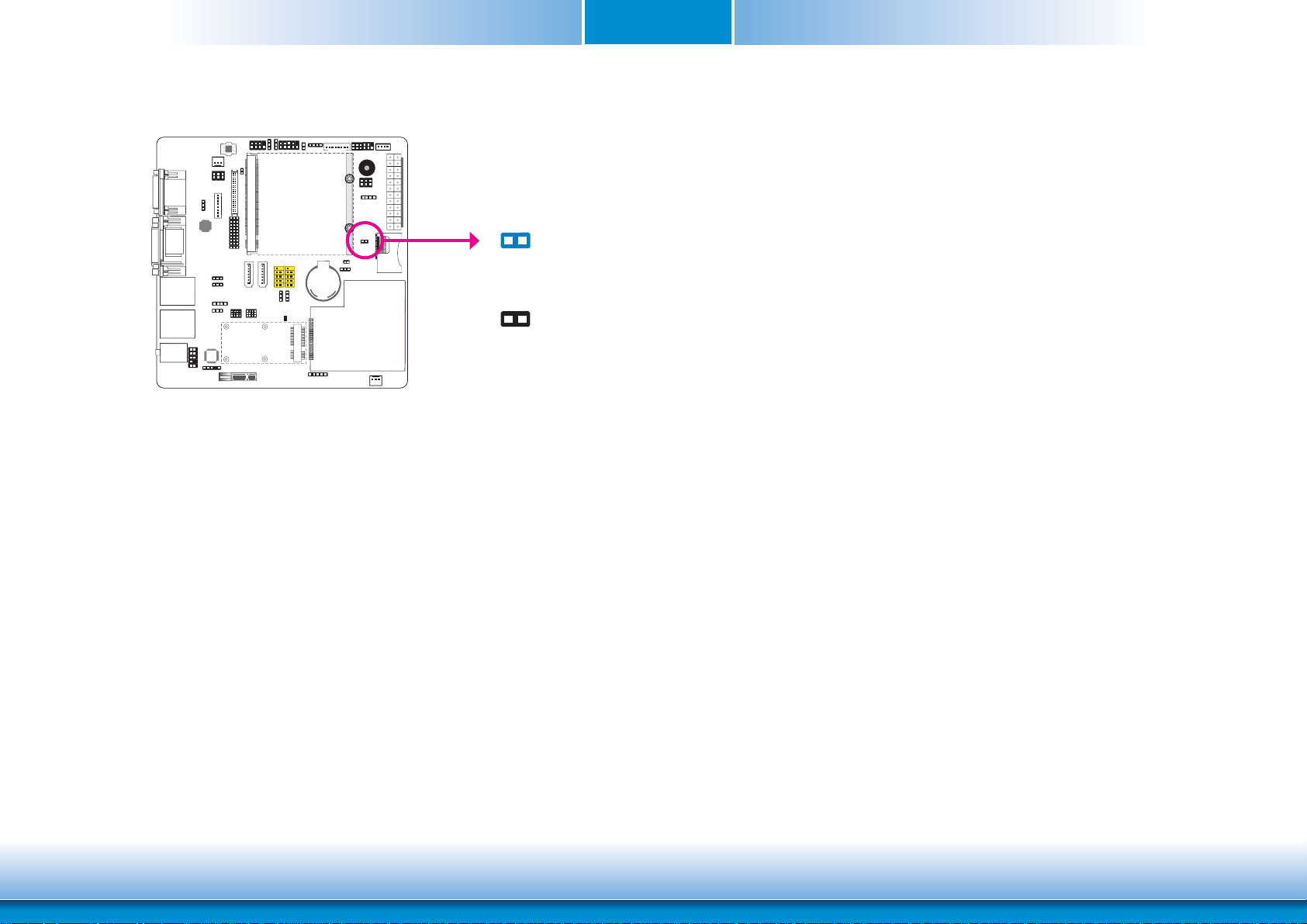

J1 is used to determine the BIOS boot device.

J1

1-2 On: Boot from

Carrier board SPI BIOS

1-2 Off: Boot from

Module SPI BIOS

1

1

14

www.dfi .comChapter 2 Hardware Installation

Chapter 2

Rear Panel IO Ports

COM 1

The rear panel I/O ports consist of the following:

• VGA port

• DVI-D port

• 2 COM ports

• 2 LAN ports

• 4 USB ports

• Line-in/Surround, Line-out and Mic-in/Center+Subwoofer jacks

VGA

DVI-I

(DVI-D signal)

LAN 1 LAN 2

USB 0-1COM 2

USB 2-3

Line-in/Surround

Line-out

Mic-in/
Center+Subwoofer

Serial (COM) Ports

COM 1

COM 2

COM 1 and COM 2:

RS232

COM 0

The serial ports are RS232 asynchronous communication ports with 16C550A-compatible UARTs
that can be used with modems, serial printers, remote display terminals, and other serial
devices.

BIOS Setting

Configure the serial ports in the Advanced menu of the BIOS. Refer to chapter 3 for more
information.

15

www.d.comChapter 2 Hardware Installation

Chapter 2

VGA Port

VGA

The VGA port is used for connecting a VGA monitor. Connect the monitor’s 15-pin D-shell cable
connector to the VGA port. After you plug the monitor’s cable connector into the VGA port,
gently tighten the cable screws to hold the connector in place.

DVI-I Port

DVI-I

(DVI-D signal only)

The DVI-I port is used to connect an LCD monitor. This port supports DVI-D signal only.

Connect the display device’s cable connector to the DVI-I port. After you plug the cable con­nector into the port, gently tighten the cable screws to hold the connector in place.

BIOS Setting

Configure the display device in the Chipset menu (“North Bridge Configuration” submenu) of
the BIOS. Refer to chapter 3 for more information.

16

www.d.comChapter 2 Hardware Installation

Chapter 2

RJ45 LAN Ports

LAN 1

LAN 2

The onboard RJ45 LAN port allows the system board to connect to a local area network by
means of a network hub.

Universal Serial Bus Connectors

USB 1

USB 0

USB 3

USB 2

USB 4-5

USB 6-7

USB allows data exchange between your computer and a wide range of simultaneously acces­sible external Plug and Play peripherals.

The system board is equipped with four onboard USB 2.0/1.1 ports. The USB 4-5 and USB 6-7
connectors allow you to connect 4 additional USB 2.0/1.1 ports. The additional USB ports may
be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the
rear of the system chassis then insert the cable connector to a USB connector.

N.C.
GND

+Data

-Data
VCC

10 9

Key
GND
+Data

-Data
VCC

12

Wake-On-USB Keyboard

The Wake-On-USB Keyboard function allows you to use a USB keyboard to wake up a system
from the S3 (STR - Suspend To RAM) state. To use this function:

• Jumper Setting:

JP4 must be set to “2-3 On: +5V_standby”. Refer to “USB Power Select” in this chapter for
more information.

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the

+5V_standby power source of your power supply must support ≥1.5A. For 3 or

more USB ports, the +5V_standby power source of your power supply must sup-

port≥2A.

17

www.d.comChapter 2 Hardware Installation

Chapter 2

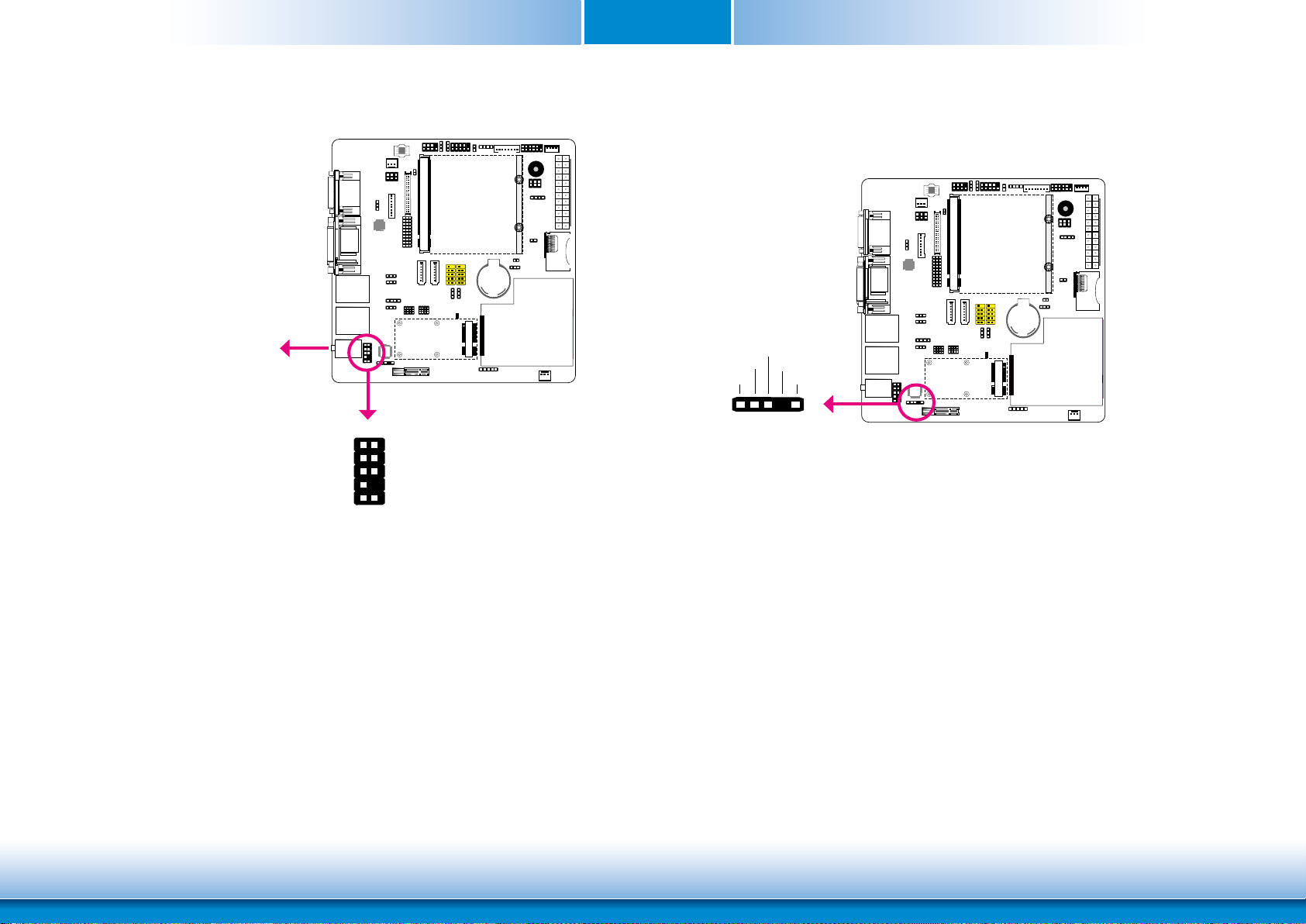

Audio

Line-in/Surround

Line-out

Center+Subwoofer

The system board is equipped with 3 audio jacks. A jack is a one-hole connecting interface for
inserting a plug.

Mic-in/

AUD_MIC

AUD_MIC_BIAS

AUD_HPOUT_R

5V Analog

AUD-HPOUT-L

Front audio

1

2

AUD_GND
AUD_GND

AUD_HPRET_R
Key
AUD_HPRET_L

10

9

I/O Connectors

S/PDIF Connector

SPDIF out

Ground

SPDIF in

5

The S/PDIF connector is used to connect external S/PDIF ports. Your S/PDIF ports
may be mounted on a card-edge bracket. Install the card-edge bracket to an avail­able slot at the rear of the system chassis then connect the audio cable to the S/PDIF
connector. Make sure pin 1 of the audio cable is aligned with pin 1 of the connector.

Key

+5V

1

• Line-in/SurroundJack(LightBlue)
 Thisjackis usedto connectanyaudiodevicessuch asHi-fi set,CD player, tapeplayer,

AM/FMradiotuner, synthesizer,etc.

• Line-outJack(Lime)
 Thisjackis usedto connecta headphoneorexternalspeakers.

• Mic-in/Center+Subwoofer(Pink)
 Thisjackis usedto connectto thecenterandsubwooferspeakers oftheaudiosystem.

18

www.d.comChapter 2 Hardware Installation

Chapter 2

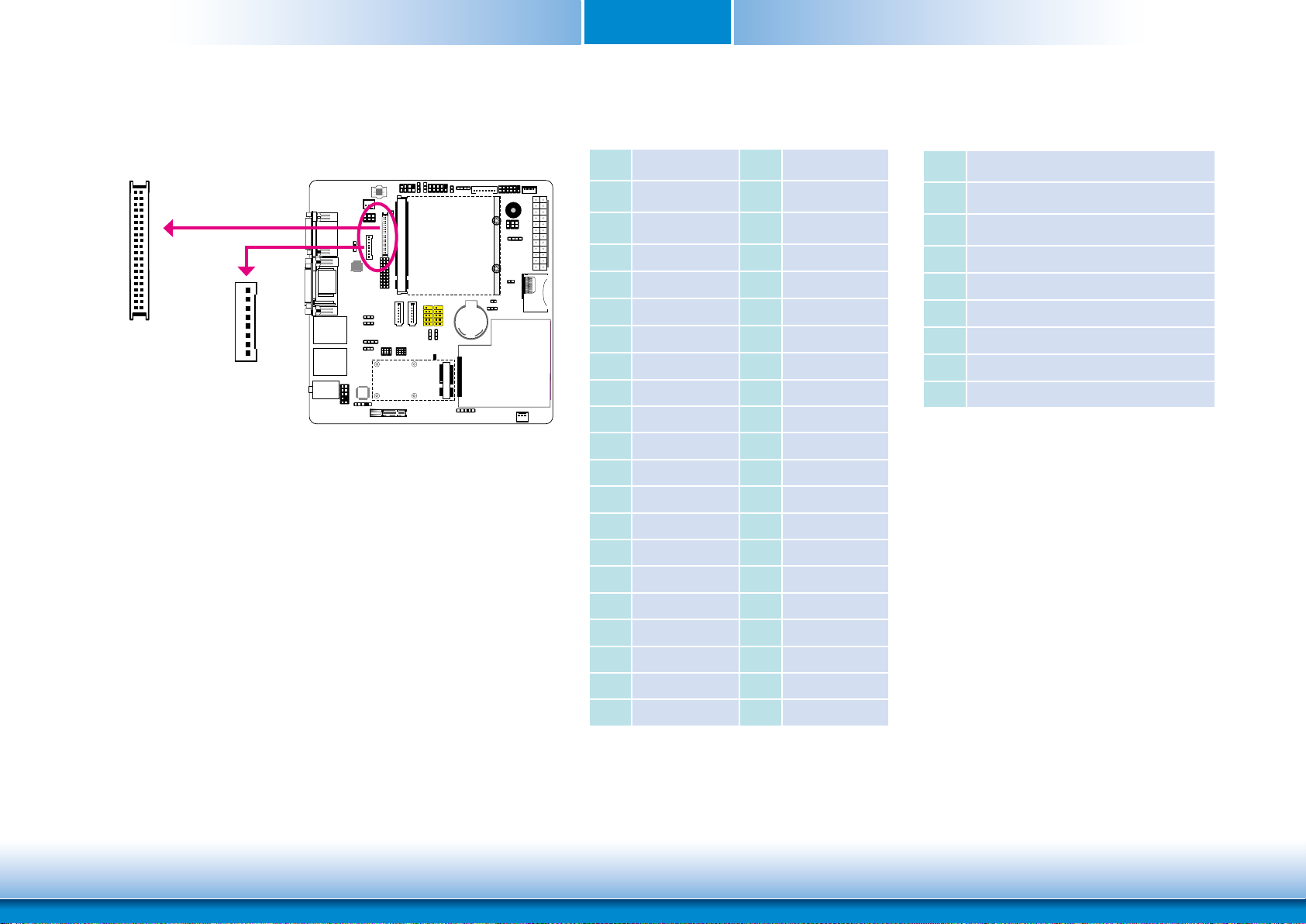

LVDS LCD Panel Connector

LCD/Inverter Power Connector

2 1

LVDS LCD panel

1

40 39

8

LCD/Inverter

power

The system board allows you to connect a LCD Display Panel by means of the
LVDS LCD panel connector and the LCD/Inverter power connector. These connec­tors transmit video signals and power from the system board to the LCD Display
Panel.

Refer to the next page for the pin functions of these connectors.

Jumper Settings

Refer to the “Jumper Settings” section in this chapter for settings relevant to the
LCD panel.

LVDS LCD Panel Connector LCD/Inverter Power Connector

Pins Function Pins Function

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

GND

LVDS_Out3+

LVDS_Out3- 6 LVDS_Out7-

GND 8 GND

LVDS_Out2+ 10 LVDS_Out6+

LVDS_Out2- 12 LVDS_Out6-

GND 14 GND

LVDS_Out1+ 16 LVDS_Out5+

LVDS_Out1- 18 LVDS_Out5-

GND 20 GND

LVDS_Out0+ 22 LVDS_Out4+

LVDS_Out0- 24 LVDS_Out4-

GND 26 GND

LVDS_CLK1+ 28 LVDS_CLK2+

LVDS_CLK1- 30 LVDS_CLK2-

GND 32 GND

LVDS_DDCCLK 34 N.C.

LVDS_DDCDAA 36 N.C.

Panel Power 38 Panel Power

Panel Power 40 Panel Power

2

4

GND

LVDS_Out7+

Pins Function

1

2

Panel Inverter Brightness Voltage Control

3

4

5

6

7

8

Panel Backlight On/Off Control

GND

GND

Panel Power

+3.3V

+12V

+12V

19

www.d.comChapter 2 Hardware Installation

Chapter 2

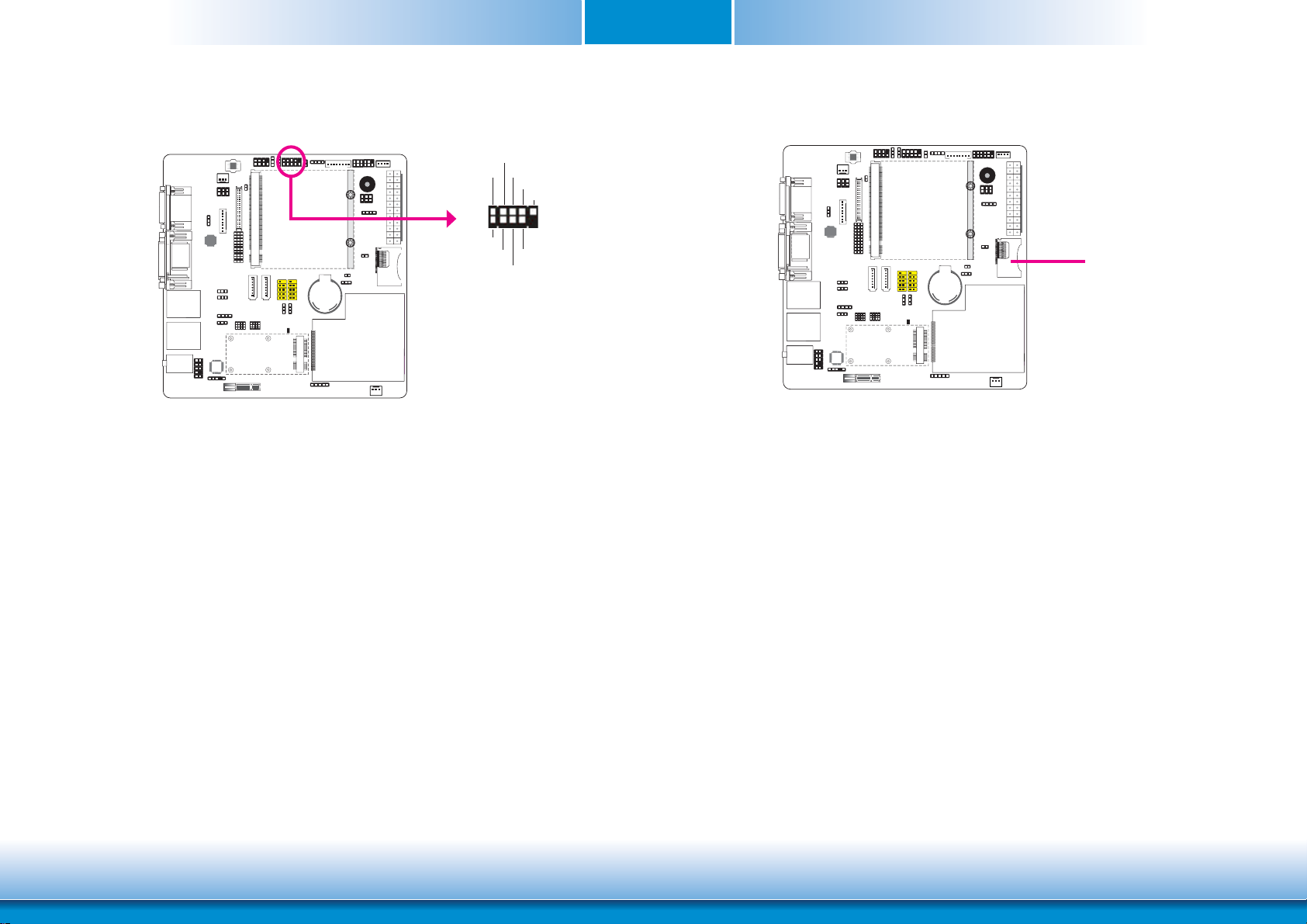

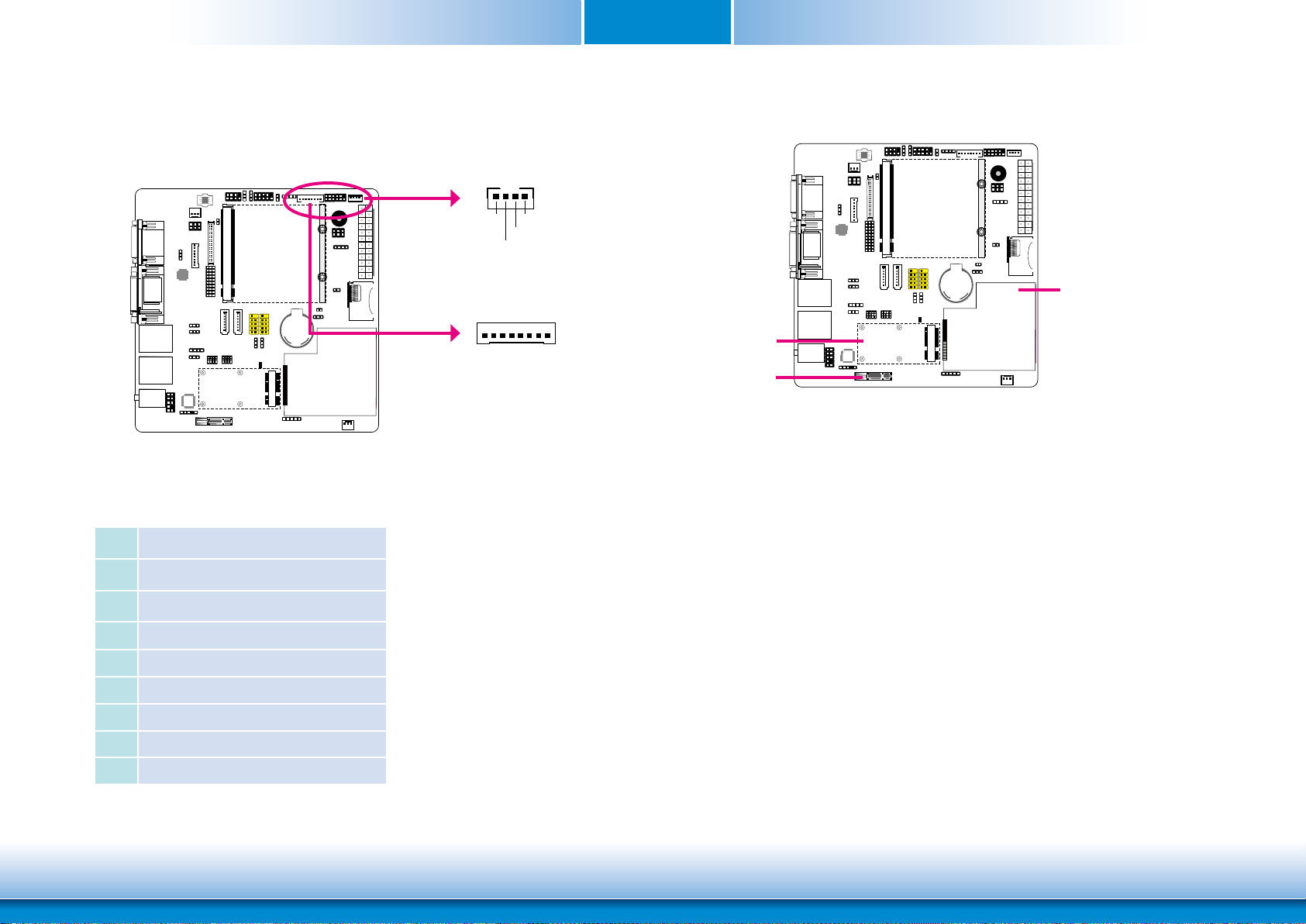

Digital I/O Connector

Digital I/O Power Connector

4

+5V

Digital I/O power

1

8-bit Digital I/O

The Digital I/O connector provides powering-on function to an external device that is con­nected to this connector.

Digital I/O Connector

Pins Function

1

2

3

4

5

6

7

8

DIO0

DIO1

DIO2

DIO3

DIO4

DIO5

DIO6

DIO7

1

+12V

Ground

5VSB

8

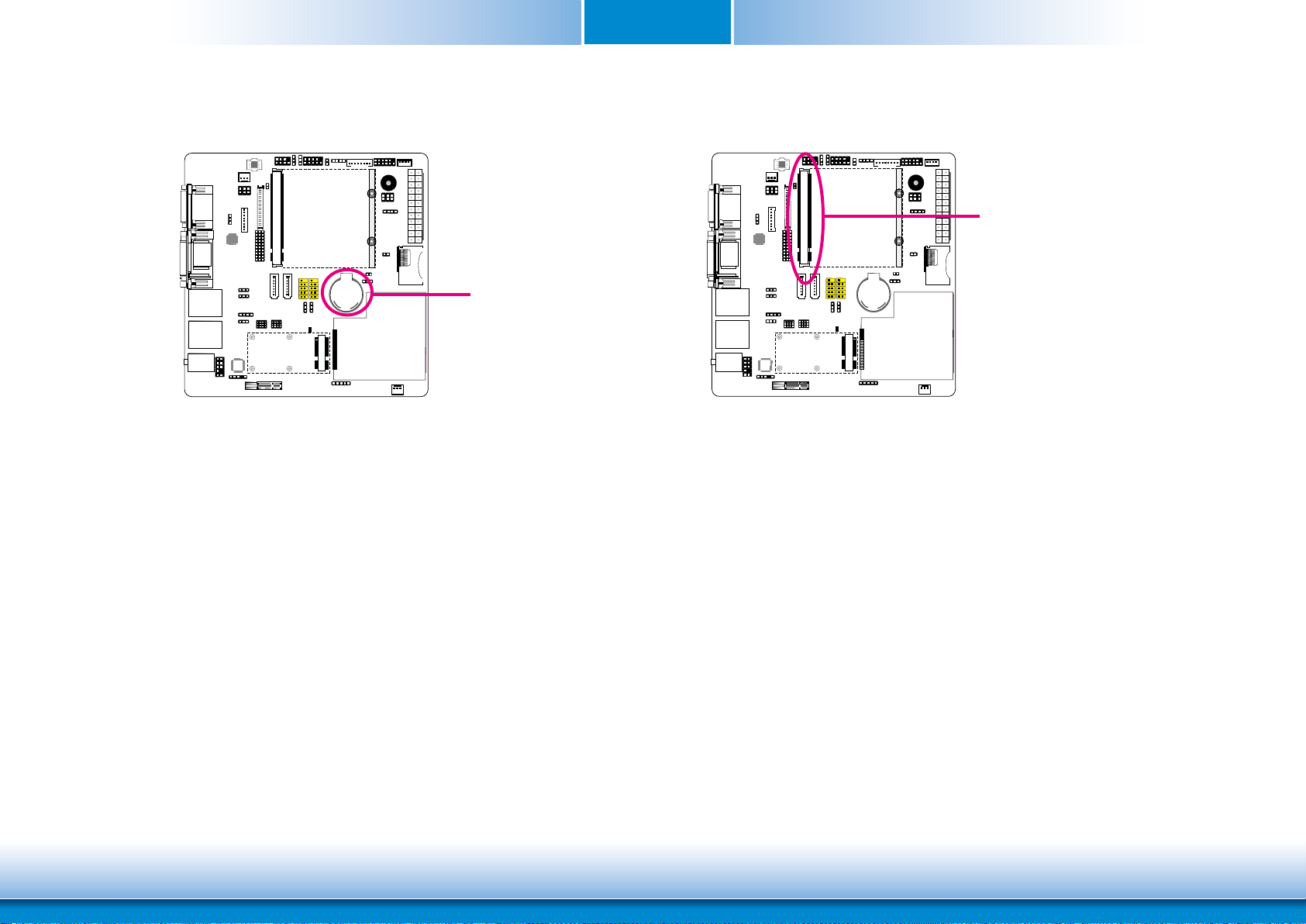

Expansion Slots

ExpressCard

Mini PCIe

PCI Express x1

PCI Express x1 Slot

Install PCI Express cards such as network cards or other cards that comply to the PCI Express
specifications into the PCI Express x1 slot.

Mini PCIe Slot

Install mini PCI Express cards such as network cards or other cards that comply to the mini
PCI Express specifications into the mini PCI Express x1 slot.

ExpressCard Slot

The ExpressCard slot is an interface for high-performance, modular expansion. It uses serial
data interfaces (PCIe x1 and USB) that provide improve data transfer speed. You can insert
an ExpressCard such as wireless network cards, Ethernet cards, solid-state drives, or TV tuner
cards. Its hot-plug functionality allows you to install and remove modules at any time, without
having to switch off your system. This provides added reliability, durability and expansion flex­ibility to your system.

20

www.d.comChapter 2 Hardware Installation

Chapter 2

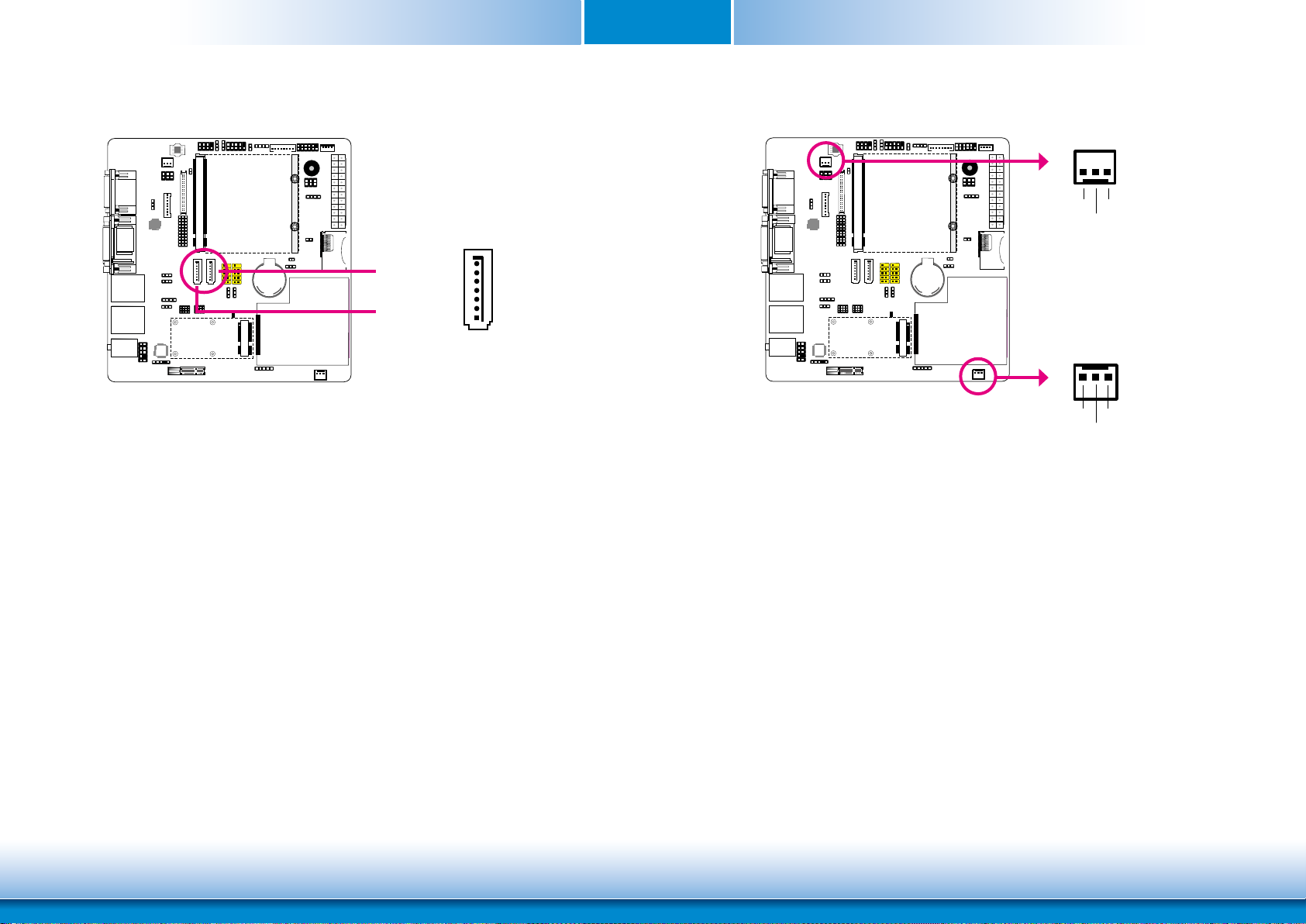

SATA (Serial ATA) Connectors

GND

7

SATA 0

SATA 1

The Serial ATA connectors are used to connect Serial ATA devices. Connect one end of the Se­rial ATA cable to a SATA connector and the other end to your Serial ATA device.

RXP
RXN
GND
TXN
TXP
GND

1

Cooling Fan Connectors

CPU Fan

1

Ground

System Fan

Sense

The fan connectors are used to connect cooling fans. The cooling fans will provide adequate
airflow throughout the chassis to prevent overheating the CPU and system board components.

3

Sense

Power

13

Ground

Power

21

www.d.comChapter 2 Hardware Installation

Chapter 2

Chassis Intrusion Connector

Chassis

2

signal

1

Ground

The board supports the chassis intrusion detection function. Connect the chassis intrusion
sensor cable from the chassis to this connector. When the system’s power is on and a chassis
intrusion occurred, an alarm will sound. When the system’s power is off and a chassis intrusion
occurred, the alarm will sound only when the system restarts.

Standby Power LED

StandbyPowerLED

This LED will lit red when the system is in the standby mode. It indicates that there is power
on the system board. Power-off the PC then unplug the power cord prior to installing any

devices. Failure to do so will cause severe damage to the motherboard and components.

22

www.d.comChapter 2 Hardware Installation

Chapter 2

Power Connectors

12 24

+3.3VDC

+12VDC
+12VDC

+5VSB

PWR_OK

Ground

+5VDC

Ground

+5VDC

Ground

+3.3VDC
+3.3VDC

ATX power

Use a power supply that complies with the ATX12V Power Supply Design Guide Version 1.1.
An ATX12V power supply unit has a standard 24-pin ATX main power connector that must be
inserted into the 24-pin connector. The 8-pin +12V power connector enables the delivery of
more +12VDC current to the processor’s Voltage Regulator Module (VRM).
The power connectors from the power supply unit are designed to fit the 24-pin and 8-pin
connectors in only one orientation. Make sure to find the proper orientation before plugging
the connectors.
The system board requires a minimum of 300 Watt power supply to operate. Your system
configuration (CPU power, amount of memory, add-in cards, peripherals, etc.) may exceed the
minimum power requirement. To ensure that adequate power is provided, we strongly recom­mend that you use a minimum of 400 Watt (or greater) power supply.

Important:

Insufficient power supplied to the system may result in instability or the add-in
boards and peripherals not functioning properly. Calculating the system’s approxi­mate power usage is important to ensure that the power supply meets the sys­tem’s consumption requirements.

Ground
+5VDC
+5VDC
+5VDC
NC

Ground
Ground
Ground
PS_ON#
Ground

-12VDC
+3.3VDC

1

13

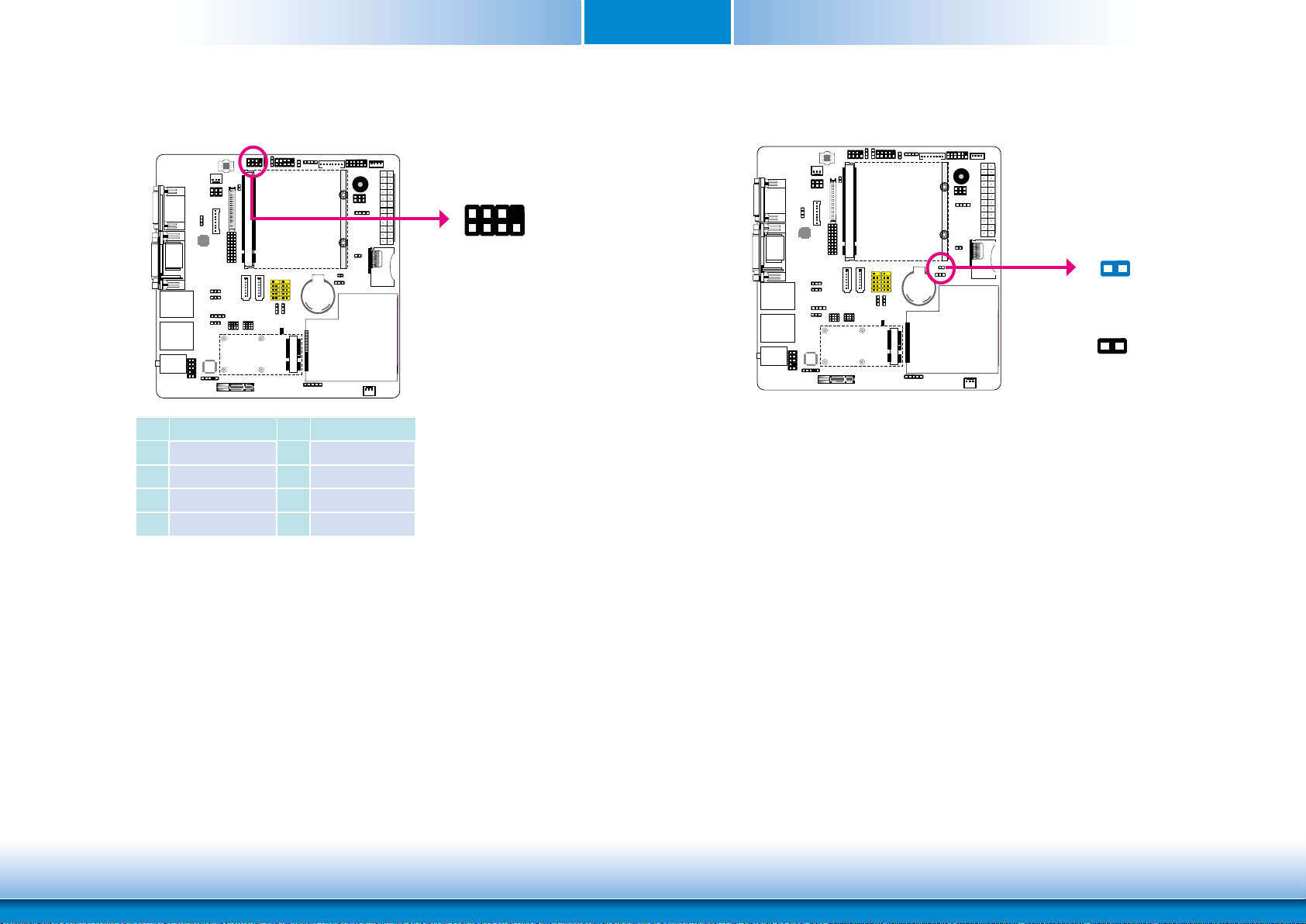

Front Panel Connectors

PWR-BTN

PWR-LED

2

1

HDD-LED

RESET-SW

HDD-LED - HDD LED

This LED will light when the hard drive is being accessed.

RESET SW - Reset Switch

This switch allows you to reboot without having to power off the system.

PWR-BTN - Power Switch

This switch is used to power on or off the system.

PWR-LED - Power/Standby LED

When the system’s power is on, this LED will light. When the system is in the S1 (POS - Power
On Suspend) state, it will blink every second. When the system is in the S3 (STR - Suspend To
RAM) state, it will blink every 4 seconds.

12
11

Pin Pin Assignment Pin Pin Assignment

N.C.

HDD-LED

RESET SW

N.C.

23

1 N.C.

3

HDD Power
Signal

5 6 Signal

7

Ground
RST Signal

9 10 Ground

11 N.C. Key 12 Key

PWR-LED

2 LED Power

4 LED Power

PWR-BTN 8 Signal

www.d.comChapter 2 Hardware Installation

Chapter 2

Battery

Battery

The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source
of power when the main power is shut off.

Safety Measures

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend by the manufacturer.

• Dispose of used batteries according to local ordinance.

MXM Connector

MXM connector

The MXM connector is used to interface the carrier board with a Qseven board. Refer to the
following page for the pin function of this connector.

24

www.d.comChapter 2 Hardware Installation

Chapter 2

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

X

_TX

_

_

_

_

_RX

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_4_5_

_

_

_

_

_

_0_1_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_

_B_

_

_B_CLK

)

)

_

_RX

_

_

)

_

_

)

_

_

)

_

_

)

_

_

)

_

_

)

_

_

_

_

_

_

)

_

_

_

_

_

_

_

_

_

_

_

_RX

_

_

)

_

_

_

_RX

_

_

)

_

_

_

_RX

_

_

_

_

_

_

_

VCC_

_

_

_

_

_

)

_

_

VCC_

VCC_

)

_

)

X

)

_

)

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

3 GBE
5 GBE
7 GBE
9 GBE
11 GBE
13 GBE
15 GBE

19 SUS
21 SLP

KEY

29 SATA0
31 SATA0_T
33 SATA
35 SATA0
37 SATA0

41 BIOS_DISABLE-/BOOT_ALT- 42 SDIO_CLK
43 SDIO
45 SDIO
47 SDIO
49 SDIO
51 SDIO
53 SDIO
55 SDIO

59 HDA
61 HDA
63 HDA
65 HDA
67 HDA

75 USB
77 USB
79 USB_6_7
81 USB
83 USB
85 USB_2_3
87 USB
89 USB
91 USB
93 USB
95 USB

99 LVDS
101 LVDS
103 LVDS
105 LVDS
107 LVDS
109 LVDS
111 LVDS

DNG2 DNG 1
EBG4-3IDM

MDI2-

EBG6+3IDM

MDI2+

EBG8 -001KNIL

LINK1000-

EBG01-1IDM

MDI0-

EBG21+1IDM

MDI0+

EBG41-KNIL

ACT-

SUS61FERTC

S5-

SUS81 -EKAW 71

S3-

DIL22 -NTB

BTN-

DNG42 DNG 32

NIGWP62 DNG 52

1ATAS03+XT
1ATAS23-

DNG43-TCA

1ATAS63+XR
1ATAS83-XR

DNG04 DNG 93

OIDS44 -DC
OIDS64DMC
OIDS84-RWP
OIDS05 0ATAD
OIDS25 2ATAD
OIDS45 4ATAD

DVSR65 6ATAD
DNG85 DNG 75
BMS06CNYS

CLK

BMS26-TSR

DATA

BMS46 KLCTIB

ALERT-

C2I66 IDS

CLK

C2I86 ODS

DATA

DNG47 DNG 37
BSU67 -7P

P6-

BSU87 +7P

P6+
BSU08 -CO
BSU28 +7P

P4­BSU48 +5P

P4+
BSU68 -CO
BSU88 -3P

P2­BSU09 +3P

P2+
BSU29 CC

ID
BSU49 -1P

P0­BSU69 +1P

P0+
DNG89 DNG 79

SDVL001+0A
SDVL201 -0A
SDVL401+1A
SDVL601 -1A
SDVL801+2A
SDVL011 -2A
SDVL211NEPP

LED
WP
DATA1
DATA3
DATA5
DATA7

TUODW27-PIRTMRHT 17

B0+
B0­B1+
B1­B2+
B2­BLEN

-NTBRWP02-TATS

-NTBTSR82 -WOLTAB 72

TX+

RX+

-GIRTDW07 -MRHT 96

-

-

OC-

OC-

113 LVDS
115 LVDS

119 LVDS_A
121 LVDS_A
123 LVDS_BLT_CTRL/GP_PWN_OUT0 124 RSVD
125 LVDS_DID_DAT/GP_I2C_DAT 126 LVDS_BLC_DAT(NC
127 LVDS_DID_CLK/GP_I2C_CLK 128 LVDS_BLC_CLK(NC
129 CAN0
131 SDVO
133 SDVO

137 SDVO
139 SDVO

143 SDVO
145 SDVO

149 SDVO
151 SDVO
153 HDMI
155 PCIE_CLK
157 PCIE_CLK

161 PCIE3
163 PCIE3

167 PCIE2
169 PCIE2
171 EXCD0
173 PCIE1
175 PCIE1
177 EXCD0
179 PCIE0
181 PCIE0

185 LPC
187 LPC
189 LPC

193
195 FAN_TACHOIN/GP_TIMER_IN 196 FAN_PWMOUT/GP_PWM_OUT1

199 SPI
201 SPI
203 SPI
205
207 MFG_NC0(NC
209 MFG_NC1(T
211
213
215
217
219
221
223
225
227
229

602BSV5

212 CC
412 CC
612 CC
812 CC
022 CC
222 CC
422 CC
622 CC
822 CC
032 CC

SDVL411+3A

B3+

SDVL611 -3A

B3-

DNG811 DNG 711

SDVL021 +KLC
SDVL221 -KLC

0NAC031 XT

OVDS231 +KLCB

INT+(NC

OVDS431 -KLCB

INT-(NC

DNG631 DNG 531

OVDS831 +NEERG

FLDSTALL+(NC

OVDS041 -NEERG

FLDSTALL-(NC

DNG241 DNG 141

OVDS441 +EULB

TVCLKIN+(NC

OVDS641 -EULB

TVCLKIN-(NC

DNG841 DNG 741

OVDS051+DER

CTRL_DAT

OVDS251-DER

CTRL_CLK

PD451-DPH

HPD-(NC

EICP651 +FER

WAKE-

EICP851 -FER

RST-

DNG061 DNG 951

3EICP261+XT

RX+

3EICP461-XT

RX-

DNG661 DNG 561

2EICP861+XT

RX+

2EICP071-XT

1DCXE271 -TSREP

PERST-(NC

1EICP471+XT

RX+

1EICP671-XT

1DCXE871 -EPPC

CPPE-(NC

0EICP081+XT

RX+

0EICP281-XT

DNG481 DNG 381

CPL681 0DA

AD1

CPL881 2DA

AD3

CPL091 KLC

FRAME-

CPL291 QRIRES 191

LDRQ-

PG/RKPS491 CTR

DNG891 DNG 791

IPS002 ISOM

CS0-

IPS202 OSIM

CS1-(NC

GFM402 KCS

NC4

5VSB

GFM802

NC2(RX

GFM012

NC3(NC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC

CLK+

-

-

-

-

PWM_OUT2

25

www.dfi .comChapter 2 Hardware Installation

Chapter 2

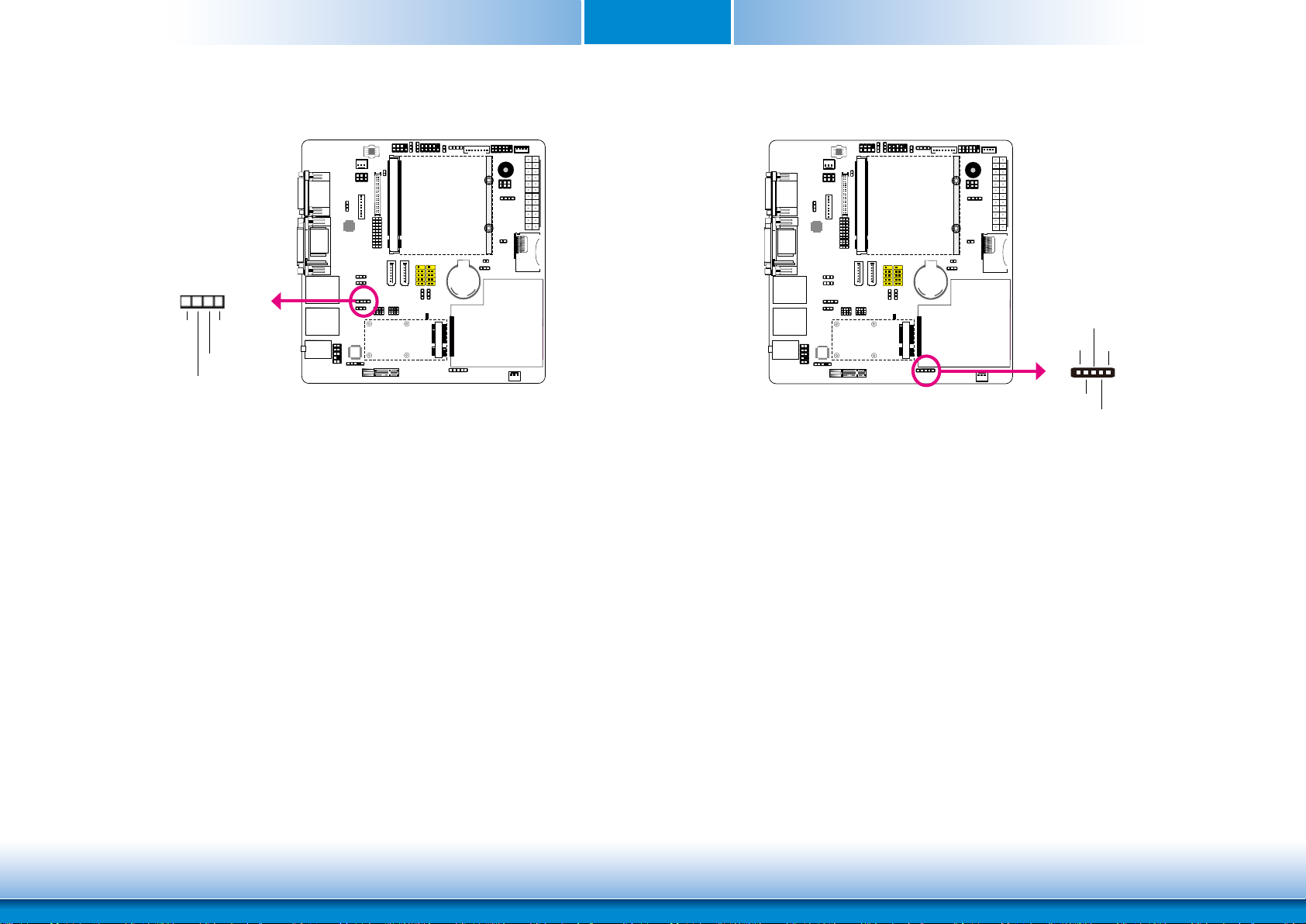

I2C Connector

4

1

3

2

2

C_CLK

3V3

2

C_DAT

I

Ground

I

The 1-channel I2C bus interface conforms to the version 2.1 I2C bus specification. It operates
as a master or slave device and supports a multi-master bus.

Can-bus Connector

1

23

4

CANH

NC

Ground

CANL

The CAN controller performs communication in accordance with the BOSCH CAN Protocol Ver­sion 2.0B Active1 (standard format and extended format). The bit rate can be programmed to
a maximum of 1Mbit/s. To connect the CAN controller module to the CAN bus, it is necessary
to add transceiver hardware.

When communicating in a CAN network, individual message objects are configured. The mes­sage objects and the identifier masks for the receive filter for the received messages are
stored in the message RAM.

Controller Area Network (CAN or CAN-bus) is a message based protocol designed specifically
for automotive applications but now is also used in other areas such as industrial automation
and medical equipment.

26

www.d.comChapter 2 Hardware Installation

Chapter 2

USB Client Connector

1

3

4

2

Ground

The USB client connector supports 1 port (1 USB device controller with 1 port) and high-speed
(480Mbps) and full-speed (12Mbps) operations. It complies with USB 2.0/1.1 protocols.

USB device
detect

USB data-

USB data+

SM Bus

CLK

3VDU

GND

5 1

ALERT-

Data

The SMBus (System Management Bus) connector is used to connect SMBus devices. It is a
multiple device bus that allows multiple chips to connect to the same bus and enable each one
to act as a master by initiating data transfer.

27

www.d.comChapter 2 Hardware Installation

Chapter 2

LPC connector

LAD0

LAD1

VCC3

GND

LAD2

102

1
CLK

RST#

FRAME#

The Low Pin Count Interface was defined by Intel® Corporation to facilitate the industry’s tran­sition towards legacy free systems. It allows the integration of low-bandwidth legacy I/O com­ponents within the system, which are typically provided by a Super I/O controller. Furthermore,
it can be used to interface firmware hubs, Trusted Platform Module (TPM) devices and embed­ded controller solutions. Data transfer on the LPC bus is implemented over a 4 bit serialized
data interface, which uses a 33MHz LPC bus clock. For more information about LPC bus refer
to the Intel

®

Low Pin Count Interface Specification Revision 1.1’.

9

LAD3

SD/MMC Slot

SD/MMC Slot

This expansion port is used to insert a Secure Digital Input/Output (SDIO) or Multimedia Card
(MMC) device. Aside from storing data files, an SDIO card is also capable of storing powerful
software applications.

28

www.dfi .comChapter 2 Hardware Installation

Chapter 2

SPI JTAG Connector

Pin Pin Assignment Pin Pin Assignment

1 3V_standby 2 Ground

3 CS 4 CK

5 SO 6 SI

7

HOLOD-

Battery Low

2
1

7

1 2

1-2 On: Battery low

1 2

1-2 Off: Normal

(default)

This jumper is used to simulate the signal status that indicates the external battery is low. By
setting to pins 1 and 2 to On, it sends a battery low signal to the module.

29

www.d.comChapter 2 Hardware Installation

Chapter 3 - Supported Software

The CD that came with the system board contains drivers, utilities and software applications
required to enhance the performance of the system board.

Insert the CD into a CD-ROM drive. The autorun screen (Mainboard Utility CD) will appear. If
after inserting the CD, “Autorun” did not automatically start (which is, the Mainboard Utility
CD screen did not appear), please go directly to the root directory of the CD and double-click
“Setup”.

Chapter 3

Audio Drivers

To install the driver, click “Audio Drivers” on the main menu.

1. Setup is now ready to install the

2. Follow the remainder of the steps

3. Click “Yes, I want to restart my

audio driver. Click Next.

on the screen; clicking “Next”
each time you finish a step.

computer now” then click Finish.

Restarting the system will allow
the new software installation to
take effect.

30

www.d.comChapter 3 Supported Software

Chapter 3

Realtek LAN Drivers

To install the driver, click “Realtek LAN Drivers” on the main menu.

1. Setup is ready to install the
driver. Click Next.

2. Click Install to begin the

installation.

Adobe Acrobat Reader 9.3

To install the reader, click “Adobe Acrobat Reader 9.3” on the main menu.

1. Click Next to install or click
Change Destination Folder to
select another folder.

2. Click Install to begin installation.

3. After completing installation,
click Finish.

3. Click Finish to exit installation.

31

www.d.comChapter 3 Supported Software
