DFI P2MEX/A User manual (REV.A+)

Download

Page 1

P2MEX/A

Rev. A+

System Board

Carte Mère Manuel

System-Platine

Users Manual

Pour Utilisateur

Benutzerhandbuch

35900828

Page 2

This publication contains information that is protected by copyr ight. No part of it may

be reproduced in any form or by any means or used to make any transformation/

adaptation without the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes

no representations or warranties with respect to the contents or use of this manual and

specifically disclaims any express or implied warranties of merchantability or fitness

for any particular purpose. The user will assume the entire risk of the use or the results

of the use of this document. Fur ther, the manufacturer reserves the right to revise this

publication and make changes to its contents at any time, without obligation to notify

any person or entity of such revisions or changes.

Trademarks

Microsoft

MS-DOS®, WindowsTM and Windows® 95 are registered trademarks of

Microsoft Corporation. Intel and Pentium are registered trademarks of Intel Cor poration.

Cyrix, 6x86, 6x86L and 6x86MX are registered trademarks of Cyrix Corporation.

AMD, K5 and K6 are registered trademarks of Advanced Micro Devices, Inc. IBM is

a registered trademark of International Business Machine Corporation. Award is a

registered trademark of Award Software, Inc. Other trademarks and registered

trademarks of products appearing in this manual are the properties of their respective

holders.

Caution:

Danger of explosion if battery incorrectly replaced.

Replace only with the same or equivalent type recommended by the

manufacturer.

Dispose of used batteries according to the battery manufacturers instructions.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference when the

equipment is operated in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and the receiver.

 Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

 Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly appro ved by the party

responsible for compliance could void the user's authority to operate the

equipment.

2. Shielded interface cables must be used in order to comply with the emission

limits.

Page 3

Table of Contents / Sommaire / Inhaltsverzeichnis

Chapter 1 - Introduction

1.1 Features and Specifications..................................................................................

1.2 Package Checklist.........................................................................................................

Chapter 2 - Hardware Installation

2.1 System Board Layout .............................................................................................

2.2 DIP Switch Settings of the Processors....................................................

2.3 Jumper Settings for Wake-On-Keyboard...............................................

2.4 Jumper Settings for Clearing CMOS Data..........................................

2.5 Connectors.........................................................................................................................

Chapter 3 - Award BIOS Setup Utility

3.1 Entering the Award BIOS Setup Utility....................................................

3.2 Setting the Date and Time..................................................................................

3.3 Selecting the Hard Drive and Floppy Drive Type..........................

3.4 Selecting the Drive to be Searched First for an Operating

System.....................................................................................................................................

3.5 Setting the External System Bus Clock of the Processor.......

3.6 Selecting an IRQ for the External Modem...........................................

3.7 Selecting the Method of Powering-off the System........................

3.8 Loading Fail-Safe Settings/Optimal Settings.........................................

3.9 Enabling the Wake-On-Keyboard Function..........................................

3.10 Setting the Supervisor/User Password....................................................

Chapter 4 - Supported Softwares

4.1 Drivers and Utility........................................................................................................

Appendix A - System Error Messages

A.1 POST Beep.......................................................................................................................

A.2 Error Messages..............................................................................................................

Page 4

Introduction

Chapter 1 - Introduction / Introduction / Einleitung

1.1 Features and Specifications

Caractéristiques et Spécifications

Leistungsmerkmale und Technische Daten

1.1.1 Features / Caractéristiques / Leistungsmerkmale

Chipset

 Intel 440EX AGPset

Processor

The system board is equipped with a switching voltage regulator

that automatically detects 1.8V to 3.5V.

 233MHz/266MHz/300MHz/333MHz Pentium II processors

 266/300/300A/333MHz CeleronTM processor

System Memory

The system board supports 8MB to 256MB using unbuffered

SDRAM or EDO memory. It is equipped with two 168-pin DIMM

sockets using x64 EDO (50/60ns) or SDRAM (10/12/13ns), 3.3V.

DIMMs

1MBx64

2MBx64

4MBx64

Expansion Slots

The system board is equipped with 1 dedicated AGP slot, 1

dedicated PCI slots, 1 dedicated 16-bit ISA slots and 1 shared PCI/

ISA slot. All PCI and ISA slots are bus masters.

Audio Features

 Supports Microsoft® DirectSound/DirectSound 3D

 64-voice wavetable synthesis

 3D positional audio effects

 AC97 supported with full duplex, independent sample rate

converter for audio recording and playback

 DOS game compatible (Sound Blaster and Sound Blaster Pro)

Desktop Management Interface (DMI)

The system board comes with a DMI 2.0 built into the BIOS. The

DMI utility in the BIOS automatically records various information

about your system configuration and stores these information in the

DMI pool, which is a part of the system board's Plug and Play

BIOS. DMI, along with the appropriately networked software, is

Memory Size

8MB

16MB

32MB

DIMMs

8MBx64

16MBx64

Memory Size

64MB

128MB

Page 5

Introduction

designed to make inventory, maintenance and troubleshooting of

computer systems easier.

ATX Double Deck Ports

 2 USB por ts

 Two NS16C550A-compatible DB-9 serial por ts

 One SPP/ECP/EPP DB-25 parallel port

 One mini-DIN-6 PS/2 mouse port

 One mini-DIN-6 PS/2 keyboard port

 One game/MIDI por t

 Three audio jacks: speaker-out, line-in and mic-in

Connectors

 One connector for IrDA interface

 Two IDE connectors

 One floppy drive interface supports up to two 2.88MB floppy

drives

 One 20-pin ATX/SFX power supply connector

 One 3-pin WOL (Wake-On-LAN) connector

PCI Bus Master IDE Controller

 Two PCI IDE interfaces support up to four IDE devices

 Ultra DMA/33 supported (Synchronous Ultra DMA mode -

data transfer rate up to a maximum of 33MB/sec.)

 PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up

to 16.6MB/sec.)

 Bus mastering reduces CPU utilization during disk transfer

 ATAPI CD-ROM, LS-120 and ZIP suppor ted

IrDA Interface

The system board is equipped with an IrDA connector for wireless

connectivity between your computer and peripheral devices. It

supports peripheral devices that meet the IrDA or ASK IR standard.

USB Ports

The system board is equipped with two USB ports. USB allows

data exchange between your computer and a wide range of

simultaneously accessible external Plug and Play peripherals.

BIOS

 Award BIOS, Windows 95 Plug and Play compatible

 Flash EPROM for easy BIOS upgrades

PCB

 4 layers, microATX form factor

 24.4cm (9.6") x 24.4cm (9.6")

Page 6

Introduction

1.1.2 Intelligence / Intelligence / Intelligente Ausstattungsteile

Automatic Fan On/Off Control

The CPU fan will automatically turn off when the system enters the

Suspend mode. This prevents system overheat and prolongs fan life.

Dual Function Power Button

Depending on the setting in the BIOS setup, this switch will allow

your system to enter the Soft-Off or Suspend mode.

External Modem Ring-on

The Modem Ring-on feature allows the system that is in the

Suspend mode or Soft Power Off mode to wake-up/power-on to

respond to incoming calls. This feature supports external modem

only.

RTC Timer to Power-On the System

The RTC installed on the system board allows your system to

automatically power-on on the set date and time.

Wake-On-LAN Ready

The Wake-On-LAN function allows the network to remotely wake

up a Soft Power Down (Soft-Off) PC . Your LAN card must support

the remote wakeup function.

Important:

The 5VSB power source of your power supply must support

720mA (minimum).

Wake-On-Keyboard

This function allows the keyboard to power-on the system. Refer to

sections 2.3 (chapter 2) and 3.9 (chapter 3) for more information.

Important:

The power button will not function once a keyboard password

has been set in the KB Power On Password field of the

Integrated Peripherals setup. You must type the password to

power-on the system.

Virus Protection

Most viruses today destroy data stored in hard drives. The system

board is designed to protect the boot sector and partition table of

your hard disk drive.

Page 7

Introduction

1.2 Package Checklist

Liste de Vérification de lEmballage

Verpackungsliste

The system board package contains the following items:

þ The system board

þ A users manual

þ One 40-pin IDE hard disk cable

þ One 34-pin floppy disk drive cable

þ One CD

If any of these items are missing or damaged, please contact your

dealer or sales representative for assistance.

Page 8

Hardware Installation

Chapter 2 - Hardware Installation

Installation du Matériel

Installation der Hardware

2.1 System Board Layout

Position de la Carte Système

Aufbau der Hauptplatine

Page 9

Hardware Installation

2.2 DIP Switch Settings of the Processors

Positionnement des Cavaliers des Processeurs

DIP Schaltereinstellungen für den Prozessor

The table below shows the supported processors and their

corresponding DIP switch settings (SW1).

In the example above:

Switch 1: On

Switch 2: Off

Switch 3: On

Switch 4: On

CPU Frequency

233MHz

266MHz

300MHz

333MHz

Note:

Intel Pentium II processors or Intel CeleronTM processors support VID (Voltage

Identification). The switching voltage regulator on the system board will

automatically set the voltage regulator according to the voltage of the

processor.

External System

Bus Clock

66MHz

Processor

Frequency Ratio

3.5x

4.5x

SW1

Page 10

Hardware Installation

2.3 Jumper Settings for Wake-On-Keyboard

Positionnement des Cavaliers pour Réveil-Sur-Clavier

Jumpereinstellungen für die Wake-On Tastatur

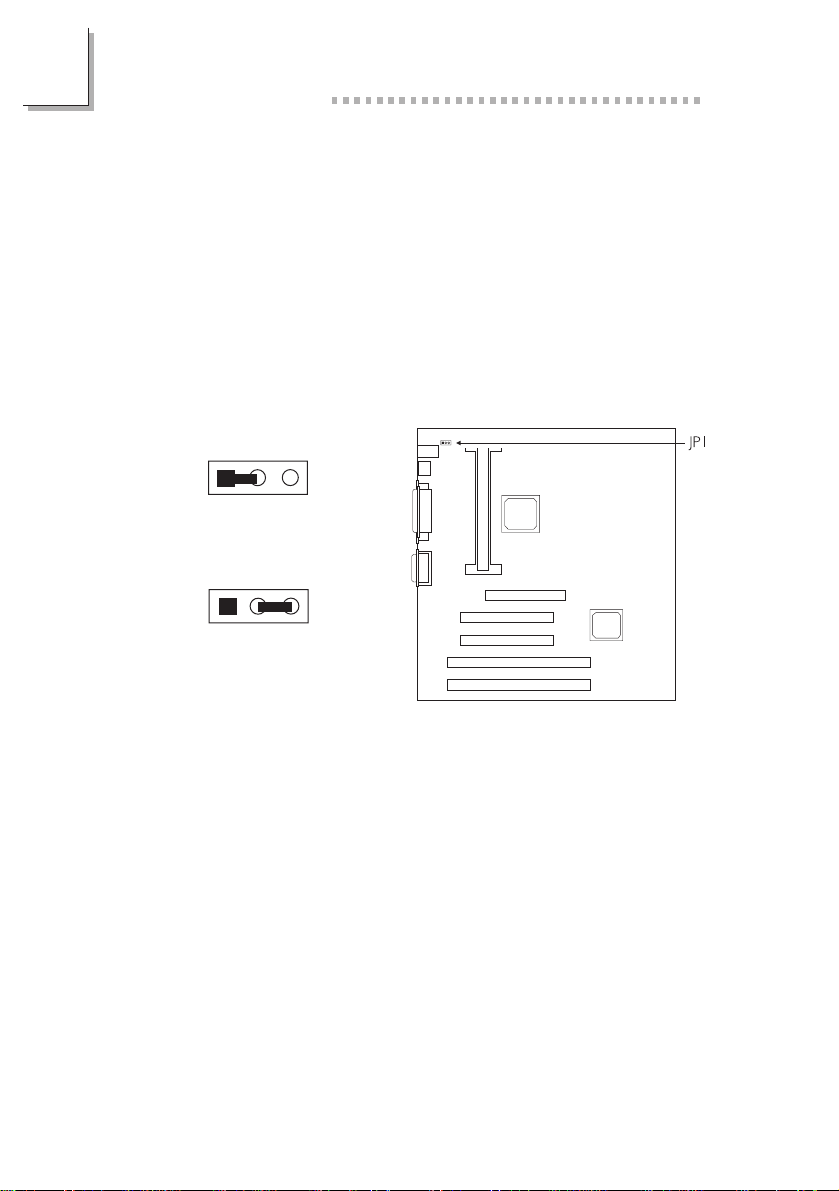

Jumper JP1 - Wake-on-Keyboard

To use the keyboard to power-on the system, please follow the

steps below.

1. Make sure JP1 is in its default setting - 2-3 On.

2 Set Keyboard Power On in the Integrated Peripherals setup of

the Award BIOS to Enabled. Refer to section 3.9 (chapter 3)

for more information.

123

1-2 On: Disable

2-3 On: Enable (default)

2.4 Jumper Settings for Clearing CMOS Data

Positionnement des Cavaliers pour Effacer les Données

CMOS

Jumpereinstellungen zum Löschen der CMOS Daten

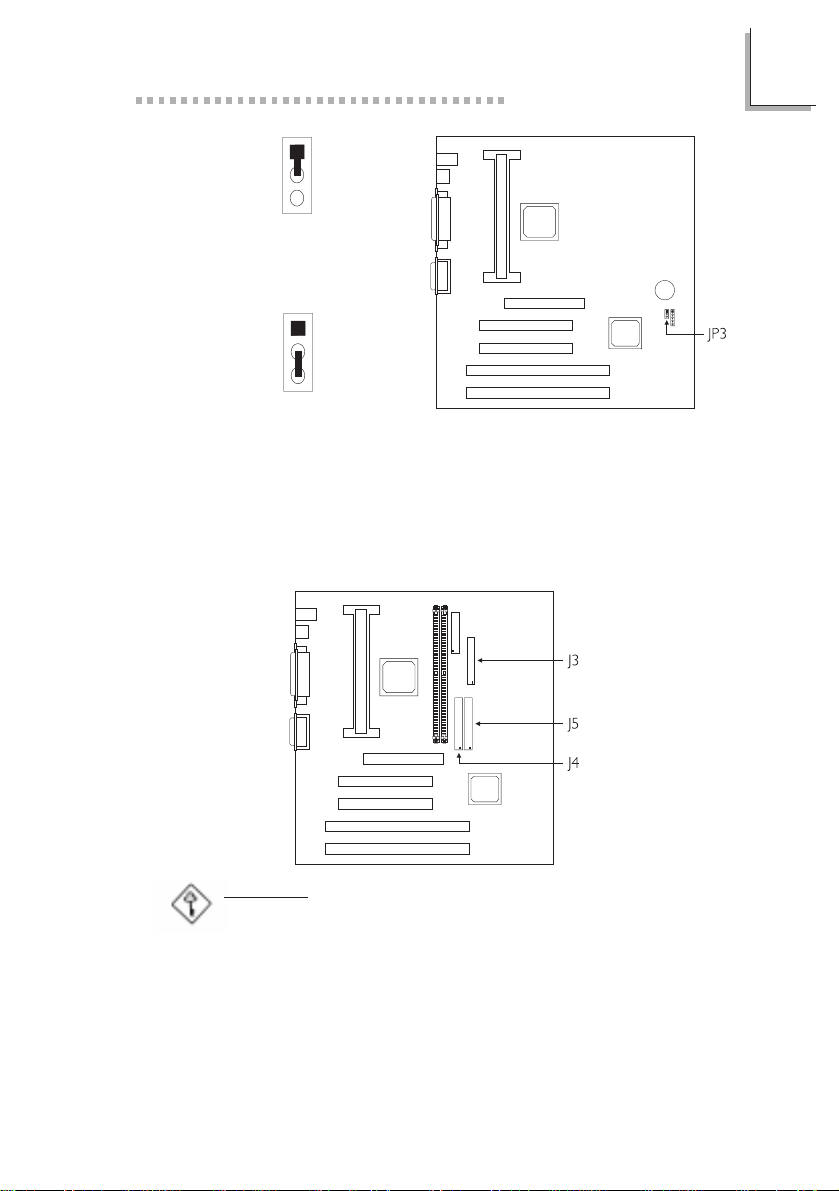

Jumper JP3 - Clear CMOS Data

To load the default values stored in the ROM BIOS, please follow

the steps below.

1. Power-off the system and unplug the power cord.

2. Set JP3 pins 2 and 3 to On. Wait for a few seconds and set JP3

back to its default setting, pins 1 and 2 On.

3. Plug the power cord and power-on the system.

Page 11

Hardware Installation

1-2 On: Normal

(default)

2-3 On:

Clear CMOS Data

2.5 Connectors / Connecteurs / Anschlüsse

2.5.1 Floppy Disk Drive Controller and IDE Interface

Contrôleur de Lecteur de Disquette et Interface IDE

Diskettenlaufwerkcontroller und IDE Interface

: FDC

: Pr imary IDE

: Secondary IDE

Important:

If you encountered problems while using an ATAPI CD-ROM drive

that is set in Master mode, please set the CD-ROM drive to

Slave mode. Some ATAPI CD-ROMs may not be recognized and

cannot be used if incorrectly set in Master mode.

Page 12

Hardware Installation

2.5.2 IrDA Connector

Connecteur IrDA

IrDA Anschlüsse

2.5.3 CPU Fan Connector

Connecteur du Ventilateur de CPU

CPU Kühlung Anschluß

Function

IRTX

Ground

IRRX

Key

+5V

Function

Fan Ctrl

+12V

N. C .

Page 13

2.5.4 Chassis Fan Connector

Connecteur de Châssis de Ventilateur

Anschluß Kühlungsgehäuse

Hardware Installation

2.5.5 AGP Fan Connector

Connecteur de Ventilateur AGP

Anschluß AGP Kühlung

Function

Fan Ctrl

+12V

None

Function

Ground

+12V

None

Page 14

Hardware Installation

2.5.6 LEDs and Switches

Commutateurs et LED

LEDs und Schalter

SB-LED

(ATX 5VSB Standby LED)

HD-LED

(Primary/Secondary IDE LED)

G-LED

(Green LED)

SP-SW

(ATX power switch)

G-SW

(Green switch)

RESET

(Reset switch)

SPEAKER

(Speaker connector)

PWR-LED

(Power LED)

Pin Assignment

+5VSB ATX Power

Ground

N. C.

HDD LED Power

HDD Active

N. C.

Green LED Power

Green Active

N. C.

PW-ON

Ground

N. C.

Ext SMI

Ground

N. C.

SW-RST

Ground

N. C.

Speaker Data

N. C.

Ground

Speaker Power

N. C.

LED-PW

Key

PWR-LED Active

N. C.

Ground

Page 15

Hardware Installation

Important:

SP-SW (ATX Power Switch) - Depending on the setting in the BIOS

setup, this switch is a dual function power button that will allow

your system to enter the Soft-Off or Suspend mode. Refer to section

3.7 (chapter 3) for more information.

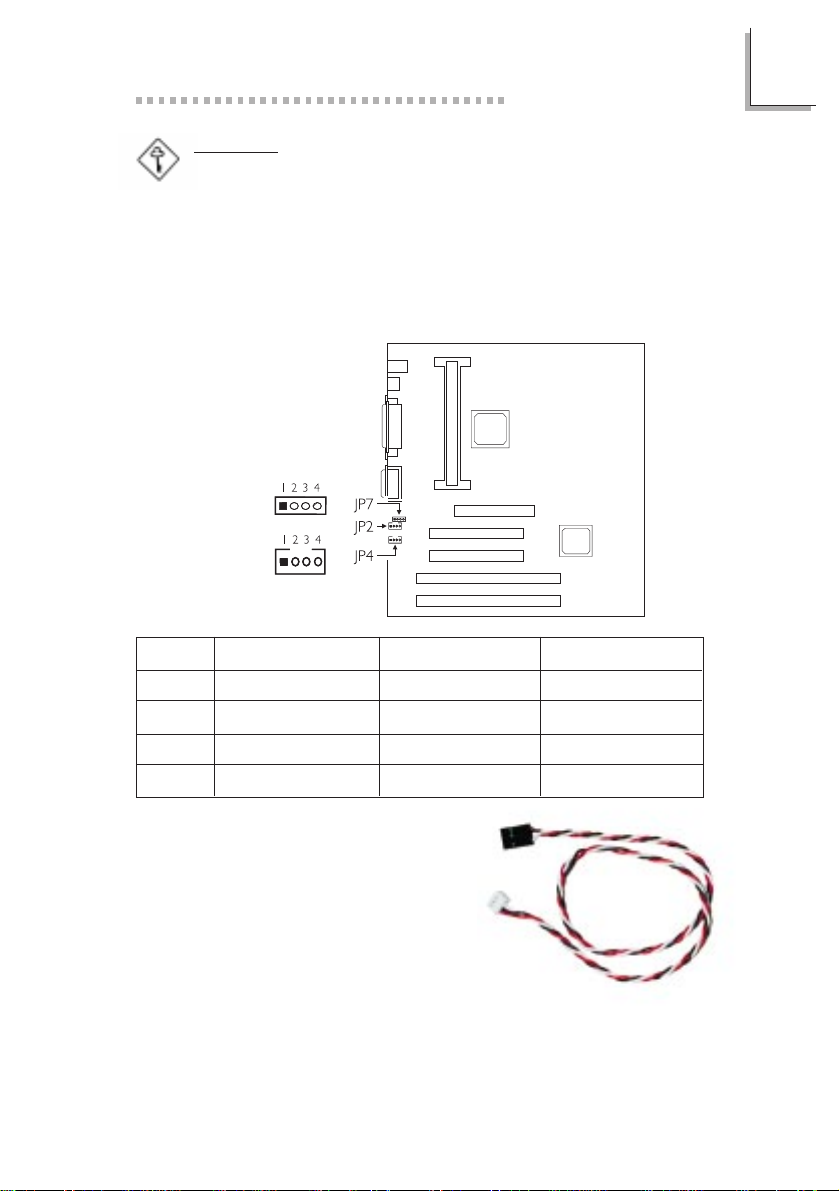

2.5.7 CD Audio-in Connector

Connecteur dEntrée Audio CD

CD Audio-in Anschluß

JP7

JP2/JP4

Connect the CD audio cable to JP2

(Mitsumi CD-ROM) or JP4 (Sony

CD-ROM) if the audio cable

included in your CD-ROM package

is similar to the one on the right.

JP2 - Mitsumi

CD-G

CD-L

CD-G

CD-R

JP4 - Sony

CD-R

CD-G

CD-L

JP7

CD-R

CD-G

CD-L

Page 16

Hardware Installation

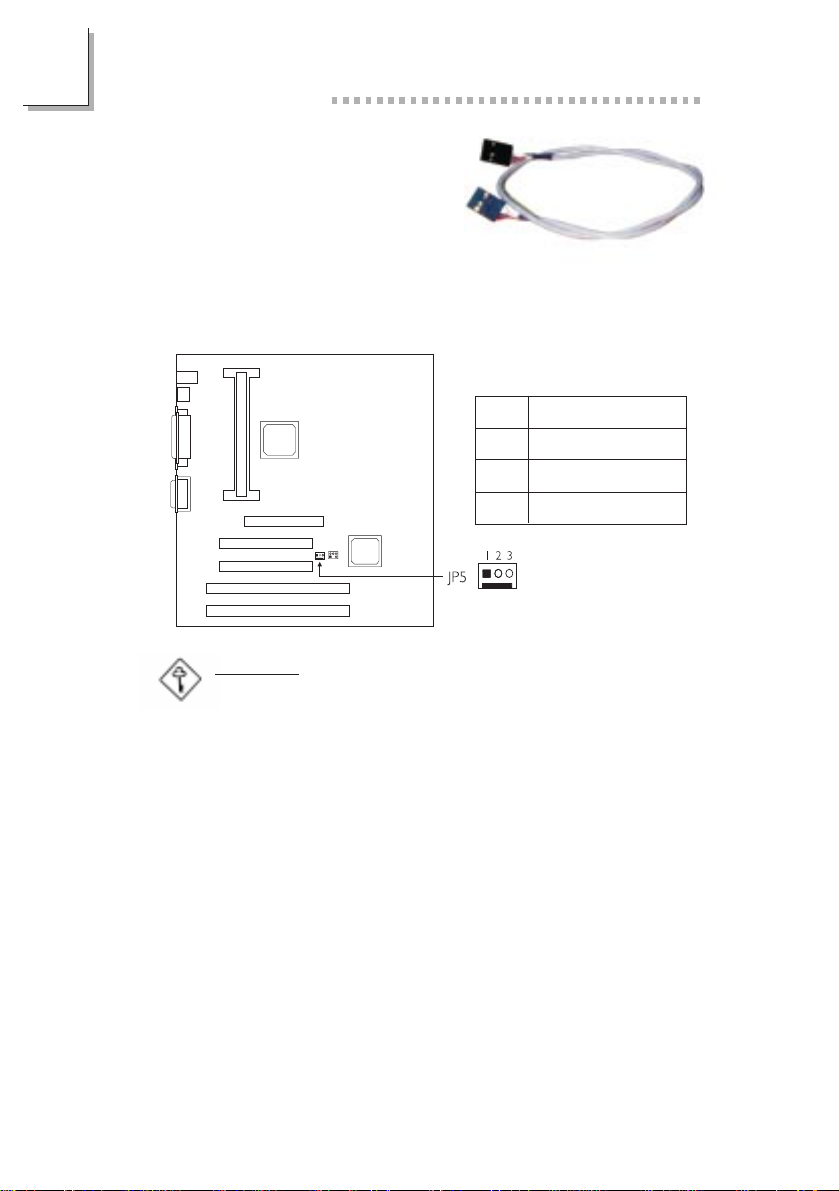

Connect the CD audio cable to

JP7 if the audio cable included in

your CD-ROM package is

similar to the one on the right.

2.5.8 Wake-On-LAN (WOL) Connector

Connecteur Réveil-Sur-LAN (WOL)

Wake-On-LAN (WOL) Anschluß

Important:

The 5VSB power source of your power supply must support

720mA (minimum).

Function

+5VSB (720mA)

Ground

WOL

Page 17

2.5.9 Power Connector

Connecteur dAlimentation

Netzanschluß

Hardware Installation

Function

3.3V/14A

Ground

+5V

Ground

+5V

Ground

PW-OK

5VSB

+12V

Important:

Pin 18 (-5V) is not present in an SFX power supply.

Your power supply must meet the ATX specification - supporting

3.3V/14A (minimum), otherwise your system will not boot properly.

Function

3.3V/14A

-12V

Ground

PS-ON

Ground

-5V

+5V

Page 18

Award BIOS Setup Utility

Chapter 3 - Award BIOS Setup Utility

Utilitaire de Configuration du Award BIOS

AWARD BIOS Konfigurationsprogramm

3.1 Entering the Award BIOS Setup Utility

Entrer Dans lUtilitaire de Configuration du Award BIOS

Aufruf des AWARD BIOS Konfigurationsprogramms

Power-on the system and press <Del> to enter the utility. The main

program screen will appear.

Allumez le Système et appuyez sur <Del> pour entrer dans

lutilitaire. Lécran du programme principal apparaîtra.

Zum Aufrufen des Konfigurationsprogramms drücken Sie während

des Startvorgangs die Taste <Del>. Ein Bildschirm ähnlich dem

folgenden erscheint.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP PNP/PCI CONFIGURATION LOAD FAIL-SAFE SETTINGS LOAD OPTIMAL SETTINGS

Esc

: Quit

F10

: Save & Exit Setup

INTEGRATED PERIPHERALS SUPERVISOR P ASSWORD USER PASSWORD IDE HDD AUTO DETECTION SAVE & EXIT SETUP EXIT WITHOUT SAVING

: Select Item

↑↓→←

: Change Color

(Shift) F2

Page 19

Award BIOS Setup Utility

3.2 Setting the Date and Time

Paramétrage de la Date et de lHeure

Einstellen des Datums und der Zeit

ROM PCI/ISA BIOS STANDARD CMOS SETUP AWARD SOFTWARE, INC.

Date (mm:dd:yy) :Wed, Jul 1 1998 Time (hh:mm:ss) : 13: 27: 50

HARD DISKS Primary Master Primary Slave Secondary Master Secondary Slave

Drive A : 1.44M, 3.5 in. Drive B : None

Video : EGA/VGA Halt on : All Errors

Esc

: Quit

F10

: Save & Exit Setup

1. Select Standard CMOS Setup in the main program screen and

press <Enter>.

Sélectionnez Standard CMOS Setup dans lécran du programme

principal et appuyez sur <Entrée>.

Standard CMOS Setup in dem Hauptbildschirm auswählen, und

die Eingabetaste (Enter) drücken.

2. Set the correct date and time in the Date and Time fie lds

respectively.

Sélectionnez la date et lheure correcte dans les champs Date

et Time respectivement.

Jeweils korrekte Werte in die Eingabefelder Date (Datum) und

Time (Zeit) eingeben.

: : : :

TYPE Auto Auto Auto Auto

SIZE

0 0 0 0

CYLS

↑↓→←

HEAD 0 0 0 0

: Select Item : Change(Shift)F2

0 0 0 0

PRECOMP

LANDZ 0 0 0 0

SECTOR 0 0 0 0

Base Memory : 640K Extended Memory : 64512K Other Memory : 384K

Total Memory : 65536K

PU/PD/+/- : Modify

0 0 0 0

MODE Auto Auto Auto Auto

Page 20

Award BIOS Setup Utility

3.3 Selecting the Hard Drive and Floppy Drive Type

Sélectionnez le Type de Disque Dur et de Lecteur de

Disquette

Auswahl der Festplatte und des Diskettenlaufwerks

ROM PCI/ISA BIOS STANDARD CMOS SETUP AWARD SOFTWARE, INC.

Date (mm:dd:yy) : Wed, Jul 1 1998 Time (hh:mm:ss) : 13: 27: 50

HARD DISKS

Primary Master Primary Slave Secondary Master Secondary Slave

Drive A : 1.44M, 3.5 in. Drive B : None

Video : EGA/VGA Halt on : All Errors

: Quit

Esc F10

: Save & Exit Setup

1. Select Standard CMOS Setup in the main program screen and

press <Enter>.

Sélectionnez Standard CMOS Setup dans lécran du programme

principal et appuyez sur <Entrée>.

Standard CMOS Setup in dem Hauptbildschirm auswählen, und

die Eingabetaste (Enter) drücken.

2. Select Auto for the hard disk drive(s) installed in your system.

The BIOS will auto-detect the HDD & CD-ROM drive at the

POST stage and show the IDE for the HDD & CD-ROM drive.

If a hard disk has not been installed, select None and press

<Enter>.

Sélectionnez Auto pour le(s) disque(s) dur(s) installés dans

votre système. Le BIOS détectera automatiquement le Disque

Dur et le Lecteur CD-ROM durant la phase POST et affichera

lIDE du Disque Dur et du Lecteur CD-ROM. Si aucun disque

dur na été installé, sélectionnez None et appuyez sur <entrée>.

Im Eintrag Hard Disk Drive(s) (Festplatte) Auto auswählen.

Das Programm entdeckt die Festplatte sowie das CD-ROM

Laufwerk während der Initialisierung automatisch. Ist keine

Festplatte installiert, aktivieren Sie den Eintrag None.

Eingabetaste (Enter) drücken.

: : : :

TYPE Auto Auto Auto Auto

SIZE

0 0 0 0

CYLS

↑↓→←

HEAD 0 0 0 0

: Select Item : Change(Shift)F2

0 0 0 0

PRECOMP

LANDZ 0 0 0 0

SECTOR 0 0 0 0

Base Memory : 640K Extended Memory : 64512K Other Memory : 384K

Total Memory : 65536K

PU/PD/+/- : Modify

0 0 0 0

MODE Auto Auto Auto Auto

Page 21

Award BIOS Setup Utility

3. Set the type of floppy drive installed in the Drive A and Drive

B fields. The options are None, 360K, 1.2M, 720K, 1.44M and

2.88M.

Paramétrez le type de lecteur de disquette installé dans les

champs Drive A et Drive B. Les options sont None, 360K,

1.2M, 720K, 1.44M et 2.88M.

Im Eintrag Floppy Drive (Diskettenlaufwerk) wählen Sie Drive

A (Laufwer k A) und Drive B (Laufwerk B). Die Optionen sind

None (Kein), 360K, 1.2M, 720K, 1.44M und 2.88M.

3.4 Selecting the Drive to be Searched First for an

Operating System

Sélectionner le Lecteur qui doit être Détecté en

premier par un Système dExploitation

Auswahl des Bootlaufwerks

ROM PCI/ISA BIOS

BIOS FEA TURES SETUP

AWARD SOFTWARE, INC.

Virus Warning CPU L1 Cache CPU L2 Cache Quick Power On Self Test

Boot Sequence

Swap Floppy Drive Boot Up Floppy Seek Boot Up NumLock Status Typematic Rate Setting Typematic Rate (Chars/Sec) Typematic Delay (Msec) Security Option PCI/VGA Palette Snoop OS Select For DRAM > 64MB HDD S.M.A.R.T. Capability

: Disabled : Enabled : Enabled : Enabled

: A, C, SCSI

: Disabled : Disabled :On : Disabled :6 : 250 : Setup : Disabled : Non-OS2 : Disabled

ESC

: Quit

: Help

: Old Values

: Load Fail-Safe Settings

: Load Optimal Settings

↑↓→←

PU/PD/+/(Shift) F2

: Select Item : Modify : Color

1. Select BIOS Features Setup in the main program screen and

press <Enter>.

Sélectionnez BIOS Features Setup dans lécran de programme

principal et appuyez sur <Entrée>.

BIOS Features Setup in dem Hauptbildschirm auswählen, und

die Eingabetaste (Enter) drücken.

2. Select the dr ive to be searched first in the Boot Sequence field.

The default is A, C, SCSI. The other options are: C, A, SCSI; C,

CDROM, A; CDROM, C, A; D, A, SCSI; E, A, SCSI; F, A, SCSI;

SCSI, A, C; SCSI, C, A; C only and LS120/ZIP, C.

Page 22

Award BIOS Setup Utility

Sélectionnez le lecteur qui devra être détecté en premier dans le

champs Boot Sequence. La valeur par défaut est A, C , SCSI.

Les autres options sont: C, A, SCSI; C, CDROM, A; CDROM, C,

A; D, A, SCSI; E, A, SCSI; F, A, SCSI; SCSI, A, C; SCSI, C, A; C

seulement et LSI20/ZIP, C.

Im Boot Sequence Feld wählen Sie die Sequenz, in welcher der

Computer nach einem Betriebssystem sucht. Die Optionen sind

C, A, SCSI; C, CDROM, A; CDROM, C, A; D, A, SCSI; E, A, SCSI;

F, A, SCSI; SCSI, A, C; SCSI, C, A; nur C und LS120/ZIP, C.

3.5 Setting the External System Bus Clock of the Processor

Paramétrage de lHorloge Externe de Bus Système du

Processeur

Auswahl des externen Systemtaktgebers Ihres Prozessors

ROM PCI/ISA BIOS

CHIPSET FEATURES SETUP

AWARD SOFTWARE, INC.

SDRAM RAS-to-CAS Delay SDRAM RAS Precharge Time SDRAM CAS Latency Time System BIOS Cacheable Video BIOS Cacheable Video RAM Cacheable 8 Bit I/O Recovery Time 16 Bit I/O Recovery Time Memory Hole At 15M-16M PCI 2.1 Compliance AGP Aperture Size (MB)

CPU Bus Clock

: Slow : Slow :3 : Disabled : Enabled : Disabled :1 :1 : Disabled : Disabled :64

: 66MHz

ESC

: Quit

: Help

: Old Values

: Load Fail-Safe Settings

: Load Optimal Settings

↑ ↓ → ←

PU/PD/+/(Shift) F2

: Select Item : Modify : Color

1. Select Chipset Features Setup in the main program screen and

press <Enter>.

Sélectionnez Chipset Features Setup dans lécran de programme

principal et appuyez sur <Entrée>.

Chipset Features Setup in dem Hauptbildschirm auswählen, und

die Eingabetaste (Enter) drücken.

2. Select the external system bus clock of your processor in the

CPU Bus Clock field. The options are: 50MHz, 60MHz, 66MHz,

68MHz, 75MHz and 83MHz.

Sélectionnez lHorloge Externe de Bus Système de votre

processeur dans le champ CPU Bus Clock. Les options sont

50MHz, 60MHz, 66MHz, 68MHz, 75MHz et 83MHz.

Page 23

Award BIOS Setup Utility

Im CPU Bus Clock Feld sind folgende Optionen möglich:

50MHz, 60MHz, 66MHz, 68MHz, 75MHz und 83MHz.

Note / Note / Anmerkung:

The default is 66MHz. Do not alter this setting unless

necessary. We do not guarantee your system will work properly

with the other options.

La valeur par défaut est 66MHz. Ne changez pas ce

paramètre sauf en cas de nécessité. Nous ne garantissons pas

que votre système puisse fonctionner avec les autres options.

Die Standardeinstellung ist 66MHz. Diese Einstellung sollte nicht

von Ihnen geändert werden, das Ihr System möglicherweise

nicht mit anderen Einstellungen arbeitet!

3.6 Selecting an IRQ for the External Modem

Sélectionner une IRQ pour le Modem Externe

IRQ Bestimmung für ein externes Modem

ROM PCI/ISA BIOS

POWER MANAGEMENT SETUP

AWARD SOFTWARE, INC.

ACPI Function Power Management PM Control by APM Video Off Method Video Off After

MODEM Use IRQ

Standby Mode Suspend Mode HDD Power Down VGA Active Monitor Soft-Off by PWR-BTTN Resume PWR Lost State Resume On Ring Resume On LAN Resume On Alarm

: Disabled : User Define :Yes : DPMS : Standby

: Disabled : Disabled : Disabled : Disabled : Instant-Off : Disabled : Disabled : Disabled : Disabled ESC

F1 F5 F6 F7

: Quit : Help : Old Values : Load Fail-Safe Settings

: Load Optimal Settings

↑ ↓ → ←

PU/PD/+/(Shift) F2

: Select Item : Modify : Color

1. Select Power Management Setup in the main program screen

and press <Enter>.

Sélectionnez Power Management Setup dans lécran de

programme principal et appuyez sur <Entrée>.

Power Management Setup in dem Hauptbildschirm auswählen,

und die Eingabetaste (Enter) drücken.

2. Select an IRQ for the external modem in the MODEM Use

IRQ field. The options are IRQ 3, 4, 5, 7, 9, 10 or 11. You need

to select an IRQ only if you are using the modem ring-on

function.

Page 24

Award BIOS Setup Utility

Sélectionnez une IRQ pour le modem externe dans le champ

MODEM Use IRQ Les options sont IRQ 3, 4, 5, 7, 9, 10 ou

11. Vous devez sélectionner une seule IRQ seulement si vous

utilisez la fonction de sonnerie du modem.

In dem Feld MODEM Use IRQ eine entsprechende IRQ-

Bestimmung für das externen Modem vornehmen. Die Optionen

sind IRQ 3, 4, 5, 7, 9, 10 und 11. Eine Einstellung ist nur dann

nötig, wenn bestimmte Funktionen (ring-on) des Modems benutzt

werden sollen.

3.7 Selecting the Method of Powering-off the System

Sélection de la Méthode pour Eteindre le Système

Auswahl der Abschaltmethode

ROM PCI/ISA BIOS

POWER MANAGEMENT SETUP

AWARD SOFTWARE, INC.

ACPI Function Power Management PM Control by APM Video Off Method Video Off After MODEM Use IRQ Standby Mode Suspend Mode HDD Power Down VGA Active Monitor

Soft-Off by PWR-BTTN

Resume PWR Lost State Resume On Ring Resume On LAN Resume On Alarm

: Disabled : User Define :Yes : DPMS : Standby :3 : Disabled : Disabled : Disabled : Disabled

: Instant-Off

: Disabled : Disabled : Disabled : Disabled ESC

F1 F5 F6 F7

: Quit : Help : Old Values : Load Fail-Safe Settings : Load Optimal Settings

↑ ↓ → ←

PU/PD/+/-

(Shift) F2

: Select Item : Modify : Color

1. Select Power Management Setup in the main program screen

and press <Enter>.

Sélectionnez Power Management Setup dans lécran de

programme principal et appuyez sur <Entrée>.

Power Management Setup in dem Hauptbildschirm auswählen,

und die Eingabetaste (Enter) drücken.

2. Select the method of powering-off the system in the Soft-Off by

PWR-BTTN field. The options are Hold 4 Sec. and Instant-Off.

Sélectionnez la Méthode pour éteindre le système dans le champ

Soft-Off by PWR-BTTN. Les options sont Hold 4 Sec. et

Instant-Off.

Page 25

Award BIOS Setup Utility

In dem Feld Soft-Off by PWR-BTTN können Sie die Methode

bestimmen, mit welcher Ihr Rechner ausgeschaltet wird. Die

Optionen sind Hold 4 Sec. (4 Sekunden war ten) und Instant-Off

(Direktabschaltung).

Hold 4 Sec.

If the power button is pushed and released in less than 4 seconds,

the system enters the Suspend mode. Push and release it again in

less than 4 seconds to restore. Pushing the power button for more

than 4 seconds will power-off the system.

Si le bouton de mise sous tension est poussé puis relâché en

moins de 4 secondes, le système entrera en mode suspend.

Poussez le et relâchez le à nouveau en moins de 4 secondes

pour restaurer la fonction. Le fait dappuyer sur le bouton de

mise sous tension pendant plus de 4 secondes éteindra le

système.

Wird die Netztaste gedrückt und innerhalb von 4 Sekunden

wieder losgelassen, schaltet sich das System in den Suspend-

Modus. Ein erneutes Drücken mit einem Loslassen innerhalb von

4 Sekunden stellt den Normalzustand wieder her. Wird die

Netztaste für die Dauer von über 4 Sekunden gedrückt gehalten,

schaltet sich das System ab.

Instant-Off

Pressing and then releasing the power button at once will

immediately power-off the system.

Le fait dappuyer sur le bouton de mise sous tension en une fois

éteindra le système immédiatement.

Normales Drücken der Netztaste schaltet das System

augenblicklich ab.

Page 26

Award BIOS Setup Utility

3.8 Loading Fail-Safe Settings/Optimal Settings

Charger les Paramètres à Sécurité Relative Optimaux

Laden der Fail - Safe Einstellungen / Optimierte

Einstellungen

The Load Fail-Safe Settings option loads the troubleshooting default

values permanently stored in the ROM chips. These settings are not

optimal and turn off all high performance features. You should use these

values only if you have hardware problems. The Load Optimal Settings

option loads optimized settings from the BIOS ROM. Use the Setup

default values as standard values for your system.

Loption Charger les Paramètres à Sécurité Relative charge les

valeurs de recherche de pannes par défaut stockées de manière

permanente dans les puces ROM. Ces paramètres ne sont pas

optimum et désactives toutes les fonctionnalités à haute

performance. Vous pouvez utiliser ces valeurs seulement si vous

rencontrez des problèmes de matériel.

Mit dieser Funktionen lassen sich Standardeinstellungen in dem

permanenten ROM Speicher ablegen, die in Problemfällen geladen

werden. Mit dieser Einstellung läßt sich der Computer im

Standardmodus starten. Sie sollten diese Werte nur dann benutzen,

wenn Hardwareprobleme etc. eine Star ten des Computers nicht

zulassen. Mit der Auswahl Load Optimal Settings lassen sich die

optimierten Einstellungen von dem BIOS ROM abrufen. Die

optimierten Einstellungen sind der Standardwert.

3.9 Enabling the Wake-On-Keyboard Function

Activer la Fonction Réveil-Sur-Clavier

Aktivieren der Wake-On Tastatur Funktion

ROM PCI/ISA BIOS

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

IDE HDD Block Mode IDE Primary Master PIO IDE Primary Slave PIO IDE Secondary Master PIO IDE Secondary Slave PIO IDE Primary Master UDMA IDE Primary Slave UDMA IDE Secondary Master UDMA IDE Secondary Slave UDMA On-chip Primary PCI IDE On-chip Secondary PCI IDE USB Keyboard Support Init AGP Display First

: Enabled : Auto : Auto : Auto : Auto : Auto : Auto : Auto : Auto : Enabled : Enabled : Disabled : Enabled

Keyboard Power On

KBC input clock Onboard FDC Controller Onboard Serial Port 1 Onboard Serial Port 2 UART2 Mode

Onboard Parallel Port Parallel Port Mode ECP Mode Use DMA

ESC

: Quit

: Help

: Old Values

: Load Fail-Safe Settings

: Load Optimal Settings

↑ ↓ → ←

PU/PD/+/(Shift) F2

: Disabled

: 8MHz : Enabled : 3F8/IRQ4 : 2F8/IRQ3 : Standard

: 378/IRQ7 : ECP+EPP :3

: Select Item : Modify : Color

Page 27

Award BIOS Setup Utility

1. Select Integrated Peripherals in the main program screen and

press <Enter>.

Sélectionnez Integrated Peripherals dans lécran de programme

principal et appuyez sur <Entrée>.

Integrated Peripherals in dem Hauptbildschirm auswählen, und

die Eingabetaste (Enter) drücken.

2. Set the Keyboard Power On field to Enabled. The KB Power

On Password field will appear.

Positionnez le champ Keyboard Power On sur Activer. Le

champ KB Power On Password apparaîtra.

Den Eintrag Keyboard Power On aktivieren. Die Mitteilung KB

Power On Password erscheint.

3. Enter your password and press <Enter>. You can enter up to 5

characters only.

Tapez le mot de passe et appuyez sur <Entrée>. Vous pouvez

taper jusquà 5 caractères seulement.

Geben Sie ein Paßwort mit maximal 5 Stellen ein und drücken

die Eingabetaste (Enter).

4. Confirm your password by pressing <Enter>.

Confirmez votre mot de passe en appuyant sur <Entrée>.

Paßwort bestätigen und die Eingabetaste (Enter) drücken.

Important:

1. The power button will not function once a keyboard password

has been set in the KB Power On Password field. You must

type the password to power-on the system.

Le bouton de mise sous tension ne fonctionnera plus une

fois que le mot de passe clavier aura été défini dans le

champ KB Power On Password. Vous devrez taper le mot

de passe pour allumer le système.

Wird ein Paßwort ausgewählt in dem KB Power On

Password Feld eingegeben, muß zuerst das Paßwort

eingegeben werden, bevor der Computer eingeschaltet

werden kann.

Page 28

Award BIOS Setup Utility

2. Make sure JP1 is set to 2-3 On.

Assurez vous que JP1 est positionné sur la sélection 2-3.

Es ist darauf zu achten, daß sich JP1 in der Einstellung 2-3

An befindet.

3.10 Setting the Supervisor/User Password

If you want to protect your system and the setup utility from

unauthorized entry, set a password in the Supervisor Password

field. If you want a user to have access only to your system but not

to setup, set a password in the User Password field. Use the

arrow keys to highlight the Supervisor Password or User

Password field and press <Enter>. The message below will appear.

Enter Password:

Type in the password. You can enter up to eight characters only. You

will then be prompted to confirm the password. Type in exactly the

same password.

Make sure to set the Security Option field in the BIOS Features

Setup to System or Setup. This will depend on when you would

like the system to be prompted with a password.

Définir le Mot de Passe Superviseur/Utilisateur

Si vous désirez protéger votre système et Install contre toute entrée

non autorisée, paramétrez un mot de passe dans le champ

Supervisor Password. Si vous désirez protéger laccès à Install

seulement, mais pas votre système, paramétrez un mot de passe

dans le champ User Password. Utilisez les touches fléchées pour

sélectionner le champ Supervisor Password ou User Password et

appuyez sur <Entrée>. Le message ci-dessous apparaîtra.

Enter Password:

Entrez le mot de passe. Vous êtes limité à huit caractères. Une fois

que cest fait, vous serez invité à confirmer le mot de passe, entrez

exactement le même mot de passe.

Assurez vous de positionner le champs Security Option dans les

BIOS Features Setup sur System ou Setup. Cela dépend du

moment où vous désirez que le système vous demande le mot de

passe.

Page 29

Award BIOS Setup Utility

Aktivieren eines Supervisor / Benutzer Paßwortes

Wenn Sie das Supervisor Password aktivieren, müssen Sie vor dem

Einstieg in das Konfigurationsprogramm ein Kennwort eingeben.,

während das User Password den Zugang zu dem Computer

ermöglicht. Wählen Sie den Eintrag Supervisor Password bzw.

Supervisor Password und betätigen Sie die Eingabetaste (Enter). Im

erscheinenden Dialogfeld.

Enter Password:

Geben Sie Ihr Kennwort mit bis zu 8 Stellen ein. Betätigen Sie die

Eingabetaste und geben Sie das Kennwort als Bestätigung erneut ein.

Es ist darauf zu achten, daß das Feld Security Option in dem BIOS

Features Setup auf System oder Setup gesetzt ist.

Page 30

Supported Softwares

Chapter 4 - Supported Softwares

Logiciels Supportés

Unterstützte Software

4.1 Drivers and Utility

Pilotes et Utilitaires

Treiber und Hilfsprogramme

The CD included in the system board package contains audio

drivers and a utility. All steps or procedures to install software

drivers are subject to change without notice as the softwares are

occassionally updated. Please refer to the readme files for the latest

information.

Audio Driver

Insert the CD that came with the system board into a CD-ROM

drive. The autorun screen (Main Board Utility CD) will appear. Click

4DWAVE Audio Driver to install.

Important:

Before installing the audio driver, please read carefully the

installation instructions and warning messages in the Audio

Driver Installation Guide. You will find this installation guide in

the autorun screen. Failure to do so might cause improper

installation.

Patch Utility

If you are running Windows 95 (Win95, Win95+, Win95 OSR1:

Windows 95 OEM Service Release 1, Win95 OSR2: Windows 95

OEM Service Release 2.0 or Win95 OSR2.1: Windows 95 OEM

Service Release 2.0 plus USB Supplement), you need to run the

patch utility. Please refer to its readme file for instructions on

installing the utility.

Page 31

System Error Message

Appendix A - System Error Message

Messages dErreur du Système

Fehlernachricht des Systems

When the BIOS encounters an error that requires the user to

correct something, either a beep code will sound or a message will

be displayed in a box in the middle of the screen and the message,

PRESS F1 TO CONTINUE, CTRL-ALT-ESC or DEL TO ENTER

SETUP, will be shown in the information box at the bottom. Enter

Setup to correct the error.

A.1 POST Beep / Pip de POST / Akustisches POST-Signal

There are two kinds of beep codes in the BIOS. One code indicates

that a video error has occured and the BIOS cannot initialize the

video screen to display any additional information. This beep code

consists of a single long beep followed by three short beeps. The

other code indicates that a DRAM error has occured. This beep

code consists of a single long beep.

A.2 Error Messages / Messages dErreur / Fehlernachrichten

One or more of the following messages may be displayed if the

BIOS detects an error during the POST. This list indicates the error

messages for all Awards BIOSes:

CMOS BATTERY HAS FAILED

The CMOS battery is no longer functional. It should be replaced.

Caution:

Danger of explosion if battery incorrectly replaced. Replace only

with the same or equivalent type recommended by the

manufacturer. Dispose of used batteries according to the

battery manufacturers instructions.

CMOS CHECKSUM ERROR

Checksum of CMOS is incorrect. This can indicate that CMOS has

become corrupt. This error may have been caused by a weak

battery. Check the batter y and replace if necessary.

DISPLAY SWITCH IS SET INCORRECTLY

The display switch on the motherboard can be set to either

monochrome or color. This indicates the switch is set to a different

Page 32

System Error Message

setting than indicated in Setup. Determine which setting is correct,

either turn off the system and change the jumper or enter Setup and

change the VIDEO selection.

FLOPPY DISK(S) fail (80)

Unable to reset floppy subsystem.

FLOPPY DISK(S) fail (40)

Floppy type mismatch.

Hard Disk(s) fail (80)

HDD reset failed.

Hard Disk(s) fail (40)

HDD controller diagnostics failed.

Hard Disk(s) fail (20)

HDD initialization error.

Hard Disk(s) fail (10)

Unable to recalibrate fixed disk.

Hard Disk(s) fail (08)

Sector Verify failed.

Keyboard is locked out - Unlock the key

The BIOS detects that the keyboard is locked. Keyboard controller is

pulled low.

Keyboard error or no keyboard present

Cannot initialize the keyboard. Make sure the keyboard is attached

correctly and no keys are being pressed during the boot.

Manufacturing POST loop

System will repeat POST procedure infinitely while the keyboard

controller is pull low. This is also used for the M/B burn in test at the

factory.

BIOS ROM checksum error - System halted

The checksum of ROM address F0000H-FFFFFH is bad.

Memory test fail

The BIOS reports memor y test fail if the memory has error(s).
