Introduction

Table of Contents

Chapter 1 - Introduction

1.1 Features and Specifications..................................................................................

Chapter 2 - Hardware Installation

2.1 System Board Layout ..........................................................................................

2.2 System Memory...........................................................................................................

2.3 Jumper Settings for Clearing CMOS Data........................................

2.4 Jumper Settings for Wake-On-Keyboard/Mouse..................................

2.5 Jumper Settings for Wake-On-USB Keyboard/Mouse.............

2.6 Jumper Settings for Selecting the CPU’s Front Side Bus.............

2.7 Jumper Settings for USB 4................................................................................

2.8 Factory Use Jumpe.................................................................

2.9 Ports and Connectors.................................................................................................

Chapter 3 - Award BIOS Setup Utility

3.1 The Basic Input/Output System.....................................................................

3.1.1 Standard CMOS Features.............................................................

3.1.2 Advanced BIOS Features..............................................................

3.1.3 Advanced Chipset Features ......................................................

3.1.4 Integrated Peripherals.........................................................................

3.1.5 Power Management Setup............................................................

3.1.6 PnP/PCI Configurations....................................................................

3.1.7 PC Health Status...................................................................................

3.1.8 CPU Frequency Control..................................................................

3.1.9 Load Fail-Safe Defaults.....................................................................

3.1.10 Load Optimized Defaults..............................................................

3.1.11 Set Supervisor Password...............................................................

3.1.12 Set User Password..............................................................................

3.1.13 Save & Exit Setup.................................................................................

3.1.14 Exit Without Saving..............................................................................

15 19 22 24 26 28 29 30 31

52 52

56 61 64 70 74 76 77 78 78 79 79 80 80

Page 5

Introduction

Chapter 1 - Introduction

1.1 Features and Specifications

1.1.1 Features

Chipset

• Intel® 850 chipset

- Intel® 82850 Memory Controller Hub (MCH)

- Intel® 82801 I/O Controller Hub (ICH2)

Processor

The system board is equipped with Socket 478 for installing a Pentium® 4 processor.

• Intel® Pentium® 4 processor (478-pin)

• 400MHz system data bus

System Memory

• Four 184-pin RIMM sockets

- Two Direct-RDRAM channels with two RIMMs per channel

• Supports 128MB to 2GB system memory using 64Mbit, 128Mbit or 256Mbit technology, PC-600 or PC-800 RDRAM

• Supports ECC function

Please refer to “System Memory” in chapter 2 for more information.

Page 6

Introduction

Expansion Slots

The system board is equipped with 1 AGP slot, 4 dedicated PCI slots and 1 shared PCI/CNR slot.

The AGP slot only supports 1.5V AGP 4x (1066MB/sec. bandwidth) add-in cards. AGP is an interface designed to support high performance 3D graphics cards for 3D graphics applications. It handles large amounts of graphics data with the following features:

• Pipelined memory read and write operations that hide memory access latency.

• Demultiplexing of address and data on the bus for nearly 100 percent efficiency.

CNR (Communication and Networking Riser) is an interface that supports multi-channel audio, V.90 analog modem, phone-line based networking or 10/100 Ethernet based networking riser board.

Onboard Audio Features

• 18-bit stereo full-duplex codec with independent variable sampling rate

• High quality differential CD input

• True stereo line level outputs

Compatibility

• Microsoft PC 2001 compliant

• PCI 2.2, CNR 1.0 “A” type and AC ’97 compliant

• Intel AGP version 2.0

Page 7

Introduction

ATX Double Deck Ports (PC 99 color-coded connectors)

• Two USB ports

• Two NS16C550A-compatible DB-9 serial ports

• One DB-25 parallel port

• One mini-DIN-6 PS/2 mouse port

• One mini-DIN-6 PS/2 keyboard port

• One game/MIDI port

• Three audio jacks: line-out, line-in and mic-in

Connectors

• One connector for 2 additional external USB ports

• One connector for IrDA interface

• Two IDE connectors

• One floppy drive interface supports up to two

2.88MB floppy drives

• Three ATX power supply connectors

• One Wake-On-LAN connector

• One Wake-On-Ring connector

• CPU, chassis and second fan connectors

• One opened chassis alarm connector (optional)

• Two internal audio connectors (CD-in and TAD)

PCI Bus Master IDE Controller

• Two PCI IDE interfaces support up to four IDE devices

• Supports ATA/33, ATA/66 and ATA/100 hard drives

• PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)

• Bus mastering reduces CPU utilization during disk transfer

• Supports ATAPI CD-ROM, LS-120 and ZIP

IrDA Interface

The system board is equipped with an IrDA connector for wireless connectivity between your computer and peripheral devices. It supports peripheral devices that meet the IrDA or ASKIR standard.

Page 8

Introduction

USB Ports

The system board supports 4 USB ports. Two onboard USB ports are located at the ATX double deck ports of the board. The J16/J50 connector on the system board allows you to connect 2 more optional USB ports. These optional USB ports, which are mounted on a card-edge bracket, will be provided as an option. USB allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

BIOS

• Award BIOS, Windows® 98/2000/ME Plug and Play compatible

• Supports SCSI sequential boot-up

• Flash EPROM for easy BIOS upgrades

• Supports DMI 2.0 function

Desktop Management Interface (DMI)

The system board comes with a DMI 2.0 built into the BIOS. The DMI utility in the BIOS automatically records various information about your system configuration and stores these information in the DMI pool, which is a part of the system board's Plug and Play BIOS. DMI, along with the appropriately networked software, is designed to make inventory, maintenance and troubleshooting of computer systems easier. Refer to chapter 4 for instructions on using the DMI utility.

1.1.2 System Health Monitor Functions

The system board is capable of monitoring the following “system health” conditions.

• Monitors system temperature and overheat alarm

• Monitors 5VSB/VBAT/1.5V/3.3V/5V/±12V/CPU voltages and failure alarm

• Monitors the fan speed of the CPU fan, chassis fan and second fan; and failure alarm

Page 9

Introduction

• Automatic chassis fan on/off control

• Read back capability that displays temperature, voltage and fan speed

• Opened chassis alarm (optional)

Refer to the “PC Health Status” section in chapter 3 for more information.

1.1.3 Intelligence

Automatic Chassis Fan Off

The chassis fan will automatically turn off once the system enters the Suspend mode.

Dual Function Power Button

Depending on the setting in the “Soft-Off By PWRBTTN” field of the Power Management Setup, this switch will allow the system to enter the Soft-Off or Suspend

mode.

Wake-On-Ring

This feature allows the system that is in the Suspend mode or Soft Power Off mode to wake-up/power-on to respond to calls coming through an internal or external modem. Refer to “Wake-On-Ring Connector” in chapter 2 and “Resume On Ring” in the Power Management Setup section in chapter 3 for more information.

Important:

If you are using a modem add-in card, the 5VSB power source of your power supply must support

≥720mA.

Page 10

Introduction

Wake-On-LAN

The Wake-On-LAN function allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. Your LAN card must support the remote wakeup function. Refer to “Wake-On-LAN Connector” in chapter 2 and “Resume On LAN” in the Power Management Setup section in chapter 3 for more information.

Important:

The 5VSB power source of your power supply

must support ≥720mA.

Wake-On-Keyboard/Wake-On-Mouse

This function allows you to use the keyboard or PS/2 mouse to power-on the system. Refer to “Jumper Settings for Wake-On-Keyboard/Wake-On-Mouse” in chapter 2 and “Keyboard/Mouse Power On” in the Integrated Peripherals section in chapter 3 for more information.

Important:

• The power button will not function once a keyboard password has been set in the “KB Power On Password” field of the Integrated Peripherals submenu. You must type the correct password to power-on the system. If you forgot the password, power-off the system and remove the battery. Wait for a few seconds and install it back before powering-on the system.

• The 5VSB power source of your power supply

must support ≥720mA.

Page 11

Introduction

Wake-On-USB Keyboard/Mouse

The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse to wake up a system that is in the S3 (STR - Suspend To RAM) state. Refer to “Jumper Settings for Wake-On-USB Keyboard/ Mouse” in chapter 2 and “USB KB/Mouse Wake-Up From S3” in the Power Management Setup section in chapter 3 for more information.

Important:

• If you are using the Wake-On-USB Keyboard/ Mouse function for 2 USB ports, the 5VSB power source of your power supply must

support ≥1.5A.

• If you are using the Wake-On-USB Keyboard/ Mouse function for 4 USB ports, the 5VSB power source of your power supply must

support ≥2A.

RTC Timer to Power-on the System

The RTC installed on the system board allows your system to automatically power-on on the set date and time. Refer to “Resume On Alarm” in the Power Management Setup section in chapter 3 for more information.

ACPI STR

The system board is designed to meet the ACPI (Advanced Configuration and Power Interface) specification. ACPI has energy saving features that enables PCs to implement Power Management and Plugand-Play with operating systems that support OS Direct

®®

Power Management. Currently, only Windows ME supports the ACPI function. ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM function.

®®

98/2000/

Page 12

Introduction

With the Suspend to RAM function enabled, you can power-off the system at once by pressing the power button or selecting “Standby” when you shut down

®®

Windows the sometimes tiresome process of closing files, applications and operating system. This is because the system is capable of storing all programs and data files during the entire operating session into RAM (Random Access Memory) when it powers-off. The operating session will resume exactly where you left off the next time you power-on the system. Refer to “Using the Suspend to RAM Function” in appendix A for more information.

®®

98/2000/ME without having to go through

Important:

The 5VSB power source of your power supply

must support ≥1A.

AC Power Failure Recovery

When power returns after an AC power failure, you may choose to either power-on the system manually, let the system power-on automatically or return to the state where you left off before power failure occurs. Refer to “PWR Lost Resume State” in the Integrated Peripherals section in chapter 3 for more information.

Year 2000 Compliant

• Supports hardware Y2K function.

Virus Protection

Most viruses today destroy data stored in hard drives. The system board is designed to protect the boot sector and partition table of your hard disk drive.

Page 13

Hardware Installation

Chapter 2 - Hardware Installation

2.1 System Board Layout

NT70-SC

(Supports onboard audio)

Page 14

Hardware Installation

Warning:

Electrostatic discharge (ESD) can damage your system board, processor, disk drives, add-in boards, and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

2.2 System Memory

Features

• Four RIMM sockets

- Two Direct-RDRAM channels with two RIMMs per channel

• Supports maximum of 32 Direct RDRAM devices per channel

• Supports 128MB to 2GB system memory using 64Mbit, 128Mbit or 256Mbit technology - PC-600 or PC-800 RDRAM

• Supports single-sided or double-sided RIMM

• RIMM with SPD (Serial Presence Detect) data structure will provide optimal memory operation

• Supports ECC function.

Note:

The illustrations on the following pages are based on the NT70SA/SL system board, which is the board that supports onboard LAN.

Page 15

Hardware Installation

2.2.1 Important Installation Instructions

Certain rules must be followed when installing RIMM to obtain optimum system performance.

Rule 1: Before installing or uninstalling a RIMM, power off the system

and unplug the power cord. Make sure the Power/Standby LED is off.

Rule 2: The four RIMM sockets are divided into 2 banks - bank 0

(RIMM sockets 1 and 2) and bank 1 (RIMM sockets 3 and

4). Bank 0 must be populated first ensuring that RIMM sockets 1 and 2 are installed with RIMMs. The memory configuration (speed, number of devices, size and density) of RIMMs in bank 0 and bank 1 must be identical.

Rule 3: Each bank supports a maximum of 32 devices, therefore, the

2 banks support a maximum of 64 devices.

Rule 4: The system board supports ECC or non-ECC RIMM. Use

the same type of RIMM in all sockets.

Rule 5: Due to RDRAM’s signal routing, all RIMM sockets must be

populated with modules. If RIMM sockets 3 and 4 (bank 1) are not populated with RIMMs, YOU MUST install them with CRIMMs (Continuity RIMM). This is to avoid breaking the signal lines which are a serial connection in a RAMBUS interface and will allow the Direct Rambus Channel to function properly. If, at any time, you wish to upgrade the system memory, remove the CRIMMs and replace them with RIMMs.

Page 16

Hardware Installation

The CRIMM module included in the system board package looks similar to the one shown below..

2.2.2 Installing a RIMM

A RIMM simply snaps into a RIMM socket on the system board. Pin 1 of the RIMM must correspond with pin 1 of the socket.

1. Pull the “tabs” which are at the ends of the socket to the side.

2. Position the RIMM above the socket with the “notches” in the module aligned with the “keys” on the socket.

3. Seat the module vertically into the socket. Make sure it is completely seated. The tabs will hold the RIMM in place.

Page 17

Hardware Installation

2.3 Jumper Settings for Clearing CMOS Data

1-2 On: Normal

(default)

Clear CMOS Data - Jumper JP5

If you encounter the following,

2-3 On:

Clear CMOS Data

a) CMOS data becomes corrupted. b) You forgot the supervisor or user password. c) You are unable to boot-up the computer system because the

processor’s ratio was incorrectly set in the BIOS.

you can reconfigure the system with the default values stored in the ROM BIOS.

To load the default values stored in the ROM BIOS, please follow the steps below.

1. Power-off the system.

2. Set JP5 pins 2 and 3 to On. Wait for a few seconds and set JP5 back to its default setting, pins 1 and 2 On.

Page 18

Hardware Installation

3. Now power-on the system.

If your reason for clearing the CMOS data is due to incorrect setting of the processor’s ratio in the BIOS, please proceed to step 4.

4. After powering-on the system, press <Del> to enter the main menu of the BIOS.

5. Select the CPU Frequency Control submenu and press <Enter>.

6. Set the “CPU Clock Ratio” field to its default setting or an appropriate frequency ratio. Refer to the CPU Frequency Control section in chapter 3 for more information.

7. Press <Esc> to return to the main menu of the BIOS setup utility. Select “Save & Exit Setup” and press <Enter>.

8. Type <Y> and press <Enter>.

Page 19

Hardware Installation

2.4 Jumper Settings for Wake-On-Keyboard/ Wake-On-Mouse

1-2 On: Disable

(default)

Wake-On-Keyboard/Wake-On-Mouse - Jumper JP2

The Wake-On-Keyboard/Wake-On-Mouse function allows you to use the keyboard or PS/2 mouse to power-on the system. By default, JP2 is disabled. To use this function, set JP2 to 2-3 On. “Keyboard/ Mouse Power On” in the Integrated Peripherals submenu of the BIOS must be set accordingly. Refer to chapter 3 for details.

Warning:

1. If JP2 was enabled with a password set in the “KB Power On Password” field, and now you wish to disable the keyboard password function, make sure to set the “Keyboard/Mouse Power On” field to Disabled prior to setting JP2 to disabled. You will not be able to boot up the system if you fail to do so.

2-3 On: Enable

Page 20

Hardware Installation

2. The power button will not function once a keyboard password has been set in the “KB Power On Password” field of the Integrated Peripherals submenu. You must type the correct password to power-on the system.

3. The 5VSB power source of your power supply must

support ≥720mA.

Page 21

Hardware Installation

2.5 Jumper Settings for Wake-On-USB Keyboard/ Mouse

JP1

1-2 On: Disable

JP4

JP1

2-3 On: Enable

JP4

(default)

Wake-On-USB Keyboard/Mouse for USB 1 and 2 - JP1 Wake-On-USB Keyboard/Mouse for USB 3 and 4 - JP4

The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse to wake up a system that is in the S3 (STR - Suspend To RAM) state.

By default, this function is disabled. To use this function, JP1 and JP4 pins 2 and 3 must be set to On. Regardless of the USB port (USB 1, 2, 3 or 4) used, both jumpers must be enabled. “USB KB/Mouse Wake-Up From S3” in the Power Management Setup submenu of the BIOS must also be enabled.

Page 22

Hardware Installation

Important:

• If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the 5VSB power source of your

power supply must support ≥1.5A.

• If you are using the Wake-On-USB Keyboard/Mouse function for 4 USB ports, the 5VSB power source of your

power supply must support ≥2A.

Page 23

Hardware Installation

2.6 Jumper Settings for Selecting the CPU’s Front Side Bus

1-2 On: 100MHz

(default)

CPU Front Side Bus Select - Jumper JP72

The default setting of this jumper is pins 1 and 2 On, 100MHz FSB.

Page 24

Hardware Installation

2.7 Jumper Settings for USB 4

321

1-2 On: USB 4 on J16/J50

(default)

USB 4 Select - Jumpers JP70 and JP71

These jumpers are used to select USB 4’s location. Set pins 1 and 2 to On if you want USB 4 on J16/J50. Set pins 2 and 3 to On if you want USB 4 on CNR.

2-3 On: USB 4 on CNR

321

Page 25

2.8 Factory Use Jumper

Hardware Installation

123

1-2 On: Default

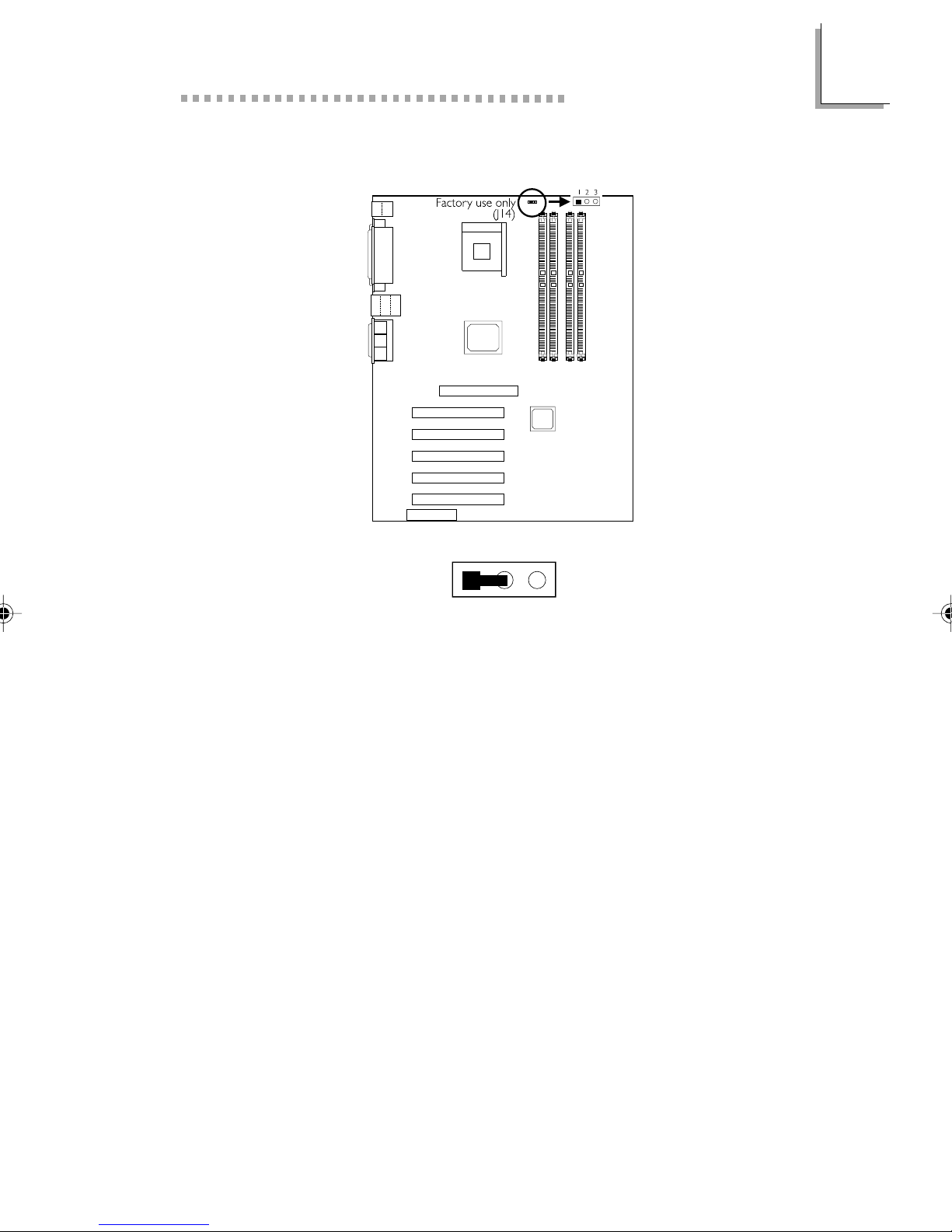

Factory Use Only - Jumper J14

This jumper is for factory use only. Please leave it in its default setting. Reconfiguring the jumper may cause problems.

Page 26

Hardware Installation

2.9 Ports and Connectors

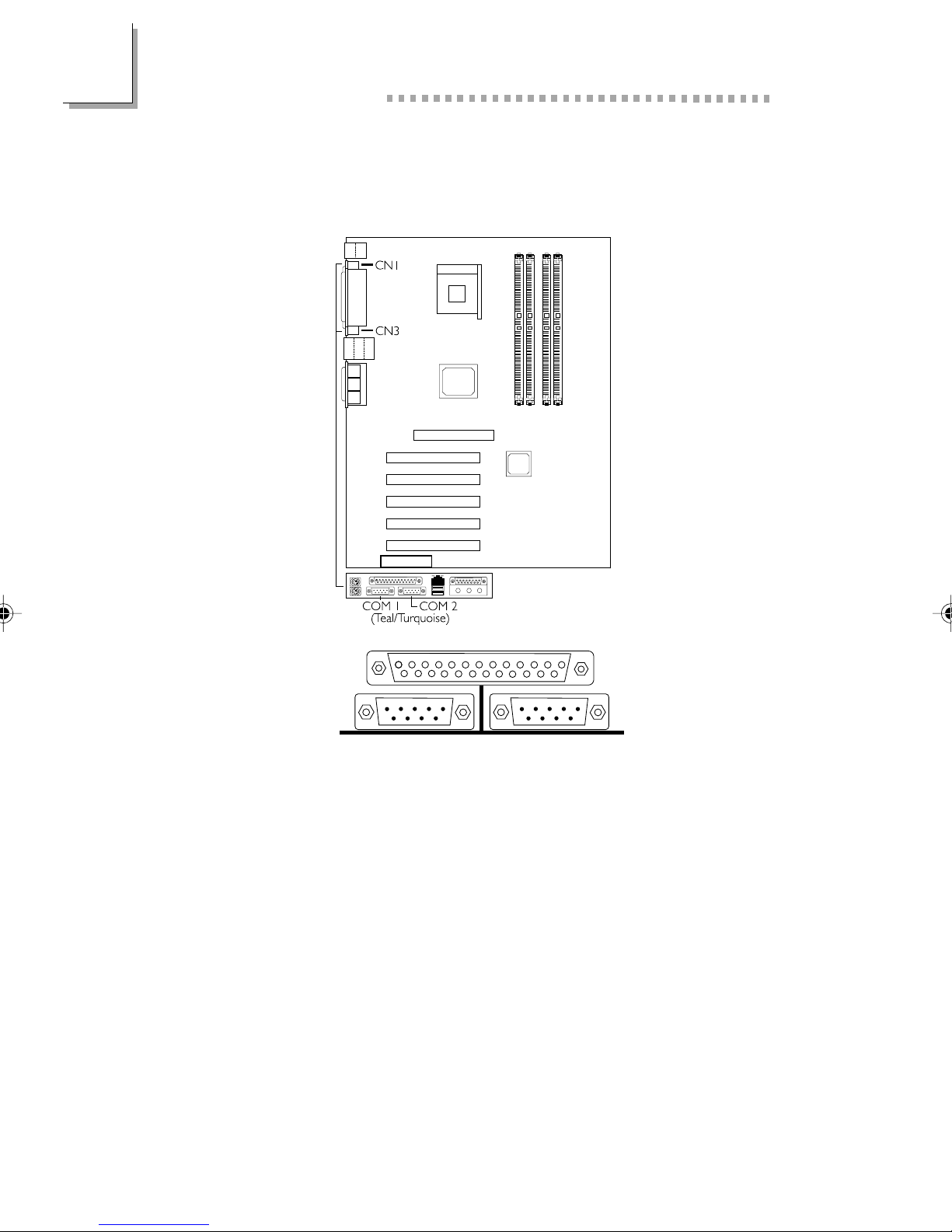

2.9.1 Serial Ports

The system board is equipped with onboard serial ports (COM 1: CN1 and COM 2: CN3) - both in Teal/Turquoise color located at the ATX double deck ports of the board.

These ports are RS-232C asynchronous communication ports with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices. You can set the serial ports’ I/O address in the Integrated Peripherals submenu of the BIOS.

COM 1

Serial Port

COM 2

Serial Port

Page 27

Hardware Installation

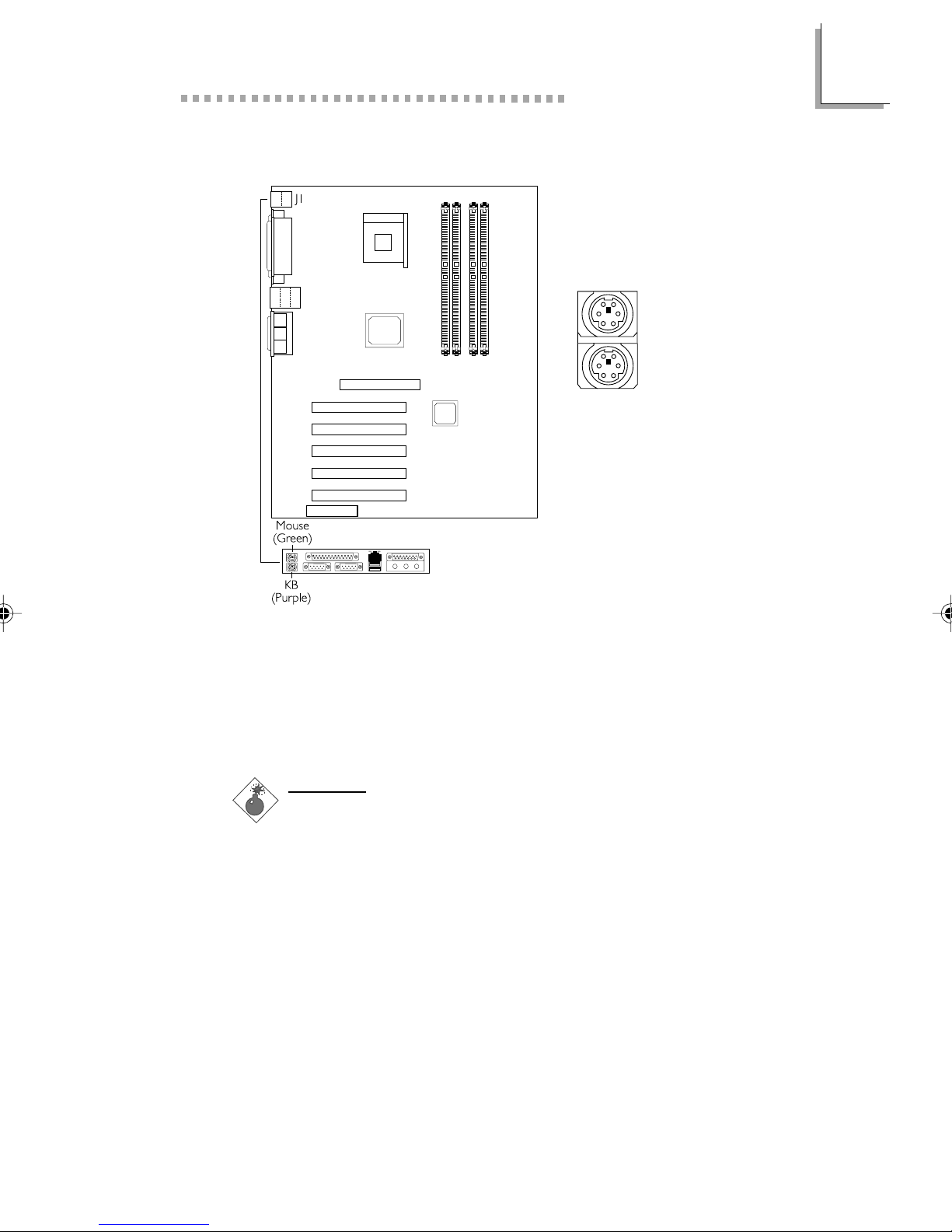

2.9.2 PS/2 Mouse and PS/2 Keyboard Ports

PS/2 Mouse

PS/2 Keyboard

The system board is equipped with an onboard PS/2 mouse (Green) and PS/2 keyboard (Purple) ports - both at location J1 of the ATX double deck ports of the system board. The PS/2 mouse port uses IRQ12. If a mouse is not connected to this port, the system will reserve IRQ12 for other expansion cards.

Warning:

Make sure to turn off your computer prior to connecting or disconnecting a mouse or keyboard. Failure to do so may damage the system board.

Page 28

Hardware Installation

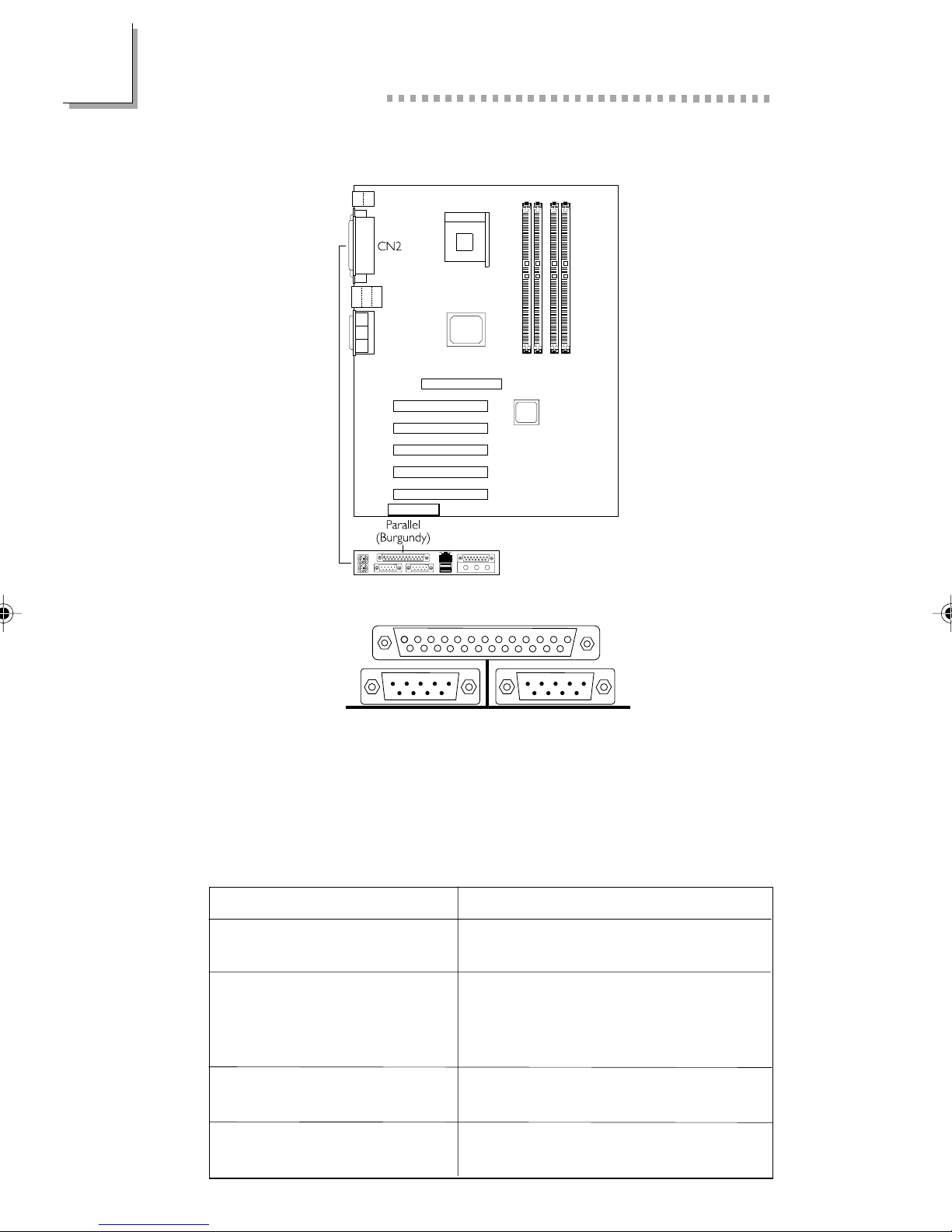

2.9.3 Parallel Port

Parallel Port

The system board has a standard parallel port (CN2 - Burgundy) located at the ATX double deck ports of the board for interfacing your PC to a parallel printer. It supports SPP, ECP, EPP and PntMode modes. You can select the port’s mode in the Integrated Peripherals submenu of the BIOS.

Setting

SPP (Standard Parallel Port)

ECP (Extended Capabilities Port)

Allows normal speed operation but in one direction only.

Allows parallel port to operate in bidirectional mode and at a speed faster than the SPP’s data transfer rate.

Function

EPP (Enhanced Parallel Port)

PntMode

Allows bidirectional parallel port operation at maximum speed.

Allows parallel port to operate in bipolar mode.

Page 29

Hardware Installation

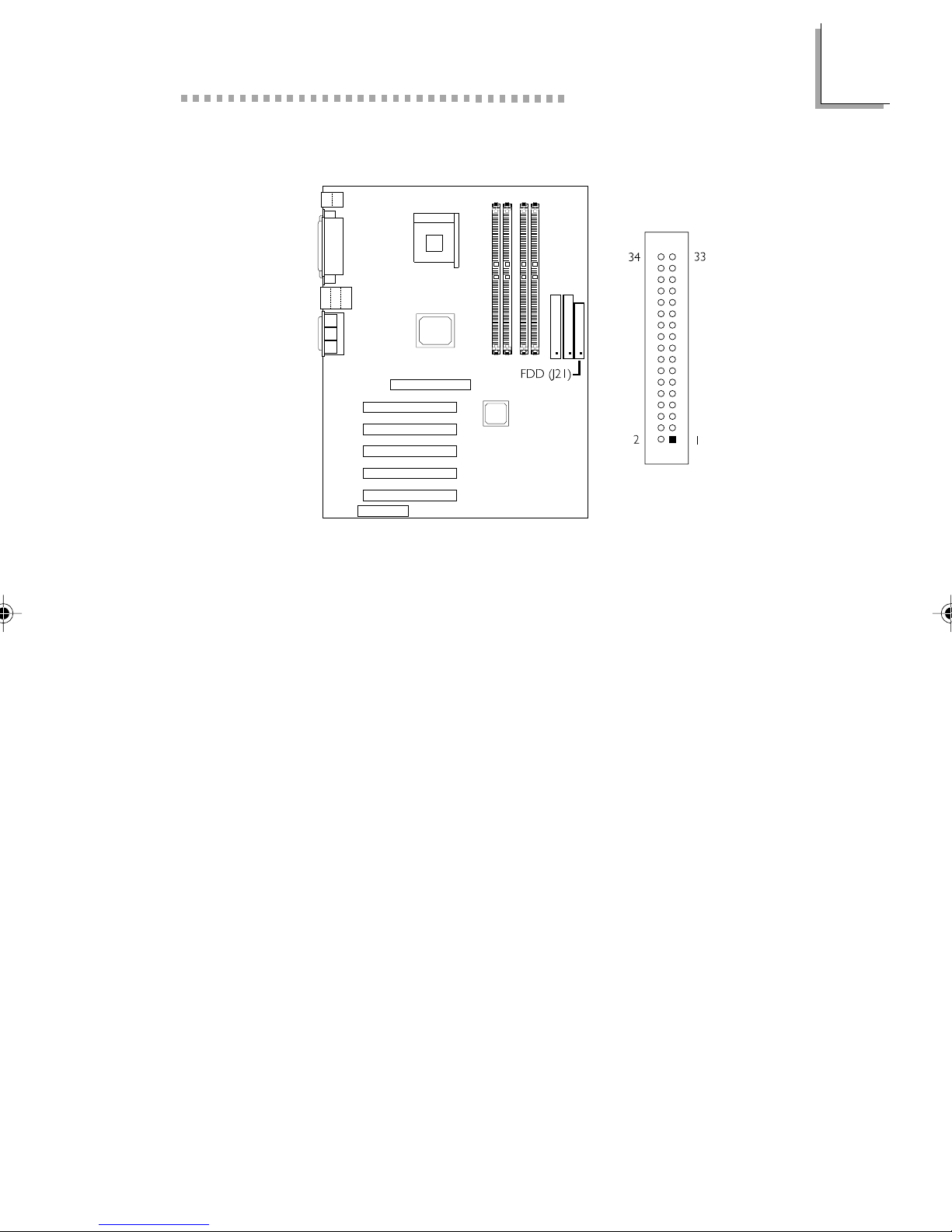

2.9.4 Floppy Disk Drive Connector

The system board is equipped with a shrouded floppy disk drive connector that supports two standard floppy disk drives. To prevent improper floppy cable installation, the shrouded floppy disk header has a keying mechanism. The 34-pin connector on the floppy cable can be placed into the header only if pin 1 of the connector is aligned with pin 1 of the header. You may enable or disable this function in the Integrated Peripherals submenu of the BIOS.

Connecting the Floppy Disk Drive Cable

1. Install the 34-pin header connector of the floppy disk drive cable into the shrouded floppy disk header (J21) on the system board. The colored edge of the ribbon should be aligned with pin 1 of J21.

2. Install the other 34-pin header connector(s) into the disk drive(s). Align the colored edge of the daisy chained ribbon cable with pin 1 of the drive edge connector(s). The end-most connector should be attached to the drive you want to designate as Drive A.

Page 30

Hardware Installation

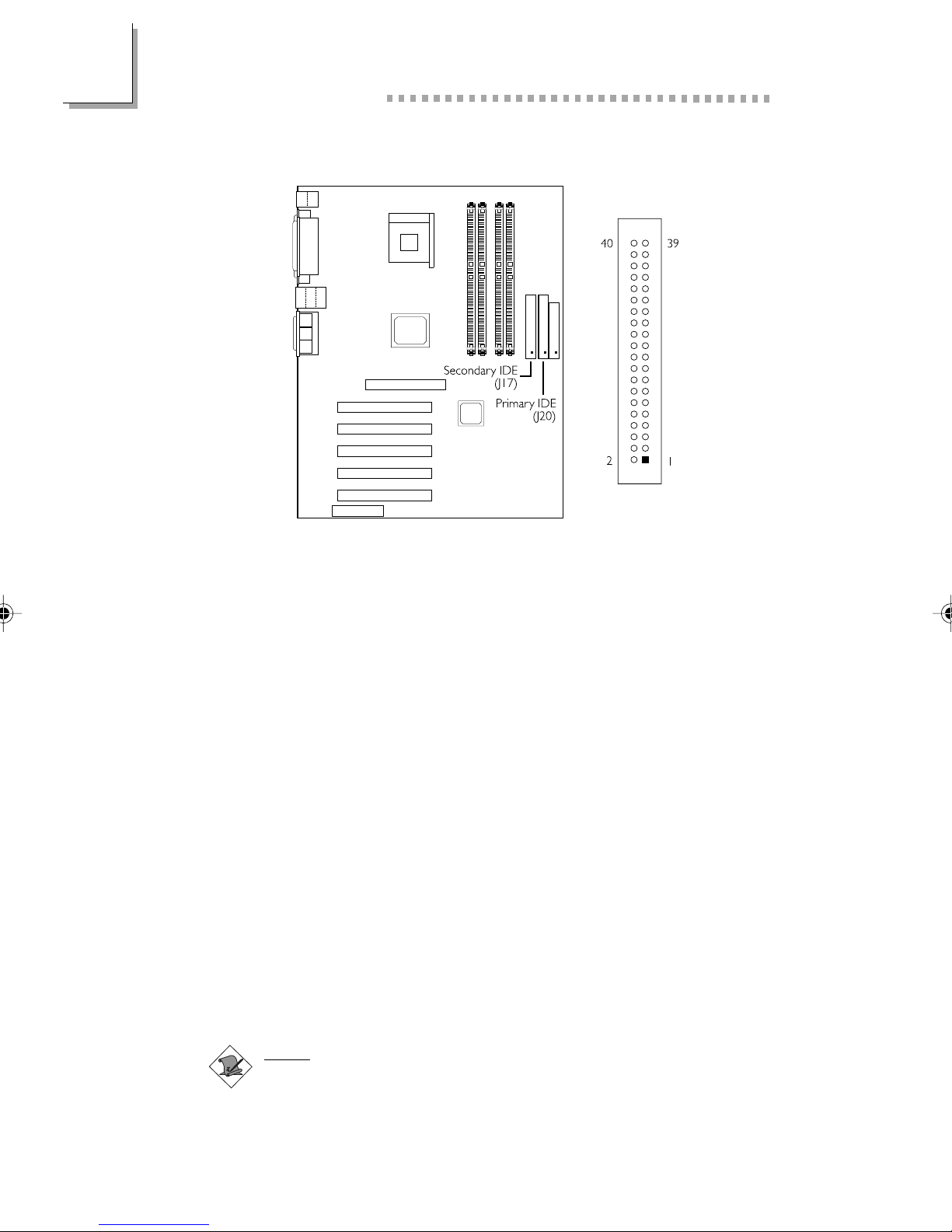

2.9.5 IDE Disk Drive Connector

The system board is equipped with two shrouded PCI IDE headers that will interface four Enhanced IDE (Integrated Drive Electronics) disk drives. To prevent improper IDE cable installation, each shrouded PCI IDE header has a keying mechanism. The 40-pin connector on the IDE cable can be placed into the header only if pin 1 of the connector is aligned with pin 1 of the header. You may enable or disable the onboard primary or secondary IDE controller in the Integrated Peripherals submenu of the BIOS.

Connecting the IDE Disk Drive Cable

1. If you are connecting two IDE drives, install the 40-pin connector of the IDE cable into the primary shrouded IDE header (J20). If you are adding a third or fourth IDE device, install the 40-pin connector of the other IDE cable into the secondary shrouded IDE header (J17).

2. Install the other 40-pin header connector(s) into the device with the colored edge of the ribbon cable aligned with pin 1 of the drive edge connector(s).

Note:

Refer to your disk drive user’s manual for information about selecting proper drive switch settings.

Page 31

Hardware Installation

Adding a Second IDE Disk Drive

When using two IDE drives, one must be set as the master and the other as the slave. Follow the instructions provided by the drive manufacturer for setting the jumpers and/or switches on the drives.

The system board supports Enhanced IDE or ATA-2, ATA/33, ATA/66 or ATA/100 hard drives. We recommend that you use hard drives from the same manufacturer. In a few cases, drives from two different manufacturers will not function properly when used together. The problem lies in the hard drives, not the system board.

Important:

If you encountered problems while using an ATAPI CD-ROM drive that is set in Master mode, please set the CD-ROM drive to Slave mode. Some ATAPI CD-ROMs may not be recognized and cannot be used if incorrectly set in Master mode.

Page 32

Hardware Installation

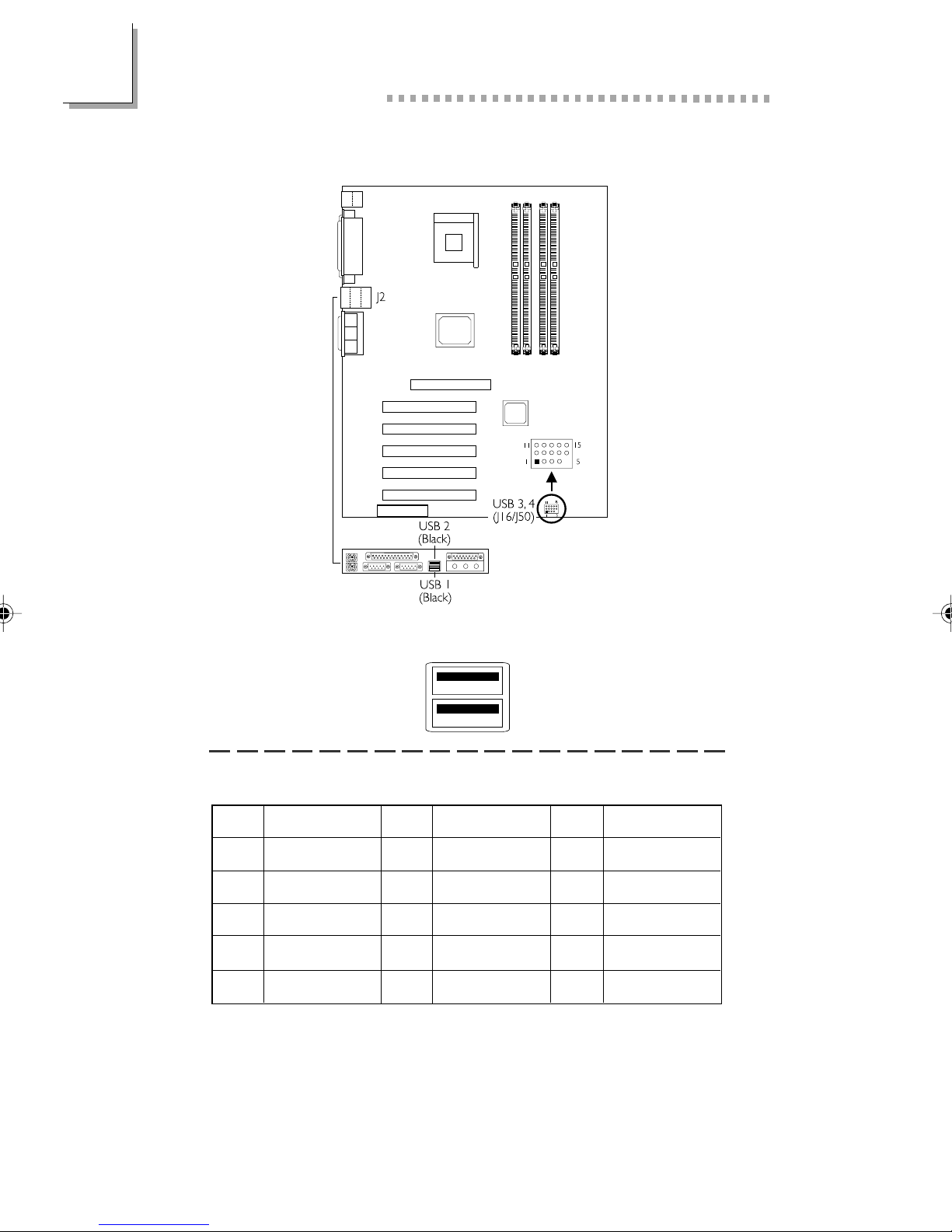

2.9.6 Universal Serial Bus Ports

1 2

3 4 5

Additional USB Ports (J16/J50)

Function

VCC UP2-

UP2+

Ground

Key

Onboard USB Ports (J2)

7 8 9

Function

VCC

UP3-

UP3+ Ground

Ground

12 13 14

Function

Ground

UP2+

UP2-

VCC

Page 33

Hardware Installation

The system board supports 4 USB ports. USB allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals. You must have the proper drivers installed in your operating system to use the USB ports. Refer to your operating system’s manual or documentation.

Two onboard USB ports (J2 - Black) are located at the ATX double deck ports of the board. The J16/J50 connector on the system board allows you to connect 2 more optional USB ports. These optional USB ports, which are mounted on a card-edge bracket, will be provided as an option. If you wish to use the optional USB ports, install the card-edge bracket to the system chassis then insert the connector that is attached to the USB port cables to J16/J50.

Insert the USB port cable connector to pins 1-10 if:

• One of the holes on the cable connector is plugged, meaning the cable connector has a keying mechanism.

Insert the USB port cable connector to pins 6-15 if:

• None of the holes on the cable connector is plugged, meaning the cable connector has no keying mechanism.

The system board supports the Wake-On-USB Keyboard/Mouse function. This function allows you to use a USB keyboard or USB mouse to wake up a system that is in the S3 (STR - Suspend To RAM) state. If you want to use this function, you must set jumpers JP1 and JP4 pins 2 and 3 to On and set “USB KB/Mouse Wake Up From S3” in the Power Management Setup submenu of the BIOS to Enabled. Refer to “Jumper Settings for Wake-On-USB Keyboard/ Mouse” in chapter 2 and “USB KB/Mouse Wake-Up From S3” in the Power Management Setup section in chapter 3 for more information.

Page 34

Hardware Installation

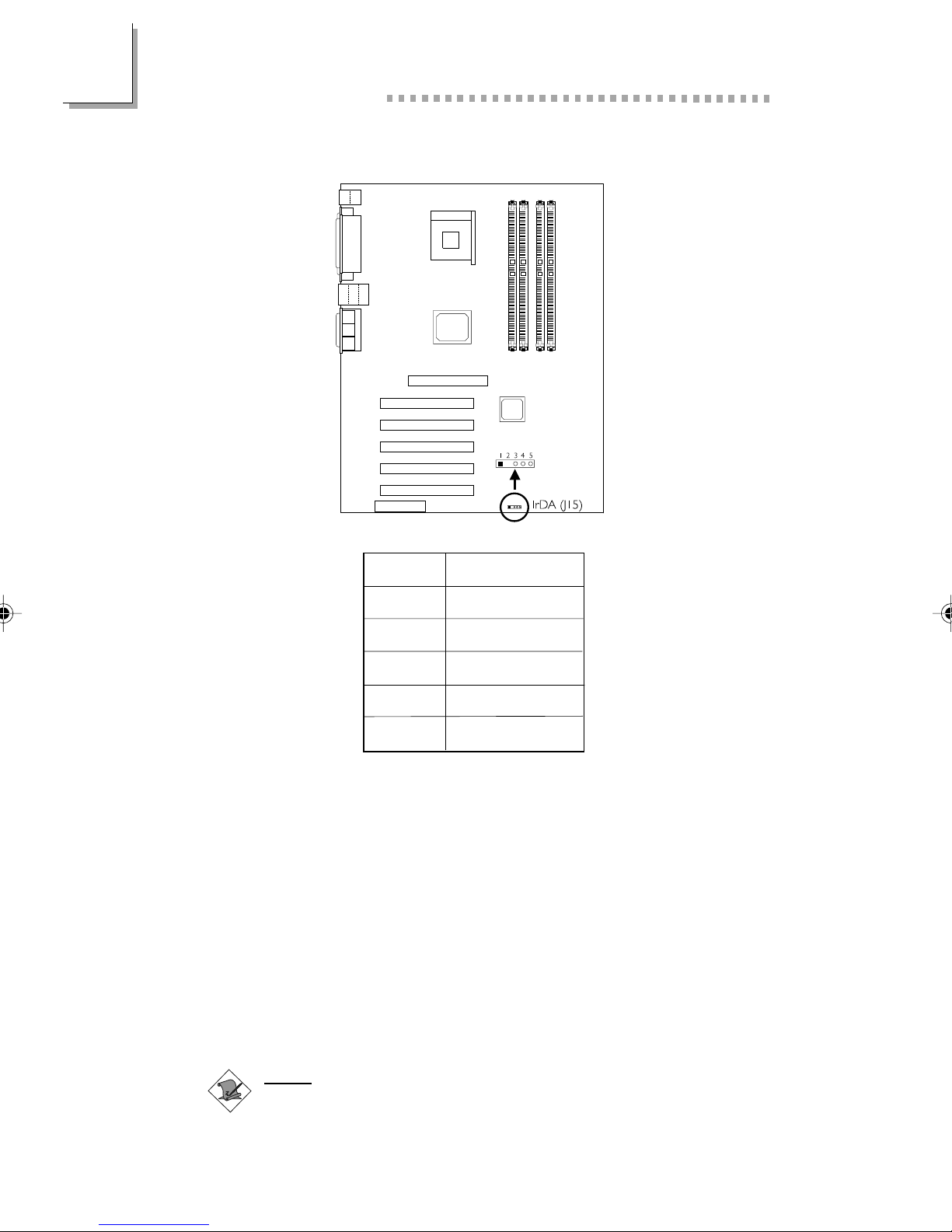

2.9.7 IrDA Connector

2 3

4 5

The system board is equipped with an IrDA connector for wireless connectivity between your computer and peripheral devices. The IRDA (Infrared Data Association) specification supports data transfers of 115K baud at a distance of 1 meter.

Connect your IrDA cable to connector J15 on the system board. Set “UART2 Mode Select” in the Integrated Peripherals submenu of the BIOS to the type of IrDA standard supported by your device. You must have the proper drivers installed in your operating system to use this connector. Refer to your operating system’s manual or documentation.

Function

VCC N. C. IRRX

Ground IRTX

Note:

The sequence of the pin functions on some IrDA cable may be reversed from the pin function defined on the system board. Make sure to connect the cable to the IrDA connector according to their pin functions.

Page 35

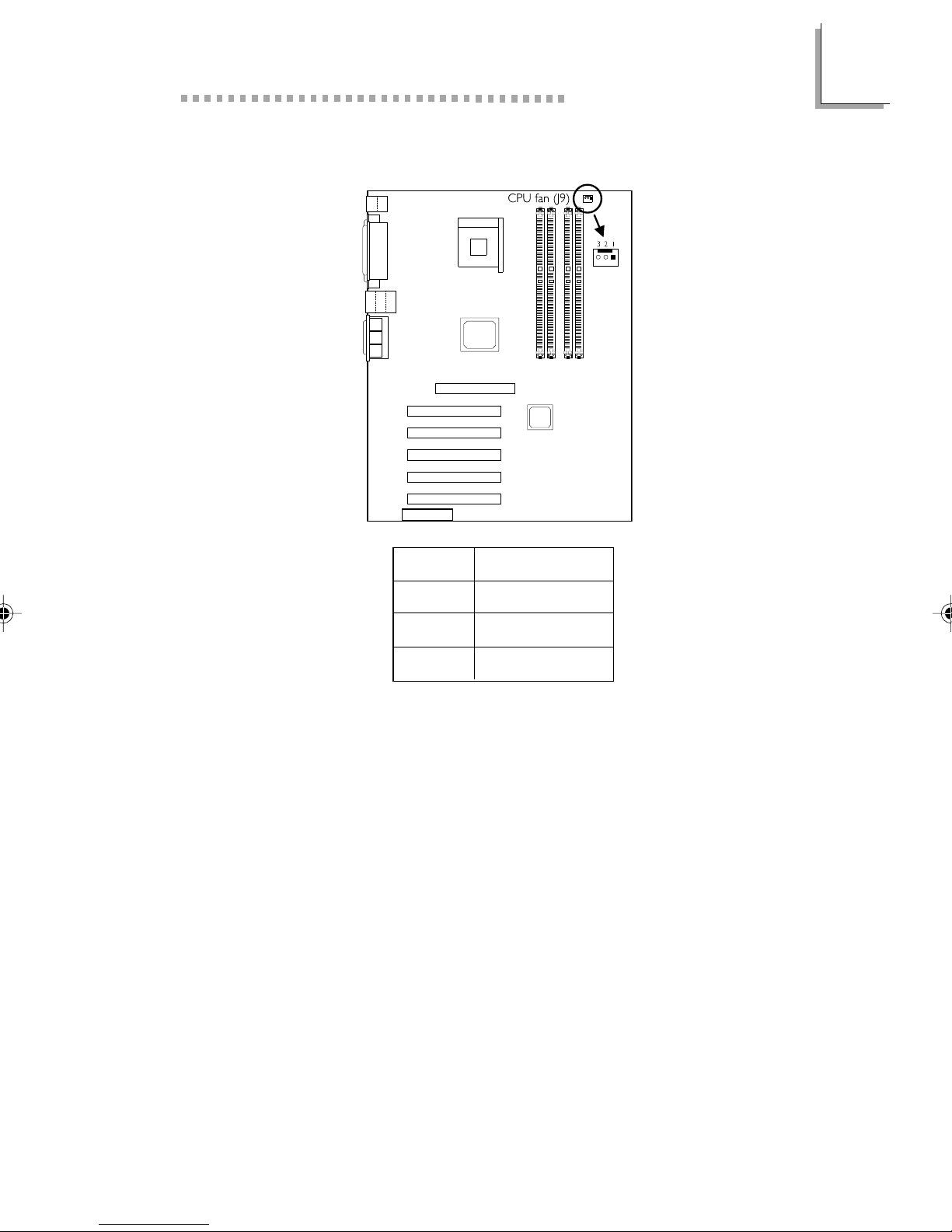

2.9.8 CPU Fan Connector

Hardware Installation

1 2

The processor must be kept cool by using a fan with heatsink. Connect the CPU fan to the 3-pin fan connector at location J9 on the system board. The system is capable of monitoring the speed of the CPU fan.

Function

Ground Power Sense

Page 36

Hardware Installation

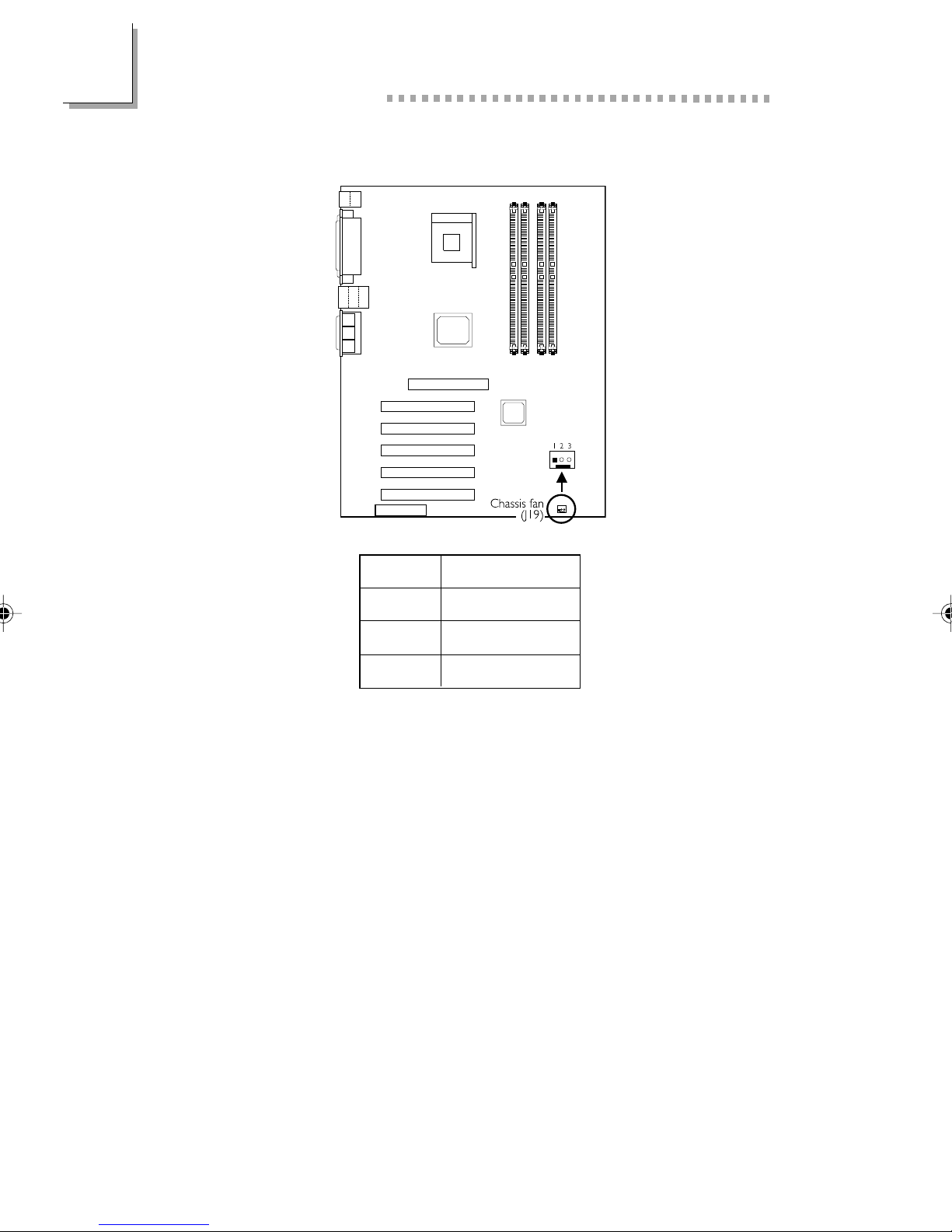

2.9.9 Chassis Fan Connector

1 2

If you are installing a chassis fan in the system unit, connect the fan’s connector to location J19 on the system board. The fan will provide adequate airflow throughout the chassis to prevent overheating the processor. The system is capable of monitoring and controlling the speed of the chassis fan. The chassis fan will automatically turn off once the system enters the Suspend mode.

Function

Ground

On/Off Sense

Page 37

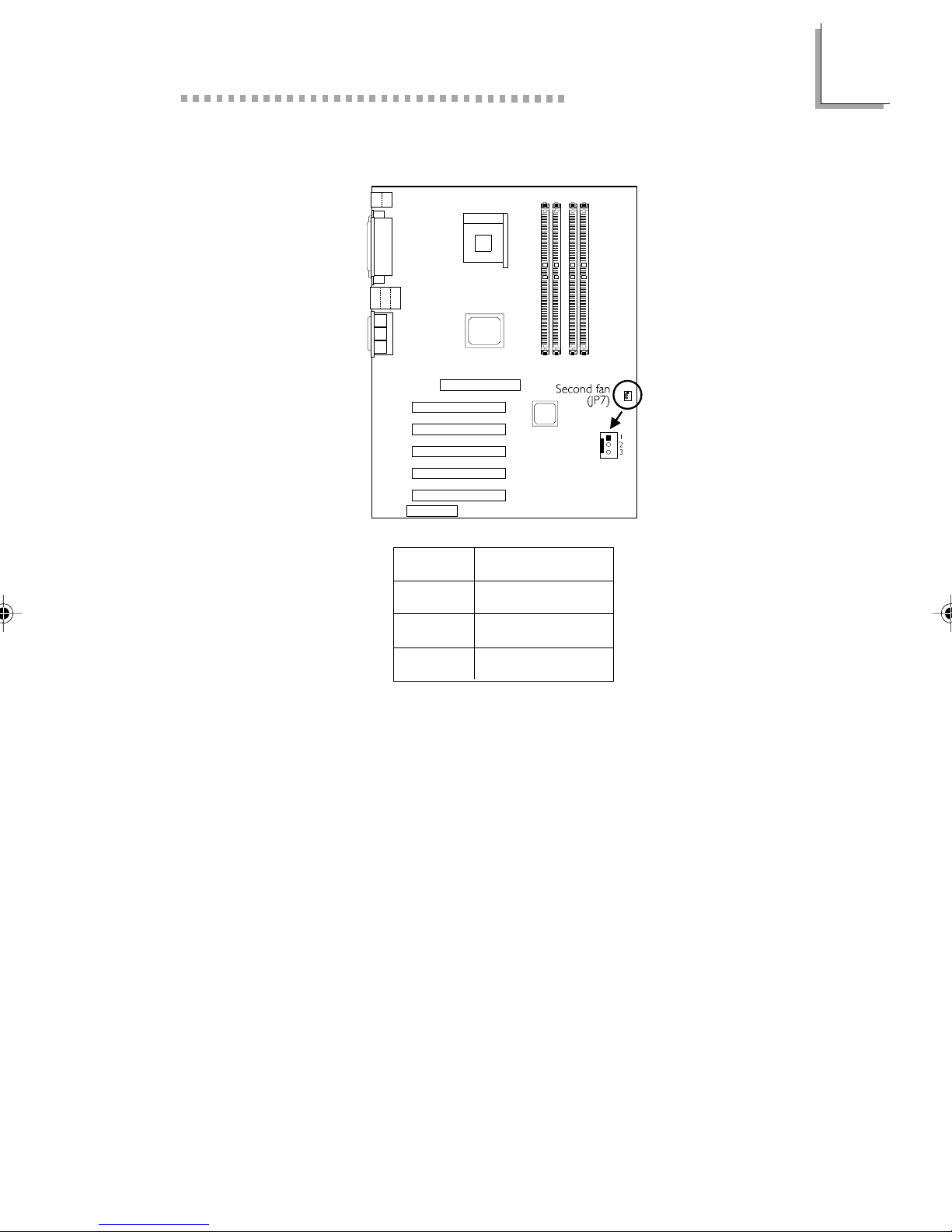

2.9.10 Second Fan Connector

Hardware Installation

1 2

If you are installing a second fan in the system unit, connect the fan’s connector to location JP7 on the system board. The system is capable of monitoring the speed of the second fan.

Function

Ground

+12V

Sense

Page 38

Hardware Installation

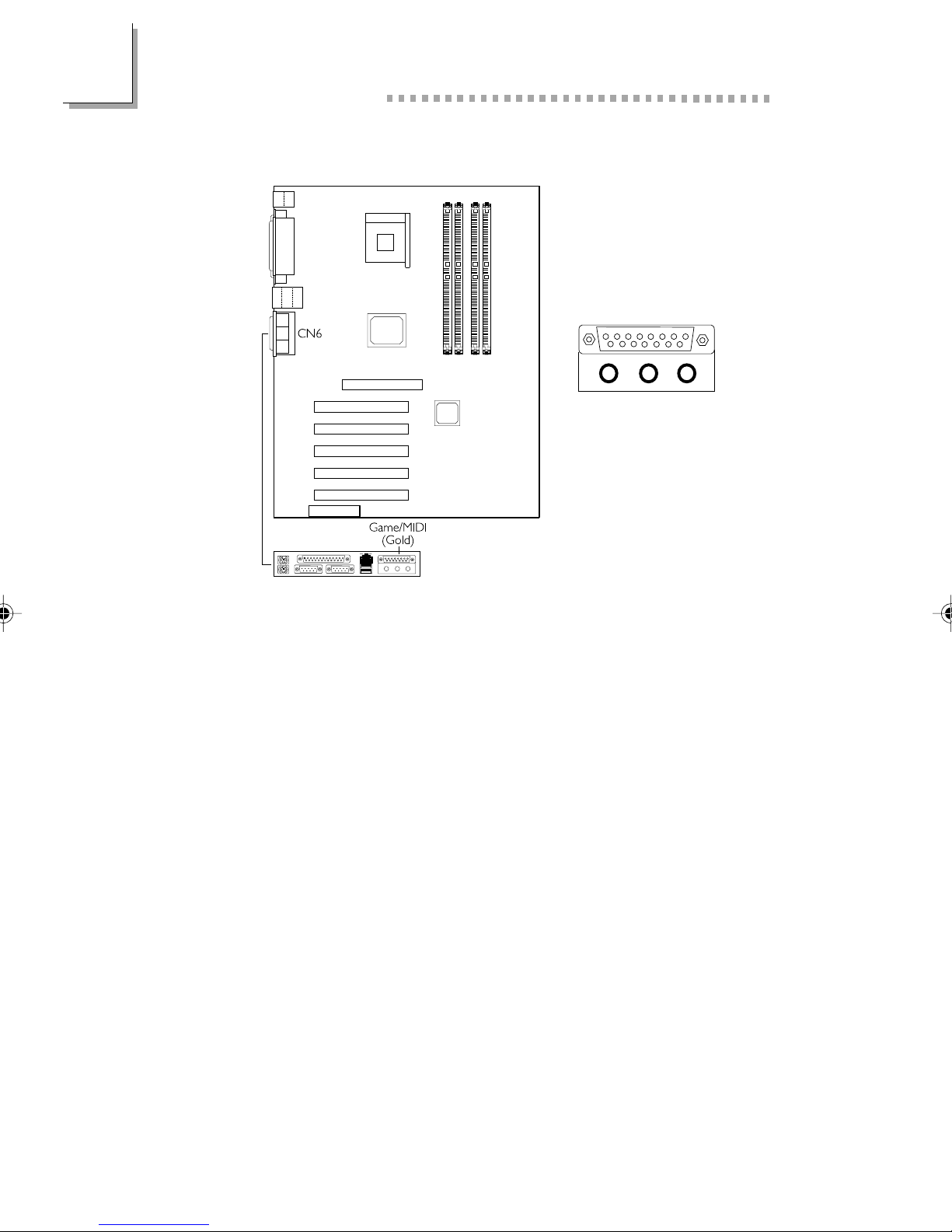

2.9.11 Game/MIDI Port

Game/MIDI Port

The Game/MIDI port is identical to that of a standard PC game adapter or game I/O port. Connect an analog joystick to the 15-pin D-sub connector (CN6 - Gold) located at the ATX double deck ports of the system board. This port works well with any application that is compatible with the standard PC joystick.

Page 39

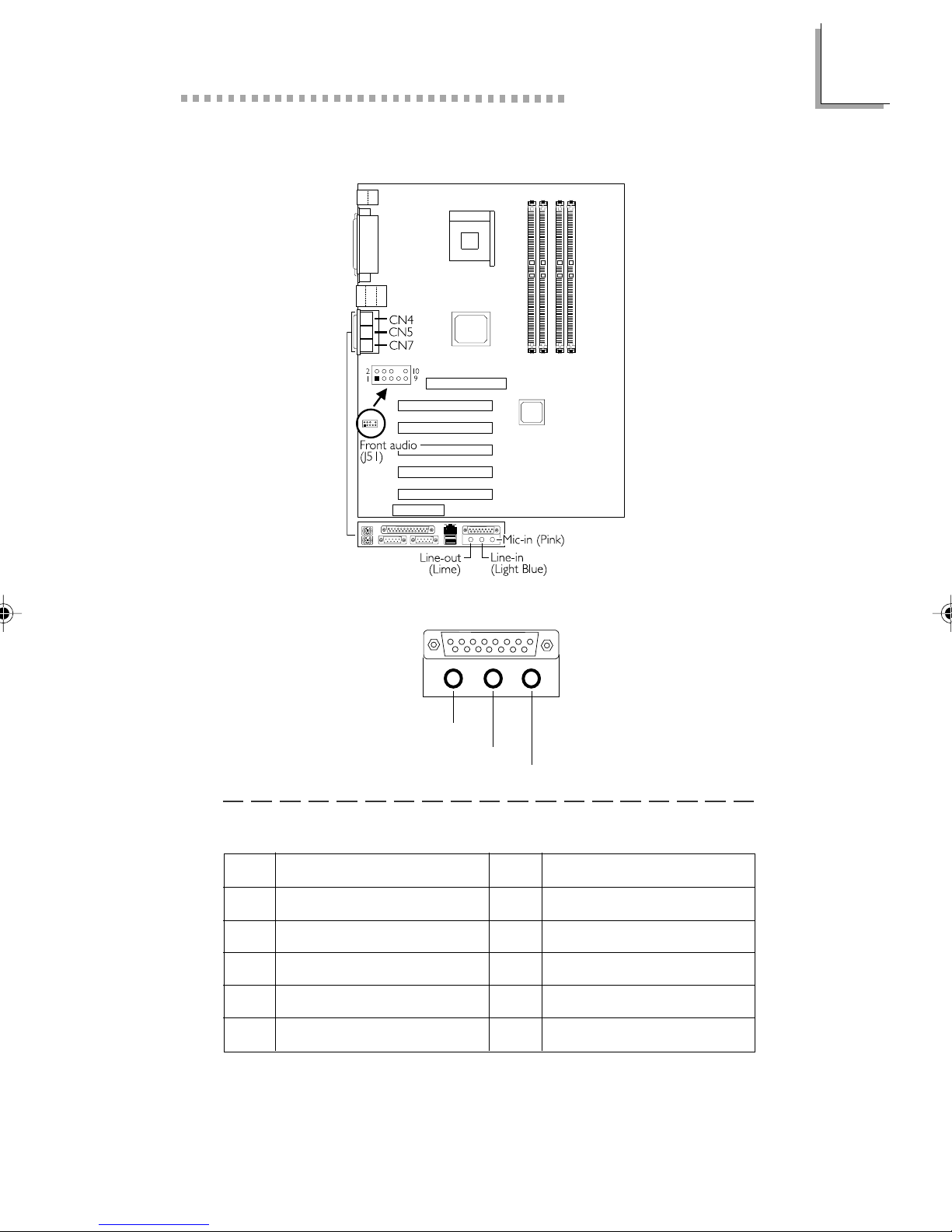

2.9.12 Audio Jacks

Hardware Installation

1 3 5

7 9

Onboard Audio Jacks

Line-out

Line-in

Mic-in

Additional Line-out/Mic-in (J51)

Function Mic+

N. C. AuD_R_Out

N. C. AuD_L_Out

4 6

Function

Ground

AuD_Vcc (Avcc) N. C.

Key N. C.

Page 40

Hardware Installation

Onboard Audio Jacks

The system board is equipped with 3 audio jacks. A jack is a onehole connecting interface for inserting a plug.

Line-out Jack (CN4 - Lime)

This jack is used to connect external speakers for audio output from the system board.

Line-in Jack (CN5 - Light Blue)

This jack can be connected to the line-out jack of any external audio devices such as Hi-fi set, CD player, AM/FM radio tuner, synthesizer, etc. Connect a stereo cable from the line-out jack of your external device to this line-in jack.

Mic-in Jack (CN7 - Pink)

Connect a microphone to the mic-in jack.

Additional Line-out/Mic-in (J51)

J51 provides you the option of connecting another line-out and micin jacks.

Page 41

Hardware Installation

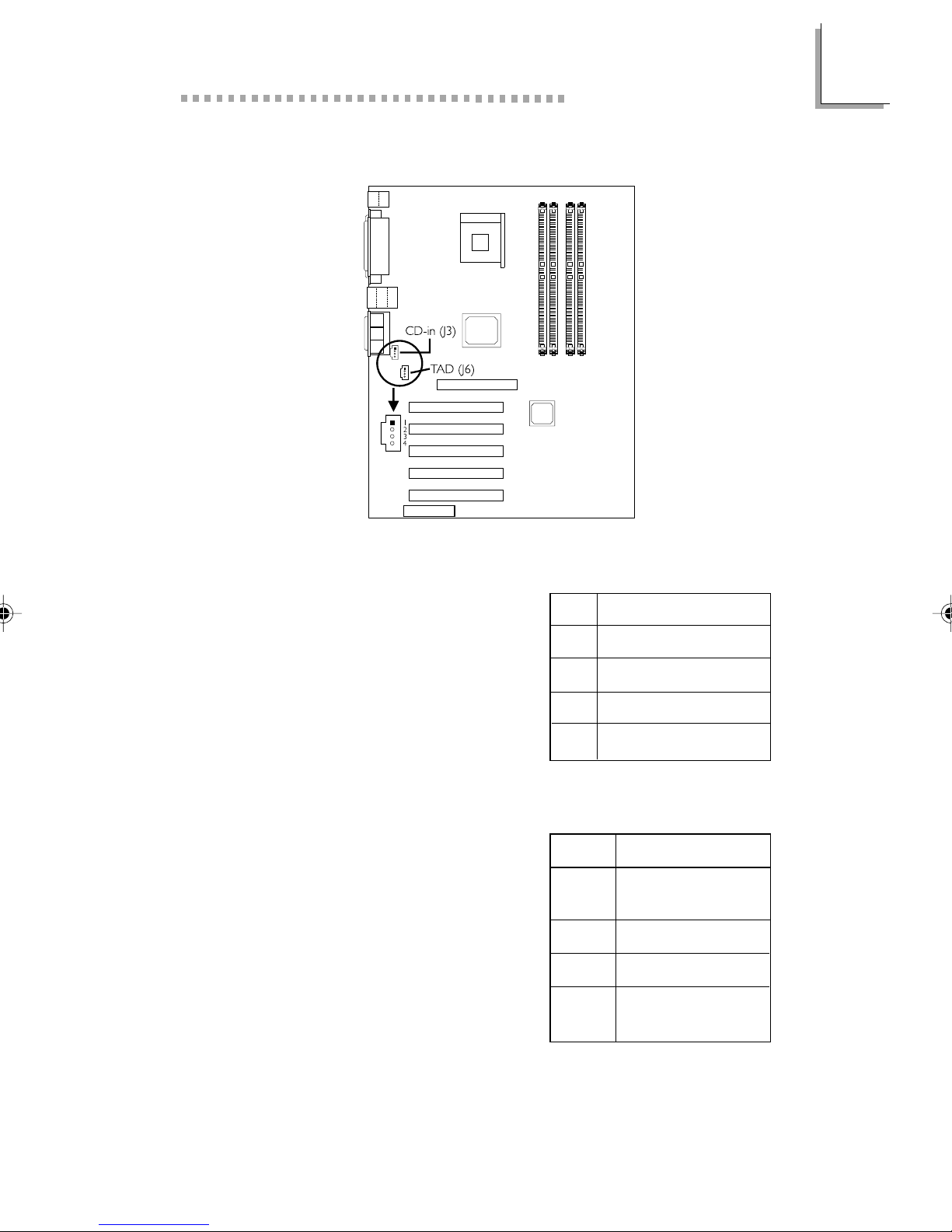

2.9.13 Internal Audio Connectors

CD-in

This audio-in connector is used to receive audio from a CD-ROM drive, TV tuner or MPEG card.

TAD

TAD is a connector for telephony audio devices such as voice modem cards. By installing a PCI voice modem card that is also equipped with a TAD connector, connect one end of the cable (that came with the card) to the card’s TAD connector and the other end to the TAD connector on the system board. The voice modem will interface with the onboard audio allowing voice to come from the external speaker.

1 2

3 4

Function Left audio channel

Ground Ground

Right audio channel

Function

Modem-out (from modem)

Ground

Ground Modem-in

(to modem)

Page 42

Hardware Installation

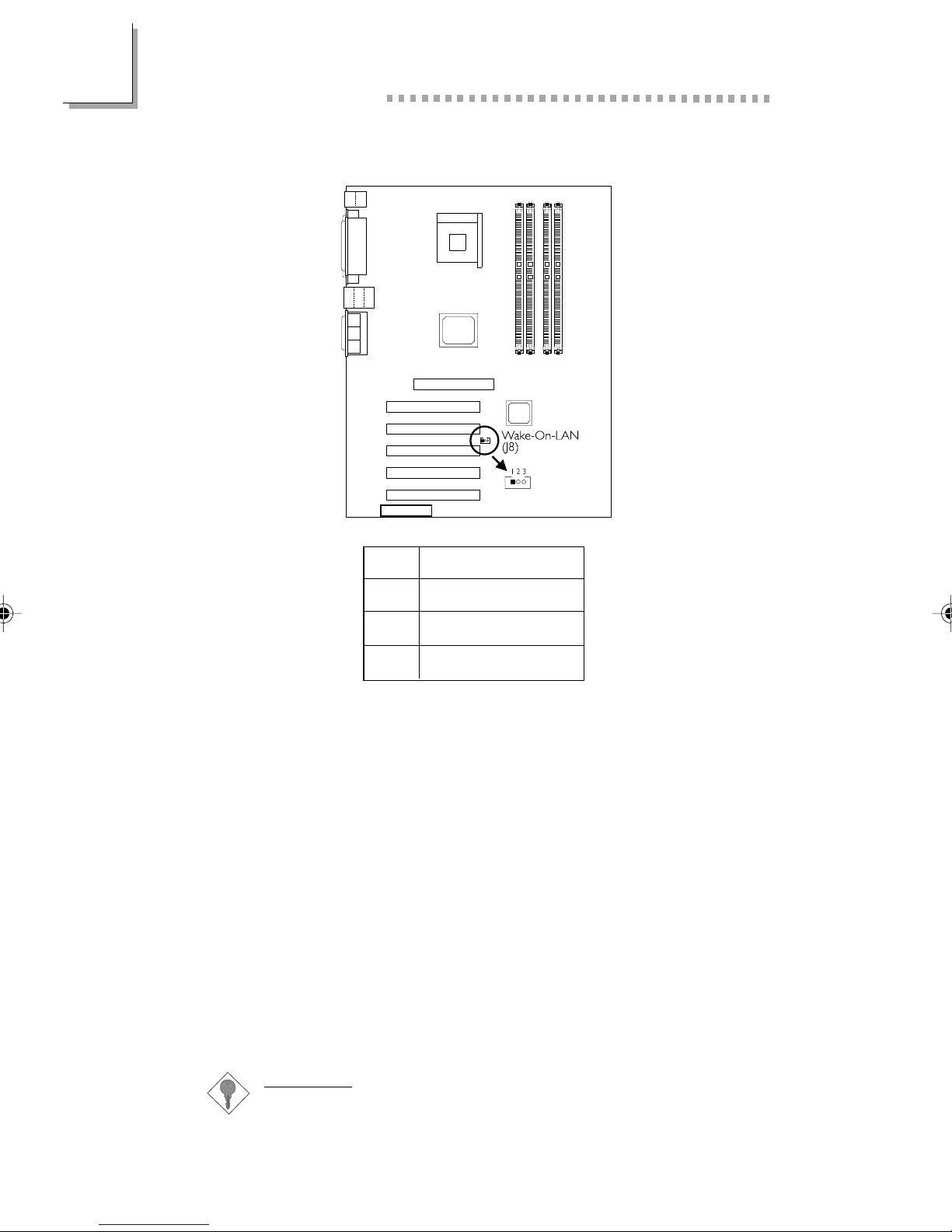

2.9.14 Wake-On-LAN Connector

2 3

The system board supports the Wake-On-LAN function. This function will allow the network to remotely power-on a Soft Power Down (Soft-Off) PC. However, if your system is in the Suspend mode, you can power-on the system only through an IRQ or DMA interrupt.

To use the Wake-On-LAN function, you must enable the “Resume on LAN” field in the Power Management Setup of the BIOS. Your LAN card package should include a cable. Connect one end of the cable to the wakeup header on the card and the other end to location J8 on the system board. The network will detect Magic Packet and assert a wakeup signal to power-up the system. Refer to the add-in card’s manual for details. Note: Your LAN card must support the remote wake up function.

Function

WOL

Ground

+5VSB

Important:

The 5VSB power source of your power supply must support

≥720mA.

Page 43

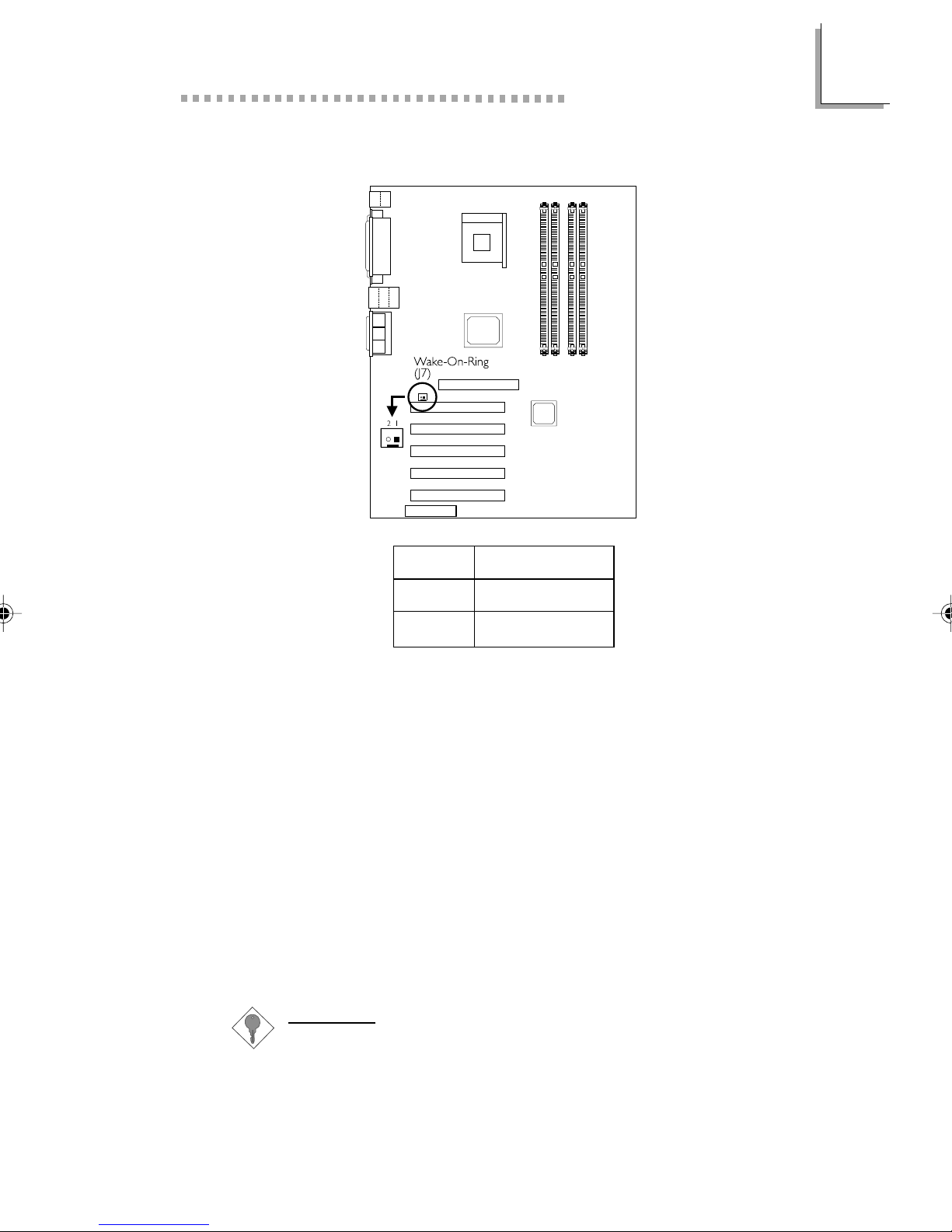

2.9.15 Wake-On-Ring Connector

Hardware Installation

The Wake-On-Ring connector is used to connect to an internal modem card that has the same connector. It will allow the system that is in the Suspend mode or Soft Power Off mode to wake-up/ power-on to respond to calls coming through the internal modem card.

To use this function, connect one end of the cable (that came with the card) to the card’s wake-on-ring connector and the other end to location J7 on the system board. You must also enable the “Resume on Ring” field in the Power Management Setup of the BIOS.

If you are using an external modem, the ring-on function will come through the serial port where the external modem is connected.

Important:

If you are using a modem add-in card, the 5VSB power source

of your power supply must support ≥720mA.

Function Ground

RI#

Page 44

Hardware Installation

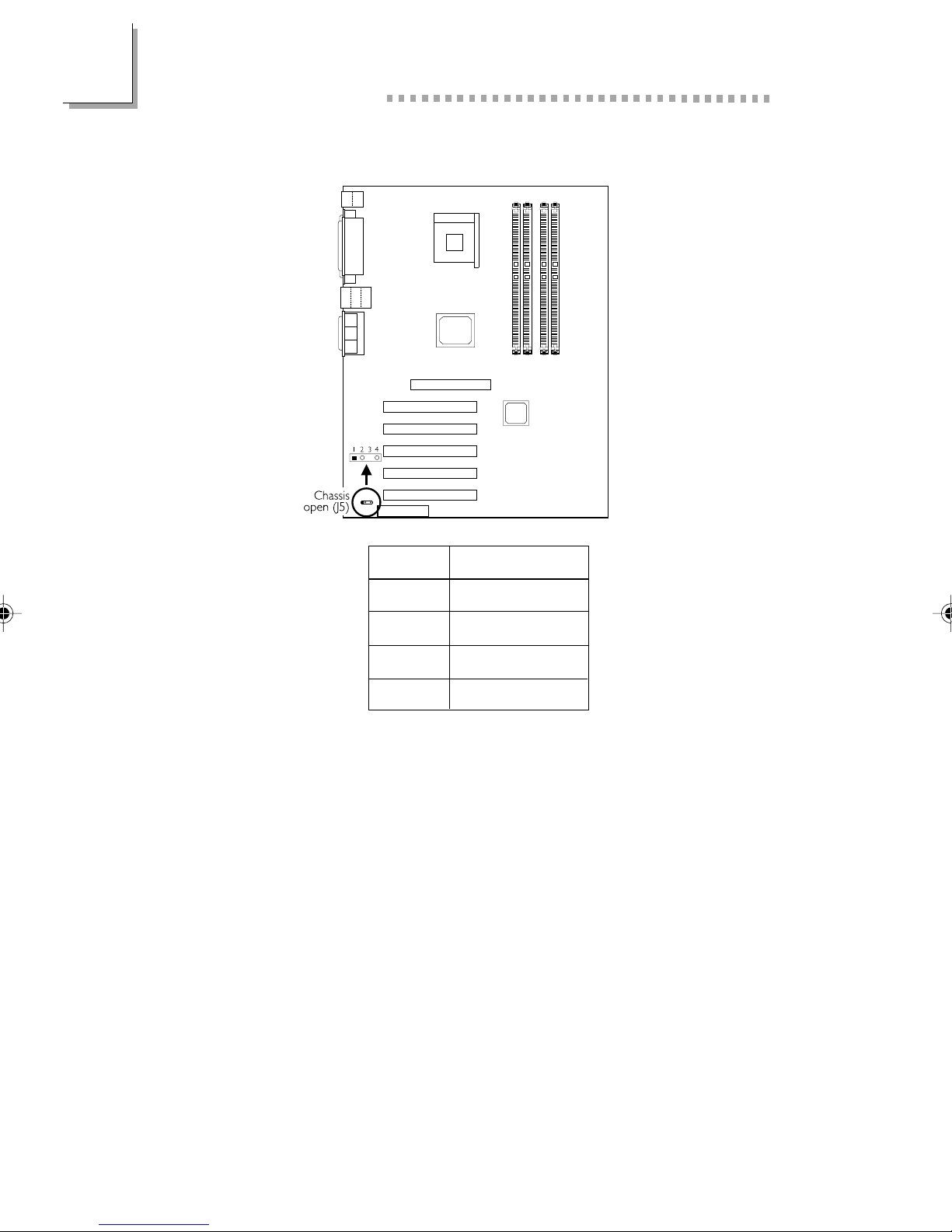

2.9.16 Chassis Open Connector (optional)

The “chassis open” function, when enabled, will alert you that the system chassis is open. To use this function, connect the “chassis sensor” cable that is attached on your system chassis to location J5 on the system board.

Function Ground

Chassis signal N. C. +5V

Page 45

Hardware Installation

2.9.17 RIMM/PCI Standby Power LED

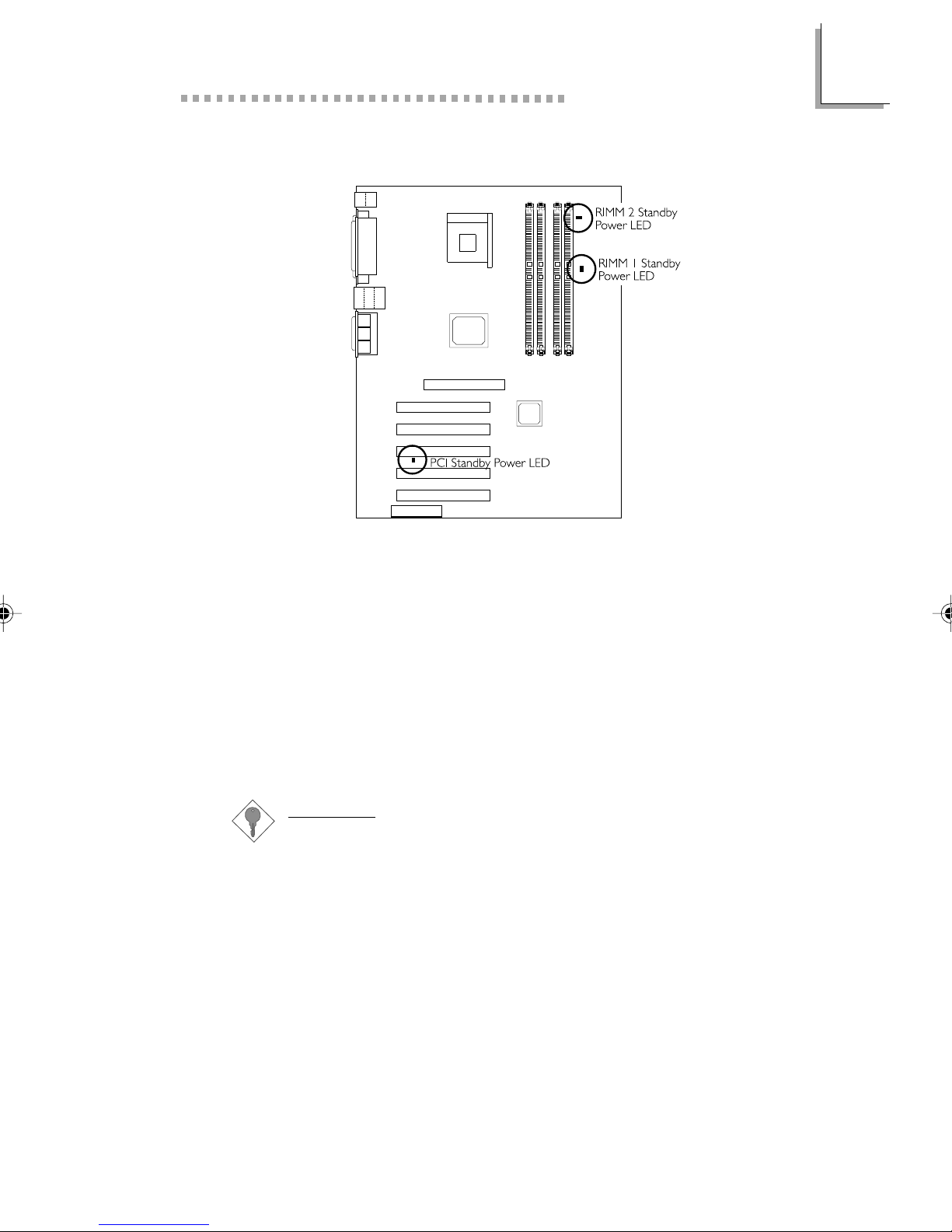

RIMM 1 and RIMM 2 Standby Power LEDs

These LEDs will turn red when the system’s power is on or when it is in the Suspend state (Power On Suspend or Suspend to RAM). It will not light when the system is in the Soft-Off state.

PCI Standby Power LED

This LED will turn red when the system is in the power-on, Soft-Off or Suspend (Power On Suspend or Suspend to RAM) state.

Important:

Lighted LEDs serve as a reminder that you must power-off the system then turn off the power supply’s switch or unplug the power cord prior to installing any memory modules or add-in cards.

Page 46

Hardware Installation

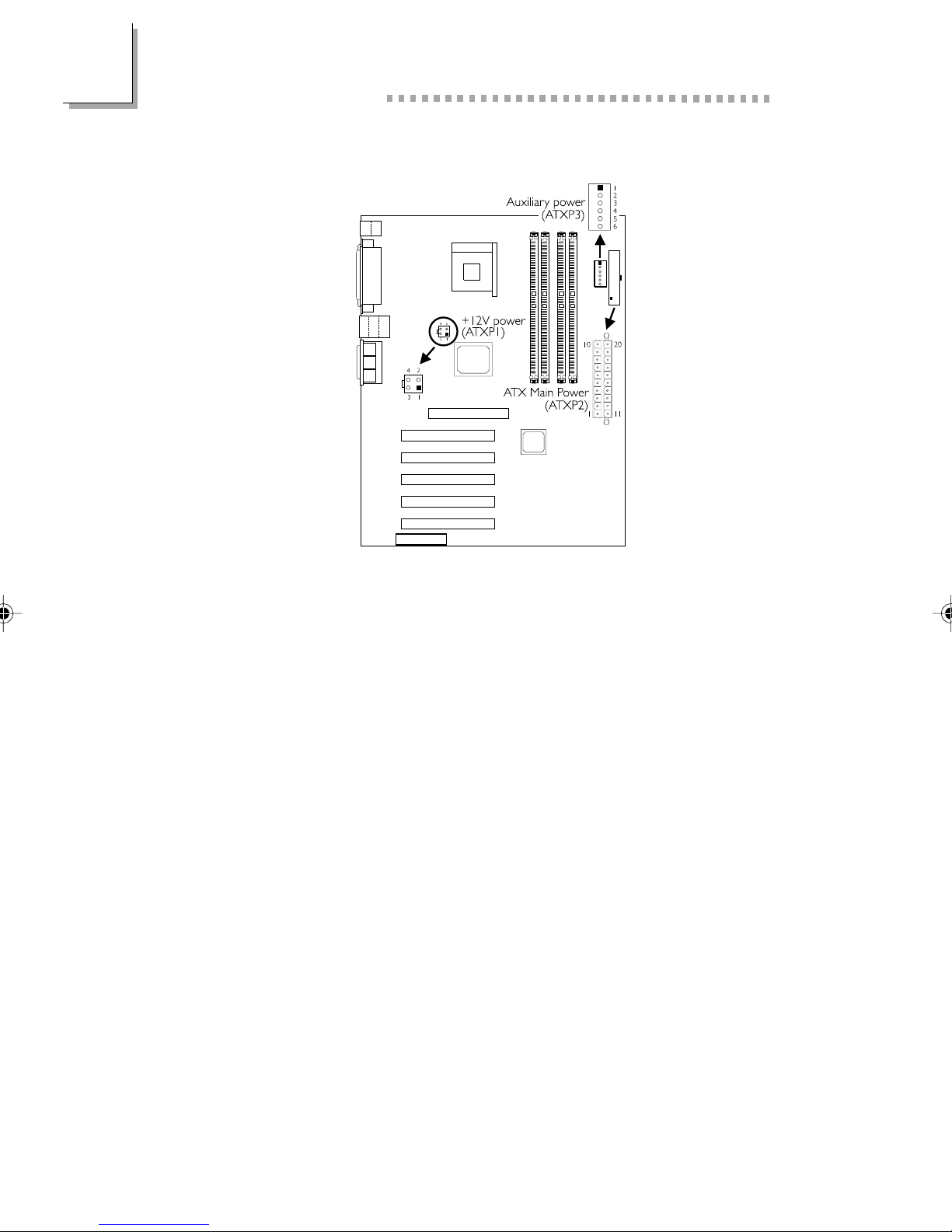

2.9.18 Power Connectors

We recommend that you use a power supply that complies with the ATX12V Power Supply Design Guide Version 1.1. An ATX12V power supply has a standard 20-pin ATX main power connector, a 4-pin +12V power connector and a 6-pin auxiliary power connector that must be inserted onto ATXP2, ATXP1 and ATXP3 connectors respectively.

The 4-pin +12V power connector enables the delivery of more +12VDC current to the processor’s Voltage Regulator Module (VRM).

The 6-pin auxiliary power connector provides additional current for the board’s +3.3VDC and +5VDC. Using a power supply that does not have this connector will still provide power as long as the 20-pin ATX main power and 4-pin +12V power are connected.

The system board requires a minimum of 250 Watt power supply to operate. Your system configuration (amount of memory, add-in cards, peripherals, etc.) may exceed the minimum power requirement. To ensure that adequate power is provided, use a 300 Watt (or greater) power supply.

Page 47

Hardware Installation

ATX Main Power Connector

Function

3.3V

Ground

+5V

Ground

+5V

Ground

PW-OK

5VSB +12V

+12V Power Connector

11 12 13

14 15

16 17 18

19 20

Function

3.3V

-12V Ground

PS-ON Ground

Ground Ground

-5V

+5V +5V

2 3 4

Auxiliary Power Connector

2 3

Function

Ground Ground

Ground

Ground +12V +12V

5 6

Function

+3.3V +3.3V

+5V

Page 48

Hardware Installation

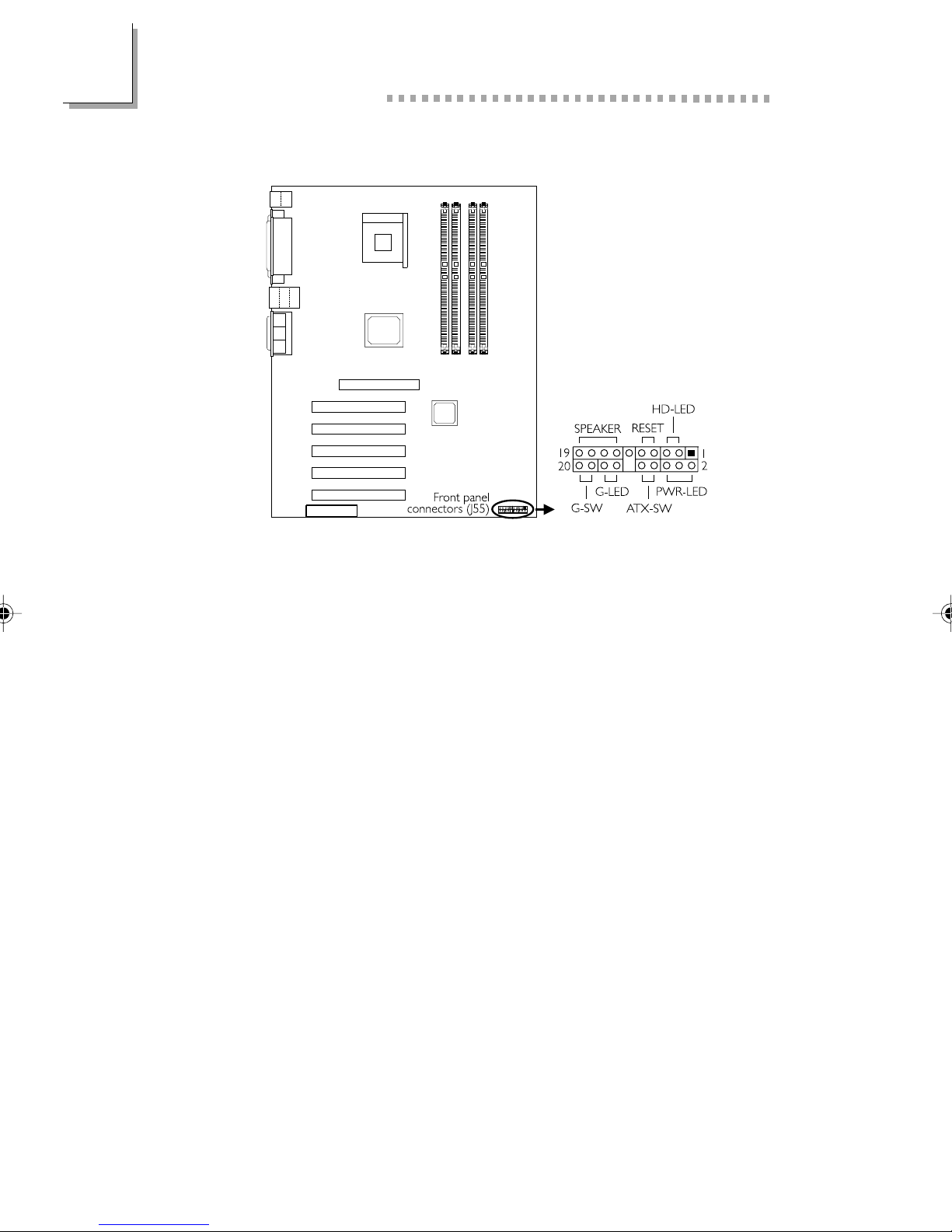

2.9.19 Front Panel Connectors

HD-LED: Primary/Secondary IDE LED This LED will light when the hard drive is being accessed.

G-LED: Green LED This LED will not light when the system’s power is on or when the system is in the S3 (STR - Suspend To RAM) state. It will blink every second when the system is in the S1 (POS - Power On Suspend) state.

ATX-SW: ATX Power Switch Depending on the setting in the BIOS setup, this switch is a “dual function power button” that will allow your system to enter the SoftOff or Suspend mode. Refer to “Soft-Off By PWR-BTTN” in the Power Management Setup (Chapter 3).

G-SW: Green Switch This switch will allow your system to enter the Suspend mode.

RESET: Reset Switch This switch allows you to reboot without having to power off the system thus prolonging the life of the power supply or system.

SPEAKER: Speaker Connector This connects to the speaker installed in the system chassis.

Page 49

Hardware Installation

PWR-LED: Power/Standby LED When the system’s power is on, this LED will light. When the system is in the S1 (POS - Power On Suspend) state, it will blink every second. When the system is in the S3 (STR - Suspend To RAM) state, it will blink every 4 seconds.

Note:

If a system did not boot-up and the Power/Standby LED did not light after it was powered-on, it may indicate that the CPU or memory module was not installed properly. Please make sure they are properly inserted into their corresponding socket.

Pin Assignment

HD-LED (Primary/Secondary IDE LED)

G-LED (Green LED)

ATX-SW (ATX power switch)

G-SW (Green switch)

RESET (Reset switch)

SPEAKER (Speaker connector)

PWR-LED (Power/Standby LED)

HDD LED Power

HDD

Green LED Power

Ground

PWRBT+

PWRBT-

Ground

SMI

Ground

H/W Reset

Speaker Data

N. C.

Ground

Speaker Power

LED Power (+)

LED Power (-) or Standby Signal

Page 50

Award BIOS Setup Utility

Chapter 3 - Award BIOS Setup Utility

3.1 The Basic Input/Output System

The Basic Input/Output System (BIOS) is a program that takes care of the basic level of communication between the processor and peripherals. In addition, the BIOS also contains codes for various advanced features found in this system board. This chapter explains the Setup Utility for the Award BIOS.

After you power up the system, the BIOS message appears on the screen and the memory count begins. After the memory test, the following message will appear on the screen:

Press DEL to enter setup

If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously.

When you press <Del>, the main menu screen will appear.

Standard CMOS Features

Advanced BIOS Features

Advanced Chipset Features

Integrated Peripherals

Power Management Setup

PnP/PCI Configurations

PC Health Status

: Quit

Esc

: Save & Exit Setup

F10

Time, Date, Hard Disk Type...

CPU Frequency Control

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

↑↓→←

: Select Item

3.1.1 Standard CMOS Features

Use the arrow keys to highlight “Standard CMOS Features” and press <Enter>. A screen similar to the one on the next page will appear.

Page 51

Award BIOS Setup Utility

Date (mm:dd:yy) Time (hh:mm:ss)

IDE Primary Master IDE Primary Slave IDE Secondary Master IDE Secondary Slave

Drive A Drive B

Video Halt On

Base Memory Extended Memory Total Memory

↑↓→← Move

Enter:Select

F5:Previous Values

Standard CMOS Features

Wed, Aug 22 2001 4 : 35 : 5

Press Enter None Press Enter None Press Enter None Press Enter None

1.44M, 3.5 in. None

EGA/VGA All, But Keyboard

640K 129024K 130048K

+/-/PU/PD:Value

F6:Fail-Safe Defaults F7:Optimized Defaults

F10:Save

Item Help

Menu Level

Change the day, month, year and century

ESC:Exit

F1:General Help

The settings on the screen are for reference only. Your version may not be identical to this one.

Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1994 to 2079.

Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

IDE Primary Master, IDE Primary Slave, IDE Secondary Master and IDE Secondary Slave

Move the cursor to the “IDE Primary Master”, “IDE Primary Slave”, “IDE Secondary Master” or “IDE Secondary Slave” field, then press <Enter>.

IDE HDD Auto Detection

Detects the parameters of the drive. The parameters will automatically be shown on the screen.

Page 52

Award BIOS Setup Utility

IDE Primary/Secondary Master/Slave

If you wish to define your own drive type manually, select “Manual”. The drive type information should be included in the documentation from your hard disk vendor. If you select ”Auto”, the BIOS will auto-detect the HDD & CD-ROM drive at the POST stage and show the IDE for the HDD & CD-ROM drive. If a hard disk has not been installed, select “None”.

Capacity

Displays the approximate capacity of the disk drive. Usually the size is slightly greater than the size of a formatted disk given by a disk checking program.

Access Mode

For hard drives larger than 528MB, you would typically select the LBA type. Certain operating systems require that you select Normal or Large. Please check your operating system’s manual or Help desk on which one to select.

Drive A and Drive B

These fields identify the types of floppy disk drives installed.

None 360K, 5.25 in.

1.2M, 5.25 in. 720K, 3.5 in.

1.44M, 3.5 in.

2.88M, 3.5 in.

Video

This field selects the type of video adapter used for the primary system monitor. Although secondary monitors are supported, you do not have to select the type. The default setting is EGA/VGA.

EGA/VGA

CGA 40

CGA 80

Mono

No floppy drive is installed 5-1/4 in. standard drive; 360KB capacity 5-1/4 in. AT-type high-density drive; 1.2MB capacity 3-1/2 in. double-sided drive; 720KB capacity 3-1/2 in. double-sided drive; 1.44MB capacity 3-1/2 in. double-sided drive; 2.88MB capacity

Enhanced Graphics Adapter/Video Graphics Array. For EGA, VGA, SVGA and PGA monitor adapters. Color Graphics Adapter. Power up in 40-column mode. Color Graphics Adapter. Power up in 80-column mode. Monochrome adapter. Includes high resolution monochrome adapters.

Page 53

Award BIOS Setup Utility

Halt On

This field determines whether the system will stop if an error is detected during power up.

No Errors All Errors

All, But Keyboard

All, But Diskette

All, But Disk/Key

Base Memory

Displays the amount of base (or conventional) memory installed in the system. The value of the base memory is typically 512K for systems with 512K memory installed on the motherboard or 640K for systems with 640K or more memory installed on the motherboard.

Extended Memory

The system boot will not stop for any errors detected. The system boot will stop whenever the BIOS detects a non-fatal error.

The system boot will not stop for a keyboard error; it will stop for all other errors. The system boot will not stop for a disk error; it will stop for all other errors. The system boot will not stop for a disk or keyboard error; it will stop for all other errors.

Displays the amount of extended memory detected during boot-up.

Total Memory

Displays the total memory available in the system.

Page 54

3.1.2 Advanced BIOS Features

The Advanced BIOS Features allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Award BIOS Setup Utility

BIOS Flash Protect Onboard LAN Control Virus Warning CPU L1 & L2 Cache Quick Power On Self Test RAID or SCSI Card Boot First Boot Device Second Boot Device Third Boot Device Boot Other Device Swap Floppy Drive Boot Up Floppy Seek Boot Up NumLock Status Typematic Rate Setting Typematic Rate (Chars/Sec)

Typematic Delay (Msec)

Security Option APIC Mode OS Select For DRAM > 64MB HDD S.M.A.R.T. Capability Small Logo (EPA) Show Onboard LAN Boot ROM

↑↓→← Move

F5:Previous Values

Advanced BIOS Features

Disabled Enabled Disabled Enabled Enabled RAID Floppy HDD-0 LS120 Enabled Disabled Disabled Off Disabled 6 250 Setup Disabled Non-OS2 Disabled Enabled Enabled

+/-/PU/PD:Value

F6:Fail-Safe Defaults F7:Optimized Defaults

F10:Save

Menu Level

Allows you to choose the VIRUS warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep

ESC:Exit

Item Help

F1:General HelpEnter:Select

The screen above list all the fields available in the Advanced BIOS Features submenu, for ease of reference in this manual. In the actual CMOS setup, you have to use the scroll bar to view the fields. The settings on the screen are for reference only. Your version may not be identical to this one.

BIOS Flash Protect

Enabled

Disabled

Onboard LAN Control (NT70-SA/SL)

By default, the onboard LAN chip is enabled. If you are not using this function, set this field to Disabled.

This option will protect the system from unnecessary updating or flashing of the BIOS. When enabled, it secures the BIOS therefore any updates to the BIOS will not take effect. Disables the “BIOS flash protect” function, allowing you to update or flash the BIOS any time needed.

Page 55

Award BIOS Setup Utility

Virus Warning

This field protects the boot sector and partition table of your hard disk drive. When this field is enabled, the Award BIOS will monitor the boot sector and partition table of the hard disk drive. If an attempt is made to write to the boot sector or partition table of the hard disk drive, the BIOS will halt the system and an error message will appear.

After seeing the error message, if necessary, you will be able to run an anti-virus program to locate and remove the problem before any damage is done.

Many disk diagnostic programs which attempt to access the boot sector table will cause the warning message to appear. If you are running such a program, we recommend that you first disable this field. Also, disable this field if you are installing or running certain operating systems like Windows® 98/2000/ME or the operating system may not install nor work.

CPU L1 & L2 Cache

This field speed up the memory access. The default value is enabled.

Quick Power On Self Test

This field speeds up Power On Self Test (POST) after you power on the system. When Enabled, the BIOS will shorten or skip some check items during POST.

RAID or SCSI Card Boot (NT70-SA/SR)

If you want the system to boot from a drive that is connected to the RAID IDE connector or SCSI add-in card, you must first select “SCSI” in the “First Boot Device” field.

If there are drives connected to both the RAID IDE connector and SCSI add-in card, you must then select which drive you want the system to boot from.

RAID

SCSI

The drive is connected to the RAID IDE connector that is on the system board. The drive is connected to the SCSI add-in card that is installed in a PCI slot.

Page 56

Award BIOS Setup Utility

If the drive is connected to either one of them only, you don’t need to particularly select an option in this field because the system will automatically detect for the existing drive.

First Boot Device, Second Boot Device, Third Boot Device and Boot Other Device

Select the drive to boot first, second and third in the “First Boot Device” “Second Boot Device” and “Third Boot Device” fields respectively. The BIOS will boot the operating system according to the sequence of the drive selected. Set “Boot Other Device” to Enabled if you wish to boot from another device.

Swap Floppy Drive

When this field is enabled and the system is booting from the floppy drive, the system will boot from drive B instead of drive A. When this field is disabled and the system is booting from the floppy drive, the system will boot from drive A. You must have two floppy drives to use this function.

Boot Up Floppy Seek

When enabled, the BIOS will check whether the floppy disk drive installed is 40 or 80 tracks. Note that the BIOS cannot distinguish between 720K, 1.2M, 1.44M and 2.88M drive types as they are all 80 tracks. When disabled, the BIOS will not search for the type of floppy disk drive by track number. Note that there will not be any warning message if the drive installed is 360KB.

Boot Up NumLock Status

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Typematic Rate Setting

Disabled

Enabled

Continually holding down a key on your keyboard will cause the BIOS to report that the key is down. The BIOS will not only report that the key is down, but will first wait for a moment, and, if the key is still

Page 57

Award BIOS Setup Utility

down, it will begin to report that the key has been depressed repeatedly. For example, you would use such a feature to accelerate cursor movements with the arrow keys. You can then select the typematic rate and typematic delay in the “Typematic Rate (Chars/Sec)” and “Typematic Delay (Msec)” fields below.

Typematic Rate (Chars/Sec)

This field allows you to select the rate at which the keys are accelerated.

Typematic Delay (Msec)

This field allows you to select the delay between when the key was first depressed and when the acceleration begins.

Security Option

This field determines when the system will prompt for the password

- everytime the system boots or only when you enter the BIOS setup. Set the password in the Set Supervisor/User Password submenu.

System

Setup

APIC Mode

If you are using the Windows® XP operating system, you must set this field to Enabled.

OS Select for DRAM > 64MB

The system will not boot and access to Setup will be denied unless the correct password is entered at the prompt. The system will boot, but access to Setup will be denied unless the correct password is entered at the prompt.

This field allows you to access the memory that is over 64MB in OS/2. The options are: Non-OS2 and OS2.

Page 58

Award BIOS Setup Utility

HDD S.M.A.R.T. Capability

The system board supports SMART (Self-Monitoring, Analysis and Reporting Technology) hard drives. SMART is a reliability prediction technology for ATA/IDE and SCSI drives. The drive will provide sufficient notice to the system or user to backup data prior to the drive’s failure. The default is Disabled. If you are using hard drives that support S.M.A.R.T., set this field to Enabled. SMART is supported in ATA/33 or later hard drives.

Small Logo (EPA) Show

Enabled Disabled

Onboard LAN Boot ROM (NT70-SA/SL)

When this field is set to Enabled, it allows you to use the boot ROM (instead of a disk drive) to boot-up the system and access the local area network directly.

If you wish to change the boot ROM’s settings, type the <Ctrl> and <S> keys simultaneously when prompted during boot-up. Take note: you will be able to access the boot ROM’s program (by typing <Ctrl> + <S>) only when this field is enabled.

The EPA logo will appear during system boot-up. The EPA logo will not appear during system boot-up.

Page 59

Award BIOS Setup Utility

3.1.3 Advanced Chipset Features

RDRAM Bus Frequency DRAM Data Integrity Mode System BIOS Cacheable Video BIOS Cacheable Video RAM Cacheable Delayed Transaction AGP Aperture Size (MB) AGP-4X Mode Side Band Control Delay Thermal Mode Time DMA Channel 7 Select DMA Channel 6 Select DMA Channel 5 Select DMA Channel 4 Select DMA Channel 3 Select DMA Channel 2 Select DMA Channel 1 Select DMA Channel 0 Select

↑↓→← Move

F5:Previous Values

Advanced Chipset Features

Auto Non-ECC Disabled Disabled Disabled Enabled 64M Enabled Enabled 8 Min LPC I/F DMA LPC I/F DMA LPC I/F DMA LPC I/F DMA LPC I/F DMA LPC I/F DMA LPC I/F DMA LPC I/F DMA

+/-/PU/PD:Value F10:Save ESC:Exit

F6:Fail-Safe Defaults F7:Optimized Defaults

Menu Level

Item Help

F1:General HelpEnter:Select

The settings on the screen are for reference only. Your version may not be identical to this one.

This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources. These items should not be altered unless necessary. The default settings have been chosen because they provide the best operating conditions for your system. The only time you might consider making any changes would be if you discovered some incompatibility or that data was being lost while using your system.

RDRAM Bus Frequency

This field is used to select the bus frequency of the RDRAM installed on the system board. The default is Auto.

DRAM Data Integrity Mode

If you are using RIMMs that support the ECC (Error Checking and Correction) function, set this field to ECC. It will allow the system to recover from memory failure. It detects single-bit and multiple-bit errors, then automatically corrects single-bit error.

Page 60

Award BIOS Setup Utility

System BIOS Cacheable

When this field is enabled, accesses to the system BIOS ROM addressed at F0000H-FFFFFH are cached, provided that the cache controller is enabled. The larger the range of the Cache RAM, the higher the efficiency of the system.

Video BIOS Cacheable

As with caching the system BIOS, enabling the Video BIOS cache will allow access to video BIOS addresssed at C0000H to C7FFFH to be cached, if the cache controller is also enabled. The larger the range of the Cache RAM, the faster the video performance.

Video RAM Cacheable

When enabled, it allows the video RAM to be cacheable thus providing better video performance. If your graphics card does not support this function, leave this field in its default setting - Disabled.

Delayed Transaction

When enabled, this function frees up the PCI bus for other PCI masters during the PCI-to-ISA transactions. This allows PCI and ISA buses to be used more efficiently and prevents degradation of performance on the PCI bus when ISA accesses are made.

AGP Aperture Size (MB)

This field is relevant to the memory-mapped graphics data of the AGP card installed in your system. Leave this in its default setting, which

is 64M.

AGP-4X Mode

This field is used to enable the AGP 4x interface which transfers video data at 1066MB/sec. bandwidth thus delivering faster and better graphics to your PC. Make sure your graphics card supports the AGP

4x mode.

Page 61

Award BIOS Setup Utility

Side Band Control

The options are Enabled and Disabled.

Delay Thermal Mode Time

This field is used to select the time that would force the CPU to a 50% duty cycle when it exceeds its maximum operating temperature therefore protecting the CPU and the system board from overheating to ensure a safe computing environment.. The “Auto Thermal Control” field in the Advanced BIOS Features setup must be enabled.

DMA Channel 7 Select to DMA Channel 0 Select

The options are “LPC I/F DMA” and “PC/PCI DMA”.

Page 62

3.1.4 Integrated Peripherals

Award BIOS Setup Utility

On-Chip Primary PCI IDE On-Chip Secondary PCI IDE IDE Primary Master PIO IDE Primary Slave PIO IDE Secondary Master PIO IDE Secondary Slave PIO IDE Primary Master UDMA IDE Primary Slave UDMA IDE Secondary Master UDMA IDE Secondary Slave UDMA USB Controller USB Keyboard Support Init Display First AC97 Audio AC97 Modem IDE HDD Block Mode Keyboard/Mouse Power On KB Power On Password

KB Power On Hot Key

Onboard FDC Controller Onboard Serial Port 1 Onboard Serial Port 2

↑↓→← Move

UART2 Mode Select

RxD, TxD Active

IR Transmission Delay Onboard Parallel Port Parallel Port Mode EPP Mode Select ECP Mode Use DMA PWR Lost Resume State Game Port Address Midi Port Address

Midi Port IRQ

F5:Previous Values

Integrated Peripherals

Enabled Enabled Auto Auto Auto Auto Auto Auto Auto Auto Enabled Disabled PCI Slot Auto Auto Enabled Disabled Enter Ctrl-F1 Enabled 3F8/IRQ4 2F8/IRQ3

+/-/PU/PD:Value F10:Save ESC:Exit

Normal

F6:Fail-Safe Defaults F7:Optimized Defaults

Hi,Lo Enabled 378/IRQ7 ECP+EPP EPP1.7 3 Keep Off 201 Disabled 10

Menu Level

Item Help

F1:General HelpEnter:Select

The screen above list all the fields available in the Integrated Peripherals submenu, for ease of reference in this manual. In the actual CMOS setup, you have to use the scroll bar to view the fields. The settings on the screen are for reference only. Your version may not be identical to this one.

On-Chip Primary PCI IDE and On-Chip Secondary PCI IDE

These fields allow you to enable or disable the primary and secondary IDE controller. The default is Enabled. Select Disabled if you want to add a different hard drive controller.

IDE Primary Master/Slave PIO and IDE Secondary Master/Slave PIO

PIO means Programmed Input/Output. Rather than have the BIOS issue a series of commands to effect a transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by themselves. Your system supports five modes, 0 (default) to 4, which primarily differ in timing. When Auto is selected, the BIOS will select the best available mode after checking your drive.

Page 63

Award BIOS Setup Utility

Auto

Mode 0-4

IDE Primary Master/Slave UDMA and IDE Secondary Master/ Slave UDMA

These fields allow you to set the Ultra DMA in use. When Auto is selected, the BIOS will select the best available option after checking your hard drive or CD-ROM.

Auto Disabled

USB Controller

We recommend that you leave this field in its default setting Enabled.

The BIOS will automatically set the system according to your hard disk drive’s timing.

You can select a mode that matches your hard disk drive’s timing. Caution: Do not use the wrong setting or you will have drive errors.

The BIOS will automatically detect the settings for you. The BIOS will not detect these categories.

USB Keyboard Support

By default, USB Keyboard Support is Disabled. However, if you are using a USB keyboard under DOS, make sure to enable this function.

Init Display First

This field is used to select whether to initialize the AGP or PCI first when the system boots.

AGP PCI Slot

AC97 Audio

Auto

Disabled

When the system boots, it will first initialize the AGP. When the system boots, it will first initialize PCI.

Select this option when using the onboard audio codec, primary or secondary audio riser card, or audio/modem riser card. Select this option when using a PCI sound card.

Page 64

AC97 Modem

Award BIOS Setup Utility

Auto

Disabled

IDE HDD Block Mode

Enabled

Disabled

Keyboard/Mouse Power On

This field allows you to use the keyboard or PS/2 mouse to poweron the system. To use this function, make sure JP2 is set to 2-3 On the Wake-On-Keyboard/Mouse function enabled. Refer to “Jumper Settings for Wake-On-Keyboard/Wake-On-Mouse” in chapter 2 for more information.

Select this option when using a primary or secondary modem riser card, or audio/modem riser card. Select this option when using a PCI modem card.

The IDE HDD uses the block mode. The system BIOS will check the hard disk drive for the maximum block size the system can transfer. The block size will depend on the type of hard disk drive. The IDE HDD uses the standard mode.

Disabled

Password

Default setting.

Warning:

If JP2 was previously enabled with a password set in the “KB Power On Password” field, and now you wish to disable the keyboard password function, make sure to set this field to disabled prior to setting JP2 to disabled (1-2 On). You will not be able to boot up the system if you fail to do so.

When this option is selected, move the cursor to the “KB Power On Password” field and press <Enter>. Enter your password. You can enter up to 5 characters. Type in exactly the same password to confirm, then press <Enter>.

Important:

The power button will not function once a keyboard password has been set in the “KB Power On Password” field. You must type the correct password to power-on the system. If you forgot the password, power-off the

Page 65

Award BIOS Setup Utility

Hot Key

Mouse Left

Mouse Right

Any Key Keyboard 98

When this option is selected, move the cursor to the “KB Power On Hot Key” field to select a function key you would like to use to power-on the system. The options are from Ctrl-F1 to Ctrl-F12. When this option is selected, double-click the left button of the mouse to power-on the system. When this option is selected, double-click the right button of the mouse to power-on the system. Press any key to power-on the system. When this option is selected, press the “wake up” key of the Windows 98 compatible keyboard to power-on the system.

system and remove the battery. Wait for a few seconds and install it back before powering-on the system.

Onboard FDC Controller

Enabled Disabled

Onboard Serial Port 1 and Onboard Serial Port 2

Auto

3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3

Disabled

UART2 Mode Select

The system board supports IrDA function for wireless connectivity between your computer and peripheral devices. You may not use IrDA (J15) and the COM 2 serial port (CN3) at the same time. If you are using the COM 2 serial port, make sure this field is set to Normal.

Enables the onboard floppy disk controller. Disables the onboard floppy disk controller.

The system will automatically select an I/O address for the onboard serial port 1 and serial port 2.

Allows you to manually select an I/O address for the onboard serial port 1 and serial port 2. Disables the onboard serial port 1 and/or serial port 2.

To use the IrDA function, follow the steps below.

1. Connect your IrDA cable to connector J15 on the system board.

Page 66

Award BIOS Setup Utility

2. Set the “UART2 Mode Select” field to the type of IrDA standard supported by your IrDA peripheral/device (IrDA or ASKIR). For better transmission of data, your IrDA peripheral device must be within a 30o angle and within a distance of 1 meter.

3. Set the “RxD, TxD Active” and “IR Transmission Delay” fields appropriately.

RxD, TxD Active

The options are Hi, Lo; Lo, Hi; Lo, Lo; and Hi, Hi.

IR Transmission Delay

If this field is Enabled, transmission of data will be slower. This is recommended when you encounter transmission problem with your device. The options are: Enabled and Disabled.

Onboard Parallel Port

378/IRQ7, 3BC/IRQ7, 278/IRQ5

IRQ for the onboard parallel port.

Disabled

Parallel Port Mode

The options are SPP, EPP, ECP, ECP+EPP and PntMode. These apply to a standard specification and will depend on the type and speed of your device. Refer to your peripheral’s manual for the best option.

SPP Allows normal speed operation but in one direction only.

ECP (Extended Capabilities Port) Allows parallel port to operate in bidirectional mode and at a speed faster than the normal mode’s data transfer rate.

EPP (Enhanced Parallel Port) Allows bidirectional parallel port operation at maximum speed.

Disables the onboard parallel port.

Selects the I/O address and

PntMode Allows parallel port to operate in bipolar mode.

Page 67

Award BIOS Setup Utility

If you selected EPP, the “EPP Mode Select” field is configurable. If you selected ECP, the “ECP Mode Use DMA” field is configurable. If you selected ECP+EPP, both “EPP Mode Select” and “ECP Mode Use DMA” are configurable.

EPP Mode Select

The options are EPP1.9 and EPP1.7. Default setting: EPP1.7.

ECP Mode Use DMA

This is used to select a DMA channel for the parallel port. The options are 1 and 3. Default setting: 3.

PWR Lost Resume State

Keep Off

Turn On

Last State

Game Port Address

This field is used to select the game port’s address. The options are 201, 209 and Disabled.

Midi Port Address

When power returns after an AC power failure, the system’s power is off. You must press the Power button to power-on the system. When power returns after an AC power failure, the system will automatically power-on. When power returns after an AC power failure, the system will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will poweron when power returns.

This field is used to select the midi port’s address. The options are 290, 292 and Disabled. If you have selected the midi port’s address, you may select its IRQ in the “Midi Port IRQ” field.

Midi Port IRQ

This field is used to select the midi port’s IRQ. The options are 5 and 10.

Page 68

3.1.5 Power Management Setup

The Power Management Setup allows you to configure your system to most effectively save energy.

Award BIOS Setup Utility

ACPI Function ACPI Suspend Type Power Management Video Off Method Video Off In Suspend Suspend Mode HDD Power Down Soft-Off By PWR-BTTN Resume on PCI Event Resume on Ring Resume on LAN USB KB/Mouse Wake-Up From S3 Resume on Alarm

Date(of Month) Alarm

Time (hh:mm:ss) Alarm

↑↓→← Move

F5:Previous Values

Power Management Setup

Enabled S1(POS) User Define DPMS Ye s Disabled Disabled Instant-Off Disabled Disabled Disabled Enabled Disabled 0 0 : 0 : 0

+/-/PU/PD:Value

F6:Fail-Safe Defaults F7:Optimized Defaults

F10:Save

Menu Level

ESC:Exit

Item Help

F1:General HelpEnter:Select

The settings on the screen are for reference only. Your version may not be identical to this one.

ACPI Function

This function should be enabled only in operating systems that

®®

support ACPI. Currently, only Windows function. When the system is in Windows

®®

98/2000/ME supports this

®®

98/2000/ME and this field is enabled, the system will ignore the settings in the “Suspend Mode” and “HDD Power Down” fields. If you want to use the Suspend to RAM function, make sure this field is enabled then select “S3(STR)” in the field below.

ACPI Suspend Type

This field is used to select the type of Suspend mode.

S1(POS) S3(STR)

Enables the Power On Suspend function. Enables the Suspend to RAM function. Refer to “Using the Suspend to RAM Function” in appendix A for more information.

Page 69

Award BIOS Setup Utility

Power Management

This field allows you to select the type (or degree) of power saving by changing the length of idle time that elapses before the Suspend mode and HDD Power Down fields are activated.

Min Saving

Max Saving

User Define

Video Off Method

This determines the manner in which the monitor is blanked.

V/H SYNC + Blank

Blank Screen DPMS

Video Off In Suspend

Minimum power saving time for the Suspend Mode and HDD Power Down = 1 hr. Maximum power saving time for the. Suspend Mode and HDD Power Down = 1 min. Allows you to set the power saving time in the “Suspend Mode” and “HDD Power Down” fields.

This selection will cause the system to turn off the vertical and horizontal synchronization

ports and write blanks to the video buffer. This option only writes blanks to the video buffer. Initializes display power management signaling. Use this option if your video board supports it.

This field is used to activate the video off feature when the system enters the Suspend mode. The options are Yes and No.

Suspend Mode

This is selectable only when the Power Management field is set to User Define. When the system enters the Suspend mode according to the power saving time selected, the CPU and onboard peripherals will be shut off.

HDD Power Down

This is selectable only when the Power Management field is set to User Define. When the system enters the HDD Power Down mode according to the power saving time selected, the hard disk drive will be powered down while all other devices remain active.

Page 70

Award BIOS Setup Utility

Soft-Off by PWR-BTTN

This field allows you to select the method of powering off your system.

Hold 4 Sec.

Instant-Off

Resume on PCI Event

Enabled

Disabled

Regardless of whether the Power Management function is enabled or disabled, if the power button is pushed and released in less than 4 sec, the system enters the Suspend mode. The purpose of this function is to prevent the system from powering off in case you accidentally “hit” or pushed the power button. Push and release again in less than 4 sec to restore. Pushing the power button for more than 4 seconds will power off the system. Pressing and then releasing the power button at once will immediately power off your system.

Access to a PCI card such as a modem or LAN card will cause the system to wake up. The PCI card must support the wake up function. The system will not wake up despite access to the PCI card.

Resume On Ring

Set this field to Enabled to use the modem ring-on function. This will allow your system to power-on to respond to calls coming through an external or internal modem. Refer to “Wake-On-Ring Connector” in chapter 2 for more information.

Resume On LAN

If you are using a LAN card that supports the remote wake up function, set this field to Enabled. The will allow the network to remotely wake up a Soft Power Down (Soft-Off) PC. However, if your system is in the Suspend mode, you can wake up the system only through an IRQ or DMA interrupt. Refer to “Wake-On-LAN Connector” in chapter 2 for more information.

Page 71

Award BIOS Setup Utility

USB KB/Mouse Wake-Up From S3

Set this field to Enabled to use the Wake-On-USB Keyboard/Mouse function. This function allows you to use a USB keyboard or USB mouse to wake up a system that is in the S3 (STR - Suspend To RAM) state. Refer to “Jumper Settings for Wake-On-USB Keyboard/ Mouse” in chapter 2 for more information.

Resume On Alarm

Enabled

Disabled

Date (of Month) Alarm

1-31 Select a date you would like the system to power-on.

Time (hh:mm:ss) Alarm

When Enabled, you can set the date and time you would like the Soft Power Down (Soft-Off) PC to power-on in the “Date (of Month) Alarm” and “Time (hh:mm:ss) Alarm” fields. However, if the system is being accessed by incoming calls or the network (Resume On Ring/LAN) prior to the date and time set in these fields, the system will give priority to the incoming calls or network. Disables the automatic power-on function. (default)

The system will power-on everyday according to the time set in the “Time (hh:mm:ss) Alarm” field.

The system will power-on on the set date, and time set in the “Time (hh:mm:ss) Alarm” field.

This is used to set the time you would like the system to power-on. If you want the system to power-on everyday as set in the “Date (of Month) Alarm” field, the time set in this field must be later than the time of the RTC set in the Standard CMOS Features submenu.

Page 72

3.1.6 PnP/PCI Configurations

This section describes configuring the PCI bus system. It covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

Award BIOS Setup Utility

Reset Configuration Data

Resources Controlled By IRQ Resources

PCI/VGA Palette Snoop

* PCI IRQ Assignment *

Slot 1,5 Onboard AC97/Slot 2 Slot 3 Onboard USB/Slot 4

↑↓→← Move

F5:Previous Values

PnP/PCI Configurations

Disabled

Auto(ESCD) Press Enter

Disabled

Auto Auto Auto Auto

+/-/PU/PD:Value

F6:Fail-Safe Defaults F7:Optimized Defaults

F10:Save

Menu Level

Default is Disabled. Select Enabled to reset Extended System Configuration Data (ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the OS cannot boot.

ESC:Exit

Item Help

F1:General HelpEnter:Select

The settings on the screen are for reference only. Your version may not be identical to this one.

Reset Configuration Data

Enabled

Disabled

Resources Controlled By

The Award Plug and Play BIOS has the capability to automatically configure all of the boot and Plug and Play compatible devices.

Auto Manual

The BIOS will reset the Extended System Configuration Data (ESCD) once automatically. It will then recreate a new set of configuration data. The BIOS will not reset the configuration data.

The system will automatically detect the settings for you. Choose the specific IRQ in the “IRQ Resources” field.

Page 73

Award BIOS Setup Utility

IRQ Resources

This field is used to set each system interrupt to either Legacy ISA or PCI.

PCI Legacy ISA

PCI/VGA Palette Snoop

This field determines whether the MPEG ISA/VESA VGA cards can work with PCI/VGA or not. The default value is Disabled.

Enabled Disabled

PCI IRQ Assignment

By default, an IRQ is automatically assigned to the PCI devices that are installed in the PCI slots. If a PCI device has not been assigned an IRQ, you must manually assign an IRQ for the device. During system boot-up, you will see “NA” for the device that does not have an IRQ assigned.

For devices compliant with the PCI bus architecture. For devices compliant with the original PC AT bus specification.

MPEG ISA/VESA VGA cards work with PCI/VGA. MPEG ISA/VESA VGA cards does not work with PCI/ VGA.

Page 74

3.1.7 PC Health Status

Award BIOS Setup Utility

Current System Temp. Current Chassis FAN Speed Current CPU FAN Speed Current Second FAN Speed CPU (V) : +1.5 V : +3.3 V : +5 V : +12 V :

-12 V : VBAT (V) : 5VSB (V) :

↑↓→← Move

F5:Previous Values

PC Health Status

27C/80F

0 RPM 0 RPM 0 RPM

2.06 V

1.53 V

3.31 V

5.05 V

12.03 V

-11.37 V

3.21 V

5.40 V

+/-/PU/PD:Value

F6:Fail-Safe Defaults F7:Optimized Defaults

F10:Save

Menu Level

ESC:Exit

Item Help

F1:General HelpEnter:Select

The settings on the screen are for reference only. Your version may not be identical to this one.

Current System Temperature, Current Chassis Fan Speed, Current CPU Fan Speed and Current Second Fan Speed

These fields show the internal temperature of the system and the current fan speed of the chassis, CPU and second fans in RPM (Revolutions Per Minute).

CPU (V)

This field shows the voltage of the processor.

+1.5V, +3.3V, +5V, +12V, -12V, VBAT (V) and 5VSB (V)

These fields show the output voltage of the power supply.

Page 75

Award BIOS Setup Utility

3.1.8 CPU Frequency Control

CPU Clock Ratio

↑↓→← Move

F5:Previous Values

The settings on the screen are for reference only. Your version may not be identical to this one.

CPU Frequency Control

X 8

Menu Level

+/-/PU/PD:Value

F6:Fail-Safe Defaults F7:Optimized Defaults

F10:Save

ESC:Exit

F1:General HelpEnter:Select

Item Help

CPU Clock Ratio

This field is used to select the frequency ratio of the processor.

Important:

The frequency ratio of some processors may have been locked by the manufacturer. If you are using this kind of processor, setting an extended ratio for the processor will have no effect. The system will instead use its factory default ratio.

If you selected an option other than the default setting and is unable to boot up the system, there are 2 methods of booting up the system and going back to its default setting.

Method 1: Clear the CMOS data by setting JP5 to 2-3 On. All fields in the BIOS Setup will automatically be set to their default settings.

Method 2: Press the <Insert> key and power button simultaneously, then release the power button first. Keep-on pressing the <Insert> key until the power-on screen appears. This will allow the system to boot

Page 76

according to the FSB of the processor. Now press the <Del> key to enter the main menu of the BIOS. Select “CPU Frequency Control” and set the “CPU Clock Ratio” field to its default setting or an appropriate frequency ratio.

Note:

Use a PS/2 or AT (requires a DIN to mini DIN adapter) keyboard for method 2.

3.1.9 Load Fail-Safe Defaults

The “Load Fail-Safe Defaults” option loads the troubleshooting default values permanently stored in the ROM chips. These settings are not optimal and turn off all high performance features. You should use these values only if you have hardware problems. Highlight this option in the main menu and press <Enter>. The message below will appear.

Award BIOS Setup Utility

Load Fail-Safe Defaults (Y/N)? N

If you want to proceed, type <Y> and press <Enter>. The default settings will be loaded.

3.1.10 Load Optimized Defaults

The “Load Optimized Defaults” option loads optimized settings from the BIOS ROM. Use the default values as standard values for your system. Highlight this option in the main menu and press <Enter>. The message below will appear.

Load Optimized Defaults (Y/N)? N

Type <Y> and press <Enter> to load the Setup default values.

Page 77

Award BIOS Setup Utility

3.1.11 Set Supervisor Password

If you want to protect your system and setup from unauthorized entry, set a supervisor’s password with the “System” option selected in the Advanced BIOS Features. If you want to protect access to setup only, but not your system, set a supervisor’s password with the “Setup” option selected in the Advanced BIOS Features. You will not be prompted for a password when you cold boot the system.

Use the arrow keys to highlight “Set Supervisor Password” and press <Enter>. The message below will appear.

Enter Password:

Type in the password. You are limited to eight characters. When done, the message below will appear:

You are asked to verify the password. Type in exactly the same password. If you type in a wrong password, you will be prompted to enter the correct password again. To delete or disable the password function, highlight “Set Supervisor Password” and press <Enter>, instead of typing in a new password. Press the <Esc> key to return to the main menu.

3.1.12 Set User Password

If you want another user to have access only to your system but not to setup, set a user’s password with the “System” option selected in the Advanced BIOS Features. If you want a user to enter a password when trying to access setup, set a user’s password with the “Setup” option selected in the Advanced BIOS Features.

Using user’s password to enter Setup allows a user to access only “Set User Password” that appears in the main menu screen. Access to all other options is denied. To set, confirm, verify, disable or delete a user’s password, follow the procedures described in the section “Set Supervisor Password”.

Confirm Password:

Page 78

3.1.13 Save & Exit Setup

When all the changes have been made, highlight “Save & Exit Setup” and press <Enter>. The message below will appear:

Save to CMOS and Exit (Y/N)? N

Type “Y” and press <Enter>. The modifications you have made will be written into the CMOS memory, and the system will reboot. You will once again see the initial diagnostics on the screen. If you wish to make additional changes to the setup, press <Ctrl> <Alt> <Esc> simultaneously or <Del> after memory testing is done.

3.1.14 Exit Without Saving

When you do not want to save the changes you have made, highlight “Exit Without Saving” and press <Enter>. The message below will appear:

Award BIOS Setup Utility

Quit Without Saving (Y/N)? N

Type “Y” and press <Enter>. The system will reboot and you will once again see the initial diagnostics on the screen. If you wish to make any changes to the setup, press <Ctrl> <Alt> <Esc> simultaneously or <Del> after memory testing is done.
