DFI NB30-EC, NB35-EC, NB35-EL, NB30-EL User Manual

NB30-EC/EL
NB35-EC/EL

Rev. A+
System Board
User’s Manual

54600211

Copyright

This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.

This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose. The user will assume the entire risk of the use or
the results of the use of this document. Fur ther, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.

© 2002. All Rights Reserved.

Trademarks

Windows® 98 SE, Windows® ME, Windows® 2000, Windows NT

®

4.0 and Windows® XP are registered trademarks of Microsoft
Corporation. Intel® and Pentium® 4 are registered trademarks of
Intel Corporation. Award is a registered trademark of Award
Software, Inc. Other trademarks and registered trademarks of
products appearing in this manual are the properties of their
respective holders.

Caution

To avoid damage to the system:

• Use the correct AC input voltage range.

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.

Battery:

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend by
the manufacturer.

• Dispose of used batteries according to the battery
manufacturer’s instructions.

Joystick or MIDI port:

• Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to tr y to correct the interference by one or more of the
following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for
help.

Notice:

1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.

2. Shielded interface cables must be used in order to comply with
the emission limits.

Notice

This user’s manual contains detailed information about the system
board. If, in some cases, some information doesn’t match those
shown in the multilingual manual, the multilingual manual should
always be regarded as the most updated version. The multilingual
manual is included in the system board package.

To view the user’s manual, insert the CD into a CD-ROM drive. The
autorun screen (Main Board Utility CD) will appear. Click “User’s
Manual”.

System Board

This user’s manual is for the NB30-EC, NB30-EL, NB35-EC and
NB35-EL system boards. The differences between these boards are
shown below.

NB30-EC/EL Intel 845GL

ADD slot

“EL” supports onboard LAN

NB35-EC/EL Intel 845G

AGP slot

“EL” supports onboard LAN

Table of Contents

Chapter 1 - Introduction

1.1 Features and Specifications..................................................................................

1.2 Package Checklist.........................................................................................................

Chapter 2 - Hardware Installation

2.1 System Board Layout ..........................................................................................

2.2 System Memory...........................................................................................................

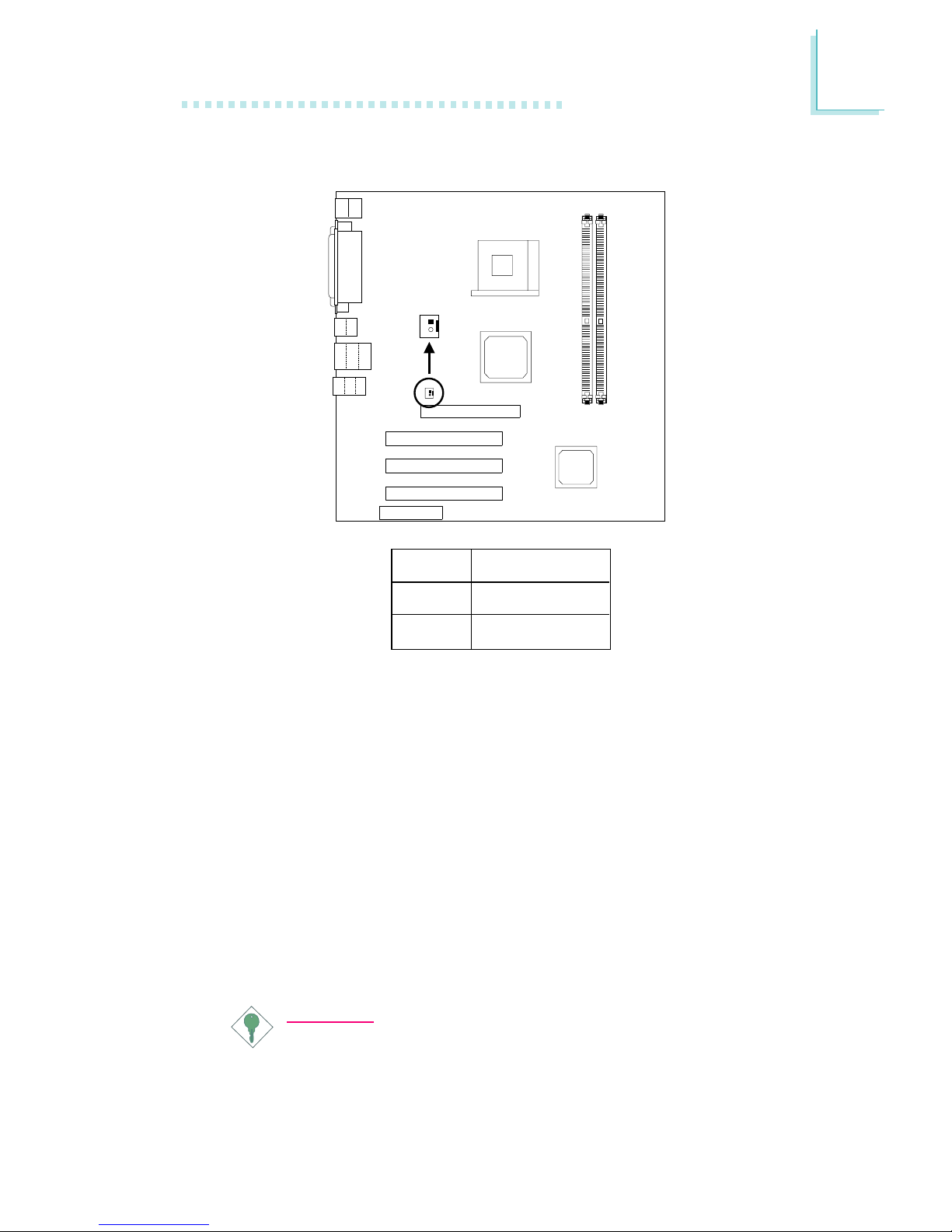

2.3 Jumper Settings for Clearing CMOS Data........................................

2.4 Jumper Settings for Wake-On-Keyboard/Mouse..................................

2.5 Jumper Settings for Wake-On-USB Keyboard.......................................

2.6 Jumper Settings for Selecting the CPU’s Front Side Bus......

2.7 Jumper Settings for USB 6................................................................................

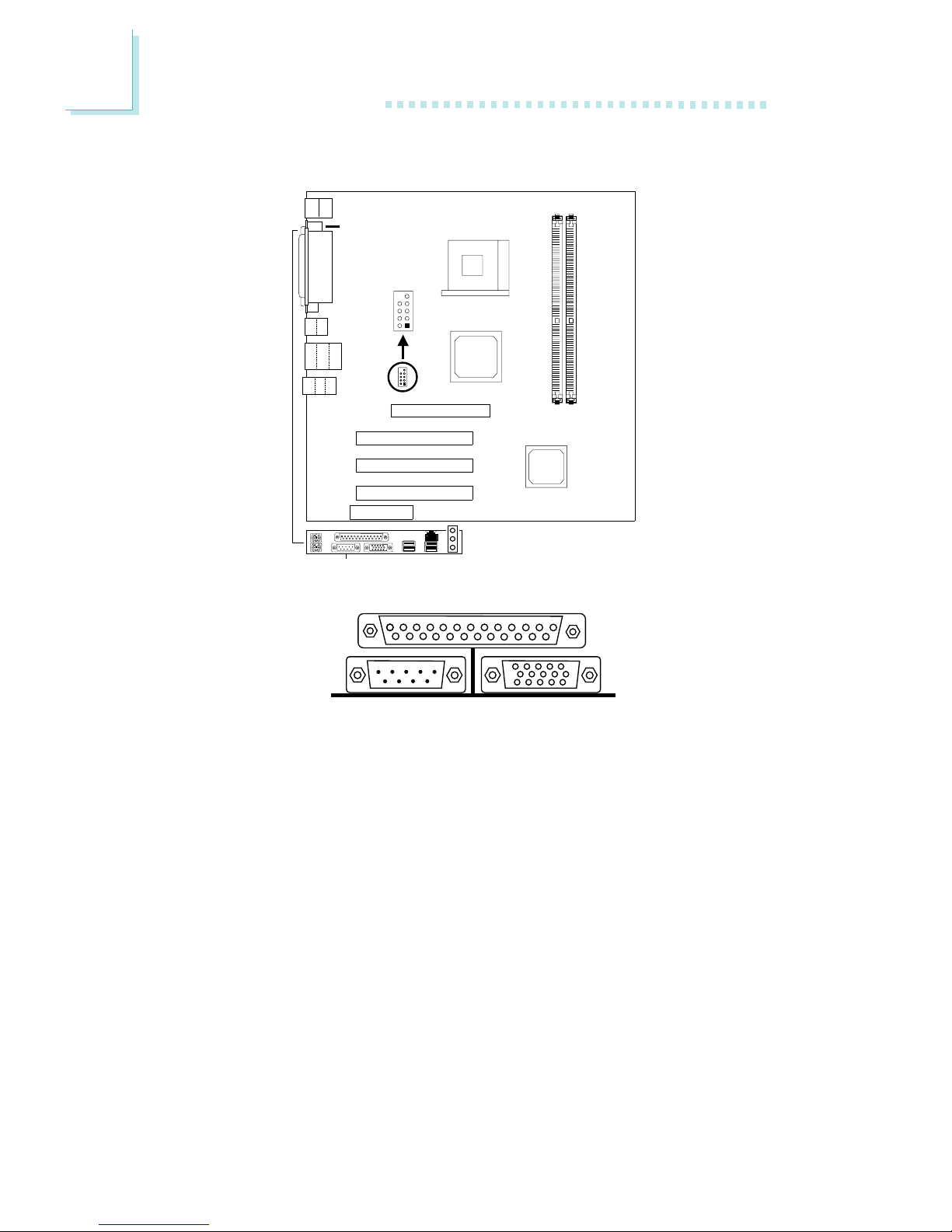

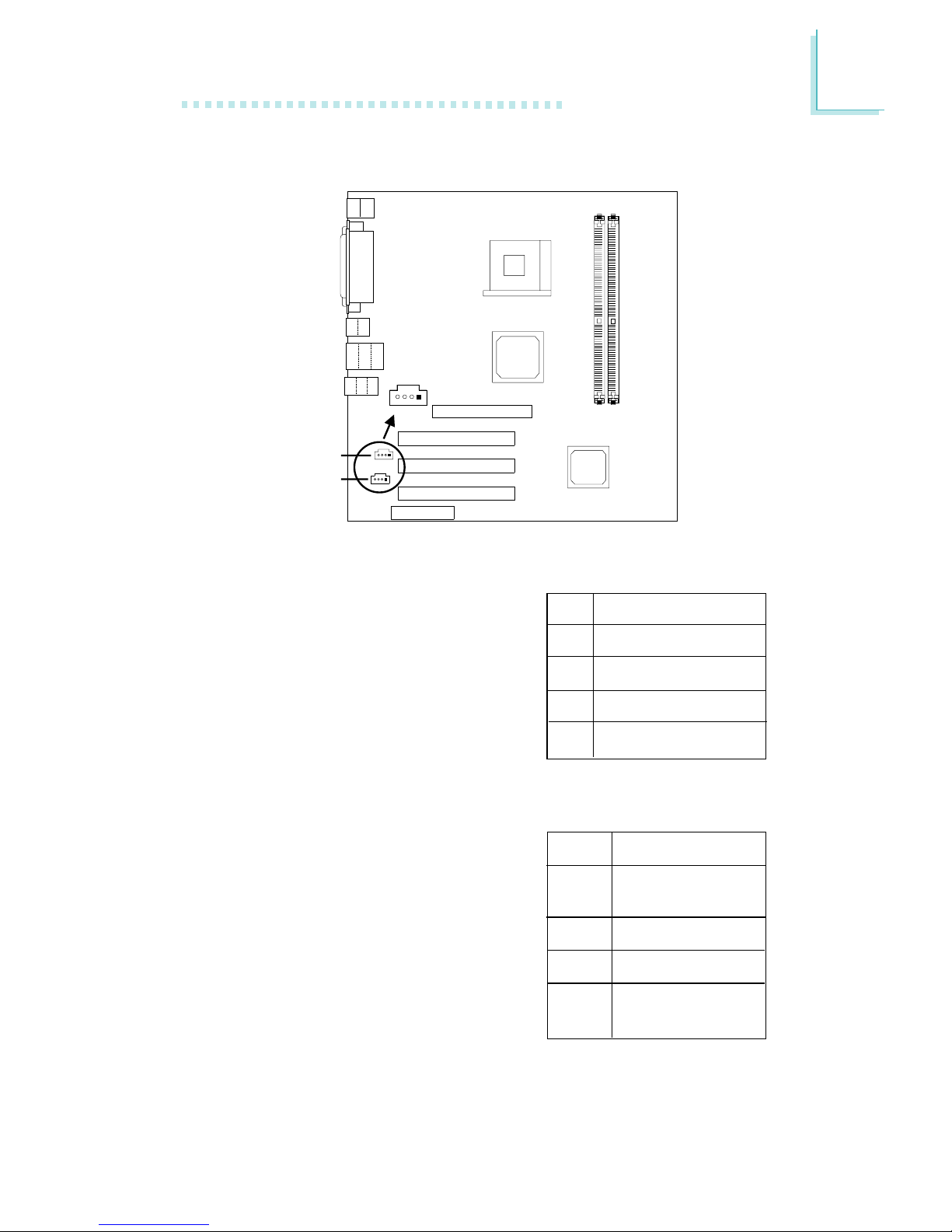

2.8 Por ts and Connectors...........................................................................................

Chapter 3 - Award BIOS Setup Utility

3.1 The Basic Input/Output System.....................................................................

3.1.1 Standard CMOS Features.............................................................

3.1.2 Advanced BIOS Features..............................................................

3.1.3 Advanced Chipset Features ......................................................

3.1.4 Integrated Peripherals.........................................................................

3.1.5 Power Management Setup............................................................

3.1.6 PnP/PCI Configurations....................................................................

3.1.7 PC Health Status...................................................................................

3.1.8 CPU Frequency Control..................................................................

3.1.9 Load Fail-Safe Defaults.....................................................................

3.1.10 Load Optimized Defaults..............................................................

3.1.11 Set Supervisor Password...............................................................

3.1.12 Set User Password..............................................................................

3.1.13 Save & Exit Setup.................................................................................

3.1.14 Exit Without Saving..............................................................................

7

15

63
63
67
72
75
83
87
89
91
93
93
94
94
95
95

16
20
22
24
26
28
29
30

Introduction

1

6

103
103

Chapter 4 - Supported Softwares

4.1 Desktop Management Interface................................................................

4.2 Hardware Doctor....................................................................................................

4.3 Intel INF Update Utility for Windows 98SE/2000/ME/

XP...........................................................................................................................................

4.4 Intel Application Accelerator for Windows......................................

4.5 Intel Graphics Drivers for Windows 98SE/NT/ME/

2000/XP...........................................................................................................................

4.6 Audio Drivers and Software Application.........................................

4.7 Onboard LAN Drivers for Windows.................................................

4.8 USB 2.0 Driver..........................................................................................................

4.9 Microsoft DirectX 8.1 Driver.......................................................................

4.10 Drivers and Utilities Installation Notes...............................................

Appendix A - System Error Messages

A.1 POST Beep.......................................................................................................................

A.2 Error Messages..............................................................................................................

Appendix B - Troubleshooting

B.1 Troubleshooting Checklist....................................................................................

96
99

99

100

100
101
101
101
102
102

105

1

Introduction

7

1.1 Features and Specifications

1.1.1 Features

Chipset

• NB30-EC/EL
Intel® 845GL chipset

- Intel® 845GL Graphics Memory Controller Hub (GMCH)

- Intel® 82801DB I/O Controller Hub (ICH4)

• NB35-EC/EL
Intel® 845G chipset

- Intel® 845G Graphics Memory Controller Hub (GMCH)

- Intel® 82801DB I/O Controller Hub (ICH4)

Processor

The system board is equipped with Socket 478 for installing a
Pentium® 4 processor.

• Intel® Pentium® 4 processor (478-pin)

• Supports up to 2.2GHz CPU speed

• 400/533MHz system data bus (NB35-EC/EL)

400MHz system data bus (NB30-EC/EL)

System Memory

• Two 184-pin DDR SDRAM DIMM sockets

• 2.5V unbuffered PC1600 (DDR200) / PC2100 (DDR266)
DDR SDRAM DIMM

• Supports maximum of 2GB system memory using 64Mbit,
128Mbit, 256Mbit or 512Mbit technology

- Double-sided x16 DDR SDRAM DIMM is not supported

Chapter 1 - Introduction

Density Width

Single/Double

184-pin DDR

64 Mbit

X8

SS/DS

64/128MB

X16

SS/DS

32MB/NA

Density 128 Mbit

X8

SS/DS

128/256MB

X16

SS/DS

64MB/NA

256 Mbit

X8

SS/DS

256/512MB

X16

SS/DS

128MB/NA

512 Mbit

X8

SS/DS

512/1024MB

X16

SS/DS

256MB/NA

Introduction

1

8

Expansion Slots

The NB30-EC/EL system board is equipped with 1 ADD slot, 3 PCI
slots (1 shared with CNR slot) and 1 CNR slot.

The NB35-EC/EL system board is equipped with 1 AGP slot, 3 PCI
slots (1 shared with CNR slot) and 1 CNR slot.

The AGP slot only supports 1.5V AGP 4x (1066MB/sec. bandwidth)
add-in cards. AGP is an interface designed to support high
performance 3D graphics cards for 3D graphics applications. It
handles large amounts of graphics data with the following features:

• Pipelined memory read and write operations that hide memory
access latency.

• Demultiplexing of address and data on the bus for nearly 100
percent efficiency.

The ADD slot is used for installing an ADD (AGP Digital Display)
card.

CNR (Communication and Networking Riser) is an interface that
supports multi-channel audio, V.90 analog modem, phone-line based
networking or 10/100 Ethernet based networking riser board.

Onboard Graphics Features

• Graphics memory

- Shares 512K/1MB/8MB of the system memory in DOS

mode

- Uses Dynamic Video Memory Technology (DVMT) in

Windows mode

• Graphics controller

- Core frequency of 200MHz

- 350MHz integrated 24-bit RAMDAC

- Analog display up to 2048x1536 @ 60Hz refresh

- 3D setup and render engine - Discrete, Triangles, Strips and

fans

- Per pixel perspective corrected texture mapping

- Software DVD at 30fps, full screen

• 2D graphics features

- Optimized 256-bit BLT engine

- 32-bit alpha blended cursor

1

Introduction

9

- Programmable 3-color transparent cursor

• 3D graphics features

- 200 megapixels/sec fill rate

- Maximum 3D resolution: 1600x1200x32 @ 85Hz

- Flat and Gouraud shading

- 16- and 24-bit Z-buffering and 16- and 24-bit W-buffering

- Vertex and programmable pixel fogging and
atmospheric effects

- Double and triple render buffer

• Software drivers

- Windows® 98SE/2000/ME/XP

- Windows NT® 4.0

Onboard Audio Features

• 20-bit stereo full-duplex codec with independent variable
sampling rate

• High quality differential CD input

• True stereo line level outputs

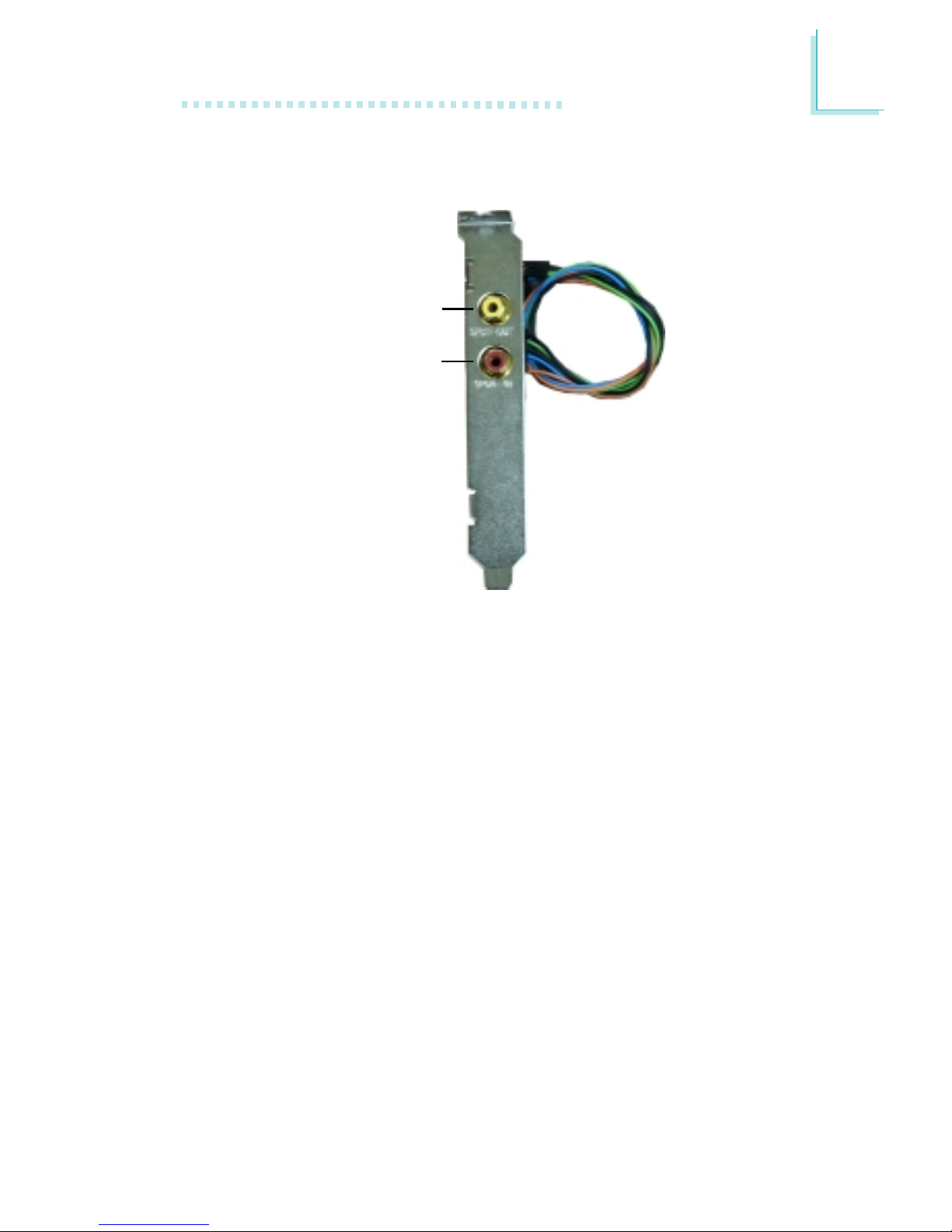

• S/PDIF-in/out interface

• 6-channel audio output

Onboard LAN Features (NB30-EL and NB35-EL only)

• Uses Realtek RTL8100 fast ethernet controller

• Integrated IEEE 802.3, 10BASE-T and 100BASE-TX compatible
PHY

• 32-bit PCI master interface

• Integrated power management functions

• Full duplex support at both 10 and 100 Mbps

• Supports IEEE 802.3u auto-negotiation

• Supports wire for management

Compatibility

• Microsoft PC ’98 compliant

• PCI 2.2, CNR 1.0 “A” type and AC ’97 compliant

• Intel AGP version 2.0

Introduction

1

10

ATX Double Deck Ports (PC 99 color-coded connectors)

• 4 USB 2.0/1.1 ports

• 1 RJ45 LAN port (NB30-EL and NB35-EL only)

• 1 NS16C550A-compatible DB-9 serial port

• 1 DB-15 VGA port

• 1 DB-25 parallel port

• 1 mini-DIN-6 PS/2 mouse por t

• 1 mini-DIN-6 PS/2 keyboard port

• 3 audio jacks: line-out, line-in and mic-in

Connectors

• 1 connector for 2 additional external USB 2.0/1.1 ports

• 1 connector for 1 external serial por t

• 1 connector for an external game/MIDI port

• 2 internal audio connectors (CD-in and TAD)

• 1 4-channel audio output connector

• 1 S/PDIF-in connector

• 1 S/PDIF-out connector

• 1 connector for IrDA interface

• 2 IDE connectors

• 1 floppy drive interface supports up to two 2.88MB floppy
drives

• 2 ATX power supply connectors

• 1 Wake-On-LAN connector

• 1 Wake-On-Ring connector

• CPU fan, chassis fan and second fan connectors

• 1 opened chassis alarm connector

PCI Bus Master IDE Controller

• Two PCI IDE interfaces suppor t up to four IDE devices

• Supports ATA/33, ATA/66 and ATA/100 hard drives

• PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)

• Bus mastering reduces CPU utilization during disk transfer

• Supports ATAPI CD-ROM, LS-120 and ZIP

1

Introduction

11

IrDA Interface

The system board is equipped with an IrDA connector for wireless
connectivity between your computer and peripheral devices.

USB Ports

The system board supports USB 2.0 and USB 1.1 ports. USB
allows data exchange between your computer and a wide range of
simultaneously accessible external Plug and Play peripherals.

BIOS

• Award BIOS, Windows® 98SE/2000/ME/XP Plug and Play
compatible

• Supports SCSI sequential boot-up

• Flash EPROM for easy BIOS upgrades

• Supports DMI 2.0 function

Desktop Management Interface (DMI)

The system board comes with a DMI 2.0 built into the BIOS. The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in the
DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventory, maintenance and troubleshooting of
computer systems easier. Refer to chapter 4 for instructions on using
the DMI utility.

1.1.2 System Health Monitor Functions

The system board is capable of monitoring the following “system
health” conditions.

• Monitors CPU/system temperature and overheat alarm

• Monitors 5VSB/VBAT/1.5V/3.3V/5V/±12V/CPU voltages and
failure alarm

• Monitors the fan speed of CPU fan, chassis fan and second fan;
and failure alarm

• Automatic chassis fan and second fan on/off control

Introduction

1

12

• Read back capability that displays temperature, voltage and fan
speed

• Opened chassis alarm

Refer to the “PC Health Status” section in chapter 3 and the
“Hardware Doctor” section in chapter 4 for more information.

1.1.3 Intelligence

Automatic Chassis/Second Fan Off

The chassis fan and second fan will automatically turn off once the
system enters the Suspend mode.

Dual Function Power Button

Depending on the setting in the “Soft-Off By PWR-BTTN” field of
the Power Management Setup, this switch will allow the system to

enter the Soft-Off or Suspend mode.

Wake-On-Ring

This feature allows the system that is in the Suspend mode or Soft
Power Off mode to wake-up/power-on to respond to calls coming
through an internal or external modem. Refer to “Wake-On-Ring
Connector” in chapter 2 and “Resume On Ring” in the Power
Management Setup section in chapter 3 for more information.

Important:

If you are using a modem add-in card, the 5VSB power source
of your power supply must support ≥720mA.

Wake-On-LAN

The Wake-On-LAN function is applicable only when you are using a
LAN add-in card that has the same function. It allows the network
to remotely wake up a Soft Power Down (Soft-Off) PC. Your LAN
card must support the remote wakeup function. Refer to “Wake-On­LAN Connector” in chapter 2 and “Resume On LAN” in the Power
Management Setup section in chapter 3 for more information.

Important:

The 5VSB power source of your power supply must support

≥

720mA.

1

Introduction

13

Wake-On-Keyboard/Wake-On-Mouse

This function allows you to use the keyboard or PS/2 mouse to
power-on the system. Refer to “Jumper Settings for Wake-On­Keyboard/Wake-On-Mouse” in chapter 2 and “Keyboard/Mouse
Power On” (“Onboard Super IO Device” field) in the Integrated
Peripherals section in chapter 3 for more information.

Important:

• The power button will not function once a keyboard
password has been set in the “KB Power On Password”
field of the Integrated Peripherals submenu. You must type
the correct password to power-on the system. If you forgot
the password, power-off the system and remove the
battery. Wait for a few seconds and install it back before
powering-on the system.

• The 5VSB power source of your power supply must
support ≥720mA.

Wake-On-USB Keyboard

The Wake-On-USB Keyboard function allows you to use a USB
keyboard to wake up a system that is in the S3 (STR - Suspend To
RAM) state. Refer to “Jumper Settings for Wake-On-USB Keyboard”
in chapter 2 and “USB KB Wake-Up From S3” in the Power
Management Setup section in chapter 3 for more information.

Important:

• If you are using the Wake-On-USB Keyboard function for 2
USB ports, the 5VSB power source of your power supply
must support ≥1.5A.

• If you are using the Wake-On-USB Keyboard function for 3
or more USB ports, the 5VSB power source of your power
supply must support ≥2A.

RTC Timer to Power-on the System

The RTC installed on the system board allows your system to
automatically power-on on the set date and time. Refer to “Resume
By Alarm” in the Power Management Setup section in chapter 3 for
more information.

Introduction

1

14

ACPI STR

The system board is designed to meet the ACPI (Advanced
Configuration and Power Interface) specification. ACPI has energy
saving features that enables PCs to implement Power Management
and Plug-and-Play with operating systems that support OS Direct
Power Management. Currently, only Windows® 98SE/2000/ME/XP
supports the ACPI function. ACPI when enabled in the Power
Management Setup will allow you to use the Suspend to RAM
function.

With the Suspend to RAM function enabled, you can power-off the
system at once by pressing the power button or selecting “Standby”
when you shut down Windows® 98SE/2000/ME/XP without having
to go through the sometimes tiresome process of closing files,
applications and operating system. This is because the system is
capable of storing all programs and data files during the entire
operating session into RAM (Random Access Memory) when it
powers-off. The operating session will resume exactly where you left
off the next time you power-on the system.

Important:

The 5VSB power source of your power supply must support

≥

1A.

AC Power Failure Recovery

When power returns after an AC power failure, you may choose to
either power-on the system manually, let the system power-on
automatically or return to the state where you left off before power
failure occurs. Refer to “PWR Lost Resume State” (“Onboard Super
IO Device”) in the Integrated Peripherals section in chapter 3 for
more information.

Virus Protection

Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table of
your hard disk drive.

1

Introduction

15

1.2 Package Checklist

The system board package contains the following items:

þ The system board
þ A users manual
þ One card-edge bracket mounted with a serial port and game/

MIDI port

ý One card-edge bracket mounted with 1 S/PDIF-in connector and

1 S/PDIF-out connector (optional)

þ One IDE cable for ATA/33, ATA/66 or ATA/100 IDE drives
þ One 34-pin floppy disk drive cable
þ One Main Board Utility CD

If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

2

16

Hardware Installation

2.1 System Board Layout

Chapter 2 - Hardware Installation

NB30-EC

(Uses Intel® 845GL chipset)

KB

Mouse

CN2

Wake-On­KB/Mouse (JP1)

+12V power
(ATXP1)

COM 1
(CN3)

Parallel
(CN4)

VGA
(CN1)

CN5

USB 3

USB 4

CN6

Line-

out

Line-

in

Mic-

in

Game/MIDI
(J3)

Audio jacks

(CN7)

Chassis open
(J7)

COM 2
(J10)

Wake-On-Ring (J11)

IrDA (J8)

S/PDIF

out (J2)

S/PDIF
in (J5)

TA D

(J4)

CD-in (J6)

4CH audio

(J9)

Socket 478

3.3VSB Standby
for PCI (JP3)

JP5

JP4

JP4/JP5:

USB 6 select

USB5&6
(J12)

RESET

SPEAKER

HD-LED

J17

ATX-SW

G-LED

G-SW

PWR-LED

Clear CMOS

(JP7)

Battery

Firmware

Hub

Wake-On­LAN (J20)

Chassis fan

(J19)

DDR SDRAM

DIMM 1

DDR SDRAM

DIMM 2

FDD
(J15)

IDE 1

(J18)

IDE 2

(J16)

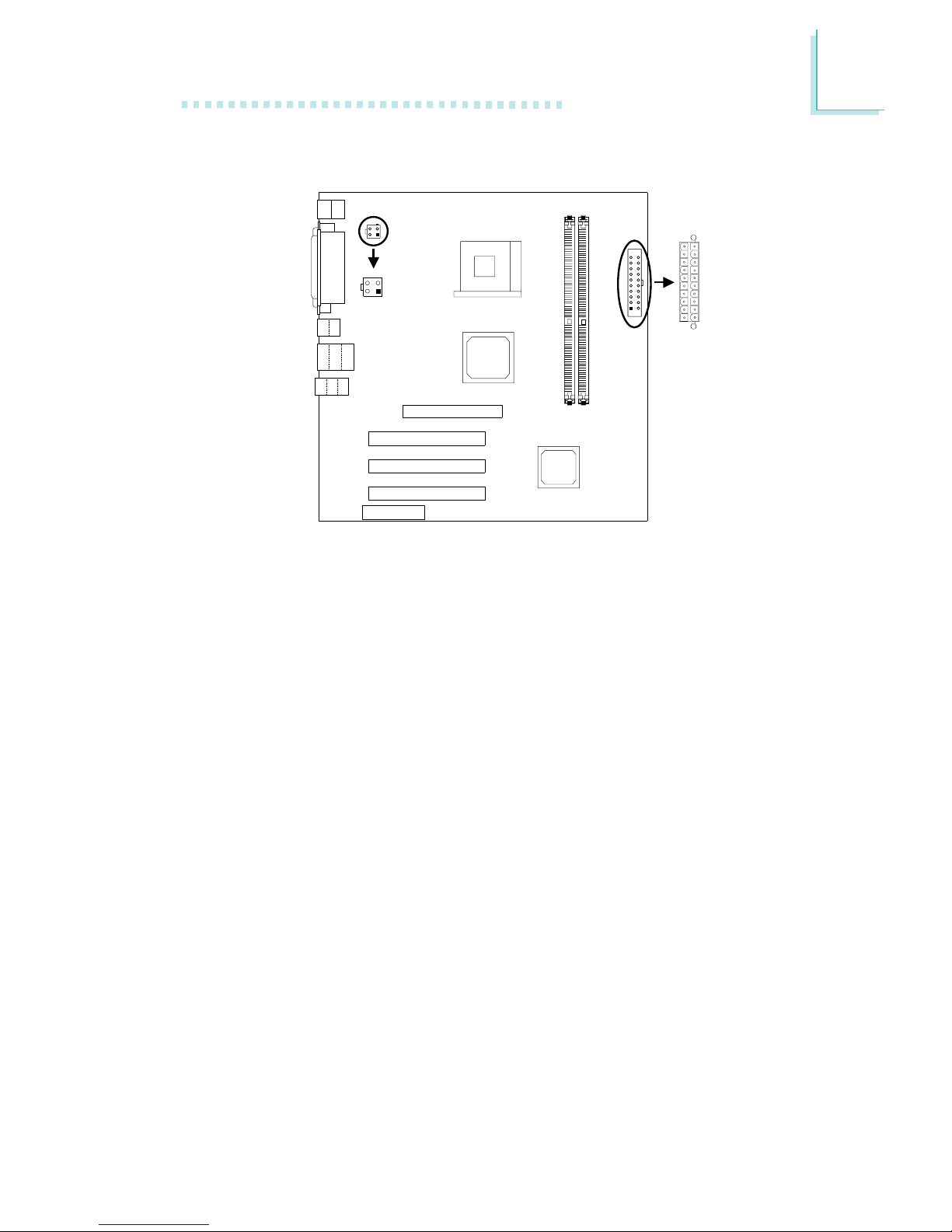

ATX Main Power

(PL1)

CPU fan

(J13)

Second fan
(J14)

ADD Slot

PCI Slot 1

PCI Slot 2

PCI Slot 3

CNR Slot

PCI Standby Power LED

AC’97
Front
audio
(J1)

DIMM
Standby
Power LED

Intel

845GL

Intel

ICH4

Winbond

W83627HF

Square denotes pin 1

USB 1

USB 2

ADD Warning LED

Wake-On-USB KB
for USB 1/2/3/4 (JP8)

2

Hardware Installation

17

NB30-EL

(Uses Intel® 845GL chipset and supports onboard LAN)

KB

Mouse

CN2

Wake-On­KB/Mouse (JP1)

+12V power
(ATXP1)

COM 1
(CN3)

Parallel
(CN4)

VGA
(CN1)

CN5

USB 3

USB 4

LAN

USB 1

USB 2

CN6

Line-

out

Line-

in

Mic-

in

Game/MIDI
(J3)

Audio jacks

(CN7)

Chassis open
(J7)

COM 2
(J10)

IrDA (J8)

S/PDIF

out (J2)

S/PDIF
in (J5)

TA D

(J4)

CD-in (J6)

4CH audio

(J9)

Socket 478

3.3VSB Standby
for PCI (JP3)

JP5

JP4

JP4/JP5:

USB 6 select

USB5&6
(J12)

RESET

SPEAKER

HD-LED

J17

ATX-SW

G-LED

G-SW

PWR-LED

Clear CMOS

(JP7)

Battery

Firmware

Hub

Wake-On­LAN (J20)

Chassis fan

(J19)

DDR SDRAM

DIMM 1

DDR SDRAM

DIMM 2

FDD
(J15)

IDE 1

(J18)

IDE 2

(J16)

ATX Main Power

(PL1)

CPU fan

(J13)

Second fan
(J14)

ADD Slot

PCI Slot 1

PCI Slot 2

PCI Slot 3

CNR Slot

PCI Standby Power LED

AC’97
Front
audio
(J1)

DIMM
Standby
Power LED

Intel

845GL

Intel

ICH4

Realtek

RTL8100

Winbond

W83627HF

Square denotes pin 1

Wake-On-Ring (J11)

ADD Warning LED

Wake-On-USB KB
for USB 1/2/3/4 (JP8)

2

18

Hardware Installation

NB35-EC

(Uses Intel® 845G chipset)

KB

Mouse

CN2

Wake-On­KB/Mouse (JP1)

+12V power
(ATXP1)

COM 1
(CN3)

Parallel
(CN4)

CN5

USB 3

USB 4

CN6

Line-

out

Line-

in

Mic-

in

Game/MIDI
(J3)

Audio jacks

(CN7)

Chassis open
(J7)

COM 2
(J10)

IrDA (J8)

S/PDIF

out (J2)

S/PDIF
in (J5)

TA D

(J4)

CD-in (J6)

4CH audio

(J9)

Socket 478

CPU FSB select

(JP6)

3.3VSB Standby
for PCI (JP3)

JP5

JP4

JP4/JP5:

USB 6 select

USB5&6
(J12)

RESET

SPEAKER

HD-LED

J17

ATX-SW

G-LED

G-SW

PWR-LED

Clear CMOS

(JP7)

Battery

Firmware

Hub

Wake-On­LAN (J20)

Chassis fan

(J19)

DDR SDRAM

DIMM 1

DDR SDRAM

DIMM 2

FDD
(J15)

IDE 1

(J18)

IDE 2

(J16)

ATX Main Power

(PL1)

CPU fan

(J13)

Second fan
(J14)

AGP Slot

PCI Slot 1

PCI Slot 2

PCI Slot 3

CNR Slot

PCI Standby Power LED

AC’97
Front
audio
(J1)

DIMM
Standby
Power LED

Intel

845G

Intel

ICH4

Winbond

W83627HF

Square denotes pin 1

USB 1

USB 2

VGA
(CN1)

Wake-On-Ring (J11)

AGP Warning LED

Wake-On-USB KB
for USB 1/2/3/4 (JP8)

2

Hardware Installation

19

Note:

The illustrations on the following pages are based on the system
board that supports onboard LAN.

NB35-EL

(Uses Intel® 845G chipset and supports onboard LAN)

KB

Mouse

CN2

Wake-On­KB/Mouse (JP1)

+12V power
(ATXP1)

COM 1
(CN3)

Parallel
(CN4)

CN5

USB 3

USB 4

LAN

USB 1

USB 2

CN6

Line-

out

Line-

in

Mic-

in

Game/MIDI
(J3)

Audio jacks

(CN7)

Chassis open
(J7)

COM 2
(J10)

IrDA (J8)

S/PDIF

out (J2)

S/PDIF
in (J5)

TA D

(J4)

CD-in (J6)

4CH audio

(J9)

Socket 478

CPU FSB select

(JP6)

3.3VSB Standby
for PCI (JP3)

JP5

JP4

JP4/JP5:

USB 6 select

USB5&6
(J12)

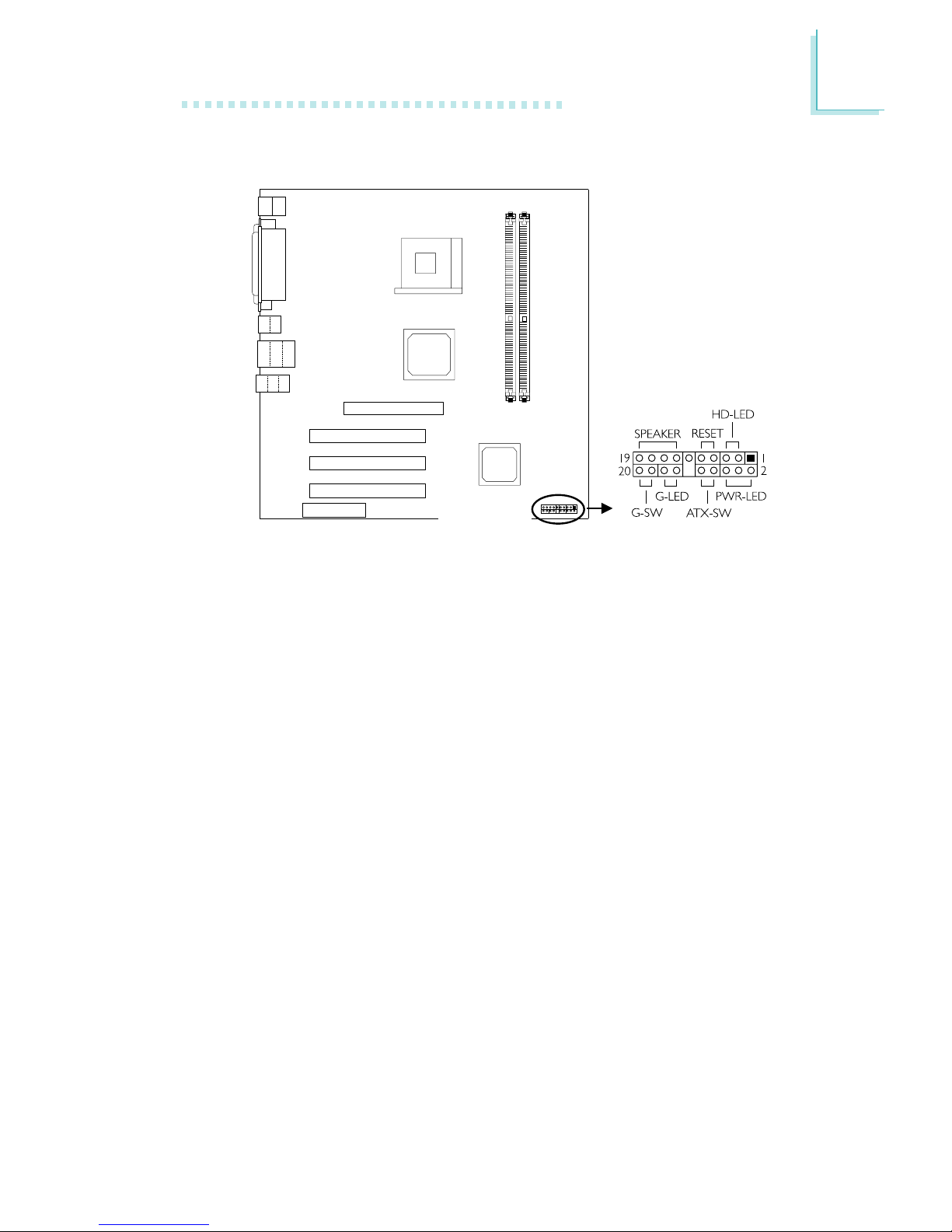

RESET

SPEAKER

HD-LED

J17

ATX-SW

G-LED

G-SW

PWR-LED

Clear CMOS

(JP7)

Battery

Firmware

Hub

Wake-On­LAN (J20)

Chassis fan

(J19)

DDR SDRAM

DIMM 1

DDR SDRAM

DIMM 2

FDD
(J15)

IDE 1

(J18)

IDE 2

(J16)

ATX Main Power

(PL1)

CPU fan

(J13)

Second fan
(J14)

AGP Slot

PCI Slot 1

PCI Slot 2

PCI Slot 3

CNR Slot

PCI Standby Power LED

AC’97
Front
audio
(J1)

DIMM
Standby
Power LED

Intel

845G

Intel

ICH4

Realtek

RTL8100

Winbond

W83627HF

Square denotes pin 1

VGA
(CN1)

Wake-On-Ring (J11)

AGP Warning LED

Wake-On-USB KB
for USB 1/2/3/4 (JP8)

2

20

Hardware Installation

2.2 System Memory

Warning:

Electrostatic discharge (ESD) can damage your system board,
processor, disk drives, add-in boards, and other components. Perform
the upgrade instruction procedures described at an ESD workstation
only. If such a station is not available, you can provide some ESD
protection by wearing an antistatic wrist strap and attaching it to a
metal part of the system chassis. If a wrist strap is unavailable,
establish and maintain contact with the system chassis throughout
any procedures requiring ESD protection.

The system board is equipped with two 184-pin DDR SDRAM
DIMM (Dual In-line Memory Module) sockets that support 2.5V
DDR SDRAM DIMM. Double Data Rate SDRAM (DDR SDRAM) is
a type of SDRAM that doubles the data rate through reading and
writing at both the rising and falling edge of each clock. This
effectively doubles the speed of operation therefore doubling the
speed of data transfer.

Refer to chapter 1 (System Memory section) for detailed
specification of the memory supported by the system board.

DDR SDRAM

DIMM 1

DDR SDRAM
DIMM 2

2

Hardware Installation

21

2.2.1 Installing the DIM Module

A DIM module simply snaps into a DIMM socket on the system
board. Pin 1 of the DIM module must correspond with Pin 1 of the
socket.

1. Pull the “tabs” which are at the ends of the socket to the side.

2. Position the DIMM above the socket with the “notch” in the
module aligned with the “key” on the socket.

3. Seat the module vertically into the socket. Make sure it is
completely seated. The tabs will hold the DIMM in place.

Pin 1

Notch

Key

Tab

Tab

2

22

Hardware Installation

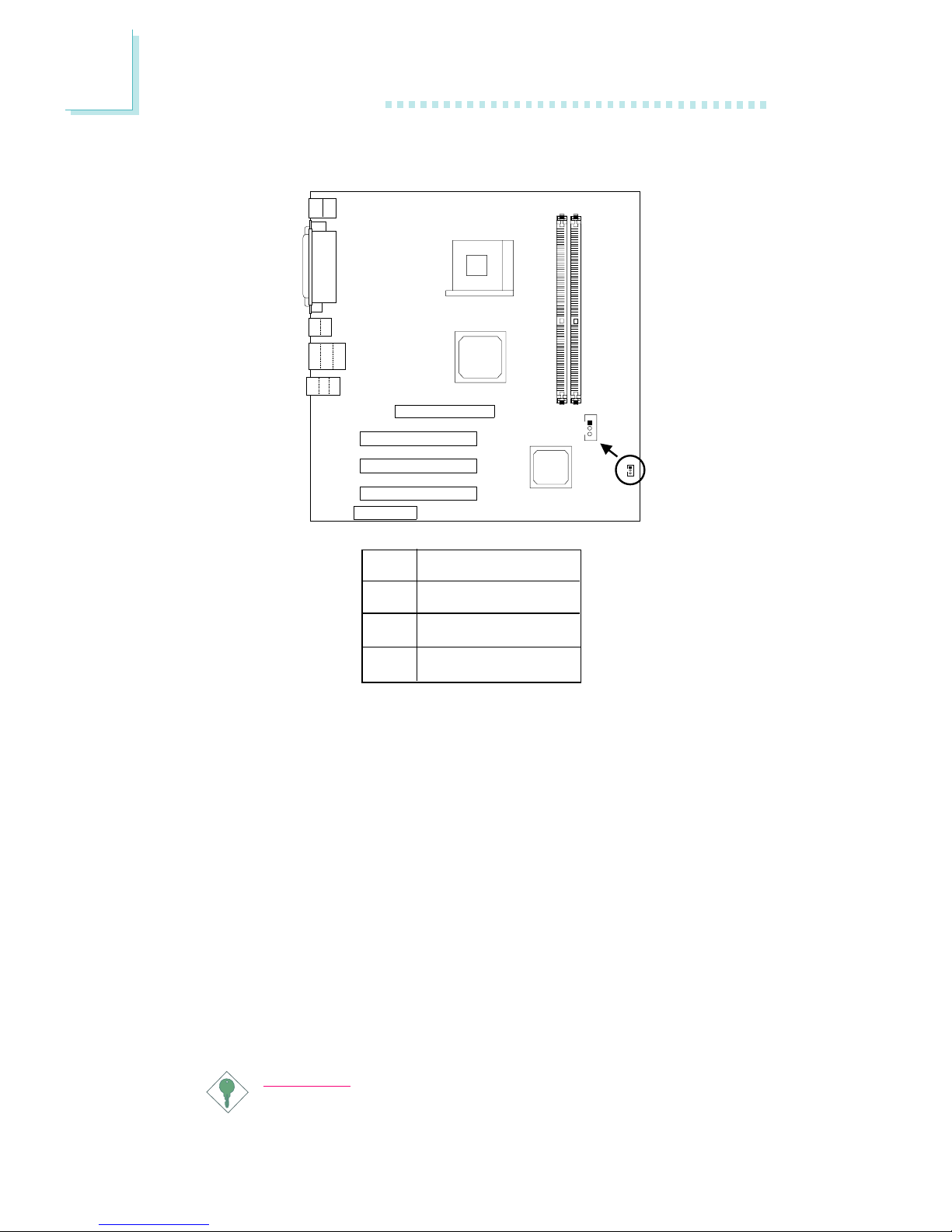

2.3 Jumper Settings for Clearing CMOS Data

Clear CMOS Data - Jumper JP7

If you encounter the following,

a) CMOS data becomes corrupted.
b) You forgot the supervisor or user password.
c) You are unable to boot-up the computer system because the

processor’s ratio/clock was incorrectly set in the BIOS.

you can reconfigure the system with the default values stored in the
ROM BIOS.

To load the default values stored in the ROM BIOS, please follow
the steps below.

1. Power-off the system.

2. Set JP7 pins 2 and 3 to On. Wait for a few seconds and set JP7
back to its default setting, pins 1 and 2 On.

2-3 On:

Clear CMOS Data

1-2 On: Normal

(default)

3

2

1

3

2

1

Clear CMOS

(JP7)

1

2

3

2

Hardware Installation

23

3. Now power-on the system.

If your reason for clearing the CMOS data is due to incorrect
setting of the processor’s ratio/clock in the BIOS, please proceed
to step 4.

4. After powering-on the system, press <Del> to enter the main
menu of the BIOS.

5. Select the CPU Frequency Control submenu and press <Enter>.

6. Set the “CPU Clock Ratio” or “Clock By Slight Adjust” field to its
default setting or an appropriate frequency ratio or bus clock.
Refer to the CPU Frequency Control section in chapter 3 for
more information.

7. Press <Esc> to return to the main menu of the BIOS setup
utility. Select “Save & Exit Setup” and press <Enter>.

8. Type <Y> and press <Enter>.

2

24

Hardware Installation

2.4 Jumper Settings for Wake-On-Keyboard/
Wake-On-Mouse

Wake-On-Keyboard/Wake-On-Mouse - Jumper JP1

The Wake-On-Keyboard/Wake-On-Mouse function allows you to use
the keyboard or PS/2 mouse to power-on the system. By default,
JP1 is disabled. To use this function, set JP1 to 2-3 On. “Keyboard/
Mouse Power On” (“Onboard Super IO Device” field) in the
Integrated Peripherals submenu of the BIOS must be set accordingly.
Refer to chapter 3 for details.

Warning:

1. If JP1 was enabled with a password set in the “KB Power
On Password” field, and now you wish to disable the
keyboard password function, make sure to set the
“Keyboard/Mouse Power On” field to Disabled prior to
setting JP1 to disabled. You will not be able to boot up the
system if you fail to do so.

2-3 On: Enable

1-2 On: Disable

(default)

1

2

3

1

2

3

Wake-On­KB/Mouse
(JP1)

1
2
3

2

Hardware Installation

25

2. The power button will not function once a keyboard
password has been set in the “KB Power On Password”
(“Onboard Super IO Device” field) of the Integrated
Peripherals submenu. You must type the correct password
to power-on the system.

3. The 5VSB power source of your power supply must
support ≥720mA.

2

26

Hardware Installation

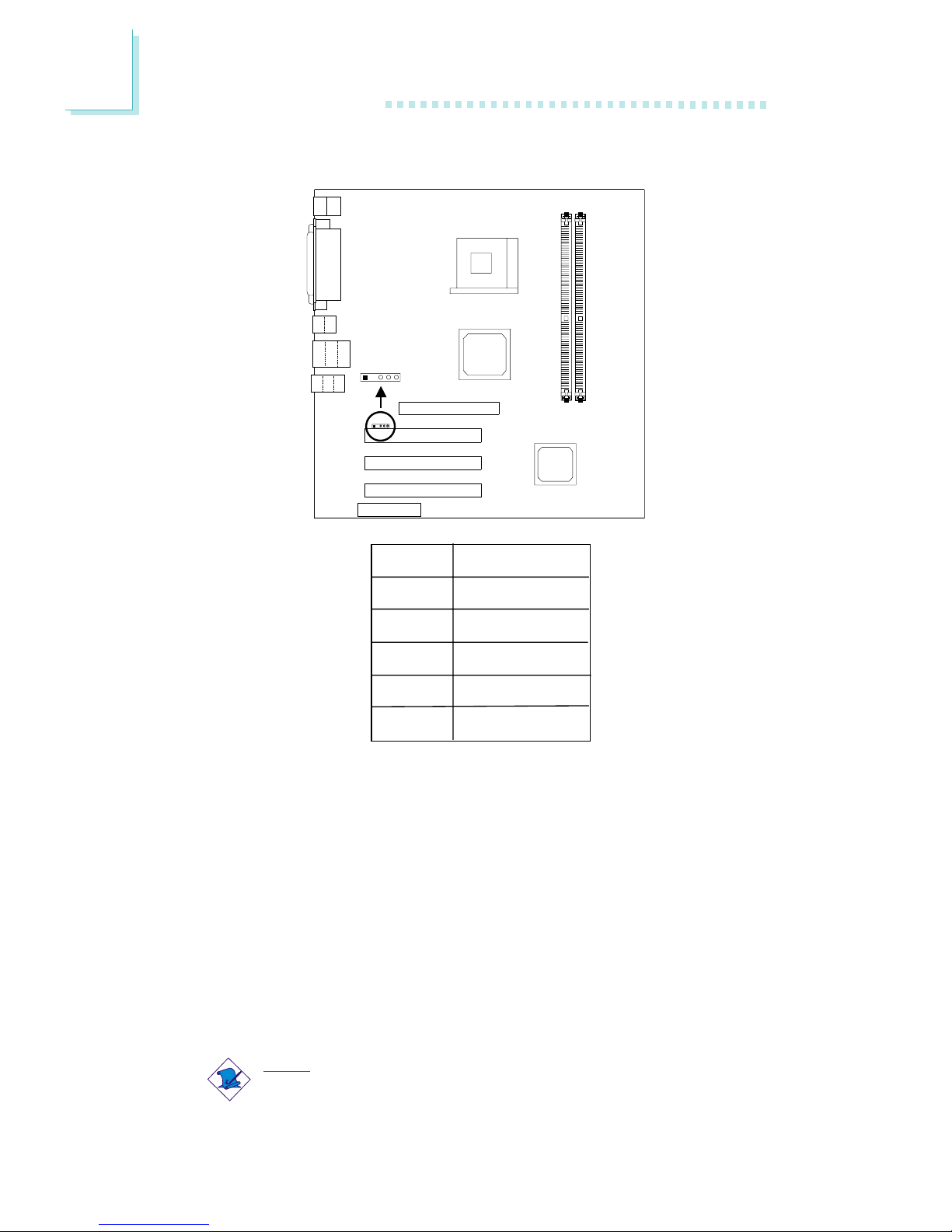

2.5 Jumper Settings for Wake-On-USB Keyboard

Wake-On-USB Keyboard for USB 1, USB 2, USB 3 and USB 4 ­Jumper JP8

The Wake-On-USB Keyboard function allows you to use a USB
keyboard to wake up a system that is in the S3 (STR - Suspend To
RAM) state.

JP8 is used to enable or disable the wake up function for USB por ts
1 to 4. USB 5 and USB 6 are designed so that the wake up
function for these ports are always enabled.

Regardless of the USB port used, make sure “USB KB Wake-Up
From S3” in the Power Management Setup submenu of the BIOS is
also set to Enabled.

Wake-On-USB KB
for USB 1/2/3/4 (JP8)

123

1

23

1

23

2-3 On: Enable

(default)

1-2 On: Disable

2

Hardware Installation

27

Important:

• If you are using the Wake-On-USB Keyboard function for 2
USB ports, the 5VSB power source of your power supply
must support ≥1.5A.

• If you are using the Wake-On-USB Keyboard function for 3
or more USB ports, the 5VSB power source of your power
supply must support ≥2A.

2

28

Hardware Installation

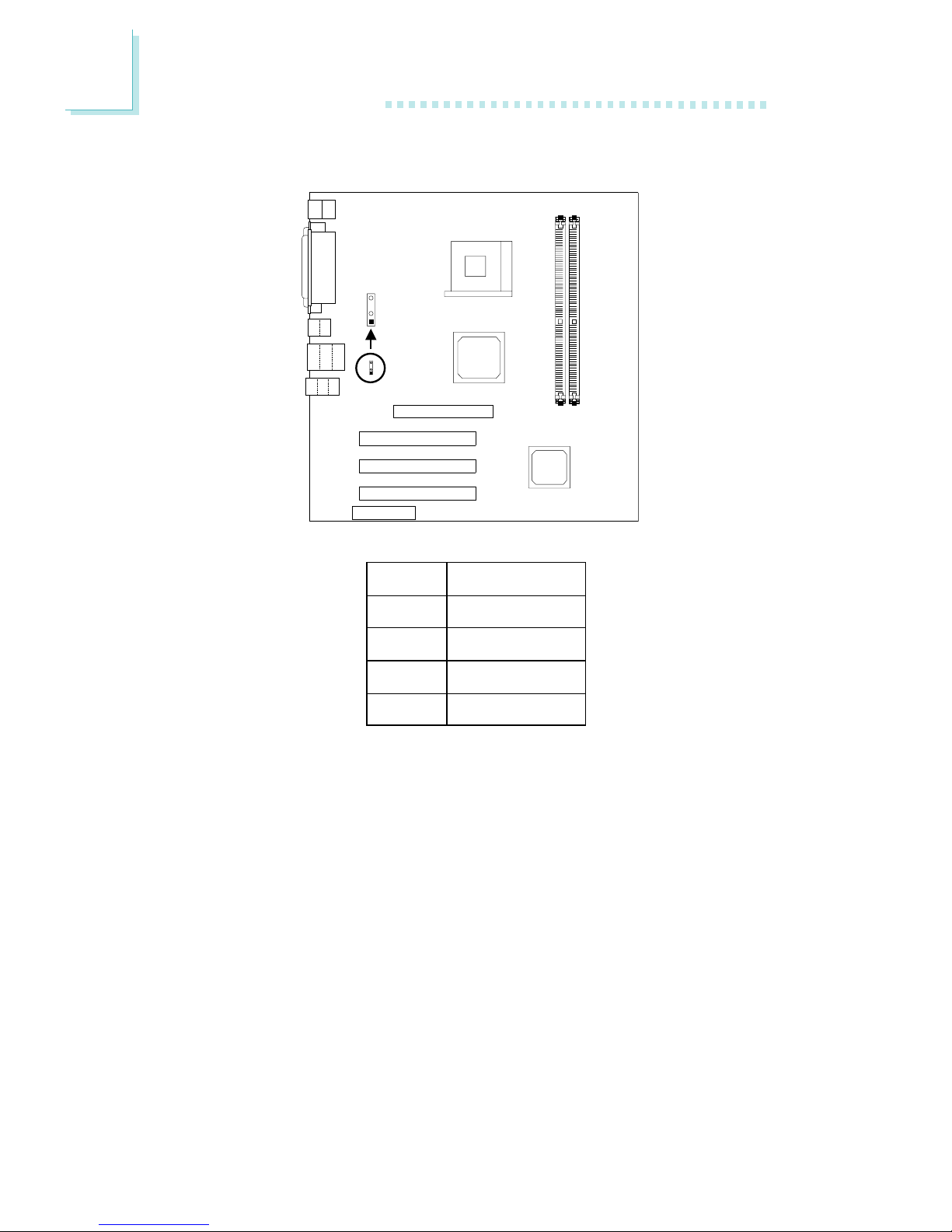

2.6 Jumper Settings for Selecting the CPU’s Front
Side Bus (NB35-EC/EL only)

CPU Front Side Bus Select - Jumper JP6

This jumper is used to select the front side bus of the CPU installed
on the system board.

1-2 On: Auto

(default)

2-3 On: 100MHz

All Off: 133MHz

3

2

1

3

2

1

3

2

1

1

2

3

CPU FSB select
(JP6)

2

Hardware Installation

29

2.7 Jumper Settings for USB 6

JP4

JP5

1-2 On: USB 6 on J12

(default)

2-3 On: USB 6 on CNR

USB 6 Select - Jumpers JP4 and JP5

These jumpers are used to select USB 6’s location. Set pins 1 and 2
to On if you want USB 6 on J12. Set pins 2 and 3 to On if you
want USB 6 on CNR.

32 1

321

JP4

JP5

JP5

JP4

321

USB 6 select

2

30

Hardware Installation

2.8 Ports and Connectors

PS/2

Mouse

PS/2

K/B

RJ45
LAN

USB 2/1COM 1 VGA

Parallel

Line-out

Line-in

Mic-in

USB 3

ATX Double Deck Ports on NB30-EL and NB35-EL

PS/2

Mouse

PS/2

K/B

USB 1COM 1 VGA

Parallel

Line-out

Line-in

Mic-in

USB 3

ATX Double Deck Ports on NB30-EC and NB35-EC

USB 2

USB 4

USB 4
