DFI ML905-B11C, ML905-B16C User Manual

ML905-B SERIES

Micro COM Express Board

User’s Manual

935-ML9051-000G

A13500005

Copyright

This publication contains information that is protected by copyright. No part of it
may be reproduced in any form or by any means or used to make any transfor­mation/adaptation without the prior written permission from the copyright hold­ers.

This publication is provided for informational purposes only. The manufacturer
makes no representations or warranties with respect to the contents or use
of this manual and specifically disclaims any express or implied warranties of
merchantability or fitness for any particular purpose. The user will assume the
entire risk of the use or the results of the use of this document. Further, the
manufacturer reserves the right to revise this publication and make changes to
its contents at any time, without obligation to notify any person or entity of such
revisions or changes.

© 2010. All Rights Reserved.

Trademarks

Product names or trademarks appearing in this manual are for identification pur­pose only and are the properties of the respective owners.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or televi­sion reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the
following measures:

• Reorientorrelocatethe receivingantenna.

• Increasethe separationbetween theequipment andthe receiver.

• Connectthe equipmentintoan outletona circuitdifferent fromthatto which

the receiver is connected.

• Consultthe dealeror anexperienced radioTV technicianfor help.

Notice:

1. The changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission
limits.

1

4

Introduction

Table of Contents

Copyright ........................................................................................... 2

Trademarks ........................................................................................ 2

FCC and DOC Statement on Class B .............................................. 3

About this Manual ............................................................................. 6

Warranty .......................................................................................... 6

Static Electricity Precautions ............................................................. 7

Safety Measures ................................................................................. 7

About the Package ............................................................................8

Chapter 1 - Introduction .................................................................. 9

Specifications ..................................................................................9

Features ...................................................................................... 11

Chapter 2 - Hardware Installation .................................................. 12

Board Layout ................................................................................ 12

Mechanical Diagram ........................................................................................... 13

System Memory ........................................................................... 14

Installing the DIM Module ......................................................... 15

Jumper Settings ............................................................................. 17

Clear CMOS Data ..................................................................... 17

Connectors .................................................................................. 18

COM Express Connectors .......................................................... 18

Standby Power LED ...................................................................... 23

SDIO/MMC Expansion Port.............................................................................24

Cooling Option ................................................................................................... 25

Installing ML905-B onto a Carrier Board ........................................ 28

1

5

Introduction

Chapter 3 - BIOS Setup .................................................................. 32

Award BIOS Setup Utility .............................................................. 32

Standard CMOS Features .......................................................... 33

Advanced BIOS Features ........................................................... 37

Advanced Chipset Features ........................................................ 41

Integrated Peripherals .............................................................. 43

Power Management Setup ......................................................... 47

PnP/PCI Configurations ............................................................. 48

PC Health Status ...................................................................... 50

Load Fail-Safe Defaults ............................................................. 51

Load Optimized Defaults ........................................................... 52

Set Supervisor Password ........................................................... 53

Set User Password ................................................................... 54

Save & Exit Setup .................................................................... 55

Exit Without Saving .................................................................. 56

Updating the BIOS ........................................................................ 57

Chapter 4 - Supported Software ................................................... 59

Microsoft DirectX 9.0C Driver ......................................................................60

Intel Chipset Software Installation Utility .................................................... 61

Intel Graphics Drivers .......................................................................................63

Audio Drivers ......................................................................................................65

LAN Drivers ........................................................................................................ 66

DFI Hardware Monitor for Windows ...........................................................67

Adobe Acrobat Reader 7.0 .............................................................................. 69

Appendix A - System Error Message .............................................. 71

Appendix B - Troubleshooting ......................................................... 73

1

6

Introduction

About this Manual

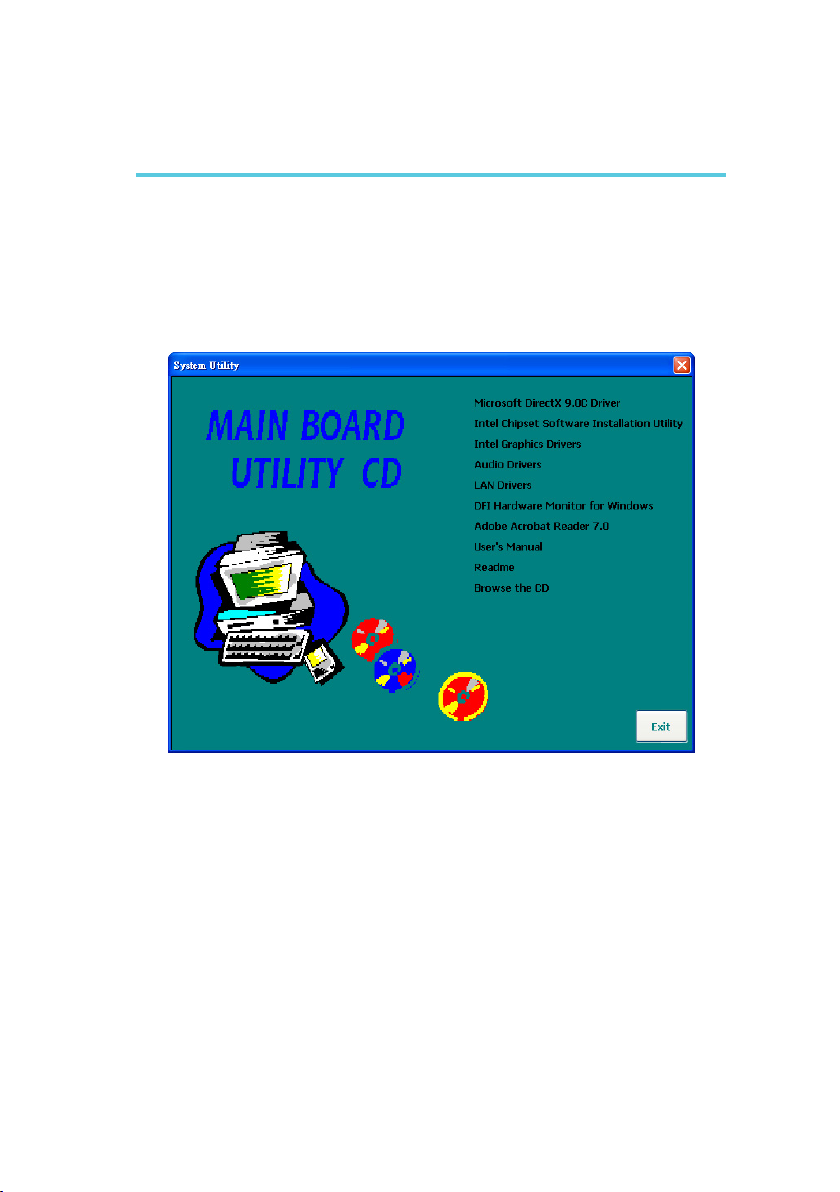

An electronic file of this manual is included in the CD. To view the user’s manual
in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board
Utility CD) will appear. Click “User’s Manual” on the main menu.

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the
product, inability to use the product, unauthorized replacement or alteration
of components and product specifications.

2. The warranty is void if the product has been subjected to physical abuse,
improper installation, modification, accidents or unauthorized repair of the
product.

3. Unless otherwise instructed in this user’s manual, the user may not, under
any circumstances, attempt to perform service, adjustments or repairs on the
product, whether in or out of warranty. It must be returned to the purchase
point, factory or authorized service agency for all such work.

4. We will not be liable for any indirect, special, incidental or consequencial
damages to the product that has been modified or altered.

1

7

Introduction

Static Electricity Precautions

It is quite easy to inadvertently damage your PC, system board, components
or devices even before installing them in your system unit. Static electrical dis­charge can damage computer components without causing any signs of physical
damage. You must take extra care in handling them to ensure against electro­static build-up.

1. To prevent electrostatic build-up, leave the system board in its anti-static bag
until you are ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of the compo­nents, contacts or connections.

5. Avoid touching the pins or contacts on all modules and connectors. Hold
modules or connectors by their ends.

Important:

Electrostatic discharge (ESD) can damage your processor, disk drive and
other components. Perform the upgrade instruction procedures described
at an ESD workstation only. If such a station is not available, you can
provide some ESD protection by wearing an antistatic wrist strap and
attaching it to a metal part of the system chassis. If a wrist strap is
unavailable, establish and maintain contact with the system chassis
throughout any procedures requiring ESD protection.

Safety Measures

To avoid damage to the system:

• Usethe correctAC inputvoltage range.

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for instal­lation or servicing. After installation or servicing, cover the system chassis
before plugging the power cord.

1

8

Introduction

About the Package

The package contains the following items. If any of these items are missing or
damaged, please contact your dealer or sales representative for assistance.

 One ML905-B board
 One heat sink
 One CD
 One QR (Quick Reference)

The board and accessories in the package may not come similar to the informa­tion listed above. This may differ in accordance to the sales region or models in
which it was sold. For more information about the standard package in your re­gion, please contact your dealer or sales representative.

1

9

Introduction

Chapter 1 - Introduction

Specifications

Processor

Chipset

System Memory

Expansion
Interfaces
(Type II)

Graphics

Audio

LAN

•Intel® Low Power (IA-32 microarchitecture) processor

- ML905-B11C
: Intel® Z510P processor
: 400MHz system front side bus
: Speed supports 1.1GHz

- ML905-B16C
: Intel® Z530P processor
: 533MHz system front side bus
: Speed supports 1.6GHz

•Intel® US15WP SCH single chip

•One200-pinSODIMMsocket

•Supports400/533MHzDDR2SDRAM

•Supportsmaximumof2GBsystem memory

•PCI2.3interface(supportsup to4 PCIbus masters)

•Supports8USBports(USB 1.1/2.0host controllers)

•Supports1PCIE x1interface

•Supports8-bitGPIO

•Intel® GMA500 integrated graphics engine

•Estimated200MHzcore renderclock at1.05V corevoltage

•Ultralow powerintegrated 3Dgraphics

•Highdefinitionhardwarevideodecode engine

•SupportsLVDSandSDVO interfaces
 - LVDS: Supports pixel clock depths of 18 or24bits,max.

pixel clock of 112MHz, equates to 1376x768 @ 85Hz

 - SDVO:Up to 160MHz pixel clock, equates to 1280x1024

@ 85Hz

•SupportsAzaliainterface

•OneRealtekRTL8111CPCI ExpressGigabit controller

•Supports10Mbps,100Mbpsand1Gbps datatransmission

•IEEE802.3 (10/100Mbps) and IEEE 802.3ab (1Gbps) com-

pliant

1

Introduction

Serial ATA

IDE

PCI Interface

Connectors

BIOS

Energy Efficient
Design

Power

Temperature

Humidity

PCB

• JMicron JMB362 PCI Express to SATA host controller

- x1 PCI Express to 2-port Serial ATA

• Supports 1-lane 2.5Gbps PCI Express bus

• Supports 2-port 3.0Gbps SATA II interface

• Bus Master IDE (PATA) controller

• Supports up to two IDE devices

• Ultra ATA 100/66/33

• Fully compliant with PCI Express to PCI/PCI-X bridge speci­fication, revision 1.0

• Full x1 PCI Express Throughput

• PCI Express advanced error reporting capability including

ECRC support

• COM Express connectors

- Two 220-pin COM Express standard connectors

- Module connector pin: Tyco 3-1827231-6

• Award BIOS

• 8Mbit flash memory

• Supports ACPI specification 2.0/1.0

• Enhanced Intel® SpeedStep Technology

• AC power failure recovery

- Depending on the type of power supply used, when us-

ing the “AC power failure recovery” feature to power the
system back on after an AC power failure occurs, the sys­tem may not power back on if the power lost is resumed
within 4 seconds.

• Input: 12V, 5VSB, VCC_RTC

• 0oC to 60oC

• Operating: 10% to 90%

• Dimensions

- Micro COM Express form factor

- 9.5cm (3.74”) x 9.5cm (3.74”)

• Compliance

- PICMG COM Express R1.0 basic form factor, Type 2

10

1

11

Introduction

Features

Watchdog Timer

The Watchdog Timer function allows your application to regularly “clear” the sys­tem at the set time interval. If the system hangs or fails to function, it will reset
at the set time interval so that your system will continue to operate.

DDR2

DDR2 is a higher performance DDR technology whose data transfer rate delivers
bandwidth of 4.3 GB per second and beyond. That is twice the speed of the con­ventional DDR without increasing its power consumption. DDR2 SDRAM modules

work at 1.8V supply compared to 2.6V memory voltage for DDR modules. DDR2

also incorporates new innovations such as the On-Die Termination (ODT) as well
as larger 4-bit pre-fetch against DDR which fetches 2 bits per clock cycle.

Graphics

The Intel SCH’s integrated GMA 500 provides graphics (2D and 3D) and high­definition video decode capabilities with minimal power consumption. These
enhancements deliver the performance and compatibility needed for today’s and
tomorrow’s business applications.

Gigabit LAN

The Realtek RTL8111C Gigabit LAN controller supports up to 1Gbps data trans­mission.

12

2

Hardware Installation

SODIMM

Intel

CPU

Intel

US15WP

Standby
Power LED

1

Clear CMOS
(JP1)

Realtek

RTL8111C

JMicron

JMB362

COM Expressconnector

COM Expressconnector

Maxim
8796G

SDIO/MMC

ITE

IT8516E

Chapter 2 - Hardware Installation

Board Layout

Top View

Buttom View

13

2

Hardware Installation

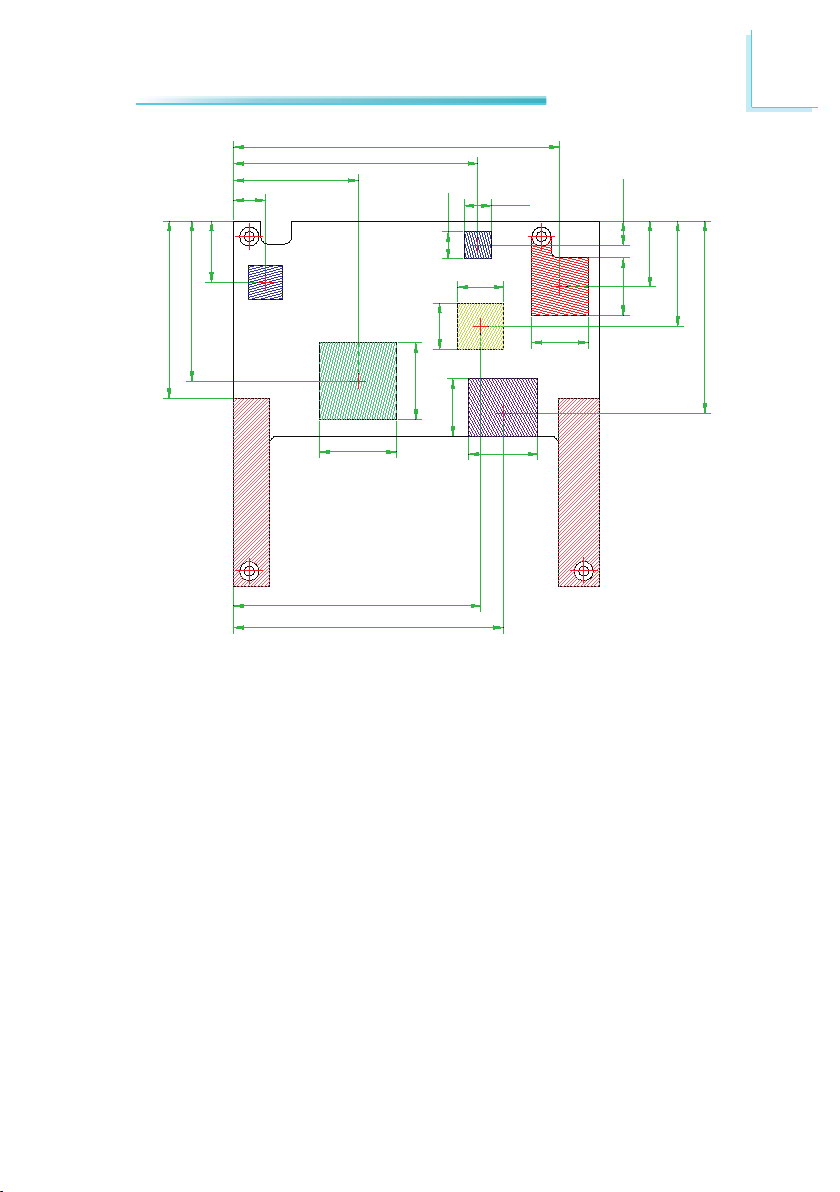

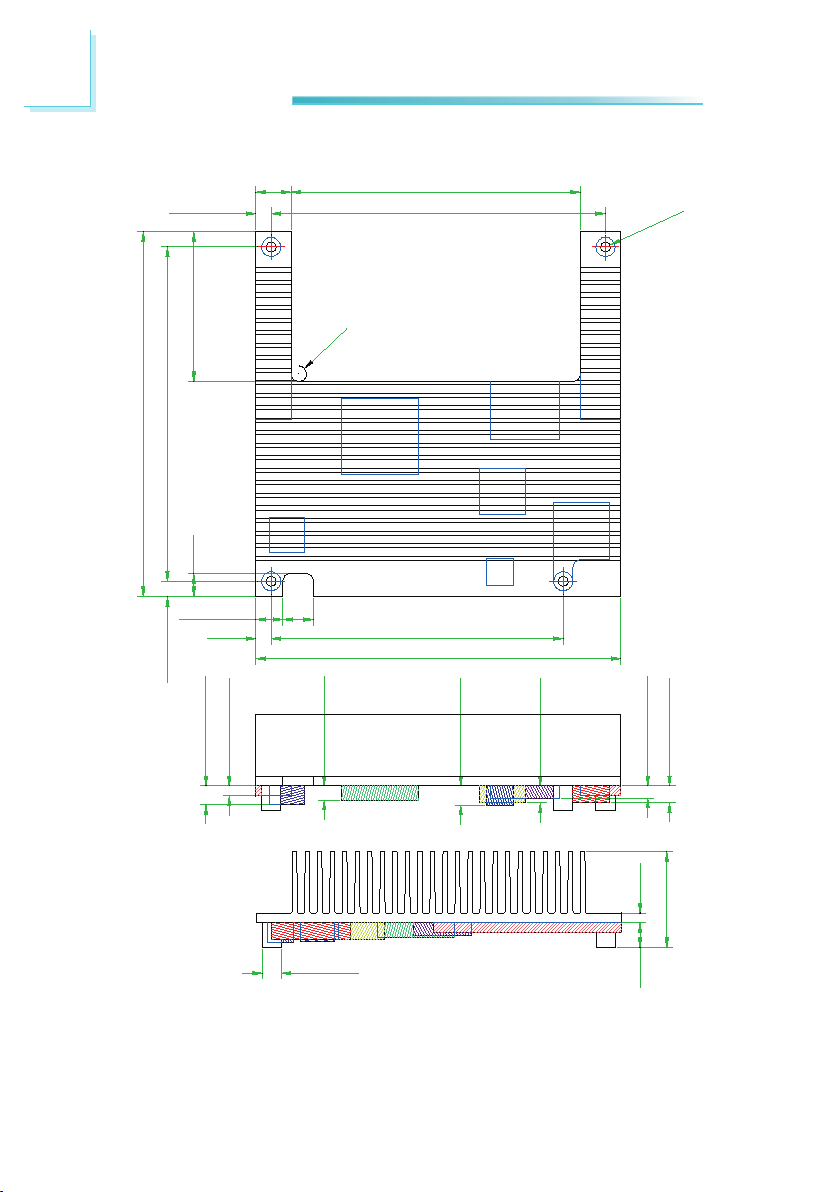

Mechanical Diagram

MADEIN TAIWAN

513

1

BIOS

0.00

0.00

4.00

4.00

0.00

76.00

91.00

4.00

87.00

91.00

91.00

87.00

0.00

87.00

91.00

4.00

2.00

14.00

12.50

14

2

Hardware Installation

Important:

Electrostatic discharge (ESD) can damage your board, processor, disk
drives, add-in boards, and other components. Perform installation proce­dures at an ESD workstation only. If such a station is not available, you
can provide some ESD protection by wearing an antistatic wrist strap
and attaching it to a metal part of the system chassis. If a wrist strap
is unavailable, establish and maintain contact with the system chassis
throughout any procedures requiring ESD protection.

System Memory

The system board is equipped with one 200-pin SODIMM socket that supports
DDR2 memory modules.

Important:

When the Standby Power LED lit red, it indicates that there is power on
the board. Power-off the PC then unplug the power cord prior to install­ing any devices. Failure to do so will cause severe damage to the board
and components.

SODIMM

Standby

Power LED

15

2

Hardware Installation

Installing the DIM Module

Note:

The system board used in the following illustrations may not resemble
the actual one. These illustrations are for reference only.

1. Make sure the PC and all other peripheral devices connected to it has been
powered down.

2. Disconnect all power cords and cables.

3. Locate the SODIMM socket on the system board.

4. Note the key on the socket. The key ensures the module can be plugged into
the socket in only one direction.

16

2

Hardware Installation

5. Grasping the module by its edges, align the module into the socket at an ap-

proximately 30 degrees angle. Apply rm even pressure to each end of the
module until it slips down into the socket. The contact ngers on the edge of

the module will almost completely disappear inside the socket.

6. Push down the module until the clips at each end of the socket lock into
position. You will hear a distinctive “click”, indicating the module is correctly
locked into position.

Clip

Clip

17

2

Hardware Installation

Jumper Settings

Clear CMOS Data

31 2

1-2 On: Normal

(default)

If you encounter the following,

a) CMOS data becomes corrupted.
b) You forgot the supervisor or user password.

you can recongure the system with the default values stored in the ROM BIOS.

To load the default values stored in the ROM BIOS, please follow the steps below.

1. Power-off the system and unplug the power cord.

2. Set JP1 pins 2 and 3 to On. Wait for a few seconds and set the jumper back
to its default setting, pins 1 and 2 On.

3. Now plug the power cord and power-on the system.

Clear CMOS Data

31 2

2-3 On:

18

2

Hardware Installation

Connectors

COM Express Connectors

The COM Express connectors are used to interface the ML905-B Micro COM Ex­press board to a carrier board. Connect the COM Express connectors (lcoated
on the solder side of the board) to the COM Express connectors on the carrier
board.

Refer to the “Installing ML905-B onto a Carrier Board” section for more informa­tion.

COM Express Connectors

Refer to the following pages for the pin functions of these connectors.

19

2

Hardware Installation

1 GNDA1 56 NC
2 GBE0_MDI3- 57 GBD
3 GBE0_MDI3+ 58 PCIE_TX3+
4 GNE0_LINK100# 59 PCIE_TX3­5 GBE0_LINK1000# 60 GNDA7
6 GBE0_MDI2- 61 PCIE_TX2+
7 GBE0_MDI2+ 62 PCIE_TX2­8 NC 63 GPI1

9 GBE0_MDI1- 64 PCIE_TX1+
10 GBE0_MDI1+ 65 PCIE_TX1­11 GNDA2 66 GNDA8
12 GBE0_MDI0- 67 GPI2
13 GBE0_MDI0+ 68 PCIE_TX0+
14 GBE0_CTREF 69 PCIE_TX0­15 SUS_S3# 70 GNDA9
16 SATA0_TX+ 71 LVDS_A0+
17 SATA0_TX- 72 LVDS_A0­18 SUS_S4# 73 LVDS_A1+
19 SATA0_RX+ 74 LVDS_A1­20 SATA0_RX- 75 LVDS_A2+
21 GNDA3 76 LVDS_A2­22 SATA2_TX+ 77 LVDS_VDD_EN
23 SATA2_TX- 78 LVDS_A3+
24 SUS_S5# 79 LVDS_A3­25 SATA2_RX+ 80 GNDA10
26 SATA2_RX- 81 LVDS_A_CK+
27 BATLOW# 82 LVDS_A_CK­28 ATA_ACT# 83 LVDS_I2C_CK
29 AC_SYNC 84 LVDS_I2C_DAT
30 AC_RST# 85 GPI3
31 GNDA4 86 KBD_RST#
32 AC_BITCLK 87 KBD_A20GATE
33 AC_SDOUT 88 PCIE0_CK_REF+
34 BIOS_DISABLE# 89 PCIE1_CK_REF­35 THRMTRIP# 90 GNDA11
36 USB6- 91 RSVDA1
37 USB6+ 92 NC
38 USB67_OC# 93 GPO0
39 USB4- 94 NC
40 USB4+ 95 NC
41 GNDA5 96 GNDA12
42 USB2- 97 VCC_12VA1
43 USB2+ 98 VCC_12VA2
44 USB23_OC# 99 VCC_12VA3
45 USB0- 100 GNDA13
46 USB0+ 101 VCC_12VA4
47 VCC_RTC 102 VCC_12VA5
48 EXCD0_PERST# 103 VCC_12VA6
49 EXCD0_CPPE# 104 VCC_12VA7
50 LPC_SERIR

Q

105 VCC_12VA8
51 GNDA6 106 VCC_12VA9
52 NC 107 VCC_12VA10
53 NC 108 VCC_12VA11
54 GPI0 109 VCC_12VA12
55 NC 110 GNDA14

Row A

20

2

Hardware Installation

1 GNDB1 56 NC
2 GBE0_ACT# 57 GPO2
3 LPC_FRAME# 58 PCIE_RX3+
4 LPC_AD0 59 PCIE_RX3­5 LPC_AD1 60 GNDB7
6 LPC_AD2 61 PCIE_RX2+
7 LPC_AD3 62 PCIE_RX2­8 LPC_DR

Q

0# 63 GPO3

9 LPC_DR

Q

1# 64 PCIE_RX1+
10 LPC_CLK 65 PCIE_RX1­11 GNDB2 66 WAKE0#
12 PWRBTN# 67 WAKE1#
13 SMB_CK 68 PCIE_RX0+
14 SMB_DAT 69 PCIE_RX0­15 SMB_ALERT# 70 GNDB8
16 SATA1_TX+ 71 LVDS_B0+
17 SATA1_TX- 72 LVDS_B0­18 SUS_STAT# 73 LVDS_B1+
19 SATA1_RX+ 74 LVDS_B1­20 SATA1_RX- 75 LVDS_B2+
21 GNDB3 76 LVDS_B2­22 SATA3_TX+ 77 LVDS_B3+
23 SATA3_TX- 78 LVDS_B3­24 PWR_OK 79 LVDS_BKLT_EN
25 SATA3_RX+ 80 GNDB9
26 SATA3_RX- 81 LVDS_B_CK+
27 WDT 82 LVDS_B_CK­28 AC_SDIN2 83 LVDS_BKLT_CTR

L

29 AC_SDIN1 84 VCC_5V_SBYB1
30 AC_SDIN0 85 VCC_5V_SBYB2
31 GNDB4 86 VCC_5V_SBYB3
32 SPK

R

87 VCC_5V_SBYB4
33 I2C_CK 88 NC
34 I2C_DAT 89 VGA_RED
35 THRM# 90 GNDB10
36 USB7- 91 VGA_GREEN
37 USB7+ 92 VGA_BLUE
38 USB45_OC# 93 VGA_HSYNC
39 USB5- 94 VGA_VSYNC
40 USB5+ 95 VGA_I2C_CK
41 GNDB5 96 VGA_I2C_DAT
42 USB3- 97 TV_DAC_A
43 USB3+ 98 TV_DAC_B
44 USB01_OC# 99 TV_DAC_C
45 USB1- 100 GNDB11
46 USB1+ 101 VCC_12VB1
47 EXCD1_PERST# 102 VCC_12VB2
48 EXCD1_CPPE# 103 VCC_12VB3
49 SYS_RESET# 104 VCC_12VB4
50 CB_RESET# 105 VCC_12VB5
51 GNDB6 106 VCC_12VB6
52 NC 107 VCC_12VB7
53 NC 108 VCC_12VB8
54 GPO1 109 VCC_12VB9
55 NC 110 GNDB12

Row B

21

2

Hardware Installation

1 GNDC1 56 PEG_RX1­2 IDE_D7 57 NC
3 IDE_D6 58 PEG_RX2+
4 IDE_D3 59 PEG_RX2­5 IDE_D15 60 GNDC7
6 IDE_D8 61 PEG_RX3+
7 IDE_D9 62 PEG_RX3­8 IDE_D2 63 NC

9 IDE_D13 64 NC
10 IDE_D1 65 PEG_RX4+
11 GNDC2 66 PEG_RX4­12 IDE_D14 67 NC
13 IDE_IORDY 68 PEG_RX5+
14 IDE_IOR# 69 PEG_RX5­15 PCI_PME# 70 GNDC8
16 PCI_GNT2# 71 PEG_RX6+
17 PCI_RE

Q

2# 72 PEG_RX6­18 PCI_GNT1# 73 SDVO_DATA
19 PCI_RE

Q

1# 74 PEG_RX7+
20 PCI_GNT0# 75 PEG_RX7­21 GNDC3 76 GNDC9
22 PCI_RE

Q

0# 77 NC
23 PCI_RESET# 78 PEG_RX8+
24 PCI_AD0 79 PEG_RX8­25 PCI_AD2 80 GNDC10
26 PCI_AD4 81 PEG_RX9+
27 PCI_AD6 82 PEG_RX9­28 PCI_AD8 83 NC
29 PCI_AD10 84 GNDC11
30 PCI_AD12 85 PEG_RX10+
31 GNDC4 86 PEG_RX10­32 PCI_AD14 87 GNDC12
33 PCI_C/BE1# 88 PEG_RX11+
34 PCI_PERR# 89 PEG_RX11­35 PCI_LOCK# 90 GNDC13
36 PCI_DEVSEL# 91 PEG_RX12+
37 PCI_IRDY# 92 PEG_RX12­38 PCI_C/BE2# 93 GNDC14
39 PCI_AD17 94 PEG_RX13+
40 PCI_AD19 95 PEG_RX13­41 GNDC5 96 GNDC15
42 PCI_AD21 97 NC
43 PCI_AD23 98 PEG_RX14+
44 PCI_C/BE3# 99 PEG_RX14­45 PCI_AD25 100 GNDC16
46 PCI_AD27 101 PEG_RX15+
47 PCI_AD29 102 PEG_RX15­48 PCI_AD31 103 GNDC17
49 PCI_IR

Q

A# 104 VCC_12VC1

50 PCI_IR

Q

B# 105 VCC_12VC2
51 GNDC6 106 VCC_12VC3
52 PEG_RX0+ 107 VCC_12VC4
53 PEG_RX0- 108 VCC_12VC5
54 NC 109 VCC_12VC6
55 PEG_RX1+ 110 GNDC18

Row C

22

2

Hardware Installation

1 GNDD1 56 PEG_TX1­2 IDE_D5 57 NC
3 IDE_D10 58 PEG_TX2+
4 IDE_D11 59 PEG_TX2­5 IDE_D12 60 GNDD7
6 IDE_D4 61 PEG_TX3+
7 IDE_D0 62 PEG_TX3­8 IDE_RE

Q

# 63 NC

9 IDE_IOW# 64 NC
10 IDE_ACK# 65 PEG_TX4+
11 GNDD2 66 PEG_TX4­12 IDE_IR

Q

67 GNDD8
13 IDE_A0 68 PEG_TX5+
14 IDE_A1 69 PEG_TX5­15 IDE_A2 70 GNDD9
16 IDE_CS1# 71 PEG_TX6+
17 IDE_CS3# 72 PEG_TX6­18 IDE_RESET# 73 SDVO_CLK
19 PCI_GNT3# 74 PEG_TX7+
20 PCI_RE

Q

3# 75 PEG_TX7­21 GNDD3 76 GNDD10
22 PCI_AD1 77 IDE_CBLID#
23 PCI_AD3 78 PEG_TX8+
24 PCI_AD5 79 PEG_TX8­25 PCI_AD7 80 GNDD11
26 PCI_C/BE0# 81 PEG_TX9+
27 PCI_AD9 82 PEG_TX9­28 PCI_AD11 83 NC
29 PCI_AD13 84 GNDD12
30 PCI_AD15 85 PEG_TX10+
31 GNDD4 86 PEG_TX10­32 PCI_PAR 87 GNDD13
33 PCI_SERR# 88 PEG_TX11+
34 PCI_STOP# 89 PEG_TX11­35 PCI_TRDY# 90 GNDD14
36 PCI_FRAME# 91 PEG_TX12+
37 PCI_AD16 92 PEG_TX12­38 PCI_AD18 93 GNDD15
39 PCI_AD20 94 PEG_TX13+
40 PCI_AD22 95 PEG_TX13­41 GNDD5 96 GNDD16
42 PCI_AD24 97 PEG_ENABLE#
43 PCI_AD26 98 PEG_TX14+
44 PCI_AD28 99 PEG_TX14­45 PCI_AD30 100 GNDD17
46 PCI_IR

Q

C# 101 PEG_TX15+

47 PCI_IR

Q

D# 102 PEG_TX15­48 PCI_CLKRUN# 103 GNDD18
49 NC 104 VCC_12VD1
50 PCI_CLK 105 VCC_12VD2
51 GNDD6 106 VCC_12VD3
52 PEG_TX0+ 107 VCC_12VD4
53 PEG_TX0- 108 VCC_12VD5
54 NC 109 VCC_12VD6
55 PEG_TX1+ 110 GNDD19

Row D

23

2

Hardware Installation

Standby Power LED

Standby

Power LED

This LED will light when the system is in the standby mode.
