MB331-CRM

System Board User’s Manual

A20820442

Page 2

This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.

Changes after the publication’s first release will be based on the product’s revision. The website will always provide the most updated information.

Trademarks

All trademarks and registered trademarks of products appearing in this manual are the properties of their respective holders.

Page 3

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

Page 4

Introduction

Table of Contents

Trademarks ........................................................................................ 2

FCC and DOC Statement on Class B .............................................. 3

About this Manual ............................................................................. 6

Warranty .......................................................................................... 6

Static Electricity Precautions ............................................................. 7

Safety Measures ................................................................................. 7

About the Package ............................................................................ 8

Before Using the System Board ........................................................8

Chapter 1 - Introduction ..................................................................9

Specifications .................................................................................. 9

Features ...................................................................................... 12

Chapter 2 - Hardware Installation .................................................. 15

System Board Layout .................................................................... 15

System Memory ........................................................................... 16

Installing the DIMM Module ....................................................... 18

CPU ............................................................................................ 20

Installing the CPU .................................................................... 21

Installing the Fan and Heat Sink ................................................ 24

Jumper Settings ............................................................................. 27

Clear CMOS Data ..................................................................... 27

PS/2 Power Select .................................................................... 28

USB Power Select ..................................................................... 29

Power-on Select ....................................................................... 30

COM1/COM2 RS232/RS422/RS485 Select.................................... 31

COM1/COM2 RS232/Power Select............................................... 32

Rear Panel I/O Ports ..................................................................... 33

PS/2 Mouse and PS/2 Keyboard Ports ......................................... 34

COM (Serial) Ports ................................................................... 35

VGA Port ................................................................................. 36

DVI-I Port ............................................................................... 37

RJ45 LAN Ports ........................................................................ 38

USB Ports................................................................................ 39

Audio ...................................................................................... 41

Page 5

Introduction

I/O Connectors ............................................................................ 43

Digital I/O Connectors .............................................................. 44

SATA (Serial ATA) Connectors .................................................... 45

Cooling Fan Connectors ............................................................. 46

Chassis Instrusion Connector .................................................... 47

Power Connectors .................................................................... 48

Standby Power LED .................................................................. 49

Front Panel Connectors ............................................................. 50

Expansion Slots ....................................................................... 51

Battery ................................................................................... 52

Chapter 3 - BIOS Setup .................................................................. 53

Overview .............................................................................................................. 53

AMI BIOS Setup Utility ................................................................. 55

Main ....................................................................................... 55

Advanced ................................................................................ 56

Chipset ................................................................................... 74

Boot ....................................................................................... 80

Security .................................................................................. 82

Save & Exit ............................................................................. 84

Updating the BIOS ........................................................................ 85

Notice: BIOS SPI ROM .................................................................. 86

Chapter 4 - Supported Software ................................................... 87

Chapter 5 - RAID ........................................................................ 116

RAID Levels .......................................................................................................116

Settings ................................................................................................................117

Chapter 6 - Intel AMT Settings ................................................... 121

Overview ............................................................................................................121

Enable Intel® AMT in the AMI BIOS ............................................................122

Enable Intel® AMT in the Intel® Management Engine BIOS

Extension (MEBX) Screen ..............................................................................

124

Appendix A - NLITE and AHCI Installation Guide ....................... 149

Appendix B - Watchdog Sample Code ......................................... 161

Appendix C - System Error Message ............................................ 162

Appendix D - Troubleshooting ...................................................... 164

Page 6

Introduction

About this Manual

An electronic file of this manual is included in the CD. To view the user’s manual in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click “User’s Manual” on the main menu.

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications.

2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work.

4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered.

Page 7

Introduction

Static Electricity Precautions

It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of the components, contacts or connections.

5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or connectors by their ends.

Important:

Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range.

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.

Battery:

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend by the manufacturer.

• Dispose of used batteries according to local ordinance.

Page 8

Introduction

About the Package

The system board package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.

 One MB331-CRM motherboard  Two Serial ATA data cables  Two USB port cables (with bracket)  Two COM port cables (with bracket)  One I/O shield  One DVD  One QR (Quick Reference)

Optional Items

 USB port cable  COM port cable  Serial ATA power cable  Serial ATA data cable  I/O shield

The system board and accessories in the package may not come similar to the information listed above. This may differ in accordance to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

Before Using the System Board

Before using the system board, prepare basic system components.

If you are installing the system board in a new system, you will need at least the following internal components.

• A CPU

• Memory module

• Storage devices such as hard disk drive, CD-ROM, etc.

You will also need external system peripherals you intend to use which will normally include at least a keyboard, a mouse and a video display monitor.

Page 9

Introduction

Processor

Chipset

System Memory

Expansion Slots

Graphics

Audio

LAN

Chapter 1 - Introduction

• LGA 1155 socket for:

- 3rd generation Intel

CoreTM processors (22nm process technology) : Intel

CoreTM i7-3770 (8M Cache, up to 3.9GHz); 77W

: Intel

CoreTM i5-3550S (6M Cache, up to 3.7GHz); 65W

: Intel

CoreTM i3-3220 (3M Cache, 3.3GHz); 55W

: Intel

Pentium® G2120 (3M Cache, 3.1 GHz); 65W

- 2nd generation Intel

CoreTM processors (32nm process technology) : Intel

CoreTM i7-2600 (8M Cache, up to 3.8 GHz); 95W

: Intel

CoreTM i5-2400 (6M Cache, up to 3.4 GHz); 95W

: Intel

CoreTM i3-2120 (3M Cache, 3.3 GHz); 65W

: Intel

Pentium® G850 (3M Cache, 2.9 GHz); 65W

• Intel

Q77 Express chipset

• Four 240-pin DDR3 DIMM sockets

• Supports DDR3 1333/1600MHz (3rd generation processors) Supports DDR3 1066/1333MHz (2nd generation processors)

• Supports dual channel memory interface

• Supports up to 32GB system memory

• DRAM device technologies: 1Gb, 2Gb and 4Gb DDR3 DRAM

technologies are supported for x8 and x16 devices, unbuffered, non-ECC

• 1 PCIe x16 slot

- Supports Gen 3.0 (3rd generation processors)

- Supports Gen 2.0 (2nd generation processors)

• 1 PCIe x4 slot (PCIe 2.0)

• 2 PCI slots (PCI 2.3)

• Intel

HD Graphics 4000 (i7); HD Graphics 2500 (i5/i3/

Pentium)

• Display ports: DVI-I (DVI-D signal) and VGA

• DVI: resolution up to 1920x1200 @60Hz

• VGA: resolution up to 2048x1536 @75Hz, 32-bit

• Intel

Clear Video Technology

• Intel

Advanced Vector Extensions (Intel® AVX) Instructions

• Supports DirectX 11 and OGL 3.0

• Realtek ALC886 5.1-channel High Deﬁ nition Audio

• Audio outputs: Mic-in/Center+Subwoofer, Lne-in/Surround and Line-out

• S/PDIF audio interface

• Intel

WG82579LM with iAMT8.0 Gigabit Ethernet Phy

• Realtek RTL8111DL PCI Express Gigabit Ethernet controller

• Integrated 10/100/1000 transceiver

• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Specifications

Page 10

Introduction

• 6 Serial ATA ports

- 2 SATA 3.0 ports with data transfer rate up to 6Gb/s

- 4 SATA 2.0 ports with data transfer rate up to 3Gb/s (SATA port 4 provides adequate space for SATA DOM)

• Integrated Advanced Host Controller Interface (AHCI) controller

• Supports RAID 0/1/5/10

• Supports iAMT8.0

• Out-of-band system access

• Remote troubleshooting and recovery

• Hardware-based agent presence checking

• Proactive alerting

• Remote hardware and software asset tracking

• Provides a Trusted PC for secure transactions

• Provides software license protection, enforcement and password protection

• XHCI Host Controller supports up to 4 super speed USB

3.0 ports

• 1 mini-DIN-6 PS/2 mouse port

• 1 mini-DIN-6 PS/2 keyboard port

• 2 DB-9 serial ports

- Supports RS232/422/485 (RS232 and/or Power)

• 1 DB-15 VGA port

• 1 DVI-I port (DVI-D signal)

• 2 RJ45 LAN ports

• 4 USB 3.0 ports

• Line-in/surround, Line-out, and Mic-in/Center+Subwoofer

jacks

• 3 connectors for 6 external USB 2.0 ports

• 4 connectors for 4 external RS232 serial ports (2.54mm pitch)

• 1 8-bit Digital I/O connector

• 1 front audio connector for line-out and mic-in jacks

• 1 S/PDIF connector

• 6 Serial ATA ports (2 SATA 3.0; 4 SATA 2.0)

• 1 24-pin ATX power connector

• 1 8-pin 12V power connector

• 1 chassis intrusion connector

• 1 front panel connector

• 3 fan connectors

Serial ATA

Intel Active Management Technology (AMT)

TPM (optional)

USB Interface

Rear Panel I/O Ports

I/O Connectors

Page 11

Introduction

BIOS

Energy Efficient Design

Damage Free Intelligence

Power Consumption

OS Support

Temperature

Humidity

Dimensions

Certification

• AMI BIOS

• 64Mbits SPI BIOS

• Supports ErP Lot6 power saving (optional)

• ACPI v3.0 specification

• System Power Management

• Wake-On-Events include:

- Wake-On-PS/2 KB/Mouse

- Wake-On-USB KB/Mouse

- Wake-On-LAN

- RTC timer to power-on the system

• CPU stopped clock control

• AC power failure recovery

• Monitors CPU/system temperature and overheat alarm

• Monitors VCORE/5V/3.3V/V_DIMM/12V/5VSB voltages and failure alarm

• Monitors CPU/system fan speed and failure alarm

• Read back capability that displays temperature, voltage and fan speed

• Watchdog timer function

• 130.43 W with i7-2600 at 3.40GHz and 4x 2GB DDR3 DIMM

• Windows XP Professional x86 & SP3 (32-bit)

• Windows XP Professional x64 & SP2 (64-bit)

• Windows 7 Ultimate x86 & SP1 (32-bit)

• Windows 7 Ultimate x64 & SP1 (64-bit)

• Windows 8 Enterprise x86 (32-bit)

• Windows 8 Enterprise x64 (64-bit)

• Operating: 0

C to 60oC

• Storage: -20

C to 85oC

• 10% to 90%

• microATX form factor

• 244mm (9.6”) x 244mm (9.6”)

• CE

• FCC Class B

• UL

• RoHS

Page 12

Introduction

Features

Watchdog Timer

The Watchdog Timer function allows your application to regularly “clear” the system at the set time interval. If the system hangs or fails to function, it will reset at the set time interval so that your system will continue to operate.

DDR3

DDR3 delivers increased system bandwidth and improved performance. It offers peak data transfer rate of up to 32Gb/s bandwidth. The advantages of DDR3 are its higher bandwidth and its increase in performance at a lower power than DDR2.

Graphics

The integrated Intel HD graphics for graphics intensive applications delivers exceptional 3D, 2D and video capabilities. It supports DVI-I and VGA interfaces.

DVI

DVI (Digital Visual Interface) is a form of video interface technology made to maximize the quality of flat panel LCD monitors and modern video graphics cards. Data is transmitted using the TMDS (Transition Minimized Differential Signaling) protocol, providing a digital signal from the PC’s graphics subsystem to the display.

PCI Express

PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds by forming multiple lanes. The x4 PCI Express lane supports transfer rate of 1 Gigabyte per second. The PCI Express architecture also provides a high performance graphics infrastructure by enhancing the capability of a x16 PCI Express lane to provide 8 Gigabytes per second transfer rate.

Intel Active Management Technology (AMT)

Intel Active Management Technology (Intel® AMT) allows remote access and management of networked systems even while PCs are powered off, remotely repair systems after OS failures and has the capability to remotely update all systems with the latest security software.

Audio

The Realtek ALC886 audio codec provides 5.1-channel High Definition audio output.

Page 13

Introduction

Serial ATA

Serial ATA is a storage interface that is compliant with SATA 1.0a specification. SATA 3.0 supports speed up to 6Gb/s while SATA 2.0 supports speed up to 3Gb/s. This improves hard drive performance faster than the standard parallel ATA whose data transfer rate is 100MB/s. The board supports RAID 0/1/5/10.

Gigabit LAN

The Intel WG82579LM PHY and Realtek RTL8111DL PCI Express Gigabit Ethernet

controllers support up to 1Gbps data transmission.

USB

The system board supports the new USB 3.0. It is capable of running at a maximum transmission speed of up to 5 Gbit/s (625 MB/s) and is faster than USB 2.0 (480 Mbit/s, or 60 MB/s) and USB 1.1 (12Mb/s). USB 3.0 reduces the time required for data transmission, reduces power consumption, and is backward compatible with USB 2.0. It is a marked improvement in device transfer speeds between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

Wake-On-LAN

This feature allows the network to remotely wake up a Soft Power Down (SoftOff) PC. It is supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Management Event) signal. However, if your system is in the Suspend mode, you can power-on the system only through an IRQ or DMA interrupt.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

Wake-On-PS/2

This function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

Wake-On-USB

This function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state.

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the 5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the 5V_standby power source of your power supply must support ≥2A.

Page 14

Introduction

RTC Timer

The RTC installed on the system board allows your system to automatically power-on on the set date and time.

ACPI STR

The system board is designed to meet the ACPI (Advanced Configuration and Power Interface) specification. ACPI has energy saving features that enables PCs to implement Power Management and Plug-and-Play with operating systems that support OS Direct Power Management. ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM function.

With the Suspend to RAM function enabled, you can power-off the system at once by pressing the power button or selecting “Standby” when you shut down Windows

without having to go through the sometimes tiresome process of closing files, applications and operating system. This is because the system is capable of storing all programs and data files during the entire operating session into RAM (Random Access Memory) when it powers-off. The operating session will resume exactly where you left off the next time you power-on the system.

Important:

The 5V_standby power source of your power supply must support 720mA.

Power Failure Recovery

When power returns after an AC power failure, you may choose to either poweron the system manually or let the system power-on automatically.

Page 15

Hardware Installation

System Board Layout

Chapter 2 - Hardware Installation

USB 10-11

Realtek ALC886

Realtek RTL8111DL

Intel WG82579LM

PCI 1

PCI 2

PCIE x16

PCIE x4

+12V power

VGA DVI-I

DDR3_1

DDR3_2

Fintek

F71879F

DIO

Front panel

System fan_1

SATA 0

SATA 1

SATA 3

SATA 2

SATA 4SATA 5

PS/2 power select (JP3)

COM 2 RS232 Power select (JP10)

COM 1 RS232 Power select (JP9)

Mic-in

Line-in Line-out

LAN 1 USB 3.0 (0-1)

LAN 2 USB 3.0 (2-3)

LGA 1155

Standby Power LED

Battery

Front audio

S/PDIF

COM 3

COM 4

COM 6COM 5

COM2 COM1

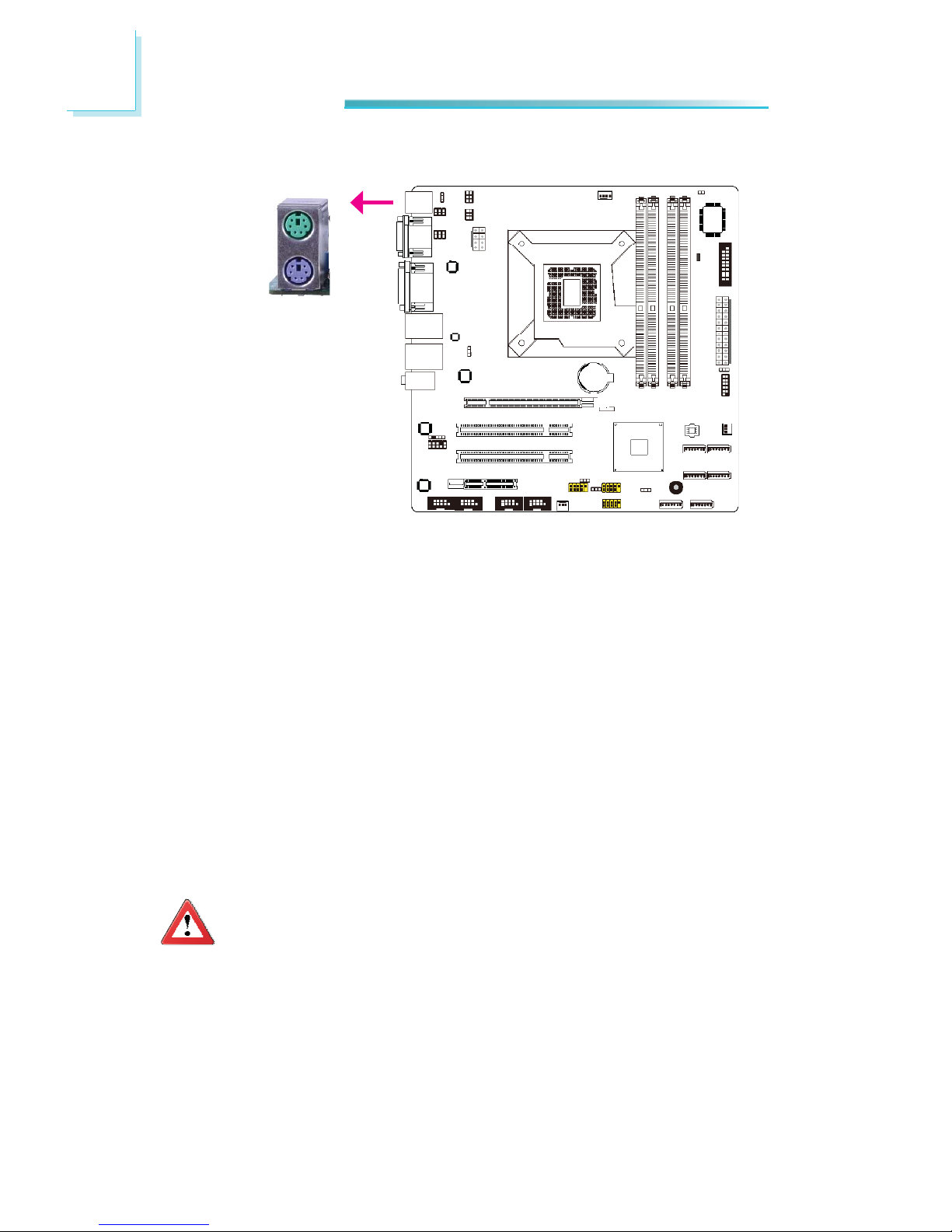

PS/2 MS PS/2 KB

DDR3_3

DDR3_4

CPU fan

12 24

ATX power

Buzzer

System fan_2

USB 12-13

USB 8-9

Clear CMOS(JP7)

Intel

Q77

SPI Flash BIOS

Power on select (JP8)

Chassis intrusion

ASM1442

COM 2 RS232/422 /485select(JP2)

Fintek F81217

USB 10-13 Power Select (JP5)

USB 8-9 Power

Select (JP6)

COM 1 RS232/422 /485select(JP1)

USB 0-3 Power Select (JP11)

SATA 3.0

SATA 2.0

USB 2.0

DVI-I port

(DVI-D signal only)

Page 16

Hardware Installation

System Memory

Important:

Electrostatic discharge (ESD) can damage your system board, processor, disk drives, add-in boards, and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

DDR3-2

DDR3-1

DDR3-4

DDR3-3

Channel A

Channel B

Standby Power LED

Important:

When the Standby Power LED lit red, it indicates that there is power on the system board. Power-off the PC then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.

Features

• The four DIMM sockets are divided into 2 channels:

Channel A - DDR3_1 and DDR3_2 Channel B - DDR3_3 and DDR3_4

• Dual channel memory interface

• Maximum of 32GB system memory

Page 17

Hardware Installation

DIMMs are on the same channel.

DIMMs in a channel can be identical or completely different. However, we highly recommend using identical DIMMs.

Not all slots need to be populated.

DIMMs of the same memory conﬁ guration are on different channels.

Single Channel

Dual Channel

The system board supports the following memory interface.

Single Channel (SC)

Data will be accessed in chunks of 64 bits (8B) from the memory channels.

Dual Channel (DC)

Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides better system performance because it doubles the data transfer rate.

Important:

1. You can populate either Channel A or Channel B ﬁ rst.

2. When installing a DIMM in Channel A or Channel B, always populate the socket that is farthest the CPU. In this case, it will mean populating DDR3-2 and/or DDR3-4 ﬁ rst.

3. If you intend to use dual channel, the same rule applies - always the socket farthest the CPU. Populate DDR3-2 and/or DDR3-4 ﬁ rst; not DDR3-2 and DDR3-3 and not DDR3-1 and DDR3-4.

Page 18

Hardware Installation

Note:

The system board used in the following illustrations may not resemble the actual board. These illustrations are for reference only.

Installing the DIMM Module

1. Make sure the PC and all other peripheral devices connected to it has been powered down.

2. Disconnect all power cords and cables.

3. Locate the DIMM socket on the system board.

4. Push the “ejector tabs” which are at the ends of the socket to the side.

Ejector tab

5. Note how the module is keyed to the socket.

Key

Notch

Page 19

Hardware Installation

7. Seat the module vertically, pressing it down ﬁ rmly until it is completely seat- ed in the socket.

6. Grasping the module by its edges, position the module above the socket with the “notch” in the module aligned with the “key” on the socket. The keying mechanism ensures the module can be plugged into the socket in only one way.

8. The ejector tabs at the ends of the socket will automatically snap into the locked position to hold the module in place.

Page 20

Hardware Installation

CPU

The system board is equipped with a surface mount LGA 1155 socket. This socket is exclusively designed for installing a LGA 1155 packaged Intel CPU.

Important:

1. Before you proceed, make sure (1) the LGA 1155 socket comes with a protective cap, (2) the cap is not damaged and (3) the socket’s contact pins are not bent. If the cap is missing or the cap and/or contact pins are damaged, contact your dealer immediately.

2. Make sure to keep the protective cap. RMA requests will be accepted and processed only if the LGA 1155 socket comes with the protective cap.

Protective cap

Note:

The system board used in the following illustrations may not resemble the actual board. These illustrations are for reference only.

Page 21

Hardware Installation

Installing the CPU

1. Make sure the PC and all other peripheral devices connected to it has been powered down.

2. Disconnect all power cords and cables.

3. Locate the LGA 1155 CPU socket on the system board.

Important:

The CPU socket must not come in contact with anything other than the CPU. Avoid unnecessary exposure. Remove the protective cap only when you are about to install the CPU.

4. Unlock the socket by pushing the load lever down, moving it sideways until it is released from the retention tab; then lift the load lever up.

Retention tab

Load lever

Page 22

Hardware Installation

6. Remove the protective cap from the CPU socket. The cap is used to protect the CPU socket against dust and harmful particles. Remove the protective cap only when you are about to install the CPU.

Load lever

Load

plate

5. Lifting the load lever will at the same time lift the load plate.

Lift the load lever up to

the angle shown on the photo.

Protective cap

Page 23

Hardware Installation

7. Insert the CPU into the socket. The gold triangular mark on the CPU must align with the corner of the CPU socket shown on the photo.

The CPU’s notch will at

the same time ﬁ t into the socket’s alignment key.

Important:

The CPU will ﬁ t in only one orientation and can easily be inserted without exerting any force.

Alignment key

Gold triangular mark

Page 24

Hardware Installation

8. Close the load plate then push the load lever down.

While closing the load

plate, make sure the front edge of the load plate slides under the retention knob.

Retention knob

9. Hook the load lever under the retention tab.

Load lever

Retention tab

Page 25

Hardware Installation

Installing the Fan and Heat Sink

The CPU must be kept cool by using a CPU fan with heat sink. Without sufﬁ cient air circulation across the CPU and heat sink, the CPU will overheat damaging both the CPU and system board.

Note:

A boxed Intel

processor already includes the CPU fan and heat sink assembly. If your CPU was purchased separately, make sure to only use Intel

-certiﬁ ed fan and heat sink.

1. Before you install the fan / heat sink, you must apply a thermal paste onto the top of the CPU. The thermal paste is usually supplied when you purchase the fan / heat sink assembly. Do not spread the paste all over the surface. When you later place the heat sink on top of the CPU, the compound will disperse evenly.

Some heat sinks come with a patch of pre-applied thermal paste. Do not ap-

ply thermal paste if the fan / heat sink already has a patch of thermal paste on its underside. Peel the strip that covers the paste before you place the fan / heat sink on top of the CPU.

2. Place the heat sink on top of the CPU. The 4 pushpins around the heat sink, which are used to secure the heat sink onto the system board, must match the 4 mounting holes around the socket.

Mounting hole

3. Orient the heat sink such that the CPU fan’s cable is nearest the CPU fan connector.

CPU fan connector

Page 26

Hardware Installation

4. Rotate each push-pin according to the direction of the arrow shown on top of the pin.

Push down two pushpins

that are diagonally across the heat sink. Perform the same procedure for the other two push-pins.

Heat sink

“Locked” position of

push-pin

5. Connect the CPU fan’s cable to the CPU fan connector on the system board.

“Unlocked” position

of push-pin

CPU fan connector

Page 27

Hardware Installation

Jumper Settings

Clear CMOS Data

If you encounter the following,

a) CMOS data becomes corrupted. b) You forgot the supervisor or user password.

you can reconﬁ gure the system with the default values stored in the ROM BIOS.

To load the default values stored in the ROM BIOS, please follow the steps below.

1. Power-off the system and unplug the power cord.

2. Set JP7 pins 2 and 3 to On. Wait for a few seconds and set JP7 back to its default setting, pins 1 and 2 On.

3. Now plug the power cord and power-on the system.

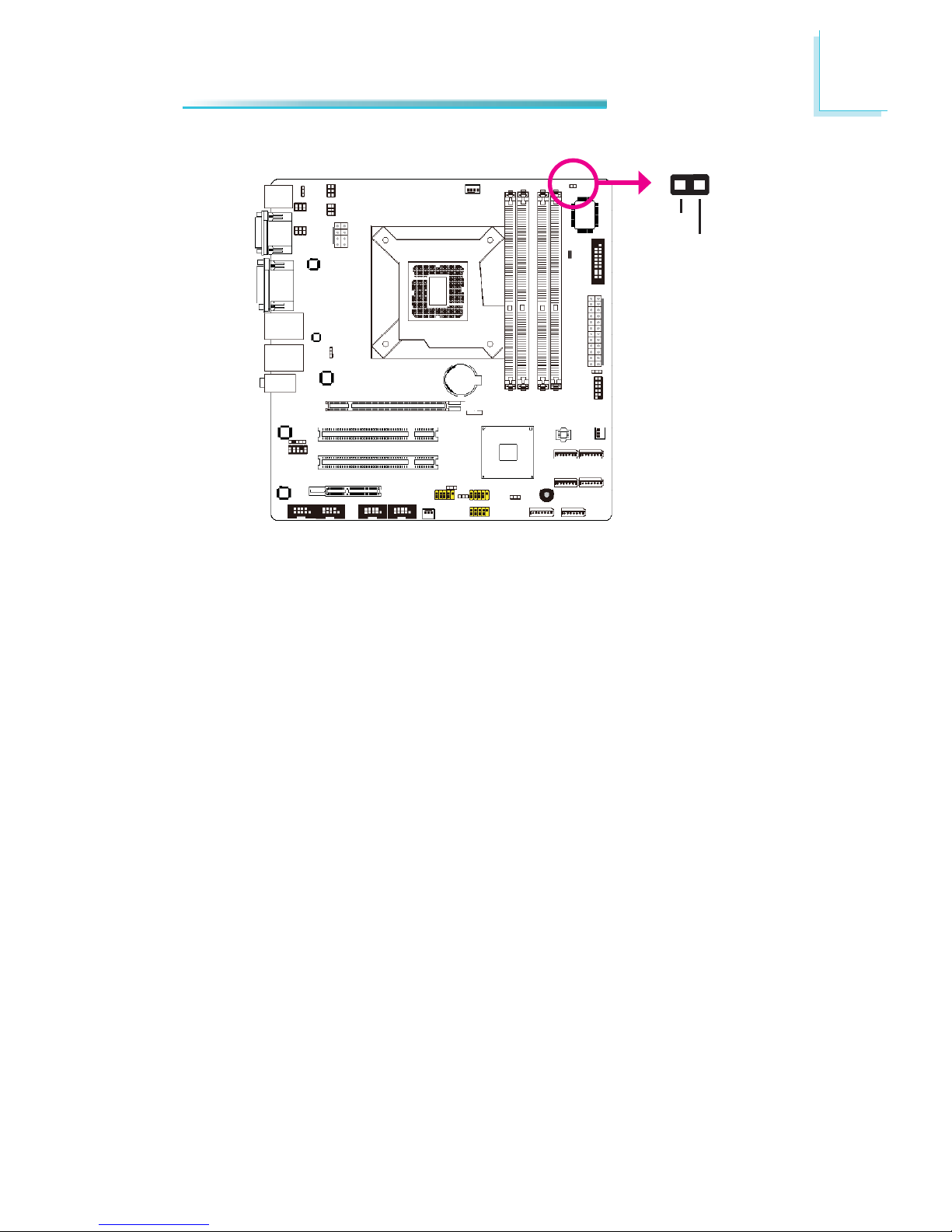

JP7

2-3 On:

Clear CMOS Data

1-2 On: Normal

(default)

312

Page 28

Hardware Installation

JP3 is used to select the power of the PS/2 keyboard and PS/2 mouse ports. Selecting +5V_standby will allow you to use the PS/2 keyboard or PS/2 mouse to wake up the system.

PS/2 Power Select

JP3

2-3 On:

+5V_standby

1-2 On: +5V

(default)

Important:

The +5VSB power source of your power supply must support ≥720mA.

Page 29

Hardware Installation

These jumpers are used to select the power of the USB ports. Selecting +5V_standby will allow you to use a USB device to wake up the system.

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the +5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the +5V_standby power source of your power supply must support ≥2A.

USB Power Select

USB 0-1/2-3 (JP11)

2-3 On:

+5V_standby

1-2 On: +5V

(default)

USB 8-9 (JP6)

USB 10-13 (JP5)

2-3 On:

+5V_standby

1-2 On: +5V

(default)

3 2 1

Page 30

Hardware Installation

Power-on Select

To power-on via WOL after G3:

1. Set JP8 pins 2 and 3 to On.

2. Set the “After G3” ﬁ eld to Power Off/WOL.

3. Set the “GbE Wake Up From S5” to Enabled.

The BIOS ﬁ elds are in the “South Bridge Conﬁ guration” submenu (Chipset menu) of the AMI BIOS utility.

To power-on via AC Power:

1. Set JP8 pins 2 and 3 to On.

2. Set the “After G3” ﬁ eld to Power On.

1-2 On: Power-on via power button (default)

2-3 On: Power-on via AC power; or Power-on via WOL after G3

JP8

312

Page 31

Hardware Installation

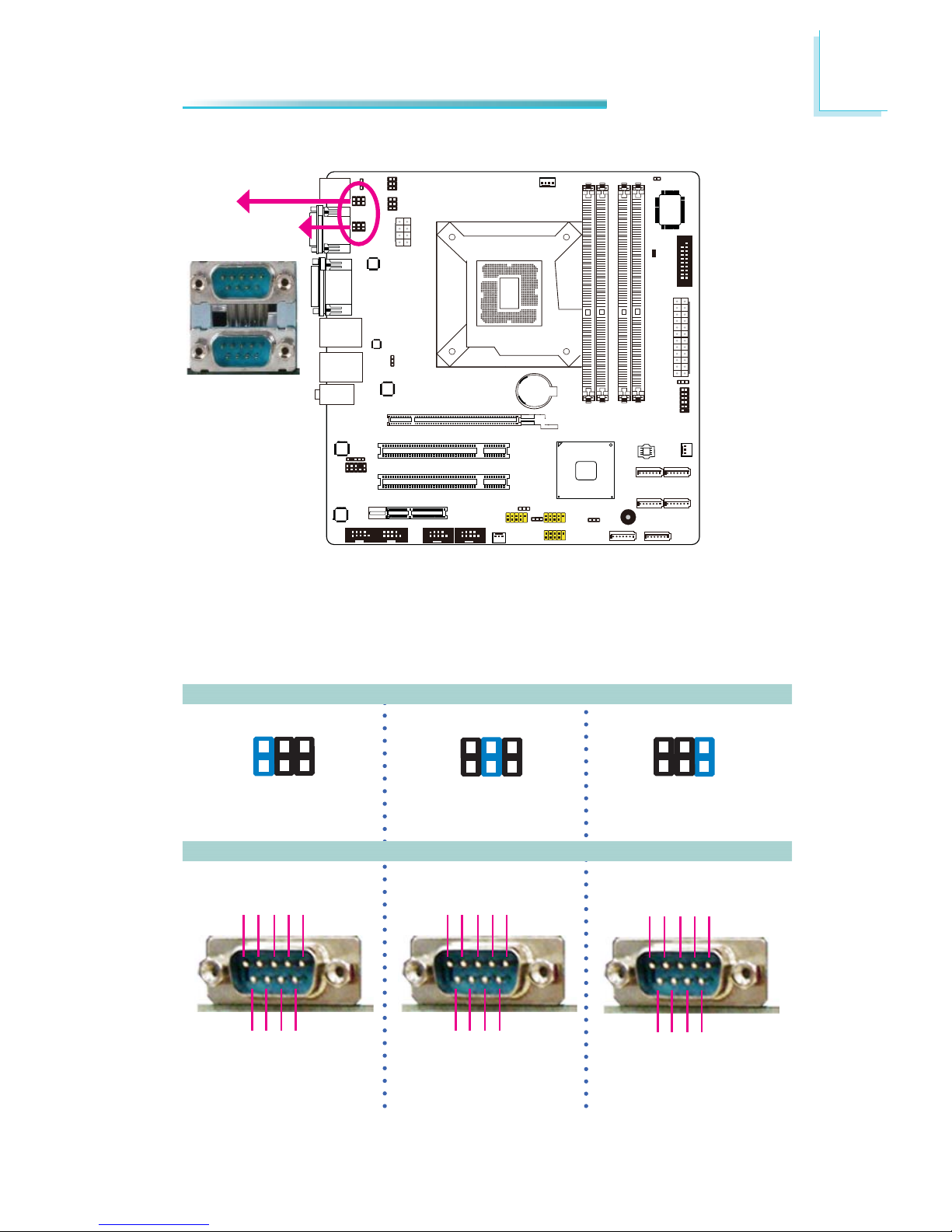

COM1/COM2 RS232/RS422/RS485 Select

1-2 On: RS232

(default)

3-4 On: RS422

Full Duplex

5-6 On: RS485

531

JP1 (for COM1) and JP2 (for COM2) are used to conﬁ gure the COM ports to RS232, RS422 (Full Duplex) or RS485.

The pin function of the COM ports will vary according to the jumper’s setting.

JP1/JP2

531531

COM 2

COM 1

JP2

JP1

RS232 RS422

Full Duplex

RS485

COM 1 / COM 2

DCD-TDRD

DTR-

GND

12345

RTS-

RI-

DSR-

CTS-

6789

DATA+

N.C.

DATA-

N.C.

12345

N.C.

6789

RXD+

TXD+

RXD-

TXD-

N.C.

12345

N.C.

6789

Page 32

Hardware Installation

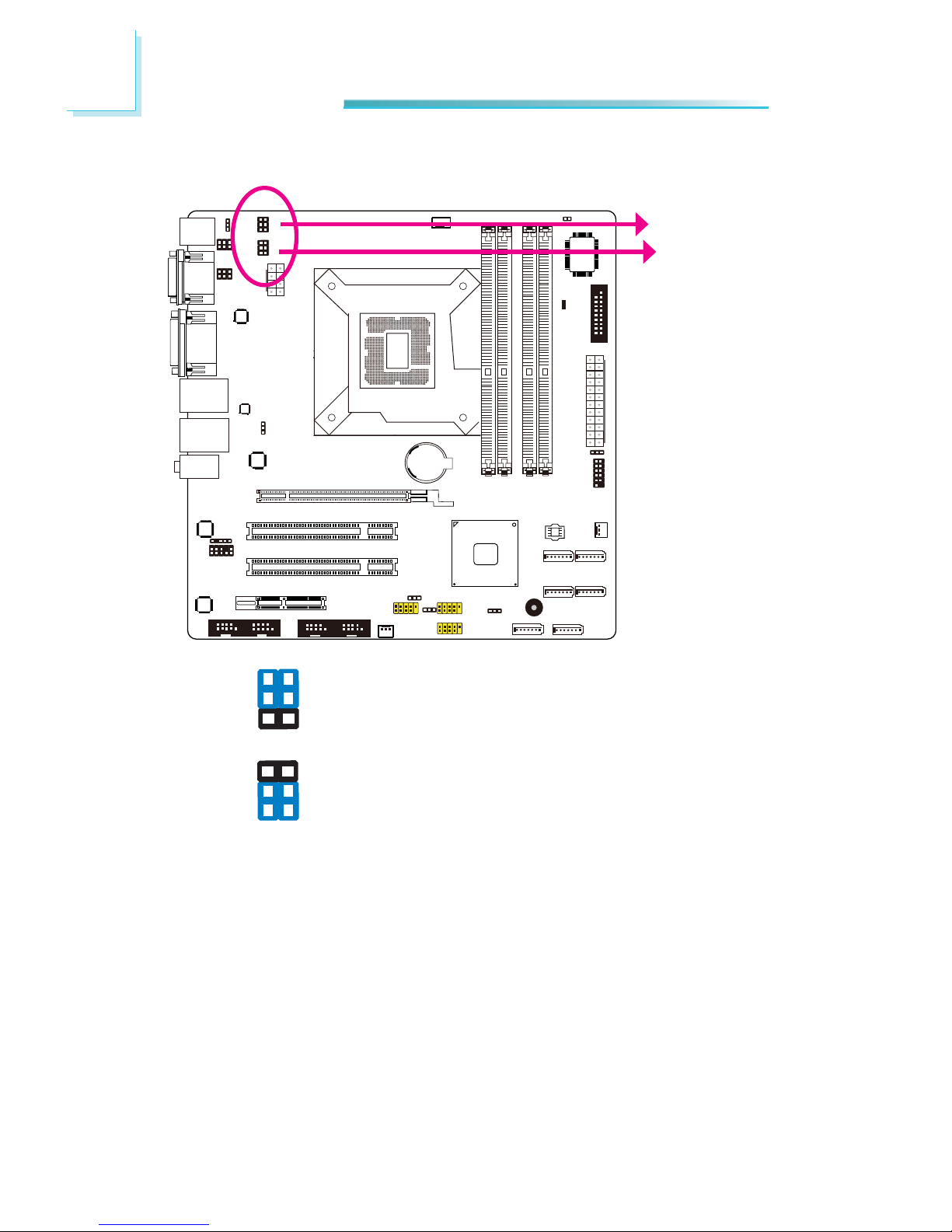

COM1/COM2 RS232/Power Select

JP9

JP10

1-3 (RI), 2-4 (DCD) On: RS232 (default)

3-5 (+5V), 4-6 (+12V) On: RS232 with power

Page 33

Hardware Installation

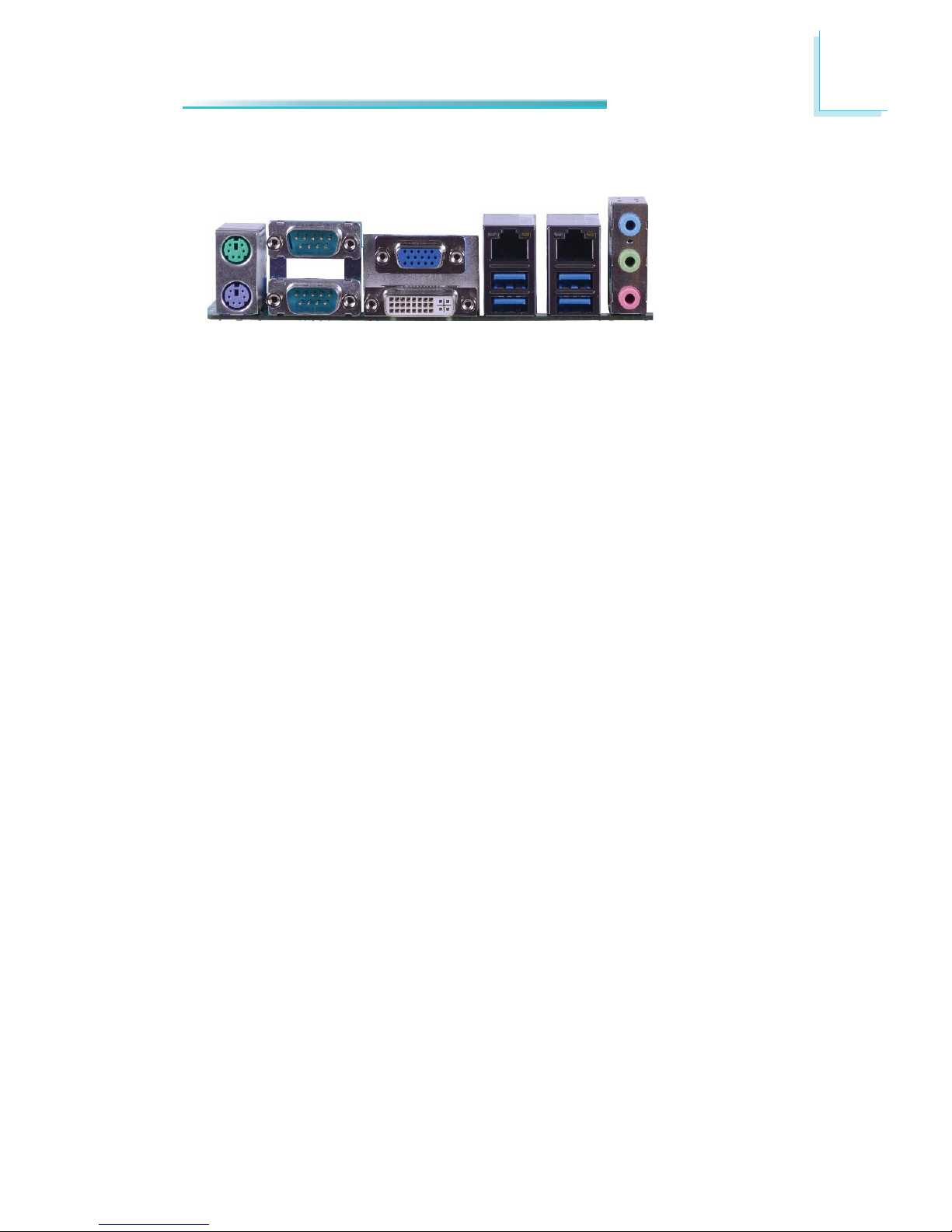

Rear Panel I/O Ports

The rear panel I/O ports consist of the following:

• PS/2 keyboard/ mouse port

• 2 COM ports

• VGA port

• DVI-I port (DVI-D signal only)

• 2 LAN port

• 4 USB ports

• Line-in jack

• Line-out jack

• Mic-in jack

PS/2

KB/MS

COM 2

VGA

USB 3.0 USB 3.0

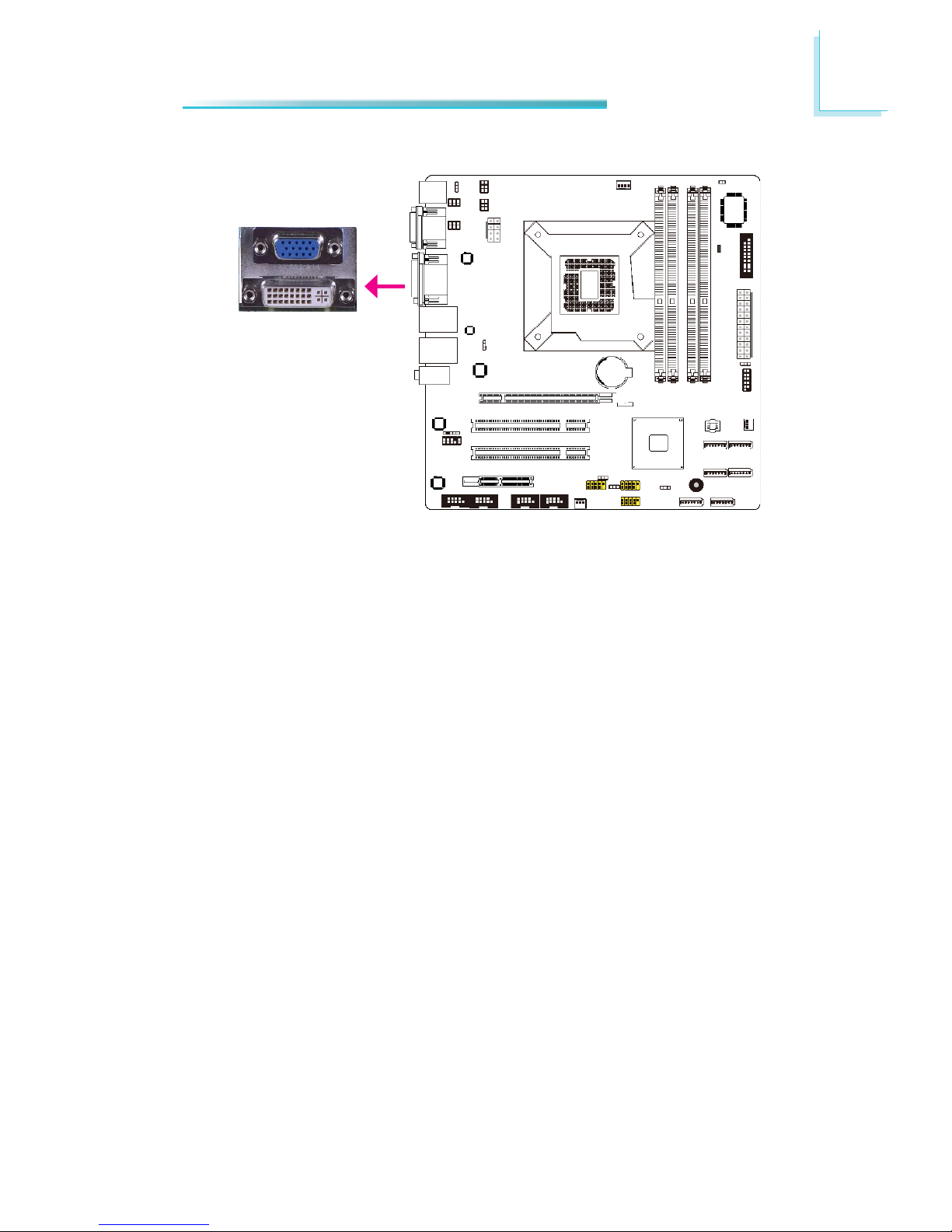

DVI-I

(DVI-D signal only)

LANLAN

Line-out

Line-in

Mic-in

COM 1

Page 34

Hardware Installation

PS/2 Mouse and PS/2 Keyboard Ports

These ports are used to connect a PS/2 mouse and a PS/2 keyboard. The PS/2 mouse port uses IRQ12.

Wake-On-PS/2 Keyboard/Mouse

The Wake-On-PS/2 Keyboard/Mouse function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system. To use this function:

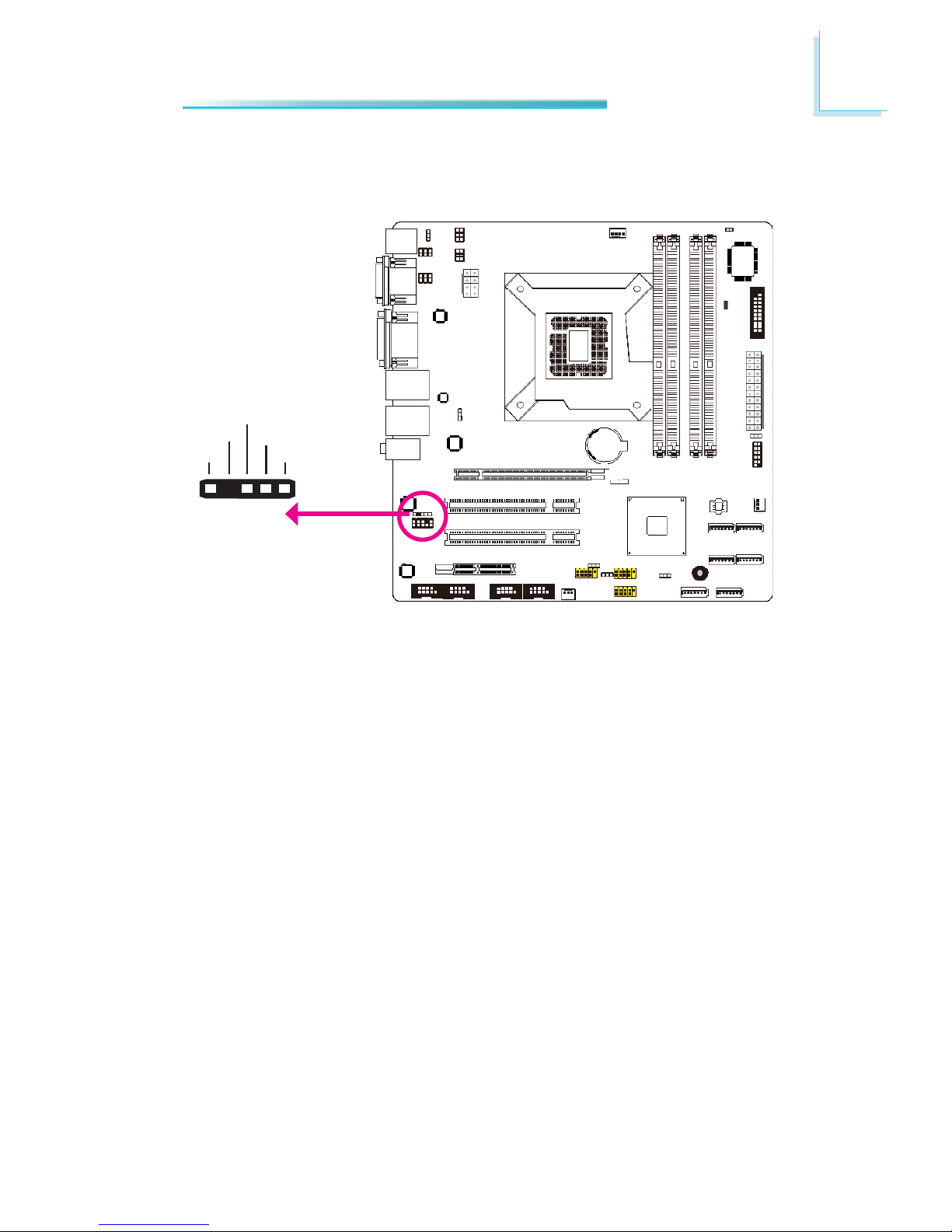

• Jumper Setting

JP3 must be set to “2-3 On: +5V_standby”. Refer to “PS/2 Power Select” in

this chapter for more information.

• BIOS Setting

Conﬁ gure the PS/2 keyboard/mouse wake up function in the Advanced menu (“ACPI Power Management Conﬁ guration” submenu) of the BIOS. Refer to chapter 3 for more information.

Important:

The +5V_standby power source of your power supply must support ≥720mA.

PS/2 Keyboard/Mouse

Page 35

Hardware Installation

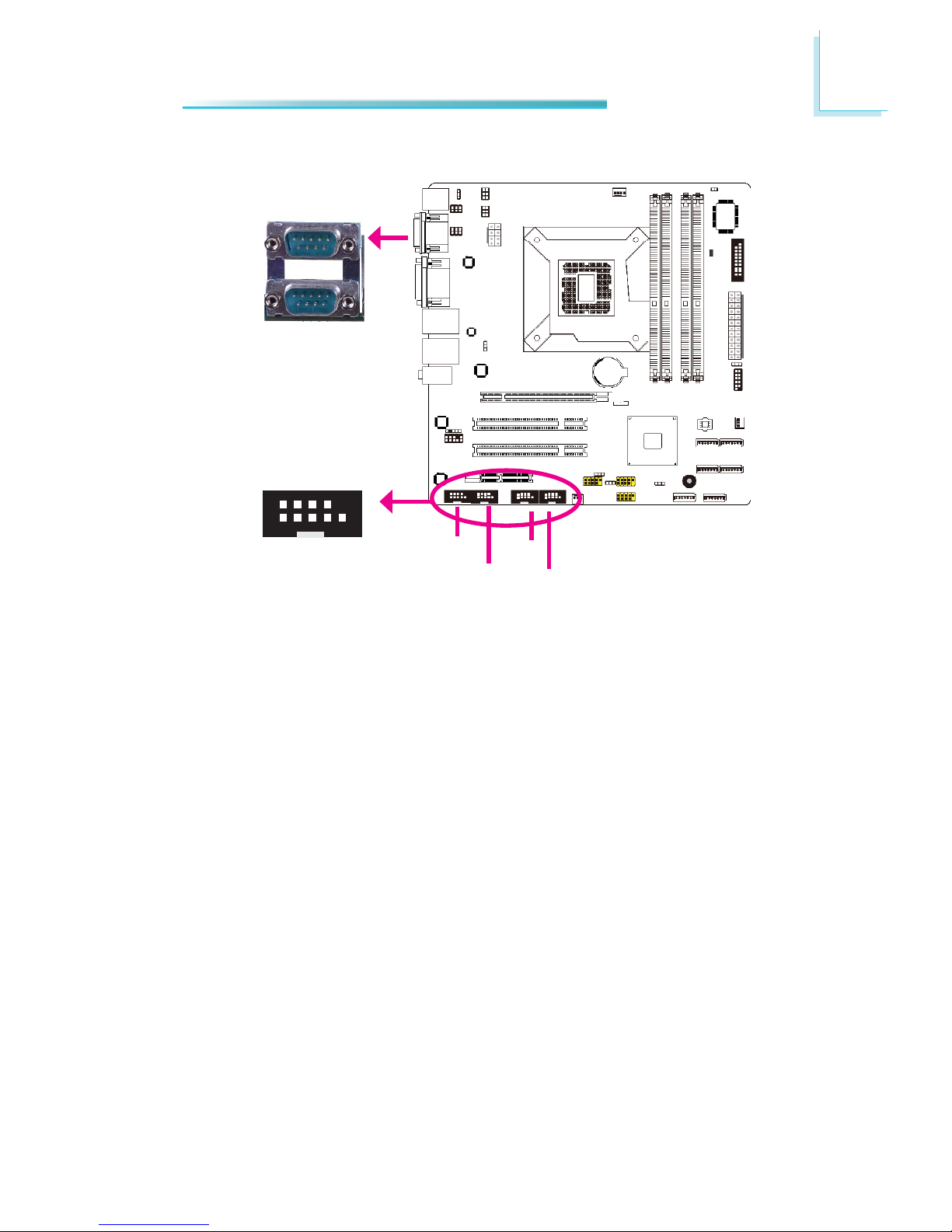

COM (Serial) Ports

COM 3 to COM 6 are ﬁ xed at RS232.

The pin function of COM 1 and COM 2 ports will vary according to JP1/JP2’s setting. Refer to “COM1/COM2 RS232/RS422/RS485 Select” in this chapter for more information.

The serial ports are asynchronous communication ports with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices.

Connecting External Serial Ports

Your COM port may come mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then insert the serial port cable to the COM connector. Make sure the colored stripe on the ribbon cable is aligned with pin 1 of the COM connector.

BIOS Setting

Conﬁ gure the serial ports in the Advanced menu (“Super IO Conﬁ guration” sub- menu) of the BIOS. Refer to chapter 3 for more information.

COM 4

COM 3

COM 6

COM 1 and COM2 :

RS232/422/485

COM 3 to COM 6:

RS232

COM 2

COM 5

COM 1

Page 36

Hardware Installation

The VGA port is used for connecting a VGA monitor. Connect the monitor’s 15-pin D-shell cable connector to the VGA port

. After you plug the monitor’s cable con-

nector into the VGA port, gently tighten the cable screws to hold the connector in place.

BIOS Setting

Conﬁ gure VGA in the Chipset menu (“North Bridge Conﬁ guration” submenu) of the BIOS. Refer to chapter 3 for more information.

Driver Installation

Install the graphics driver. Refer to chapter 4 for more information.

VGA Port

VGA

Page 37

Hardware Installation

DVI-I

(DVI-D signal only)

DVI-I Port

The DVI-I port is used to connect an LCD monitor. This port supports DVI-D signal only.

Connect the display device’s cable connector to the DVI-I port. After you plug the cable connector into the port, gently tighten the cable screws to hold the connector in place.

BIOS Setting

Conﬁ gure the display device in the Chipset menu (“North Bridge Conﬁ guration” submenu) of the BIOS. Refer to chapter 3 for more information.

Page 38

Hardware Installation

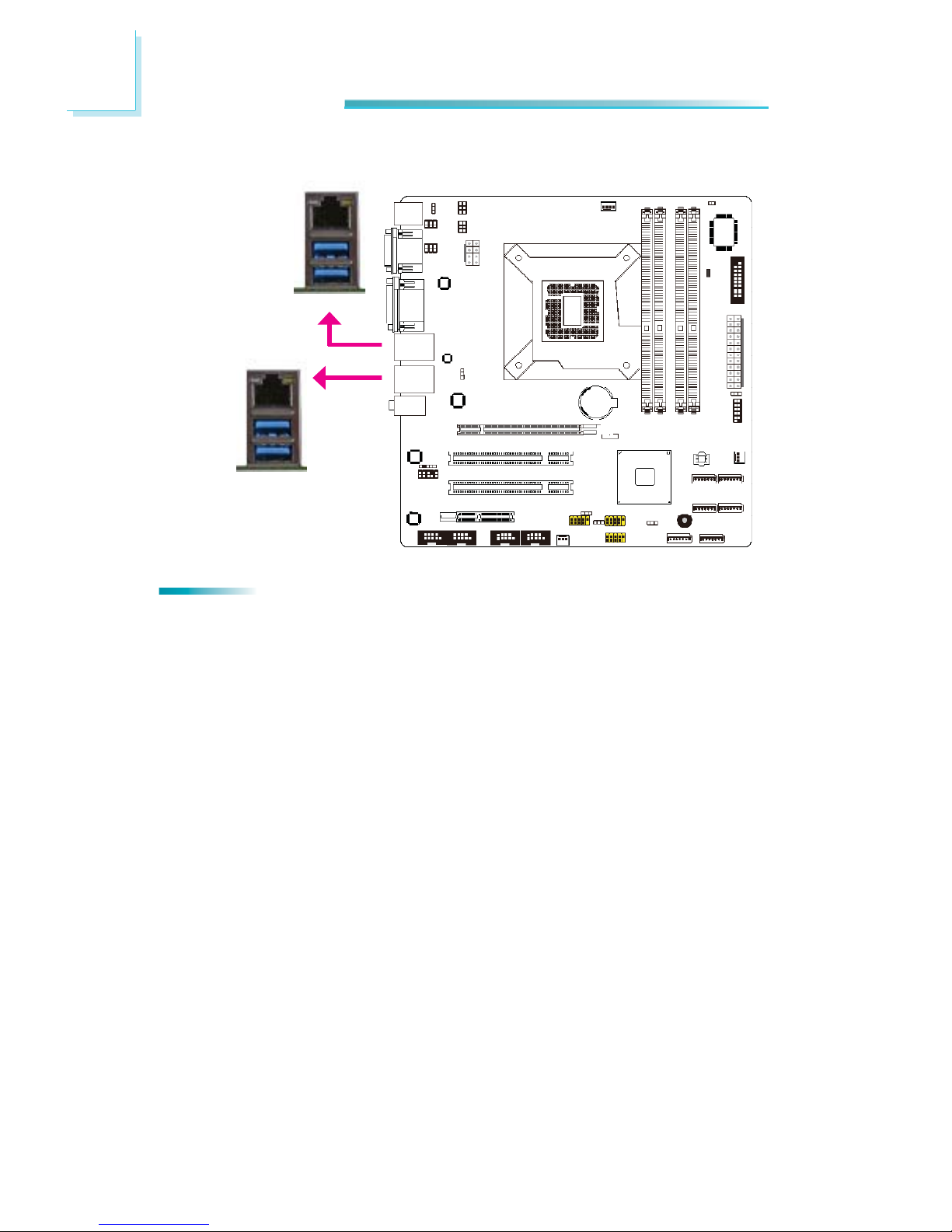

RJ45 LAN Ports

The LAN ports allow the system board to connect to a local area network by means of a network hub.

BIOS Setting

Conﬁ gure the onboard LAN in the Chipset menu (“South Bridge Conﬁ guration” submenu) of the BIOS. Refer to chapter 3 for more information.

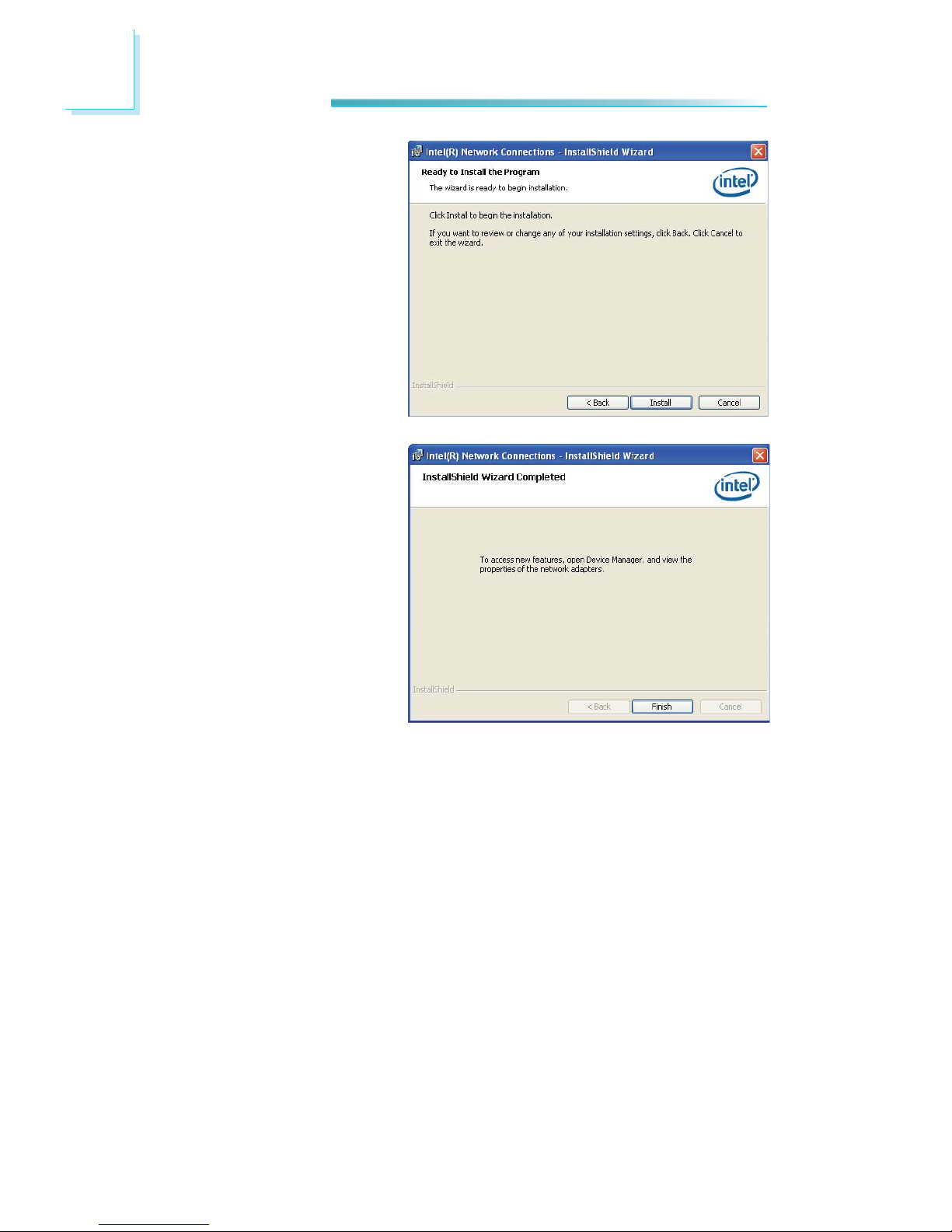

Driver Installation

Install the LAN drivers. Refer to chapter 4 for more information.

LAN 1

LAN 2

Features

• Intel 82579LM with iAMT8.0 Gigabit Ethernet Phy

• Realtek RTL8111DL PCI Express Gigabit Ethernet controller

Page 39

Hardware Installation

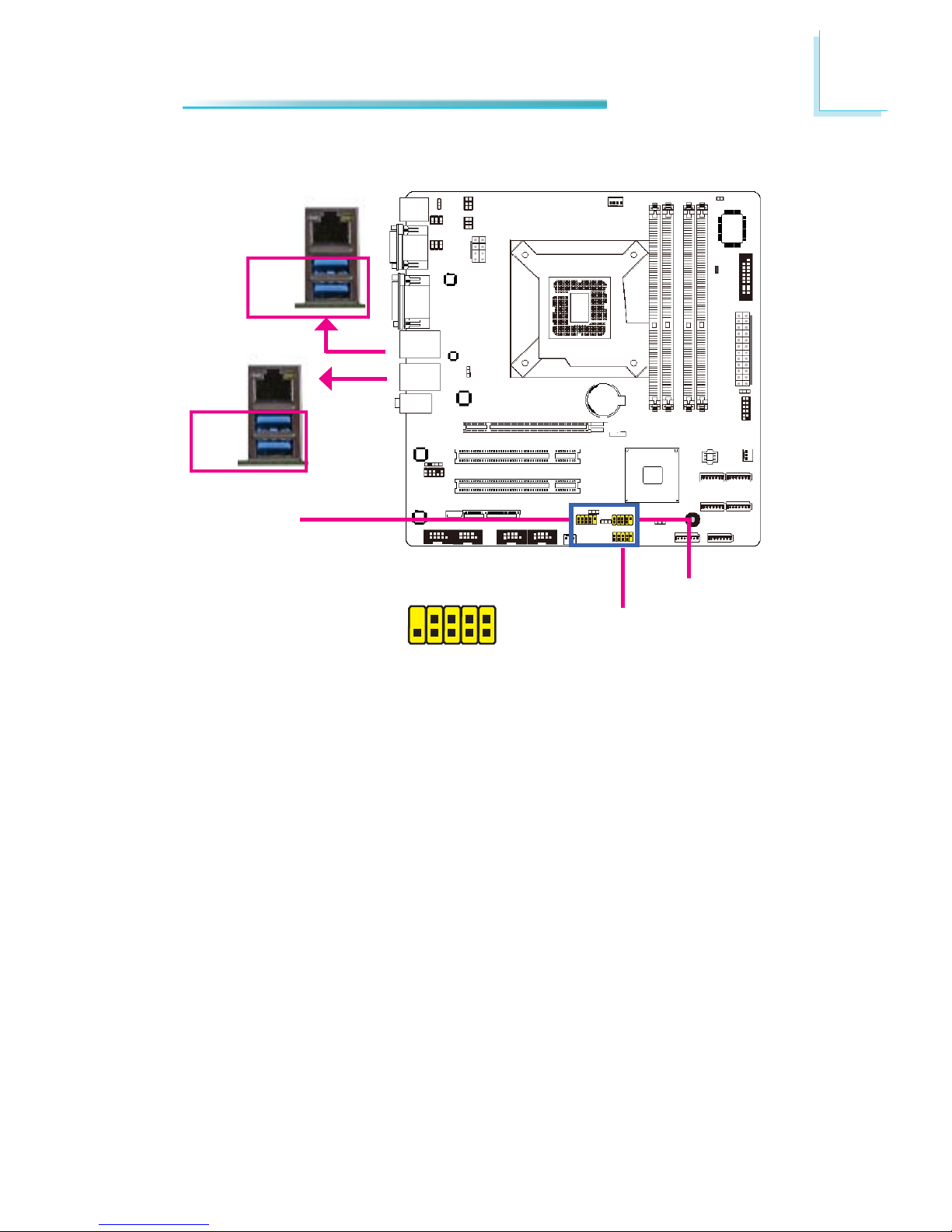

USB Ports

USB allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

The system board is equipped with four onboard USB 3.0/2.0/1.1 ports (USB 0-3). The three 10-pin connectors allow you to connect 6 additional USB 2.0/1.1 ports (USB 8-13). The additional USB ports may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis and then insert the USB port cables to a connector.

BIOS Setting

Conﬁ gure the onboard USB in the Advanced menu (“USB Conﬁ guration” sub- menu) of the BIOS. Refer to chapter 3 for more information.

Driver Installation

You may need to install the proper drivers in your operating system to use the USB device. Refer to your operating system’s manual or documentation for more information.

VCC

-Data

+Data

GND

Key

VCC

-Data

+Data

GND

N. C.

210

USB 10-11

USB 0

USB 1

USB 2

USB 3

USB 8-9

USB 12-13

USB 3.0

USB 2.0

Page 40

Hardware Installation

Wake-On-USB Keyboard/Mouse

The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state. To use this function:

• Jumper Setting

JP11, JP5 and/or JP6 must be set to “2-3 On: 5V_standby”. Refer to “USB

Power Select” in this chapter for more information.

Important:

Page 41

Hardware Installation

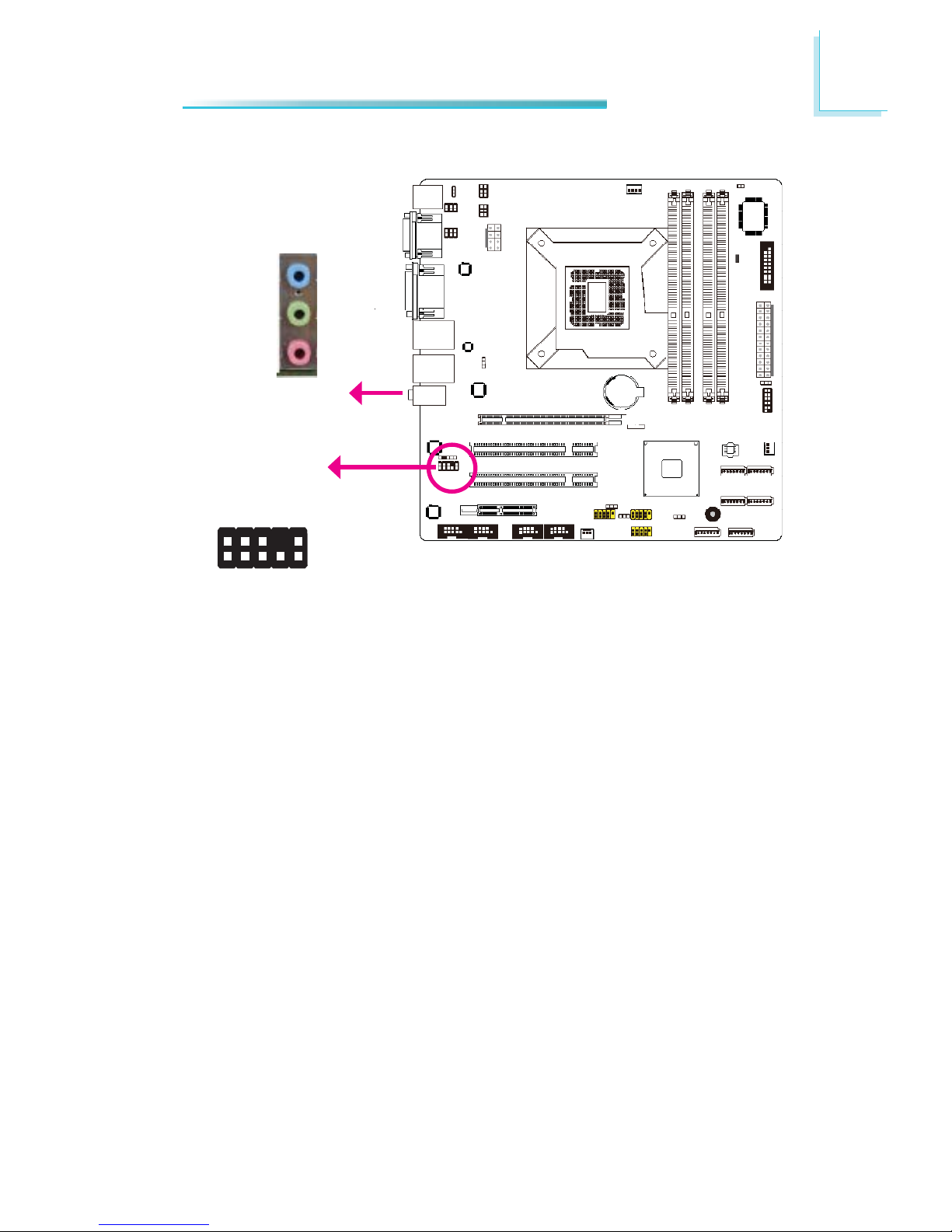

Audio

Line-out

Line-in

Mic-in

Rear audio

Front audio

Mic2-L

Line2-R

Front_IO_Sense

GND

Presence Signal

Key

Mic2-JD

Line2-JD

Mic2-R

Line2-L

Rear Audio

The system board is equipped with 3 audio jacks. A jack is a one-hole connecting interface for inserting a plug.

• Line-in Jack (Light Blue) This jack is used to connect any audio devices such as Hi-ﬁ set, CD player,

tape player, AM/FM radio tuner, synthesizer, etc.

• Line-out Jack (Lime) This jack is used to connect a headphone or external speakers.

• Mic-in Jack (Pink) This jack is used to connect an external microphone.

Front Audio

The front audio connector allows you to connect to the second line-out and micin jacks that are at the front panel of your system.

Page 42

Hardware Installation

BIOS Setting

Conﬁ gure the onboard audio in the Chipset menu (“South Bridge” submenu) of the BIOS. Refer to chapter 3 for more information.

Driver Installation

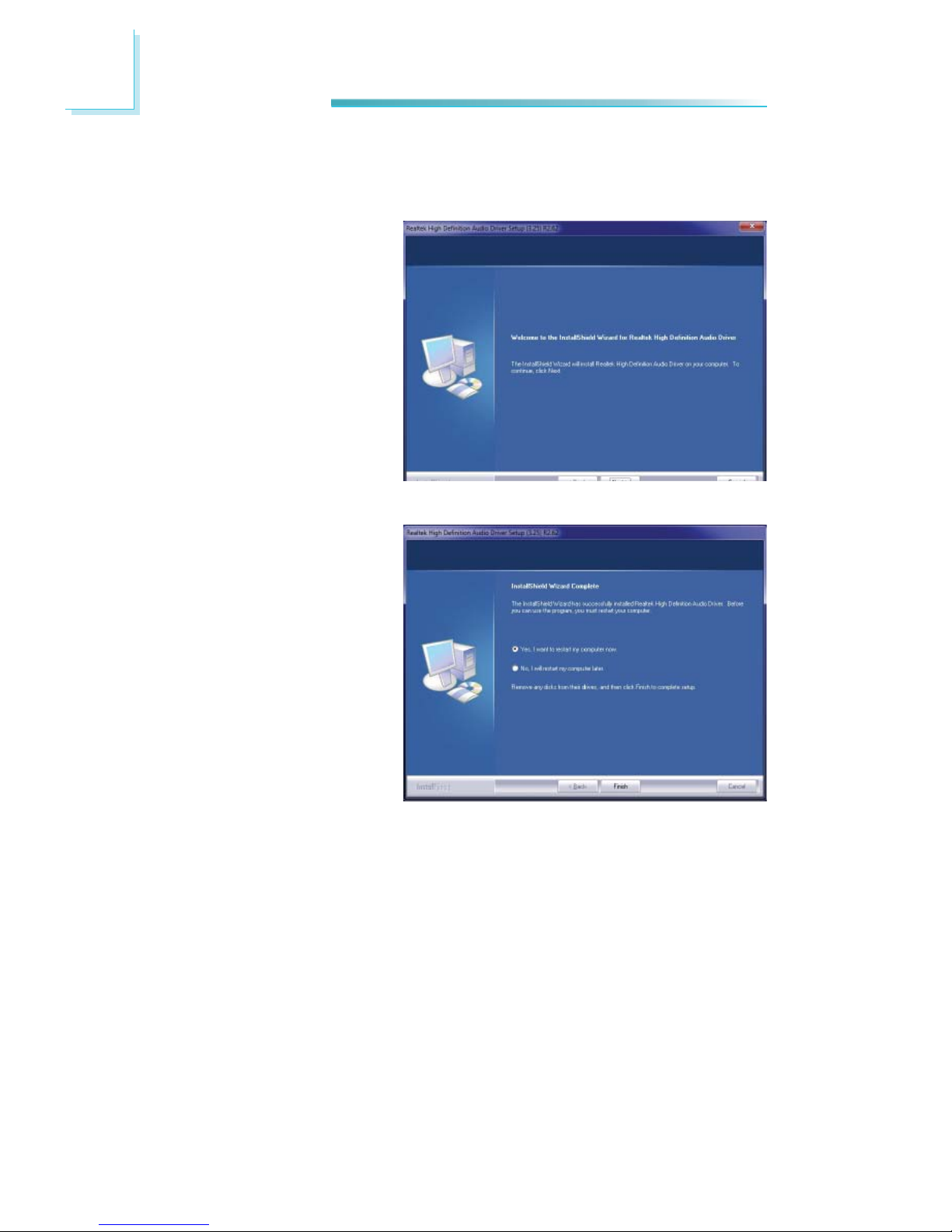

Install the audio driver. Refer to chapter 4 for more information.

Page 43

Hardware Installation

The S/PDIF connector is used to connect an external S/PDIF port. Your S/PDIF port may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then connect the audio cable to the S/PDIF connector. Make sure pin 1 of the audio cable is aligned with pin 1 of the S/PDIF connector.

I/O Connectors

S/PDIF Connector

+5V

Key

SPDIF out

Ground

SPDIF in

S/PDIF

Page 44

Hardware Installation

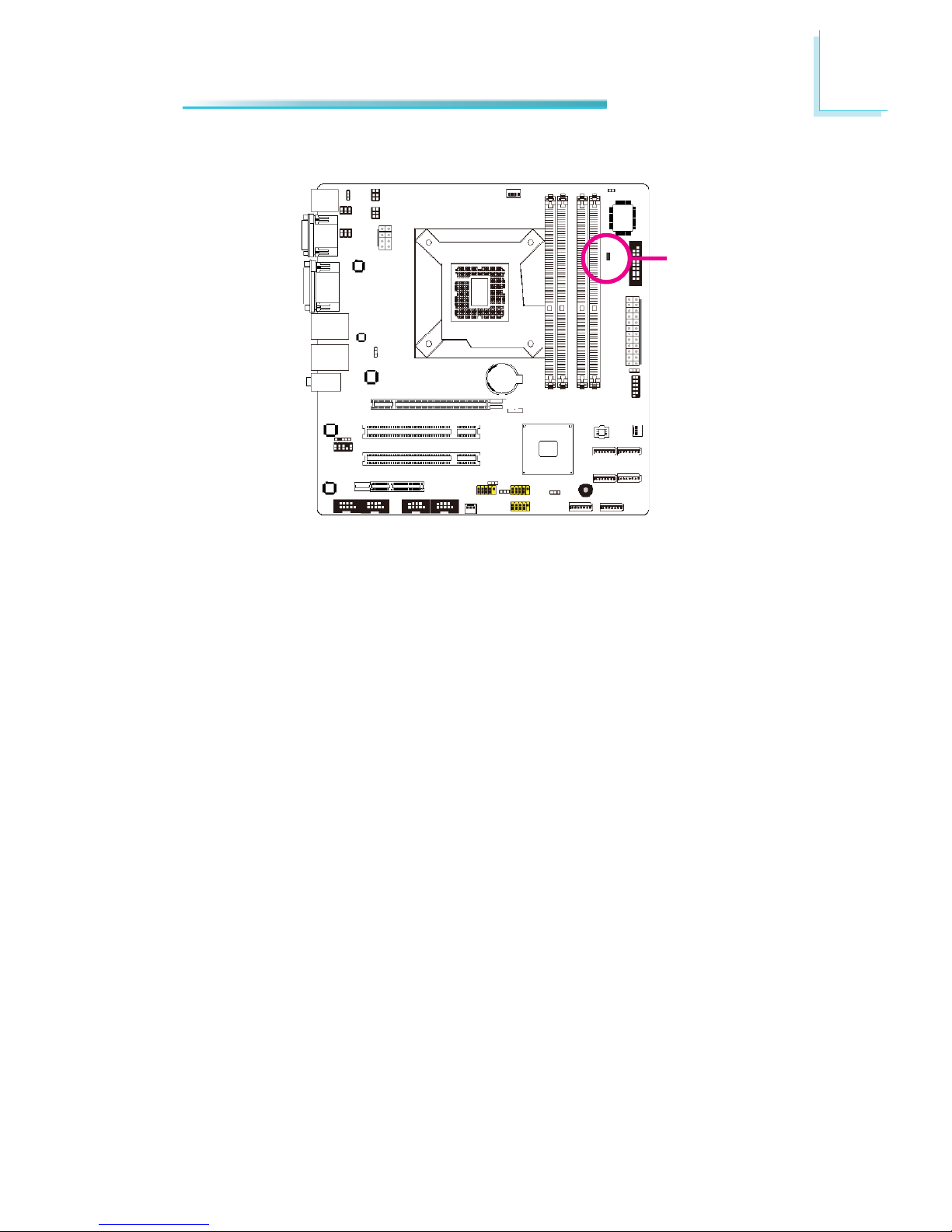

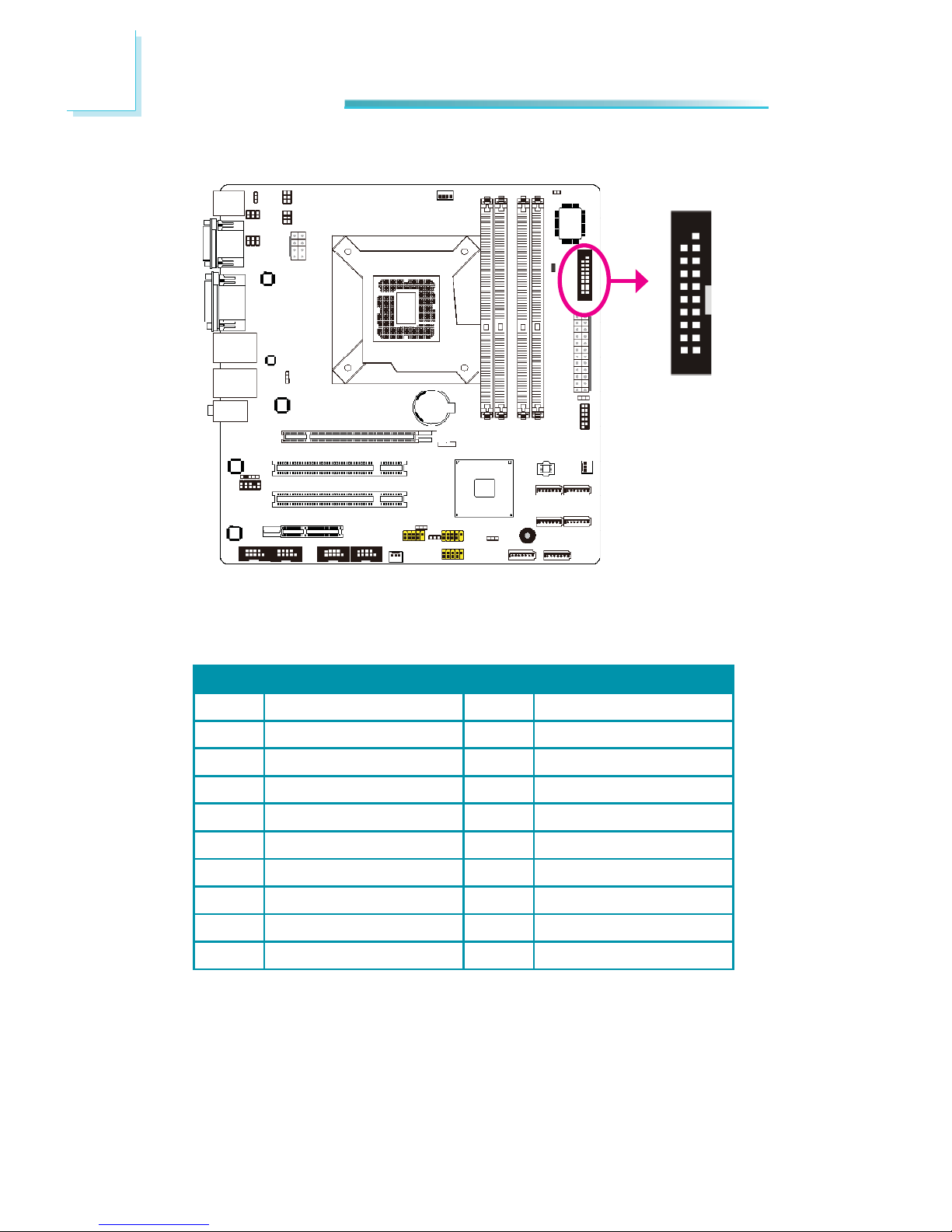

Digital I/O Connectors

The 8-bit Digital I/O connector provides powering-on function to external devices that are connected to these connectors.

Pin Pin Assignment Pin Pin Assignment

1 GND 2 +12V

3 DIO7 4 +12V

5 DIO6 6 GND

7 DIO5 8 VCC

9 DIO4 10 VCC

11 DIO3 12 GND

13 DIO2 14 V_5P0_STBY

15 DIO1 16 V_5P0_STBY

17 DIO0 18 GND

19 GND

DIO

Page 45

Hardware Installation

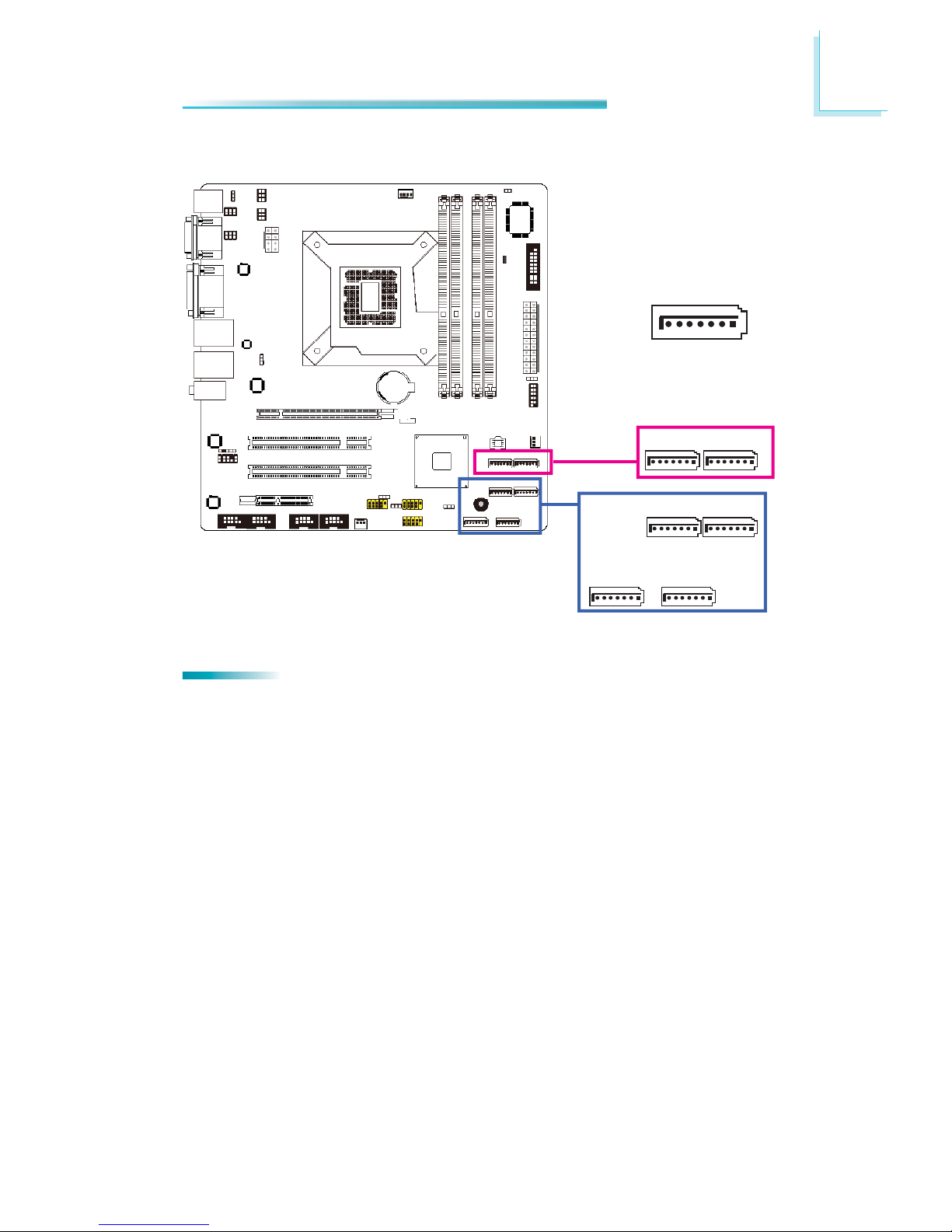

The Serial ATA connectors are used to connect Serial ATA devices. Connect one end of the Serial ATA cable to a SATA connector and the other end to your Serial ATA device.

BIOS Setting

Conﬁ gure the Serial ATA drives in the Advanced menu (“IDE Conﬁ guration” sub- menu) of the BIOS. Refer to chapter 3 for more information.

SATA (Serial ATA) Connectors

RXN

GND

TXP

TXN

GND

RXP

GND

SATA 3

SATA 1

SATA 2

SATA 0

SATA 5 SATA 4

SATA 3.0 6Gb/s

SATA 2.0 3Gb/s

Features

• SATA 0 and SATA 1 support data transfer rate up to 6Gb/s

• SATA 2 to SATA 5 support data transfer rate up to 3Gb/s

• Integrated Advanced Host Controller Interface (AHCI) controller

• Supports RAID 0, RAID 1, RAID 5 and RAID 10

Page 46

Hardware Installation

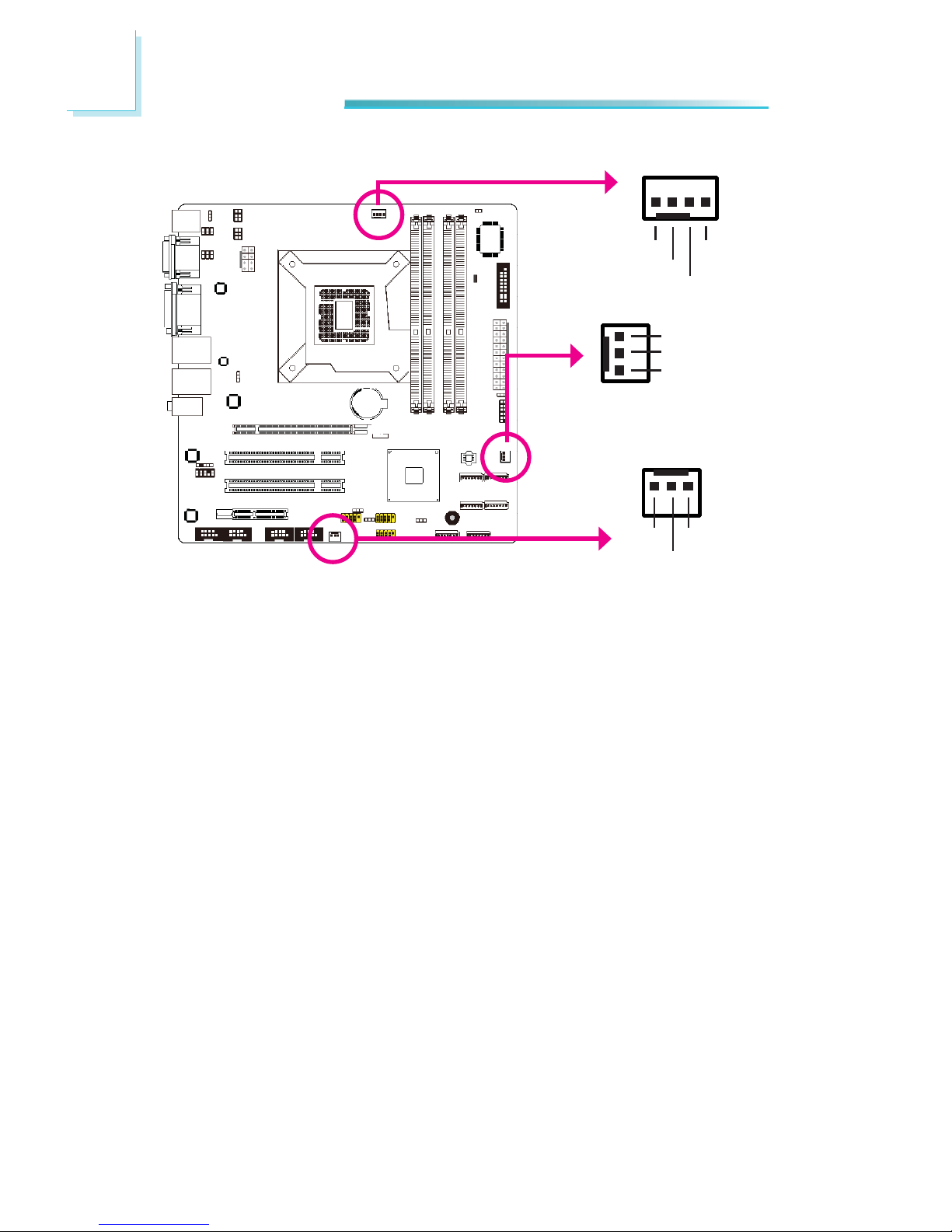

Cooling Fan Connectors

The fan connectors are used to connect cooling fans. The cooling fans will provide adequate airﬂ ow throughout the chassis to prevent overheating the CPU and sys- tem board components.

BIOS Setting

The Advanced menu (“Hardware Health Conﬁ guration” submenu) of the BIOS will display the current speed of the cooling fans. Refer to chapter 3 for more information.

System fan_2

CPU fan

Sense

Power

Ground Speed

Control

Sense

Power

Ground

Sense

Power

Ground

System fan_1

Page 47

Hardware Installation

Chassis Intrusion Connector

The board supports the chassis intrusion detection function. Connect the chassis intrusion sensor cable from the chassis to this connector. When the system’s power is on and a chassis intrusion occurred, an alarm will sound. When the system’s power is off and a chassis intrusion occurred, the alarm will sound only when the system restarts.

MyGuard Hardware Monitor

Install the “MyGuard Hardware Monitor” utility. By default, the chassis intrusion detection function is disabled. When enabled, a warning message will appear when the chassis is open. The utility can also be conﬁ gured so that a beeping alarm will sound when the chassis is open. Refer to the “MyGuard Hardware Monitor” section in chapter 4 for more information.

Chassis

signal

Ground

Page 48

Hardware Installation

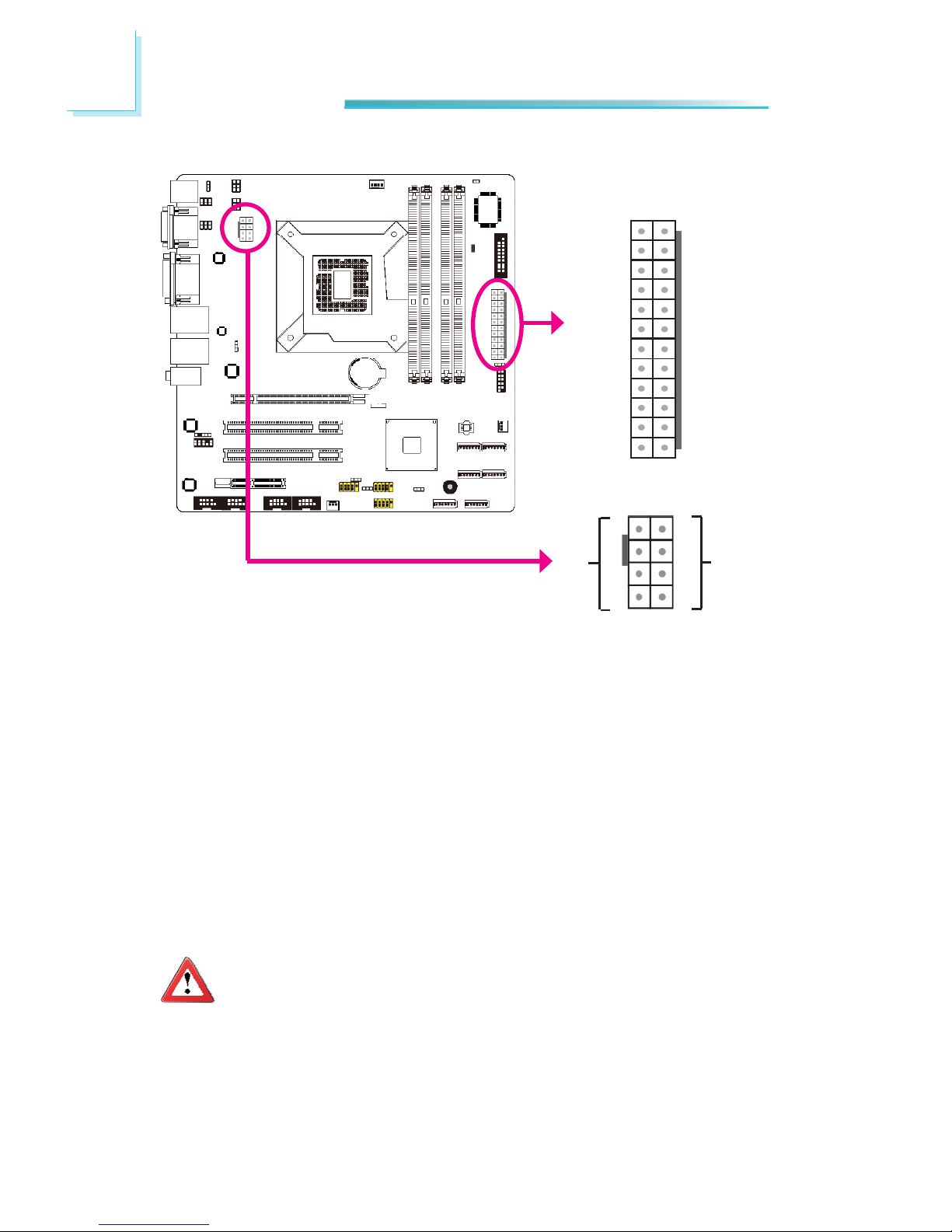

Power Connectors

Use a power supply that complies with the ATX12V Power Supply Design Guide Version 1.1. An ATX12V power supply unit has a standard 24-pin ATX main power connector that must be inserted into the 24-pin connector. The 8-pin +12V power connector enables the delivery of more +12VDC current to the processor’s Voltage Regulator Module (VRM).

The power connectors from the power supply unit are designed to ﬁ t the 24-pin and 8-pin connectors in only one orientation. Make sure to ﬁ nd the proper orien- tation before plugging the connectors.

The system board requires a minimum of 300 Watt power supply to operate. Your system conﬁ guration (CPU power, amount of memory, add-in cards, peripherals, etc.) may exceed the minimum power requirement. To ensure that adequate power is provided, we strongly recommend that you use a minimum of 400 Watt (or greater) power supply.

Important:

Insufﬁ cient power supplied to the system may result in instability or the add-in boards and peripherals not functioning properly. Calculating the system’s approximate power usage is important to ensure that the power supply meets the system’s consumption requirements.

12 24

+3.3VDC

COM

+5VDC

COM

+5VDC

COM

PWR_OK

+5VSB

+12VDC

+3.3VDC

-12VDC

COM

PS_ON#

COM

+5VDC

COM

Ground

ATX power

12V power

12V

Page 49

Hardware Installation

Standby Power LED

This LED will light red when the system is in the standby mode. It indicates that there is power on the system board. Power-off the PC and then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.

Page 50

Hardware Installation

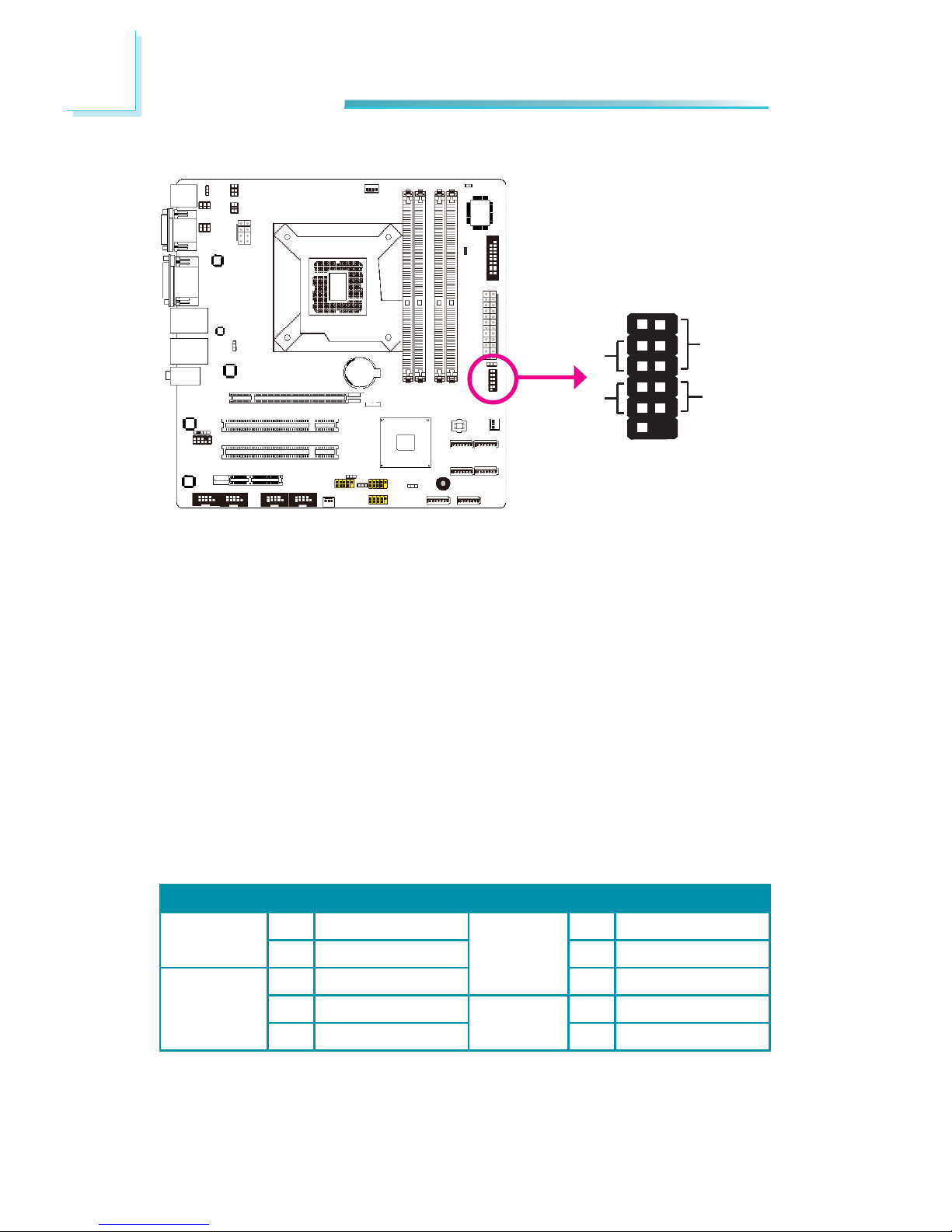

Front Panel Connectors

HDD-LED - HDD LED

This LED will light when the hard drive is being accessed.

RESET SW - Reset Switch

This switch allows you to reboot without having to power off the system.

PWR-BTN - Power Switch

This switch is used to power on or off the system.

PWR-LED - Power/Standby LED

When the system’s power is on, this LED will light. When the system is in the S1 (POS - Power On Suspend) state, it will blink every second. When the system is in the S3 (STR - Suspend To RAM) state, it will blink every 4 seconds.

PWR-BTN

HDD-LED

RESET-SW

PWR-LED

Pin Pin Assignment Pin Pin Assignment

HDD-LED

3 HDD Power PWR-LED 2 LED Power

5 Signal 4 LED Power

RESET SW 7 Ground 6 Signal

9 RST Signal

PWR-BTN 8 Ground

11 N.C. 10 Signal

Page 51

Hardware Installation

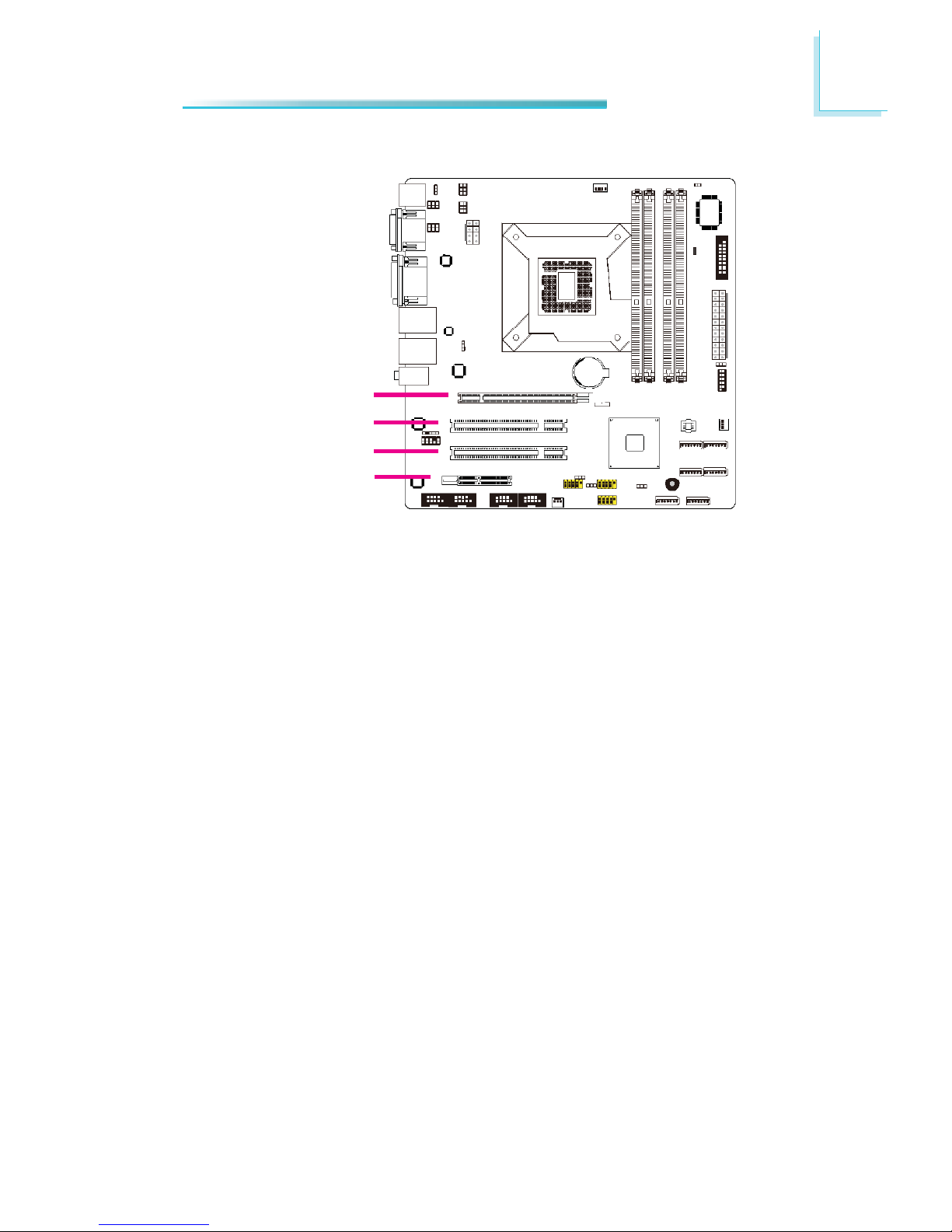

Expansion Slots

PCI Express x16 Slot

Install PCI Express x16 graphics card, that comply to the PCI Express speciﬁ ca- tions, into the PCI Express x16 slot. To install a graphics card into the x16 slot, align the graphics card above the slot then press it down ﬁ rmly until it is com- pletely seated in the slot. The retaining clip of the slot will automatically hold the graphics card in place.

PCI Express x4 Slot

Install PCI Express cards such as network cards or other cards that comply to the PCI Express speciﬁ cations into the PCI Express x4 slot.

PCI Slots

The PCI slot supports expansion cards that comply with PCI speciﬁ cations.

PCI Express x16

PCI Express x4

PCI 1

PCI 2

Page 52

Hardware Installation

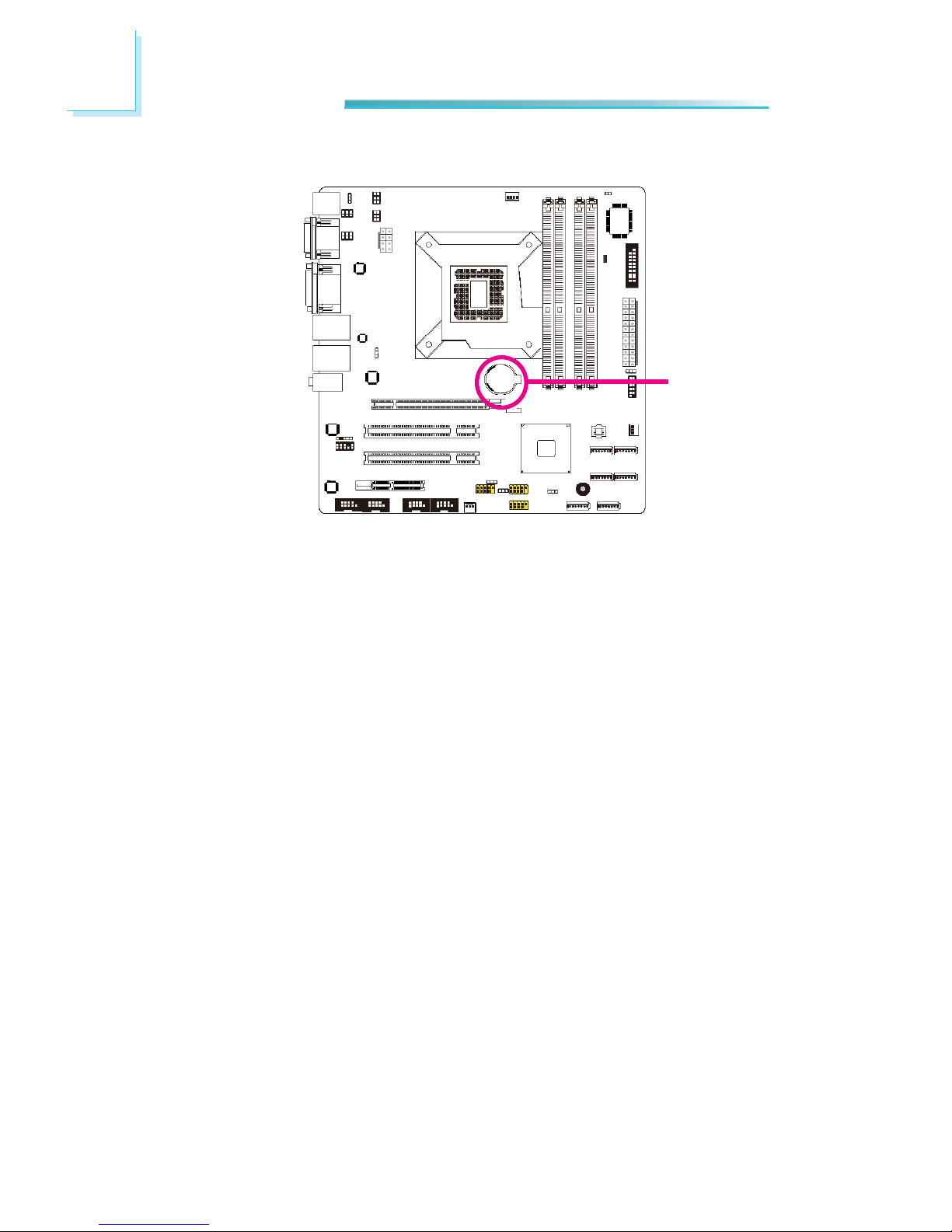

The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source of power when the main power is shut off.

Safety Measures

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend by the manufac-

turer.

• Dispose of used batteries according to local ordinance.

Battery

Page 53

BIOS Setup

Chapter 3 - BIOS Setup

Overview

The BIOS is a program that takes care of the basic level of communication between the CPU and peripherals. It contains codes for various advanced features found in this system board. The BIOS allows you to conﬁ gure the system and save the conﬁ guration in a battery-backed CMOS so that the data retains even when the power is off. In general, the information stored in the CMOS RAM of the EEPROM will stay unchanged unless a conﬁ guration change has been made such as a hard drive replaced or a device added.

It is possible that the CMOS battery will fail causing CMOS data loss. If this happens, you need to install a new CMOS battery and reconﬁ gure the BIOS settings.

Note:

The BIOS is constantly updated to improve the performance of the system board; therefore the BIOS screens in this chapter may not appear the same as the actual one. These screens are for reference purpose only.

Default Configuration

Most of the conﬁ guration settings are either predeﬁ ned according to the Load Op- timal Defaults settings which are stored in the BIOS or are automatically detected and conﬁ gured without requiring any actions. There are a few settings that you may need to change depending on your system conﬁ guration.

Entering the BIOS Setup Utility

The BIOS Setup Utility can only be operated from the keyboard and all commands are keyboard commands. The commands are available at the right side of each setup screen.

The BIOS Setup Utility does not require an operating system to run. After you power up the system, the BIOS message appears on the screen and the memory count begins. After the memory test, the message “Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously.

Page 54

BIOS Setup

Legends

Keys

Right and Left arrows

Up and Down arrows

<Esc> + (plus key)

- (minus key)

Tab <F1> <F4> <Enter>

Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between submenus or ﬁ elds.

Exits to the BIOS Setup Utility. Scrolls forward through the values

or options of the highlighted ﬁ eld. Scrolls backward through the values

or options of the highlighted ﬁ eld. Selects a ﬁ eld. Displays General Help. Saves and exits the Setup program. Press <Enter> to enter the high-

lighted submenu.

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available ﬁ elds not shown on the screen. Use the up and down arrow keys to scroll through all the available ﬁ elds.

Submenu

When ““ appears on the left of a particular ﬁ eld, it indicates that a submenu which contains additional options are available for that ﬁ eld. To display the sub- menu, move the highlight to that ﬁ eld and press <Enter>.

Page 55

BIOS Setup

Main

The Main menu is the ﬁ rst screen that you will see when you enter the BIOS Setup Utility.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1980 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

Choose the system default language.

Save & ExitChipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Information BIOS Vendor Core Version Project Version Build Date and Time

System Language

System Date System Time

Access Level

American Megatrends

4.6.5.3 1APTJ 0.16 x64 02/23/2012 14:29:30

[English]

[Wed 02/01/2012] [23:12:27]

Administrator

Advanced

Boot Security

Main

AMI BIOS Setup Utility

Page 56

BIOS Setup

Advanced

The Advanced menu allows you to conﬁ gure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Important:

Setting incorrect ﬁ eld values may cause the system to malfunction.

System ACPI parameters



ACPI Power Management Conﬁ guration



PC Health Status



Trusted Computing



CPU Conﬁ guration



SATA Conﬁ guration



Intel TXT(LT) Conﬁ guration



AMT Conﬁ guration



USB Conﬁ guration



F71879 Super IO Conﬁ guration



F81217 Second Super IO Conﬁ guration

Save & ExitChipset Boot Security

Main

Advanced

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 57

BIOS Setup

ACPI Power Management Conﬁ guration

This section is used to conﬁ gure the ACPI Power Management.

Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.

ACPI Power Management Conﬁ guration

ACPI Sleep State

Resume by PME Resume by Ring Resume by USB Resume by PS2 KB (S1,S3) Resume by PS2 MS (S1,S3) Wake system with Fixed Time

Advanced

[S3 (Suspend to RAM) ]

[Disabled] [Disabled] [Disabled] [Disabled] [Disabled] [Disabled]

ACPI Sleep State

Selects the highest ACPI sleep state the system will enter when the Suspend button is pressed.

S1(POS) Enables the Power On Suspend function. S3(STR) Enables the Suspend to RAM function.

Resume by PME

Enable this ﬁ eld to use the PME signal to wake up the system.

Resume by Ring

Set this ﬁ eld to Enabled to use the modem ring-on function. This will allow your system to power-on to respond to calls coming through an external or internal modem.

Resume by USB

About resume by USB; Options are enabled or disabled.

Resume by PS2 KB (S1, S3)

About resume by PS2 KB (S1, S3); Options are enabled or disabled.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 58

BIOS Setup

Resume by PS2 MS (S1, S3)

About resume by PS2 MS (S1, S3); Options are enabled or disabled.

Wake system with Fixed Time

Enable or disable the system wake on alarm event. When enabled, system will wake on the hr::min::sec speciﬁ ed.

Page 59

BIOS Setup

PC Health Status

This section displays the SIO hardware health monitor.

System Hardware Monitor



Smart Fan Function

Case Open Beep CPU Temperature

System Temperature CPU FAN Speed System FAN Speed System FAN2 Speed VCore +5.0V +12V VDIMM +3.3V VS5V

Advanced

[Disabled]

: +40 C : +25 C : 2103 RPM : N/A : N/A : +0.984V : +5.072 V : +12.232V : +1.520 V : +3.296 V : +4.920V

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU Smart Fan Control

Boundary 1 Boundary 2 Boundary 3 Boundary 4 Speed Count 1 Speed Count 2 Speed Count 3 Speed Count 4 Speed Count 5 System Smart Fan (1) Control Boundary 1 Boundary 2 Boundary 3 Boundary 4 Speed Count 1 Speed Count 2 Speed Count 3 Speed Count 4 Speed Count 5 System Smart Fan (2) Control Boundary 1 Boundary 2 Boundary 3 Boundary 4 Speed Count 1 Speed Count 2 Speed Count 3 Speed Count 4 Speed Count 5

Advanced

[Automatic]

60 50 40 30 100 75 50 40 30 [Automatic] 60 50 40 30 100 75 50 40 30 [Automatic] 60 50 40 30 100 75 50 40 30

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Smart Fan Function

Enable CPU SmartFan



Page 60

BIOS Setup

CPU Smart Fan Control

When this feature is set to Automatic, the CPU’s fan speed will rotate according to the CPU’s temperature. The higher the temperature, the faster the speed of rotation.

Boundary 1 to Boundary 4

The range is from 0-127.

Speed Count 1 to Speed Count 5

The range is from 1-100.

Case Open Beep

Set this ﬁ eld to Enabled to allow the system to alert you of a chassis intru- sion event.

Page 61

BIOS Setup

Trusted Computing

This section conﬁ gures settings relevant to Trusted Computing innovations.

Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

Conﬁ guration

TPM Support

Current Status Information No security device found

Advanced

TPM Support

Enables or Disables TPM. O.S. will not show TPM. Resetting the platform is required.

[Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 62

BIOS Setup

CPU Conﬁ guration

This section is used to conﬁ gure the CPU. It will also display the detected CPU information.

Disabled for Windows XP

CPU Conﬁ guration Genuine Intel (R) CPU @ 2.20GHz

CPU Speed Processor Cores Intel HT Technology

Limit CPUID Maximum

Intel Virtualization Technology EIST Turbo Mode

Advanced

Limit CPUID Maximum

The CPUID instruction of some newer CPUs will return a value greater than

3. The default is Disabled because this problem does not exist in the Windows series operating systems. If you are using an operating system other than Windows, this problem may occur. To avoid this problem, enable this ﬁ eld to limit the return value to 3 or less than 3.

Intel Virtualization Technology

When this ﬁ eld is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

EIST

Enable or disable Intel Speedstep.

Turbo Mode

If you want the system to run at a faster speed, set this ﬁ eld to Enabled. However, compatibility problems may occur with some DRAMs if the system is running in Turbo mode. If you encounter this problem, set this ﬁ eld to Dis- abled.

2200 MHz 4 Not supported

[Disabled]

[Disabled] [Enabled] [Enabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 63

BIOS Setup

SATA Conﬁ guration

This section is used to conﬁ gure SATA functions.

Enable or disable SATA Device.

SATA Controller(s)

SATA Mode Selection

Serial ATA Port 0 Software Preserve Serial ATA Port 1 Software Preserve Serial ATA Port 2 Software Preserve Serial ATA Port 3 Software Preserve Serial ATA Port 4 Software Preserve Serial ATA Port 5 Software Preserve

Advanced

SATA Controller(s)

This ﬁ eld is used to enable or disable the Serial ATA channels.

SATA Mode Selection

IDE Mode

This option conﬁ gures the Serial ATA drives as Parallel ATA storage devices.

AHCI Mode

This option allows the Serial ATA devices to use AHCI (Advanced Host Controller Interface).

RAID Mode

This option allows you to create RAID or Intel Matrix Storage conﬁ guration on Serial ATA devices.

[Enabled]

[IDE]

Empty Unknown Empty Unknown Empty Unknown Empty Unknown Empty Unknown Empty Unknown

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 64

BIOS Setup

If AHCI or RAID is selected in the SATA Mode Selection, it will display the following information:

Determines how SATA controller(s) operate.

SATA Controller(s)

SATA Mode Selection

Agressive LPM Support SATA Controller Speed



Software Feature Mask Conﬁ guration

Serial ATA Port 0 Software Preserve Port 0

Hot Plug SATA Device Type Spin Up Device

Serial ATA Port 1 Software Preserve

Port 1 Hot Plug SATA Device Type Spin Up Device

Serial ATA Port 2 Software Preserve Port 2

Hot Plug Spin Up Device

Serial ATA Port 3 Software Preserve

Port 3 Hot Plug Spin Up Device

Serial ATA Port 4 Software Preserve

Port 4 Hot Plug Spin Up Device

Serial ATA Port 5 Software Preserve

Port 5 Hot Plug Spin Up Device

Advanced

Serial ATA Port 0 to Serial ATA Port 5

These ﬁ elds are used to conﬁ gure the connected SATA devices.

[Enabled]

[AHCI]

[Enabled] [Gen3]

Empty Supported

[Enabled] [Disabled] [Hard Disk Driver] [Disabled]

Empty Supported

[Enabled] [Disabled] [Hard Disk Driver] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit



Page 65

BIOS Setup

Software Feature Mask Conﬁ guration

RAID0

RAID1 RAID10 RAID5 Intel Rapid Recovery Technology OROM UI and BANNER HDD Unlock LED Locate IRRT only on eSATA Smart Response Technology OROM UI Delay

Advanced

[Enabled]

[Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [2 Seconds]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or disable RAID0 feature.

RAID0 to RAID5

Enables or disables RAID0 to RAID5 feature.

Intel Rapid Recovery Technology

Enables or disables Intel Rapid Recovery Technology.

OROM UI and BANNER

When enabled, the OROM UI is shown. When disabled, no OROM banner or information will be displayed if all disks and RAID volumes are Normal.

HDD Unlock

When enabled, it indicates that the HDD password unlock in the OS is enabled.

LED Locate

When enabled, it indicates that the LED/SGPIO hardware is attached and ping to locate feature is enabled on the OS.

IRRT only on eSATA

When enabled, only IRRT volumes can span internal and eSATA drives. When disabled, any RAID volume can span internal and eSATA drives.

Page 66

BIOS Setup

Smart Response Technology

Enables or disables Smart Response Technology.

OROM UI Delay

When enabled, it indicates the delay of the OROM UI Splash Screen in a normal status.

Page 67

BIOS Setup

Intel TXT (LT) Conﬁ guration

This section is used to conﬁ gure the Intel Trusted Execution technology.

Secure Mode Extensions (SMX)

The options are Enabled and Disabled.

Intel TXT(LT) Support

The options are Enabled and Disabled.

Intel Trusted Execution Technology Conﬁ guration Intel TXT support only can be enabled/disabled if SMX is

enabled. VT and VT-d support must also be enabled prior to TXT. Secure Mode Extension (SMX) Intel TXT(LT) Support

Advanced

Enabled [Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 68

BIOS Setup

Intel AMT Conﬁ guration

Enable/ Disable Intel (R) Active Management Technology BIOS Extension. Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires addition ﬁ rmware in the SPI device.

Intel AMT

Un-Conﬁ gure ME

Advanced

[Enabled]

[Disabled]

Intel AMT

Enables or disables the AMT function.

Un-Conﬁ gure ME

Select Enabled to unconﬁ gure the ME function without the need for a pass- word.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 69

BIOS Setup

USB Conﬁ guration

This section is used to conﬁ gure USB.

Legacy USB Support

Enabled

Enables legacy USB.

Auto

Disables support for legacy when no USB devices are connected.

Disabled

Keeps USB devices available only for EFI applications.

USB3.0 Support

Enable or disable USB3.0 (XHCI) controller support.

XHCI Hand-off

This is a workaround for OSes that does not support XHCI hand-off. The XHCI ownership change should be claimed by the XHCI driver.

EHCI Hand-off

This is a workaround for OSes that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driver.

Port 60/64 Emulation

Enables I/O port 60h/64h emulation support. This should be enabled for the complete USB keyboard legacy support for non-USB aware OSes.

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

USB Conﬁ guration USB Devices:

2 Hubs

Legacy USB Support

USB3.0 Support XHCI Hand-off EHCI Hand-off Port 60/64 Emulation

USB hardware delays and time-outs:

USB transfer time-out Device reset time-out Device power-up delay

Advanced

[Enabled]

[Enabled] [Enabled] [Disabled] [Enabled]

[20 sec] [20 sec] [Auto]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 70

BIOS Setup

Device power-up delay

Maximum time the device will take before it properly reports itself to the Host Controller. “Auto” uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor.

USB transfer time-out

The time-out value for Bulk and Interrupt transfers.

Device reset time-out

Selects the USB mass storage device start unit command timeout.

Page 71

BIOS Setup

F71879 Super IO Conﬁ guration

This section is used to conﬁ gure the I/O functions supported by the onboard Super I/O chip.

Restore AC Power Loss help.

F71879 Super IO Conﬁ guration F71879 Super IO Chip



Restore AC Power Loss

Watchdog Timer

Super IO Watchdog Timer



Serial Port 1 Conﬁ guration



Serial Port 2 Conﬁ guration

Advanced

F71879

[Power Off]

[Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Restore AC Power Loss

Off

When power returns after an AC power failure, the system’s power is off. You must press the Power button to power-on the system.

When power returns after an AC power failure, the system will automatically power-on.

Last State

When power returns after an AC power failure, the system will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.

Watchdog Timer

Enable or disable Super I/O watchdog timer.

Page 72

BIOS Setup

Enable or Disable Serial Port (COM)

Serial Port 1 Conﬁ guration

Serial Port

Device Settings

Change Settings

Advanced

[Enabled]

IO=3F8h; IRQ=4;

[Auto]

Serial Port 1 Conﬁ guration to Serial Port 2 Conﬁ guration

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port

Enables or disables the serial port.

Change Settings

Selects the IO/IRQ setting of the I/O device.

Device Mode

Enable or disable serial port (COM)

Enable or Disable Serial Port (COM)

Serial Port 2 Conﬁ guration

Serial Port

Device Settings

Change Settings Device Mode

Advanced

[Enabled]

IO=2F8h; IRQ=3;

[Auto] [Serial Port Funct...]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 73

BIOS Setup

Enable or disable the serial port (COM)

Serial Port 3 Conﬁ guration

Serial Port

Device Settings

Change Settings Device Mode

Advanced

[Enabled]

IO=220h; IRQ=11;

[Auto]

[Serial port functi....]

Serial Port 3 Conﬁ guration to Serial Port 6 Conﬁ guration

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

F81217 Second Super IO Conﬁ guration

This section is used to conﬁ gure the serial port functions.

Set Parameters of Serial Port 3 (COMA)

F81217 Second Super IO Conﬁ guration F81217 Second Super IO Chip



Serial Port 3 Conﬁ guration



Serial Port 4 Conﬁ guration



Serial Port 5 Conﬁ guration



Serial Port 6 Conﬁ guration

Advanced

F81217 Second IO

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port

Enables or disables the serial port.

Change Settings

Selects the IO/IRQ setting of the I/O device.

Page 74

BIOS Setup

Chipset

Conﬁ gures relevant chipset functions.



South Bridge



North Bridge



ME Subsystem

Save & Exit

Advanced

Boot Security

Main

Chipset

South Bridge Parameters

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 75

BIOS Setup

South Bridge

PCI Express Coniguration settings.

Intel PCH RC Version Intel PCH SKU Name Intel PCH Rev ID



PCI Express Conﬁ guration



USB Conﬁ guration



PCH Azalia Conﬁ guration

PCH LAN Controller Wake on LAN from S5

After G3

1.0.0.0

Q77

02/B0

[Enabled]

[Power on]

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCH LAN Controller

Enables or disables the PCH LAN Controller.

Wake on LAN Enable

Set this ﬁ eld to Enabled to wake up the system via the onboard LAN or via a LAN card that supports the remote wake up function.

After G3

Power Off / WOL

Power-on the system via WOL after G3.

Power On

Power-on the system after G3.

Page 76

BIOS Setup

USB Conﬁ guration

Enable or disable XHCI Pre-Boot Driver support.

USB Conﬁ guration

XHCI Pre-Boot Driver

xHCI Mode HS Port #1 Switchable HS Port #2 Switchable HS Port #3 Switchable HS Port #4 Switchable xHCI Streams

EHCI1 EHCI2 USB Ports Per-Port Disable Control

[Enabled]

[Smart Auto] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled]

[Enabled] [Enabled] [Disabled]

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Contro the PCI Express root port.

PCI Express Conﬁ guration

PCIE Port 6 is assigned to LAN

On Board LAN2 [Enabled]

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCI Express Conﬁ guration

Page 77

BIOS Setup

xHCI Mode

Mode of operation of xHCI controller. Options are Smart Auto, Auto, Enabled, Disabled.

EHCI1 and EHCI2

These ﬁ elds are used to enable or disable USB 2.0.

USB Ports Per-Port Disable Control

Control each of the USB ports (0~13) disabling.

PCH Azalia Conﬁ guration

Azalia internal HDMI codec

Enables or disables the Azalia internal HDMI codec.

Control detection of the Azalia device. Disable= Azalia will be unconditionally disabled Enabled= Azalia will be unconditionally enabled

PCH Azalia Conﬁ guration

Azalia



Azalia Internal HDMI Codec



Azalia HDMI Code Port D

[Enabled]

[Enabled] [Enabled]

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 78

BIOS Setup

North Bridge

Primary Display

Auto When the system boots, it will auto detects the display de-

vice.

IGFX When the system boots, it will ﬁ rst initialize the onboard

VGA.

PEG When the system boots, it will ﬁ rst initialize the PCI Express

x16 graphics card.

PCI When the system boots, it will ﬁ rst initialize the PCI graphic

card.

VT-d

Check to enable VT-d function on MCH.

DVMT Pre-Allocated

Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device.

Select which of IGFX/ PEG/ PCI Graphics device should be primary display or select SG for switchable Gfx.

Total Memory DIMM#0 DIMM#1 DIMM#2 DIMM#3

Primary Display

VT-d DVMT Pre-Allocated

4096 MB (DDR3) Not Present 4096 MB (DDR3) Not Present Not Present

[Auto]

[Enabled] [64M]

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 79

BIOS Setup

Intel ME subsystem conﬁ guration ME FW version 8.0.0.1351

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

ME Subsystem

NB PCIe Conﬁ guration

Conﬁ gure PEG B0:D1:F0 Gen1-Gen3

NB PCIe Conﬁ guration PEG

PEG - Gen x

Enable PEG

Not Present

[Auto]

[Enabled]

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 80

BIOS Setup

Setup Prompt Timeout

Selects the number of seconds to wait for the setup activation key. 65535(0xFFFF) denotes indeﬁ nite waiting.

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Quiet Boot

Enables or disables the quiet boot function.

Fast Boot

Enables or disables boot with initialization of a minimal set of devices re quired to launch active boot option. Has no effect for BBS boot options.

GateA20 Active

Upon Request- GA20 can be disabled using BIOS services.

Alwasy- Do not allow disabling GA20; this option is useful when any RT code

is executed above 1MB.

Boot

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indeﬁ nite waiting.

Boot Conﬁ guration

Setup Prompt Timeout

Bootup NumLock State Quiet Boot

Fast Boot

CSM16 Module Version

GateA20 Active Option ROM Messages INT19 Trap Response



CSM Parameters

Save & ExitChipset

Advanced

Security

Main

Boot

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

[On] [Disabled]

[Disabled]

07.69

[Upon Request] [Force BIOS] [Immediate]

Page 81

BIOS Setup

Option ROM Messages

Set display mode for option ROM.

Int19 Trap Response

BIOS reaction on Int19 trapping by option ROM.

Immediate- execute the trap right away.

Postpone- execute the trap during legacy boot.

CSM Parameters

This option controls if CSM will be launched.

Launch CSM

Launch PXE OpROM policy Launch Storage OpROM policy Launch Video OpROM policy

Save & ExitChipset

Advanced

Security

Main

Boot

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

[Always]

[Do not launch] [Legacy only] [Legacy only]

Launch PXE OpROM policy

Controls the execution of UEFI and legacy PXE OpROM.

Launch Storage OpROM policy

Controls the execution of UEFI and legacy storage OpROM.

Launch Video OpROM policy

Controls the execution of UEFI and legacy video OpROM.

Page 82

BIOS Setup

Security

Set Administrator Password.

Password Description If ONLY the Administrator’s password is set,

then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20

Administrator Password

User Password UEFI Secure Boot Management

Secure Boot Control



Secure Boot Policy

Save & ExitChipset

Advanced

Main

Boot Security

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Administrator Password

Sets the administrator password.

User Password

Sets the user password.

Secure Boot Control

Secure boot ﬂ ow control. Secure boot is bossible only if system runs in User Mode.

[Enabled]

Page 83

BIOS Setup

Security Boot Policy

Image execution policy on security violation. Image load device path.

Security

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Internal FV

Option ROM Removable Media Fixed Media

[Always Execute]

[Deny Execute] [Deny Execute] [Deny Execute]

Page 84

BIOS Setup

Save & Exit

Reset the system after saving the changes.

Save Changes and Reset

Discard Changes and Reset

Save Options

Save Changes Discard Changes

Restore Defaults Save as User Defaults Restore User Defaults

Boot Override

Launch EFI Shell from ﬁ lesystem device

Chipset

Advanced

Main

Boot Security Save & Exit

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Save Changes and Reset

To save the changes, select this ﬁ eld and then press <Enter>. A dialog box will appear. Select Yes to reset the system after saving all changes made.

Discard Changes and Reset

To discard the changes, select this ﬁ eld and then press <Enter>. A dialog box will appear. Select Yes to reset the system setup without saving any changes.

Save Changes

Save changes done so far to any of the setup options.

Discard Changes

Discard changes done so far to any of the setup options.

Restore Defaults

To restore and load the optimized default values, select this ﬁ eld and then press <Enter>. A dialog box will appear. Select Yes to restore the default values of all the setup options.

Save as User Defaults

To save changes done so far as user default, select this ﬁ eld and then press <Enter>. A dialog box will appear. Select Yes to save values as user default.

Restore User Defaults

To restore user default to all the setup options, select this ﬁ eld and then press <Enter>. A dialog box will appear. Select Yes to restore user default.

Page 85

BIOS Setup

Updating the BIOS

To update the BIOS, you will need the new BIOS ﬁ le and a ﬂ ash utility, AFUDOS. EXE. Please contact technical support or your sales representative for the ﬁ les.

To execute the utility, type:

A:> AFUDOS BIOS_File_Name /b /p /n

then press <Enter>.

C:\AFU\AFUDOS>afudos ﬁ lename /B /P /N

+--------------------------------------------------------------------------------------------------------+

AMI Firmware Update Utility(APTIO) v2.25

+--------------------------------------------------------------------------------------------------------+

| |

Reading ﬁ le ..............................

Erasing ﬂ ash .............................

Writing ﬂ ash .............................

Verifying ﬂ ash ..........................

Erasing BootBlock ....................

Writing BootBlock ....................

Verifying BootBlock .................

C:\AFU\AFUDOS>

done done done done done done done

Page 86

BIOS Setup

Notice: BIOS SPI ROM

1. The Intel® Management Engine has already been integrated into this system

board. Due to the safety concerns, the BIOS (SPI ROM) chip cannot be removed from this system board and used on another system board of the same model.

2. The BIOS (SPI ROM) on this system board must be the original equipment

from the factory and cannot be used to replace one which has been utilized on other system boards.

3. If you do not follow the methods above, the Intel

Management Engine will

not be updated and will cease to be effective.

Note:

a. You can take advantage of ﬂ ash tools to update the default

conﬁ guration of the BIOS (SPI ROM) to the latest version anytime.

b. When the BIOS IC needs to be replaced, you have to populate it

properly onto the system board after the EEPROM programmer has been burned and follow the technical person's instructions to conﬁ rm that the MAC address should be burned or not.

Page 87

Supported Software

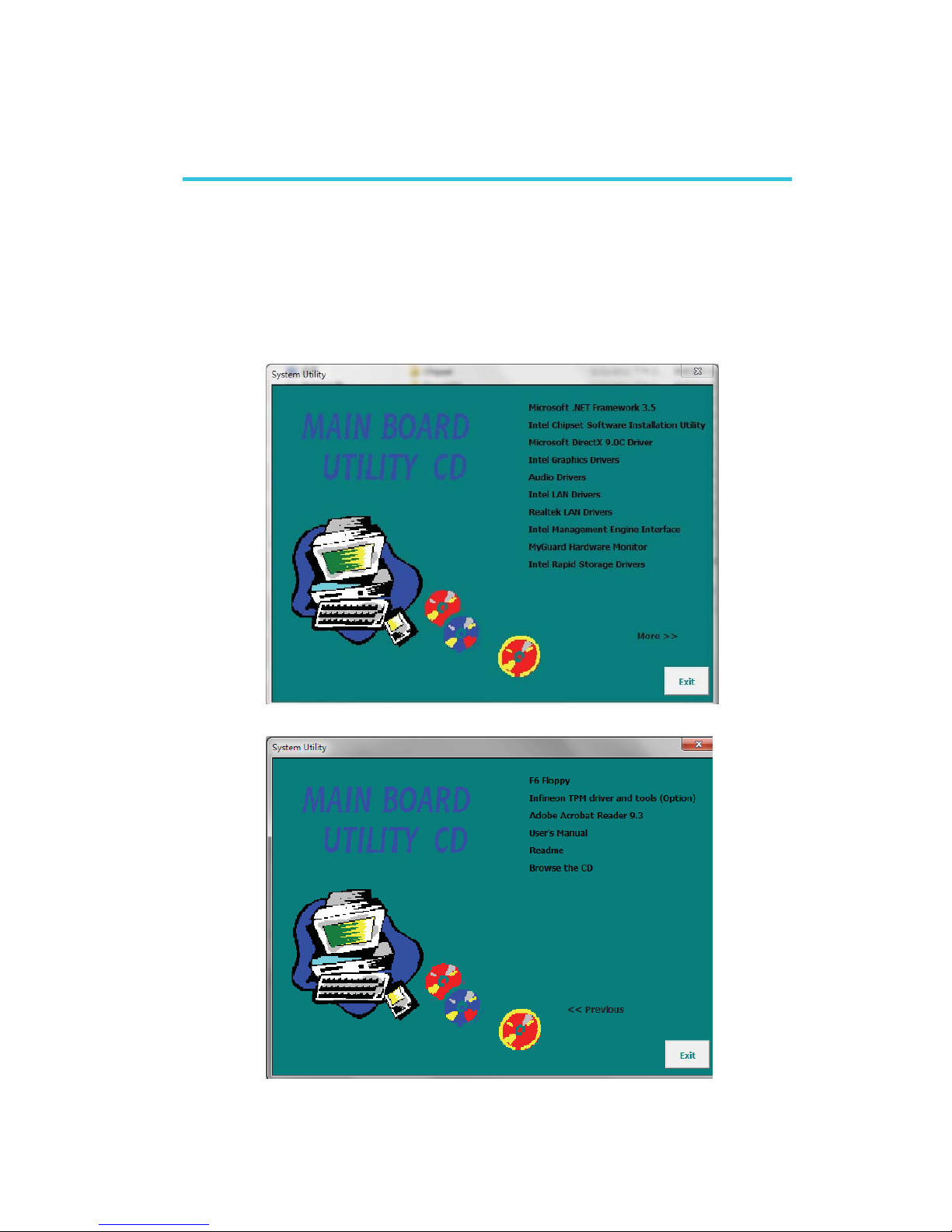

The CD that came with the system board contains drivers, utilities and software applications required to enhance the performance of the system board.

Insert the CD into a CD-ROM drive. The autorun screen (Mainboard Utility CD) will appear. If after inserting the CD, “Autorun” did not automatically start (which is, the Mainboard Utility CD screen did not appear), please go directly to the root directory of the CD and double-click “Setup”.

Chapter 4 - Supported Software

Page 88

Supported Software

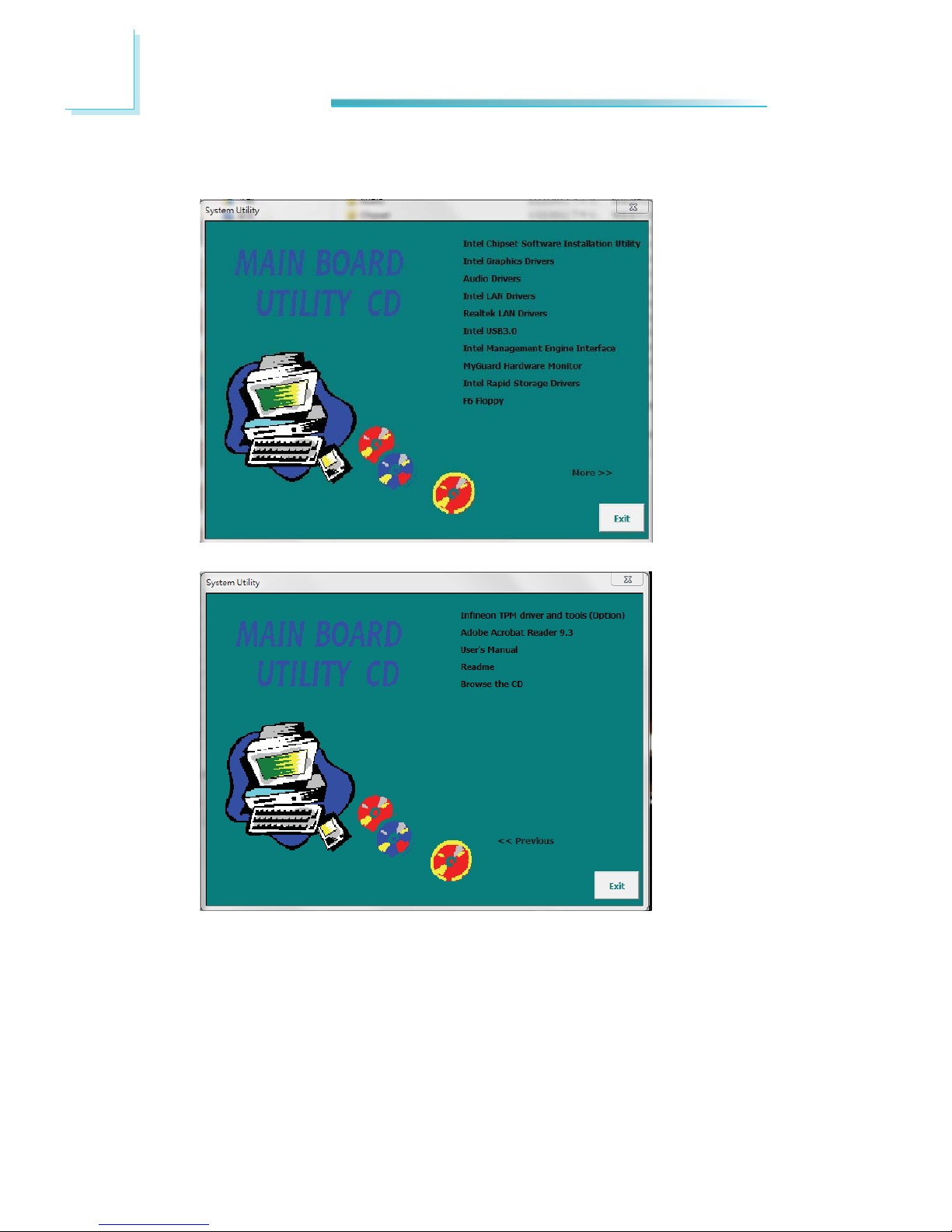

Auto Run Pages (for Windows 7)

Page 89

Supported Software

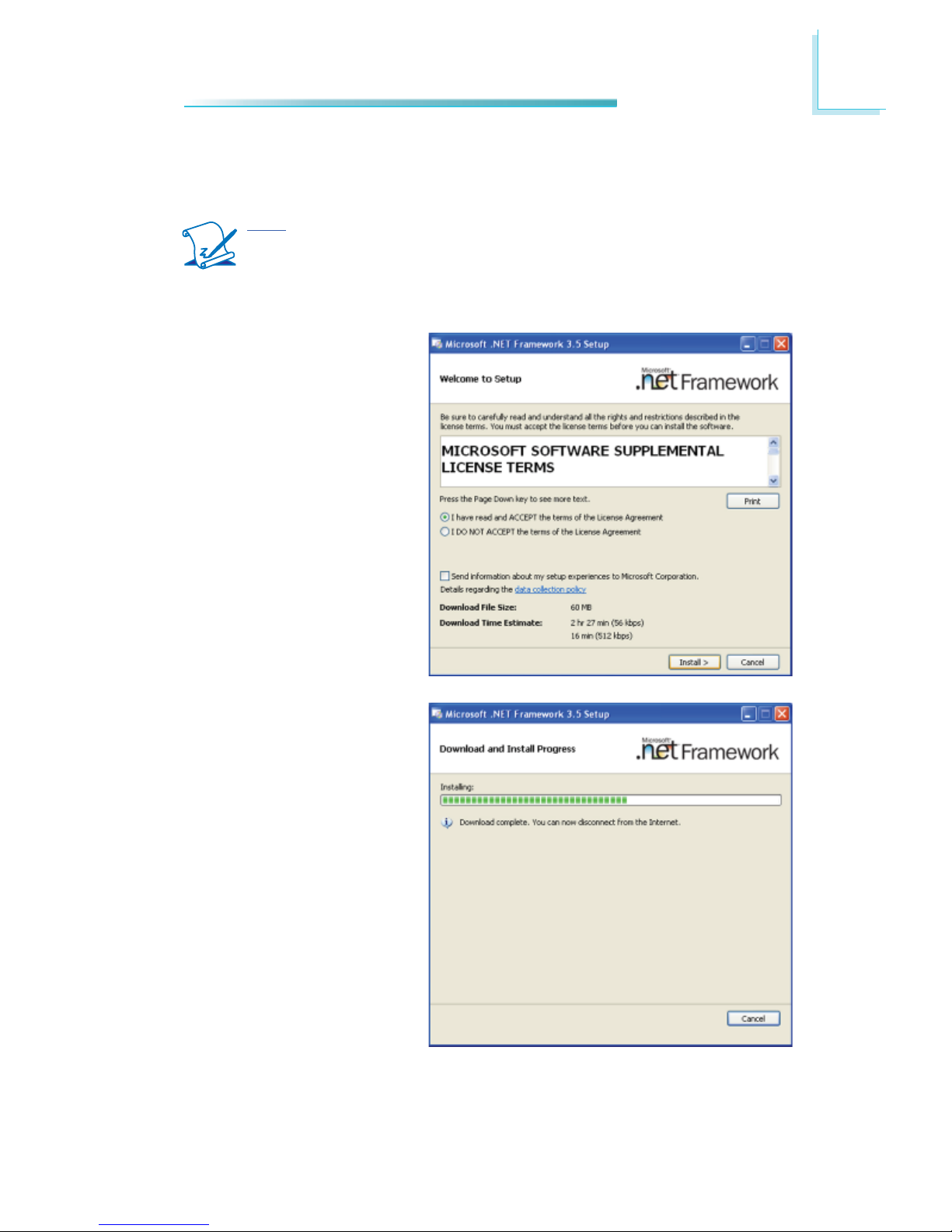

Microsoft .NET Framework 3.5 (for Windows XP only)

Note:

Before installing Microsoft .NET Framework 3.5, make sure you have updated your Windows XP operating system to Service Pack 3.

To install the driver, click “Microsoft .NET Framework 3.5” on the main menu.

1. Read the license agreement carefully.

Click “I have read and

accept the terms of the License Agreement” then click Install.

2. Setup is now installing the driver.

Page 90

Supported Software

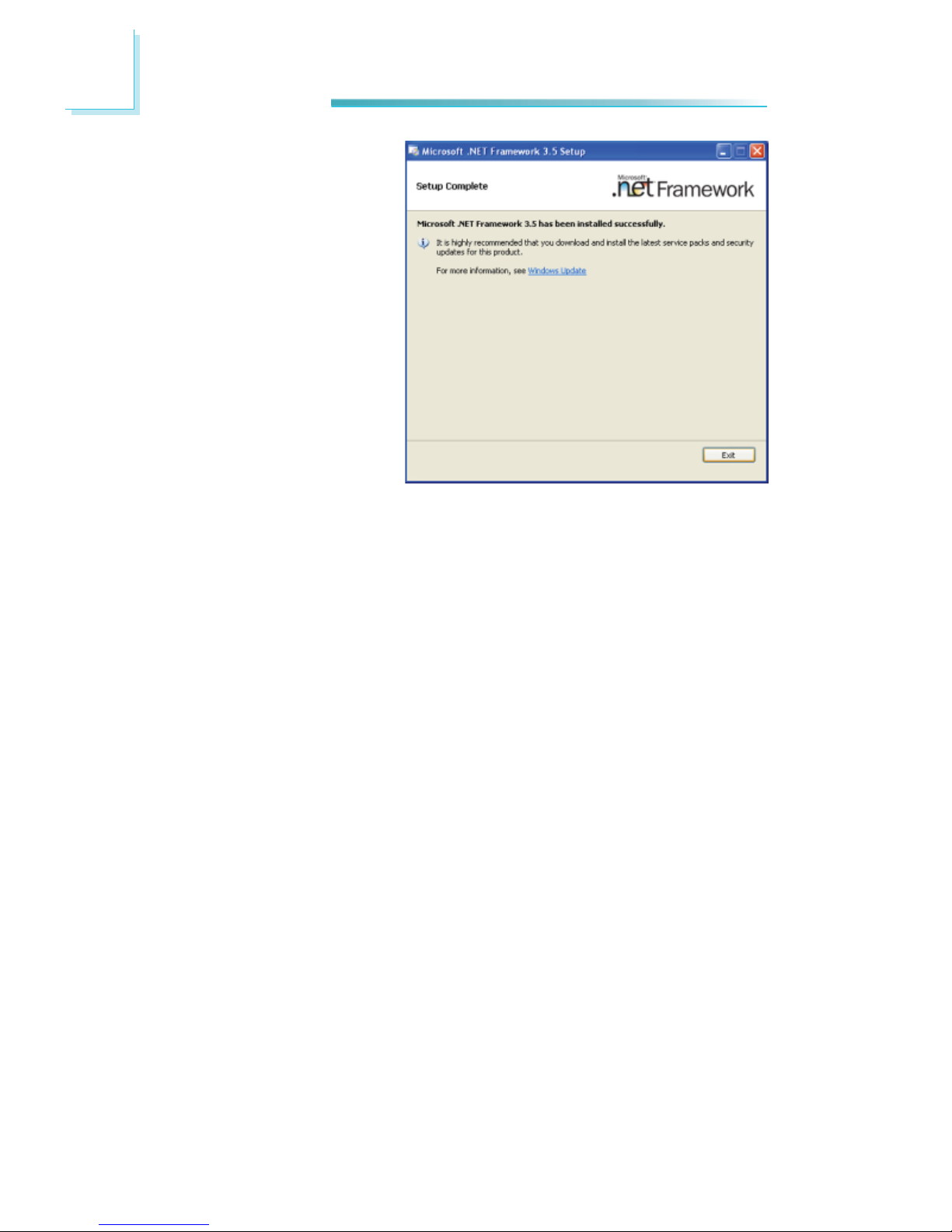

3. Click Exit.

Page 91

Supported Software

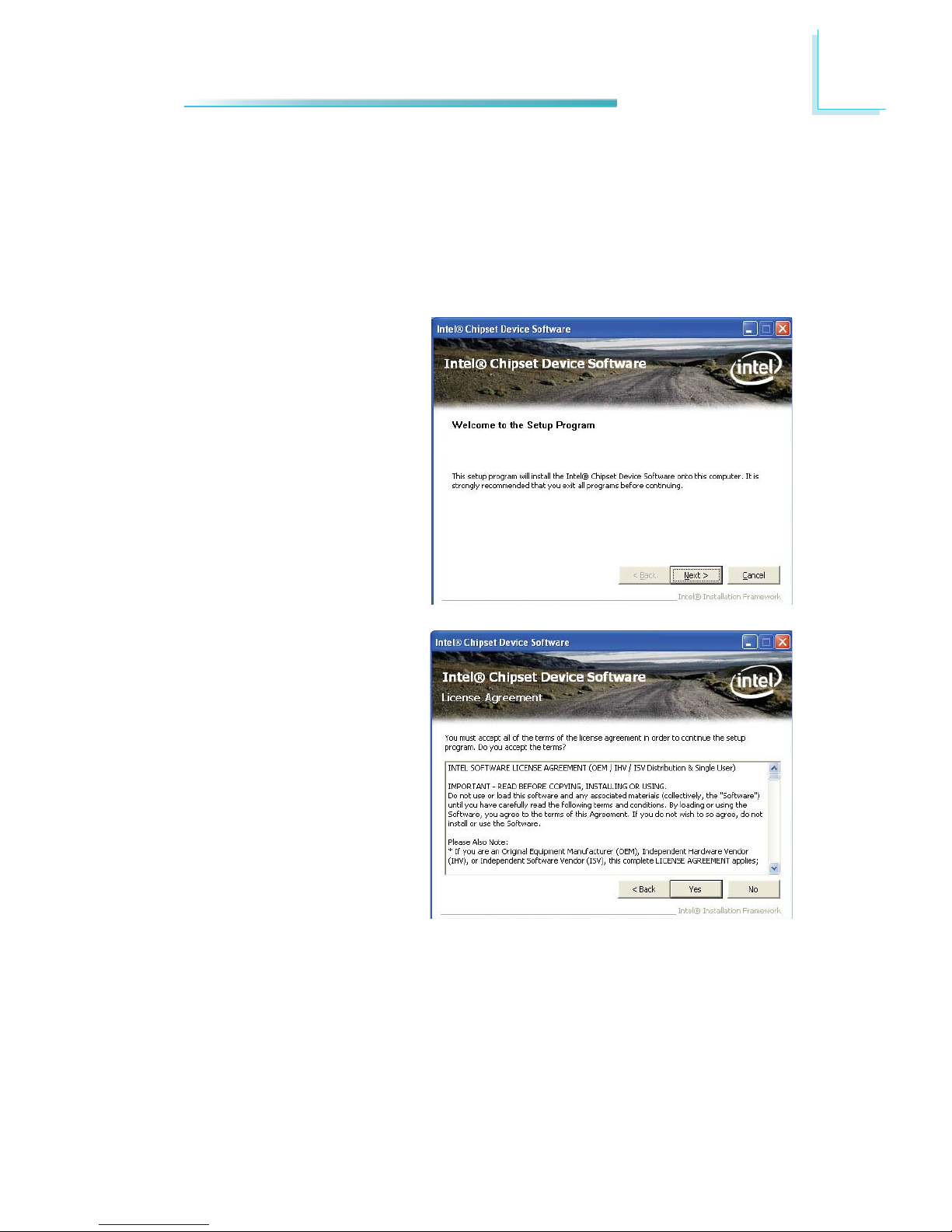

Intel Chipset Software Installation Utility

The Intel Chipset Software Installation Utility is used for updating Windows INF ﬁ les so that the Intel chipset can be recognized and conﬁ gured properly in the system.

To install the utility, click “Intel Chipset Software Installation Utility” on the main menu.

1. Setup is ready to install the utility. Click Next.

2. Read the license agreement then click Yes.

Page 92

Supported Software

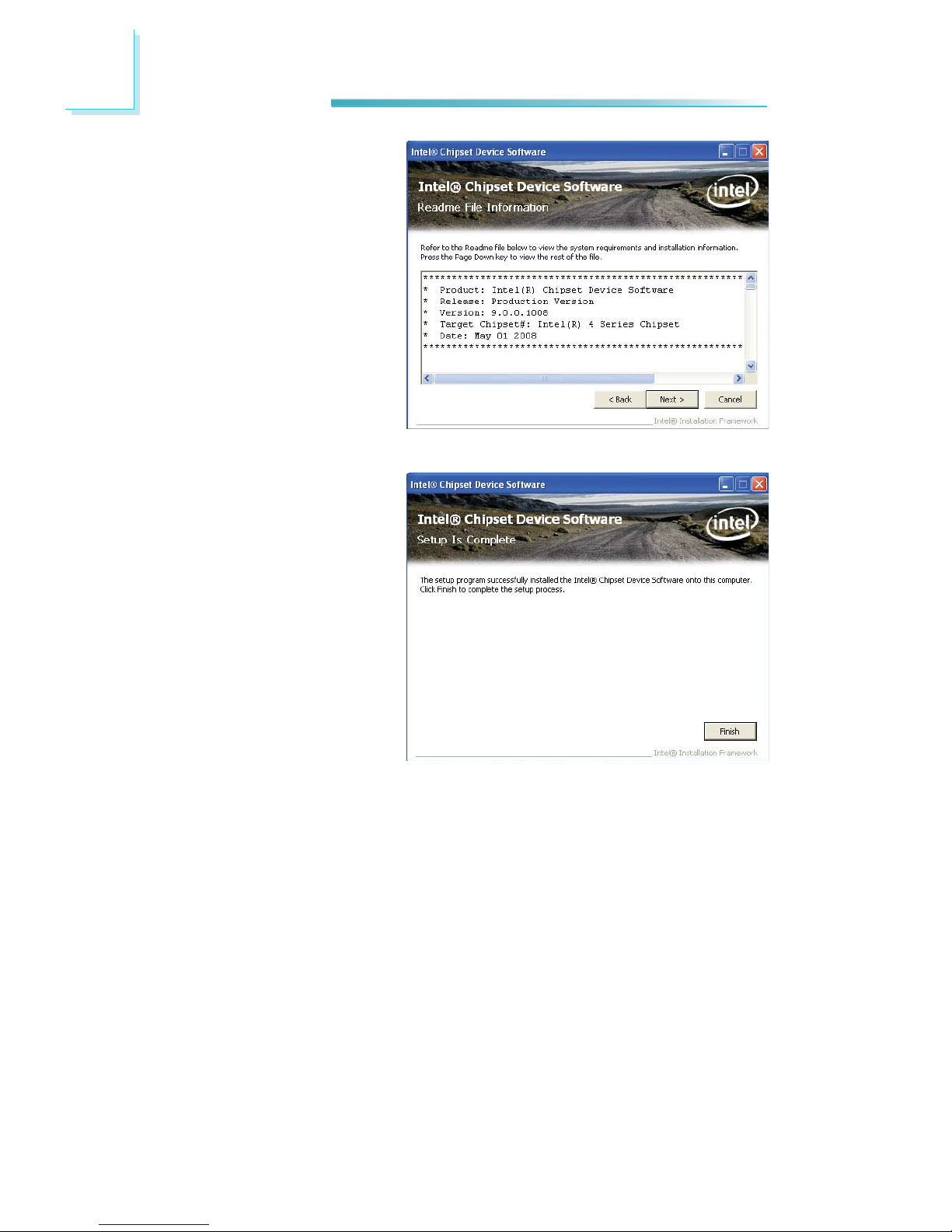

3. Go through the readme document for more installation tips then click Next.

4. Click Finish to exit setup.

Page 93

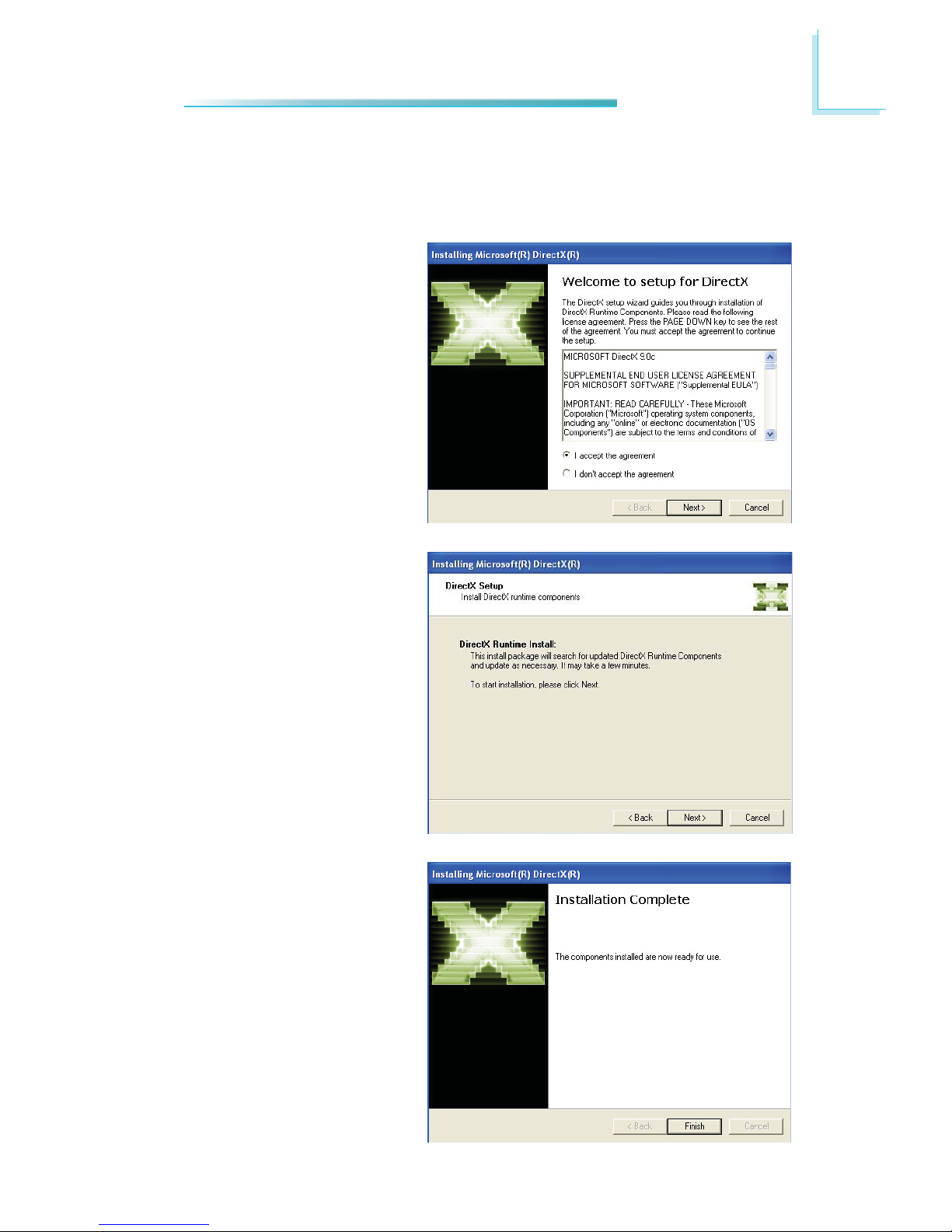

Supported Software

1. Click “I accept the agreement” then click Next.

Microsoft DirectX 9.0C (for Windows XP only)

To install the driver, click “Microsoft DirectX 9.0C” on the main menu.

2. To start installation, click Next.

3. Click Finish. Reboot the system for DirectX to take effect.

Page 94

Supported Software

Intel Graphics Drivers (for Windows 7)

To install the driver, click “Intel Graphics Drivers” on the main menu.

1. Setup is now ready to install the graphics driver. Click Next.

By default, the “Automatically run WinSAT and enable the Windows Aero desktop theme” is enabled. With this enabled, after installing the graphics driver and the system rebooted, the screen will turn blank for 1 to 2 minutes (while WinSAT is running) before the Windows Vista desktop appears. The “blank screen” period is the time Windows is testing the graphics performance.

2. Read the license agreement then click Yes.

Page 95

Supported Software

4. Setup is now installing the driver. Click Next to continue.

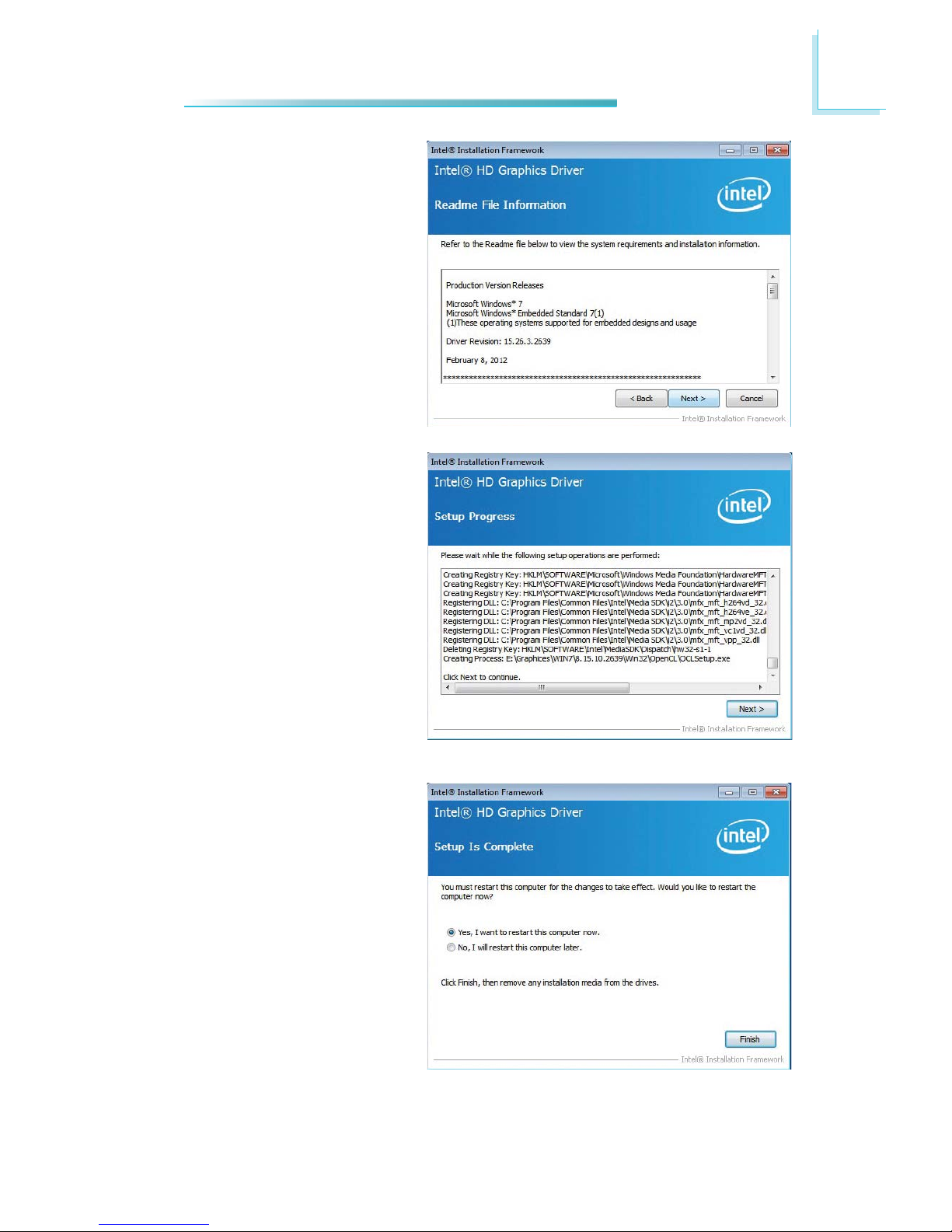

3. Go through the readme document for system requirements and installation tips then click Next.

5. Click “Yes, I want to restart this computer now” then click Finish.

Restarting the system will

allow the new software installation to take effect.

Page 96

Supported Software

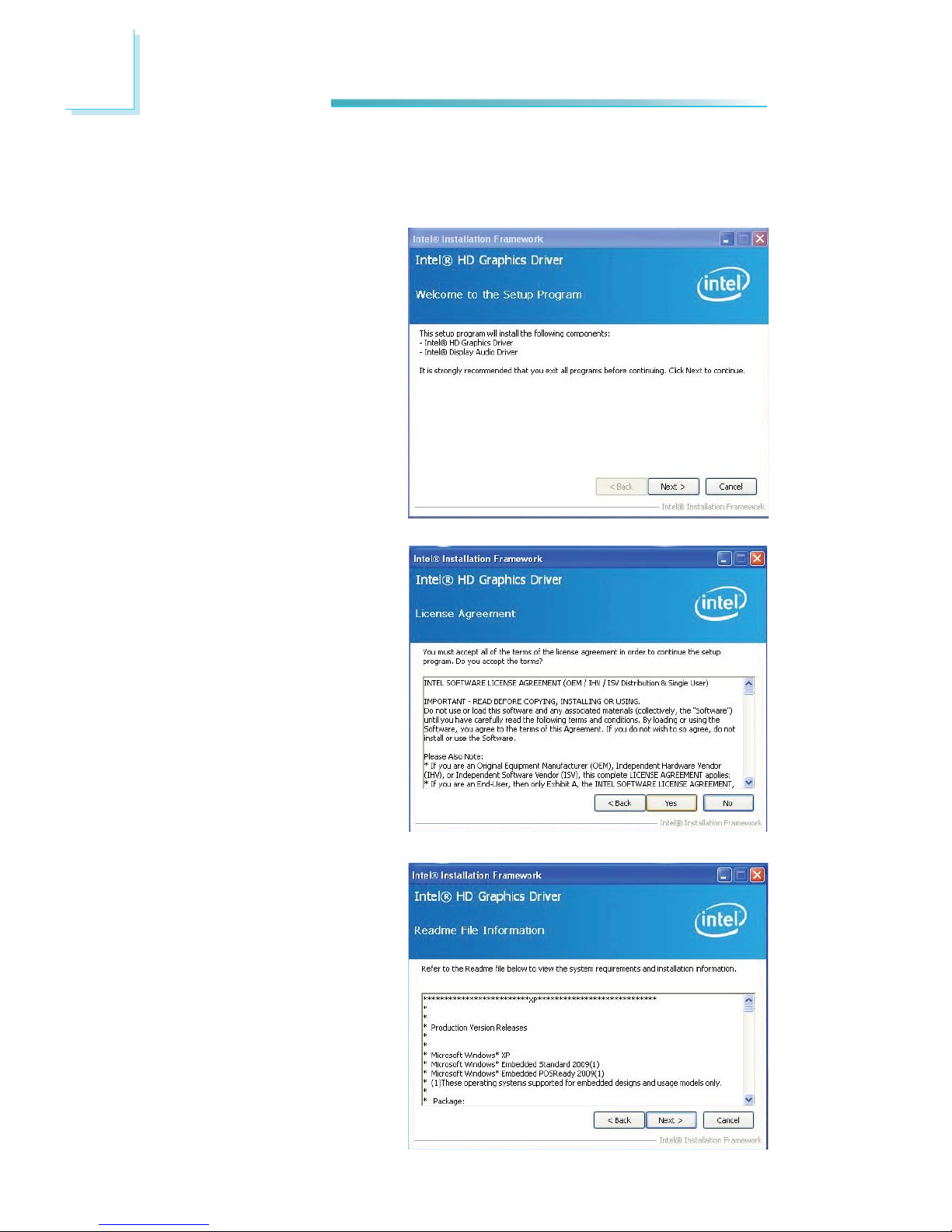

Intel Graphics Drivers (for Windows XP)

To install the driver, click “Intel Graphics Drivers” on the main menu.

3. Go through the readme document for more installation tips then click Next.

1. Setup is ready to install the graphics driver. Click Next.

2. Read the license agreement then click Yes.

Page 97

Supported Software

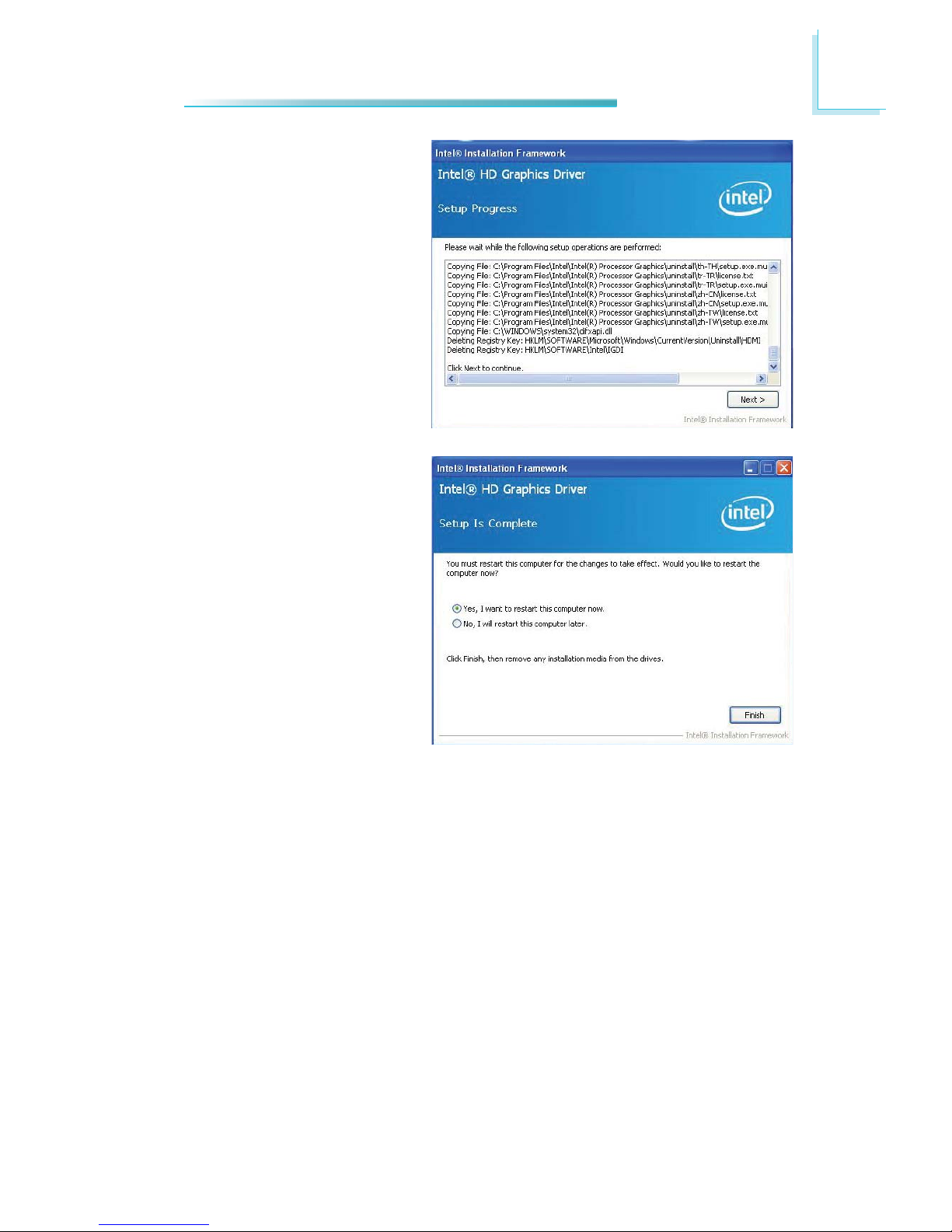

4. Setup is currently installing the driver. After installation has completed, click Next.

5. Click “Yes, I want to restart this computer now.” then click Finish.

Restarting the system will

allow the new software installlation to take effect.

Page 98

Supported Software

Audio Drivers

To install the driver, click “Audio Drivers” on the main menu.

2. Click “Yes, I want to restart my computer now” then click Finish.

Restarting the system will

allow the new software installation to take effect.

1. Setup is ready to install the driver. Click Next.

Page 99

Supported Software

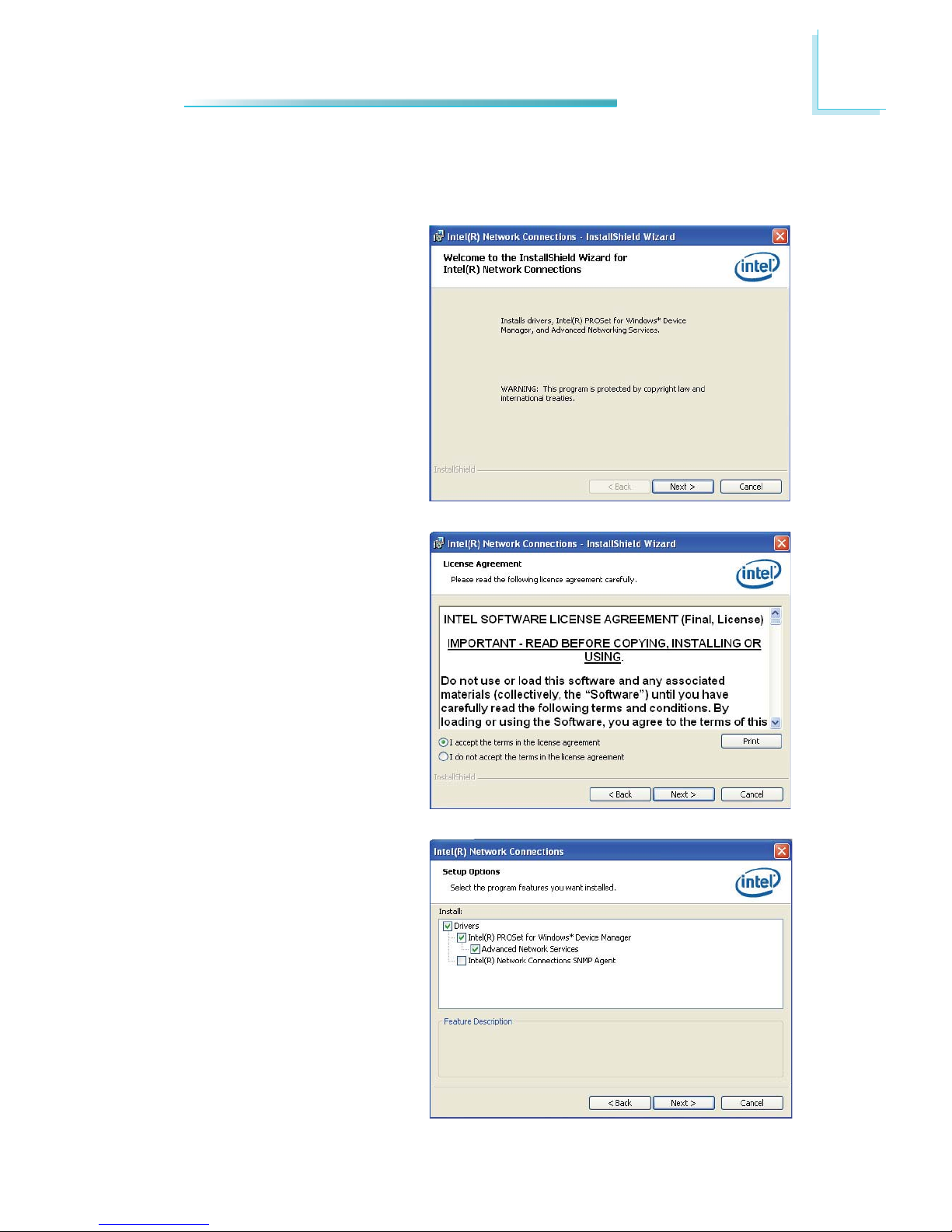

Intel LAN Drivers

To install the driver, click “Intel LAN Drivers” on the main menu.

1. Setup is ready to install the driver. Click Next.

2. Click “I accept the terms in the license agreement” then click “Next”.

3. Select the program featuers you want installed then click Next.

Page 100

100

Supported Software

4. Click Install to begin the installation.

5. After completing installation, click Finish.
