DFI ITOX BL600-DR, ITOX BL600-D User Manual

BL600-DR

BL600-D

System Board
User’s Manual

935-BL6001-150G

I04520844

Copyright

This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior writ­ten permission from the copyright holders.

This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any ex­press or implied warranties of merchantability or fitness for any par­ticular purpose. The user will assume the entire risk of the use or the
results of the use of this document. Further, the manufacturer re­serves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or en­tity of such revisions or changes.

© 2008. All Rights Reserved.

Trademarks

Product names or trademarks appearing in this manual are for iden­tification purpose only and are the properties of the respective own­ers.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio fre­quency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communi­cations. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following meas­ures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for
help.

Notice:

1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.

2. Shielded interface cables must be used in order to comply with
the emission limits.

Table of Contents

About this Manual................................................................................

Warranty.................................................................................................

Static Electricity Precaution................................................................

Safety Measures.....................................................................................

About the Package...............................................................................

Before Using the System Board.........................................................

Chapter 1 - Introduction....................................................................

Specifications...................................................................................................................................

Features..............................................................................................................................................

Chapter 2 - Hardware Installation....................................................

System Board Layout ..........................................................................................................

System Memory..........................................................................................................................

CPU.......................................................................................................................................................

Jumper Settings............................................................................................................................

Rear Panel I/O Ports.............................................................................................................

I/O Connectors..........................................................................................................................

5
5
6
6
7
7

8
8

11

15
15
16
20
25
30
40

Chapter 3 - BIOS Setup......................................................................

Award BIOS Setup Utility.................................................................................................

Intel RAID BIOS........................................................................................................................

Updating the BIOS..................................................................................................................

Chapter 4 - Supported Softwares.....................................................

Drivers, Utilities and Software Applications......................................................

Installation Notes.......................................................................................................................

Chapter 5 - RAID.................................................................................

Appendix A - Watchdog Timer.............................................................

Appendix B - System Error Messages...............................................

Appendix C - Troubleshooting..........................................................

60

60
102
103

105
105
117

118
126
128
130

About this Manual

An electronic file of this manual is included in the CD. To view the
user’s manual in the CD, insert the CD into a CD-ROM drive. The
autorun screen (Main Board Utility CD) will appear. Click “User’s
Manual” on the main menu.

Warranty

1. Warranty does not cover damages or failures that arised from
misuse of the product, inability to use the product, unauthorized
replacement or alteration of components and product specifica­tions.

2. The warranty is void if the product has been subjected to physi­cal abuse, improper installation, modification, accidents or unau­thorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may
not, under any circumstances, attempt to perform service, adjust­ments or repairs on the product, whether in or out of warranty.
It must be returned to the purchase point, factory or authorized
service agency for all such work.

4. We will not be liable for any indirect, special, incidental or
consequencial damages to the product that has been modified
or altered.

1

Introduction

Static Electricity Precautions

It is quite easy to inadvertently damage your PC, system board,
components or devices even before installing them in your system
unit. Static electrical discharge can damage computer components
without causing any signs of physical damage. You must take extra
care in handling them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the system board in its
anti-static bag until you are ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of
the components, contacts or connections.

5. Avoid touching the pins or contacts on all modules and connec­tors. Hold modules or connectors by their ends.

Important:

Electrostatic discharge (ESD) can damage your processor,
disk drive and other components. Perform the upgrade in­struction procedures described at an ESD workstation
only. If such a station is not available, you can provide
some ESD protection by wearing an antistatic wrist strap
and attaching it to a metal part of the system chassis. If a
wrist strap is unavailable, establish and maintain contact
with the system chassis throughout any procedures requir­ing ESD protection.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.

..

.

..

Battery:

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend
the manufacturer.

• Dispose of used batteries according to local ordinance.

by

6

About the Package

The system board package contains the following items. If any of
these items are missing or damaged, please contact your dealer or
sales representative for assistance.

; The system board
; One IDE cable
; One FDD cable
; Two brackets each mounted with 2 USB ports
; One bracket mounted with 2 serial por t cables
; Two Serial ATA data cables
; Two Serial ATA power cables
; One “Main Board Utility” CD
; Two RAID driver floppy diskettes (BL600-DR only)
; One I/O shield
; One QR (Quick Reference)

Introduction

1

The system board and accessories in the package may not come
similar to the information listed above. This may differ in accordance
to the sales region or models in which it was sold. For more infor­mation about the standard package in your region, please contact
your dealer or sales representative.

Before Using the System Board

Before using the system board, prepare basic system components.

If you are installing the system board in a new system, you will need
at least the following internal components.

• A CPU

• Memory module

• Storage devices such as hard disk drive, CD-ROM, etc.

You will also need external system peripherals you intend to use
which will normally include at least a keyboard, a mouse and a video
display monitor.

7

1

Introduction

Chapter 1 - Introduction

Specifications

Processor

Chipset

System Memory

BIOS

Energy Efficient
Design

Damage Free
Intelligence

• LGA 775 socket for:

®

- Intel

CoreTM2 Quad / Intel® CoreTM2 Duo

- Intel® Wolfdale 45nm processors

• Suppor ts Intel Enhanced Memory 64 Technology (EMT64T)

• Supports Enhanced Intel SpeedStep Technology (EIST)

• 1333*/1066/800MHz FSB
*Available on CPUs that support 1333MHz FSB

®

• Intel

• Four 240-pin DDR2 DIMM sockets

• Supports dual channel (128-bit wide) memory interface

• Supports 667MHz and 800MHz DDR2 SDRAM

• Supports maximum of 8GB system memory using 512Mbit or

• Award BIOS

• 8Mbit flash memory

• Suppor ts ACPI specification and OS Directed Power

• Suppor ts ACPI STR (Suspend to RAM) function

• Wake-On-Events include:

• System power management supported

• Microsoft

• Soft Power supported - ACPI v1.0a specification

• AC power failure recovery

• Monitors CPU/system/AUX temperature and overheat alarm

• Monitors CPU(V)/5V/1.5V/dimm(V)/12V/VBAT(V)/3.3V/ V3.3sb(V)

• Monitors CPU/system/2nd fan speed and failure alarm

• Read back capability that displays temperature, voltage and fan

• Watchdog timer function

chipset

- Intel® Q35 Express chipset

- Intel® ICH9R I/O Controller Hub (BL600-DR)

Intel® ICH9 I/O Controller Hub (BL600-D)

1Gbit technology for x8 and x16 devices
*ECC DDR2 DIMMs are not supported

Management

- Wake-On-PS/2 Keyboard/Mouse

- Wake-On-USB Keyboard/Mouse

- Wake-On-LAN and Wake-On-Ring

- RTC timer to power-on the system

®

/Intel®APM 1.2 compliant

voltages and failure alarm

speed

8

Introduction

1

Audio

Graphics

LAN

Serial ATA

• Realtek ALC885 8-channel HD Audio Codec

• High-performance DACs with 106dB dynamic range (A-Weight),
ADCs with 101dB dynamic range (A-Weight)

• Integrated Intel GMA3100

- Up to 384MB maximum video memory

- 2048x1536 at 75 Hz maximum resolution

- Suppor ts DVI port through Serial Digital Video Out (SDVO)

interface

- Dual screen display through CRT and DVI-I (DVI-D signal only)

ports

• Two Realtek RTL8111B PCI Express Gigabit controllers

• Suppor ts 10Mbps, 100Mbps and 1Gbps data transmission

• IEEE 802.3 (10/100Mbps) and IEEE 802.3ab (1Gbps) compliant

• Supports Serial ATA interfaces which are compliant with SATA

1.0 specification

• BL600-DR

- Supports up to 6 SATA devices

- SATA speed up to 3Gb/s

- RAID 0, RAID 1, RAID 0+1 and RAID 5

• BL600-D

- Supports up to 4 SATA devices

- SATA speed up to 3Gb/s

IDE

Rear Panel I/O
Ports

• JMicron JMB368 PCI Express to PATA host controller

• Supports up to 2 UltraDMA 33/66/100Mbps IDE devices

• 1 mini-DIN-6 PS/2 mouse port

• 1 mini-DIN-6 PS/2 keyboard port

• 1 DB-15 VGA port

• 1 DVI-I port (DVI-D signal only)

• 2 RJ45 LAN por ts

• 6 USB 2.0/1.1 ports

• 6 audio jacks for center/subwoofer, rear R/L, side R/L, line-in, line­out (front R/L) and mic-in

9

1

Introduction

I/O Connectors

Expansion Slots

Temperature

Humidity

PCB

• 3 connectors for 6 additional external USB 2.0/1.1 ports

• 2 connectors for external serial ports

• 1 DIO connector

• 1 parallel connector

• 1 front audio connector for line-out and mic-in jacks

• 1 CD-in internal audio connector

• 1 S/PDIF-in/out connector

• 1 connector for IrDA interface

• 6 Serial ATA connectors (BL600-DR)
4 Serial ATA connectors (BL600-D)

• 1 40-pin IDE connector

• 1 floppy connector

• 1 24-pin ATX power connector

• 1 8-pin 12V power connector

• 1 chassis open connector

• 1 front panel connector

• 3 fan connectors

• 1 PCI Express x16 slot

• 5 PCI slots

o

C to 60oC

•0

• 10% to 90%

• 4 layers, ATX form factor

• 30.5cm (12") x 24.4cm (9.6")

10

Features

Introduction

1

watchdog timer

the set time interval. If the system hangs or fails to function, it will
reset at the set time interval so that your system will continue to
operate.

DDR2

GB per second and beyond. That is twice the speed of the conven­tional DDR without increasing its power consumption. DDR2
SDRAM modules work at 1.8V supply compared to 2.6V memory
voltage for DDR modules. DDR2 also incorporates new innovations
such as the On-Die Termination (ODT) as well as larger 4-bit pre­fetch against DDR which fetches 2 bits per clock cycle.

graphics

ports analog CRT and DVI-I interfaces.

DDR2 is a higher performance DDR technology
whose data transfer rate delivers bandwidth of 4.3

The graphics flexibility of the built-in Intel GMA3100
delivers exceptional 3D graphics performance. It sup-

The Watchdog Timer function allows your
application to regularly “clear” the system at

DVI

panel LCD monitors and modern video graphics cards. Data is
transmitted using the TMDS (Transition Minimized Differential
Signaling) protocol, providing a digital signal from the PC’s graphics
subsystem to the display.

7.1 + 2 channel
audio

channel audio output for advanced 7.1-channel super surround
sound audio system. ALC885 also supports S/PDIF output, allowing
digital connections with DVD systems or other audio/video
multimedia.

DVI (Digital Visual Interface) is a form of video inter­face technology made to maximize the quality of flat

The onboard Realtek ALC885 is a High
Definition audio codec and the 6 audio
jacks at the rear I/O panel provides 8-

11

1

Introduction

S/PDIF

having to be converted first to an analog format. This prevents the
quality of the audio signal from degrading whenever it is converted
to analog. S/PDIF is usually found on digital audio equipment such as
a DAT machine or audio processing device. The S/PDIF connector on
the system board sends surround sound and 3D audio signal out­puts to amplifiers and speakers and to digital recording devices like
CD recorders.

ide

SERIAL ATA

3Gbps, it improves hard drive performance faster than the standard
parallel ATA whose data transfer rate is 100MB/s. The BL600-DR
board allows configuring RAID 0, RAID 1, RAID 0+1 and RAID 5 on
Serial ATA drives connected to SATA ports 0, 1, 2, 3, 4 and 5.

S/PDIF is a standard audio file transfer format that
transfers digital audio signals to a device without

The JMicron JMB368 chip supports up to two
UltraDMA 100Mbps IDE devices.

Serial ATA is a storage interface that is compliant
with SATA 1.0 specification. With speed of up to

gigabit lan

irda

and peripheral devices. The IRDA (Infrared Data Association) specifi­cation supports data transfers of 115K baud at a distance of 1
meter.

USB

while USB 2.0 supports 480Mb/second bandwidth providing a
marked improvement in device transfer speeds between your com­puter and a wide range of simultaneously accessible external Plug
and Play peripherals.

pci express

enhancing the capability of a x16 PCI Express lane to provide 4
Gigabytes per second transfer rate.

The two Realtek PCI Express Gigabit LAN con­trollers suppor t up to 1Gbps data transmission.

The system board is equipped with an IrDA connec­tor for wireless connectivity between your computer

The system board supports USB 2.0 and USB 1.1
ports. USB 1.1 supports 12Mb/second bandwidth

The PCI Express architecture provides a high
performance graphics infrastructure by

12

Introduction

1

wake-on-ring

wake-up/power-on to respond to calls coming from an external mo­dem or respond to calls from a modem PCI card that uses the PCI
PME (Power Management Event) signal to remotely wake up the
PC.

Important:

The 5V_standby power source of your power supply must sup-

≥

port

wake-on-lan

It is supported via the onboard LAN port or via a PCI LAN card
that uses the PCI PME (Power Management Event) signal. However,
if your system is in the Suspend mode, you can power-on the system
only through an IRQ or DMA interrupt.

Important:

The 5V_standby power source of your power supply must sup­port

720mA.

≥

720mA.

This feature allows the system that is in the
Suspend mode or Soft Power Off mode to

This feature allows the network to remotely
wake up a Soft Power Down (Soft-Off) PC.

wake-on-PS/2

tem.

Important:

The 5V_standby power source of your power supply must sup­port

≥

720mA.

wake-on-USB

from the S3 (STR - Suspend To RAM) state.

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for
2 USB ports, the 5V_standby power source of your power sup­ply must support
5V_standby power source of your power supply must support

≥

2A.

This function allows you to use the PS/2 key­board or PS/2 mouse to power-on the sys-

This function allows you to use a USB key­board or USB mouse to wake up a system

≥

1.5A. For 3 or more USB ports, the

13

1

Introduction

rtc timer

and time.

ACPI STR

fication. ACPI has energy saving features that enables PCs to imple­ment Power Management and Plug-and-Play with operating systems
that support OS Direct Power Management. Currently, only Win-

®®

®

®®

dows
the Power Management Setup will allow you to use the Suspend to
RAM function.

With the Suspend to RAM function enabled, you can power-off the
system at once by pressing the power button or selecting “Standby”
when you shut down Windows
through the sometimes tiresome process of closing files, applications
and operating system. This is because the system is capable of stor­ing all programs and data files during the entire operating session
into RAM (Random Access Memory) when it powers-off. The oper­ating session will resume exactly where you left off the next time you
power-on the system.

2000/XP supports the ACPI function. ACPI when enabled in

The RTC installed on the system board allows your
system to automatically power-on on the set date

The system board is designed to meet the ACPI
(Advanced Configuration and Power Interface) speci-

®®

®

®®

2000/XP without having to go

Important:

The 5V_standby power source of your power supply must sup-

≥

port

Power failure
recovery

automatically.

720mA.

When power returns after an AC power fail­ure, you may choose to either power-on the
system manually or let the system power-on

14

Hardware Installation

Chapter 2 - Hardware Installation

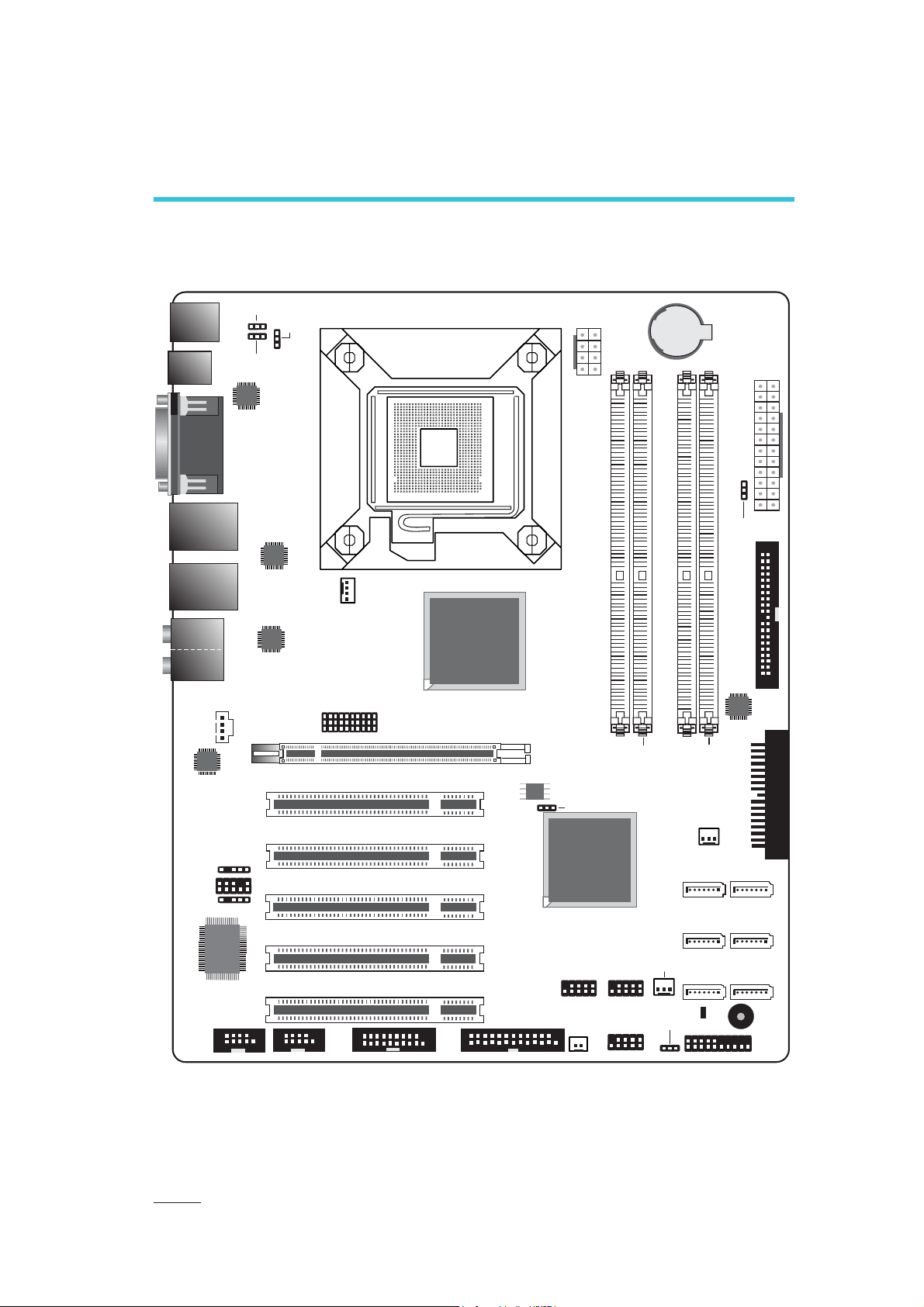

System Board Layout

PS/2 power

Mouse

KB

USB 10
USB 11

LAN 1

USB 8USB 9

Top: VGA

select (JP1)

1

1

USB 6/7/8/9/10/11
power select (JP3)

Bottom: DVI-I

Factory use
only (J24)

1

Chrontel
CH7307C

Socket 775

5

8

+12V power

2

1

4

Battery

ATX power

1

Power-on

select (JP6)

24

12

13

1

LAN 2

USB 6USB 7

Center/Subwoofer

Rear R/L

Side R/L

Line-in
Line-outMic-in

1

Audio
codec

CD-in

1

1

1

I/O
chip

1

S/PDIF

IrDA

COM 2

Realtek

RTL8111B

Realtek

RTL8111B

Front audio

1

COM 1

CPU fan

PCIE x16 / DVI

select (JP8)

1
11
21

1

Intel

Q35

1

IDE

10
20
30

PCIE1

PCI 1

PCI 2

SPI Flash BIOS

1

DDR2-1

Clear CMOS (JP5)

Intel

ICH9R

PCI 3

PCI 4

1

PCI 5

Parallel

1

DIO

1

USB 4-5

Chassis open

1

USB 0-1

power select (JP2)

USB 2-3

DDR2-2

System fan

1

1

USB 0/1/2/3/4/5

1

1

DDR2-3

SATA 1

SATA 3

SATA 5

1

DDR2-4

1

2nd fan

Standby
Power LED

Front panel

JMB368

1

SATA 0

1

SATA 2

1 1

SATA 4

1

FDD

1

1

The BL600-DR board (shown above) uses the ICH9R southbridge and
supports 6 SATA ports. On a BL600-D board, it uses ICH9 southbridge
and supports 4 SATA ports only (SATA 0/1/4/5).

Note:

The DVI-I port supports DVI-D signal only.

15

2

.

.

.

.

.

.

.

.

Hardware Installation

Warning:

Electrostatic discharge (ESD) can damage your system board, proces­sor, disk drives, add-in boards, and other components. Perform the
upgrade instruction procedures described at an ESD workstation only.
If such a station is not available, you can provide some ESD protec­tion by wearing an antistatic wrist strap and attaching it to a metal
part of the system chassis. If a wrist strap is unavailable, establish
and maintain contact with the system chassis throughout any proce­dures requiring ESD protection.

System Memory

DDR2-1
DDR2-2

DDR2-3
DDR2-4

Channel A

Channel B

The system board supports 240-pin DDR2 DIMM sockets. The four
DDR2 DIMM sockets on the system board are divided into 2 chan­nels:

Channel A - DDR2-1 and DDR2-2
Channel B - DDR2-3 and DDR2-4

16

Hardware Installation

The system board supports the following memory interface.

Single Channel (SC)

Data will be accessed in chunks of 64 bits (8B) from the memory
channels.

Dual Channel (DC)

Data will be accessed in chunks of 128 bits from the memory chan­nels. Dual channel provides better system performance because it
doubles the data transfer rate.

2

Single Channel

Dual Channel

BIOS Setting

Configure the system memory in the Advanced Chipset Features
submenu of the BIOS.

• DIMMs are on the same channel.

• DIMMs in a channel can be identical or

completely different. However, we highly rec­ommend using identical DIMMs.

• Not all slots need to be populated.

• DIMMs of the same memory configura-

tion are on different channels.

17

2

Hardware Installation

Installing the DIM Module

Note:

The system board used in the following illustrations may not
resemble the actual board. These illustrations are for reference
only.

1. Make sure the PC and all other peripheral devices connected to
it has been powered down.

2. Disconnect all power cords and cables.

3. Locate the DDR2 socket on the system board.

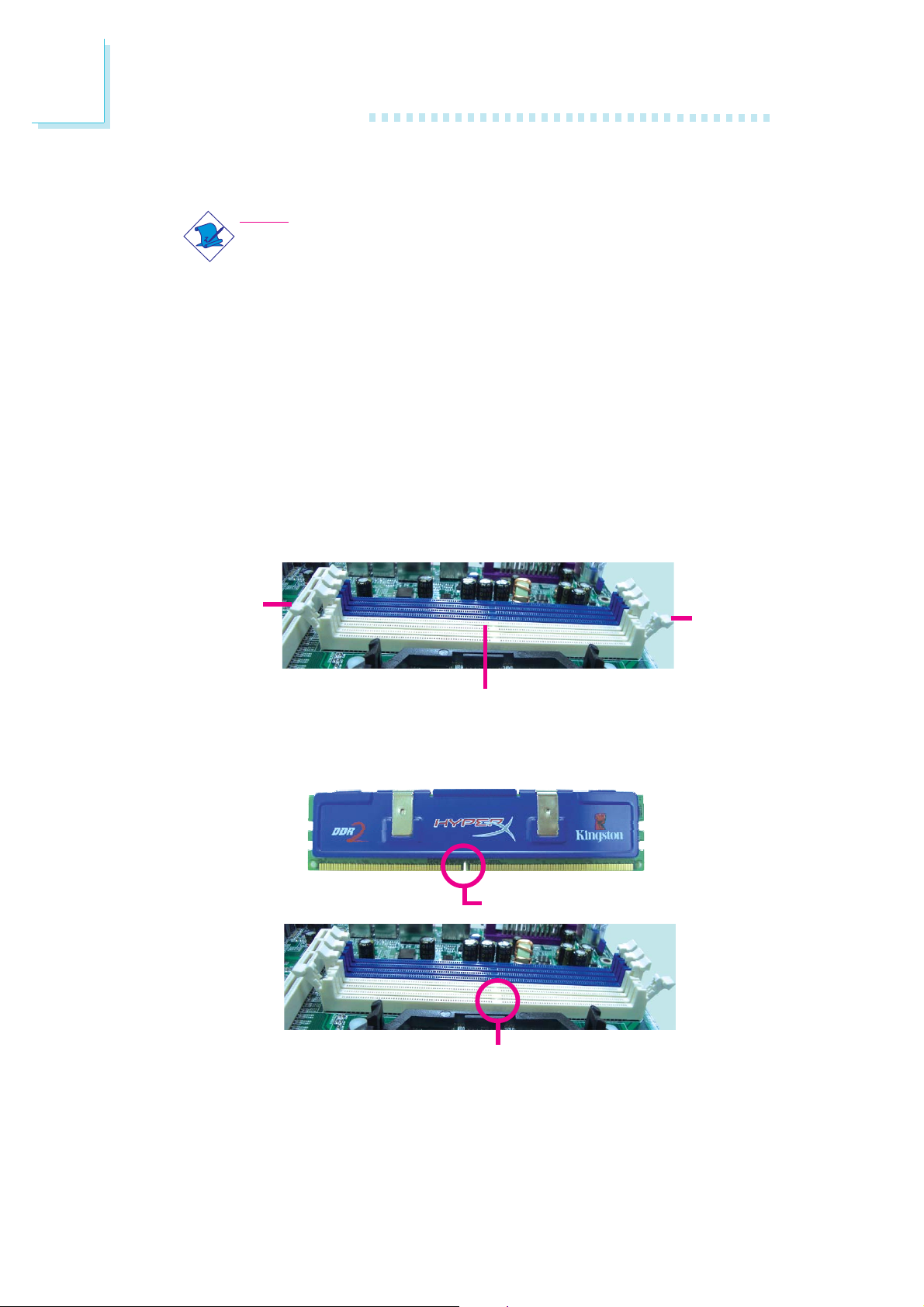

4. Push the “ejector tabs” which are at the ends of the socket to
the side.

Ejector

tab

DDR2 sockets

5. Note how the module is keyed to the socket.

Notch

Ejector
tab

18

Key

Hardware Installation

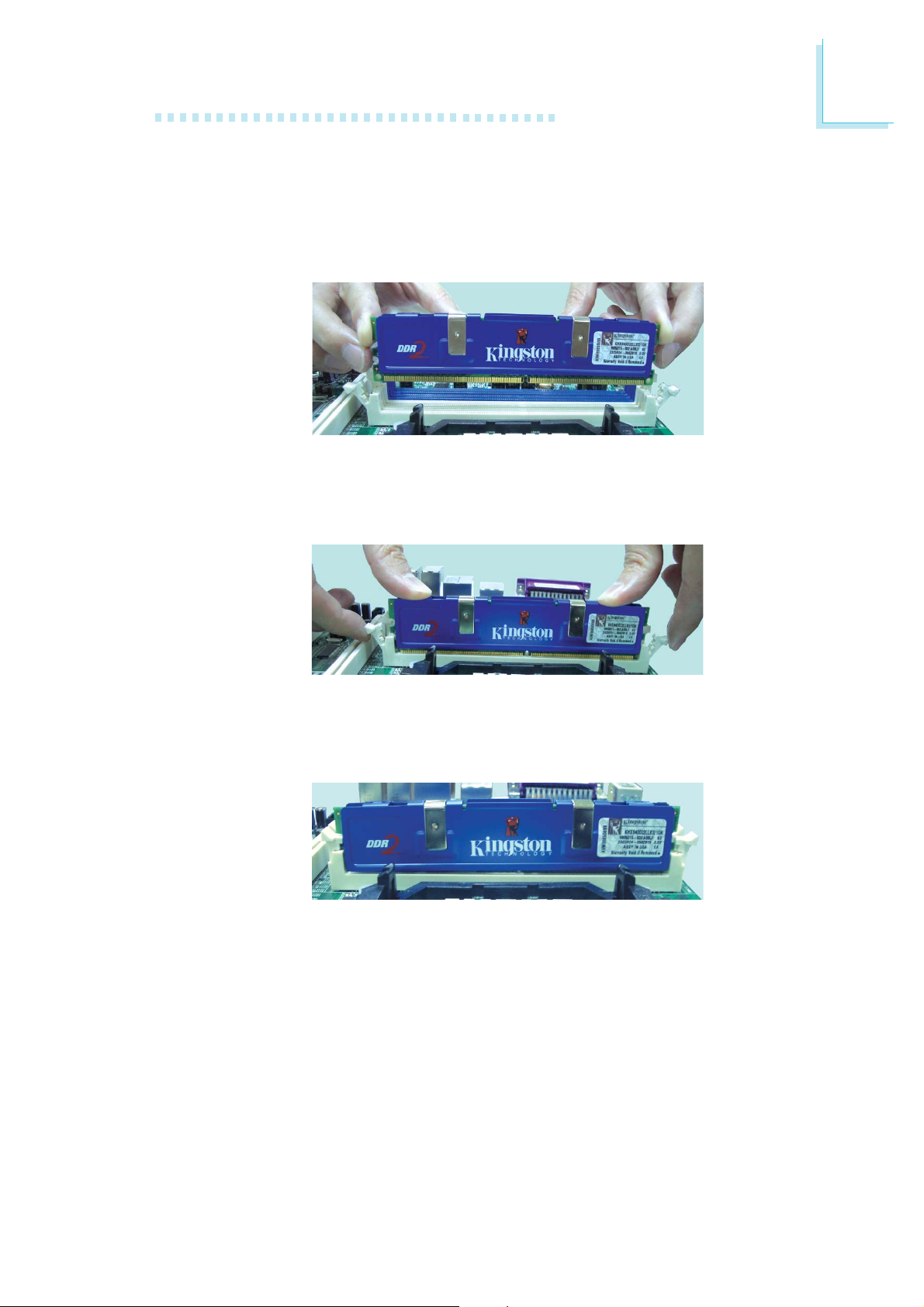

6. Grasping the module by its edges, position the module above
the socket with the “notch” in the module aligned with the “key”
on the socket. The keying mechanism ensures the module can be
plugged into the socket in only one way.

7. Seat the module vertically, pressing it down firmly until it is com­pletely seated in the socket.

2

8. The ejector tabs at the ends of the socket will automatically
snap into the locked position to hold the module in place.

19

2

Hardware Installation

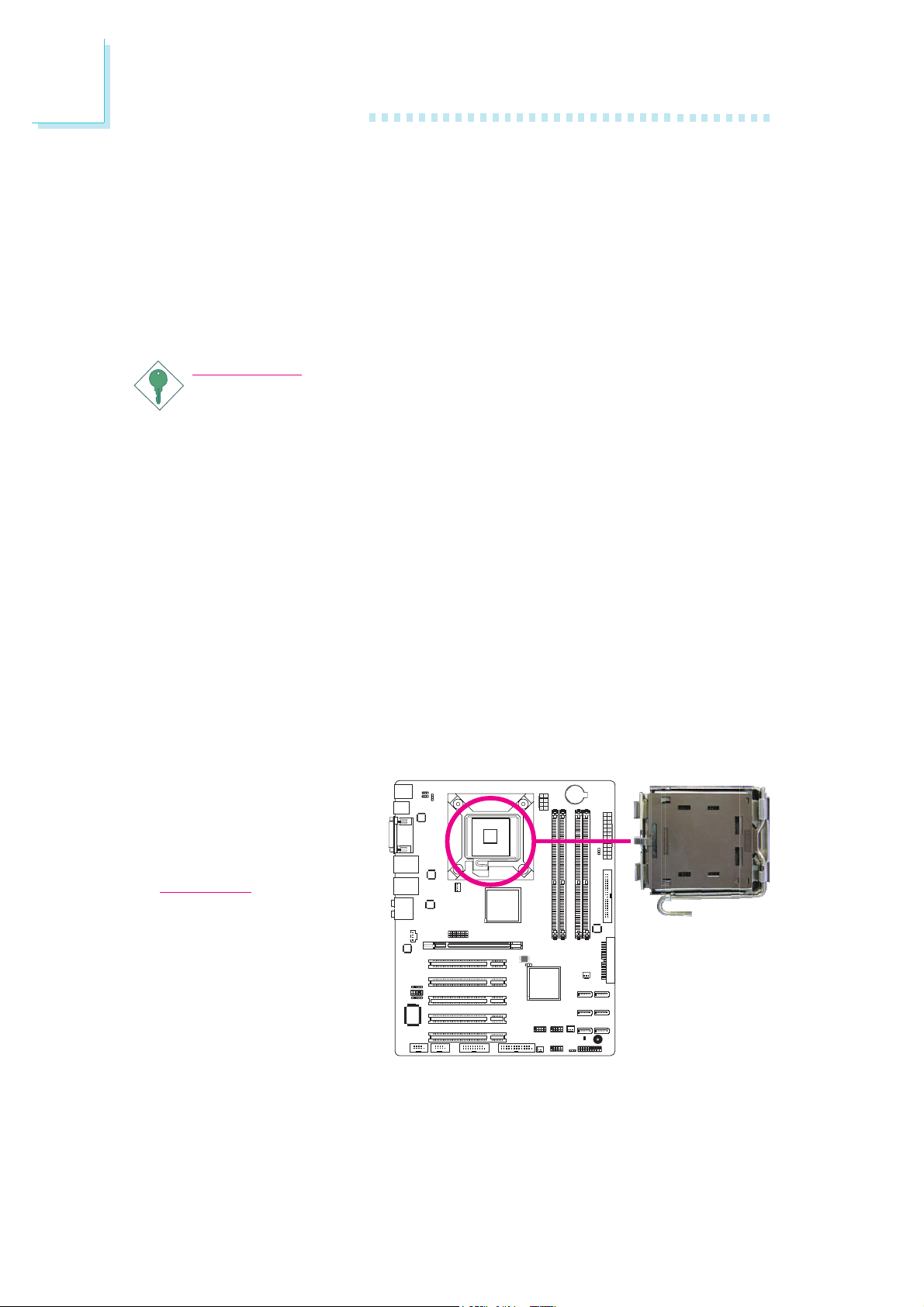

CPU

Overview

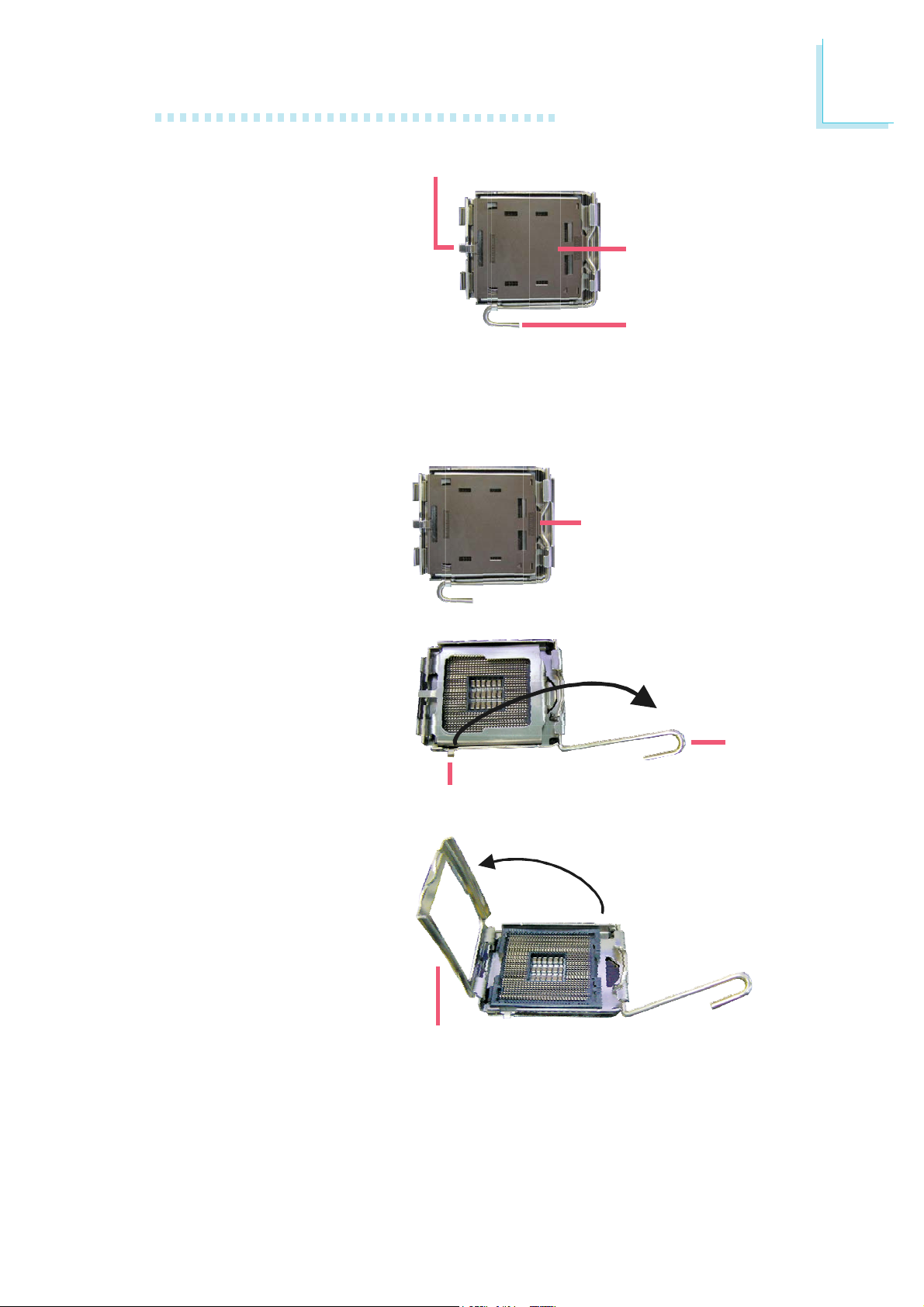

The system board is equipped with a surface mount LGA 775 socket. This
socket is exclusively designed for installing a LGA 775 packaged Intel
CPU.

Important:

1. Before you proceed, make sure (1) the LGA775 socket1. Before you proceed, make sure (1) the LGA775 socket

1. Before you proceed, make sure (1) the LGA775 socket

1. Before you proceed, make sure (1) the LGA775 socket1. Before you proceed, make sure (1) the LGA775 socket
comes with a protective cap, (2) the cap is not dam-comes with a protective cap, (2) the cap is not dam-

comes with a protective cap, (2) the cap is not dam-

comes with a protective cap, (2) the cap is not dam-comes with a protective cap, (2) the cap is not dam­aged and (3) the socket’s contact pins are not bent. Ifaged and (3) the socket’s contact pins are not bent. If

aged and (3) the socket’s contact pins are not bent. If

aged and (3) the socket’s contact pins are not bent. Ifaged and (3) the socket’s contact pins are not bent. If
the cap is missing or the cap and/or contact pins arethe cap is missing or the cap and/or contact pins are

the cap is missing or the cap and/or contact pins are

the cap is missing or the cap and/or contact pins arethe cap is missing or the cap and/or contact pins are
damaged,damaged,

damaged,

damaged,damaged,

2. Make sure to keep the protective cap. RMA requests2. Make sure to keep the protective cap. RMA requests

2. Make sure to keep the protective cap. RMA requests

2. Make sure to keep the protective cap. RMA requests2. Make sure to keep the protective cap. RMA requests
will be accepted and processed only if the LGA775will be accepted and processed only if the LGA775

will be accepted and processed only if the LGA775

will be accepted and processed only if the LGA775will be accepted and processed only if the LGA775
socket comes with the protective cap.socket comes with the protective cap.

socket comes with the protective cap.

socket comes with the protective cap.socket comes with the protective cap.

contact your dealer immediately contact your dealer immediately

contact your dealer immediately

contact your dealer immediately contact your dealer immediately

..

.

..

Installing the CPU

1. Make sure the PC and all other peripheral devices connected to it has
been powered down.

2. Disconnect all power cords and cables.

3. Locate the LGA 775
CPU socket on the
system board.

Important:

The CPU socket must
not come in contact with
anything other than the
CPU. Avoid unnecessary
exposure. Remove the
protective cap only when
you are about to install
the CPU.

20

Hardware Installation

2

4. The CPU socket comes
with a cover that is
attached with a remov­able protective cap. The
cap is used to protect
the CPU socket against
dust and harmful par ti­cles. Remove the protec­tive cap only when you
are about to install the
CPU.

5. Lift the protective cap
from the location
pointed below to detach
the cap from the cover.

Cover

Protective cap

Lever

Lift this part up

6. Unlock the socket by
pushing the lever down,
moving it away from the
side tab of the socket,
then lifting it up.

7. Now lift the cover.

Lever
lifted

Ta b

Cover

21

2

Hardware Installation

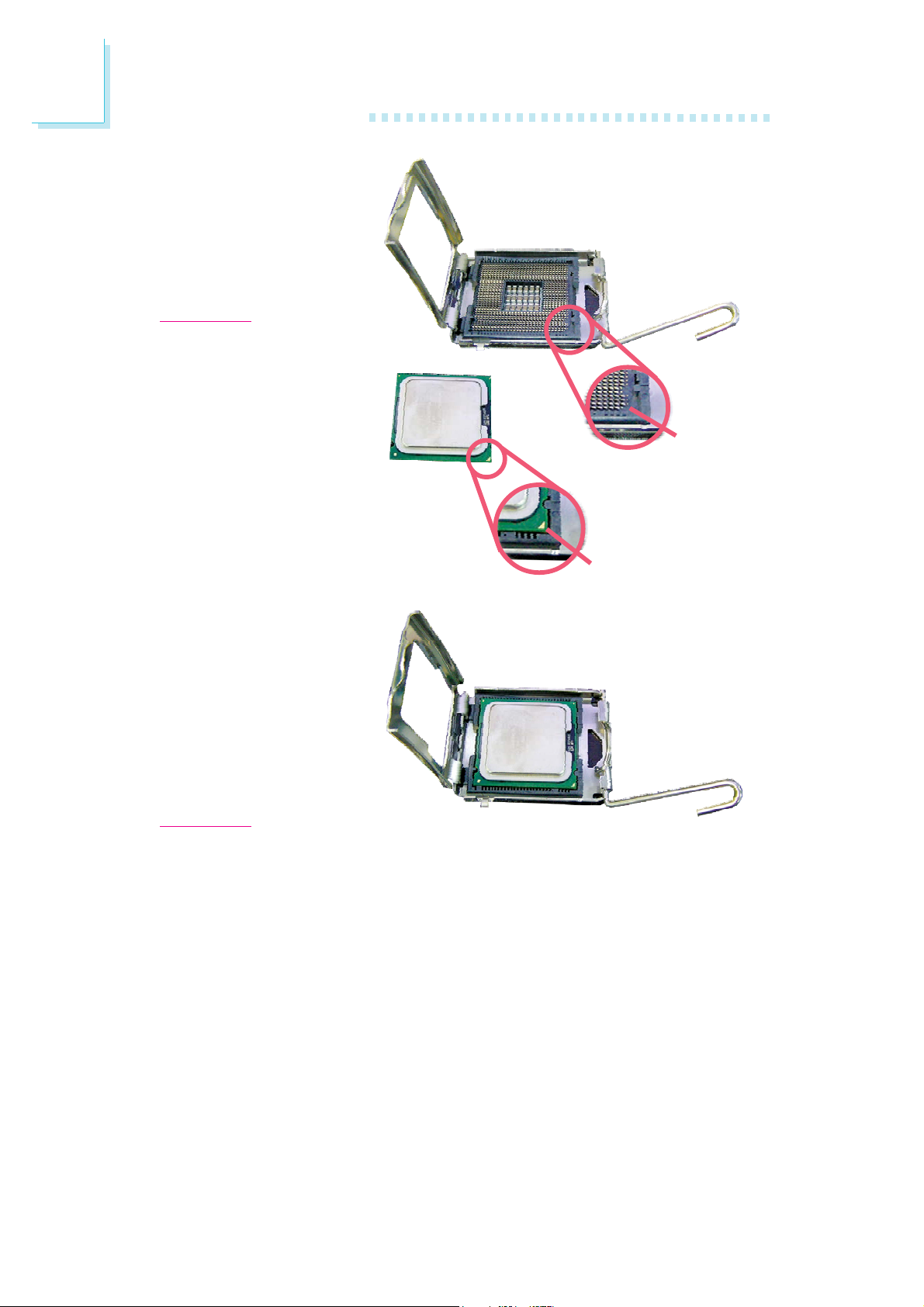

8. Position the CPU above
the socket. The gold
mark on the CPU must
align with pin 1 of the
CPU socket.

Important:

Handle the CPU by its
edges and avoid touch­ing the pins.

Pin 1 of
the socket

9. Insert the CPU into the
socket until it is seated
in place. The CPU will fit
in only one orientation
and can easily be in­serted without exerting
any force.

Important:

Do not force the CPU
into the socket. Forcing
the CPU into the socket
may bend the pins and
damage the CPU.

Gold mark

22

10. Once the CPU is in
place, move the cover
down.

11. Push the lever down to
lock the socket. The
lever should hook onto
the side tab to indicate
that the CPU is com­pletely secured in the
socket.

Installing the Fan and Heat Sink

Hardware Installation

2

Cover

Lever

The CPU must be kept cool by using a CPU fan with heat sink.
Without sufficient air circulation across the CPU and heat sink, the
CPU will overheat damaging both the CPU and system board.

Note:

• Use only certified fan and heat sink.

• The fan and heat sink package usually contains the fan and

heat sink assembly, and an installation guide. If the installa­tion procedure in the installation guide differs from the one
in this section, please follow the installation guide in the
package.

1. Before you install the fan / heat sink, you must apply a thermal
paste onto the top of the CPU. The thermal paste is usually
supplied when you purchase the CPU or fan heat sink assembly.
Do not spread the paste all over the surface. When you later
place the heat sink on top of the CPU, the compound will dis­perse evenly.

Do not apply the paste if the fan / heat sink already has a patch
of thermal paste on its underside. Peel the strip that covers the
paste before you place the fan / heat sink on top of the CPU.

23

2

Hardware Installation

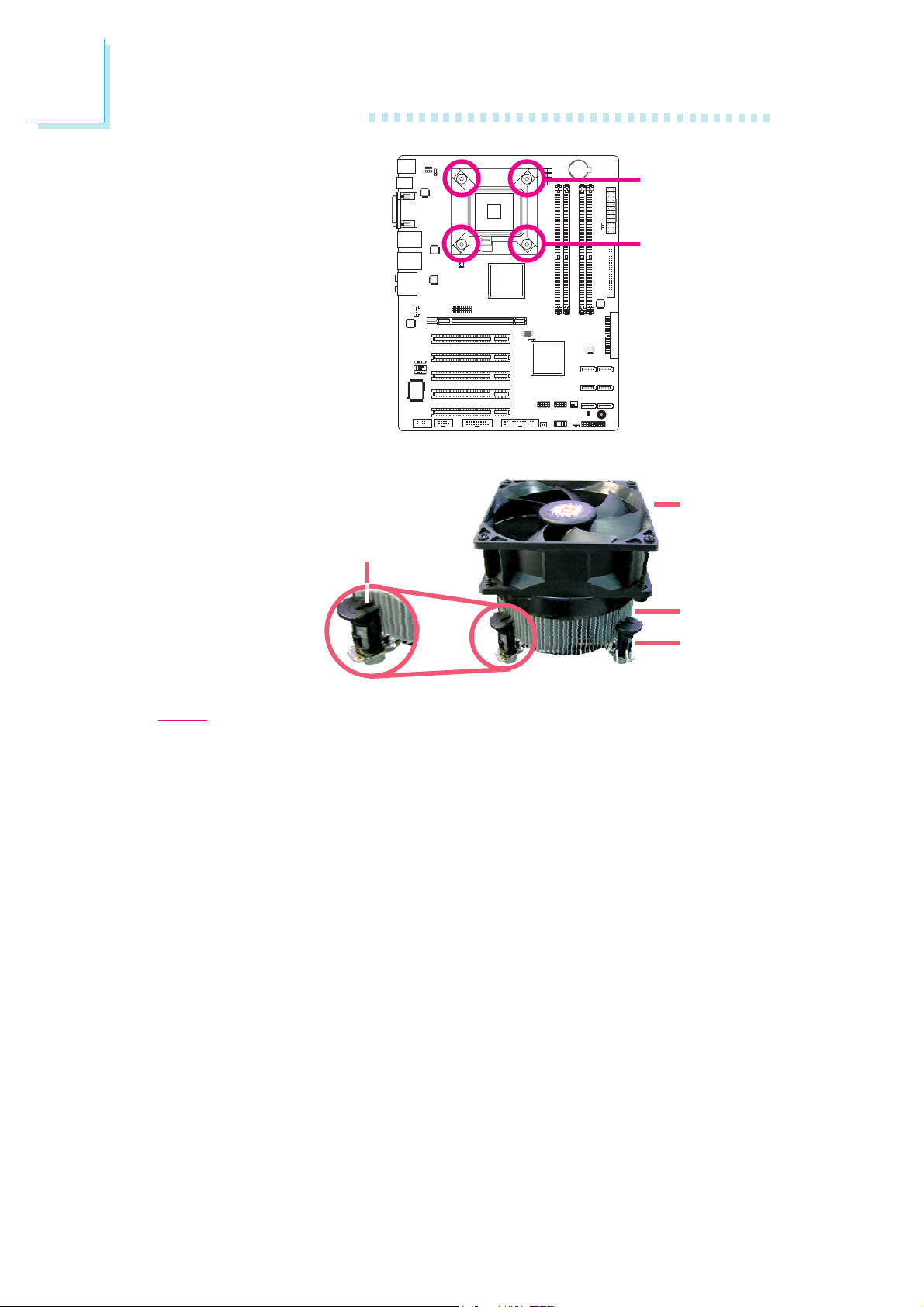

2. Place the heat sink on
top of the CPU. The 4
studs around the heat
sink which are used to
secure the heat sink
onto the system board
must match the 4
mounting holes around
the socket.

Position each stud so
that the groove faces
the heat sink then push
it down firmly until it
clicks into place.

Groove

Mounting hole

Mounting hole

Fan

Heat sink
Stud

Note:

You will not be able to secure the fan and heat sink assembly in place
if the groove is not facing the heat sink.

3. Connect the CPU fan’s cable connector to the CPU fan connector on
the system board.

24

Jumper Settings

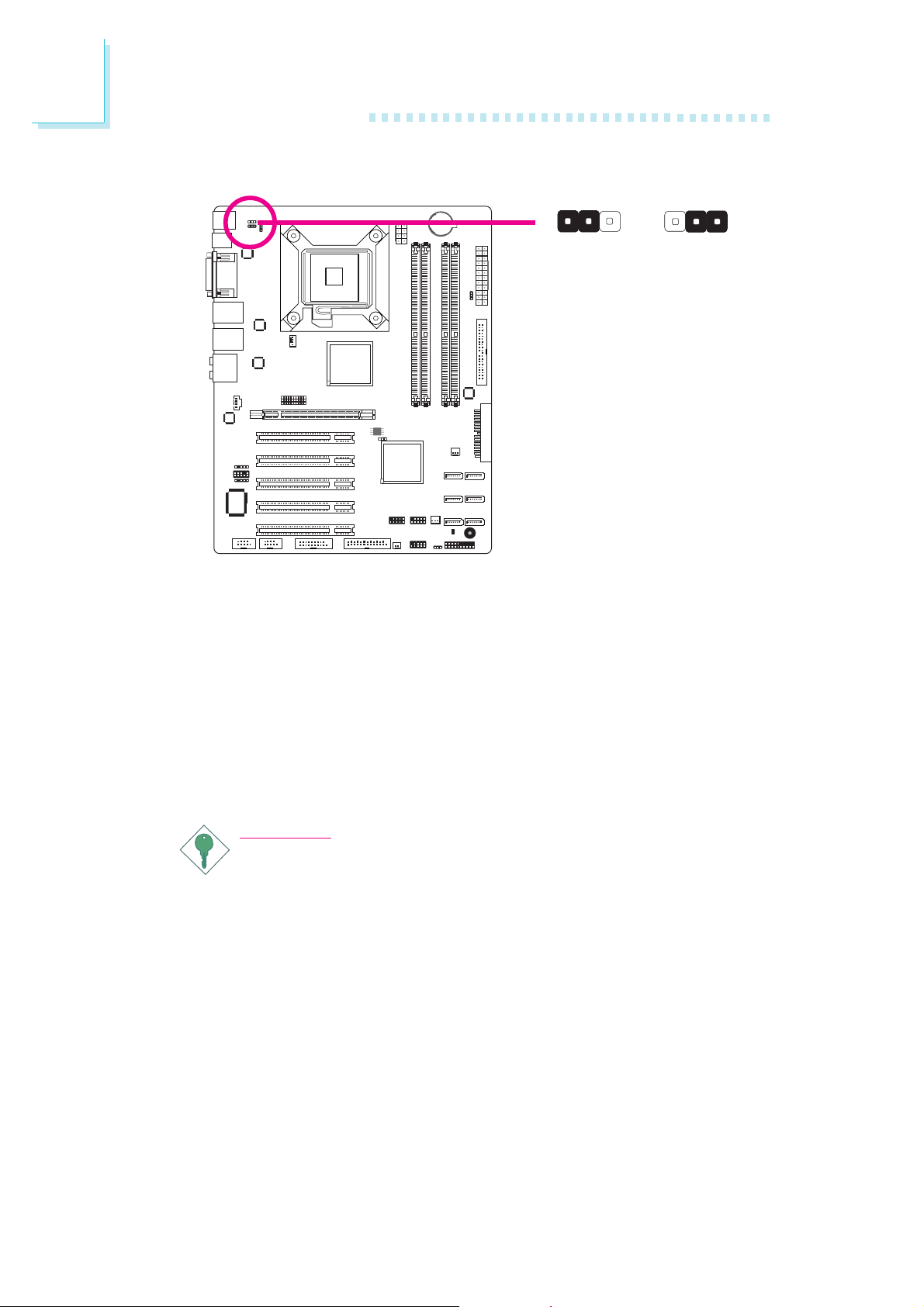

Clear CMOS Data

Hardware Installation

2

312312

JP5

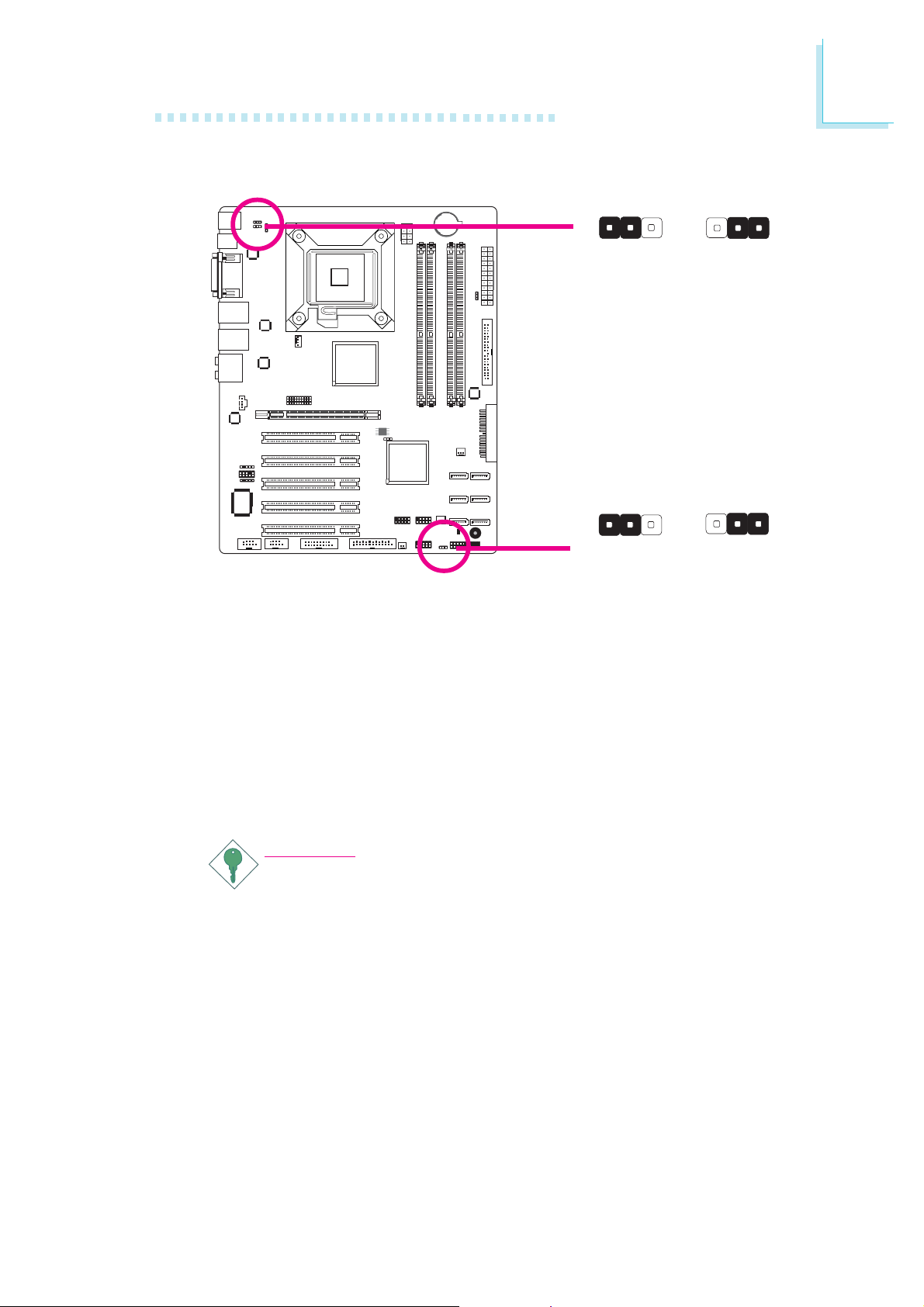

If you encounter the following,

a) CMOS data becomes corrupted.
b) You forgot the supervisor or user password.

you can reconfigure the system with the default values stored in the
ROM BIOS.

To load the default values stored in the ROM BIOS, please follow
the steps below.

1. Power-off the system and unplug the power cord.

1-2 On: Normal

X

(default)

2-3 On:

Clear CMOS Data

2. Set JP5 pins 2 and 3 to On. Wait for a few seconds and set JP5
back to its default setting, pins 1 and 2 On.

3. Now plug the power cord and power-on the system.

25

2

Hardware Installation

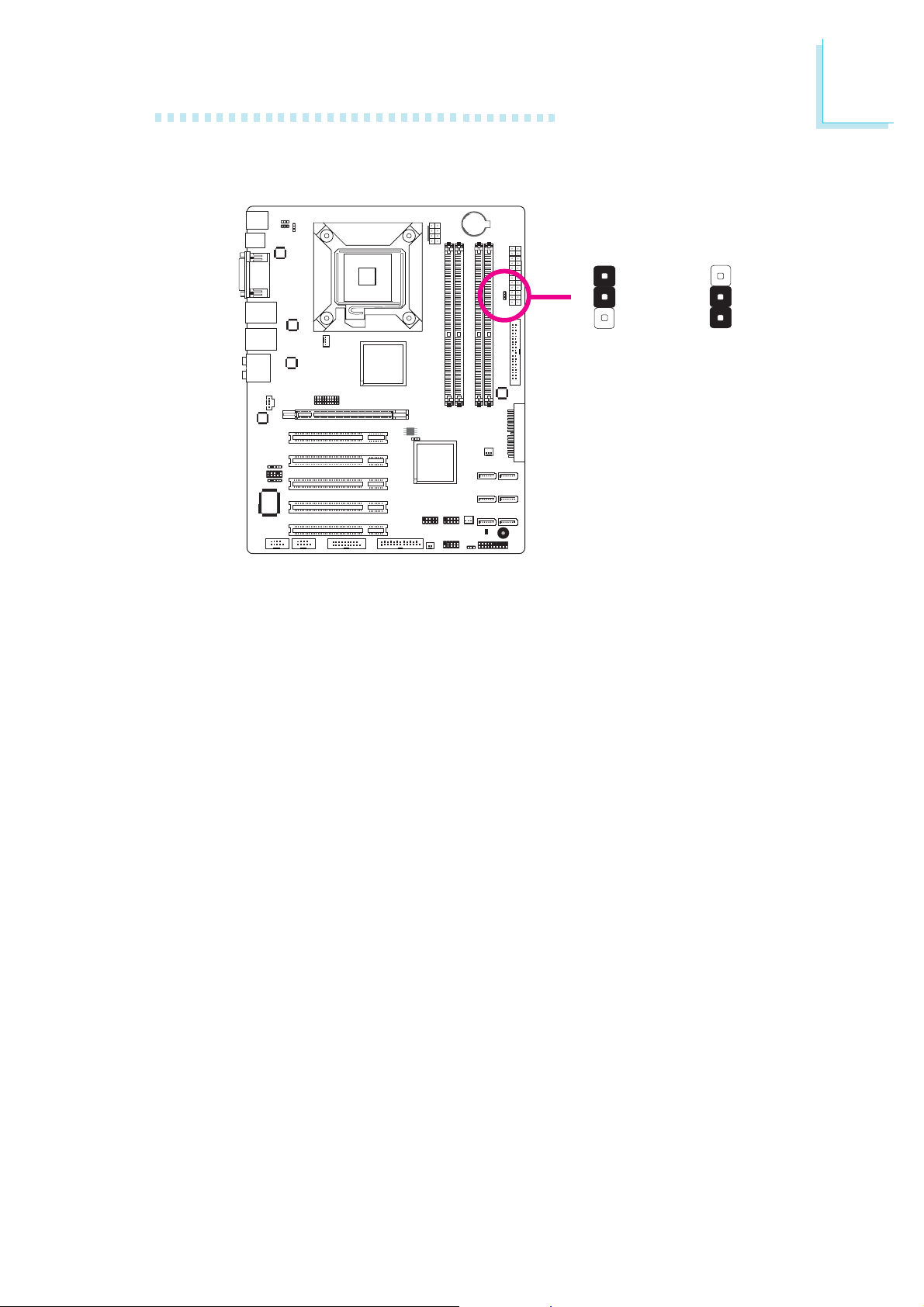

PS/2 Power Select

JP1

312 312

X

1-2 On: 5V

(default)

JP1 is used to select the power of the PS/2 keyboard/mouse port.
Selecting 5V_standby will allow you to use the PS/2 keyboard or
PS/2 mouse to wake up the system.

2-3 On:

5V_standby

BIOS Setting

Configure the PS/2 keyboard/mouse wake up function in the Inte­grated Peripherals submenu (“Super IO Device” section) of the BIOS.
Refer to chapter 3 for more information.

Important:

The 5V_standby power source of your power supply must sup­port ≥720mA.

26

USB Power Select

Hardware Installation

2

USB 6/7/8/9/10/11
(JP3)

312 312

X

1-2 On: 5V

(default)

USB 0/1/2/3/4/5
(JP2)

X

1-2 On: 5V

(default)

312

JP2 and JP3 are used to select the power of the USB ports. Select­ing 5V_standby will allow you to use the USB keyboard or USB
mouse to wake up the system.

2-3 On:

5V_standby

312

2-3 On:

5V_standby

BIOS Setting

“USB KB Wake-Up From S3” in the Power Management Setup
submenu of the BIOS must be set to Enabled. Refer to chapter 3
for more information.

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for
2 USB ports, the 5V_standby power source of your power sup­ply must support ≥1.5A. For 3 or more USB ports, the
5V_standby power source of your power supply must support

≥

2A.

27

2

Hardware Installation

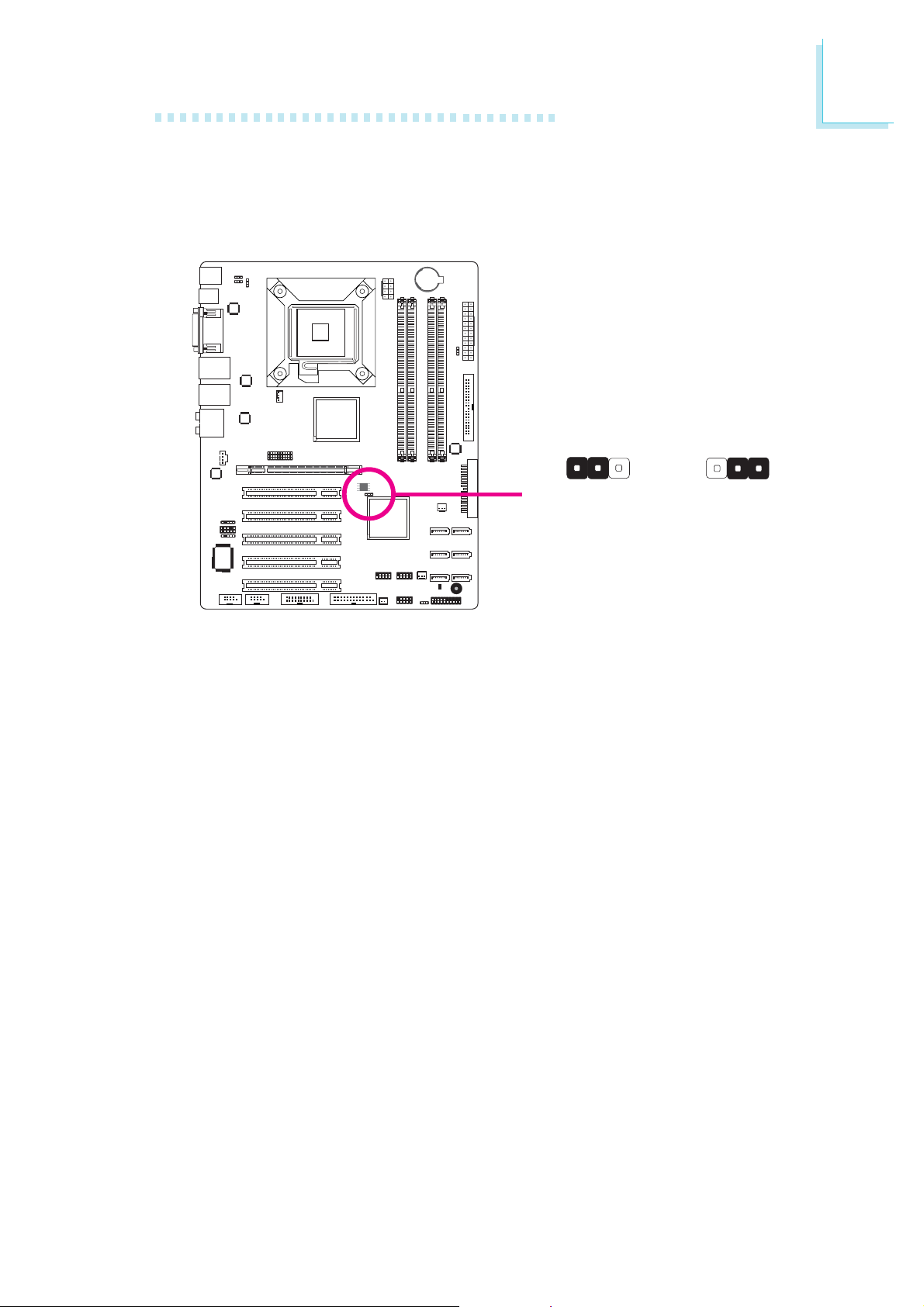

PCIE x16 / DVI Select

10
20
30

10
20
30

JP8

X

1
11
21

1-10, 11-20 On:

DVI (default)

1
11
21

11-20, 21-30 On:

PCIE x16

The system board allows connecting a device to either the DVI port
at the rear panel or to the PCI Express x16 card. However, you
cannot use devices connected to both the DVI port and PCI Ex­press x16 card at the same time. Use JP8 to select between using
PCIE x16 and DVI.

28

Power-on Select

Hardware Installation

2

JP6

X

1-2 On:
Power-on via
power button

(default)

1

2

3

Power-on via

AC power

1
2

3

2-3 On:

JP6 is used to select the method of powering on the system. If you
want the system to power-on whenever AC power comes in, set
JP6 pins 2 and 3 to On. If you want to use the power button, set
pins 1 and 2 to On.

29

2

Hardware Installation

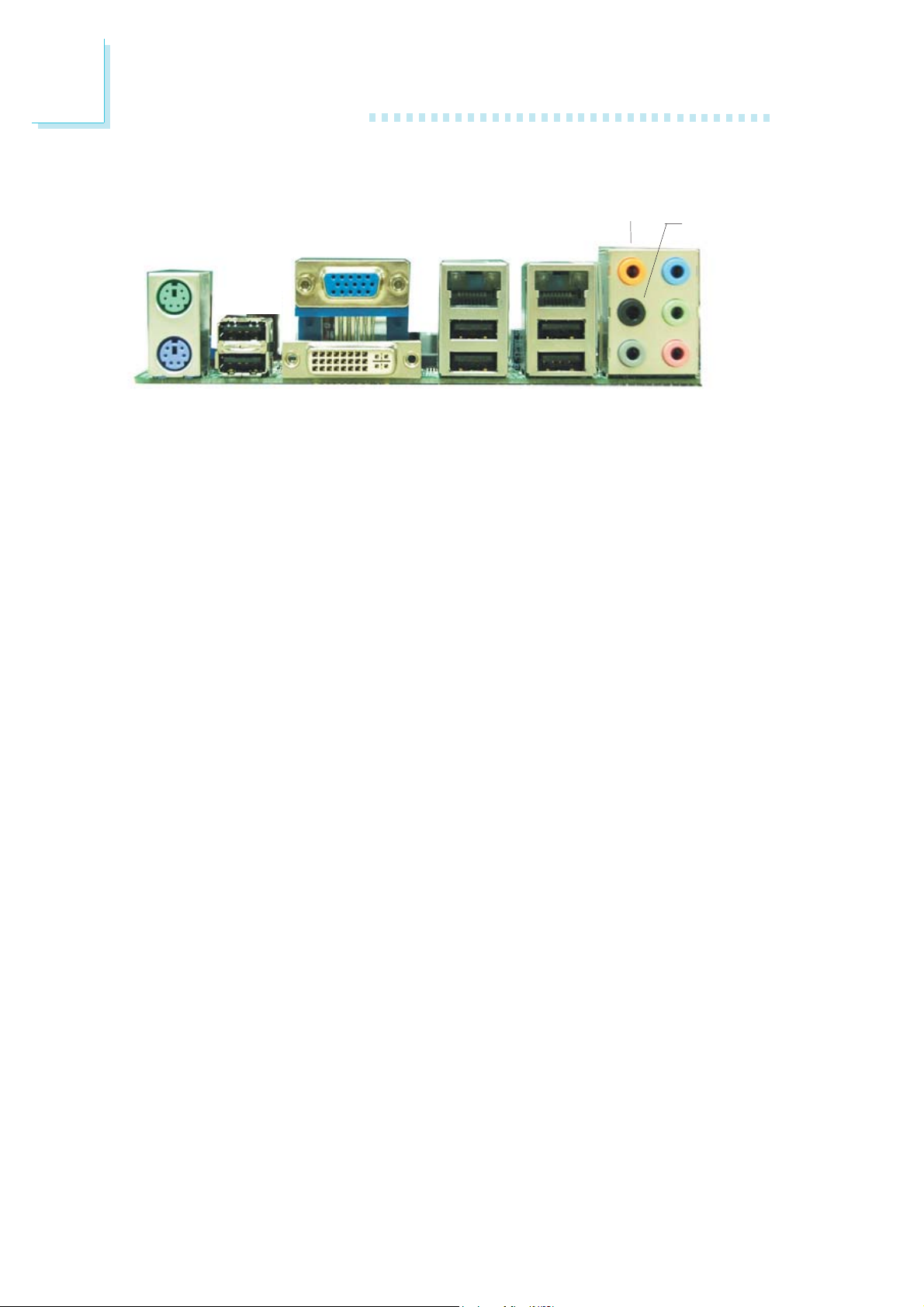

Rear Panel I/O Ports

PS/2

Mouse

VGA

LAN 1 LAN 2

Center/
Subwoofer

Rear R/L

Line-in

USB 11

PS/2 K/B DVI-I

USB 10

USB 8/9

The rear panel I/O ports consist of the following:

• PS/2 mouse port

• PS/2 keyboard port

• USB ports

• VGA port

• DVI-I port (DVI-D signal only)

• 2 LAN ports

• Center/Subwoofer port

• Rear R/L port

• Side R/L port

• Line-in jack

• Line-out jack

• Mic-in jack

USB 6/7

Line-out

Mic-in

Side R/L

30

PS/2 Mouse and PS/2 Keyboard Ports

Hardware Installation

2

PS/2 Mouse

PS/2 Keyboard

W

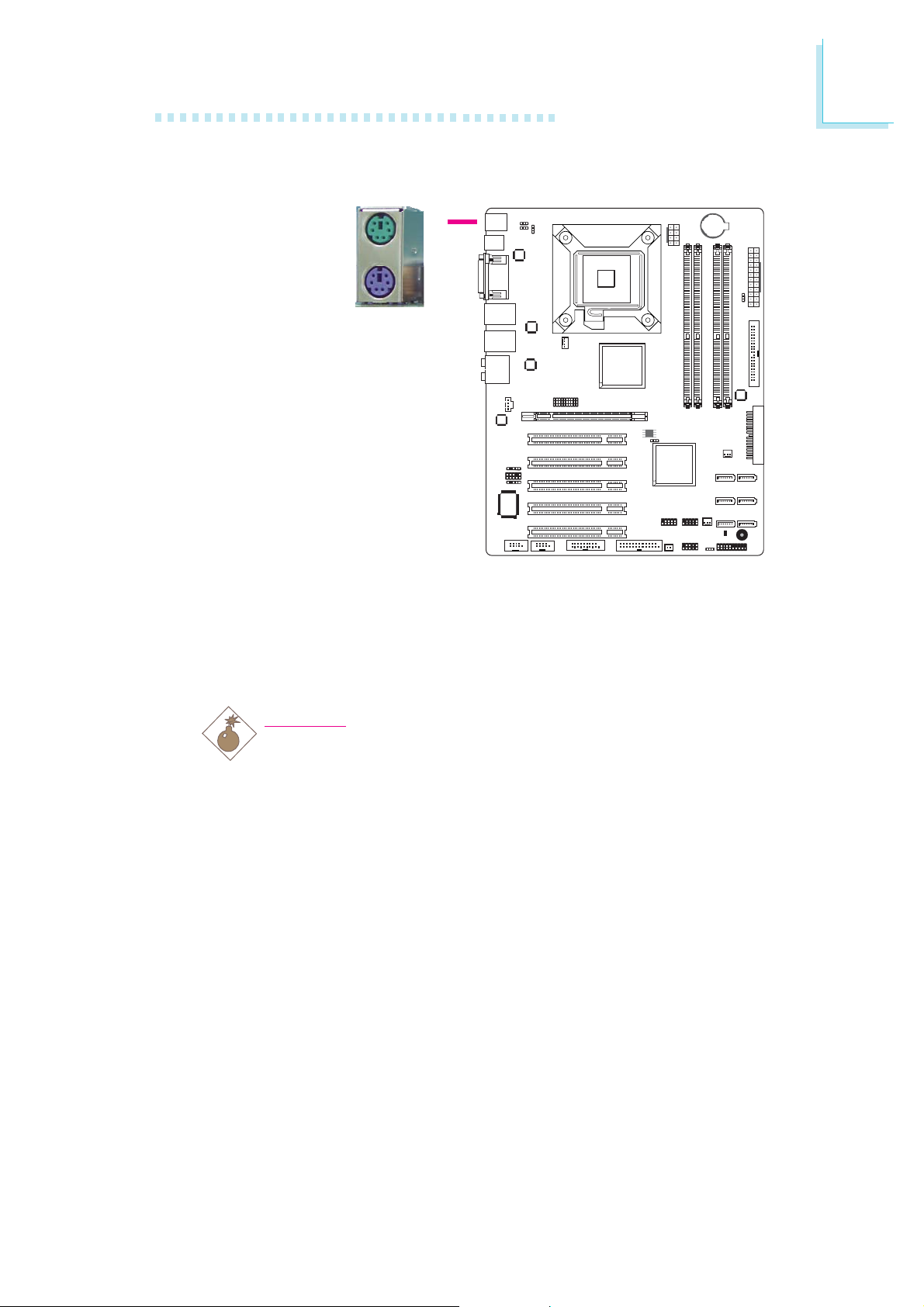

These ports are used to connect a PS/2 mouse and a PS/2 key­board. The PS/2 mouse port uses IRQ12. If a mouse is not
connected to this port, the system will reserve IRQ12 for other
expansion cards.

.

.

.

.

.

.

.

Warning:

.

Make sure to turn off your computer prior to connecting or
disconnecting a mouse or keyboard. Failure to do so may dam­age the system board.

Wake-On-PS/2 Keyboard/Mouse

The Wake-On-PS/2 Keyboard/Mouse function allows you to use the
PS/2 keyboard or PS/2 mouse to power-on the system. To use this
function:

• Jumper Setting:

JP1 must be set to “2-3 On: 5V_standby”. Refer to “PS/2 Power
Select” in this chapter for more information.

31

2

Hardware Installation

• BIOS Setting:

Configure the PS/2 wake up function in the Integrated Peripherals
submenu (“Super IO Device” section) of the BIOS. Refer to
chapter 3 for more information.

Important:

The 5V_standby power source of your power supply must sup­port ≥720mA.

32

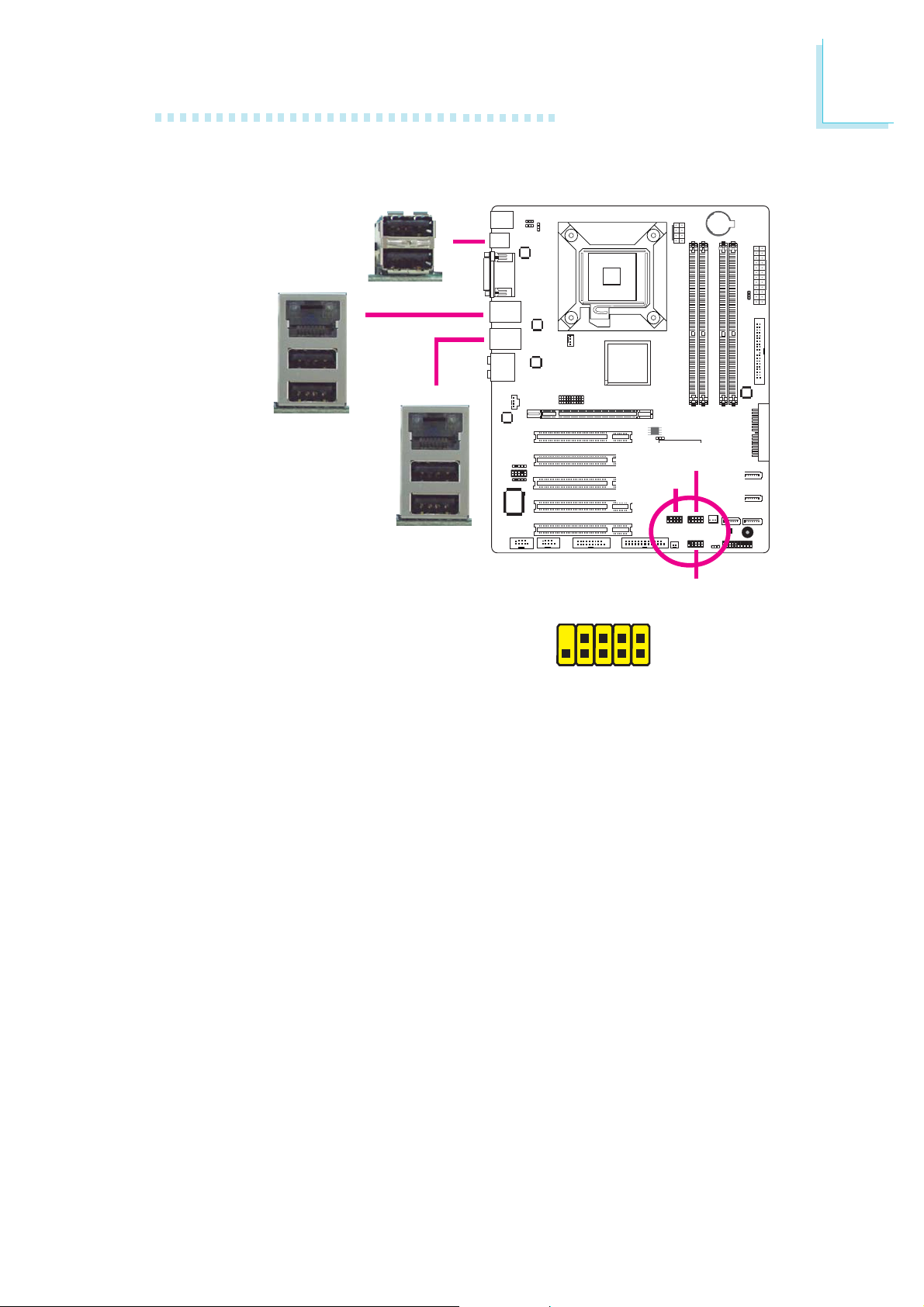

Universal Serial Bus Connectors

Hardware Installation

2

USB 9

USB 8

USB 11

USB 10

W

USB 7

USB 6

W

W

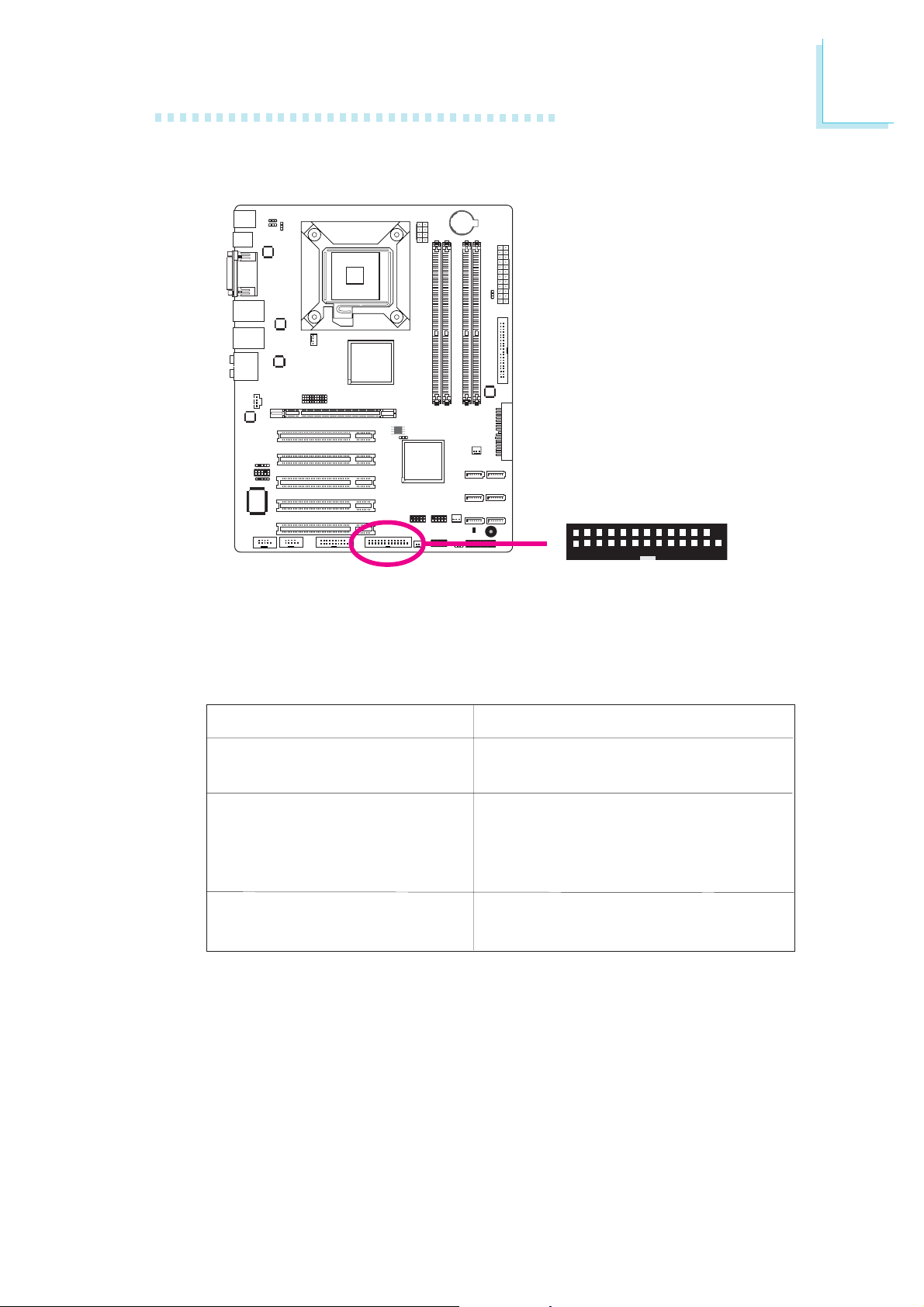

9

10

Ground

KeyN. C.

USB 4-5

+Data

-Data

USB 0-1

USB 2-3

1

2

VCC VCC

-Data

+Data

Ground

The system board supports 12 USB 2.0/1.1 ports. USB allows data
exchange between your computer and a wide range of simultane­ously accessible external Plug and Play peripherals.

The USB 0-5 connectors allow you to connect 6 additional USB 2.0/

1.1 ports. The USB ports may be mounted on a card-edge bracket.
Install the card-edge bracket to an available slot at the rear of the
system chassis then insert the connectors that are attached to the
USB port cables to these USB connectors.

BIOS Setting

Configure the onboard USB in the Integrated Peripherals submenu
(“USB Device Setting” section) of the BIOS. Refer to chapter 3 for
more information.

33

2

Hardware Installation

Driver Installation

You may need to install the proper drivers in your operating system
to use the USB device. Refer to your operating system’s manual or
documentation for more information.

Refer to chapter 4 for more information about installing the USB 2.0
drivers.

Wake-On-USB Keyboard/Mouse

The Wake-On-USB Keyboard/Mouse function allows you to use a
USB keyboard or USB mouse to wake up a system from the S3
(STR - Suspend To RAM) state. To use this function:

• Jumper Setting:
JP2 and/or JP3 must be set to “2-3 On: 5V_standby”. Refer to
“USB Power Select” in this chapter for more information.

• BIOS Setting:
“USB KB Wake-Up From S3” in the Power Management Setup
submenu of the BIOS must be set to Enabled. Refer to chapter
3 for more information.

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for
2 USB ports, the 5V_standby power source of your power sup­ply must support ≥1.5A. For 3 or more USB ports, the
5V_standby power source of your power supply must support

≥

2A.

34

VGA Port

Hardware Installation

2

VGA

W

The VGA port is used for connecting a VGA monitor. Connect the
monitor’s 15-pin D-shell cable connector to the VGA port (Blue).
After you plug the monitor’s cable connector into the VGA port,
gently tighten the cable screws to hold the connector in place.

BIOS Setting

Configure the onboard VGA in the Advanced Chipset Features
submenu of the BIOS.

Driver Installation

Install the graphics driver. Refer to chapter 4 for more information.

35

2

Hardware Installation

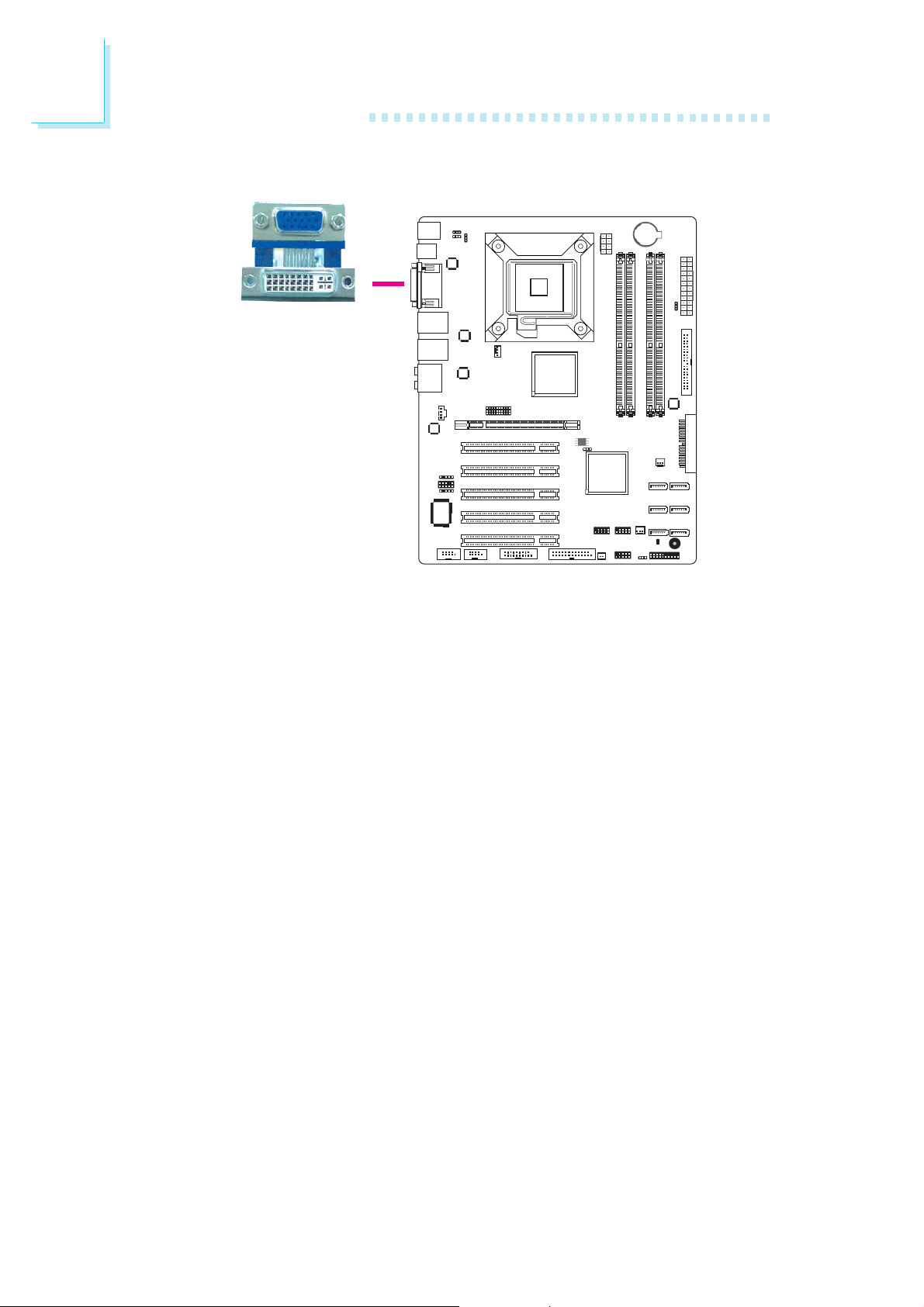

DVI-I Port

W

DVI-I

The DVI-I port is used to connect a digital LCD monitor or LCD
TV. This port supports DVI-D signal only.

Connect the display device’s cable connector to the DVI port on the
board. After you plug the cable connector into the DVI port, gently
tighten the cable screws to hold the connector in place.

36

RJ45 Fast-Ethernet Port

LAN 1

LAN 2

Hardware Installation

2

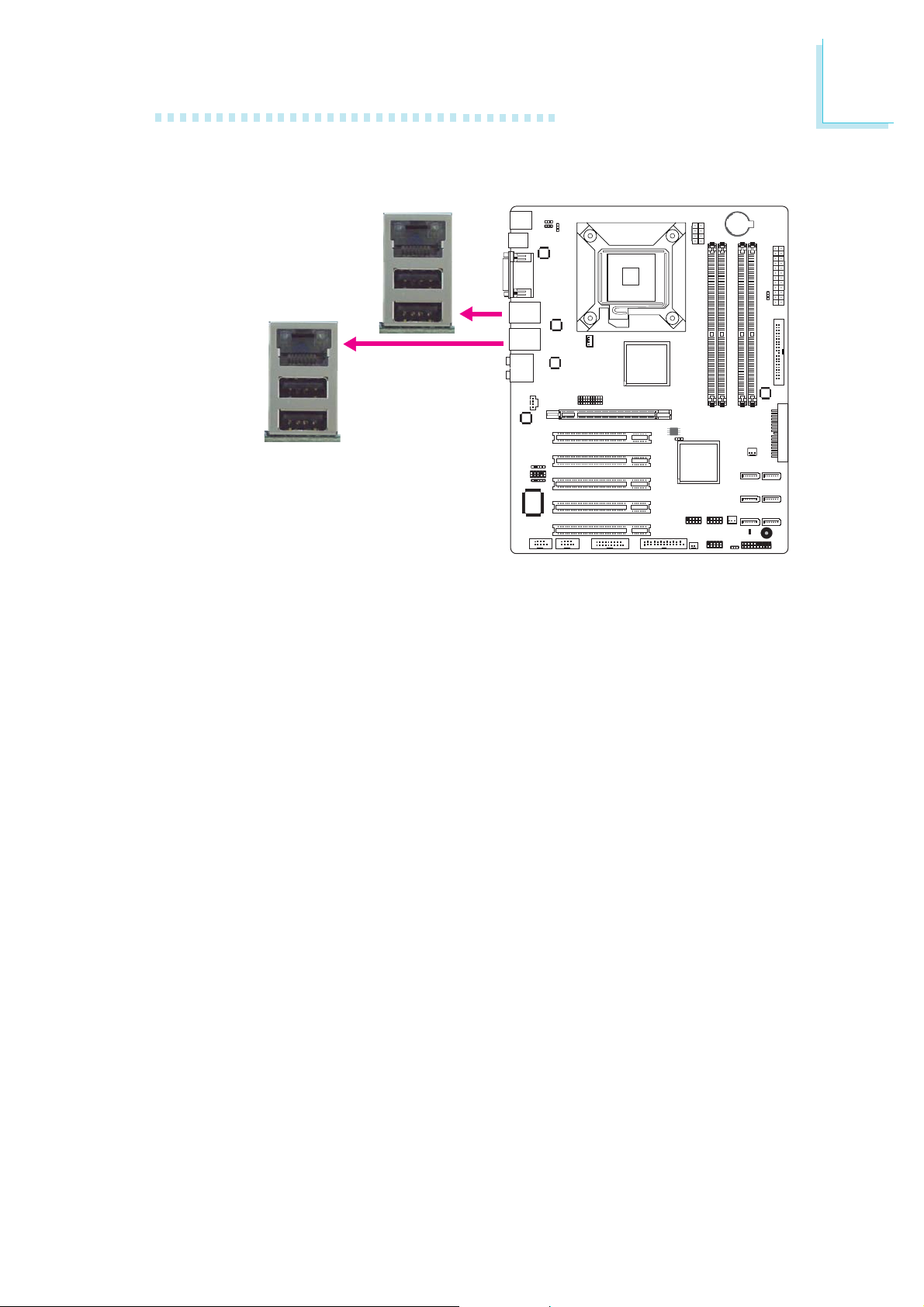

The two onboard RJ45 LAN ports allow the system board to con­nect to a local area network by means of a network hub.

BIOS Setting

Configure the onboard LAN in the Advanced Chipset Features
submenu (“PCI Express Root Port Func” section) of the BIOS. Refer
to chapter 3 for more information.

Driver Installation

Install the LAN driver. Refer to chapter 4 for more information.

37

2

Hardware Installation

Audio

Rear audio

Center/

Subwoofer

Rear R/L

Side R/L

Line-in

Line-out

Mic-in

W

Front audio

W

GND

Presense-signal

Mic-jack-sense

Key

Line-out-jack-sense

2

1

Mic-L

Mic-R

10

9

Line-out-L

Line-out-R

Front-sense

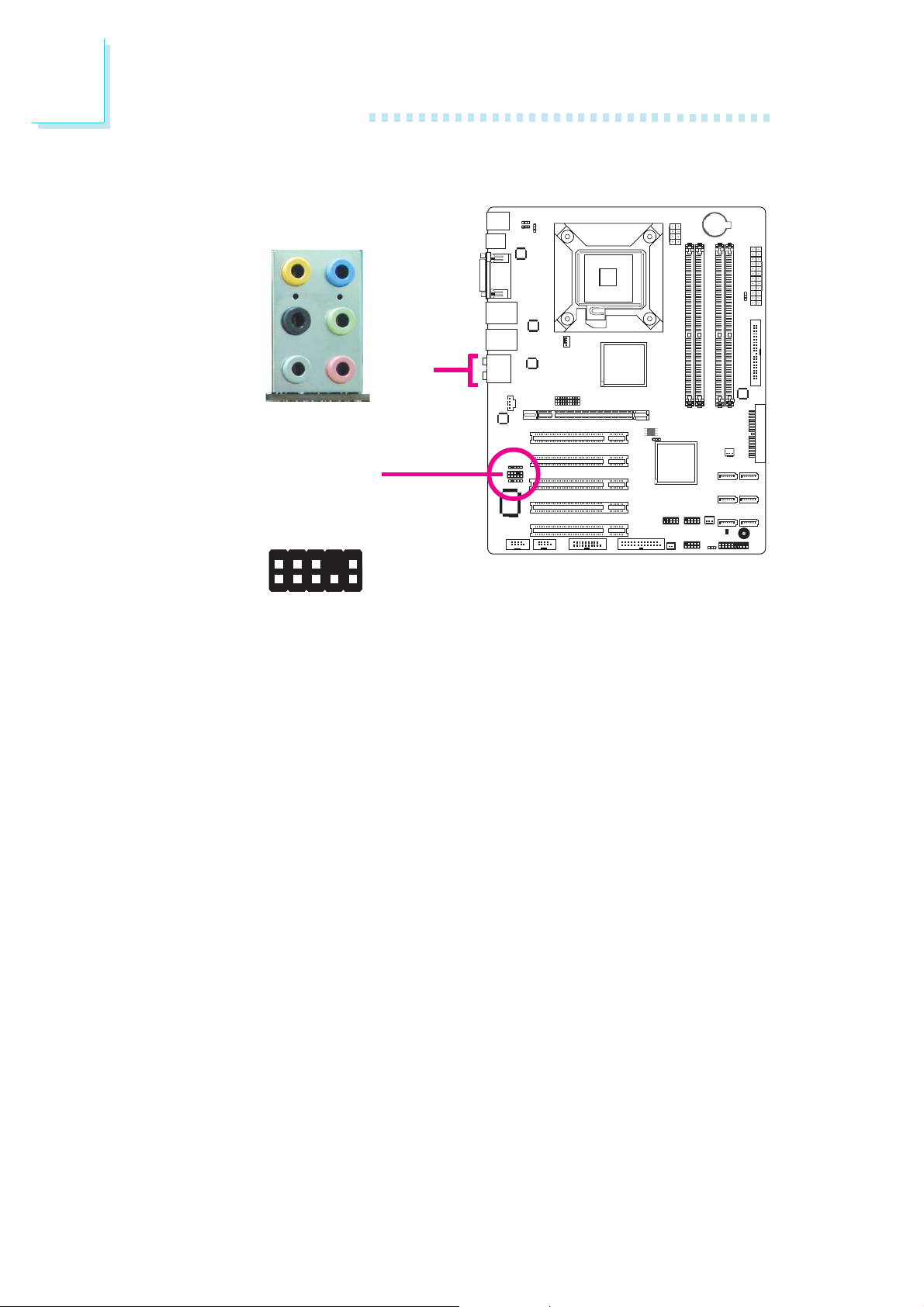

Rear Panel Audio (CN5)

Center/Subwoofer Jack (Orange)

This jack is used to connect to the center and subwoofer speak­ers of the audio system.

Rear Right/Left Jack (Black)

This jack is used to connect to the rear right and rear left speak­ers of the audio system.

Side Right/Left Jack (Gray)

This jack is used to connect to the side left and side right speak­ers of the audio system.

Line-in (Light Blue)

This jack is used to connect any audio devices such as Hi-fi set,
CD player, tape player, AM/FM radio tuner, synthesizer, etc.

38

Hardware Installation

Line-out - Front Right/Left Jack (Lime)

This jack is used to connect to the front right and front left
speakers of the audio system.

Mic-in Jack (Pink)

This jack is used to connect an external microphone.

Front Audio

The front audio connector (J26) allows you to connect to the line­out and mic-in jacks that are at the front panel of your system.

BIOS Setting

Configure the onboard audio in the Integrated Peripherals submenu
(“Onboard Device” section) of the BIOS. Refer to chapter 3 for
more information.

2

Driver Installation

Install the audio driver. Refer to chapter 4 for more information.

39

2

Hardware Installation

I/O Connectors

CD-in Internal Audio Connector

4

Right audio channel

Ground
Ground

Left audio channel

1

W

The CD-in connector is used to receive audio from a CD-ROM

drive, TV tuner or MPEG card.

40

S/PDIF Connector

SPDIF out

Key

+5V

Hardware Installation

2

GND

SPDIF in

15

The S/PDIF connector is used to connect external S/PDIF ports. Your
S/PDIF ports may be mounted on a card-edge bracket. Install the

card-edge bracket to an available slot at the rear of the system
chassis then connect the audio cable connector to this connector.
Make sure pin 1 of the audio cable connector is aligned with pin 1
of this connector.

W

41

2

Hardware Installation

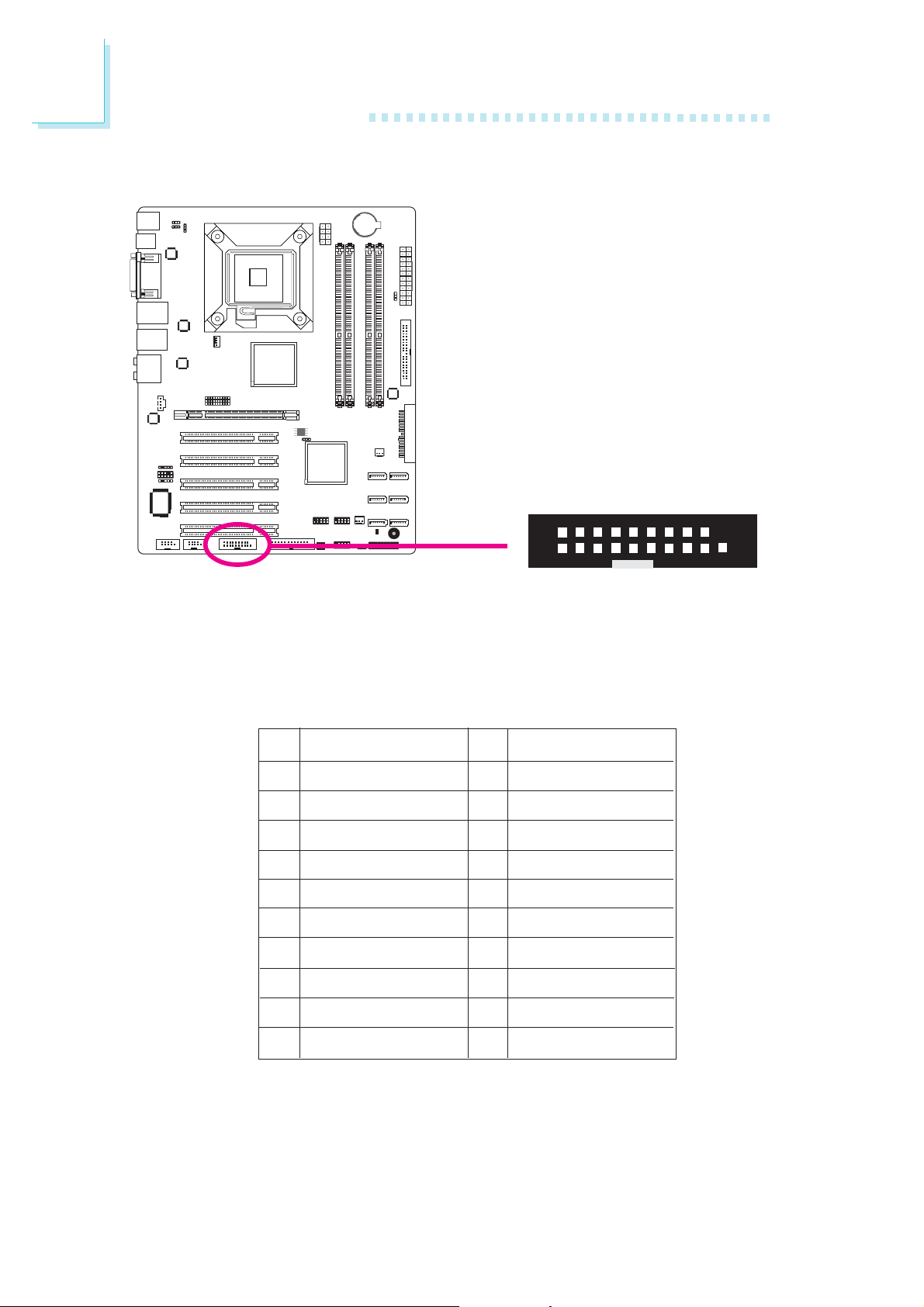

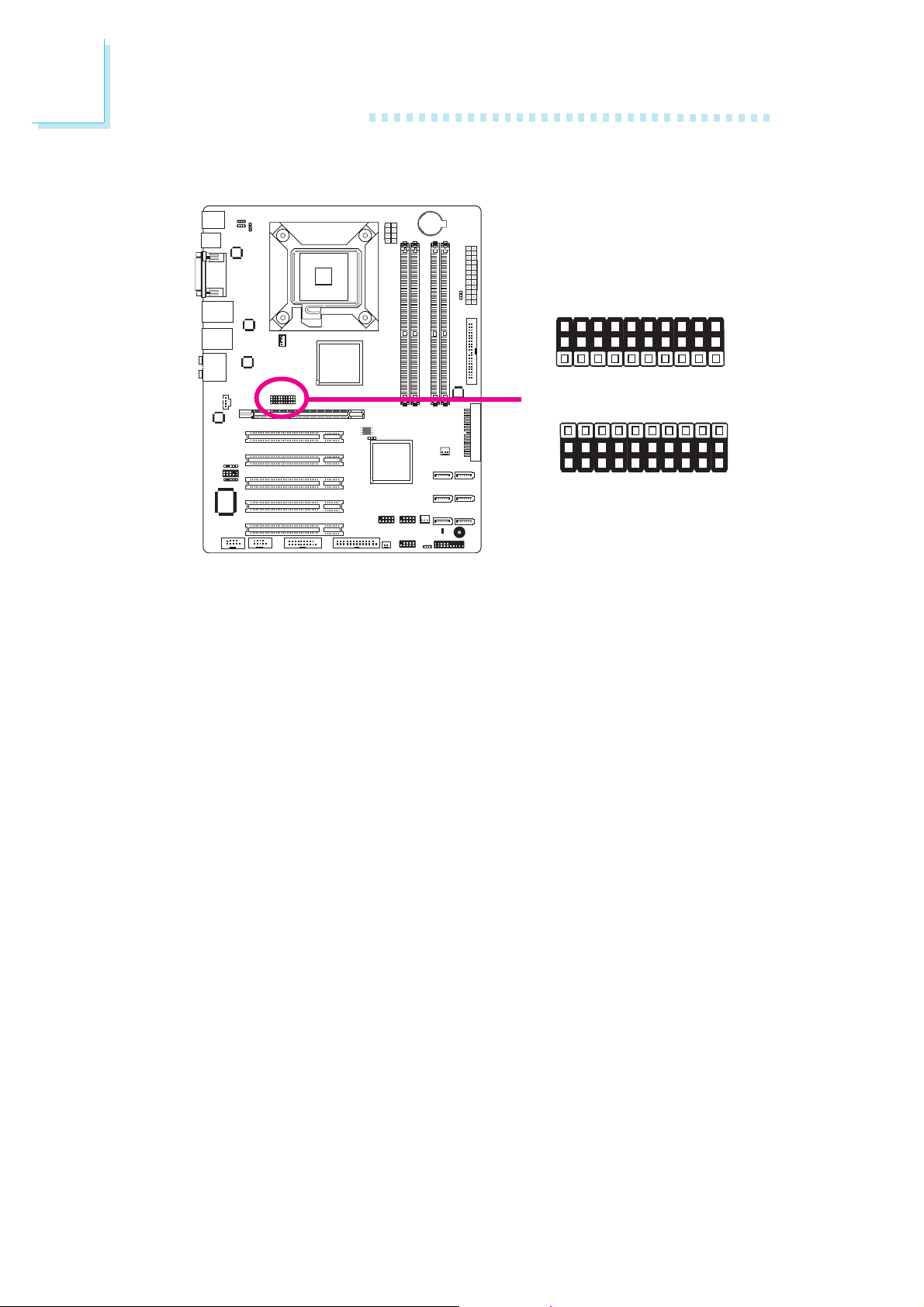

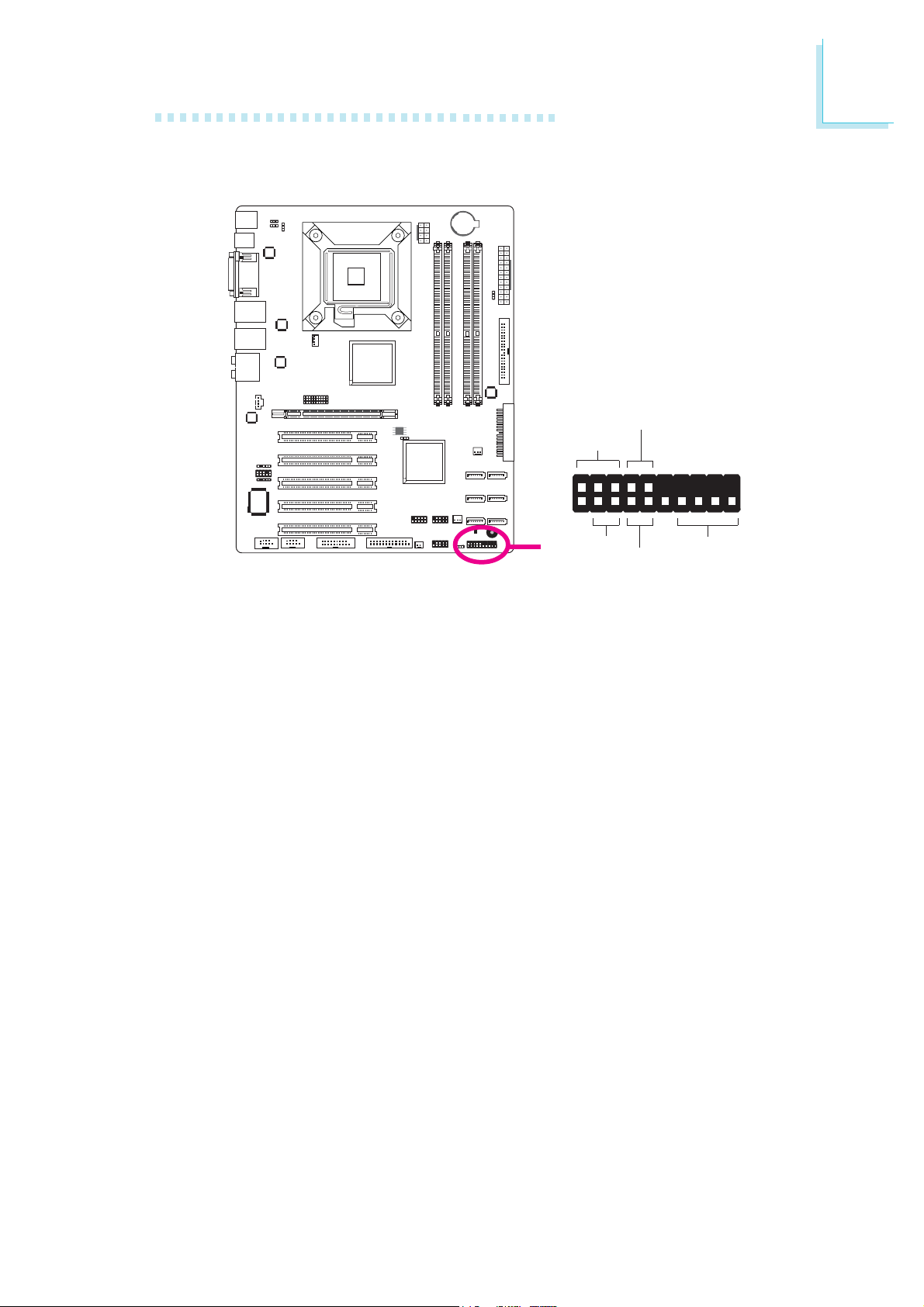

DIO Connector

2

20

X

1

The DIO (Digital I/O) connector provides powering-on function to
an external device that is connected to this connector.

Digital I/O Connector

Pins

1

3

5

7

9

11

Function

GND

DIO7

DIO6

DIO5

DIO4

DIO3

Pins

2

4

6

8

10

12

Function

+12V

+12V

GND

VCC

VCC

GND

19

42

13

15

17

19

DIO2

DIO1

DIO0

GND

14

16

18

5VSB

5VSB

GND

Parallel Port

Hardware Installation

2

2

26

X

125

The 25-pin connector is for connecting an external parallel port. The
parallel port connects your PC to a parallel printer. It supports SPP,
ECP and EPP.

Setting

SPP
(Standard Parallel Port)

ECP
(Extended Capabilities Port)

EPP
(Enhanced Parallel Port)

Allows normal speed operation but
in one direction only.

Allows parallel port to operate in
bidirectional mode and at a speed
faster than the SPP’s data transfer
rate.

Allows bidirectional parallel port op­eration at maximum speed.

Function

43

2

Hardware Installation

Connecting the Parallel Port Cable

Your parallel port may be mounted on a card-edge bracket. Install
the card-edge bracket to an available slot at the rear of the system
chassis then insert the cable to this connector. Make sure the colored
stripe on the ribbon cable is aligned with pin 1 of this connector.

BIOS Setting

Configure the parallel port in the BIOS. Refer to chapter 3 for more
information.

44

Floppy Disk Drive Connector

Hardware Installation

2

X

The 90o floppy disk drive connector supports a standard floppy disk
drive. The floppy cable can be inserted into this connector only if pin
1 of the cable is aligned with pin 1 of this connector.

Connecting the Floppy Disk Drive Cable

Install one end of the floppy disk drive cable into the floppy
connector on the system board and the other end-most connector
to the floppy drive. The colored edge of the daisy chained ribbon
cable should align with pin 1 of the floppy connector.

BIOS Setting

Enable or disable this function in the Integrated Peripherals submenu
(“Super IO Device” field) of the BIOS. Refer to chapter 3 for more
information.

45

2

Hardware Installation

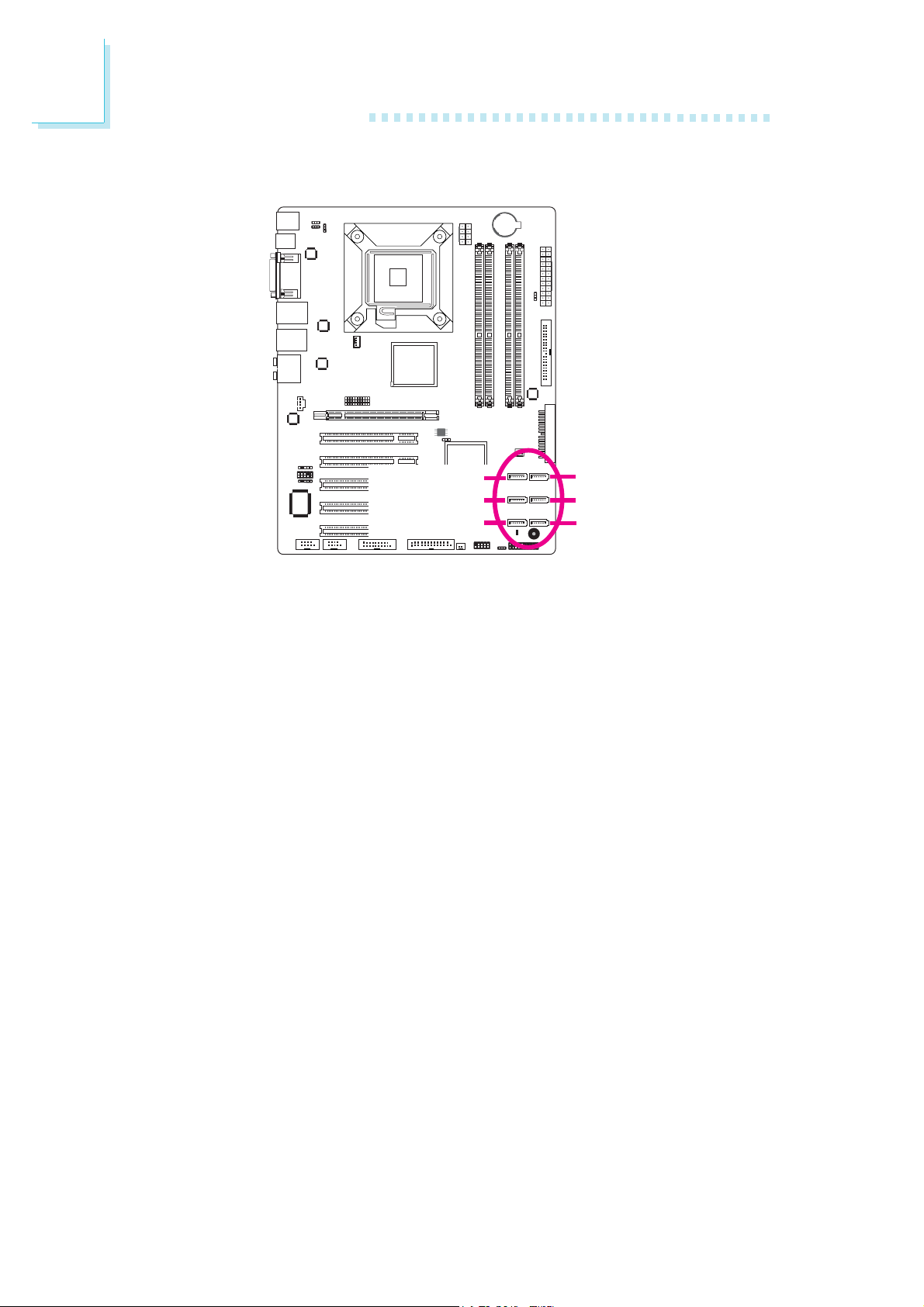

Serial ATA Connectors

SATA 1 (J18)
SATA 3 (J20)
SATA 5 (J22)

• BL600-DR

- Supports up to 6 SATA devices (SATA 0/1/2/3/4/5)

- SATA speed up to 3Gb/s

- RAID 0, RAID 1, RAID 0+1 and RAID 5

• BL600-D

- Supports up to 4 SATA devices (SATA 0/1/4/5)

- SATA speed up to 3Gb/s

Connecting Serial ATA Cables

Connect one end of the Serial ATA cable to a Serial ATA connector
and the other end to your Serial ATA device.

BIOS Setting

SATA 0 (J17)
SATA 2 (J19)
SATA 4 (J21)

46

Configure the onboard Serial ATA in the BIOS. Refer to chapter 3
for more information.

Configuring RAID

The system board allows configuring RAID on Serial ATA drives.
Refer to chapter 5 for steps in configuring RAID.

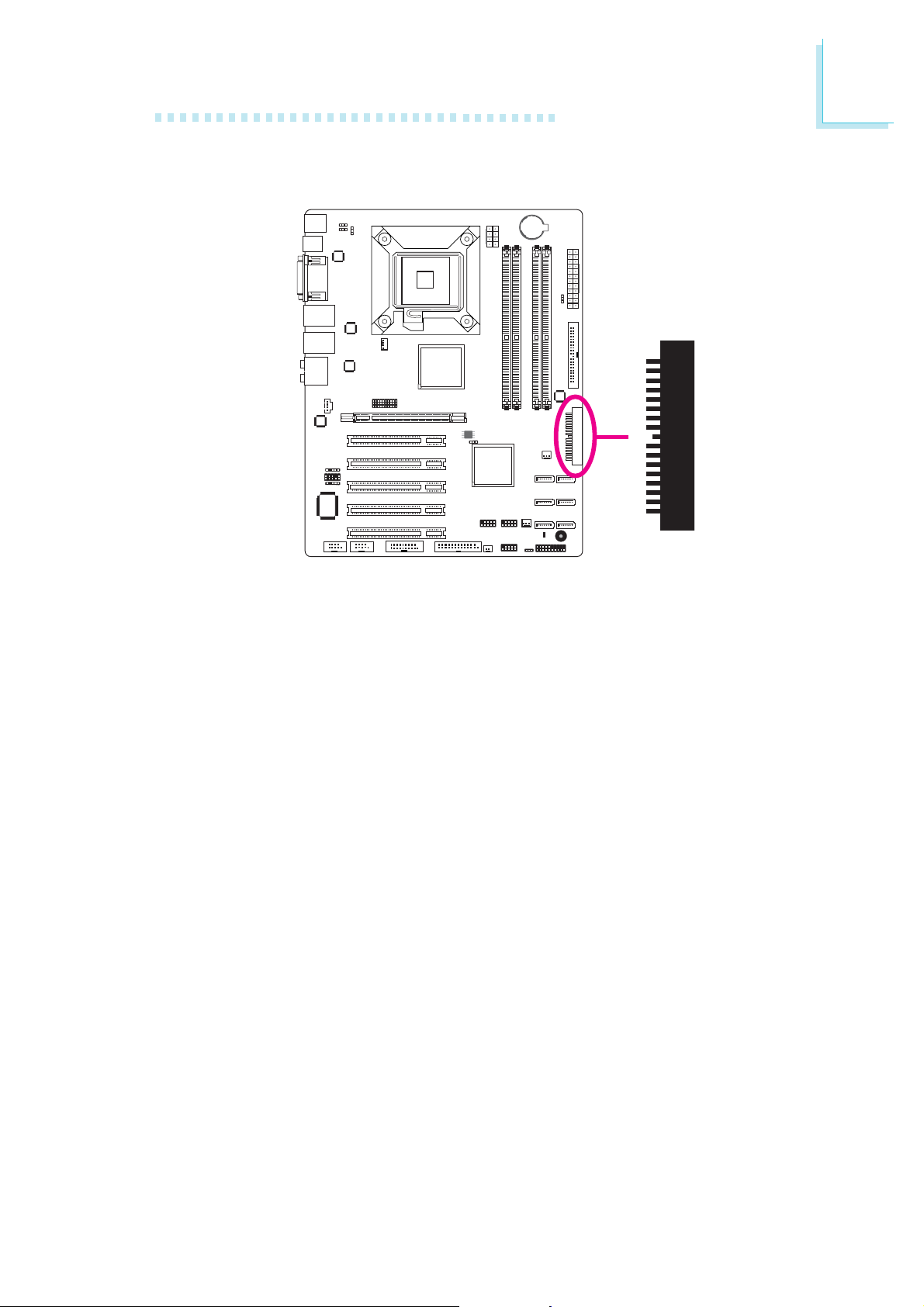

IDE Disk Drive Connectors

Hardware Installation

2

40

X

21

The PCI IDE connector will interface two Enhanced IDE (Integrated
Drive Electronics) disk drives. The IDE cable can be inser ted into this
connector only if pin 1 of the cable is aligned with pin 1 of the
connector.

39

Connecting the IDE Disk Drive Cable

The IDE connector supports 2 devices, a Master and a Slave. Use
an IDE ribbon cable to connect the drives to the system board. An
IDE ribbon cable have 3 connectors on them, one that plugs into an
IDE connector on the system board and the other 2 connects to
IDE devices. The connector at the end of the cable is for the Master
drive and the connector in the middle of the cable is for the Slave
drive.

Install one end of the IDE cable into the IDE connector on the
system board and the other connectors to the IDE devices.

47

2

Hardware Installation

Adding a Second IDE Disk Drive

When using two IDE drives, one must be set as the master and the
other as the slave. Follow the instructions provided by the drive
manufacturer for setting the jumpers and/or switches on the drives.

The system board supports Enhanced IDE or ATA-2, ATA/33,
ATA/66 and ATA/100 hard drives. We recommend that you use
hard drives from the same manufacturer. In a few cases, drives from
two different manufacturers will not function properly when used to­gether. The problem lies in the hard drives, not the system board.

Important:

If you encountered problems while using an ATAPI CD-ROM
drive that is set in Master mode, please set the CD-ROM drive
to Slave mode. Some ATAPI CD-ROMs may not be recognized
and cannot be used if incorrectly set in Master mode.

BIOS Setting

Configure the onboard IDE in the Integrated Peripherals submenu
(“OnChip IDE Device” section) of the BIOS. Refer to chapter 3 for
more information.

48

Serial (COM) Port

Hardware Installation

2

RD

2
1

DTR

TD

DCD

CTS

DSR

RTS

GND

RI

10

9

X

COM 2

COM 1

The two 9-pin connectors are for connecting external serial ports.
The serial port cable is an optional item and must be purchased
separately. Inser t the connector that is attached to the serial port
cable to COM 1 or COM 2 then install the serial port bracket to
an available bracket slot at the rear of the system chassis. Make sure
the colored stripe on the ribbon cable is aligned with pin 1 of COM
1 or COM 2.

The serial port is an RS-232 asynchronous communication port with
16C550A-compatible UARTs that can be used with modems, serial
printers, remote display terminals, and other serial devices.

BIOS Setting

Configure the serial port in the Integrated Peripherals submenu
(“Super IO Device” section) of the BIOS. Refer to chapter 3 for
more information.

49

2

Hardware Installation

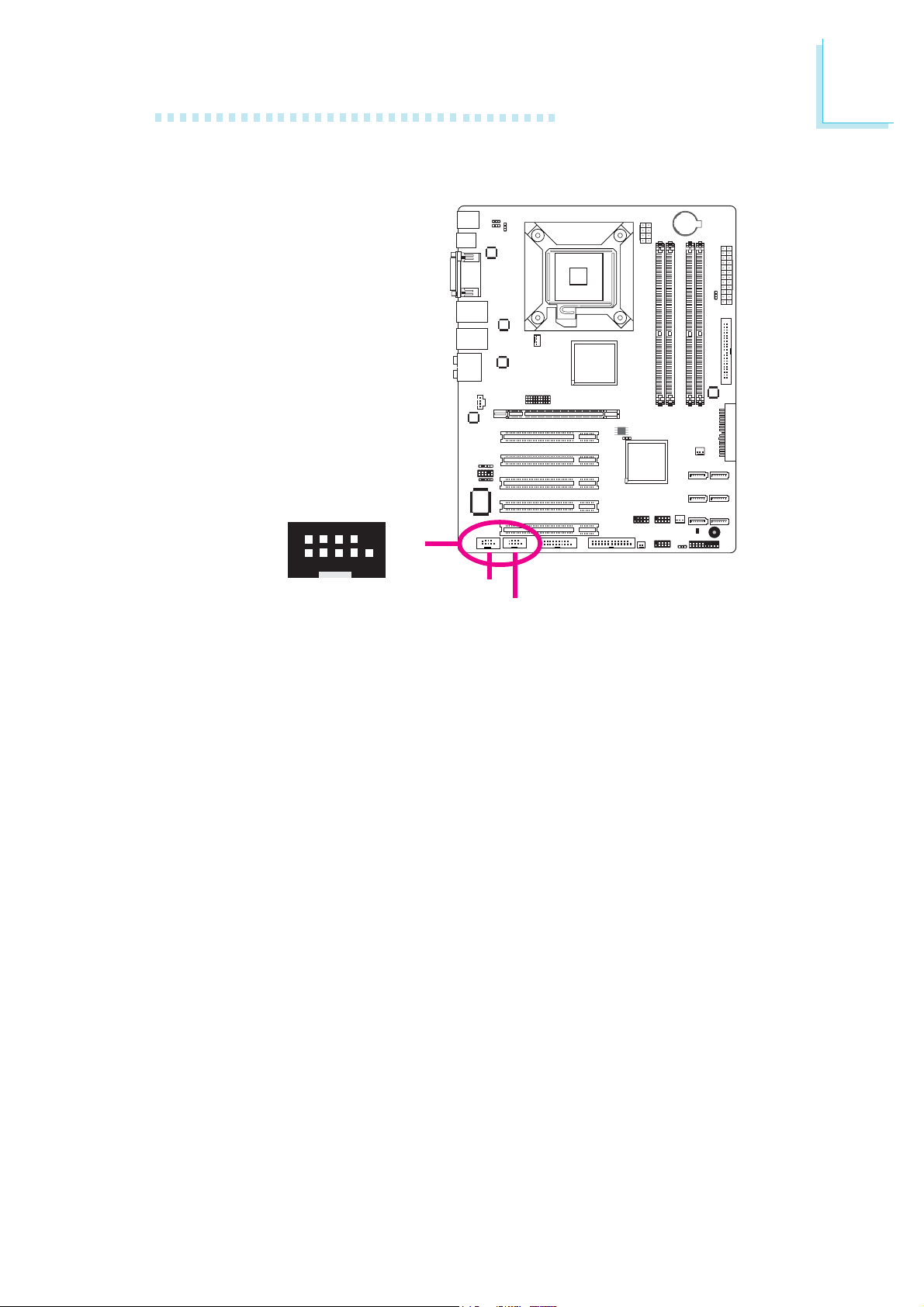

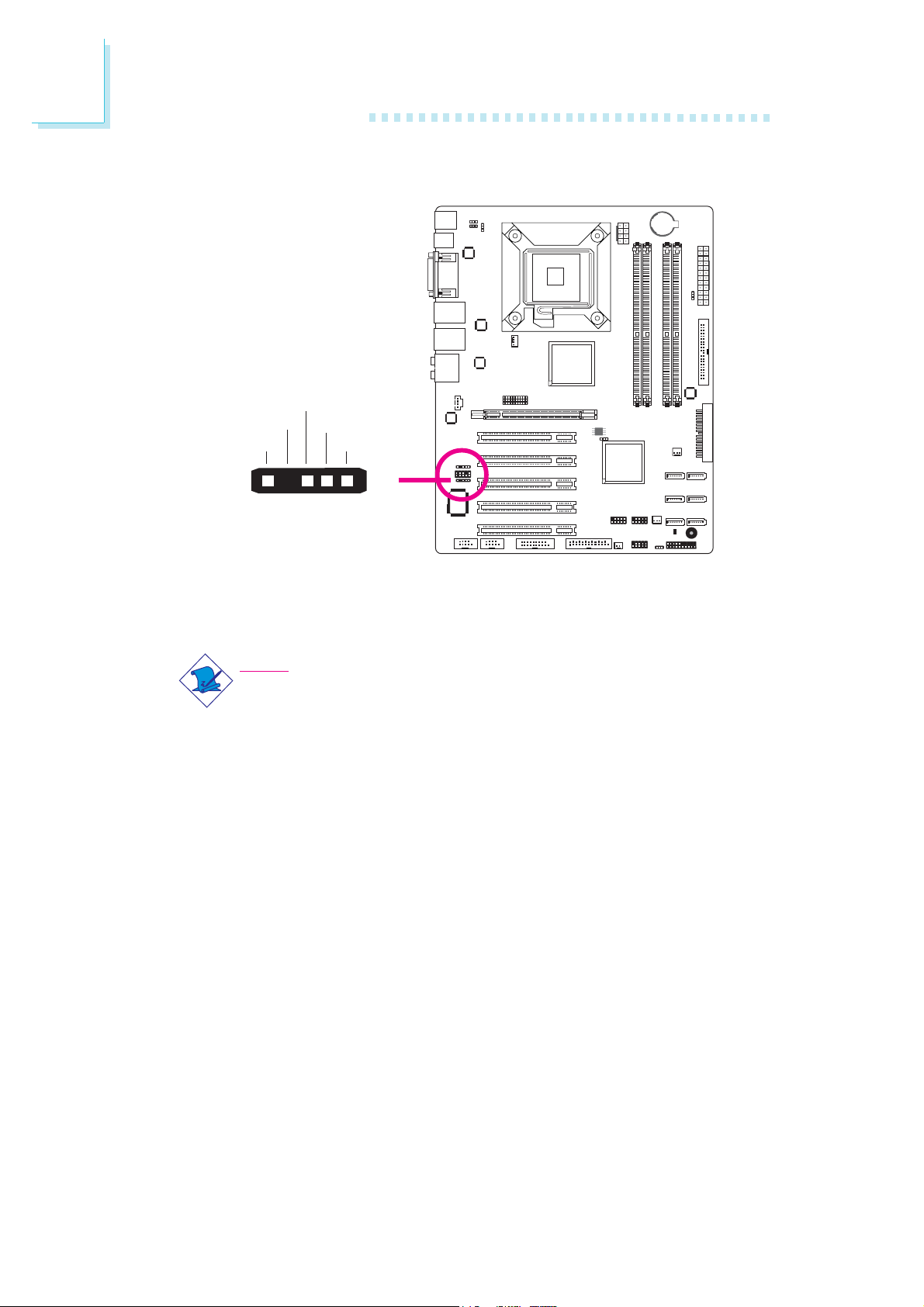

IrDA Connector

IRRX

N. C.

Ground

VCC

IRTX

15

Connect the cable connector from your IrDA module to the IrDA
connector on the system board.

Note:

The sequence of the pin functions on some IrDA cable may be
reversed from the pin function defined on the system board.
Make sure to connect the cable to the IrDA connector accord­ing to their pin functions.

BIOS Setting

Configure the onboard IrDA functions in the BIOS. Refer to chapter
3 for more information.

Driver Installation

W

50

You may need to install the proper drivers in your operating system
to use the IrDA function. Refer to your operating system’s manual or
documentation for more information.

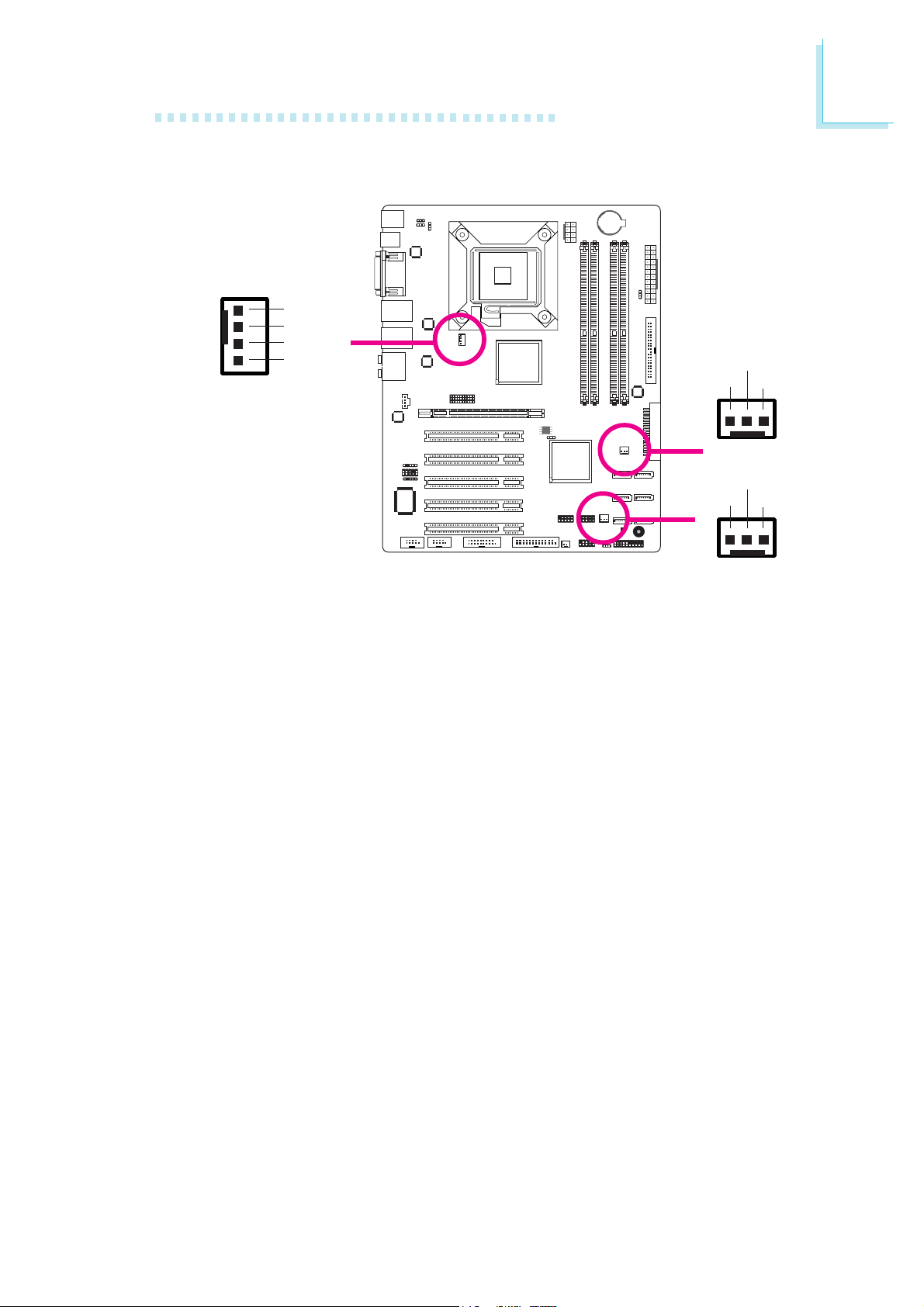

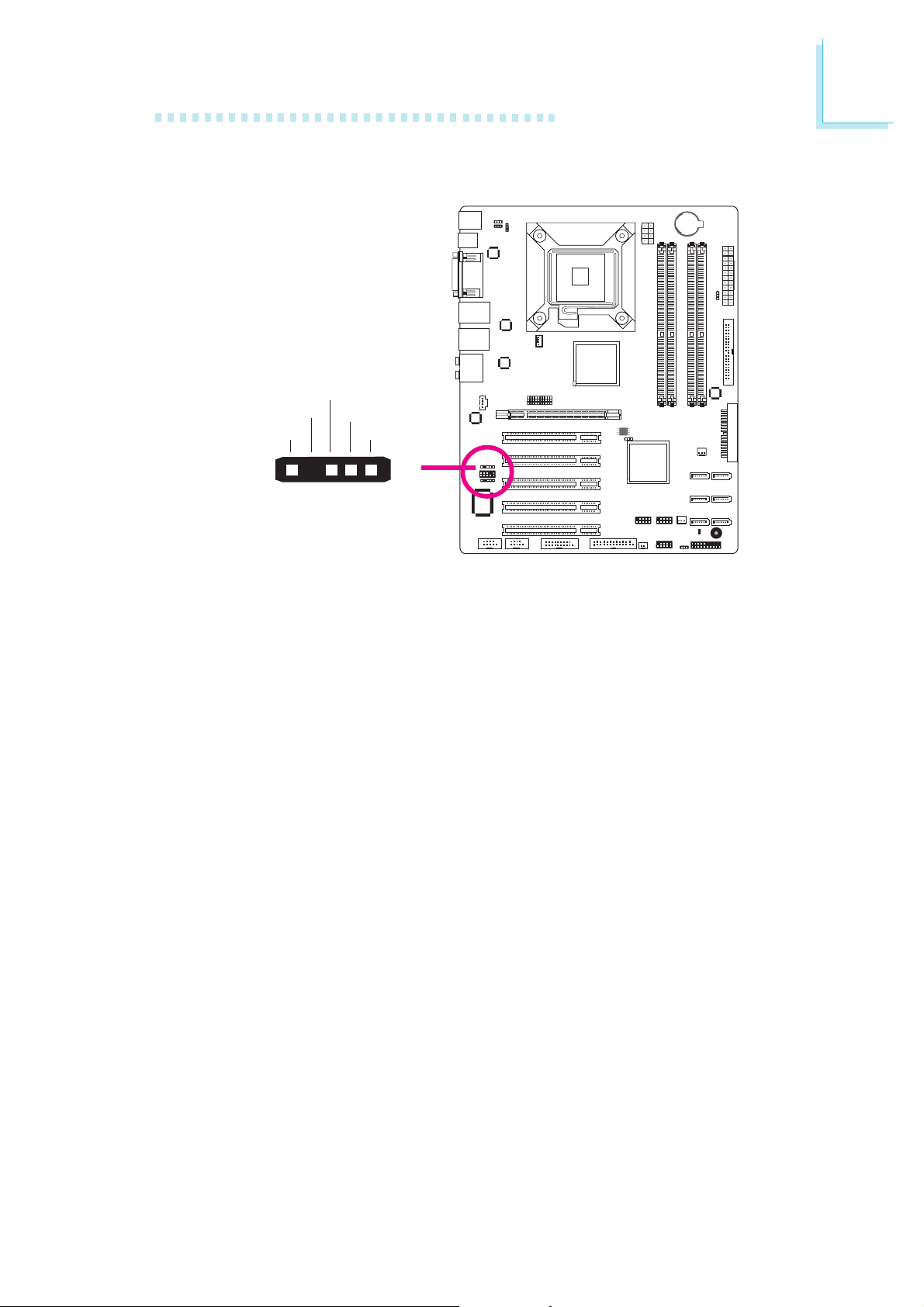

Cooling Fan Connectors

Hardware Installation

2

1

4

CPU fan

Ground

Power

Sense
Speed
Control

W

Power

Ground

13

X

Ground

Sense

2nd fan

Power

Sense

X

13

System fan

Connect the CPU fan’s cable connector to the CPU fan connector
on the system board. The 2nd fan and system fan connectors are
used to connect additional cooling fans. The cooling fans will provide
adequate airflow throughout the chassis to prevent overheating the
CPU and system board components.

BIOS Setting

The “PC Health Status” submenu of the BIOS will display the current
speed of the cooling fans. Refer to chapter 3 for more information.

51

2

Hardware Installation

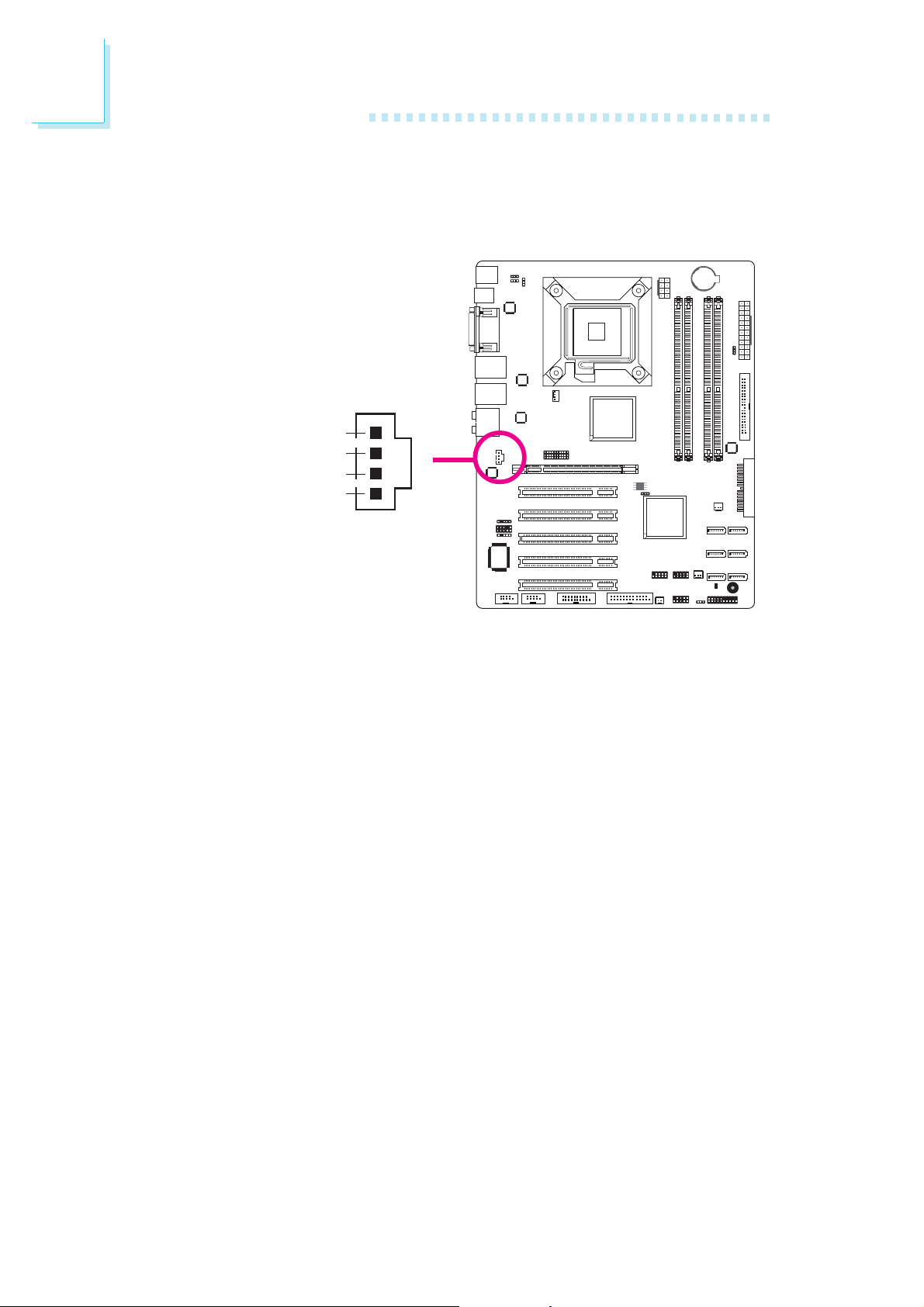

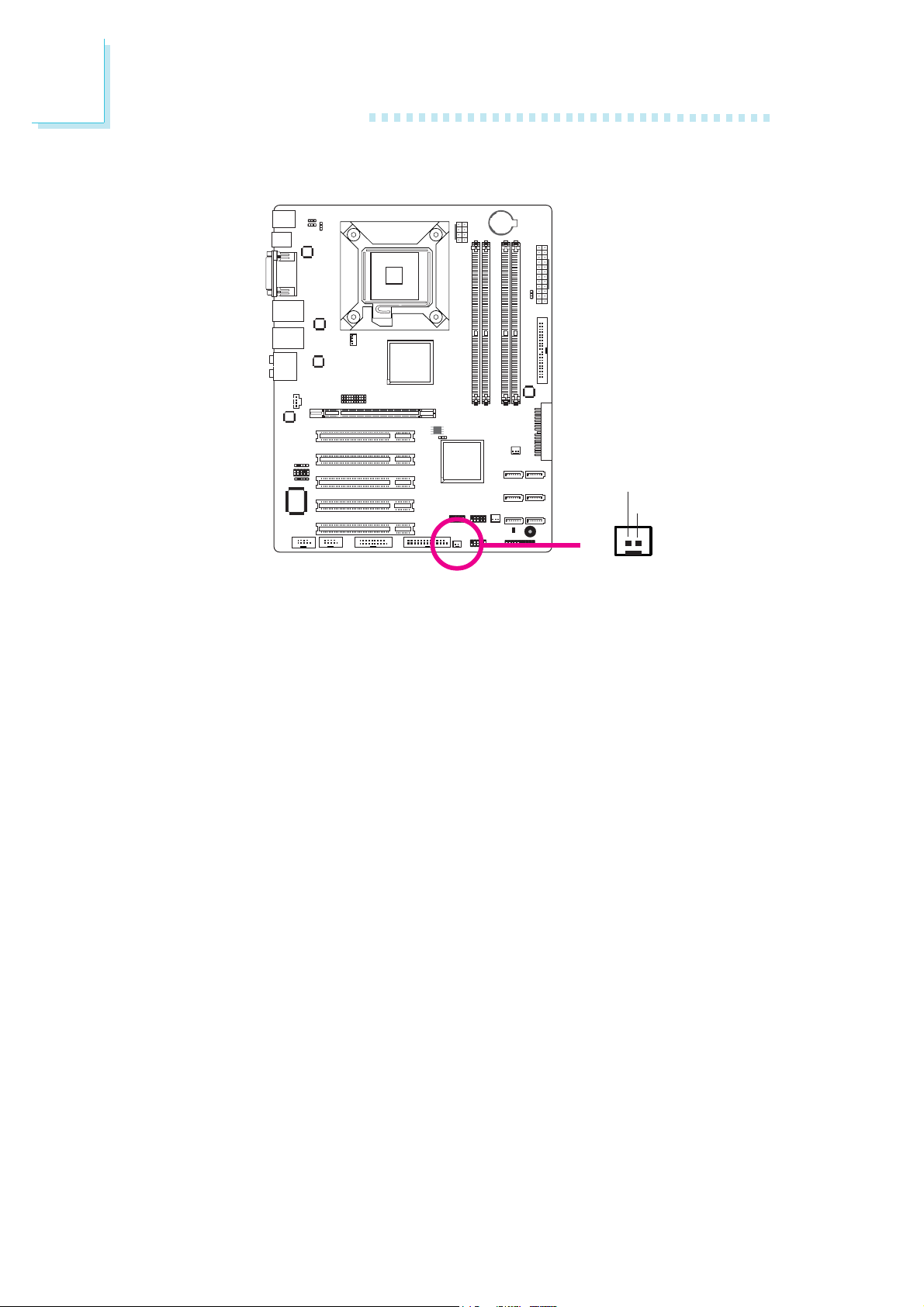

Chassis Open Connector

Chassis signal

Ground

2

X

The system board supports the chassis intrusion detection function.
Connect the chassis intrusion sensor cable from the chassis to the
chassis open connector. Whenever a chassis component has been
removed, the sensor sends signal to the connector alerting you of a
chassis intrusion event.

Hardware Monitor for Windows

Install the “Hardware Doctor for Windows” utility. By default, the
chassis intrusion detection function is disabled. When enabled, a
warning message will appear when the chassis is open. The utility can
also be configured so that a beeping alarm will sound when the
chassis is open. Refer to the “Hardware Doctor for Windows” sec­tion in chapter 4 for more information.

1

52

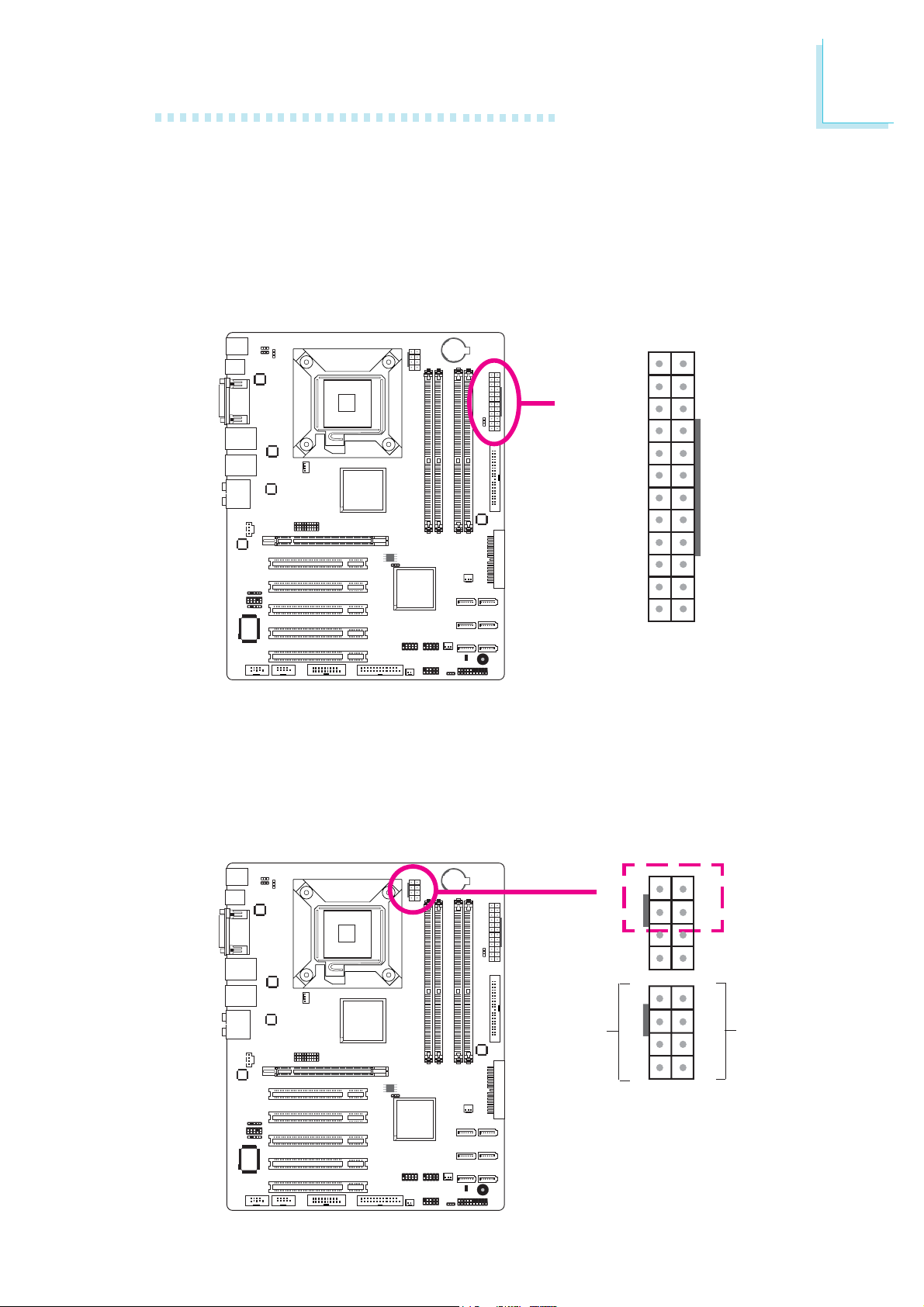

Power Connectors

Use a power supply that complies with the ATX12V Power Supply
Design Guide Version 1.1. An ATX12V power supply unit has a
standard 24-pin ATX main power connector that must be inserted
onto CN9.

Hardware Installation

12 24

+3.3VDC

+12VDC

X

+12VDC

PWR_OK

+5VDC

+5VDC

+3.3VDC
+3.3VDC

+5VSB

GND

GND

GND

GND
+5VDC
+5VDC
+5VDC

N. C.

GND
GND

GND

PS_ON#

GND

-12VDC
+3.3VDC

131

2

Your power supply unit may come with an 8-pin or 4-pin +12V
power connector. The +12V power enables the delivery of more
+12VDC current to the processor’s Voltage Regulator Module
(VRM). If available, it is preferable to use the 8-pin power; otherwise
connect a 4-pin power connector to CN10 as shown below.

X

5

+12V

8

8-pin +12V

1

Ground

4

53

2

Hardware Installation

The system board requires a minimum of 300 Watt power supply
to operate. Your system configuration (CPU power, amount of
memory, add-in cards, peripherals, etc.) may exceed the minimum
power requirement. To ensure that adequate power is provided, we
strongly recommend that you use a minimum of 400 Watt (or
greater) power supply.

Important:

Insufficient power supplied to the system may result in instabil­ity or the add-in boards and peripherals not functioning prop­erly. Calculating the system’s approximate power usage is im­portant to ensure that the power supply meets the system’s
consumption requirements.

54

Front Panel Connectors

Hardware Installation

2

ATX-SW

PWR-LED

2
1

HD-LED

X

HD-LED: Primary/Secondary IDE LED and SATA HDD LED

This LED will light when the IDE and/or SATA hard drive is being
accessed.

RESET: Reset Switch

This switch allows you to reboot without having to power off the
system thus prolonging the life of the power supply or system.

SPEAKER: Speaker Connector

This connects to the speaker installed in the system chassis.

ATX-SW: ATX Power Switch

Depending on the setting in the BIOS setup, this switch is a “dual
function power button” that will allow your system to enter the Soft­Off or Suspend mode. Refer to “Soft-Off By PWR-BTTN” in the
Power Management Setup (Chapter 3).

RESET

SPEAKER

20
19

55

2

Hardware Installation

PWR-LED: Power/Standby LED

When the system’s power is on, this LED will light. When the system
is in the S1 (POS - Power On Suspend) or S3 (STR - Suspend To
RAM) state, it will blink every second.

Note:

If a system did not boot-up and the Power/Standby LED did
not light after it was powered-on, it may indicate that the CPU
or memory module was not installed properly. Please make
sure they are properly inserted into their corresponding socket.

HD-LED

(SATA/Primary/Secondary IDE LED)

Reserved

ATX-SW

(ATX power switch)

Reserved

RESET

(Reset switch)

SPEAKER

(Speaker connector)

PWR-LED

(Power/Standby LED)

Pin

Pin Assignment

3

HDD LED Power

5

HDD

14

N. C.

16

N. C.

8

PWRBT+

10

PWRBT-

18

N. C.

20

N. C.

7

Ground

9

H/W Reset

13

Speaker Data

15

N. C.

17

Ground

19

Speaker Power

2

LED Power (+)

4

LED Power (+)

6

LED Power (-) or Standby Signal

56

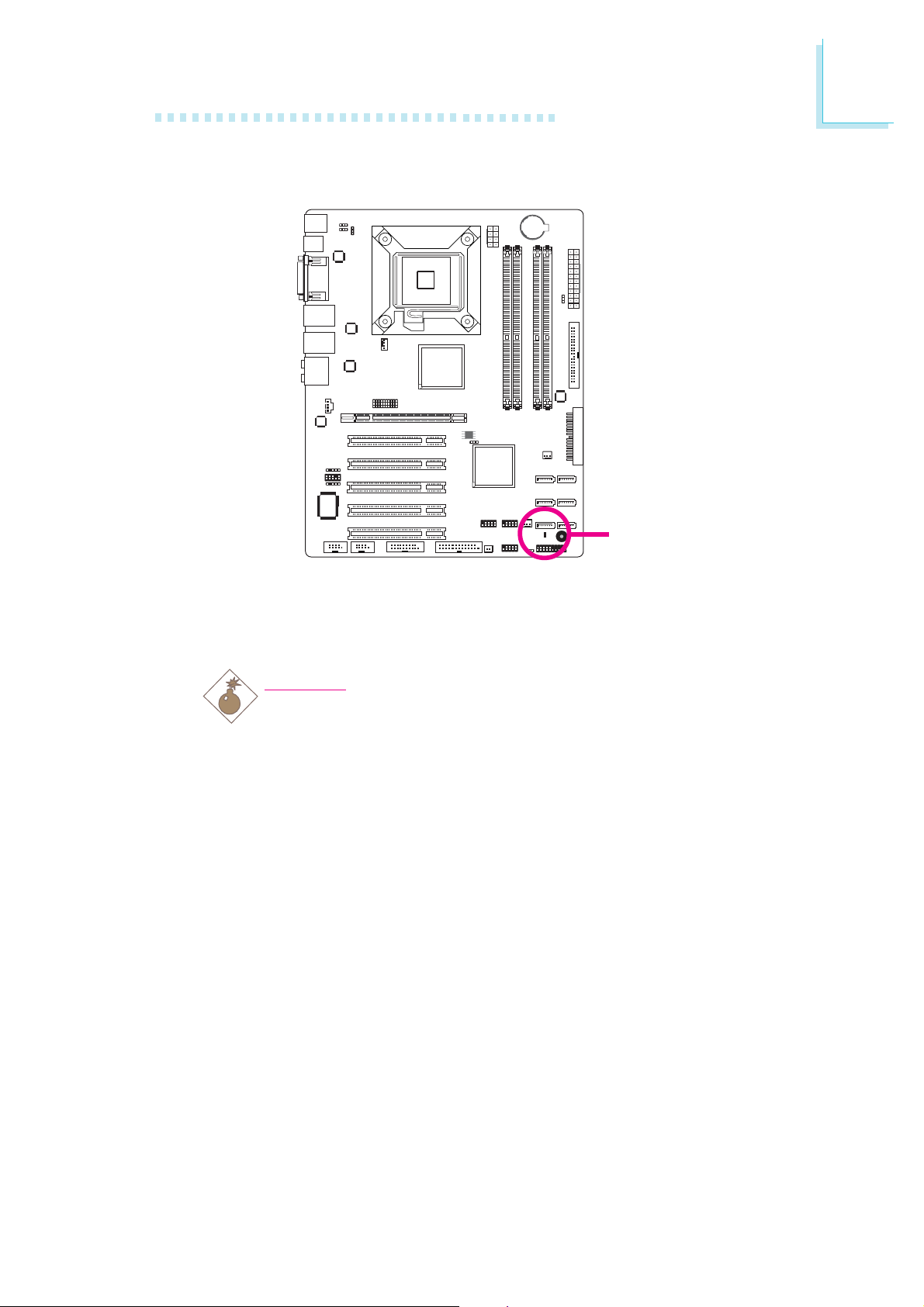

LED

Hardware Installation

2

Standby
Power LED

Standby Power LED

This LED will light when the system is in the standby mode.

.

.

.

.

.

.

.

Warning:

.

When the Standby Power LED lit red, it indicates that power is
present on the PCI slots. Power-off the PC then unplug the
power cord prior to installing any add-in cards. Failure to do so
will cause severe damage to the motherboard and components.

57

2

Hardware Installation

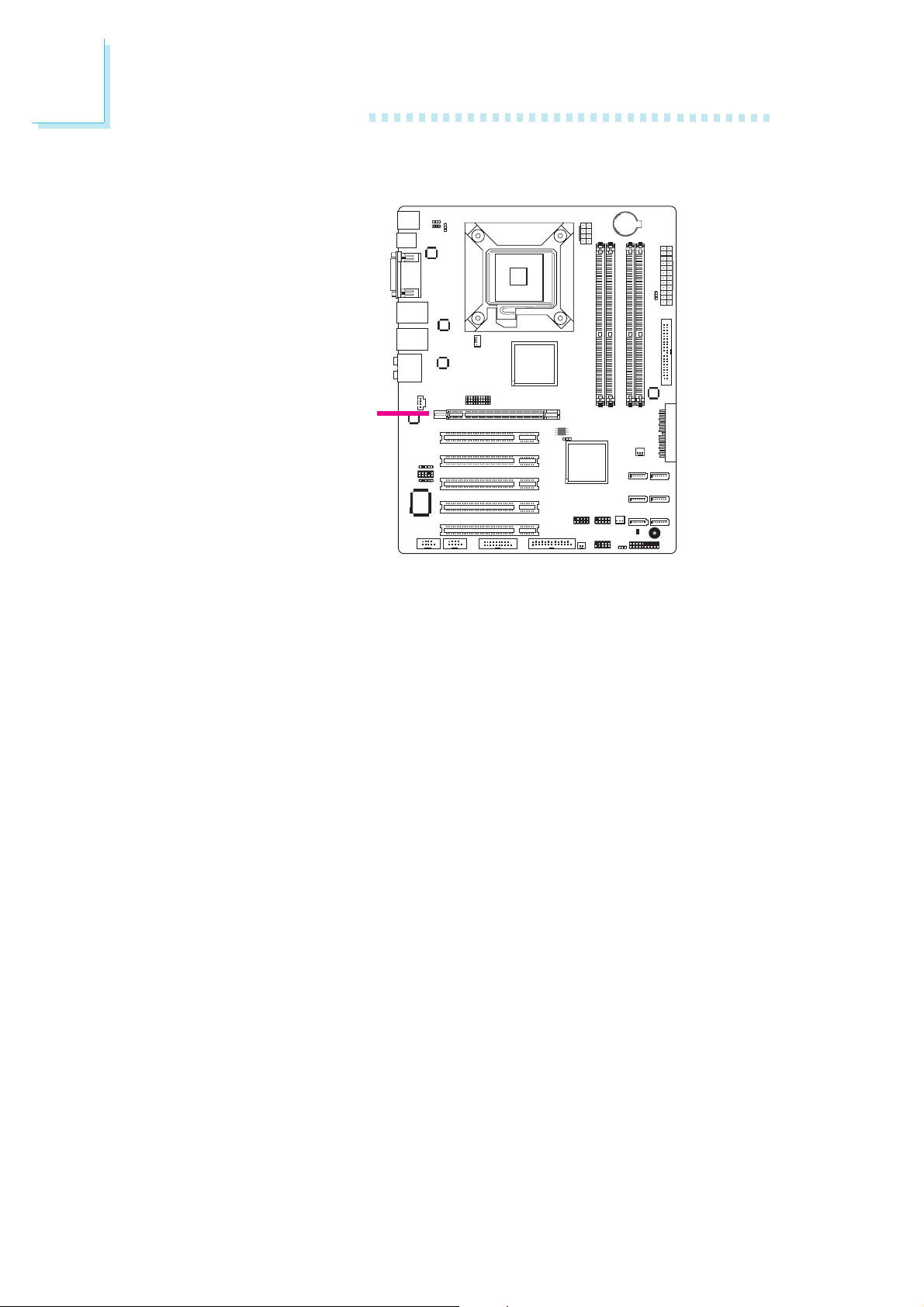

PCIE Slot

PCIE x16 slot

PCI Express x16

Install PCI Express x16 graphics card, that comply to the PCI Ex­press specifications, into the PCI Express x16 slot. To install a graph­ics card into the x16 slot, align the graphics card above the slot then
press it down firmly until it is completely seated in the slot. The
retaining clip of the slot will automatically hold the graphics card in
place.

58

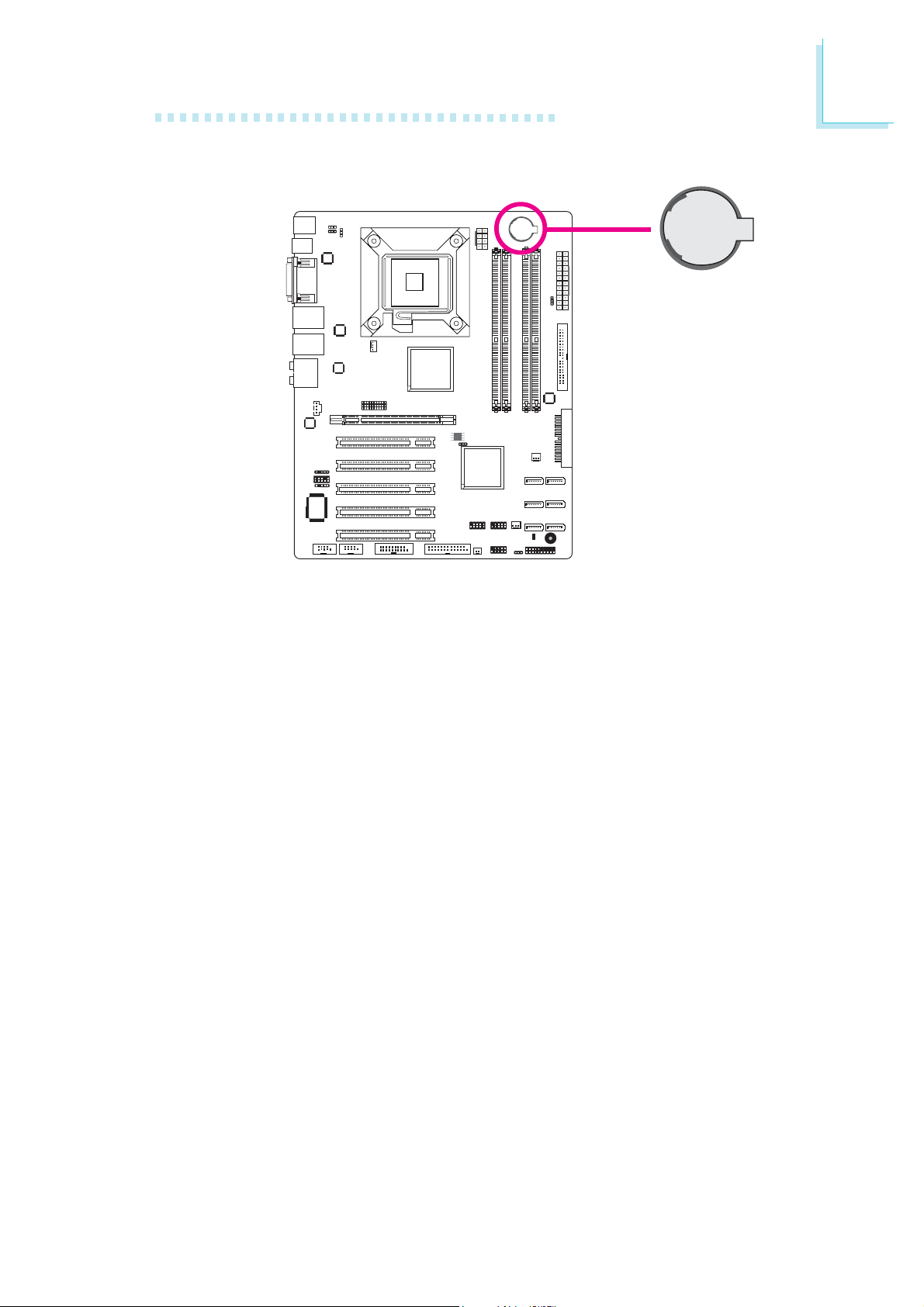

Battery

Hardware Installation

2

The lithium ion battery powers the real-time clock and CMOS
memory. It is an auxiliary source of power when the main power is
shut off.

Safety Measures

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend
the manufacturer.

• Dispose of used batteries according to local ordinance.

by

59

3

BIOS Setup

Chapter 3 - BIOS Setup

Award BIOS Setup Utility

The Basic Input/Output System (BIOS) is a program that takes care
of the basic level of communication between the processor and pe­ripherals. In addition, the BIOS also contains codes for various ad­vanced features found in this system board. This chapter explains the
Setup Utility for the Award BIOS.

After you power up the system, the BIOS message appears on the
screen and the memory count begins. After the memory test, the
following message will appear on the screen:

Press DEL to enter setup

If the message disappears before you respond, restart the system or
press the “Reset” button. You may also restart the system by press­ing the <Ctrl> <Alt> and <Del> keys simultaneously.

When you press <Del>, the main menu screen will appear.

Phoenix - AwardBIOS CMOS Setup Utility

X Standard CMOS Features
X Advanced BIOS Features
X Advanced Chipset Features
X Integrated Peripherals
X Power Management Setup
X PnP/PCI Configurations
X PC Health Status

Esc : Quit
F10 : Save & Exit Setup

Time, Date, Hard Disk Type...

X Frequency/Voltage Control

Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving

↑ ↓ → ← : Select Item

60

Standard CMOS Features

Use the arrow keys to highlight “Standard CMOS Features” then
press <Enter>. A screen similar to the one below will appear.

BIOS Setup

3

Date

Phoenix - AwardBIOS CMOS Setup Utility

Date <mm:dd:yy>
Time <hh:mm:ss>

X IDE Channel 0 Master
X IDE Channel 0 Slave
X IDE Channel 1 Master
X IDE Channel 1 Slave
X IDE Channel 2 Master
X IDE Channel 3 Master
X IDE Channel 4 Master
X IDE Channel 4 Slave

Drive A
Video

Halt On
Base Memory

Extended Memory
Total Memory

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Standard CMOS Features

Wed, Oct 8 2008
9 : 3 : 54

None
None
None
None
None
None
None
None

1.44M, 3.5 in .
EGA/VGA

All Errors
640K

513024K
514048K

Item Help
Menu Level
Change the day, month,

year and century

X

The settings on the screen are for reference only. Your version may not be
identical to this one.

Time

The date format is <day>, <month>, <date>, <year>. Day displays
a day, from Sunday to Saturday. Month displays the month, from
January to December. Date displays the date, from 1 to 31. Year
displays the year, from 1999 to 2099.

The time format is <hour>, <minute>, <second>. The time is based
on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00.
Hour displays hours from 00 to 23. Minute displays minutes from
00 to 59. Second displays seconds from 00 to 59.

61

3

BIOS Setup

IDE Channel 0 Master to IDE Channel 4 Slave

To configure the IDE drives, move the cursor to a field then press
<Enter>. The following screen will appear.

Phoenix - AwardBIOS CMOS Setup Utility

IDE HDD Auto-Detection
IDE Channel 0 Master

Access Mode
Capacity
Cylinder

Head
Precomp
Landing Zone
Sector

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be
identical to this one.

IDE Channel 0 Master

Press Enter
Auto

Auto
0MB

0
0
0
0
0

Item Help
Menu Level
To auto-detect the

HDD’s size, head... on
this channel

XX

IDE HDD Auto Detection

Detects the parameters of the drive. The parameters will automati­cally be shown on the screen.

IDE Channel 0 Master to IDE Channel 4 Slave

If you select ”Auto”, the BIOS will auto-detect the HDD & CD­ROM drive at the POST stage and show the IDE for the HDD &
CD-ROM drive. If a hard disk has not been installed, select “None”.

Access Mode

For hard drives larger than 528MB, you would typically select the
LBA type. Certain operating systems require that you select CHS or
Large. Please check your operating system’s manual or Help desk on
which one to select.

62

BIOS Setup

Capacity

Displays the approximate capacity of the disk drive. Usually the size
is slightly greater than the size of a formatted disk given by a disk
checking program.

Cylinder

This field displays the number of cylinders.

Head

This field displays the number of read/write heads.

Precomp

This field displays the number of cylinders at which to change the
write timing.

3

Landing Zone

This field displays the number of cylinders specified as the landing
zone for the read/write heads.

Sector

This field displays the number sectors per track.

Drive A

This field identifies the type of floppy disk drive installed.

None No floppy drive is installed
360K, 5.25 in. 5-1/4 in. standard drive; 360KB capacity

1.2M, 5.25 in. 5-1/4 in. AT-type high-density drive; 1.2MB capacity
720K, 3.5 in. 3-1/2 in. double-sided drive; 720KB capacity

1.44M, 3.5 in. 3-1/2 in. double-sided drive; 1.44MB capacity

2.88M, 3.5 in. 3-1/2 in. double-sided drive; 2.88MB capacity

63

3

BIOS Setup

Video

This field selects the type of video adapter used for the primary
system monitor. Although secondary monitors are suppor ted, you do
not have to select the type. The default setting is EGA/VGA.

EGA/VGA Enhanced Graphics Adapter/Video Graphics Array. For

EGA, VGA, SVGA and PGA monitor adapters.

CGA 40 Color Graphics Adapter. Power up in 40-column

mode.

CGA 80 Color Graphics Adapter. Power up in 80-column

mode.

Mono Monochrome adapter. Includes high resolution mono-

chrome adapters.

Halt On

This field determines whether the system will stop if an error is
detected during power up. The default setting is All Errors.

No Errors The system boot will not stop for any errors detected.
All Errors The system boot will stop whenever the BIOS detects

All, But Keyboard The system boot will not stop for a keyboard

All, But Diskette The system boot will not stop for a disk error;

All, But Disk/Key The system boot will not stop for a disk or

Base Memory

Displays the amount of base (or conventional) memory installed in
the system. The value of the base memory is typically 512K for
systems with 512K memory installed on the motherboard or 640K
for systems with 640K or more memory installed on the
motherboard.

a non-fatal error.

error; it will stop for all other errors.

it will stop for all other errors.

keyboard error; it will stop for all other errors.

64

Extended Memory

Displays the amount of extended memory detected during boot-up.

Total Memory

Displays the total memory available in the system.

BIOS Setup

3

65

3

BIOS Setup

Advanced BIOS Features

The Advanced BIOS Features allows you to configure your system
for basic operation. Some entries are defaults required by the system
board, while others, if enabled, will improve the performance of your
system or let you set some features according to your preference.

Phoenix - AwardBIOS CMOS Setup Utility

X CPU Feature
X Hard Disk Boot Priority

Virus Warning
CPU L3 Cache
Quick Power On Self Test
First Boot Device
Second Boot Device
Third Boot Device
Boot Other Device
Boot Up Floppy Seek
Boot Up NumlLock Status
Gate A20 Option

Typematic Rate Setting
x Typematic Rate (Chars/Sec)
x Typematic Delay (Msec)

Security Option

MPS Version Control For OS

OS Select For DRAM > 64MB

Report No FDD For Win 95

Small Logo(EPA) Show

Advanced BIOS Features

Press Enter
Press Enter
Disabled
Enabled
Enabled
Floppy
Hard Disk
LS120
Enabled
Enabled
On
Fast
Disabled
6
250
Setup

1.4
Non-OS2
No
Disabled

X

Menu Level
Select Removable Boot

Device Priority

X

Item Help

X

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The screen above list all the fields available in the Advanced BIOS Features
submenu, for ease of reference in this manual. In the actual CMOS setup, you have
to use the scroll bar to view the fields. The settings on the screen are for refer­ence only. Your version may not be identical to this one.

66

CPU Feature

This field is used to configure the CPU that is installed on the sys­tem board. Move the cursor to this field then press <Enter>.

BIOS Setup

3

Phoenix - AwardBIOS CMOS Setup Utility

PPM Mode
Limit CPUID MaxVal
C1E Function
Execute Disable Bit
Virtualization Technology

↑↓: Move PU/PD/+/-: Change Priority F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be
identical to this one.

CPU Feature

Native Mode
Disabled
Auto
Enabled
Enabled

Item Help

Menu Level

XX

PPM Mode

The options are Native Mode and SMM mode.

Limit CPUID MaxVal

The CPUID instruction of some newer CPUs will return a value
greater than 3. The default is Disabled because this problem does
not exist in the Windows series operating systems. If you are using
an operating system other than Windows, this problem may occur. To
avoid this problem, enable this field to limit the return value to 3 or
lesser than 3.

C1E Function

The options are Auto and Disabled.

Execute Disable Bit

When this field is set to Disabled, it will force the XD feature flag to
always return to 0.

67

3

BIOS Setup

Virtualization Technology

When this field is set to Enabled, the VMM can utilize the additional
hardware capabilities provided by Vanderpool Technology.

68

Hard Disk Boot Priority

This field is used to select the boot sequence of the hard drives.
Move the cursor to this field then press <Enter>. Use the Up or
Down arrow keys to select a device then press <+> to move it up
or <-> to move it down the list.

BIOS Setup

3

1. Bootable Add-in Cards

↑↓: Move PU/PD/+/-: Change Priority F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be
identical to this one.

Virus Warning

This field protects the boot sector and partition table of your hard
disk drive. When this field is enabled, the Award BIOS will monitor
the boot sector and partition table of the hard disk drive. If an
attempt is made to write to the boot sector or partition table of
the hard disk drive, the BIOS will halt the system and an error
message will appear.

Phoenix - AwardBIOS CMOS Setup Utility

Hard Disk Boot Priority

Item Help
Menu Level
Use <↑> or <↓> to

select a device, then
press <+> to move it up,
or <-> to move it down
the list. Press <ESC> to
exit this menu.

XX

After seeing the error message, if necessary, you will be able to run
an anti-virus program to locate and remove the problem before any
damage is done.

Many disk diagnostic programs which attempt to access the boot
sector table will cause the warning message to appear. If you are
running such a program, we recommend that you first disable this
field.

69

3

BIOS Setup

CPU L3 Cache

This field is used to enable or disable the CPU’s L3 cache.

Quick Power On Self Test

This field speeds up Power On Self Test (POST) after you power on
the system. When Enabled, the BIOS will shor ten or skip some check
items during POST.

First Boot Device, Second Boot Device, Third Boot Device and Boot
Other Device

Select the drive to boot first, second and third in the “First Boot
Device” “Second Boot Device” and “Third Boot Device” fields re­spectively. The BIOS will boot the operating system according to the
sequence of the drive selected. Set “Boot Other Device” to Enabled
if you wish to boot from another device.

Boot Up Floppy Seek

When enabled, the BIOS will check whether the floppy disk drive in­stalled is 40 or 80 tracks. Note that the BIOS cannot distinguish be­tween 720K, 1.2M, 1.44M and 2.88M drive types as they are all 80
tracks. When disabled, the BIOS will not search for the type of floppy
disk drive by track number. Note that there will not be any warning
message if the drive installed is 360KB.

Boot Up NumLock Status

This allows you to determine the default state of the numeric
keypad. By default, the system boots up with NumLock on wherein
the function of the numeric keypad is the number keys. When set to
Off, the function of the numeric keypad is the arrow keys.

Gate A20 Option

This entry allows you to select how gate A20 is handled. Gate A20
is a device used to address memory above 1 Mbyte. Initially, gate A20
was handled via the keyboard controller. Today, while keyboards still
provide this support, it is more common, and much faster, for the sys­tem chipset to provide support for gate A20.

70

Typematic Rate Setting

Disabled Continually holding down a key on your keyboard will

cause the BIOS to report that the key is down.

Enabled The BIOS will not only report that the key is down,

but will first wait for a moment, and, if the key is still
down, it will begin to repor t that the key has been
depressed repeatedly. For example, you would use such
a feature to accelerate cursor movements with the ar­row keys. You can then select the typematic rate and
typematic delay in the “Typematic Rate (Chars/Sec)”
and “Typematic Delay (Msec)” fields below.

Typematic Rate (Chars/Sec)

This field allows you to select the rate at which the keys are acceler­ated.

BIOS Setup

3

Typematic Delay (Msec)

This field allows you to select the delay between when the key was
first depressed and when the acceleration begins.

Security Option

This field determines when the system will prompt for the password

- everytime the system boots or only when you enter the BIOS
setup. Set the password in the Set Supervisor/User Password
submenu.

System The system will not boot and access to Setup will be

denied unless the correct password is entered at the
prompt.

Setup The system will boot, but access to Setup will be denied

unless the correct password is entered at the prompt.

71

3

BIOS Setup

MPS Version Control for OS

This field is used to select the MPS version used by the system.

OS Select for DRAM > 64MB

This field allows you to access the memory that is over 64MB in
OS/2. The options are: Non-OS2 and OS2.

Report No FDD For WIN 95

The options are Yes and No.

Small Logo(EPA) Show

Enabled The EPA logo will appear during system boot-up.
Disabled The EPA logo will not appear during system boot-up.

72

Advanced Chipset Features

Phoenix - AwardBIOS CMOS Setup Utility

Advanced Chipset Features

System BIOS Cacheable
Memory Hole At 15M-16M

X PCI Express Root Port Func

** VGA Setting **
PEG/Onchip VGA Control
On-Chip Frame Buffer Size
DVMT Mode
DVMT/FIXED Memory Size

Enabled
Disabled
Press Enter

Auto
8MB
DVMT
128MB

BIOS Setup

Item Help

Menu Level

3

XX

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be
identical to this one.

This section gives you functions to configure the system based on
the specific features of the chipset. The chipset manages bus speeds
and access to system memory resources. These items should not

be altered unless necessary. The default settings have been chosen

because they provide the best operating conditions for your system.
The only time you might consider making any changes would be if
you discovered some incompatibility or that data was being lost
while using your system.

System BIOS Cacheable

When this field is enabled, accesses to the system BIOS ROM ad­dressed at F0000H-FFFFFH are cached, provided that the cache
controller is enabled. The larger the range of the Cache RAM, the
higher the efficiency of the system.

73

3

BIOS Setup

Memory Hole At 15M-16M

In order to improve system performance, certain space in memory can
be reserved for ISA cards. This memory must be mapped into the
memory space below 16MB. When enabled, the CPU assumes the 15­16MB memory range is allocated to the hidden ISA address range
instead of the actual system DRAM. When disabled, the CPU assumes
the 15-16MB address range actually contains DRAM memory. If more
than 16MB of system memory is installed, this field must be disabled
to provide contiguous system memory.

PCI Express Root Port Func

Phoenix - AwardBIOS CMOS Setup Utility

PCI Express PATA PORT
PCI Express GiGa LAN1
PCI Express GiGa LAN2
PCI Express Port 4
PCI-E Compliance Mode

PCI Express Root Port Func

Auto
Auto
Auto
Auto
v1.0a

Item Help

Menu Level

XX

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be
identical to this one.

PCI Express PATA Port

This field is used to configure the PCI Express PATA port function.

PCI Express GiGa LAN1 and PCI Express GiGa LAN2

These fields are used to configure the PCI Express LAN ports.

PCI Express Port 4

The options are Auto, Enabled and Disabled.

PCI-E Compliancy Mode

This field is used to select the mode for the PCI Express add-in
card.

74

PEG/OnChip VGA Control

This field is used to select the graphics controller that will serve as
the primary boot device. The options are Auto, Onchip VGA and
PEG Port.

On-Chip Frame Buffer Size

This field is used to select the onboard VGA’s frame buffer size that
is shared from the system memory.

DVMT Mode

This field shows the current DVMT mode.

DVMT/Fixed Memory Size

BIOS Setup

3

This field is used to select the graphics memory size used by DVMT/
Fixed mode.

75

3

BIOS Setup

Integrated Peripherals

X OnChip IDE Device
X Onboard Device
X Super IO Device
X USB Device Setting

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be
identical to this one.

OnChip IDE Device

Move the cursor to this field and press <Enter>. The following
screen will appear.

Phoenix - AwardBIOS CMOS Setup Utility

Integrated Peripherals

Press Enter
Press Enter
Press Enter
Press Enter

Item Help

Menu Level

X

Phoenix - AwardBIOS CMOS Setup Utility

IDE HDD Block Mode
IDE DMA Transfer Access
SATA Mode
Legacy Mode Support

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

OnChip IDE Device

Enabled
Enabled
IDE
Disabled

Item Help

Menu Level
If your IDE hard drive

supports block mode
Select Enabled for
automatic detection of
the optimal number of
block read/writes per
sector the drive can
support

XX

The settings on the screen are for reference only. Your version may not be
identical to this one.

76

BIOS Setup

IDE HDD Block Mode

Enabled The IDE HDD uses the block mode. The system BIOS

will check the hard disk drive for the maximum block
size the system can transfer. The block size will depend
on the type of hard disk drive.

Disabled The IDE HDD uses the standard mode.

IDE DMA Transfer Access

This field is used to enable or disable the DMA transfer function of
an IDE hard drive.

SATA Mode

IDE This option configures the Serial ATA drives in IDE mode.
RAID This option enables the RAID function for Serial ATA

drives.

AHCI This option configures the Serial ATA drives in AHCI

mode.

3

Legacy Mode Support

The options are Enabled and Disabled.

77

3

BIOS Setup

Onboard Device

Move the cursor to this field and press <Enter>. The following
screen will appear.

Phoenix - AwardBIOS CMOS Setup Utility

AHCI ROM Control
High Definition Audio
Onboard LAN Boot ROM

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be
identical to this one.

Onboard Device

Enabled
Enabled
Disabled

Item Help

Menu Level

XX

AHCI ROM Control

The options are Enabled and Disabled.

High Definition Audio

Enabled Select this option when using the onboard High Defi-

nition audio.

Disabled Select this option when using a PCI sound card.

78

BIOS Setup

Onboard LAN Boot ROM

Enable this field if you wish to use the boot ROM (instead of a disk
drive) to boot-up the system and access the local area network
directly.

If you wish to change the boot ROM’s settings, type the <Shift> and
<F10> keys simultaneously when prompted during boot-up. Take
note: you will be able to access the boot ROM’s program (by typing
<Shift> + <F10>) only when this field is enabled.

3

79

3

BIOS Setup

Super IO Device

Move the cursor to this field and press <Enter>. The following
screen will appear.

Phoenix - AwardBIOS CMOS Setup Utility

KBC input clock
Power On Function

x Hot Key Power ON

Onboard FDC Controller
Onboard Serial Port 1
Onboard Serial Port 2

UART Mode Select
x RxD, TxD Active
x IR Transmission Delay
x UR2 Duplex Mode
x Use IR Pins

Onboard Parallel Port

Parallel Port Mode
x EPP Mode Select
x ECP Mode Use DMA

PWRON After PWR-Fail

Watch Dog Timer Select

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Super IO Device

12 MHz
BUTTON ONLY
Ctrl-F1
Enabled
3F8/IRQ4
2F8/IRQ3
Normal
Hi, Lo
Enabled
Half
IR-Rx2Tx2
378/IRQ7
SPP
EPP1.7
3
Off
Disabled

Item Help

Menu Level

XX

The settings on the screen are for reference only. Your version may not be
identical to this one.

KBC Input Clock

This is used to select the input clock of your keyboard. The options
are: 8MHz and 12MHz.

Power On Function

This field allows you to use the PS/2 keyboard or PS/2 mouse to
power-on the system.

Keyboard 98 When this option is selected, press the “wake up”

key of the Windows

®

98 compatible keyboard to

power-on the system.

Button only Default setting. Uses the power button to power

on the system.

Hot Key When this option is selected, select the function

key you would like to use to power-on the system
in the “Hot Key Power On” field.

Mouse Left When this option is selected, double-click the left

button of the mouse to power-on the system.

80

BIOS Setup

Mouse Right When this option is selected, double-click the right

button of the mouse to power-on the system.

Any Key Press any key to power-on the system.

Hot Key Power On

This field is used to select a function key that you would like to use
to power-on the system.

Onboard FDC Controller

Enabled Enables the onboard floppy disk controller.
Disabled Disables the onboard floppy disk controller.

Onboard Serial Port 1 and Onboard Serial Port 2

Auto The system will automatically select an I/O address

for the onboard serial port 1 and serial port 2.

3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3 Allows you to

manually select an I/O address for the onboard se­rial port 1 and serial port 2.

Disabled Disables the onboard serial port 1 and/or serial

port 2.

3

UART Mode Select

This field is used to select the type of IrDA standard supported by
your IrDA device. For better transmission of data, your IrDA periph­eral device must be within a 30o angle and within a distance of 1
meter.

RxD, TxD Active

The options are Hi, Lo; Lo, Hi; Lo, Lo; and Hi, Hi.

IR Transmission Delay

If this field is Enabled, transmission of data will be slower. This is
recommended when you encounter transmission problem with your
device. The options are: Enabled and Disabled.

81

3

BIOS Setup

UR2 Duplex Mode

Half Data is completely transmitted before receiving data.
Full Transmits and receives data simultaneously.

Use IR Pins

The options are IR-Rx2Tx2 and RxD2TxD2.

Onboard Parallel Port

378/IRQ7, 3BC/IRQ7, 278/IRQ5 Selects the I/O address and

IRQ for the onboard parallel port.

Disabled Disables the onboard parallel port.

Parallel Port Mode

The options are SPP, EPP, ECP and ECP+EPP. These apply to a
standard specification and will depend on the type and speed of
your device. Refer to your peripheral’s manual for the best option.

SPP

Allows normal speed operation but in one direction only.

“ECP (Extended Capabilities Port)”

Allows parallel port to operate in bidirectional mode and at a
speed faster than the normal mode’s data transfer rate.

“EPP (Enhanced Parallel Port)”

Allows bidirectional parallel port operation at maximum speed.

EPP Mode Select

This field is used to select the EPP mode.

ECP Mode Use DMA

82

This field is used to select a DMA channel for the parallel port. The
options are 1 and 3. Default setting: 3.

BIOS Setup

PWRON After PWR-Fail

Off When power returns after an AC power failure, the

system’s power is off. You must press the Power but­ton to power-on the system.

On When power returns after an AC power failure, the

system will automatically power-on.

Former-Sts When power returns after an AC power failure, the

system will return to the state where you left off be­fore power failure occurs. If the system’s power is off
when AC power failure occurs, it will remain off when
power returns. If the system’s power is on when AC
power failure occurs, the system will power-on when
power returns.

Watch Dog Timer Select

3

This field is used to select the time interval of the Watchdog timer. If
the system hangs or fails to function, it will reset at the set time
interval so that your system will continue to operate.

83

3

BIOS Setup

USB Device Setting

Move the cursor to this field and press <Enter>. The following
screen will appear.

Phoenix - AwardBIOS CMOS Setup Utility

USB 1.0 Controller

USB 2.0 Controller

USB Keyboard Function

USB Mouse Function

USB Storage Function

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be
identical to this one.

USB Device Setting

Enabled
Enabled
Disabled
Enabled
Enabled

Item Help

Menu Level

XX

USB 1.0 Controller

This field is used to enable or disable the Universal Host Controller
Interface (USB 1.0).

USB 2.0 Controller

This field is used to enable or disable the Enhanced Host Controller
Interface (USB 2.0).

USB Keyboard Function

Due to the limited space of the BIOS ROM, the support for legacy
USB keyboard (in DOS mode) is by default set to Disabled. With
more BIOS ROM space available, it will be able to support more
advanced features as well as provide compatibility to a wide variety
of peripheral devices.

If a PS/2 keyboard is not available and you need to use a USB
keyboard to install Windows (installation is performed in DOS
mode) or run any program under DOS, set this field to Enabled.

84

BIOS Setup

USB Mouse Function

Due to the limited space of the BIOS ROM, the suppor t for legacy
USB mouse (in DOS mode) is by default set to Disabled. With
more BIOS ROM space available, it will be able to support more
advanced features as well as provide compatibility to a wide variety
of peripheral devices.

If a PS/2 mouse is not available and you need to use a USB mouse
to install Windows (installation is performed in DOS mode) or run
any program under DOS, set this field to Enabled.

USB Storage Function

This field is used to enable or disable the support for legacy USB
mass storage.

3

85

3

BIOS Setup

Power Management Setup

The Power Management Setup allows you to configure your system
to most effectively save energy.

Phoenix - AwardBIOS CMOS Setup Utility

ACPI Suspend Type
x Run VGABIOS if S3 Resume

Video Off Method

Video Off In Suspend

Suspend Type

MODEM Use IRQ

Soft-Off By PWR-BTTN

Wake-Up by PCI Card

Power On by Ring
x USB KB Wake-up From S3

Resume By Alarm
x Date(of Month) Alarm
x Time (hh:mm:ss) Alarm

Power Management Setup

S1(POS)
Auto
DPMS
Yes
Stop Grant
3
Instant-Off
Disabled
Disabled
Disabled
Disabled
0
0 : 0 : 0

Item Help

Menu Level

X

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be
identical to this one.

ACPI Suspend Type

This field is used to select the type of Suspend mode.

S1(POS) Enables the Power On Suspend function.
S3(STR) Enables the Suspend to RAM function.

Run VGABIOS if S3 Resume

When this field is set to Auto, the system will initialize the VGA BIOS
when it wakes up from the S3 state. This can be configured only if
the “ACPI Suspend Type” field is set to “S3(STR)”. When this feature
is disabled, the system resume time is shortened but system will
need an AGP driver to initialize the VGA card. Therefore, if the AGP
driver of the card does not support the initialization feature, the
display may work abnormally or not function after resuming from S3.

86

Video Off Method

This determines the manner in which the monitor is blanked.

V/H SYNC + Blank This will cause the system to turn off the ver-

Blank Screen This only writes blanks to the video buffer.
DPMS Support Initializes display power management signaling. Se-

Video Off In Suspend

This field is used to activate the video off feature when the system
enters the Suspend mode.

Suspend Type

BIOS Setup

3

tical and horizontal synchronization ports and
write blanks to the video buffer.

lect this if your video board supports it.

The options are Stop Grant and PwrOn Suspend.

MODEM Use IRQ

This field is used to set an IRQ channel for the modem installed in
your system.

Soft-Off by PWR-BTTN

This field allows you to select the method of powering off your
system.

Delay 4 Sec. Regardless of whether the Power Management func-

tion is enabled or disabled, if the power button is
pushed and released in less than 4 sec, the system
enters the Suspend mode. The purpose of this func­tion is to prevent the system from powering off in
case you accidentally “hit” or pushed the power but­ton. Push and release again in less than 4 sec to
restore. Pushing the power button for more than 4
seconds will power off the system.

Instant-Off Pressing and then releasing the power button at

once will immediately power off your system.

87

3

BIOS Setup

Wake-Up By PCI Card

Enabled This field should be set to Enabled only if your PCI

card such as LAN card or modem card uses the PCI
PME (Power Management Event) signal to remotely
wake up the system. Access to the LAN card or PCI

card will cause the system to wake up. Refer to the

card’s documentation for more information.

Disabled The system will not wake up despite access to the PCI

card.

Power On By Ring

When this field is set to Enabled, the system will power-on to respond
to calls coming from a modem. Refer to “Wake-On-Ring Connector”
in chapter 2 for more information.

USB KB Wake-Up From S3

This field, when enabled, allows you to use a USB keyboard or USB
mouse to wake up a system that is in the S3 (STR - Suspend To
RAM) state. This can be configured only if the “ACPI Suspend Type”
field is set to “S3(STR)”.

Resume By Alarm

Enabled When Enabled, you can set the date and time you

would like the Soft Power Down (Soft-Off) PC to
power-on in the “Date (of Month) Alarm” and “Time
(hh:mm:ss) Alarm” fields. However, if the system is being
accessed by incoming calls or the network (Resume On
Ring/LAN) prior to the date and time set in these
fields, the system will give priority to the incoming calls
or network.

Disabled Disables the automatic power-on function. (default)

88

Date (of Month) Alarm

0 The system will power-on everyday according to the

time set in the “Time (hh:mm:ss) Alarm” field.

1-31 Select a date you would like the system to power-on.

The system will power-on on the set date, and time set
in the “Time (hh:mm:ss) Alarm” field.

Time (hh:mm:ss) Alarm

This is used to set the time you would like the system to power-on.
If you want the system to power-on everyday as set in the “Date
(of Month) Alarm” field, the time set in this field must be later than
the time of the RTC set in the Standard CMOS Features submenu.

BIOS Setup

3

89

3

BIOS Setup

PnP/PCI Configurations

This section shows how to configure the PCI bus system. It covers
some very technical items and it is strongly recommended that only
experienced users should make any changes to the default settings.

Init Display First

Reset Configuration Data

Resources Controlled By
x IRQ Resources

PCI/VGA Palette Snoop

PCI Latency Timer (CLK)

** PCI Express Relative Items **

Maximum Payload Size

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be
identical to this one.

Init Display First

Onboard When the system boots, it will first initialize the

PCI Slot When the system boots, it will first initialize PCI.

Phoenix - AwardBIOS CMOS Setup Utility

PnP/PCI Configurations

onboard VGA.

PCI Slot
Disabled

Auto(ESCD)
Press Enter

Disabled
8

128

Item Help

Menu Level

X

90

Reset Configuration Data

Enabled The BIOS will reset the Extended System Configura-

tion Data (ESCD) once automatically. It will then recre­ate a new set of configuration data.

Disabled The BIOS will not reset the configuration data.

Resources Controlled By

The Award Plug and Play BIOS has the capability to automatically
configure all of the boot and Plug and Play compatible devices.

Auto(ESCD) The system will automatically detect the settings for

you.

Manual Choose the specific IRQ resources in the “IRQ Re-

sources” field.

IRQ Resources

Move the cursor to this field and press <Enter>. Set each system
interrupt to either PCI Device or Reserved.

BIOS Setup

3

Phoenix - AwardBIOS CMOS Setup Utility

IRQ- 3 assigned to
IRQ- 4 assigned to
IRQ- 5 assigned to
IRQ- 7 assigned to
IRQ- 9 assigned to
IRQ-10 assigned to
IRQ-11 assigned to
IRQ-12 assigned to
IRQ-14 assigned to
IRQ-15 assigned to

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

IRQ Resources

PCI Device
PCI Device
PCI Device
PCI Device
PCI Device
PCI Device
PCI Device
PCI Device
PCI Device
PCI Device

Item Help

Menu Level
Legacy ISA for devices

compliant with the
original PC AT bus
specification. PCI/ISA
PnP for devices
compliant with the Plug
and Play standard
whether designed for
PCI or ISA bus
architecture.

XX

The settings on the screen are for reference only. Your version may not be
identical to this one.

91

3

BIOS Setup

PCI/VGA Palette Snoop

This field determines whether the MPEG ISA/VESA VGA cards can
work with PCI/VGA or not. The default value is Disabled.

Enabled MPEG ISA/VESA VGA cards work with PCI/VGA.
Disabled MPEG ISA/VESA VGA cards does not work with PCI/

VGA.

PCI Latency Timer (CLK)

This feature is used to select the length of time each PCI device will
control the bus before another takes over. The larger the value, the
longer the PCI device can retain control of the bus. Since each ac­cess to the bus comes with an initial delay before any transaction
can be made, low values for the PCI Latency Timer will reduce the
effectiveness of the PCI bandwidth while higher values will improve it.

Maximum Payload Size

This field is used to select the maximum TLP payload size of the PCI
Express devices. The unit is byte.

92

PC Health Status

BIOS Setup

3

Phoenix - AwardBIOS CMOS Setup Utility

Case Open Detection
Current System Temp
Current CPU Temperature
Current AUX Temperature
System Fan Speed
CPU Fan Speed
2nd Fan Speed
CPU Voltage
+5V
PCI Express Voltage
DDRII Voltage
+12V
+3.3V
VBAT (V)
3VSB (V)
SYS Smart Fan Temperature
SYSTEM Fan Tolerance Value
CPU Smart Fan Temperature
CPU Fan Tolerance Value
2nd Smart Fan Temperature
2nd Fan Tolerance Value

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

PC Health Status

Disabled

0

C/1020F

39
340C/930F
490C/1200F
0 RPM
2678 RPM
0 RPM

1.30V

4.89V

1.60V

1.88V

12.20V

3.23V

3.00V

3.23V
350C/950F
3
350C/950F
3
350C/950F
3

X

Menu Level

X

Item Help

X

The screen above list all the fields available in the PC Health Status submenu, for
ease of reference in this manual. In the actual CMOS setup, you have to use the
scroll bar to view the fields. The settings on the screen are for reference only. Your
version may not be identical to this one.

Case Open Detection

Set this field to Enabled to allow the system to alert you of a chas­sis intrusion event.

Current System Temp to 3VSB (V)

These fields will show the temperature, fan speed and output voltage
of the monitored devices or components.

Note:

The onboard hardware monitor function is capable of detecting
“system health” conditions but if you want a warning message
to pop-up or a warning alarm to sound when an abnormal
condition occurs, you must install the Hardware Monitor for
Windows utility. This utility is included in the CD that came with
the system board. Refer to the Hardware Monitor for Windows
section in chapter 4 for more information.

93

3

BIOS Setup

SYS Smart Fan Temperature

This field is used to select the temperature at which the system fan
runs at full speed. The temperature will vary within the range of the
tolerance value selected in the field below.

System Fan Tolerance Value

This field is used to select the tolerance value of the system’s tem­perature. The options are 1, 2, 3, 4 and 5. If you selected 3, it allows
the temperature to run 3 degrees higher or lower. The system fan
will smartly adjust it’s speed in accordance to the temperature.

CPU Smart Fan Temperature

This field is used to select the temperature at which the CPU fan
runs at full speed. The temperature will vary within the range of the
tolerance value selected in the field below.

CPU Fan Tolerance Value

This field is used to select the tolerance value of the CPU’s tempera­ture. The options are 1, 2, 3, 4 and 5. If you selected 3, it allows the
temperature to run 3 degrees higher or lower. The CPU fan will
smartly adjust it’s speed in accordance to the temperature.

2nd Smart Fan Temperature

This field is used to select the temperature at which the 2nd fan
runs at full speed. The temperature will vary within the range of the
tolerance value selected in the field below.

2nd Fan Tolerance Value

This field is used to select the tolerance value of the 2nd fan’s tem­perature. The options are 1, 2, 3, 4 and 5. If you selected 3, it allows
the temperature to run 3 degrees higher or lower. The 2nd fan will
smartly adjust it’s speed in accordance to the temperature.

94

Frequency/Voltage Control

Phoenix - AwardBIOS CMOS Setup Utility

Frequency/Voltage Control

Spread Spectrum

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be
identical to this one.

Disabled

BIOS Setup

Item Help

Menu Level

3

X

Spread Spectrum

Leave this field in its default setting. Do not alter this setting unless
advised by an engineer or technician.

95

3

BIOS Setup

Load Fail-Safe Defaults

The “Load Fail-Safe Defaults” option loads the troubleshooting de­fault values permanently stored in the ROM chips. These settings are
not optimal and turn off all high performance features. You should
use these values only if you have hardware problems. Highlight this
option in the main menu and press <Enter>.

Phoenix - AwardBIOS CMOS Setup Utility

X Standard CMOS Features
X Advanced BIOS Features
X Advanced Chipset Features
X Integrated Peripherals
X Power Management Setup
X PnP/PCI Configurations
X PC Health Status

Esc : Quit
F10 : Save & Exit Setup

Load Fail-Safe Defaults (Y/N)?

Load Fail-Safe Defaults

X Frequency/Voltage Control

Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving

↑ ↓ → ← : Select Item

If you want to proceed, type <Y> and press <Enter>. The default
settings will be loaded.

96

Load Optimized Defaults

The “Load Optimized Defaults” option loads optimized settings from

the BIOS ROM. Use the default values as standard values for your
system. Highlight this option in the main menu and press <Enter>.

Phoenix - AwardBIOS CMOS Setup Utility

BIOS Setup

3

X Standard CMOS Features
X Advanced BIOS Features
X Advanced Chipset Features
X Integrated Peripherals
X Power Management Setup
X PnP/PCI Configurations
X PC Health Status

Esc : Quit
F10 : Save & Exit Setup

Load Optimized Defaults (Y/N)?

Load Optimized Defaults

X Frequency/Voltage Control

Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving

↑ ↓ → ← : Select Item

Type <Y> and press <Enter> to load the Setup default values.

97

3

BIOS Setup

Set Supervisor Password

If you want to protect your system and setup from unauthorized
entry, set a supervisor’s password with the “System” option selected
in the Advanced BIOS Features. If you want to protect access to
setup only, but not your system, set a supervisor’s password with the
“Setup” option selected in the Advanced BIOS Features. You will not
be prompted for a password when you cold boot the system.

Use the arrow keys to highlight “Set Supervisor Password” and
press <Enter>.

Phoenix - AwardBIOS CMOS Setup Utility

X Standard CMOS Features
X Advanced BIOS Features
X Advanced Chipset Features
X Integrated Peripherals
X Power Management Setup
X PnP/PCI Configurations
X PC Health Status

Esc : Quit
F10 : Save & Exit Setup

Enter Password:

Change/Set/Disable Password

X Frequency/Voltage Control

Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving

↑ ↓ → ← : Select Item

Type in the password. You are limited to eight characters. When
done, the message below will appear:

Confirm Password:

You are asked to verify the password. Type in exactly the same
password. If you type in a wrong password, you will be prompted
to enter the correct password again. To delete or disable the pass­word function, highlight “Set Supervisor Password” and press <En­ter>, instead of typing in a new password. Press the <Esc> key to
return to the main menu.

98

Set User Password

If you want another user to have access only to your system but

not to setup, set a user’s password with the “System” option se­lected in the Advanced BIOS Features. If you want a user to enter a
password when trying to access setup, set a user’s password with
the “Setup” option selected in the Advanced BIOS Features.

Using user’s password to enter Setup allows a user to access only
“Set User Password” that appears in the main menu screen. Access
to all other options is denied.

Use the arrow keys to highlight “Set User Password” and press
<Enter>.

BIOS Setup

3

Phoenix - AwardBIOS CMOS Setup Utility

X Standard CMOS Features
X Advanced BIOS Features
X Advanced Chipset Features
X Integrated Peripherals
X Power Management Setup
X PnP/PCI Configurations
X PC Health Status

Esc : Quit
F10 : Save & Exit Setup

Enter Password:

Change/Set/Disable Password

X Frequency/Voltage Control

Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving

↑ ↓ → ← : Select Item

Type in the password. You are limited to eight characters. When
done, the message below will appear:

Confirm Password:

You are asked to verify the password. Type in exactly the same
password. If you type in a wrong password, you will be prompted
to enter the correct password again. To delete or disable the pass­word function, highlight “Set User Password” and press <Enter>, in­stead of typing in a new password. Press the <Esc> key to return
to the main menu.

99

3

BIOS Setup

Save & Exit Setup

When all the changes have been made, highlight “Save & Exit Setup”
and press <Enter>.

Phoenix - AwardBIOS CMOS Setup Utility

X Standard CMOS Features
X Advanced BIOS Features
X Advanced Chipset Features
X Integrated Peripherals
X Power Management Setup
X PnP/PCI Configurations
X PC Health Status

Esc : Quit
F10 : Save & Exit Setup

SAVE to CMOS and EXIT (Y/N)?

Save Data to CMOS

X Frequency/Voltage Control

Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving

↑ ↓ → ← : Select Item

Type “Y” and press <Enter>. The modifications you have made will
be written into the CMOS memory, and the system will reboot. You
will once again see the initial diagnostics on the screen. If you wish to
make additional changes to the setup, press <Ctrl> <Alt> <Esc>
simultaneously or <Del> after memory testing is done.

100
