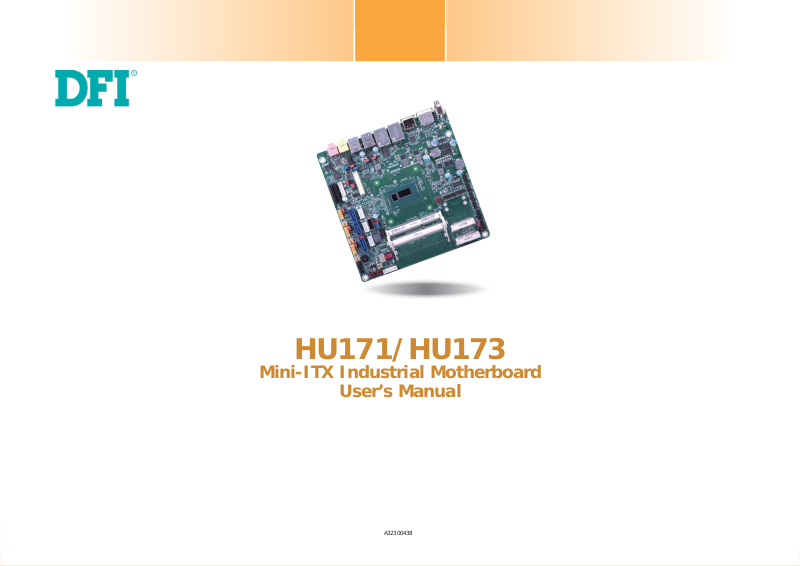

HU171/HU173
Mini-ITX Industrial Motherboard
User’s Manual
A32300438
1
Page 2

Copyright

FCC and DOC Statement on Class B

This publication contains information that is protected by copyright. No part of it may be re­produced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifi­cally disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this docu­ment. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.
Changes after the publication’s first release will be based on the product’s revision. The website will always provide the most updated information.
© 2015. All Rights Reserved.

Trademarks

Product names or trademarks appearing in this manual are for identification purpose only and are the properties of the respective owners.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason­able protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encour­aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli­ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.
2
Page 3

Table of Contents

Copyright .............................................................................................................2
Trademarks ........................................................................................................2
FCC and DOC Statement on Class B ..................................................... 2
About this Manual ..........................................................................................4
Warranty ............................................................................................................4
Static Electricity Precautions ......................................................................4
Safety Measures ..............................................................................................4
About the Package .........................................................................................5
Chapter 1 - Introduction ............................................................................. 6
Specifications ................................................................................................6
Features ..........................................................................................................7
Chapter 2 - Hardware Installation ................................................9
Board Layout ................................................................................................. 9
System Memory ............................................................................................ 9
Installing the DIMM Module ........................................................................ 10
Jumper Settings ......................................................................................... 11
Clear CMOS Data ........................................................................................ 11
Auto Power-on Select .................................................................................. 12
USB Power Select ....................................................................................... 12
COM 1 RS232/422/485 Select ..................................................................... 13
COM 1 RS232/Power Select ......................................................................... 14
Backlight Power Select ................................................................................ 14
LCD/Inverter Power Select .......................................................................... 15
Dimming Mode Select ................................................................................. 15
Digital I/O Power Select .............................................................................. 16
Digital I/O Output State .............................................................................. 16
Panel Power Select ..................................................................................... 17
LVDS Channel and bpp Select ..................................................................... 17
PS/2 Keyboard/Mouse Power Select ............................................................. 18
Mini PCIe Signal Select ............................................................................... 18
SATA DOM Power Select ............................................................................. 19
Rear Panel I/O Ports .................................................................................20
12V DC-in (HU171)/19~24V DC-in (HU173) ................................................. 20
Graphics Interfaces ..................................................................................... 21
RJ45 LAN Ports ........................................................................................... 21
USB Ports ................................................................................................... 22
Audio ......................................................................................................... 23
I/O Connectors ........................................................................................... 23
Digital I/O Connector .................................................................................. 23
Digital I/O Power Connector ........................................................................ 23
SATA (Serial ATA) Connectors ...................................................................... 24
SATA (Serial ATA) Power Connectors ............................................................ 24
COM (Serial) Ports ...................................................................................... 25
Front Panel Connector ................................................................................ 26
Cooling Fan Connectors...............................................................................26
LVDS LCD Panel Connector ......................................................................... 27
LCD/Inverter Power Connector .................................................................... 27
PS/2 Keyboard/Mouse Connector ................................................................. 28
S/PDIF Connector ....................................................................................... 29
SMBus Connector ....................................................................................... 29
Expansion Slots .......................................................................................... 30
Chassis Intrusion Connector ........................................................................ 30
eDP Connector (optional) ............................................................................ 31
Connecting the EXT-DP Card to HU171/HU173 .................................................31
VGA Connector (optional) ............................................................................ 32
Standby Power LED ....................................................................................32
Battery ....................................................................................................... 33
Chapter 3 - BIOS Setup ............................................................... 34
Overview ..................................................................................................... 34
AMI BIOS Setup Utility ............................................................................. 35
Main .......................................................................................................... 35
Advanced ................................................................................................... 35
Chipset ...................................................................................................... 47
Boot........................................................................................................... 51
Security ...................................................................................................... 52
Save & Exit ................................................................................................53
Updating the BIOS .................................................................................... 53
Notice: BIOS SPI ROM ............................................................................. 54
Chapter 4 - Supported Software ........................................................... 55
Chapter 5 - Digital I/O Programming Guide .................................... 71
Chapter 6 - RAID ..........................................................................73
RAID Levels .................................................................................73
Settings .......................................................................................73
Chapter 7 - Intel AMT Settings ............................................................ 76
Overview ...............................................................................................................76
Enable Intel® AMT in the AMI BIOS .........................................................76
Enable Intel® AMT in the Intel® Management Engine BIOS
Extension (MEBX) Screen ..............................................................................
Appendix A - Watchdog Sample Code................................................87
Appendix B - System Error Message ................................................... 88
Appendix C - Troubleshooting ................................................................ 89
77
3
Page 4

About this Manual

Static Electricity Precautions

An electronic file of this manual is included in the CD. To view the user’s manual in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click “User’s Manual” on the main menu.

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper instal­lation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum­stances, attempt to perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered.
It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in han­dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con­nectors by their ends.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other com­ponents. Perform the upgrade instruction procedures described at an ESD worksta­tion only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chas­sis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

Safety Measures

To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or servic­ing. After installation or servicing, cover the system chassis before plugging the power cord.
4
Page 5

About the Package

The package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.
• One HU171/HU173 motherboard
• One Serial ATA data with power cable
• One DVD
• One QR (Quick Reference)
• One Heat sink with fan
The board and accessories in the package may not come similar to the information listed above. This may differ in accordance to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.
Optional Items
• USB port cable
• Serial ATA data with power cable
• Power adapter (100W, 12V)
• Power adapter (120W, 19V)
The board and accessories in the package may not come similar to the information listed above. This may differ in accordance to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

Before Using the System Board

Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will need at least the following internal components.
• Memory module
• Storage devices such as hard disk drive, CD-ROM, etc.
You will also need external system peripherals you intend to use which will normally include at least a keyboard, a mouse and a video display monitor.
5
Page 6

Chapter 1 - Introduction

Specifications

Processor
Super I/O Address
System Memory
Expansion Interfaces
Graphics
Audio
LAN
Serial ATA
Active Management Technology - AMT
Trusted Platform Module - TPM* (optional)
• 4th generation Intel® CoreTM processors 4650U: Intel 4010U: Intel (The following specifi cations will be available upon request. Please contact your sales representative for more information.) 4300U: Intel 2980U: Intel
• BGA 1168 packaging technology
• 22nm process technology
®
CoreTM i7-4650U, 4M Cache, up to 3.3 GHz, 15W
®
CoreTM i3-4010U, 3M Cache, 1.7 GHz, 15W
®
CoreTM i5-4300U, 3M Cache, up to 2.9 GHz, 15W
®
Celeron® 2980U, 2M Cache, 1.6 GHz, 15W
• NCT6106/4Eh
• Two 204-pin SODIMM sockets
• Supports DDR3L 1333/1600MHz
• Supports up to 16GB system memory
• Supports dual channel memory interface
• DRAM device technologies: 1Gb, 2Gb and 4Gb DDR3L DRAM technologies are supported for x8 and x16 devices, unbuffered, non-ECC
• 1 PCIe x1 slot
• 2 Mini PCIe slots
- 1 full size supports USB, PCIe and mSATA signals
- 1 half size supports USB and PCIe signals
• Intel® HD Graphics GT series
• Display ports: 1 HDMI, 1 DP, 1 LVDS (default) or 1 VGA* (optional) or 1 eDP* (optional)
• HDMI: resolution up to 4096x2304 @ 24Hz or 2560x1600 @ 60Hz
• DP: supports DP++, resolution up to 3200x2000 @ 60Hz
• LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz
• VGA: resolution up to 1920x1200 @ 60Hz
®
Clear Video Technology
• Intel
®
Advanced Vector Extensions 2.0 (Intel® AVX 2.0) Instructions
• Intel
• Supports DirectX 11.1, OpenGL 4.0, OpenCL 1.2
• Realtek ALC888 5.1-channel High Defi nition Audio
• S/PDIF audio interface
• Intel® I210 PCI Express Gigabit Ethernet controller
®
I218 with iAMT9.5 Gigabit Ethernet Phy
• Intel
• Integrated 10/100/1000 transceiver
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• 3 SATA 3.0 ports with data transfer rate up to 6Gb/s
- SATA port 2 provides adequate space for SATA DOM
• Integrated Advanced Host Controller Interface (AHCI) controller
• Supports RAID 0/1/5
• Supports Intel
• Supports iAMT9.5
• Out-of-band system access
• Remote troubleshooting and recovery
• Hardware-based agent presence checking
• Proactive alerting
• Remote hardware and software asset tracking
• Provides a Trusted PC for secure transactions
• Provides software license protection, enforcement and password protection
®
Smart Response Technology
Chapter 1
Rear Panel I/O Ports
I/O Connectors
WatchDog Timer BIOS
Energy Effi cient Design
Damage Free Intelligence
Power Consumption
Temperature
• 1 12V (HU171) or 19~24V (HU173) DC-in jack or 4-pin power connector* (optional)
• 1 HDMI port
• 1 DP port
• 2 RJ45 LAN ports
• 4 USB 3.0 ports
• Line-out and mic-in jacks
• 3 connectors for 6 external USB 2.0 ports
• 1 vertical USB 2.0/1.1 port* (optional)
• 4 connectors for 4 external serial ports (2.0mm pitch)
- 1 RS232/RS422/485 (RS232 and/or power)
- 3 RS232
• 1 LVDS LCD panel connector
• 1 LCD/inverter power connector
• 1 eDP connector* (optional)
• 1 VGA connector* (optional)
• 1 8-bit Digital I/O connector
• 1 Digital I/O power connector
• 1 front audio connector for line-out and mic-in jacks
• 1 S/PDIF connector
• 1 PS/2 connector for keyboard/mouse port
• 1 LPC connector
• 1 SMBus connector
• 3 Serial ATA connectors
• 3 Serial ATA power connectors
• 1 front panel connector
• 1 chassis intrusion connector
• 3 fan connectors
• Watchdog timeout programmable via software from 1 to 255 seconds
• AMI BIOS
- 64Mbit SPI BIOS
• Supports ErP Lot6 power saving* (optional)
• Supports ACPI
• System Power Management
• Wake-On-Events include:
- Wake-On-PS/2 KB/Mouse* (optional)
- Wake-On-USB KB/Mouse* (optional)
- Wake-On-LAN
- RTC timer to power-on the system
• AC power failure recovery
• Monitors CPU/system temperature and overheat alarm
• Monitors VCORE/12V/5V/DDR voltages and failure alarm
• Monitors CPU/system fan speed and failure alarm
• Read back capability that displays temperature, voltage and fan speed
• TBD
• Operating: 0oC to 60oC
• Storage: -20
o
C to 85oC
6
Chapter 1 Introduction www.dfi .com
Page 7
Chapter 1
Humidity OS Support
Dimensions
Note:
*Optional and is not supported in standard model. Please contact your sales represen­tative for more information.
• 5% to 90%
• Windows 7 Ultimate x86 & SP1 (32-bit)
• Windows 7 Ultimate x64 & SP1 (64-bit)
• Windows 8 Enterprise x86 (32-bit)
• Windows 8 Enterprise x64 (64-bit)
• Windows 8.1 Enterprise x86 (32-bit)
• Windows 8.1 Enterprise x64 (64-bit)
• Mini-ITX form factor
• 170mm (6.7") x 170mm (6.7")

Features

• Watchdog Timer
The Watchdog Timer function allows your application to regularly “clear” the system at the set time interval. If the system hangs or fails to function, it will reset at the set time interval so that your system will continue to operate.
• DDR3L
DDR3L is a higher performance DDR3 SDRAM interface providing less voltage and higher speed successor. DDR3L SDRAM modules support 1333/1600MHz for DDR modules. DDR3L de­livers increased system bandwidth and improved performance to provide its higher bandwidth and its increase in performance at a lower power.
• Graphics
The integrated Intel® HD graphics engine delivers an excellent blend of graphics performance and features to meet business needs. It provides excellent video and 3D graphics with out­standing graphics responsiveness. These enhancements deliver the performance and compati­bility needed for today’s and tomorrow’s business applications. Supports 1 HDMI, 1 DP, 1 LVDS (default) or 1 VGA (optional) or 1 DP (optional) interface for display outputs.
• PCI Express
PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds by forming multiple lanes.
• Serial ATA
Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of up to 6Gb/s (SATA 3.0), it improves hard drive performance faster than the standard parallel ATA whose data transfer rate is 100MB/s. The bandwidth of the SATA 3.0 will be limited by carrier board design.
Chapter 1 Introduction www.dfi .comChapter 1 Introduction
• Gigabit LAN
Intel® I210 PCI Express Gigabit Ethernet and Intel® I218 with iAMT9.5 Gigabit Ethernet Phy controllers support up to 1Gbps data transmission.
• Wake-On-PS/2 (optional)
This function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system.
Important:
The 5V_standby power source of your power supply must support ≥720mA.
7
Page 8
Chapter 1
• Wake-On-LAN
This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It is supported via the onboard LAN port or via a PCIe LAN card that uses the PCIe PME (Power Management Event) signal. However, if your system is in the Suspend mode, you can power­on the system only through an IRQ or DMA interrupt.
Important:
The 5V_standby power source of your power supply must support ≥720mA.
• Wake-On-USB (optional)
This function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the 5V_standby power source of your power supply must support 1.5A. For 3 or more USB ports, the 5V_standby power source of your power supply must support ≥2A.
• RTC Timer
The RTC installed on the system board allows your system to automatically power-on on the set date and time.
• Power Failure Recovery
When power returns after an AC power failure, you may choose to either power-on the system manually or let the system power-on automatically.
• USB
The system board supports the new USB 3.0. It is capable of running at a maximum transmis­sion speed of up to 5 Gbit/s (625 MB/s) and is faster than USB 2.0 (480 Mbit/s, or 60 MB/s) and USB 1.1 (12Mb/s). USB 3.0 reduces the time required for data transmission, reduces power consumption, and is backward compatible with USB 2.0. It is a marked improvement in device transfer speeds between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.
• ACPI STR
The system board is designed to meet the ACPI (Advanced Configuration and Power Interface) specification. ACPI has energy saving features that enables PCs to implement Power Manage­ment and Plug-and-Play with operating systems that support OS Direct Power Management. ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM
.
function
With the Suspend to RAM function enabled, you can power-off the system at once by pressing the power button or selecting “Standby” when you shut down Windows® without having to go through the sometimes tiresome process of closing files, applications and operating system. This is because the system is capable of storing all programs and data files during the entire operating session into RAM (Random Access Memory) when it powers-off. The operating ses­sion will resume exactly where you left off the next time you power-on the system.
Important:
The 5V_standby power source of your power supply must support ≥720mA.
Chapter 1 Introduction www.dfi .com
8
Page 9

Chapter 2 - Hardware Installation

Board Layout
COM 1 COM 2 COM 3 COM 4
210
210
210
1
9 1
9 1
56
(JP3)
12 56
(JP5)
12 56
(JP6)
12 56
(JP4)
12
1
CPU Fan
Clear CMOS
Data (JP1)
Mini PCIe Signal Select (JP17)
1 1
1
1
14
2
USB 5 (optional)
1
USB HUB 3-4 Power Select (JP27)
1
9
10
USB HUB 3-4 USB HUB 1-2
1
1 2
4-pin power (optional)
DisplayPort
HDMI
LAN 2
LAN 1
USB 2-3
USB 0-1
Line-out
Mic-in
DC-in
USB 3.0
USB 2-3 Power Select (JP30)
USB 3.0
USB 0-1 Power
Select (JP15)
Front Audio
2
1109
Realtek ALC888
1
S/PDIF
ASMedia ASM1442
Intel WGI210AT
Panel Power Select LCD/Inverter Power Select
Backlight Power Select
1
Dimming Mode Select
LVDS Channel and bpp Select
1
(SW1)
2
(JP25)
(JP32)
40
1
1
1
(JP33)
SMSC USB2517
eDP
(optional)
21
20 19
1
ON
LVDS LCD Panel
1
(JP18)
5
1
LCD/Inverter Power
COM 1 RS232/422/485 Select
COM 1 RS232/Power Select
(JP18) (JP19) (JP25)Auto Power-on Select (JP32) (JP33)
NXP PTN3460
1
2
(JP19)
6
Note: SATA2 supports SATA DOM.
PCIe x1
2
SMBus
USB 2.0
Chrontel
CH7517A
2
15
139
16 56 1
SATA 3.0
USB HUB 5-6
Power Select (JP28)
(JP3) (JP5) (JP6) (JP4)
Intel
BGA 1168
USB 5 Power Select (JP11)
VGA (optional)
SATA Power 014SATA Power 114SATA Power 2
SATA 01SATA 1
1
1
9
USB HUB 5-6
2
10
PS/2 KB/MS
210
2 1
9 1
9
PS/2 KB/MS
Power Select (JP2)
Mini PCIe 2
DDR3L_1 SODIMM
SPI Flash BIOS
SATA DOM
14
Power Select (JP20)
SATA 3.0
1
SATA 2
USB HUB 1-2 Power Select (JP31)
1
1
9
10
2
LPC
2
12 10 9
1
11
1
1
Mini PCIe 1
DDR3L_2 SODIMM
DIO 4-7 Output State DIO Power Select DIO 0-3 Output State
1
(JP22)
Standby
1
(JP23)
Power LED
1
(JP21)
Digital I/O Power
1
2 1
Battery
Buzzer
Front Panel
2 1
12 11
Chapter 2
Chassis Intrusion
(JP22) (JP23) (JP21)
Digital I/O
1
System Fan 2
1
System Fan 1
Important:
Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in boards, and other components. Perform installation procedures at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wear­ing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

System Memory

Important:
When the Standby Power LED lights red, it indicates that there is power on the system board. Power-off the PC then unplug the power cord prior to installing any de­vices. Failure to do so will cause severe damage to the motherboard and components.
Rear I/O
Onboard I/O
Storage
Expansion
Features
DDR3L-2
DDR3L-1
Standby Power LED
HU171: 12V DC-in jack (default) or 4-pin power connector (optional). HU173: 19~24V DC-in jack (default) or 4-pin power connector (optional).
USB 5, VGA connector and eDP connecotr are optional and not supported in standard model. Please contact your sales representative for more information.
JP11 will work when USB 5 is populated on the system board.
Chapter 2 Hardware Installation
Two 204-pin DDR3L SODIMM sockets
Supports 1333/1600MHz DDR3L SDRAM
Supports up to 16GB system memory
Supports dual channel memory interface
9
www.dfi .com
Page 10
Chapter 2
The system board supports the following memory interface.
Single Channel (SC)
Data will be accessed in chunks of 64 bits (8B) from the memory channels.
Dual Channel (DC)
Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides better system performance because it doubles the data transfer rate.
DIMMs are on the same channel.
Single Channel
Dual Channel
DIMMs in a channel can be identical or completely different. However, we highly recommend using identical DIMMs.
Not all slots need to be populated.
DIMMs of the same memory configuration are on different channels.

Installing the DIMM Module

Note:
The system board used in the following illustrations may not resemble the actual board. These illustrations are for reference only.
1. Make sure the PC and all other peripheral devices connected to it has been powered down.
2. Disconnect all power cords and cables.
3. Locate the SODIMM socket on the system board.
4. Note the key on the socket. The key ensures the module can be plugged into the socket in only one direction.
Chapter 2 Hardware Installation
10
www.dfi .com
Page 11
Chapter 2
5. Grasping the module by its edges, align the module into the socket at an approximately 30 degrees angle. Apply firm even pressure to each end of the module until it slips down into the socket. The contact fingers on the edge of the module will almost completely disappear inside the socket.
6. Push down the module until the clips at each end of the socket lock into position. You will
hear a distinctive “click”, indicating the module is correctly locked into position.
Clip
Clip

Jumper Settings

Clear CMOS Data
If you encounter the following,
JP1
3 2 1
1-2 On:
Normal (default)
3 2 1
2-3 On:
Clear CMOS Data
Chapter 2 Hardware Installation
a) CMOS data becomes corrupted. b) You forgot the supervisor or user password.
you can reconfigure the system with the default values stored in the ROM BIOS.
To load the default values stored in the ROM BIOS, please follow the steps below.
1. Power-off the system and unplug the power cord.
2. Set JP1 pins 2 and 3 to On. Wait for a few seconds and set JP1 back to its default setting, pins 1 and 2 On.
3. Now plug the power cord and power-on the system.
11
www.dfi .com
Page 12
Chapter 2
Auto Power-on Select
3 2 1
1-2 On: Power-on via power button (default)
JP25
3 2 1
2-3 On: Power-on via AC power
JP25 is used to select the method of powering on the system. If you want the system to power-on whenever AC power comes in, set JP25 pins 2 and 3 to On. If you want to use the power button, set pins 1 and 2 to On.
When using the JP25 “Power On” feature to power the system back on after a power failure occurs, the system may not power on if the power lost is resumed within 5 seconds (power flicker).
USB Power Select
3 2 1
1-2 On: +5V
(default)
3 2 1
2-3 On:
+5V_standby
USB 2-3
(JP30)
USB 0-1
(JP15)
USB 5
(JP11)
USB HUB
5-6 (JP28)
132
1-2 On: +5V
(default)
USB HUB 3-4 (JP27)
USB HUB 1-2 (JP31)
132
2-3 On:
+5V_standby
Chapter 2 Hardware Installation
JP11, JP15, JP27, JP28, JP30 and JP31 are used to select the power of the USB ports. Select­ing +5V_standby will allow you to use a USB device to wake up the system.
Important:
1. If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the +5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the +5V_standby power source of your power supply must support 2A.
2. JP11 will work when USB 5 is populated on the system board.
12
www.dfi .com
Page 13
Chapter 2
COM 1 RS232/422/485 Select
COM 1: RS232/422/485
2 1
COM 1
COM 1
RXDDCD-
DSR-
CTS-
2
9
1
TXD DTR-
JP3
RS232
GND
9
RI-
RTS-
JP5 JP6
5
6
4
3
2
1
1-2 On: RS232
(default)
RXD-RXD+
TXD-
NC.
NC.
2 1
NC.
NC.
TXD+
RS422
Full Duplex
JP3
5
6
4
3
2
1
3-4 On: RS422
Full Duplex
9
NC.
DATA-DATA+
NC.
NC.
2 1
NC.
NC.
TXD NC.
RS485
5
6
4
2
3 1
5-6 On: RS485
9
NC.
JP5 and JP6
6
5
4
3
2
1
1-3, 2-4 On:
RS232 (default)
6
5
4
3
2
1
3-5, 4-6 On:
RS422 Full Duplex/RS485
JP3, JP5 and JP6 allow you to configure the Serial COM port 1 to RS232, RS422 (Full Duplex) or RS485. The pin functions of Serial COM port 1 will vary according to these jumpers’ setting.
Chapter 2 Hardware Installation
Note:
When COM 1 RS232/422/485 is selected, JP5 and JP6 must be set in accordance to JP3.
13
www.dfi .com
Page 14
Chapter 2
COM 1 RS232/Power Select
COM 1: RS232/422/485
2 1
JP4 is designed to configure the Serial COM port 1 to pure RS232 or RS232 with power.
9
6
5
4
3
2
JP4
1-3 (RI), 2-4 (DCD) On: RS232 (default)
3-5 (+5V), 4-6 (+12V) On: RS232 with power
1
5
6
3
4
1
2
Backlight Power Select
3 2 1
1-2 On: +3.3V
(default)
JP32
3 2 1
2-3 On: +5V
JP32 is used to select the power level of backlight control: +3.3V (default) or +5V.
Important:
Before powering-on the system, make sure that the power settings of JP32 match the power specification of backlight control. Selecting the incorrect voltage will seriously damage the backlight.
Chapter 2 Hardware Installation
14
www.dfi .com
Page 15
Chapter 2
LCD/Inverter Power Select
132
1-2 On: +12V
(default)
JP19
JP19 is used to select the power level of the LCD/Inverter power connector.
132
2-3 On: +5V
Dimming Mode Select
3 2 1
1-2 On: PWM Mode
(default)
JP33
JP33 allows you to select the mode for the lightness control of the LVDS panel.
Important:
You need to refer to your panel’s user guide to determine the type of mode (PWM or Voltage) most appropriate for your panel.
3 2 1
2-3 On: Voltage Mode
Chapter 2 Hardware Installation
15
www.dfi .com
Page 16
Chapter 2
Digital I/O Power Select
JP23
JP23 is used to select the power of DIO (Digital I/O) signal.
312
1-2 On: +5V_standby
312
2-3 On: +5V (default)
Digital I/O Output State
312
1-2 On: +5V or
DIO 4-7 (JP22)
DIO 0-3 (JP21)
Based on the power level of DIO (Digital I/O) selected on JP23, JP21 (DIO pin 0-3) and JP22 (DIO pin 4-7) are used to select the state of DIO output: pull high or pull low. When selecting pull high, the power selection will be the same as JP23’s setting.
+5V_standby
312
2-3 On: GND
(default)
Chapter 2 Hardware Installation
16
www.dfi .com
Page 17
JP18
2
1 3
4 6
5
1-2 On: +12V
2
1 3
4 6
5
3-4 On:+5V
2
1 3
4 6
5
5-6 On: +3.3V
(default)
Chapter 2
LVDS Channel and bpp SelectPanel Power Select
1 On: Single LVDS
1 Off: Dual LVDS
SW1
ON
2 On: VESA (24bpp)
2 Off: JEIDA or VESA
ON
(18bpp)
JP18 is used to select the power supplied with the LVDS LCD panel.
Important:
Before powering-on the system, make sure that the power settings of JP18 match the LCD panel’s specification. Selecting the incorrect voltage will seriously damage the LCD panel.
Chapter 2 Hardware Installation
The Switch 1 allows you to select the LVDS channel and the color of bits per pixel.
17
www.dfi .com
Page 18
Chapter 2
PS/2 Keyboard/Mouse Power Select
JP2
JP2 is used to select the power of the PS/2 keyboard/mouse port. Selecting +5V_standby will allow you to use the PS/2 keyboard or PS/2 mouse to wake up the system.
132
1-2 On: +5V (default)
132
2-3 On: +5V_standby
Mini PCIe Signal Select
JP17 is used to select the Mini PCIe signal: PCIe or mSATA.
JP17
3 2 1
1-2 On:
PCIe (default)
3 2 1
2-3 On: mSATA
Important:
The +5V_standby power source of your power supply must support ≥720mA.
Chapter 2 Hardware Installation
18
www.dfi .com
Page 19
SATA DOM Power Select
Chapter 2
SATA 2
JP20
1 2 3
1-2 On: GND (default) 2-3 On: +5V
JP20 is used to select the power level of SATA DOM.
Note:
SATA port 2 provides adequate space for SATA DOM.
Chapter 2 Hardware Installation
1 2 3
19
www.dfi .com
Page 20
Chapter 2

Rear Panel I/O Ports

DC-in
DP
The rear panel I/O ports consist of the following:
• 1 12V DC-in jack (default) or 4-pin power connector (optional) - HU171
• 1 19~24V DC-in jack (default) or 4-pin power connector (optional) - HU173
• 1 HDMI port
• 1 DP port
• 2 RJ45 LAN ports
• 4 USB 3.0 ports
• 1 Mic-in jack
• 1 Line-out jack
HDMI
LAN 1LAN 2
USB 3.0 Line-out
USB 3.0
12V DC-in (HU171)/19~24V DC-in (HU173)
DC-in
Mic-in
This jack provides maximum of 100W power (for HU171)/ 120W power (for HU173) and is considered a low power solution. Connect a DC power cord to this jack. We only provide 12V DC output (for HU171)/ 19V DC output (for HU173) in the package contents. Using a voltage more than the recommended range may fail to boot the system or cause damage to the sys­tem board.
The DC-in jack on the system board co-lays with a 4-pin power connector (optional) as the photo displayed below.
Chapter 2 Hardware Installation
4-pin power
13
4
2
20
DC-in jack
www.dfi .com
Page 21
Chapter 2
Graphics Interfaces
The display ports consist of the following:
• 1 DP port
• 1 HDMI port
DP
DP HDMI
HDMI
HDMI Port
The HDMI port which carries both digital audio and video signals is used to connect a LCD monitor or digital TV that has the HDMI port.
DP Port
The DP port is a digital display interface used to connect a display device such as a computer monitor. It is used to transmit audio and video simultaneously. The interface, which is devel­oped by VESA, delivers higher performance features than any other digital interface.
RJ45 LAN Ports
LAN 1LAN 2
Features
• Intel® I210 PCI Express Gigabit Ethernet controller
• Intel
The LAN ports allow the system board to connect to a local area network by means of a net­work hub.
BIOS Setting
Configure the onboard LAN in the Chipset menu (“PCH-IO Configuration” submenu) of the BIOS. Refer to chapter 3 for more information.
Driver Installation
®
I218 with iAMT9.5 Gigabit Ethernet Phy
LAN 2
LAN 1
Driver Installation
Install the graphics driver. Refer to chapter 4 for more information.
Chapter 2 Hardware Installation
Install the LAN drivers. Refer to chapter 4 for more information.
21
www.dfi .com
Page 22
Chapter 2
USB Ports
USB 3.0
USB 3
USB 2
USB 1
USB 0
USB 3.0
USB 2.0
USB HUB 3-4
GND
Key
9
10
USB HUB 1-2USB HUB 5-6
-Data
+Data
VCC
1 2
USB 2.0
GND
VCC
Data+
Data-
1 4
USB 5
(optional)
BIOS Setting
Configure the onboard USB in the Advanced menu (“USB Configuration” submenu) of the BIOS. Refer to chapter 3 for more information.
Driver Installation
You may need to install the proper drivers in your operating system to use the USB device. Refer to your operating system’s manual or documentation for more information.
Wake-On-USB Keyboard/Mouse
The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state. To use this function:
• Jumper Setting
JP11, JP15, JP27, JP28, JP30 and JP31 must be set to “2-3 On: +5V_standby”. Refer to “USB Power Select” in this chapter for more information.
Important:
1. If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the +5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the +5V_standby power source of your power supply must support 2A.
2. JP11 will work when USB 5 is populated on the system board.
VCC
GND
N. C.
-Data
+Data
The USB device allows data exchange between your computer and a wide range of simultane­ously accessible external Plug and Play peripherals.
The system board is equipped with four onboard USB 3.0 ports (USB 0-3). The 10-pin connec­tors allow you to connect 6 additional USB 2.0 ports (USB HUB 1-6) and the vertical USB port (USB 5) is the USB Drive Security for securing USB flash drive. The additional USB ports may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis and then insert the USB port cables to a connector.
Chapter 2 Hardware Installation
22
www.dfi .com
Page 23
Chapter 2
Audio
Mic-in
Line-out
GND
2 1
Rear Audio
The system board is equipped with 2 audio jacks. A jack is a one-hole connecting interface for inserting a plug.
• Line-out Jack (Lime) This jack is used to connect a headphone or external speakers.
• Mic-in (Pink) This jack is used to connect an external microphone.
Front Audio
The front audio connector allows you to connect to the second line-out and mic-in jacks that are at the front panel of your system.
Driver Installation
Install the audio driver. Refer to the chapter 4 for more information.
Line-out
Mic-in
Presence Signal
Line2-JD
Mic2-JD
Key
10
9
Mic2-L
Mic2-R
Line2-L
Line2-R
Front_IO_Sense
Front
Audio

I/O Connectors

Digital I/O Connector Digital I/O Power Connector
Digital I/O
1
4
Digital I/O power
+5V
5VSB
+12V
Ground
The 8-bit Digital I/O connector provides powering-on function to external devices that are con­nected to the connector.
Digital I/O Connector
Pins Function
0
1
2 3 4 5 6 7
DIO7
DIO6
DIO5
DIO4
DIO3
DIO2
DIO1
DIO0
Chapter 2 Hardware Installation
23
www.dfi .com
Page 24
Chapter 2
SATA (Serial ATA) Connectors
SATA 0
Features
SATA 1
SATA 3.0 6Gb/s
SATA 2
SATA (Serial ATA) Power Connectors
RXN
TXN
GND
TXP
1
GND
SATA Power 1
SATA Power 0
41
SATA Power 2
7
RXP
GND
• 3 Serial ATA 3.0 ports with data transfer rate up to 6Gb/s
• SATA port 2 provides adequate space for SATA DOM
• Integrated Advanced Host Controller Interface (AHCI) controller
• Supports RAID 0/1/5
®
• Supports Intel
The Serial ATA connectors are used to connect Serial ATA devices. Connect one end of the Se­rial ATA data cable to a SATA connector and the other end to your Serial ATA device.
BIOS Setting
Configure the Serial ATA drives in the Advanced menu (“SATA Configuration” submenu) of the BIOS. Refer to chapter 3 for more information.
Smart Response Technology
Chapter 2 Hardware Installation
+5V
+12V
Ground
Ground
These SATA power connectors supply power to the SATA drive. Connect one end of the pro­vided power cable to the SATA power connector and the other end to your storage device.
24
www.dfi .com
Page 25
Chapter 2
COM (Serial) Ports
COM 1:
RS232/422/485
COM 2
COM 1
COM 3
COM 4
COM 2 to COM 4:
RS232
BIOS Setting
Configure the serial COM ports in the Advanced menu (“Super IO Configuration” submenu) of
RXDDCD-
DSR-
CTS-
2 1
TXD DTR-
GND
9
RI-
RTS-
the BIOS. Refer to the chapter 3 for more information.
Note:
When COM 1 RS232/422/485 is selected, JP5 and JP6 must be set in accordance to JP3.
COM 2, COM 3 and COM 4 are fixed at RS232.
The pin functions of COM port 1 will vary according to JP3’s, JP5’s and JP6’s setting. JP4 is used to configure Serial COM port 1 to pure RS232 or RS232 with power. Refer to “COM 1 RS232/RS422/RS485 Select” and “COM 1 RS232/Power Select“ in this chapter for more infor­mation.
The serial ports are asynchronous communication ports with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices.
Connecting External Serial Ports
Your COM port may come mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then insert the serial port cable to the COM connector. Make sure the colored stripe on the ribbon cable is aligned with pin 1 of the COM connector.
Chapter 2 Hardware Installation
25
www.dfi .com
Page 26
Chapter 2
Front Panel Connector
PWR-LED
2
Front Panel
HDD-LED - HDD LED
This LED will light when the hard drive is being accessed.
RESET-SW - Reset Switch
This switch allows you to reboot without having to power off the system.
1
HDD-LED
PWR-BTN
RESET-SW
12 11
Cooling Fan Connectors
Sense
Power
Ground
CPU Fan
1
3
System Fan 2
System Fan 1
The fan connectors are used to connect cooling fans. The cooling fans will provide adequate airflow throughout the chassis to prevent overheating the CPU and system board components.
BIOS Setting
1
3
Ground Power Sense
PWR-BTN - Power Switch
This switch is used to power on or off the system.
PWR-LED - Power/Standby LED
When the system’s power is on, this LED will light. When the system is in the S1 (POS - Power On Suspend) state, it will blink every second. When the system is in the S3 (STR - Suspend To RAM) state, it will blink every 4 seconds.
Pin Pin Assignment Pin Pin Assignment
HDD-LED
RESET-SW
3 HDD Power
5 Signal 4 LED Power
7 Ground 6 Signal
9 RST Signal
11 N.C. 10 Signal
PWR-LED
PWR-BTN
2 LED Power
8 Ground
Chapter 2 Hardware Installation
The Advanced menu (“NCT6106D HW Monitor” submenu) of the BIOS will display the current speed of the cooling fans. Refer to chapter 3 for more information.
26
www.dfi .com
Page 27
Chapter 2
LVDS LCD Panel Connector LCD/Inverter Power Connector
LCD/Inverter power
1
40
39
The system board allows you to connect a LCD Display Panel by means of the LVDS LCD panel connector and the LCD/Inverter power connector. These con­nectors transmit video signals and power from the system board to the LCD Display Panel.
Refer to the right side for the pin functions of these connectors.
BIOS Setting
2
1
8
LVDS LCD Panel
LVDS LCD Panel Connector LCD/Inverter Power Connector
Pins Function Pins Function
GND
1
LVDS_Out3+
3
LVDS_Out3-
5
GND
7
LVDS_Out2+
9
LVDS_Out2-
11
GND
13
LVDS_Out1+
15
LVDS_Out1-
17
GND
19
LVDS_Out0+
21
LVDS_Out0-
23
GND
25
LVDS_CLK1+
27
LVDS_CLK1-
29
GND
31
LVDS_DDCCLK
33
LVDS_DDCDTA
35
Panel Power
37
Panel Power
39
2
4
6
8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40
GND
LVDS_Out7+
LVDS_Out7-
GND
LVDS_Out6+
LVDS_Out6-
GND
LVDS_Out5+
LVDS_Out5-
GND
LVDS_Out4+
LVDS_Out4-
GND
LVDS_CLK2+
LVDS_CLK2-
GND
N.C.
+3.3V
Panel Power
Panel Power
Pins Function
1
2
Panel Inverter Brightness Voltage Control
3 4 5 6 7 8
Panel Backlight On/Off Control
GND
GND
Panel Power
+3.3V
LCD/Inverter Power
LCD/Inverter Power
Configure the LCD panel in the Advanced/Chipset Features submenu of the BIOS. Refer to chapter 3 for more information.
Note:
DFI board's LVDS connector: Hirose DF13-40DP-1.25V(91)/40P/1.25mm; cable side connector: Hirose DF13-40DS-1.25C.
Chapter 2 Hardware Installation
27
www.dfi .com
Page 28
Chapter 2
PS/2 Keyboard/Mouse Connector
PS/2
KB/MS
The Keyboard/Mouse connector is used to connect PS/2 keyboard and PS/2 mouse by means of a PS/2 cable. ends are used to connect a PS/2 keyboard and a PS/2 mouse.
Connect one end of the cable to the Keyboard/Mouse connector. The other
2 1
MS CLK
MS DATA
GND
GND
KB CLK
KB DATA
CHASSIS GND
+5V_STB
10 9
NC
+5V_STB
Wake-On-PS/2 Keyboard/Mouse
The Wake-On-PS/2 Keyboard/Mouse function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system. To use this function:
• Jumper Setting
JP2 must be set to “2-3 On: 5V_standby”. Refer to “PS/2 Keyboard/Mouse Power Select” in this chapter for more information.
Important:
The 5V_standby power source of your power supply must support ≥720mA.
PS/2 mouse port
PS/2 keyboard port
Chapter 2 Hardware Installation
Connect to the board’s Keyboard/Mouse connector
28
www.dfi .com
Page 29
Chapter 2
S/PDIF Connector
SPDIF out
SPDIF in
Key
Ground
+5V
1
The S/PDIF connector is used to connect an external S/PDIF port. Your S/PDIF port may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then connect the audio cable to the S/PDIF connector. Make sure pin 1 of the audio cable is aligned with pin 1 of the S/PDIF connector.
S/PDIF
5
SMBus Connector
56
NC
SMBus
The SMBus (System Management Bus) connector is used to connect SMBus devices. It is a multiple device bus that allows multiple chips to connect to the same bus and enable each one to act as a master by initiating data transfer.
SMBUS_Data
GND +3.3V_standby
SMBUS_Alert# SMBUS_CLK
12
Chapter 2 Hardware Installation
29
www.dfi .com
Page 30
Chapter 2
Expansion Slots
Mini PCI Express 1 (USB, PCIe and mSATA signals)
Mini PCI Express 2 (USB and PCIe signals)
PCI Express x1
PCI Express x1 Slot
Install PCI Express cards such as network cards or other cards that comply to the PCI Express specifications into the PCI Express x1 slot.
Chassis Intrusion Connector
Chassis
Intrusion
The board supports the chassis intrusion detection function. Connect the chassis intrusion sensor cable from the chassis to this connector. When the system’s power is on and a chassis intrusion occurred, an alarm will sound. When the system’s power is off and a chassis intrusion occurred, the alarm will sound only when the system restarts.
Ground
Signal
2
1
Mini PCI Express Slots
The Mini PCIe sockets are used to install a Mini PCIe card. Mini PCIe card is a small form fac­tor PCI card with the same signal protocol, electrical definitions, and configuration definitions as the conventional PCI.
Chapter 2 Hardware Installation
30
www.dfi .com
Page 31
Chapter 2
eDP Connector (optional)
21
eDP
1920
The eDP connector is an embedded displayport which has advanced power-saving features to connect a display device to transmit digital communication of audio and video signals. The table below indicates the pin fuctions of the eDP connector.
Pins Pin Assignment Pins Pin Assignment
Connecting the EXT-DP Card to HU171/HU173
Note:
The system board used in the following illustrations may not resemble the actual one. These illustrations are for reference only.
The EXT-DP card is connected to HU171/HU173 via two cables. The photos below guides you
how to connect the extension module to the motherboard.
LCD/Inverter power
HU171/HU173
eDP
LCD/Inverter power
eDP
EXT-DP
DP_OUT1N
1
3
DP_OUT1P
GND1
5
DP_OUT0P
7
DP_OUT0N
9
GND2
11
DP_AUXP
13
DP_AUXN
15
GND3
17
DP_HPD
19
Chapter 2 Hardware Installation
DP_OUT2N
2
4
DP_OUT2P
GND4
6
DP_OUT3N
8
DP_OUT3P
10
GND5
12
DP_CLK
14
DP_DATA
16
GND6
18
POWER2
20
EXT-DP
Cable
Cable
31
www.dfi .com
Page 32
Chapter 2
VGA Connector (optional) Standby Power LED
Standby Power LED
VGA
15
16
The VGA port is used for connecting a VGA monitor. Connect the monitor’s 15-pin D-shell cable connector to the VGA port. After you plug the monitor’s cable connector into the VGA port, gently tighten the cable screws to hold the connector in place.
Pins Pin Assignment Pins Pin Assignment
VGA_RED_C
1
3
VGA_BLE_C
GND
5
GND
7
+5V
9
X
11
HSYNC_C
13
DDCSCL_C
15
1 2
VGA_GRE_C
2
4
X
VGA_DET
6
GND
8
GND
10
DDCSDA_C
12
VSYNC_C
14 16
Chapter 2 Hardware Installation
This LED will lit red when the system is in the standby mode. It indicates that there is power on the system board. Power-off the PC and then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.
32
www.dfi .com
Page 33
Battery
Chapter 2
Battery
Battery
The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source of power when the main power is shut off.
Safety Measures
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance
.
2
1
Connect to the battery connector
GND +3.3V
Chapter 2 Hardware Installation
33
www.dfi .com
Page 34
Chapter 3

Chapter 3 - BIOS Setup

Overview

The BIOS is a program that takes care of the basic level of communication between the CPU and peripherals. It contains codes for various advanced features found in this system board. The BIOS allows you to configure the system and save the configuration in a battery-backed CMOS so that the data retains even when the power is off. In general, the information stored in the CMOS RAM of the EEPROM will stay unchanged unless a configuration change has been made such as a hard drive replaced or a device added.
It is possible that the CMOS battery will fail causing CMOS data loss. If this happens, you need to install a new CMOS battery and reconfigure the BIOS settings.
Note:
The BIOS is constantly updated to improve the performance of the system board; therefore the BIOS screens in this chapter may not appear the same as the actual one. These screens are for reference purpose only.
Default Configuration
Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.
Legends
Keys Function
Right and Left arrows
Up and Down arrows
<Esc>
+ (plus key)
- (minus key) Tab
<F1> <F2> <F3> <F4>
<Enter>
Moves the highlight left or right to select a menu.
Moves the hightlight up or down between submenu or fi elds.
Exit to the BIOS Setup Utility.
Scrolls forward through the values or options of the highlighted fi eld.
Scrolls backward through the values or options of the highlighted fi eld.
Select a fi eld.
Displays general help
Pervious values
Optimized defaults
Saves and resets the setup program.
Press <Enter> to enter the highlighted submenu.

Entering the BIOS Setup Utility

The BIOS Setup Utility can only be operated from the keyboard and all commands are key­board commands. The commands are available at the right side of each setup screen.
The BIOS Setup Utility does not require an operating system to run. After you power up the system, the BIOS message appears on the screen and the memory count begins. After the memory test, the message “Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously.
Chapter 3 BIOS Setup
Scroll Bar
When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.
Submenu
When ““ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>.
34
www.dfi .com
Page 35
Chapter 3
AMI BIOS Setup Utility Advanced Main
The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.
Main
BIOS Information BIOS Vendor Core Version Compliancy Project Version Build Date and Time
System Language
System Date System Time
Access Level
System Date
The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sun­day to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1980 to 2099.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Boot Security
American Megatrends
4.6.5.4 UEFI 2.3.1; PI 1.2 HU171B4B.27A 11/27/2014 19:45:46
[English]
[Thu 01/15/2015] [14:05:42]
Administraor
Save & ExitChipset
Choose the system default language
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.
Important:
Setting incorrect field values may cause the system to malfunction.
Main
ACPI Settings
Trusted Computing
CPU Con guration
SATA Con guration
Intel(R) Rapid Start Technology
AMT Con guration
USB Con guration
PCH-FW Con guration
Super IO Con guration
PC Health Status
Power Failure Control
WatchDog Con guration
Network Stack
Intel(R) Ethernet Connection I218-LM - 88:88:88:88:87:88......
Intel(R) I210 Gigabit Network Connection - 00:01:29:57:......
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Save & ExitChipset Boot Security
System ACPI Parameters
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
System Time
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to
23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.
Chapter 3 BIOS Setup
35
www.dfi .com
Page 36
Chapter 3
ACPI Settings
This section is used to configure the system ACPI parameters.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
ACPI Settings
ACPI Sleep State
Resume by RTC Alarm
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
[S3 only (Suspend to...)]
[Disabled]
Select ACPI sleep state the system will enter when the SUSPEND button is pressed.
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
ACPI Sleep State
Selects the highest ACPI sleep state the system will enter when the Suspend button is pressed.
S3 only (STR) Enables the Suspend to RAM.
Trusted Computing
This section configures settings relevant to Trusted Computing innovations.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Confi guration
Security Device Support
Current Status Information SUPPORT TURNED OFF
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
[Disable]
Enables or Disables BIOS support for security device. O.S will not show Security Device. TCG EFI protocol and INT1A interface will not be available.
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Security Device Support
This field is used to enable or disable BIOS supporting for the security device. O.S will not show the security device. TCG EFI protocol and INT1A interface will not be available.
Resume by RTC Alarm
When Enabled, the system uses the RTC to generate a wakeup event.
Chapter 3 BIOS Setup
36
www.dfi .com
Page 37
Chapter 3
CPU Configuration
This section is used to configure the CPU. It will also display the detected CPU information.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Enabled for Windows XP
CPU Confi guration Intel(R) Core(TM) i5-4300U CPU @1.90GHz
CPU Signature Processor Family Microcode Patch FSB Speed Max CPU Speed Min CPU Speed CPU Speed Processor Cores Intel HT Technology Intel VT-X Technology Intel SMX Technology 64-bit EIST Technology CPU C3 State CPU C6 State CPU C7 State
L1 Data Cache L1 Code Cache L2 Cache L3 Cache
Hyper-threading
Active Processor Cores Limit CPUID Maximum Intel Virtualization Technology EIST Turbo Mode
Intel TXT(LT) Support
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
40651 6 17 100 MHz 1900 MHz 800 MHz 2600 MHz 2 Supported Supported Supported Supported Supported Supported Supported Supported
32 KB x2 32 KB x2 256 KB x2 3072 KB
[Enabled]
[All] [Disabled] [Enabled] [Enabled] [Enabled]
[Disabled]
and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled only one thread per enabled core is enabled.
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
EIST
This field is used to enable or disable the Intel Enhanced SpeedStep Technology.
Turbo Mode
Enable or disable the turbo mode.
Hyper-threading
Enables this field for Windows XP and Linux which are optimized for Hyper-Threading technology. Select disabled for other OSes not optimized for Hyper-Threading technol­ogy. When disabled, only one thread per enabled core is enabled.
Active Processor Cores
Number of cores to enable in each processor package.
Limit CPUID Maximum
Disabled for Windows XP.
Intel Virtualization Technology
When this field is set to Enabled, the VMM can utilize the additional hardware capabili­ties provided by Vanderpool Technology.
Chapter 3 BIOS Setup
37
www.dfi .com
Page 38
Chapter 3
SATA Configuration
This section is used to configure the settings of SATA device.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
SATA Controller(s)
SATA Mode Selection
Serial ATA Port 0 Software Preserve Port 0
SATA Device Type
Serial ATA Port 1 Software Preserve
Port 1 SATA Device Type
Serial ATA Port 3 Software Preserve Port 3
SATA Device Type
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
[Enabled]
[AHCI]
Empty Unknown
[Enabled] [Hard Disk Drive]
Empty Unknown
[Enabled] [Hard Disk Drive]
Empty Unknown
[Enabled] [Hard Disk Drive]
SATA Controller(s)
This field is used to enable or disable Serial ATA devices.
SATA Mode Selection
The mode selection determines how the SATA controller(s) operates.
Enable or disable SATA Device.
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Intel(R) Rapid Start Technology
This section is used to enable or disable the Intel Rapid Start Technology.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Intel(R) Rapid Start Technology
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
[Disabled]
Enable or disable Intel(R) Rapid Start Technology

Select Screen

Select Item
Enter:
Select
+/-:
Change Opt.
F1:
General Help
F2:
Previous Values
F3:
Optimized Defaults
F4:
Save & Exit
ESC:
Exit
AHCI Mode This option allows the Serial ATA devices to use AHCI (Advanced Host Controller Inter­face).
RAID Mode This option allows you to create RAID or Intel Matrix Storage configuration on Serial ATA devices.
Port 0, 1 and 3
This field is used to enable or disable the serial ATA port.
SATA Device Type
Identify the serial ATA port which is connected to the Solid State Drive or the Hard Disk Drive.
Chapter 3 BIOS Setup
38
www.dfi .com
Page 39
Chapter 3
AMT Configuration
This section configures the parameters of Active Management Technology.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Intel AMT
Un-Confi gure ME
[Enabled]
[Disabled]
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Enable/ Disable Intel(R) Active Management Tech­nology BIOS Extension. Note: iAMT H/W is always enabled. This option just controls the BIOS extension execu­tion. If enabled, this re­quires additional fi rmware in the SPI device.

Select Screen

Select Item
Enter:
Select
+/-:
Change Opt.
F1:
General Help
F2:
Previous Values
F3:
Optimized Defaults
F4:
Save & Exit
ESC:
Exit
Intel AMT
Enables or disables the AMT function.
Un-Configure ME
OEMFlag Bit 15: Un-configure ME without the password confirmation prompt.
USB Configuration
This section is used to configure the parameters of the USB device.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
USB Confi guration USB Module Version USB Devices:
2 Hubs
Legacy USB Support
EHCI Hand-off
8.10.28
[Enabled]
[Disabled]
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Legacy USB Support
Enabled
Enables legacy USB. Disabled
Keeps USB devices available only for EFI applications. Auto
Disables support for legacy when no USB devices are connected.
Chapter 3 BIOS Setup
EHCI Hand-off
This is a workaround for OSes without the EHCI hand-off support. The EHCI ownership change should be claimed by the EHCI driver.
39
www.dfi .com
Page 40
Chapter 3
PCH-FW Configuration
This section only displays the parameters of Management Engine Technology.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
ME FW Version ME Firmware Mode ME Firmware Type ME Firmware SKU PTT Capability/State
Firmware Update Con guration
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
9.5.30.1808 Normal Mode Full Sku Firmware 5MB 1/0
Confi gure Management Engine Technology Parameters.
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Firmware Update Configuration
This field is used to configure the parameters of Management Engine Technology.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Me FW Image Re-Flash
[Disabled]
Enable or Disable Me FW Image Re-Flash function
Super IO Configuration
This section is used to configure the I/O functions supported by the onboard Super I/O chip.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Super IO Confi guration Super IO Chip
OS Select
Serial Port 1 Con guration
Serial Port 2 Con guration
Serial Port 3 Con guration
Serial Port 4 Con guration
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
NCT6106D
[Windows]
Windows/Linux (DOS) for COM port setting.
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
OS Select
Select the OS support, Windows or Linux/DOS, for COM ports settings.
Serial Port 1 Configuration to Serial Port 4 Configuration
Sets the parameters of serial port 1 (COM A) and serial port 4 (COM D).
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Chapter 3 BIOS Setup
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Serial Port 1 Confi guration
Serial Port
Device Settings
Change Settings RS485 Auto Flow
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
40
[Enabled]
IO=3F8h; IRQ=4;
[Auto] [Disabled]
Enable or Disable Serial Port (COM)
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
www.dfi .com
Page 41
Chapter 3
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Serial Port 2 Confi guration
Serial Port
Device Settings
Change Settings
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Serial Port 3 Confi guration
Serial Port
Device Settings
Change Settings
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
[Enabled]
IO=2F8h; IRQ=3;
[Auto]
[Enabled]
IO=3E8h; IRQ=11;
[Auto]
Enable or Disable Serial Port (COM)
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Enable or Disable Serial Port (COM)
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Serial Port 4 Confi guration
Serial Port
Device Settings
Change Settings
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
[Enabled]
IO=2E8h; IRQ=10;
[Auto]
Serial Port
Enables or disables the serial COM port.
Change Settings
Selects the IO/IRQ settings for the super I/O device.
RS485 Auto Flow
Sets the RS485 auto flow of the serial COM port.
Enable or Disable Serial Port (COM)
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Chapter 3 BIOS Setup
41
www.dfi .com
Page 42
Chapter 3
PC Health Status
This section displays the hardware health monitor.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
PC Health Status
Smart Fan Function
SYS Thermistor Temp CPU (PECI) Temp CPUFan Speed SysFan 1 Speed VCORE VIN0 (5V) VIN1 (12V) VIN2 (DRAM) VBAT
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
: +31.0 C : +24.0 C : 3648 RPM : N/A : +1.728 V : +5.017 V : +11.968 V : +1.344 V : +3.024 V
Smart Fan Function
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Smart Fan Function
CPU Smart Fan Control
Boundary 4 Boundary 3 Boundary 2 Boundary 1 Speed Count 5 Speed Count 4 Speed Count 3 Speed Count 2 Speed Count 1
System Smart Fan (1) Control Boundary 4 Boundary 3 Boundary 2 Boundary 1 Speed Count 5 Speed Count 4 Speed Count 3 Speed Count 2 Speed Count 1
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
[Enabled]
60 50 40 30 100 75 50 40 30
[Enabled] 60 50 40 30 100 75 50 40 30
Smart Fan function setting
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Enable CPU Smart Fan
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit
CPU Smart Fan Control
When this feature is set to Automatic, the CPU’s fan speed will rotate according to the CPU’s temperature. The higher the temperature, the faster the speed of rotation.
System Smart Fan Control
When this feature is set to Automatic, the System’s fan speed will rotate according to the System’s temperature. The higher the temperature, the faster the speed of rota­tion.
Boundary 1 to Boundary 4
The range is 0-127.
Speed Count 1 to Speed Count 5
The range is 1-100%.
Chapter 3 BIOS Setup
42
www.dfi .com
Page 43
Chapter 3
Power Failure Control
This section configures the status when the power failure occurs.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Power Failure Control
Power-Loss State
[Always on]
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Control the status when power loss occurs
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Power-Loss State
Controls the status when the power loss occurs.
Always Off
When power returns after an AC power failure, the system’s power is off. You must
press the Power button to power-on the system.
Always On
When power returns after an AC power failure, the system will automatically power-on.
WatchDog Configuration
This section sets the system watchdog parameters.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
WatchDog Parameters
WatchDog Count Mode
WatchDog TimeOut Value
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
[Second]
0
WatchDog Count Mode
Select the watchdog count mode: second or minute.
WatchDog TimeOut Value
Enter the watchdog timeout value. 0 means disabled.
WatchDog Count Mode Selection
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Keep Last State
When power returns after an AC power failure, the system will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.
Chapter 3 BIOS Setup
43
www.dfi .com
Page 44
Chapter 3
Network Stack
This section is used to enable or disable UEFI network stack.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Network Stack
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
[Disabled]
When enabled, it will display the following information:
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Network Stack
Ipv4 PXE Support
Ipv6 PXE Support
[Enabled]
[Enabled] [Enabled]
Enable/Disable UEFI network stack.

Select Screen

Select Item
Enter:
Select
+/-:
Change Opt.
F1:
General Help
F2:
Previous Values
F3:
Optimized Defaults
F4:
Save & Exit
ESC:
Exit
Enable/Disable UEFI network stack.
Ipv4 PXE Support
When enabled, Ipv4 PXE boot supports. When disabled, Ipv4 PXE boot option will not be created.
Ipv6 PXE Support
When enabled, Ipv6 PXE boot supports. When disabled, Ipv6 PXE boot option will not be created.
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Chapter 3 BIOS Setup

Select Screen

Select Item
Enter:
Select
+/-:
Change Opt.
F1:
General Help
F2:
Previous Values
F3:
Optimized Defaults
F4:
Save & Exit
ESC:
Exit
44
www.dfi .com
Page 45
Chapter 3
Intel(R) Ethernet Connection I218-LM - 88:88:88:88:87:88... (Only for reference)
This section is used to configure the parameters of the Gigabit Ethernet device.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Confi gure Boot Protocol,
PORT CONFIGURATION MENU

NIC Confi guration
Blink LEDs
PORT CONFIGURATION INFORMATION UEFI Driver: Adapter PBA: Chip Type: PCI Device ID Bus: Device: Function:
Link Status
MAC Address:
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
0
Intel(R) PRO/1000 5.5.23 FFFFFF-OFF Intel PCH LPT 155A 00:19:00
[Disconnected]
88:88:88:88:87:88
Wake on LAN, Link Speed, and VLAN.

Select Screen

Select Item
Enter:
Select
+/-:
Change Opt.
F1:
General Help
F2:
Previous Values
F3:
Optimized Defaults
F4:
Save & Exit
ESC:
Exit
Blink LEDs
Identifies the physical network port by blinking the associated LED.
Link Status
This field indicates the link status of the network device.
NIC Configuration
This field is used to configure the Boot Protocol, Wake on LAN, Link Speed and VLAN.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Specifi es the port speed Link Speed Wake on LAN
[Auto Negotiaed]
[Enabled]
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
used for the selected boot
protocol

Select Screen

Select Item
Enter:
Select
+/-:
Change Opt.
F1:
General Help
F2:
Previous Values
F3:
Optimized Defaults
F4:
Save & Exit
ESC:
Exit
Link Speed
This field is used to specify the port speed used for the selected boot protocol.
Wake on LAN
Enables the server to be powered on using an in-band magic packet.
Chapter 3 BIOS Setup
45
www.dfi .com
Page 46
Chapter 3
Intel(R) I210 Gigabit Network Connection - 00:01:29:57... (Only for reference)
This section is used to configure the parameters of the Gigabit Ethernet device.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
PORT CONFIGURATION MENU

NIC Confi guration
Blink LEDs
PORT CONFIGURATION INFORMATION UEFI Driver: Adapter PBA: Chip Type: PCI Device ID Bus: Device: Function:
Link Status MAC Address:
Virtual MAC Address
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
0
Intel(R) PRO/1000 5.5.23 001300-000 Intel i210 1533 02:00:00
[Disconnected]
00:01:29:57:FF:D4
00:01:29:57:FF:D4
Confi gure Boot Protocol, Wake on LAN, Link Speed, and VLAN.

Select Screen

Select Item
Enter:
Select
+/-:
Change Opt.
F1:
General Help
F2:
Previous Values
F3:
Optimized Defaults
F4:
Save & Exit
ESC:
Exit
Blink LEDs
Identifies the physical network port by blinking the associated LED.
Link Status
This field indicates the link status of the network device.
NIC Configuration
This field is used to configure the Boot Protocol, Wake on LAN, Link Speed and VLAN.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Specifi es the port speed Link Speed Wake on LAN
[Auto Negotiaed]
[Enabled]
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
used for the selected boot
protocol

Select Screen

Select Item
Enter:
Select
+/-:
Change Opt.
F1:
General Help
F2:
Previous Values
F3:
Optimized Defaults
F4:
Save & Exit
ESC:
Exit
Link Speed
This field is used to specify the port speed used for the selected boot protocol.
Wake on LAN
Enables the server to be powered on using an in-band magic packet.
Virtual MAC Address
Programmatically assignable MAC address of the Ethernet port.
Chapter 3 BIOS Setup
46
www.dfi .com
Page 47
Chapter 3
Chipset
This section configures relevant chipset functions.
Main

PCH-IO Confi guration

System Agent (SA) Confi guration
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Chipset
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Boot Security
Save & Exit
PCH Parameters

Select Screen

Select Item
Enter:
Select
+/-:
Change Opt.
F1:
General Help
F2:
Previous Values
F3:
Optimized Defaults
F4:
Save & Exit
ESC:
Exit
PCH-IO Configuration
This section illustrates the PCH parameters.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Chipset
Intel PCH RC Version Intel PCH SKU Name Intel PCH Rev ID

PCI Express Confi guration

USB Confi guration
Wake on LAN
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
1.7.0.0 Premium SKU 04/B2
[Enabled]
PCI Express Confi guration settings.
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Wake on LAN
Enables or disables the integrated LAN controller to wake the system. (The Wake on LAN cannot be disabled if ME is set to On at the Sx state.)
Chapter 3 BIOS Setup
47
www.dfi .com
Page 48
Chapter 3
PCI Express Configuration
This field is used to configure the PCI Express settings.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Chipset
PCI Express Confi guration

PCI Express Root Port 3
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
PCI Express Root Port 3
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Chipset
PCI Express Root Port 3
PCIe Speed
[Enabled]
[Auto]
PCI Express Root Port 3 Settings.
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Control the PCI Express Root port.
USB Configuration
This field is used to configure the USB settings.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Chipset
USB Confi guration
XHCI
Mode
[Smart Auto]
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Mode of operation of XHCI controller.
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
XHCI Mode
Selects the operation mode of the XHCI controller. The options are Smart Auto, Auto, En­abled, Disabled and Manual.
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
PCIe Speed
Select the PCI Express port speed: Auto, Gen 1 or Gen 2.
Chapter 3 BIOS Setup
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
48
www.dfi .com
Page 49
Chapter 3
System Agent (SA) Configuration
This section is used to configure the parameters of System Agent.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Chipset
System Agent Bridge Name System Agent RC Version VT-d Capability
VT-d

Graphics Confi guration

Memory Confi guration
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Haswell
1.7.0.0 Supported
[Enabled]
VT-d
Enable the VT-d function on MCH.
Check to enable VT-d function on MCH.

Select Screen

Select Item
Enter:
Select
+/-:
Change Opt.
F1:
General Help
F2:
Previous Values
F3:
Optimized Defaults
F4:
Save & Exit
ESC:
Exit
Graphics Configuration
This field configures the graphics settings.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Chipset
Graphics Confi guration IGFX VBIOS Version IGfx Frequency
DVMT Pre-Allocated
LCD Control
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
2179 400 MHz
[32M]
Select DVMT 5.0 Pre-
Allocated (Fixed) Graph-
ics Memory size used
by the Internal Graphics
Device.

Select Screen

Select Item
Enter:
Select
+/-:
Change Opt.
F1:
General Help
F2:
Previous Values
F3:
Optimized Defaults
F4:
Save & Exit
ESC:
Exit
DVMT Pre-Allocated
Selects DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device. Please refer to the information below.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Chipset
Graphics Confi guration IGFX VBIOS Version IGfx Frequency
DVMT Pre-Allocated
LCD Control
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
2179 400 MHz
DVMT Pre-Allocated 32M 64M 96M 128M 160M 192M 224M 256M 288M 320M 352M 384M 416M 448M 480M 512M 1024M
Select DVMT5.0 Pre­Allocated (Fixed) Graph­ics Memory size used by the Internal Graphics Device.
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Chapter 3 BIOS Setup
49
www.dfi .com
Page 50
Chapter 3
LCD Control
This field configures the LCD control.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Chipset
LCD Control
Primary IGFX Boot Display
Secondary IGFX Boot Display LCD Panel Type Active LVDS
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Secondary IGFX Boot Display
[DP]
[HDMI1] [VBIOS Default] [Enabled]
Select the Video Device which will be activated during POST. This has no effect if external graphics present. Secondary boot display selection will appear based on your selection. VGA modes will be sup­ported only on primary display.
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Select the secondary display device: DP, LVDS, eDP or HDMI1.
LCD Panel Type
Select the LCD panel used by the Internal Graphics Device via selecting the appropriate setup item.
LCD Control
Primary IGFX Boot Display Secondary IGFX Boot Display
LCD Panel Type
Active LVDS
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Chipset
Select LCD panel used by Internal Graphics Device
[EFP]
LCD Panel Type VBIOS Default
640x480
Type 1
800x600
Type 2
1024x768
Type 3
1280x1024
Type 4
1400x1050 (108MHz)
Type 5
1400x1050 (122MHz)
Type 6
1600x1200
Type 7
1366x768
Type 8
1680x1050
Type 9
1920x1200
Type 10
1440x900
Type 11
1024x768
Type 12
1280x1024
Type 13
1280x800
Type 14
1920x1080
Type 15
2048x1536
Type 16
by selecting the appropri­ate setup item.
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Active LVDS
Enable or disable the LVDS function.
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Chapter 3 BIOS Setup
50
www.dfi .com
Page 51
Chapter 3
Memory Configuration
This field only displays the memory configuration.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Chipset
Memory Information Memory RC Version
Memory Frequency Total Memory Memory Voltage DIMM#1 CAS Latency (tCL) Minimum delay time CAS to RAS (tRCDmin) Row Precharge (tRPmin) Active to Precharge (tRASmin)
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
1.7.0.0 1600 Mhz 8192 MB (DDR3)
1.35V 8192 MB (DDR3) 11
11 11 28
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Boot
Main
Boot Confi guration
Setup Prompt Timeout
Bootup NumLock State Quiet Boot Boot Option Priorities

CSM Parameters
Setup Prompt Timeout
Select the number of seconds to wait for the setup activation key. 65535(0xFFFF) denotes indefinite waiting.
Bootup NumLock State
This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Boot
1
[On] [Disabled]
Security
Save & ExitChipset
Number of seconds to
wait for setup activation
key.
65535(0xFFFF) means
indefi nite waiting.
 Select Screen
 Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Chapter 3 BIOS Setup
Quiet Boot
Enable or disable the quiet boot function.
51
www.dfi .com
Page 52
Chapter 3
CSM Parameters
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Launch CSM
Boot option fi lter
Launch PXE OpROM policy Launch Storage OpROM policy Launch Video OpROM policy
Other PCI device ROM priority
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Boot
[Enabled]
[UEFI and Legacy] [Do not launch] [Legacy only] [Legacy only]
[UEFI OpROM]
Launch CSM
This option controls if CSM will be launched.
Boot option filter
This option controls what devices system can boot to.
Launch PXE OpROM policy
This option controls if CSM will be launched.
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Security
Main
Password Description If ONLY the Administrator’s password is set,
then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20
Administrator Password
User Password
Administrator Password
Sets the administrator password.
User Password
Sets the user password.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Boot Security
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Save & ExitChipset
Set Administrator
Password.
 Select Screen
 Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Controls the execution of UEFI and legacy PXE OpROM.
Launch Storage OpROM policy
Controls the execution of UEFI and legacy storage OpROM.
Launch Video OpROM policy
Controls the execution of UEFI and legacy video OpROM.
Other PCI device ROM priority
For PCI devices other than Network. Mass storage or Video defines which OpROM to launch.
Chapter 3 BIOS Setup
52
www.dfi .com
Page 53
Chapter 3
Save & Exit
Main
Save Changes and Exit
Discard Changes and Reset
Save Options
Save Changes Discard Changes
Restore Defaults
Boot Override
Launch EFI Shell from fi lesystem device
Save Changes and Exit
Exits the system setup after saving the changes.
Discard Changes and Reset
To discard the changes, select this field and then press <Enter>. A dialog box will appear. Select Yes to reset the system setup without saving any changes.
Save Changes
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Chipset
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Boot Security Save & Exit
Exit system setup after saving the changes
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Updating the BIOS

To update the BIOS, you will need the new BIOS file and a flash utility, AFUDOS.EXE. Please contact technical support or your sales representative for the files.
To execute the utility, type: A:> AFUDOS BIOS_File_Name /b /p /n then press <Enter>.
C:\AFU\AFUDOS>afudos fi lename /B /P /N
+--------------------------------------------------------------------------------------------------------+
| |
+--------------------------------------------------------------------------------------------------------+
Reading fi le ..............................
Erasing fl ash .............................
Writing fl ash .............................
Verifying fl ash ..........................
Erasing BootBlock ....................
Writing BootBlock ....................
Verifying BootBlock .................
C:\AFU\AFUDOS>
AMI Firmware Update Utility(APTIO) v2.25
Copyright (C)2012 American Megatrends Inc. All Rights Reserved.
done done done done done done done
| |
Saves changes done so far to any of the setup options.
Discard Changes
Discards changes done so far to any of the setup options.
Restore Defaults
To restore and load the optimized default values, select this field and then press <Enter>. A dialog box will appear. Select Yes to restore the default values of all the setup options.
Launch EFI Shell from filesystem device
Attempts to Launch EFI Shell application (Shellx64.efi) from one of the available filesystem devices.
Chapter 3 BIOS Setup
53
www.dfi .com
Page 54
Chapter 3

Notice: BIOS SPI ROM

1. The Intel® Management Engine has already been integrated into this system board. Due to the safety concerns, the BIOS (SPI ROM) chip cannot be removed from this system board and used on another system board of the same model.
2. The BIOS (SPI ROM) on this system board must be the original equipment from the factory and cannot be used to replace one which has been utilized on other system boards.
®
3. If you do not follow the methods above, the Intel updated and will cease to be effective.
Note:
a. You can take advantage of flash tools to update the default configuration of the BIOS (SPI ROM) to the latest version anytime. b. When the BIOS IC needs to be replaced, you have to populate it properly onto the
system board after the EEPROM programmer has been burned and follow the technical person's instructions to confirm that the MAC address should be burned or not.
Management Engine will not be
Chapter 3 BIOS Setup
54
www.dfi .com
Page 55
Chapter 4

Chapter 4 - Supported Software

The CD that came with the system board contains drivers, utilities and software applications required to enhance the performance of the system board.
Insert the CD into a CD-ROM drive. The autorun screen (Mainboard Utility CD) will appear. If after inserting the CD, “Autorun” did not automatically start (which is, the Mainboard Utility CD screen did not appear), please go directly to the root directory of the CD and double-click “Setup”.
For Windows 8
For Windows 7
Chapter 4 Supported Software
55
www.dfi .com
Page 56
Chapter 4
Intel Chipset Software Installation Utility
The Intel Chipset Software Installation Utility is used for updating Windows® INF files so that the Intel chipset can be recognized and configured properly in the system.
To install the utility, click “Intel Chipset Software Installation Utility” on the main menu.
1. Setup is ready to install the
utility. Click Next.
2. Read the license agreement
then click Yes.
3. Go through the readme document for more installa­tion tips then click Next.
4. Click Finish to exit setup.
Chapter 4 Supported Software
56
www.dfi .com
Page 57
Chapter 4
Intel HD Graphics Drivers
To install the driver, click “Intel HD Graphics Drivers” on the main menu.
Note:
If the graphics driver is not installed into the system, the 4K display monitor will display black or white screen. After completing the installation of the graphics driver, the monitor will display normally.
1. Setup is now ready to install the graphics driver. Click Next.
By default, the “Automatically run WinSAT and enable the Windows Aero desktop theme” is enabled. With this enabled, after installing the graphics driver and the system rebooted, the screen will turn blank for 1 to 2 minutes (while WinSAT is running) before the Windows Vista desktop appears. The “blank screen” period is the time Windows is testing the graphics perfor­mance.
2. Read the license agreement then click Yes.
3. Go through the readme document for system re­quirements and installation tips then click Next.
4. Setup is now installing the driver. Click Next to con­tinue.
5. Click “Yes, I want to restart this computer now” then click Finish.
Restarting the system will
allow the new software installation to take effect.
Chapter 4 Supported Software
57
www.dfi .com
Page 58
Chapter 4
Intel Management Engine Drivers 9.5
To install the driver, click “Intel Management Engine Drivers 9.5” on the main menu.
1. Setup is ready to install the driver. Click Next.
2. Read the license agreement then click Yes.
3. Setup is currently installing the driver. After installation has com­pleted, click Next.
4. After completing installation, click Finish.
Chapter 4 Supported Software
58
www.dfi .com
Page 59
Chapter 4
Audio Drivers
To install the driver, click “Audio Drivers” on the main menu.
1. Setup is ready to install the driver. Click Next.
2. Click “Yes, I want to restart my computer now” then click Finish.
Restarting the system will
allow the new software installation to take effect.
Intel LAN Drivers
To install the driver, click “Intel LAN Drivers” on the main menu.
1. Setup is ready to install the driver. Click Next.
2. Click “I accept the terms in the license agreement” then click “Next”.
Chapter 4 Supported Software
3. Select the program featuers you want installed then click Next.
59
www.dfi .com
Page 60
Chapter 4
4. Click Install to begin the installation.
5. After completing installa­tion, click Finish.
DFI Utility
DFI Utility provides information about the board, Watchdog,and DIO. To access the utility, click “DFI Utility” on the main menu.
Note:
If you are using Windows 7, you need to access the operating system as an administrator to be able to install the utility.
1. Setup is ready to instal the DFI Utility driver Click “Next”.
2. Click “I accept the terms in the license agreement” then click “Next”.
Chapter 4 Supported Software
60
www.dfi .com
Page 61
Chapter 4
3. Click “Install” to begin the
installation.
4. After completing installa
tion, click “Finish”.
The DFI Utility icon will appear on the desktop. Double-click the icon to open the utility.
Information
Chapter 4 Supported Software
HW Health
61
www.dfi .com
Page 62
Chapter 4
HW Health Set
WatchDog
DIO
Backllight
Chapter 4 Supported Software
62
www.dfi .com
Page 63
Chapter 4
Microsoft Framework 4.5
To install the utility, click “Microsoft Framework 4.5” on the main menu.
1. Read and accept the license agree-
ment. Then, click “Installation“.
2. Setup is installing the driver.
3. After completing installation, click Finish.
Chapter 4 Supported Software
63
www.dfi .com
Page 64
Chapter 4
Intel USB 3.0 Drivers (For Windows 7 Only)
To install the driver, click “Intel USB 3.0 Driver” on the main menu.
1. Setup is ready to install the driver. Click Next.
2. Read the license agreement then click Yes.
3. Go through the readme docu­ment for more installation tips then click Next.
4. Setup is currently installing the driver. After installation has com­pleted, click Next.
Chapter 4 Supported Software
5. After completing installation, click Finish.
64
www.dfi .com
Page 65
Chapter 4
Intel Dynamic Platform and Thermal Framework 7.1
The Intel Dynamic Platform and Thermal Framework Technology enables the control of power and temperature management for the system protection.
To install the driver, click “Intel Dynamic Platform and Thermal Framework 7.1” on the main menu.
1. Setup is now ready to install the utility. Exit all programs before continuing and click Next to continue.
2. Read the license agreement and then click Yes.
3. After the setup progress finishes, click Next to continue..
4. Click Finish to complete the setup process.
Chapter 4 Supported Software
65
www.dfi .com
Page 66
Chapter 4
Intel Rapid Storage Technology
The Intel Rapid Storage Technology is a utility that allows you to monitor the current status of the SATA drives. It enables enhanced performance and power management for the storage subsystem.
To install the driver, click “Intel Rapid Storage Technology” on the main menu.
1. Setup is now ready to install
2. Read the warning then click
the utility. Click Next.
Yes.
3. Read the license agreement then click Yes.
4. Go through the readme document for system requirements and instal­lation tips then click Next.
Chapter 4 Supported Software
5. Setup is now installing the utility. Click Next to continue.
66
www.dfi .com
Page 67
Chapter 4
6. Click “Yes, I want to restart my computer now” then click Finish.
Restarting the system will allow the new software installation to take effect.
Intel Rapid Start Technology
The Intel Rapid Start Technology is a utility that allows your system to wake up and run faster. To install the driver, click “Intel Rapid Start Technology” on the main menu.
1. Setup is now ready to install the utility. Click Next.
2. Click ON and select the Advanced Settings to enable the Intel Rapid Start Technology. Then, click Save.
Chapter 4 Supported Software
67
www.dfi .com
Page 68
Chapter 4
F6 Floppy (For Windows 7 Only)
This is used to create a floppy driver diskette needed when you install Windows® XP using the F6 installation method. This will allow you to install the operating system onto a hard drive when in AHCI mode.
1. Insert a blank floppy diskette.
2. Locate for the drivers in the CD then copy them to the floppy diskette. The CD includes
drivers for both 32-bit and 64-bit operating systems. The path to the drivers are shown
below. 32-bit CD Drive:\AHCI_RAID\F6FLOPPY\f6flpy32 64-bit CD Drive:\AHCI_RAID\F6FLOPPY\f6flpy64
Infineon TPM Driver and Tool (optional)
To install the driver, click “Infineon TPM driver and tool (option)” on the main menu.
1. The setup program is preparing to install the driver.
2. The setup program is now ready to install the utility. Click Next.
Chapter 4 Supported Software
3. Click “I accept the terms in the
license agreement” and then click “Next”.
68
www.dfi .com
Page 69
Chapter 4
4. Enter the necessary information and then click Next.
5. Select a setup type and then click Next.
7. TPM requires installing the Microsoft Visual C++ package prior to install­ing the utility. Click Install.
8. The setup program is currently installing the Microsoft Visual C++ package.
6. Click Install.
Chapter 4 Supported Software
9. Click Finish.
69
www.dfi .com
Page 70
Chapter 4
10. Click “Yes“ to restart your system.
Adobe Acrobat Reader 9.3
To install the reader, click “Adobe Acrobat Reader 9.3” on the main menu.
1. Click Next to install or click Change Destination Folder to select another folder.
2. Click Install to begin installa­tion.
Chapter 4 Supported Software
3. Click Finish to exit installation.
70
www.dfi .com
Page 71
Chapter 5
Chapter 5 - Digital I/O Programming Guide Register Description
The Input Port Register (register 0) reflects the incoming logic levels of the pins, regard­less of whether the pin if defined as an input or output by the Configuration Register. They act only on the red operation. Writes to this register have no effect. The default value (X) is determined by the externally applied logic level. Before a red operation, a write transmission is sent with the command byte to indicate to the I accessed next.
Register 0 (Input Port Register)
BIT I-7 I-6 I-5 I-4 I-3 I-2 I-1 I-0 DEFAULT
The Onput Port Register (register 1) shows the outgoing logic levels of the pins defined as outputs by the Configuration Register. Bit values in this register have no effect on pins defined as inputs. In turns, reads from this register reflect the value that is in the flip-flop contolling the output selection, not the actual pin value.
XXXX X XXX
2
C device that the Input Port Regiser will be
The Configuration Register (register 3) configures the direction of the I/O pins. If a bit in this register is set to 1, the corresponding port pin is enabled as an input with a high-impedence output driver. If a bit in this register is cleared to 0, the corresponding port is enabled as an input.
Register 3 (Configuration Register)
BIT C-7 C-6 C-5 C-4 C-3 C-2 C-1 C-0 DEFAULT
1111 1 111
Register 1 (Onput Port Register)
BIT O-7 O-6 O-5 O-4 O-3 O-2 O-1 O-0 DEFAULT
The Polarity Inversion Register (register 2) allows polarity inversion of the pins defined as inputs by the Configuration Register. If a bit in this register is set (written with 1), the cor­responding port pin’s polarity is inverted. If a bit in this register is clear (written with a 0), the corresponding port pin’s original polarity is retained.
BIT N-7 N-6 N-5 N-4 N-3 N-2 N-1 N-0 DEFAULT
1111 1 111
Register 2 (Polarity Inversion Register)
0000 0 000
Chapter 5 Digital I/O Programming Guide
71
www.dfi .com
Page 72
Chapter 5
Function Description
I2CWriteByte(SlaveAddr, SubAddr, Data): Write a Byte data to a specified I2C Device.
I2CReadByte(SlaveAddr, SubAddr, *Data): Read a Byte data from a specified I2C Device.
SetBit(*Data, Bit) : Set Data bit n as “1”.
ClrBit(*Data, Bit) : Set Data bit n as “0”.
GetBit(Data, Bit) : Return the value of data bit n.
Sample Code
GPIO Configuration
#defi ne SLAVE_ADDR #defi ne INPUT_PORT #defi ne OUTPUT_PORT #defi ne INVERSION_PORT #defi ne COMFIG_PORT
GpioConfi g(int PinNum, int Mode) { BYTE Data; BYTE TempPinNum = PinNum%8;
//Pin0-7 Input/Output Confi guration I2C_ReadByte(SLAVE_ADDR, CONFIG_PORT, &Data); if(Mode == 1){SetBit(&Data, TempPinNum);} //Input else {ClrBit(&Data, TempPinNum);} //Output I2C_WriteByte(SLAVE_ADDR, CONFIG_PORT, Data);
return 1;
0x42 0x00 0x01 0x02 0x03
GPIO Output Process
#defi ne SLAVE_ADDR #defi ne INPUT_PORT #defi ne OUTPUT_PORT #defi ne INVERSION_PORT #defi ne COMFIG_PORT
GpioOut(int PinNum, int Level) { BYTE Data; BYTE TempPinNum = PinNum%8;
//Pin0-7 I2C_ReadByte(SLAVE_ADDR, OUTPUT_PORT, &Data); if(Level == 0){ClrBit(&Data, TempPinNum);} else {SetBit(&Data, TempPinNum);} I2C_WriteByte(SLAVE_ADDR, OUTPUT_PORT, Data);
return 1;
0x42 0x00 0x01 0x02 0x03
GPIO Iutput Process
#defi ne SLAVE_ADDR #defi ne INPUT_PORT #defi ne OUTPUT_PORT #defi ne INVERSION_PORT #defi ne COMFIG_PORT
GpioIn(int PinNum, int *Status) { BYTE Data; BYTE Group = PinNum/8; BYTE TempPinNum = PinNum%8;
//Pin0-7 I2C_ReadByte(SLAVE_ADDR, INPUT_PORT, &Data); *Status = GetBit(Data, TempPinNum);
return 1;
0x42 0x00 0x01 0x02 0x03
Chapter 5 Digital I/O Programming Guide
72
www.dfi .com
Page 73
Chapter 6

Chapter 6 - RAID

The system board allows configuring RAID on Serial ATA drives. It supports RAID 0, RAID 1, RAID 5 and RAID 10.

RAID Levels

RAID 0 (Striped Disk Array without Fault Tolerance)
RAID 0 uses two new identical hard disk drives to read and write data in parallel, interleaved stacks. Data is divided into stripes and each stripe is written alternately between two disk drives. This improves the I/O performance of the drives at different channel; however it is not fault tolerant. A failed disk will result in data loss in the disk array.

Settings

To enable the RAID function, the following settings are required.
1. Connect the Serial ATA drives.
2. Configure Serial ATA in the AMI BIOS.
3. Configure RAID in the RAID BIOS.
4. Install the RAID driver during OS installation.
5. Install the Intel Rapid Storage Drivers.
RAID 1 (Mirroring Disk Array with Fault Tolerance)
RAID 1 copies and maintains an identical image of the data from one drive to the other drive. If a drive fails to function, the disk array management software directs all applications to the other drive since it contains a complete copy of the drive’s data. This enhances data protection and increases fault tolerance to the entire system. Use two new drives or an existing drive and a new drive but the size of the new drive must be the same or larger than the existing drive.
RAID 5
RAID 5 stripes data and parity information across hard drives. It is fault tolerant and provides better hard drive performance and more storage capacity.
Step 1: Connect the Serial ATA Drives
Refer to chapter 2 for details on connecting the Serial ATA drives.
Important:
1. Make sure you have installed the Serial ATA drives and connected the data cables otherwise you won’t be able to enter the RAID BIOS utility.
2. Treat the cables with extreme caution especially while creating RAID. A damaged cable will ruin the entire installation process and operating system. The system will not boot and you will lost all data in the hard drives. Please give special attention to this warning because there is no way of recovering back the data.
Step 2: Configure Serial ATA in the AMI BIOS
1. Power-on the system then press <Del> to enter the main menu of the AMI BIOS.
2. Configure Serial ATA in the appropriate fields.
3. Save the changes in the Save & Exit menu.
4. Reboot the system.
Step 3: Configure RAID in the RAID BIOS
When the system powers-up and all drives have been detected, the Intel RAID BIOS status message screen will appear. Press the <Ctrl> and <I> keys simultaneously to enter the utility. The utility allows you to build a RAID system on Serial ATA drives.
Chapter 6 RAID
73
www.dfi .com
Page 74
Chapter 6
Step 4: Install the RAID Driver During OS Installation
The RAID driver must be installed during the Windows® XP or Windows® 2000 installation us­ing the F6 installation method. This is required in order to install the operating system onto a hard drive or RAID volume when in RAID mode or onto a hard drive when in AHCI mode.
1. Start Windows Setup by booting from the installation CD.
2. Press <F6> when prompted in the status line with the ‘Press F6 if you need to install a third party SCSI or RAID driver’ message.
3. Press <S> to “Specify Additional Device”.
4. At this point you will be prompted to insert a floppy disk containing the RAID driver. Insert the RAID driver diskette.
5. Locate for the drive where you inserted the diskette then select RAID or AHCI controller that corresponds to your BIOS setup. Press <Enter> to confirm.
You have successfully installed the driver. However you must continue installing the OS. Leave the floppy disk in the floppy drive until the system reboots itself because Windows setup will need to copy the files again from the floppy disk to the Windows installation folders. After Windows setup has copied these files again, remove the floppy diskette so that Windows setup can reboot as needed.
Step 5: Install the Intel Rapid Storage Technology Utility
The Intel Rapid Storage Technology Utility can be installed from within Windows. It allows RAID volume management (create, delete, migrate) from within the operating system. It will also display useful SATA device and RAID volume information. The user interface, tray icon service and monitor service allow you to monitor the current status of the RAID volume and/ or SATA drives. It enables enhanced performance and power management for the storage subsystem.
1. Insert the provided CD into an optical drive.
2. Click “Intel Rapid Storage Technology Utility” on the main menu.
3. Setup is ready to install the utility. Click Next.
4. Read the license agree­ment and click “I accept the terms in the License Agreement.“ Then, click Next.
Chapter 6 RAID
74
www.dfi .com
Page 75
Chapter 6
5. Go through the readme document to view system requirements and installa­tion information then click Next.
6. Click Next to install to the default folder or click change to choose another destination folder.
8. Click “Yes, I want to restart this computer now” to complete the installation and then click Finish.
7. Confirm the installation and click Next.
Chapter 6 RAID
75
www.dfi .com
Page 76

Chapter 7 - Intel AMT Settings

Chapter 7

Enable Intel® AMT in the AMI BIOS

Overview

Intel Active Management Technology (Intel® AMT) combines hardware and software solution to provide maximum system defense and protection to networked systems.
The hardware and software information are stored in non-volatile memory. With its built-in manageability and latest security applications, Intel
®
AMT provides the following functions.
• Discover
Allows remote access and management of networked systems even while PCs are powered off; significantly reducing desk-side visits.
• Repair
Remotely repair systems after OS failures. Alerting and event logging help detect problems quickly to reduce downtime.
• Protect
Intel AMT’s System Defense capability remotely updates all systems with the latest security software. It protects the network from threats at the source by proactively blocking incoming threats, reactively containing infected clients before they impact the network, and proactively alerting when critical software agents are removed.
1. Power-on the system then press <Del> to enter the main menu of the AMI BIOS.
2. In the Advanced menu, select AMT Configuration.
Main
ACPI Settings
Trusted Computing
CPU Con guration
SATA Con guration
Intel(R) Rapid Start Technology
AMT Con guration
USB Con guration
PCH-FW Con guration
NCT6106D Super IO Con guration
NCT6106D HW Monitor
Power Failure Control
WatchDog Con guration
Network Stack
Intel(R) Ethernet Connection I218-LM - 88:88:88:88:87:88......
Intel(R) I210 Gigabit Network Connection - 00:01:29:50:......
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Save & ExitChipset Boot Security
System ACPI Parameters
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
3. In the Advanced menu, select Enable in the AMT field.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Intel AMT
Hide Un-Confi gure ME Confi rmation
[Enabled]
[Disabled]
Enable/ Disable Intel(R) Active Management Tech­nology BIOS Extension. Note: iAMT H/W is always enabled. This option just controls the BIOS extension execu­tion. If enabled, this re­quires additional fi rmware in the SPI device.

Select Screen

Select Item
Enter:
Select
+/-:
Change Opt.
F1:
General Help
F2:
Previous Values
F3:
Optimized Defaults
F4:
Save & Exit
ESC:
Exit
Chapter 7 Intel AMT Settings
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
76
www.dfi .com
Page 77
Chapter 7
4. In the Save & Exit menu, select Save Changes and Reset then select OK.
Main
Save Changes and Exit
Discard Changes and Exit Save Changes and Reset Discard Changes and Reset
Save Options
Save Changes Discard Changes
Restore Defaults Save as User Defaults Restore as User Defaults
Boot Override
P1: ST160LT007-9ZV14D UEFI: TOSHIBA TransMemory 1.00
Launch EFI Shell from fi lesystem device
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Chipset
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Boot Security Save & Exit
Exit system setup after saving the changes
 Select Screen  Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Enable Intel® AMT in the Intel® Management Engine BIOS
1. When the system reboots, the following message will be displayed. Press <Ctrl-P> as soon as the message is displayed; as this message will be displayed for only a few sec­onds.
Extension (MEBX) Screen
American Megatrends
Version 2. 15. 1236. Copyright (C) 2012 American Megatrends, Inc. BIOS Date: 12/17/2013 21:22:35 Ver: 1AQQW025 Press <Ctrl+P> to enter MEBX setup menu Press <Ctrl+Alt+F1> Remote Assistance Press <Del> to enter setup
2. You will be prompted for a password. The default password is “admin”. Enter the default password in the space provided under Intel(R) ME Password then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
MAIN MENU
Chapter 7 Intel AMT Settings
MEBx Login
> Intel (R) ME General Settings > Intel (R) AMT Confi guration
MEBx Exit
Intel(R) ME Password
[] = Move Highlight [Enter] = Select Entry [Esc]= Exit
77
www.dfi .com
Page 78
Chapter 7
3. Enter a new password in the space provided under Intel(R) ME New Password then press Enter. The password must include:
• 8-32 characters
• Strong 7-bit ASCII characters excluding : , and ” characters
• At least one digit character (0, 1, ...9)
• At least one 7-bit ASCII non alpha-numeric character, above 0x20, (e.g. !, $, ;)
• Both lower case and upper case characters
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
MAIN MENU
MEBx Login
> Intel (R) ME General Settings > Intel (R) AMT Confi guration
MEBx Exit
Intel (R) ME New Password
Intel(R) ME Password
[] = Move Highlight [Enter] = Select Entry [Esc]= Exit
4. You will be asked to verify the password. Enter the same new password in the space pro­vided under Verify Password then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
MAIN MENU
MEBx Login
> Intel (R) ME General Settings > Intel (R) AMT Confi guration
MEBx Exit
Verify Password
Intel(R) ME Password
[] = Move Highlight [Enter] = Select Entry [Esc]= Exit
5. Select Intel(R) ME General Settings then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
MAIN MENU
Chapter 7 Intel AMT Settings
> Intel (R) ME General Settings
> Intel (R) AMT Confi guration
MEBx Exit
[] = Move Highlight [Enter] = Select Entry [Esc]= Exit
78
www.dfi .com
Page 79
Chapter 7
6. Select Change Intel(R) ME Password then press Enter. You will be prompted for a password. The default password is “admin”. Enter the default
password in the space provided under Intel(R) ME New Password then press Enter.
• 8-32 characters
• Strong 7-bit ASCII characters excluding : , and ” characters
• At least one digit character (0, 1, ...9)
• At least one 7-bit ASCII non alpha-numeric character, above 0x20, (e.g. !, $, ;)
• Both lower case and upper case characters
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
INTEL (R) ME PLATFORM CONFIGURATION
Change ME Password
Local FW Update <Enabled>
Intel (R) ME New Password
[] = Move Highlight [Enter] = Select Entry [Esc]= Exit
7. Select Local FW Update then press Enter. Select Enabled then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
INTEL (R) ME PLATFORM CONFIGURATION
Change ME Password Local FW Update
Disabled Enabled Password Protected
[] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes
8. Select Previous Menu until you return to the Main Menu. Select Intel(R) AMT Con­figuration then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
INTEL (R) AMT CONFIGURATION
Manageability Feature Selection < Enabled> > SOL/ IDER/ KVM > User Consent
Password Policy <Anytime> > Network Setup Unconfi gure Network Access <Full Unprovision> > Remote Setup And Confi guration > Power Control
<Enabled>
Chapter 7 Intel AMT Settings
[] = Move Highlight [Enter] = Select Entry [Esc]= Exit
79
www.dfi .com
Page 80
Chapter 7
9. In the Intel(R) AMT Configuration menu, select Manageability Feature Selection then press Enter. Select Disabled then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
INTEL (R) AMT CONFIGURATION
Manageability Feature Selection < Enabled> > SOL/ IDER/ KVM > User Consent
Password Policy <Anytime> > Network Setup Unconfi gure Network Access <Full Unprovision> > Remote Setup And Confi guration > Power Control
[] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes
10. In the Intel(R) AMT Configuration menu, select SOL/IDER/KVM then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Username and Password < Enabled> SOL <Enabled> IDER <Enabled> KVM Feature Selection <Enabled> Legacy Redirection Mode
Disabled Enabled
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
SOL/ IDER/ KVM
<Disabled>
11. In the SOL/IDER/KVM menu, select Username and Password then press Enter. Select Disabled then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
SOL/ IDER/ KVM
Username and Password < Enabled> SOL <Enabled> IDER <Enabled> KVM Feature Selection <Enabled> Legacy Redirection Mode
[] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes
12. In the SOL/IDER/KVM menu, select SOL then press Enter. Select Disabled then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
Username and password < Enabled> SOL <Enabled> IDER <Enabled> KVM Feature Selection <Enabled> Legacy Redirection Mode
<Disabled>
Disabled Enabled
SOL/ IDER/ KVM
<Disabled>
Menu for FW Redirection Confi guration
[] = Move Highlight [Enter] = Select Entry [Esc]= Exit
Chapter 7 Intel AMT Settings
Disabled Enabled
[] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes
80
www.dfi .com
Page 81
Chapter 7
13. In the SOL/IDER/KVM menu, select IDER then press Enter. Select Disabled then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
SOL/ IDER/ KVM
Username and password < Enabled> SOL IDER <Enabled> KVM Feature Selection <Enabled> Legacy Redirection Mode
[] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes
14. In the SOL/IDER/KVM menu, select KVM Feature Selection then press Enter. Select Disabled then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
Username and password < Enabled> SOL IDER <Enabled> KVM Feature Selection <Enabled> Legacy Redirection Mode
<Disabled>
SOL/ IDER/ KVM
<Disabled>
<Enabled>
Disabled Enabled
<Enabled>
15. In the SOL/IDER/KVM menu, select Legacy Redirection Mode then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
SOL/ IDER/ KVM
Username and password < Enabled> SOL IDER <Enabled> KVM Feature Selection <Enabled> Legacy Redirection Mode <Disabled>
[] = Move Highlight [Enter] = Select Entry [Esc]= Exit
16. Select Enabled then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
SOL/ IDER/ KVM
Username and password < Enabled> SOL IDER <Enabled> KVM Feature Selection <Enabled> Legacy Redirection Mode <Disabled>
<Enabled>
<Enabled>
Disabled Enabled
[] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes
Chapter 7 Intel AMT Settings
Disabled Enabled
[] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes
81
www.dfi .com
Page 82
Chapter 7
17. Select Previous Menu until you return to the Intel(R) AMT Configuration menu. Select User Consent then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
USER CONSENT
User Opt-in < KVM> Opt-in Confi gurable from Remote IT
Confi gure When User Consent Should be Required.
[] = Move Highlight [Enter] = Select Entry [Esc]= Exit
18. In the User Consent menu, select User Opt-in then press Enter. Select None then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
USER CONSENT
User Opt-in < KVM> Opt-in Confi gurable from Remote IT
< Enabled>
< Enabled>
NONE KVM ALL
19. In the User Consent menu, select Opt-in Configurable from Remote IT then press Enter. Select Disable Remote Control of KVM Opt-in Policy then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
USER CONSENT
User Opt-in < KVM> Opt-in Confi gurable from Remote IT
[] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes
20. Select Previous Menu until you return to the Intel(R) AMT Configuration menu. Select Password Policy then press Enter.
You may choose to use a password only during setup and configuration or to use a pass­word anytime the system is being accessed.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
INTEL (R) AMT CONFIGURATION
Manageability Feature Selection < Enabled> > SOL/ IDER/ KVM > User Consent
Password Policy > Network Setup Unconfi gure Network Access <Full Unprovision> > Remote Setup And Confi guration > Power Control
< Enabled>
Disabled Enabled
<Anytime>
Default Password Only During Step And Confi guration Anytime
[] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes
Chapter 7 Intel AMT Settings
[] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes
82
www.dfi .com
Page 83
Chapter 7
21. In the Intel(R) AMT Configuration menu, select Network Setup then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
INTEL (R) AMT CONFIGURATION
Manageability Feature Selection < Enabled> > SOL/ IDER/ KVM > User Consent
Password Policy <Anytime>
> Network Setup
Unconfi gure Network Access <Full Unprovision> > Remote Setup And Confi guration > Power Control
[] = Move Highlight [Enter] = Select Entry [Esc]= Exit
22. In the Intel(R) ME Network Setup menu, select Intel(R) ME Network Name Set- tings then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
> Intel (R) ME Network Name Settings
> TCP/ IP Settings
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
INTEL (R) ME NETWORK SETUP
23. In the Intel(R) ME Network Name Settings menu, select Host Name then press Enter. Enter the computer’s host name then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
INTEL (R) ME NETWORK NAME SETTINGS
Host Name _
Domain Name _ Shared/ Dedicated FQDN <Shared> Dynamic DNS Update <Disabled>
Computer Host Name
[Enter] = Complete Entry [Esc]= Discard Changes
24. Select Domain Name then press Enter. Enter the computer’s domain name then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
INTEL (R) ME NETWORK NAME SETTINGS
Host Name _
Domain Name Shared/ Dedicated FQDN <Shared> Dynamic DNS Update <Disabled>
_
[] = Move Highlight [Enter] = Select Entry [Esc]= Exit
Chapter 7 Intel AMT Settings
Computer Domain Name
[Enter] = Complete Entry [Esc]= Discard Changes
83
www.dfi .com
Page 84
Chapter 7
25. Select Shared/Dedicated FQDN then press Enter. Select Shared or Dedicated then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
INTEL (R) ME NETWORK NAME SETTINGS
Host Name _
Domain Name _ Shared/ Dedicated FQDN Dynamic DNS Update <Disabled>
Dedicated Shared
[] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes
26. Select Dynamic DNS Update then press Enter. Select Enabled or Disabled then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
INTEL (R) ME NETWORK NAME SETTINGS
Host Name _
Domain Name _ Shared/ Dedicated FQDN Dynamic DNS Update
<Shared>
<Shared>
<Disabled>
27. Select Previous Menu until you return to the Intel(R) ME Network Setup menu. Select TCP/IP Settings then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
TCP/ IP SETTINGS
> Wired LAN IPV4 Confi guration
[] = Move Highlight [Enter] = Select Entry [Esc]= Exit
28. In the TCP/IP Settings menu, select Wired LAN IPV4 Configuration then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
WIRED LAN IPV4 CONFIGURATION
DHCP Mode <Enabled>
[] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes
Chapter 7 Intel AMT Settings
Disabled Enabled
Disabled Enabled
[] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes
84
www.dfi .com
Page 85
Chapter 7
29. In the Intel(R) AMT Configuration menu, select Unconfigure Network Access then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
INTEL (R) AMT CONFIGURATION
Manageability Feature Selection < Enabled>
> SOL/ IDER/ KVM
> User Consent
Password Policy <Anytime>
Network Setup
> Unconfi gure Network Access > Remote Setup And Confi guration > Power Control
[] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes
30. In the Intel(R) AMT Configuration menu, select Remote Setup And Configuration then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
INTEL (R) AMT CONFIGURATION
Manageability Feature Selection
> SOL/IDER/KVM
> User Consent
Password Policy <Anytime>
Network Setup
>
Unconfi gure Network Access <Full Unprovision> > Remote Setup And Confi guration
> Power Control
<Full Unprovision>
Full Unprovision
Partial Unprovision
< Enabled>
31. In the Intel(R) Remote Setup And Configuration menu, select Current Provisioing Mode then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
INTEL (R) REMOTE SETUP AND CONFIGURATION
Current Provisioning Mode
Provisioning Record
Provisioning Mode:PKI
[] = Move Highlight [Enter] = Select Entry [Esc]= Exit
32. In the Intel(R) Remote Setup And Configuration menu, select Provisioning Re- cord then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
INTEL (R) REMOTE SETUP AND CONFIGURATION
Current Provisioning Mode
Provisioning Record
Provision Record is not present
[] = Move Highlight [Enter] = Select Entry [Esc]= Exit
Chapter 7 Intel AMT Settings
[ESC] = Exit
[] = Move Highlight [Enter] = Select Entry [Esc]= Exit
85
www.dfi .com
Page 86
Chapter 7
33. In the Intel(R) AMT Configuration menu, select Power Control then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
INTEL (R) AMT CONFIGURATION
Manageability Feature Selection < Enabled> > SOL/ IDER/ KVM > User Consent
Password Policy <Anytime> > Network Setup Unconfi gure Network Access <Full Unprovision> > Remote Setup And Confi guration
> Power Control
[] = Move Highlight [Enter] = Select Entry [Esc]= Exit
34. In the Intel(R) AMT Power Control menu, select Intel(R) AMT ON in Host Sleep States then press Enter. Select an option then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Intel (R) AMT ON in Host Sleep States
ME Wake in S3, S4-5 (AC only)>
Idle Timeout
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
INTEL (R) AMT POWER CONTROL
<Mobile: ON in S0,
65535
35. In the Intel(R) AMT Power Control menu, select Idle Timeout then press Enter. Enter the timeout value (1-65535).
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
INTEL (R) AMT POWER CONTROL
This confi gurations are effective only after AMT provisioning has started
Intel (R) ME ON in Host Sleep States
ME Wake in S3, S4-5 (AC only)>
Idle Timeout 65535
Timeout Value (1-65535)
<ENTER> = Complete Entry [ESC]= Discard Changes
36. Select Previous Menu until you return to the Main Menu. Select Exit then press Enter. Type Y then press Enter.
Intel(R) Management Engine BIOS Extension v9.0.0.0029/Intel(R) ME v9.5.30.1808
Copyright(C) 2003-13 Intel Corporation. All Rights Reserved.
MAIN MENU
> Intel (R) ME General Settings > Intel (R) AMT Confi guration
MEBx Exit
<Mobile: ON in S0,
Mobile: ON in S0 Mobile: ON in S0, ME Wake in S3, S4-5 (AC only)
[] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes
Chapter 7 Intel AMT Settings
Exit
[] = Move Highlight [Enter] = Select Entry [Esc]= Exit
86
www.dfi .com
Page 87

Appendix A - Watchdog Sample Code

;Software programming example: ;---------------------------------------------
;(1) Enter Super IO Confi guration mode ;--------------------------------------------­MOV DX,4EH MOV AL,87H OUT DX,AL OUT DX,AL
;------------------------------------------------------------------------------------------­;(2) Confi guration Logical Device 8, register CRF0/CRF1 (WDT Control/WDT timer) ;------------------------------------------------------------------------------------------­MOV DX,4EH MOV AL,07H ;Ready to Program Logical Device OUT DX,AL
MOV DX,4FH MOV AL,08H ;Select Logical Device 8 OUT DX,AL
MOV DX,4EH MOV AL, F1H ;Select watchdog timer register OUT DX,AL
Appendix A
MOV DX,4FH MOV AL,10H ;Set watchdog timer value OUT DX,AL
MOV DX,4EH MOV AL, F0H ;Select watchdog Control Register OUT DX,AL
MOV DX,4FH MOV AL,02H ;Set Watchdog Control Value OUT DX,AL
;---------------------------------------------------------------­;(1) Exit extended function mode ;---------------------------------------------------------------­MOV DX,4EH MOV AL,AAH OUT DX,AL
Appendix A Watchdog Sample Code
87
www.dfi .com
Page 88
Appendix B

Appendix B - System Error Message

When the BIOS encounters an error that requires the user to correct something, either a beep code will sound or a message will be displayed in a box in the middle of the screen and the message, PRESS F1 TO CONTINUE, CTRL-ALT-ESC or DEL TO ENTER SETUP, will be shown in the information box at the bottom. Enter Setup to correct the error.
Error Messages
One or more of the following messages may be displayed if the BIOS detects an error during the POST. This list indicates the error messages for all Awards BIOSes:
CMOS BATTERY HAS FAILED
The CMOS battery is no longer functional. It should be replaced.
Hard Disk(s) fail (20)
HDD initialization error.
Hard Disk(s) fail (10)
Unable to recalibrate fixed disk.
Hard Disk(s) fail (08)
Sector Verify failed.
Keyboard is locked out - Unlock the key
The BIOS detects that the keyboard is locked. Keyboard controller is pulled low.
Important:
Danger of explosion if battery incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries accord­ing to the battery manufacturer’s instructions.
CMOS CHECKSUM ERROR
Checksum of CMOS is incorrect. This can indicate that CMOS has become corrupt. This error may have been caused by a weak battery. Check the battery and replace if necessary.
DISPLAY SWITCH IS SET INCORRECTLY
The display switch on the motherboard can be set to either monochrome or color. This indi­cates the switch is set to a different setting than indicated in Setup. Determine which setting is correct, either turn off the system and change the jumper or enter Setup and change the VIDEO selection.
FLOPPY DISK(S) fail (80)
Unable to reset floppy subsystem.
FLOPPY DISK(S) fail (40)
Floppy type mismatch.
Hard Disk(s) fail (80)
HDD reset failed.
Keyboard error or no keyboard present
Cannot initialize the keyboard. Make sure the keyboard is attached correctly and no keys are being pressed during the boot.
Manufacturing POST loop
System will repeat POST procedure infinitely while the keyboard controller is pull low. This is also used for the M/B burn in test at the factory.
BIOS ROM checksum error - System halted
The checksum of ROM address F0000H-FFFFFH is bad.
Memory test fail
The BIOS reports memory test fail if the memory has error(s).
Hard Disk(s) fail (40)
HDD controller diagnostics failed.
Appendix B System Error Message
88
www.dfi .com
Page 89
Appendix C - Troubleshooting Checklist
Appendix C
The picture seems to be constantly moving.
Troubleshooting Checklist
This chapter of the manual is designed to help you with problems that you may encounter with your personal computer. To efficiently troubleshoot your system, treat each problem indi­vidually. This is to ensure an accurate diagnosis of the problem in case a problem has multiple causes.
Some of the most common things to check when you encounter problems while using your system are listed below.
1. The power switch of each peripheral device is turned on.
2. All cables and power cords are tightly connected.
3. The electrical outlet to which your peripheral devices are connected is working. Test the outlet by plugging in a lamp or other electrical device.
4. The monitor is turned on.
5. The display’s brightness and contrast controls are adjusted properly.
6. All add-in boards in the expansion slots are seated securely.
7. Any add-in board you have installed is designed for your system and is set up correctly.
Monitor/Display
If the display screen remains dark after the system is turned on:
1. Make sure that the monitor’s power switch is on.
2. Check that one end of the monitor’s power cord is properly attached to the monitor and the other end is plugged into a working AC outlet. If necessary, try another outlet.
3. Check that the video input cable is properly attached to the monitor and the system’s display adapter.
4. Adjust the brightness of the display by turning the monitor’s brightness control knob.
1. The monitor has lost its vertical sync. Adjust the monitor’s vertical sync.
2. Move away any objects, such as another monitor or fan, that may be creating a magnetic field around the display.
3. Make sure your video card’s output frequencies are supported by this monitor.
The screen seems to be constantly wavering.
1. If the monitor is close to another monitor, the adjacent monitor may need to be turned off. Fluorescent lights adjacent to the monitor may also cause screen wavering.
Power Supply
When the computer is turned on, nothing happens.
1. Check that one end of the AC power cord is plugged into a live outlet and the other end properly plugged into the back of the system.
2. Make sure that the voltage selection switch on the back panel is set for the correct type of voltage you are using.
3. The power cord may have a “short” or “open”. Inspect the cord and install a new one if necessary.
Floppy Drive
The computer cannot access the floppy drive.
1. The floppy diskette may not be formatted. Format the diskette and try again.
2. The diskette may be write-protected. Use a diskette that is not write-protected.
3. You may be writing to the wrong drive. Check the path statement to make sure you are writing to the targeted drive.
4. There is not enough space left on the diskette. Use another diskette with adequate storage space.
Appendix C Troubleshooting Checklist
89
www.dfi .com
Page 90
Appendix C
Hard Drive
Hard disk failure.
1. Make sure the correct drive type for the hard disk drive has been entered in the BIOS.
2. If the system is configured with two hard drives, make sure the bootable (first) hard drive is configured as Master and the second hard drive is configured as Slave. The master hard drive must have an active/bootable partition.
Excessively long formatting period.
If your hard drive takes an excessively long period of time to format, it is likely a cable con­nection problem. However, if your hard drive has a large capacity, it will take a longer time to format.
Serial Port
The serial device (modem, printer) doesn’t output anything or is outputting garbled
characters.
1. Make sure that the serial device’s power is turned on and that the device is on-line.
2. Verify that the device is plugged into the correct serial port on the rear of the computer.
3. Verify that the attached serial device works by attaching it to a serial port that is working and configured correctly. If the serial device does not work, either the cable or the serial device has a problem. If the serial device works, the problem may be due to the onboard I/O or the address setting.
4. Make sure the COM settings and I/O address are configured correctly.
System Board
1. Make sure the add-in card is seated securely in the expansion slot. If the add-in card is loose, power off the system, re-install the card and power up the system.
2. Check the jumper settings to ensure that the jumpers are properly set.
3. Verify that all memory modules are seated securely into the memory sockets.
4. Make sure the memory modules are in the correct locations.
5. If the board fails to function, place the board on a flat surface and seat all socketed com­ponents. Gently press each component into the socket.
6. If you made changes to the BIOS settings, re-enter setup and load the BIOS defaults.
Keyboard
Nothing happens when a key on the keyboard was pressed.
1. Make sure the keyboard is properly connected.
2. Make sure there are no objects resting on the keyboard and that no keys are pressed dur­ing the booting process.
Appendix C Troubleshooting Checklist
90
www.dfi .com
Loading...
