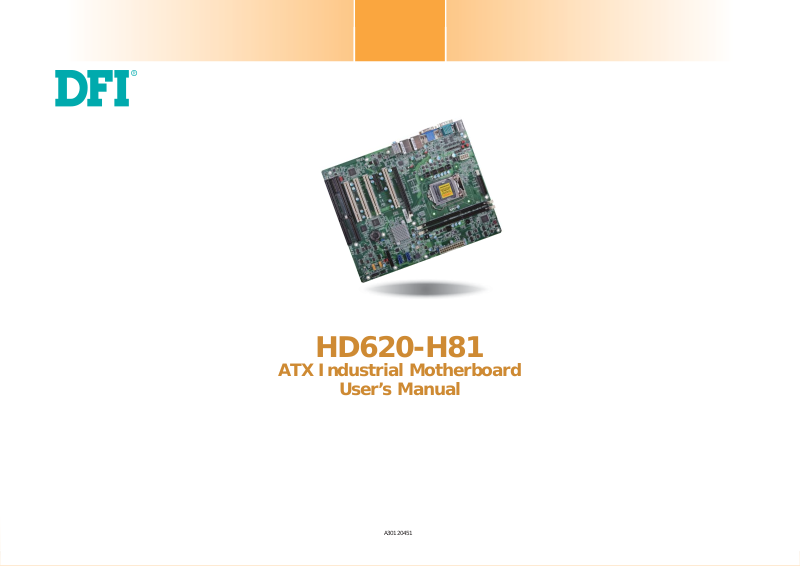

DFI HD620-H81 User Manual
HD620-H81
ATX Industrial Motherboard
User’s Manual
A30120451
1
Copyright
FCC and DOC Statement on Class B
This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2014. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.
2
Table of Contents
Copyright .............................................................................................................2
Trademarks ........................................................................................................2
FCC and DOC Statement on Class B ..................................................... 2
About this Manual ..........................................................................................4
Warranty ..............................................................................................................4
Static Electricity Precautions ......................................................................4
Safety Measures ..............................................................................................4
About the Package .........................................................................................5
Chapter 1 - Introduction ............................................................................. 6
Specifications ................................................................................................6
Features ..........................................................................................................7
Chapter 2 - Hardware Installation ................................................9
Board Layout ................................................................................................. 9
System Memory ............................................................................................ 9
Installing the DIMM Module ........................................................................ 10
CPU ................................................................................................................ 11
Installing the CPU ....................................................................................... 12
Installing the Fan and Heat Sink.................................................................. 14
Jumper Settings ......................................................................................... 15
Clear CMOS Data ........................................................................................ 15
PS/2 Keyboard/Mouse Power Select ............................................................. 15
USB Power Select ....................................................................................... 16
Power-on Select.......................................................................................... 16
COM 1/COM 2 RS232/422/485 Select .......................................................... 17
COM 1/COM 2 RS232/Power Select ............................................................. 18
SATA DOM Power Select ............................................................................. 18
Digital I/O Power Select .............................................................................. 19
Digital I/O Output State .............................................................................. 19
Rear Panel I/O Ports .................................................................................20
PS/2 Keyboad/Mouse Port ........................................................................... 20
COM (Serial) Ports ...................................................................................... 21
Graphics Interfaces ..................................................................................... 22
RJ45 LAN Ports ........................................................................................... 22
USB Ports ................................................................................................... 23
Audio ......................................................................................................... 24
I/O Connectors ........................................................................................... 24
SATA (Serial ATA) Connectors ...................................................................... 24
Digital I/O Connector .................................................................................. 25
Cooling Fan Connectors...............................................................................26
Power Connectors ....................................................................................... 26
Chassis Intrusion Connector ........................................................................ 27
Front Panel Connector ................................................................................ 27
Standby Power LED ....................................................................................28
Expansion Slots .......................................................................................... 28
S/PDIF Connector ....................................................................................... 29
Parallel Port ................................................................................................ 29
LPC Debug Port .......................................................................................... 30
SMBus Connector ....................................................................................... 30
LAN LED Connector .................................................................................... 31
Battery ....................................................................................................... 31
Chapter 3 - BIOS Setup ............................................................... 32
Overview ..................................................................................................... 32
AMI BIOS Setup Utility ............................................................................. 33
Main .......................................................................................................... 33
Advanced ................................................................................................... 33
Chipset ...................................................................................................... 46
Boot........................................................................................................... 53
Security ...................................................................................................... 54
Save & Exit ................................................................................................54
Updating the BIOS .................................................................................... 55
Notice: BIOS SPI ROM ............................................................................. 55
Chapter 4 - Supported Software .......................................................... 56
Chapter 5 - Digital I/O Programming Guide .................................... 75
Appendix A - Troubleshooting ................................................................ 77
nLite ............................................................................................................... 77
AHCI .............................................................................................................. 81
Appendix B - Watchdog Sample Code ................................................ 83
Appendix C - System Error Message ................................................... 84
Appendix D - Troubleshooting ................................................................ 85
3
About this Manual
Static Electricity Precautions
An electronic file of this manual is included in the CD. To view the user’s manual in the CD,
insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear.
Click “User’s Manual” on the main menu.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the
product that has been modified or altered.
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or connectors by their ends.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by
wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system
chassis throughout any procedures requiring ESD protection.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power
cord.
4
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• One HD620 motherboard
• One Serial ATA data cable
• One I/O shield
• One DVD
• One QR (Quick Reference)
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Optional Items
• USB port cable
• Serial ATA data cable
• COM port cable
• I/O shield
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System Board
Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will need at least the following
internal components.
• A CPU
• Memory module
• Storage devices such as hard disk drive, CD-ROM, etc.
You will also need external system peripherals you intend to use which will normally include at
least a keyboard, a mouse and a video display monitor.
5
Chapter 1 - Introduction
Specifications
Processor
Chipset
Super I/O
Address
System Memory
Expansion Slots
Graphics
Audio
LAN
Serial ATA
• LGA 1150 socket for:
- 4th Generation Intel
®
CoreTM i7-4790S (8M Cache, up to 4.0 GHz); 65W
: Intel
®
CoreTM i7-4770S (8M Cache, up to 3.9 GHz); 65W
: Intel
®
CoreTM i7-4770TE (8M Cache, up to 3.3 GHz); 45W
: Intel
®
CoreTM i5-4590S (6M Cache, up to 3.7 GHz); 65W
: Intel
®
CoreTM i5-4590T (6M Cache, up to 3.0 GHz); 35W
: Intel
®
CoreTM i5-4570S (6M Cache, up to 3.6 GHz); 65W
: Intel
®
CoreTM i5-4570TE (4M Cache, up to 3.3 GHz); 35W
: Intel
®
CoreTM i3-4360 (4M Cache, 3.7 GHz); 54W
: Intel
®
CoreTM i3-4350T (4M Cache, 3.1 GHz); 35W
: Intel
®
CoreTM i3-4340TE (4M Cache, 2.6 GHz); 35W
: Intel
®
CoreTM i3-4330 (4M Cache, 3.5 GHz); 54W
: Intel
®
CoreTM i3-4330TE (4M Cache, 2.4 GHz); 35W
: Intel
®
Pentium® G3420 (3M Cache, 3.2 GHz); 53W
: Intel
®
Pentium® G3320TE (3M Cache, 2.3 GHz); 35W
: Intel
®
Celeron® G1820 (2M Cache, 2.7 GHz); 53W
: Intel
®
Celeron® G1820TE (2M Cache, 2.2 GHz); 35W
: Intel
• 22nm process technology
®
CoreTM processors
• Intel® H81 Express Chipset
• NCT6102/4Eh (HD620-H81B/D)
• NCT6106/4Eh (HD620-H81X)
• Two 240-pin DDR3 DIMM sockets
• Supports DDR3 1333/1600MHz
• Supports dual channel memory interface
• Supports up to 16GB system memory
• DRAM device technologies: 1Gb, 2Gb and 4Gb DDR3 DRAM technologies are
supported for x8 and x16 devices, unbuffered, non-ECC
• 1 PCIe x16 Gen 3 slot (PCIe 3.0)
• 1 PCIe x4 Gen 2 slot (PCIe 2.0)
- x1 signal
• 4 PCI slots (PCI 2.3)
- 1 shared with ISA slot
• 2 ISA slots
• Intel® HD Graphics
• Display ports: VGA and DVI-D
• VGA and DVI-D support up to
• Supports 6 Graphics Execution Units (EUs)
®
• Intel
Clear Video Technology
• DirectX Video Acceleration (DXVA) support for accelerating video processing
• Realtek ALC886 5.1-channel High Defi nition Audio
• Audio outputs: Mic-in/Center+Subwoofer, Line-in/Surround and Line-out
• S/PDIF audio interface
• Intel® 82574 PCI Express Gigabit Ethernet controller
®
I217LM Gigabit Ethernet Phy (HD620-H81X/D)
• Intel
• Integrated 10/100/1000 transceiver
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• 2 SATA 3.0 ports with data transfer rate up to 6Gb/s
- SATA port 1 provides adequate space for SATA DOM
• 2 SATA 2.0 ports with data transfer rate up to 3Gb/s
• Integrated Advanced Host Controller Interface (AHCI) controller
1920x1200 @60Hz resolution
Chapter 1
Rear Panel I/O
Ports
I/O Connectors
BIOS
WatchDog Timer
Trusted Platform
Module - TPM*
(optional)
Energy Effi cient
Design
Damage Free
Intelligence
Power
Consumption
Temperature
Humidity
• 1 mini-DIN-6 port for PS/2 mouse/keyboard
• 2 DB-9 serial ports
- Supports RS232/422/485 (RS232 and/or Power)
• 1 VGA port
• 1 DVI-D port
• 2 RJ45 LAN ports
• 2 USB 3.0 ports
• 4 USB 2.0 ports
• Line-in/Surround, Line-out, Mic-in/Center+Subwoofer jacks
• 2 connectors for 4 external USB 2.0/1.1 ports
• 8 connectors for 8 external RS232 serial ports
(2.0mm pitch, HD620-H81X only)
• 1 vertical USB 2.0/1.1 port* (optional)
• 1 8-bit Digital I/O connector
• 1 front audio connector for line-out and mic-in jacks
• 1 LAN LED connector
• 1 S/PDIF connector
• 1 parallel port
• 4 Serial ATA ports
• 1 24-pin ATX power connector
• 1 8-pin 12V power connector
• 1 chassis intrusion connector
• 1 front panel connector
• 2 fan connectors
• AMI BIOS
- 64Mbit SPI BIOS
• Software programmable from 1 to 255 seconds
• Provides a Trusted PC for secure transactions
• Provides software license protection, enforcement and password protection
• Supports ErP Lot6 power saving* (optional)
• Supports ACPI
• System Power Management
• Wake-On-Events include:
- Wake-On-PS/2 KB/Mouse
- Wake-On-USB KB/Mouse
- Wake-On-LAN
- RTC timer to power-on the system
• CPU stopped clock control
• AC power failure recovery
• Monitors CPU/system temperature and overheat alarm
• Monitors VCORE/5V/3.3V/V_DIMM/12V/5VSB voltages and failure alarm
• Monitors CPU/system fan speed and failure alarm
• Read back capability that displays temperature, voltage and fan speed
• TBD
• Operating: 0oC to 60oC
• Storage: -20
o
C to 85oC
• 5% to 90%
6
Chapter 1 Introduction www.dfi .com
Chapter 1
OS Support
Dimensions
Note:
*Optional and is not supported in standard model. Please contact your sales representative for more information.
• Windows XP Professional x86 & SP3 (32-bit)
• Windows 7 Ultimate x86 & SP1 (32-bit)
• Windows 7 Ultimate x64 & SP1 (64-bit)
• Windows 8 Enterprise x86 (32-bit)
• Windows 8 Enterprise x64 (64-bit)
(based on Intel's Windows XP support list)
• ATX form factor
• 305mm (12") x 244mm (9.6")
Features
• Watchdog Timer
The Watchdog Timer function allows your application to regularly “clear” the system at the set
time interval. If the system hangs or fails to function, it will reset at the set time interval so
that your system will continue to operate.
• DDR3
DDR3 delivers increased system bandwidth and improved performance. It offers peak data
transfer rate of up to 16Gb/s bandwidth. The advantages of DDR3 are its higher bandwidth
and its increase in performance at a lower power than DDR2.
• Graphics
The integrated Intel® HD graphics engine delivers an excellent blend of graphics performance
and features to meet business needs. It provides excellent video and 3D graphics with outstanding graphics responsiveness. These enhancements deliver the performance and compatibility needed for today’s and tomorrow’s business applications. Supports VGA and DVI-D interfaces for display outputs.
• PCI Express
PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds
by forming multiple lanes. The x4 PCI Express lane supports transfer rate of 4 Gigabyte per
second (2 directions). The PCI Express architecture also supports high performance graphics
infrastructure by enhancing the capability of a PCIe x16 Gen 3 at 16GB/s bandwidth (8GB/s in
each direction).
• Serial ATA
Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of
up to 3Gb/s (SATA 2.0) and 6Gb/s (SATA 3.0), it improves hard drive performance faster than
the standard parallel ATA whose data transfer rate is 100MB/s. The bandwidth of the SATA 3.0
will be limited by carrier board design.
• Gigabit LAN
One Intel® 82574 PCI Express Gigabit Ethernet controller and one Intel® I217 Gigabit Ethernet
Phy support up to 1Gbps data transmission.
®
(HD620-H81B supports one Intel
82574 PCI Express Gigabit Ethernet controller only.)
• Audio
The Realtek ALC886 audio codec provides 5.1-channel High Definition audio output.
7
Chapter 1 Introduction www.dfi .com
Chapter 1
• Wake-On-LAN
This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It is
supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Management Event) signal. However, if your system is in the Suspend mode, you can power-on
the system only through an IRQ or DMA interrupt.
Important:
The 5V_standby power source of your power supply must support ≥720mA.
• Wake-On-USB
This function allows you to use a USB keyboard or USB mouse to wake up a system from the
S3 (STR - Suspend To RAM) state.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the
5V_standby power source of your power supply must support ≥1.5A. For 3 or more
USB ports, the 5V_standby power source of your power supply must support ≥2A.
• RTC Timer
The RTC installed on the system board allows your system to automatically power-on on the
set date and time.
• Wake-On-PS/2
This function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system.
Important:
The 5V_standby power source of your power supply must support ≥720mA.
• Power Failure Recovery
When power returns after an AC power failure, you may choose to either power-on the system
manually or let the system power-on automatically.
• USB
The system board supports the new USB 3.0. It is capable of running at a maximum transmission speed of up to 5 Gbit/s (625 MB/s) and is faster than USB 2.0 (480 Mbit/s, or 60 MB/s)
and USB 1.1 (12Mb/s). USB 3.0 reduces the time required for data transmission, reduces
power consumption, and is backward compatible with USB 2.0. It is a marked improvement
in device transfer speeds between your computer and a wide range of simultaneously
accessible external Plug and Play peripherals.
• ACPI STR
The system board is designed to meet the ACPI (Advanced Configuration and Power Interface)
specification. ACPI has energy saving features that enables PCs to implement Power Management and Plug-and-Play with operating systems that support OS Direct Power Management.
ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM
.
function
With the Suspend to RAM function enabled, you can power-off the system at once by pressing
the power button or selecting “Standby” when you shut down Windows
through the sometimes tiresome process of closing files, applications and operating system.
This is because the system is capable of storing all programs and data files during the entire
operating session into RAM (Random Access Memory) when it powers-off. The operating session will resume exactly where you left off the next time you power-on the system.
Important:
The 5V_standby power source of your power supply must support ≥720mA.
Chapter 1 Introduction www.dfi .com
®
without having to go
8
Chapter 2 - Hardware Installation
Board Layout
PS/2 KB/MS Power Select
USB 8-9 Power Select
COM1 RS232/422/485 Select
COM2 RS232/422/485 Select
COM1 RS232/Power Select
COM2 RS232/Power Select
• HD620-H81B: LAN1 only.
• HD620-H81X: 10 COM (COM1 to COM10).
• HD620-H81B/D: 2 COM (COM1 and COM2).
(JP1)
(JP4)
(JP2)
(JP17)
(JP18)
(JP16)
(JP19)
(JP20)
(JP15)
PS/2 KB/MS
USB 8-9
USB 2.0
(JP14)
DIO 11/13/15/17
Output State (JP7)
DIO 3/5/7/9
Output State (JP12)
DIO Power Select
(JP13)
COM2
COM1
VGA
DVI-D
LAN 1
USB 0-1
USB 3.0
LAN 2
USB 4-5
USB 2.0
Line-in
Line-out
Mic-in
Realtek
ALC886
1
2
1
Front Audio
ISA 1
ISA 2
PCIe x16
S/PDIF
10
9
PCIe x4 (x1 signal)
ITE
IT8892E
(JP7)
(JP13)
1 1 1
19
(JP4)
1
1
(JP1)
6
(JP18)
2
6
(JP17)
2
6
(JP19)
2
6
(JP20)
2
ASMedia
ASM1442
USB 0-1 Power
Select (JP5)
1
Intel
WGI217LM
Intel
WG82574L
PCI 1
PCI 2
PCI 3
PCI 4
(JP12)
(JP14)
256
1
15
(JP15)
256
1
(JP2)
5
5
6
1
1
2
5
5
6
48
1
1
2
(JP16)
5
1
5
1
1
USB 4-5 Power
Select (JP6)
1
Digital I/O
2
+12V
Power
CPU Fan
ISL95820
Socket LGA1150
3
Chapter 2
Important:
Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in
boards, and other components. Perform installation procedures at an ESD workstation
only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If
a wrist strap is unavailable, establish and maintain contact with the system chassis
2
1
1
ITE
IT8893E
2
Parallel
iTE
IT8888G
26
25
DDR3_1
DDR3_2
Note:
SATA1 supports SATA DOM.
Intel
H81
Clear CMOS
Data (JP9)
1
SATA DOM Power
Battery
Select (JP11)
9
COM7
2112
LPC Debug
102
1 9
COM9 COM10
SMBus
6
2
11
9
Nuvoton
NCT6106D
Chassis
intrusion
1
Buzzer
Select (JP10)
SATA 5
5
1
9
1
210
COM8
Nuvoton
NCT5104D
1
System Fan
Power-on
SPI Flash
SATA 2.0
1
1
1
USB 2-3
1
210
10
10
USB 10-11
102
USB 2.0
1
COM6
COM5
102
9
1
1
TPM
(optional)
102
9
1
1
COM4
COM3
12 24
ATX
Power
1
1
Standby
Power LED
BIOS
SATA 3.0
1
SATA 0
1
SATA 1
SATA 4
1
USB 2-3/6-7 Power
Select (JP8)
87
129
21
12
129
11 12
102
9
102
9
13
LAN2 State
LAN2 State
LAN1 State
LAN1 State
Front
Panel
System Memory
Features
• Two 240-pin DDR3 DIMM sockets
• Supports DDR3 1333/1600MHz
throughout any procedures requiring ESD protection.
Important:
When the Standby Power LED lights red, it indicates that there is power on the
system board. Power-off the PC then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.
Rear I/O
Onboard I/O
Storage
Expansion
2
3
• Supports dual channel memory interface
• Supports up to 16GB system memory
9
DDR3_1
DDR3_2
Standby
Power LED
Chapter 2 Hardware Installation
www.dfi .com
Chapter 2
The system board supports the following memory interface.
Single Channel (SC)
Data will be accessed in chunks of 64 bits (8B) from the memory channels.
Dual Channel (DC)
Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides
better system performance because it doubles the data transfer rate.
DIMMs are on the same channel.
Single Channel
Dual Channel
DIMMs in a channel can be identical or
completely different. However, we highly
recommend using identical DIMMs.
Not all slots need to be populated.
DIMMs of the same memory configuration
are on different channels.
Installing the DIMM Module
Note:
The system board used in the following illustrations may not resemble the actual
board. These illustrations are for reference only.
1. Make sure the PC and all other peripheral devices connected to it has been powered down.
2. Disconnect all power cords and cables.
3. Locate the DIMM socket on the system board.
4. Push the “ejector tabs” which are at the ends of the socket to the side.
Ejector tab
5. Note how the module is keyed to the socket.
Notch
Key
Ejector tab
Chapter 2 Hardware Installation
10
www.dfi .com
Chapter 2
6. Grasping the module by its edges, position the module above the socket with the “notch”
in the module aligned with the “key” on the socket. The keying mechanism ensures the
module can be plugged into the socket in only one way.
7. Seat the module vertically, pressing it down firmly until it is completely seated in the
8. The ejector tabs at the ends of the socket will automatically snap into the locked position
socket.
to hold the module in place.
CPU
The system board is equipped with a surface mount LGA 1150 socket. This socket is exclusively designed for installing a LGA 1150 packaged Intel CPU.
Important:
1. Before you proceed, make sure (1) the LGA 1150 socket comes with a protective
cap, (2) the cap is not damaged and (3) the socket’s contact pins are not bent. If
the cap is missing or the cap and/or contact pins are damaged, contact your dealer
immediately.
2. Make sure to keep the protective cap. RMA requests will be accepted and processed only if the LGA 1150 socket comes with the protective cap.
Protective
cap
Chapter 2 Hardware Installation
Note:
The system board used in the following illustrations may not resemble the actual
board. These illustrations are for reference only.
11
www.dfi .com
Chapter 2
Installing the CPU
1. Make sure the PC and all other peripheral devices connected to it has been powered down.
2. Disconnect all power cords and cables.
3. Locate the LGA 1150 CPU
socket on the system
board.
2
3
Important:
The CPU socket must not come in contact with anything other than the CPU. Avoid
unnecessary exposure. Remove the protective cap only when you are about to install
the CPU.
4. Unlock the socket by pushing the load lever down,
moving it sideways until it
is released from the retention tab; then lift the load
lever up.
Load lever
5. Lifting the load lever will at
the same time lift the load
plate.
Lift the load lever up to
the angle shown on the
photo.
6. Remove the protective cap
from the CPU socket. The
cap is used to protect the
CPU socket against dust
and harmful particles.
Remove the protective cap
only when you are about
to install the CPU.
Load
plate
Load lever
Protective cap
Chapter 2 Hardware Installation
Retention tab
12
www.dfi .com
Chapter 2
7. Insert the CPU into the
socket. The gold triangular
mark on the CPU must
align with the corner of
the CPU socket shown on
the photo.
The CPU’s notch will at
the same time fit into the
socket’s alignment key.
Important:
The CPU will fit in only one orientation and can easily be inserted without exerting
any force.
Alignment key
Alignment key
Gold triangular mark
8. Close the load plate then
push the load lever down.
While closing the load
plate, make sure the front
edge of the load plate
slides under the retention
knob.
9. Hook the load lever under
the retention tab.
Retention knob
Load lever
Retention tab
Chapter 2 Hardware Installation
13
www.dfi .com
Chapter 2
Installing the Fan and Heat Sink
The CPU must be kept cool by using a CPU fan with heat sink. Without sufficient air circulation across the CPU and heat sink, the CPU will overheat damaging both the CPU and system
board.
Note:
A boxed Intel
CPU was purchased separately, make sure to only use Intel
sink.
1. Before you install the fan / heat sink, you must apply a thermal paste onto the top of the
CPU. The thermal paste is usually supplied when you purchase the fan / heat sink assembly. Do not spread the paste all over the surface. When you later place the heat sink on
top of the CPU, the compound will disperse evenly.
Some heat sinks come with a patch of pre-applied thermal paste. Do not apply thermal
paste if the fan / heat sink already has a patch of thermal paste on its underside. Peel the
strip that covers the paste before you place the fan / heat sink on top of the CPU.
2. Place the heat sink on top
of the CPU. The 4 pushpins around the heat sink,
which are used to secure
the heat sink onto the system board, must match the
4 mounting holes around
the socket.
®
processor already includes the CPU fan and heat sink assembly. If your
®
-certified fan and heat
Mounting hole
4. Rotate each push-pin according to the direction of
the arrow shown on top of
the pin.
Push down two pushpins
that are diagonally across
the heat sink. Perform the
same procedure for the
other two push-pins.
5. Connect the CPU fan’s
cable to the CPU fan
connector on the system
board.
Heat sink
“Locked” position of
push-pin
“Unlocked” position
of push-pin
CPU Fan connector
3. Orient the heat sink such
that the CPU fan’s cable is
nearest the CPU fan connector.
Chapter 2 Hardware Installation
2
3
2
3
CPU Fan connector
2
3
14
www.dfi .com
Chapter 2
Jumper Settings
Clear CMOS Data
1-2 On: Normal
(default)
JP9
2-3 On:
Clear CMOS Data
2
3
If you encounter the followings,
a) CMOS data becomes corrupted.
b) You forgot the supervisor or user password.
you can reconfigure the system with the default values stored in the ROM BIOS.
To load the default values stored in the ROM BIOS, please follow the steps below.
PS/2 Keyboard/Mouse Power Select
JP1
3
2
1
3
2
1
2
3
JP1 is used to select the power of the PS/2 keyboard/mouse port. Selecting +5V_standby
will allow you to use the PS/2 keyboard or the PS/2 mouse to wake up the system.
Important:
The +5V_standby power source of your power supply must support ≥720mA.
312
1-2 On: +5V
(default)
312
2-3 On:
+5V_standby
1. Power-off the system and unplug the power cord.
2. Set JP9 pins 2 and 3 to On. Wait for a few seconds and set JP9 back to its default setting,
pins 1 and 2 On.
3. Now plug the power cord and power-on the system.
Chapter 2 Hardware Installation
15
www.dfi .com
Chapter 2
USB Power Select
USB 8-9
(JP4)
312
1-2 On: +5V
(default)
2
3
312
2-3 On:
+5V_standby
USB 0-1
(JP5)
USB 4-5
(JP6)
USB 2-3/6-7
(JP8)
3
2
1
1-2 On: +5V
(default)
3
2
1
2-3 On:
+5V_standby
312
1-2 On: +5V
(default)
312
2-3 On:
+5V_standby
Power-on Select
2
3
To power-on via WOL after G3:
1. Set JP10 pins 2 and 3 to On.
2. Set the “After G3” field to Power Off/WOL.
JP10
132
1-2 On:
Power-on via Power Button
(default)
132
2-3 On:
Power-on via AC power;
Power-on via WOL after G3
JP4, JP5, JP6 and JP8 are used to select the power of the USB devices. Selecting +5V_standby
will allow you to use a USB device to wake up the system.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the
+5V_standby power source of your power supply must support ≥1.5A. For 3 or more
USB ports, the +5V_standby power source of your power supply must support ≥2A.
Chapter 2 Hardware Installation
3. Set the “GbE Wake Up From S5” to Enabled.
To power-on via AC Power:
1. Set JP10 pins 2 and 3 to On.
2. Set the “After G3” field to Power On.
16
www.dfi .com
Chapter 2
COM 1/COM 2 RS232/422/485 Select
JP18JP17
COM 2
COM 1
COM 1/ COM 2:
RS232/422/485
JP16JP2
2
3
JP19
JP20
JP2 (for COM 1)/ JP16 (for COM 2)
5
4
3
2
1
5
6
1-2 On: RS232
(default)
6
4
3
2
1
3-4 On: RS422
Full Duplex
COM 1/ COM 2
TD
RD
DTR-
GND
DCD2345
1
6789
DSR-
RS232
RTS-
RI-
CTS-
TXD+
RXD-
RXD+
TXD-
12345
6789
N.C.
N.C.
N.C.
RS422
Full Duplex
N.C.
N.C.
JP17 and JP18 (for COM 1)/ JP19 and JP20 (for COM 2)
6
5
4
3
2
1
1-3, 2-4 On:
RS232 (default)
6
4
2
3-5, 4-6 On:
RS422 Full Duplex/RS485
5
6
4
3
2
1
5-6 On: RS485
N.C.
N.C.
DATA-
DATA+
12345
6789
N.C.
N.C.
N.C.
N.C.
RS485
5
3
1
N.C.
These jumpers allow you to configure the Serial COM ports to RS232, RS422 (Full Duplex) or
RS485. JP2, JP17 and JP18 are used to configure the Serial COM port 1. JP16, JP19 and JP20
are used to configure the Serial COM port 2. The pin functions of Serial COM ports 1 and 2
will vary according to these jumpers’ setting.
Chapter 2 Hardware Installation
Note:
When COM 1 RS232/422/485 is selected, JP17 and JP18 must be set in accordance
to JP2. And when COM 2 RS232/422/485 is selected, JP19 and JP20 must be set in
accordante to JP16.
17
www.dfi .com
Chapter 2
COM 1/COM 2 RS232/Power Select
64 2
31
5
1-3 (RI), 2-4 (DCD) On:
RS232 (default)
JP14 JP15
COM 2
COM 1
3-5 (+5V), 4-6 (+12V) On:
RS232 with power
SATA DOM Power Select
64
2
5
31
312
SATA 1
JP11
2
3
1-2 On: GND
(default)
312
2-3 On: +5V
2
3
JP14 (for COM 1) and JP15 (for COM 2) are used to configure Serial COM ports to pure RS232
or RS232 with power.
Chapter 2 Hardware Installation
JP11 is used to select the power of SATA DOM.
Note:
SATA port 1 provides adequate space for SATA DOM.
18
www.dfi .com
Chapter 2
Digital I/O Power Select
3
2
1
1-2 On: +5V_standby
(default)
3
2
1
2-3 On: +5V
JP13
Digital I/O Output State
2
3
DIO 11/13/15/17 (JP7)
DIO 3/5/7/9 (JP12)
2
3
JP13 is used to select the power of DIO (Digital I/O) signal.
Chapter 2 Hardware Installation
3
2
1
1-2 On: +5V or
+5V_standby
(default)
3
2
1
2-3 On: GND
Based on the power level of DIO (Digital I/O) selected on JP13, JP12 (DIO pin 3/5/7/9) and
JP7 (DIO pin 11/13/15/17) are used to select the state of DIO output: pull high or pull low.
When selecting pull high, the power selection will be the same as JP13’s setting.
19
www.dfi .com
Chapter 2
Rear Panel I/O Ports
COM 2
PS/2 KB/MS
USB 2.0
COM 1
The rear panel I/O ports consist of the following:
• 1 PS/2 Keyboard/Mouse port
• 2 Serial COM ports
• 1 VGA port
• 1 DVI-D port
• 2 RJ45 LAN ports
(HD620-H81B has LAN 1 only.)
• 2 USB 3.0 ports
• 4 USB 2.0 ports
• Line-in/Surround jack
• Line-out jack
• Mic-in/Center+Subwoofer jack
VGA
DVI-D
LAN 1
USB 3.0
LAN 2
USB 2.0
Line-in/Surround
Line-out
Mic-in/
Center+Subwoofer
PS/2 Keyboard/Mouse Port
PS/2 Keyboard/Mouse
2
3
This rear I/O port is used to connect a PS/2 keyboard/mouse. The PS/2 mouse port uses
IRQ12.
Chapter 2 Hardware Installation
Wake-On-PS/2 Keyboard/Mouse
The Wake-On-PS/2 Keyboard/Mouse function allows you to use the PS/2 keyboard or PS/2
mouse to power-on the system. To use this function:
• Jumper Setting
JP1 must be set to “2-3 On: +5V_standby”. Refer to “PS/2 KB/MS Power Select” in this chapter
for more information
.
• BIOS Setting
Configure the wake-up function of PS/2 keyboard/mouse in the Advanced menu (“ACPI Power
Management Configuration” submenu) of the BIOS. Refer to the chapter 3 for more information.
Important:
The +5V_standby power source of your power supply must support ≥720mA.
20
www.dfi .com
Chapter 2
COM (Serial) Ports
COM 2
COM 1
COM 1/ COM 2:
RS232/422/485
DTR-
CTS-
RD
DSR-
Your COM port may come mounted on a card-edge bracket. Install the card-edge bracket to
an available slot at the rear of the system chassis then insert the serial port cable to the COM
Connecting External Serial Ports
2
1
TD
DCD-
GND
COM 3 to COM 6:
9
RTS-
RI-
RS232
connector. Make sure the colored stripe on the ribbon cable is aligned with pin 1 of the COM
connector.
BIOS Setting
Configure the serial COM ports in the Advanced menu (“Super IO Configuration” submenu) of
COM 6
the BIOS. Refer to the chapter 3 for more information.
COM 5
Note:
COM 3
COM 4
1. HD620-H81X: 10 COM (COM 1 to COM 10).
HD620-H81B/D: 2 COM (COM 1 and COM 2).
2. When COM 1 RS232/422/485 is selected, JP17 and JP18 must be set in accordance
to JP2.
3. When COM 2 RS232/422/485 is selected, JP19 and JP20 must be set in accordance
to JP16.
DCD-
TD
RI-
RTS-
CTS-
GND
DSR-
1
2
RD
DTR-
COM 7
9
COM 8
2
3
COM 7/COM 8: RS232
COM 10COM 9
DTR-
CTS-
DSR-
RD
2
1
TD
DCD-
GND
9
RTS-
RI-
COM 9/COM 10:
RS232
COM 3 to COM 10 are fixed at RS232.
The pin functions of COM 1 and COM 2 will vary according to jumpers’ setting. JP2, JP17 and
JP18 are used to configure the Serial COM port 1. JP16, JP19 and JP20 are used to configure
the Serial COM port 2. JP14 (for COM 1) and JP15 (for COM 2) are used to configure Serial COM ports to pure RS232 or RS232 with power. Refer to “COM 1/COM 2 RS232/422/485
Select” and “COM 1/COM 2 RS232/Power Select“ in this chapter for more information.
The serial ports are asynchronous communication ports with 16C550A-compatible UARTs that
can be used with modems, serial printers, remote display terminals, and other serial devices.
Chapter 2 Hardware Installation
21
www.dfi .com
Chapter 2
Graphics Interfaces
The display ports consist of the following:
• 1 VGA port
• 1 DVI-D port
VGA
DVI-D
2
3
VGA Port
The VGA port is used for connecting a VGA monitor. Connect the monitor’s 15-pin D-shell cable
connector to the VGA port. After you plug the monitor’s cable connector into the VGA port,
gently tighten the cable screws to hold the connector in place.
DVI-D Port
The DVI-D (Digital Visual Interface) port is used to connect a digital LCD monitor or LCD TV.
Connect the display device’s cable connector to the DVI-D port at location CN13. After you
plug the cable connector into the DVI-D port, gently tighten the cable screws to hold the connector in place.
RJ45 LAN Ports
LAN 1
Features
• Intel® 82574 PCI Express Gigabit Ethernet controller
• Intel
The LAN ports allow the system board to connect to a local area network by means of a
network hub.
BIOS Setting
Configure the onboard LAN ports in the Chipset menu (“PCH-IO Configuration” submenu) of
the BIOS. Refer to the chapter 3 for more information.
Driver Installation
Install the LAN drivers. Refer to the chapter 4 for more information.
LAN 2
LAN 1
LAN 2
®
I217 Gigabit Ethernet Phy (HD620-H81X/D)
2
3
BIOS Setting
Configure the display devices in the Chipset menu (“System Agent Configuration” submenu) of
the BIOS. Refer to the chapter 3 for more information.
Chapter 2 Hardware Installation
Note:
HD620-H81B supports Intel
®
82574 PCI Express Gigabit Ethernet controller (LAN 1)
only.
22
www.dfi .com
Chapter 2
USB Ports
USB 2.0
USB 3.0
USB 2.0
USB 9
USB 8
USB 1
USB 0
USB 5
USB 4
BIOS Setting
Configure these onboard USB devices in the Advanced menu (“USB Configuration” submenu) of
the BIOS. Refer to the chapter 3 for more information.
Driver Installation
You may need to install the proper drivers in your system operation to use the USB device. Refer to your operating system’s manual or documentation for more information.
Wake-On-USB Keyboard/Mouse
The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse
to wake up a system from the S3 (STR - Suspend To RAM) state. To use this function:
• Jumper Setting
JP4, JP5, JP6 and JP8 must be set to “2-3 On: +5V_standby”. Refer to “USB Power Select” in
this chapter for more information.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the
USB 2-3
9
10
USB 10-11
GND
Key
-Data
+Data
VCC
1
2
2
3
+5V_standby power source of your power supply must support ≥1.5A. For 3 or more
USB ports, the +5V_standby power source of your power supply must support ≥2A.
VCC
GND
N. C.
-Data
+Data
USB 2.0
The USB device allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.
The system board is equipped with two onboard USB 3.0 ports (USB 0-1) and four onboard
USB 2.0 ports (USB 4-5/8-9). The 10-pin connectors allow you to connect 4 additional USB
2.0/1.1 ports (USB 2-3/10-11). The additional USB ports may be mounted on a card-edge
bracket. Install the card-edge bracket to an available slot at the rear of the system chassis and
then insert the USB port cables to a connector.
Chapter 2 Hardware Installation
23
www.dfi .com
Chapter 2
Audio
Rear Audio
Line-in/Surround
Line-out
Mic-in/
Center+Subwoofer
Presence Signal
Line2-JD
Mic2-JD
GND
Key
2
1
Mic2-L
Mic2-R
Line2-R
Rear Audio
Front_IO_Sense
The system board is equipped with 3 audio jacks. A jack is a one-hole connecting interface for
inserting a plug.
• Line-in/Surround Jack (Light Blue)
This jack is used to connect any audio devices such as Hi-fi set, CD player, tape player,
AM/FM radio tuner, synthesizer, etc.
• Line-out Jack (Lime)
This jack is used to connect a headphone or external speakers.
• Mic-in/Center+Subwoofer Jack (Pink)
This jack is used to connect an external microphone.
Front Audio
10
9
Line2-L
Front
Audio
2
3
I/O Connectors
SATA (Serial ATA) Connectors
RXN
TXN
GND
1
TXP
GND
SATA 4
7
RXP
GND
SATA 3.0 6Gb/s
(SATA port 1 provides adequate
space for SATA DOM.)
SATA 0
SATA 1
2
3
SATA 5
SATA 2.0 3Gb/s
Features
• 4 Serial ATA ports
- 2 SATA 3.0 ports with data transfer rate up to 6Gb/s (SATA 0 and SATA 1)
- 2 SATA 2.0 ports with data transfer rate up to 3Gb/s (SATA 4 and SATA 5)
• Integrated Advanced Host Controller Interface (AHCI) controller
The Serial ATA connectors are used to connect Serial ATA devices. Connect one end of the Serial ATA data cable to a SATA connector and the other end to your Serial ATA device.
The front audio connector allows you to connect to the second line-out and mic-in jacks that
are at the front panel of your system.
Driver Installation
Install the audio driver. Refer to the chapter 4 for more information.
Chapter 2 Hardware Installation
24
www.dfi .com
Chapter 2
BIOS Setting
Configure the Serial ATA drives in the Advanced menu (“SATA Configuration” submenu) of the
BIOS. Refer to the chapter 3 for more information.
Note:
Some 3rd party SATA Gen 2 speed device controllers used on the system board paired
with the Intel
®
8 series chipset are intermittently detected. Before using SSD devices
or mSATA SSD devices, please check whether the device and the cable which are
used on the system board conform to Intel’s official regulations.
Digital I/O Connector
Digital I/O
19
1
2
The 8-bit Digital I/O connector provides powering-on function to external devices that are connected to these connectors.
Digital I/O Connector
2
3
Chapter 2 Hardware Installation
Pins Pin Assignment Pins Pin Assignment
GND
1
3
DIO7
DIO6
5
DIO5
7
DIO4
9
DIO3
11
DIO2
13
DIO1
15
DIO0
17
GND
19
25
+12V
2
+12V
4
GND
6
+5V
8
+5V
10
GND
12
+5V_Standby
14
+5V_Standby
16
GND
18
www.dfi .com
Chapter 2
Cooling Fan Connectors
CPU Fan
1
Ground
Power
Speed
Control
Sense
4
Power Connectors
+12V
Power
Ground
1
Sense
Power
Ground
3
System Fan
ATX
power
2
2
3
3
1
4
+3.3VDC
+12VDC
+12VDC
+5VSB
PWR_OK
COM
+5VDC
COM
+5VDC
COM
+3.3VDC
+3.3VDC
12 24
1
5
+12V
8
COM
+5VDC
+5VDC
+5VDC
NC
COM
COM
COM
PS_ON#
COM
-12VDC
+3.3VDC
13
These fan connectors are used to connect cooling fans. The cooling fans will provide adequate
airflow throughout the chassis to prevent overheating the CPU and system board components.
BIOS Setting
The Advanced menu (“PC Health Status” submenu) of the BIOS will display the current speed
of the cooling fans. Refer to chapter 3 for more information.
Chapter 2 Hardware Installation
Use a power supply that complies with the ATX12V Power Supply Design Guide Version 1.1.
An ATX12V power supply unit has a standard 24-pin ATX main power connector that must be
inserted into the 24-pin connector. The 8-pin +12V power connector enables the delivery of
more +12VDC current to the processor’s Voltage Regulator Module (VRM).
The power connectors from the power supply unit are designed to fit the 24-pin and 8-pin
connectors in only one orientation. Make sure to find the proper orientation before plugging
the connectors.
The system board requires a minimum of 300 Watt power supply to operate. Your system
configuration (CPU power, amount of memory, add-in cards, peripherals, etc.) may exceed the
minimum power requirement. To ensure that adequate power is provided, we strongly recommend that you use a minimum of 400 Watt (or greater) power supply.
Important:
Insufficient power supplied to the system may result in instability or the add-in boards
and peripherals not functioning properly. Calculating the system’s approximate power
usage is important to ensure that the power supply meets the system’s consumption
requirements.
26
www.dfi .com
Loading...
