Page 1

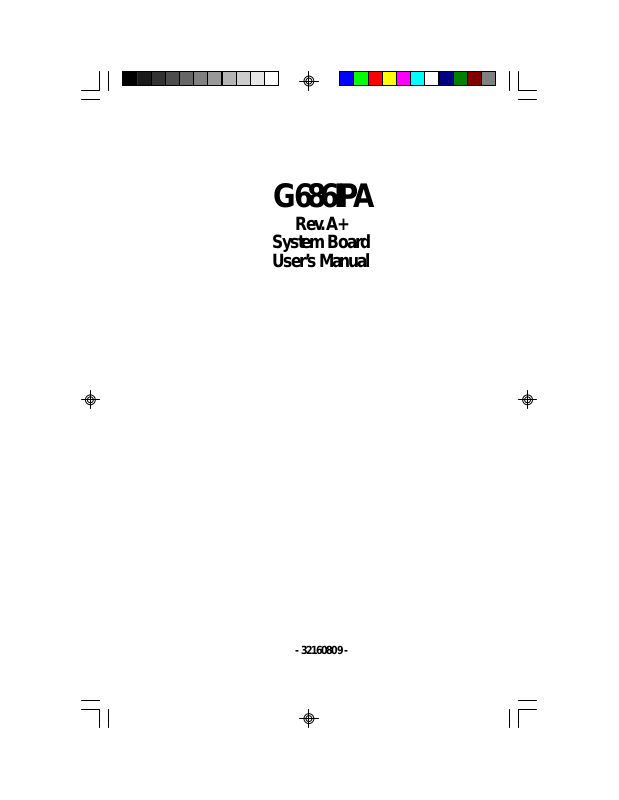

G686IPA
Rev. A+
System Board
User’s Manual
- 32160809 -
Page 2
FCC Statement on Class B
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the
emission limits.
The manufacturer makes no warranties with respect to this documentation and disclaims any implied warranties of merchantability, quality, or
fitness for any particular purpose. The information in this document is
subject to change without notice. The manufacturer reserves the right to
make revisions to this publication and to make changes to any and/or
all parts of its content, at any time, without obligation to notify any person or entity of such changes. Further, the manufacturer assumes no
responsibility for any errors that may appear in this document.
Page 3
Table of Contents
Chapter 1: Introduction............................................................ 5
Features and Specifications .................................................. 6
Package Checklist .............................................................. 7
Chapter 2: Hardware Installation ............................................... 8
Preparing the Area.............................................................. 8
Handling the System Board .................................................. 8
Installing the System Board .................................................. 9
Board Layout ....................................................................11
System Memory ................................................................12
Installing a SIM Module .................................................14
CPU Installation ................................................................14
Jumper Settings for CPUs ..............................................15
Installing Upgrade CPUs................................................16
Jumper Settings for PS/2 Mouse ...........................................19
Jumper Settings for Display Type...........................................19
Jumper Settings for CMOS Clear ..........................................20
Factory Testing Jumpers......................................................20
Built-in Ports.....................................................................21
Serial Ports.................................................................21
Parallel Port ................................................................21
Floppy Disk Drive Controller ...........................................21
IDE Hard Disk Interface .................................................22
Universal Serial Bus Connectors......................................24
Installing Expansion Cards...................................................25
Chapter 3: Software Installation ...............................................26
Award BIOS CMOS Setup Utility ...........................................26
Standard CMOS Setup..................................................27
BIOS Features Setup ....................................................31
Chipset Features Setup .................................................35
Power Management Setup .............................................37
PNP/PCI Configuration Setup..........................................39
Load BIOS Defaults ......................................................41
Load Setup Defaults .....................................................41
Integrated Peripherials...................................................42
Supervisor Password ....................................................45
User Password ............................................................45
Page 4
IDE HDD Auto Detection................................................46
HDD Low Level Format .................................................49
Save & Exit Setup ........................................................49
Exit Without Saving.......................................................50
System Error Report ..........................................................50
IDE Device Drivers.............................................................52
Chapter 4: Troubleshooting Checklist ............................................. 53
Appendix A: Types of Modules ......................................................54
Appendix B: Memory and I/O Maps................................................55
Appendix C: Connectors ..............................................................57
4
Page 5
Chapter 1
Introduction
The G686IPA design is based on the Intel 440FX (Natoma) chipset. It is
equipped with a 387-pin Zero Insertion Force (ZIF) CPU socket to support Intel® Pentium Pro™ CPUs running at 150MHz, 166MHz, 180MHz
and 200MHz. Pentium Pro™ CPUs have 256KB or 512KB L2 internal
cache providing optimum system performance.
The G686IPA supports 8MB to 512MB of system memory using EDO or
fast page mode DRAM. It is equipped with 4 SIMM sockets allowing
you to install x32 or x36 SIMM. The x36 SIMM supports parity checking
which informs the user of memory failure and prevents error accumulation.
The G686IPA system board is designed to fit into an ATX form factor
chassis. It is equipped with two NS16C550A-compatible serial ports, an
SPP/ECP/EPP parallel port, a floppy disk drive controller, and two PCI
IDE connectors with bus mastering capabilities that highly reduce CPU
use during disk transfer. This system board is also equipped with one
PS/2 mouse port, one PS/2 keyboard port, two USB connectors and
one IrDA connector for wireless connectivity between your computer
and peripheral devices.
5
Page 6
Features and Specifications
PROCESSOR
• Intel Pentium Pro 150/166/180/200MHz with 256KB or 512KB L2
internal cache
CHIPSET
• Intel 440FX (Natoma) PCIset
SYSTEM MEMORY
• 8MB to 512MB onboard memory
• Four 72-pin SIMM sockets
• Uses EDO or fast page mode x32 or x36 DRAM, 60ns or 70ns, 5V
• ECC and Parity Check supported (uses x36 DRAM)
BIOS
• Compatible with Windows 95 Plug and Play standard
• Flash EPROM for easy BIOS upgrades
• Includes NCR 810 SCSI BIOS
ENERGY EFFICIENT DESIGN
• System power management supported
• CPU stopped clock control
• Hardware supports SMI green mode
• Microsoft/Intel APM compliant
• External power management switch supported
PCI IDE INTERFACE
• PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up to
16.6MB/sec.)
• DMA Mode 2 Bus Master IDE (data transfer rate up to 22.2MB/sec.)
• Bus mastering reduces CPU utilization during disk transfer
• ATAPI IDE CD-ROM supported
INTEGRATED I/O
• Two NS16C550A-compatible high speed UARTs
• One SPP/ECP/EPP parallel port
• Supports 360KB, 720KB, 1.2MB, 1.44MB, and 2.88MB floppy drives
6
Page 7
CPU SOCKET
• 387-pin ZIF socket (Intel Socket 8)
• Supports switching power that auto-detects 2.1V-3.5V
CONNECTORS
• 2 USB connectors
• 1 IrDA TX/RX connector
• 2 DB-9P serial ports
• 1 DB-25S parallel port
• 2 IDE connectors
• 1 floppy connector
• 1 PS/2 mouse port
• 1 PS/2 keyboard port
• One 20-pin ATX power supply connector
• One 12-pin AT standard power supply connector
EXPANSION SLOTS
• 3 dedicated PCI slots
• 3 dedicated 16-bit ISA slots
• 1 shared PCI/ISA slot
PCB
• 4 layers, ATX form factor
• 30.48cm (12") x 22.52cm (8.87")
Package Checklist
The G686IPA package contains the following items:
• The G686IPA system board
• The G686IPA user’s manual
• One 40-pin IDE hard disk cable
• One 34-pin floppy disk drive cable
• One IDE driver diskette

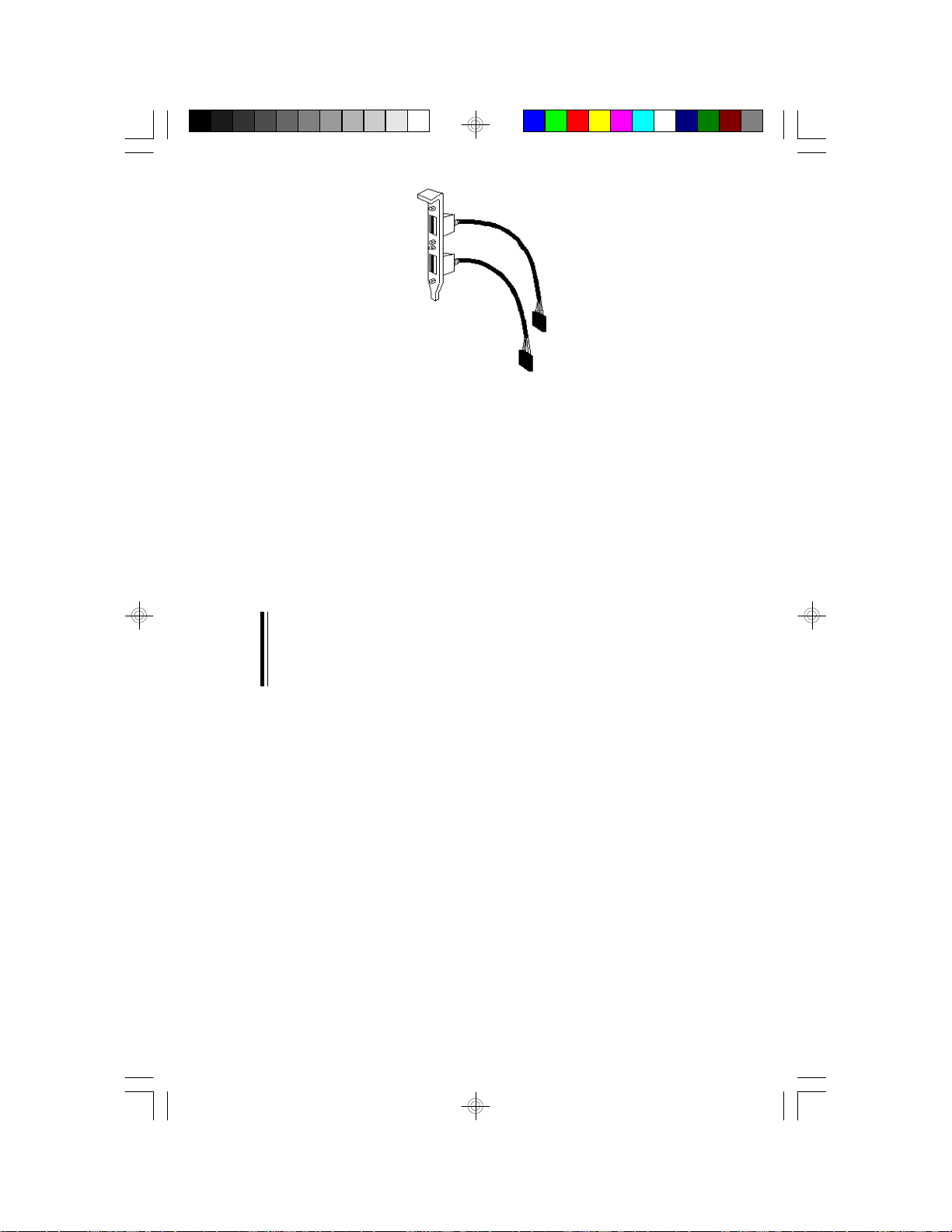

• One card-edge bracket with two USB ports (optional)
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.
7
Page 8
Chapter 2
Hardware Installation
This chapter summarizes the steps to install the G686IPA system board
into your system unit. It also includes a description of the area in which
you must work and directions for memory installation. Before installing
the system board, obtain the memory you plan to install. Please refer to
the information on pages 13 and 14 for the number and type of memory
modules needed for the amount of memory you require.
Preparing the Area
Before unpacking the system board, make sure the location you have
selected is relatively free of dust and static electricity. Excessive exposure to dust, static electricity, direct sunlight, excessive humidity, extreme cold, and water can damage the operational capabilities of your
system board. Avoid placing the unit on surfaces such as carpeted
floors. These areas also attract static electricity which can damage
some circuits on your system board.
Make sure the power source has a properly grounded, three-pronged
socket. It is essential that the power connection be properly grounded
for correct functioning of your system board. For further protection, we
recommend that you use a surge suppressor. This will protect the system board from damage that may result from a power surge on the
electrical line.
Move items that generate magnetic fields away from your system board
since magnetic fields can also damage your system board. Once you
have selected the ideal location, unpack the G686IPA system board
carefully.
Handling the System Board
It is quite easy to inadvertently damage your system board even before
installing it in your system unit. Static electrical discharge can damage
computer components without causing any signs of physical damage.
You must take extra care in handling the system board to ensure
against electrostatic build-up.
8
Page 9
Static Electricity Precautions
1. To prevent electrostatic build-up, leave the board in its anti-static
bag until you are ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface with the system
board components facing up.
4. Hold the system board only by its edges. Be careful not to touch
any of the components, contacts or connections, especially gold
contacts, on the board.
5. Avoid touching the pins or contacts on all modules and connectors.
Hold modules and connectors by their ends.
Warning:
Electrostatic discharge (ESD) can damage your processor, disk drives,
add-in boards, and other components. Perform the upgrade instruction
procedures described at an ESD workstation only. If such a station is
not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis.
If a wrist strap is unavailable, establish and maintain contact with the
system chassis throughout any procedures requiring ESD protection.
Installing the System Board
If you are installing the G686IPA system board, the following outlines
the basic installation steps. Before installing the system board into your
system unit, you should prepare the tools you will need.
You will need:
• One medium size, flat-bladed screwdriver
• One medium Phillips screwdriver
• One needle-nosed pliers
• One small nutdriver
1. Unlock your system unit. Turn off the power and disconnect all
power cords and cables.
9
Page 10
2. Remove the system unit cover. Refer to the manufacturer’s instructions if necessary.
3. Detach all connectors from the old system board and remove expansion cards seated in any expansion slots.
4. Loosen the screws holding the original system board and remove
the board from the system. Save the screws.
5. Remove the G686IPA from its original packing box. Be careful to
avoid touching all connectors and pins on the board. Please refer to
the handling instructions on pages 8-9 for proper handling techniques.
6. Insert the memory modules into the memory banks on the
G686IPA. The quantity and location of the memory modules depends on the memory configuration and type of modules you intend
to use.
7. Install the CPU. Be sure pin 1 of the CPU is aligned with pin 1 of
the socket.
8. Set the corresponding jumpers.
9. Install the prepared G686IPA system board into the case and replace the screws.
10. Reinstall all cards and connectors and replace the system unit
cover. Reconnect all power cords and cables. We recommend that
you plug the power cord into a properly grounded three-pronged
outlet.
Use only ATX or AT power connector. You cannot use both connectors at the same time. If you are using an ATX power supply, install
the 20-pin connector of the ATX power cable into location PL1 on
the system board. The 20-pin connector can be inserted into PL1
only if pin 1 of the connector is aligned with pin 1 of PL1.
10
Page 11

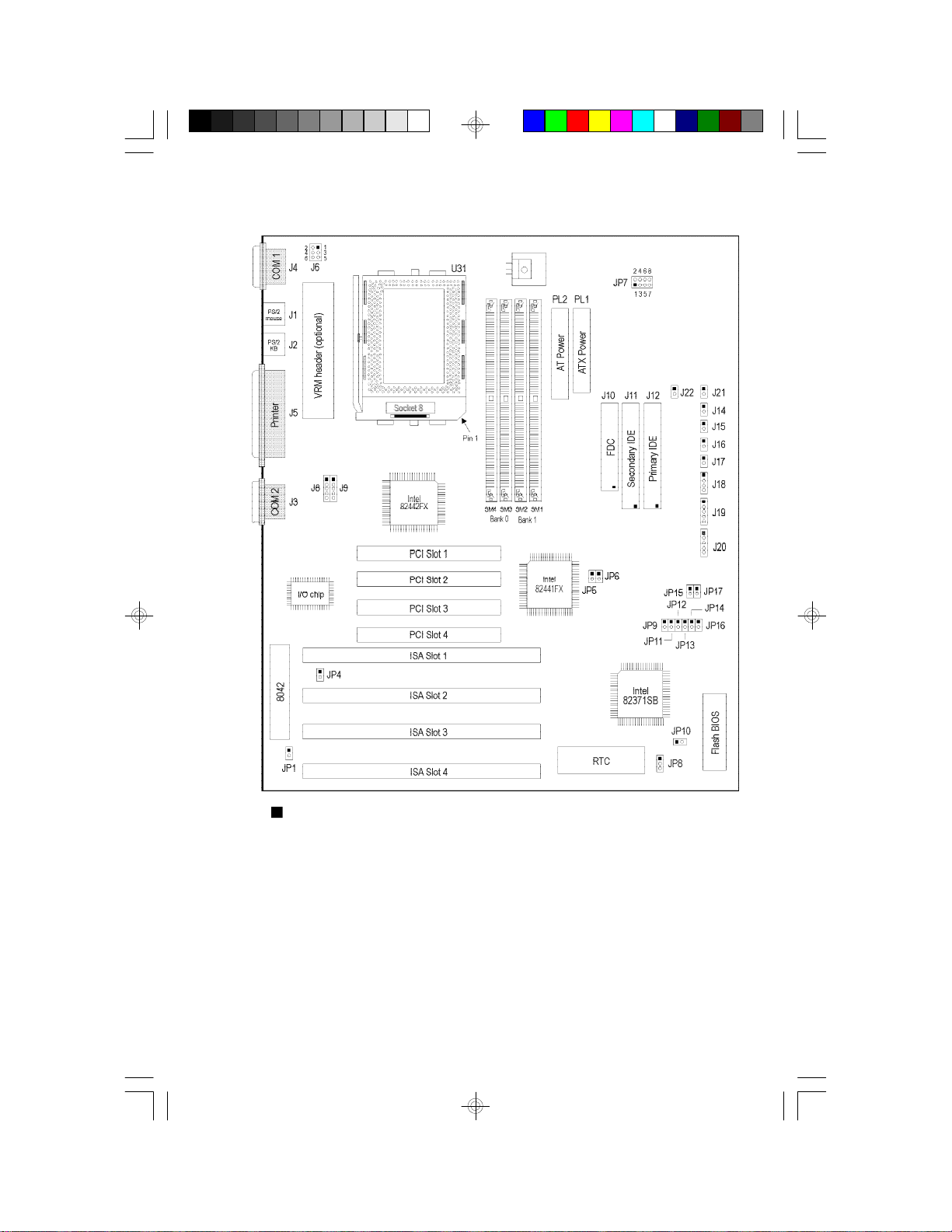

Board Layout
square denotes pin 1
" "
11
Page 12
System Memory
The SIMM (Single In-line Memory Module) sockets are divided into two
banks on the system board, Bank 0 and Bank 1. Each bank consists of
2 SIMM sockets.
You will need either 2 or 4 pieces of SIM modules, depending on the
amount of memory you intend to install. Make sure you insert the same
type of SIMMs in one bank. You can install SIMMs in either of the
banks, Bank 0 or Bank 1, but you must populate a bank first before
going to the next bank.
The G686IPA system board can support 8MB to 512MB of memory using 1MBx32/x36, 2MBx32/x36, 4MBx32/x36, 8MBx32/x36, 16MBx32/x36
or 32MBx32/x36 72-pin SIMMs. The table below shows the supported
SIM modules and their corresponding memory sizes.
SIMMs
1MBx32/x36
2MBx32/x36
4MBx32/x36
8MBx32/x36
16MBx32/x36
32MBx32/x36
Memory Size
4MB
8MB
16MB
32MB
64MB
128MB
The table on the next page summarizes the bank locations and modules needed for the corresponding memory sizes.
12
Page 13
Bank 0
Bank 1
Memory Size
8MB
16MB
16MB
24MB
32MB
32MB
40MB
48MB
64MB
64MB
72MB
80MB
96MB
128MB
128MB
136MB
144MB
160MB
192MB
256MB
256MB
264MB
272MB
288MB
320MB
384MB
512MB
SIMM3
1MBx32/x36
2MBx32/x36
1MBx32/x36
1MBx32/x36
4MBx32/x36
2MBx32/x36
1MBx32/x36
2MBx32/x36
8MBx32/x36
4MBx32/x36
1MBx32/x36
2MBx32/x36
4MBx32/x36
16MBx32/x36
8MBx32/x36
1MBx32/x36
2MBx32/x36
4MBx32/x36
8MBx32/x36
16MBx32/x36
32MBx32/x36
1MBx32/x36
2MBx32/x36
4MBx32/x36
8MBx32/x36
16MBx32/x36
32MBx32/x36
SIMM4
1MBx32/x36
2MBx32/x36
1MBx32/x36
1MBx32/x36
4MBx32/x36
2MBx32/x36
1MBx32/x36
2MBx32/x36
8MBx32/x36
4MBx32/x36
1MBx32/x36
2MBx32/x36
4MBx32/x36
16MBx32/x36
8MBx32/x36
1MBx32/x36
2MBx32/x36
4MBx32/x36
8MBx32/x36
16MBx32/x36
36MBx32/X36
1MBx32/x36
2MBx32/x36
4MBx32/x36
8MBx32/x36
16MBx32/x36
32MBx32/x36
SIMM1
—
—
1MBx32/x36
2MBx32/x36
—
2MBx32/x36
4MBx32/x36
4MBx32/x36
—
4MBx32/x36
8MBx32/x36
8MBx32/x36
8MBx32/x36
—
8MBx32/x36
16MBx32/x36
16MBx32/x36
16MBx32/x36
16MBx32/x36
16MBx32/x36
—
32MBx32/x36
32MBx32/x36
32MBx32/x36
32MBx32/x36
32MBx32/x36
32MBx32/x36
SIMM2
—
—
1MBx32/x36
2MBx32/x36
—
2MBx32/x36
4MBx32/x36
4MBx32/x36
—
4MBx32/x36
8MBx32/x36
8MBx32/x36
8MBx32/x36
—
8MBx32/x36
16MBx32/x36
16MBx32/x36
16MBx32/x36
16MBx32/x36
16MBx32/x36
—
32MBx32/x36
32MBx32/x36
32MBx32/x36
32MBx32/x36
32MBx32/x36
32MBx32/x36
13
Page 14
Installing a SIM Module
A SIM module simply snaps into a socket on the system board. Pin 1 of
the SIM module must correspond with Pin 1 of the socket.

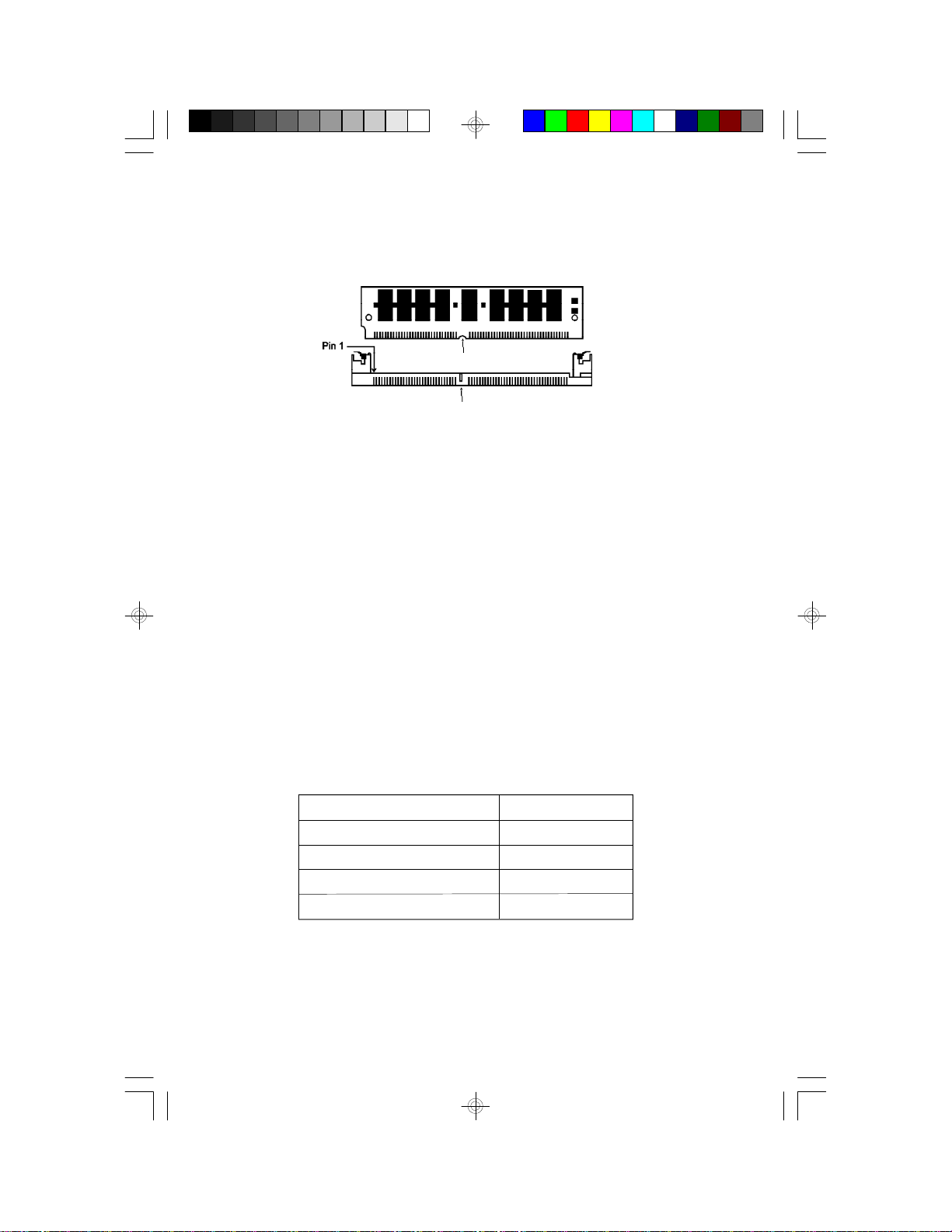

notch
key
1. Position the SIMM above the socket with the “notch” in the module
aligned with the “key” on the socket.
2. Seat the module at a 45° angle into the bank. Make sure it is completely seated. Tilt the module upright until it locks in place in the
socket.
CPU Installation
The G686IPA allows for easy installation of CPUs. Make sure all jumpers
are set correctly before applying power or you may damage the CPU or
system board. Please see the jumper settings on the following pages. Use
the needle-nosed pliers to move the jumpers if necessary.
The table below shows the currently available Intel Pentium Pro CPUs and
their corresponding CPU core ratio.
Intel CPUs (Int./Ext. Speed)
150/60MHz
166/66MHz
180/60MHz
200/66MHz
14
CPU Core Ratio
2.5x
2.5x
3x
3x
Page 15
Jumper Settings for CPUs
CPU Bus Clock/
PCI Bus Clock
60/30MHz*
66/33MHz
JP5
Off
On
JP6
On
Off
214 6 8
JP7
JP15
On
Off
3
5 7
CPU
Voltage
VID Support*
2.1V
2.2V
2.3V
2.4V
2.5V
2.6V
2.7V
2.8V
2.9V
3.0V
3.1V
3.2V
3.3V
3.4V
3.5V
Pins
1-2
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Pins
3-4
Off
Off
On
On
Off
Off
On
On
Off
Off
On
On
Off
Off
On
On
Warning:
If your Pentium Pro CPU supports VID (Voltage ID), set JP7 pins 1-2, 3-4, 5-6 and 7-8 to
Off, which is the default setting. If it does not
support VID, make sure you set JP7 according to the type of voltage supported by your
CPU.
JP5
JP17
JP6
JP15
Off
On
JP17
JP7
Pins
5-6
Off
Off
Off
Off
On
On
On
On
Off
Off
Off
Off
On
On
On
On
Pins
7-8
Off
Off
Off
Off
Off
Off
Off
Off
On
On
On
On
On
On
On
On
* Default
CPU Core Ratio
2x
2.5x*
3x
3.5x
4x
JP12
JP12
On
Off
On
Off
On
JP13
JP14
JP13
On
On
Off
Off
On
JP16
JP14
On
On
On
On
Off
JP16
On
On
On
On
On
15
Page 16
Installing Upgrade CPUs
The G686IPA is equipped with a 387-pin Zero Insertion Force (ZIF)
socket at location U31 of the system board. Refer to page 11 for the
location of the ZIF socket. This socket is designed for easy removal of
an old CPU and easy insertion of an upgrade CPU. The socket allows
you to carefully place the new CPU into its position. If you need to
apply excessive force to insert the CPU, you are not installing the CPU
correctly.
Warning:
Open the socket only if you are actually installing a CPU. The warranty
on the original CPU will be voided if the S/N seal is broken. Before
proceeding with the upgrade, take note of the following. The microprocessor and heatsink may be hot if the system has been running. To
avoid the possibility of a burn, power the system off and let the processor and heatsink cool for 10 minutes.
The 387-pin ZIF socket consists of rows of pin holes on each side. To
prevent improper CPU installation, the ZIF socket has a Plug/Keying
mechanism. Several holes in the socket are plugged so that the CPU
will go in only one way. If you cannot easily insert the CPU, verify that
pin 1 of the CPU is aligned with pin 1 of the socket.
Zero Insertion Force (ZIF) Socket
To install an upgrade CPU, do the following.

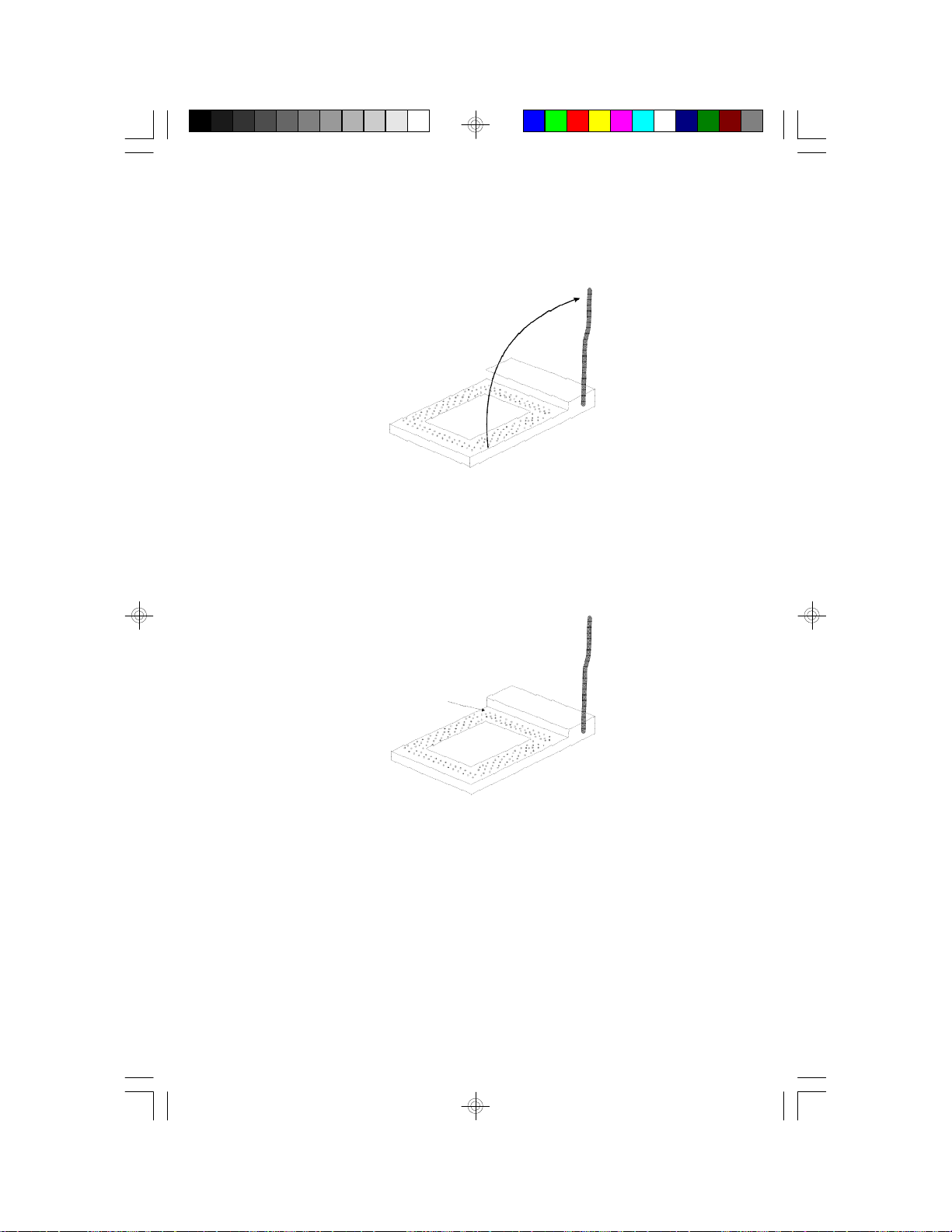

1. Make sure the handle on the side of the ZIF socket is up. To raise
the handle, push it down, slightly pull it out to the side, then raise it
as far as it will go. It may be necessary to initially apply a small
16
Page 17
amount of sideways force to free the handle from its retaining “tab”.
Once clear of the “tab”, the handle will open relatively easily. The
top plate will slide back. Do not use screwdrivers or other tools to
open the socket, or you may damage the system or socket.

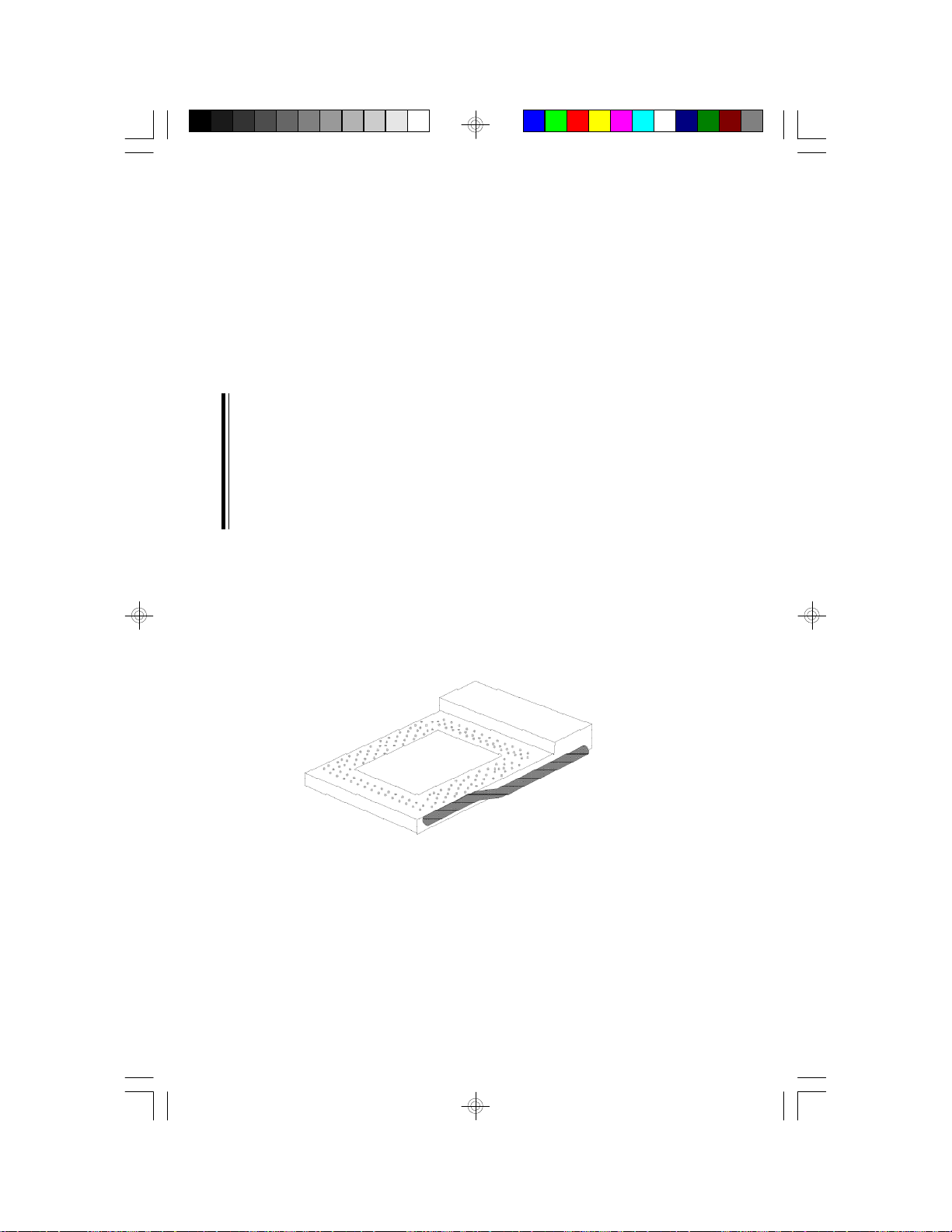

Handle
Lifting the Handle
2. Once the lever is completely up, remove the old CPU carefully by
lifting it straight out of the socket. You are now ready to insert the
new CPU.
Pin 1
3. Position the CPU above the ZIF socket. Make sure pin 1 of the
CPU is aligned with pin 1 of the socket. Lower the chip until the
pins are inserted properly in their corresponding holes. Remember
that very little force is needed to install the CPU. If the CPU is not
easily inserted, verify whether or not pin 1 of the CPU is aligned
with pin 1 of the socket. Applying too much pressure can damage
the CPU or the socket.
17
Page 18

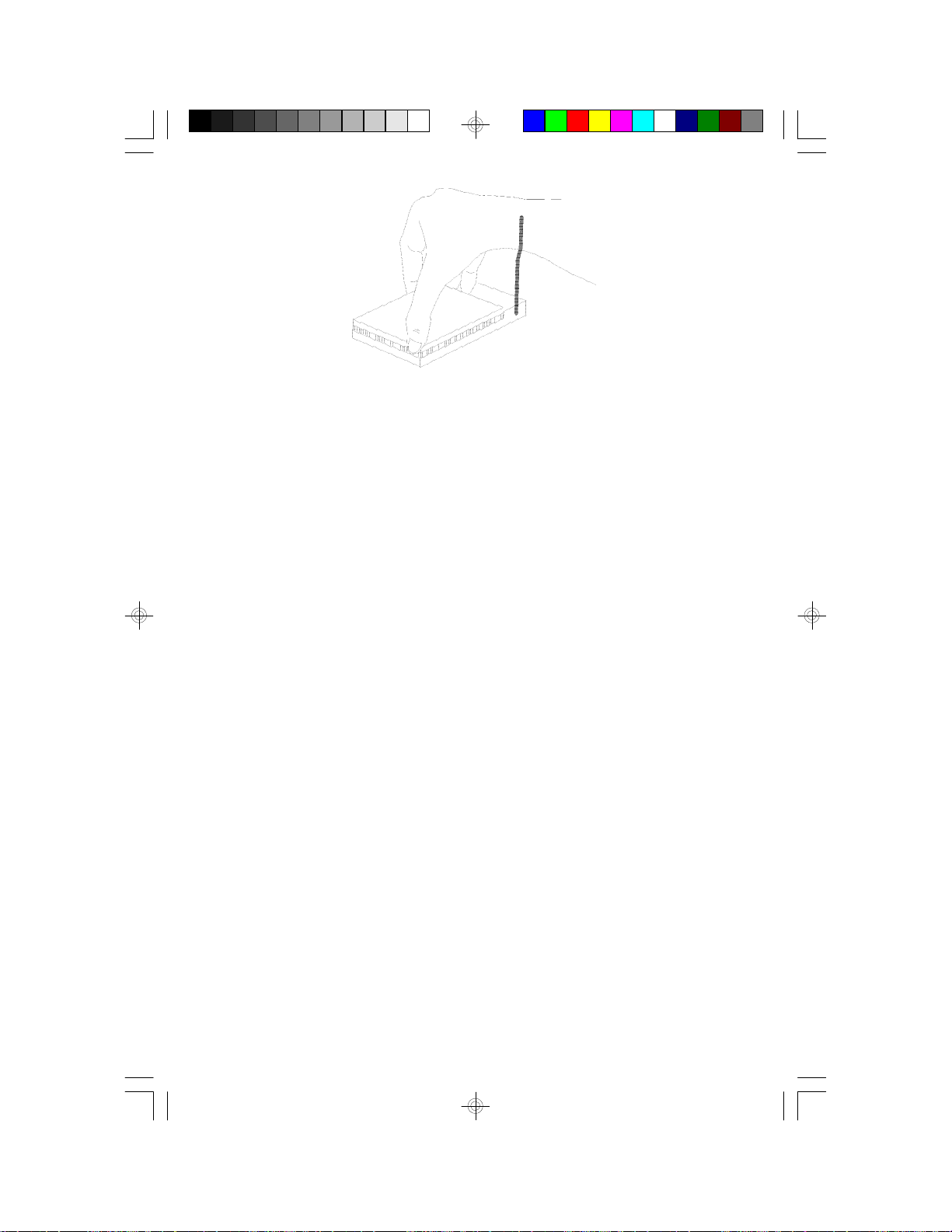

Positioning the CPU Above the ZIF Socket
4. Push the handle down until the handle locks into place. The top
plate will slide forward. You will feel some resistance as the pressure starts to secure the CPU in the socket. This is normal and will
not damage the CPU. However, if the handle is not completely
closed, damage to the CPU and/or system board may result.
Clearance Requirements
Your CPU comes with a heatsink mounted on top. To maintain proper
airflow once the upgrade is installed on the system board, the CPU and
heatsink require certain space clearances.
The clearance above the CPU’s fan/heatsink must be at least 0.4
inches. The clearance on at least 3 of 4 sides of the processor and
heatsink must be at least 0.2 inches. All cables (for floppy drive, hard
drive, CD-ROM, etc.) must be routed clear of the CPU and its airspace.
Fan Exhaust
The CPU must be kept cool by using a fan with heatsink. The temperature of the air entering the fan/heatsink cannot exceed 45oC (113oF).
The ambient or room temperature must be below 37oC (99oF).
18
Page 19
Jumper Settings for PS/2 Mouse

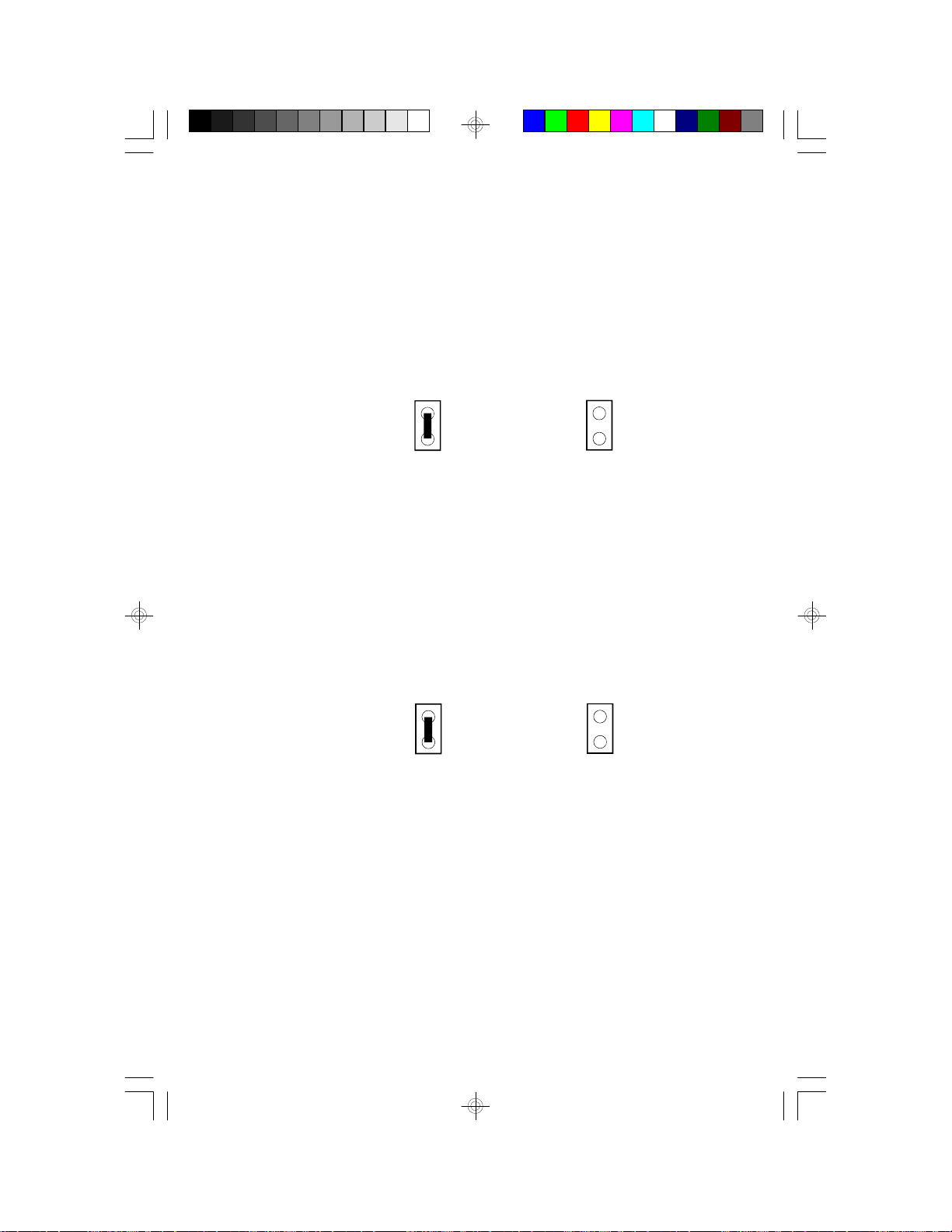

Jumper JP1
PS/2 Mouse Select
By default, the mouse port is enabled. The PS/2 mouse port uses
IRQ12, but when the PS/2 mouse port is disabled, IRQ12 is available to
other devices. To enable the PS/2 mouse, set Jumper JP1 to On. Make
sure you connect your PS/2 mouse to connector J1.
On: Enabled (default)
Off: Disabled
Jumper Settings for Display Type
Jumper JP4
Display Type Select
Jumper JP4 sets the display adapter to color or mono. This jumper
must match the type of display adapter installed. If you change your
video adapter, make sure this jumper is changed accordingly.
On: Color (default)
Off: Mono
19
Page 20
Jumper Settings for CMOS Clear

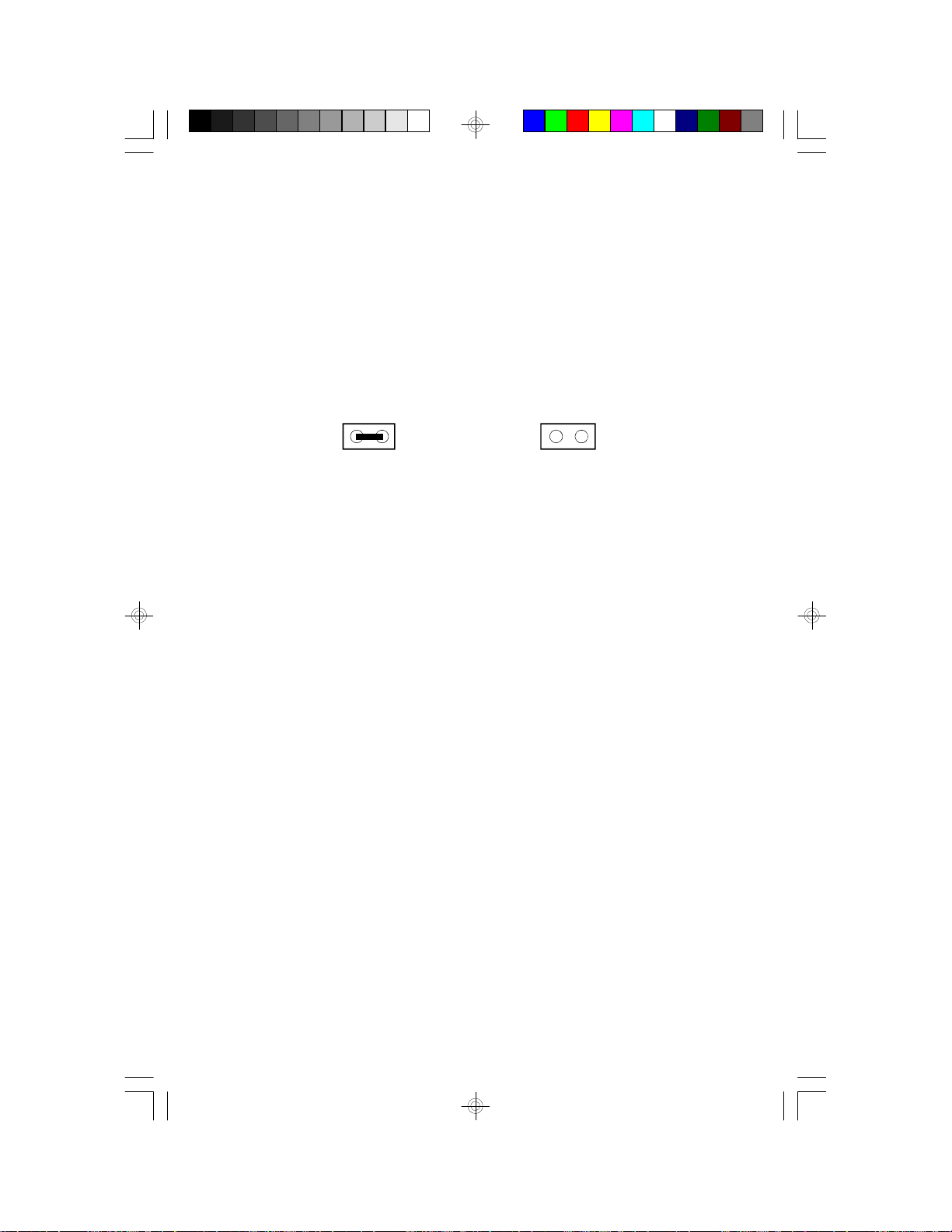

Jumper JP10
CMOS Clear Select
If, for some reason, the CMOS becomes corrupted, the system can be
reconfigured with the default values stored in the ROM BIOS. To load
the default values, power off your system and set JP10 to On. Then
power on your system for 5 seconds and turn it off again. Set JP10
back to its default setting, Off.
On: CMOS Clear
Off: Normal (default)
Factory Testing Jumpers
The jumpers below are for factory testing only and should always be set
to their default configuration. Reconfiguring these jumpers will cause
problems with your system board.
JP8: 1-2 On (28F010/28F1000)
2-3 On (29EE010/29F010)
JP9: On
JP11: Off
20
Page 21
Built-in Ports
The G686IPA system board is equipped with two serial ports, one parallel printer port, one FDD connector, two IDE hard disk shrouded headers, and two USB connectors. Refer to page 11 for the locations of the
built-in connectors and pin 1 of those connectors.
Serial Ports
The built-in serial ports are RS-232C asynchronous communication
ports with 16C550A-compatible UARTs that can be used with modems,
serial printers, remote display terminals, and other serial devices. They
use the following system I/O addresses:
Port Configuration
Serial Port 1
Serial Port 2
* Default
COM1
3F8h*
3F8h
COM2
2F8h
2F8h*
COM3
3E8h
3E8h
COM4
2E8h
2E8h
Parallel Port
The G686IPA system board has a standard connector for interfacing
your PC to a parallel printer. The parallel port on your system board can
be set to any of the following system I/O addresses:
I/O Address 3BC-3BE Hex
378-37A Hex (default)
278-27A Hex
Floppy Disk Drive Controller
The G686IPA system board has a built-in floppy disk controller that supports two standard floppy disk drives. You can install any 360KB,
720KB, 1.2MB, 1.44MB, or 2.88MB floppy disk drives.
21
Page 22
Connecting the Floppy Disk Cable
1. Install the 34-pin header connector into the floppy disk connector
(J10) on the system board. The colored edge of the ribbon should
be aligned with pin 1 of connector J10.
2. Install the other 34-pin header connector(s) into the disk drive(s).
Align the colored edge of the daisy chained ribbon cable with pin 1
of the drive edge connector(s). The end-most connector should be
attached to the drive you want to designate as Drive A.
IDE Hard Disk Interface
The G686IPA system board is equipped with two PCI IDE shrouded
headers that will interface four Enhanced IDE (Integrated Drive Electronics) hard disk drives.
Note:
Only Enhanced IDE hard drives or ATAPI CD-ROMs can be connected
to the IDE interface.
Connecting the IDE Hard Disk Interface

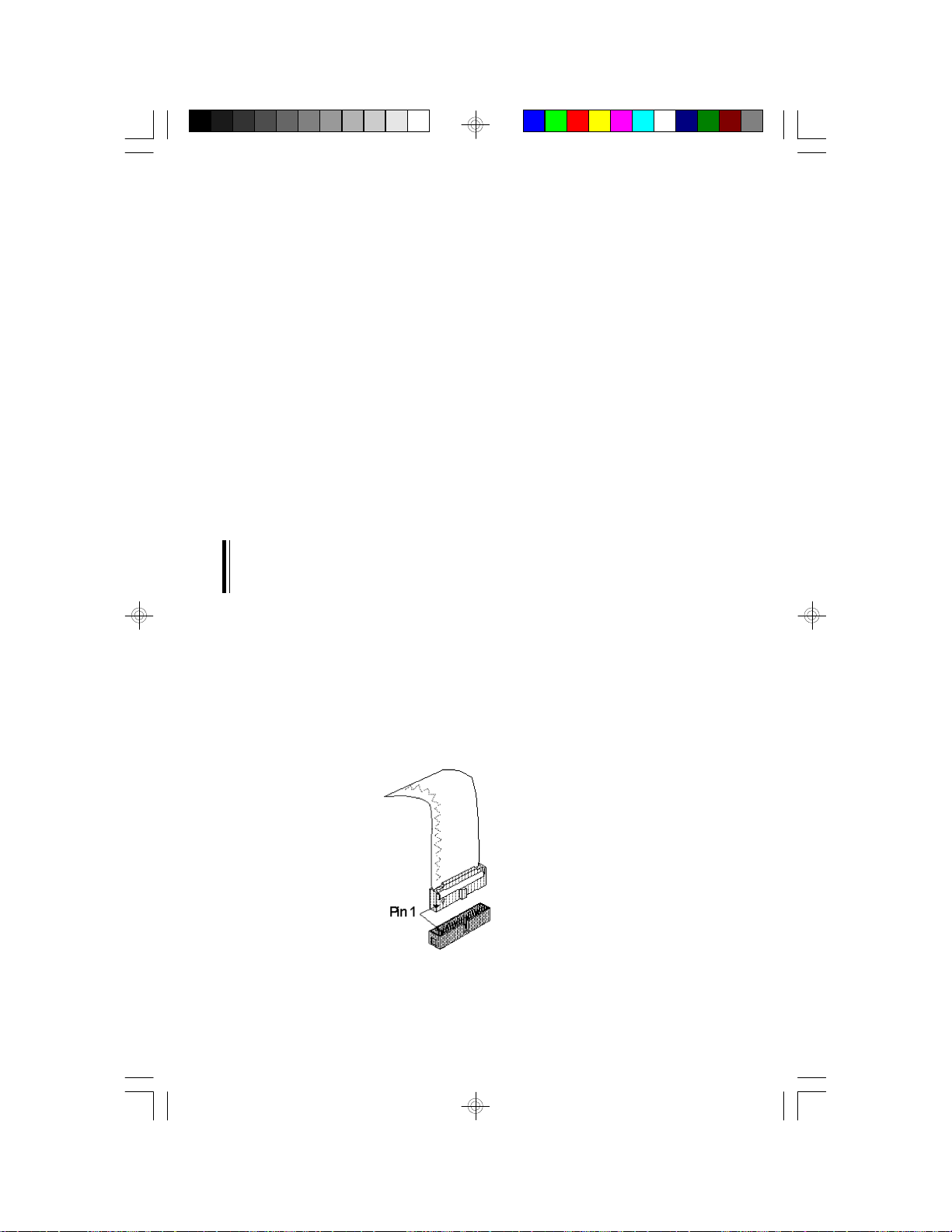

To prevent improper IDE cable installation, each PCI IDE shrouded
header has a keying mechanism. The 40-pin connector on the IDE
cable can be placed into the header only if pin 1 of the connector is
aligned with pin 1 of the header.
Header
22
Page 23
Note:
An IDE cable with a standard 40-pin connector (without the keying
mechanism) can be installed in the PCI IDE shrouded header. Be extremely careful to match the colored edge of the ribbon with pin 1 of the
header.
Connecting the Hard Disk Cable
1. If you are connecting two hard drives, install the 40-pin connector
of the IDE cable into the primary IDE shrouded header (connector
J12). If you are adding a third or fourth IDE device, install the 40pin connector of the other IDE cable into the secondary IDE
shrouded header (connector J11).
2. Install the other 40-pin header connector(s) into the device with the
colored edge of the ribbon cable aligned with pin 1 of the drive
edge connector(s).
Note:
Refer to your disk drive user’s manual for information about selecting
proper drive switch settings.
Adding a Second IDE Hard Drive
When using two IDE drives, one must be set as the master and the
other as the slave. Follow the instructions provided by the drive manufacturer for setting the jumpers and/or switches on the drives.
We recommend that the Enhanced IDE hard drives be from the same
manufacturer. In a few cases, drives from two different manufacturers
will not function properly when used together. The problem lies in the
hard drives, not the G686IPA system board.
23
Page 24
Preparing an IDE Drive for Use
IDE disk drives are already low-level formatted, with any bad-track errors entered, when shipped by the drive manufacturer. Do not attempt
to do a low-level format or you may cause serious damage to the drive.
To use an IDE drive, you need to enter the drive type (this information
is provided by the drive manufacturer) into the system’s CMOS setup
table. Then run FDISK and FORMAT provided with DOS. You may also
use the IDE HDD Auto Detection function which will allow the BIOS to
auto detect your hard drive type. Refer to the IDE HDD Auto Detection
section for details.
Warning:
Do not run FDISK and FORMAT programs on a drive that has already
been formatted or you will lose all programs and data stored on the
drive.
Universal Serial Bus Connectors
The G686IPA system board is equipped with two USB connectors on
locations J8 and J9 on the system board. USB allows data exchange
between your computer and a wide range of simultaneously accessible
peripherals.
Connecting the USB Ports
One optional card-edge bracket mounted with two USB port cables are
provided with the system board. Connect the upper USB port cable to
connector J8 and the lower USB port cable to connector J9 on the system board. Make sure the red wire of the USB cables is aligned with pin
1 of connectors J8 and J9. Mount the card-edge bracket to the system
chassis.
Note:
Make sure to enable “USB Controller” in the Integrated Peripherals
setup of the Award BIOS utility.
24
Page 25
USB port cables (optional)
Installing Expansion Cards
The G686IPA system board is equipped with 3 dedicated PCI slots, 3
dedicated 16-bit ISA slots and 1 shared PCI/ISA slot. All PCI slots are
bus masters.
Refer to page 11 for the locations of the expansion slots.
Note:
The BIOS needs to be configured for the PCI add-in cards installed in
the PCI slots. Refer to the “PNP/PCI Configuration” presented in the
“Software Installation” section of the manual.
25
Page 26
Chapter 3
Software Installation
After you power up your system, the BIOS message appears on your
screen and the memory count begins.
After the memory test, the following message will appear on the screen:
Press DEL to enter setup
If the message disappears before you respond, restart your system or
press the “Reset” button on the front of your computer. You may also
restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously. If you do not press these keys at the correct time and the
system does not boot, the following error message will appear:
Press Del to enter Setup
If you have set a password and selected “System” in the Security Option of the BIOS Features Setup menu, you will be prompted for the
password every time the system is rebooted or any time you try to enter
Setup. Type in the correct password and press <Enter>.
If you selected “Setup” in the Security Option, you will be prompted for
the password only when you try to enter Setup. Refer to the “BIOS
Features Setup” section for more information.
Award CMOS Setup Utility
Press <Ctrl> <Alt> <Esc> simultaneously or <Del> to enter the Setup
utility. A screen similar to the one on the next page will appear.
26
Page 27
ROM PCI/ISA BIOS
CMOS SETUP UTILITY
AWARD SOFTWARE, INC.
STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD BIOS DEFAULTS
LOAD SETUP DEFAULTS
: Quit
Esc
: Save & Exit Setup
F10
Time, Date, Hard Disk Type...
INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
HDD LOW LEVEL FORMAT
SAVE & EXIT SETUP
EXIT WITHOUT SAVING
: Select Item
↑↓→←
: Change Color
(Shift) F2
Use the arrow keys to highlight the option you want and press <Enter>.
The following describes each of these options.
Note:
The settings of the BIOS setup screens on the following pages are for
reference only. Some of the settings will vary according to your
system’s configuration and should not be referred to as the standard
default setting.
Standard CMOS Setup
Use the arrow keys to highlight “Standard CMOS Setup” and press
<Enter>. A screen similar to the one below will appear.
Date (mm:dd:yy) : Mon, Jul 29 1996
Time (hh:mm:ss) : 13: 27: 50
HARD DISKS
Primary Master
Primary Slave
Secondary Master
Secondary Slave
Drive A : 1.44M, 3.5 in.
Drive B : None
Video : EGA/VGA
Halt on : All Errors
: Quit
Esc
: Save & Exit Setup
F10
:
:
:
:
TYPE
Auto
Auto
Auto
Auto
SIZE
ROM PCI/ISA BIOS
STANDARD CMOS SETUP
AWARD SOFTWARE, INC.
HEAD
CYLS
0
0
0
0
↑↓→←
(Shift)F2
0
0
0
0
PRECOMP
0
0
0
0
: Select Item
: Change
LANDZ
0
0
0
0
SECTOR
0
0
0
0
Base Memory : 640K
Extended Memory : 64512K
Other Memory : 384K
Total Memory : 65536K
PU/PD/+/- : Modify
0
0
0
0
MODE
Auto
Auto
Auto
Auto
27
Page 28
Date
The date format is <day>, <month>, <date>, <year>.
Day
Month
Date
Year
Displays a day, from Sunday to Saturday
Displays the month, from January to December
Displays the date, from 1 to 31
Displays the year, from 1900 to 2099
Time
The time format is <hour>, <minute>, <second>. The time is calculated
based on the 24-hour military-time clock. For example, 1 p.m. is
13:00:00.
Hour
Minute
Second
Displays hours from 00 to 23
Displays minutes from 00 to 59
Displays seconds from 00 to 59
Primary Master, Primary Slave, Secondary Master and Secondary
Slave
These categories allow you to enter the appropriate specifications for
the type of hard disk drive(s) installed in your system. There are 45
predefined types and 4 user definable types for Enhanced IDE BIOS.
Type 1 to Type 45 are predefined. Type user is user-definable.
Press <PgUp> or <PgDn> to select a numbered hard disk type or type
the number and press <Enter>. The hard disk will not work properly if
you enter improper information for this category. You can use Type
“User” to define your own drive type manually.
If you select Type “User”, you will need to know the information listed
below. Enter the information and press <Enter>. This information should
be included in the documentation from your hard disk vendor or the
system manufacturer.
28
Page 29
If the controller of the HDD interface is ESDI, you must select “Type 1”.
If the controller of the HDD interface is SCSI, you must select “None”.
If you select Type ”Auto”, the BIOS will auto-detect the HDD & CD-ROM
drive at the POST stage and show the IDE for the HDD & CD-ROM
drive.
Type
Cyls
Heads
Precomp
Landzone
Sectors
Mode
Drive type
Number of cylinders
Number of heads
Write precomp
Landing zone
Number of sectors
Mode type
If a hard disk has not been installed, select None and press <Enter>.
Drive A and Drive B
These categories identifies the types of floppy disk drive installed. The
following are the options for drives A and B.
None
360K, 5.25 in.
1.2M, 5.25 in.
720K, 3.5 in.
1.44M, 3.5 in.
2.88M, 3.5 in.
No floppy drive is installed
5-1/4 inch PC-type standard drive; 360 kilobyte capacity
5-1/4 inch AT-type high-density drive; 1.2 megabyte capacity
3-1/2 inch double-sided drive; 720 kilobyte capacity
3-1/2 inch double-sided drive; 1.44 megabyte capacity
3-1/2 inch double-sided drive; 2.88 megabyte capacity
Note:
Choosing an incorrect type might cause your system to format the floppy
disk improperly.
29
Page 30
Video
This category selects the type of video adapter used for the primary
system monitor. Although secondary monitors are supported, you do not
have to select the type in Setup. The default setting is EGA/VGA (BIOS
default, Setup default).
EGA/VGA
CGA 40
CGA 80
Mono
Enhanced Graphics Adapter/Video Graphics Array. For EGA,
VGA, SEGA, SVGA and PGA monitor adapters.
Color Graphics Adapter. Power up in 40-column mode.
Color Graphics Adapter. Power up in 80-column mode.
Monochrome adapter. Includes high resolution monochrome
adapters.
Halt On
This category determines whether the system will stop if an error is detected during power up. The default setting is All Errors (BIOS default,
Setup default).
No Errors
All Errors
All, But
Keyboard
All, But
Diskette
All, But
Disk/Key
The system boot will not stop for any errors detected.
The system boot will stop whenever the BIOS detects a non-
fatal error.
The system boot will not stop for a keyboard error; it will stop
for all other errors.
The system boot will not stop for a disk error; it will stop for
all other errors.
The system boot will not stop for a disk or keyboard error; it
will stop for all other errors.
Memory
The base memory size, extended memory size and the other memory
size cannot be altered; your computer automatically detects and displays them.
30
Page 31
Base
Memory
Extended
Memory
Other
Memory
This refers to the amount of base or conventional memory
installed on the system board.
This is the amount of memory located above 1MB in the
memory address map of the CPU.
This memory size refers to the memory located in the address space between 640K and 1024K. DOS uses this
area to load device drivers to keep base memory free for
application programs. The most appropriate use of this
area is for Shadow RAM.
BIOS Features Setup
The BIOS Features Setup allows you to configure your system for basic
operation. Some entries are defaults required by the system board,
while others, if enabled, will improve the performance of your system or
let you set some features according to your preference.
ROM PCI/ISA BIOS
BIOS FEATURES SETUP
AWARD SOFTWARE, INC.
Virus Warning
CPU L1 Cache
CPU L2 Cache
Quick Power On Self Test
Boot Sequence
Swap Floppy Drive
Boot Up Floppy Seek
Boot Up NumLock Status
Gate A20 Option
Typematic Rate Setting
Typematic Rate (Chars/Sec)
Typematic Delay (Msec)
Security Option
PCI/VGA Palette Snoop
OS Select For DRAM > 64MB
: Disabled
: Enabled
: Enabled
: Disabled
: A, C
: Disabled
: Enabled
: On
: Fast
: Disabled
: 6
: 250
: Setup
: Disabled
: Non-OS2
Video BIOS Shadow
C8000-CBFFF Shadow
CC000-CFFFF Shadow
D0000-D3FFF Shadow
D4000-D7FFF Shadow
D8000-DBFFF Shadow
DC000-DFFFF Shadow
ESC
: Quit
F1
: Help
F5
: Old Values
F6
: Load BIOS Defaults
F7
: Load Setup Defaults
: Enabled
: Disabled
: Disabled
: Disabled
: Disabled
: Disabled
: Disabled
↑↓→←
PU/PD/+/(Shift) F2
: Select Item
: Modify
: Color
Virus Warning
This category protects the boot sector and partition table of your hard
disk drive. When this item is enabled, the Award BIOS will monitor the
boot sector and partition table of the hard disk drive. If an attempt is
made, the BIOS will halt the system and the following error message
will appear.
31
Page 32
! WARNING !
Disk boot sector is to be modified
Type “Y” to accept write or “N” to abort write
Award Software, Inc.
Afterwards, if necessary, you will be able to run an anti-virus program to
locate and remove the problem before any damage is done.
Many disk diagnostic programs which attempt to access the boot sector
table will cause the warning message to appear. If you are running such
a program, we recommend that you first disable this category. Also,
disable this category if you are installing or running certain operating
systems like Windows 95 or the operating system may not install nor
work.
Enabled
Disabled
BIOS issues a warning when any program or virus sends a
Disk Format command or attempts to write to the boot sector
of the hard disk drive.
No warning message will appear when the hard disk drive is
accessed.
CPU L1 Cache and CPU L2 Cache
These categories speed up memory access providing better performance. The default value is enabled.
Quick Power On Self Test
This category speeds up Power On Self Test (POST) after you power
on your system. If it is set to Enabled, the BIOS will shorten or skip
some check items during POST.
Enabled
Disabled
Enables quick POST.
Normal POST.
32
Page 33
Boot Sequence
This category determines which drive to search first for the disk operating system (i.e. DOS). The default is A, C.
A, C
C, A
CDROM, C, A
C, CDROM, A
The system will first search for a floppy drive and then a
hard disk drive.
The system will first search for a hard disk drive and
then a floppy drive.
The system will first search for a CD-ROM drive, then a
hard disk drive and then a floppy drive.
The system will first search for a hard disk drive, then a
CD-ROM drive, and then a floppy drive.
Swap Floppy Drive
Enabled
Disabled
When this option is enabled and the system is booting from
the floppy drive, this option causes the system to boot from
drive B instead of drive A.
When this option is disabled and the system is booting from
the floppy drive, the system will boot from drive A.
Boot Up Floppy Seek
During POST, the BIOS will determine if the floppy disk drive installed is
40 or 80 tracks. 360K type is 40 tracks while 760K, 1.2M and 1.44M are
all 80 tracks.
Enabled
Disabled
The BIOS will check whether the floppy disk drive installed is
40 or 80 tracks. Note that the BIOS cannot tell from 720K,
1.2M or 1.44M drive type as they are all 80 tracks.
The BIOS will not search for the type of floppy disk drive by
track number. Note that there will not be any warning message if the drive installed is 360KB.
33
Page 34
Boot Up NumLock Status
This allows you to determine the default state of the numeric keypad.
By default, the system boots up with NumLock on.
On
Off
The function of the numeric keypad is the number keys.
The function of the numeric keypad is the arrow keys.
Security Option
This category allows you to limit access to your system and Setup, or
just to Setup.
System
Setup
The system will not boot and access to Setup will be denied if
the correct password is not entered at the prompt.
The system will boot, but access to Setup will be denied if the
correct password is not entered at the prompt.
PCI/VGA Palette Snoop
This is used to select whether to allow the MPEG ISA/VESA VGA cards
to work with PCI/VGA or not.
Enabled
Disabled
PCI/VGA working with MPEG ISA/VESA VGA Card.
PCI/VGA not working with MPEG ISA/VESA VGA Card.
OS Select for DRAM > 64MB
This item allows you to access the memory that is over 64MB in OS/2.
The options are: Non-OS2 and OS2.
34
Page 35
Video BIOS Shadow
Determines whether video BIOS will be copied to RAM. Video Shadow
will increase the video speed.
Enabled
Disabled
Video shadow is enabled.
Video shadow is disabled.
C8000-CBFFF Shadow to DC000-DFFFF Shadow
These categories determine whether option ROMs will be copied to
RAM.
Enabled
Disabled
Optional shadow is enabled.
Optional shadow is disabled.
Chipset Features Setup
The G686IPA system board uses the Intel 440FX (Natoma) chipset.
This section allows you to configure the system based on the specific
features of the chipset. This chipset manages bus speeds and access
to system memory resources. It also coordinates communications between the conventional ISA bus and the PCI bus. These items should
not be altered unless necessary. The default settings have been chosen
because they provide the best operating conditions for your system.
The only time you might consider making any changes would be if you
discovered that data was being lost while using your system. The
Chipset Features Setup screen is shown on the next page.
35
Page 36
Auto Configuration
DRAM Speed Selection
DRAM RAS# Precharge Time
MA Additional Wait State
RAS# To CAS# Delay
DRAM Read Burst (B/E/F)
DRAM Write Burst (B/E/F)
ISA Bus Clock
DRAM Fast Leadoff
DRAM Refresh Queue
DRAM RAS Only Refresh
DRAM ECC/Parity Select
Fast DRAM Refresh
Read-Around-Write
PCI Burst Write Combine
PCI-To-DRAM Pipeline
CPU-To-PCI Write Post
CPU-To-PCI IDE Posting
Auto Configuration
ROM PCI/ISA BIOS
CHIPSET FEATURES SETUP
AWARD SOFTWARE, INC.
: Enabled
: 70ns
: 4
: Disabled
: Enabled
: x2/3/4
: x3/3/3
: PCICLK/4
: Disabled
: Enabled
: Disabled
: Disabled
: Disabled
: Enabled
: Enabled
: Enabled
: Enabled
: Enabled
System BIOS Cacheable
Video BIOS Cacheable
8 Bit I/O Recovery Time
16 Bit I/O Recovery Time
Memory Hole At 15M-16M
ESC
: Quit
F1
: Help
F5
: Old Values
F6
: Load BIOS Defaults
F7
: Load Setup Defaults
↑ ↓ → ←
PU/PD/+/(Shift) F2
: Disabled
: Enabled
: 4
: 2
: Disabled
: Select Item
: Modify
: Color
Enabled
The system will set the “DRAM Speed Selection” to the “ISA
Bus Clock” categories automatically.
Disabled
This allows you to set the “DRAM Speed Selection” to the
“ISA Bus Clock” categories manually.
DRAM ECC/Parity Select
Parity
Disabled
ECC
Enables the memory parity check. If the system DRAM has no
parity bit, the system will display “RAM parity error”.
The system will ignore the memory parity check even if the
DRAM has no parity bit and the system will not display “RAM
parity error”.
Enables the ECC (Error Correction Code) function.
ISA Bus Clock
PCICLK/4
PCICLK/3
When using 150MHz or 180MHz CPU, the ISA bus clock is
7.5MHz. When using 166MHz or 200MHz, the ISA bus clock
is 8.25MHz.
When using 150MHz or 180MHz CPU, the ISA bus clock is
10MHz. When using 166MHz or 200MHz, the ISA bus clock
is 11MHz.
Warning:
We recommend that you set the ISA Bus Clock category to “PCICLK/4”.
Compatibility problem with some ISA cards may occur if set at “PCICLK/3”.
36
Page 37
Power Management Setup
The Power Management Setup allows you to configure your system to
most effectively save energy.
ROM PCI/ISA BIOS
POWER MANAGEMENT SETUP
AWARD SOFTWARE, INC.
Power Management
PM Control by APM
Video Off Method
Modem Use IRQ
Doze Mode
Standby Mode
Suspend Mode
HDD Power Down
** Wake Up Events In Doze & Standby **
IRQ3 (Wake-Up Event)
IRQ4 (Wake-Up Event)
IRQ8 (Wake-Up Event)
IRQ12 (Wake-Up Event)
: Disabled
: Yes
: V/H SYNC+Blank
: 3
: Disabled
: Disabled
: Disabled
: Disabled
: On
: On
: On
: On
** Power Down & Resume Events **
IRQ3 (COM 2)
IRQ4 (COM 1)
IRQ5 (LPT 2)
IRQ6 (Floppy Disk)
IRQ7 (LPT 1)
IRQ8 (RTC Alarm)
IRQ9 (IRQ2 Redir)
IRQ10 (Reserved)
IRQ11 (Reserved)
IRQ12 (PS/2 Mouse)
IRQ13 (Coprocessor)
IRQ14 (Hard Disk)
IRQ15 (Reserved)
ESC
: Quit
F1
: Help
F5
: Old Values
F6
: Load BIOS Defaults
F7
: Load Setup Defaults
: On
: On
: On
: On
: On
: On
: Off
: On
: On
: On
: On
: On
: On
: On
: Off
↑ ↓ → ←
PU/PD/+/(Shift) F2
: Select Item
: Modify
: Color
Power Management
This category allows you to select the type (or degree) of power saving
and is directly related to the following modes: Doze Mode, Standby
Mode, Suspend Mode and HDD Power Down.
Disable
(default)
Min.
Saving
Max.
Saving
User
Defined
No power management. Disables all four modes.
Minimum power management. Doze Mode = 1 hr., Standby
Mode = 1 hr., Suspend Mode = 1 hr. and HDD Power Down =
15 min.
Maximum power management. Doze Mode = 1 min., Standby
Mode = 1 min., Suspend Mode = 1 min. and HDD Power
Down = 1 min.
Allows you to set each mode individually. When enabled, each
option ranges from 1 min. to 1 hr.
37
Page 38
PM Control by APM
Yes
No
An Advanced Power Management device will be activated to
enhance the Max. Power Saving mode and stop the CPU’s
internal clock.
Default.
Video Off Method
This determines the manner in which the monitor is blanked.
V/H
SYNC +
Blank
Blank
Screen
DPMS
This selection will cause the system to turn off the vertical and
horizontal synchronization ports and write blanks to the video
buffer.
This option only writes blanks to the video buffer.
Initialize display power management signaling.
Doze Mode, Standby Mode, Suspend Mode and HDD Power
Down
These Green PC power saving categories are user configurable only
when the Power Management category is set to User Defined. They are
used to define the idle time that elapses before the system enters the
power saving mode.
38
Doze
Mode
Standby
Mode
Suspend
Mode
HDD
Power
Down
When enabled and after the set time of system inactivity, the
CPU clock will run at slower speed while all other devices still
operate at full speed.
When enabled and after the set time of system inactivity, the
fixed disk drive and the video will be shut off while all other
devices still operate at full speed.
When enabled and after the set time of system inactivity, all
devices except the CPU will be shut off.
It is used to define the continuous HDD idle time that elapses
before the HDD enters the power saving mode (motor off).
When enabled and after the set time of system inactivity, the
hard disk drive will be powered down while all other devices
remain active.
Page 39
IRQ3 to IRQ15 (Wake Up Events in Doze and Standby, and
Power Down and Resume Events)
These are I/O events whose occurrence can prevent the system from
entering a power saving mode or can awaken the system from such a
mode. In effect, the system remains alert for anything which occurs to a
device which is configured as On, even when the system is in a power
saving mode.
When an I/O device wants to gain the attention of the operating system,
it signals this by causing an IRQ to occur. When the operating system
is ready to respond to the request, it interrupts itself and performs the
service. When set to On, the activity will neither prevent the system
from going into a power saving mode nor awaken it.
PNP/PCI Configuration
This section describes configuring the PCI bus system. PCI, or Peripheral Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very
technical items and it is strongly recommended that only experienced
users should make any changes to the default settings.
Resources Controlled By
Reset Configuration Data
ROM PCI/ISA BIOS
PNP/PCI CONFIGURATION
AWARD SOFTWARE, INC.
: Auto
: Disabled
PCI IRQ Actived By
PCI IDE IRQ Map To
Primary IDE INT#
Secondary IDE INT#
ESC
: Quit
F1
: Help
F5
: Old Values
F6
: Load BIOS Defaults
F7
: Load Setup Defaults
: Level
: PCI-Auto
: A
: B
↑ ↓ → ←
PU/PD/+/(Shift) F2
: Select Item
: Modify
: Color
39
Page 40
Resources Controlled By
The Award Plug and Play BIOS has the capacity to automatically configure all of the boot and Plug and Play compatible devices. However,
this capability means absolutely nothing unless you are using a Plug
and Play operating system such as Windows® 95.
Auto
Manual
The system will automatically detect the settings for you. The
categories that follow will not be shown on the PNP/PCI Configuration screen.
This will allow you to set the IRQ (you have assigned your
add-in card) to Legacy ISA or PCI/ISA PnP. For non-PnP ISA
cards, select Legacy ISA. For PnP ISA or PCI cards, select
PCI/ISA PnP.
Reset Configuration Data
Enabled
Disabled
The BIOS will reset the configuration data automatically.
The BIOS will not reset the configuration data.
PCI IRQ Actived By
This category is used to set the method by which the PCI bus recognizes that an IRQ service is being requested by a device. Under all
circumstances, you should retain the default configuration unless otherwise needed.
PCI IDE IRQ Map To
This category is used to configure your system to the type of IDE disk
controller in use.
ISA
PCI Slot 1-4
PCI-Auto
40
Default setting. (The IDE disk controller is an ISA controller).
The slot that has the PCI IDE controller; that is if you are using
a PCI IDE controller card.
The system will automatically determine how your IDE disk
system is configured.
Page 41
If this category is set to PCI Slot 1/2/3/4 or PCI-Auto, the Primary and
Secondary IDE INT# categories will appear allowing you to select the
PCI interrupt (A, B, C, or D) that is associated with the connected hard
drives.
Load BIOS Defaults
The “Load BIOS Defaults” option loads the troubleshooting default values permanently stored in the ROM chips. These settings are not optimal and turn off all high performance features. You should use these
values only if you have hardware problems. Highlight this option on the
main menu and press <Enter>. The message below will appear.
Load BIOS Defaults (Y/N)? N
If you want to proceed, press <Y> and the default settings will be
loaded.
Load Setup Defaults
The “Load Setup Defaults” option loads optimized settings from the
BIOS ROM. Use the Setup default values as standard values for your
system.
Highlight this option on the main menu and press <Enter>. The message below will appear.
Load Setup Defaults (Y/N)? N
Type <Y> and press <Enter> to load the Setup default values.
41
Page 42
Integrated Peripherals
IDE HDD Block Mode
IDE Primary Master PIO
IDE Primary Slave PIO
IDE Secondary Master PIO
IDE Secondary Slave PIO
On-chip Primary PCI IDE
On-chip Secondary PCI IDE
PCI Slot IDE 2nd Channel
Onboard FDD Controller
Onboard Serial Port 1
Onboard Serial Port 2
Infra Red (IR) Function
IR Transfer Mode
Onboard Parallel Port
Onboard Parallel Mode
IDE HDD Block Mode
ROM PCI/ISA BIOS
INTEGRATED PERIPHERALS
AWARD SOFTWARE, INC.
: Enabled
: Auto
: Auto
: Auto
: Auto
: Enabled
: Enabled
: Disabled
: Enabled
: COM1/3F8
: COM2/2F8
: Disabled
: Half-Dup
: 378H/IRQ7
: SPP
USB Controller : Disabled
ESC
: Quit
F1
: Help
F5
: Old Values
F6
: Load BIOS Defaults
F7
: Load Setup Defaults
↑ ↓ → ←
PU/PD/+/(Shift) F2
: Select Item
: Modify
: Color
Enabled
The IDE HDD uses the block mode. The system BIOS will
check the hard disk drive for the maximum block size the
system can transfer. The block size will depend on the type
of hard disk drive.
Disabled
The IDE HDD uses the standard mode.
IDE Primary Master/Slave PIO and IDE Secondary Master/Slave
PIO
Your system supports five modes, 0 (default) to 4, which primarily differ
in timing. When Auto is selected, the BIOS will select the best available
mode.
Auto
0-4
The BIOS will automatically set the system according to your
hard disk drive’s timing.
You can select a mode that matches your hard disk drive’s
timing.
42
Page 43
On-Chip Primary PCI IDE and On-Chip Secondary PCI IDE
These categories allow you to enable or disable the primary and secondary IDE controller. The default is Enabled. Select Disabled if you
want to add a higher performance or specialized controller.
PCI Slot IDE 2nd Channel
This allows you to designate an IDE controller board inserted into one
of the PCI slots as your secondary IDE controller.
Enabled
Disabled
External IDE controller designated as the secondary controller.
No IDE controller occupying a PCI slot.
Onboard FDD Controller
Enabled
Disabled
Enables the onboard floppy disk controller.
Disables the onboard floppy disk controller.
Onboard Serial Port 1 and Onboard Serial Port 2
COM1 to
COM4
Disabled
Selects COM1-COM4 for the onboard serial port 1 and serial
port 2.
Disables the onboard serial port 1 and serial port 2.
Infrared (IR) Function
The G686IPA system board supports IrDA function for wireless connectivity between your computer and peripheral devices. To use the IrDA
function, follow the steps below.
1. Connect your IrDA cable to connector J20 of the G686IPA system
board. Refer to page 11 for the location of connector J20.
2. Set the “Infrared (IR) Function” to the type of IrDA standard supported by your computer.
43
Page 44
You may not use IrDA (J20) and the COM 2 serial port (J3) at the same
time. If you are using the COM 2 serial port, set the “Infrared (IR) Function” to Disabled.
Disabled
HPSIR
ASKIR
Uses the COM 2 serial port.
HP mode IrDA.
Sharp mode IrDA.
IR Transfer Mode
Half-Dup
Full-Dup
Data is completely transmitted before receiving data.
Transmits and receives data simultaneously.
Onboard Parallel Port
378H/IRQ7
3BCH/IRQ7
278H/IRQ5
Disabled
Selects the I/O address and IRQ for the onboard parallel port.
Disables the onboard parallel port.
Onboard Parallel Mode
SPP
EPP
ECP
ECP+EPP
Selects the parallel port mode according to the type of printer
device connected to your onboard parallel port.
USB Controller
By default, the USB controller is Disabled. If you wish to use the USB
controller (USB 0 or USB 1), you must enable this category.
44
Page 45
Supervisor Password
If you want to protect your system and setup from unauthorized entry,
set a supervisor’s password with the “System” option selected in the
BIOS Features Setup.
If you want to protect access to setup only, but not your system, set a
supervisor’s password with the “Setup” option selected in the BIOS Features Setup. You will not be prompted for a password when you cold
boot the system.
Use the arrow keys to highlight the “Supervisor Password” option and
press <Enter>. The message below will appear.
Enter Password:
Type in the password. You are limited to eight characters. When done,
the message below will appear:
Confirm Password:
You are asked to verify the password. Type in exactly the same password. If you type in a wrong password, you will be prompted to enter
the correct password again.
To delete or disable the password function, highlight “Supervisor Password” and press <Enter>, instead of typing in a new password. Press
the <Esc> key to return to the main menu.
If you forget your password, you should clear any previously set password by setting Jumper JP3 to On for approximately two minutes.
Please refer to page 21 for more information.
User Password
If you want another user to have access only to your system but not to
setup, set a user’s password with the “System” option selected in the
BIOS Features Setup.
If you want a user to enter a password when trying to access setup, set
a user’s password with the “Setup” option selected in the BIOS Fea-
45
Page 46
tures Setup. Using user’s password to enter Setup allows a user to
access only the “User Password” option that appears on the main
screen. Access to all other options is denied.
To set, confirm, verify, disable or delete a user’s password, follow the
procedures described in the section “Supervisor Password”. If you forget your password, refer to the procedure described in the same section.
IDE HDD Auto Detection
This option detects the hard disk parameters for the hard disk drives
installed in your system. Highlight this option and press <Enter>. A
screen similar to the one below will appear.
ROM PCI/ISA BIOS
CMOS SETUP UTILITY
AWARD SOFTWARE, INC.
HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master:
Select Primary Master Option (N=Skip): N
OPTIONS
1 (Y)
SIZE
345
CYLS
790
HEAD
15
PRECOMP
65535
LANDZ
789
SECTOR
57
MODE
NORMAL
Note: Some OSes (like SCO-UNIX) must use “NORMAL” for installation
ESC: Skip
Enter your choice, and press <Enter> to accept the parameters or press
<Esc> to abort. The parameters of the hard disk will be displayed in the
Standard CMOS Setup.
Hard Drive Mode
The G686IPA system board supports three HDD modes: Normal, LBA
and Large. If your hard disk drive does not support LBA mode, the
“LBA” option will not be displayed. If your HDD has 1024 or fewer cylinders, the “Large” option will not be displayed.
46
Page 47
Normal Mode
The Normal mode is the generic access mode in which neither the
BIOS nor the IDE controller will make any transformations during harddrive access.
The maximum number of cylinders, heads and sectors for Normal mode
are 1024, 16 and 63, respectively.
no. Cylinders (1024)
x no. Heads ( 16)
x no. Sectors ( 63)
x bytes per sector ( 512)
528 megabytes
If you set your HDD to Normal mode, the maximum accessible HDD will
be 528 megabytes even though the physical size of the HDD may be
greater than that.
LBA (Logical Block Addressing) Mode
The LBA mode is a HDD accessing method to overcome the 528 megabyte limitation. The number of cylinders, heads and sectors shown on
the screen may not be the actual number for the HDD.
During the HDD accessing, the IDE controller will transform the logical
address described by the sector, head and cylinder number into its own
physical address inside the HDD.
The maximum HDD size supported by the LBA mode is 8.4 gigabytes. It
is obtained by the following formula.
no. Cylinders (1024)
x no. Heads ( 255)
x no. Sectors ( 63)
x bytes per sector ( 512)
8.4 gigabytes
47
Page 48
Large Mode
The Large mode is the extended HDD access mode supported by the
system board. Some IDE HDDs have more than 1024 cylinders without
LBA support (in some cases, you may not want the LBA mode). This
system board provides another alternative to support these kinds of
HDDs.
The BIOS tells the operating system that the number of cylinders is half
of the actual number and that the number of heads is double the actual
number. During disk access, the reverse conversion is done by the
INT13h routine.
Example of Large mode:
CYLS. HEADS SECTORS MODE
1120 16 59 NORMAL
560 32 59 LARGE
Maximum HDD size:
no. Cylinders (1024)
x no. Heads ( 32)
x no. Sectors ( 63)
x bytes per sector ( 512)
1 gigabyte
Note:
To support LBA or Large mode, address translation software is included
in the Award BIOS HDD Sevice Routine (INT13h). If you are running an
operating system that bypasses the BIOS Int13 Service Routine, LBA
and Large Mode may fail.
48
Page 49
HDD Low Level Format
The Low Level Format utility is designed as a tool to save you time
formatting your hard disk. It automatically looks for the necessary information of the drive you selected. This utility also searches for bad
tracks and lists them for your reference. Highlight this option and press
<Enter>. A screen similar to the one below will appear.
Save & Exit Setup
When all the changes have been made, highlight “Save & Exit Setup”
and press <Enter>. The message below will appear:
Save to CMOS and Exit (Y/N)? N
Type “Y” and press <Enter>. The following message will appear:
Reboot System (Y/N)? N
Type “Y” and press <Enter>. The modifications you have made will be
written into the CMOS memory, and the system will reboot. You will
once again see the initial diagnostics on the screen. If you wish to
make additional changes to the setup, press <Ctrl> <Alt> <Esc> simultaneously or <Del> after memory testing is done.
49
Page 50
Exit Without Saving
When you do not want to save the changes you have made, highlight “Exit
Without Saving” and press <Enter>. The message below will appear:
Quit Without Saving (Y/N)? N
Type “Y” and press <Enter>. The system will reboot and you will once
again see the initial diagnostics on the screen. If you wish to make any
changes to the setup, press <Ctrl> <Alt> <Esc> simultaneously or
<Del> after memory testing is done.
System Error Report
When the BIOS encounters an error that requires the user to correct
something, either a beep code will sound or a message will be displayed in a box in the middle of the screen and the message PRESS
F1 TO CONTINUE, CTRL-ALT-ESC or DEL TO ENTER SETUP, will be
shown in the information box at the bottom. Enter Setup to correct the
error.
POST Beep
Currently there are two kind of beep codes in BIOS. The one code
indicates that a video error has occured and the BIOS cannot initialize
the video screen to display any additional information. This beep code
consists of a signle long beep followed by three short beeps. The other
one code indicates that your DRAM error has occured. This beep code
consists of a signle long beep repeatedly.
Error Messages
One or more of the following messages may be displayed if the BIOS
detects an error during the POST. This list indicates the error messages
for all Awards BIOSes:
CMOS BATTERY HAS FILED
CMOS battery is no longer functional. It should be replaced.
50
Page 51
CMOS CHECKSUM ERROR
Checksum of CMOS is incorrect. This can indicate that CMOS has become corrupt.. This error may have been caused by a weak battery.
Check the battery and replace if necessary.
DISPLAY SWITCH IS SET INCORRECTLY
Display switch on the motherboard can be set to either monochrome or
color. This indicates the switch is set to a different setting than indicated in Setup. Determine which setting is correct, and then either turn
off the system and change the jumper, or enter Setup and change the
VIDEO selection.
FLOPPY DISK(S) fail (80) → Unable to reset floppy subsystem.
FLOPPY DISK(S) fail (40) → Floppy Type dismatch.
Hard Disk(s) fail (80) → HDD reset failed.
Hard Disk(s) fail (40) → HDD controller diagnostics failed.
Hard Disk(s) fail (20) → HDD initialization error.
Hard Disk(s) fail (10) → Unable to recalibrate fixed disk.
Hard Disk(s) fail (08) → Sector Verify failed.
Keyboard is locked out - Unlock the key
BIOS detect the keyboard is locked. Keyboard controller is pulled low.
Keyboard error or no kayboard present
Cannot initialize the keyboard. Make sure the keyboard is attached correctly and no keys are being pressed during the boot.
Manufacturing POST loop
System will repeat POST procedure infinitely while the keyboard controller is pull low. This is also used for M/B burn in test.
BIOS ROM checksum error - System halted
The checksum of ROM address F0000H-FFFFFH is bad.
51
Page 52
Memory test fail
BIOS reports the memory test fail if the onboard is tested error.
IDE Device Drivers
To install the IDE device drivers supported by the G686IPA system
board, please refer to the “Readme” file contained in the provided diskette.
52
Page 53
Chapter 4
Troubleshooting Checklist
If you experience difficulty with the G686IPA system board, please refer
to the checklist below. If you still cannot identify the problem, please
contact your dealer.
1. Check the jumper settings to ensure that the jumpers are properly
set. If in doubt, refer to the “Hardware Installation” section.
2. Verify that all SIMMs are seated securely into the bank sockets.
3. Make sure the SIMMs are in the correct locations.
4. Check that all populated memory banks are filled with correctly
sized SIMMs.
5. If your board fails to function, place the board on a flat surface and
seat all socketed components (gently press each component into
the socket).
6. If you made changes to the BIOS settings, re-enter setup and
load the BIOS defaults.
53
Page 54
Appendix A
Types of Modules
The following modules have been tested with this board. Most untested
brands will work but a few may fail to do so.
SIMM
1MBx32/x36
1MBx32
2MBx32/x36
2MBx32
2MBx32
2MBx32/x36
2MBx32
2MBx32
2MBx32
4MBx32/x36
4MBx32/x36
4MBx32/x36
4MBx32/x36
4MBx32
4MBx32
8MBx32
Brand
Fujitsu
OKI
OKI
NEC
Micron
TI
Micron
Micron
NEC
Hitachi
Fujitsu
Mitsubishi
Hitachi
NEC
NEC
NEC
Chip Number
81C1000A-70
M51440A-70
M511000B-70
424400-60
40447-60
TMS4400DJ-70
MT4C4007-70 (EDO)
MT4C4007-60 (EDO)
4218165-60 (EDO)
7400AS-70
8117400-70
422A06-70
5117400AS-70
4217400-60
4217405-70 (EDO)
4217405-60 (EDO)
54
16MBx32
LGS
71C16100AJ6
Page 55
Memory Address Map
Appendix B
Memory and I/O Maps
Address
00000000 to
0009FFFF
000A0000 to
000BFFFF
000C0000 to
000EFFFF
000F0000 to
000FFFFF
00100000 to
1FFFFFFF
Name
640KB System
Board RAM
128KB Video
Display Memory
192KB I/O
Expansion ROM
64KB ROM on
the System Board
Maximum
Memory 512MB
Function
System Board Memory
Reserved for Graphics
Display Memory
Reserved for ROM on
I/O Adapter Card
System Board BIOS
System Board Memory
55
Page 56
I/O Address Map
I/O Address Function
0000-001F DMA Controller 1, 8237A-5
0020-003F Interrupt Controller 1, 8259A, Master
0040-005F Timer, 8254-2
0060-006F 8742 (Keyboard Controller)
0070-007F Real-time Clock, NMI
0080-009F DMA Page Memory, 74LS612
00A0-00BF Interrupt Controller 2, 8259A
00C0-00DF DMA Controller 2, 8237A-5
00E8 Shadow RAM and Cache Control Bit
00F0 Clear Numeric Processor
00F1 Reset Numeric Processor Extension
00F8-00FF Numeric Processor Extension
01F0-01F8 Fixed Disk
0200-0207 Game I/O
0278-027F Parallel Printer Port 2
02F8-02FF Serial Port 2
0300-031F Prototype Card
0360-036F Reserved
0378-037F Parallel Printer Port 1
0380-038F SDLC, Bisynchronous 2
03A0-03AF Bisynchronous 1
03B0-03BF Monochrome Display and Printer Adapter
03C0-03CF Reserved
03D0-03DF Color/Graphics Monitor Adapter
03F0-03F7 Diskette Controller
03F8-03FF Serial Port 1
(Non-maskable Interrupt) Mask
Extension Busy
56
Note:
The I/O address hex 0000 to 00FF are reserved for the system board
I/O. Hex 0100 to 03FF are available on the I/O channels.
Page 57
Connectors
Appendix C
Connectors
J1
J2
J3
J4
J5
J6
J8
J9
J10
J11
J12
J14
J15
J16
J17
J18
J19
J20
J21
J22
PL1
PL2
PS/2 mouse port
PS/2 keyboard port
COM 2 serial port
COM 1 serial port
Parallel printer port
CPU fan connector
USB 0 connector
USB 1 connector
Floppy disk drive connector
Secondary IDE hard disk drive connector
Primary IDE hard disk drive connector
HD LED connector
Green LED connector
Green switch connector
Reset switch connector
Speaker connector
Keylock connector
IrDA connector
ATX power switch connector
ATX power LED connector
ATX power connector
AT power connector
57
Page 58
Pin Assignments
J14 - HD LED connector
Pin
1
2
Function
LED Power
Signal
J16 - Green switch connector
Pin
1
2
Function
Signal
Ground
J19 - Keylock connector
Pin
1
2
3
4
5
Function
LED Signal
N.C.
Ground
Keylock Signal
Ground
J15 - Green LED connector
Pin
1
2
Function
LED Power
Signal
J17 - Reset switch connector
Pin
1
2
Function
Signal
Ground
J20 - IrDA connector
Pin
1
2
3
4
5
Function
IrTX
Ground
IrRX
N.C.
+5V
J6 - CPU fan connector
Pin
1
2
3
4
5
6
58
Function
+12V
Fan Status
Ground
Ground
Fan Status
+12V
J18 - Speaker connector
Pin
1
2
3
4
Function
Signal
N.C.
Ground
+5V
Page 59
J21 - ATX power switch
J22 - ATX Power LED
Pin
1
2
Function
Signal
Ground
PL1 - ATX power connector
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Function
N. C.
N. C.
Ground
+5V
Ground
+5V
Ground
PW-OK
5VSB
+12V
N. C.
-12V
Ground
PS-ON
Ground
Ground
Ground
-5V
+5V
+5V
Pin
1
2
Function
+5V
Ground
PL2 - AT power connector
Pin
1
2
3
4
5
6
7
8
9
10
11
12
Function
Power Good
+5V
+12V
-12V
Ground
Ground
Ground
Ground
-5V
+5V
+5V
+5V
J8/J9 - USB 0/USB 1 connector
Pin
1
2
3
4
5
Function
+5V
-Data
+Data
Ground
Ground
59
Loading...
