G5C100-B

System Board User’s Manual

935-G5C104-300G

A01610805

Page 2

This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.

Trademarks

Product names or trademarks appearing in this manual are for identification purpose only and are the properties of the respective owners.

Page 3

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

Page 4

Table of Contents

About this Manual................................................................................

Warranty.................................................................................................

Static Electricity Precaution................................................................

Safety Measures.....................................................................................

About the Package...............................................................................

Before Using the System Board.........................................................

Chapter 1 - Introduction....................................................................

Specifications...................................................................................................................................

Special Features of the System Board..................................................................

Chapter 2 - Hardware Installation....................................................

System Board Layout ..........................................................................................................

System Memory..........................................................................................................................

CPU.......................................................................................................................................................

Jumper Settings............................................................................................................................

Rear Panel I/O Ports.............................................................................................................

I/O Connectors..........................................................................................................................

Chapter 3 - BIOS Setup......................................................................

Award BIOS Setup Utility.................................................................................................

Updating the BIOS..................................................................................................................

Chapter 4 - Supported Softwares.....................................................

Drivers for Windows Vista System..........................................................................

Drivers for Windows XP System..............................................................................

Installation Notes.......................................................................................................................

Appendix A - Watchdog Timer.............................................................

Appendix B - System Error Messages...............................................

Appendix C - Troubleshooting..........................................................

5 5 6 6 7 7

8 8

14 14 15 19 24 32 43

61 61 99

101 101 117 131

132

133

135

Page 5

About this Manual

An electronic file of this manual is included in the CD. To view the user’s manual in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click “User’s Manual” on the main menu.

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications.

2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work.

4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered.

Page 6

Introduction

Static Electricity Precautions

It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of the components, contacts or connections.

5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or connectors by their ends.

Important:

Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.

Battery:

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend

the manufacturer.

• Dispose of used batteries according to local ordinance.

Page 7

Introduction

About the Package

The system board package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.

; The system board ; A user’s manual ; One IDE cable ; One bracket mounted with 2 USB ports ; One Serial ATA data cable ; One Serial ATA power cable ; One “Main Board Utility” CD ; One I/O shield ; One QR (Quick Reference)

The system board and accessories in the package may not come similar to the information listed above. This may differ in accordance to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

Before Using the System Board

Before using the system board, prepare basic system components.

If you are installing the system board in a new system, you will need at least the following internal components.

• A CPU

• Memory module

• Storage devices such as hard disk drive, CD-ROM, etc.

You will also need external system peripherals you intend to use which will normally include at least a keyboard, a mouse and a video display monitor.

Page 8

Introduction

Processor

Chipset

System Memory

Expansion Slots

Graphics

Audio

LAN

Serial ATA

Chapter 1 - Introduction

• Intel® CoreTM Duo/Solo processor Intel® CoreTM2 Duo processor

- 667MHz/533MHz system data bus

• Intel® Celeron® M processor

- 533MHz system data bus (on Ultra Low Voltage)

• Processor socket: mPGA478M

• Intel

chipset

- Northbridge: Intel® 945GME Express chipset

- Southbridge: Intel® 82801GBM ICH7M

• Two 200-pin SODIMM sockets

• Supports dual channel (128-bit wide) memory interface

• Supports 400MHz, 533MHz and 667MHz DDR2 SDRAM

• Supports maximum of 4GB system memory using 256Mbit, 512Mbit or 1Gbit technology for x8 and x16 devices

• 1 PCI slot for PCI expansion card or customized riser card for 1, 2 or 3 PCI slots expansion

• Integrated graphics interface

- Analog CRT

- Integrated 400MHz RAMDAC

- Analog monitor supports up to UXGA

- LVDS interface

- Panel support up to UXGA (1600x1200)

- TFT panel supports up to 1x24 bpp (single channel) / 2x24 bpp (dual channel)

• Internal graphics features

- DVMT 3.0 support

- Intel

Dual-Frequency Graphics Technology

- Intel® Smart 2D Display Technology

- Dual Independent display pipes

- Intel Gen 3.5 Integrated Graphics Engine

• Realtek ALC655

• 16-bit stereo full-duplex codec with independent variable sampling rate

• High quality differential CD input

• True stereo line level outputs

• S/PDIF-out interface

• 5.1-channel audio output

• One Marvell 88E8053 PCI Express Gigabit controller

• Supports 10Mbps, 100Mbps and 1Gbps data transmission

• IEEE 802.3 (10/100Mbps) and IEEE 802.3ab (1Gbps) compliant

• Supports two Serial ATA interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)

• Suppor ts AHCI SATA mode

Specifications

Page 9

Introduction

IDE

Rear Panel I/O Ports

I/O Connectors

BIOS

Energy Efficient Design

Damage Free Intelligence

Temperature

Humidity

PCB

• Suppor ts up to two IDE devices

• Supports Ultra ATA 100/66/33

• 1 mini-DIN-6 PS/2 mouse port

• 1 mini-DIN-6 PS/2 keyboard port

• 1 DB-9 serial port

• 1 DB-15 VGA port

• 1 RJ45 LAN por t

• 4 USB 2.0/1.1 ports

• Mic-in, line-in and line-out

• 2 connectors for 4 additional external USB 2.0/1.1 ports

• 1 connector for 1 external serial port

• 1 LCD brightness control connector

• 1 LVDS LCD panel connector

• 1 LCD/inverter power connector

• 1 LCD AUX power connector

• 1 DIO connector

• 1 front audio connector for line-out and mic-in jacks

• 1 CD-in internal audio connector and 1 S/PDIF-out connector

• 1 connector for IrDA interface

• 2 Serial ATA connectors

• 1 40-pin IDE connector and 1 floppy connector (FPC type)

• 1 20-pin ATX power connector

• 1 front panel connector

• 1 chassis open connector

• 2 fan connectors

• Award BIOS

• 4Mbit flash memory

• Supports ACPI specification and OS Directed Power Management

• Suppor ts ACPI STR (Suspend to RAM) function

• Wake-On-Events include:

- Wake-On-PS/2 KB/Mouse and Wake-On-USB KB/Mouse

- Wake-On-Ring and Wake-On-LAN

- RTC timer to power-on the system

• System power management supported

• CPU stopped clock control

• Microsoft

/Intel® APM 1.2 compliant

• Soft Power supported - ACPI v1.0a specification

• AC power failure recovery

• Monitors CPU/system temperature and overheat alarm

• Monitors CPU(V)/3.3V/5V/12V/VBAT(V)/5VSB(V) voltages and failure alarm

• Monitors CPU/system fan speed and failure alarm

• Read back capability that displays temperature, voltage and fan speed

• Watchdog timer function

•0

C to 60oC

• 10% to 90%

• 6 layers, Mini-ITX form factor

• 17cm (6.7") x 17cm (6.7")

Page 10

Introduction

Features

The Watchdog Timer function allows your

application to regularly “clear” the system at the set time interval. If the system hangs or fails to function, it will reset at the set time interval so that your system will continue to operate.

DDR2 is a higher performance DDR technology

whose data transfer rate delivers bandwidth of 4.3 GB per second and beyond. That is twice the speed of the conventional DDR without increasing its power consumption. DDR2 SDRAM modules work at 1.8V supply compared to 2.6V memory voltage for DDR modules. DDR2 also incorporates new innovations such as the On-Die Termination (ODT) as well as larger 4-bit prefetch against DDR which fetches 2 bits per clock cycle.

The Intel 945GME northbridge chip comes inte-

grated with the Intel Graphics Media Accelerator 950 delivering exceptional 3D graphics performance. It supports analog CRT and LVDS interfaces.

The audio jacks at the rear panel will

support 5.1-channel audio only when the audio utility is configured to support this function. The front audio’s mic-in function will not work at this moment.

S/PDIF is a standard audio file transfer format that

transfers digital audio signals to a device without having to be converted first to an analog format. This prevents the quality of the audio signal from degrading whenever it is converted to analog. S/PDIF is usually found on digital audio equipment such as a DAT machine or audio processing device. The S/PDIF connector on the system board sends surround sound and 3D audio signal outputs to amplifiers and speakers and to digital recording devices like CD recorders.

Serial ATA is a storage interface that is compliant with SATA 1.0 specification. With speed of up to

1.5Gbps, it improves hard drive performance faster than the standard parallel ATA whose data transfer rate is 100MB/s.

watchdog timer

DDR2

5.1-channel audio

graphics

SERIAL ATA

S/PDIF

Page 11

Introduction

The Marvell 88E8053 Gigabit LAN chip supports up to 1Gbps data transmission.

The system board is equipped with an IrDA connec-

tor for wireless connectivity between your computer and peripheral devices. The IRDA (Infrared Data Association) specification supports data transfers of 115K baud at a distance of 1 meter.

The system board supports USB 2.0 and USB 1.1

ports. USB 1.1 supports 12Mb/second bandwidth while USB 2.0 supports 480Mb/second bandwidth providing a marked improvement in device transfer speeds between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

This feature allows the system that is in the

Suspend mode or Soft Power Off mode to wake-up/power-on to respond to calls coming from an external modem or respond to calls from a modem PCI card that uses the PCI PME (Power Management Event) signal to remotely wake up the PC.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

This feature allows the network to remotely

wake up a Soft Power Down (Soft-Off) PC. It is supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Management Event) signal. However, if your system is in the Suspend mode, you can power-on the system only through an IRQ or DMA interrupt.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

This function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the sys-

tem.

USB

wake-on-lan

wake-on-ring

wake-on-PS/2

irda

gigabit lan

Page 12

Introduction

Important:

The 5V_standby power source of your power supply must support ≥720mA.

This function allows you to use a USB keyboard or USB mouse to wake up a system

from the S3 (STR - Suspend To RAM) state.

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the 5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the 5V_standby power source of your power supply must support

≥

2A.

The RTC installed on the system board allows your system to automatically power-on on the set date

and time.

The system board is designed to meet the ACPI

(Advanced Configuration and Power Interface) specification. ACPI has energy saving features that enables PCs to implement Power Management and Plug-and-Play with operating systems that support OS Direct Power Management. Currently, only Windows

®®

98/2000/ME/XP supports the ACPI function. ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM function.

With the Suspend to RAM function enabled, you can power-off the system at once by pressing the power button or selecting “Standby” when you shut down Windows

®®

98/2000/ME/XP without having to go through the sometimes tiresome process of closing files, applications and operating system. This is because the system is capable of storing all programs and data files during the entire operating session into RAM (Random Access Memory) when it powers-off. The operating session will resume exactly where you left off the next time you power-on the system.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

wake-on-USB

rtc timer

ACPI STR

Page 13

Introduction

When power returns after an AC power failure, you may choose to either power-on the system manually or let the system power-on

automatically.

Power failure recovery

Page 14

Hardware Installation

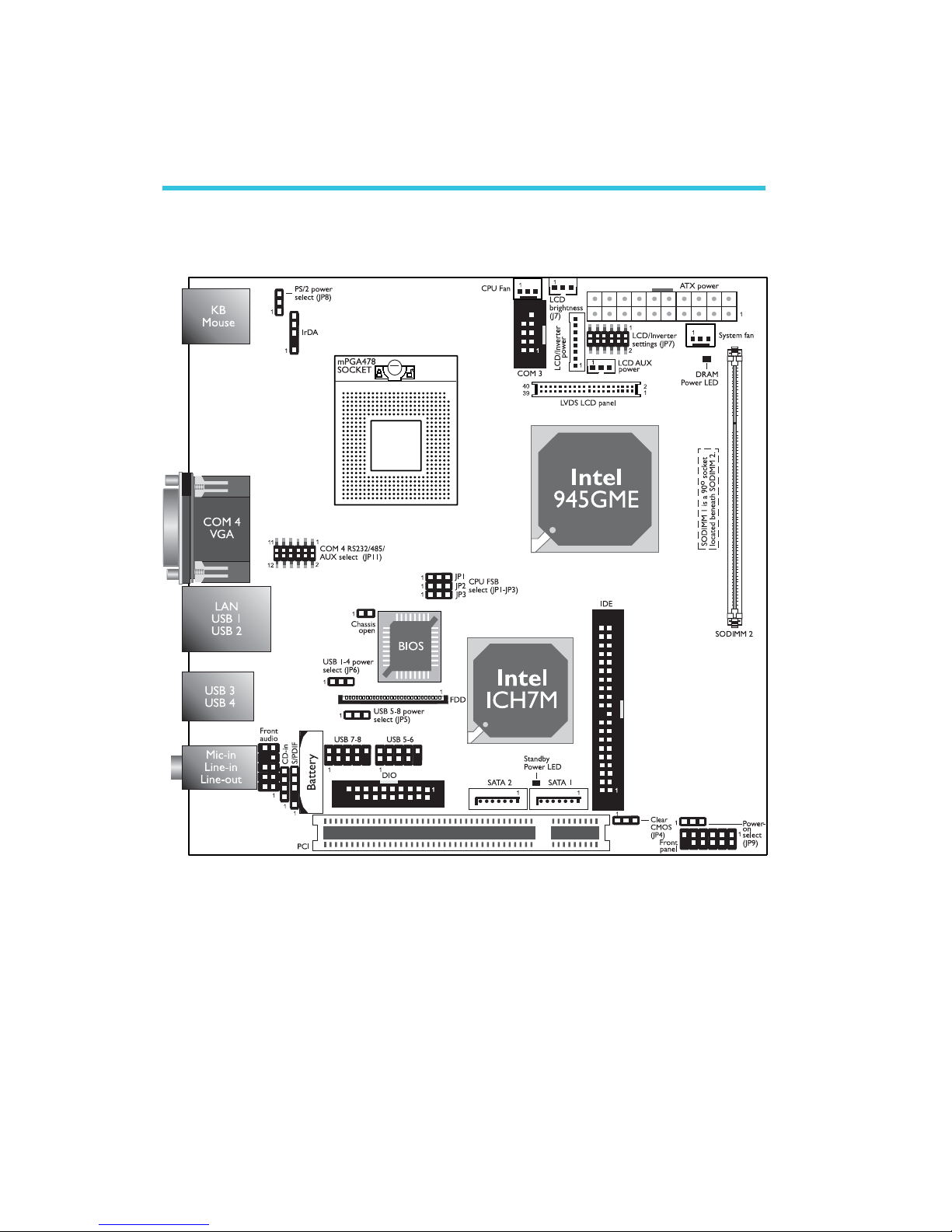

System Board Layout

Chapter 2 - Hardware Installation

Page 15

Hardware Installation

System Memory

Warning:

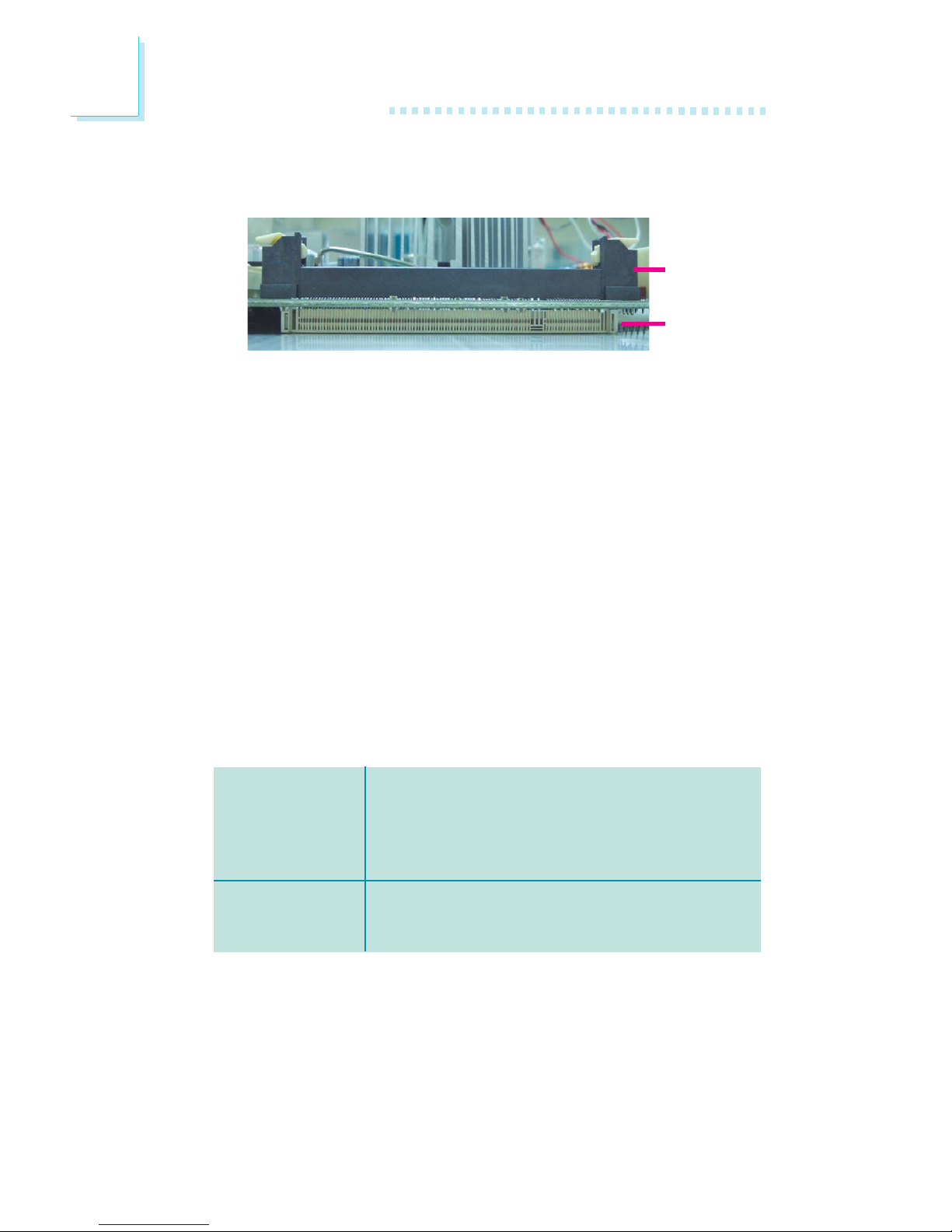

When the DRAM Power LED lit red, it indicates that power is present on the DDR2 sockets. Power-off the PC then unplug the power cord prior to installing any memory modules. Failure to do so will cause severe damage to the motherboard and components.

Warning:

Electrostatic discharge (ESD) can damage your system board, processor, disk drives, add-in boards, and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

SODIMM 2

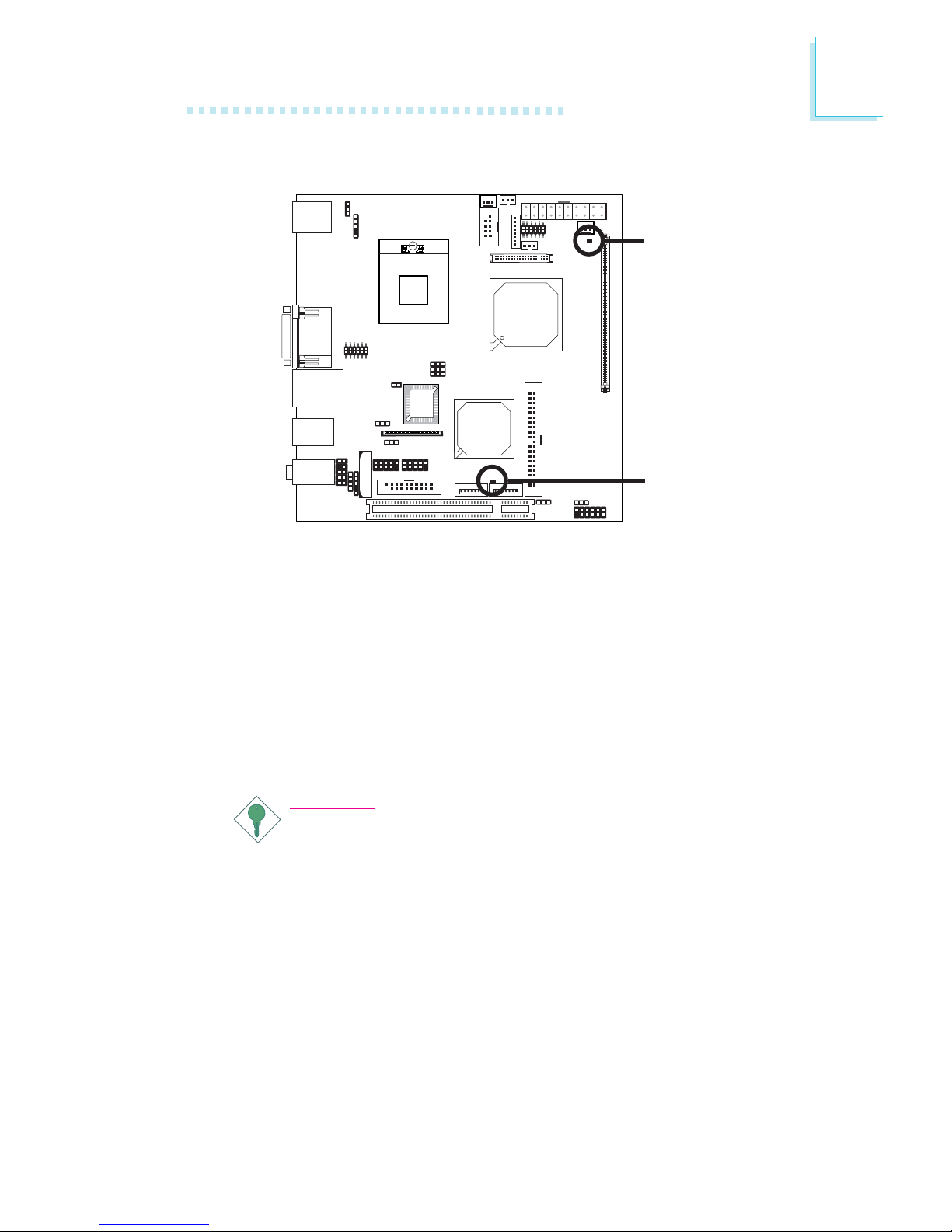

DRAM Power LED

Page 16

Hardware Installation

The two DDR2 SODIMM sockets on the system board are divided into 2 channels:

Channel A - SODIMM 1 Channel B - SODIMM 2

The system board supports the following memory interface.

Single Channel (SC)

Data will be accessed in chunks of 64 bits (8B) from the memory channels.

Dual Channel (DC)

Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides better system performance because it doubles the data transfer rate.

• Only one channel is populated with

SODIMM.

• SODIMMs of different memory configura-

tions are on different channels.

• SODIMMs of the same memory configu-

ration are on different channels.

Single Channel

Dual Channel

BIOS Setting

Configure the system memory in the Advanced Chipset Features submenu of the BIOS.

The system board is equipped with 2 SODIMM sockets. SODIMM

1 is a 90o socket located beneath SODIMM 2.

SODIMM 1

SODIMM 2

Page 17

Hardware Installation

Installing the Memory Module

1. Make sure the PC and all other peripheral devices connected to it has been powered down.

2. Disconnect all power cords and cables.

3. Locate the SODIMM 2 socket on the system board.

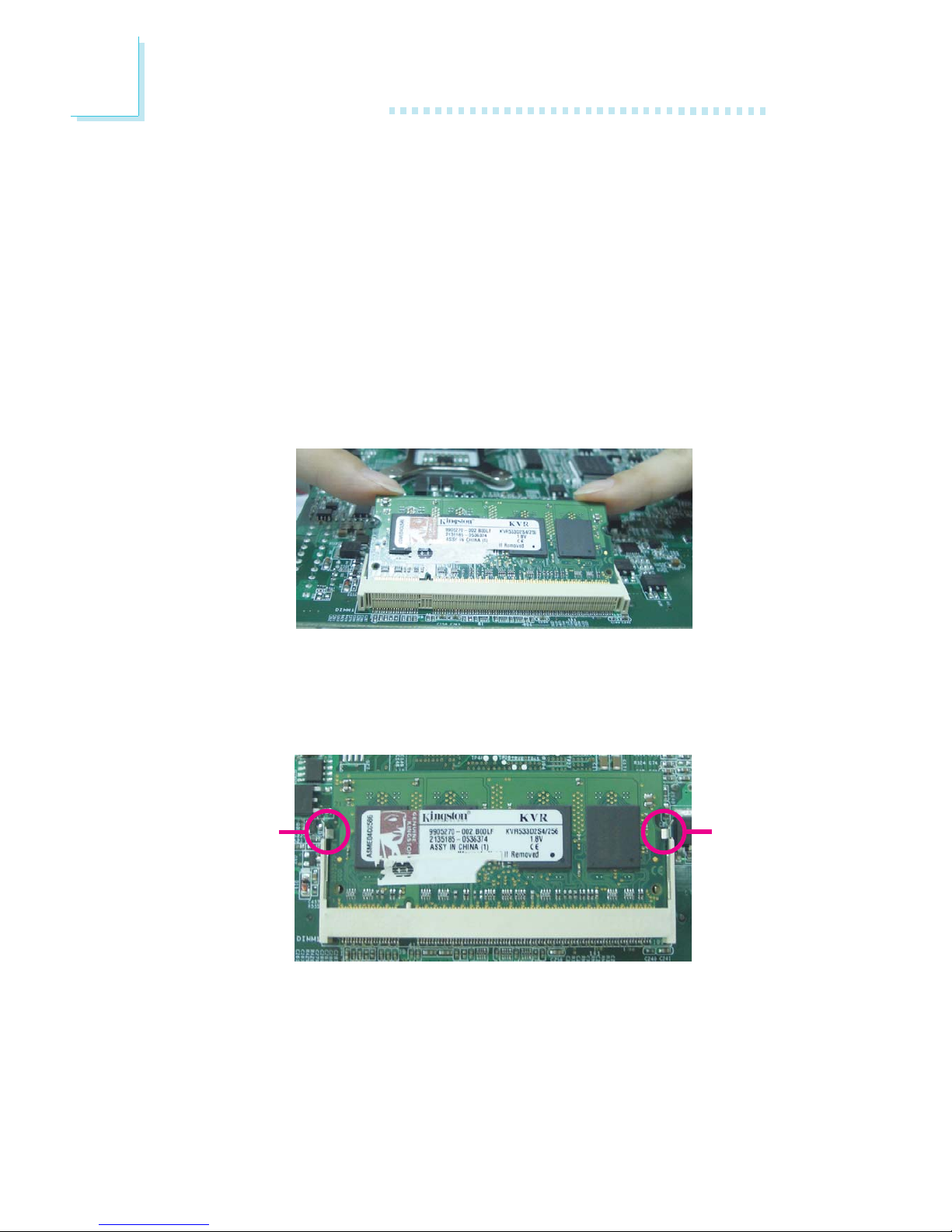

4. Push the “ejector tabs” which are at the ends of the socket to the side.

Ejector tab

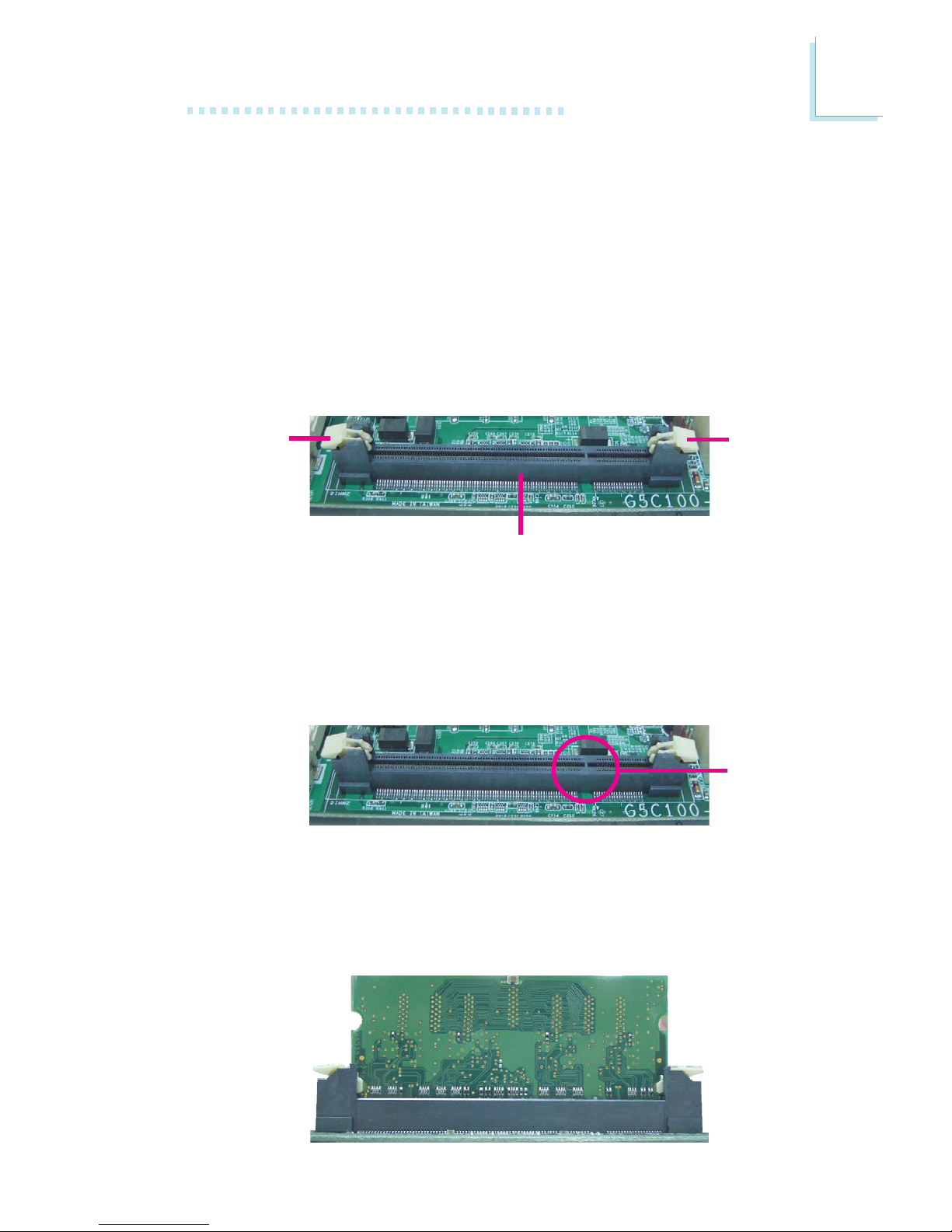

5. Note how the module is keyed to the socket. Grasping the module by its edges, position the SODIMM above the socket with the “notch” in the module aligned with the “key” on the socket. The keying mechanism ensures the module can be plugged into the socket in only one way.

SODIMM 2

Ejector

tab

6. Seat the module vertically, pressing it down firmly until it is completely seated in the socket. The ejector tabs at each end of the socket will automatically snap into the locked position to hold the SODIMM in place.

Key

Page 18

Hardware Installation

7. To install another SODIMM, locate the SODIMM 1 socket on the system board.

8. Insert the module into the socket at an approximately 30 degrees angle. Note that the socket and module are both keyed, which means the module can be plugged into the socket in only one way.

9. To seat the module into the socket, apply firm even pressure to each end of the module until it slips down into the socket. The contact fingers on the edge of the module will almost completely disappear inside the socket.

10. Push down the module until the clips at each end of the socket

lock into position. You will hear a distinctive “click”, indicating the module is correctly locked into position.

ClipClip

Page 19

Hardware Installation

CPU

Overview

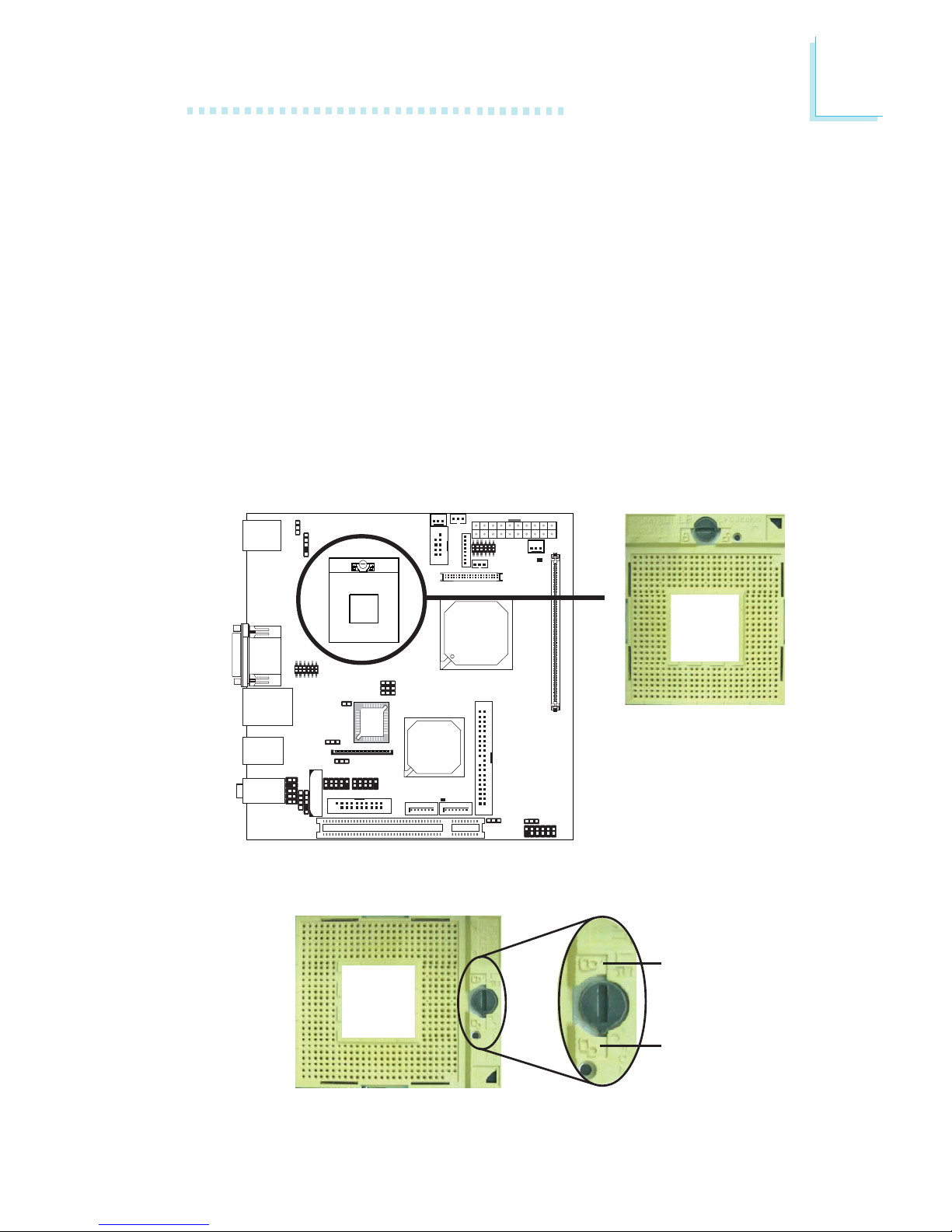

The system board is equipped with a surface mount mPGA478 CPU socket.

Installing the CPU

1. Make sure the PC and all other peripheral devices connected to it has been powered down.

2. Disconnect all power cords and cables.

3. Locate the mPGA478 socket on the system board.

4. Use a screwdriver to turn the screw to its unlock position.

Lock

Unlock

Page 20

Hardware Installation

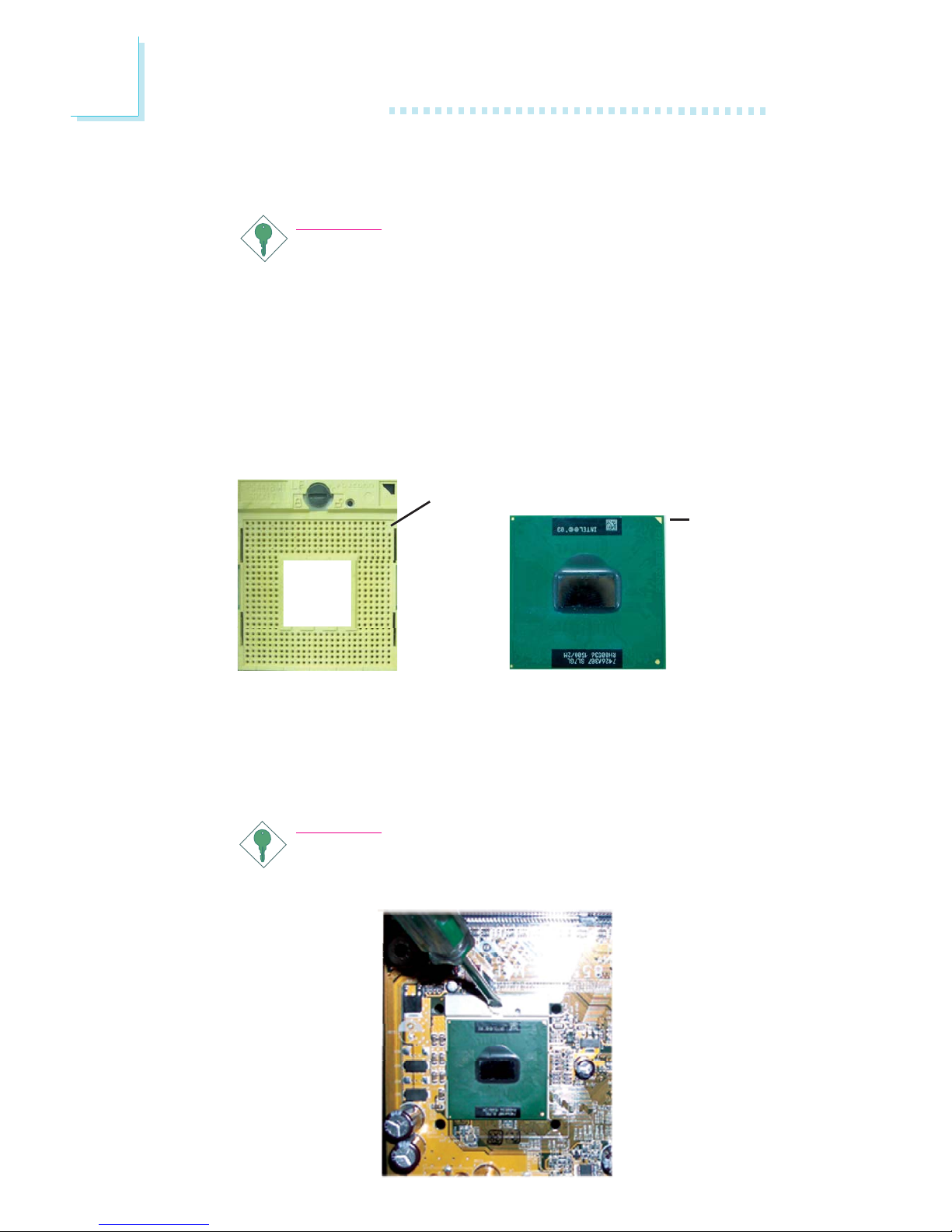

5. Position the CPU above the socket. The gold triangular mark on the CPU must align with pin 1 of the CPU socket.

Important:

1. Only Use Intel® CoreTM Duo/Solo processor or Intel® Celeron® M processor manufactured on 65nm technology. Intel Pentium M and Intel Celeron

M processors manufactured on 0.13 micron and 90nm technology are not supported. Installing an incompatible processor will cause severe damage to both the processor and system board.

2. Handle the CPU by its edges and avoid touching the pins.

6. Insert the CPU into the socket until it is seated in place. The CPU will fit in only one orientation and can easily be inserted without exerting any force. Use a screwdriver to turn the screw to its lock position.

Important:

Do not force the CPU into the socket. Forcing the CPU into the socket may bend the pins and damage the CPU.

Gold triangular mark

Pin 1 of the socket

Page 21

Hardware Installation

Installing the Fan and Heat Sink

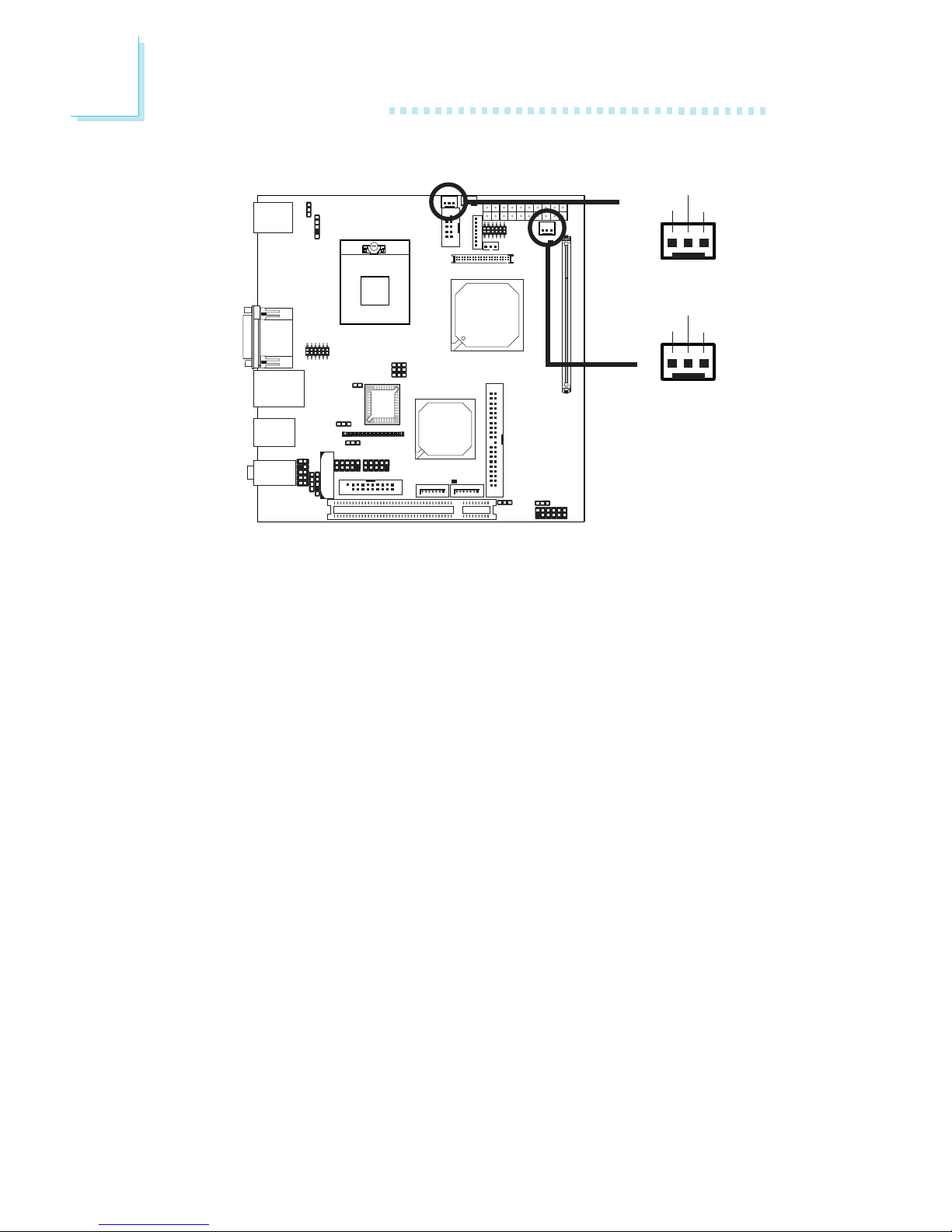

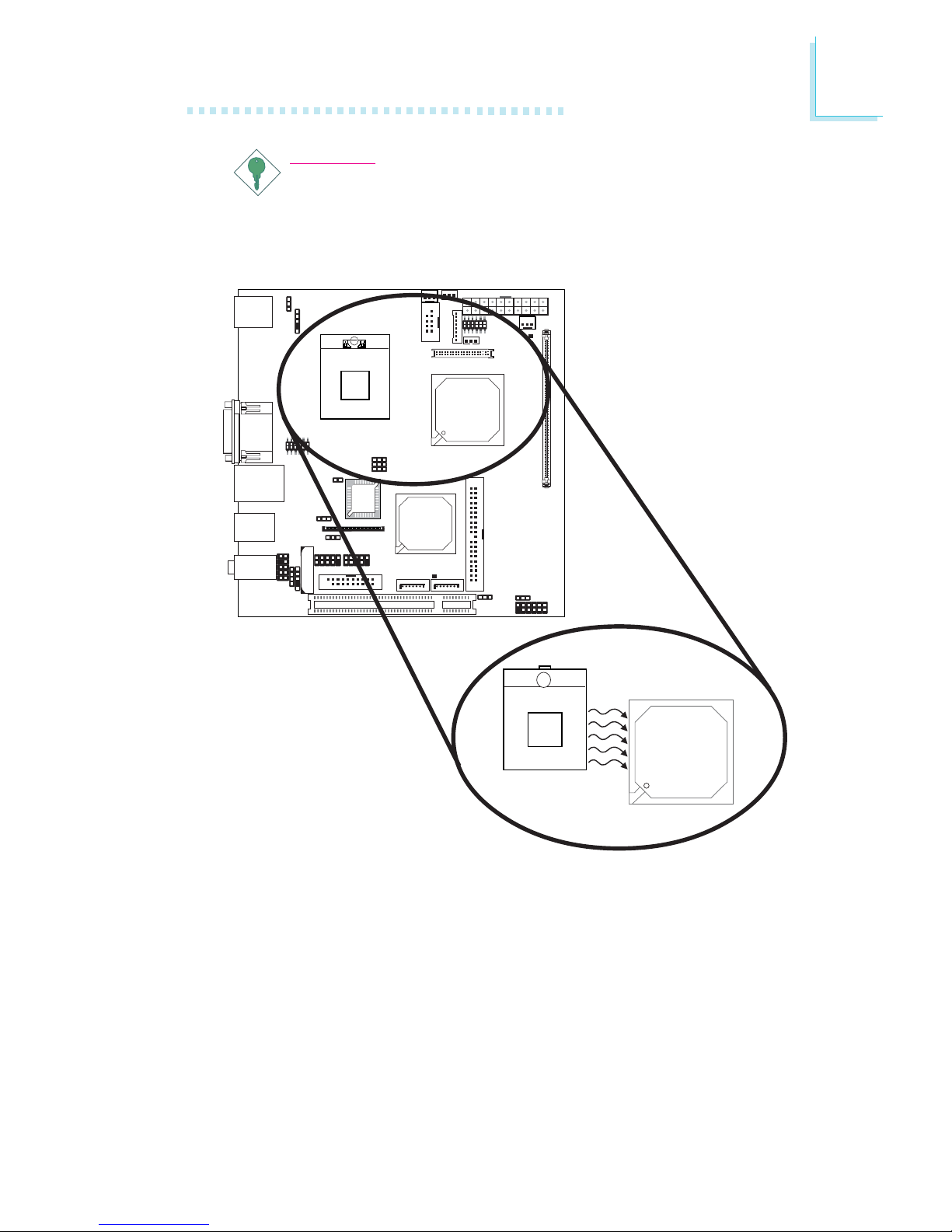

The CPU must be kept cool by using a CPU fan with heat sink. Without sufficient air circulation across the CPU and heat sink, the CPU will overheat damaging both the CPU and system board.

Note:

• Use only certified fan and heat sink.

• Your fan and heat sink package usually contains the fan

and heat sink assembly, and an installation guide. If the installation procedure in the installation guide differs from the one in this section, please follow the installation guide in the package.

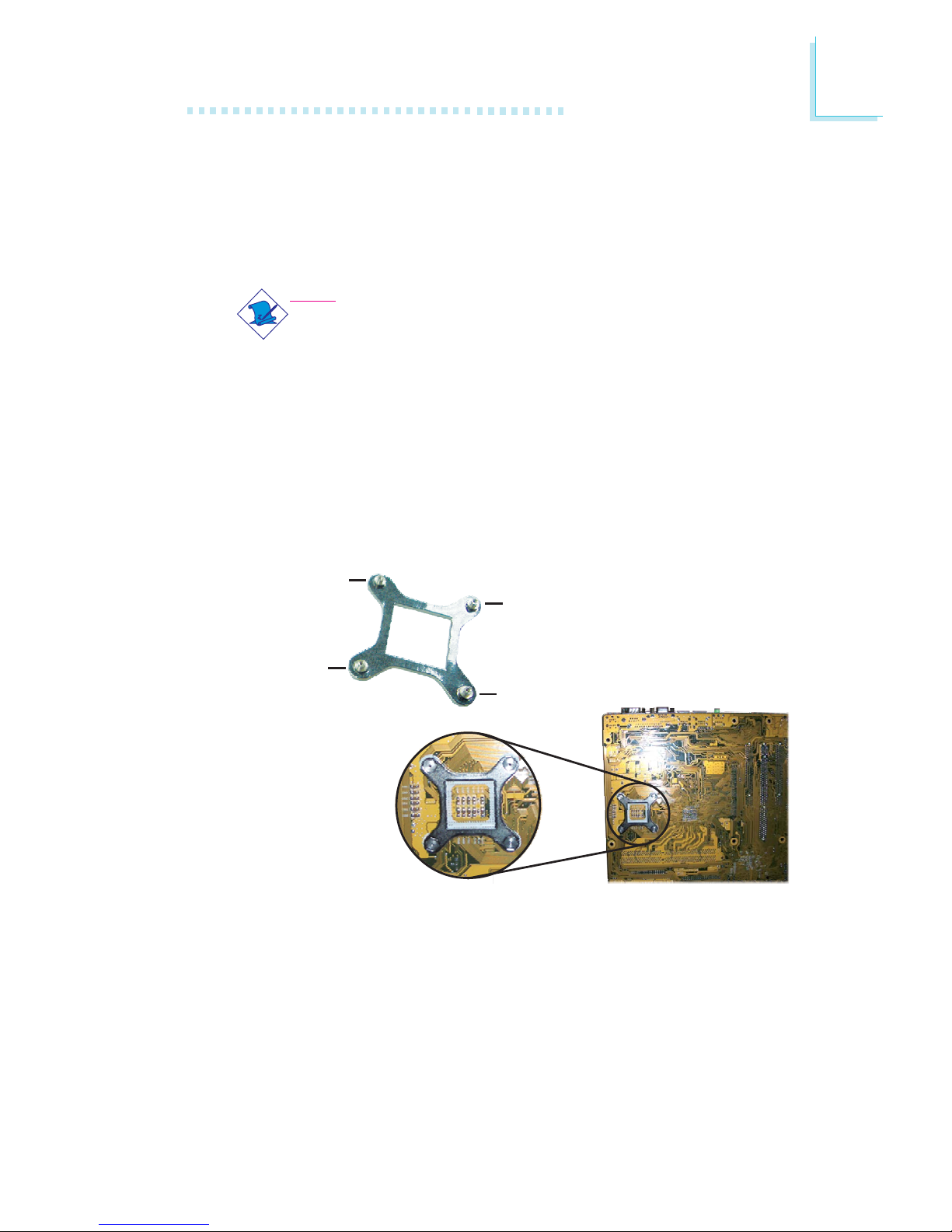

1. Match and insert the screw holes of the retention module base to the mounting holes around the CPU socket from the bottom through the top of the system board.

Screw hole

Buttom view of the system board

Page 22

Hardware Installation

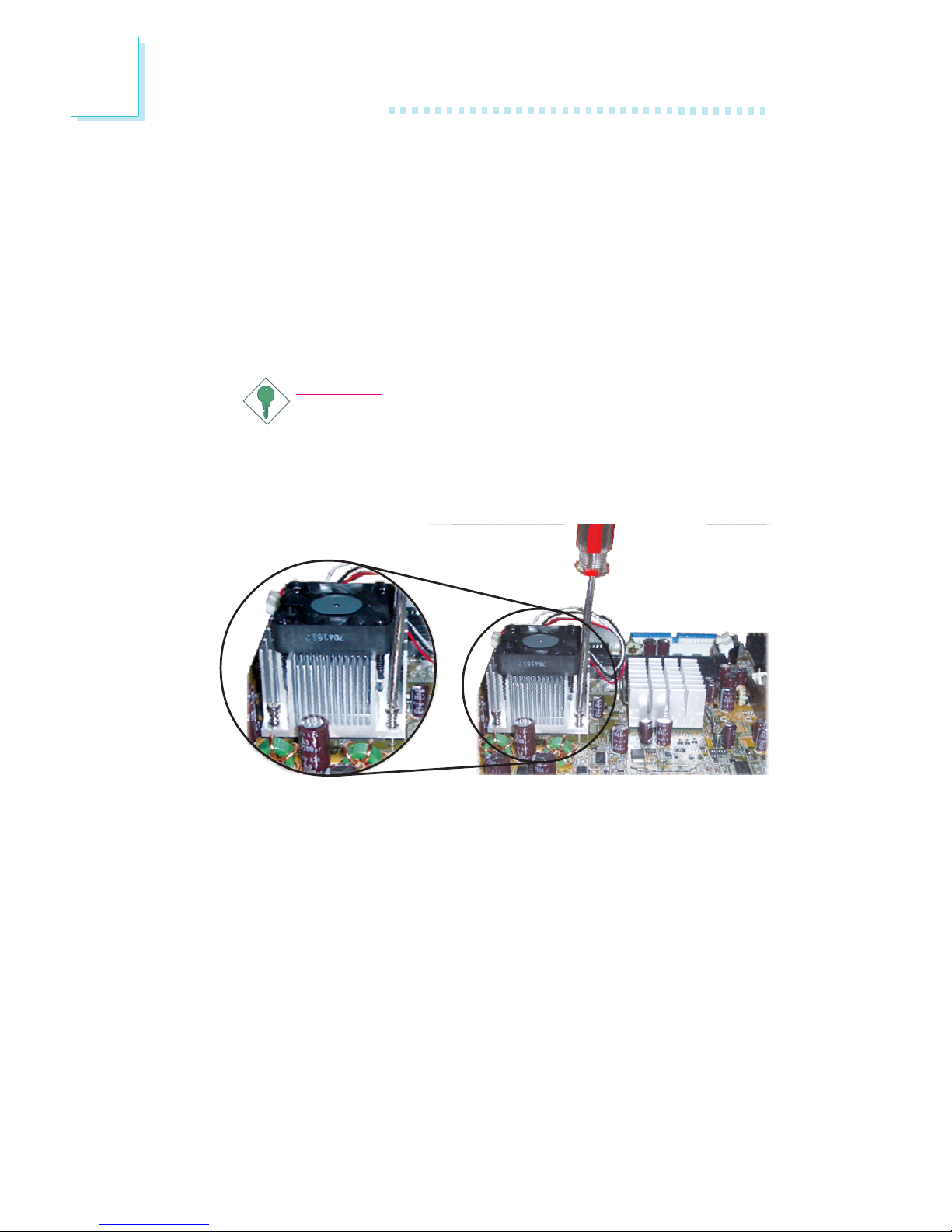

2. Place the heat sink on top of the CPU. The 4 screws around the heat sink must match the screw holes of the retention module base. Refer to the figure below for the correct position of the heat sink. This is important so that the fan / heat sink will provide adequate cooling to the components of the system board.

Turn each Phillips head screw half way down first to initially stabilize the heat sink onto the system board, then finally tighten each screw.

Important:

Do not turn the first screw all the way down followed by the next and so on. This is to avoid imbalance which might cause cracks or fractures to the CPU and/or heat sink assembly.

Page 23

Hardware Installation

Important:

When you install the CPU fan and heat sink assembly, make sure the assembly is positioned in such a way that the direction of the airflow blows towards the Northbridge. This is to ensure optimum thermal condition and system performance.

Page 24

Hardware Installation

Jumper Settings

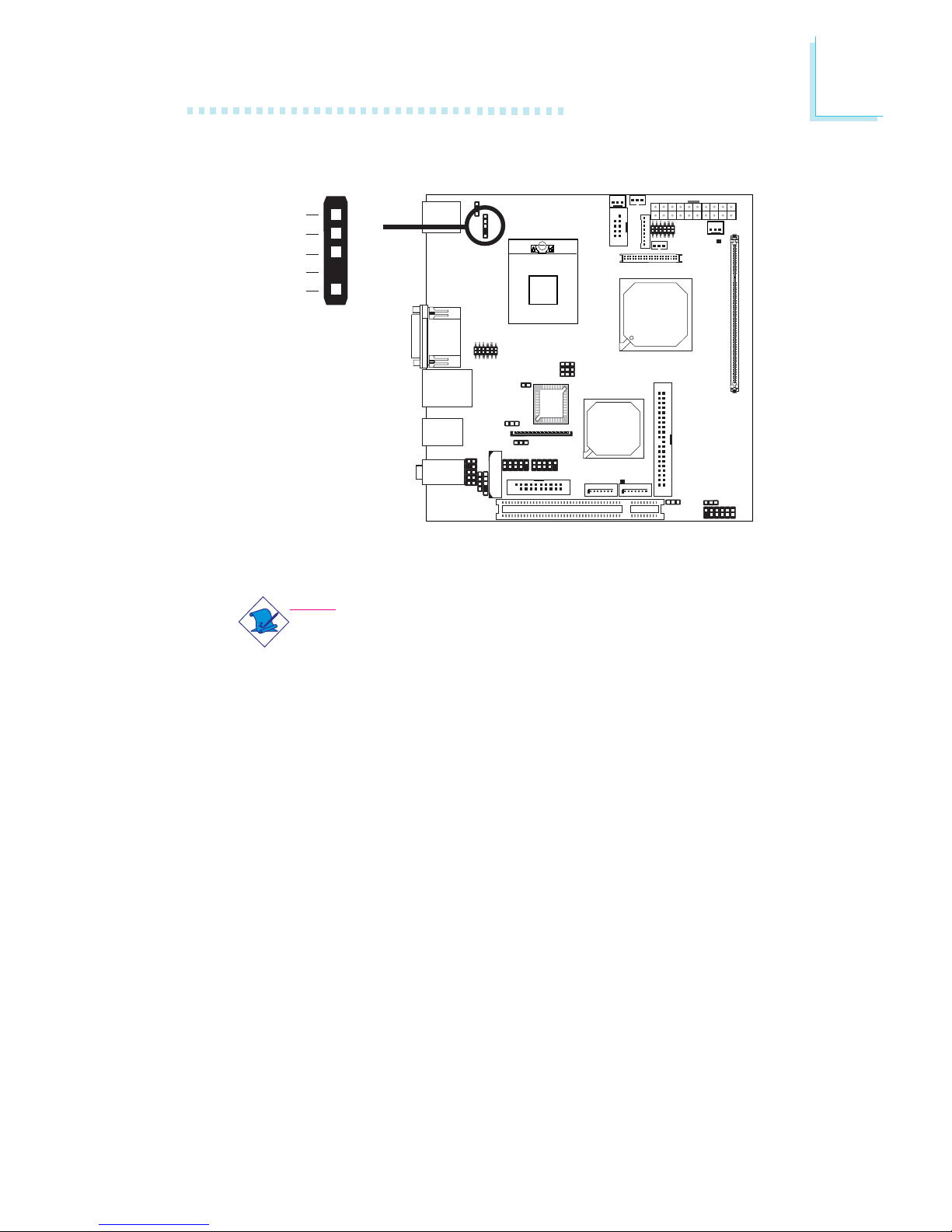

Clear CMOS Data

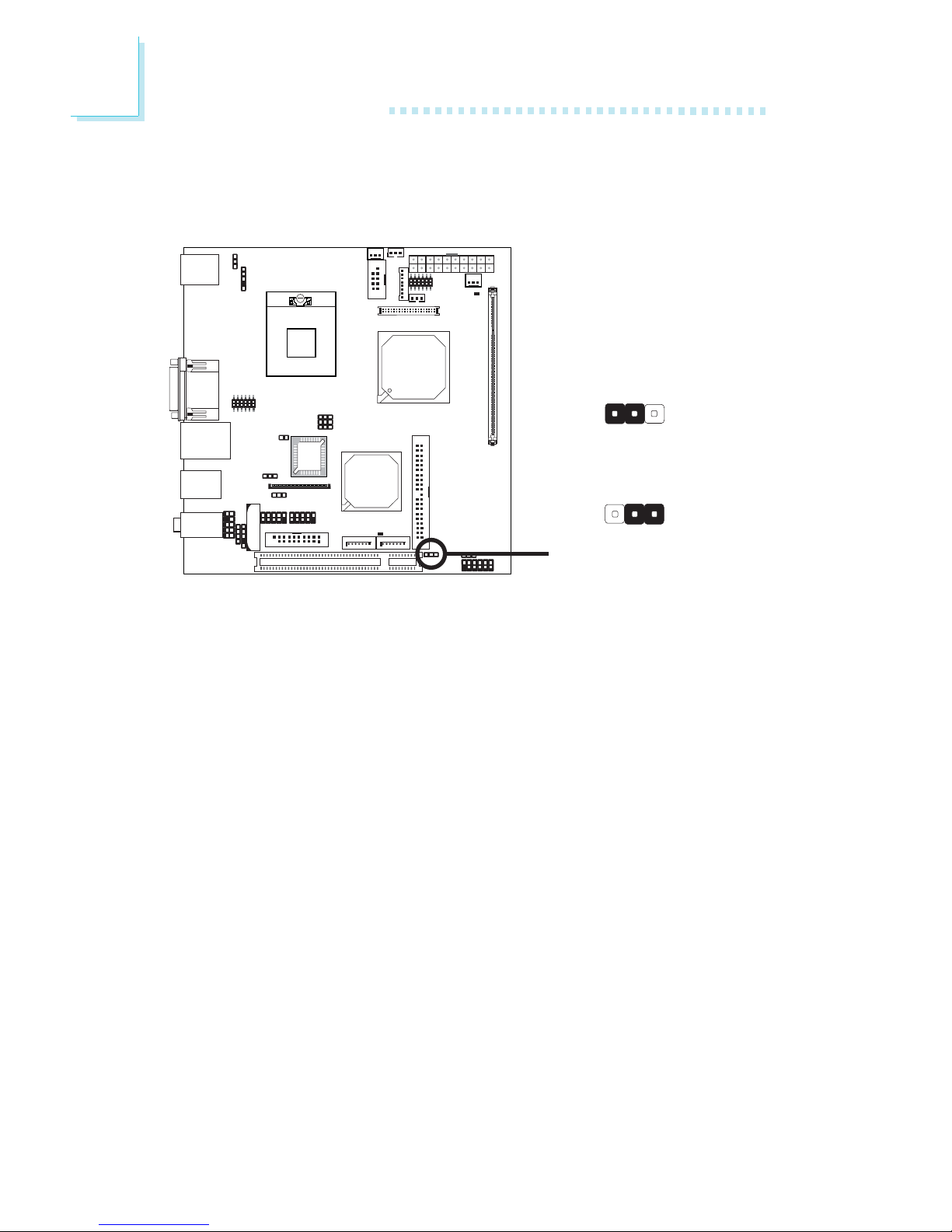

If you encounter the following,

a) CMOS data becomes corrupted. b) You forgot the supervisor or user password.

you can reconfigure the system with the default values stored in the ROM BIOS.

To load the default values stored in the ROM BIOS, please follow the steps below.

1. Power-off the system and unplug the power cord.

2. Set JP4 pins 2 and 3 to On. Wait for a few seconds and set JP4 back to its default setting, pins 1 and 2 On.

3. Now plug the power cord and power-on the system.

1-2 On: Normal

(default)

JP4

2-3 On:

Clear CMOS Data

312

Page 25

Hardware Installation

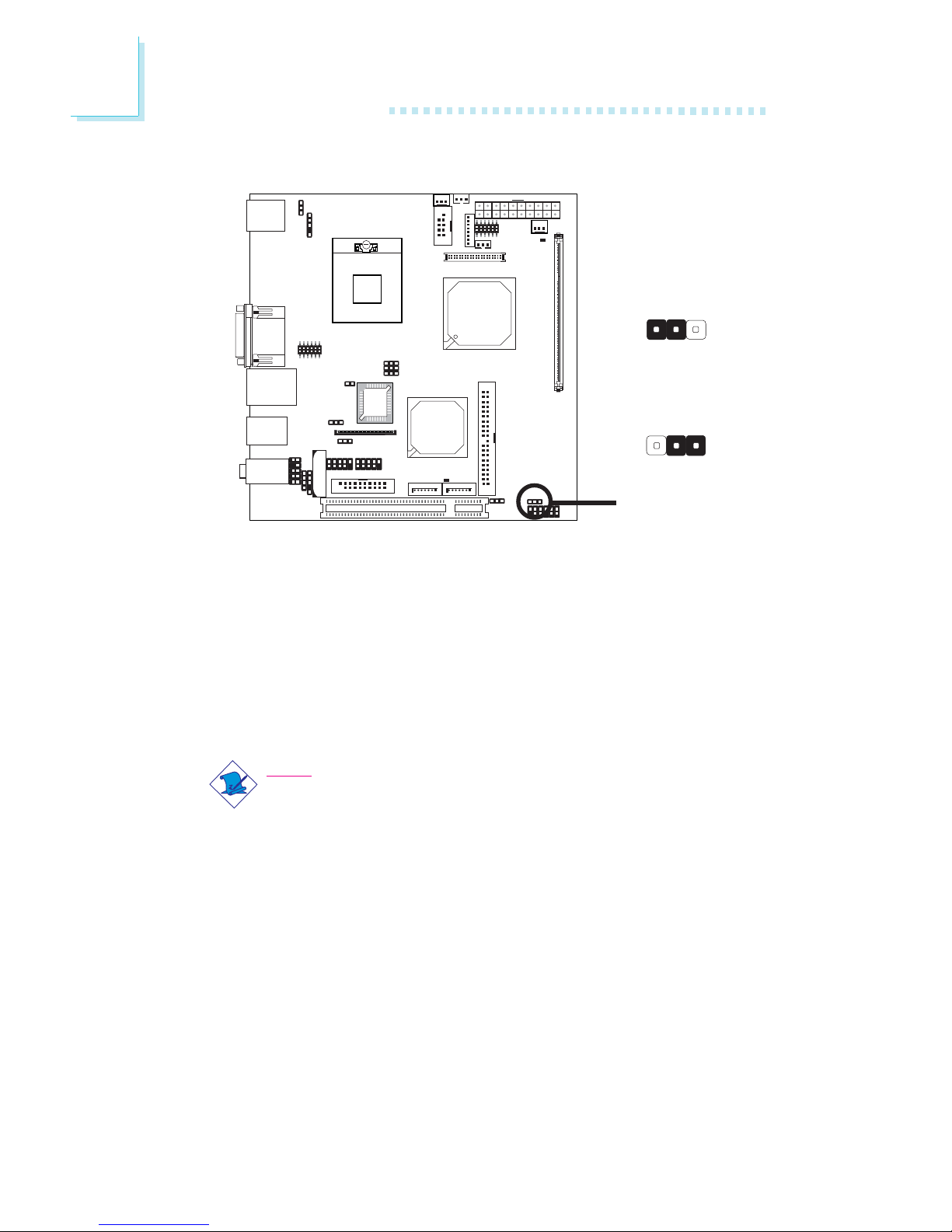

JP8 is used to select the power of the PS/2 keyboard/mouse port. Selecting 5V_standby will allow you to use the PS/2 keyboard or PS/2 mouse to wake up the system.

BIOS Setting

Configure the PS/2 keyboard/mouse wake up function in the Integrated Peripherals submenu (“Super IO Device” section) of the BIOS. Refer to chapter 3 for more information.

Important:

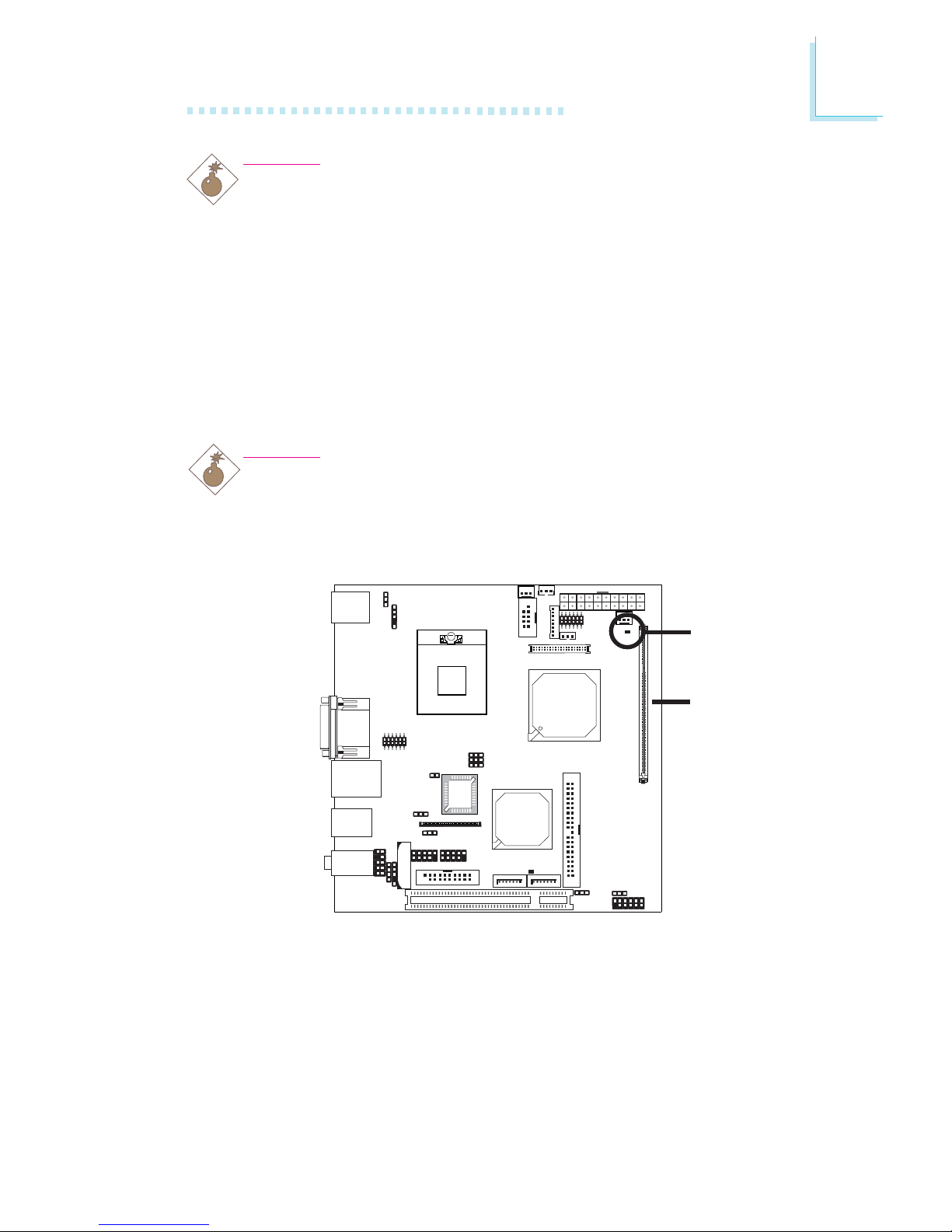

The 5V_standby power source of your power supply must support ≥720mA.

PS/2 Power Select

JP8

1-2 On: 5V

(default)

2-3 On:

5V_standby

Page 26

Hardware Installation

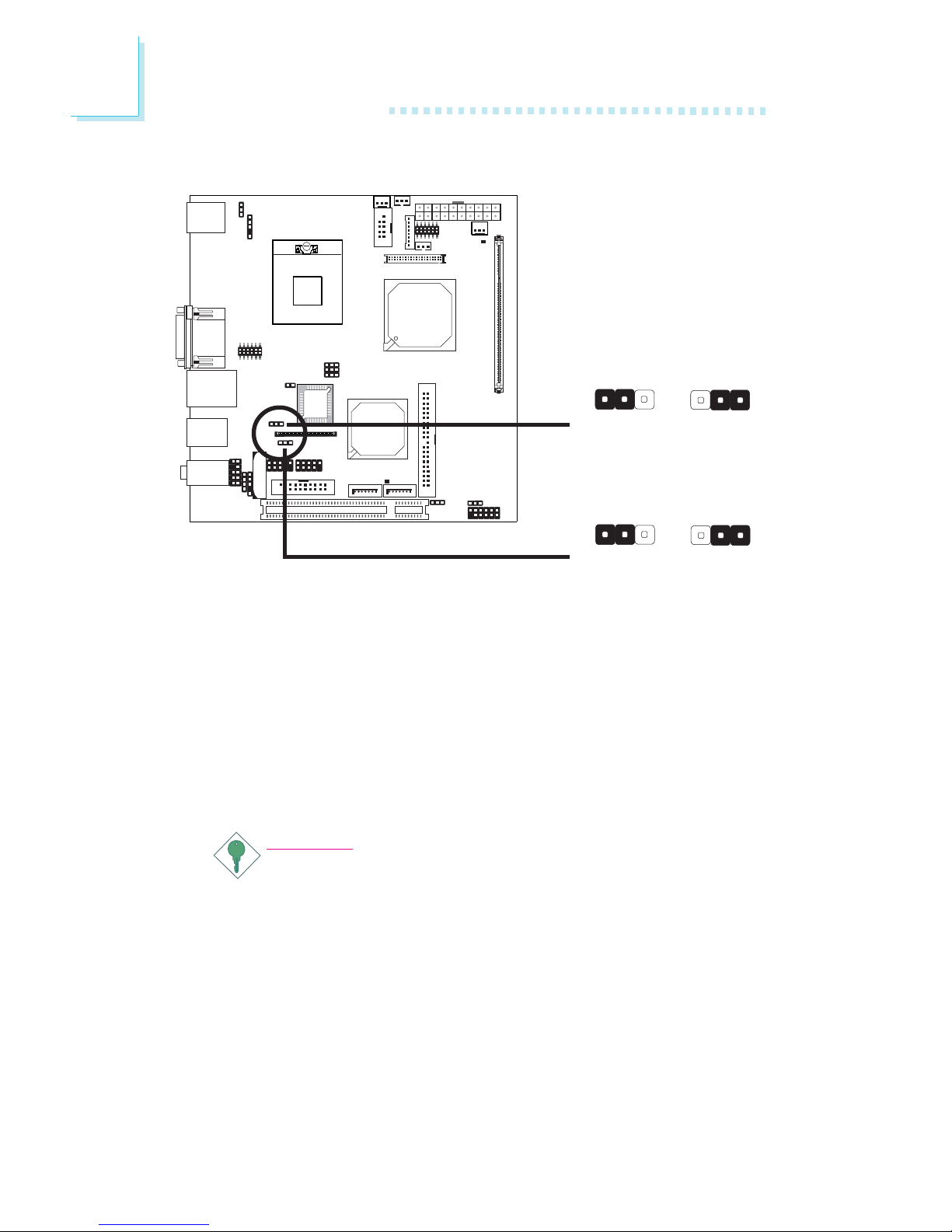

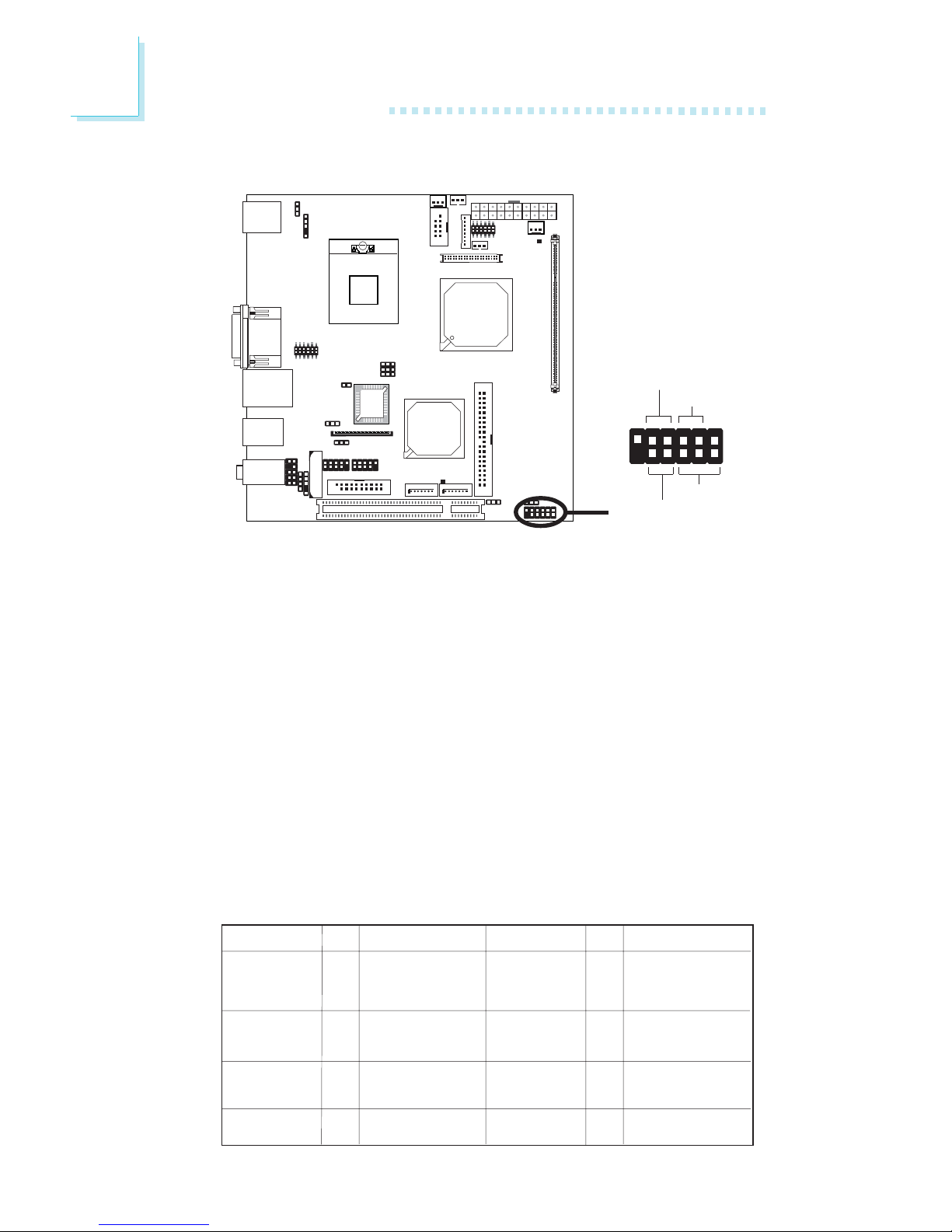

JP6 (for USB 1-4) and JP5 (for USB 5-8) are used to select the power of the USB ports. Selecting 5V_standby will allow you to use a USB device to wake up the system.

BIOS Setting

“USB KB Wake-Up From S3” in the Power Management Setup submenu of the BIOS must be set to Enabled. Refer to chapter 3 for more information.

Important:

≥

2A.

USB Power Select

USB 1-4

(JP6)

1-2 On: 5V

(default)

2-3 On:

5V_standby

USB 5-8

(JP5)

312

1-2 On: 5V

(default)

2-3 On:

5V_standby

312

Page 27

Hardware Installation

LCD/Inverter Settings

JP7

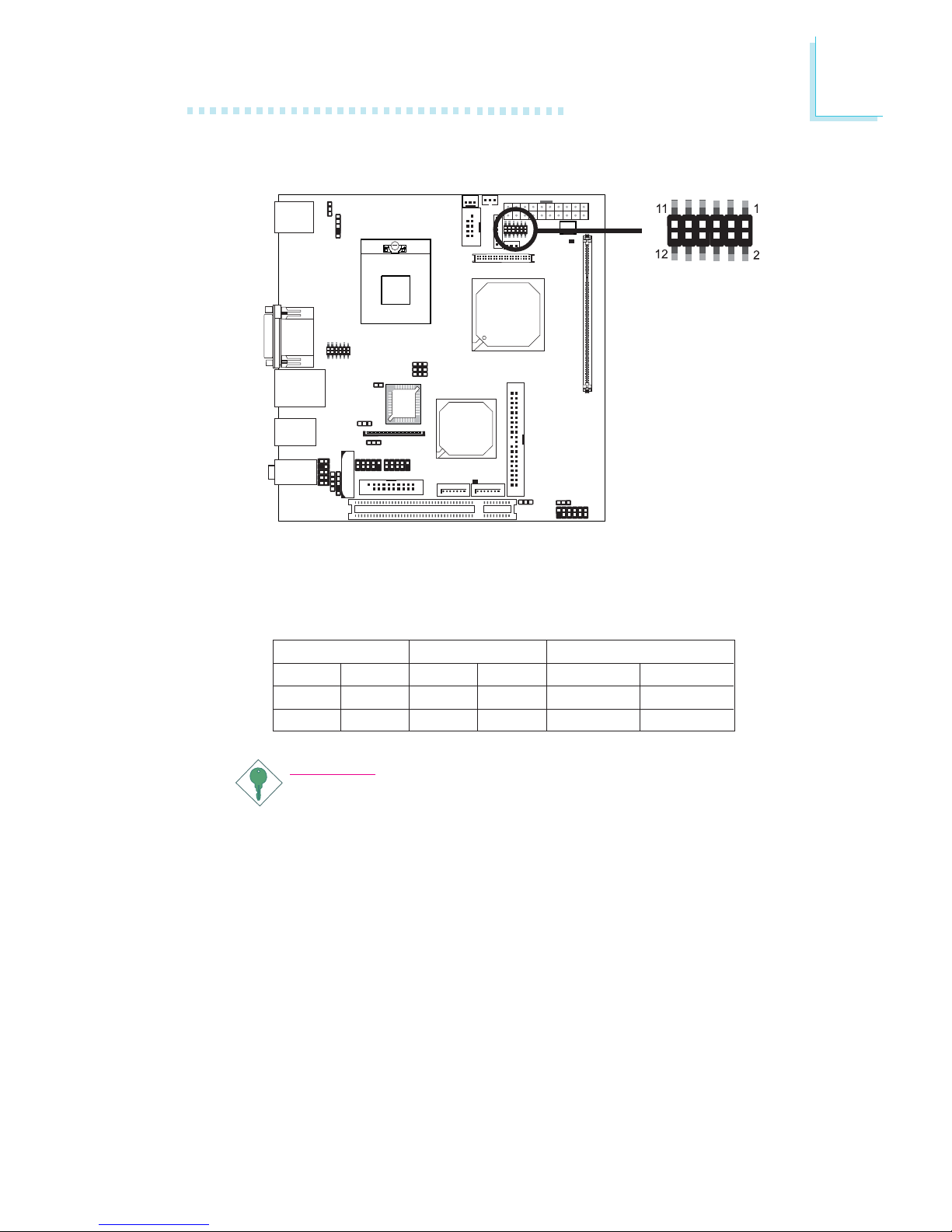

JP7 is used to select the power supplied to the LCD panel and to configure the inverter.

Important:

Before powering-on the system, make sure JP7’s setting matches the LCD panel’s specification. Selecting the incorrect voltage will seriously damage the LCD panel.

LCD/Inverter Settings - JP7

3.3V 12V

Panel Power

1-3 On 3-5 On 7-9 On

5V 12V

Inverter On Level

2-4 On 4-6 On

Active Low Active High

Inverter On/Off Select

8-10 On 10-12 On

Page 28

Hardware Installation

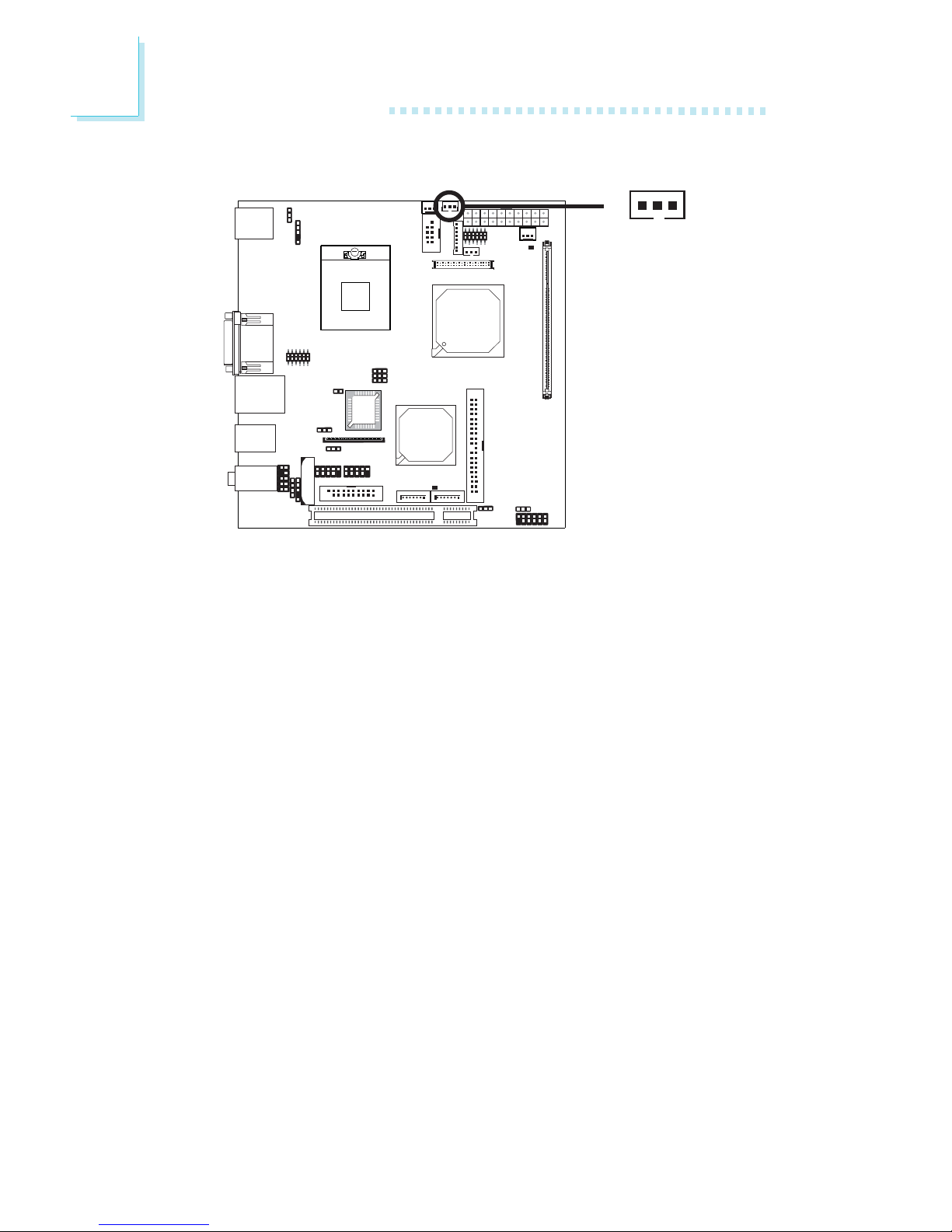

LCD Brightness Control (Voltage Level Adjust)

Use J7 to connect to the LCD Brightness Control button of the LCD Display Panel. It is used to adjust the brightness of the LCD Display Panel. Increasing or decreasing the voltage to control the LCD panel’s brightness varies among Inverters. You must refer to the Inverter’s specification to make the appropriate adjustment to the brightness of the LCD panel.

1-2 On: Increases the voltage level

2-3 On: Decreases the voltage level

Page 29

Hardware Installation

COM 4 RS232/RS485/AUX Select

JP11

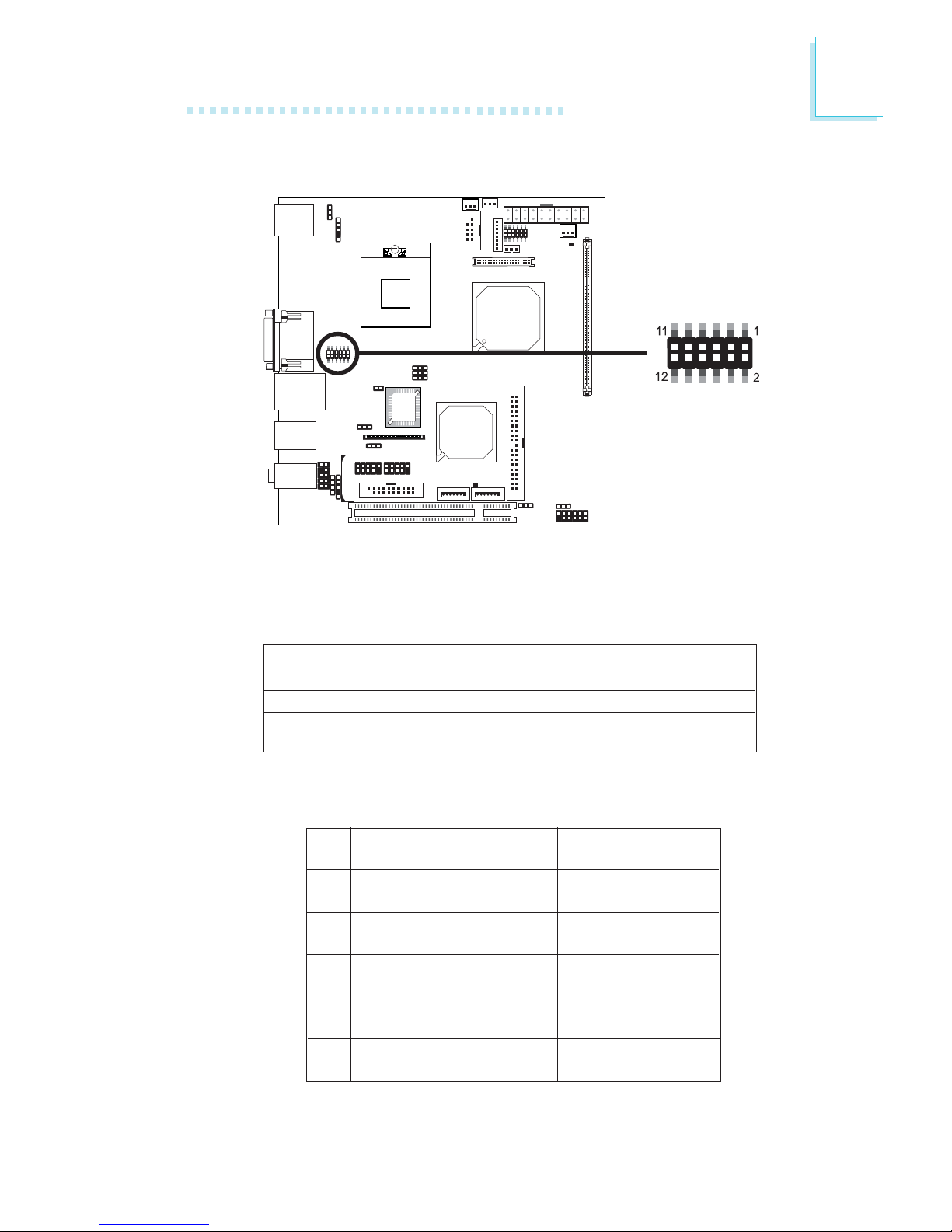

JP11 is used to set COM 4 to RS-232 or RS-485. If the serial device connected to this port requires 5V/12V power from the system board, set JP11 pins 1-3, 2-4, 9-11 and 10-12 to On.

JP11

1-3, 2-4, 7-9, 8-10 On 3-5, 4-6, 7-9, 8-10 On 1-3, 2-4, 9-11 (12V),

10-12 (5V) On

COM 4 RS232/RS485/AUX Select

RS232 (default) RS485 Auxiliary power

The table below list the pin assignment of JP11.

N. C.

EN232-

GND

MDCD4-

X_MDCD4-

+12V

N. C.

SIN4 RS485 MRI4-

X_MRI4-

Vcc

Page 30

Hardware Installation

Power-on Select

1-2 On:

Power-on via

AC power

2-3 On:

Power-on via

power button

(default)

312

JP9

JP9 is used to select the method of powering on the system. If you want the system to power-on whenever AC power comes in, set JP9 pins 1 and 2 to On. If you want to use the power button, set pins 2 and 3 to On.

When using JP9 “Power On” feature to power the system back on after a power failure occurs, may not power on the system if the power lost is resumed within 5 seconds (power flicker).

Note:

In order to ensure that power is resumed after a power failure that may occur within a 5 second period, JP9 should be set to pins 2-3 and the “PWRON After Pwr-Fail” in CMOS is set to “ON”.

Page 31

Hardware Installation

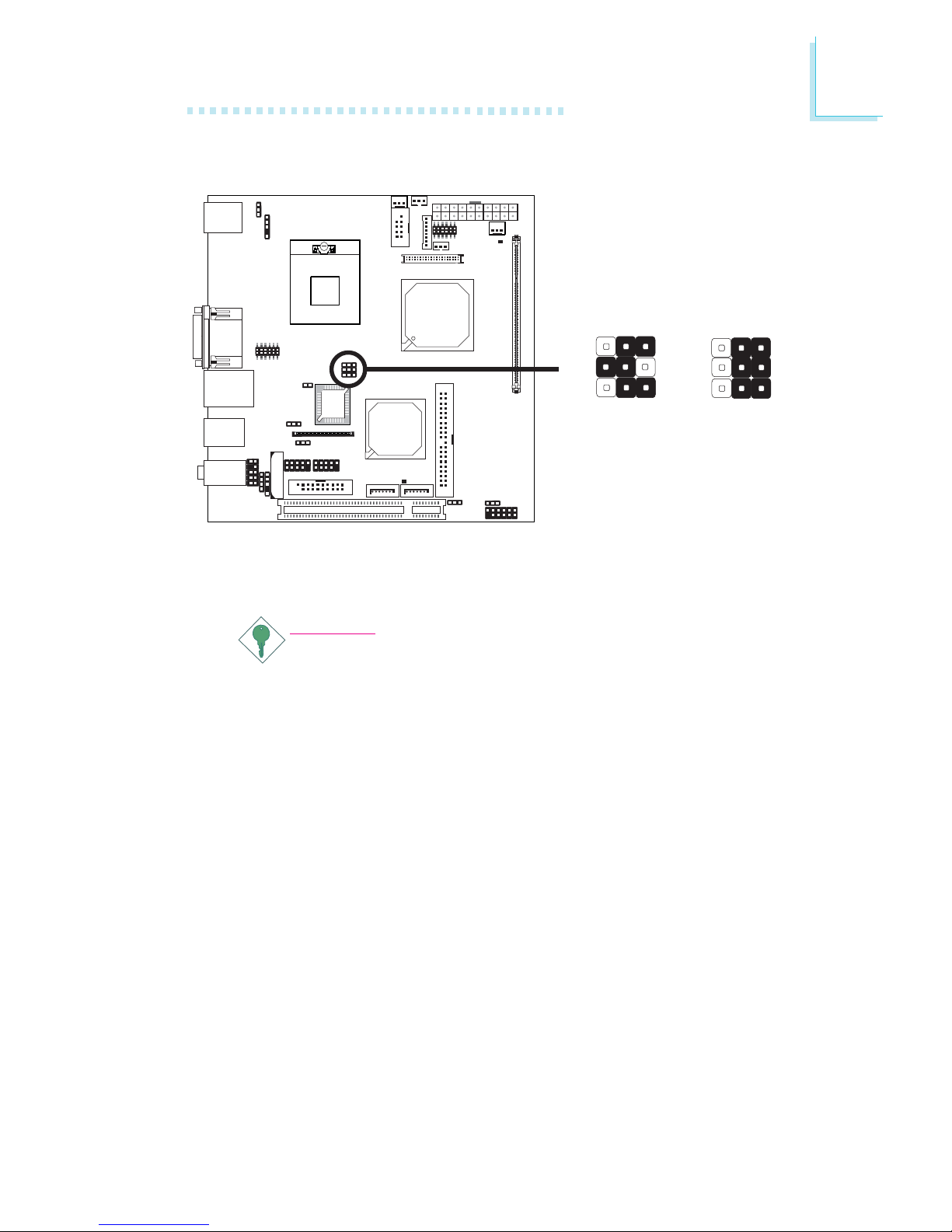

Intel Core Duo/Solo, Core2 Duo CPU FSB Select

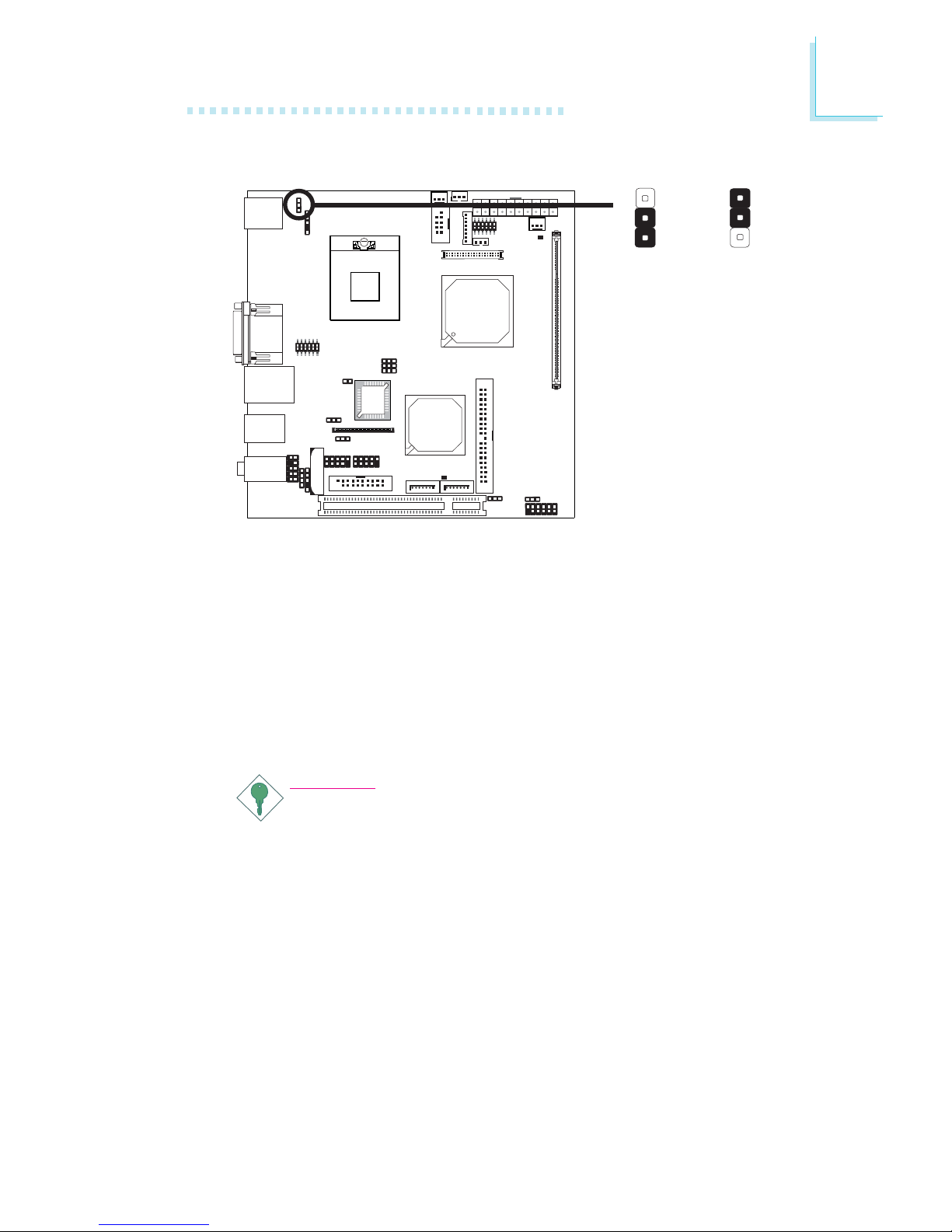

Jumpers JP1, JP2 and JP3 are used to select the Front Side Bus of the CPU.

Important:

• If you are using a CPU whose frequency has been locked by the manufacturer, overclocking will have no effect.

• Overclocking may result to the CPU’s or system’s instability and are not guaranteed to provide better system performance. If you are unable to boot your system due to overclocking, make sure to set these jumpers back to their default settings.

Auto Detect

FSB

533MHz FSB

JP1

JP2

JP3

312

JP1

JP2

JP3

Page 32

Hardware Installation

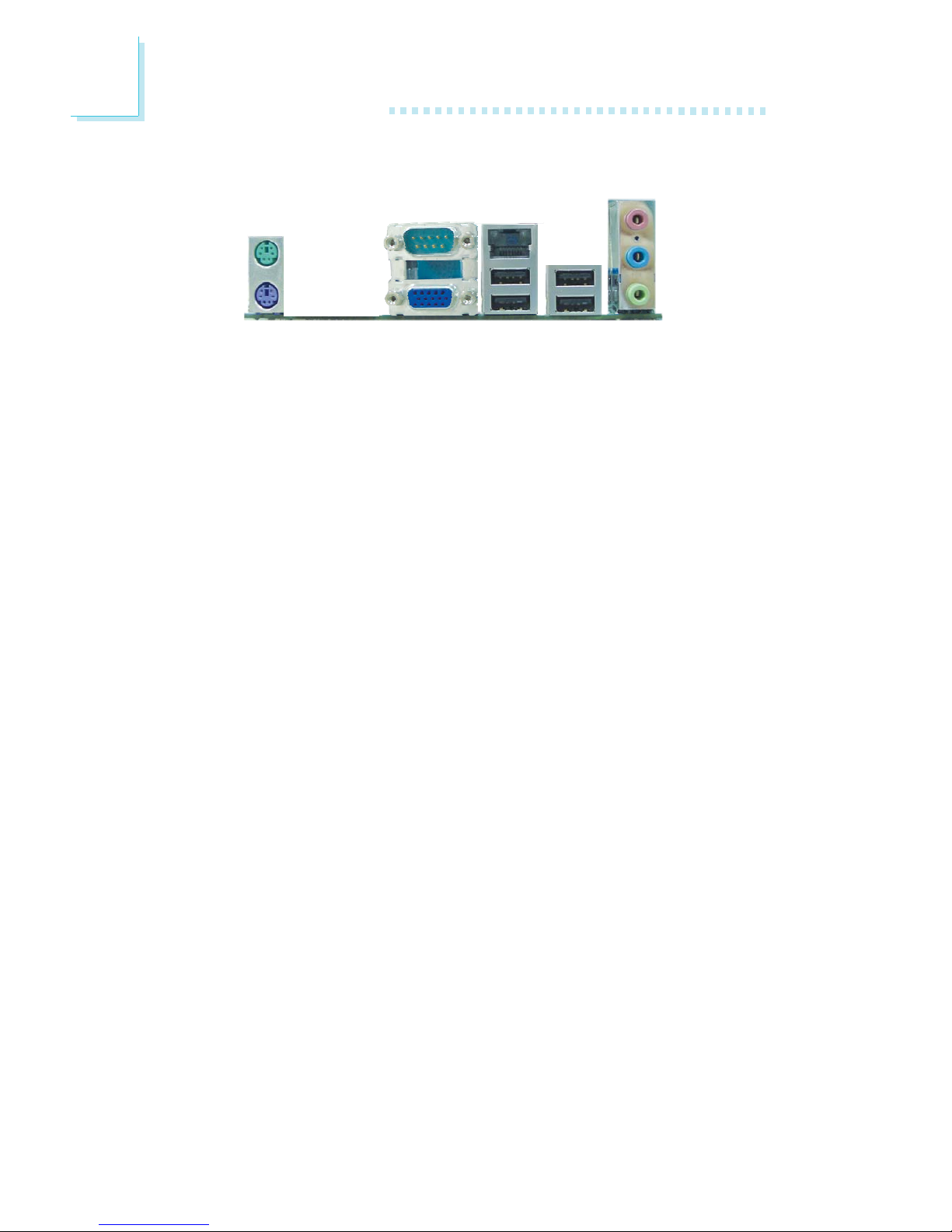

Rear Panel I/O Ports

The rear panel I/O ports consist of the following:

• PS/2 mouse port

• PS/2 keyboard port

• COM port

• VGA port

• LAN port

• 4 USB ports

• Mic-in jack

• Line-in jack

• Line-out jack

PS/2 K/B

LAN

Line-in

Line-out

Mic-in

USB 1-2 USB 3

VGA

COM 4

PS/2

Mouse

USB 4

Page 33

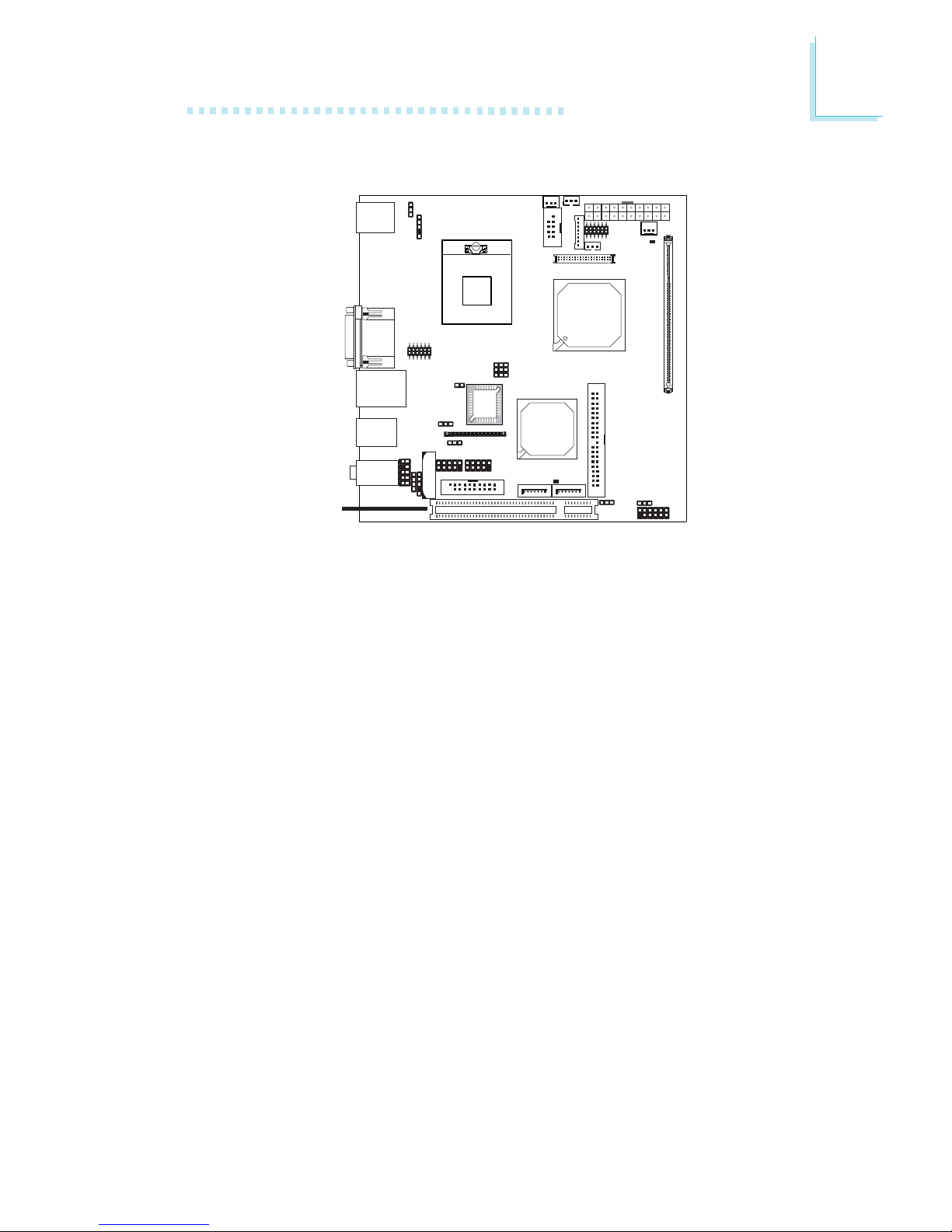

Hardware Installation

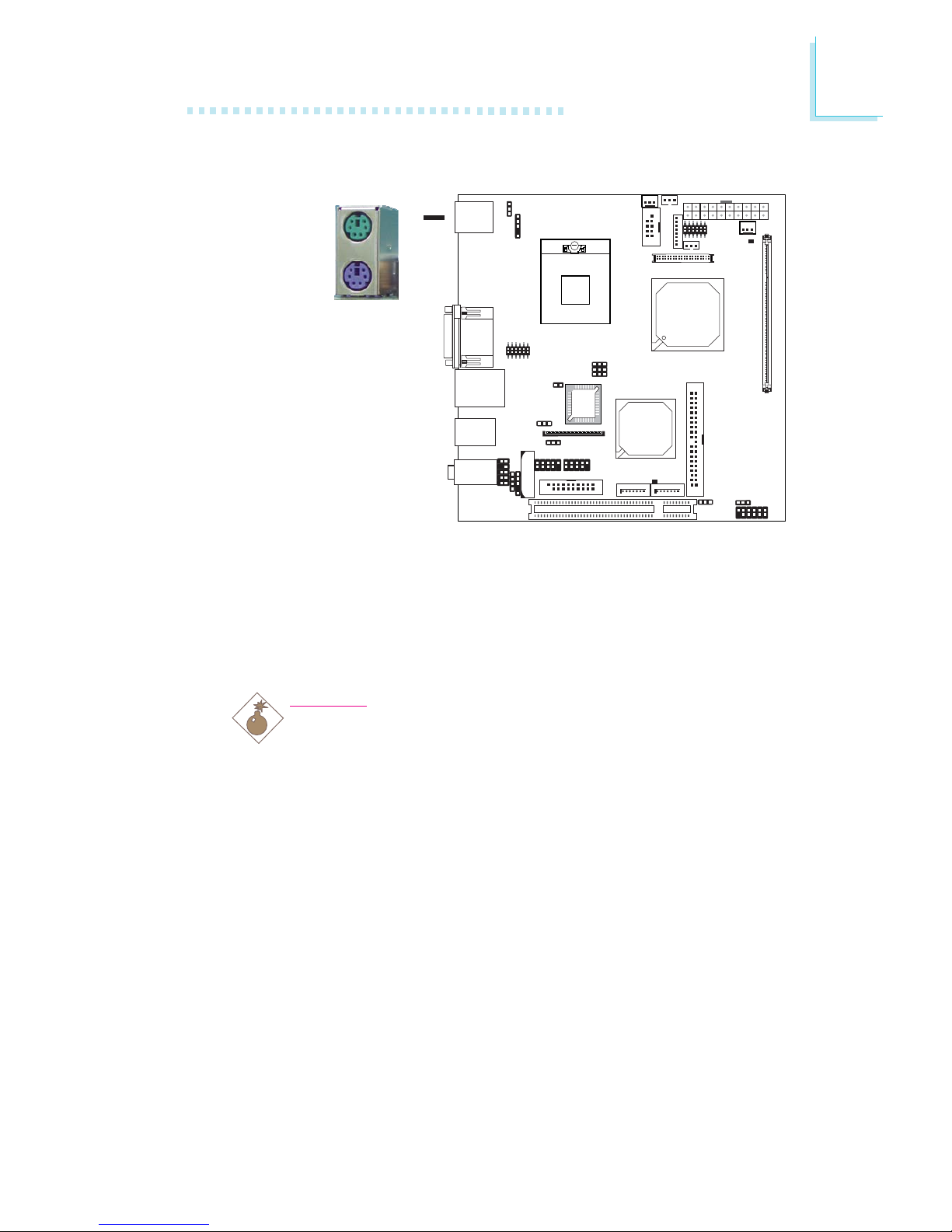

PS/2 Mouse and PS/2 Keyboard Ports

The system board is equipped with an onboard PS/2 mouse (Green) and PS/2 keyboard (Purple) ports - both at location CN8 of the system board. The PS/2 mouse por t uses IRQ12. If a mouse is not connected to this port, the system will reserve IRQ12 for other expansion cards.

Warning:

Make sure to turn off your computer prior to connecting or disconnecting a mouse or keyboard. Failure to do so may damage the system board.

Wake-On-PS/2 Keyboard/Mouse

The Wake-On-PS/2 Keyboard/Mouse function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system. To use this function:

• Jumper Setting:

JP8 must be set to “2-3 On: 5V_standby”. Refer to “PS/2 Power Select” in this chapter for more information.

PS/2 Mouse

PS/2 Keyboard

Page 34

Hardware Installation

• BIOS Setting:

Configure the PS/2 wake up function in the Integrated Peripherals submenu (“Super IO Device” section) of the BIOS. Refer to chapter 3 for more information.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

Page 35

Hardware Installation

Serial Ports

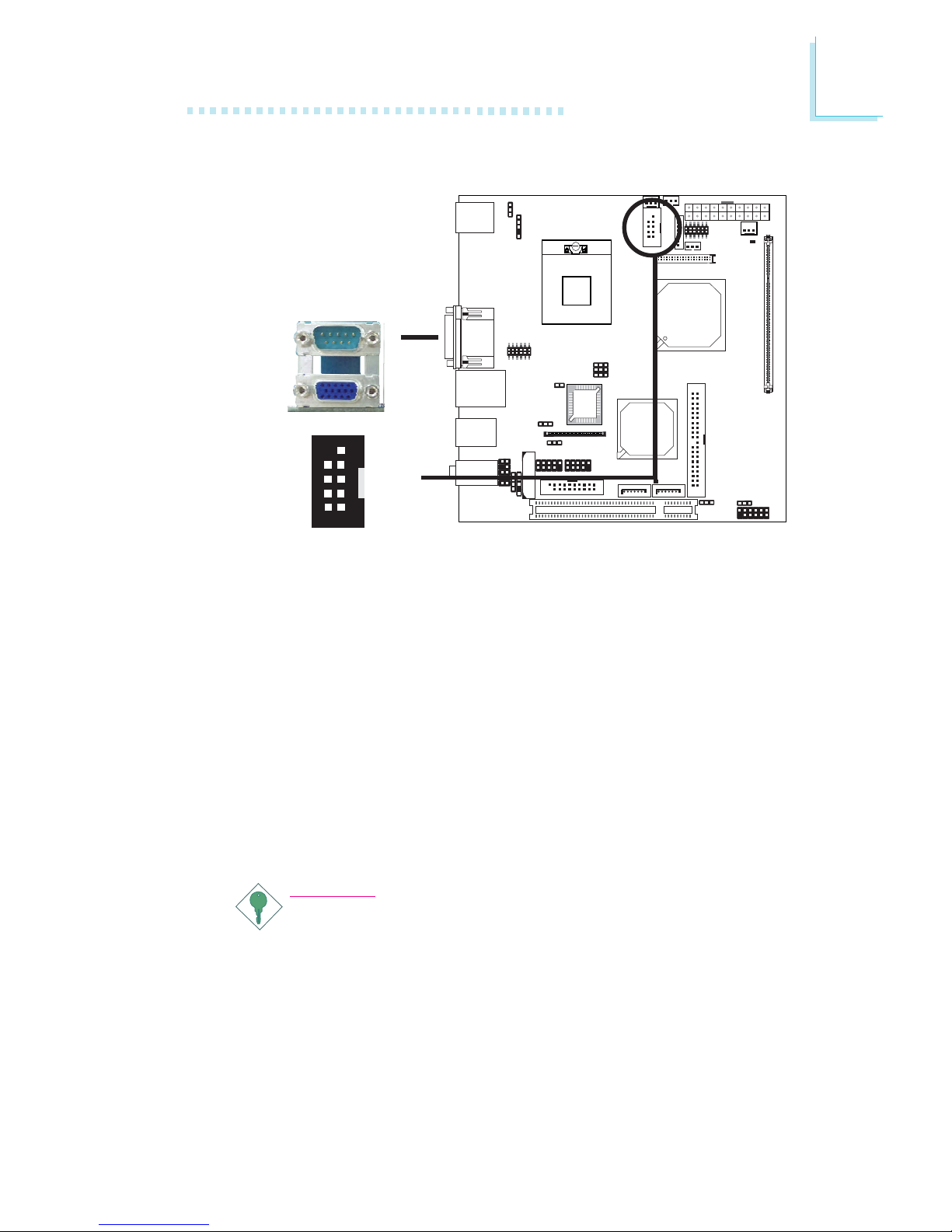

The system board is equipped with an onboard serial port at location CN1 (COM 4). It is also equipped with a 9-pin connector at location J15 (COM 3). The serial ports are RS-232 and/or RS-485 (COM 4 only) asynchronous communication ports with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices.

To connect COM 3, please refer to the following description. The serial port may be mounted on a card-edge bracket. Install the cardedge bracket to an available slot at the rear of the system chassis then insert the cable connector to J15. Make sure the colored stripe on the ribbon cable is aligned with pin 1 of J15.

Important:

If the LCD Display Panel that is connected to the LVDS LCD Panel connector supports touch screen, DO NOT connect a serial device to COM 3 because the touch screen function is internally connected to COM 3.

COM 3

COM 4

GND

RTS

DTR

DSR

CTS

Page 36

Hardware Installation

Jumper Setting

Use JP11 to set COM 4 to RS-232 or RS-485. Refer to “COM 4 RS232/RS485/AUX Select” in this chapter for more information.

BIOS Setting

Configure the serial ports in the Integrated Peripherals submenu (“Super IO Device” section) of the BIOS. Refer to chapter 3 for more information.

Page 37

Hardware Installation

VGA Port

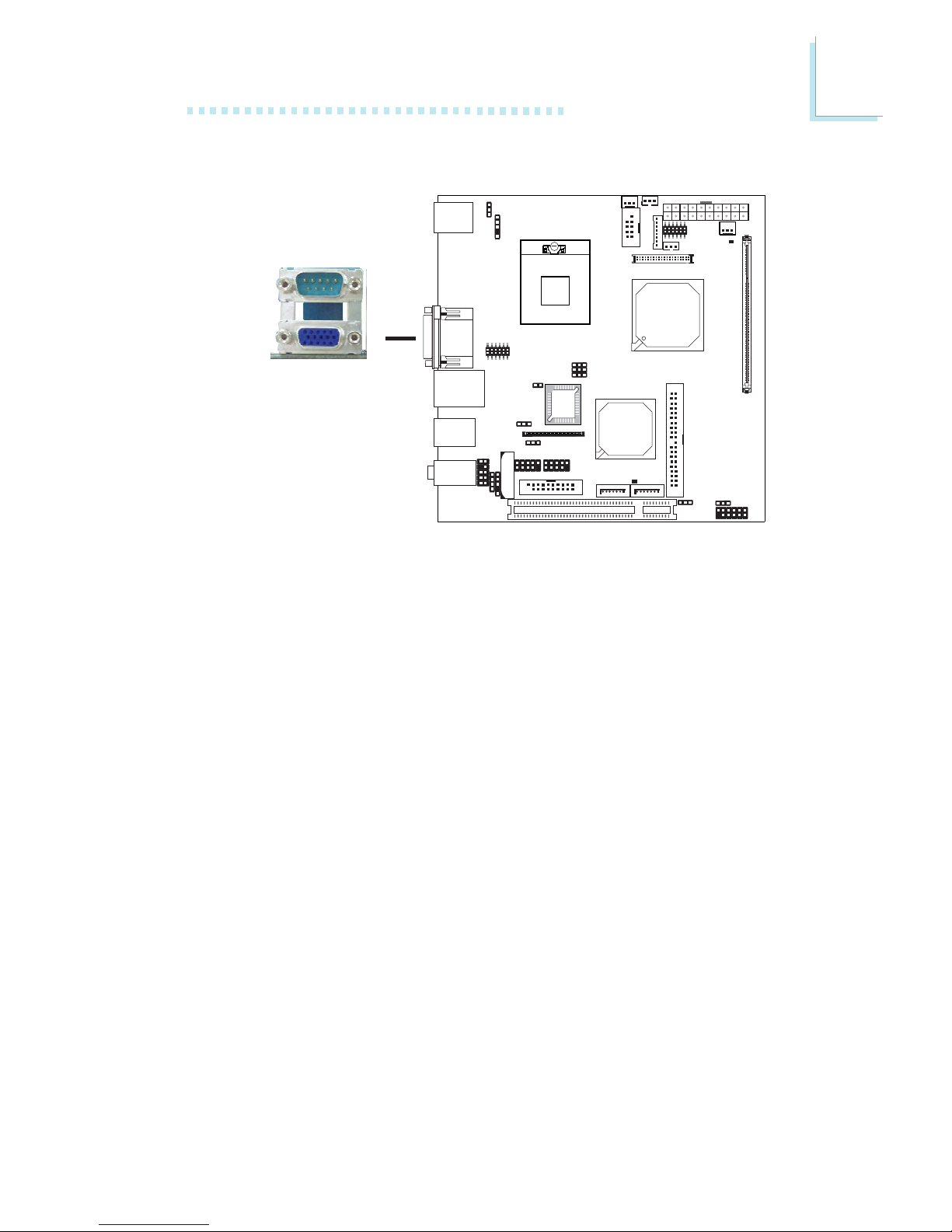

The VGA port is used for connecting a VGA monitor. Connect the monitor’s 15-pin D-shell cable connector to the VGA port (Blue) at location CN1. After you plug the monitor’s cable connector into the VGA port, gently tighten the cable screws to hold the connector in place.

BIOS Setting

Configure the onboard VGA in the Advanced Chipset Features submenu of the BIOS. Refer to chapter 3 for more information.

Driver Installation

Install the graphics driver. Refer to chapter 4 for more information.

VGA

Page 38

Hardware Installation

RJ45 Fast-Ethernet Port

The onboard LAN port allows the system board to connect to a local area network by means of a network hub.

BIOS Setting

Configure the onboard LAN in the Integrated Peripherals submenu (“Onboard Device” section) of the BIOS. Refer to chapter 3 for more information.

Driver Installation

Install the LAN drivers. Refer to chapter 4 for more information.

LAN

Page 39

Hardware Installation

Universal Serial Bus Connectors

The system board supports 8 USB 2.0/1.1 ports. USB allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

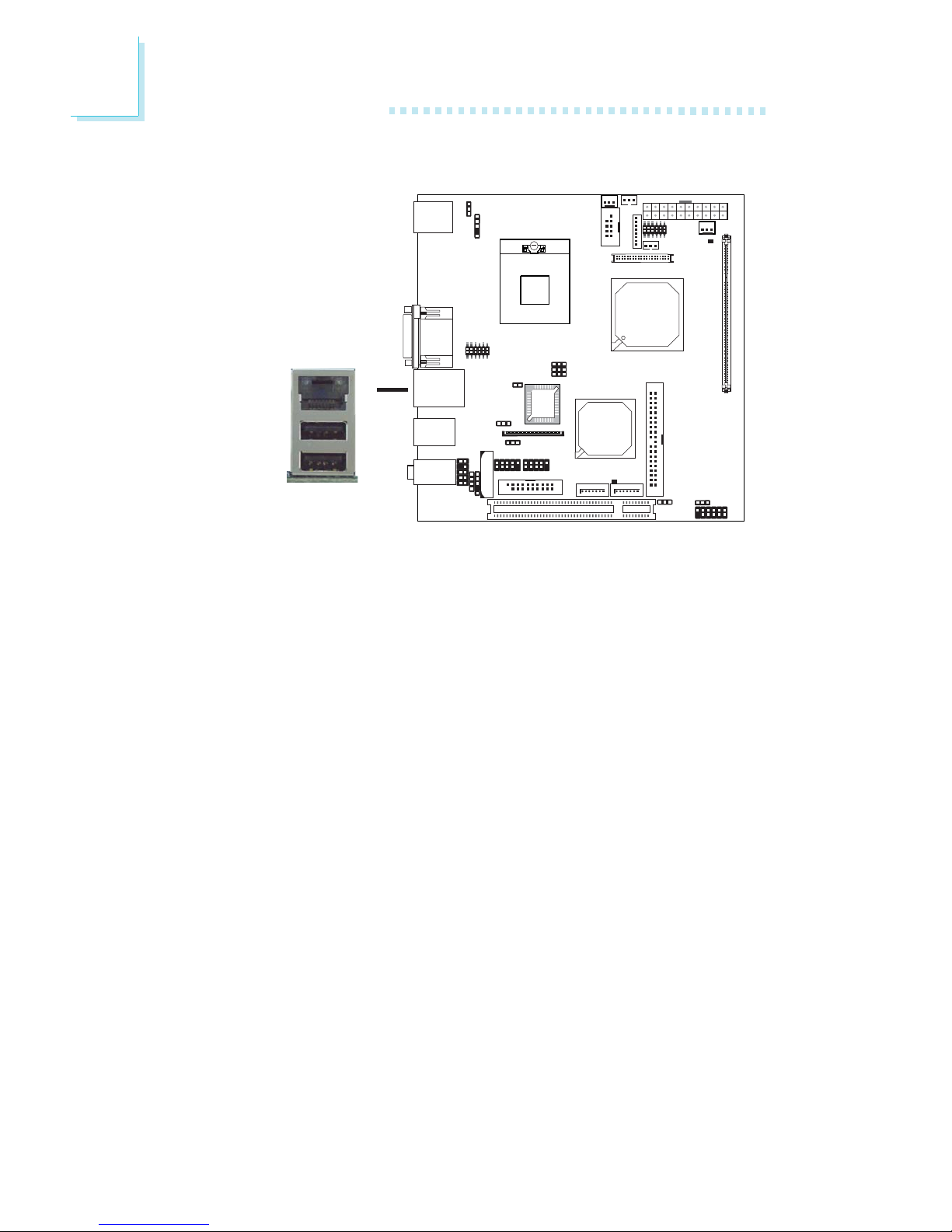

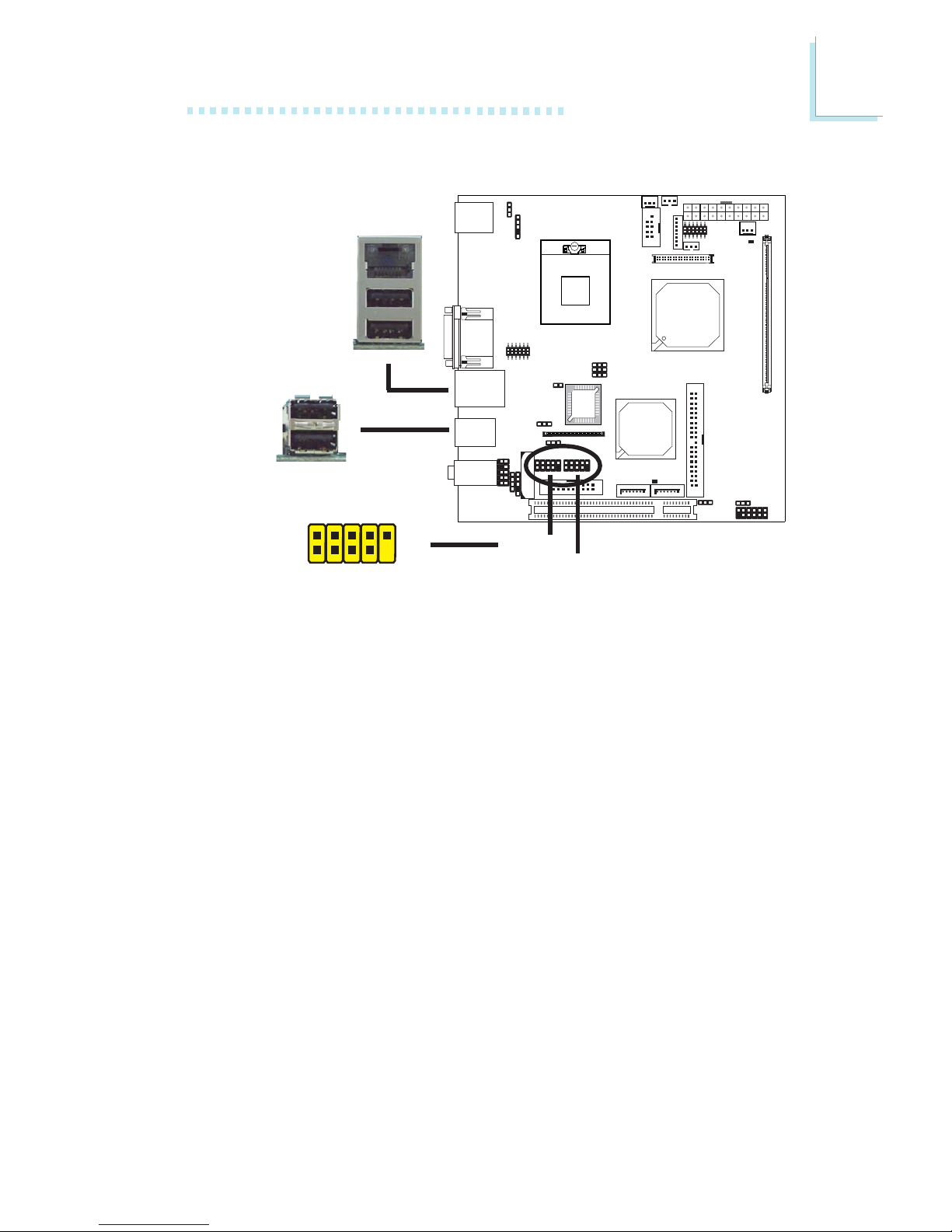

Four onboard USB 2.0/1.1 ports (Black) are at locations CN4 (USB 1-2) and CN3 (USB 3-4) of the system board.

The J5 (USB 5-6) and J6 (USB 7-8) connectors allow you to connect 4 additional USB 2.0/1.1 ports. The additional USB ports may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then insert the connector that is attached to the USB port cables to J5 and/or J6.

BIOS Setting

Configure the onboard USB in the Integrated Peripherals submenu (“Onboard Device” section) of the BIOS. Refer to chapter 3 for more information.

USB 5-6

USB 2

USB 1

USB 7-8

VCC

-Data +Data

GND

Key

VCC

-Data

+Data

GND

N. C.

USB 4

USB 3

Page 40

Hardware Installation

Driver Installation

You may need to install the proper drivers in your operating system to use the USB device. Refer to your operating system’s manual or documentation for more information.

Refer to chapter 4 for more information about installing the USB 2.0 driver.

Wake-On-USB Keyboard/Mouse

The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state. To use this function:

• Jumper Setting: JP5 and/or JP6 must be set to “2-3 On: 5V_standby”. Refer to “USB Power Select” in this chapter for more information.

• BIOS Setting: “USB KB Wake-Up From S3” in the Power Management Setup submenu of the BIOS must be set to Enabled. Refer to chapter 3 for more information.

Important:

≥

2A.

Page 41

Hardware Installation

Audio

Audio Jacks

The system board is equipped with 3 audio jacks at location CN5. A jack is a one-hole connecting interface for inserting a plug.

• Mic-in Jack (Pink)

This jack is used to connect an external microphone.

• Line-in Jack (Light Blue)

This jack is used to connect any audio devices such as Hi-fi set, CD player, tape player, AM/FM radio tuner, synthesizer, etc.

• Line-out Jack (Lime)

This jack is used to connect a headphone or external speakers.

Front audio

Line-out

Line-in

Mic-in

Mic

GND

Mic Power

AuD_R_Out

N. C.

AuD_L_Out

AuD_Vcc

AuD_R_Return

Key

AuD_L_Return

Page 42

Hardware Installation

Front Audio

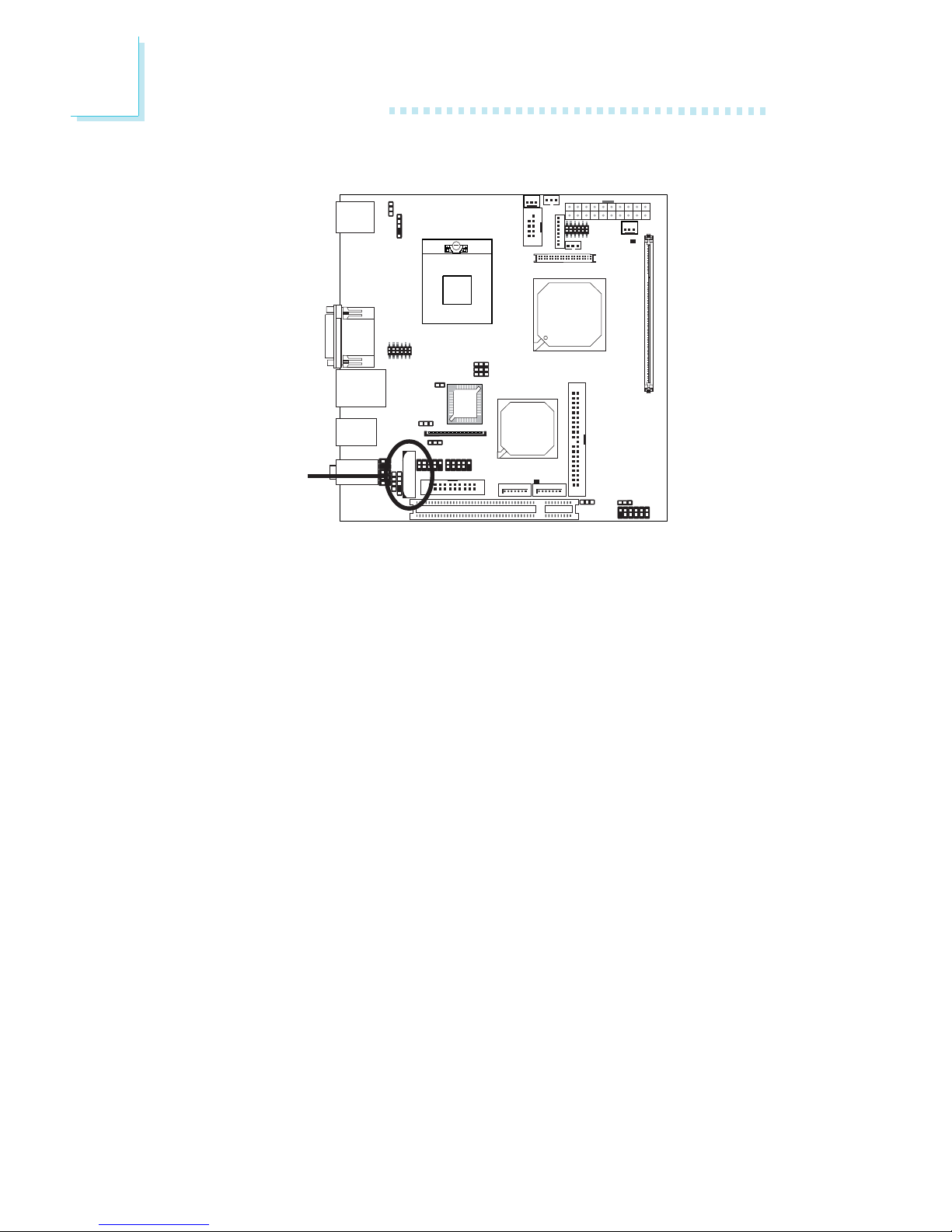

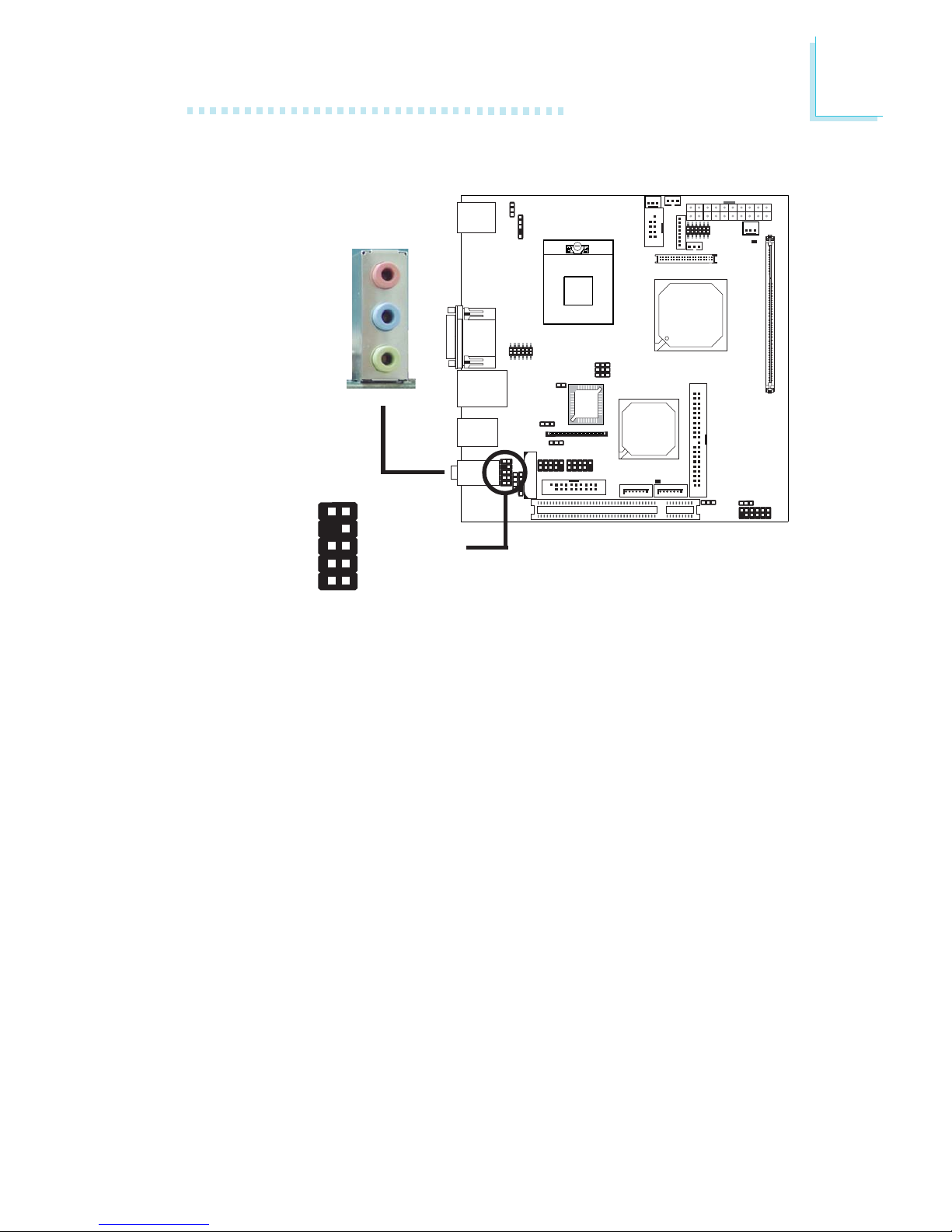

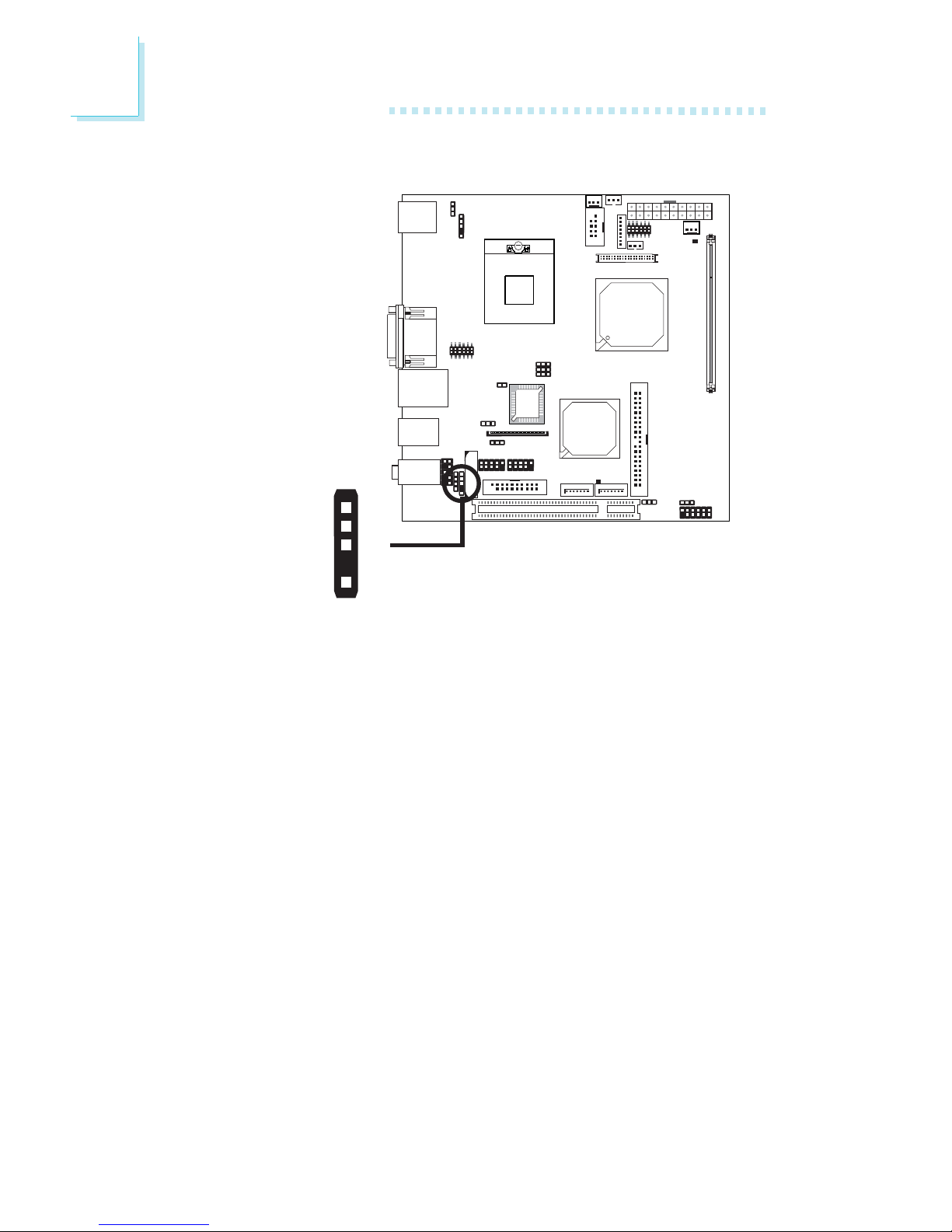

The front audio connector (J2) allows you to connect to the line-out and mic-in jacks that are at the front panel of your system. Using the line-out and mic-in jacks will disable the rear audio’s line-out and micin functions.

Remove the jumper caps from pins 5-6 and pins 9-10 prior to connecting the front audio cable connector. Make sure pin 1 of the cable connector is aligned with pin 1 of the front audio connector. If you are not using this connector, make sure to replace the jumper caps back to their original pin locations.

BIOS Setting

Configure the onboard audio in the Integrated Peripherals submenu (“Onboard Device” section) of the BIOS. Refer to chapter 3 for more information.

Driver Installation

Install the audio driver. Refer to chapter 4 for more information.

The front audio is disabled. The rear audio is enabled.

The front audio is enabled. The rear audio is disabled.

Pins 5-6 and 9-10 short (default)

Pins 5-6 and 9-10 open

Page 43

Hardware Installation

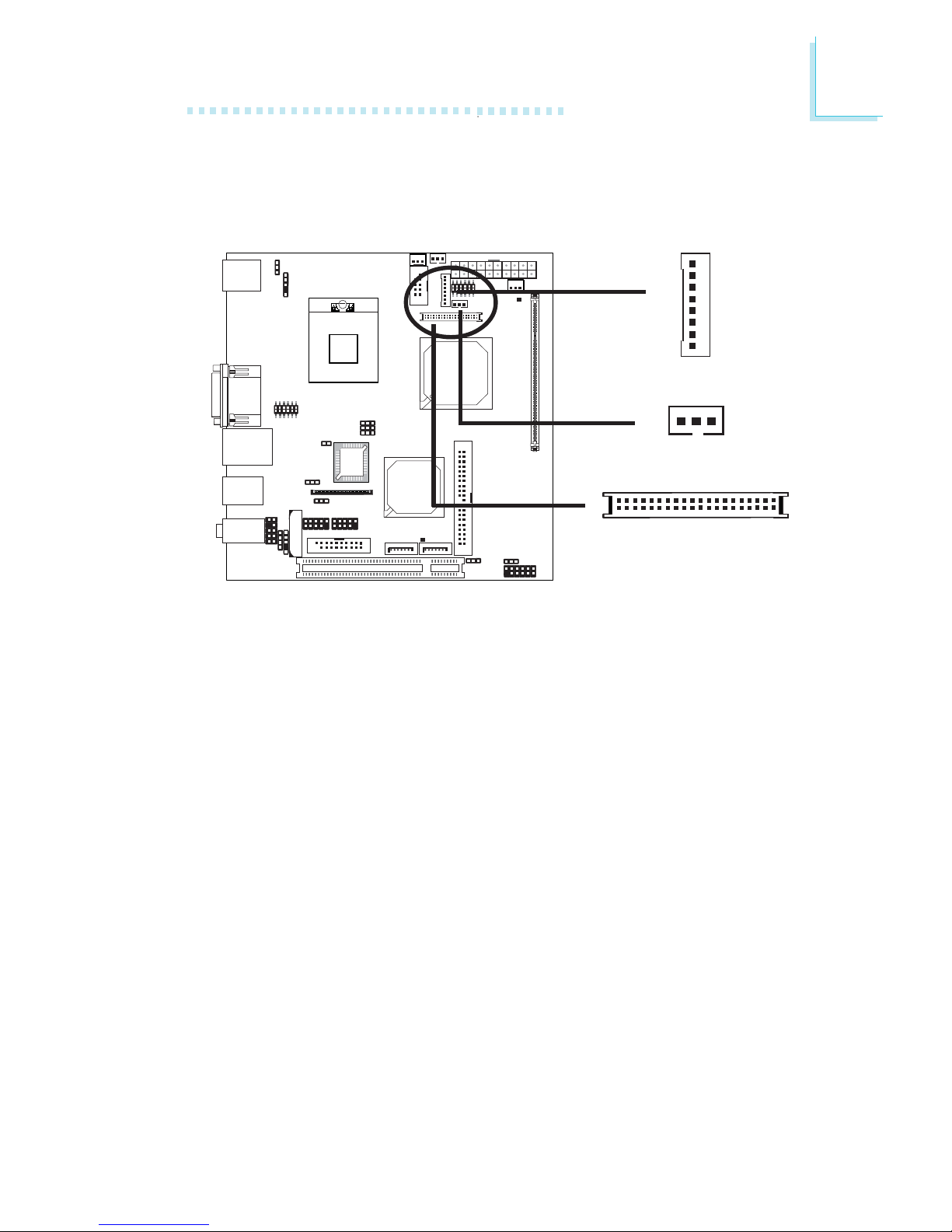

I/O Connectors

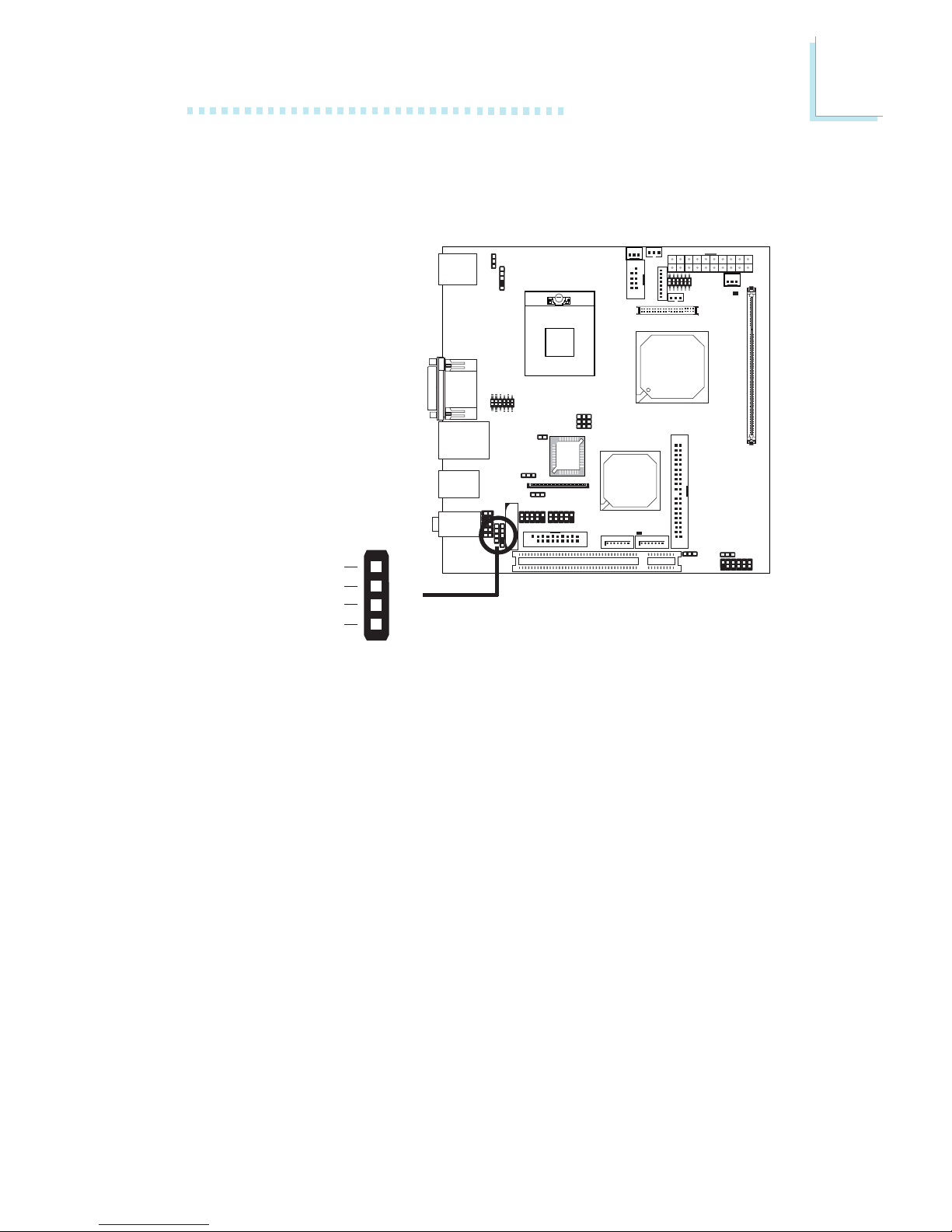

CD-in Internal Audio Connector

The CD-in connector (CDIN1) is used to receive audio from a CD-

ROM drive, TV tuner or MPEG card.

Left audio

channel

Right audio

channel

Ground

Page 44

Hardware Installation

S/PDIF-out Connector

The S/PDIF-out connector (SPDIF1) is used to connect an external

S/PDIF-out port. Your S/PDIF-out port may be mounted on a cardedge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then connect the audio cable connector to the S/PDIF-out connector. Make sure pin 1 of the audio cable connector is aligned with pin 1 of the connector.

+5V

Key

SPDIF out

GND

N.C.

Page 45

Hardware Installation

LVDS LCD Panel Connector LCD/Inverter Power Connector LCD AUX Power Connector

The system board allows you to connect a LCD Display Panel by means of the LVDS LCD panel connector (CN7) and the LCD/ Inverter power connector (CN6). These connectors transmit video signals and power from the system board to the LCD Display Panel. The LCD AUX power connector (J8) is used to connect auxiliary power to the LCD panel.

Refer to the next page for the pin functions of these connectors.

Jumper Settings

Refer to the “Jumper Settings” section in this chapter for settings relevant to the LCD panel.

BIOS Setting

Configure the LCD panel in the Advanced Chipset Features submenu of the BIOS. Refer to chapter 3 for more information.

LVDS LCD Panel

LCD/Inverter Power

LCD AUX Power

Page 46

Hardware Installation

Pins

Function

+12V

Panel Backlight On/Off Control

+3.3V

Pins

Function

Panel Power

Panel Inverter Brightness Voltage Control

GND

Pins

Function

GND

LVDS_Out3+

LVDS_Out3-

GND

LVDS_Out2+

LVDS_Out2-

GND

LVDS_Out1+

LVDS_Out1-

GND

LVDS_Out0+

LVDS_Out0-

GND

LVDS_CLK1+

LVDS_CLK1-

GND

COM3-(NDTR3-)

COM3-(NRTS3-)

COM3-(NRD3)

COM3-(NCTS3-)

Pins

Function

GND

LVDS_Out7+

LVDS_Out7-

GND

LVDS_Out6+

LVDS_Out6-

GND

LVDS_Out5+

LVDS_Out5-

GND

LVDS_Out4+

LVDS_Out4-

GND

LVDS_CLK2+

LVDS_CLK2-

GND

COM3-(NTD3)

COM3-(XRI3-)

COM3-(NDSR3-)

COM3-(NDCD3-)

LVDS LCD Panel Connector

LCD/Inverter Power Connector

LCD AUX Power Connector

Pins

Function

Panel Power

Ground

Panel Power

Page 47

Hardware Installation

Digital I/O Connector

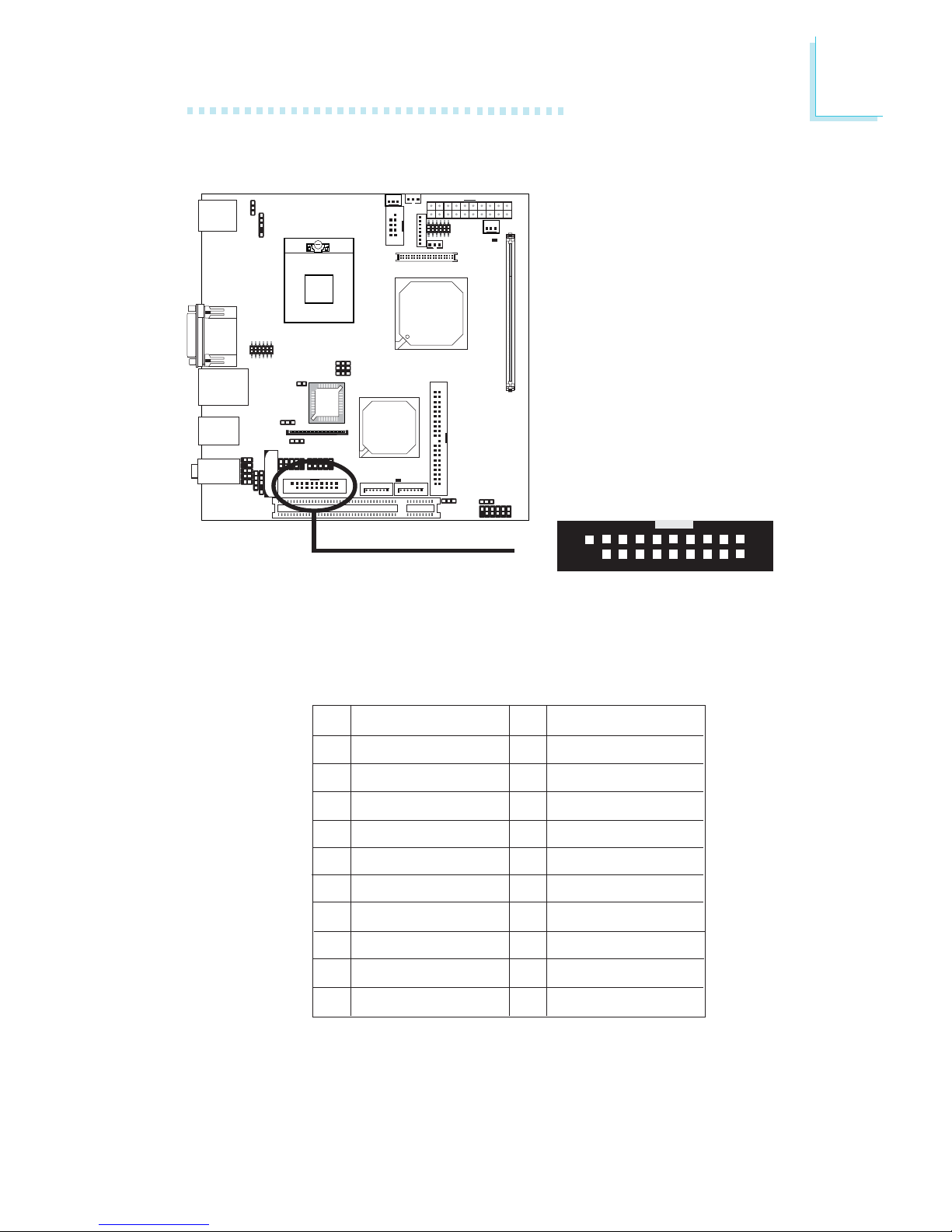

The Digital I/O connector provides powering-on function of an external device that is connected to this connector.

Pins

Function

GND

DIO7

DIO6

DIO5

DIO4

DIO3

DIO2

DIO1

DIO0

GND

Pins

Function

+12V

GND

VCC

GND

V_5P0_STBY

GND

Digital I/O Connector

Page 48

Hardware Installation

Floppy Disk Drive Connector

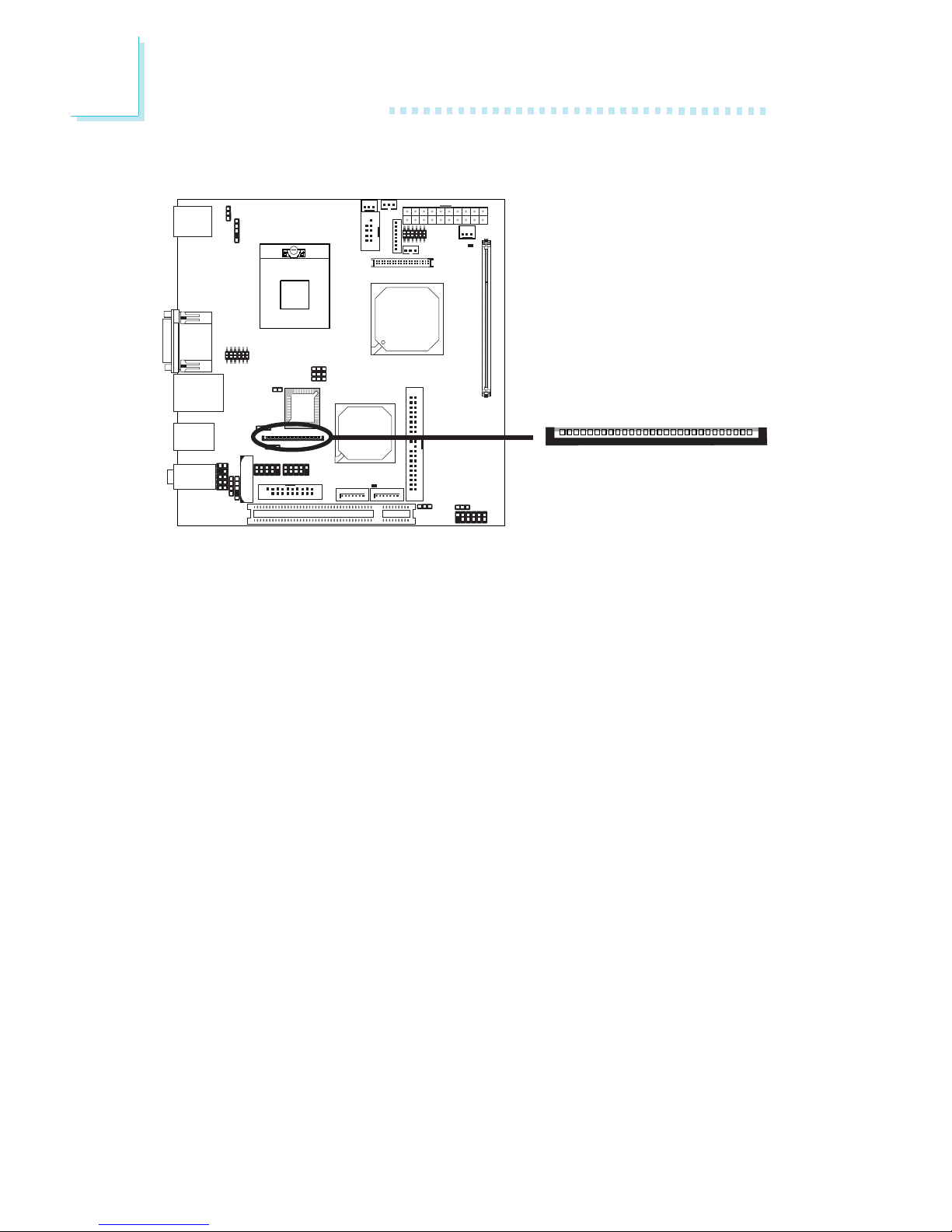

The system board is equipped with a 26-pin FPC type floppy disk drive connector. Only connect a 1.44MB slim-type floppy disk drive. Floppy drives other than the one mentioned above are optional. Refer to the next page for the pin function of this connector.

Connecting the Floppy Disk Drive Cable

Install one end of the floppy disk drive cable into the floppy disk connector (FDC1) on the system board and the other end connector to the floppy drive. Pin 1 of the cable must align with pin 1 of FDC1.

BIOS Setting

Enable or disable this function in the Integrated Peripherals submenu (“Super I/O Device” section) of the BIOS. Refer to chapter 3 for more information.

Page 49

Hardware Installation

Pins

Function

N. C.

DRVDE0

GND

Pins

Function

INDEX#

DR0#

DSKCH#

N. C.

MTR0#

DIR#

STEP#

WDATA#

WGATE#

TRK0#

WRPRO#

RDATA#

HDSEL#

FPC Type FDD Connector

Page 50

Hardware Installation

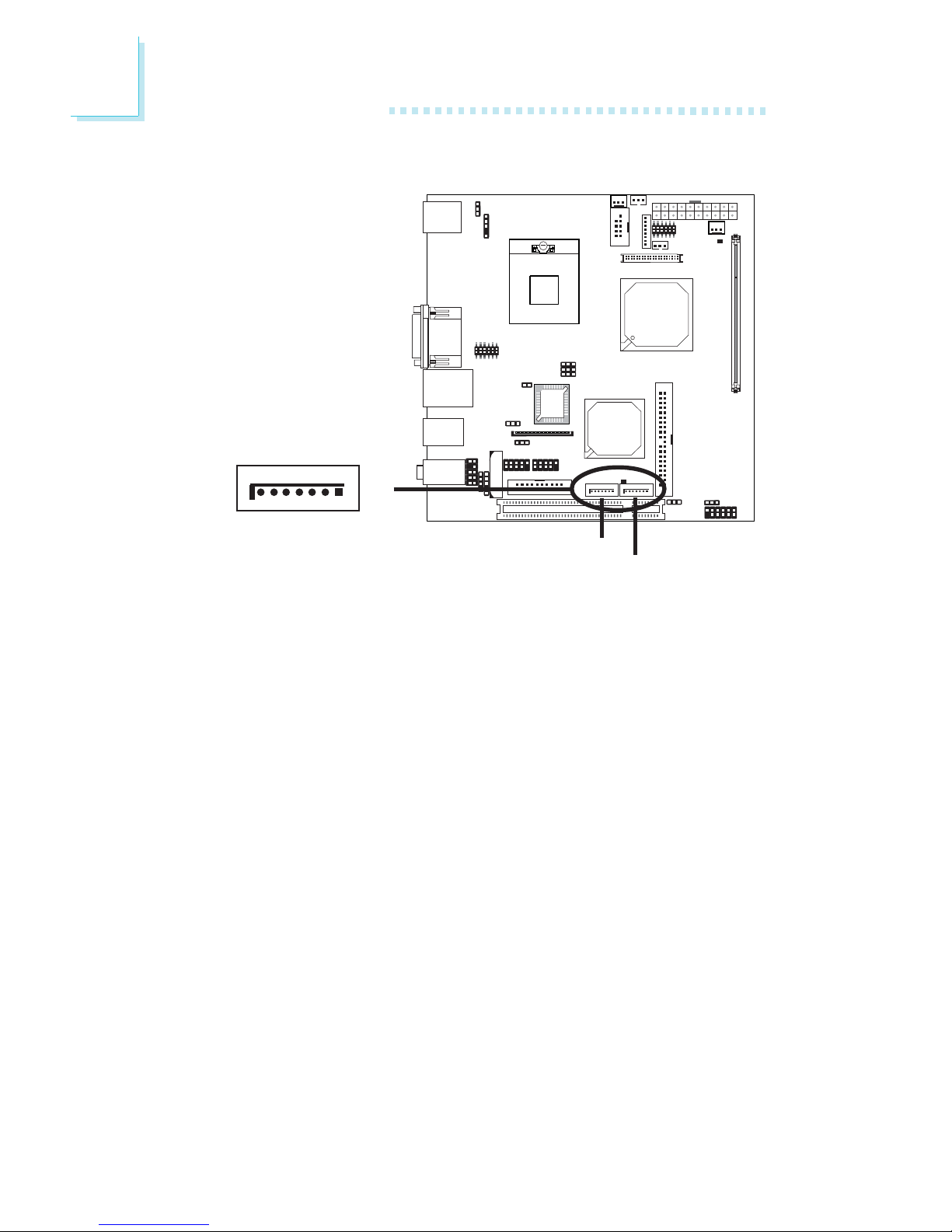

Serial ATA Connectors

The system board is equipped with two Serial ATA connectors for connecting Serial ATA devices. Connect one end of the Serial ATA cable to SATA 1 or SATA 2 connector and the other end to your Serial ATA device.

BIOS Setting

Configure the Serial ATA drives in the Integrated Peripherals submenu (“OnChip IDE Device” field) of the BIOS. Refer to chapter 3 for more information.

GND

TXP

TXN

GND

RXN

RXP

GND

SATA 1

SATA 2

Page 51

Hardware Installation

IDE Disk Drive Connectors

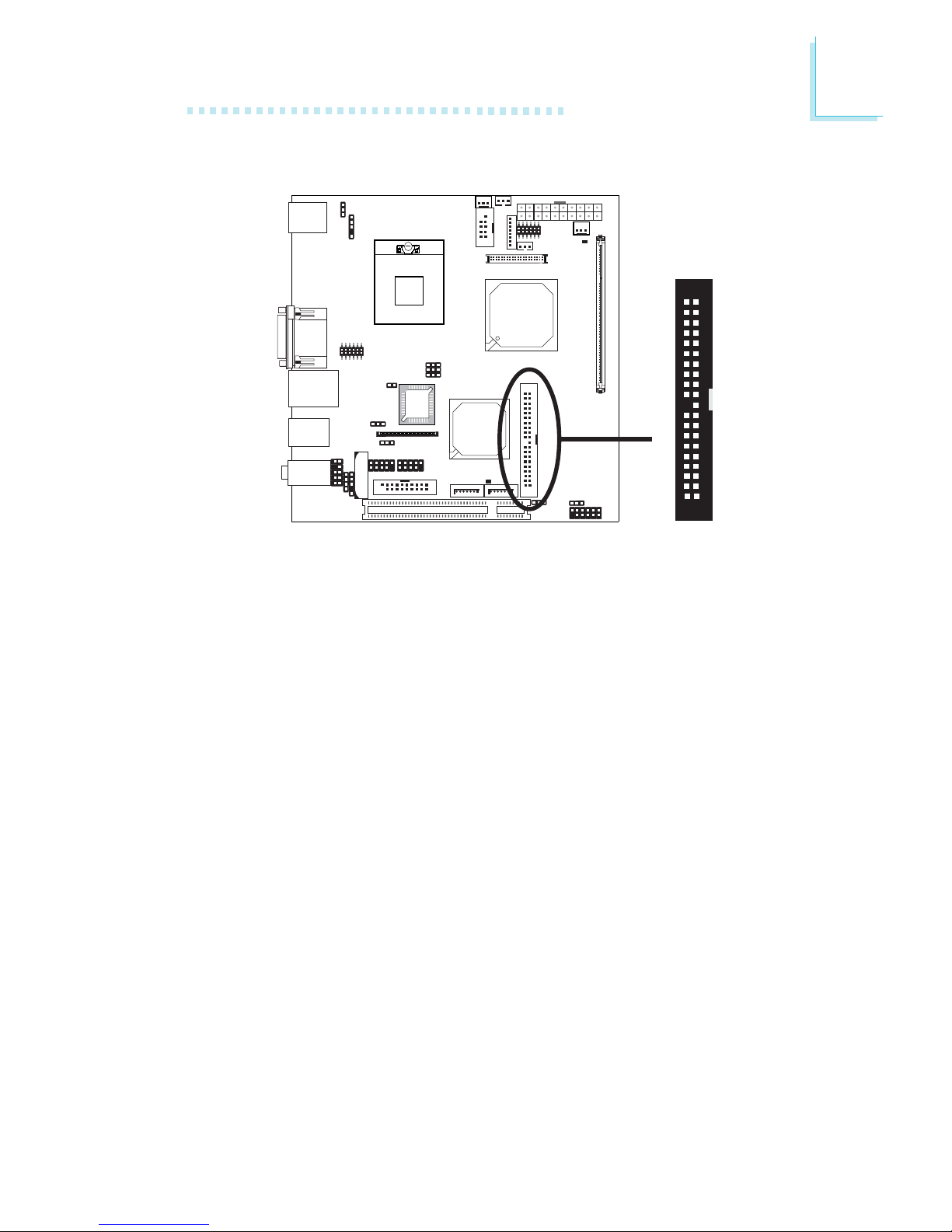

The system board is equipped with a 40-pin IDE (IDE 1) connector for connecting 3.5” hard drives. To prevent improper IDE cable installation, the IDE 1 connector has a keying mechanism. The connector on the IDE cable can be inserted into IDE 1 only if pin 1 of the cable connector is aligned with pin 1 of IDE 1.

The IDE connector supports 2 devices, a Master and a Slave. Use an IDE ribbon cable to connect the drives to the system board. An IDE ribbon cable have 3 connectors on them, one that plugs into an IDE connector on the system board and the other 2 connects to IDE devices. The connector at the end of the cable is for the Master drive and the connector in the middle of the cable is for the Slave drive.

Page 52

Hardware Installation

Connecting the IDE Disk Drive Cable

Install one end of the IDE cable into IDE 1 on the system board and the other connectors to the IDE devices.

Note:

Refer to your disk drive user’s manual for information about selecting proper drive switch settings.

Adding a Second IDE Disk Drive

When using two IDE drives, one must be set as the master and the other as the slave. Follow the instructions provided by the drive manufacturer for setting the jumpers and/or switches on the drives.

The system board supports Enhanced IDE or ATA-2, ATA/33, ATA/66 and ATA/100 hard drives. We recommend that you use hard drives from the same manufacturer. In a few cases, drives from two different manufacturers will not function properly when used together. The problem lies in the hard drives, not the system board.

Important:

If you encountered problems while using an ATAPI CD-ROM drive that is set in Master mode, please set the CD-ROM drive to Slave mode. Some ATAPI CD-ROMs may not be recognized and cannot be used if incorrectly set in Master mode.

BIOS Setting

Configure the onboard IDE in the Integrated Peripherals submenu (“OnChip IDE Device” section) of the BIOS. Refer to chapter 3 for more information.

Page 53

Hardware Installation

IrDA Connector

Connect your IrDA cable to the IR1 connector on the system board.

Note:

The sequence of the pin functions on some IrDA cable may be reversed from the pin function defined on the system board. Make sure to connect the cable to the IrDA connector according to their pin functions.

BIOS Setting

Configure IrDA in the Integrated Peripherals submenu (“Super IO Device” section) of the BIOS. Refer to chapter 3 for more information.

Driver Installation

You may need to install the proper drivers in your operating system to use the IrDA function. Refer to your operating system’s manual or documentation for more information.

VCC

N. C.

IRRX

Ground

IRTX

Page 54

Hardware Installation

Cooling Fan Connectors

Connect the CPU fan’s cable connector to the CPU fan connector (J11) on the system board. The system fan connector (J9) is used to connect an additional cooling fan. The cooling fans will provide adequate airflow throughout the chassis to prevent overheating the CPU and system board components.

BIOS Setting

The “PC Health Status” submenu of the BIOS will display the current speed of the cooling fans. Refer to chapter 3 for more information.

CPU fan

System fan

Ground

Power

Sense

Ground

Power

Sense

Page 55

Hardware Installation

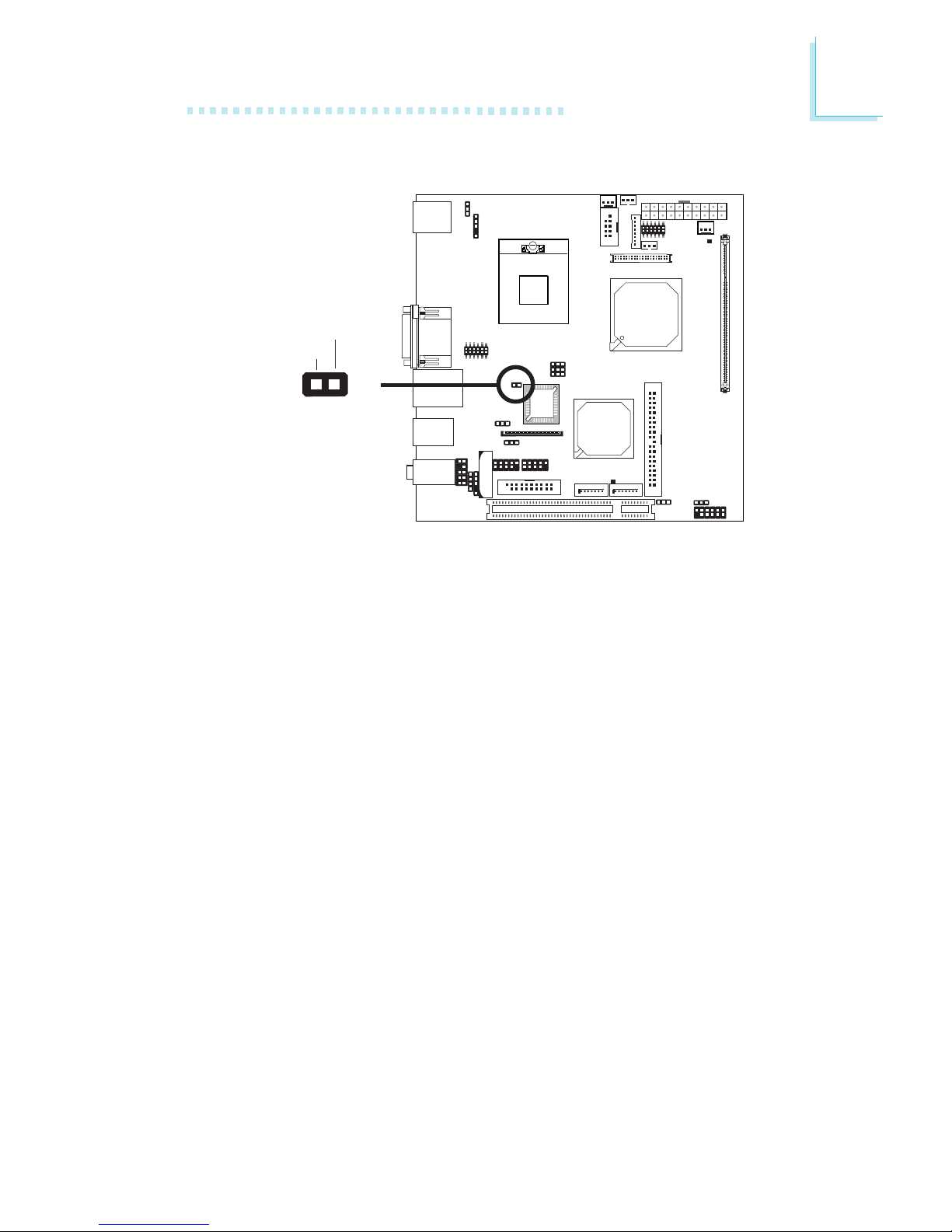

Chassis Open Connector

The system board supports the chassis intrusion detection function. Connect the chassis intrusion sensor cable from the chassis to J12. Whenever a chassis component has been removed, the sensor sends signal to J12 alerting you of a chassis intrusion event. To disable this function, place a jumper cap over J12.

Hardware Monitor for Windows

Install the “Hardware Monitor for Windows” utility. By default, the chassis intrusion detection function is disabled. When enabled, a warning message will appear when the chassis is open. The utility can also be configured so that a beeping alarm will sound when the chassis is open. Refer to the “Hardware Monitor for Windows” section in chapter 4 for more information.

Ground

Chassis signal

Page 56

Hardware Installation

Power Connector

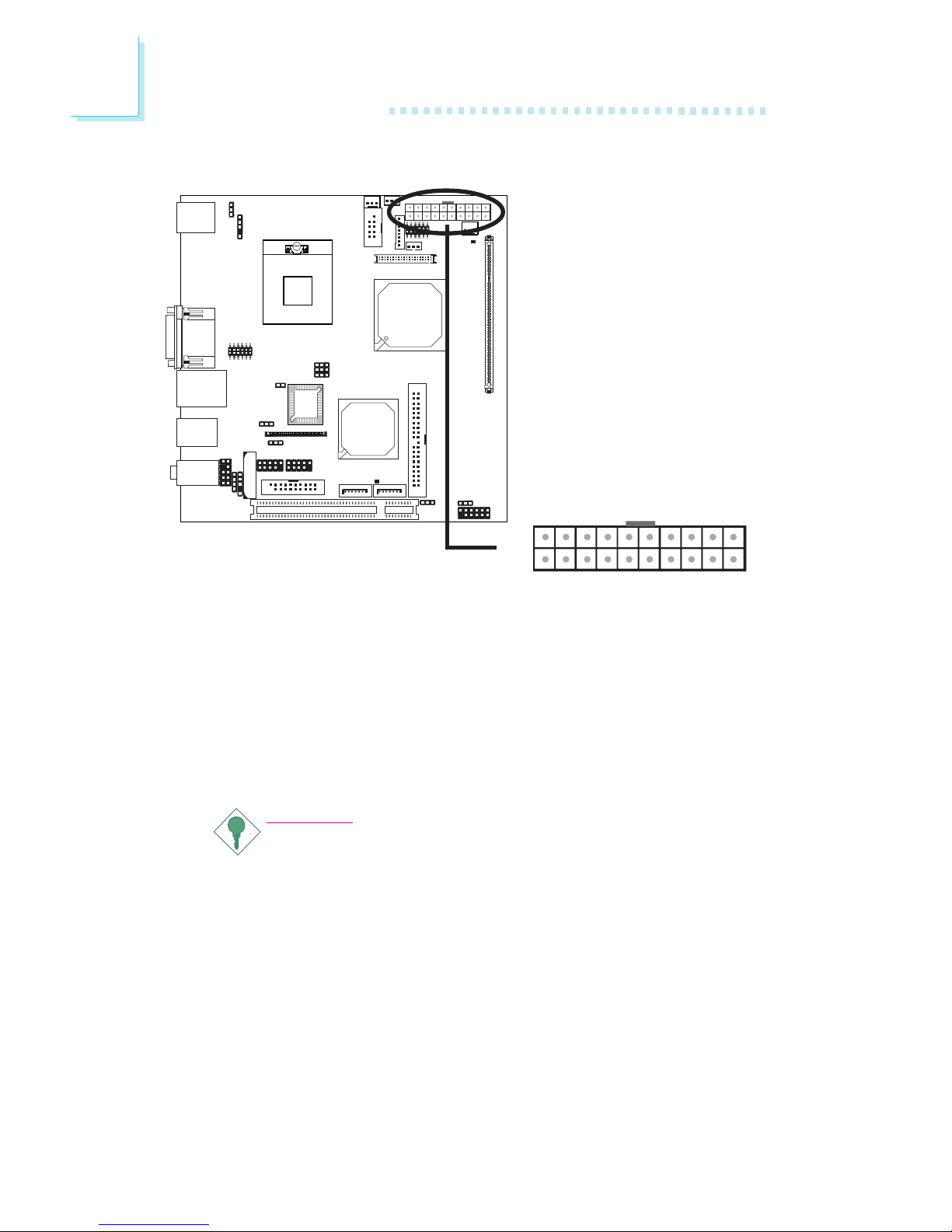

The 20-pin ATX main power connector must be inserted onto the P1 connector. The system board requires a minimum of 100 Watt power supply to operate. We recommend that you use a power supply that complies with the ATX12V Power Supply Design Guide Version 1.1.

Important:

The system board consumes a minimal amount of power. Due to its low power consumption, you only need a

100W to100W to

100W to

150W150W

150W power supply. Every power supply has its minimum load of power. If you use a greater than 150W power supply, the power consumed by the system board may not attain its minimum load causing instability to the entire system.

+12V

3.3V

Ground

+5V

Ground

+5V

Ground

PW-OK

5VSB

+5V

3.3V

-12V

Ground

PS-ON

Ground

N. C.

+5V

Page 57

Hardware Installation

DRAM Power LED

This LED will turn red when the system’s power is on or when it is in the Suspend state (Power On Suspend or Suspend to RAM). It will not light when the system is in the Soft-Off state.

Standby Power LED

This LED will turn red when the system is in the power-on, Soft-Off or Suspend (Power On Suspend or Suspend to RAM) state.

Important:

If the DRAM Power LED or Standby Power LED is lighted, you must power-off the system then turn off the power supply’s switch or unplug the power cord prior to installing any memory modules or add-in cards.

DRAM Power LED and Standby Power LED

DRAM Power LED

Standby Power LED

Page 58

Hardware Installation

Front Panel Connectors

HDD-LED - HDD LED

This LED will light when the hard drive is being accessed.

RESET SW - Reset Switch

This switch allows you to reboot without having to power off the system.

PWR-BTN - Power Switch

This switch is used to power on or off the system.

PWR-LED - Power/Standby LED

When the system’s power is on, this LED will light. When the system is in the S1 (POS - Power On Suspend) state, it will blink every second. When the system is in the S3 (STR - Suspend To RAM) state, it will blink every 4 seconds.

1 2

11 12

HDD-LED

RESET SW

PWR-LED

PWR-BTN

3 5

7 9

N. C.

HDD-LED

RESET SW

N. C.

Pin Assignment

N. C.

HDD Power Signal

Ground RST Signal

N. C.

2 4 6

PWR-LED

PWR-BTN

Key

Pin Assignment

LED Power LED Power Signal

3V_DUAL Signal

Key

J21

Page 59

Hardware Installation

PCI Slot

You can install a PCI expansion card or a customized riser card designed for 1, 2 or 3 PCI slots expansion (for low profile PCI card only) into the PCI slot.

PCI Slot

Page 60

Hardware Installation

The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source of power when the main power is shut off.

Safety Measures

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend

the manufacturer.

• Dispose of used batteries according to the battery manufacturer’s

instructions.

Battery

Page 61

BIOS Setup

Award BIOS Setup Utility

The Basic Input/Output System (BIOS) is a program that takes care of the basic level of communication between the processor and peripherals. In addition, the BIOS also contains codes for various advanced features found in this system board. This chapter explains the Setup Utility for the Award BIOS.

After you power up the system, the BIOS message appears on the screen and the memory count begins. After the memory test, the following message will appear on the screen:

Press DEL to enter setup

If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously.

When you press <Del>, the main menu screen will appear.

Chapter 3 - BIOS Setup

Phoenix - AwardBIOS CMOS Setup Utility

X Frequency/Voltage Control

Load Fail-Safe Defaults Load Optimized Defaults Set Supervisor Password Set User Password Save & Exit Setup Exit Without Saving

Esc : Quit F10 : Save & Exit Setup

↑ ↓ → ← : Select Item

Time, Date, Hard Disk Type...

X Standard CMOS Features X Advanced BIOS Features X Advanced Chipset Features X Integrated Peripherals X Power Management Setup X PnP/PCI Configurations X PC Health Status

Page 62

BIOS Setup

Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

The settings on the screen are for reference only. Your version may not be identical to this one.

Standard CMOS Features

Use the arrow keys to highlight “Standard CMOS Features” and press <Enter>. A screen similar to the one below will appear.

Date <mm:dd:yy> Time <hh:mm:ss>

X IDE Channel 0 Master X IDE Channel 0 Slave X IDE Channel 1 Master X IDE Channel 1 Slave

Drive A Video

Halt On Base Memory

Extended Memory Total Memory

Phoenix - AwardBIOS CMOS Setup Utility

Standard CMOS Features

Item Help

Menu Level

Change the day, month, year and century

Mon, Jun 4 2007 9 : 3 : 54

None

None EGA/VGA

All Errors 1K

65472K 65536K

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Page 63

BIOS Setup

IDE HDD Auto Detection

Detects the parameters of the drive. The parameters will automatically be shown on the screen.

IDE Channel 0 Master/Slave and IDE Channel 1 Master/Slave

If you select ”Auto”, the BIOS will auto-detect the HDD & CDROM drive at the POST stage and show the IDE for the HDD & CD-ROM drive. If a hard disk has not been installed, select “None”.

Access Mode

For hard drives larger than 528MB, you would typically select the LBA type. Cer tain operating systems require that you select CHS or Large. Please check your operating system’s manual or Help desk on which one to select.

The settings on the screen are for reference only. Your version may not be identical to this one.

IDE Channel 0 Master, IDE Channel 0 Slave, IDE Channel 1 Master and IDE Channel 1 Slave

To configure the IDE drives, move the cursor to a field then press <Enter>. The following screen will appear.

IDE HDD Auto-Detection IDE Channel 0 Master

Access Mode Capacity Cylinder

Head Precomp Landing Zone Sector

Phoenix - AwardBIOS CMOS Setup Utility

IDE Channel 0 Master

Item Help

Menu Level

To auto-detect the HDD’s size, head... on this channel

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

0 0 0 0 0

Press Enter Auto

Auto 0MB

Page 64

BIOS Setup

Capacity

Displays the approximate capacity of the disk drive. Usually the size is slightly greater than the size of a formatted disk given by a disk checking program.

Cylinder

This field displays the number of cylinders.

Head

This field displays the number of read/write heads.

Precomp

This field displays the number of cylinders at which to change the write timing.

Landing Zone

This field displays the number of cylinders specified as the landing zone for the read/write heads.

Sector

This field displays the number sectors per track.

Drive A

This field identifies the type of floppy disk drive installed.

None No floppy drive is installed 360K, 5.25 in. 5-1/4 in. standard drive; 360KB capacity

1.2M, 5.25 in. 5-1/4 in. AT-type high-density drive; 1.2MB capacity 720K, 3.5 in. 3-1/2 in. double-sided drive; 720KB capacity

1.44M, 3.5 in. 3-1/2 in. double-sided drive; 1.44MB capacity

2.88M, 3.5 in. 3-1/2 in. double-sided drive; 2.88MB capacity

Page 65

BIOS Setup

Video

This field selects the type of video adapter used for the primary system monitor. Although secondary monitors are supported, you do not have to select the type. The default setting is EGA/VGA.

EGA/VGA Enhanced Graphics Adapter/Video Graphics Array. For

EGA, VGA, SVGA and PGA monitor adapters.

CGA 40 Color Graphics Adapter. Power up in 40-column

mode.

CGA 80 Color Graphics Adapter. Power up in 80-column

mode.

Mono Monochrome adapter. Includes high resolution mono-

chrome adapters.

Halt On

This field determines whether the system will stop if an error is detected during power up. The default setting is All Errors.

No Errors The system boot will not stop for any errors detected. All Errors The system boot will stop whenever the BIOS detects

a non-fatal error.

All, But Keyboard The system boot will not stop for a keyboard

error; it will stop for all other errors.

All, But Diskette The system boot will not stop for a disk error;

it will stop for all other errors.

All, But Disk/Key The system boot will not stop for a disk or

keyboard error; it will stop for all other errors.

Base Memory

Displays the amount of base (or conventional) memory installed in the system. The value of the base memory is typically 512K for systems with 512K memory installed on the motherboard or 640K for systems with 640K or more memory installed on the motherboard.

Page 66

BIOS Setup

Extended Memory

Displays the amount of extended memory detected during boot-up.

Total Memory

Displays the total memory available in the system.

Page 67

BIOS Setup

Advanced BIOS Features

The Advanced BIOS Features allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

The screen above list all the fields available in the Advanced BIOS Features submenu, for ease of reference in this manual. In the actual CMOS setup, you have to use the scroll bar to view the fields. The settings on the screen are for reference only. Your version may not be identical to this one.

X CPU Feature X Hard Disk Boot Priority

Virus Warning CPU L1 & L2 Cache Quick Powe-on Self Test First Boot Device Second Boot Device Third Boot Device Boot Other Device Boot Up Floppy Seek Boot Up NumLock Status Gate A20 Option

Typematic Rate Setting x Typematic Rate (Chars/Sec) x Typematic Delay (Msec)

Security Option

APIC Mode

MPS Version Control For OS

OS Select For DRAM > 64MB

Report No FDD For Win 95

Small Logo(EPA) Show

Phoenix - AwardBIOS CMOS Setup Utility

Advanced BIOS Features

Item Help

Menu Level

Select Removable Boot Device Priority

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Press Enter Press Enter Disabled Enabled Enabled CDROM Hard Disk LS120 Enabled Enabled On Fast Disabled 6 250 Setup Enabled

1.4 Non-OS2 No Disabled

Page 68

BIOS Setup

CPU Feature

This field is used to configure the CPU that is installed on the system board. Move the cursor to this field then press <Enter>.

The settings on the screen are for reference only. Your version may not be identical to this one.

Phoenix - AwardBIOS CMOS Setup Utility

CPU Feature

Item Help

Menu Level

↑↓: Move PU/PD/+/-: Change Priority F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Delay Prior to Thermal C1E Function Execute Disable Bit

16 Min Auto Enabled

Delay Prior To Thermal

This field is used to select the time that would force the CPU to a 50% duty cycle when it exceeds its maximum operating temperature therefore protecting the CPU and the system board from overheating to ensure a safe computing environment..

C1E Function

The options are Auto and Disabled.

Execute Disable Bit

When this field is set to Disabled, it will force the XD feature flag to always return to 0.

Page 69

BIOS Setup

Virus Warning

This field protects the boot sector and partition table of your hard disk drive. When this field is enabled, the Award BIOS will monitor the boot sector and partition table of the hard disk drive. If an attempt is made to write to the boot sector or partition table of the hard disk drive, the BIOS will halt the system and an error message will appear.

After seeing the error message, if necessary, you will be able to run an anti-virus program to locate and remove the problem before any damage is done.

Hard Disk Boot Priority

This field is used to select the boot sequence of the hard drives. Move the cursor to this field then press <Enter>. Use the Up or Down arrow keys to select a device then press <+> to move it up or <-> to move it down the list.

The settings on the screen are for reference only. Your version may not be identical to this one.

Phoenix - AwardBIOS CMOS Setup Utility

Hard Disk Boot Priority

Item Help

Menu Level

Use <↑> or <↓> to select a device, then press <+> to move it up, or <-> to move it down the list. Press <ESC> to exit this menu.

↑↓: Move PU/PD/+/-: Change Priority F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

1. Pri. Master

2.Pri.Slave

3.Sec.Master

4.Sec.Slave

5. USBHDD0

6. USBHDD1

7. USBHDD2

8. Bootable Add-in Cards

: : : : : : :

Page 70

BIOS Setup

Many disk diagnostic programs which attempt to access the boot sector table will cause the warning message to appear. If you are running such a program, we recommend that you first disable this field. Also, disable this field if you are installing or running certain operating systems like Windows® 98/2000/ME/XP or the operating system may not install nor work.

CPU L1 and L2 Cache

This field is used to speed up the memory access. Enable the external cache for better performance.

Quick Power On Self Test

This field speeds up Power On Self Test (POST) after you power on the system. When Enabled, the BIOS will shor ten or skip some check items during POST.

First Boot Device, Second Boot Device, Third Boot Device and Boot Other Device

Select the drive to boot first, second and third in the “First Boot Device” “Second Boot Device” and “Third Boot Device” fields respectively. The BIOS will boot the operating system according to the sequence of the drive selected. Set “Boot Other Device” to Enabled if you wish to boot from another device.

Boot Up Floppy Seek

When enabled, the BIOS will check whether the floppy disk drive installed is 40 or 80 tracks. Note that the BIOS cannot distinguish between 720K, 1.2M, 1.44M and 2.88M drive types as they are all 80 tracks. When disabled, the BIOS will not search for the type of floppy disk drive by track number. Note that there will not be any warning message if the drive installed is 360KB.

Page 71

BIOS Setup

Boot Up NumLock Status

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Gate A20 Option

This entry allows you to select how gate A20 is handled. Gate A20 is a device used to address memory above 1 Mbyte. Initially, gate A20 was handled via the keyboard controller. Today, while keyboards still provide this support, it is more common, and much faster, for the system chipset to provide support for gate A20.

Typematic Rate Setting

Disabled Continually holding down a key on your keyboard will

cause the BIOS to report that the key is down.

Enabled The BIOS will not only report that the key is down,

but will first wait for a moment, and, if the key is still down, it will begin to repor t that the key has been depressed repeatedly. For example, you would use such a feature to accelerate cursor movements with the arrow keys. You can then select the typematic rate and typematic delay in the “Typematic Rate (Chars/Sec)” and “Typematic Delay (Msec)” fields below.

Typematic Rate (Chars/Sec)

This field allows you to select the rate at which the keys are accelerated.

Typematic Delay (Msec)

This field allows you to select the delay between when the key was first depressed and when the acceleration begins.

Page 72

BIOS Setup

Security Option

This field determines when the system will prompt for the password

- everytime the system boots or only when you enter the BIOS setup. Set the password in the Set Supervisor/User Password submenu.

System The system will not boot and access to Setup will be

denied unless the correct password is entered at the prompt.

Setup The system will boot, but access to Setup will be denied

unless the correct password is entered at the prompt.

APIC Mode

Leave this field in its default setting.

MPS Version Control for OS

This field is used to select the MPS version used by the system.

OS Select for DRAM > 64MB

This field allows you to access the memory that is over 64MB in OS/2. The options are: Non-OS2 and OS2.

Report No FDD For WIN 95

The options are Yes and No.

Small Logo(EPA) Show

Enabled The EPA logo will appear during system boot-up. Disabled The EPA logo will not appear during system boot-up.

Page 73

BIOS Setup

Advanced Chipset Features

This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources. These items should not

be altered unless necessary. The default settings have been chosen

because they provide the best operating conditions for your system. The only time you might consider making any changes would be if you discovered some incompatibility or that data was being lost while using your system.

DRAM Timing Selectable

This field is used to select the timing of the DRAM.

By SPD The EEPROM on a DIMM has SPD (Serial Pres-

ence Detect) data structure that stores information about the module such as the memory type, memory size, memory speed, etc. When this option is selected, the system will run according to the information in the EEPROM. This option is the default setting because it provides the most sta-

Phoenix - AwardBIOS CMOS Setup Utility

Advanced Chipset Features

DRAM Timing Selectable CAS Latency Time DRAM RAS# to CAS# Delay DRAM RAS# Precharge Precharge Delay <tRAS> System Memory Frequency SLP_S4# Assertion Width System BIOS Cacheable Video BIOS Cacheable Memory Hole At 15M-16M

** VGA Setting ** PCI/Onchip VGA Control On-Chip Frame Buffer Size DVMT Mode DVMT/FIXED Memory Size Boot Display Panel Number

Item Help

Menu Level

By SPD Auto Auto Auto Auto Auto 4 to 5 Sec. Enabled Disabled Disabled

Onchip VGA 8MB DVMT 128MB CRT 3:1024*768(18 bit

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be identical to this one.

Page 74

BIOS Setup

ble condition for the system. The “CAS Latency Time” and “Precharge Delay” fields will show the default settings by SPD.

Manual If you want better performance for your system

other than the one “by SPD”, select “Manual” then select the best option in the “CAS Latency Time” and “Precharge Delay” fields.

CAS Latency Time

This field is used to select the local memory clock periods.

DRAM RAS# to CAS# Delay

This field is used to select the latency between the DRAM active command and the read/write command.

DRAM RAS# Precharge

This field is used to select the idle clocks after issuing a precharge command to the DRAM.

Precharge Delay (tRAS)

The options are Auto and 4 to15.

System Memory Frequency

This field is used to select the frequency of the system memory.

SLP_S4# Assertion Width

The options are 1 to 2 Sec., 2 to 3 Sec., 3 to 4 Sec. and 4 to 5 Sec.

System BIOS Cacheable

When this field is enabled, accesses to the system BIOS ROM addressed at F0000H-FFFFFH are cached, provided that the cache controller is enabled. The larger the range of the Cache RAM, the higher the efficiency of the system.

Page 75

BIOS Setup

Video BIOS Cacheable

As with caching the system BIOS, enabling the Video BIOS cache will allow access to video BIOS addresssed at C0000H to C7FFFH to be cached, if the cache controller is also enabled. The larger the range of the Cache RAM, the faster the video performance.

Memory Hole At 15M-16M

In order to improve system performance, certain space in memory can be reserved for ISA cards. This memory must be mapped into the memory space below 16MB. When enabled, the CPU assumes the 1516MB memory range is allocated to the hidden ISA address range instead of the actual system DRAM. When disabled, the CPU assumes the 15-16MB address range actually contains DRAM memory. If more than 16MB of system memory is installed, this field must be disabled to provide contiguous system memory.

PCI/Onchip VGA Control

Onchip VGA Select this option if you want the system to boot the

onboard VGA.

PCI Port Select this option if you want the system to boot the

graphics PCI add-in card.

On-Chip Frame Buffer Size

This field is used to select the onboard VGA’s frame buffer size that is shared from the system memory.

DVMT Mode

This field shows the current DVMT mode.

DVMT/Fixed Memory Size

This field is used to select the graphics memory size used by DVMT/ Fixed mode.

Page 76

BIOS Setup

Boot Display

This field is used to select the type of display to use when the system boots.

CRT Select this option if you want the system to boot

the CRT display.

LFP Select this option if you want the system to boot

the LCD flat panel display.

CRT+LFP Select this option if you want the system to boot

both the CRT and LCD flat panel display.

Panel Number

This field is used to select the type of panel that you are using.

Page 77

BIOS Setup

Integrated Peripherals

The settings on the screen are for reference only. Your version may not be identical to this one.

OnChip IDE Device

Move the cursor to this field and press <Enter>. The following screen will appear.

The settings on the screen are for reference only. Your version may not be identical to this one.

Phoenix - AwardBIOS CMOS Setup Utility

Integrated Peripherals

Item Help

Menu Level

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

X OnChip IDE Device X Onboard Device X Super IO Device

Press Enter Press Enter Press Enter

IDE HDD Block Mode

IDE DMA Transfer Access

On-Chip Primary PCI IDE

IDE Recovery Time

IDE Primary Master UDMA

IDE Primary Slave UDMA

On-Chip Secondary PCI IDE

IDE Secondary Master UDMA

IDE Secondary Slave UDMA

***

On-Chip Serial ATA Setting

***

SATA Mode

On-Chip Serial ATA

PATA IDE Mode

SATA Port

Phoenix - AwardBIOS CMOS Setup Utility

OnChip IDE Device

Item Help

Menu Level

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Enabled Enabled Enabled 2 CLOCKS Auto Auto Enabled Auto Auto

IDE Auto Secondary P0,P2 is Primary

If your IDE hard drive supports block mode Select Enabled for automatic detection of the optimal number of block read/writes per sector the drive can support

Page 78

BIOS Setup

IDE HDD Block Mode

Enabled The IDE HDD uses the block mode. The system BIOS

will check the hard disk drive for the maximum block size the system can transfer. The block size will depend on the type of hard disk drive.

Disabled The IDE HDD uses the standard mode.

IDE DMA Transfer Access

This field is used to enable or disable the DMA transfer function of an IDE hard drive.

On-Chip Primary PCI IDE and On-Chip Secondary PCI IDE

These fields allow you to enable or disable the primary and secondary IDE controller. The default is Enabled. Select Disabled if you want to add a different hard drive controller.

IDE Recovery Time

This field is used to select the IDE recovery time.

IDE Primary Master/Slave UDMA and IDE Secondary Master/ Slave UDMA

These fields allow you to set the Ultra DMA in use. When Auto is selected, the BIOS will select the best available option after checking your hard drive or CD-ROM.

Auto The BIOS will automatically detect the settings for

you.

Disabled The BIOS will not detect these categories.

SATA Mode

IDE This option configures the Serial ATA drives in IDE mode. AHCI This option configures the Serial ATA drives in AHCI

mode.

Page 79

BIOS Setup

On-Chip Serial ATA

Disabled Disables the onboard SATA. Auto The system will detect the existing SATA and

IDE drives then automatically set them to the available master/slave mode.

Combined Mode This option allows you to combine both IDE

and SATA drives; supporting maximum of 2 drives on each channel.

Enhanced Mode This option allows you to use both IDE and

SATA drives; allowing a maximum of 4 drives 1 IDE Master, 1 IDE Slave and 2 SATA.

SATA Only This option automatically sets the SATA drives

to Primary Master mode. Since the SATA drives are in Master mode, you cannot set the IDE drive to Master mode.

PATA IDE Mode and SATA Port

This field is used to select the function mode for the IDE 1 connector and its relation to the SATA ports.

Primary IDE 1 serves as Primary Master and Primary

Slave channel. SATA 1 and SATA 2 serve as Secondary Master and Secondary Slave channel.

Secondary IDE 1 serves as Secondary Master and Sec-

ondary Slave channel. SATA 1 and SATA 2 serve as Primary Master and Primary Slave channel.

Page 80

BIOS Setup

The settings on the screen are for reference only. Your version may not be identical to this one.

Phoenix - AwardBIOS CMOS Setup Utility

Onboard Device

Item Help

Menu Level

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

USB Controller USB 2.0 Controller USB Keyboard Support AC97 Audio Onboard Lan1 Control

Enabled Enabled Disabled Auto Enabled

Onboard Device

Move the cursor to this field and press <Enter>. The following screen will appear.

USB Controller

This field is used to enable or disable the USB ports.

USB 2.0 Controller

If you are using USB 2.0, this field must be set to Enabled.

USB Keyboard Support

Due to the limited space of the BIOS ROM, the support for legacy USB keyboard (in DOS mode) is by default set to Disabled. With more BIOS ROM space available, it will be able to support more advanced features as well as provide compatibility to a wide variety of peripheral devices.

If a PS/2 keyboard is not available and you need to use a USB keyboard to install Windows (installation is performed in DOS mode) or run any program under DOS, set this field to Enabled.

Page 81

BIOS Setup

AC97 Audio

Auto Select this option when using the onboard audio

codec.

Disabled Select this option when using a PCI sound card.

Onboard LAN 1 Control

Auto The system automatically detects the onboard LAN

Disabled Disables the onboard LAN 1.

Page 82

BIOS Setup

Power On Function

This field allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system.

Keyboard 98 When this option is selected, press the “wake up”

key of the Windows® 98 compatible keyboard to power-on the system.

Button only Default setting. Uses the power button to power

on the system.

Hot Key When this option is selected, select the function

key you would like to use to power-on the system in the “Hot Key Power On” field.

Mouse Left When this option is selected, double-click the left

button of the mouse to power-on the system.

Mouse Right When this option is selected, double-click the right

button of the mouse to power-on the system.

Any Key Press any key to power-on the system.

Super IO Device

Move the cursor to this field and press <Enter>. The following screen will appear.

The settings on the screen are for reference only. Your version may not be identical to this one.

Phoenix - AwardBIOS CMOS Setup Utility

Super IO Device

Item Help

Menu Level

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Power On Function Hot Key Power ON Onboard FDC Controller PWRON After PWR-Fail Watch Dog Timer Select Onboard Serial Port 1 Serial Port 1 Mode Serial Port 1 Use IRQ Onboard Serial Port 3 Serial Port 3 Use IRQ Onboard Serial Port 4 Serial Port 4 Use IRQ

BUTTON ONLY Ctrl-F1 Enabled Off Disabled 3F8 Normal IRQ4 3E8 IRQ10 2E8 IRQ11

Page 83

BIOS Setup

Hot Key Power On

This field is used to select a function key that you would like to use to power-on the system.

Onboard FDC Controller

Enabled Enables the onboard floppy disk controller. Disabled Disables the onboard floppy disk controller.

PWRON After PWR-Fail

Off When power returns after an AC power failure, the

system’s power is off. You must press the Power button to power-on the system.

On When power returns after an AC power failure, the

system will automatically power-on.

Former-Sts When power returns after an AC power failure, the

system will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.

Watchdog Timer Select

The system board supports the Watchdog Timer function allowing your application to regularly “clear” the system at the time interval selected in this field. If the system hangs or fails to function, it will reset at the set time interval so that your system will continue to operate.

Page 84

BIOS Setup

Onboard Serial Port 1, Onboard Serial Port 3 and Onboard Serial Port 4

3F8, 2F8, 3E8, 2E8 Allows you to manually select an I/O address for

the serial port.

Disabled Disables the serial port.

Note:

The touch screen is internally connected to COM 3. If the LCD Display Panel supports touch screen, leave the “Onboard Serial Port 3” field in its default setting because a default address has already been assigned to this port. Make sure COM 3 is not attached with a serial device.

Serial Port 1 Mode

COM 1 functions as IrDA.

Serial Port 1 Use IRQ, Serial Port 3 Use IRQ and Serial Port 4 Use IRQ

These fields are used to select an IRQ for the onboard serial port 1, 3 or 4.

Page 85

BIOS Setup

Power Management Setup

The Power Management Setup allows you to configure your system to most effectively save energy.

The settings on the screen are for reference only. Your version may not be identical to this one.

ACPI Function

This function should be enabled only in operating systems that support ACPI. Currently, only Windows

®®

98/2000/ME/XP supports this function. If you want to use the Suspend to RAM function, make sure this field is enabled then select “S3(STR)” in the “ACPI Suspend Type” field.

ACPI Suspend Type

This field is used to select the type of Suspend mode.

S1(POS) Enables the Power On Suspend function. S3(STR) Enables the Suspend to RAM function. If you are us-

ing the Windows

®®

98 operating system, refer to “Using the Suspend to RAM Function” in appendix B for more information.

Phoenix - AwardBIOS CMOS Setup Utility

Power Management Setup

Item Help

Menu Level

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

ACPI Function ACPI Suspend Type

x Run VGABIOS if S3 Resumes

Power Management Video Off Method Video Off In Suspend Suspend Type MODEM Use IRQ Suspend Mode HDD Power Down Soft-Off By PWR-BTTN Wake-Up by PCI Card Power On by Ring USB KB Wake-Up From S3

Resume By Alarm x Date(of Month) Alarm x Time (hh:mm:ss) Alarm

Enabled S1(POS) Auto User Define DPMS Yes Stop Grant 3 Disabled Disabled Instant-Off Disabled Disabled Disabled Disabled 0 0 : 0 : 0

Page 86

BIOS Setup

Run VGABIOS if S3 Resume

When this field is set to Auto, the system will initialize the VGA BIOS when it wakes up from the S3 state. This can be configured only if the “ACPI Suspend Type” field is set to “S3(STR)”.

Power Management

This field allows you to select the type (or degree) of power saving by changing the length of idle time that elapses before the “Suspend Mode” field is activated.

Min Saving Minimum power saving time for Suspend mode = 1

hr.

Max Saving Maximum power saving time for Suspend mode =

1 min.

User Define Allows you to set the power saving time in the

“Suspend Mode” field.

Video Off Method

This determines the manner in which the monitor is blanked.

V/H SYNC + Blank This will cause the system to turn off the ver-

tical and horizontal synchronization ports and write blanks to the video buffer.

Blank Screen This only writes blanks to the video buffer. DPMS Support Initializes display power management signaling. Se-

lect this if your video board supports it.

Video Off In Suspend

This field is used to activate the video off feature when the system enters the Suspend mode.

Suspend Type

The options are Stop Grant and PwrOn Suspend.

MODEM Use IRQ

This field is used to set an IRQ channel for the modem installed in your system.

Page 87

BIOS Setup

Suspend Mode

When the system enters the Suspend mode, the CPU and onboard peripherals will be shut off.

HDD Power Down

This is selectable only when the Power Management field is set to User Define. When the system enters the HDD Power Down mode according to the power saving time selected, the hard disk drive will be powered down while all other devices remain active.

Soft-Off by PWR-BTTN

This field allows you to select the method of powering off your system.

Delay 4 Sec. Regardless of whether the Power Management func-

tion is enabled or disabled, if the power button is pushed and released in less than 4 sec, the system enters the Suspend mode. The purpose of this function is to prevent the system from powering off in case you accidentally “hit” or pushed the power button. Push and release again in less than 4 sec to restore. Pushing the power button for more than 4 seconds will power off the system.

Instant-Off Pressing and then releasing the power button at

once will immediately power off your system.

Wake-Up By PCI Card

Enabled This field should be set to Enabled only if your PCI

card such as LAN card or modem card uses the PCI PME (Power Management Event) signal to remotely wake up the system. Access to the LAN card or PCI

card will cause the system to wake up. Refer to the

card’s documentation for more information.

Disabled The system will not wake up despite access to the PCI

card.

Page 88

BIOS Setup

Power On By Ring

When this field is set to Enabled, the system will power-on to respond to calls coming from a modem. Refer to “Wake-On-Ring Connector” in chapter 2 for more information.

USB KB Wake-Up From S3

This field, when enabled, allows you to use a USB keyboard or USB mouse to wake up a system that is in the S3 (STR - Suspend To RAM) state. This can be configured only if the “ACPI Suspend Type” field is set to “S3(STR)”.

Resume By Alarm

Enabled When Enabled, you can set the date and time you

would like the Soft Power Down (Soft-Off) PC to power-on in the “Date (of Month) Alarm” and “Time (hh:mm:ss) Alarm” fields. However, if the system is being accessed by incoming calls or the network (Resume On Ring/LAN) prior to the date and time set in these fields, the system will give priority to the incoming calls or network.

Disabled Disables the automatic power-on function. (default)

Date (of Month) Alarm

0 The system will power-on everyday according to the

time set in the “Time (hh:mm:ss) Alarm” field.

1-31 Select a date you would like the system to power-on.

The system will power-on on the set date, and time set in the “Time (hh:mm:ss) Alarm” field.

Time (hh:mm:ss) Alarm

This is used to set the time you would like the system to power-on. If you want the system to power-on everyday as set in the “Date (of Month) Alarm” field, the time set in this field must be later than the time of the RTC set in the Standard CMOS Features submenu.

Page 89

BIOS Setup

PnP/PCI Configurations

This section shows how to configure the PCI bus system. It covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

Reset Configuration Data

Enabled The BIOS will reset the Extended System Configuration

Data (ESCD) once automatically. It will then recreate a new set of configuration data.

Disabled The BIOS will not reset the configuration data.

The settings on the screen are for reference only. Your version may not be identical to this one.

Phoenix - AwardBIOS CMOS Setup Utility

PnP/PCI Configurations

Item Help

Menu Level

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Reset Configuration Data

Resources Controlled By x IRQ Resources

PCI/VGA Palette Snoop

Disabled Auto(ESCD)

Press Enter Disabled

Page 90

BIOS Setup

Resources Controlled By

The Award Plug and Play BIOS has the capability to automatically configure all of the boot and Plug and Play compatible devices.

Auto(ESCD) The system will automatically detect the settings for

you.

Manual Choose the specific IRQ resources in the “IRQ Re-

sources” field.

IRQ Resources

Move the cursor to this field and press <Enter>. Set each system interrupt to either PCI Device or Reserved.

PCI/VGA Palette Snoop

This field determines whether the MPEG ISA/VESA VGA cards can work with PCI/VGA or not. The default value is Disabled.

Enabled MPEG ISA/VESA VGA cards work with PCI/VGA. Disabled MPEG ISA/VESA VGA cards does not work with PCI/

VGA.

The settings on the screen are for reference only. Your version may not be identical to this one.

Phoenix - AwardBIOS CMOS Setup Utility

IRQ Resources

Item Help

Menu Level

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

IRQ- 5 assigned to IRQ- 7 assigned to IRQ- 9 assigned to IRQ-10 assigned to IRQ-11 assigned to IRQ-12 assigned to IRQ-14 assigned to IRQ-15 assigned to

PCI Device PCI Device PCI Device PCI Device PCI Device PCI Device PCI Device PCI Device

Legacy ISA for devices compliant with the original PC AT bus specification. PCI/ISA PnP for devices compliant with the Plug and Play standard whether designed for PCI or ISA bus architecture.

Page 91

BIOS Setup

PC Health Status

The settings on the screen are for reference only. Your version may not be identical to this one.

Current System Temp, Current CPU Temperature, System Fan and CPU Fan

These fields will show the internal temperature of the system, current temperature of the CPU, and the current fan speed of the cooling fans in RPM (Revolutions Per Minute).

Vcore

This field will show the detected voltage of the processor.

+12V, +5V, +3.3V, VBAT(V) and 5VSB(V)

These fields show the output voltage of the power supply.

Phoenix - AwardBIOS CMOS Setup Utility

PC Health Status

Item Help

Menu Level

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Current System Temp

Current CPU Temperature

System Fan

CPU Fan

Vcore

+12V

+5V

+3.3V

VBAT (V)

5VSB (V)

29oC 49oC

0 RPM

1004 RPM

1.26V

11.89V

4.88V

3.32V

3.00V

5.02V

Page 92

BIOS Setup

Frequency/Voltage Control

The settings on the screen are for reference only. Your version may not be identical to this one.

Spread Spectrum

Leave this field in its default setting. Do not alter this setting unless advised by an engineer or technician.

Phoenix - AwardBIOS CMOS Setup Utility

Frequency/Voltage Control

Item Help

Menu Level

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Spread Spectrum

Disabled

Page 93

BIOS Setup

Load Fail-Safe Defaults

The “Load Fail-Safe Defaults” option loads the troubleshooting default values permanently stored in the ROM chips. These settings are not optimal and turn off all high performance features. You should use these values only if you have hardware problems. Highlight this option in the main menu and press <Enter>.

If you want to proceed, type <Y> and press <Enter>. The default settings will be loaded.

Phoenix - AwardBIOS CMOS Setup Utility

Esc : Quit F10 : Save & Exit Setup

↑ ↓ → ← : Select Item

Load Fail-Safe Defaults

X Standard CMOS Features X Advanced BIOS Features X Advanced Chipset Features X Integrated Peripherals X Power Management Setup X PnP/PCI Configurations X PC Health Status

X Frequency/Voltage Control

Load Fail-Safe Defaults Load Optimized Defaults Set Supervisor Password Set User Password Save & Exit Setup Exit Without Saving

Load Fail-Safe Defaults (Y/N)?

Page 94

BIOS Setup

Load Optimized Defaults

The “Load Optimized Defaults” option loads optimized settings from

the BIOS ROM. Use the default values as standard values for your system. Highlight this option in the main menu and press <Enter>.

Type <Y> and press <Enter> to load the Setup default values.

Phoenix - AwardBIOS CMOS Setup Utility

Esc : Quit F10 : Save & Exit Setup

↑ ↓ → ← : Select Item

Load Optimized Defaults

X Standard CMOS Features X Advanced BIOS Features X Advanced Chipset Features X Integrated Peripherals X Power Management Setup X PnP/PCI Configurations X PC Health Status

X Frequency/Voltage Control

Load Fail-Safe Defaults Load Optimized Defaults Set Supervisor Password Set User Password Save & Exit Setup Exit Without Saving

Load Optimized Defaults (Y/N)?

Page 95

BIOS Setup

Set Supervisor Password

If you want to protect your system and setup from unauthorized entry, set a supervisor’s password with the “System” option selected in the Advanced BIOS Features. If you want to protect access to setup only, but not your system, set a supervisor’s password with the “Setup” option selected in the Advanced BIOS Features. You will not be prompted for a password when you cold boot the system.

Use the arrow keys to highlight “Set Super visor Password” and press <Enter>.

Type in the password. You are limited to eight characters. When done, the message below will appear:

Confirm Password:

You are asked to verify the password. Type in exactly the same password. If you type in a wrong password, you will be prompted to enter the correct password again. To delete or disable the password function, highlight “Set Supervisor Password” and press <Enter>, instead of typing in a new password. Press the <Esc> key to return to the main menu.

Phoenix - AwardBIOS CMOS Setup Utility

Esc : Quit F10 : Save & Exit Setup

↑ ↓ → ← : Select Item

Change/Set/Disable Password

X Standard CMOS Features X Advanced BIOS Features X Advanced Chipset Features X Integrated Peripherals X Power Management Setup X PnP/PCI Configurations X PC Health Status

X Frequency/Voltage Control

Load Fail-Safe Defaults Load Optimized Defaults Set Supervisor Password Set User Password Save & Exit Setup Exit Without Saving

Enter Password:

Page 96

BIOS Setup

Set User Password

If you want another user to have access only to your system but

not to setup, set a user’s password with the “System” option selected in the Advanced BIOS Features. If you want a user to enter a password when trying to access setup, set a user’s password with the “Setup” option selected in the Advanced BIOS Features.

Using user’s password to enter Setup allows a user to access only “Set User Password” that appears in the main menu screen. Access to all other options is denied.

Use the arrow keys to highlight “Set User Password” and press <Enter>.

Type in the password. You are limited to eight characters. When done, the message below will appear:

Confirm Password:

You are asked to verify the password. Type in exactly the same password. If you type in a wrong password, you will be prompted to enter the correct password again. To delete or disable the password function, highlight “Set User Password” and press <Enter>, instead of typing in a new password. Press the <Esc> key to return to the main menu.

Phoenix - AwardBIOS CMOS Setup Utility

Esc : Quit F10 : Save & Exit Setup

↑ ↓ → ← : Select Item

Change/Set/Disable Password

X Standard CMOS Features X Advanced BIOS Features X Advanced Chipset Features X Integrated Peripherals X Power Management Setup X PnP/PCI Configurations X PC Health Status

X Frequency/Voltage Control

Load Fail-Safe Defaults Load Optimized Defaults Set Supervisor Password Set User Password Save & Exit Setup Exit Without Saving

Enter Password:

Page 97

BIOS Setup

Save & Exit Setup

When all the changes have been made, highlight “Save & Exit Setup” and press <Enter>.

Type “Y” and press <Enter>. The modifications you have made will be written into the CMOS memory, and the system will reboot. You will once again see the initial diagnostics on the screen. If you wish to make additional changes to the setup, press <Ctrl> <Alt> <Esc> simultaneously or <Del> after memory testing is done.

Phoenix - AwardBIOS CMOS Setup Utility

Esc : Quit F10 : Save & Exit Setup

↑ ↓ → ← : Select Item

Save Data to CMOS

X Standard CMOS Features X Advanced BIOS Features X Advanced Chipset Features X Integrated Peripherals X Power Management Setup X PnP/PCI Configurations X PC Health Status

X Frequency/Voltage Control

Load Fail-Safe Defaults Load Optimized Defaults Set Supervisor Password Set User Password Save & Exit Setup Exit Without Saving

SAVE to CMOS and EXIT (Y/N)?

Page 98

BIOS Setup

Exit Without Saving

When you do not want to save the changes you have made, highlight “Exit Without Saving” and press <Enter>.

Type “Y” and press <Enter>. The system will reboot and you will once again see the initial diagnostics on the screen. If you wish to make any changes to the setup, press <Ctrl> <Alt> <Esc> simultaneously or <Del> aft

er memory testing is done.

Phoenix - AwardBIOS CMOS Setup Utility

Esc : Quit F10 : Save & Exit Setup

↑ ↓ → ← : Select Item

Abandon All Data

X Standard CMOS Features X Advanced BIOS Features X Advanced Chipset Features X Integrated Peripherals X Power Management Setup X PnP/PCI Configurations X PC Health Status

X Frequency/Voltage Control

Load Fail-Safe Defaults Load Optimized Defaults Set Supervisor Password Set User Password Save & Exit Setup Exit Without Saving

Quit Without Saving (Y/N)? N

Page 99

BIOS Setup

Updating the BIOS

To update the BIOS, you will need the new BIOS file and a flash utility, AWDFLASH.EXE. Please contact technical support or your sales representative for the files.

1. Save the new BIOS file along with the flash utility AWDFLASH.EXE to a floppy disk.

2. Reboot the system and enter the Award BIOS Setup Utility to set the first boot drive to “Floppy”.

3. Save the setting and reboot the system.

4. After the system booted from the floppy disk, execute the flash utility by typing AWDFLASH.EXE. The following screen will appear.

5. Type the new BIOS file name onto the gray area that is next to “File Name to Program” then press <Enter>.

Award BIOS Flash Utility V.8.15B

(The current BIOS information will appear in this area.) File Name to Program :

Page 100

100

BIOS Setup

6. The following will appear.

Do You Want to Save BIOS (Y/N)

This question refers to the current existing BIOS in your system. We recommend that you save the current BIOS and its flash utility; just in case you need to reinstall the BIOS. To save the current BIOS, press <Y> then enter the file name of the current BIOS. Otherwise, press <N>.

7. The following will then appear.

Press “Y” to Program or “N” to Exit

8. Press <Y> to flash the new BIOS.
