Chapter 1 Introduction

EC800

Fanless Embedded System

User’s Manual

A26050441

Page 2

www.dﬁ .com

Chapter 1 Introduction

This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.

Trademarks

Product names or trademarks appearing in this manual are for identification purpose only and are the properties of the respective owners.

FCC and DOC Statement on Class A

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compli-

ance could void the user’s authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

Page 3

www.dﬁ .com

Chapter 1 Introduction

Table of Contents

Trademarks .......................................................................................................2

FCC and DOC Statement on Class A ...................................................2

About this Manual ......................................................................................... 4

Warranty ............................................................................................................4

Static Electricity Precautions ....................................................................4

Safety Measures ............................................................................................4

Safety Precautions ........................................................................................5

About the Package .......................................................................................5

Chapter 1 - Introduction ...........................................................................6

Overview .......................................................................................................6

Key Features ................................................................................................6

Specifications ...............................................................................................7

Getting the Know the EC800 Series .....................................................8

Mechanical Dimensions ............................................................................. 9

Chapter 2 - Getting Started ...................................................................10

Preparing the System .............................................................................. 10

Installing Devices .....................................................................................10

Configuring the BIOS ..............................................................................10

Installing the Operating System ..........................................................10

Installing the Drivers ...............................................................................10

Chapter 3 - Installing Devices ..............................................................11

Removing the Chassis Cover .................................................................11

Installing a CFast Card ...........................................................................12

Installing a SIM Card ..............................................................................12

Installing a Mini PCIe and/or mSATA Card .......................................13

Installing the Mini PCIe Card ......................................................................13

Installing mSATA Card ............................................................................... 14

Chapter 4 - Jumper Settings .................................................................15

Power-on/ Clear CMOS ...........................................................................15

USB Power Select .....................................................................................16

COM2/ DIO Select .................................................................................... 16

Chapter 5 - Ports and Connectors ......................................................17

Front Panel I/O Ports ..............................................................................17

USB Ports .................................................................................................17

COM1 (Serial) Port .................................................................................... 18

CFast Socket .............................................................................................19

Mic-in jack ................................................................................................ 19

RJ45 LAN Ports ......................................................................................... 20

Rear Panel I/O Ports ...............................................................................21

DVI-I Port ................................................................................................. 21

VGA Port ...................................................................................................22

micro HDMI Port ....................................................................................... 22

DC-in ........................................................................................................ 23

Line-out jack ............................................................................................. 23

COM2 (Serial) Port/ Isolated 4-bit DIO ....................................................... 24

I/O Connectors ..........................................................................................25

Digital I/O Connector .................................................................................25

Expansion Slots .........................................................................................25

Chassis Intrusion Connector ....................................................................... 26

Cooling Fan Connector ...............................................................................26

LEDs ......................................................................................................... 27

Battery .....................................................................................................27

Chapter 6 - Mounting Options .............................................................. 28

Wall Mount .................................................................................................28

VESA Mount ...............................................................................................29

Chapter 7 - BIOS Setup ...........................................................................30

Overview ..................................................................................................... 30

AMI BIOS Setup Utility ...........................................................................31

Updating the BIOS ...................................................................................41

Chapter 8 - Supported Software ......................................................... 42

Appendix A - Watchdog Sample Code ..............................................56

Appendix B - System Error Message ................................................. 57

Appendix C - Troubleshooting Checklist ........................................... 58

Appendix D - Exploded Diagram ......................................................... 60

Appendix E - Digital I/O User Guide ................................................. 61

Page 4

www.dﬁ .com

Chapter 1 Introduction

About this Manual

An electronic file of this manual is included in the CD. To view the user’s manual in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click “User’s Manual” on the main menu.

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications.

2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work.

4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered.

Important:

Static Electricity Precautions

It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of the components, contacts

or connections.

5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con nectors by their ends.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range.

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installation or servic-

ing. After installation or servicing, cover the system chassis before plugging the power cord. Battery:

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend by the manufacturer.

• Dispose of used batteries according to local ordinance.

Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

Page 5

www.dﬁ .com

Chapter 1 Introduction

About the Package

The package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.

• 1 EC800 system unit

• 1 Power adapter: 60W

• 6 Mounting screws for Mini PCIe module

• 1 DVD disk includes

- Manual

- Drivers

• 1 Quick Installation Guide

Optional Items

• Wall Mount kit

• Panel Mount kit

• Power Cord

The board and accessories in the package may not come similar to the information listed above. This may differ in accordance to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

Before Using the System

Before powering-on the system, prepare the basic system components. If you are installing the system board in a new system, you will need at least the following

internal components.

• Storage devices such as CFast card, Mini PCIe and/or mSATA card, etc.

You will also need external system peripherals you intend to use which will normally include at least a keyboard, a mouse and a video display monitor.

Safety Precautions

• Use the correct DC input voltage range.

• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend by the manufacturer.

• Dispose of used batteries according to local ordinance.

• Keep this system away from humidity.

• Place the system on a stable surface. Dropping it or letting it fall may cause damage.

• The openings on the system are for air ventilation to protect the system from overheating. DO NOT COVER THE OPENINGS.

• Place the power cord in such a way that it will not be stepped on. Do not place anything on top of the power cord. Use a power cord that has been approved for use with the system and that it matches the voltage and current marked on the system’s electrical range label.

• If the system will not be used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

• If one of the following occurs, consult a service personnel:

- The power cord or plug is damaged.

- Liquid has penetrated the system.

- The system has been exposed to moisture.

- The system is not working properly.

- The system dropped or is damaged.

- The system has obvious signs of breakage.

• The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace the outlet.

• Disconnect the system from the DC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning.

Page 6

www.dﬁ .com

Chapter 1 Introduction

Chapter 1 - Introduction

Chapter 1

Overview

Key Features

EC800 Series

Processor

Intel® AtomTM D2550/N2800/N2600 processors

Chipset

Intel® NM10

LAN

2 LAN ports

COM

2 COM ports

Display

DVI-I or VGA and micro HDMI

USB

4 Type A USB 2.0/1.1 ports at the front panel

Audio

Mic-in and Line-out

DIO

1 DB-9 port

with DVI-I

with VGA and micro HDMI

Page 7

www.dﬁ .com

Chapter 1 Introduction

Front I/O Ports

•

1 DB-9 RS232/422/485 COM

•

1 mic-in

•

2 LAN

•

4 USB 2.0 (Type A)

•

1 CFast socket

•

1 status LED

•

1 hdd LED

•

1 reset button

•

1 power button with LED

Construction

• Aluminum

Mounting

•

Wall/VESA/DIN Rail mount

- Mounting brackets and screws* (optional)

Dimensions

•

161mm x 32mm x 108.2mm (W x H x D)

Weight

• 700g

OS Support

•

Windows 7 (32-bit)

• Windows Embedded Standard 7 (32-bit)

• Ubuntu 12.04

Other Features

• Watchdog Timer function

Certiﬁ cation

• CE

• FCC Class A

• RoHS

• UL

• CCC

• KC

Specifications

Processor System

• CPU:

- Intel

AtomTM D2550, 1.86GHz, 2x 512K L2, 10W TDP, dual-core

- Intel

AtomTM N2800, 1.86GHz, 2x 512K L2, 6.5W TDP, dual-core

- Intel

AtomTM N2600, 1.60GHz, 2x 512K L2, 3.5W TDP, dual-core

• Chipset:

- Intel® NM10 Express Chipset

Memory

• 2GB DDR3 onboard (default)

- Intel

AtomTM D2550/N2800 supports up to 4GB* (optional)

Graphics

• Intel® GMA 3650 (Intel® AtomTM D2550/N2800)

• Intel

GMA 3600 (Intel® AtomTM N2600)

• 1 DVI-I port supports display resolution up to 1920x1200

• 1 VGA port supports display resolution up to 1920x1200

• 1 micro HDMI port supports display resolution up to 1920x1080

• Smooth Video Playback

- Supports hardware decoders (H.264, VC-1, MPEG-4) with Full HD 1080p video playback capability

Storage

• 1 CFast socket

• 1 mSATA module via a Mini PCIe slot

Ethernet

• 2 Intel® WG82574L Gigabit Ethernet controllers

Audio

• Realtek

ALC886 7.1-channel High Definition Audio

• 1 line-out and 1 mic-in

COM

• 2 DB-9 ports

- 1 DB-9 port supports RS232/422/485 COM port

- 1 DB-9 port supports RS232/422/485 COM or isolated 2-bit In and 2-bit Out

DIO

• Supports RS485 auto direction control

Expansion

• 3 Mini PCIe slots

- 2 slots for communication : One slot supports PCIe x1, USB, and LPC signals for Wi-Fi module or LPC

module

: One slot supports PCIe x1, USB, and 3G signals for 3G or GPRS module

- 1 slot for storage : Supports mSATA module

• 1 SIM slot

• 1 CFast

DIO

• 1 isolated 2-bit In and 2-bit Out DIO via the DB-9 port (signal+power)

• 1 8-bit DIO (4-bit In and 4-bit Out) connector

Power

• 9~24V DC power input voltage

Environment

• Temperature

- Operating: 0

C ~ 60oC

- Storage: -40

C ~ 80oC

• Humidity

- Operating: 10% to 85% non-condensing

- Storage: 10% to 90% non-condensing

Chapter 1

Rear I/O Ports EC800-CD2040 EC800-CD1440 EC800-CD2041

DC-in power jack

111

Wi-Fi/3G module antenna hole

222

Line-out

111

DVI

110

VGA:DB-15 D-sub

001

micro HDMI

001

COM: DB-9

212

DIO: DB-9 (signal+power)

010

Note:

*Optional and is not supported in standard model. Please contact your sales representative for more information.

Page 8

www.dﬁ .com

Chapter 1 Introduction

Getting to Know the EC800 Series

Chapter 1

Front View

USB Ports

Used to connect USB 2.0/1.1 devices.

LAN Ports

Used to connect systems to a local area network.

Mic-in

Used to connect an external microphone.

COM Port

Used to connect serial devices.

CFast Socket

Used to insert a CFast card.

Status LED

This LED will blink when the system is in the standby mode.

HDD LED

Indicates the status of the hard drive.

Power Button with LED

Press to power-on or power-off the system.

Reset Button

Press to reset the system.

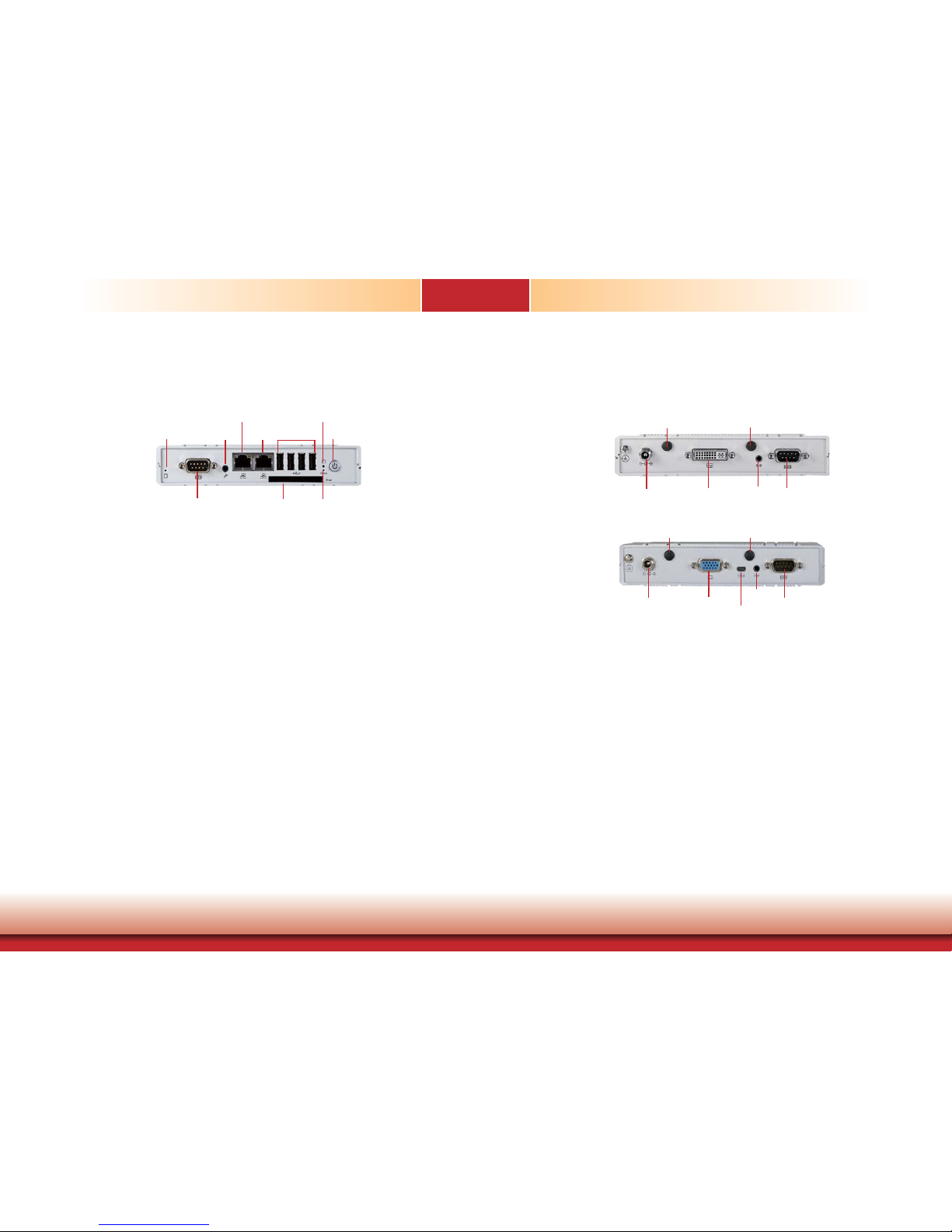

Rear View

Wi-Fi/3G Antenna Hole

Used to connect to a Wi-Fi antenna.

DVI-I Port

Used to connect a DVI device.

VGA Port

Used to connect a VGA device.

micro HDMI Port

Used to connect a micro HDMI device.

COM Port

Used to connect serial devices.

Line-out

Used to connect to a speaker.

DC-in jack

Used to plug a power adapter.

Mic-in

LAN 2

USB

Power

Reset

HDD LED

LAN 1

COM

CFast Status LED

Wi-Fi/3G Antenna

DVI-I9~24V DC-in COM

Line-out

with DVI-I

with VGA and micro HDMI

Wi-Fi/3G Antenna

VGA9~24V DC-in COM 2

Line-out

micro HDMI

Page 9

www.dﬁ .com

Chapter 1 Introduction

161.00

108.20

32.00

Mechanical Dimensions Chassis Dimension

Motherboard Dimension

Chapter 1

Front View

Right ViewLeft View

0.00

8.90

27.76

62.50

79.00

43.53

101.53

93.35

100.27

108.77

117.27

126.04

134.80

142.90

146.00

0.00

3.20

44.21

60.54

37.32

79.32

98.40

102.00

27.72

48.89

60.90

85.16

132.80

58.47

Page 10

www.dﬁ .com

Chapter 2 Getting Started

Chapter 2 - Getting Started

Chapter 2

Preparing the System

Before you start using the system, you need the following items:

• CFast card

• AC power adapter

• USB keyboard

• USB mouse

• CD-ROM drive (for installing software/drivers)

Installing Devices

The following are devices that can be installed in the system.

• CFast card

• Mini PCIe card

Configuring the BIOS

To get you started, you may need to change configurations such as the date, time and the type of hard disk drive.

1. Power-on the system.

2. After the memory test, the message “Press DEL to run setup” will appear on the screen. Press the Delete key to enter the AMI BIOS setup utility.

Installing the Operating System

Most operating system software are provided in a CD therefore you need to install a CD-ROM drive in order to use the CD.

Make sure a 2.5” SATA drive is already installed.

1. Refer to the following chapters for information on connecting a CD-ROM drive and installing a SATA drive.

2. Refer to your operating system manual for instructions on installing the operating system.

Installing the Drivers

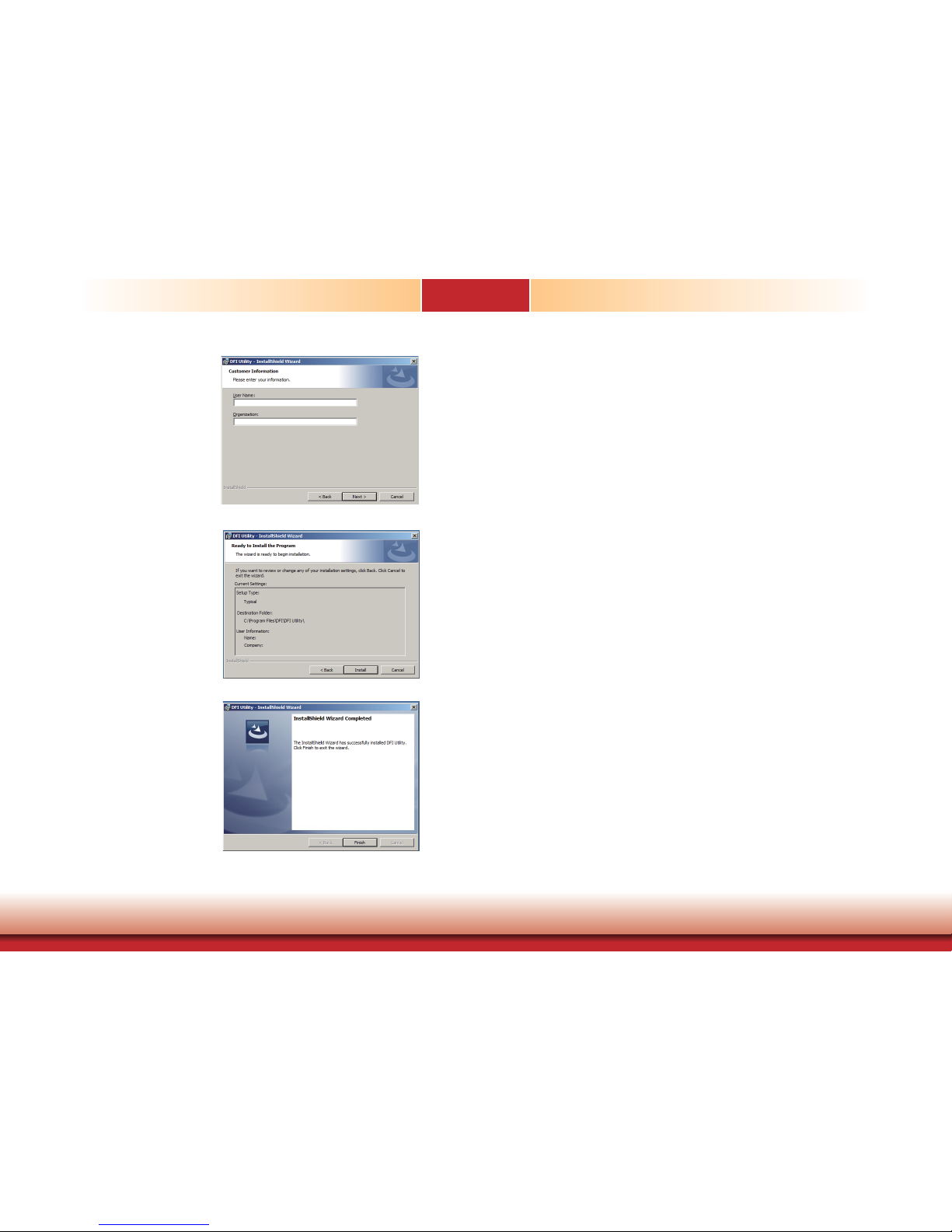

The system package includes a CD disk. The CD includes drivers that must be installed to provide the best system performance. Refer to the Supported Software chapter for instructions on installing the drivers.

Page 11

www.dﬁ .com

Chapter 3 Installing Devices

Chapter 3

Chapter 3 - Installing Devices

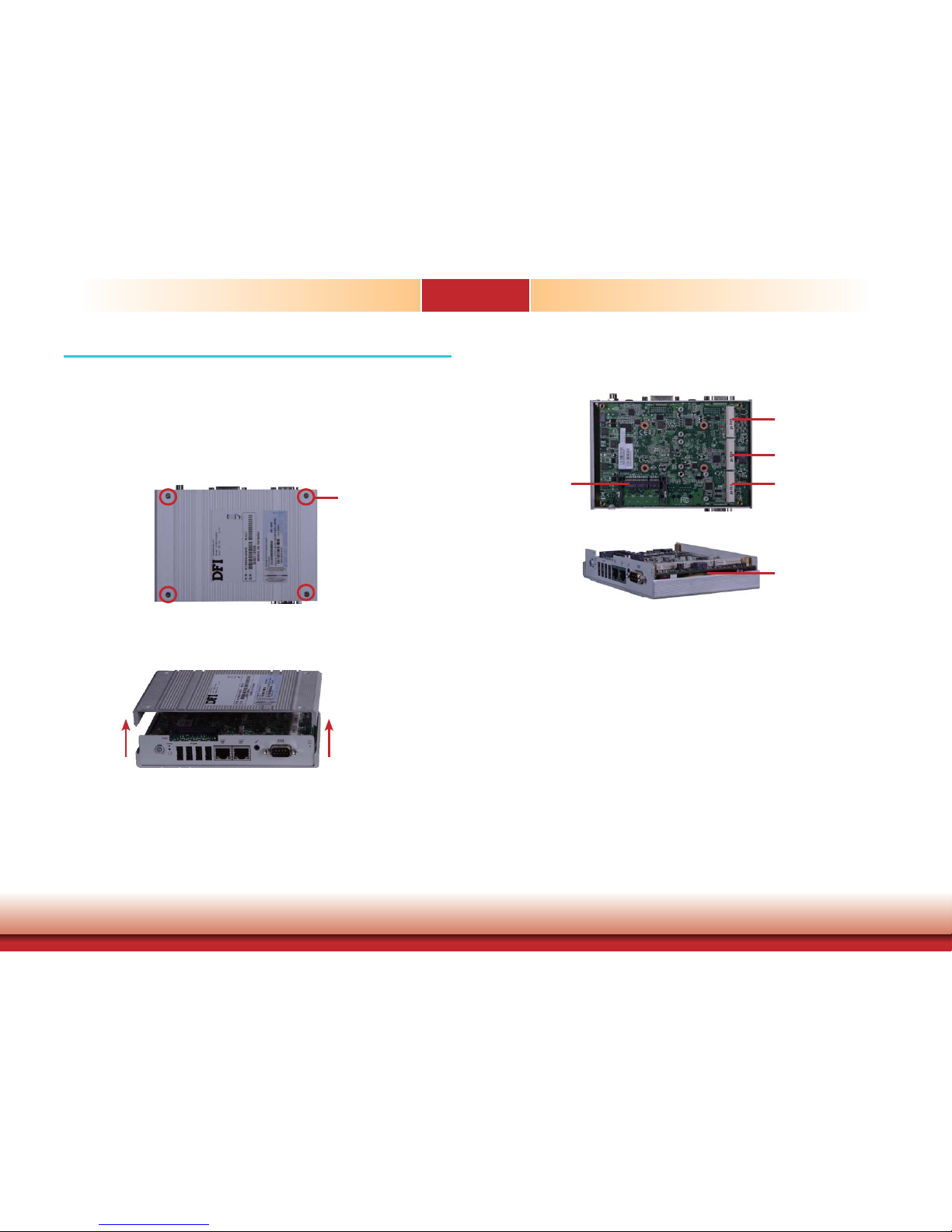

Removing the Chassis Cover

1. Make sure the system and all other peripheral devices connected to it has been powered-off.

2. Disconnect all power cords and cables.

3. The 4 mounting screws on the bottom side (labeled side) of the system are used to secure the

cover to the chassis. Remove these screws and then put them in a safe place for later use.

Mounting Screw

4. After removing the mounting screws, lift the cover up.

Lift the Cover Upward

mSATA

CFast Socket

PCIe x1, USB, 3G signal

PCIe x1, USB, Wi-Fi signal

SIM slot

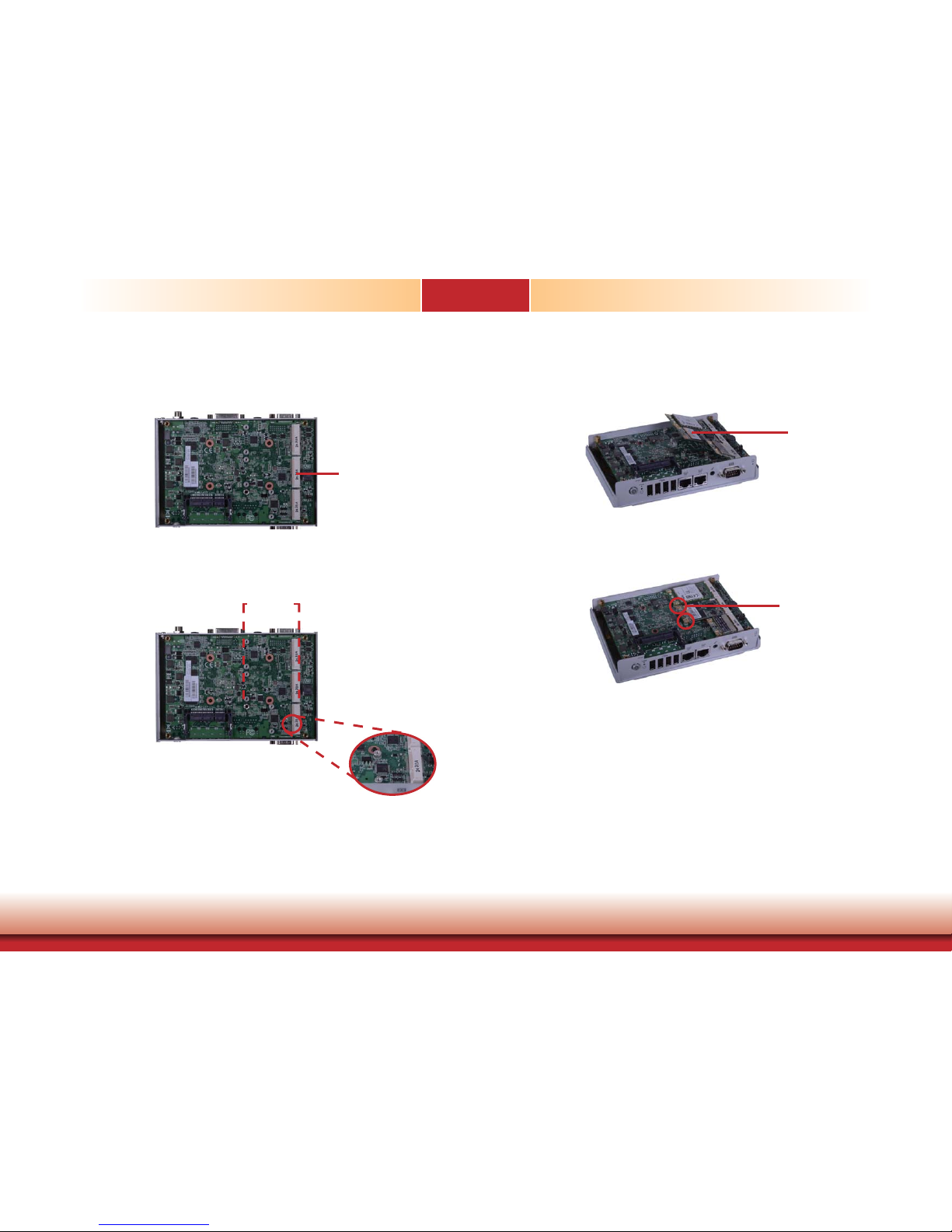

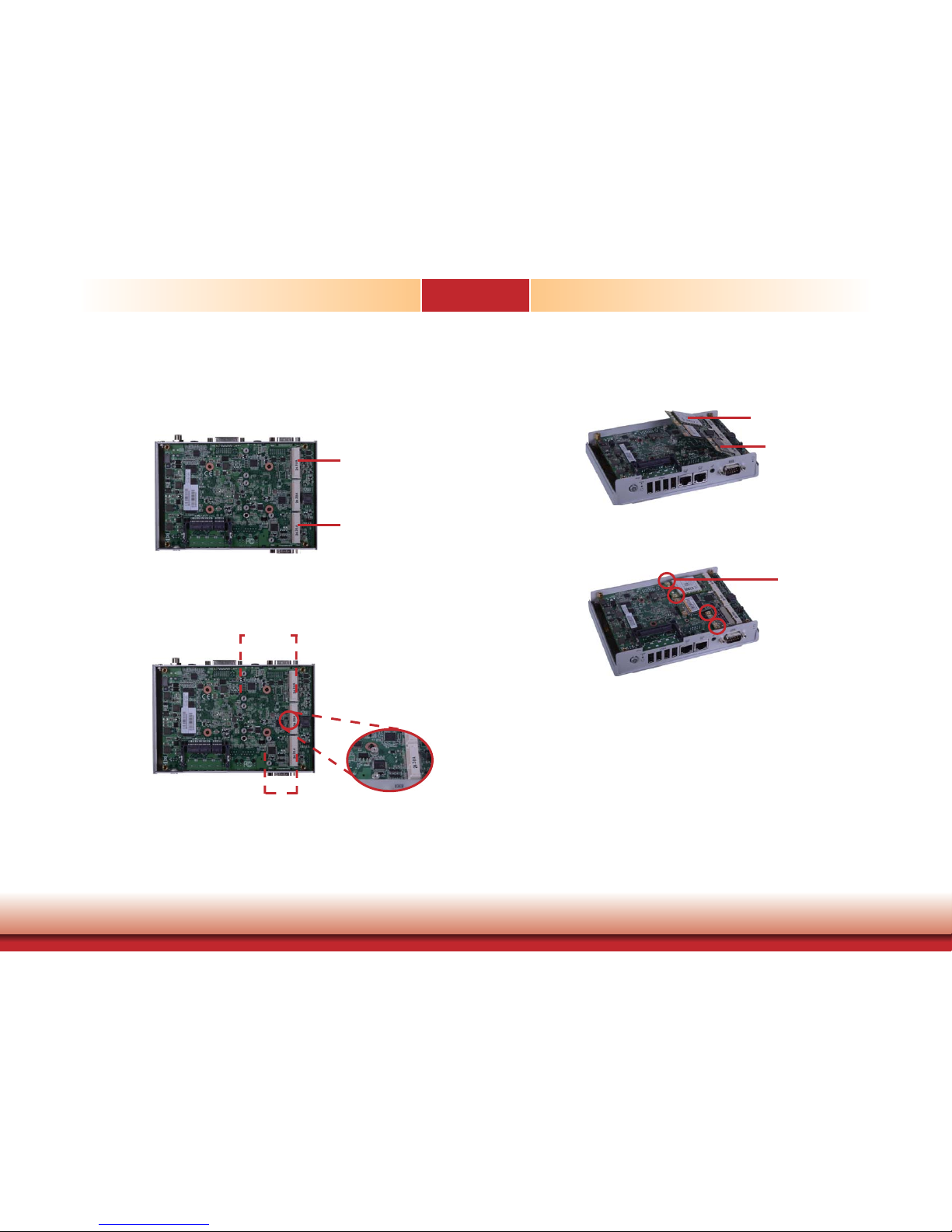

5. The CFast socket, and Mini PCIe/mSATA slot are readily accessible after removing the chassis cover. And the SIM slot is also accessible at the side of the system board.

Page 12

www.dﬁ .com

Chapter 3 Installing Devices

Chapter 3

1. Locate the CFast socket on the system board.

CFast Socket

CFast Card

Note:

Before powering-on the system, make sure to insert the CFast card.

1. Locate the SIM slot on the system board.

2. Insert the SIM card in the SIM slot, and push the SIM card to take the card out of the slot.

SIM card

SIM slot

Installing a CFast Card

Installing a SIM Card

2. Note the key on the socket. The key ensures the CFast card can be plugged into the socket in

only one direction.

3. Insert the CFast card until it is completely seated in the socket.

Page 13

www.dﬁ .com

Chapter 3 Installing Devices

Chapter 3

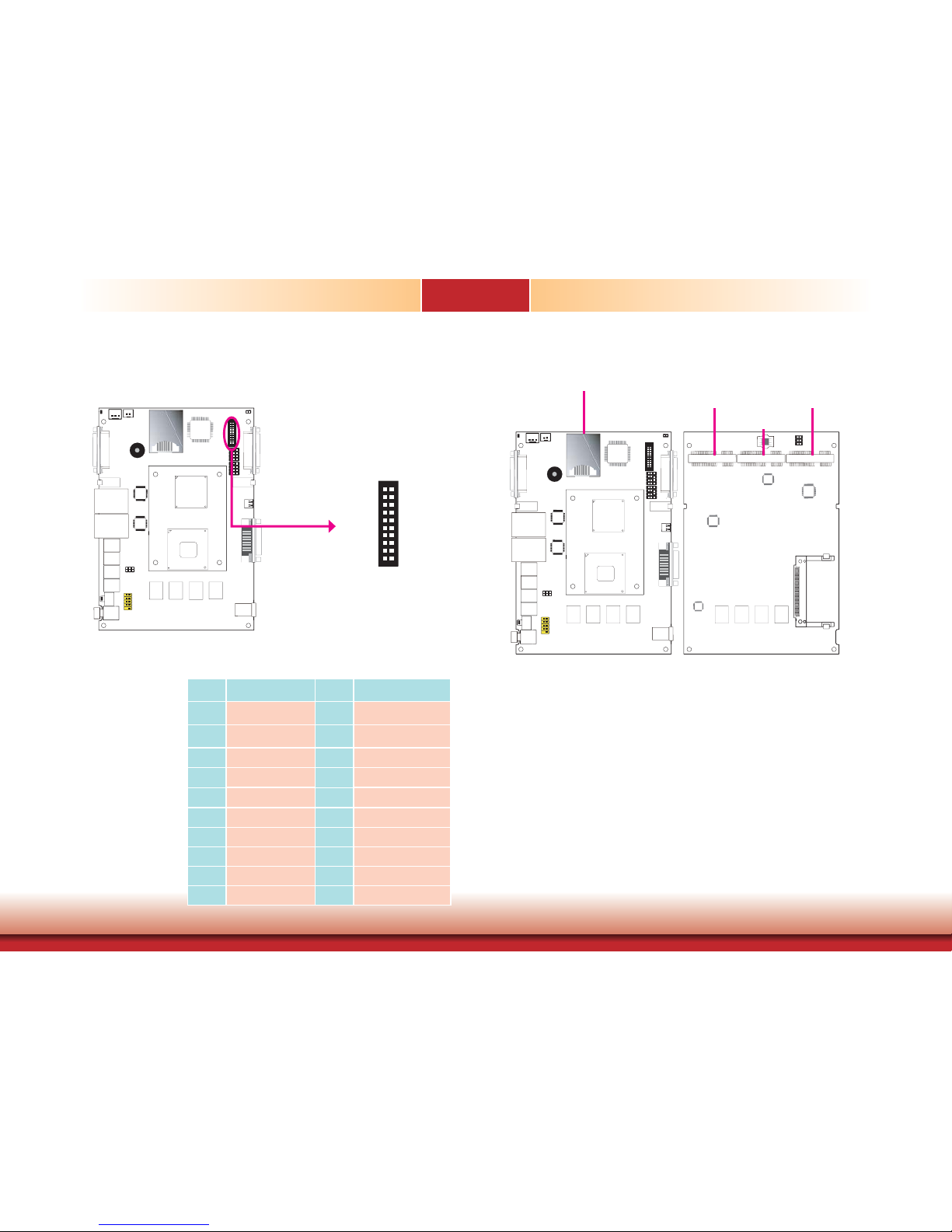

Installing a Mini PCIe and/or mSATA card Installing the Mini PCIe Card

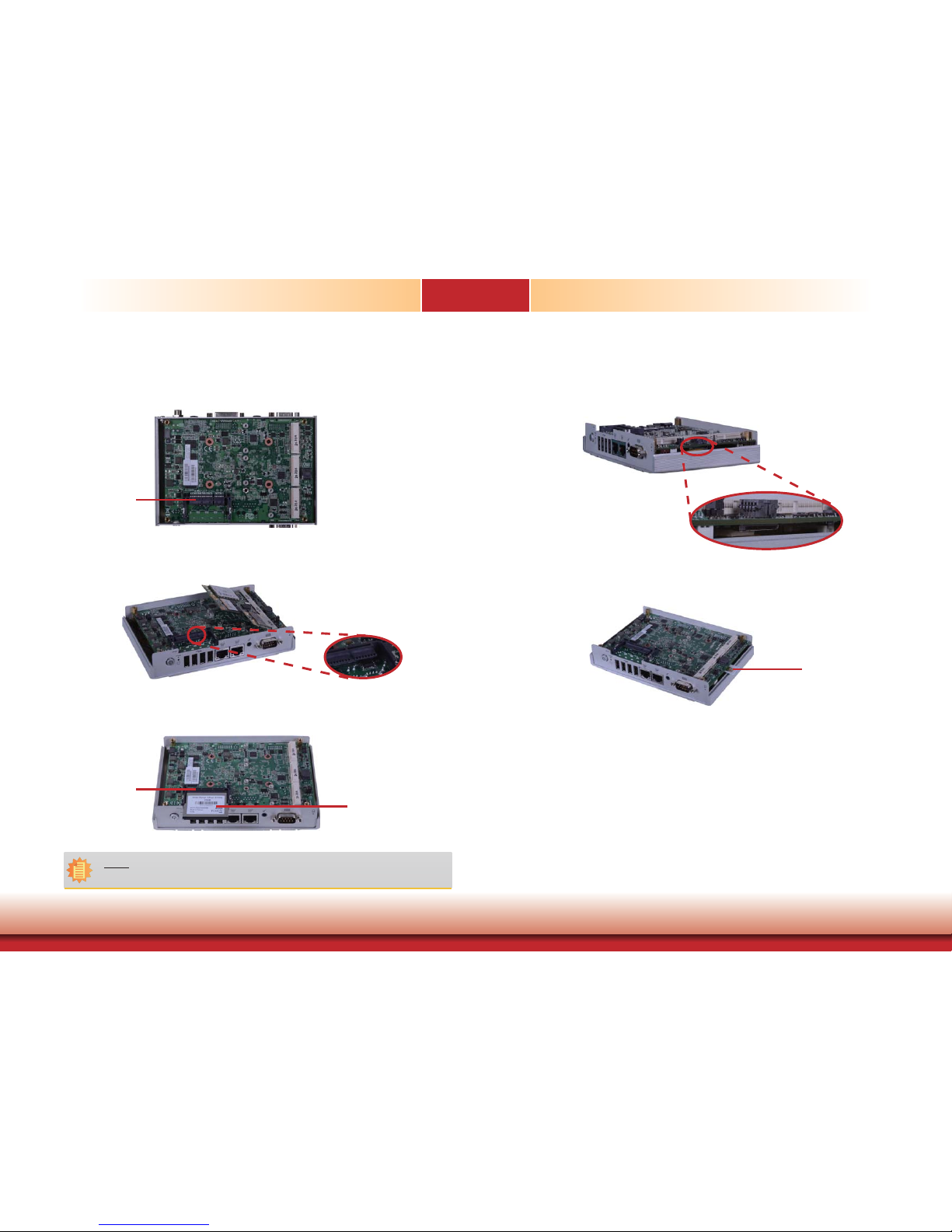

3. Grasping the Mini PCIe card by its edges, align the card into the slot at an approximately 30 degrees angle. Apply ﬁ rm even pressure to each end of the card until it slips down into the slot. The contact ﬁ ngers on the edge of the card will almost completely disappear inside the slot.

PCIe x1, USB, and 3G signals

4. Push the Mini PCIe card down and use the provided mounting screws to secure the card on the system board.

Mounting Screw

PCIe x1, USB, and Wi-Fi signals

1. Locate the Mini PCIe slot on the system board.

2. The system board is equipped with 2 Mini PCIe slots. The Mini PCIe slot supports full length and half length Mini PCIe card. Note the key on the slot. The key ensures the Mini PCIe card can be plugged into the slot in only one direction.

Half length

Full length

PCIe x1, USB, 3G signal

PCIe x1, USB, Wi-Fi signal

Page 14

www.dﬁ .com

Chapter 3 Installing Devices

Chapter 3

1. Locate the mSATA slot on the system board.

mSATA

2. The system board is equipped with a mSATA slot. The mSATA slot supports full length mSATA card. Note the key on the slot. The key ensures the mSATA card can be plugged into the slot in only one direction.

Full length

3. Grasping the mSATA card by its edges, align the card into the slot at an approximately 30 degrees angle. Apply ﬁ rm even pressure to each end of the card until it slips down into the slot. The contact ﬁ ngers on the edge of the card will almost completely disappear inside the slot.

4. Push the mSATA card down and use the provided mounting screws to secure the card on the system board.

Mounting Screw

mSATA Card

Installing the mSATA Card

Page 15

www.dﬁ .com

Chapter 4 Jumper Settings

Chapter 4

Chapter 4 - Jumper Settings

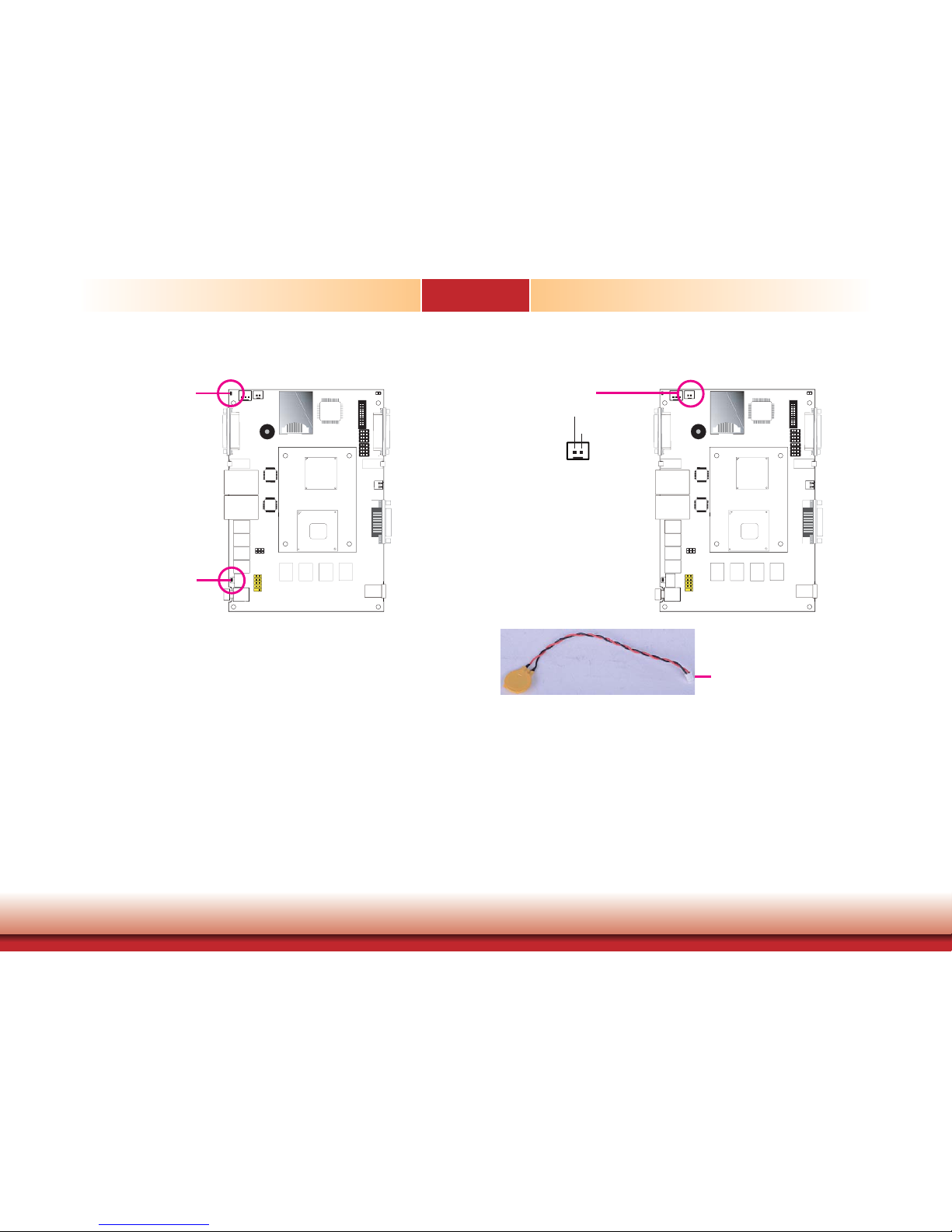

Power-on/ Clear CMOS

Clear CMOS

If you encounter the following,

a) CMOS data becomes corrupted. b) You forgot the supervisor or user password.

you can reconfigure the system with the default values stored in the ROM BIOS.

To load the default values stored in the ROM BIOS, please follow the steps below.

1. Power-off the system and unplug the power cord.

2. Set JP5 pins 4 and 6 to On. Wait for a few seconds and set JP5 back to its default setting,

pins 2 and 4 On.

3. Now plug the power cord and power-on the system.

JP5

1-3 On: Power-on via

power button (default)

2-4 On: Normal

(default)

3-5 On: Auto Power-on

4-6 On: Clear CMOS

Power-on

JP5 is used to select the method of powering on the system. If you want the system to power-on whenever AC power comes in, set JP5 pins 3 and 5 to On. If you want to use the power button, set pins 1 and 3 to On.

When using the JP5 “Power On” feature to power the system back on after a power failure occurs, the system may not power on if the power lost is resumed within 5 seconds (power flicker).

Note:

In order to ensure that power is resumed after a power failure that re covers within a 5 second period, JP5 must be set to pins 3-5 and the “AC Power Lose” in CMOS is set to “On”.

Page 16

www.dﬁ .com

Chapter 4 Jumper Settings

Chapter 4

USB Power Select

VGA

DVI-I

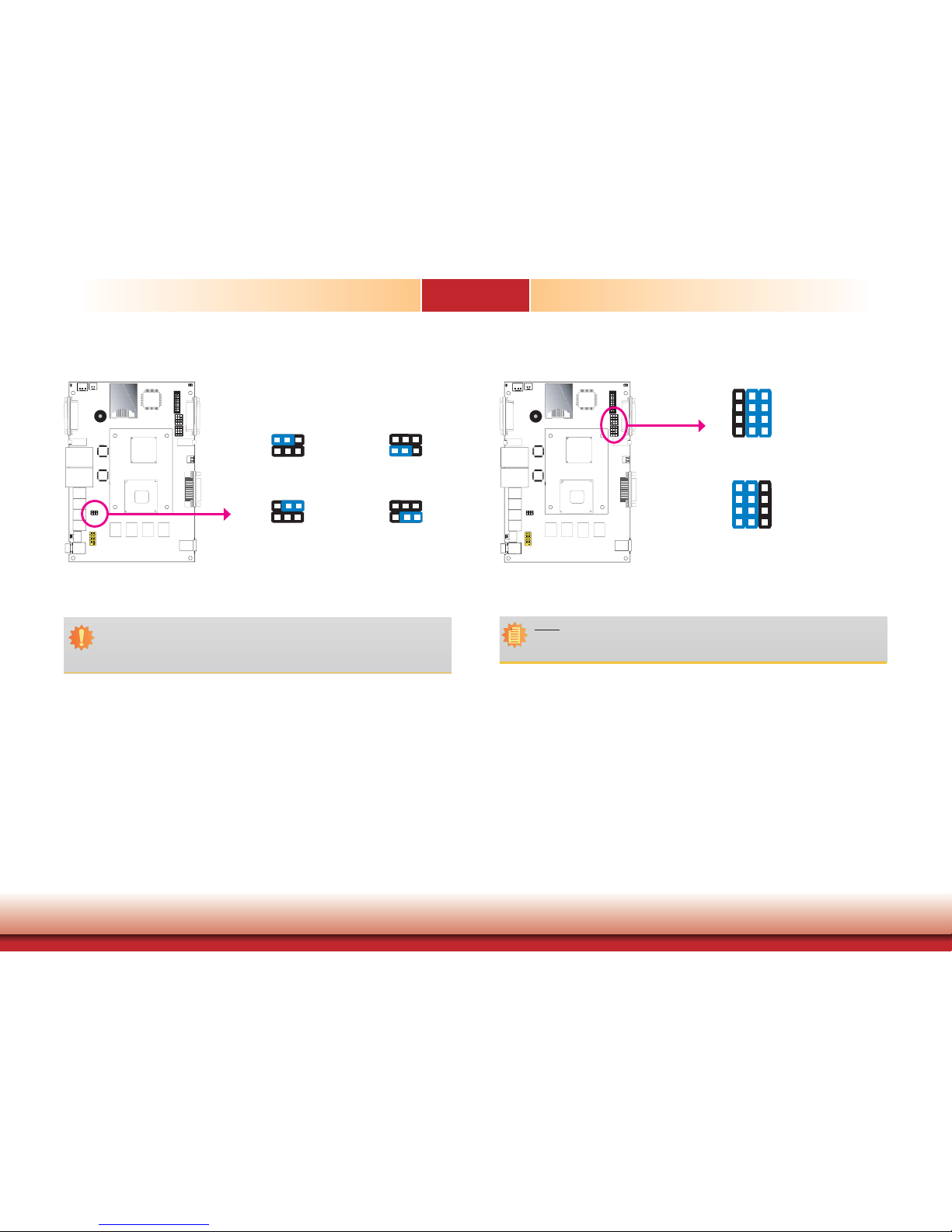

These jumpers are used to select the power of the USB ports. Selecting +5V_standby will allow you to use a USB device to wake up the system.

USB 0-1

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the +5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the +5V_standby power source of your power supply must support ≥2A.

2-4 On: +5V

642

531

4-6 On: +5V_standby

(default)

1-3 On: +5V

3-5 On: +5V_standby

(default)

JP8

USB 2-5

COM2/DIO Select

VGA

DVI-I

1-4-7-10, 2-5-8-11

On: COM2 (default)

JP9 and JP10

64 31

12 10

64 31

12 10

2-5-8-11, 3-6-9-12

On: DIO

The system board uses JP9 and JP10 to select between RS232/422/485 COM2 or isolated 4-bit DIO at the rear panel.

Note:

You cannot use COM2 and DIO at the same time. Please set up JP9 and JP10 at the same time.

642

531

642

531

642

531

Page 17

www.dﬁ .com

Chapter 5 Ports and Connectors

Chapter 5

Chapter 5 - Ports and Connectors Front Panel I/O Ports

The front panel I/O port consists of the following:

• 4 USB ports

• 1 CFast socket

• 1 COM port

• 2 LAN ports

• 1 Mic-in jack

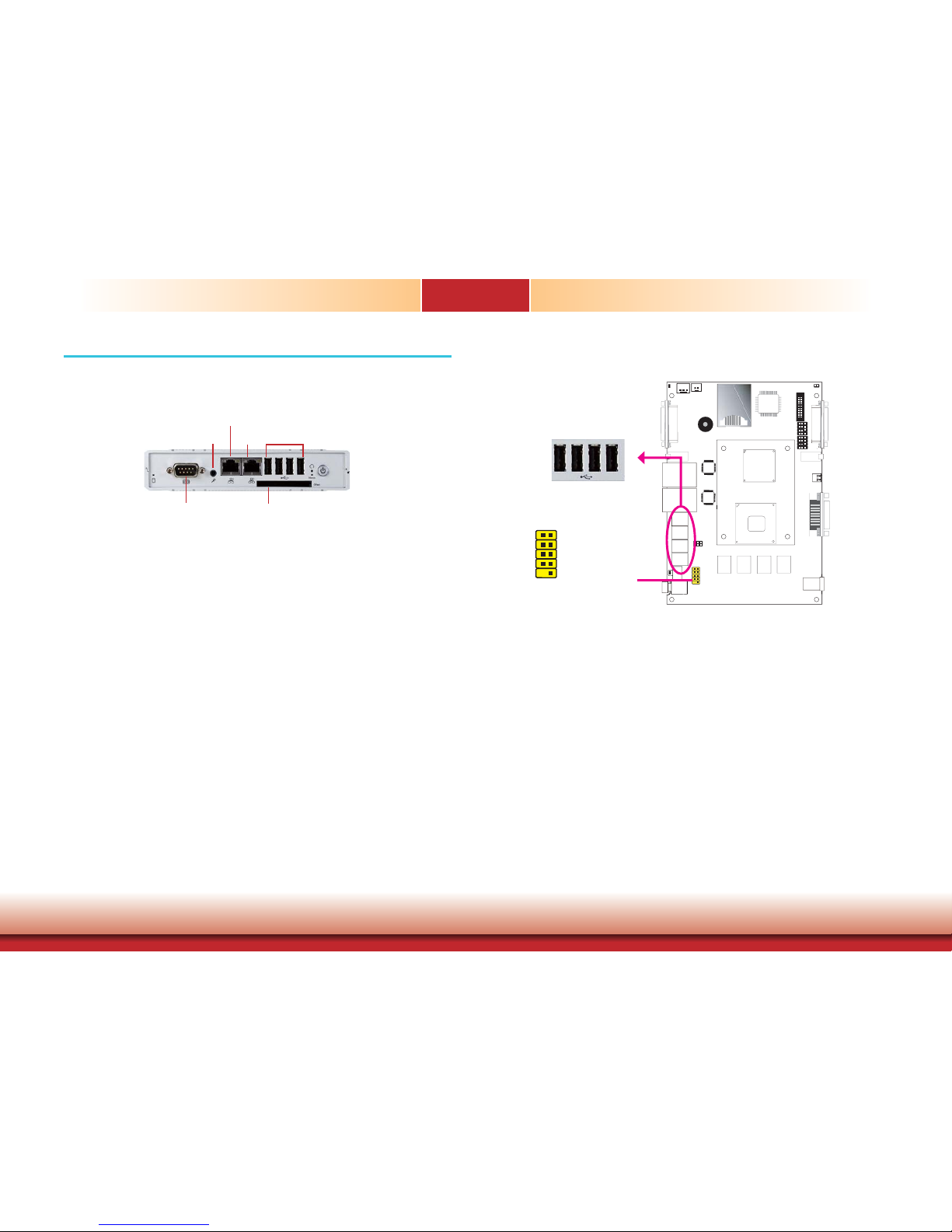

USB Ports

USB allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

The system board is equipped with 4 USB 2.0/1.1 ports (USB 0-3). The 10-pin connector allow you to connect 2 additional USB 2.0/1.1 ports (USB 4-5).

• BIOS Setting

Configure the onboard USB in the Advanced menu (“USB Configuration” submenu) of the BIOS. Refer to chapter 7 for more information.

• Driver Installation

You may need to install the proper drivers in your operating system to use the USB device. Refer to your operating system’s manual or documentation for more information.

Mic-in

LAN 2

USBLAN 1

COM

CFast

VGA

DVI-I

USB 0-3

USB 4-5

109

VCC

-Data

+Data

GND

Key

VCC

-Data +Data GND N. C.

Page 18

www.dﬁ .com

Chapter 5 Ports and Connectors

Chapter 5

Important:

Wake-On-USB Keyboard/Mouse

The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse to w

ake up a system from the S3 (STR - Suspend To RAM) state. To use this function:

• Jumper Setting

JP8 must be set to “4-6 On: +5V_standby”. Refer to “USB Power Select” in this chapter for more inf

ormation.

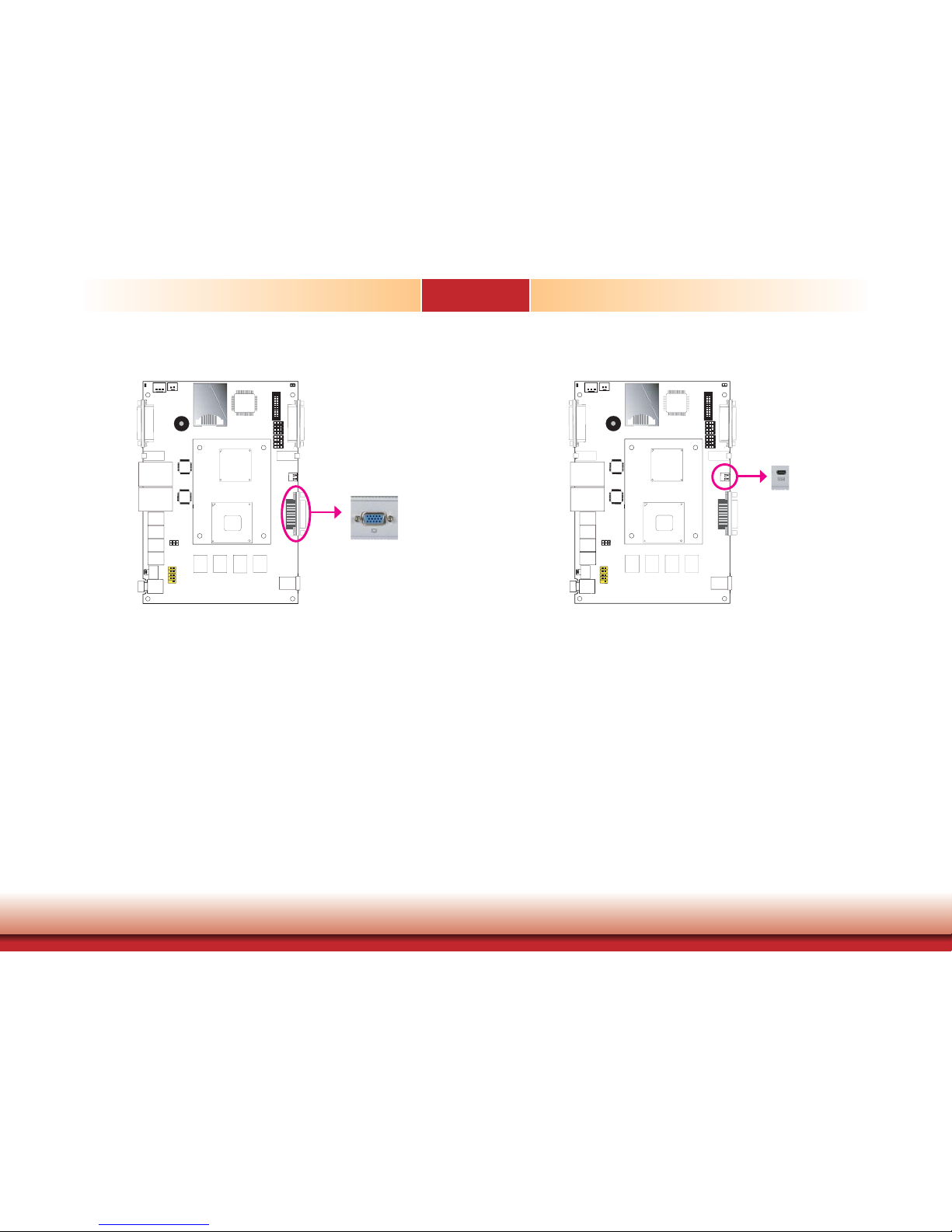

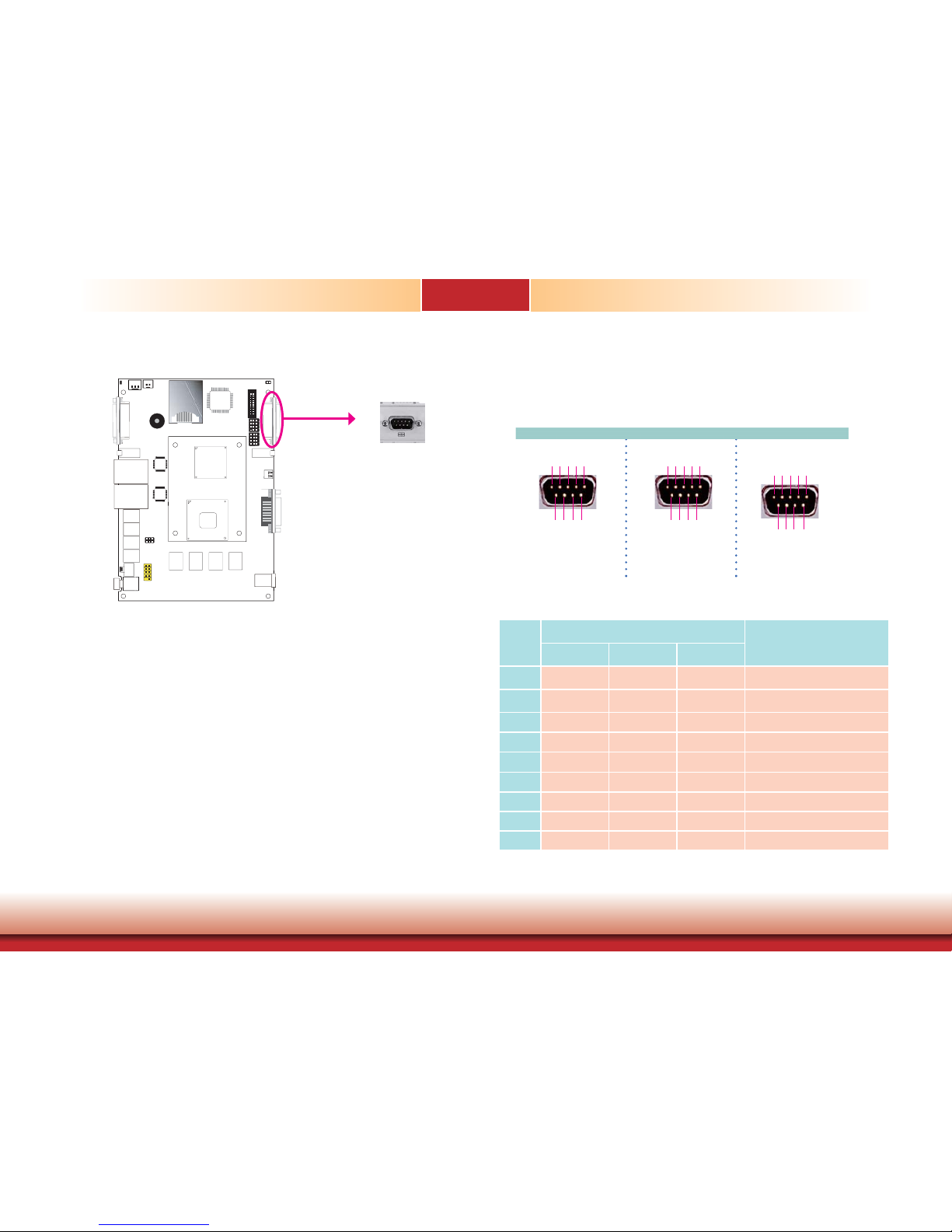

COM1 (Serial) Port

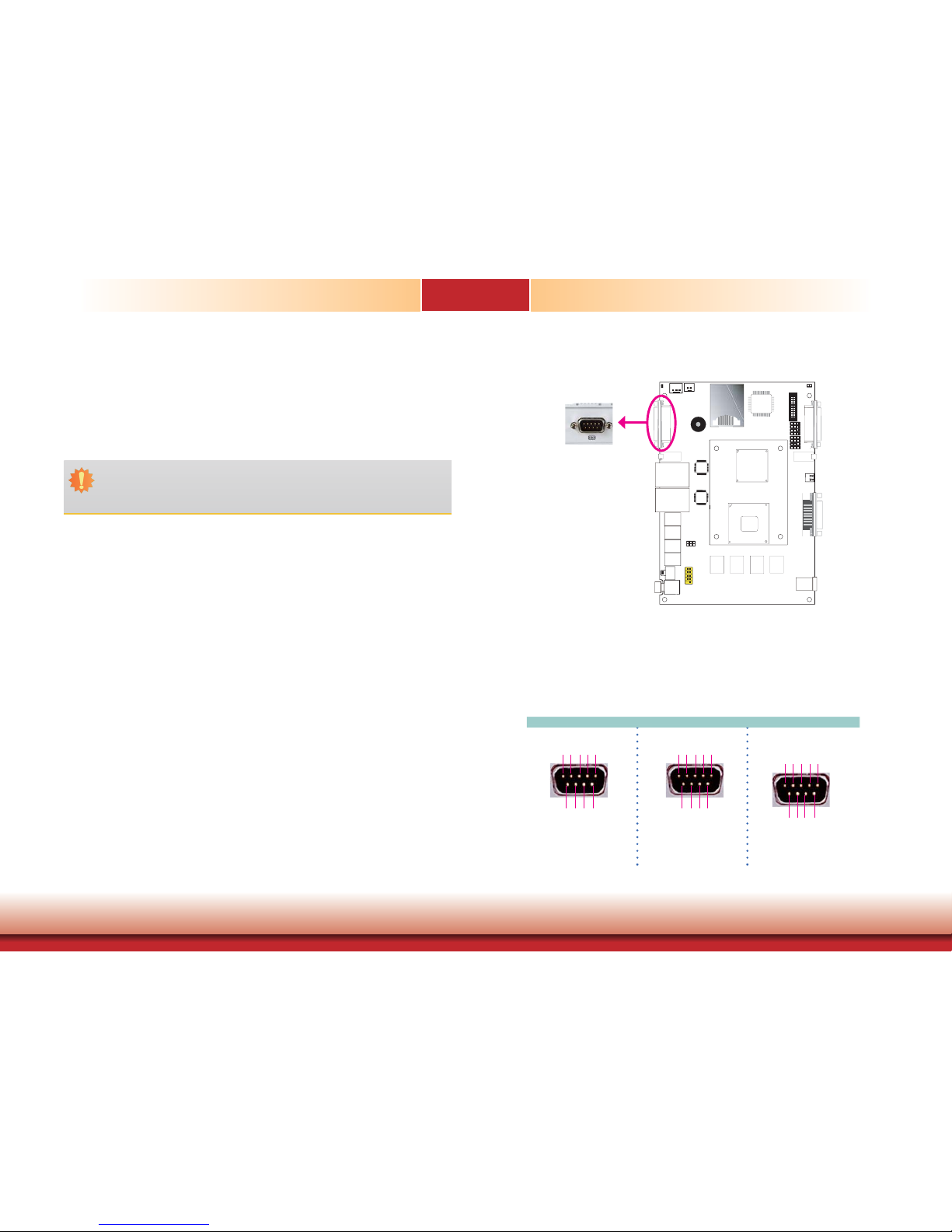

COM1:

RS232/422/485

VGA

DVI-I

The serial ports are asynchronous communication ports with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices.

• BIOS Setting

Configure the serial ports in the Integrated Peripherals submenu (“Onboard I/O Chip Setup” section) of the BIOS. Refer to chapter 7 for more information.

COM 1

DCD

TXD

RXD

DTR

GND

12345

DSR

CTS

RTS

RX+

TX+

RX-

TX-

GND

12345

N.C.

DATA+

N.C.

DATA-

N.C.

GND

12345

RS232 RS422

Full Duplex

RS485

N.C.

Page 19

www.dﬁ .com

Chapter 5 Ports and Connectors

Chapter 5

VGA

DVI-I

CFast Socket

The CFast socket is used for inserting a CFast card. A CFast card is a small removable mass storage device designed with flash technology - a non-volatile storage solution that does not require a battery to retain data indefinitely.

CFast

Mic-in jack

This jack is used to connect an external microphone.

BIOS Setting

Configure the onboard audio in the Chipset menu (“South Bridge” submenu) of the BIOS. Refer to chapter 3 for more information.

Driver Installation

Install the audio driver. Refer to chapter 8 for more information.

Mic-in

Page 20

www.dﬁ .com

Chapter 5 Ports and Connectors

Chapter 5

RJ45 LAN Ports

The LAN ports allow the system board to connect to a local area network by means of a network hub.

BIOS Setting

Configure the onboard LAN in the Chipset menu (“South Bridge Configuration” submenu) of the BIOS

. Refer to chapter 7 for more information.

Driver Installation

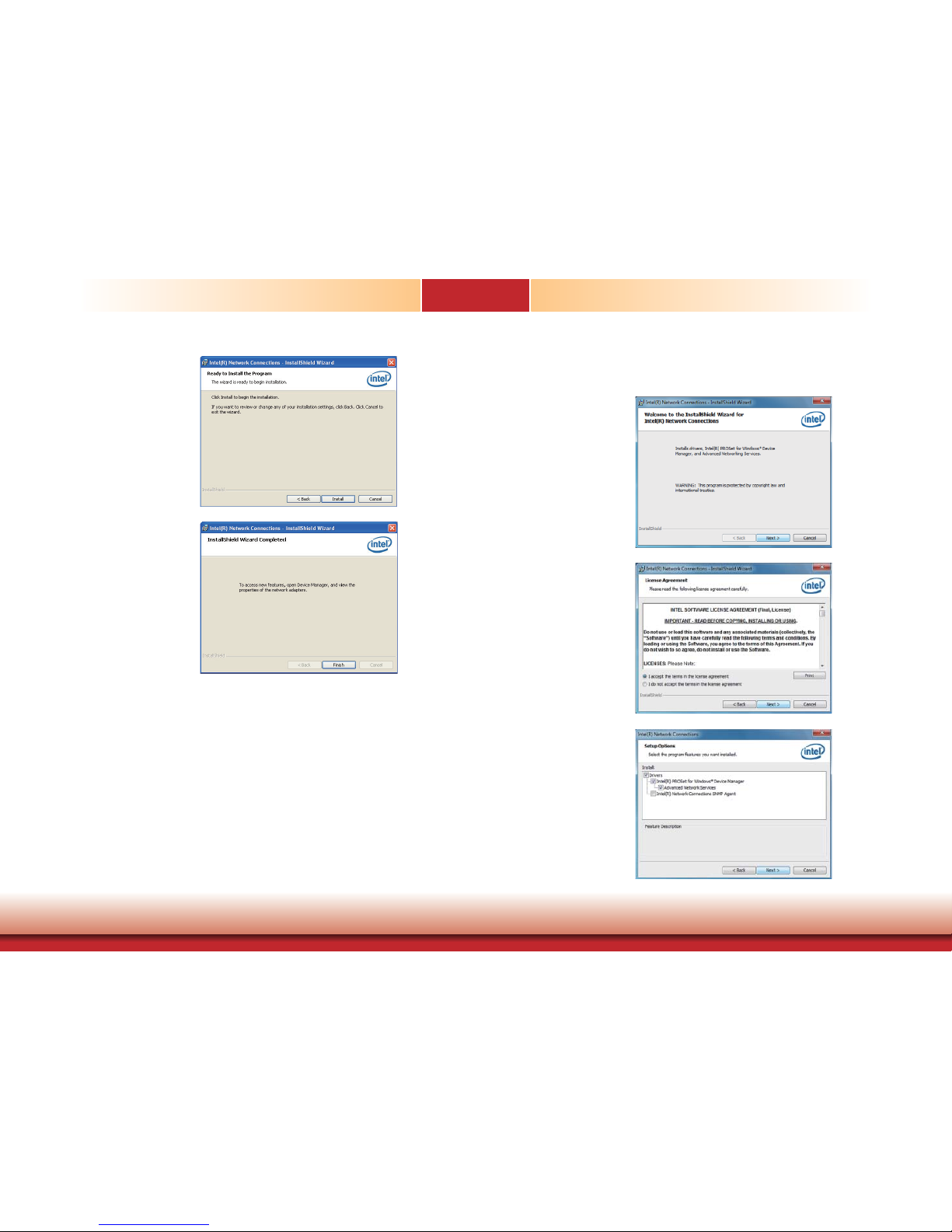

Install the LAN drivers. Refer to chapter 8 for more information.

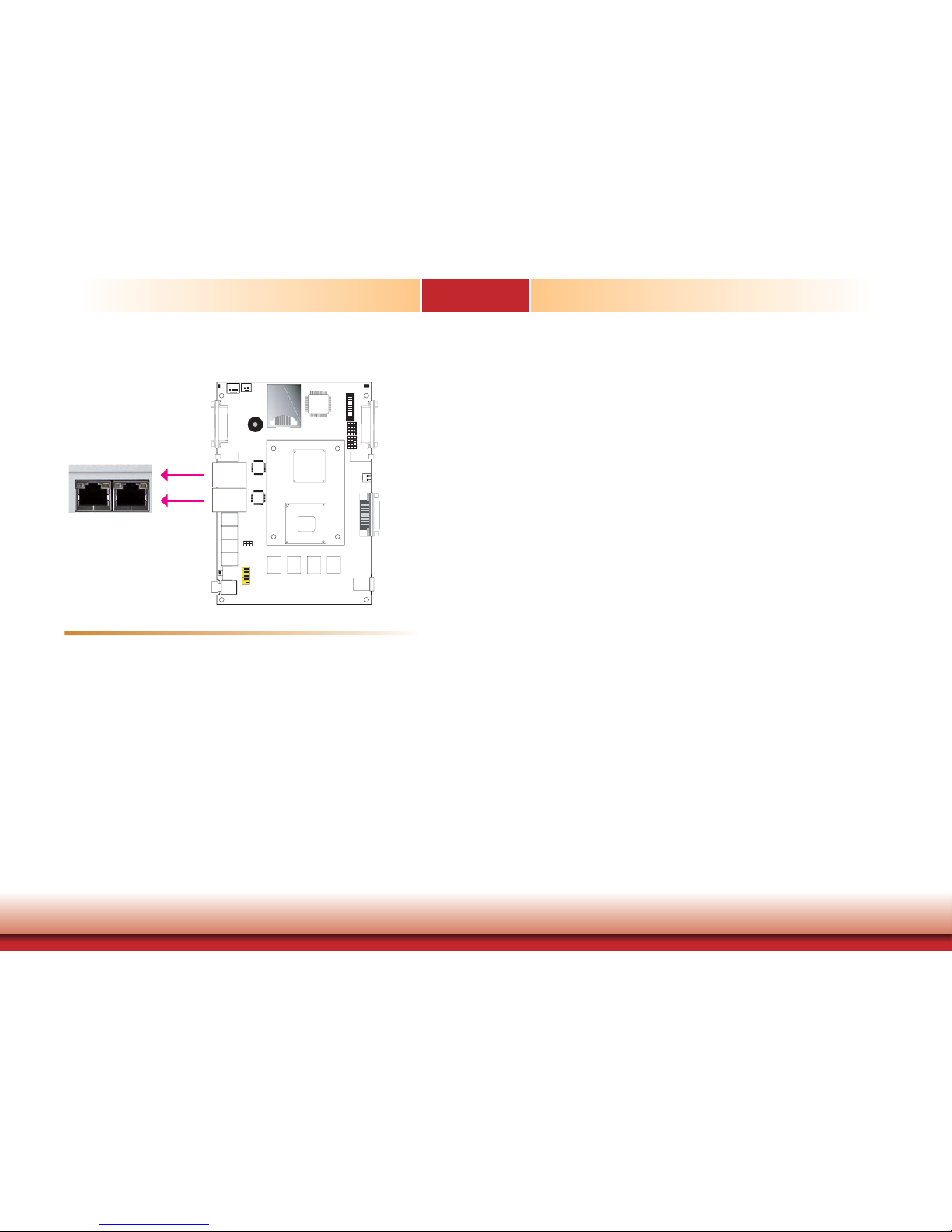

LAN 2

Features

• Intel

WG82574L PCI Express Gigabit Ethernet controller

LAN 1

VGA

DVI-I

Page 21

www.dﬁ .com

Chapter 5 Ports and Connectors

Chapter 5

VGA

DVI-I

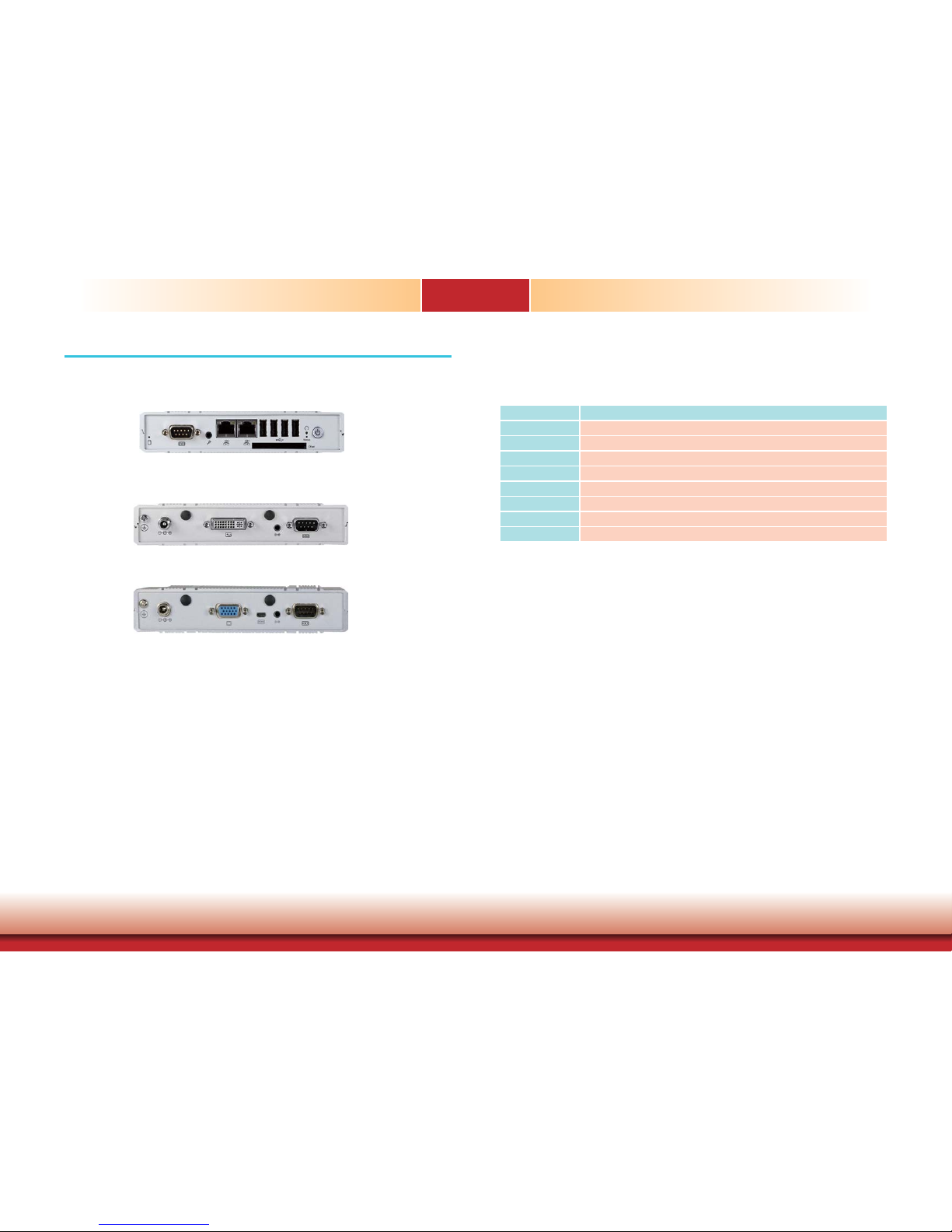

Rear Panel I/O Ports

The rear panel I/O ports consist of the following:

• 1 DVI port

• 1 DC-in

• 1 RS232/422/485 COM port or Isolated 4-bit DIO

• 1 Line-out jack

DVI-I9~24V DC-in COM

Line-out

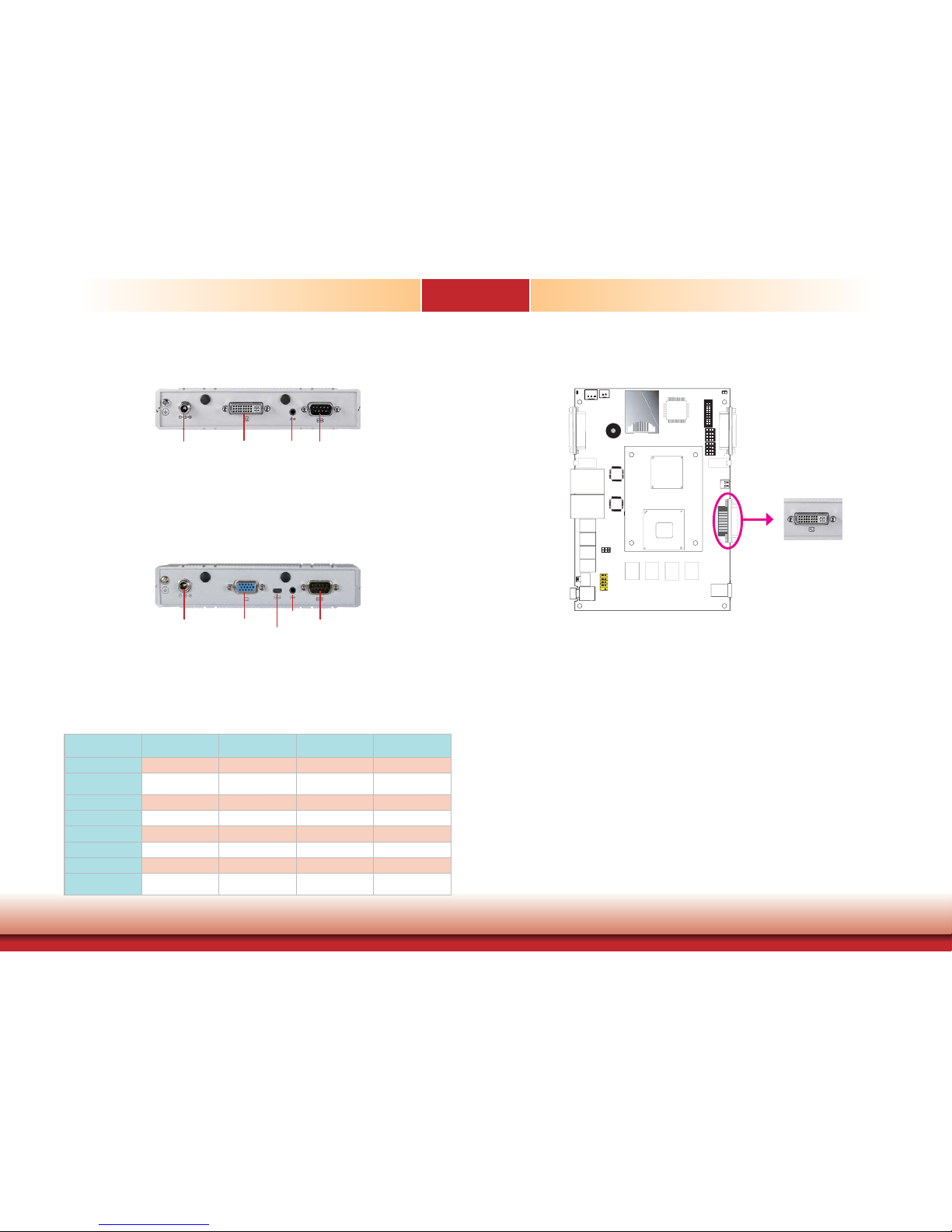

DVI-I Port

The DVI-I port is used to connect an LCD monitor. Connect the display device’s cable connector to the DVI-I port. After you plug the cable connector into the port, gently tighten the cable screws to hold the connector in place.

BIOS Setting

Configure the display device in the Chipset menu (“North Bridge Configuration” submenu) of the BIOS. Refer to chapter 7 for more information.

Driver Installation

Install the graphics driver. Refer to chapter 4 for more information.

DVI-I

VGA9~24V DC-in COM 2

Line-out

micro HDMI

The rear panel I/O ports consist of the following:

• 1 micro HDMI port

• 1 VGA port

• 1 DC-in

• 1 RS232/422/485 COM port

• 1 Line-out jack

Rear I/O Ports EC800-

CD2040-2x2

EC800CD1440-2x2

EC800CDT2041-2x2

EC800CD2041-252

DC-in power jack

1111

Wi-Fi/3G antenna hole

2222

Line-out

1111

DVI

1100

VGA:DB-15 D-sub

0011

micro HDMI

0011

COM/DIO

21*22

DIO: DB-9 (signal+power)

01*00

* Jumper selectable

Page 22

www.dﬁ .com

Chapter 5 Ports and Connectors

Chapter 5

VGA Port

VGA

DVI-I

VGA

The VGA port is used for connecting a VGA monitor. Connect the monitor’s 15-pin D-shell cable connector to the VGA port. After you plug the monitor’s cable connector into the VGA port, gently tighten the cable screws to hold the connector in place.

BIOS Setting

Configure VGA in the Chipset menu (“North Bridge Configuration” submenu) of the BIOS. Refer to chapter 3 for more information.

Driver Installation

Install the graphics driver. Refer to chapter 4 for more information.

VGA

DVI-I

micro HDMI Port

micro HDMI

The HDMI port which carries both digital audio and video signals is used to connect a LCD monitor or digital TV that has the HDMI port.

Page 23

www.dﬁ .com

Chapter 5 Ports and Connectors

Chapter 5

VGA

DVI-I

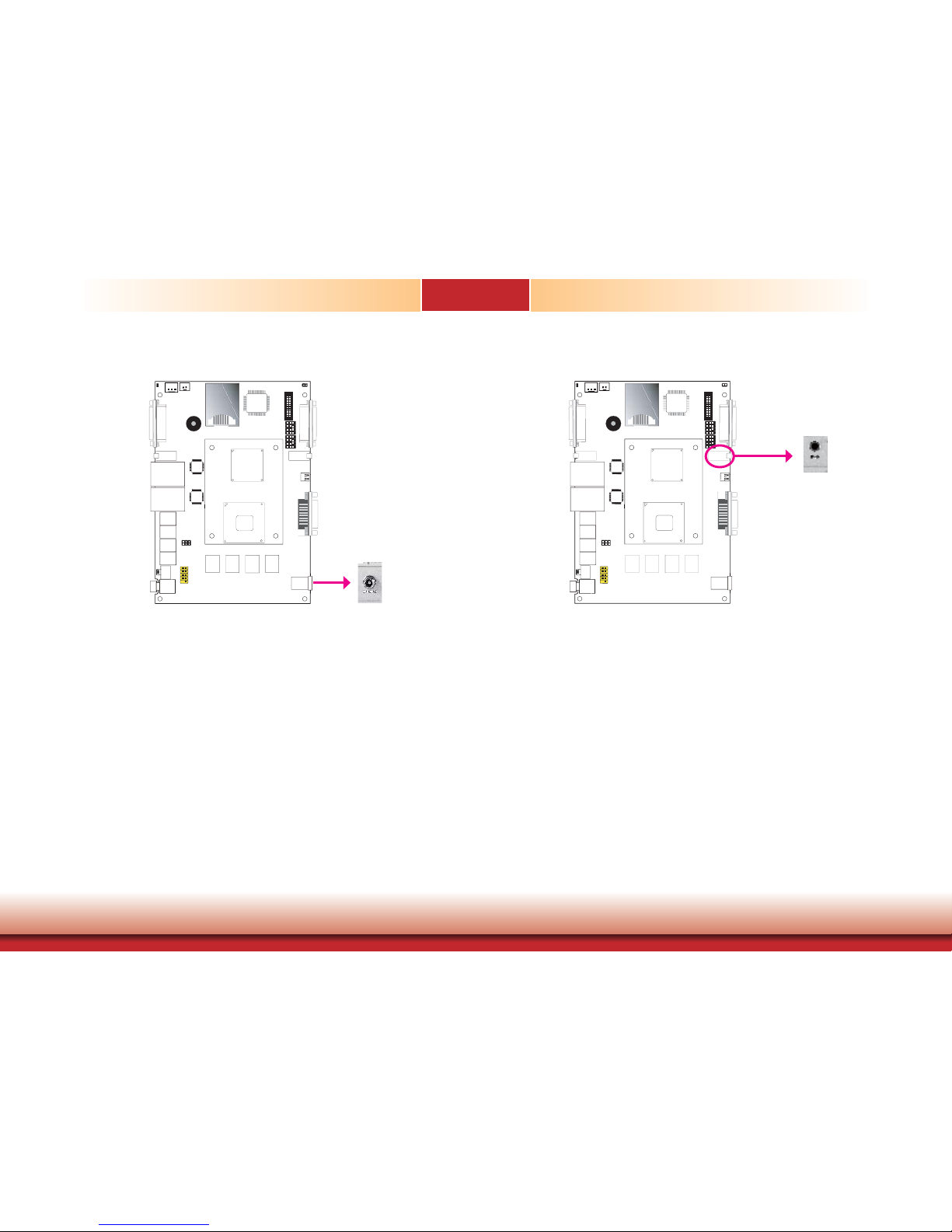

This jack provides maximum of 60W power and is considered a low power solution. Connect a DC power cord to this jack. Use a power adapter within 9~24V DC output voltage. Using a voltage range out of 9~24V may fail to boot the system or cause damage to the system board.

DC-in

This jack is used to connect a headphone or external speakers.

VGA

DVI-I

Line-out jack

Line-out

Page 24

www.dﬁ .com

Chapter 5 Ports and Connectors

Chapter 5

VGA

DVI-I

COM2 (Serial) Port/ Isolated 4-bit DIO

RS232/422/485 COM2

or Isolated 4-bit DIO

This DB-9 port can be used as an RS232/422/485 COM port or as an isolated 4-bit DIO. Refer to the jumper setting in this section for its respective configuration.

COM2 (Serial) Port

The serial port is an asynchronous communication ports with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices.

Isolated 4-bit DIO (2-bit in and 2-bit out)

The isolated 4-bit Digital I/O connector provides powering-on function to external devices that are connected to these connectors.

COM 2

DCD

TXD

RXD

DTR

GND

12345

DSR

CTS

RTS

RX+

TX+

RX-

TX-

GND

12345

N.C.

DATA+

N.C.

DATA-

N.C.

GND

12345

RS232 RS422

Full Duplex

RS485

N.C.

Pins

COM2 Function

DIO Function

RS232 RS422 RS485

DCD RX+ DATA+ DIN0A

RX RX- DATA- DIN0B

TX TX+ NC DIN1A

DTR TX- NC DIN1B

GND GND GND GND

DSR NC NC

DOUT0A

RTS NC NC

DOUT0B

CTS NC NC DOUT1A

RI NC NC DOUT1B

Page 25

www.dﬁ .com

Chapter 5 Ports and Connectors

Chapter 5

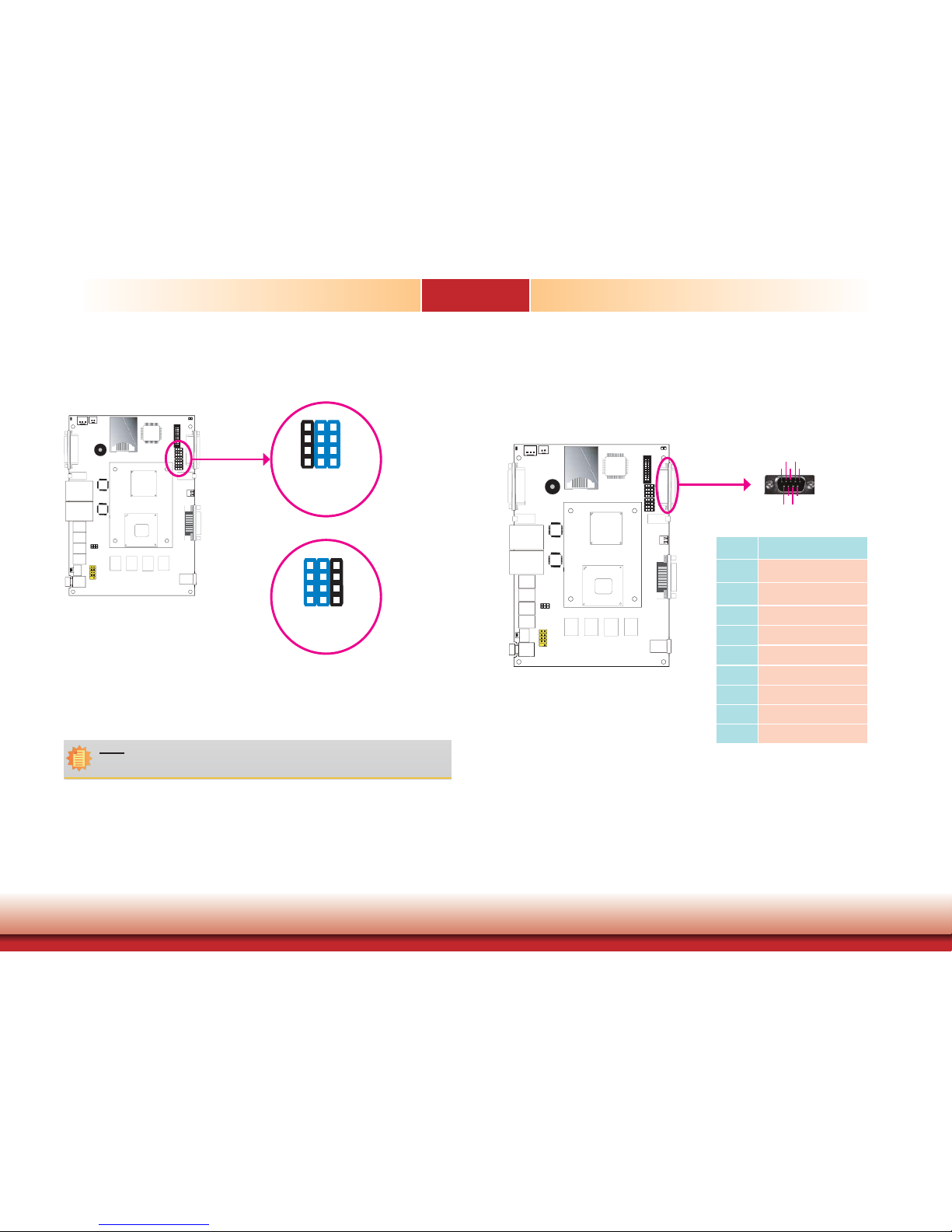

I/O Connectors

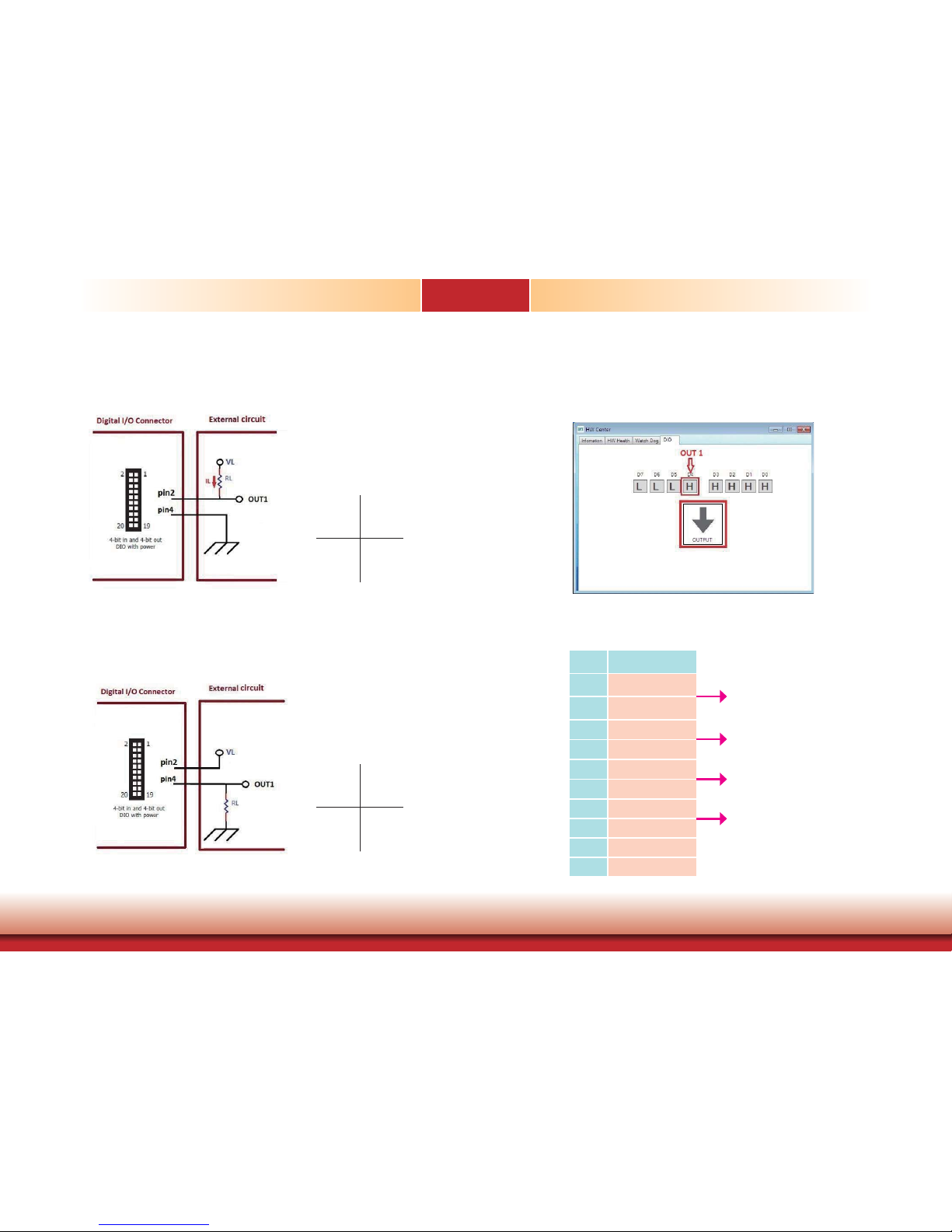

The 4-bit in and 4-bit out Digital I/O connector provides powering-on function to external devices that are connected to these connectors.

Digital I/O Connector

VGA

DVI-I

1920

4-bit in and 4-bit out

DIO with power

Pins Function Pins Function

DIN0A

DOUT0A

DIN0B

DOUT0B

DIN1A

DOUT1A

DIN1B

DOUT1B

DIN2A

DOUT2A

DIN2B

DOUT2B

DIN3A

DOUT3A

DIN3B

DOUT3B

+5V

+5V_standby

GND

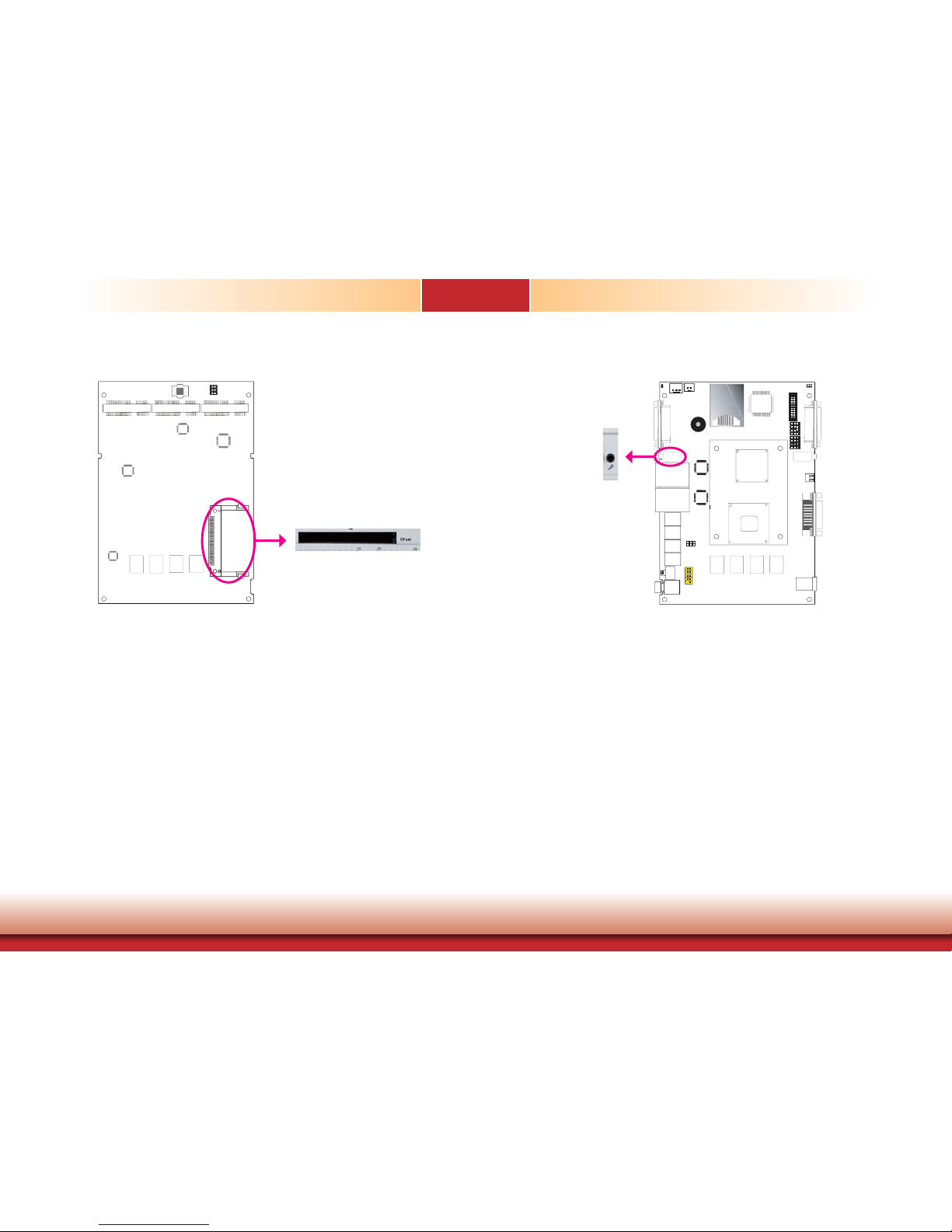

Expansion Slots

SIM Slot

The SIM slot on the system board is used to insert a SIM card.

Mini PCI Express Slot

The Mini PCI Express slot on the system board is used to install a half and/or full size Mini PCI

e card such as network cards or other cards that comply to the mini PCI Express specifica-

tions into the mini PCI Express slot.

VGA

DVI-I

SIM slot

Mini PCIe for mSATA

Mini PCIe slot for PCIe x1, USB, and 3G signals

Mini PCIe slot for PCIe x1, USB, and Wi-Fi signals

Page 26

www.dﬁ .com

Chapter 5 Ports and Connectors

Chapter 5

VGA

DVI-I

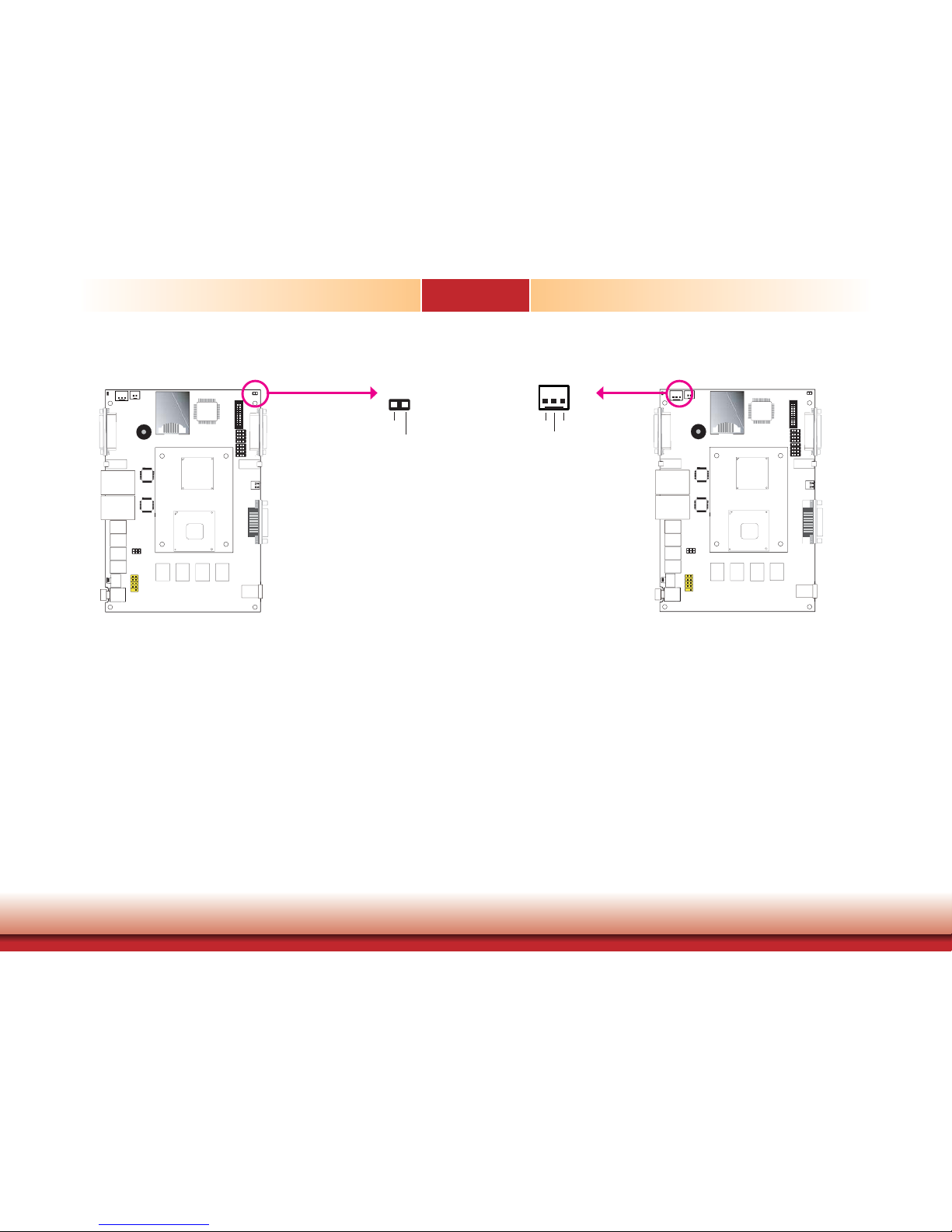

Cooling Fan Connector

The fan connectors are used to connect cooling fans. The cooling fans will provide adequate airflow throughout the chassis to prevent overheating the CPU and system board components.

BIOS Setting

The Advanced menu (“PC Health Configuration” submenu) of the BIOS will display the current speed of the cooling fans. Refer to chapter 7 for more information.

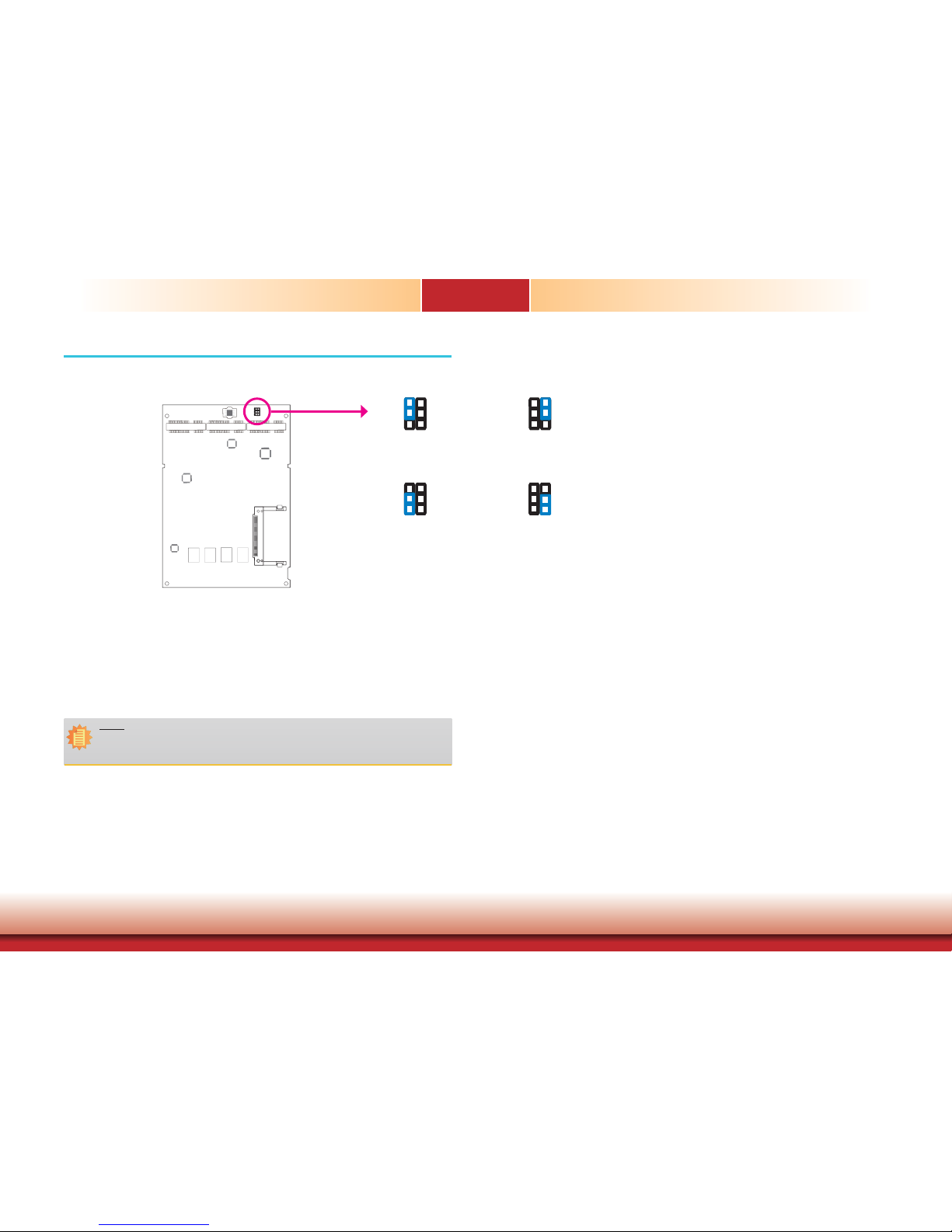

Chassis Intrusion Connector

The board supports the chassis intrusion detection function. Connect the chassis intrusion sensor cable from the chassis to this connector. When the system’s power is on and a chassis intrusion occurred, an alarm will sound. When the system’s power is off and a chassis intrusion occurred, the alarm will sound only when the system restarts.

MyGuard Hardware Monitor

Install the “MyGuard Hardware Monitor” utility. By default, the chassis intrusion detection function is disabled. When enabled, a warning message will appear when the chassis is open. The utility can also be configured so that a beeping alarm will sound when the chassis is open. Refer to the “MyGuard Hardware Monitor” section in chapter 8 for more information.

Signal

Ground

VGA

DVI-I

Sense

Power

Ground

System fan

Page 27

www.dﬁ .com

Chapter 5 Ports and Connectors

Chapter 5

VGA

DVI-I

LEDs

Standby Power LED

This LED will blink when the system is in the standby mode. It indicates that there is power on the system board. Power-off the PC and then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.

HDD LED

The HDD LED will light when the hard drive is being accessed.

HDD LED

The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source of power when the main power is shut off.

Safety Measures

• Danger of explosion if battery incorrectly replaced.

• R

eplace only with the same or equivalent type recommend by the manufacturer.

• Dispose of used batteries according to local ordinance.

Battery

VGA

DVI-I

Battery

Ground

Battery

Connect to the battery connector

Battery

Page 28

www.dﬁ .com

Chapter 6 Mounting Options

Chapter 6

Chapter 6 - Mounting Options

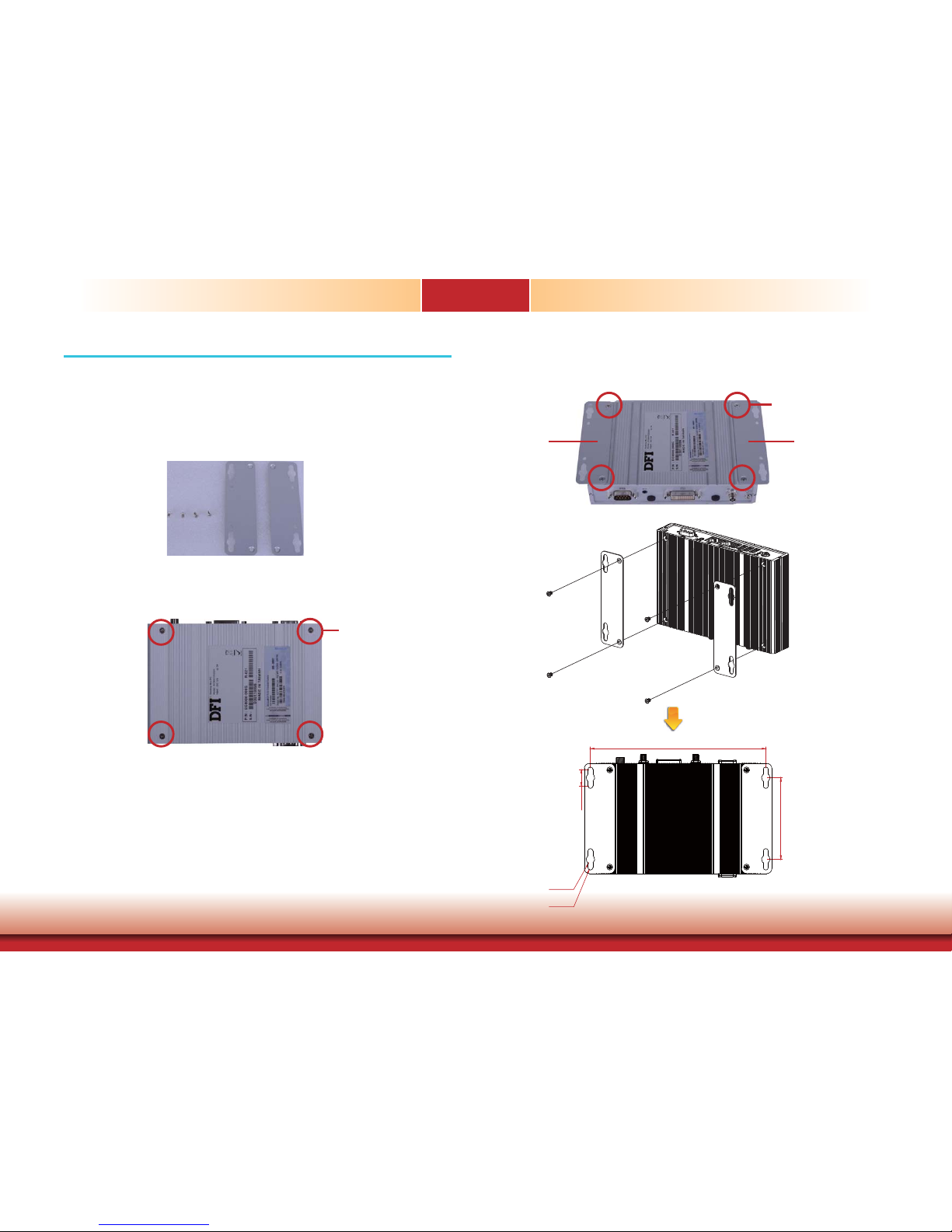

Wall Mount

The wall mount kit includes the following:

• 2 Wall mount brackets

• Bracket screws

1. If the mounting screw has been previously attached at the bottom of the system, please remove them ﬁ rst.

Mounting Screw

2. At the bottom side of the system, use the provided mounting screws to secure the wallmount

brackets on each side of the system.

Mounting screw

Wall mount bracket

Wall mount

bracket

Ø5.00

172.00

16.00

80.00

Ø8.50

Page 29

www.dﬁ .com

Chapter 6 Mounting Options

Chapter 6

VESA Mount

1. Prior to installing the VESA mount bracket A, make sure you have already installed the VESA mount bracket B.

2. Used the provided mounting screws to secure the VESA bracket A in place.

The vesa mount kit includes the following:

• 1 VESA mount bracket A

• 2 VESA mount bracket B

• Bracket screws

Mounting Screw

VESA bracket A

3. Align the VESA bracket A to the VESA bracket B and then use the provided mounting screws to

secure the system in place.

Mounting Screw

EC800

VESA bracket A

VESA bracket B

46.00

172.00

46.00

75.00

108.00

184.00

Ø5.00

100.00

Page 30

www.dﬁ .com

Chapter 6 Mounting Options

Chapter 6

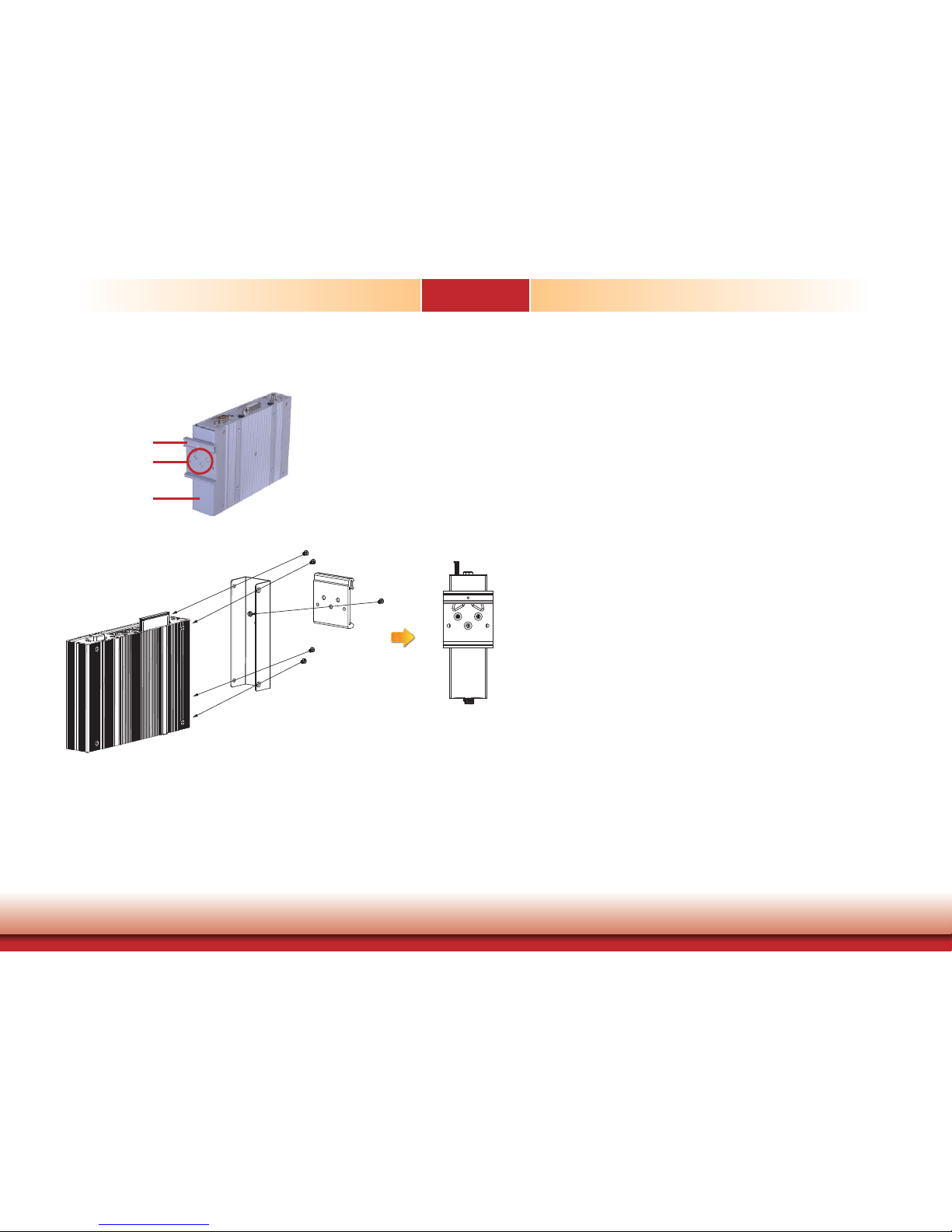

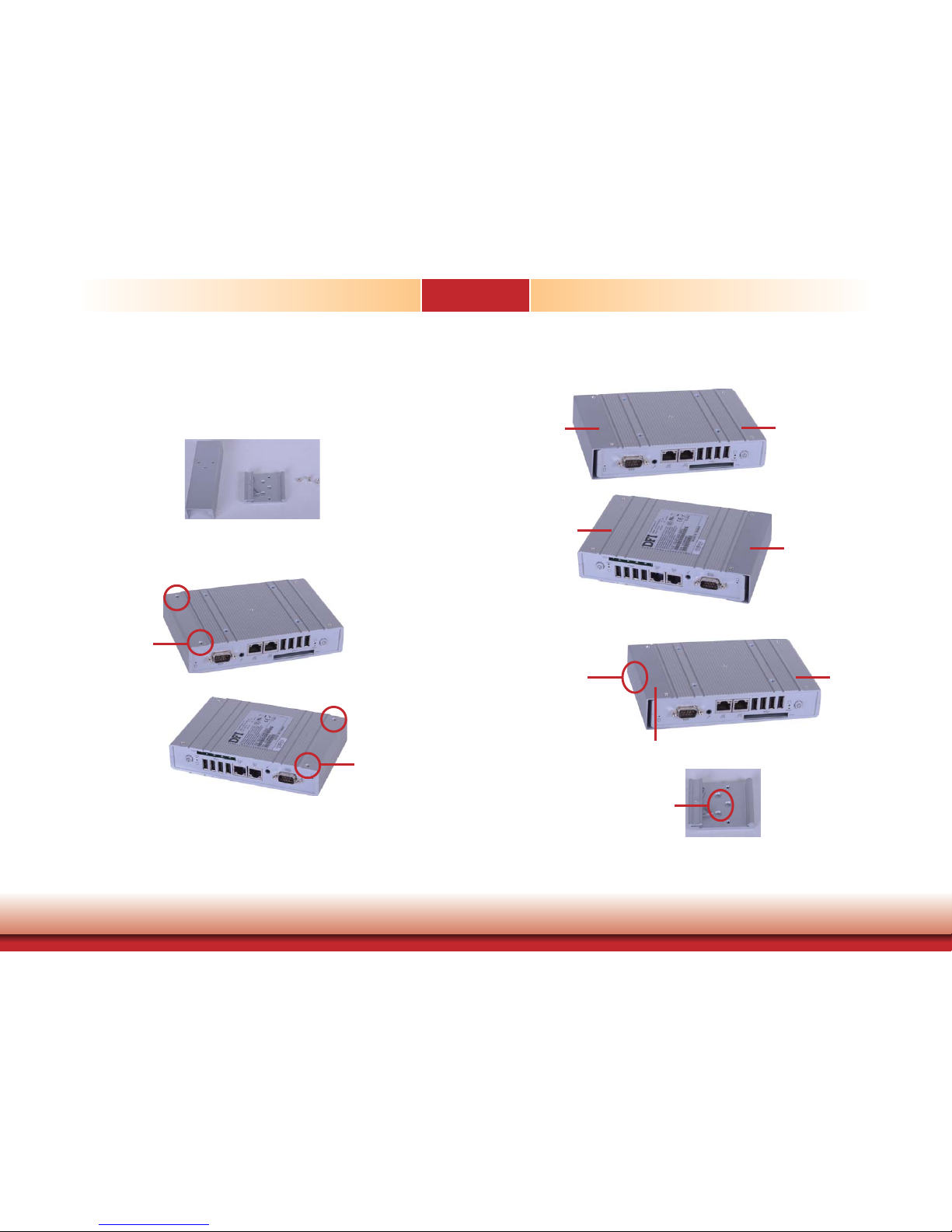

DIN Rail Mount

The DIN Rail mount kit includes the following:

• 1 DIN Rail mount bracket

• 1 bracket

• Bracket screws

Mounting Screw

1. Turn the system to the bottom side (labeled side) and top side and locate the mounting screw. Remove these screws and then put them in a safe place for later use.

Mounting Screw

Bottom side

Top side

2. Align the mounting holes of the system and the mounting holes on the bracket, and then use the screws removed on step 1 to secure the bracket in place.

Bracket

EC800

3. The 3 mounting holes on the bracket of the system is used to mount the DIN rail bracket.

Bracket

EC800

Bracket

EC800

Mounting Holes

Page 31

www.dﬁ .com

Chapter 6 Mounting Options

Chapter 6

4. Align the mounting holes of the bracket in the system and the mounting holes on the DIN rail bracket, and then use the provided mounting screws to secure the bracket in place.

Mounting Screw

DIN Rail bracket

Bracket

Page 32

www.dﬁ .com

Chapter 7 BIOS Setup

Chapter 7

Chapter 7 - BIOS Setup

Overview

The BIOS is a program that takes care of the basic level of communication between the CPU and peripherals. It contains codes for various advanced features found in this system board. The BIOS allows you to configure the system and save the configuration in a battery-backed CMOS so that the data retains even when the power is off. In general, the information stored in the CMOS RAM of the EEPROM will stay unchanged unless a configuration change has been made such as a hard drive replaced or a device added.

It is possible that the CMOS battery will fail causing CMOS data loss. If this happens, you need to install a new CMOS battery and reconfigure the BIOS settings.

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering the BIOS Setup Utility

The BIOS Setup Utility can only be operated from the keyboard and all commands are keyboard commands. The commands are available at the right side of each setup screen.

The BIOS Setup Utility does not require an operating system to run. After you power up the system, the BIOS message appears on the screen and the memory count begins. After the memory test, the message “Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously.

Legends

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When ““ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>.

Keys Function

Right and Left arrows

Moves the highlight left or right to select a menu.

Up and Down arrows

Moves the hightlight up or down between submenu or ﬁ elds.

<Esc>

Exit to the BIOS Setup Utility.

+ (plus key)

Scrolls forward through the values or options of the highlighted ﬁ eld.

- (minus key)

Scrolls backward through the values or options of the highlighted ﬁ eld.

Tab

Select a ﬁ eld.

<F1>

Displays General Help

<F2>

Previous Values

<F3>

Optimized Defaults

<F4>

Saves and exits the Setup program.

<Enter>

Press <Enter> to enter the highlighted submenu.

Note:

The BIOS is constantly updated to improve the performance of the system board; therefore the BIOS screens in this chapter may not appear the same as the actual one. These screens are for reference purpose only.

Page 33

www.dﬁ .com

Chapter 7 BIOS Setup

Chapter 7

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1980 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to

23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

AMI BIOS Setup Utility Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Set the date. Use Tab to switch between date elements

Save & ExitChipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Information BIOS Vendor Core Version Compliency Project Version Model Name Bios Name Bios Version Build Date and Time

System Date

System Time

Access Level

American Megatrends

4.6.5.1 UEFI 2.3; PI 1.2 1APJK 0.15.013 x64 DFI-CD952 CD9520C5.28A RA07 05/28/2012 23:08:56

[Mon 05/28/2012] [10:44:27]

Administrator

Advanced

Boot Security

Main

F81866A WDT Parameters.

Legacy OpROM Support

Launch PCI-E NIC PXE [Disabled] Launch I82574 WOL [Disabled] Launch Resume on Ring [Disabled] Launch Storage OpROM [Enabled]



PCI Subsystem Settings



ACPI Power Management Conﬁ guration



CPU Conﬁ guration



IDE Conﬁ guration



USB Conﬁ guration



Super IO Conﬁ guration



PC Health Status



JMB36X ATA Ctrl Conﬁ g



PPM Conﬁ guration



WatchDog Conﬁ guration

Save & ExitChipset Boot Security

Main

Advanced

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Legacy PCI-E NIC PXE

Enable or Disable Boot option for Realtek 8111DL NIC.

Launch I82574 WOL

Enable or Disable WOL for Intel 82574 LAN Option.

Launch Resume on Ring

Enable or Disable resume on ring option.

Launch Storage OpROM

Enable or Disable Boot Option for Legancy Mass Storage Devices with Option ROM.

Important:

Setting incorrect field values may cause the system to malfunction.

Page 34

www.dﬁ .com

Chapter 7 BIOS Setup

Chapter 7

PCI Subsystem Settings

This section is used to configure the PCI Subsystem.

Incase of multiple Option ROMs (Legancy and EFI compatible), speciﬁ es what PCI Option ROM to launch.

PCI Bus Driver Version V 2.05.01

PCI Option ROM Handling

PCI ROM Priority [EFI Compatible ROM]

Advanced

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

ACPI Power Management Configuration

This section is used to configure the ACPI Setting.

Enable ACPI Auto Config

Enables or disables BIOS ACPI Auto Configuration.

ACPI Sleep State

Selects the highest ACPI sleep state the system will enter when the Suspend button is pressed.

S1(POS)

Enables the Power On Suspend function.

S3(STR) Enables the Suspend to RAM function.

Lock Legacy Resources

Enables or Disables Lock Legacy Resouces.

Resume by RTC Alarm

When Enabled, the system uses the RTC to generate a wakeup event.

USB Dev Wake from S3

This field, when enabled, allows you to use a USB keyboard to wake up a system that is in the S3 (STR - Suspend To RAM) state.

Enables or disables BIOS ACPI Auto Conﬁ guration.

ACPI Power Management Conﬁ guration

Enable ACPI Auto Conf

ACPI Sleep State Lock Legancy Resouces S3 Video Repost

Resume by RTC Alarm USB Dev Wake from S3

Advanced

[Disabled]

[S3 (Suspend to RAM) ] [Disabled] [Enabled]

[Disabled] [Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 35

www.dﬁ .com

Chapter 7 BIOS Setup

Chapter 7

CPU Configuration

This section is used to configure the CPU. It will also display the detected CPU inf

ormation.

Hyper-threading

Enable this field for Windows XP and Linux which are optimized for Hyper-Threading technology

. Select disabled for other OSes not optimized for Hyper-Threading tech-

nology. When disabled, only one thread per enabled core is enabled.

Execute Disable Bit

XD can prevent certain classes of malicious buffer overflow attacks when combined with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux 9.2, RedHat Enterprise 3 update 3.)

Limit CUPID Maximum

The CPUID instruction of some newer CPUs will return a value greater than 3. The default is Disabled because this problem does not exist in the Windows series operating systems. If you are using an operating system other than Windows, this problem may occur. To avoid this problem, enable this field to limit the return value to 3 or less than 3.

Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology).

CPU Conﬁ guration Processor Type Intel (R) Atom (TM) CPU

EMT64 Processor Speed System Bus Speed Ratio Status Actual Ratio Processor Stepping Microcode Revision L2 Cache RAM L3 Cache RAM Processor Core Huper-threading

Hyper-threading

Execute Disable Bit Limit CUPID Maximum

Advanced

Supported 1865 MHz 533 MHz 14 14 30661 268 2x56 k 2x512 k Dual Supported

[Enabled]

[Enabled] [Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

IDE Configuration

This section is used to configure IDE functions.

SATA Ports (0-3) device names if present and enabled.

SATA Port0 Not Present SATA Port1 WDC WD800BEVS-(80.0G

SATA Controller(s) [Enabled]

Conﬁ gure SATA as [IDE]

Misc Conﬁ guration for hard disk

Advanced

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Configure SATA as

Select a configuration for SATA controller.

Page 36

www.dﬁ .com

Chapter 7 BIOS Setup

Chapter 7

USB Configuration

This section is used to configure USB.

Legacy USB Support

Enabled

Enables legacy USB

Auto Disables support for legacy when no USB devices are connected.

Disabled Keeps USB devices available only for EFI applications.

EHCI Hand-off

This is a workaround for OSes that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driver.

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

USB Conﬁ guration USB Devices:

1 Keyboard, 1 mouse

Legacy USB Support

EHCI Hand-off

Advanced

[Enabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Set Parameters of Serial Port 1 (COMA).

Super IO Conﬁ guration

Super IO Chip

 

Serial Port 1 Conﬁ guration



Serial Port 2 Conﬁ guration

Restore AC Power Loss Case Open Beep

Advanced

F81866

[Turns Off] [Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Restore AC Power Lost

Off

When power returns after an AC power failure, the system’s power is off. You must press the Power button to power-on the system.

When power returns after an AC power failure, the system will automatically power-on.

Last State

When power returns after an AC power failure, the system will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.

Case Open Beep

Set this field to Enabled to allow the system to alert you of a chassis intrusion event.

Page 37

www.dﬁ .com

Chapter 7 BIOS Setup

Chapter 7

Enable or Disable Serial Port (COM)

Serial Port 1 Conﬁ guration

Serial Port

Device Settings

Change Settings COM1 Driver Mode

Advanced

[Enabled]

IO=3F8h; IRQ=4;

[Auto] [RS232 driver]

Serial Port 1 Configuration to Serial Port 2 Configuration

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Serial Port (COM)

Serial Port 2 Conﬁ guration

Serial Port

Device Settings

Change Settings COM2 Driver Mode

Advanced

[Enabled]

IO=2F8h; IRQ=3;

[Auto] [RS232 driver]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port

Enables or disables the serial port.

Change Settings

Selects the IO/IRQ setting of the I/O device.

COM1/2 Driver Mode

Enable or disable serial port (COM)

PC Health Status

This section displays the hardware health monitor.

PC Health Status

Smart Fan Function



Smart Fan Mode Conﬁ guration CPU Temperature System Temperature System FAN Speed VCore VCCGFX V_SM

1.05V 5VSB 3VCC 3VSB VBAT

Advanced

[Enabled]

: +34 C : +35 C : N/A : +1.064

V : +1.048 V : +1.568 V : +1.064 V : +4.992 V : +3.344 V : +3.360 V : +3.312 V

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Smart Fan Mode Conﬁ guration System Fan Smart Fan

Temperature 1 Temperature 2 Temperature 3 Temperature 4 Duty Cycle 1 Duty Cycle 2 Duty Cycle 3 Duty Cycle 4

Advanced

[Auto Duty-Cycle Mode]

60 50 40 30 85 70 60 50

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Smart Fan Mode Configuration

Enable or Disable Smart Fan

Smart Fan Mode Select

Page 38

www.dﬁ .com

Chapter 7 BIOS Setup

Chapter 7

PPM Configuration

This section is used to configure the PPM functions.

Enable/Disable Intel SpeedStep

PPM Conﬁ guration

EIST CPU C State Report

Advanced

[Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU C State Report

Enable/Disable CPU C Status Report to OS.

WatchDog Configuration

This section is used to configure the watchdog functions.

WatchDog function

This field is used to enable or disable the Watchdog timer function.

Enable/Disable F81866 WatchDog Timer.

WatchDog Conﬁ guration

WatchDog function

atchDog Timer

Advanced

[Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 39

www.dﬁ .com

Chapter 7 BIOS Setup

Chapter 7

Chipset

Configures relevant chipset functions.



Host Bridge



South Bridge

Save & Exit

Advanced

Boot Security

Main

Chipset

Host Bridge Parameters

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit



Intel IGD Conﬁ guration

IGFX - Boot Type [VBIOS Default]

Chipset

Select the Video Device which will be activated during POST. This has no effect if external graphics present.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Host Bridge

IGFX - Boot Type

Select the Video Device which will be activ

ated during POST. This has no effect if external

graphics present.

Page 40

www.dﬁ .com

Chapter 7 BIOS Setup

Chapter 7



TPT Devices



PCI Express Root Port 0



PCI Express Root Port 1



PCI Express Root Port 2



PCI Express Root Port 3

Chipset

Enable/ Disable Intel (R) IO Controller Hub (TPT) devices

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

South Bridge

TPT Devices

Enable or disable Intel IO Controller Hub (TPT) devices

Azalia Controller

Azalia Controller Select USB Mode

UHCI #1 (ports 0 and 1) UHCI #2 (ports 2 and 3) UHCI #3 (ports 4 and 5) UHCI #4 (ports 6 and 7) USB 2.0 (EHCI) Support

Advanced

[HD Audio]

[By Controllers] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Select USB Mode

This field is used to select the USB’s operation mode.

High Speed If the USB device is a high speed device, it will operate in high speed mode. If it is a full/

low speed device, it will operate in full/low speed mode.

Full/Low Speed

Regardless of the speed of the USB device, it will always operate in full/low speed mode.

UHCI 1~4

Control the USB UHCI (USB 1.1) function.

USB 2.0 (EHCI) Support

Enable or disable USB 2.0 (EHCI) support.

Page 41

www.dﬁ .com

Chapter 7 BIOS Setup

Chapter 7

PCI Express Root Port 0~3

This section is used to configure the PCI Express Root functions.

Enable/Disable Intel SpeedStep

PCI Express Port 0

Advanced

[Enabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCI Express Port 0~3

Enable/Disable PCI Express Root Port 0~3.

Page 42

www.dﬁ .com

Chapter 7 BIOS Setup

Chapter 7

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Quiet Boot

Enables or disables the quiet boot function.

Option ROM Messages

Set display mode for option ROM.

INT19 Trap Response

BIOS reaction on Int19 trapping by option ROM.

Immediate Execute the trap right away. Postponed Execute the trap during legacy boot.

Hard Driver BBS Priorities

Set the order of the legacy devices in this group.

Boot

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indeﬁ nite waiting.

Boot Conﬁ guration

Setup Prompt Timeout

Bootup NumLock State Quiet Boot

CSM16 Module Version

Option ROM Messages INT19 Trap Response

Driver Option Priorities Boot Option Priorities

Save & ExitChipset

Advanced

Security

Main

Boot

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

[On] [Disabled]

07.69

[Force BIOS] [Postponed]

Security

Administrator Password

Sets the administrator password.

User Password

Sets the user password.

Set Administrator Password.

Password Description If ONLY the Administrator’s password is set,

then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20

Administrator Password

User Password

HDD Security Conﬁ guration

Save & ExitChipset

Advanced

Main

Boot Security

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 43

www.dﬁ .com

Chapter 7 BIOS Setup

Chapter 7

Save & Exit

Save Changes and Reset

To save the changes, select this field and then press <Enter>. A dialog box will appear. Select Yes to reset the system after saving all changes made.

Discard Changes and Reset

To discard the changes, select this field and then press <Enter>. A dialog box will appear. Select Yes to reset the system setup without saving any changes.

Restore Defaults

To restore and load the optimized default values, select this field and then press <Enter>. A dialog box will appear. Select Yes to restore the default values of all the setup options.

Save as User Defaults

To save changes done so far as user default, select this field and then press <Enter>. A dialog bo

x will appear. Select Yes to save values as user default.

Restore User Defaults

To restore user default to all the setup options, select this field and then press <Enter>. A dialog box will appear. Select Yes to restore user default.

Reset the system after saving the changes.

Save Changes and Reset

Discard Changes and Reset

Save Options

Restore Defaults Save as User Defaults Restore User Defaults

Boot Override

Chipset

Advanced

Main

Boot Security Save & Exit

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Updating the BIOS

To update the BIOS, you will need the new BIOS file and a flash utility, AFUDOS.EXE. Please contact technical support or your sales representative for the files.

To execute the utility, type: A:> AFUDOS BIOS_File_Name /b /p /n then press <Enter>.

C:\AFU\AFUDOS>afudos ﬁ lename /B /P /N

+--------------------------------------------------------------------------------------------------------+

AMI Firmware Update Utility(APTIO) v2.25

+--------------------------------------------------------------------------------------------------------+

| |

Reading ﬁ le ..............................

Erasing ﬂ ash .............................

Writing ﬂ ash .............................

Verifying ﬂ ash ..........................

Erasing BootBlock ....................

Writing BootBlock ....................

Verifying BootBlock .................

C:\AFU\AFUDOS>

done done done done done done done

After finishing BIOS update, please turn off the AC power. Wait about 10 seconds and then turn on the AC power again.

Page 44

www.dﬁ .com

Chapter 8 Supported Software

Chapter 8

Chapter 8 - Supported Software

The CD that came with the system board contains drivers, utilities and software applications required to enhance the performance of the system board.

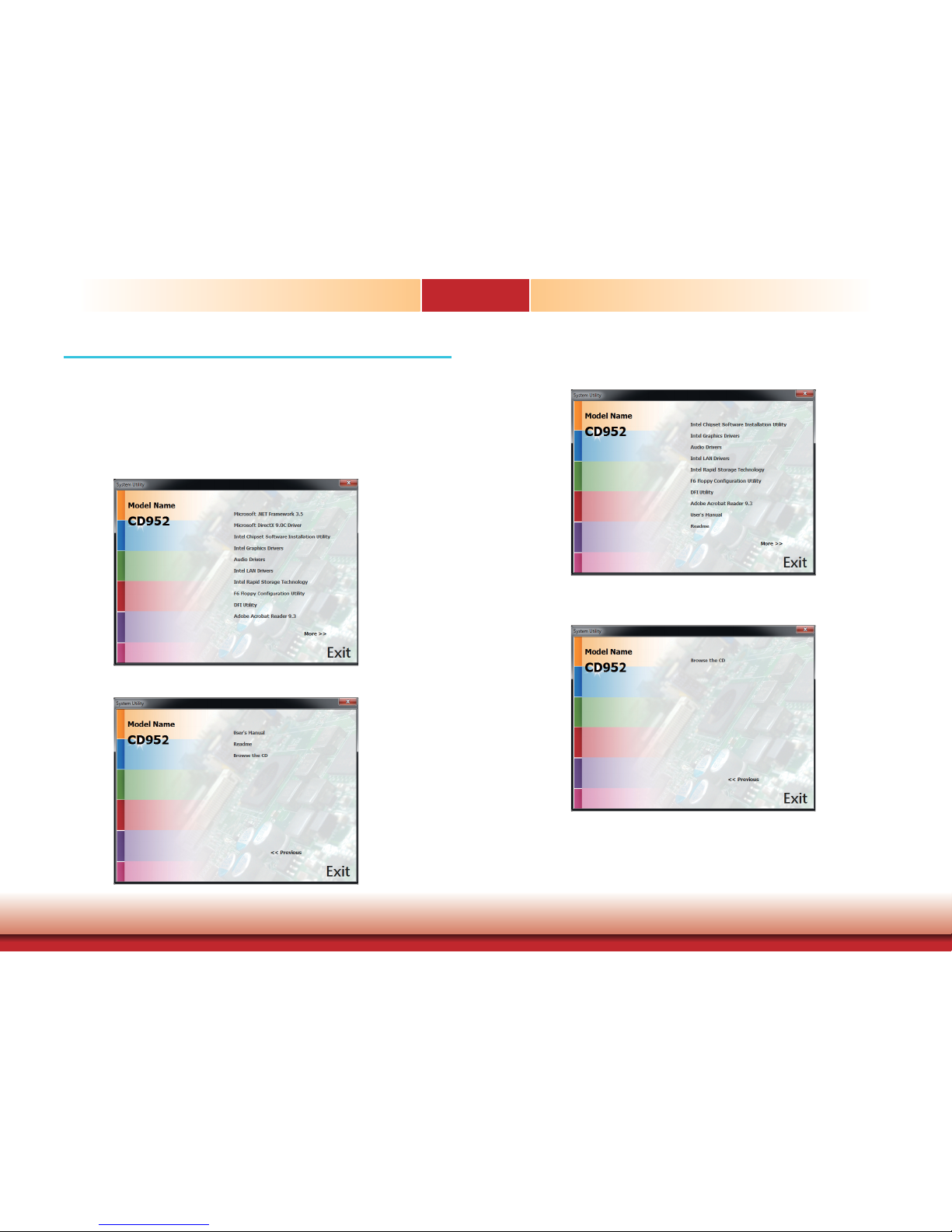

Insert the CD into a CD-ROM drive. The autorun screen (Mainboard Utility CD) will appear. If after inserting the CD, “Autorun” did not automatically start (which is, the Mainboard Utility CD screen did not appear), please go directly to the root directory of the CD and double-click “Setup”.

Auto Run Page (For Windows XP)

Auto Run Page (For Windows 7)

Page 45

www.dﬁ .com

Chapter 8 Supported Software

Chapter 8

1. Read the license agreement carefully.

Click “I have read and accept the terms of the License Agree ment” then click Install.

2. Setup is now installing the driver.

Note:

Before installing Microsoft .NET Framework 3.5, make sure you have updated your Windows XP oper

ating system to Service Pack 3.

Microsoft .NET Framework 3.5 (For Windows XP only)

To install the driver, click “Microsoft .NET Framework 3.5” on the main menu.

3. Click Exit.

Page 46

www.dﬁ .com

Chapter 8 Supported Software

Chapter 8

1. Click “I accept the

agreement” then click Next.

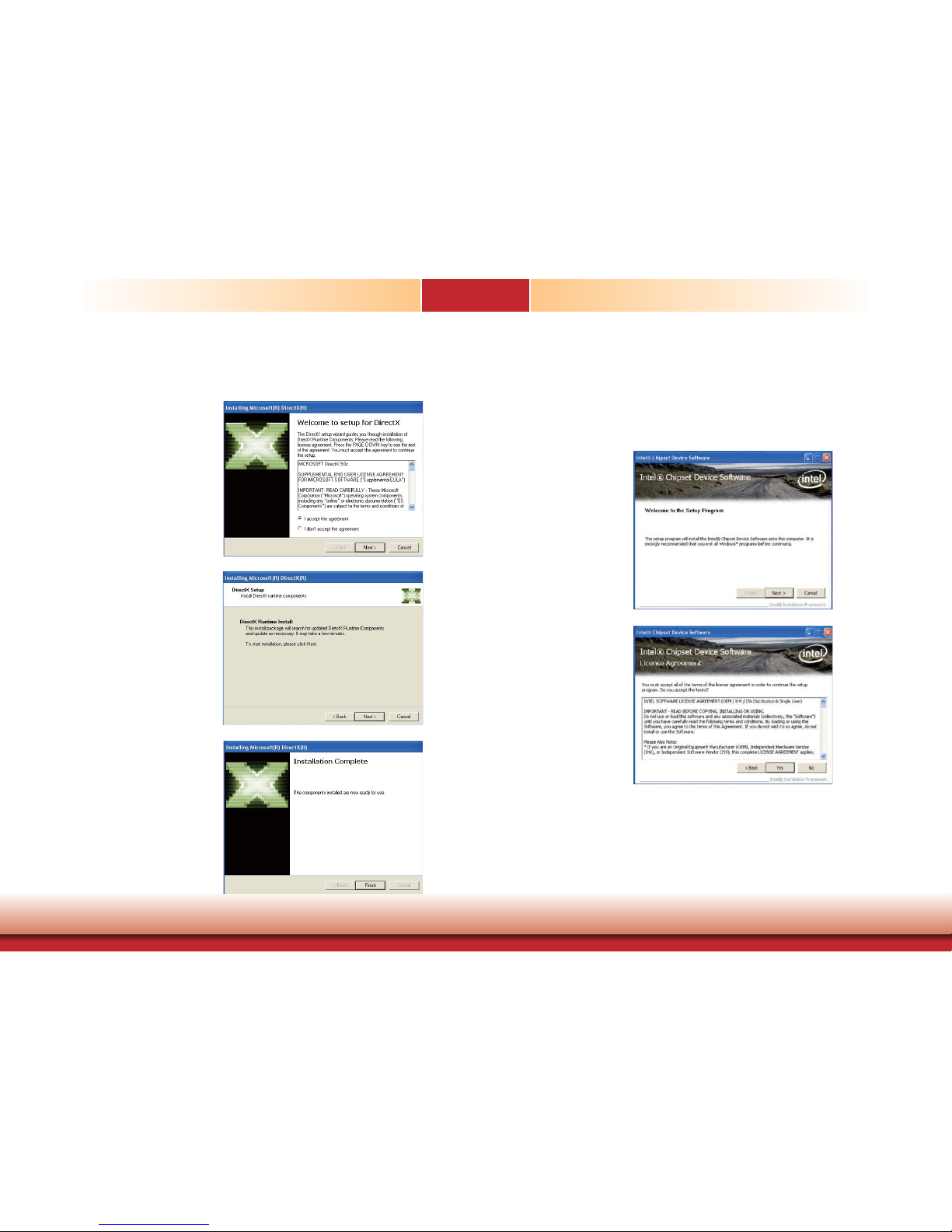

Microsoft DirectX 9.0C (For Windows XP only)

To install the utility, click “Microsoft DirectX 9.0C Driver” on the main menu.

2. To start installation, click

Next.

3. Click Finish. Reboot the

system for DirectX to take effect.

Intel Chipset Software Installation Utility (For Windows XP)

The Intel Chipset Software Installation Utility is used for updating Windows® INF files so that the Intel chipset can be recognized and configured properly in the system.

To install the utility, click “Intel Chipset Software Installation Utility” on the main menu.

1. Setup is now ready to install the utility. Click Next.

2. Read the license agreement then click Yes.

Page 47

www.dﬁ .com

Chapter 8 Supported Software

Chapter 8

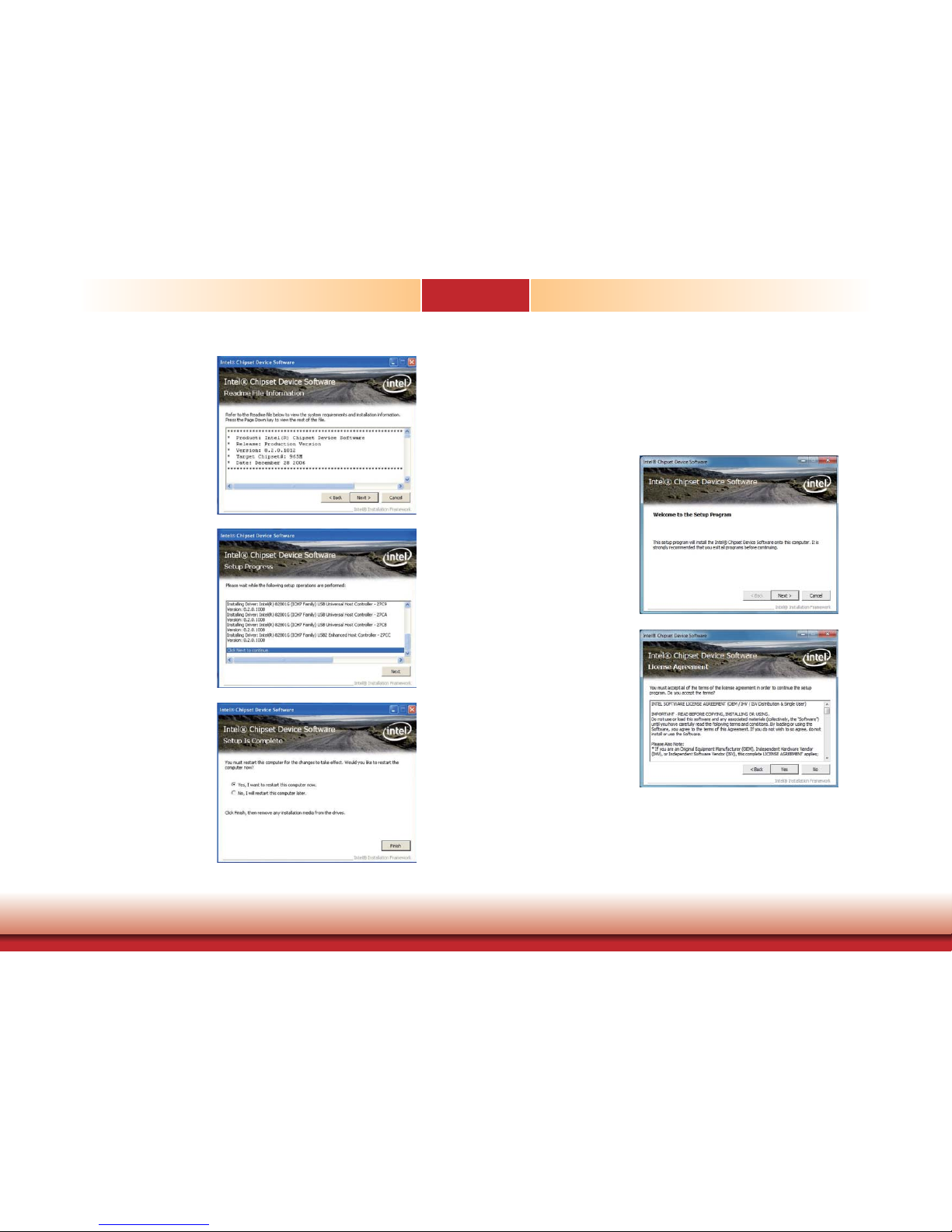

3. Go through the readme document for system requirements and installation tips then click Next.

4. Setup is now installing the driver. Click Next to continue.

5. Click “Yes, I want to restart this computer now” then click Finish.

Restarting the system will

allow the new software installation to take effect.

Intel Chipset Software Installation Utility (For Windows 7)

The Intel Chipset Software Installation Utility is used for updating Windows® INF files so that the Intel chipset can be recognized and configured properly in the system.

To install the utility, click “Intel Chipset Software Installation Utility” on the main menu.

2. Read the license agreement then click Yes.

1. Setup is now ready to install the utility. Click Next.

Page 48

www.dﬁ .com

Chapter 8 Supported Software

Chapter 8

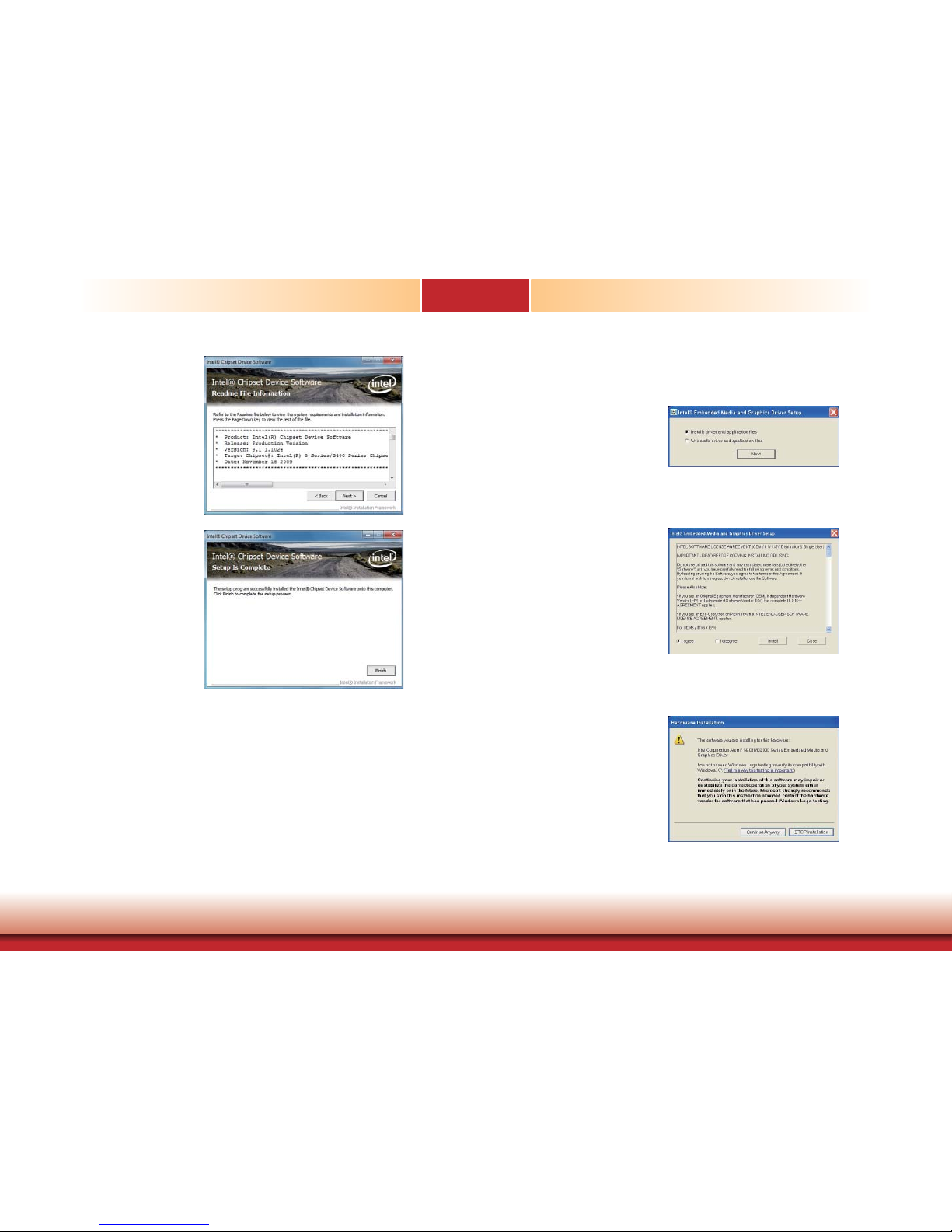

Intel Graphics Drivers (For Windows XP)

To install the driver, click “Intel Graphics Drivers” on the main menu.

3. Go through the readme document for system requirements and installation tips then click Next.

4. After completing installation, click Finish to exit setup.

1. Setup is now ready to install the graphics driver. Select “Installs driver and application files“ and click Next.

2. Read the license agreement. Then, select “I agree“ and click Install.

3. Click “Continue Anyway“ to start the installation.

Page 49

www.dﬁ .com

Chapter 8 Supported Software

Chapter 8

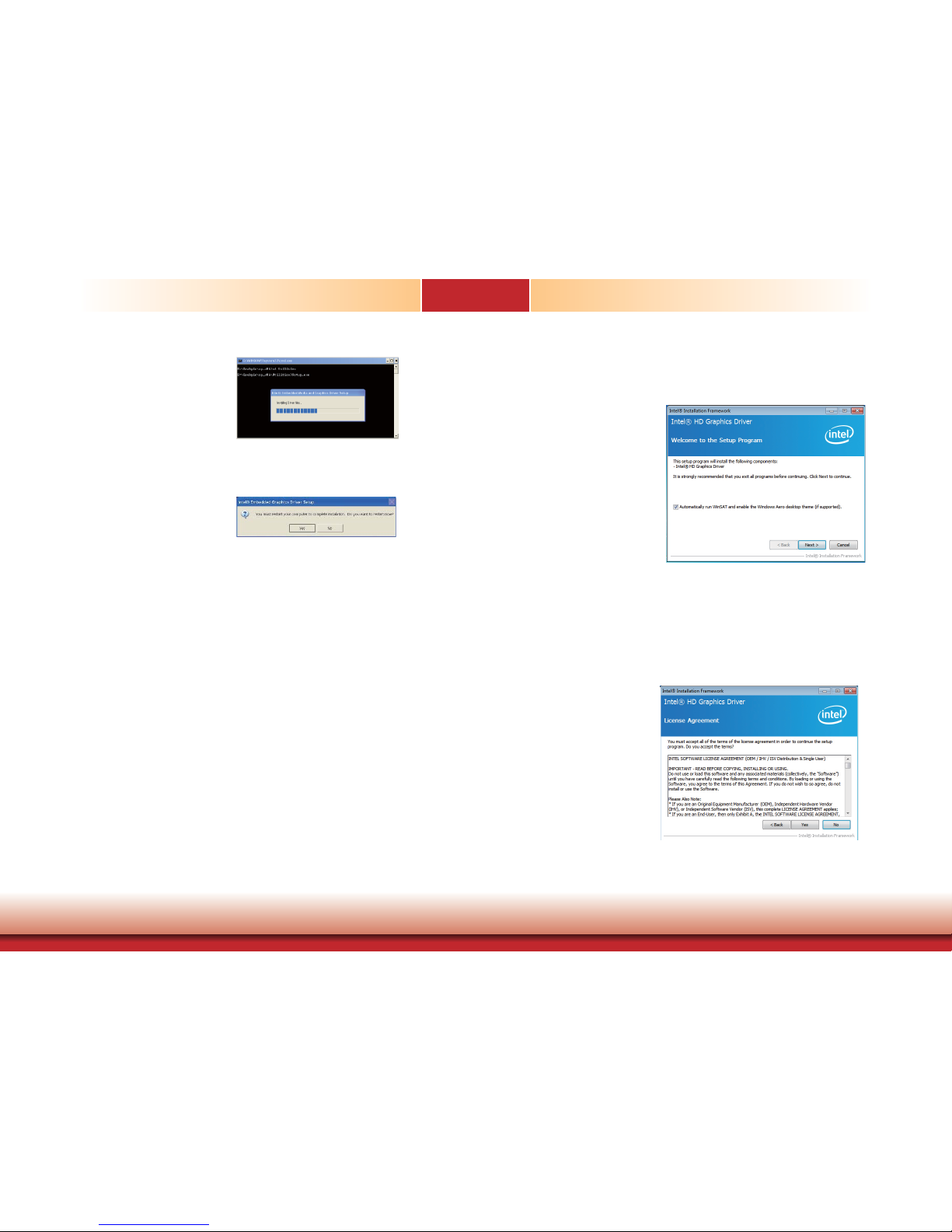

Intel Graphics Drivers (For Windows 7)

To install the driver, click “Intel Graphics Drivers” on the main menu.

1. Setup is now ready to install the graphics driver. Click Next.

By default, the “Automatically run WinSAT and enable the Windows Aero desktop theme” is enabled. With this enabled, after installing the graphics driver and the system rebooted, the screen will turn blank for 1 to 2 minutes (while WinSAT is running) before the Windows 7/ Windows 8 desktop appears. The “blank screen” period is the time Windows is testing the graphics performance.

We recommend that you skip this process by disabling this function then click Next.

2. Read the license agreement then click Yes.

4. Setup is now installing the driver.

5. Click “Yes” to restart this computer now.

Restarting the system will allow the new software installation to take effect.

Page 50

www.dﬁ .com

Chapter 8 Supported Software

Chapter 8

4. Setup is now installing the driver. Click Next to continue.

3. Go through the readme document for system requirements and installation tips then click Next.

5. Click “Yes, I want to restart this computer now” then click Finish.

Restarting the system will allow the new software installation to take effect.

Audio Drivers (For Windows XP)

To install the driver, click “Audio Drivers” on the main menu.

1. Setup is now ready to install the audio driver. Click Next.

2. Follow the remainder of the steps on the screen; clicking “Next” each time you finish a step.

3. Click “Yes, I want to restart my computer now” then click Finish.

Restarting the system will allow the new software installation to take effect.

Page 51

www.dﬁ .com

Chapter 8 Supported Software

Chapter 8

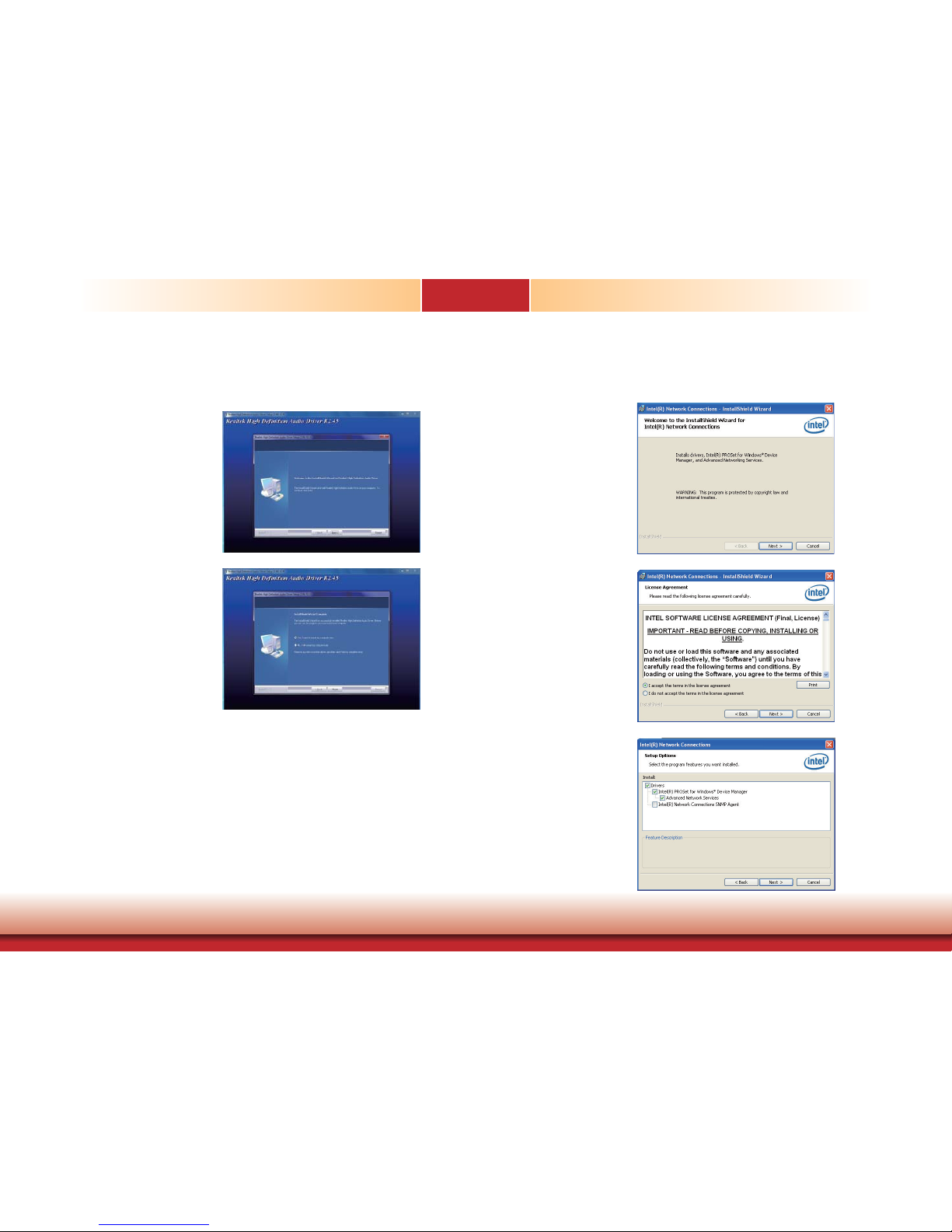

Audio Drivers (For Windows 7)

To install the driver, click “Audio Drivers” on the main menu.

3. Click “Yes, I want to restart my

computer now” then click Finish. Restarting the system will allow

the new software installation to take effect.

1. Setup is now ready to install the

driver. Click Next.

2. Follow the remainder of the

steps on the screen; clicking “Next” each time you finish a step.

Intel LAN Drivers (For Windows XP)

To install the driver, click “Intel LAN Drivers” on the main menu.

1. Setup is ready to install the driver. Click Next.

2. Click “I accept the terms in the license agreement” then click “Next”.

3. Select the program featuers you want installed then click Next.

Page 52

www.dﬁ .com

Chapter 8 Supported Software

Chapter 8

4. Click Install to begin the installation.

5. After completing installation, click Finish.

Intel LAN Drivers (For Windows 7)

To install the driver, click “Intel LAN Drivers” on the main menu.

1. Setup is ready to install the driver. Click Next.

2. Click “I accept the terms in the license agreement” then click “Next”.

3. Select the program features you want installed then click Next.

Page 53

www.dﬁ .com

Chapter 8 Supported Software

Chapter 8

Intel Rapid Storage Technology

The Intel Rapid Storage Technology is a utility that allows you to monitor the current status of the SATA drives. It enables enhanced performance and power management for the storage subsystem.

To install the driver, click “Intel Rapid Storage Technology” on the main menu.

1. Setup is now ready to install

the utility. Click Next.

2. Read the warning then click

Yes.

4. Click Install to begin the installation.

5. After completing installation, click Finish.

Page 54

www.dﬁ .com

Chapter 8 Supported Software

Chapter 8

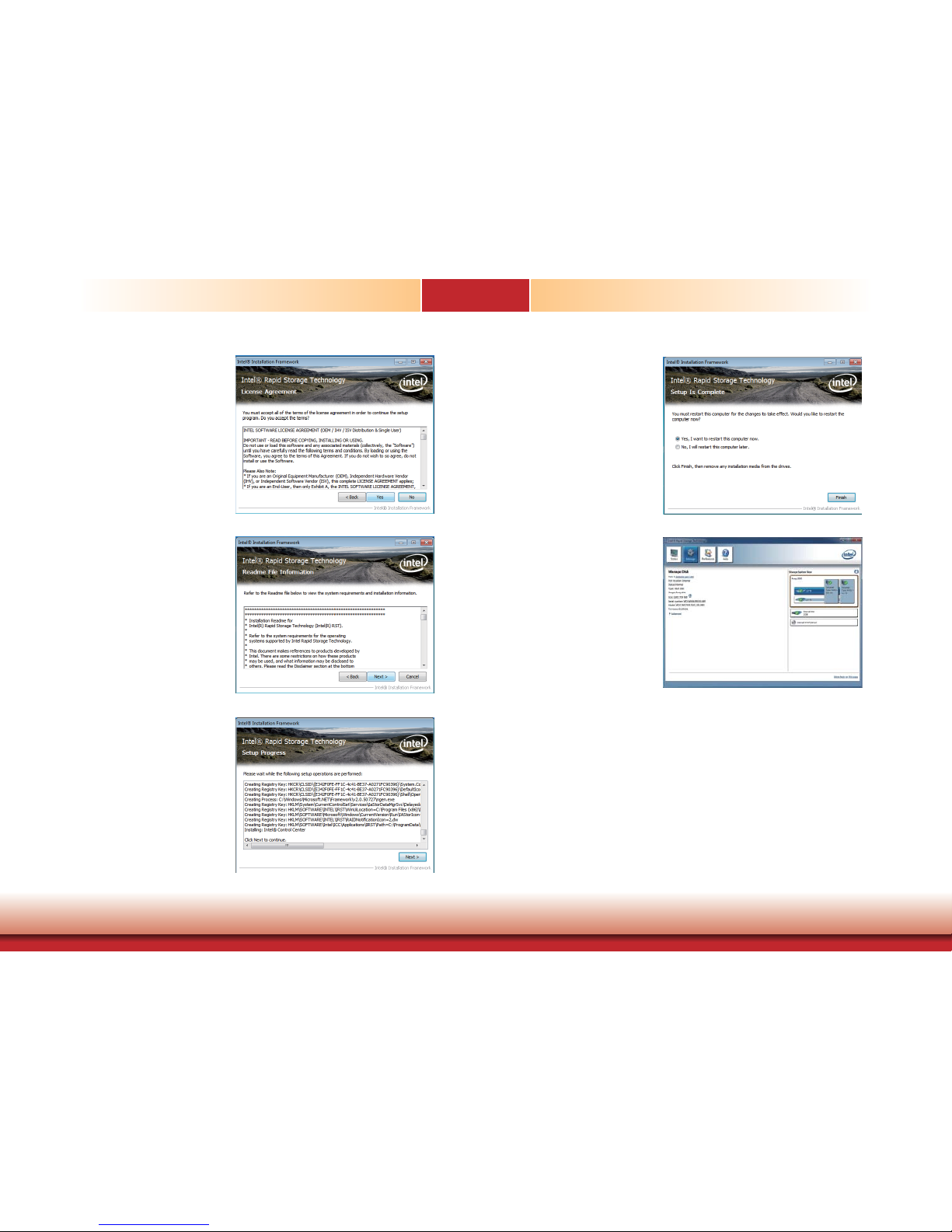

4. Go through the readme document

for system requirements and installation tips then click Next.

5. Setup is now installing the utility.

Click Next to continue.

3. Read the license agreement then

click Yes.

6. Click “Yes, I want to restart my computer now” then click Finish.

Restarting the system will allow the new software installation to take effect.

7. Run the Intel Matrix Storage

Console utility to view the hard drives’ configuration.

Page 55

www.dﬁ .com

Chapter 8 Supported Software

Chapter 8

F6 Floppy Configuration Utility

This is used to create a floppy driver diskette needed when you install Windows® XP using the F6 installation method. This will allow you to install the operating system onto a hard drive when in AHCI mode.

1. Insert a blank floppy diskette.

2. Locate for the drivers in the CD then copy them to the floppy diskette. The CD includes drivers for both 32-bit and 64-bit operating systems. The path to the drivers are shown below.

32-bit CD Drive:\AHCI_RAID\F6FLOPPY\f6flpy32

64-bit CD Drive:\AHCI_RAID\F6FLOPPY\f6flpy64

1. Setup is ready to instal the DFI Utility driver Click “Next”.

2. Click “I accept the terms in the license agreement” then click “Next”.

DFI Utility

DFI Utility provides information about the board, Watchdog, DIO, and Backlight. To access the utility, click “DFI Utility” on the main menu.

Note:

If you are using Windows 7, you need to access the operating system as an administrator to be able to install the utility.

Page 56

www.dﬁ .com

Chapter 8 Supported Software

Chapter 8

4. Click “Install” to begin the

installation.

5. After completing installa

tion, click “Finish”.

3. Enter “User name” and

“Organization” information then click “Next”.

Page 57

www.dﬁ .com

Chapter 8 Supported Software

Chapter 8

Adobe Acrobat Reader 9.3

To install the reader, click “Adobe Acrobat Reader 9.3” on the main menu.

1. Click Next to install or click Change Destination Folder to select another folder.

2. Click Install to begin installation.

3. Click Finish to exit installation.

Page 58

www.dﬁ .com

Appendix A Watchdog Sample Code

Appendix A

Appendix A - Watchdog Sample Code

;Software programming example: ;---------------------------------------------

;(1) Enter Super IO Conﬁ guration mode ;--------------------------------------------MOV DX,2EH MOV AL,87H OUT DX,AL OUT DX,AL

;------------------------------------------------------------------------------------------;(2) Conﬁ guration Logical Device 7, register CRF5/CRF6 (WDT Control /WDT timer) ;------------------------------------------------------------------------------------------MOV DX,2EH MOV AL,07H ;Ready to Program Logical Device OUT DX,AL

MOV DX,2FH MOV AL,07H ;Select Logical Device 7 OUT DX,AL

MOV DX,2EH MOV AL, F6H ;Select watchdog timer register OUT DX,AL

MOV DX,2FH MOV AL,10H ;Set watchdog timer value OUT DX,AL

MOV DX,2EH MOV AL, F5H ;Select watchdog Control Register OUT DX,AL

MOV DX,2FH MOV AL,61H ;Set Watchdog Control Value OUT DX,AL

;---------------------------------------------------------------;(1) Exit extended function mode ;---------------------------------------------------------------MOV DX,2EH MOV AL,AAH OUT DX,AL

Page 59

www.dﬁ .com

Appendix B System Error Message

Appendix B

Appendix B - System Error Message

When the BIOS encounters an error that requires the user to correct something, either a beep code will sound or a message will be displayed in a box in the middle of the screen and the message, PRESS F1 TO CONTINUE, CTRL-ALT-ESC or DEL TO ENTER SETUP, will be shown in the information box at the bottom. Enter Setup to correct the error.

Error Messages

One or more of the following messages may be displayed if the BIOS detects an error during the POST. This list indicates the error messages for all Awards BIOSes:

CMOS BATTERY HAS FAILED

The CMOS battery is no longer functional. It should be replaced.

CMOS CHECKSUM ERROR

Checksum of CMOS is incorrect. This can indicate that CMOS has become corrupt. This error may have been caused by a weak battery. Check the battery and replace if necessary.

DISPLAY SWITCH IS SET INCORRECTLY

The display switch on the motherboard can be set to either monochrome or color. This indicates the switch is set to a different setting than indicated in Setup. Determine which setting is correct, either turn off the system and change the jumper or enter Setup and change the VIDEO selection.

FLOPPY DISK(S) fail (80)

Unable to reset floppy subsystem.

FLOPPY DISK(S) fail (40)

Floppy type mismatch.

Hard Disk(s) fail (80)

HDD reset failed.

Hard Disk(s) fail (40)

HDD controller diagnostics failed.

Hard Disk(s) fail (20)

HDD initialization error.

Hard Disk(s) fail (10)

Unable to recalibrate fixed disk.

Hard Disk(s) fail (08)

Sector Verify failed.

Keyboard is locked out - Unlock the key

The BIOS detects that the keyboard is locked. Keyboard controller is pulled low.

Keyboard error or no keyboard present

Cannot initialize the keyboard. Make sure the keyboard is at

tached correctly and no keys are

being pressed during the boot.

Manufacturing POST loop

System will repeat POST procedure infinitely while the k

eyboard controller is pull low. This is

also used for the M/B burn in test at the factory.

BIOS ROM checksum error - System halted

The checksum of ROM address F0000H-FFFFFH is bad.

Memory test fail

The BIOS reports memory test fail if the memory has error(s).

Important:

Danger of explosion if battery incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the battery manufacturer’s instructions.

Page 60

www.dﬁ .com

Appendix C Troubleshooting Checklist

Appendix C

Appendix C - Troubleshooting Checklist

Troubleshooting Checklist

This chapter of the manual is designed to help you with problems that you may encounter with your personal computer. To efficiently troubleshoot your system, treat each problem individually. This is to ensure an accurate diagnosis of the problem in case a problem has multiple causes.

Some of the most common things to check when you encounter problems while using your system are listed below.

1. The power switch of each peripheral device is turned on.

2. All cables and power cords are tightly connected.

3. The electrical outlet to which your peripheral devices are connected is working. Test the outlet by plugging in a lamp or other electrical device.

4. The monitor is turned on.

5. The display’s brightness and contrast controls are adjusted properly.

6. All add-in boards in the expansion slots are seated securely.

7. Any add-in board you have installed is designed for your system and is set up correctly.

Monitor/Display

If the display screen remains dark after the system is turned on:

1. Make sure that the monitor’s power switch is on.

Check that one end of the monitor’s power cord is properly attached to the monitor and the other end is plugged into a working AC outlet. If necessary, try another outlet.

3. Check that the video input cable is properly attached to the monitor and the system’s display adapter.

4. Adjust the brightness of the display by turning the monitor ’s brightness control knob.

The picture seems to be constantly moving.

1. The monitor has lost its vertical sync. Adjust the monitor’s vertical sync.

Move away any objects, such as another monitor or fan, that may be creating a magnetic field around the display.

3. Make sure your video card’s output frequencies are supported by this monitor.

The screen seems to be constantly wavering.

1. If the monitor is close to another monitor, the adjacent monitor may need to be turned off. Fluorescent lights adjacent to the monitor ma

y also cause screen wavering.

Power Supply

When the computer is turned on, nothing happens.

1. Check that one end of the AC power cord is plugged into a live outlet and the other end properly plugged into the back of the system.

Make sure that the voltage selection switch on the back panel is set for the correct type of

voltage you are using.

3. The power cord may have a “short” or “open”. Inspect the cord and install a new one if necessary.

Floppy Drive

The computer cannot access the floppy drive.

1. The floppy diskette may not be formatted. Format the diskette and try again.

The diskette may be write-protected. Use a diskette that is not write-protected.

3. You may be writing to the wrong drive. Check the path statement to make sure you are writing to the targeted drive.

4. There is not enough space left on the diskette. Use another diskette with adequate storage space.

Page 61

www.dﬁ .com

Appendix C Troubleshooting Checklist

Appendix C

Hard Drive

Hard disk failure.

1. Make sure the correct drive type for the hard disk drive has been entered in the BIOS.

If the system is configured with two hard drives, make sure the bootable (first) hard drive is configured as Master and the second hard drive is configured as Slave. The master hard drive must have an active/bootable partition.

Excessively long formatting period.

If your hard drive takes an excessively long period of time to format, it is likely a cable connection problem. Howev

er, if your hard drive has a large capacity, it will take a longer time to

format.

Serial Port

The serial device (modem, printer) doesn’t output anything or is outputting garbled characters.

1. Make sure that the serial device’s power is turned on and that the device is on-line.

Verify that the device is plugged into the correct serial port on the rear of the computer.

3. Verify that the attached serial device works by attaching it to a serial port that is working and configured correctly. If the serial device does not work, either the cable or the serial device has a problem. If the serial device works, the problem may be due to the onboard I/O or the address setting.

4. Make sure the COM settings and I/O address are configured correctly.

Keyboard

Nothing happens when a key on the keyboard was pressed.

1. Make sure the keyboard is properly connected.

Make sure there are no objects resting on the keyboard and that no keys are pressed during the booting process.

System Board

1. Make sure the add-in card is seated securely in the expansion slot. If the add-in card is loose, power off the system, re-install the card and power up the system.

2. Check the jumper settings to ensure that the jumpers are properly set.

3. Verify that all memory modules are seated securely into the memory sockets.

4. Make sure the memory modules are in the correct locations.

5. If the board fails to function, place the board on a flat surface and seat all socketed components. Gently press each component into the socket.

6. If you made changes to the BIOS settings, re-enter setup and load the BIOS defaults.

Page 62

www.dﬁ .com

Appendix D Exploded Diagram

Appendix D

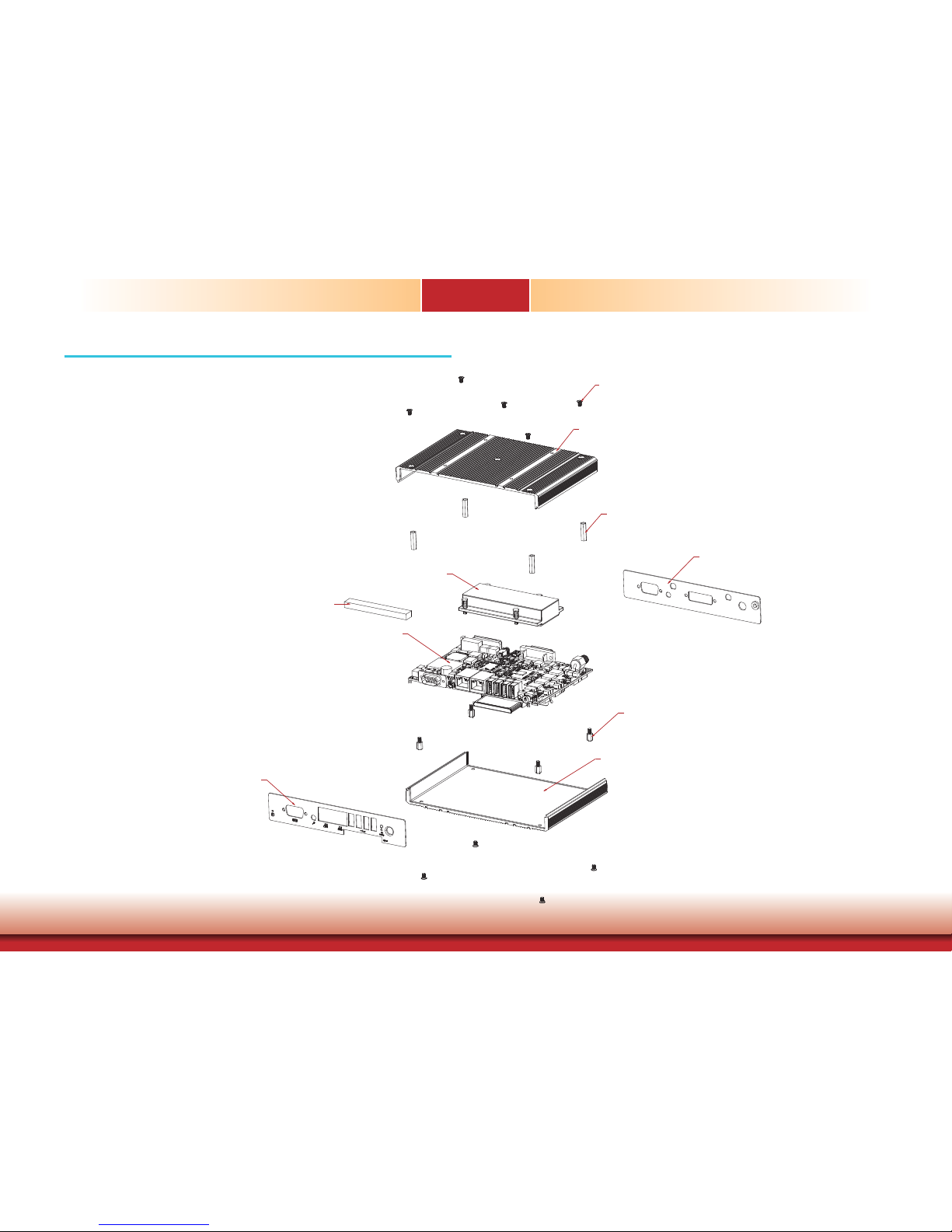

Appendix D - Exploded Diagram

531-510750-000G

A31-027014-200G

A33-630019-A70G

A31-025011-200G

A71-210010-000G

PCBA-CD952

A52-035008-000G

A33-530019-070G

A31-027009-200G

A31-023023-200G

Page 63

www.dﬁ .com

Appendix E Digital I/O User Guide

Appendix E

Appendix E - Digital I/O User Guide

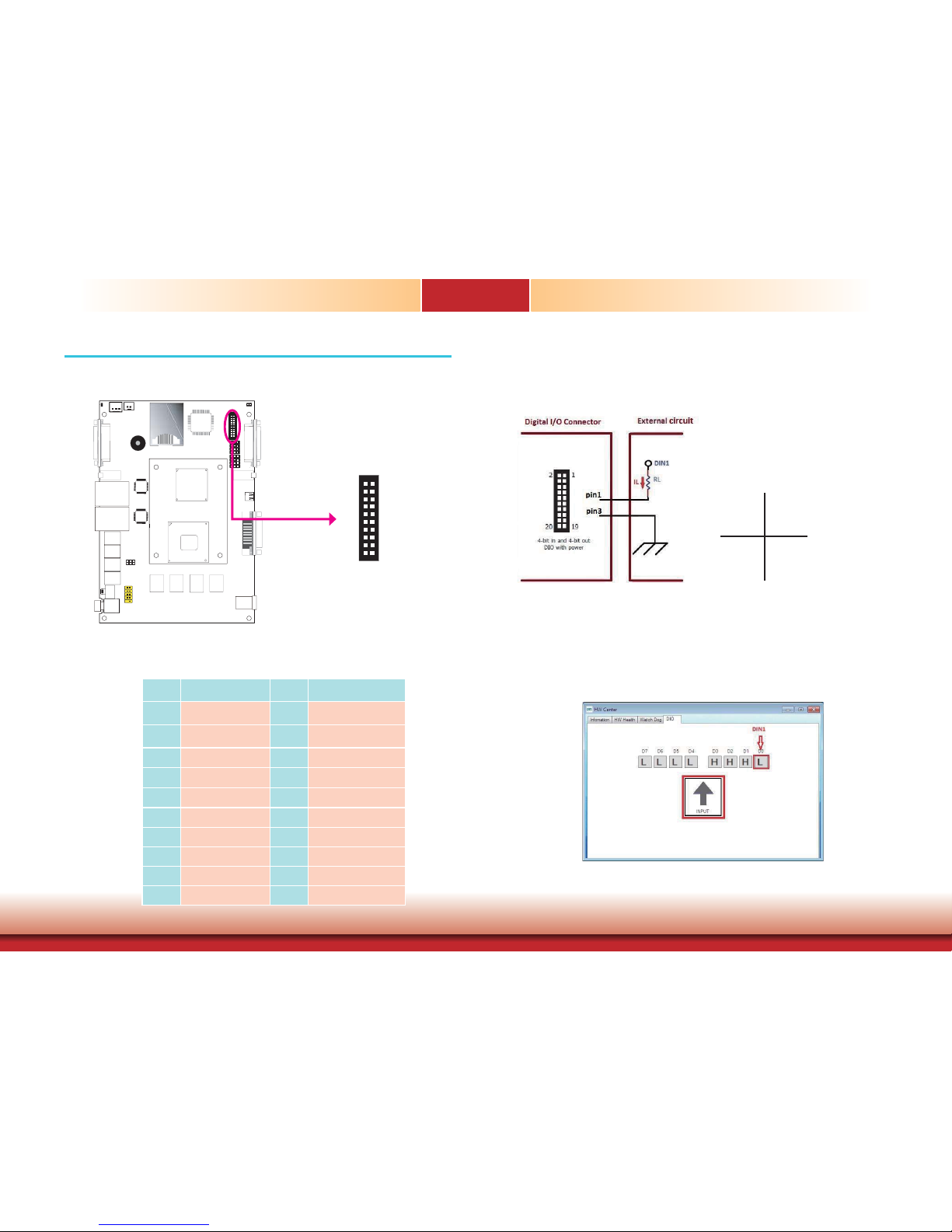

CD952 Series: Isolated 8-bit Digital I/O Pin Define

The 4-bit in and 4-bit out Digital I/O connector provides powering-on function to external devices that are connected to these connectors.

Digital I/O Connector

VGA

DVI-I

1920

4-bit in and 4-bit out

DIO with power

Pins Function Pins Function

DIN0A

DOUT0A

DIN0B

DOUT0B

DIN1A

DOUT1A

DIN1B

DOUT1B

DIN2A

DOUT2A

DIN2B

DOUT2B

DIN3A

DOUT3A

DIN3B

DOUT3B

+5V

+5V_standby

GND

DIN Example with DIN0A/DIN0B

IL max: 50mA

For example: DIN= 5V RL= 500Ω IL= 1mA

DFI DIO Utility D0

DIN1

L H

Set DIO at Input Mode

Example1 DIN1= 5V D0 to L.

Page 64

www.dﬁ .com

Appendix E Digital I/O User Guide

Appendix E

DOUT Example1 with Dout0A/Dout0B

VL: 60V max IL max: 600mA

For example: VL= 5V RL= 1KΩ IL= 5mA

DFI DIO

Utility D4

OUT1

H L

L H

DOUT Example2 with Dout0A/Dout0B

DFI DIO

Utility D4

OUT1

H L

Set DIO at Output Mode, Press D4 to H

Example1 OUT1 to Low. Example2 OUT1 to High.

According DIO pin to GPIO Programming Setting

Pins Function

DIN0A

DIN0B

DIN1A

DIN1B

DIN2A

DIN2B

DIN3A

DIN3B

+5V

GND

Couple for GPIO 80

Couple for GPIO 81

Couple for GPIO 82

Couple for GPIO 83

Page 65

www.dﬁ .com

Appendix E Digital I/O User Guide

Appendix E

Pins Function

DOUT0A

DOUT0B

DOUT1A

DOUT1B

DOUT2A

DOUT2B

DOUT3A

DOUT3B

+5V_standby

GND

Couple for GPIO 84

Couple for GPIO 85

Couple for GPIO 86

Couple for GPIO 87

DIN MAP

DOUT MAP

Page 66

www.dﬁ .com

Appendix E Digital I/O User Guide

Appendix E

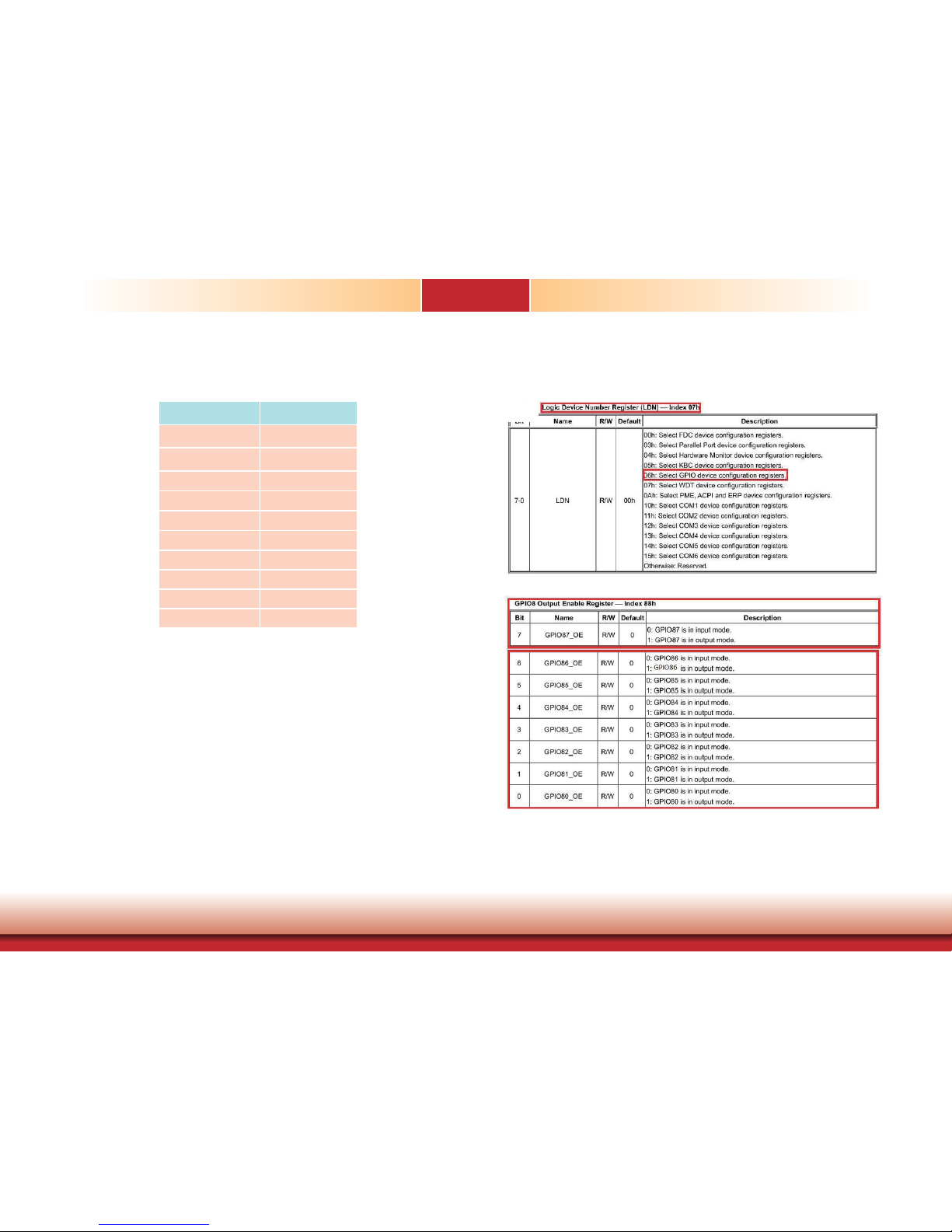

Digital I/O Proramming Guide

1. Pins for Digital I/O

Item Standard

GPIO80 (Pin111) GP80

GPIO81 (Pin112)

GP81

GPIO82 (Pin113) GP82

GPIO83 (Pin114) GP83

GPIO84 (Pin115) GP84

GPIO85 (Pin116) GP85

GPIO86 (Pin117) GP86

GPIO87 (Pin118) GP87

GPIO71 (Pin104) CTR-GP71

GPIO72 (Pin105) CTR-GP72

2. Programming Guide

To program the F81866A configuration registers, the following configuration procedures must be followed in sequence:

(1) Enter the Extended Function Mode (2) Configure the configuration registers (3) Exit the Extended Function Mode

The configuration register is used to control the behavior of the corresponding devices. To configure the register, using the index port to select the index and then writing data port to alter the parameters. The default index port and data port are 0x4E and 0x4F respectively. Pull

down the SOUT1 pin to change the default value to 0x2E/0x2F. To enable configuration, the entry key 0x87 must be written to the index port. To disable configuration, write exit entry key 0xAA to the index port. Following is an example to enable

configuration and disable configuration by using debug.

-o 4e 87

-o 4e 87 (enable configuration)

-o 4e aa (disable configuration)

3. Relative Registers

Page 67

www.dﬁ .com

Appendix E Digital I/O User Guide

Appendix E

Page 68

www.dﬁ .com

Appendix E Digital I/O User Guide

Appendix E

4.2 Control of GP80 to GP87

#define AddrPort 0x2E #define DataPort 0x2F

<Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) //Must write twice to entering Extended mode

<Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(DataPort, 0x06)// Select logic device 06h

<Output/Input Mode Selection>//SetGP80 to GP87 I/O Mode WriteByte(AddrPort, 0x88)// Select configuration register 88h WriteByte(DataPort, (ReadByte(DataPort) & 0xXX)) //Set (bit n) = (1/0) to select GP 8n as Output/Input mode. <Get Input Value> WriteByte(AddrPort, 0x8A)// Select configuration register 8Ah Data = ReadByte(DataPort)// The “Data” represent the input value of GP80~87

<Output Value> WriteByte(AddrPort, 0x89)// Select configuration register 89h WriteByte(DataPort, Value)// Set bit n=(0/1) to output GP 8n as Low or High

<Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA)

4. Sample Code in C Language

4.1 Control of GP03, GP02 and GP07

#define AddrPort 0x2E #define DataPort 0x2F

<Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) //Must write twice to entering Extended mode

<Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(AddrPort, 0x06) //Select logic device 06h

<Output Mode Selection>//SetGPIO71/72 to output Mode WriteByte(AddrPort, 0x80)// Select configuration register 80h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x06)) //Set (bit 0/1) = (1) to select GPIO 71/72 as Output mode.

<Output Value> WriteByte(AddrPort, 0x81)// Select configuration register 81h WriteByte(DataPort, Value)// Set bit n=(1/2) to output GPI07n as Low or High

<Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA)

Page 69

www.dﬁ .com

Appendix E Digital I/O User Guide

Appendix E

CD952 Series: Isolated 4-bit Digital I/O Jumper Setting COM2/DIO Select

VGA

DVI-I

1-4-7-10, 2-5-8-11

On: COM2 (default)

JP9/JP10

64 31

12 10

64 31

12 10

2-5-8-11, 3-6-9-12

On: DIO

The system board uses JP9 and JP10 to select between RS232/422/485 COM2 or isolated 4-bit DIO at the rear panel.

Note:

You cannot use COM2 and DIO at the same time. Please set up JP9 and JP10 at the same time.

COM port mode

DIO mode

CD952 Series: Isolated 4-bit Digital I/O Pin Define

VGA

DVI-I

COM2 (Serial) Port/ Isolated 4-bit DIO

RS232/422/485 COM2

or Isolated 4-bit DIO

Pins DIO Function

DIN0A

DIN0B

DIN1A

DIN1B

GND

DOUT0A

DOUT0B

DOUT1A

DOUT1B

12345

678

Page 70

www.dﬁ .com

Appendix E Digital I/O User Guide

Appendix E

Isolated 4-bit Digital I/O Input Request

Pins Input Request

5V~12V

GND

5V~12V

GND

Loading AC or DC 5V~60V

AC or DC

Load

AC or DC

Load

ABSOLUTE MAXIMUM RATINGS SPECIFICATION

*Pin1/Pin3 :

- Diode f

orward current(DC) rating IF =50mA/ch.

*Pin6/Pin8 :

- MOS FET Continuous Load Current rating IL =600mA.

Page 71

www.dﬁ .com

Appendix E Digital I/O User Guide

Appendix E

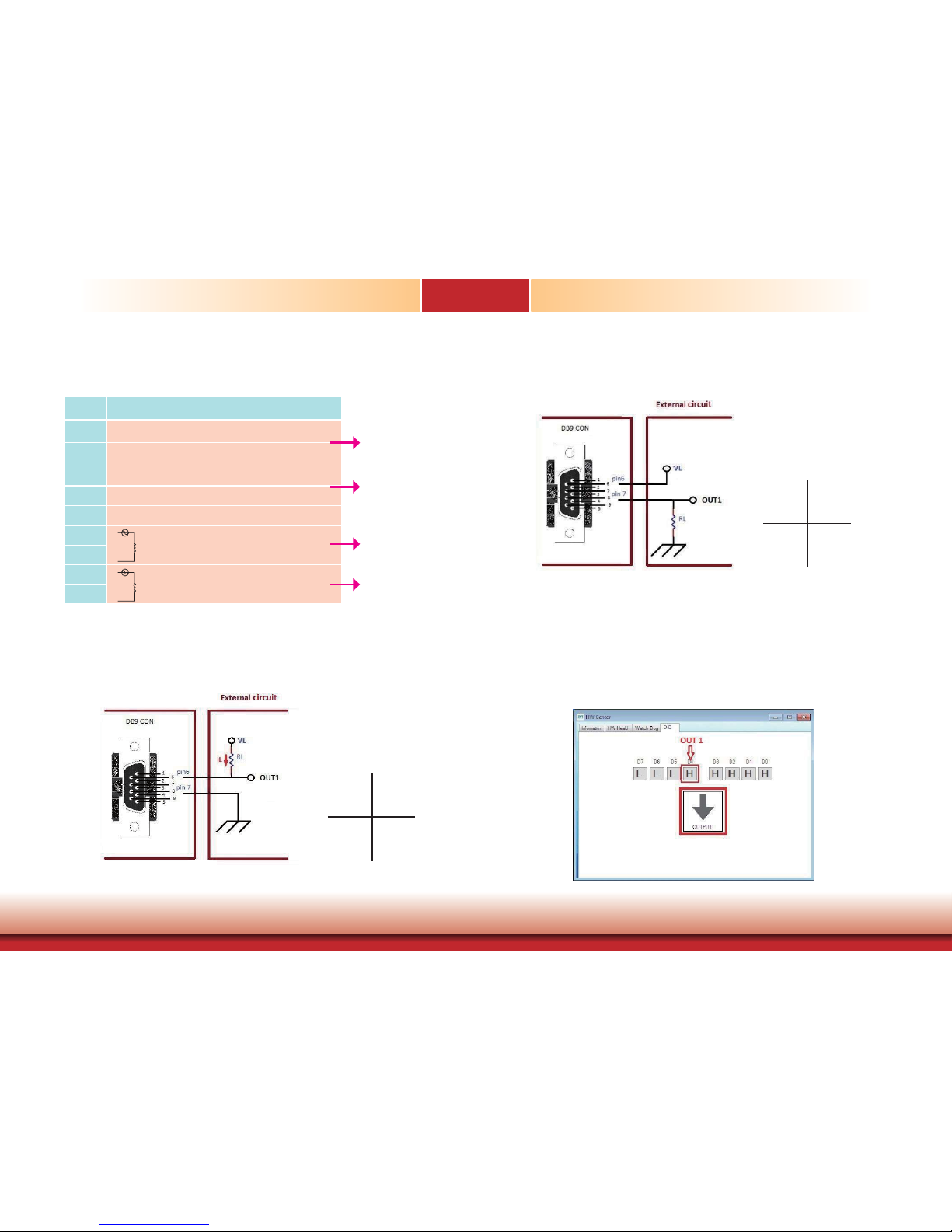

4-bit (2-bit in and 2-bit out) description

DOUT Example1 with Dout0A/Dout0B

VL: 60V max IL max: 600mA

For example: VL= 5V RL= 1KΩ IL= 5mA

DFI DIO

Utility D4

OUT1

L H

DOUT Example2 with Dout0A/Dout0B

DFI DIO

Utility D4

OUT1

H L

Set DIO at Output Mode, Press D4 to H

Example1 OUT1 to Low. Example2 OUT1 to High.

Pins Input Request

5V~12V

GND

5V~12V

GND

Loading AC or DC 5V~60V

AC or DC

Load

AC or DC

Load

Pin 1 and 2 are couple, DIN1

Pin 3 and 4 are couple, DIN2

Pin 6 and 7 are couple, OUT1

Pin 8 and 9 are couple, OUT2

Page 72

www.dﬁ .com

Appendix E Digital I/O User Guide

Appendix E

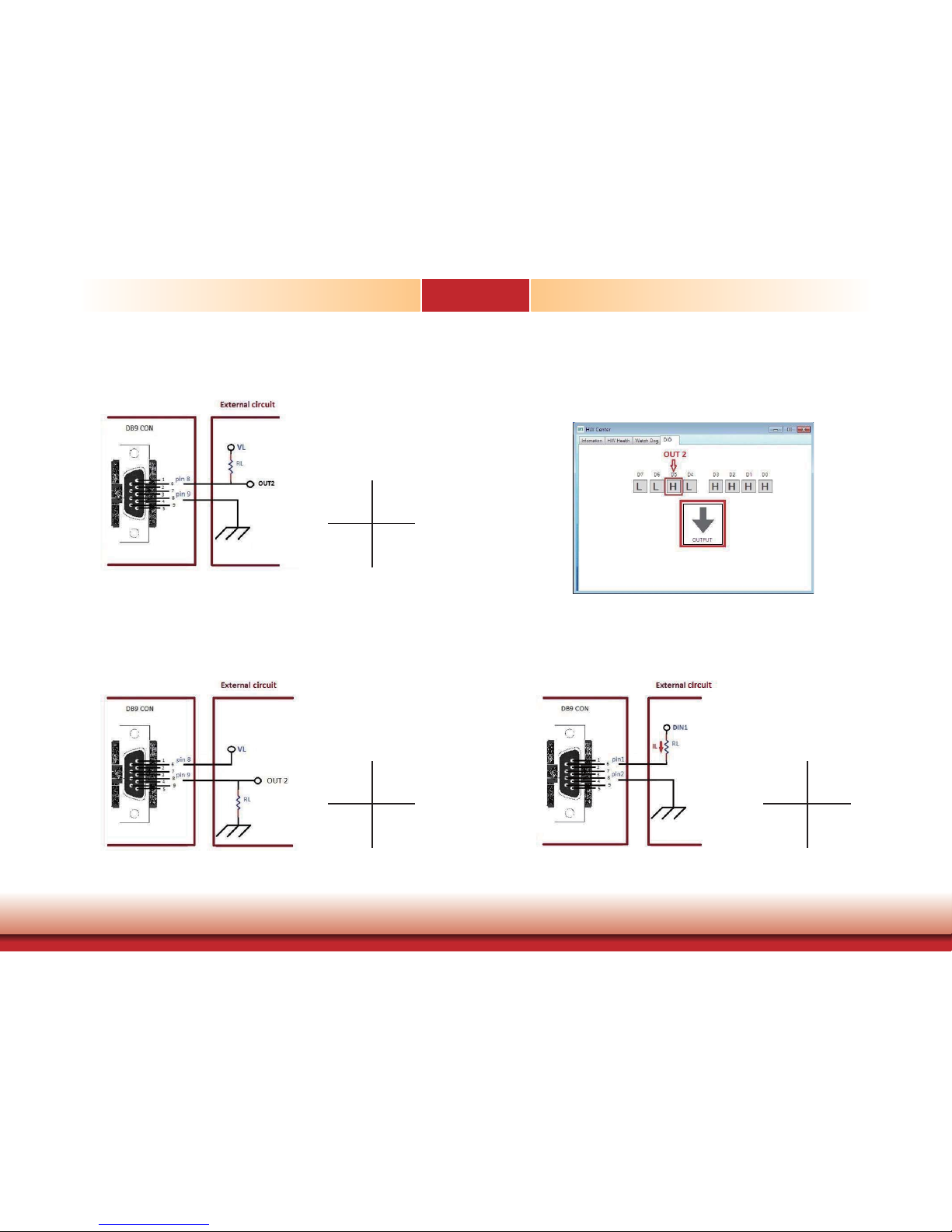

DOUT Example3 with Dout1A/Dout1B

DFI DIO

Utility D5

OUT2

L H

DOUT Example4 with Dout1A/Dout1B

DFI DIO

Utility D5

OUT2

H L

Set DIO at Output Mode, Press D5 to H

Example3 OUT2 to Low. Example4 OUT2 to High.

DIN Example1 with DIN0A/DIN0B

IL max: 50mA

For example: DIN= 5V RL= 500Ω IL= 1mA

DFI DIO

Utility D0

OUT1

H L

Page 73

www.dﬁ .com

Appendix E Digital I/O User Guide

Appendix E

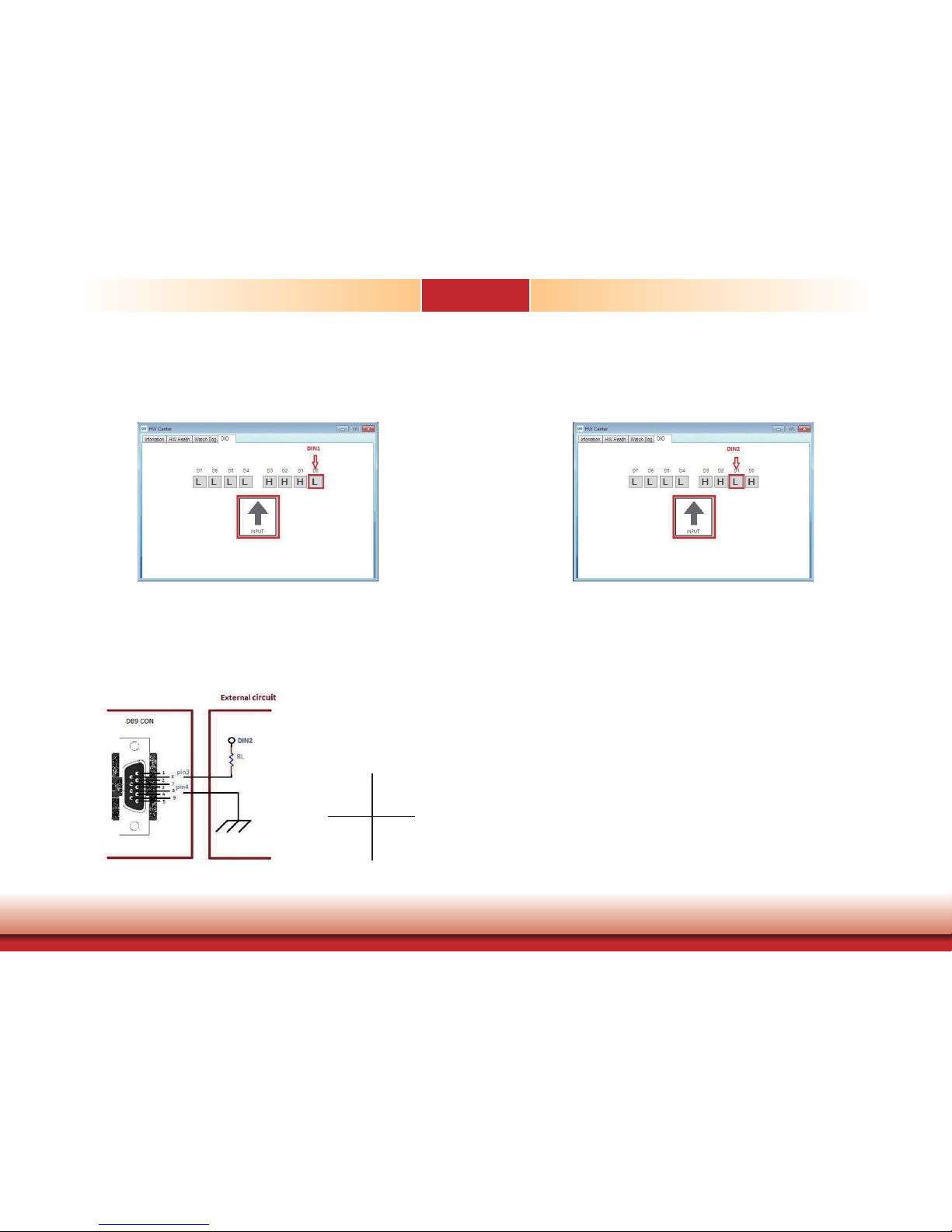

Set DIO at Input Mode

Example1 DIN1= 5V D0 to L

DIN Example1 with DIN1A/DIN1B

DFI DIO

Utility D1

OUT2

L H

Set DIO at Input Mode

Example2 DIN2= 5V D1 to L
