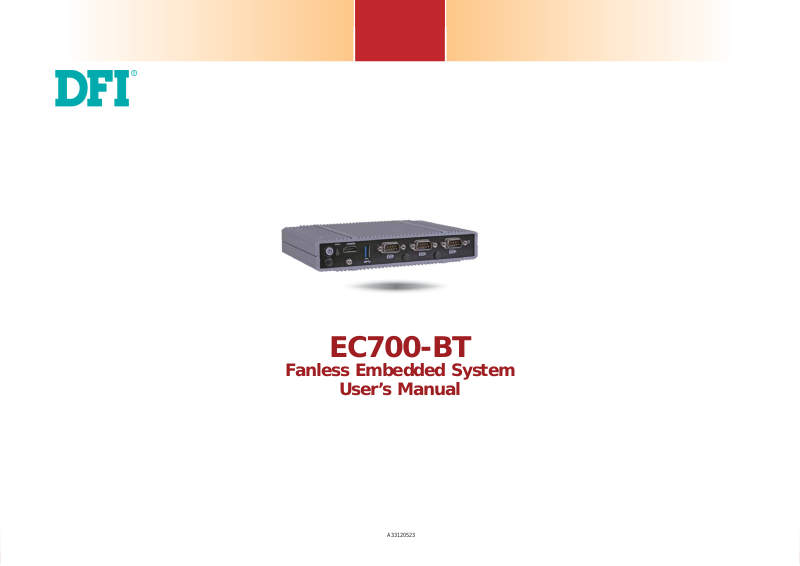

DFI EC700-BT User Manual
EC700-BT
Fanless Embedded System
User’s Manual
A33120523
1
Chapter 1 Introduction
www.dfi .com
Copyright
FCC and DOC Statement on Class B
This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2015. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.
Chapter 1 Introduction
2
www.dfi .com
Table of Contents
Copyright ...........................................................................................................2
Trademarks .......................................................................................................2
FCC and DOC Statement on Class B ...................................................2
About this Manual .........................................................................................4
Warranty ............................................................................................................4
Static Electricity Precautions ....................................................................4
Safety Measures ............................................................................................4
Safety Precautions ........................................................................................5
About the Package .......................................................................................5
Chapter 1 - Introduction ...........................................................................6
Overview .......................................................................................................6
Key Features ................................................................................................6
Specifications ...............................................................................................7
Getting the Know the EC700-BT ............................................................8
Mechanical Dimensions .............................................................................9
Chapter 2 - Getting Started ...................................................................10
Preparing the System .............................................................................. 10
Installing Devices .....................................................................................10
Configuring the BIOS ..............................................................................10
Installing the Operating System ..........................................................10
Installing the Drivers ...............................................................................10
Chapter 3 - Installing Devices ..............................................................11
Removing the Chassis Cover .................................................................11
Installing a 2.5” SATA Drive ..................................................................12
Installing a SIM Card ..............................................................................13
Installing a Mini PCIe and/or mSATA Card .......................................13
Installing the Mini PCIe Card ......................................................................13
Installing the mSATA Card .........................................................................14
Chapter 4 - Jumper Settings .................................................................16
Clear CMOS Data .......................................................................................16
Auto Power-on Select ...............................................................................16
USB Power Select .....................................................................................17
Panel Power Select ....................................................................................17
Backlight Power Select .............................................................................18
Dimming Mode Select .............................................................................18
Digital I/O Power Select ..........................................................................19
Digital I/O Output State .........................................................................19
LCD/Inverter Power Select ......................................................................20
COM 4/DIO Select .....................................................................................20
Chapter 5 - Ports and Connectors ......................................................21
Front Panel I/O Ports ..............................................................................21
Rear Panel I/O Ports ...............................................................................21
USB Ports .................................................................................................22
COM (Serial) Ports ..................................................................................... 23
Graphics Interfaces ....................................................................................24
9~36V DC-in .............................................................................................25
RJ45 LAN Ports ......................................................................................... 25
I/O Connectors ..........................................................................................26
Serial ATA Connector ..................................................................................26
Serial ATA Power Connector ........................................................................ 26
Cooling Fan Connector ...............................................................................26
LVDS LCD Panel with Power Connector ....................................................... 27
Mic-in Connector.........................................................................................28
Chassis Intrusion Connector .......................................................................28
Expansion Slots .......................................................................................... 29
Standby Power LED ...................................................................................29
Battery .....................................................................................................30
Chapter 6 - Mounting Options .............................................................. 31
Wall Mount .................................................................................................31
VESA Mount ...............................................................................................32
DIN Rail Mount .........................................................................................33
Chapter 7 - BIOS Setup ........................................................................... 35
Overview ..................................................................................................... 35
AMI BIOS Setup Utility ...........................................................................36
Updating the BIOS ...................................................................................52
Notice: BIOS SPI ROM ............................................................................ 52
Chapter 8 - Supported Software ......................................................... 53
Chapter 9 - Digital I/O Programming Guide .................................. 65
Appendix A - Watchdog Sample Code .............................................. 67
Appendix B - System Error Message ................................................. 68
Appendix C - Troubleshooting Checklist ........................................... 69
Appendix D - Exploded Diagram ......................................................... 71
Appendix E - Digital I/O User Guide ................................................. 61
Chapter 1 Introduction
3
www.dfi .com
About this Manual
Static Electricity Precautions
An electronic file of this manual is included in the CD. To view the user’s manual in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click
“User’s Manual” on the main menu.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the
product that has been modified or altered.
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con
nectors by their ends.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by
wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system
chassis throughout any procedures requiring ESD protection.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
Chapter 1 Introduction
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or servic-
ing. After installation or servicing, cover the system chassis before plugging the power cord.
Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
4
www.dfi .com
Safety Precautions
About the Package
• Use the correct DC input voltage range.
• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
• Keep this system away from humidity.
• Place the system on a stable surface. Dropping it or letting it fall may cause damage.
• The openings on the system are for air ventilation to protect the system from overheating.
DO NOT COVER THE OPENINGS.
• Place the power cord in such a way that it will not be stepped on. Do not place anything on
top of the power cord. Use a power cord that has been approved for use with the system
and that it matches the voltage and current marked on the system’s electrical range label.
• If the system will not be used for a long time, disconnect it from the power source to avoid
damage by transient overvoltage.
• If one of the following occurs, consult a service personnel:
- The power cord or plug is damaged.
- Liquid has penetrated the system.
- The system has been exposed to moisture.
- The system is not working properly.
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• 1 EC700-BT system unit
• Mounting screws for SATA drive
• Mounting screws for Mini PCIe module
• 1 CD disk includes
- Manual
- Drivers
• 1 Quick Installation Guide
Optional Items
• Wall Mount kit
• VESA Mount kit
• Power Cord
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System
Before powering-on the system, prepare the basic system components.
If you are installing the system board in a new system, you will need at least the following
internal components.
• Storage devices such as CFast card, Mini PCIe and/or mSATA card, etc.
You will also need external system peripherals you intend to use which will normally include at
least a keyboard, a mouse and a video display monitor.
- The system dropped or is damaged.
- The system has obvious signs of breakage.
• The unit uses a three-wire ground cable which is equipped with a third pin to ground the
unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does
not support this kind of plug, contact your electrician to replace the outlet.
• Disconnect the system from the DC outlet before cleaning. Use a damp cloth. Do not use
liquid or spray detergents for cleaning.
Chapter 1 Introduction
5
www.dfi .com
Chapter 1 - Introduction
Chapter 1
Overview
Front View
Rear View
Key Features
Model Name EC700-BT
Processor
Memory
LAN
COM
Display
USB
DIO
Intel® AtomTM/Intel® Celeron® processors
4GB/2GB DDR3L ECC onboard
2 LAN ports
4 COM ports
1 HDMI, 1 VGA or 1 DVI-I (optional)
1 Type A USB 3.0 port at the front panel;
4 Type A USB 2.0 ports at the rear panel
1 8-bit DIO via the DB-9 port
Chapter 1 Introduction
6
www.dfi .com
Specifications
Processor System
Memory
Graphics
Storage
Ethernet
Expansion
DIO
I/O Ports
•
Intel® AtomTM/Intel® Celeron® processors
®
AtomTM E3845, Quad Core, 2M Cache, 1.91GHz, 10W
- Intel
®
AtomTM E3825, Dual Core, 1M Cache, 1.33GHz, 6W
- Intel
®
Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
- Intel
®
Celeron® N2807, Dual Core, 1M Cache, 1.58GHz (2.16GHz), 4.3
- Intel
W
• BGA 1170 packaging technology
• 4GB/2GB DDR3L ECC onboard (-E45/-E25)
4GB/2GB DDR3L non-ECC onboard (-J19/-N28)
• Supports DDR3L 1333MHz (-E45/-J19/-N28)
Supports DDR3L 1066MHz (-E25)
• Supports single channel memory interface
• Intel® HD Graphics
• Display ports: 1 HDMI, 1 VGA, or 1 DVI-I* (optional)
• HDMI, DVI: resolution up to 1920x1080 @ 60Hz
• VGA: 24-bit, resolution up to 2560x1600 @ 60H
• 1 2.5" SATA drive bay
- SATA 2.0 port with data transfer rate up to 3Gb/s
• 1 mSATA module via a Mini PCIe slot
• Supports 4GB, 8GB, 16GB and 32GB eMMC onboard* (optional)
• 2 Intel® I210 PCI Express Gigabit Ethernet controllers
• Integrated 10/100/1000 transceiver
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• 3 Mini PCIe slots
- 2 slots for communication
: One half size slot supports PCIe, USB, and LPC signals for Wi-Fi module or
LPC module
: One full size slot supports PCIe, USB, and 3G signals for 3G or GPRS
module
- 1 full size slot for storage
: Supports mSATA module
• 1 SIM card socket
• 1 microSD socket* (optional)
• 1 8-bit DIO via the DB-9 port
• Front Panel
- 3 DB-9 serial ports
: supports RS232/422/485
: One of the ports supports 8-bit DIO
- 1 USB 3.0 (Type A) port
- 1 HDMI port
- 3 Wi-Fi antenna holes
- 1 status LED
- 1 HDD LED
- 1 reset button
- 1 power button
• Rear Panel
- 1 DB-9 serial port
: supports RS232/422/485
- 1 VGA port; or 1 DVI-I port* (optional)
- 4 USB 2.0 (Type A) ports
- 2 RJ45 LAN ports
- 1 9~36V DC-in jack
Chapter 1
COM
Trusted Platform
Module - TPM*
(optional)
Power
Environment
Construction
Mounting
Dimensions
Weight
OS Support
WatchDog Timer
Certifi cation
• 4 DB-9 ports
- 3 DB-9 ports support RS232/422/485 COM port
- 1 DB-9 port supports RS232/422/485 COM or 8-bit DIO
• Provides a Trusted PC for secure transactions
• Provides software license protection, enforcement and password protection
• Power input voltage: 9~36V DC-in jack
• Temperature
- Operating (E3845/E3825)
o
C~60oC (SSD/mSATA)
: -20
o
C~50oC (HDD)
: 0
- Operating (J1900/N2807)
o
C~60oC (SSD/mSATA)
: 0
o
C~50oC (HDD)
: 0
- Storage: -20
• Operating Vibration
- IEC68-2-64 (3G) (SSD/mSATA)
- IEC68-2-64 (1G) (HDD)
• Operating Shock
- Half sine wave 15G, 11ms, 3 shock per axis (SSD/mSATA)
- Half sine wave 3G, 11ms, 3 shock per axis (HDD)
o
C~85oC
• Aluminum + metal aluminum
Wall/VESA/DIN Rail mount
•
- Mounting brackets and screws* (optional)
• 180mm x 33mm x 121.2mm (W x H x D)
• 800g
• Windows 7, WES 7, Windows 8, WES 8, Windows 8.1
• Linux (Distribution available upon request)
• Watchdog timeout programmable via software from 1 to 255 seconds
• CE
• FCC Class B
• RoHS
Note:
*Optional and is not supported in standard model. Please contact your sales representative for more information.
Chapter 1 Introduction
7
www.dfi .com
Getting to Know the EC700-BT
Chapter 1
Front View
Status
LED
Power
HDMI
Antenna
Hole
Reset
Antenna Holes
Used to connect to a Wi-Fi antenna.
USB Port
Used to connect USB 3.0 device.
COM Ports
Used to connect serial devices.
HDMI Port
Use to connect an HDMI device.
Status LED
This LED will blink when the system is in the standby mode.
USB 3.0
COM 1
Antenna
Hole
COM 4 / 8-bit DIO
COM 2
Antenna
Hole
HDD LED
Rear View
COM 3
VGA Port
Used to connect a VGA device.
USB Port
Used to connect USB 2.0 devices.
COM Port
Used to connect serial devices.
LAN Ports
Used to connect the system to a local area network.
DC-in jack
Used to plug a power adapter.
VGA
USB 2.0
LAN 1/2
DC-in
HDD LED
Indicates the status of the hard drive.
Reset Button
Press to reset the system.
Power
Press to power-on or power-off the system.
Chapter 1 Introduction
8
www.dfi .com
Mechanical Dimensions
Chapter 1
Chassis Dimension
33
180
Front View
121.2
Right ViewLeft View
Motherboard Dimension
102.93
99.26
97
21.8
11.45
9.65
0
5
14.9
6.1
0
5
21.81
28.4
38.31
51.4
59.9
68.4
70.4
76.9
90.4
90.4
BT253
108.4
106.41
144.9
142.4
160
147.4
115
113.4
107
105.85
103.35
19.8
11.8
1.6
144.9
160
165
Chapter 1 Introduction
9
www.dfi .com
Chapter 2 - Getting Started
Preparing the System
Before you start using the system, you need the following items:
• SATA hard drive
• AC power adapter
• CD-ROM drive (for installing software/drivers)
• Screwdriver
Installing Devices
The following are devices that can be installed in the system.
Chapter 2
• SATA hard drive
• Mini PCIe card
Configuring the BIOS
To get you started, you may need to change configurations such as the date, time and the
type of hard disk drive.
1. Power-on the system.
2. After the memory test, the message “Press DEL to run setup” will appear on the screen.
Press the Delete key to enter the AMI BIOS setup utility.
Installing the Operating System
Most operating system software are provided in a CD therefore you need to install a CD-ROM
drive in order to use the CD.
Make sure a 2.5” SATA drive is already installed.
1. Refer to the following chapters for information on connecting a CD-ROM drive and installing a SATA drive.
2. Refer to your operating system manual for instructions on installing the operating system.
Installing the Drivers
The system package includes a CD disk. The CD includes drivers that must be installed to provide the best system performance. Refer to the Supported Software chapter for instructions on
installing the drivers.
Chapter 2 Getting Started
10
www.dfi .com
Chapter 3 - Installing Devices
Removing the Chassis Cover
Chapter 3
5. The 3 Mini PCIe slots, the microSD socket and the HDD bracket are readily accessible after
removing the bottom side of the chassis cover.
1. Make sure the system and all other peripheral devices connected to it has been powered-off.
2. Disconnect all power cords and cables.
3. The 4 mounting screws on the bottom side of the system are used to secure the cover to the
chassis. Remove these screws and then put them in a safe place for later use.
Mounting Screw
4. After removing the mounting screws, lift the cover up.
Full size Mini PCIe slot:
PCIe, USB, and 3G signals
for 3G or GPRS module
microSD
Full size Mini PCIe slot:
mSATA signal
Half size Mini PCIe slot:
PCIe, USB, and LPC signals for
Wi-Fi module or LPC module
6. The SIM slot is readily accessible after removing the screw on the middle of the motherboard
(under the HDD if it has already been installed into the system) and 4 screws on the top side
of the chassis cover.
Chapter 3 Installing Devices
Mounting Screw
Lift the Cover Upward
removing the screw on the middle of the motherboard
11
www.dfi .com
Mounting Screw
removing 4 screws on the top side of the chassis cover
Chapter 3
Installing a 2.5” SATA Drive
1. Locate the SATA drive bay on the system board. Unplug the SATA power and data cable, and
remove the 4 mounting screws that secure the drive bay to the system board.
SATA data cable
SATA drive bay
SATA power cable
Mounting Screw
Chapter 3 Installing Devices
2. Align the mounting holes of the SATA drive with the mounting holes on the HDD bracket and
then use the 3 provided mounting screws to secure the drive in place.
SIM slot
2.5" SATA drive
Mounting Screw
Mounting Screws
Mounting Screw
12
www.dfi .com
Chapter 3
3. Place the SATA drive bay into the chassis. Secure the SATA drive bay with the mounting
screws you removed in step 1. And connect the SATA data cable and SATA power cable to the
connectors on the system board.
SATA power cable
SATA power connector
Mounting Screw
SATA data cable
Installing a SIM Card
1. Locate the SIM slot on the system board.
SIM slot
2. Insert the SIM card in the SIM slot, and push the SIM card to take the card out of the slot.
Chapter 3 Installing Devices
SATA connector
Mounting Screw
SIM card
13
www.dfi .com
Chapter 3
Installing a Mini PCIe and/or mSATA card
Installing the Mini PCIe Card
1. Locate the Mini PCIe slot on the system board.
PCIe, USB, and 3G signals
PCIe, USB,
and Wi-Fi signals
2. The system board is equipped with 2 Mini PCIe slots. The Mini PCIe slot supports full length
and half length Mini PCIe card. Note the key on the slot. The key ensures the Mini PCIe card
can be plugged into the slot in only one direction.
3. Grasping the Mini PCIe card by its edges, align the card into the slot at an approximately 30
degrees angle. Apply fi rm even pressure to each end of the card until it slips down into the
slot. The contact fi ngers on the edge of the card will almost completely disappear inside the
slot.
PCIe, USB, and 3G
signals
PCIe, USB, and
Wi-Fi signals
4. Push the Mini PCIe card down and use the provided mounting screws to secure the card on the
system board.
Half length
Chapter 3 Installing Devices
Full length
Mounting Screw
Mounting Screw
14
www.dfi .com
Chapter 3
Installing the mSATA Card
1. Locate the mSATA slot on the system board.
mSATA
2. The system board is equipped with a mSATA slot. The mSATA slot supports full length mSATA
card. Note the key on the slot. The key ensures the mSATA card can be plugged into the slot in
only one direction.
3. Grasping the mSATA card by its edges, align the card into the slot at an approximately 30
degrees angle. Apply fi rm even pressure to each end of the card until it slips down into the
slot. The contact fi ngers on the edge of the card will almost completely disappear inside the
slot.
mSATA Card
4. Push the mSATA card down and use the provided mounting screws to secure the card on the
system board.
Full length
Chapter 3 Installing Devices
Mounting Screw
15
www.dfi .com
Chapter 4 - Jumper Settings
Clear CMOS Data
3
JP24
3
2
1
1-2 On:
Normal (default)
3
2
1
2-3 On:
Clear CMOS Data
Chapter 4
Auto Power-on Select
132
1-2 On:
Power-on via power button
(default)
JP25
3
132
If you encounter the following,
a) CMOS data becomes corrupted.
b) You forgot the supervisor or user password.
you can reconfigure the system with the default values stored in the ROM BIOS.
To load the default values stored in the ROM BIOS, please follow the steps below.
1. Power-off the system and unplug the power cord.
2. Set JP24 pins 2 and 3 to On. Wait for a few seconds and set JP24 back to its default setting, pins 1 and 2 On.
3. Now plug the power cord and power-on the system.
Chapter 4 Jumper Settings
2-3 On:
Power-on via AC power
JP25 is used to select the method of powering on the system. If you want the system to
power-on whenever AC power comes in, set JP25 pins 2 and 3 to On. If you want to use the
power button, set pins 1 and 2 to On.
When using the JP25 “Power On” feature to power the system back on after a power failure
occurs, the system may not power on if the power lost is resumed within 5 seconds (power
flicker).
16
www.dfi .com
Chapter 4
USB Power Select Panel Power Select
132
1-2 On:
+5V_standby
(default)
132
USB 0
(JP5)
USB 1-2
(JP6)
3
3
2
1
1-2 On:
+5V_standby
(default)
3
JP23
531
642
1-2 On: +12V
531
642
3-4 On:+5V
531
2-3 On: +5V
3
2
1
2-3 On: +5V
3
2
1
1-2 On:
+5V_standby
(default)
USB 5-7
(JP7)
3
2
1
2-3 On: +5V
JP5, JP6 and JP7 are used to select the power of the USB ports. Selecting +5V_standby will
allow you to use a USB device to wake up the system.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the
+5V_standby power source of your power supply must support ≥1.5A. For 3 or more
USB ports, the +5V_standby power source of your power supply must support ≥2A.
Chapter 4 Jumper Settings
JP23 is used to select the power supplied with the LCD panel.
Important:
Before powering-on the system, make sure that the power settings of JP23 match
the LCD panel’s specification. Selecting the incorrect voltage will seriously damage the
LCD panel.
17
642
5-6 On: +3.3V
(default)
www.dfi .com
Chapter 4
Backlight Power Select Dimming Mode Select
132
132
3
JP3
1-2 On: +5V
132
2-3 On: +3.3V (default)
JP3 is used to select the power level of backlight brightness control: +5V or +3.3V.
Important:
Before powering-on the system, make sure that the power settings of JP3 match the
power specification of backlight control. Selecting the incorrect voltage will seriously
damage the backlight.
1-2 On: Voltage Mode
3
JP4
2-3 On: PWM Mode
JP4 allows you to select the mode for the lightness control of the LVDS panel.
Important:
You need to refer to your panel’s user guide to determine the type of mode (PWM or
Voltage) most appropriate for your panel.
132
(default)
Chapter 4 Jumper Settings
18
www.dfi .com
Chapter 4
Digital I/O Power Select Digital I/O Output State
JP17
132
1-2 On:
JP20 (DIO 0-3)
JP18 (DIO 4-7)
+5V_standby
132
2-3 On: +5V
(default)
3
3
132
1-2 On:
GND (default)
132
2-3 On:
+5V or +5V_standby
JP17 is used to select the power of DIO (Digital I/O) signal. Based on the power level of DIO (Digital I/O) selected on JP17, JP20 (DIO pin 0-3) and JP18
(DIO pin 4-7) are used to select the state of DIO output: pull high or pull low. When selecting
pull high, the power selection will be the same as JP17’s setting.
Chapter 4 Jumper Settings
19
www.dfi .com
Chapter 4
LCD/Inverter Power Select
3
JP2
132
1-2 On: +12V (default)
132
2-3 On: +5V
COM 4/DIO Select
13
46
79
10 12
1-2, 4-5, 7-8, 10-11 On:
COM 4 (default)
13
46
79
10 12
2-3, 5-6, 8-9, 11-12 On:
DIO
JP22
JP21
3
JP2 is used to select the power level of the LCD/inverter power connector.
Chapter 4 Jumper Settings
The system board uses JP21 and JP22 to select between RS232/422/485 COM 4 or isolated
8-bit DIO at the rear panel.
Note:
You cannot use COM 4 and DIO at the same time. Please set up JP21 and JP22
together.
20
www.dfi .com
Chapter 5 - Ports and Connectors
Chapter 5
Front Panel I/O Ports
Status LED
HDMI
Power
Reset
Antenna
Hole
The front panel I/O ports consist of the following:
• 3 DB-9 serial ports
- supports RS232/422/485
- COM port 4 supports 8-bit DIO
• 1 USB 3.0 (Type A) port
• 1 HDMI port
• 3 Wi-Fi antenna holes
• 1 status LED
• 1 HDD LED
• 1 reset button
• 1 power button
USB 3.0
COM 1 COM 2
Antenna
Hole
COM 4/8-bit DIO
Antenna
Hole
HDD LED
Rear Panel I/O Ports
COM 3 VGA
The rear panel I/O ports consist of the following:
• 1 9~36V DC-in jack
• 1 DB-9 serial port
• 1 VGA port
• 2 RJ45 LAN ports
• 4 USB 2.0 (Type A) ports
DC-in
USB 2.0
LAN 1 LAN 2
Chapter 5 Ports and Connectors
21
www.dfi .com
Chapter 5
USB Ports
USB 0
USB 3.0
Driver Installation
You may need to install the proper drivers in your operating system to use the USB device.
Refer to chapter 4 for more information.
Wake-On-USB Keyboard/Mouse
The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse
to wake up a system from the S3 (STR - Suspend To RAM) state. To use this function:
Jumper Setting
JP5, JP6 and JP7 must be set to “1-2 On: +5V_standby”. Refer to “USB Power Select” in this
chapter for more information.
USB 1
USB 2
USB 6
USB 7
3
USB 5
VCC
-Data
+Data
GND
N.C.
2
1
10
9
USB 2.0
USB 2.0
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the
+5V_standby power source of your power supply must support ≥1.5A. For 3 or more
USB ports, the +5V_standby power source of your power supply must support ≥2A.
-Data
+Data
GND
Key
VCC
The USB device allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.
The system board is equipped with one onboard USB 3.0 port (USB 0) and four onboard USB
2.0 ports (USB 1/2/6/7). The 10-pin connector allows you to connect 1 additional USB 2.0 port
(USB 5). The additional USB port may be mounted on a card-edge bracket. Install the cardedge bracket to an available slot at the rear of the system chassis and then insert the USB
port cables to a connector.
BIOS Setting
Configure the onboard USB in the Advanced menu (“USB Configuration” submenu) of the
BIOS. Refer to chapter 7 for more information.
Chapter 5 Ports and Connectors
22
www.dfi .com
