EC510-SD/EC511-SD Installation Guide
Package Contents
www.dfi .com
Notes:
1. The PoE ports support PoE devices that comply with 802.3af and each port delivers 15.4W of
power to connected devices.
2. The system may be equipped with 4 Gigabit Ethernet ports without PoE depending on the SKU;
please refer to the Ordering Information for details.
•
1 EC510-SD/EC511-SD system unit
• 1 Quick Installation Guide
•
1 CD disk includes:
- Drivers / Manual

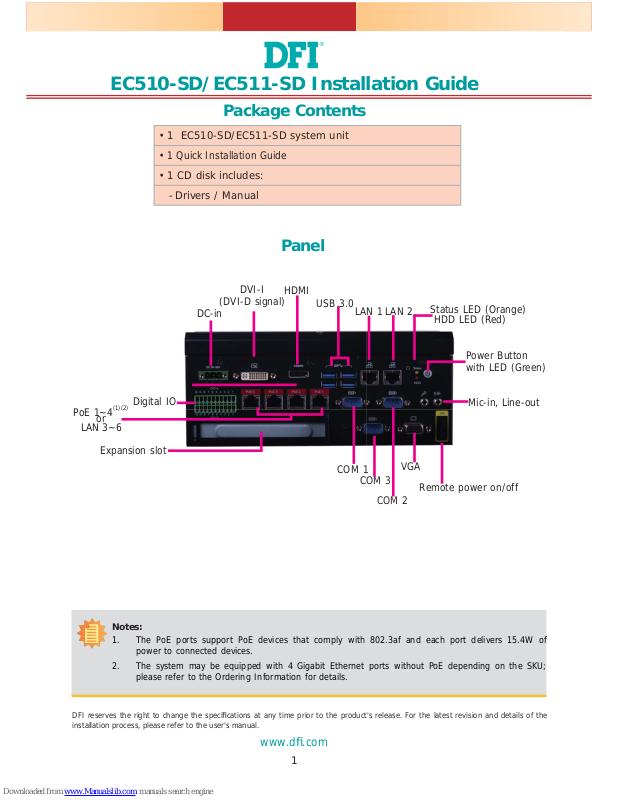

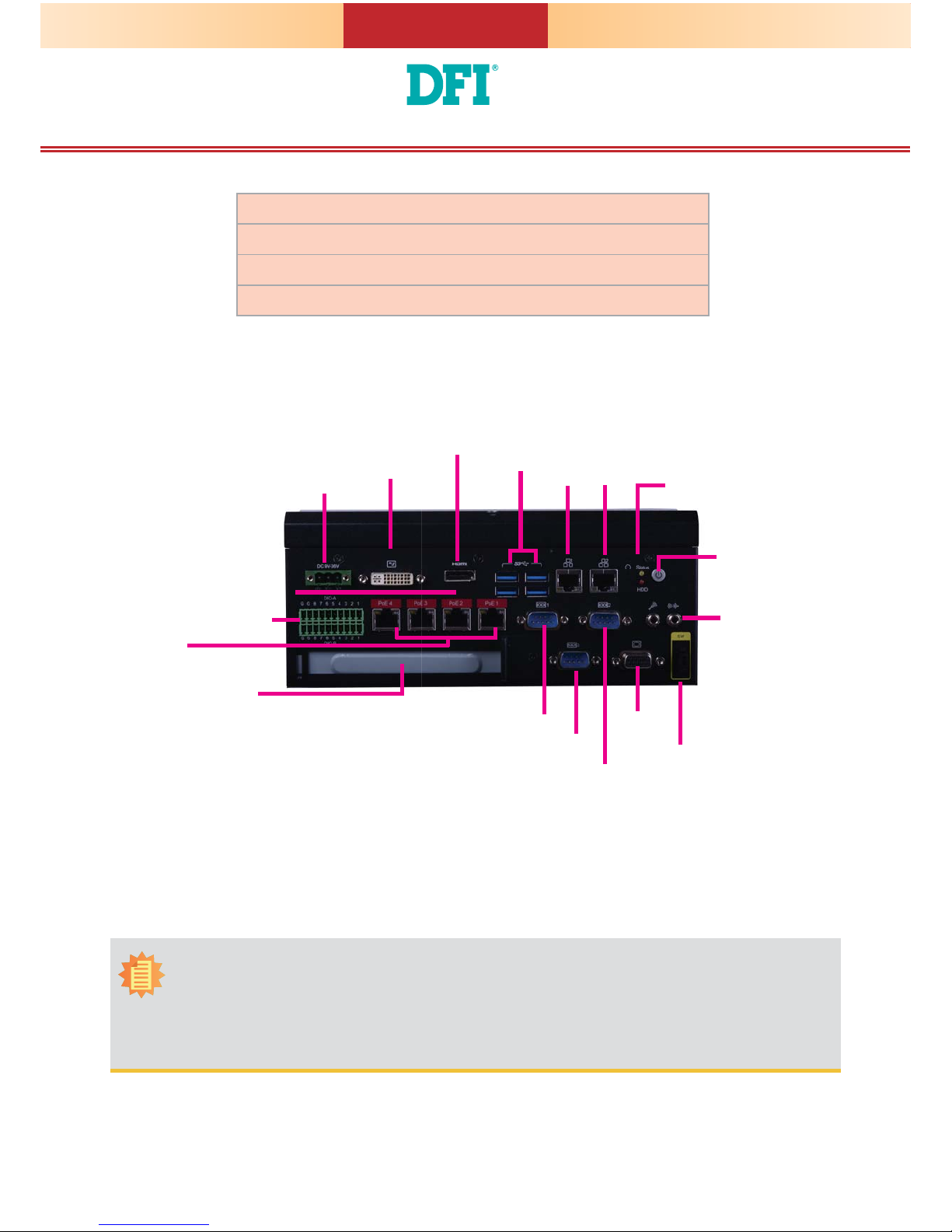

Panel
DFI reserves the right to change the specifi cations at any time prior to the product's release. For the latest revision and details of the
installation process, please refer to the user's manual.
COM 2
DC-in
DVI-I
(DVI-D signal)
HDMI
USB 3.0
LAN 1 LAN 2
VGA
Remote power on/off
Digital IO
Expansion slot
COM 1
Status LED (Orange)
HDD LED (Red)
Power Button
with LED (Green)
PoE 1~4
(1)(2)
or
LAN 3~6
COM 3
Mic-in, Line-out
Page 2
2
Removing the Chassis Cover
Please observe the following guidelines and follow the procedure to open the
system.
1. Make sure the system and all other peripheral devices connected to it have
been powered off.
2. Disconnect all power cords and cables.

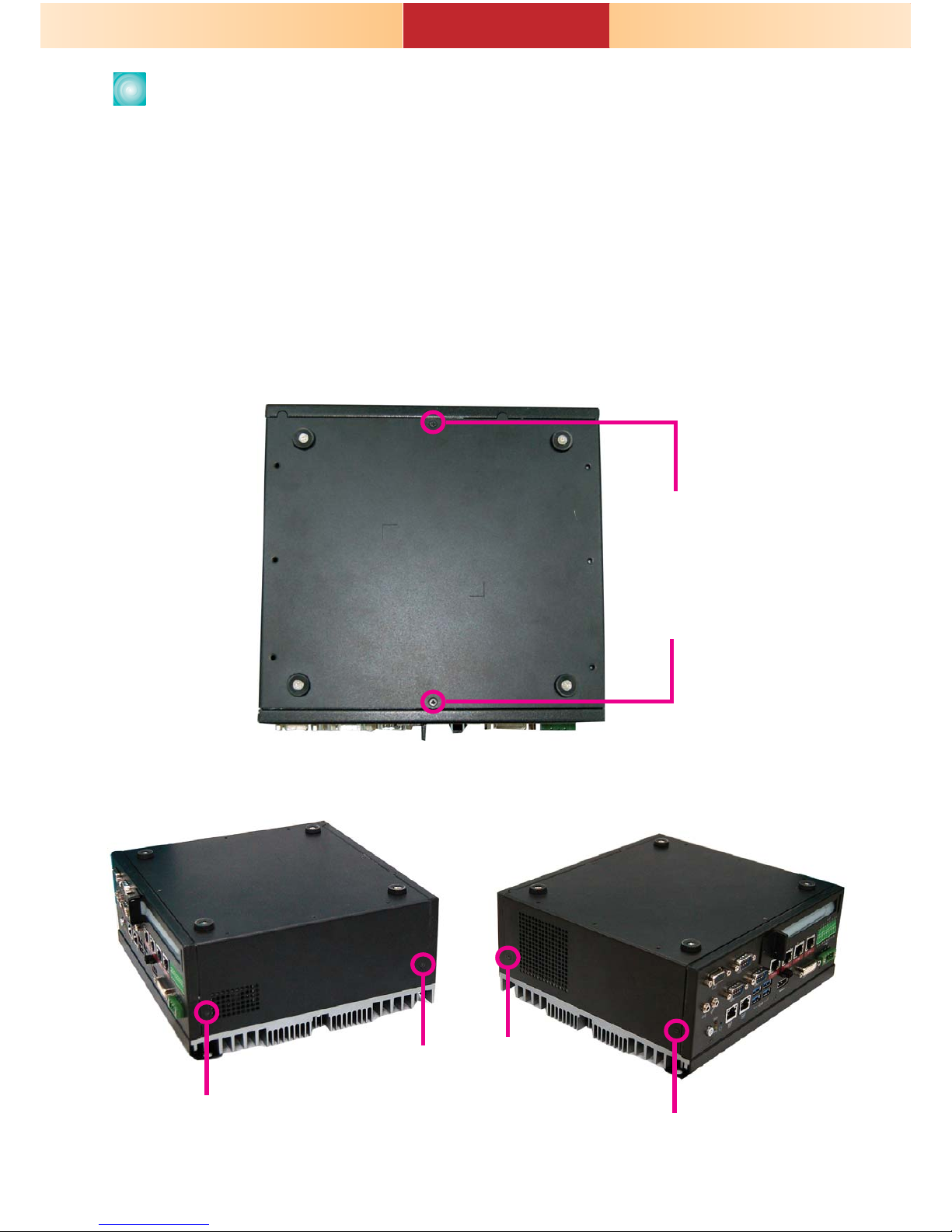

3. The 6 mounting screws on the bottom and both sides of the system are used
to secure the cover to the chassis. Remove these screws and put them in a
safe place for later use.
Chassis screw
Chassis screw
Chassis screw
Page 3
3
Installing a 2.5" SATA Drive
2. Insert the SATA drive into the HDD bracket and secure it in place with the
provided screws (black screws). The HDD bracket can accommodate two
SATA drives.
SATA power/data cable
Note:
Connect SATA cables before affi xing the SATA drive on the HDD bracket as the HDD
bracket would prevent access to the SATA connectors of the drive.
Supporting plate

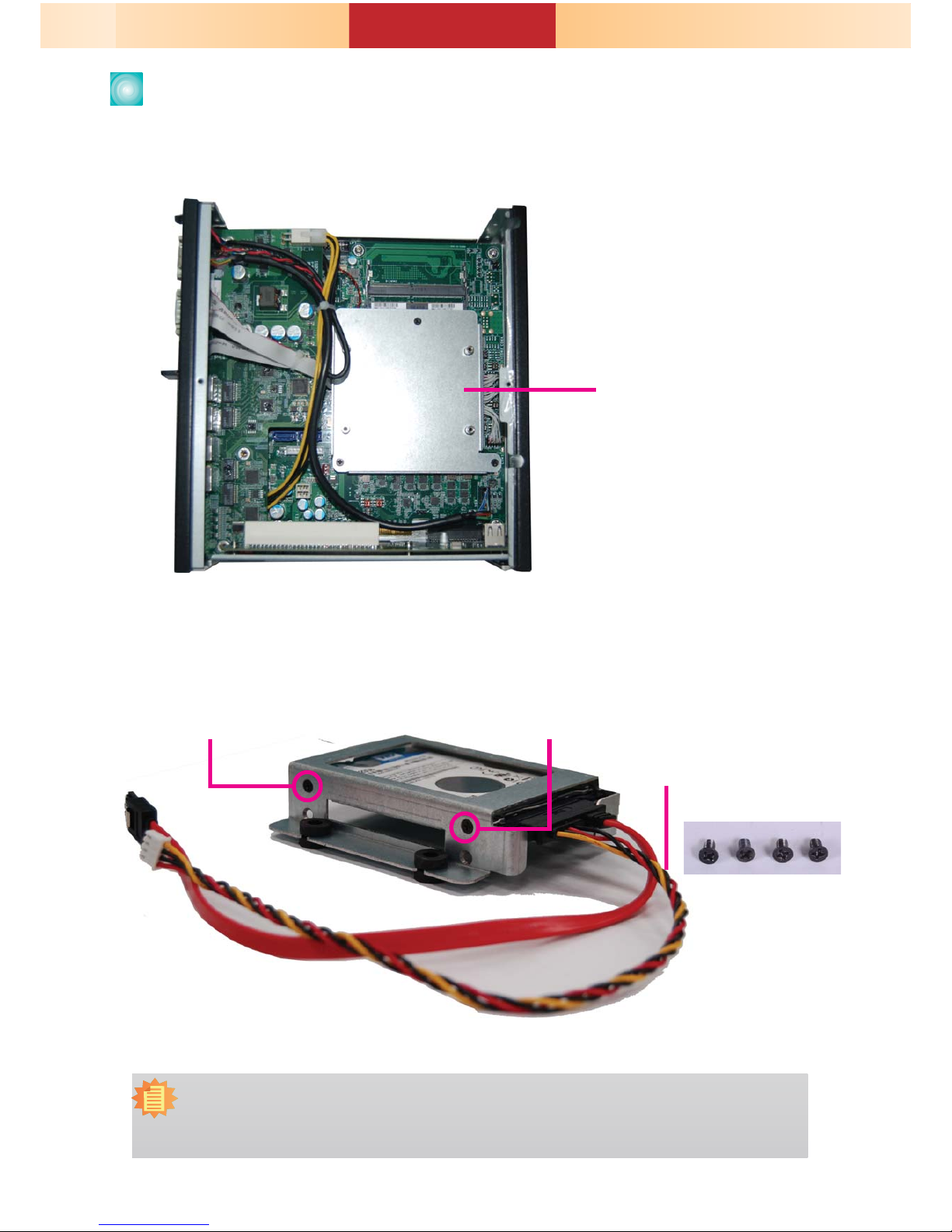

1. The SATA HDD bracket is included in the product package. Locate the
supporting plate on which the SATA HDD bracket will be mounted.
Mounting screw
SATA cables
Mounting screw
Mounting screws
Page 4
4

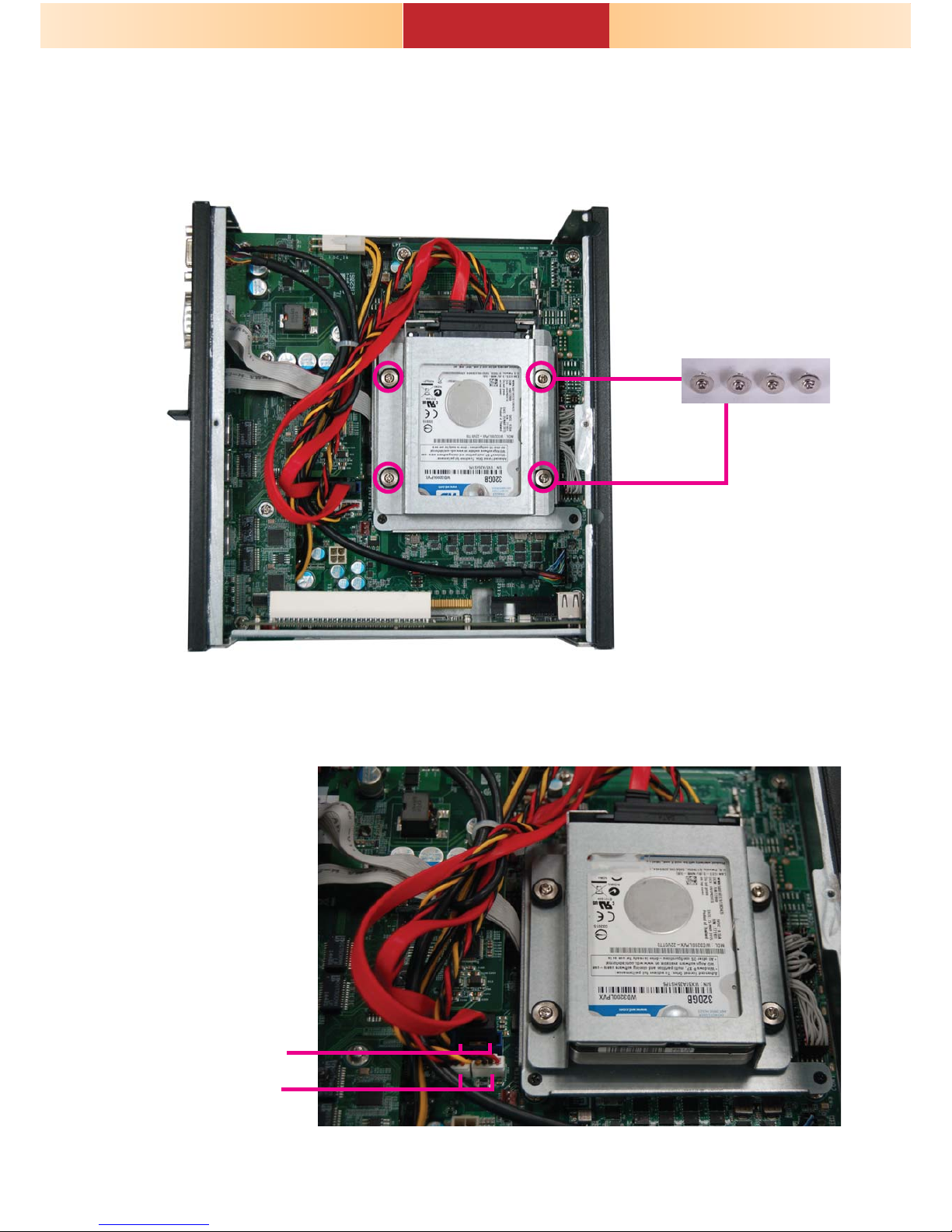

3. Place the SATA drive with the HDD bracket into the system. Align the
mounting holes on the HDD bracket with the mounting holes on the
supporting plate and use the provided screws to secure the drive in place.
Mounting Screw
4. Connect the other end of the SATA data cable and the SATA power cable to
the SATA data and SATA power connector on the mainboard respectively.
SATA data connector
SATA power connector
Page 5
5
Installing a SODIMM

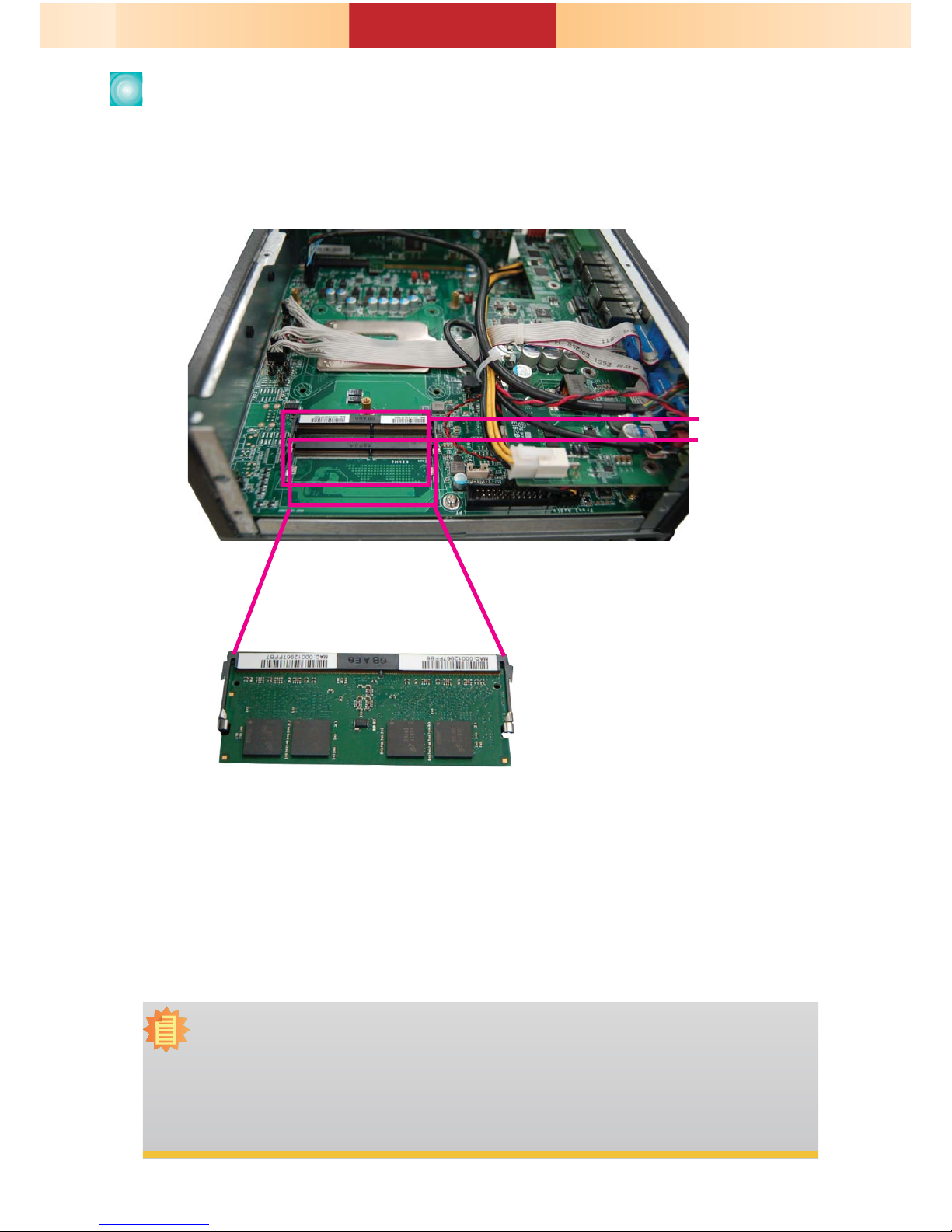

Grasp the module by its edges and align the SODIMM’s notch with the
socket’s key; then insert the SODIMM into the socket at an angle and push it
down until the retaining clips snap into place.
Notes:
1. The system supports dual-channel confi guration. To enable dual-channel,
populate both SODIMM sockets.
2. If you plan to install only one SODIMM, install it in the DIMM1 socket (lower
one and farther from the center of the mainboard).
3. The SODIMM sockets can only accept DDR4 memory modules. Please do not
install other types of memory modules.
To remove a SODIMM, gently spread the retaining clips at each end of the
SODIMM socket. The SODIMM should pop out of the socket. Lift the SODIMM
away from the socket on the mainboard.
The installed SODIMM
DIMM2
DIMM1
Page 6
6

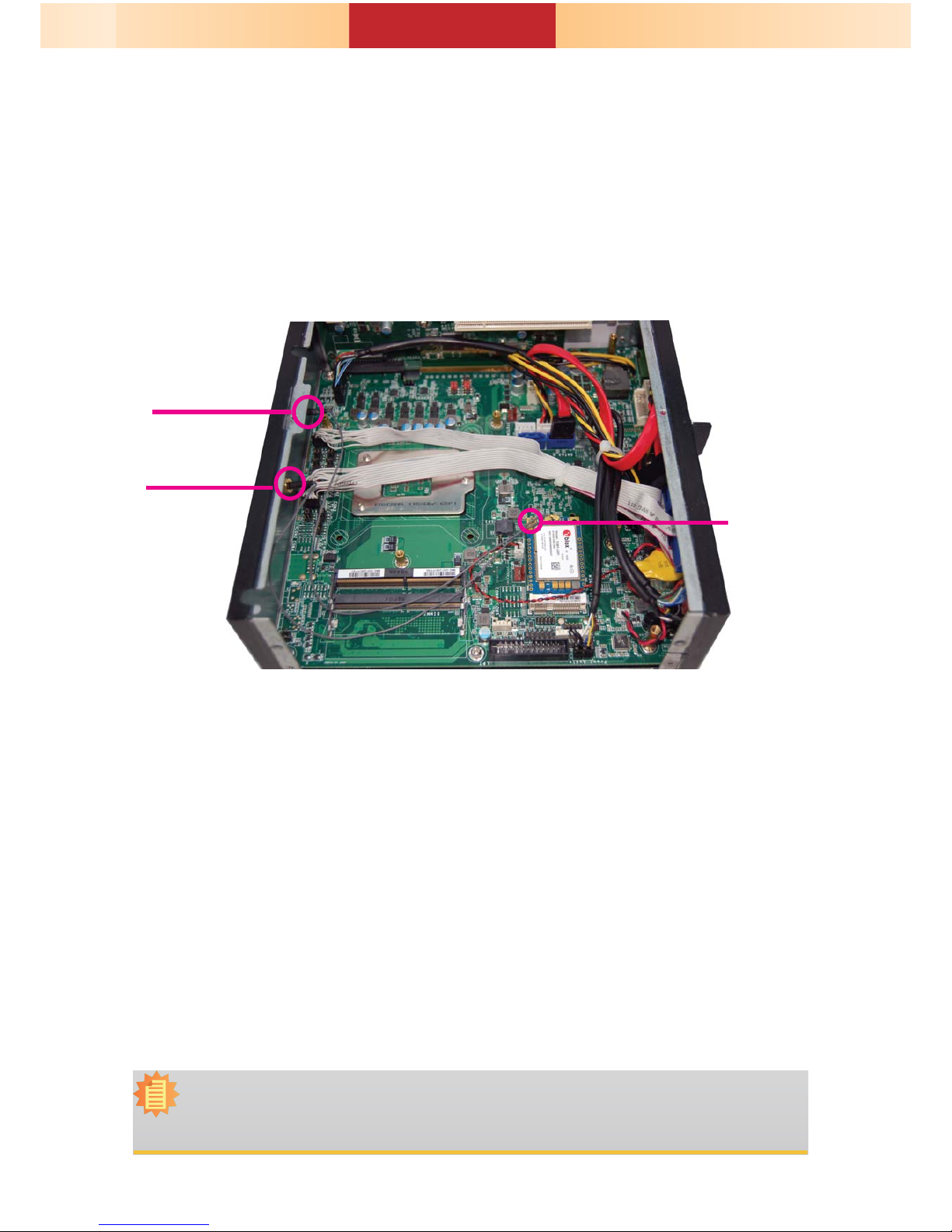

The Mini PCIe sockets are located on the mainboard. You need to revmove the
riser card and daughter board to access them.
The 2 mounting screws on the supporting bracket of the riser card are used
to secure the riser card to the chassis. Remove these screws and put them
in a safe place for later use. To disengage the riser card from the mainboard,
gently pull the card out of the connector on the mainboard.
The 4 mounting screws on the daughter board are used to secure the board
to the mainboard. Remove these screws and put them in a safe place for later
use. To disengage the daughter board from the mainboard, gently pull the card
out of the connector on the mainboard.
Installing a Mini PCIe Expansion Card
Mounting screw
on the riser card
Mounting screw
on the daughter board
Page 7
7
Note:
The system also has a half-size Mini PCIe slot that can accommodate a Mini PCIe
card using mSATA or USB signals.
The mainboard is equipped with 2 Mini PCIe slots: one full-size and one half-size
slot. Here we will demonstrate the installation of a full-size Mini PCIe card.
1. Grasp the Mini PCIe card by its edges and align the notch in the connector
of the Mini PCIe card with the connector's key on the mainboard.
2. Secure the card on the mainboard with the provided mounting screw.
3. If the Mini PCIe card has antennas, route the antennas to the antenna
holes on the rear chassis of the device.
Wireless antenna
Mounting screw
Page 8
8
Installing a PCI or PCIe Expansion Card
Important:

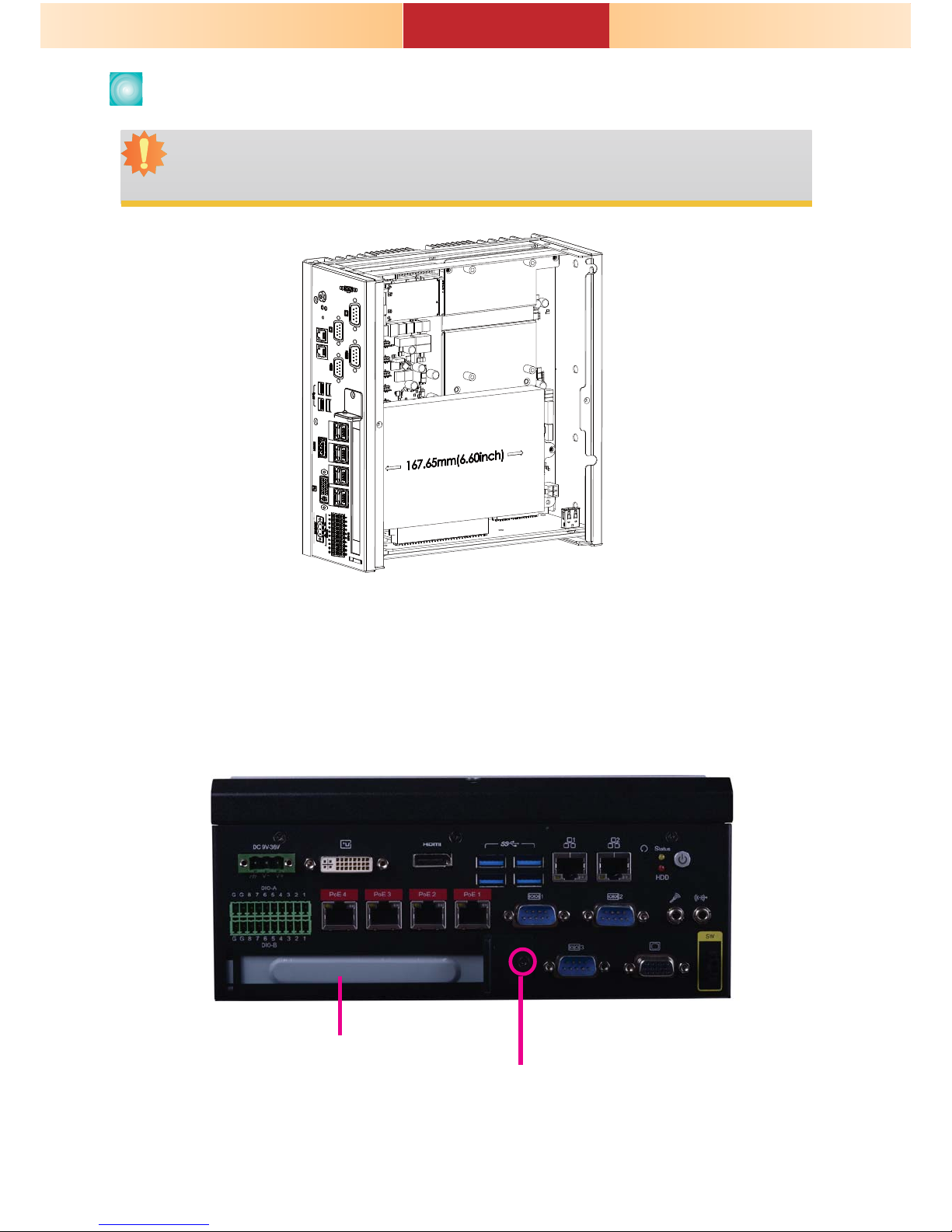

When inserting expansion cards into the system, please select a standard card
within 167.65mm (as shown in the picture below) in order to fi t into the expansion slot.
The PCI and PCIe slots on the riser card inside the system are used to install

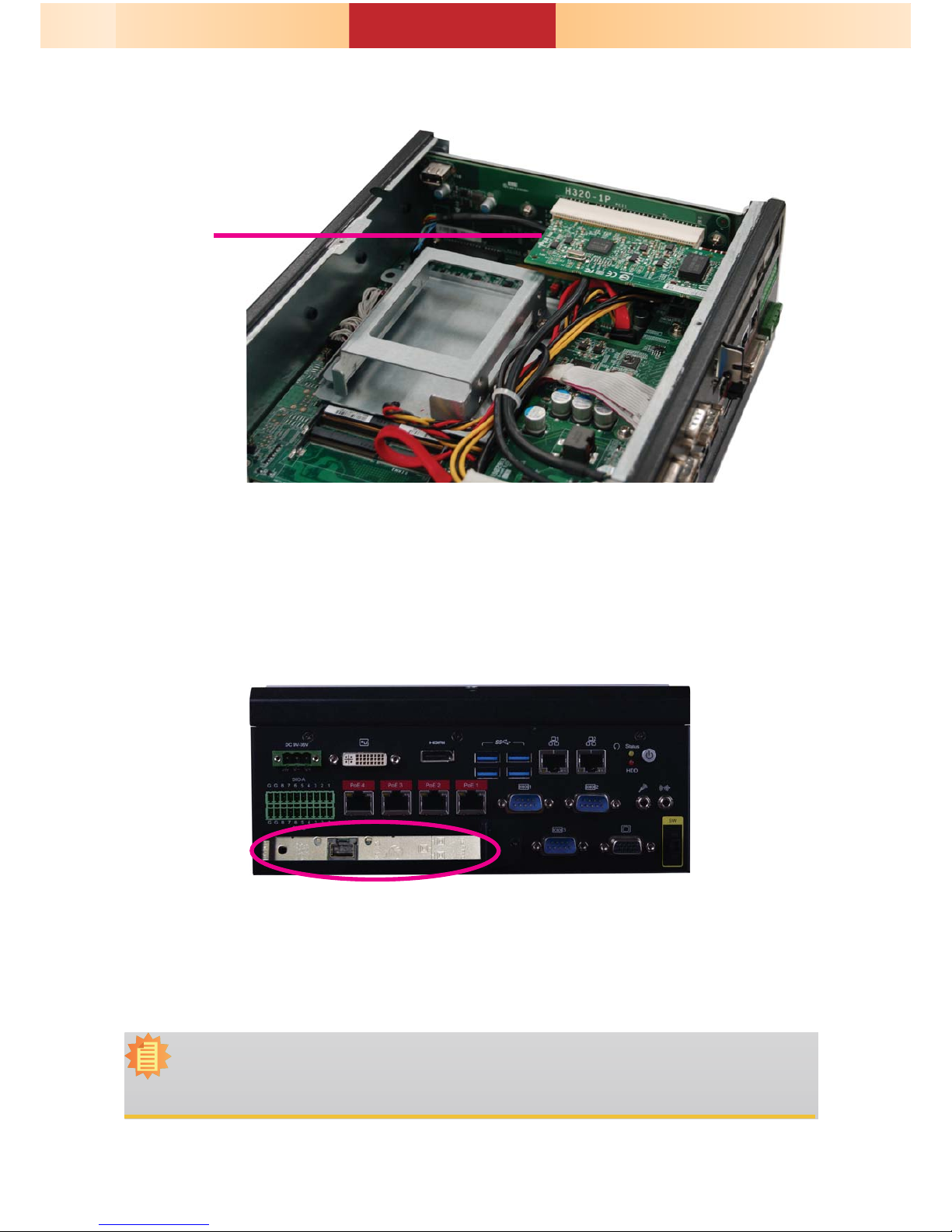

expansion cards. To install an expansion card you need to first remove the slot
plate and bracket by uninstalling the screw on the front chassis.
Slot plate
Mounting screw and bracket
Page 9
9
2. Insert the expansion card into a PCI or PCIe slot on the riser card. Ensure the
card is properly seated into the slot and secure the bracket in place.
Front View
PCI card
Note:
The EC511-SD has one PCIe x16 slot with the H120-1E riser card, whereas the EC510SD has one PCI slot with the
H320-1P riser card.
Page 10
10

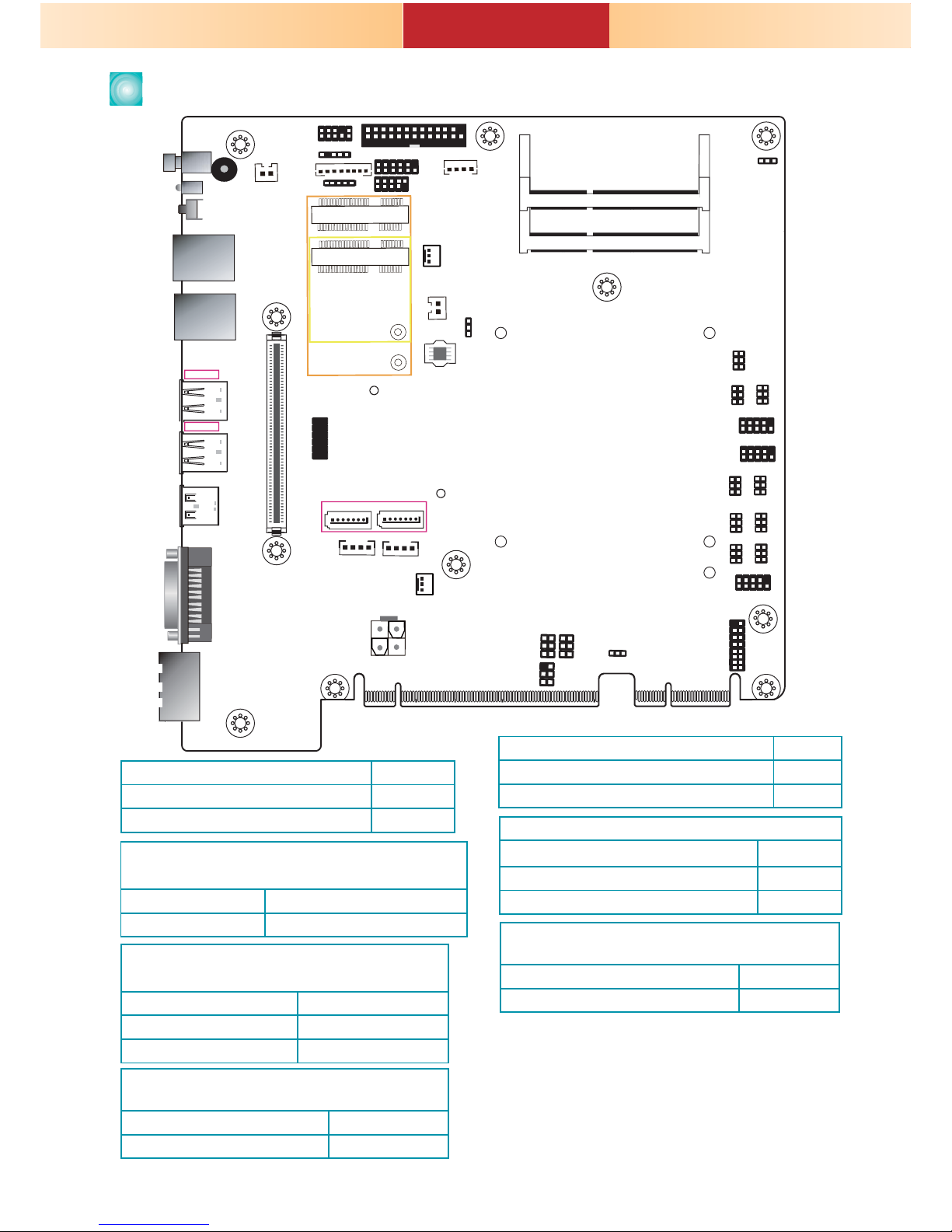

Board Layout and Jumper Settings
www.dfi .com
USB 3-4
USB 3.0
USB 1-2
USB 3.0
J22
JP2
JP3
J21
HDMI (default)/DP
DVI
System
Fan 2
1
Front
Panel
51
2
1
10
9
1
1
1
1
4
SATA Power
-
DC-in
LAN 2
LAN 1
PCIe x16 (PCIE1)
SPI Flash
BIOS
VGA
Clear CMOS
Data (JP1)
Auto Power-on
Select (JP11)
(JP9)
1
6
(JP8) (JP15)
1
6
6
1
1
210
COM 3
1
(JP6)
6
6
9
1
210
COM 2
9
1
2
(JP7) (JP14)
6
6
1
2
1
210
COM 1
9
1
2
16
LPC
1
2
14
4-pin power
1
1
2
3
4
PCIe x4 (PCIE2)
Power
Button
Reset
DDR4_1 SODIMM
DDR4_2 SODIMM
1
(JP5)
6
6
1
1
1
6
6
22
2
6
1
4
Status LED
HDD LED
2
25
26
Parallel
1
DIO Power
DIO
S/PDIF
Front Audio
2
51
1
10
9
EXC
+
SATA 3.0
USB 2.0 13-14
(JP13)
1
1
(JP12)
1
SATA 0
SATA 1
1
Mini PCIe
mSATA
System
Fan 1
1
1
bettery
1
1
1
212
USB 2.0 9
Clear CMOS Data JP1
Normal (default) 1-2 On
Clear CMOS Data 2-3 On
RS232/422/485 Select:
COM 1 (JP5/JP12), COM 2 (JP7/JP14)
RS232 (default) 1-3, 2-4 On
RS422 Full Duplex/RS485 3-5, 4-6 On
RS232/422/485 Select:
COM 1 (JP6), COM 2 (JP13)
RS232 (default) 1-2 On
RS422 Full Duplex 3-4 On
RS485 5-6 On
RS232/Power Select:
COM 1 (JP3), COM 2 (JP2)
RS232 (default) 1-3 (RI), 2-4 (DCD) On
RS232 with power 3-5 (+5V), 4-6 (+12V) On
Auto Power-on Select JP11
Power-on via Power Button (default) 1-2 On
Power-on via AC Power 2-3 On
Notes:
1. When COM1 RS232/422/485 is selected,
JP5 and JP12 must be set in accordance to JP6.
2. When COM2 RS232/422/485 is selected,
JP7 and JP14 must be set in accordance to JP13.
3. When COM3 RS232/422/485 is selected,
JP8 and JP15 must be set in accordance to JP9.
RS232/422/485 Select:
COM 3 (JP8/JP15)
RS232 (default) 1-3, 2-4 On
RS422 Full Duplex/RS485 3-5, 4-6 On
RS232/422/485 Select: COM 3 (JP9)
RS232 (default) 1-2 On
RS422 Full Duplex 3-4 On
RS485 5-6 On
