DFI EC300, EC310, EC320, EC321 User Manual

Page 1
EC300/310/320/321
Series
User’s Manual
A22100221
Page 2
Copyright
This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transfor­mation/adaptation without the prior written permission from the copyright hold­ers.
This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.
© 2012. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification pur­pose only and are the properties of the respective owners.
Page 3
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televi­sion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.
Page 4
1
4
Introduction
Table of Contents
Copyright ...........................................................................................2
Trademarks ........................................................................................2
FCC and DOC Statement on Class B ..............................................3
About this Manual .............................................................................7
Warranty ..........................................................................................7
Static Electricity Precautions .............................................................8
Safety Measures .................................................................................8
Safety Precautions .............................................................................9
About the Package .......................................................................... 10
Before Using the System .................................................................10
Chapter 1 - Introduction ................................................................11
Overview ..................................................................................... 11
Key Features ...............................................................................14
Specifications ................................................................................ 15
Getting to Know the EC300/310/320/321 Series ............................ 17
Mechanical Dimensions ................................................................ 26
Chapter 2 - Getting Started ........................................................... 29
Preparing the System .................................................................... 29
Installing Devices .......................................................................... 29
Configuring the BIOS .................................................................... 29
Installing the Operating System ...................................................... 29
Installing the Drivers ..................................................................... 30
Chapter 3 - Installing Devices .........................................................31

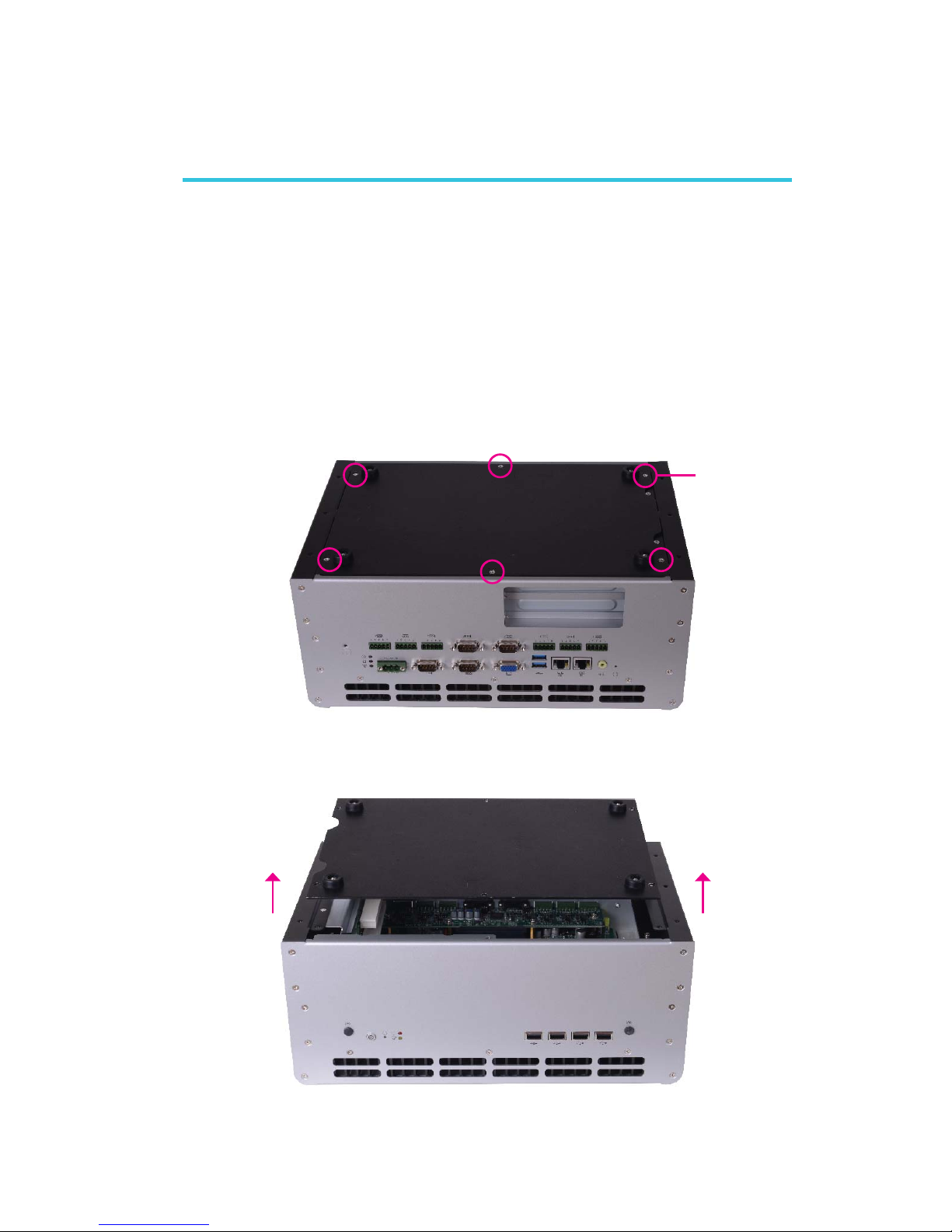

Removing the Chassis Cover .........................................................31

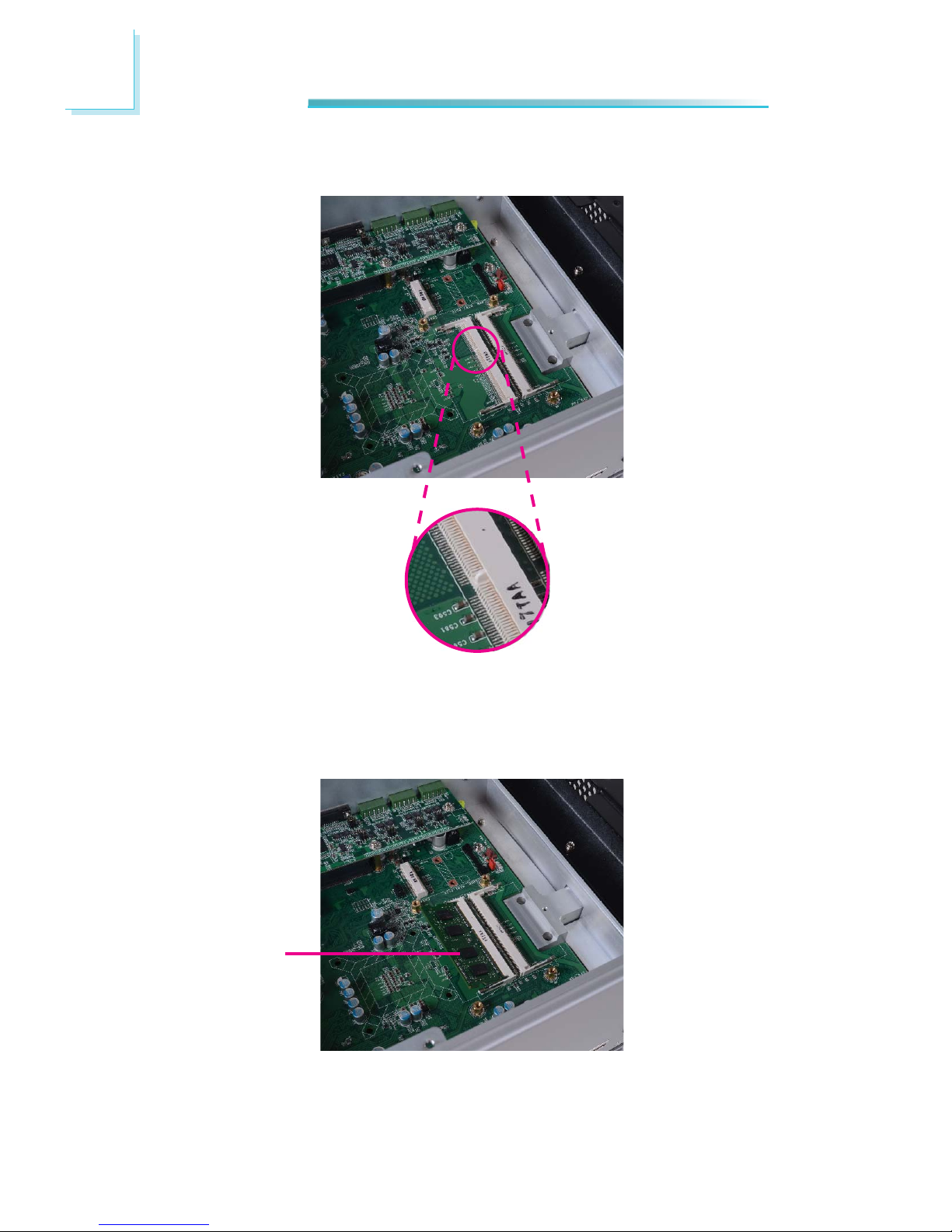

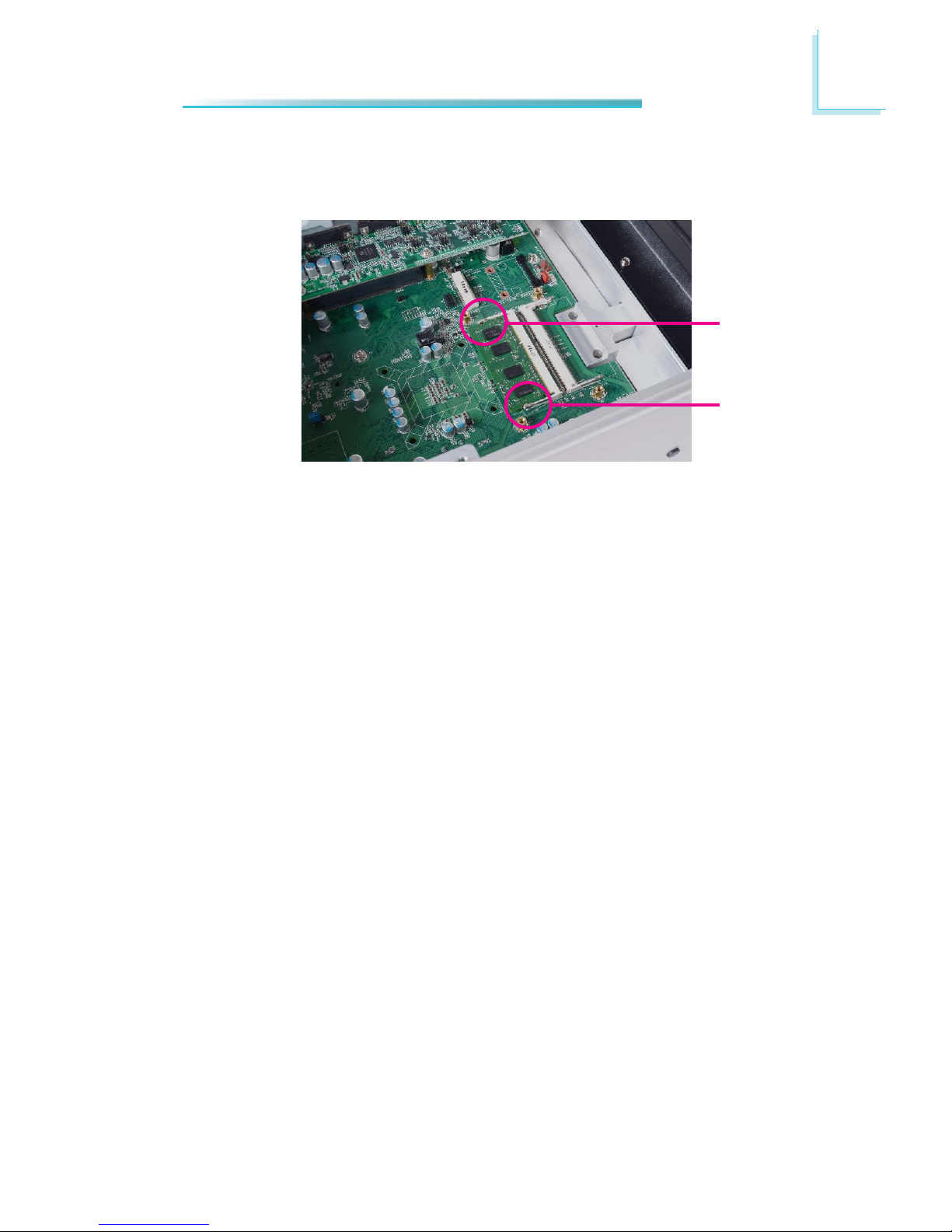

Installing a SODIMM ..................................................................... 33

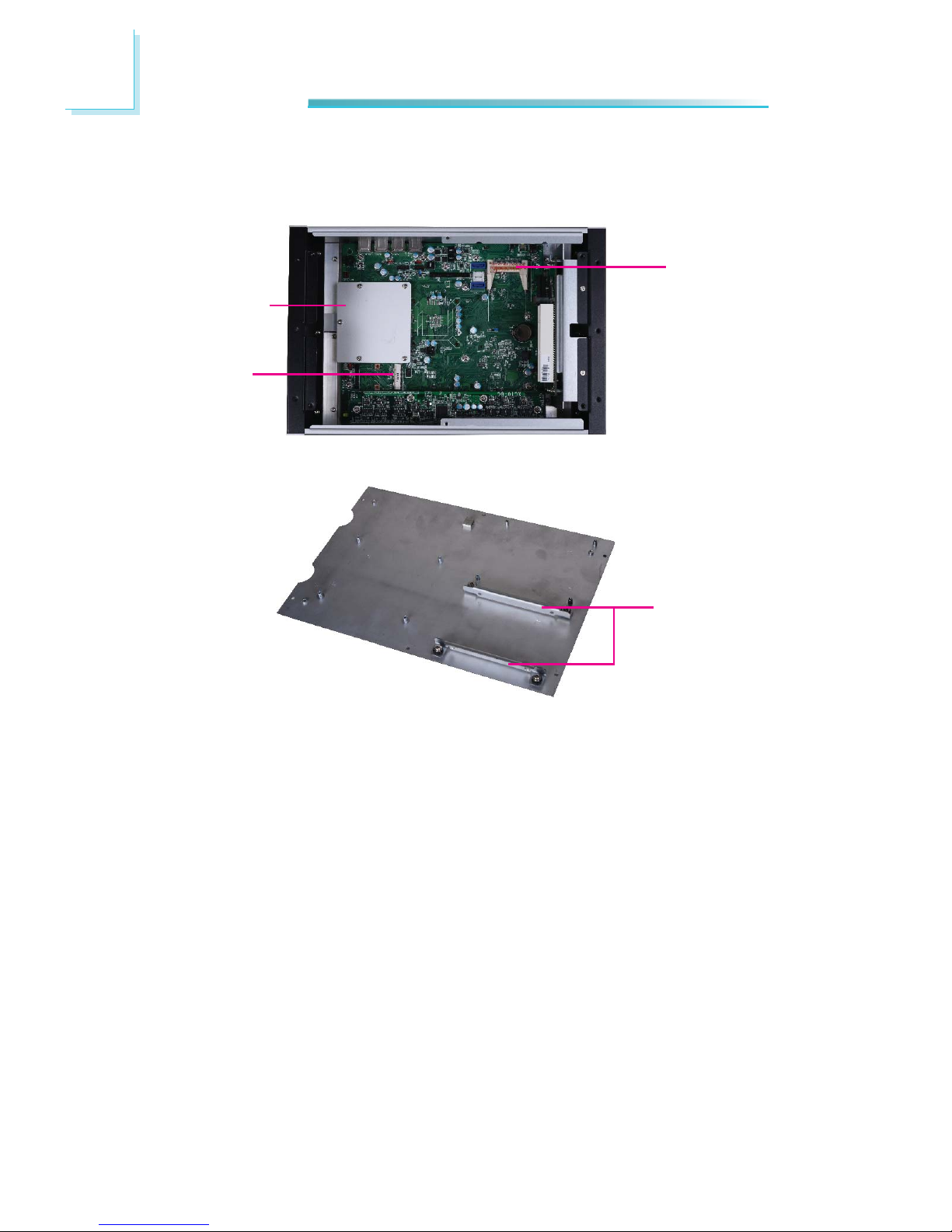

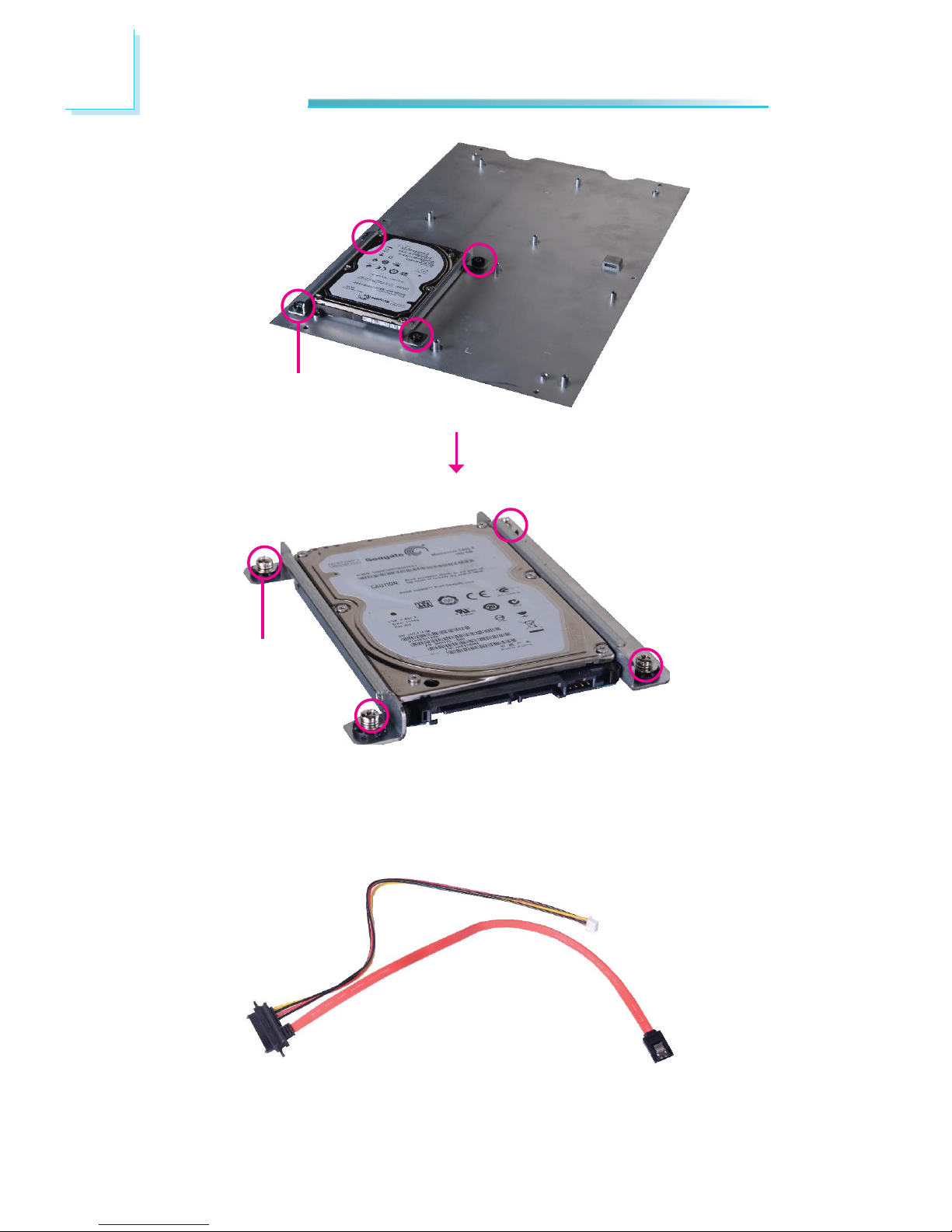

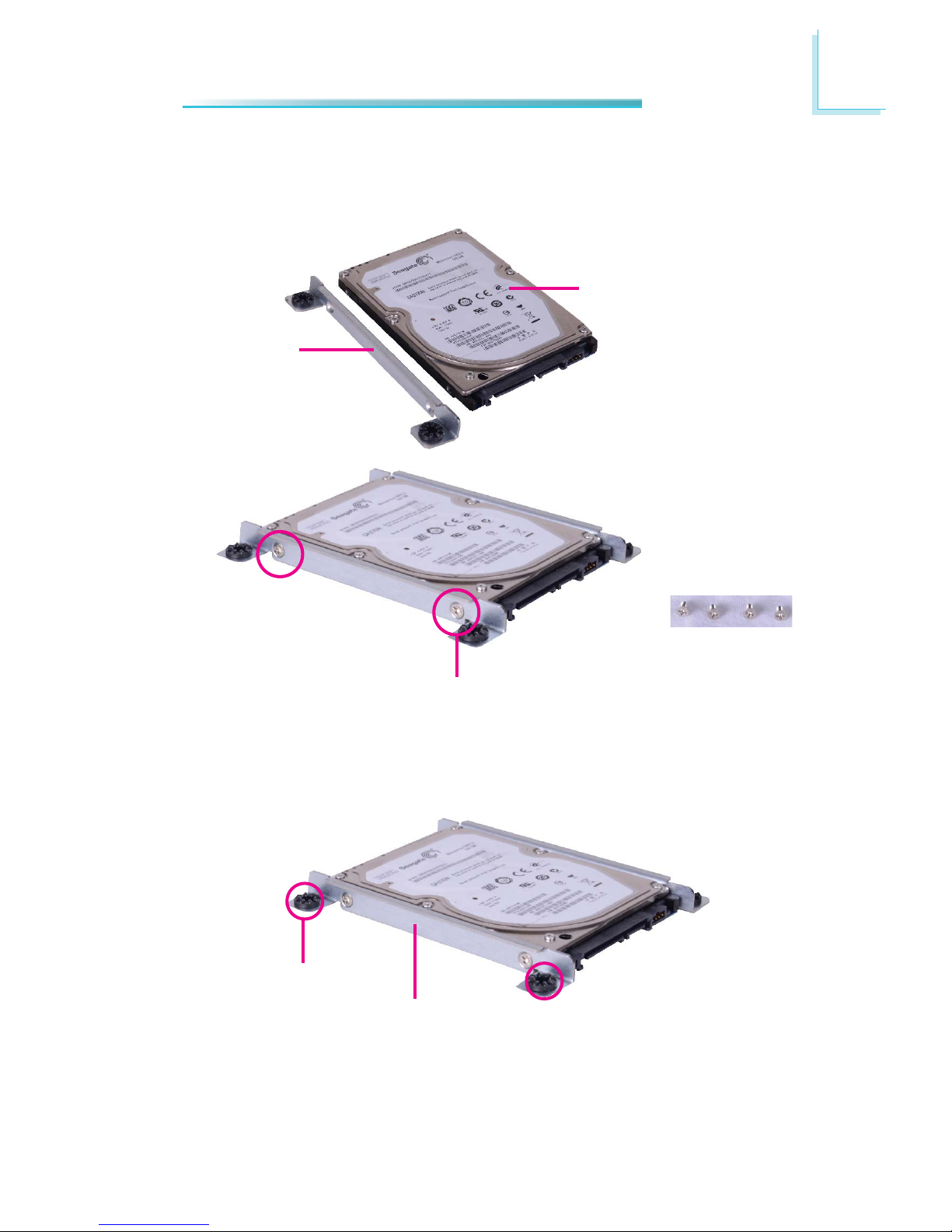

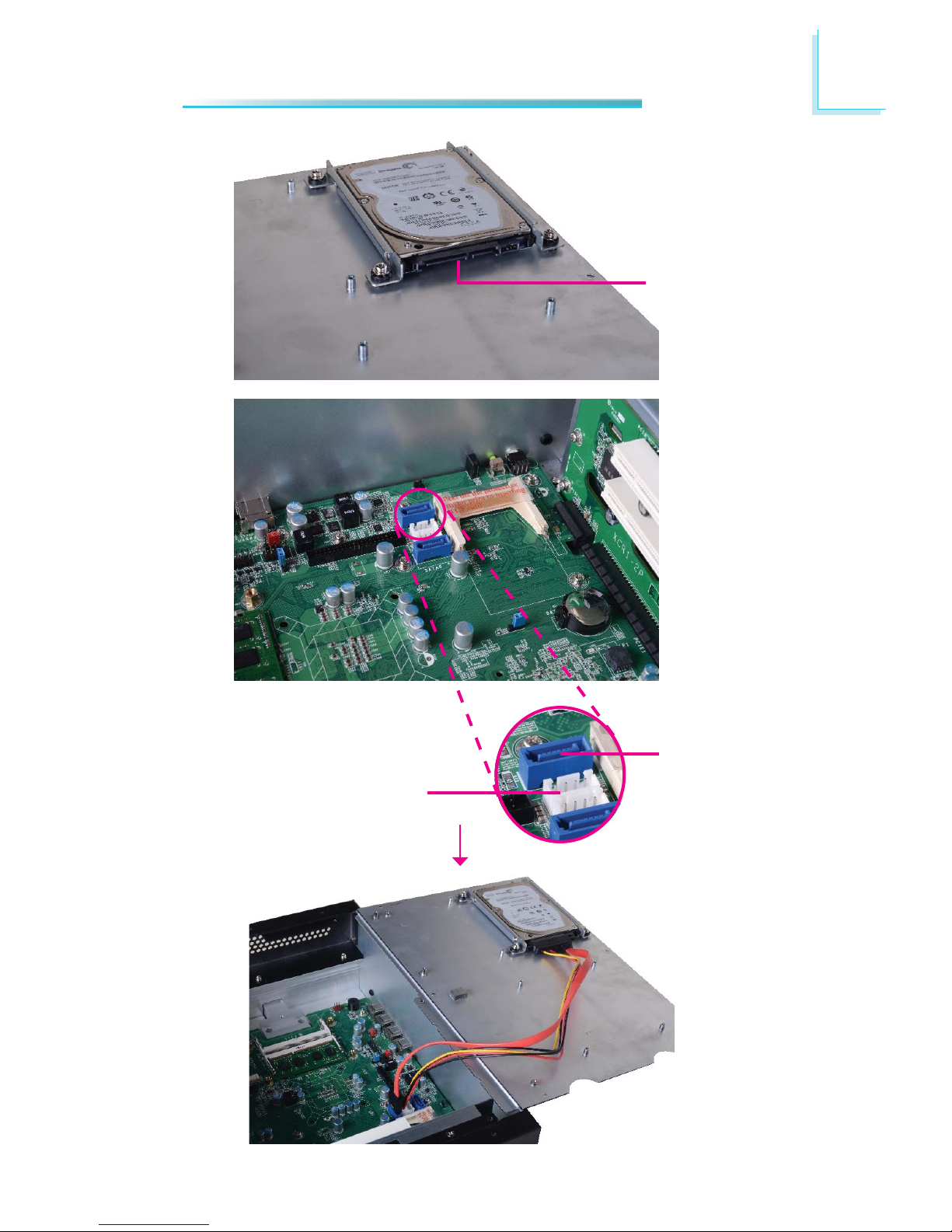

Installing a SATA Drive .................................................................. 36

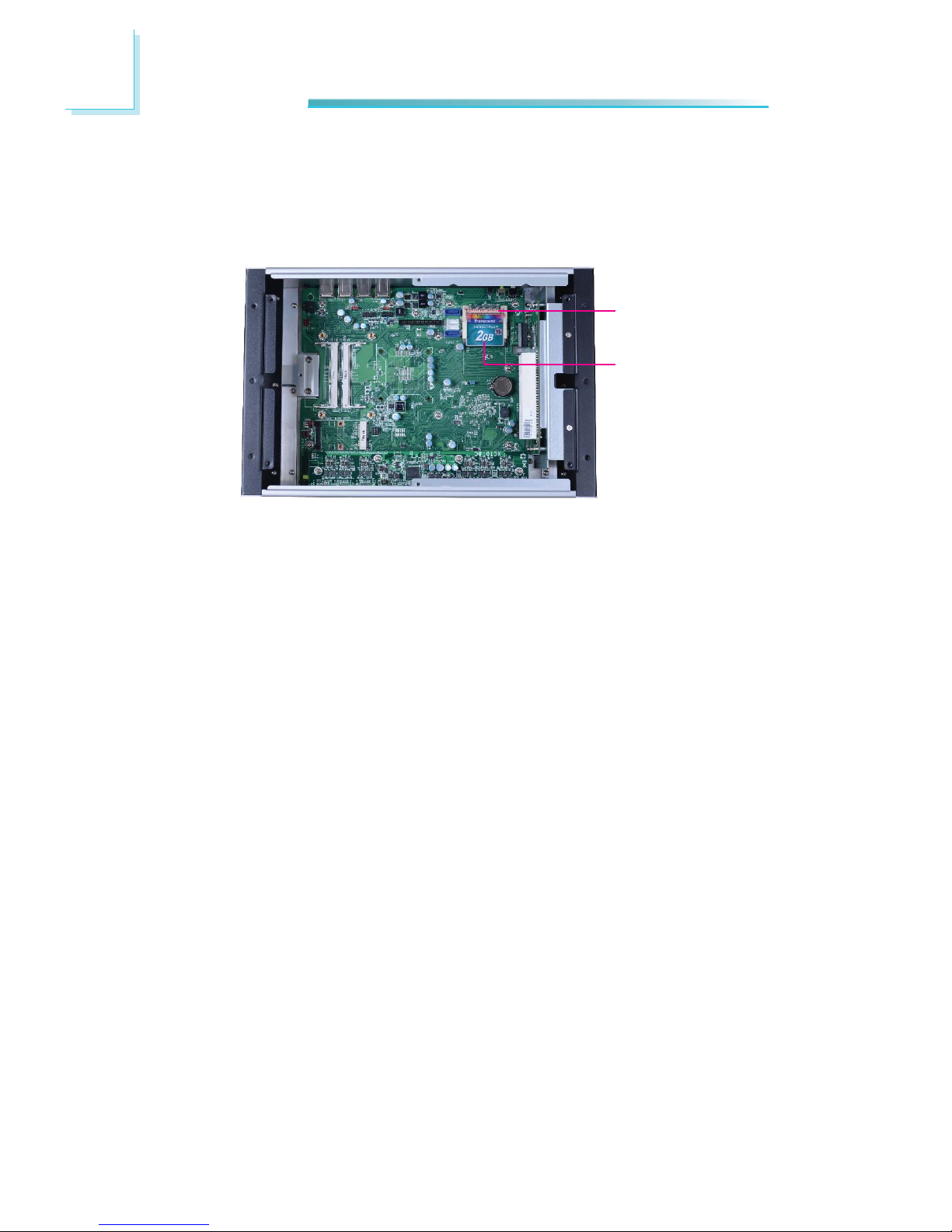

Installing a CompactFlash Card ...................................................... 40

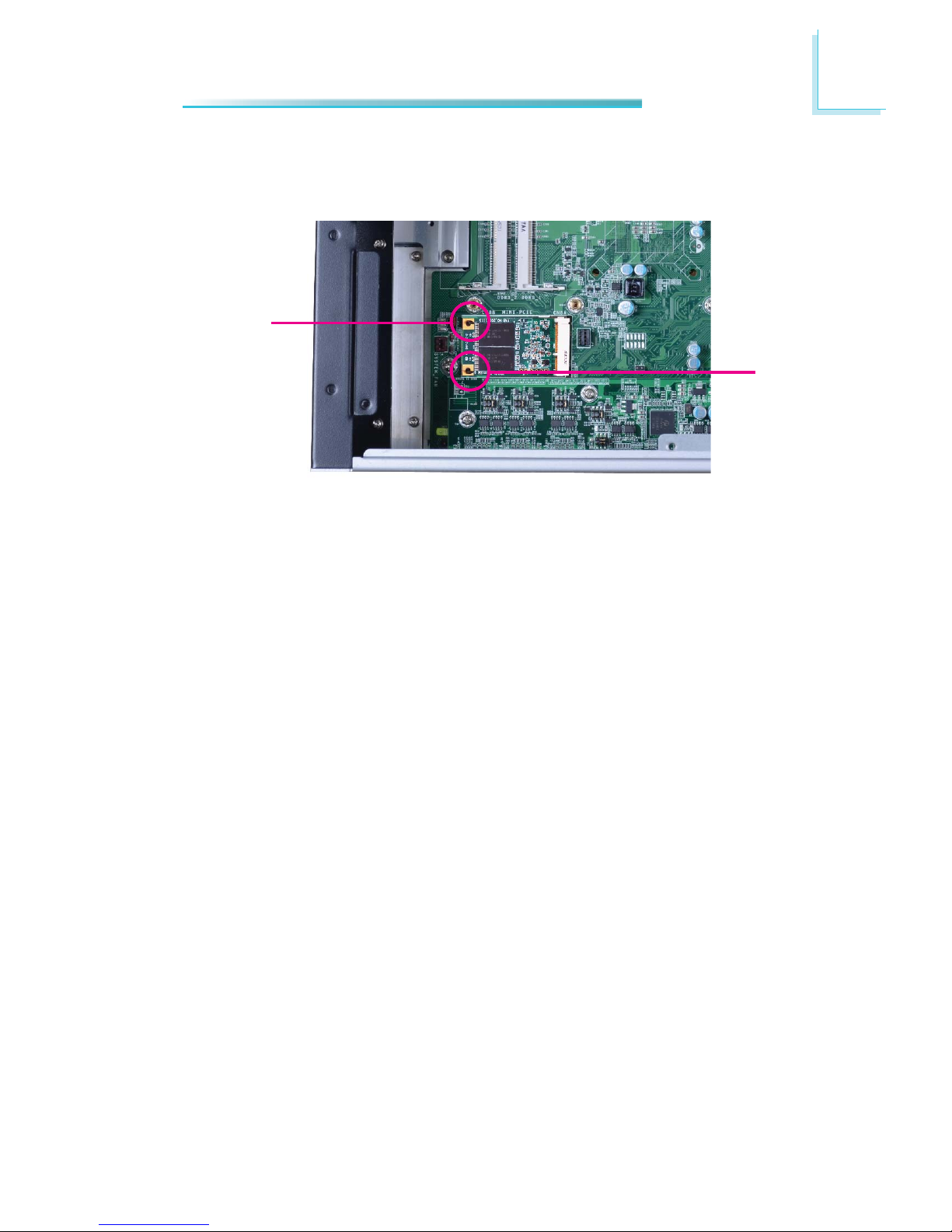

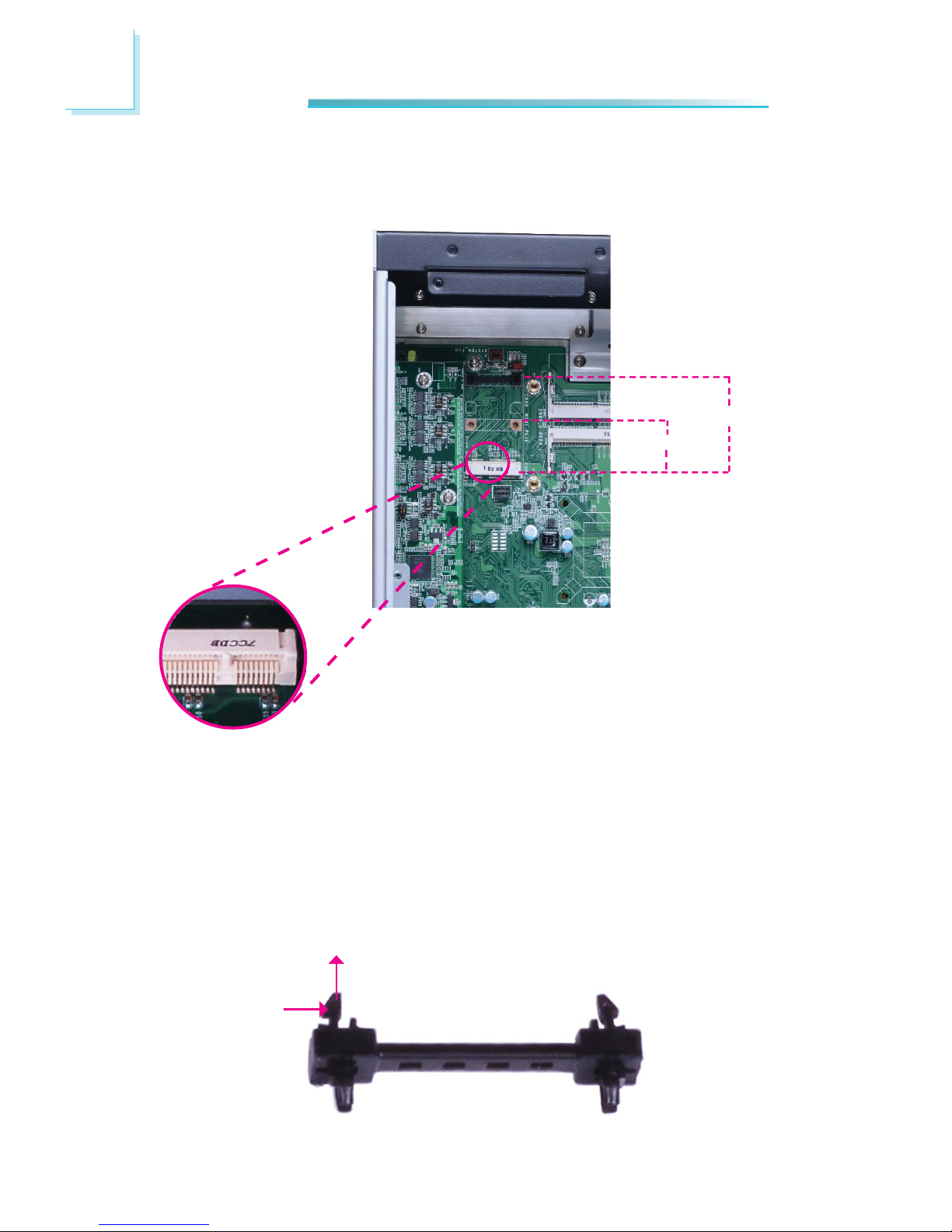

Installing a Mini PCIe and/or mSATA Card ...................................... 41

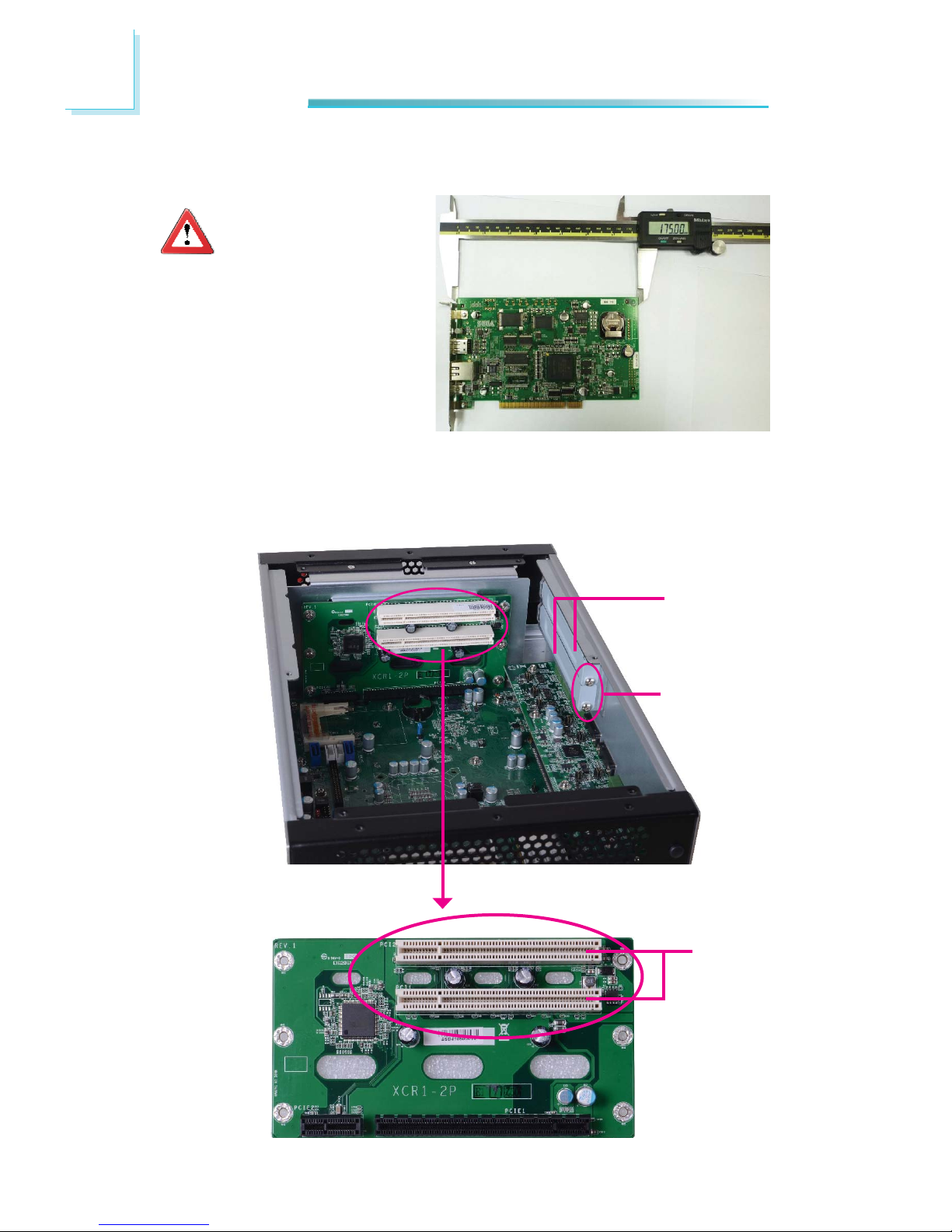

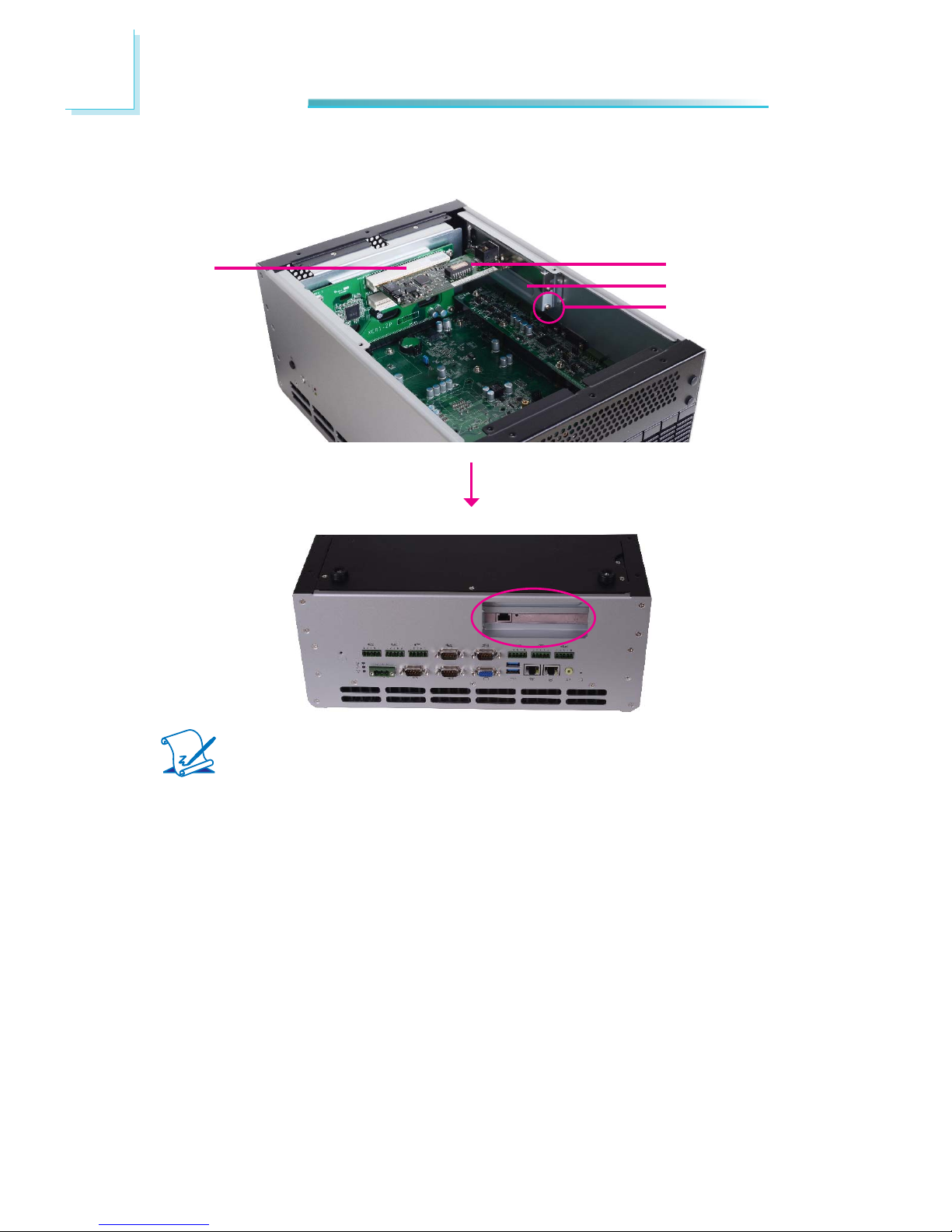

Installing the PCI and PCIe Expansion Cards ................................... 46
Page 5
1
5
Introduction

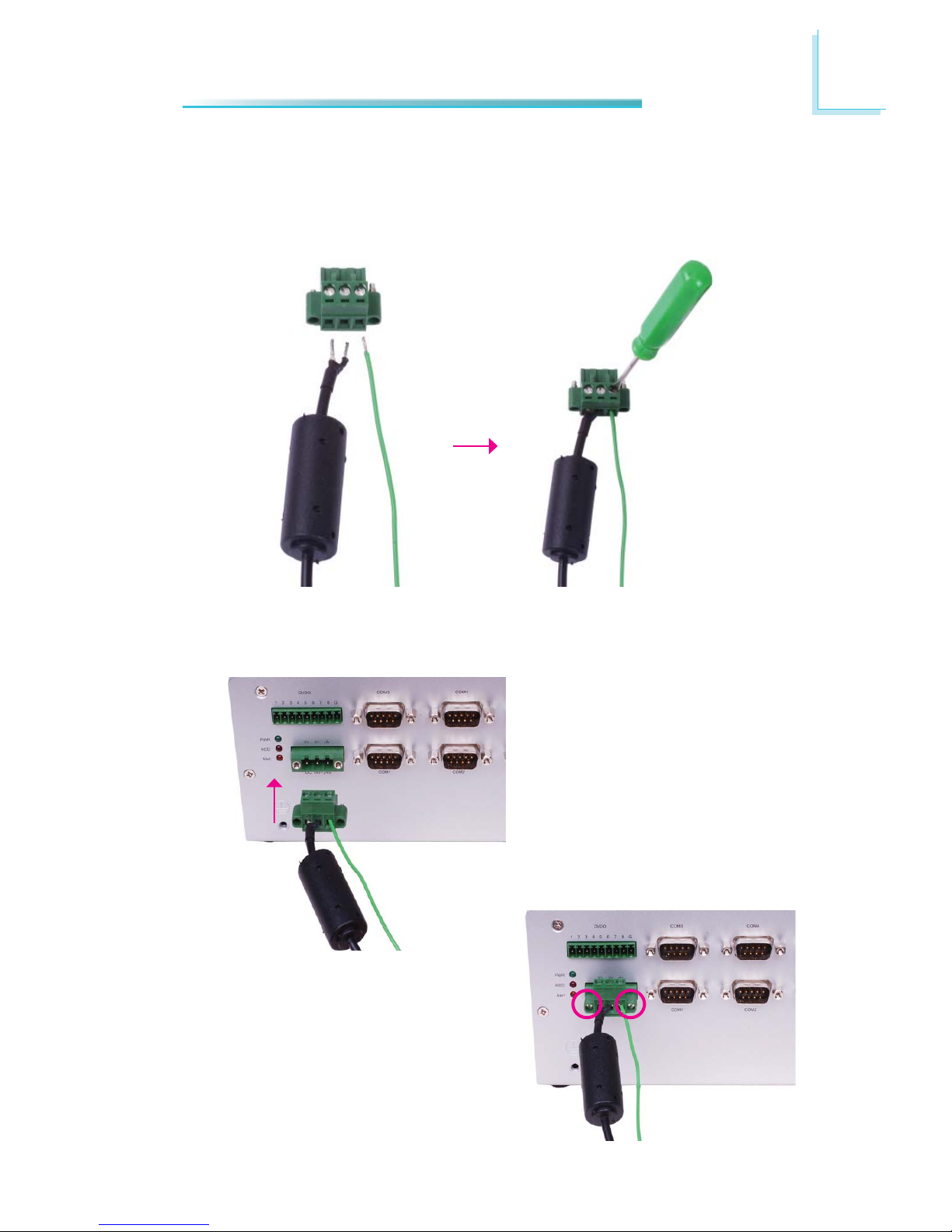

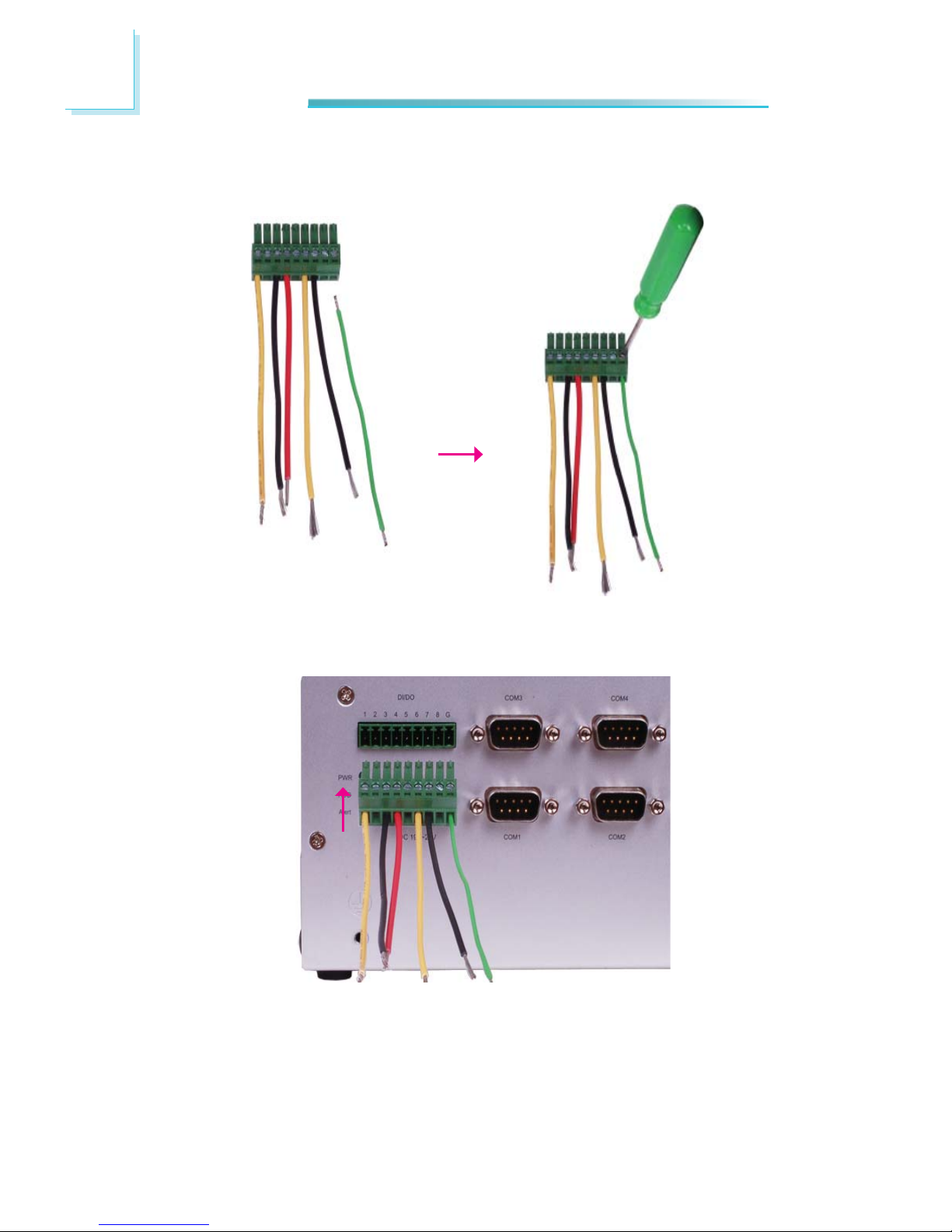

Connecting Cables to Terminal Blocks ............................................ 49

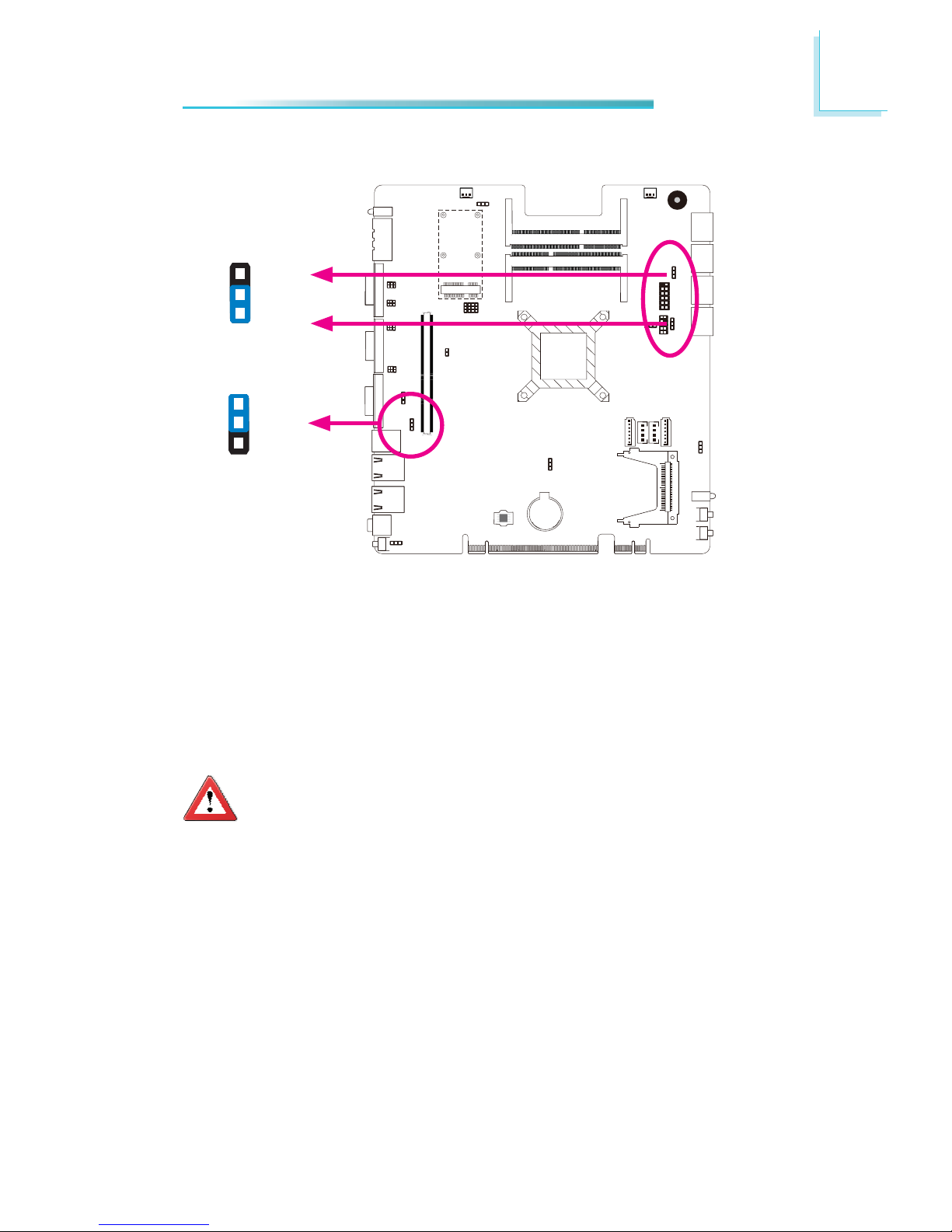

Chapter 4 - Jumper Settings ...........................................................51

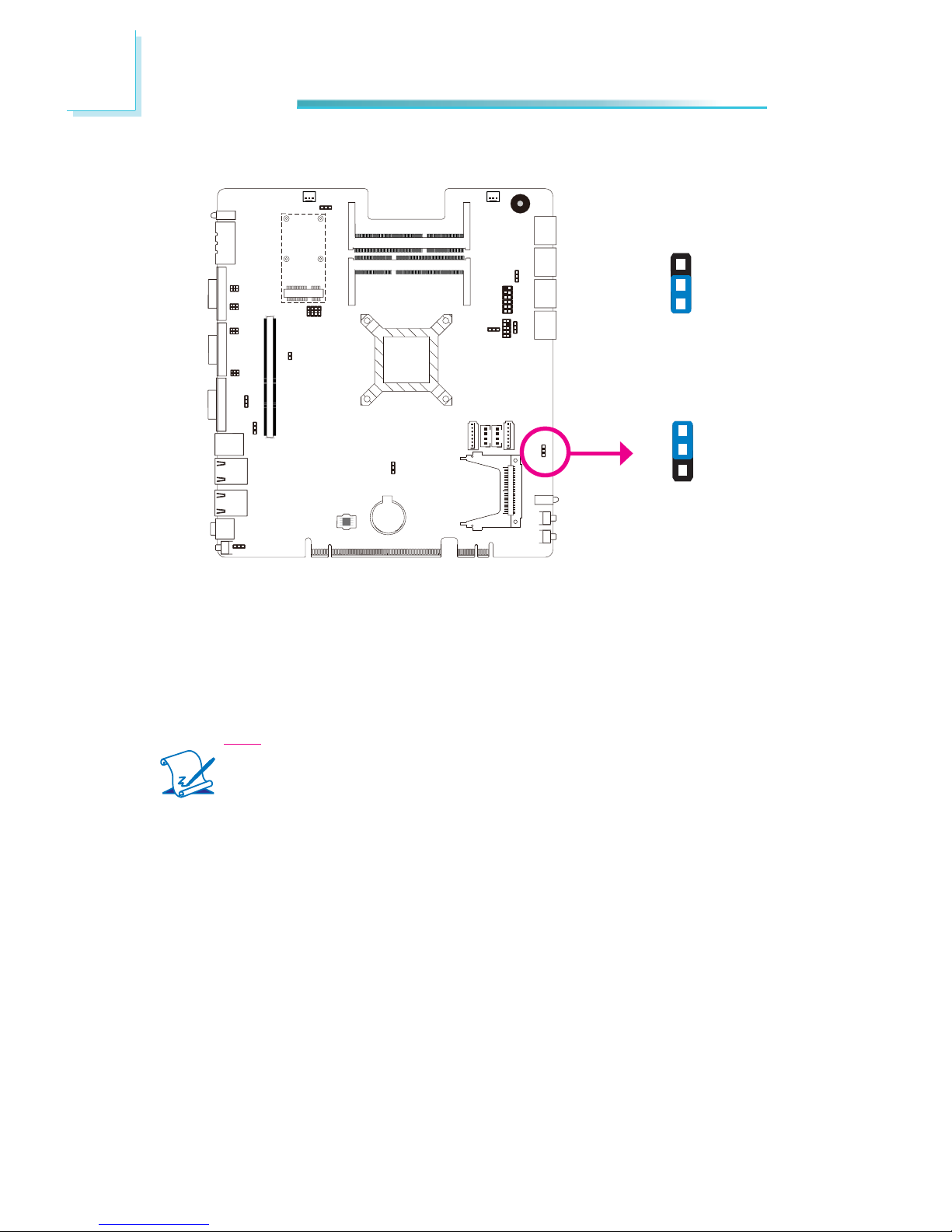

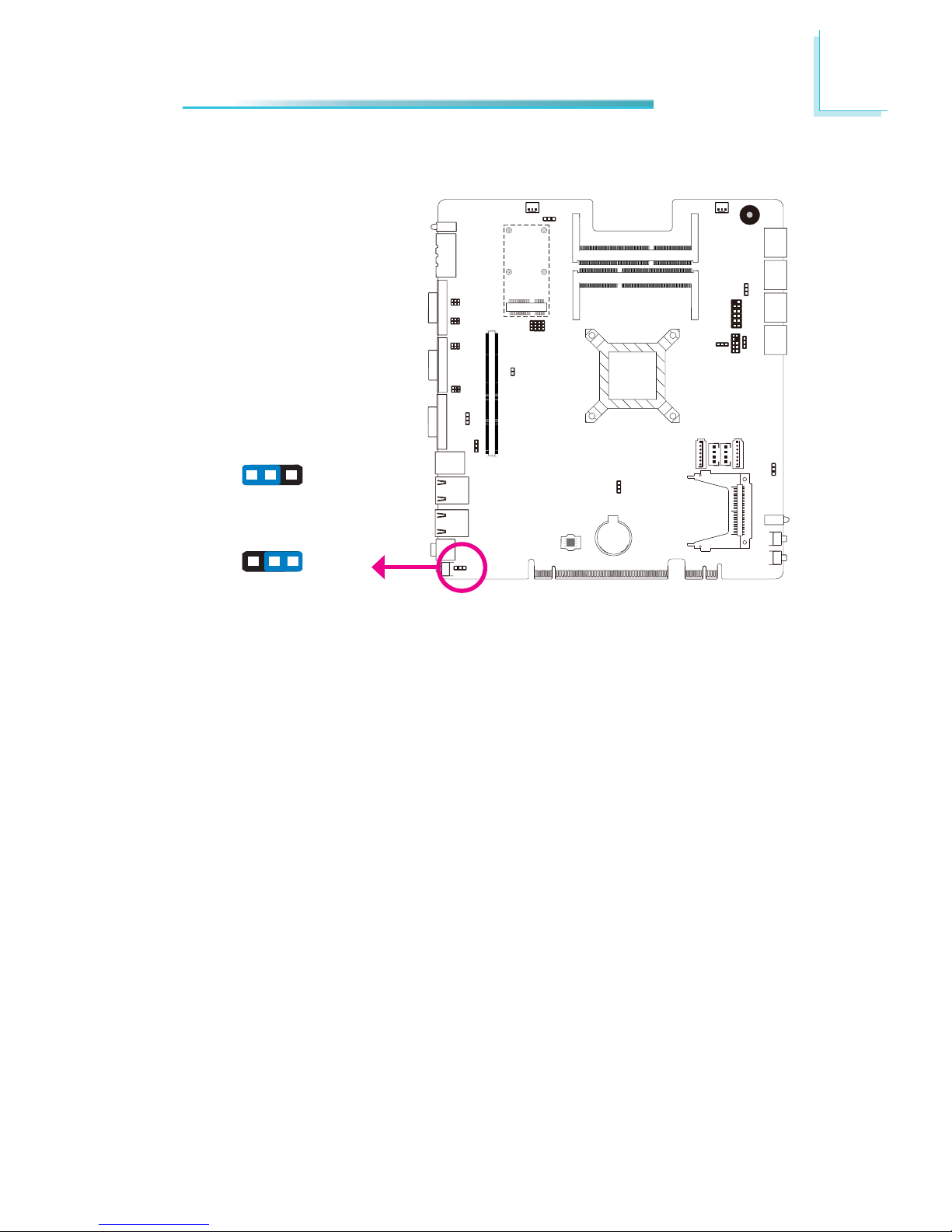

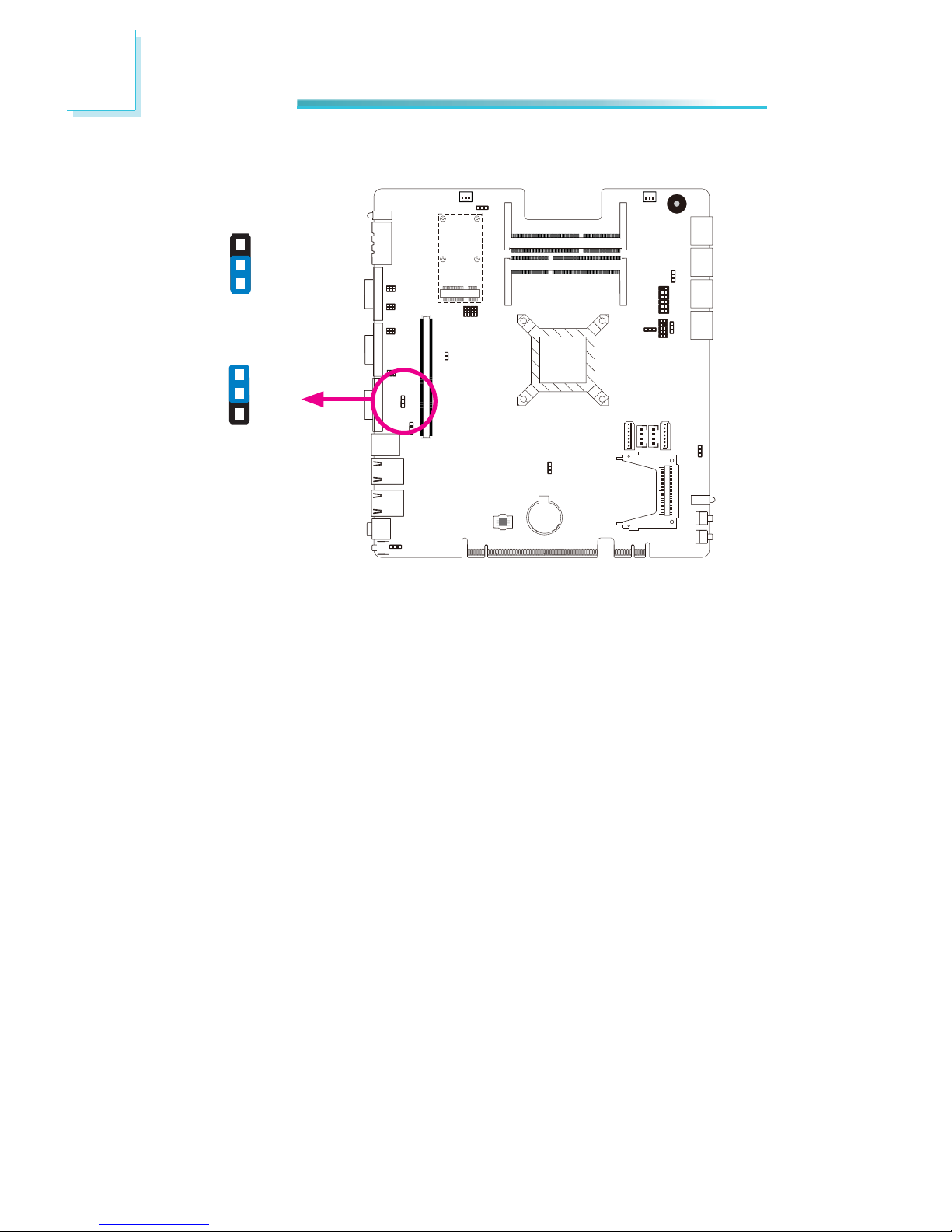

Jumper Settings - System Board .....................................................51

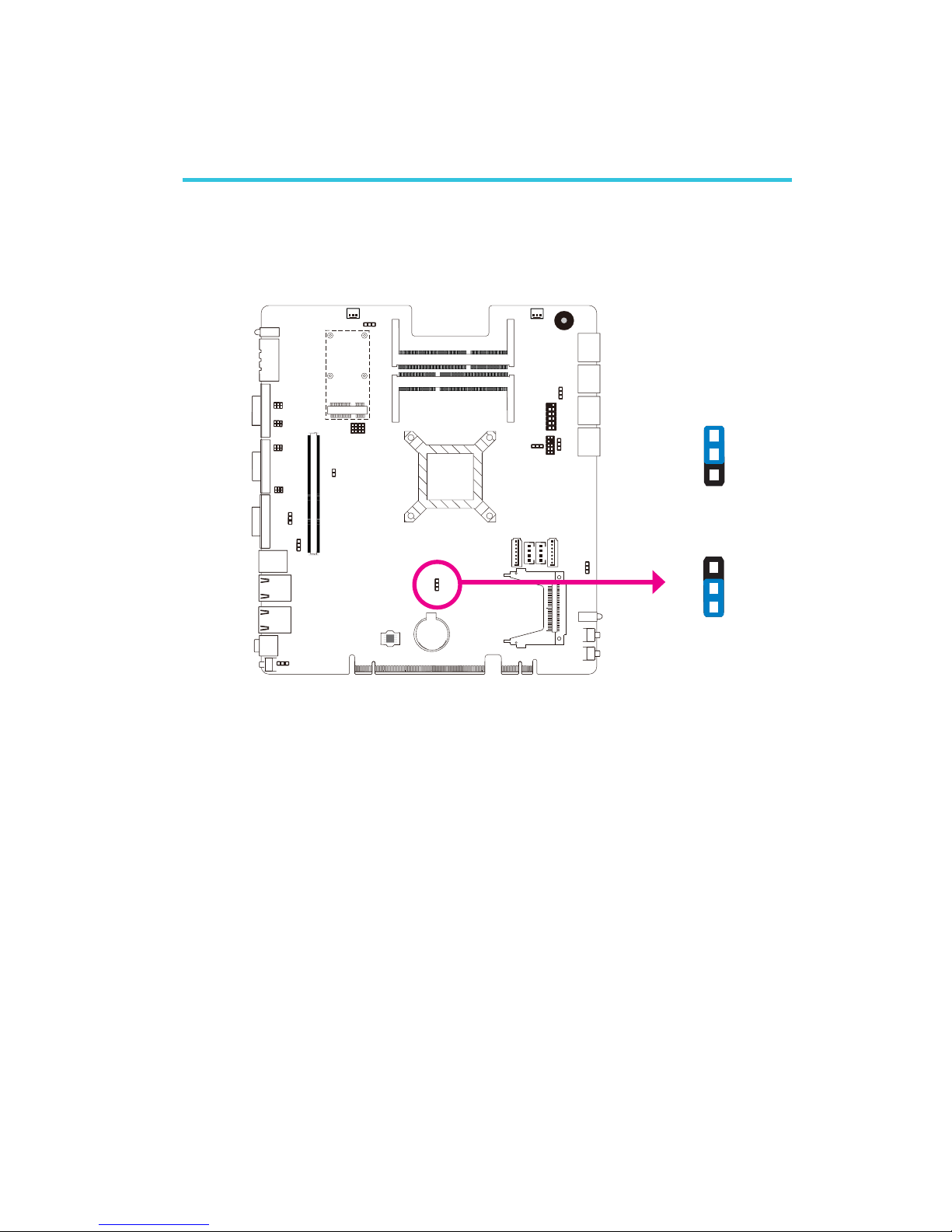

Clear CMOS Data ..................................................................... 51
PS/2 Power Select ....................................................................52
USB Power Select ..................................................................... 53

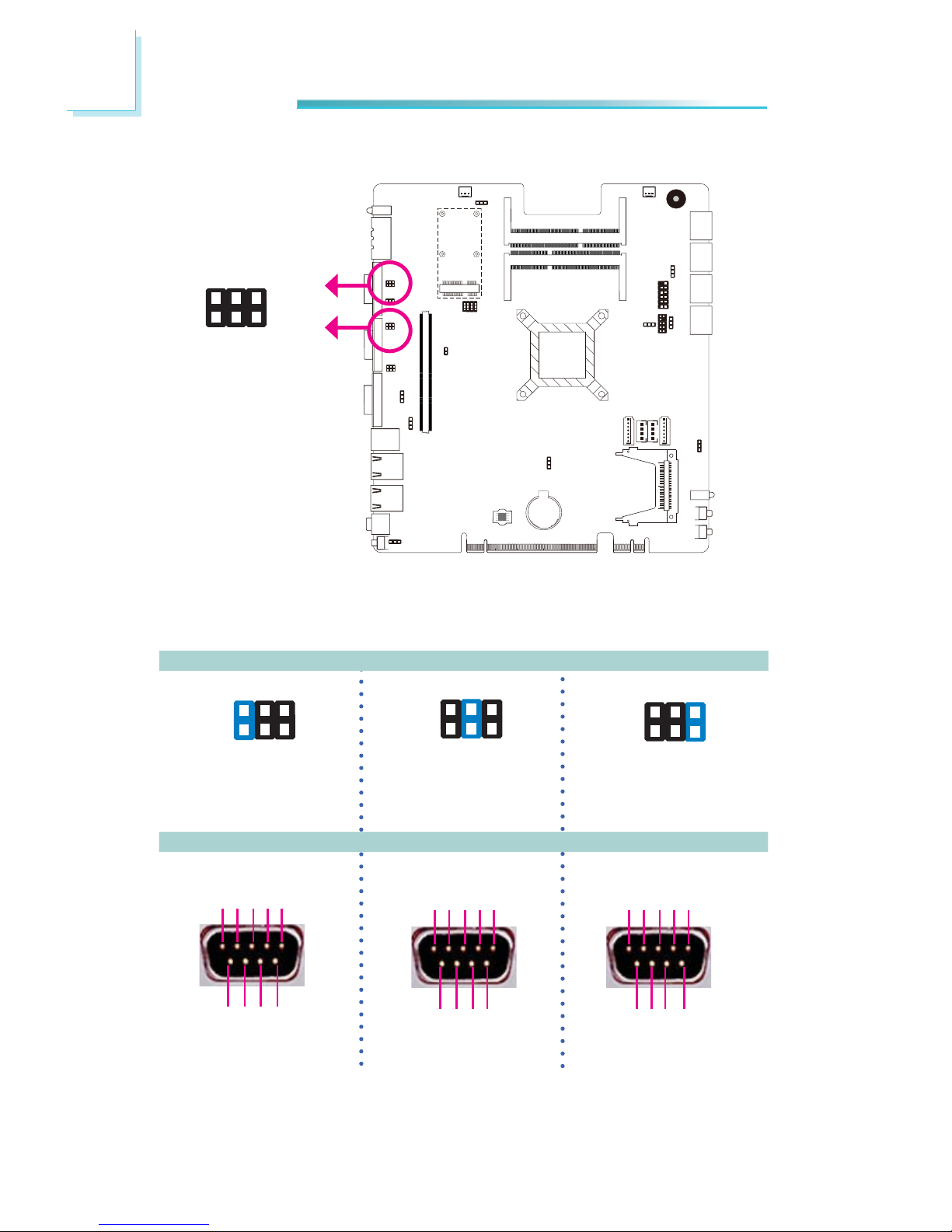

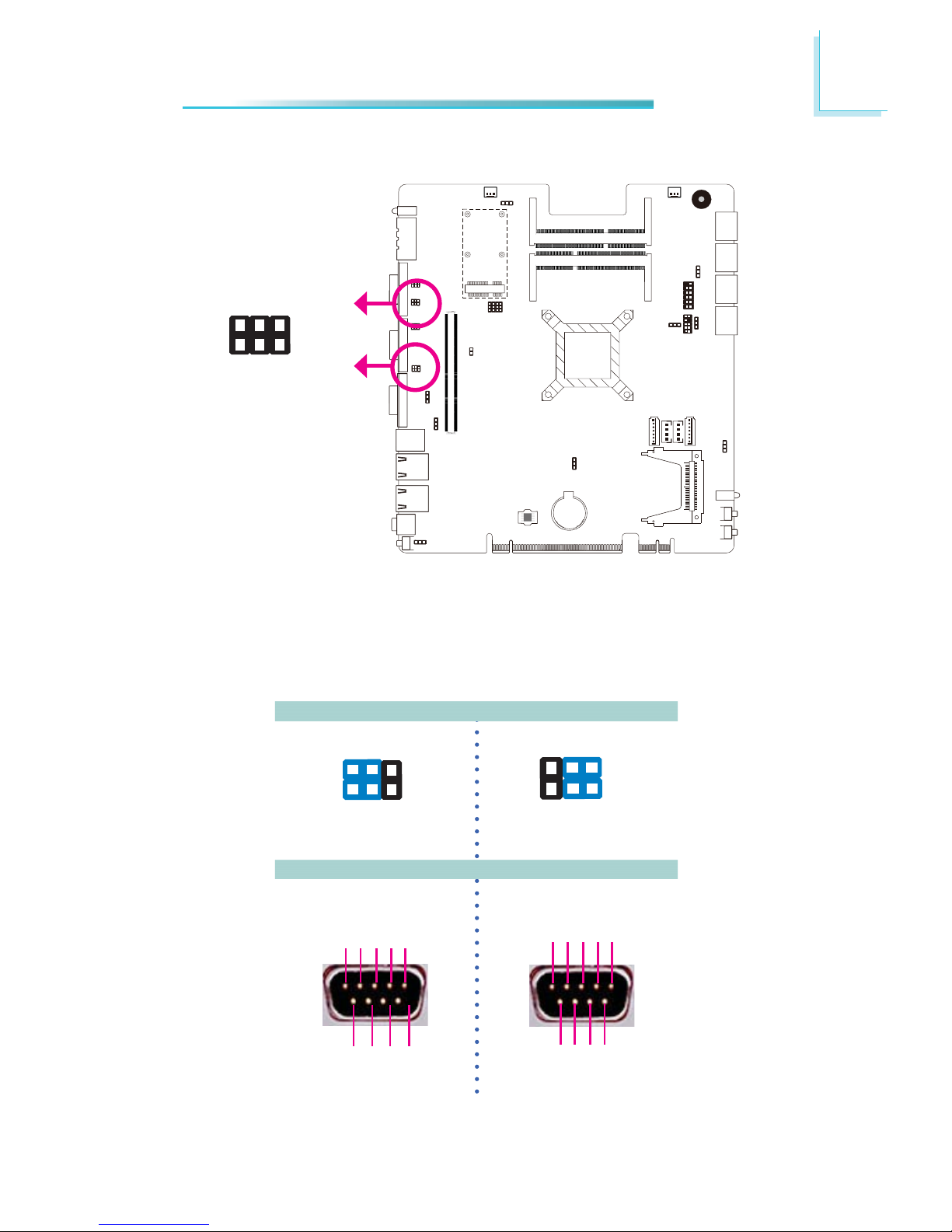

COM1 and COM2 RS232/422/485 Select ..................................... 54
COM1 and COM2 RS232/Power Select ........................................ 55
Power-on Select .......................................................................56
Mini PCIe/mSATA Power Select ..................................................57
Mini PCIe/mSATA Select ............................................................ 58
Reset/Power on Select...............................................................59
Factory Testing ........................................................................60

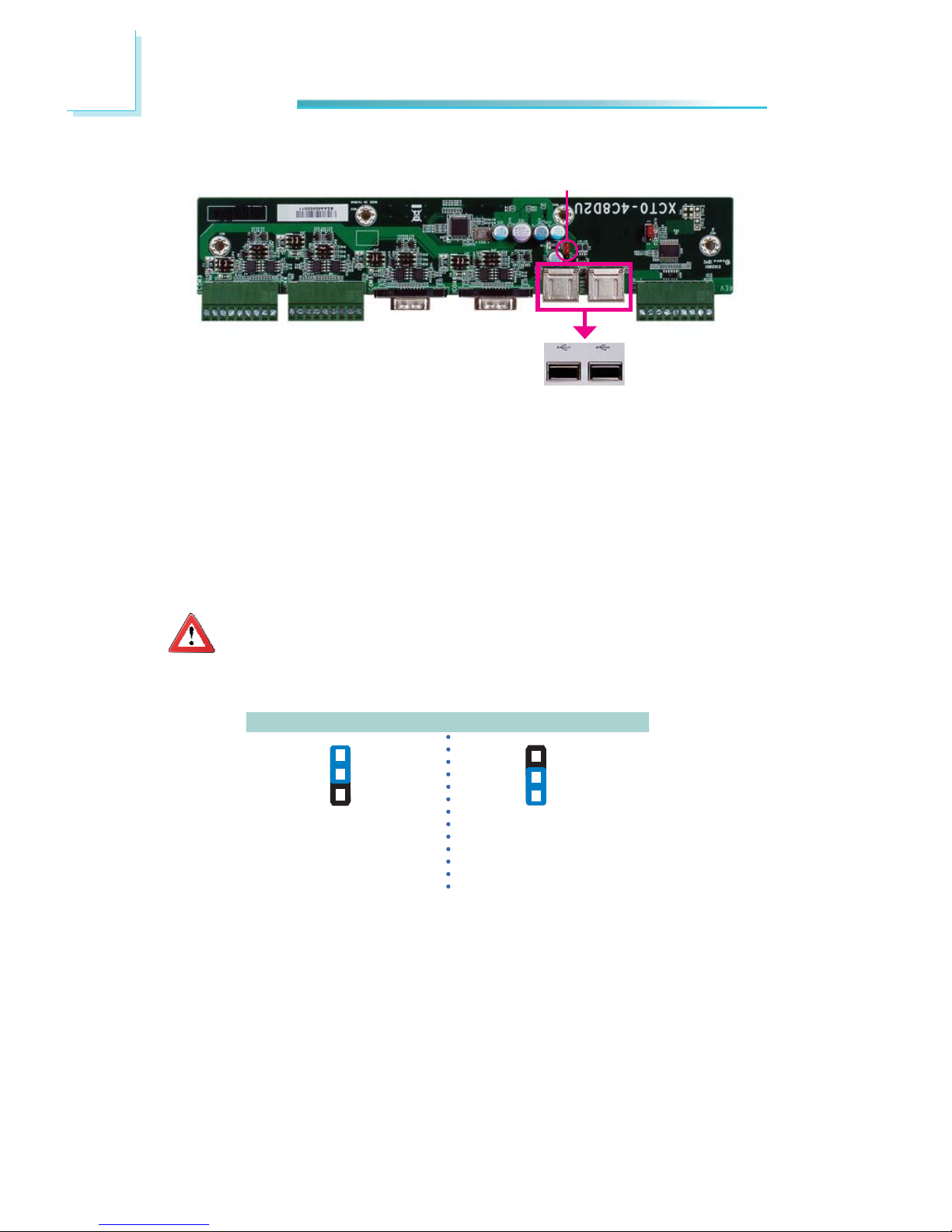

Jumper Settings - I/O Board ..........................................................61
Chapter 5 - Ports and Connectors ................................................ 70
Front Panel I/O Ports .................................................................... 70
USB Ports................................................................................ 71

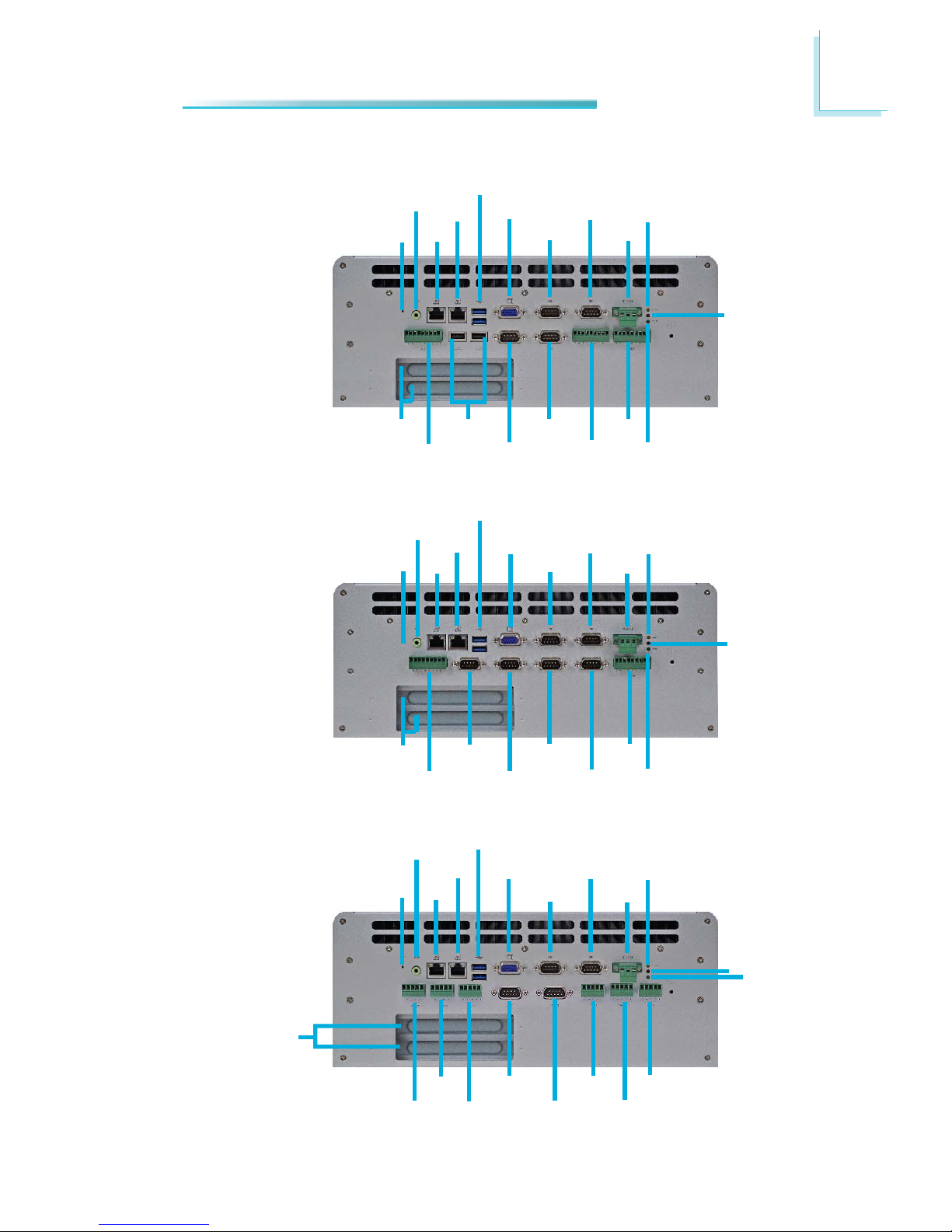

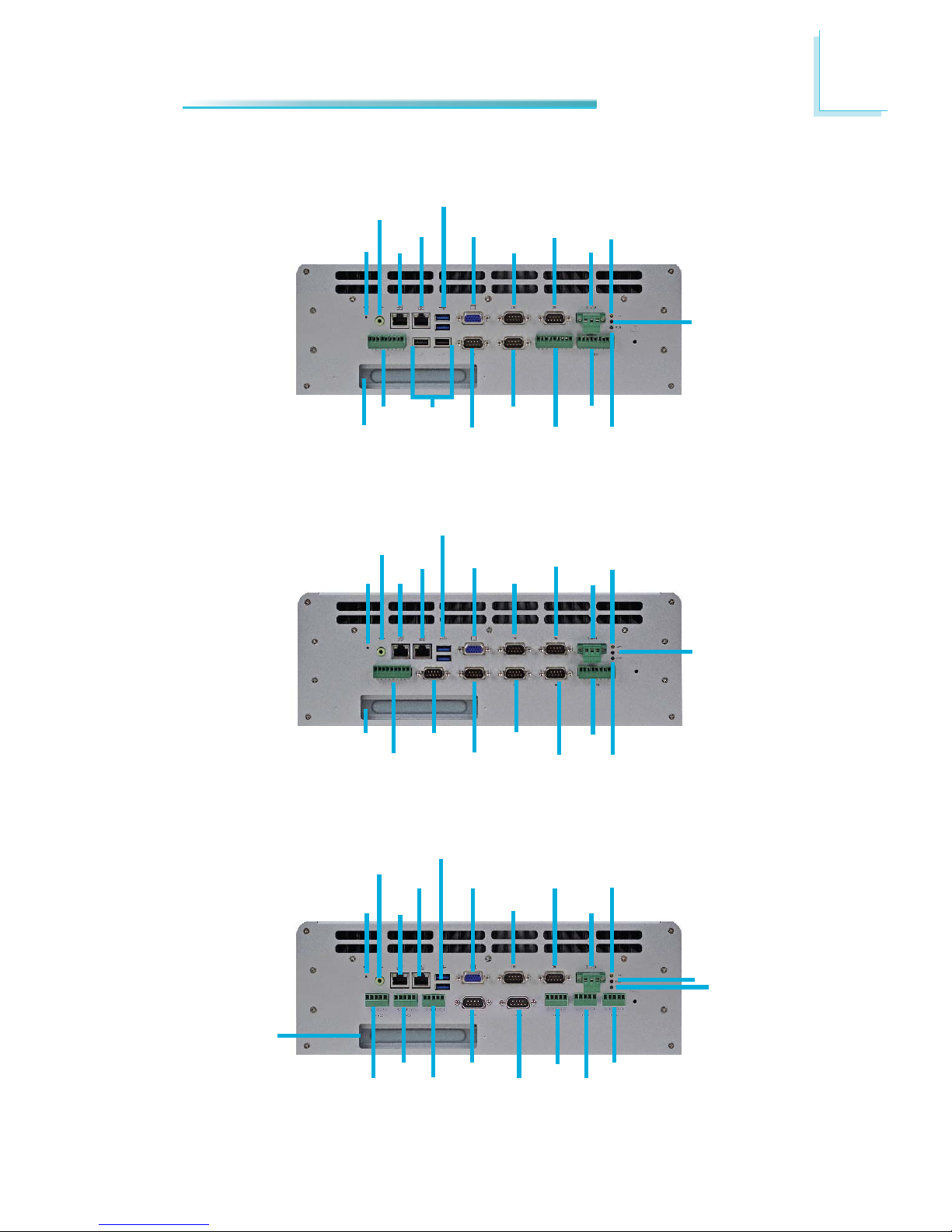

Rear Panel I/O Ports ..................................................................... 73
LAN Ports ................................................................................ 79
USB Ports................................................................................ 80

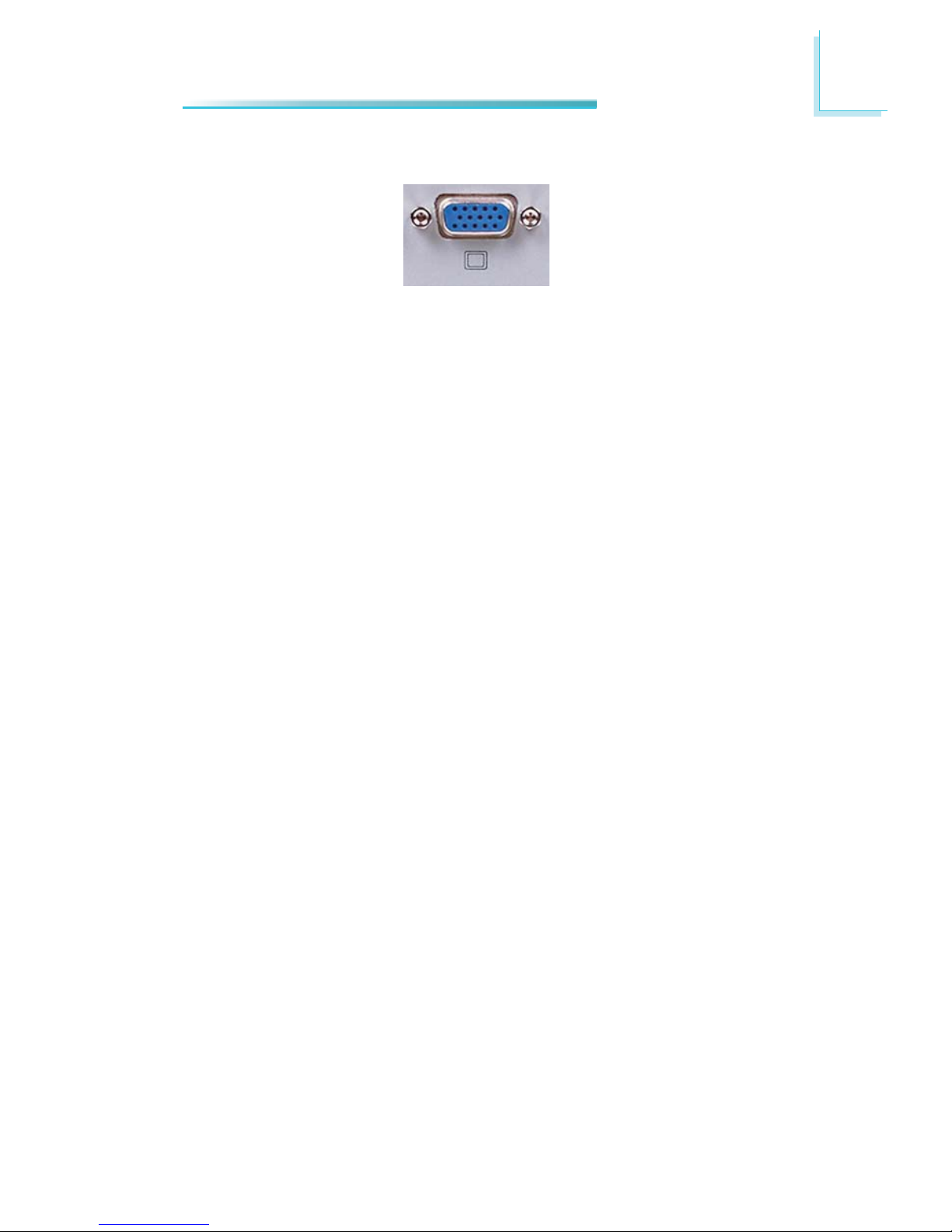

VGA Port ................................................................................. 81
Speaker-out ............................................................................ 82

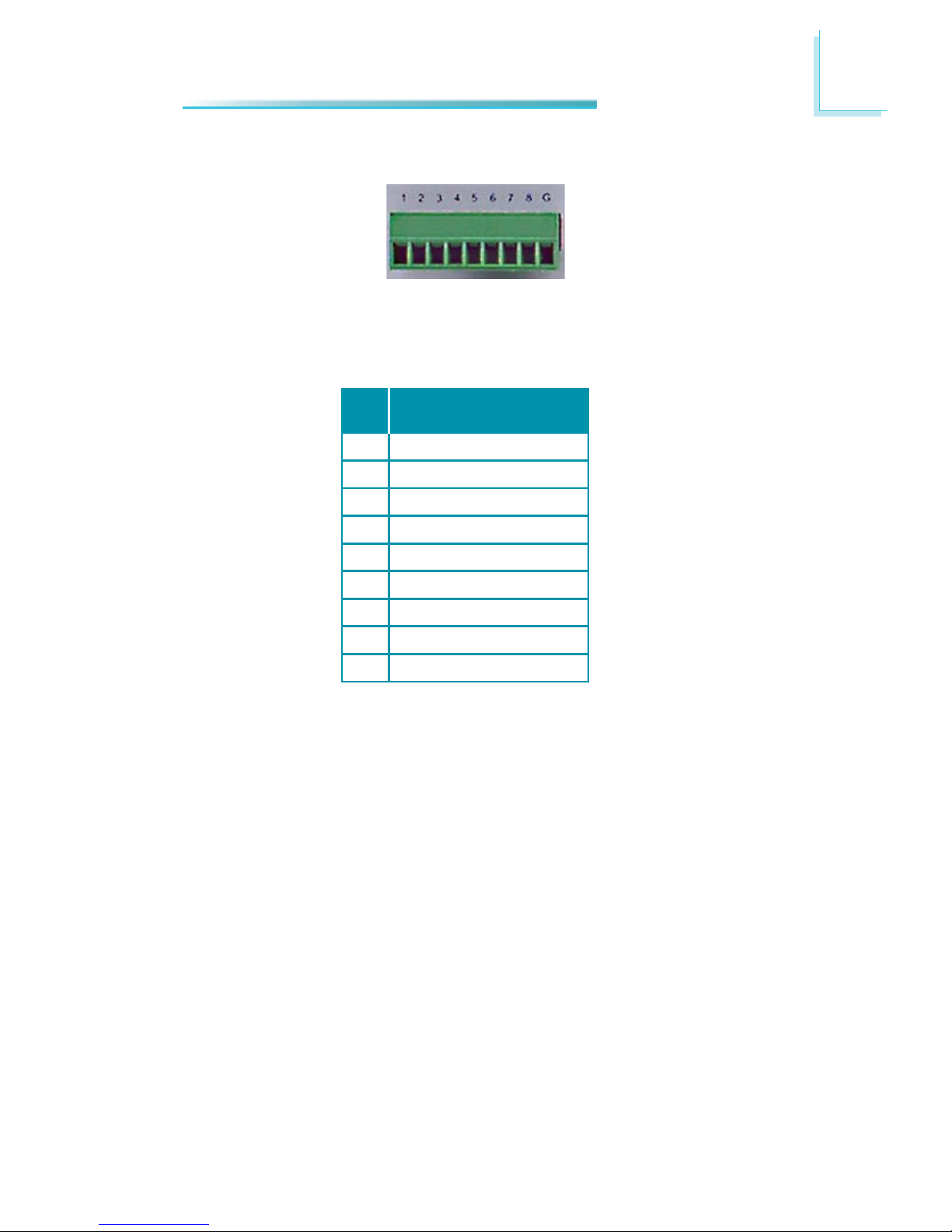

Digital Input/Output ................................................................. 83

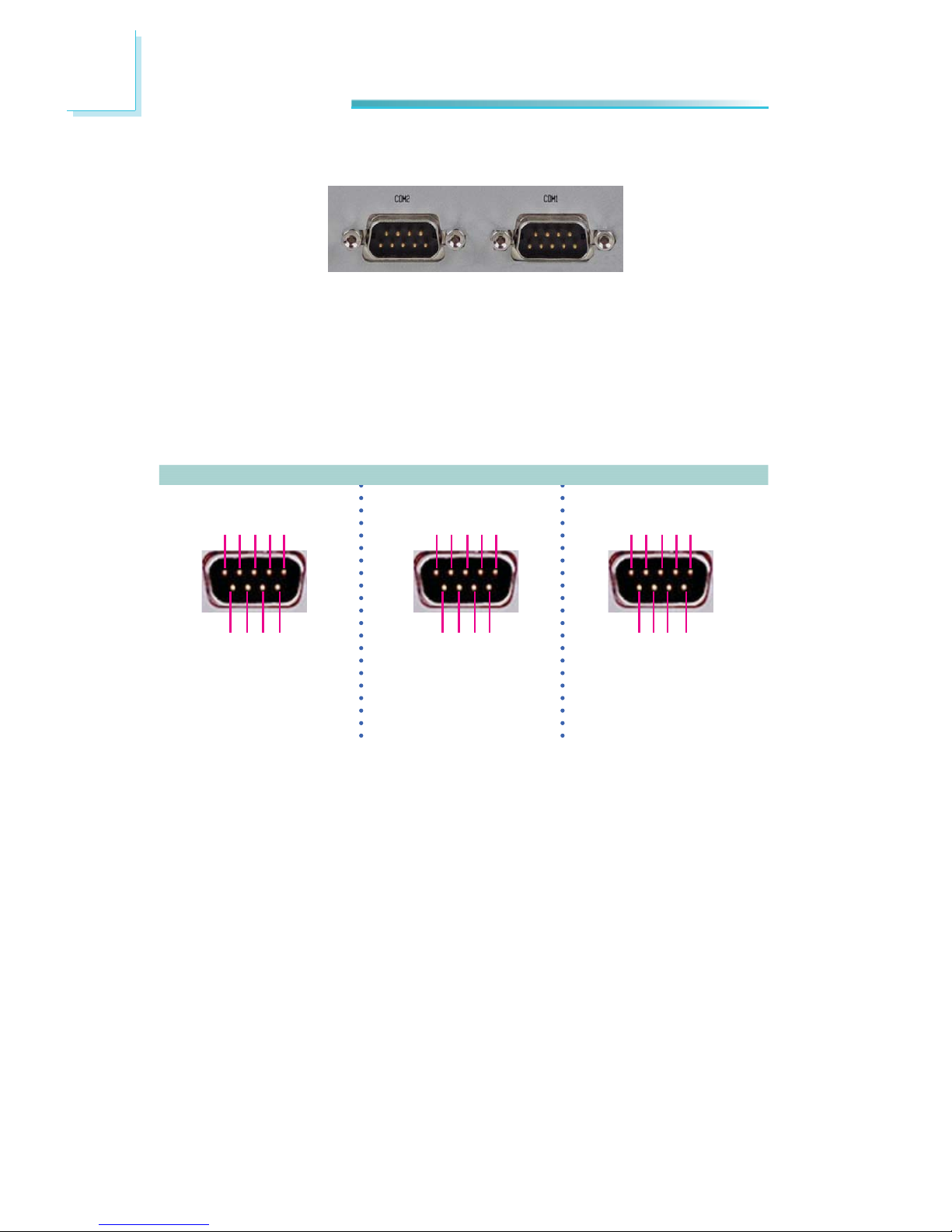

COM Ports ............................................................................... 84

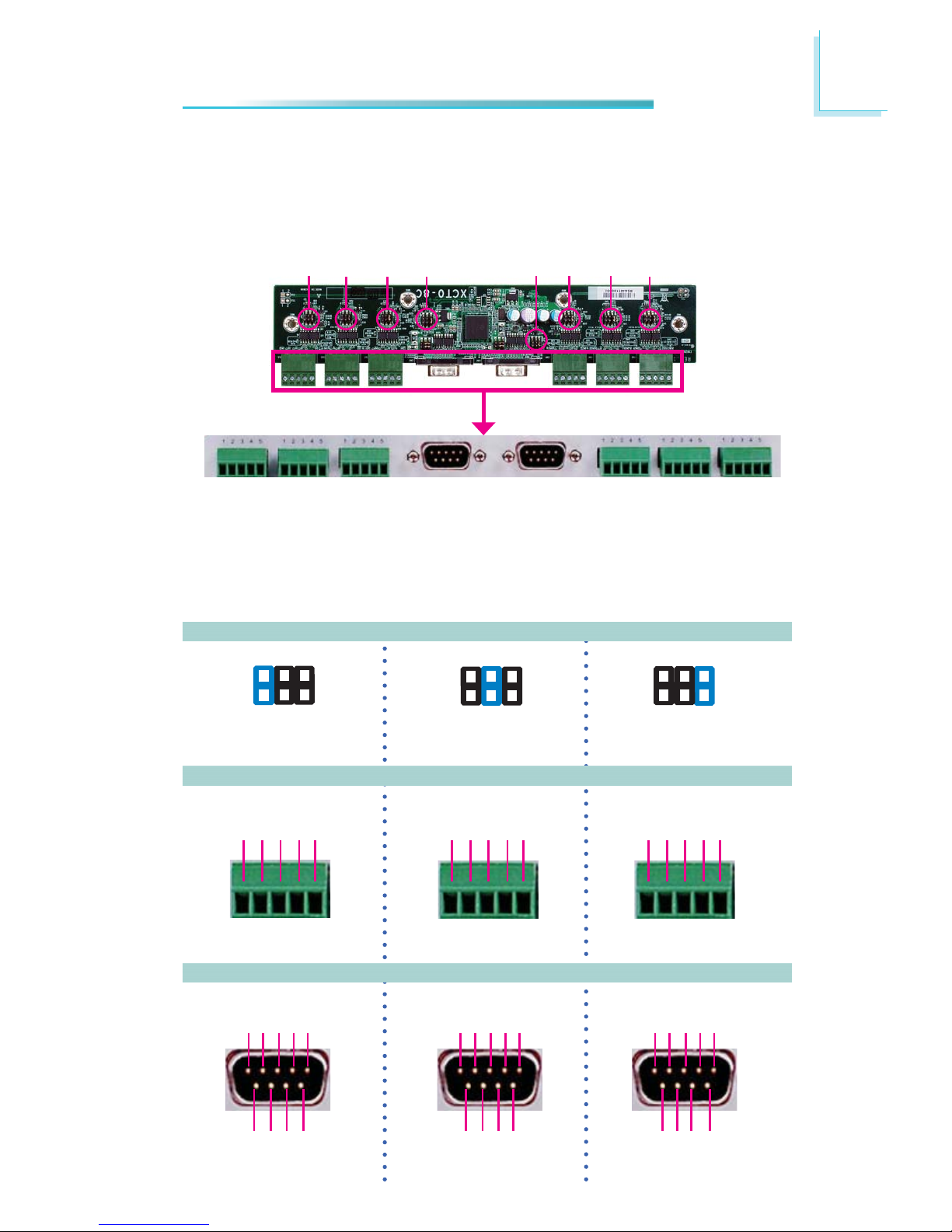

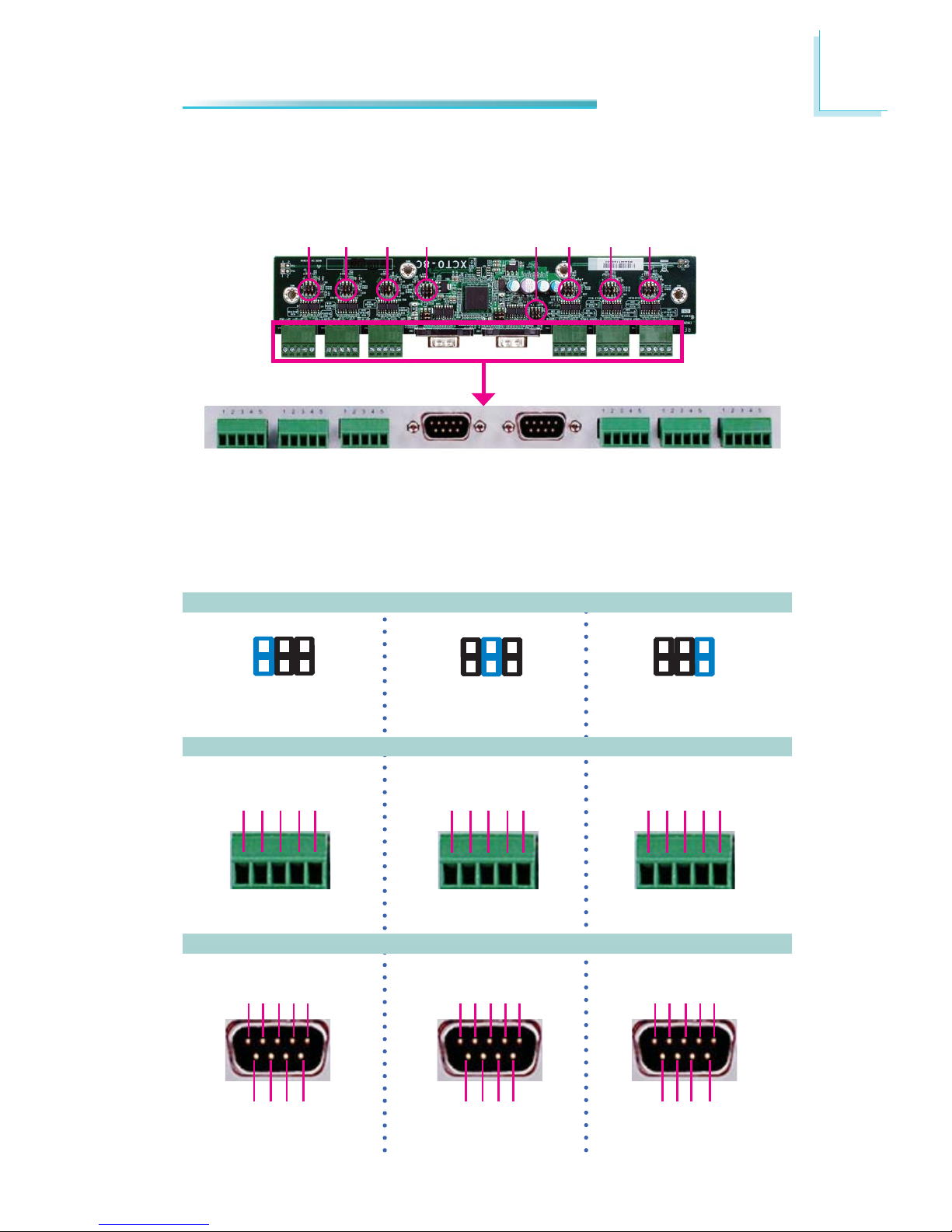

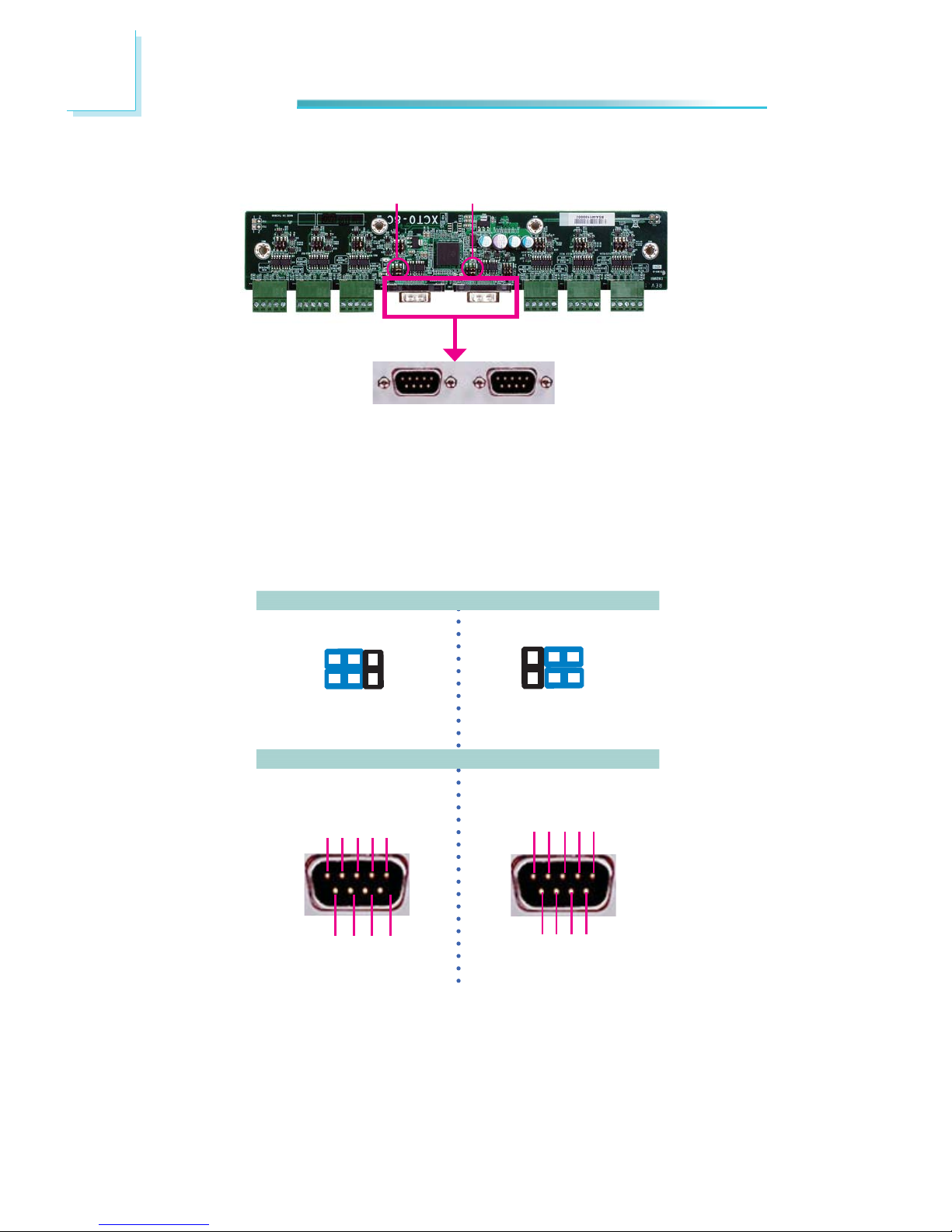

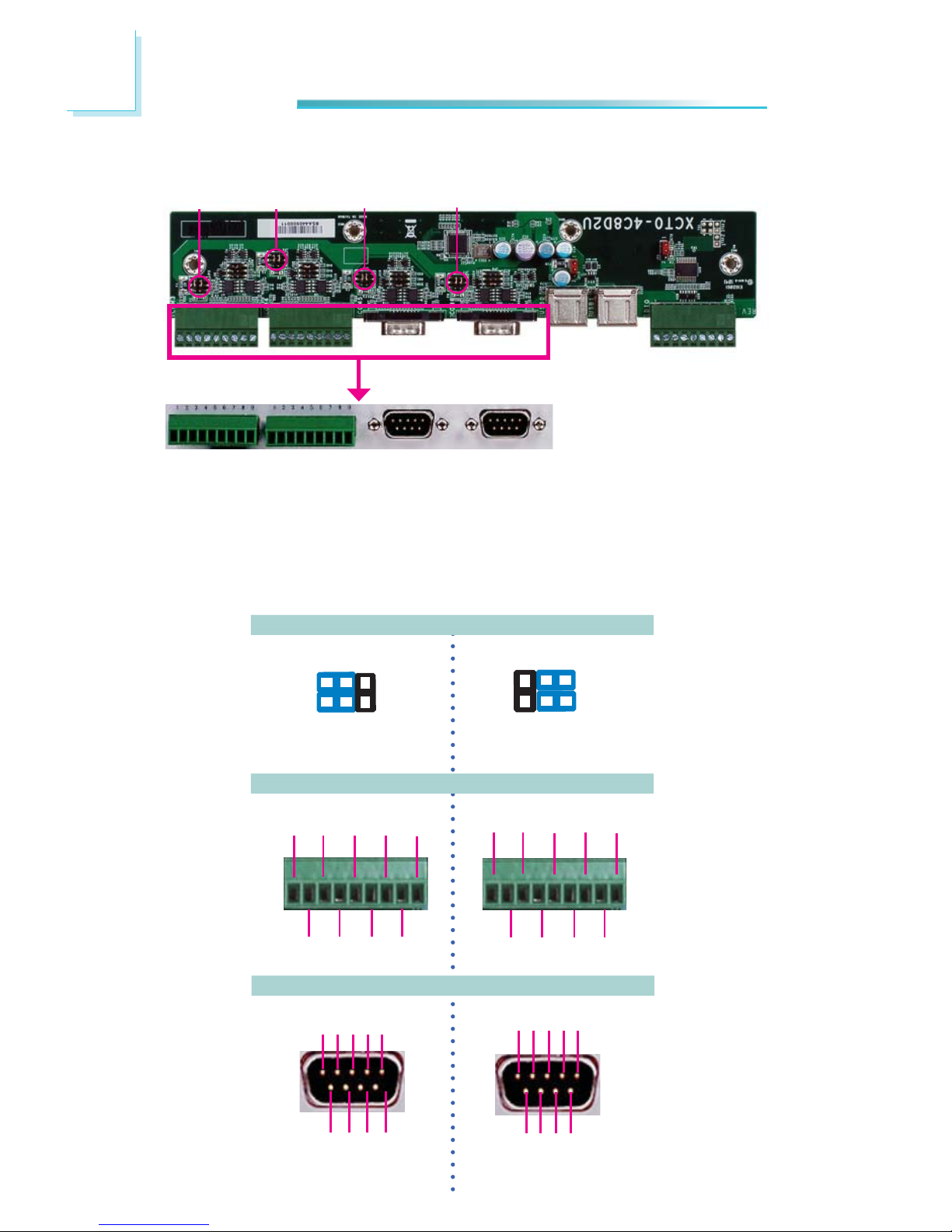

COM 3-10 RS232/422/485 Select (CRA060) ................................ 85
COM 6-7 RS232/Power Select .................................................... 86

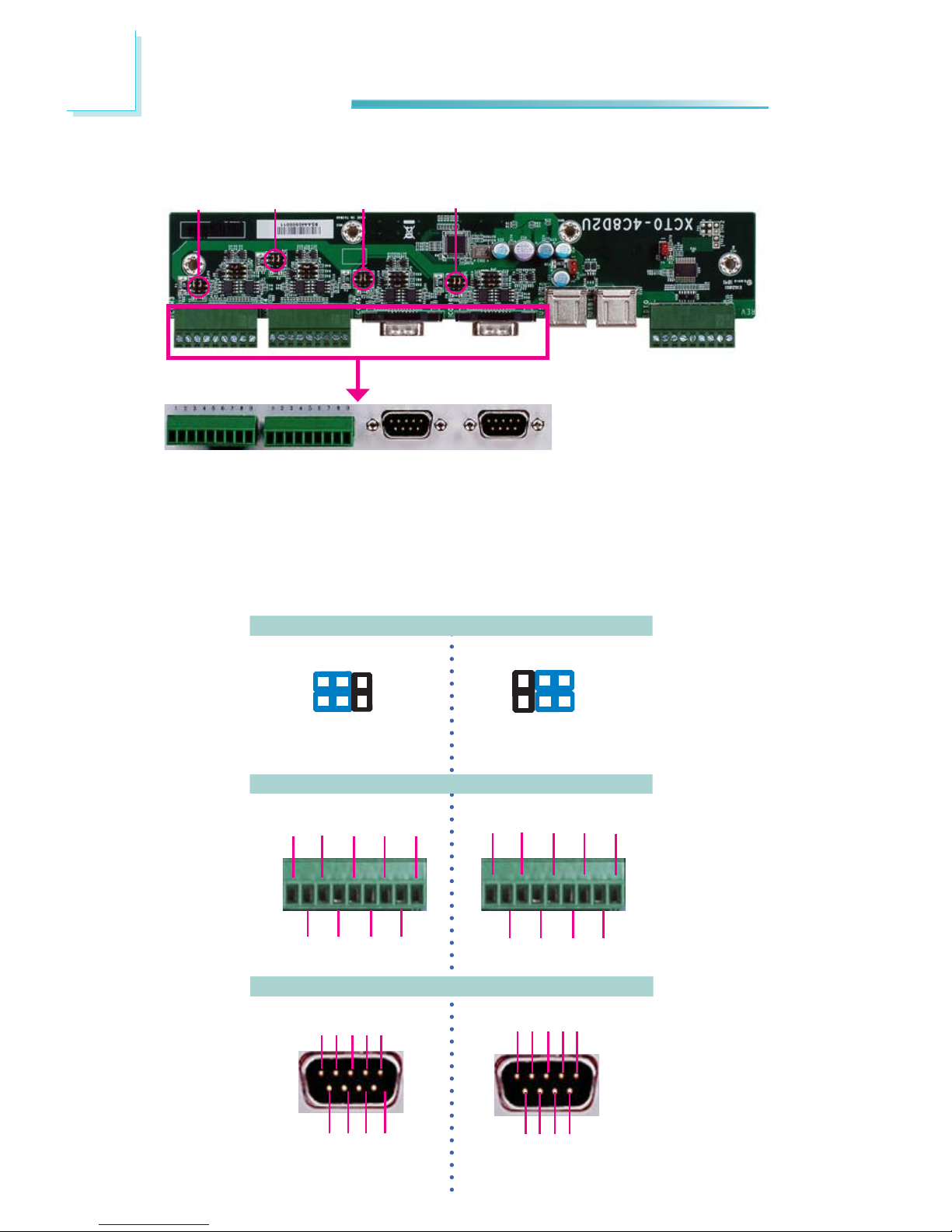

COM 3-6 RS232/422/485 Select (CR6880) .................................. 87

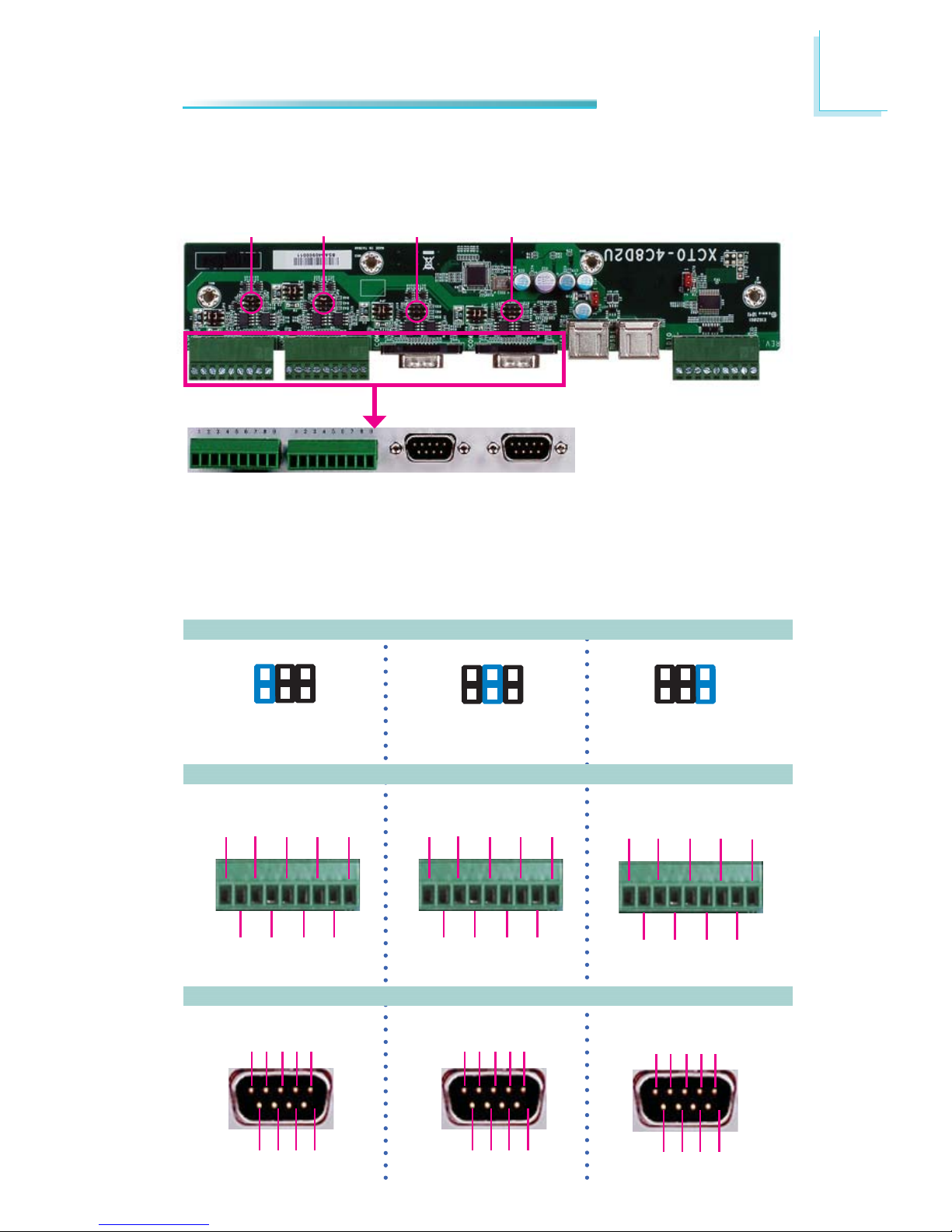

COM 3-6 RS232/Power Select .................................................... 88

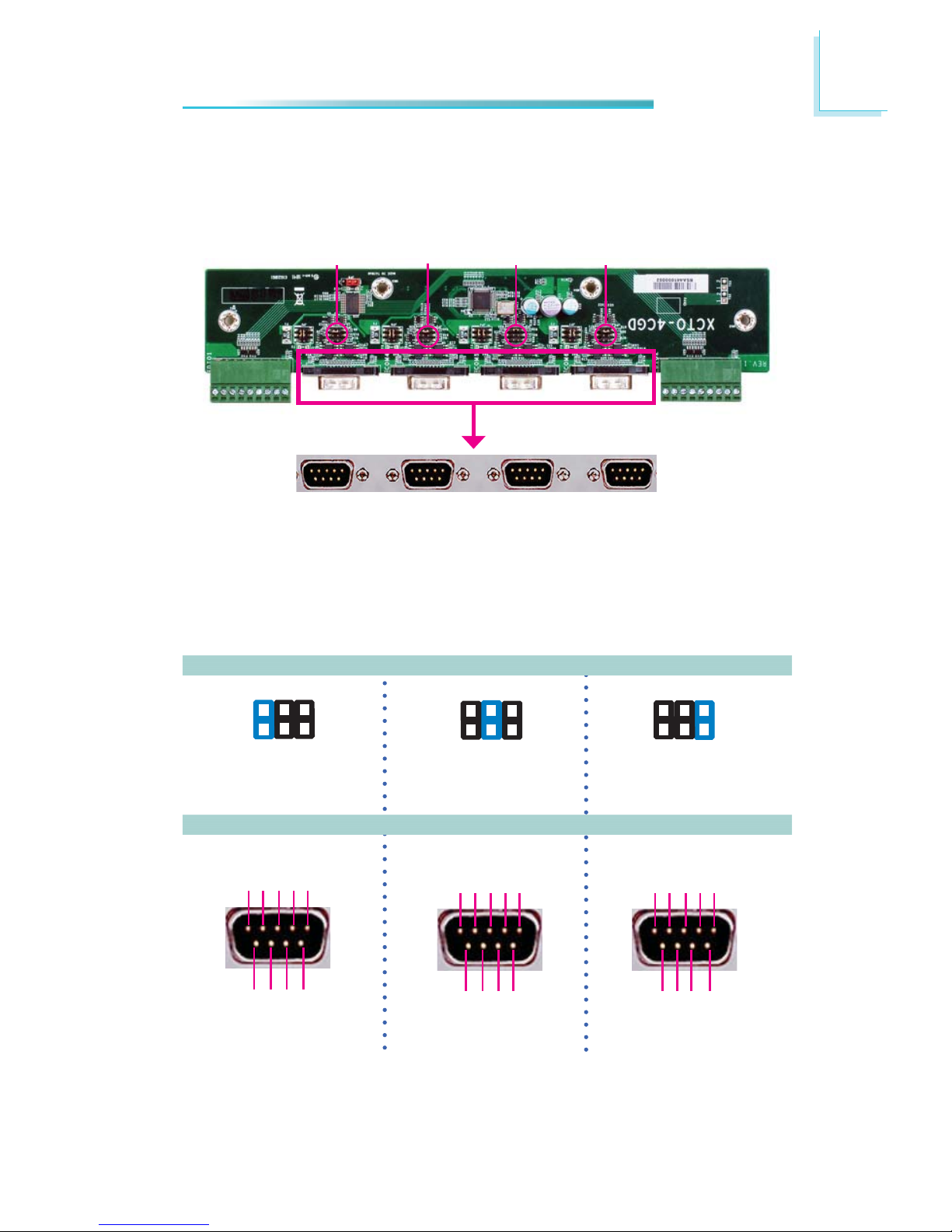

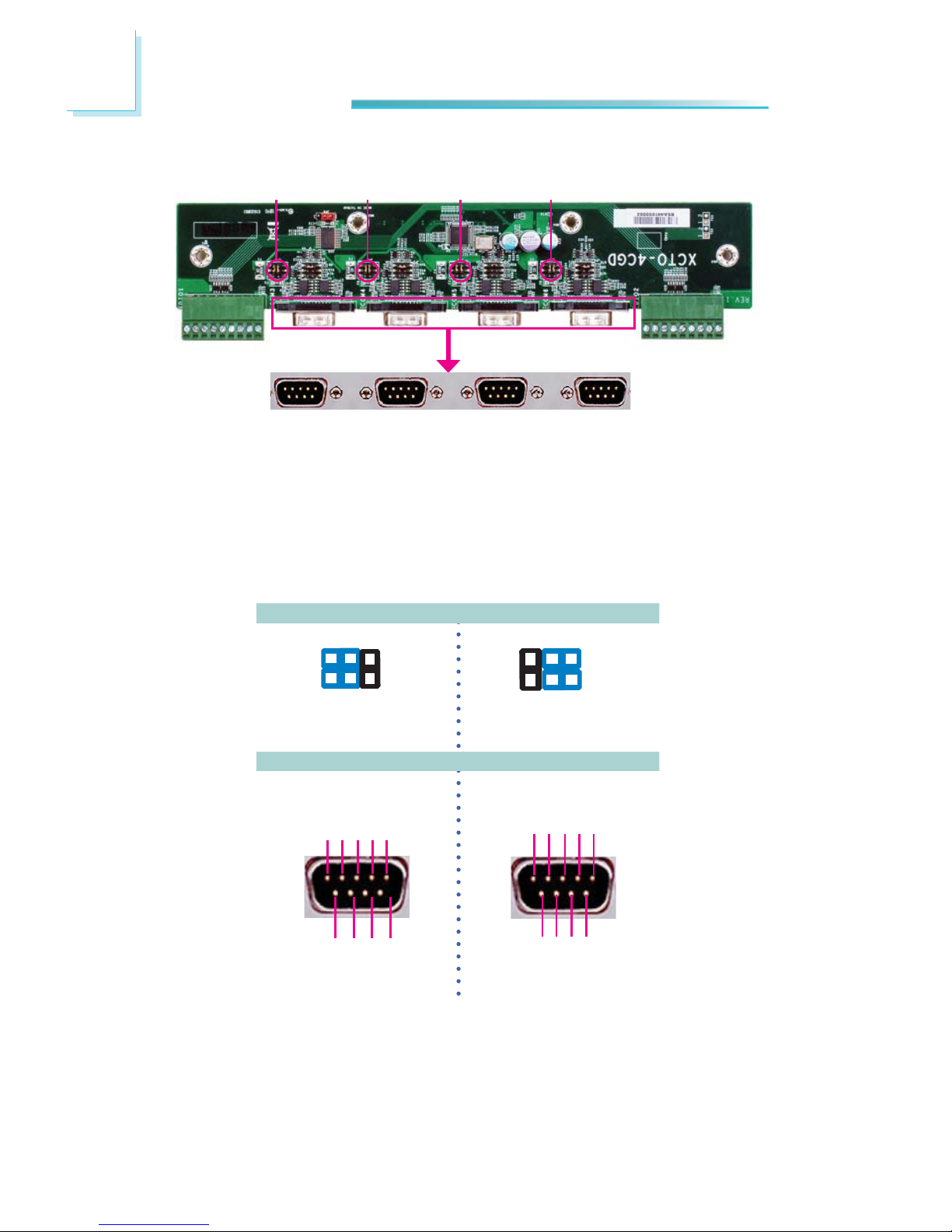

COM 3-6 RS232/422/485 Select (CR6G60) ................................. 89

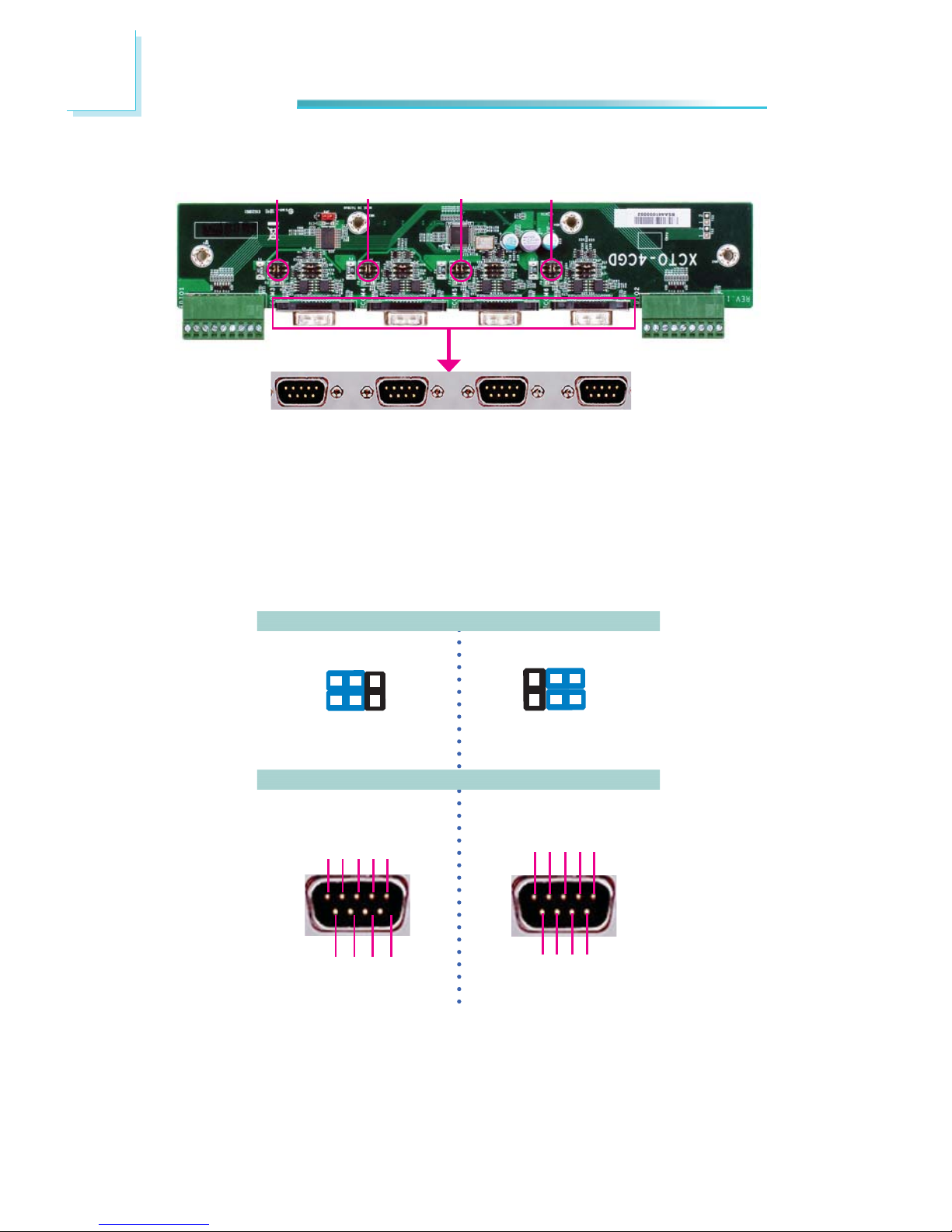

COM 3-6 RS232/Power Select .................................................... 90
I/O Connectors ............................................................................ 91
Chassis Intrusion Connector ...................................................... 91
SATA (Serial ATA) Connectors .................................................... 92
HDD Power ..............................................................................93
Mini PCIe Slot .......................................................................... 94
Cooling Fan Connector .............................................................. 95
PS/2 Keyboard/Mouse Connector ...............................................96
Front Panel Connector ..............................................................97

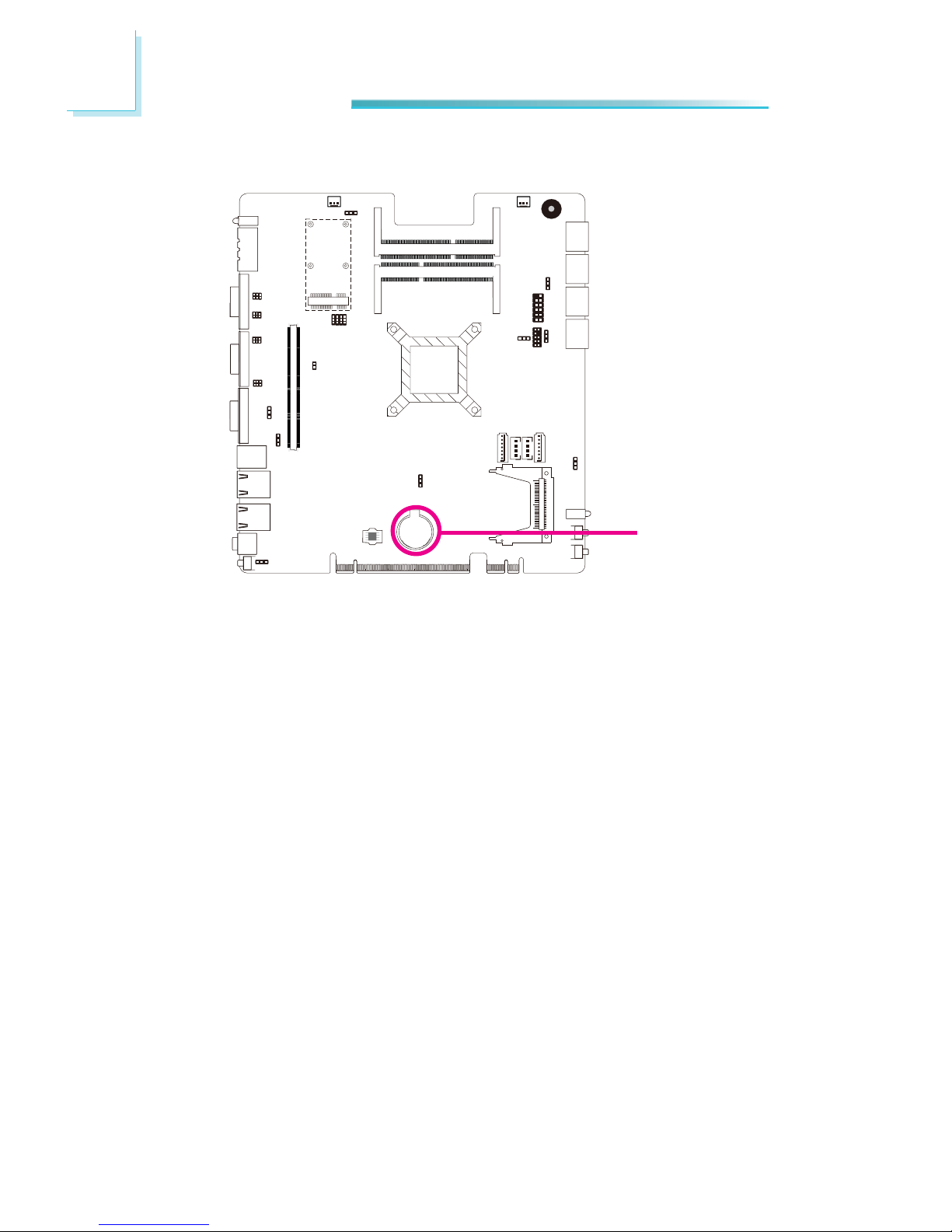

Battery ................................................................................... 98
CompactFlash Socket ................................................................ 99
Chapter 6 - Mounting Options ..................................................... 100

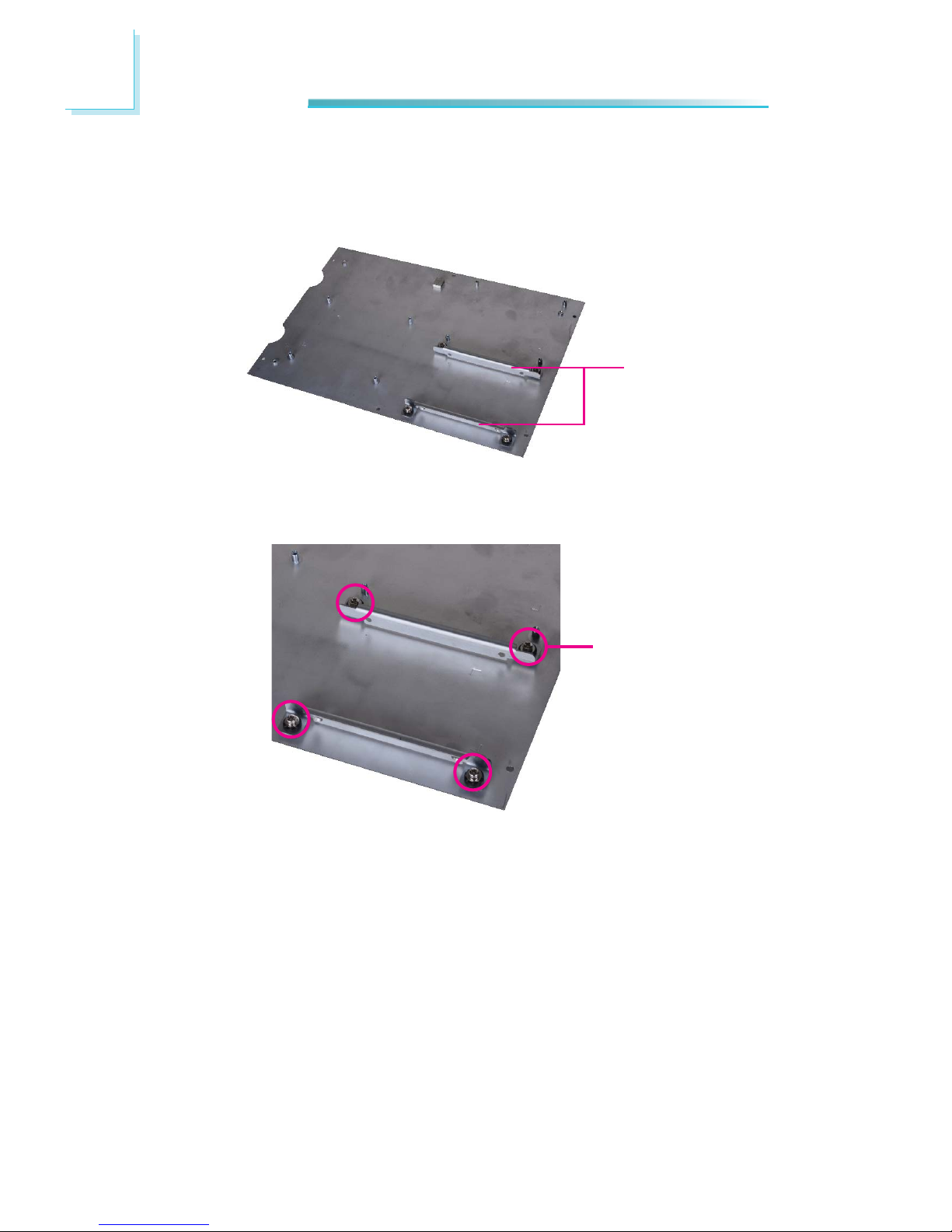

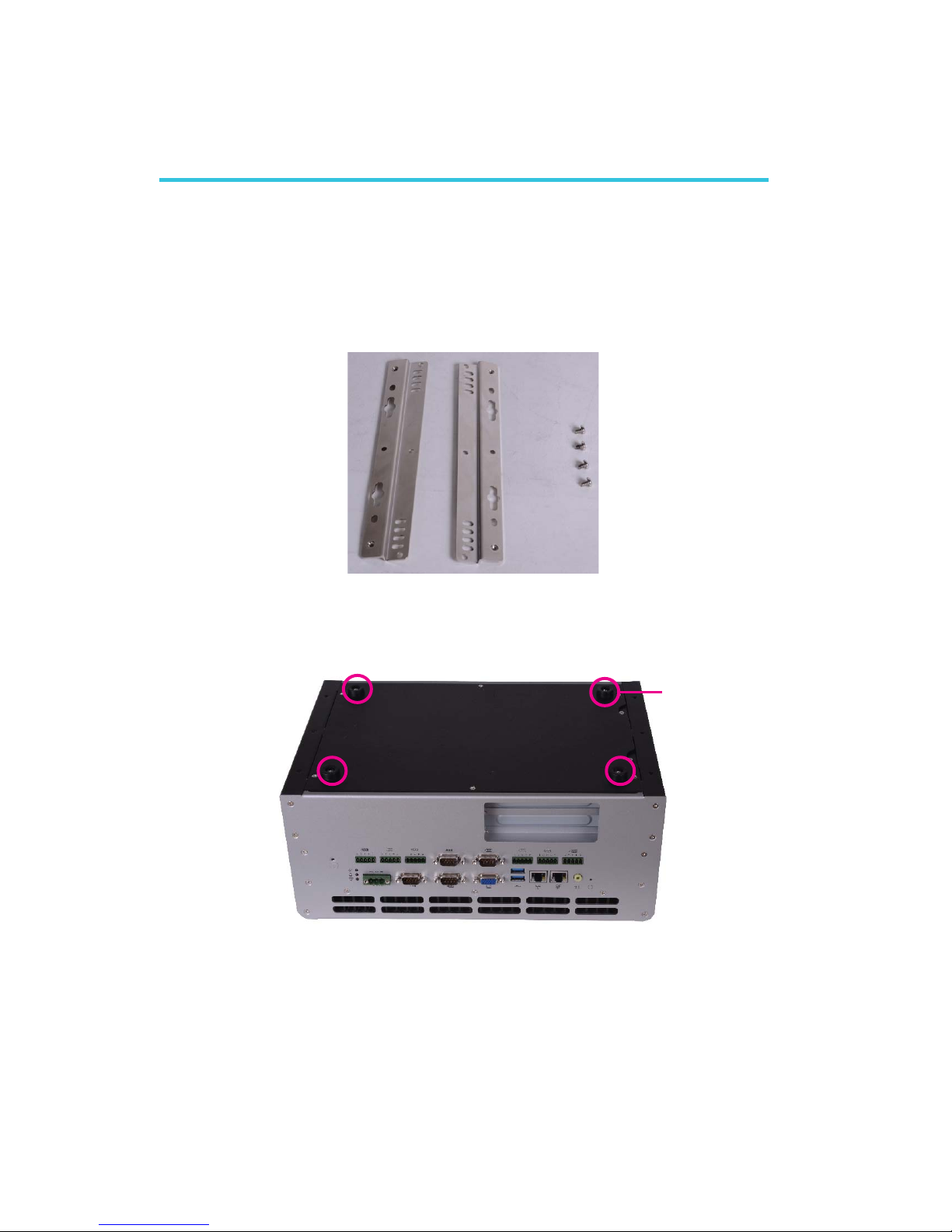

Wall Mounting ............................................................................ 100
Page 6
1
6
Introduction
Chapter 7 - BIOS Setup ................................................................ 103
Overview .................................................................................. 103
AMI BIOS Setup Utility .............................................................. 105
Main ......................................................................................... 105
Advanced ............................................................................................................106
Chipset ................................................................................................................126
Boot .....................................................................................................................134
Security ...............................................................................................................136
Save and Exit ......................................................................................................140
Updating the BIOS ...................................................................... 141
Chapter 8 - Supported Software .................................................. 142
Appendix A - NLITE and AHCI Installation Guide ....................... 174
Appendix B - Watchdog Timer...................................................... 186
Appendix C - System Error Message ............................................ 189
Appendix D - Troubleshooting ...................................................... 191
Page 7
1
7
Introduction
About this Manual
An electronic file of this manual is included in the CD. To view the user’s manual in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click “User’s Manual” on the main menu.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered.
Page 8
1
8
Introduction
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical dis­charge can damage computer components without causing any signs of physical damage. You must take extra care in handling them to ensure against electro­static build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the compo­nents, contacts or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or connectors by their ends.
Important:
Electrostatic discharge (ESD) can damage y
our processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.
Safety Measures
To avoid damage to the system:
• Use the correct DC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for instal­lation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.
Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufac­turer.
• Dispose of used batteries according to local ordinance.
Page 9
1
9
Introduction
Safety Precautions
• Use the correct DC input voltage range.
• Unplug the power cord before removing the system chassis cover for installa­tion or servicing. After installation or servicing, cover the system chassis be­fore plugging the power cord.
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufac­turer.
• Dispose of used batteries according to local ordinance.
• Keep this system away from humidity.
• Place the system on a stable surface. Dropping it or letting it fall may cause damage.
• The openings on the system are for air ventilation to protect the system from overheating. DO NOT COVER THE OPENINGS.
• Place the power cord in such a way that it will not be stepped on. Do not place anything on top of the power cord. Use a power cord that has been approved for use with the system and that it matches the voltage and current marked on the system’s electrical range label.
• If the system will not be used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.
• If one of the following occurs, consult a service personnel:
- The power cord or plug is damaged.
- Liquid has penetrated the system.
- The system has been exposed to moisture.
- The system is not working properly.
- The system dropped or is damaged.
- The system has obvious signs of breakage.
• The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace the outlet.
• Disconnect the system from the DC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning.
Page 10
1
10
Introduction
About the Package
The system package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for as­sistance.
1 System unit 1 SATA data/power cable 1 120W power adapter 1 Quick Installation guide 1 CD includes:
- Drivers
- Manual
The system and accessories in the package may not come similar to the informa­tion listed above. This may differ in accordance to the sales region or models in which it was sold. For more information about the standard package in your re­gion, please contact your dealer or sales representative.
Optional Items
1 Wall mount kit 1 Power cord
Before Using the System
Before powering-on the system, prepare the basic system components.
If you are installing the system board in a new system, you will need at least the following internal components.
• Memory module
• Storage devices such as hard disk drive, CD-ROM, etc.
You will also need external system peripherals you intend to use which will nor­mally include at least a keyboard, a mouse and a video display monitor.
Page 11
1
11
Introduction
Chapter 1 - Introduction
Overview
EC300 Series
EC300-CR6880
EC300-CR6G60
EC300-CRA060
Page 12
1
12
Introduction
EC310 Series
EC310-CR6880
EC310-CR6G60
EC310-CRA060
Page 13
1
13
Introduction
EC320/321 Series
EC320/321-CR6880
EC320/321-CR6G60
EC320/321-CRA060
-
Page 14
1
14
Introduction
Key Features
• Fanless, compact design for industrial applications
• 3rd/2nd Generation Intel
®
CoreTM processors
• Intel
®
QM77 Express chipset
• Supports DDR3/DDR3L SODIMM up to 16GB
• 2 2.5" SATA drive bay, 1 CF socket
• Supports mSATA via the mini PCIe slot
• - CR6880: 1 VGA, 2 LAN, 6 COM, 8-bit GPIO, 8 USB
- CR6G60: 1 VGA, 2 LAN, 6 COM, 16-bit GPIO, 6 USB
- CRA060: 1 VGA, 2 LAN, 10 COM, 6 USB
• Expansion
- EC300 Series: 1 mini PCIe
- EC310 Series: 1 mini PCIe, 1 PCI
- EC320 Series: 1 mini PCIe, 2 PCI
- EC321 Series: 1 mini PCIe, 1 PCI, 1 PCIe x16
Page 15
1
15
Introduction
Specifications
Processor
• 3rd Generation Intel
®
CoreTM processors (22nm process technology)
- Intel
®
Core™ i7-3610QE (6M Cache, up to 3.3 GHz); 45W
- Intel
®
Core™ i5-3610ME (3M Cache, up to 3.3 GHz); 35W
- Intel
®
Core™ i3-3120ME (3M Cache, 2.4 GHz); 35W
• 2nd Generation Intel
®
CoreTM processors (32nm process technology)
- Intel
®
Core™ i7-2710QE (6M Cache, up to 3.0 GHz); 45W
- Intel
®
Core™ i5-2510E (3M Cache, up to 3.1 GHz); 35W
- Intel
®
Core™ i3-2330E (3M Cache, 2.2 GHz); 35W
- Intel
®
Celeron® B810 (2M Cache, 1.6 GHz); 35W
Chipset
• Intel
®
QM77
System Memory
• 2 DDR3/DDR3L 1066/1333/1600MHz SODIMM sockets
Dual channel memory interface
• Pre-installed options: 1GB, 2GB or 4GB
Expansion Slots
• EC300 series
- 1 Mini PCIe slot supports Wi-Fi module or mS
ATA
• EC310 series
- 1 PCI slot
- 1 Mini PCIe slot supports Wi-Fi module or mSATA
• EC320 series
- 2 PCI slots
- 1 Mini PCIe slot supports Wi-Fi module or mSATA
• EC321 series
- 1 PCI slot
- 1 PCIe x16 slot
- 1 Mini PCIe slot supports Wi-Fi module or mSATA
Graphics
• Intel
®
HD Graphics 4000
• Display resolution up to 2048x1536 @ 60Hz
• Display output: 1 VGA
Storage
• 2 2.5” SATA drive bay
1 CompactFlash socket
• Supports 1 mSATA module via the mini PCIe socket
Ethernet
• Intel
®
WG82579LM with iAMT7.0 Gigabit Ethernet Phy
• Intel
®
I210 PCI Express Gigabit Ethernet controller
• Supports wireless 802.11 b/g/n via the Mini PCIe slot
Audio
• Realtek
®
ALC262 High Definition Audio
• 2 watt, 4
Ω
power amplifier
Page 16
1
16
Introduction
Power
• Power input voltage: 9-36V DC
Environment
• Temperature
- Operating: 0oC ~ 60oC
- Storage: -20oC ~ 65oC
• Operating Vibration
- MIL-STD810F 514.5C-1 (HDD)
- MIL-STD810F 514.5C-2 (CompactFlash or Solid State Disk)
• Operating Shock
- Half sine wave 15G, 11ms, 3 shock per axis
Construction
• Aluminum + SGCC
Mounting
• Wall mount
Dimensions
• EC300 series: 340.5mm x 88mm x 223mm (W x H x D)
EC310 series: 340.5mm x 120.5mm x 223mm (W x H x D)
• EC320/321 series: 340.5mm x 140.5mm x 223mm (W x H x D)
Weight
• EC300 series: 9 kg
EC310 series: 9 kg
• EC320/321 series: 9 kg
OS Support
• Windows 7, Windows 7 Embedded, Windows XP SP3, Windows XP Embedded, Linux
Other Features
• Watchdog Timer function
Certification
• CE
FCC Class B
• UL
Page 17
1
17
Introduction
Getting to Know the EC300/310/320/321 Series
EC300 Series Front Panel
Wi-Fi Module Antenna Hole
Used to connect to a Wi-Fi antenna.
USB Ports
Used to connect USB 2.0/1.1 devices.
HDD LED
Indicates the status of the hard drive.
Alert LED
Indicates the status when the CPU is over temperature.
R
eset Button
Press to reset the system.
Power Button
Press to power-on or power-off the system.
HDD LED
Reset
ALERT LED
Power
USB 2.0
Wi-Fi Module
Antenna Hole
Wi-Fi Module Antenna Hole
Page 18
1
18
Introduction

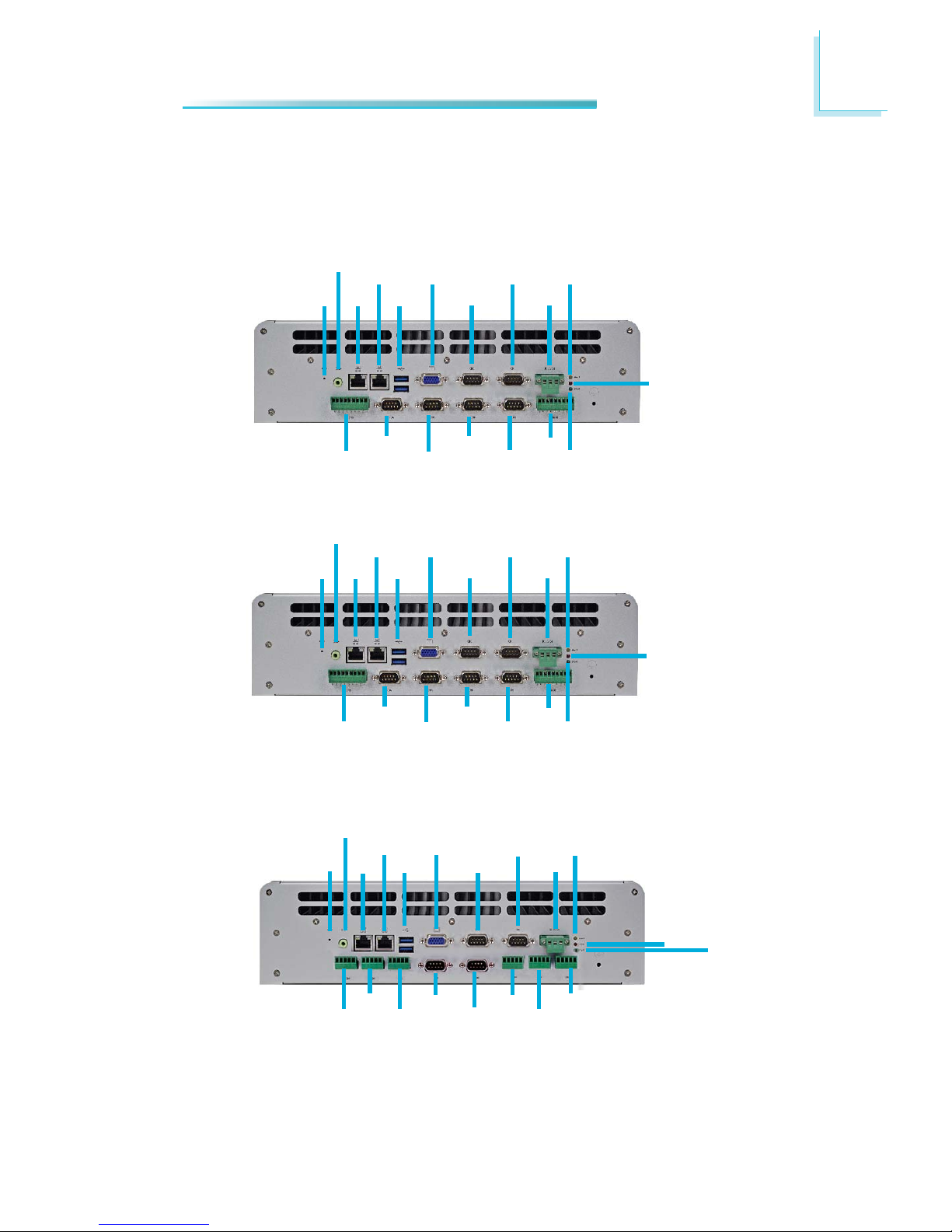

EC300 Series Rear Panel
EC300-CR6G60
EC300-CR6880
GPIO
COM3
COM4
COM5
DC-In
Power
HDD
COM1
COM2
VGA
USB 3.0
LAN
Speaker-out
Reset
COM6
LAN
Alert
GPIO
GPIO
COM3
COM4
COM5
DC-In
Power
HDD
COM1
COM2
VGA
USB 3.0
LAN
Speaker-out
Reset
COM6
LAN
Alert
GPIO
EC300-CRA060
COM4
COM5
COM3
DC-In
Power
HDD
COM1
COM2
VGA
USB 3.0
LAN
Speaker-out
Reset
COM6
LAN Alert
COM10
COM7
COM8
COM9
Page 19
1
19
Introduction
Power LED
Indicates the power status of the system.
HDD LED
Indicates the status of the hard drive.
Alert LED
Indicates the status when the CPU is over temperature.
DC
-in
Used to plug a power adapter.
COM P
orts
Used to connect serial devices.
VGA Port
Used to connect an analog VGA monitor.

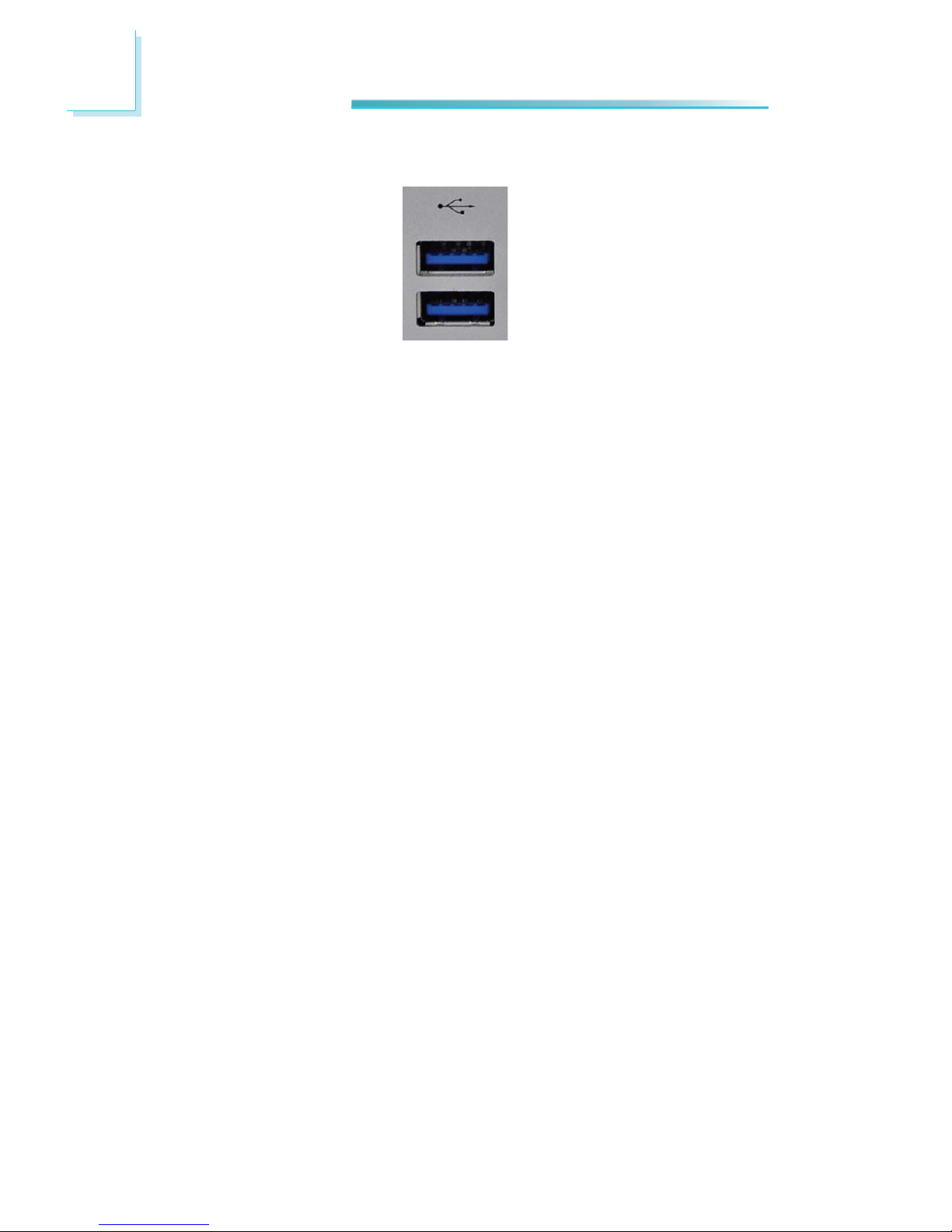

USB Ports
Used to connect USB 3.0 devices.
LAN Ports
Used to connect systems to a local area network.
GPIO
Supports 8-bit digital output and input.
Speaker-out
Used to connect to a speaker.
Reset Button
Press to reset the system.
Page 20
1
20
Introduction
EC310 Series Front Panel
Wi-Fi Module Antenna Hole
Used to connect to a Wi-Fi antenna.
USB Ports
Used to connect USB 2.0/1.1 devices.
HDD LED
Indicates the status of the hard drive.
Alert LED
Indicates the status when the CPU is over temperature.
R
eset Button
Press to reset the system.
Power Button
Press to power-on or power-off the system.
HDD LED
Reset
ALERT LED
Power
USB 2.0
Wi-Fi Module
Antenna Hole
Wi-Fi Module Antenna Hole
Page 21
1
21
Introduction
EC310 Series Rear Panel
EC310-CR6880
EC310-CR6G60
EC310-CRA060
COM4
COM5 COM3
DC-In
Power
HDD
COM1
COM2
VGA
USB 3.0
LAN
Speaker-out
Reset
COM6
LAN Alert
GPIO
USB 2.0
PCI slot
GPIO
COM3
COM4
COM5
DC-In
Power
HDD
COM1
COM2
VGA
USB 3.0
LAN
Speaker-out
Reset
COM6
LAN Alert
GPIO
PCI slot
COM4
COM5
COM3
DC-In
Power
HDD
COM1
COM2
VGA
USB 3.0
LAN
Speaker-out
Reset
COM6
LAN Alert
COM10
COM7
COM8
COM9
PCI slot
Page 22
1
22
Introduction
Power LED
Indicates the power status of the system.
HDD LED
Indicates the status of the hard drive.
Alert LED
Indicates the status when the CPU is over temperature.
DC
-In
Used to plug a power adapter.
COM Ports
Used to connect serial devices.
VGA Port
Used to connect an analog VGA monitor.
USB Ports
Used to connect USB 3.0 devices.
LAN Ports
Used to connect systems to a local area network.
GPIO
Supports 16-bit digital output and input.
Speaker-out
Used to connect to a speaker.
Reset Button
Press to reset the system.
PCI slot
Supports to add on riser cards.
Page 23
1
23
Introduction
EC320/321 Series Front Panel
Wi-Fi Module Antenna Hole
Used to connect to a Wi-Fi antenna.
USB Ports
Used to connect USB 2.0/1.1 devices.
HDD LED
Indicates the status of the hard drive.
Alert LED
Indicates the status when the CPU is over temperature.
R
eset Button
Press to reset the system.
Power Button
Press to power-on or power-off the system.
HDD LED
Reset
ALERT LED
Power
USB 2.0
Wi-Fi Module
Antenna Hole
Wi-Fi Module Antenna Hole
Page 24
1
24
Introduction
EC320/321 Series Rear Panel
EC320/321-CR6880
COM4
COM5 COM3
DC-In
Power
HDD
COM1
COM2
VGA
USB 3.0
LAN
Speaker-out
Reset
COM6
LAN
Alert
GPIO
USB 2.0PCI/PCIe x16 slots
EC320/321-CR6G60
GPIO
COM3
COM4
COM5
DC-In
Power
HDD
COM1
COM2
VGA
USB 3.0
LAN
Speaker-out Reset
COM6
LAN
Alert
GPIO
PCI/PCIe x16 slots
Page 25
1
25
Introduction
EC320/321-CRA060
Power LED
Indicates the power status of the system.
HDD LED
Indicates the status of the hard drive.
Alert LED
Indicates the status when the CPU is over temperature.
DC
-In
Used to plug a power adapter.
COM P
orts
Used to connect serial devices.
VGA Port
Used to connect an analog VGA monitor.
USB Ports
Used to connect USB 3.0 devices.
LAN Ports
Used to connect systems to a local area network.
GPIO
Supports 16-bit digital output and input.
Speaker-out
Used to connect to a speaker.
Reset Button
Press to reset the system.
PCI/PCIe slot
Supports to add on riser cards.
COM4COM6COM10 COM8
COM5
COM3
DC-In
Power
HDD
COM1
COM2
VGA
USB 3.0
LAN
Speaker-out
Reset
LAN Alert
COM7
COM9
PCI/PCIe x16 slots
Page 26
1
26
Introduction
Mechanical Dimensions
EC300 Series
88.00
94.00
95.00
368.10
223.00
340.50
180.00
340.50
Left View
Front View
Right View
Page 27
1
27
Introduction
EC310 Series
368.10
223.00
120.50
127.50
340.50
180.00
126.50
340.50
Left View
Front View
Right View
Page 28
1
28
Introduction
EC320/321 Series
368.10
223.00
340.50
180.00
140.50
147.50
146.50
340.50
Left View
Front View
Right View
Page 29
2
29
Getting Started
Chapter 2 - Getting Started
Preparing the System
Before you start using the system, you need the following items:
• Memory module
• SATA hard drive
• DC power adapter
• USB keyboard
• USB mouse
• CD-ROM drive (for installing software/drivers)
• Screwdriver
Installing Devices
The following are devices that can be installed in the EC300/310/320/321 series system.
• Memory module
• SATA hard drive
• CompactFlash card
• Mini PCIe card
• mSATA card
• PCI expansion card
• PCIe expansion card
Configuring the BIOS
To get you started, you may need to change configurations such as the date, time and the type of hard disk drive.
1. Power-on the system.
2. After the memory test, the message “Press DEL to run setup” will appear on the screen. Press the Delete key to enter the AMI BIOS setup utility.
Installing the Operating System
Most operating system software are provided in a CD therefore you need to in­stall a CD-ROM drive in order to use the CD.
Make sure a 2.5” SATA drive is already installed.
1. Refer to the following chapters for information on connecting a CD-ROM drive and installing a SATA drive.
2. Refer to your operating system manual for instructions on installing the oper­ating system.
Page 30
2
30
Getting Started
Installing the Drivers
The system package includes a CD disk. The CD includes drivers that must be in­stalled to provide the best system performance. Refer to the Supported Software chapter for instructions on installing the drivers.
Page 31
3
31
Installing Devices
Chapter 3 - Installing Devices
Removing the Chassis Cover
1. Make sure the system and all other peripheral devices connected to it has been powered-off.
2. Disconnect all power cords and cables.
3. The 6 mounting screws on the front and rear of the system are used to se­cure the cover to the chassis. Remove these screws and then put them in a safe place for later use.
Mounting screw
EC300/310/320/321
4. After removing the mounting screws, lift the cover up.
Lift the Cover Upward
Page 32
3
32
Installing Devices

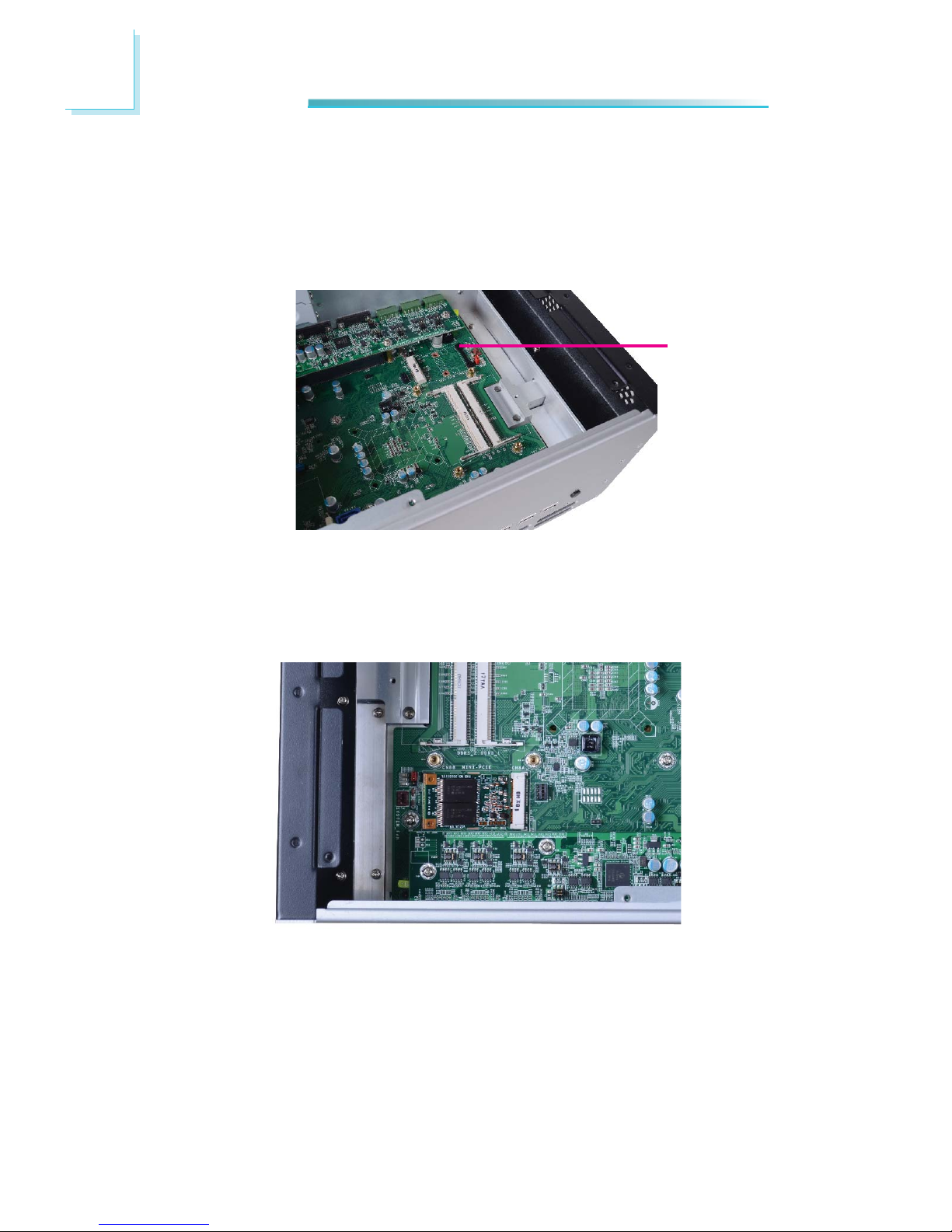

SODIMM socket
SATA drive bay
5. The SODIMM socket, SATA drive bay, CompactFlash socket and Mini PCIe slot are readily accessible after removing the chassis cover.
Cover
Mini PCIe Slot
CompactFlash socket
Page 33
3
33
Installing Devices
Installing a SODIMM
1. Locate the SODIMM socket on the system board.
2. The 5 mounting screws on the protective plate is used to secure the plate. Remove these screws and then put them in a safe place for later use.
Protective Plate
SODIMM socket
Page 34
3
34
Installing Devices
4. Grasping the module by its edges, align the module into the socket at an ap­proximately 30 degrees angle. Apply firm even pressure to each end of the module until it slips down into the socket. The contact fingers on the edge of the module will almost completely disappear inside the socket.
SODIMM
3. Note the key on the socket. The key ensures the module can be plugged into the socket in only one direction.
Page 35
3
35
Installing Devices
5. Push the module down until the clips at each end of the socket lock into position. You will hear a distinctive “click”, indicating the module is correctly locked into position.
Clip
Clip
Page 36
3
36
Installing Devices
Installing a SATA Drive
1. Locate the SATA drive bay on the cover.
SATA drive bay
Cover
2. Remove the 4 mounting screws that secure the HDD brackets to the drive bay.
Mounting screw
Page 37
3
37
Installing Devices
3. Align the mounting holes of the SATA drive with the mounting holes on the HDD bracket and then use the provided mounting screws to secure the drive in place.
HDD bracket
SATA drive
Mounting screw
4. Place the SATA drive (with HDD bracket) into the cover. Align the mounting holes on the HDD bracket with the mounting holes on the SATA drive bay and then use the provided mounting screws to secure the drive in place.
HDD bracket
Mounting hole

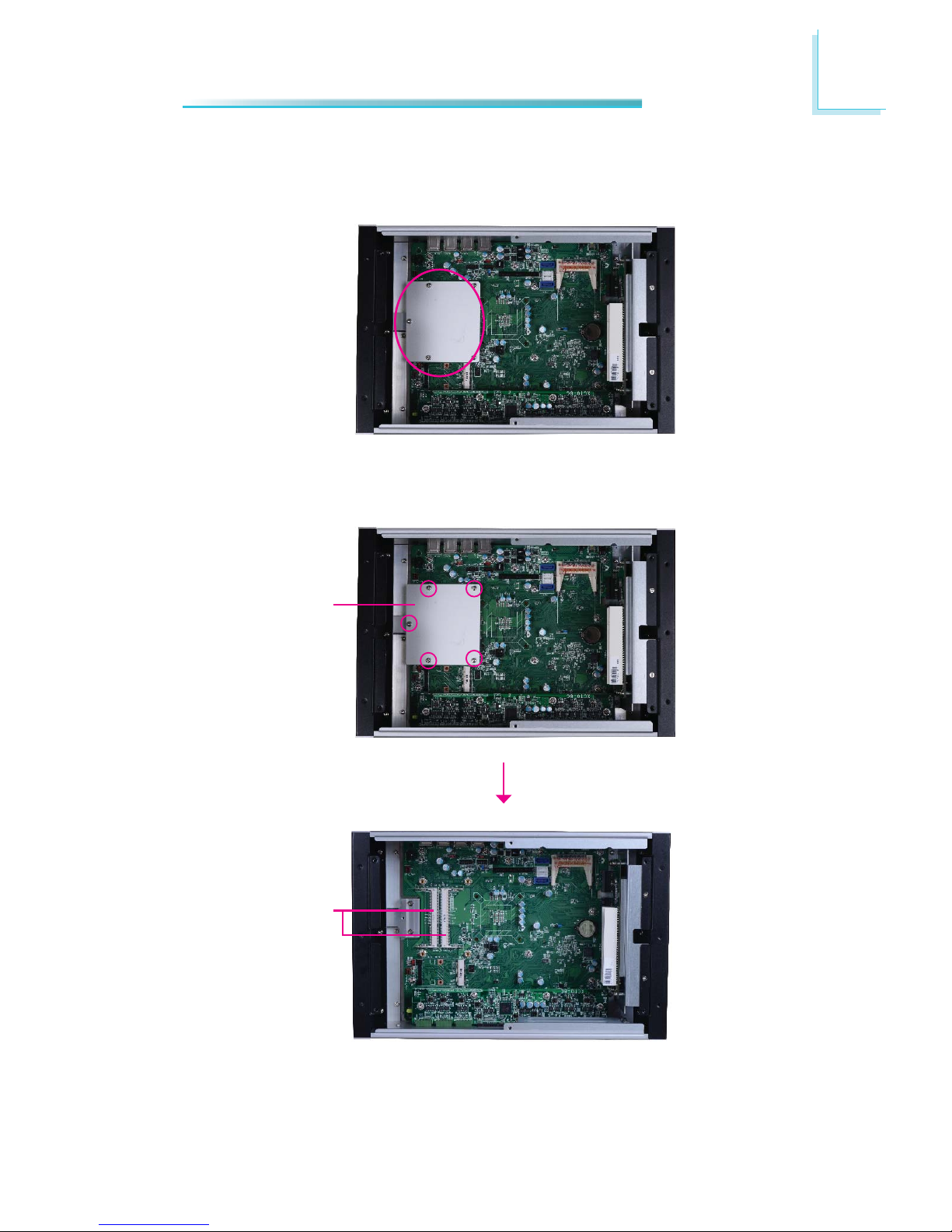

Mounting screws
Page 38
3
38
Installing Devices
Mounting screw
5. Connect A to the SATA power/data connector on the SATA drive, B and C to the SATA power connector and SATA data connector respectively on the sys­tem board.
A
B
C
Mounting hole
Page 39
3
39
Installing Devices
SATA power/data
connector
SATA data connector
SATA power connector
Page 40
3
40
Installing Devices
Installing a CompactFlash Card
1. Locate the CompactFlash socket. With the label facing up, insert the Com­pactFlash card until it is completely seated in the socket.
CompactFlash
socket
CompactFlash
card
Page 41
3
41
Installing Devices
1. The latch is used to lock the Mini PCIe / mSATA card into position. Insert the latch into the mounting holes and then push the latch down until the clips at each end of the latch lock into position. You will hear a distinctive "click", in­dicating the latch is correctly locked into position.
Mounting hole
Latch
Mini PCIe slot
Latch
Installing a Mini PCIe and/or mSATA Card
Latch
Page 42
3
42
Installing Devices
2. The system board is equipped with a Mini PCIe slot. The Mini PCIe slot sup­ports full length or half length Mini PCIe / mSATA card. Note the key on the slot. The key ensures the Mini PCIe / mSATA card can be plugged into the slot in only one direction.
Half length
Full length
Removing the latch
If you want to move the latch in order to use the desired card, please follow be-
low
steps:
1. Remove the clips at each end of the latch once at a time.
2. Press the clips to the center of the latch and pull it up.
Latch
3. Pull the clips up and remove the latch.
Pull up
Press to
the center
Page 43
3
43
Installing Devices
1. Grasping the Mini PCIe card by its edges, align the card into the slot at an approximately 30 degrees angle. Apply firm even pressure to each end of the card until it slips down into the slot. The contact fingers on the edge of the card will almost completely disappear inside the slot.
Installing the Mini PCIe Card
2. Push the Mini PCIe card down until the clips at each end of the latch lock into position. You will hear a distinctive “click”, indicating the card is correctly locked into position.
Clip
Clip
Page 44
3
44
Installing Devices

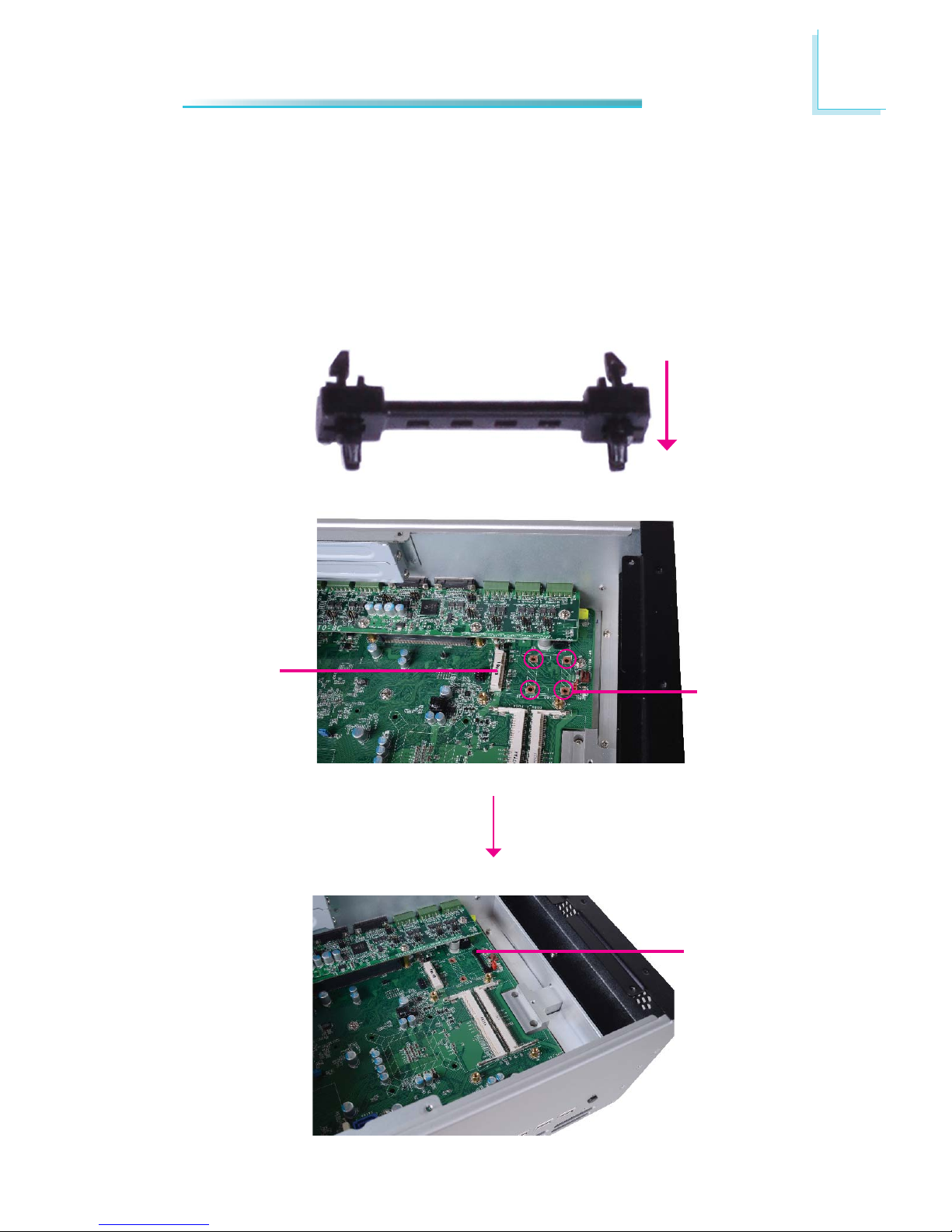

Installing the mSATA Card
1. Insert the latch into the mounting holes in accordance with the length of the mSATA card. Push the latch down until the clips at each end of the latch lock into position. You will hear a distinctive "click", indicating the latch is correctly locked into position.
2. Grasping the mSATA card by its edges, align the card into the slot at an ap­proximately 30 degrees angle. Apply firm even pressure to each end of the card until it slips down into the slot. The contact fingers on the edge of the card will almost completely disappear inside the slot.
Latch
Page 45
3
45
Installing Devices
3. Push the mSATA card down until the clips at each end of the latch lock into position. You will hear a distinctive “click”, indicating the card is correctly locked into position.
Clip
Clip
Page 46
3
46
Installing Devices
Installing the PCI and PCIe Expansion Cards
1. The PCI and PCIe x16 slots on the riser card are used to install the expan­sion cards. To install the expansion cards, you need to remove the mounting screws that secure the brackets to the chassis then remove the brackets.
Mounting screw
Bracket
PCI slot
Important:
When inserting the riser card, please select a card within 175mm (as shown on the next picture) in or­der to fit in the slot.
Page 47
3
47
Installing Devices
2. To remove the mounting screws and the brackets, you need to remove the hole plugs and insert the screwdriver through the hole to access the mount­ing screws.
Hole plug
Mounting screw
Bracket
3. Remove these mounting screws and brackets, and then put them in a safe place for later use.
Page 48
3
48
Installing Devices
4. Insert the Expansion card with a bracket into the PCI slot that is on the riser card. Replace the screw you removed in step 3 to secure the bracket in place.
Mounting screw
PCI
Bracket
Expansion card
Rear view
Note:
The Expansion cards used in the above illustrations may not resemble the actual cards. These illustrations are for reference only.
Page 49
3
49
Installing Devices

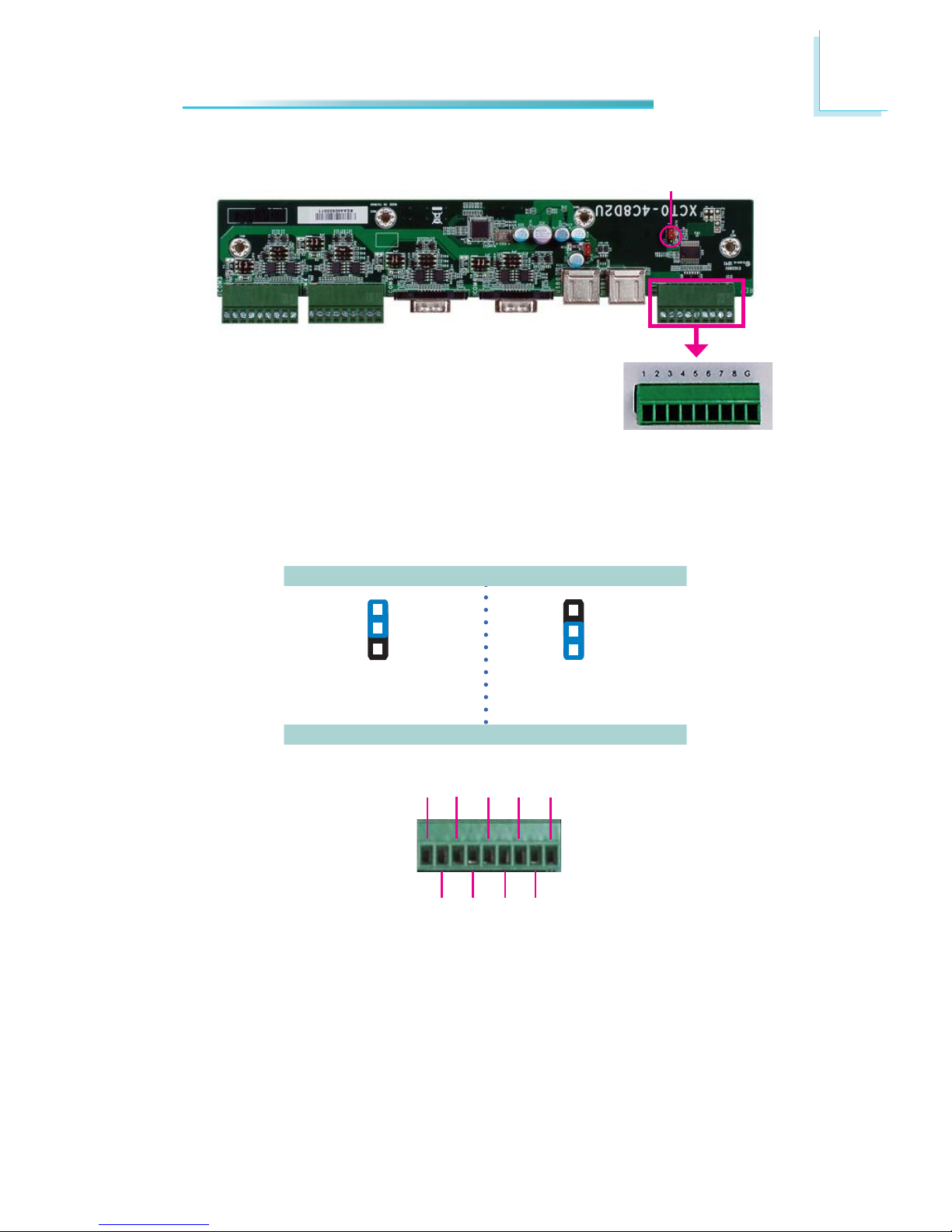

Connecting Cables to Terminal Blocks
1. Insert one end of the power adaptor and the cable into the holes on the power jack, and use the screwdriver to fasten the cables.
2. Connect the power jack to the connector on the system, and use the screw­driver to secure the power jack in place.
Page 50
3
50
Installing Devices
3. Insert one end of the cables into the holes on the terminal block, and use the screwdriver to fasten the cables.
4. Connect the terminal block to the connector on the system, and use the screwdriver to secure the terminal block in place.
Page 51
51
4
Jumper Settings
VGA
Chapter 4 - Jumper Settings
Jumper Settings - System Board
Clear CMOS Data
If you encounter the following,
a) CMOS data becomes corrupted. b) You forgot the supervisor or user password.
you can reconfi gure the system with the default values stored in the ROM BIOS.
To load the default values stored in the ROM BIOS, please follow the steps below.
1. Power-off the system and unplug the power cord.
2. Set JP7 pins 2 and 3 to On. Wait for a few seconds and set JP7 back to its default setting, pins 1 and 2 On.
3. Now plug the power cord and power-on the system.
JP7
2-3 On:
Clear CMOS Data
1-2 On:
Normal (default)
1
3 2
1
3
2
Page 52
52
4
Jumper Settings
VGA

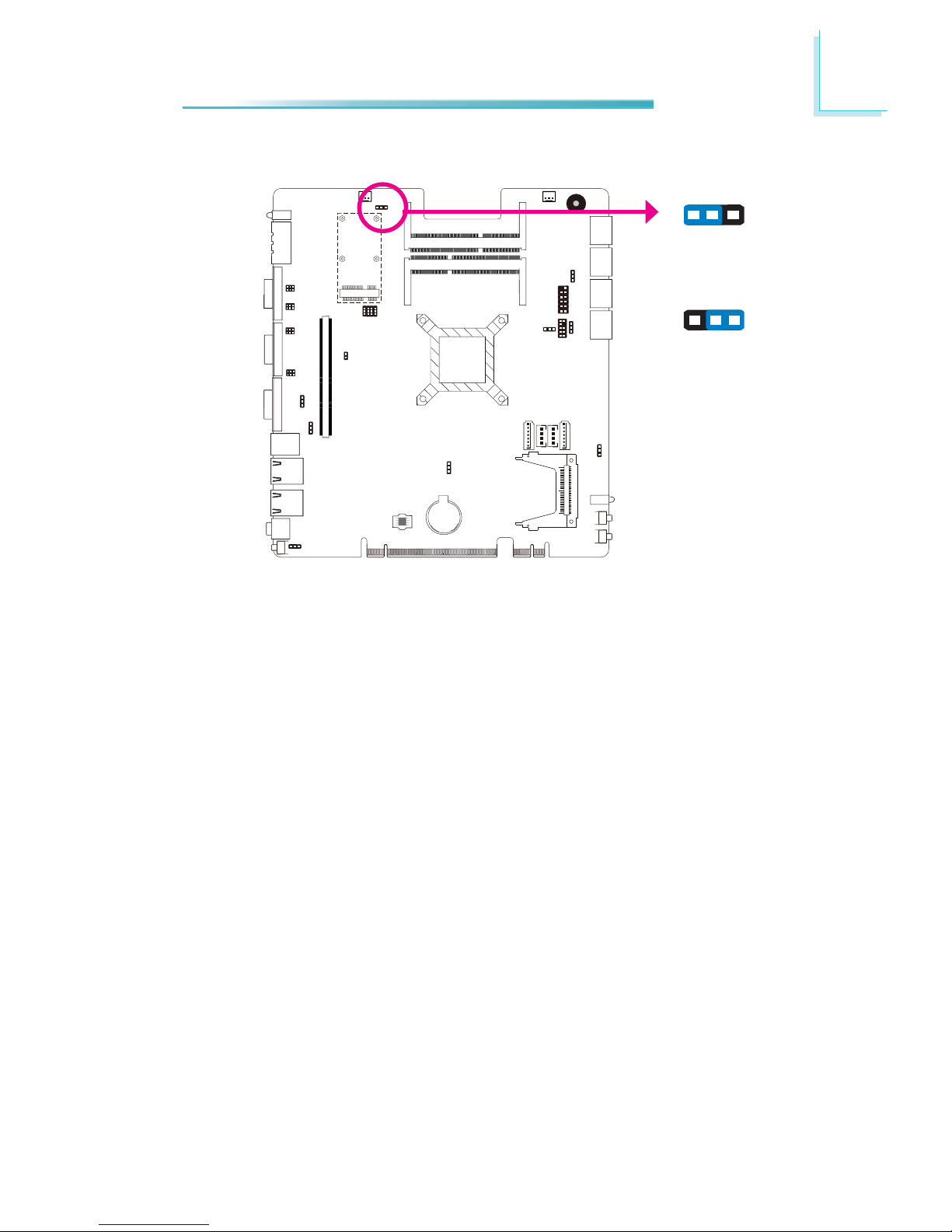

JP1 is used to select the power of the PS/2 keyboard/mouse port. Selecting +5V_standby will allow you to use the PS/2 keyboard or PS/2 mouse to wake up the system.
PS/2 Power Select
JP1
2-3 On:
+5V_standby
1-2 On:
+5V (default)
132
132
Page 53
53
4
Jumper Settings
VGA

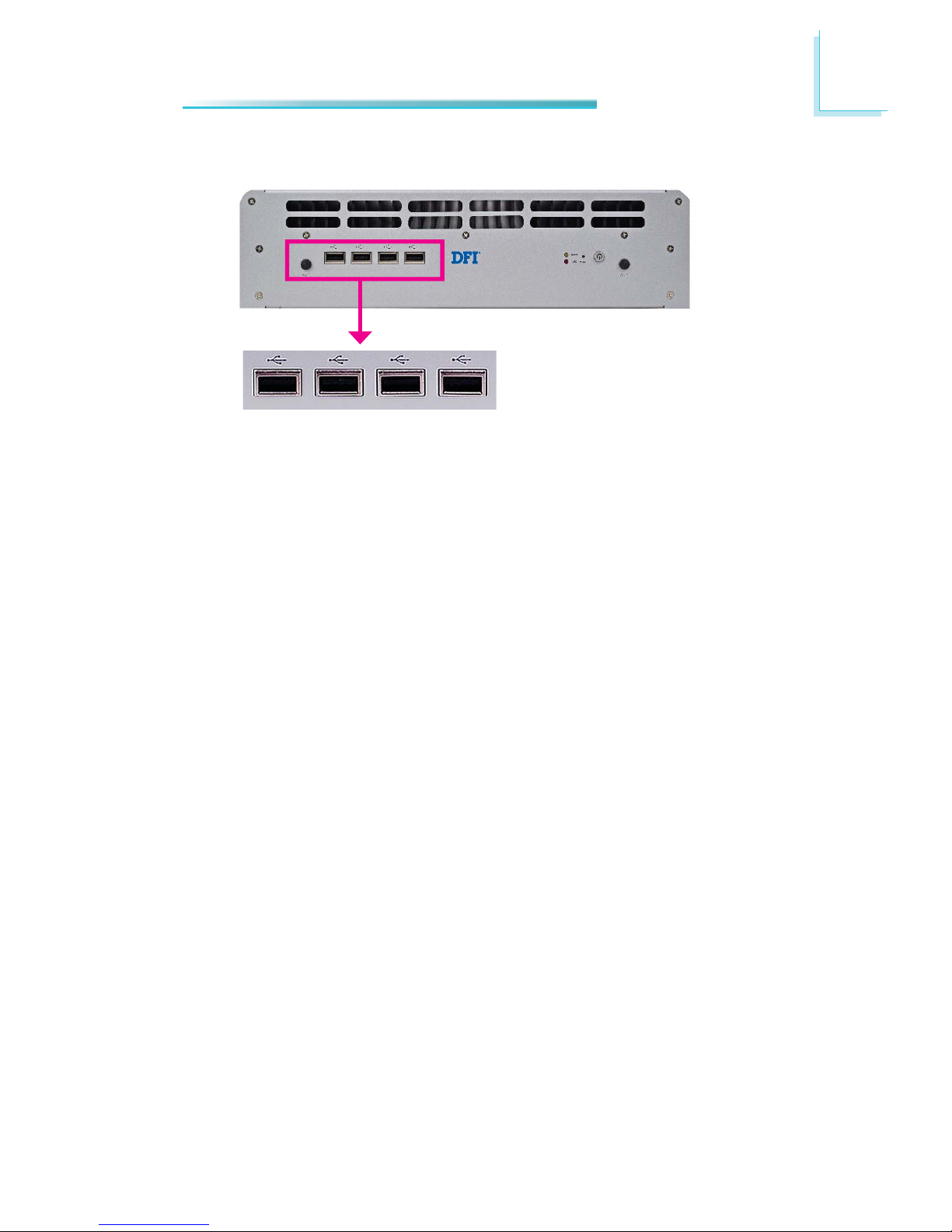

JP2 (for USB 6-7), JP3 (for USB 4-5) and JP8 (for USB 0-1) are used to select the power of the USB ports. Selecting +5V_standby will allow you to use a USB device to wake up the system.
BIOS Setting
“USB Device Wakeup From S3/S4” in the Advanced menu (“ACPI Confi guration” submenu) of the BIOS must be set to Enabled. Refer to chapter 7 for more infor­mation.
Important:
If y
ou are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the +5V_standby power source of your power supply must sup­port 1.5A. For 3 or more USB ports, the +5V_standby power source of your power supply must support ≥2A.
USB Power Select
2-3 On:
+5V_standby
JP3
1
3
2
1-2 On:
+5V (default)
JP8
1
3
2
JP2
Page 54
54
4
Jumper Settings
VGA
COM1 and COM2 RS232/422/485 Select
1-2 On: RS232
(default)
3-4 On: RS422
Full Duplex
5-6 On: RS485
JP11 (COM1) and JP13 (COM2) are used to confi gure COM1 and COM2 RS232, RS422 (Full Duplex) or RS485 respectively.
1
6
5
2
JP11 JP13
JP11
JP13
64
2
531
64
2
531
64
2
531
COM 1 / COM 2
DCD
TXD
RXD
DTR
GND
123 45
689
7
DSR
CTS
RTS
RI
RX+
TX+
RX-
TX-
GND
123 45
689
7
N.C.
N.C.
N.C.
N.C.
DATA+
N.C.
DATA-
N.C.
GND
123 45
689
7
N.C.
N.C.
N.C.
N.C.
Page 55
55
4
Jumper Settings
VGA
COM1 and COM2 RS232/Power Select
JP12
JP14
1
6
5
2
JP12 (COM1) and JP14 (COM2) are used to confi gure COM1 and COM2 to pure RS232 or RS232 with power.
The pin function of COM1 and COM2 will vary according to JP12’s and JP14’s set­ting respectively.
JP12 / JP14
COM 1 / COM 2
1-3, 2-4 On:
RS232 (default)
64
2
531
3-5(+12V), 4-6(+5V) On:
RS232 with power
64
2
531
DCD
TXD
RXD
DTR
GND
123 45
689
7
DSR
CTS
RTS
RI
+5VTDRD
DTR-
GND
12345
RTS-
+12V
DSR-
CTS-
6789
Page 56
56
4
Jumper Settings
VGA

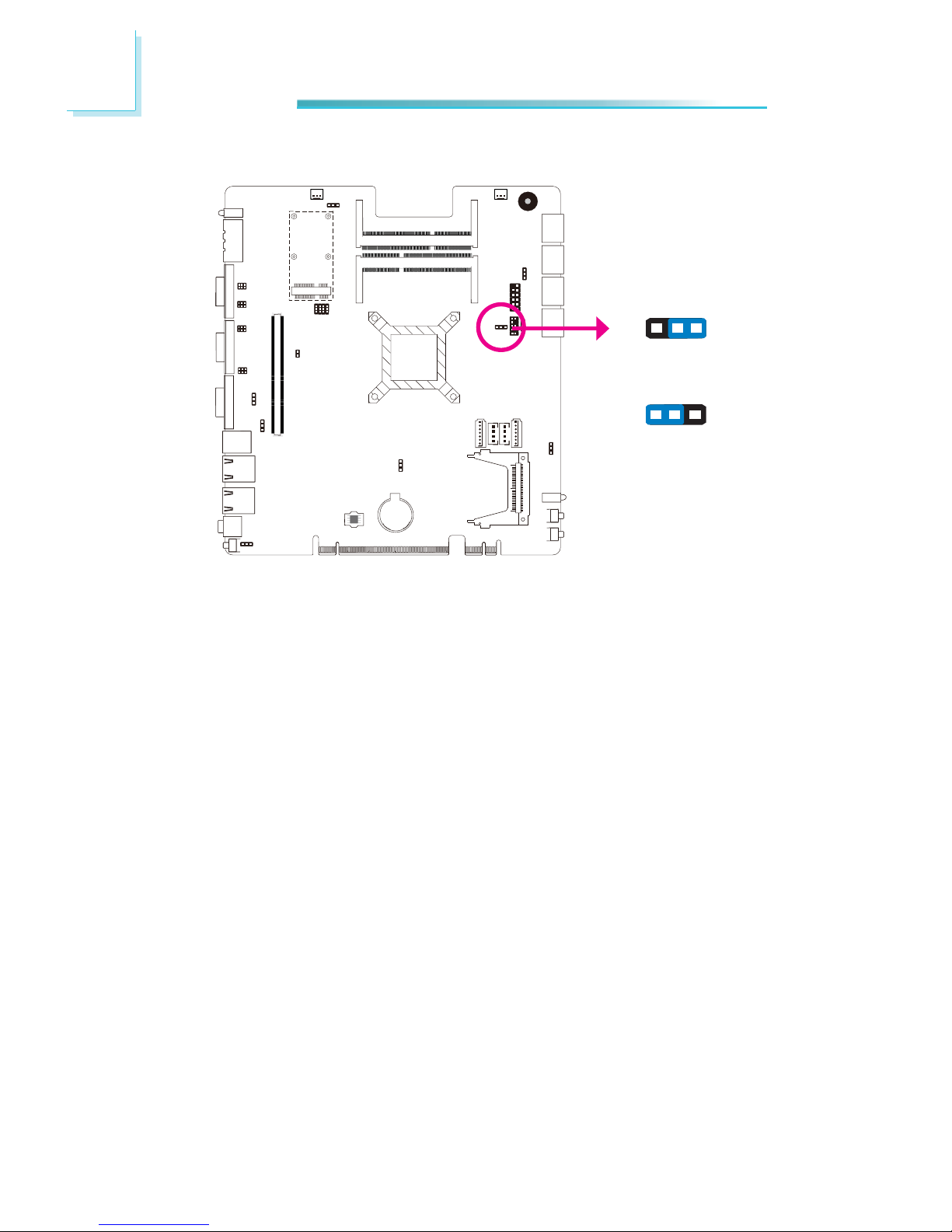

Power-on Select
JP5 is used to select the method of powering on the system. If you want the system to power-on whenever AC power comes in, set JP6 pins 2 and 3 to On. If you want to use the power button, set pins 1 and 2 to On.
When using the JP5 “Power On” feature to power the system back on after a power failure occurs, the system may not power on if the power lost is resumed within 5 seconds (power fl icker).
Note:
In order to ensure that power is resumed after a power failure that re­co
vers within a 5 second period, JP5 must be set to pins 2-3 and the
“PWRON After PWR-Fail” in CMOS is set to “On”.
1-2 On: Power-on via power button
(default)
2-3 On: Power-on via
AC power
JP5
1
3
2
1
3
2
Page 57
57
4
Jumper Settings
VGA
JP4 is used to select the power supplied to the Mini PCIe and mSATA card that is on the motherboard. Selecting 3V3 will be the default setting.
Mini PCIe/ mSATA Power Select
JP4
1-2 On:
3V3 (default)
2-3 On:
3VDU
132
132
Page 58
58
4
Jumper Settings
VGA

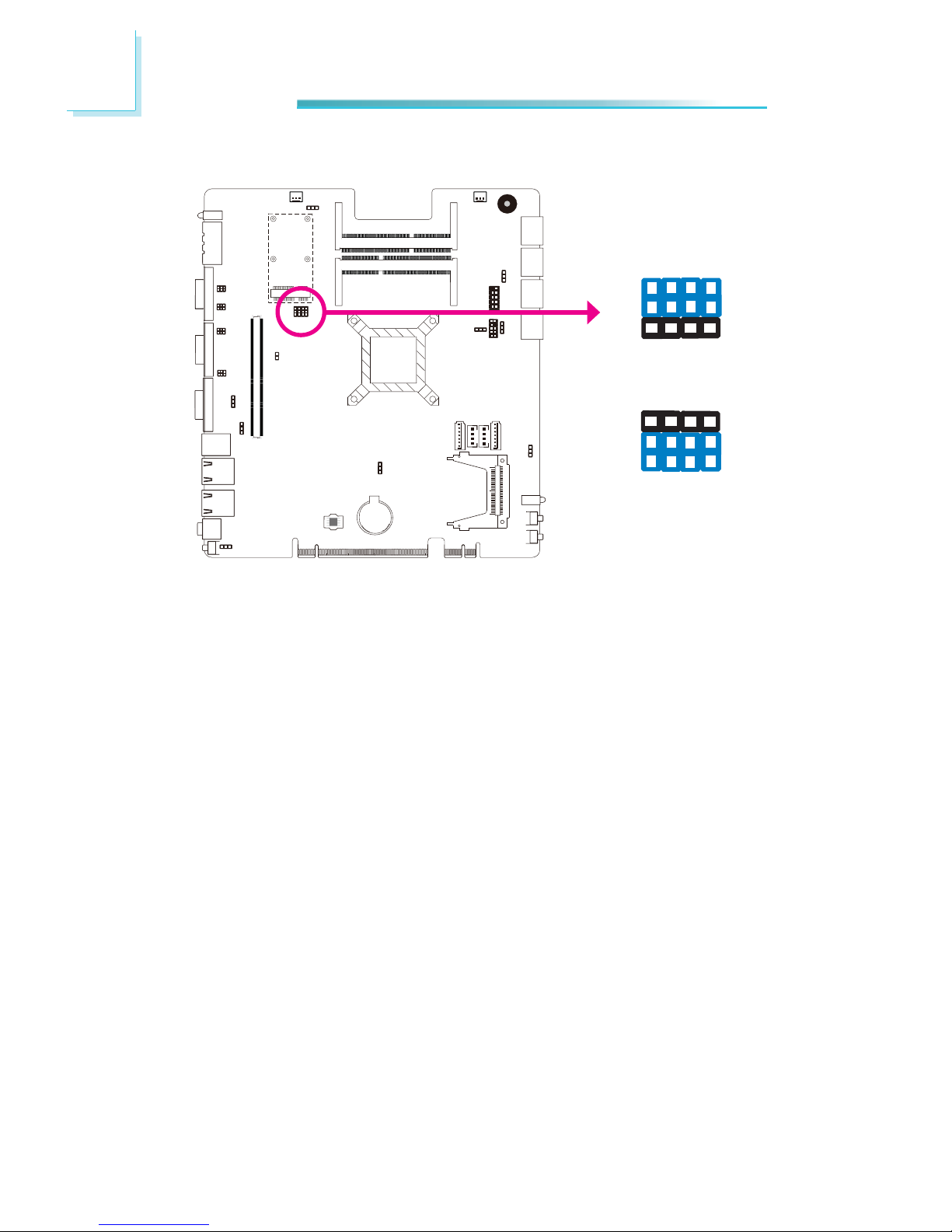

Mini PCIe/ mSATA Select
JP6
10
12
1
3
1-2, 4-5, 7-8, 10-11 On:
Mini PCIe (default)
JP6 is used to select Mini PCIe or mSATA. Mini PCIe is set as default.
2-3, 5-6, 8-9, 11-12 On:
mSATA
10
12
1
3
Page 59
59
4
Jumper Settings
VGA

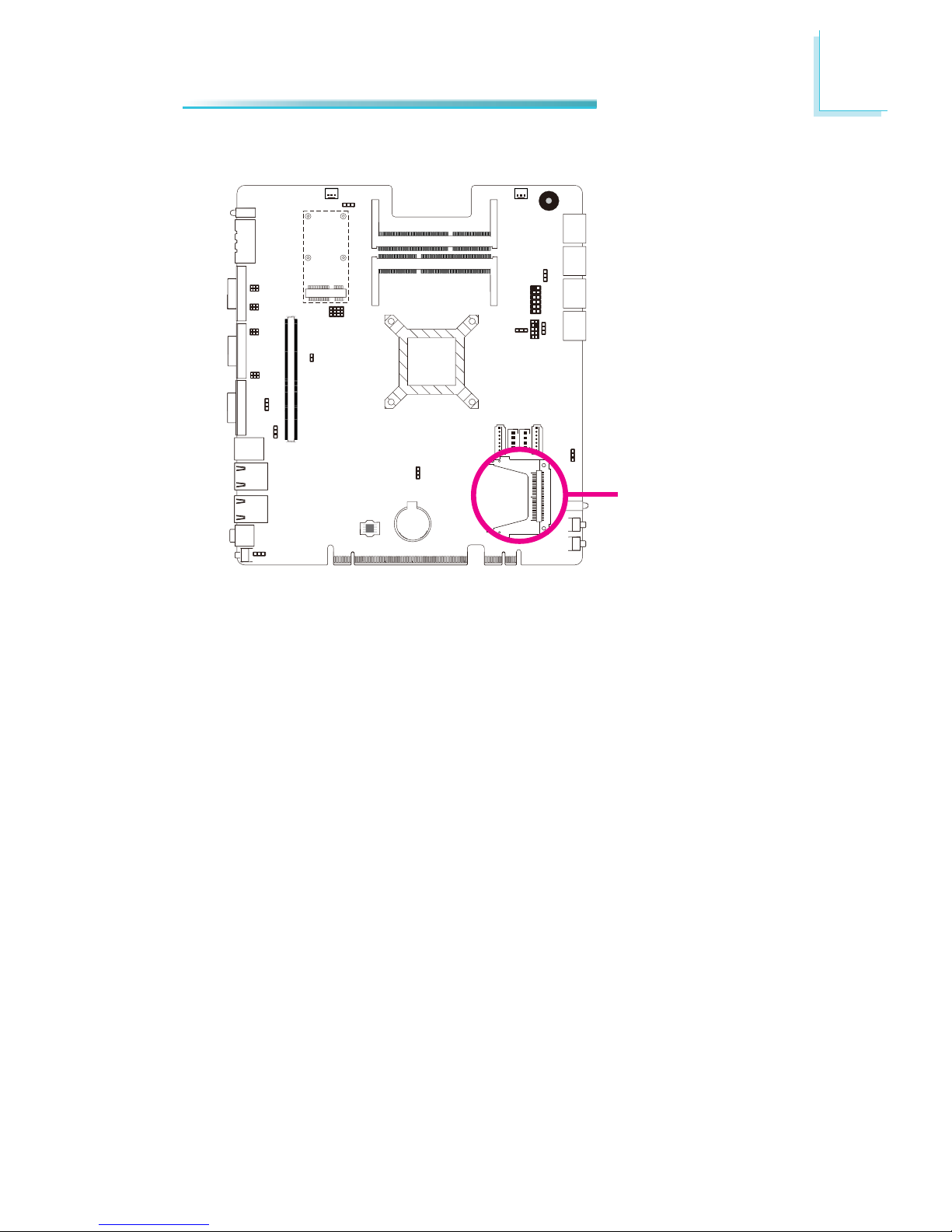

Reset/ Power on Select
2-3 On:
Function as power on button
1-2 On:
Function as reset (default)
312
312
The Reset/ Power on Select is used to select the function of the reset bottom.
JP10
Page 60
60
4
Jumper Settings
VGA
Factory Testing
2-3 On:
Impedance
1
3
2
1-2 On:
Impedance 75Ω
(default)
JP15
1
3
2
Page 61
61
4
Jumper Settings
Jumper Settings - IO Board
EC230/310/320/321-LRA060
COM 3 to COM 10 RS232/RS422/RS485 Select
1-2 On: RS232
(default)
3-4 On: RS422
Full Duplex
5-6 On: RS485
64
2
531
JP1 (for COM 3) to JP8 (for COM 10) are used to confi gure the COM ports to RS232, RS422 (Full Duplex) or RS485.
The pin function of the COM ports will vary according to the jumper’s setting.
JP1 / JP2 / JP3 / JP4 / JP5 / JP6 / JP7 / JP8
64
2
64
2
531531
COM 3
(JP1)
COM 4
(JP2)
RS232
RS422
Full Duplex
RS485
COM 3 / COM 4 / COM 5 / COM 8 / COM 9 / COM 10
RTS
TXD
CTS
RXD
GND
12345
COM 5
(JP3)
COM 6
(JP4)
COM 7
(JP5)
COM 8
(JP6)
COM 9
(JP7)
COM 10
(JP8)
RX+
TX+
RX-
TX-
GND
12345
DATA+
N.C.
DATA-
N.C.
GND
12345
COM 6 / COM 7
DCD
TXD
RXD
DTR
GND
123 45
689
7
DSR
CTS
RTS
RI
RX+
TX+
RX-
TX-
GND
123 45
689
7
N.C.
N.C.
N.C.
N.C.
DATA+
N.C.
DATA-
N.C.
GND
123 45
689
7
N.C.
N.C.
N.C.
N.C.
JP1
JP2 JP3 JP4 JP5 JP6 JP7 JP8
Page 62
62
4
Jumper Settings
COM 6 and COM 7 RS232/Power Select
JP9 and JP10 are used to confi gure COM 6 and COM 7 to pure RS232 or RS232 with power.
The pin function of COM 6 and COM 7 will vary according to JP9’s and JP10’s set­ting respectively.
JP9 / JP10
COM 6 / COM 7
COM 6
(JP9)
COM 7 (JP10)
JP10
JP9
1-3, 2-4 On:
RS232 (default)
64
2
531
3-5(+12V), 4-6(+5V) On:
RS232 with power
64
2
531
DCD
TXD
RXD
DTR
GND
123 45
689
7
DSR
CTS
RTS
RI
+5VTDRD
DTR-
GND
12345
RTS-
+12V
DSR-
CTS-
6789
Page 63
63
4
Jumper Settings
EC300/310/320/321-LR6880
COM 3 to COM 6 RS232/RS422/RS485 Select
JP1 JP2 JP5 JP8
COM 3
(JP1)
COM 4
(JP2)
COM 5
(JP5)
COM 6
(JP8)
1-2 On: RS232
(default)
3-4 On: RS422
Full Duplex
5-6 On: RS485
64
2
531
JP1 (for COM 3), JP2 (for COM 4), JP5 (for COM 5) and JP8 (for COM6) are used to confi gure the COM ports to RS232, RS422 (Full Duplex) or RS485.
The pin function of the COM ports will vary according to the jumper’s setting.
JP1 / JP2 / JP5 / JP8
64
2
64
2
531531
COM 3 / COM 4
COM 5 / COM 6
DCD
TXD
RXD
DTR
GND
123 45
689
7
DSR
CTS
RTS
RI
RX+
TX+
RX-
TX-
GND
123 45
689
7
N.C.
N.C.
N.C.
N.C.
DATA+
N.C.
DATA-
N.C.
GND
123 45
689
7
N.C.
N.C.
N.C.
N.C.
DTR
RxD
CTS
284
DCD
TxD
GND
1
3
5
RTS
RI
7
9
DSR
6
Tx-
Rx-
N.C.
284
Rx+
Tx+
GND
1
3
5
N.C.
N.C.
7
9
N.C.
6
N.C.
DATA-
N.C.
284
DATA+
N.C.
GND
1
3
5
N.C.
N.C.
7
9
N.C.
6
Page 64
64
4
Jumper Settings
COM 3 to COM 6 RS232/Power Select
JP3
JP6
JP4
JP7
COM 3
(JP3)
COM 4
(JP6)
COM 5
(JP4)
COM 6
(JP7)
JP3, JP4, JP6 and JP7 are used to confi gure COM 3 to COM 6 to pure RS232 or RS232 with power.
The pin function of COM 3 to COM 6 will vary according to JP3’s, JP4’s, JP6’s and JP7’s setting respectively.
JP3 / JP4 / JP6 / JP7
COM 3 / COM 4
1-3, 2-4 On:
RS232 (default)
64
2
531
3-5(+12V), 4-6(+5V) On:
RS232 with power
64
2
531
DCD
TXD
RXD
DTR
GND
123 45
689
7
DSR
CTS
RTS
RI
+5VTDRD
DTR-
GND
12345
RTS-
+12V
DSR-
CTS-
6789
DTR
RxD
CTS
284
DCD
TxD
GND
1
3
5
RTS
RI
7
9
DSR
6
COM 5 / COM 6
+5V
TD
GND
1
3
5
RTS-
+12V
7
9
DTR-
RD
CTS-
284
DSR-
6
Page 65
65
4
Jumper Settings
Digital I/O Signal Voltage Select
JP9
JP9 is used to confi gure DIO to signal voltage select.
The pin function of DIO port will vary according to the jumper’s setting respec­tively.
DIO
3
1
2
1-2 On:
+3.3V (default)
JP9
DIO
2-3 On:
+5V
3
1 2
DIO4
DIO2
DIO8
284
DIO1
DIO3
DIO5
1
3
5
DIO7
GND
7
9
DIO6
6
Page 66
66
4
Jumper Settings

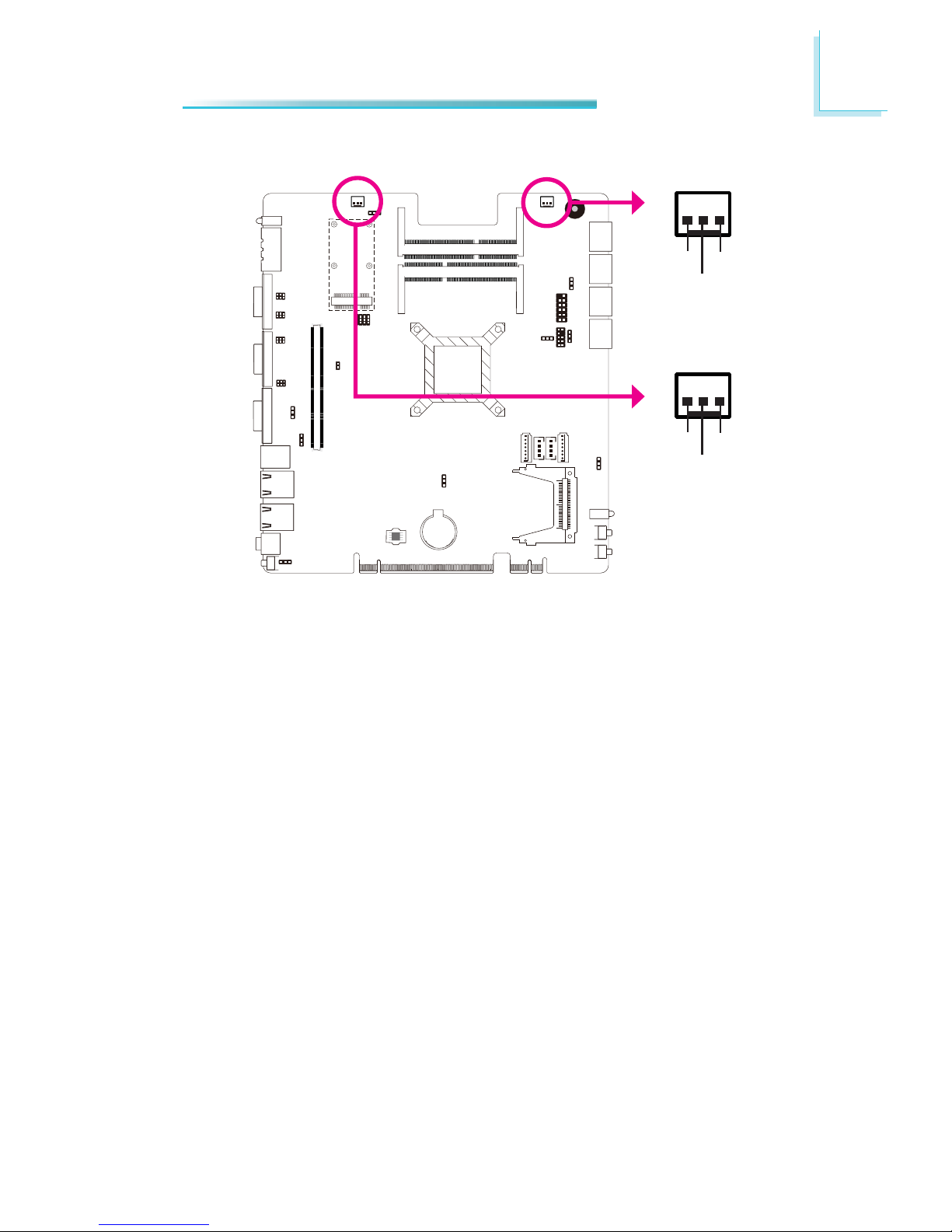

USB Power Select
JP10
JP10 (for USB 0-1) is used to select the power of the USB ports. Selecting +5V_ standby will allow you to use a USB device to wake up the system.
BIOS Setting
“USB Device Wakeup From S3/S4” in the Advanced menu (“ACPI Confi guration” submenu) of the BIOS must be set to Enabled. Refer to chapter 7 for more infor­mation.
Important:
If y
ou are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the +5V_standby power source of your power supply must sup­port 1.5A. For 3 or more USB ports, the +5V_standby power source of your power supply must support ≥2A.
3
1
2
1-2 On:
+5V (default)
JP10
2-3 On:
+5V_standby
3
1
2
USB0
USB1
Page 67
67
4
Jumper Settings
EC300/310/320/321-LR6G60
JP1 JP2 JP5
JP8
COM 3
(JP1)
COM 4
(JP2)
COM 5
(JP5)
COM 6
(JP8)
1-2 On: RS232
(default)
3-4 On: RS422
Full Duplex
5-6 On: RS485
64
2
531
JP1 (for COM 3), JP2 (for COM 4), JP5 (for COM 5) and JP8 (for COM 6) are used to confi gure the COM ports to RS232, RS422 (Full Duplex) or RS485.
The pin function of the COM ports will vary according to the jumper’s setting.
JP1 / JP2 / JP5 / JP8
64
2
64
2
531531
COM 3 / COM 4 / COM 5 / COM 6
DCD
TXD
RXD
DTR
GND
123 45
689
7
DSR
CTS
RTS
RI
RX+
TX+
RX-
TX-
GND
123 45
689
7
N.C.
N.C.
N.C.
N.C.
DATA+
N.C.
DATA-
N.C.
GND
123 45
689
7
N.C.
N.C.
N.C.
N.C.
COM 3 to COM 6 RS232/RS422/RS485 Select
Page 68
68
4
Jumper Settings
COM 3 to COM 6 RS232/Power Select
JP3, JP4, JP6 and JP7 are used to confi gure COM 3 to COM 6 to pure RS232 or RS232 with power.
The pin function of COM 3 to COM 6 will vary according to JP3’s, JP4’s, JP6’s and JP7’s setting respectively.
JP3 / JP4 / JP6 / JP7
COM 3 / COM 4 / COM 6 / COM 7
JP6JP3
1-3, 2-4 On:
RS232 (default)
64
2
531
3-5(+12V), 4-6(+5V) On:
RS232 with power
64
2
531
DCD
TXD
RXD
DTR
GND
123 45
689
7
DSR
CTS
RTS
RI
+5VTDRD
DTR-
GND
12345
RTS-
+12V
DSR-
CTS-
6789
JP4
JP7
COM 3
(JP3)
COM 4
(JP6)
COM 5
(JP4)
COM 6 (JP87)
Page 69
69
4
Jumper Settings
Digital I/O Signal Voltage Select
JP9
JP9 is used to confi gure DIO to signal voltage select.
The pin function of DIO port will vary according to the jumper’s setting respec­tively.
DIO2
1-2 On:
+3.3V (default)
JP9
DIO1 / DIO2
2-3 On:
+5V
DIO4
DIO2
DIO8
284
DIO1
DIO3
DIO5
1
3
5
DIO7
GND
7
9
DIO6
6
DIO1
132
132
Page 70
70
5
Ports and Connectors
Front Panel I/O Ports
The front panel I/O ports consist of the following:
• 4 USB 2.0 Type A ports
• Power button
• Reset button
• HDD LED
• Alert LED
Chapter 5 - Ports and Connectors
For EC300/310/320/321
USB 2.0
Page 71
71
5
Ports and Connectors
USB Ports
USB allows data exchange between your computer and a wide range of simulta­neously accessible external Plug and Play peripherals.
The system board is equipped with 4 USB 2.0/1.1 ports.
BIOS Setting
Confi gure the onboard USB in the Advanced menu (“USB Confi guration” sub- menu) of the BIOS. Refer to chapter 7 for more information.
Page 72
72
5
Ports and Connectors
Wake-On-USB Keyboard/Mouse
The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse to wake up a system from the S3/S4 (STR - Suspend To RAM) state. To use this function:
• Jumper Setting
It must be set to “2-3 On: +5V_standby”. Refer to “USB Power Select” in
chapter 4 for more information.
• BIOS Setting
“USB Device Wakeup From S3/S4” in the Advanced menu (“ACPI Confi gur
a­tion” submenu) of the BIOS must be set to Enabled. Refer to chapter 7 for more information.
Important:
If y
ou are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the +5V_standby power source of your power supply must sup­port 1.5A. For 3 or more USB ports, the +5V_standby power source of your power supply must support ≥2A.
Page 73
73
5
Ports and Connectors
Rear Panel I/O Ports
For EC300
EC300-CR6G60
EC300-CR6880
GPIO
COM3
COM4
COM5
DC-In
Power
HDD
COM1
COM2
VGA
USB 3.0
LAN
Speaker-out
Reset
COM6
LAN
Alert
GPIO
GPIO
COM3
COM4
COM5
DC-In
Power
HDD
COM1
COM2
VGA
USB 3.0
LAN
Speaker-out
Reset
COM6
LAN
Alert
GPIO
EC300-CRA060
COM4
COM5
COM3
DC-In
Power
HDD
COM1
COM2
VGA
USB 3.0
LAN
Speaker-out
Reset
COM6
LAN Alert
COM10
COM7
COM8
COM9
Page 74
74
5
Ports and Connectors
The rear panel I/O ports consist of the following:
EC300 - CR6880
• DC-in power jack: 3-pole Phoenix terminal block
• Speaker-out: 2W 3.5mm audio jack
• VGA: DB-15 D-sub
• Gigabit LAN: RJ45 with LEDs
• COM: DB-9 D-sub (RS232/422/485)
• COM: 9-pole terminal block (RS232/422/485)
• Power LED
• USB 3.0 Type A
• USB 2.0 Type A
• GPIO: 9-pole terminal block
• Reset button
• HDD LED
• Alert LED
EC300 - CR6G60
• DC-in power jack: 3-pole Phoenix terminal block
• Speaker-out: 2W 3.5mm audio jack
• VGA: DB-15 D-sub
• Gigabit LAN: RJ45 with LEDs
• COM: DB-9 D-sub (RS232/422/485)
• USB 3.0 Type A
• GPIO: 9-pole terminal block
• Reset button
• Power LED
• HDD LED
• Alert LED
EC300 - CRA060
• DC-in power jack: 3-pole Phoenix terminal block
• Speaker-out: 2W 3.5mm audio jack
• VGA: DB-15 D-sub
• Gigabit LAN: RJ45 with LEDs
• COM: DB-9 D-sub (RS232/422/485)
• COM: 5-pole terminal block (RS232/422/485)
• USB 3.0 Type A
• Reset button
• Power LED
• HDD LED
• Alert LED
Page 75
75
5
Ports and Connectors
For EC310
EC310-CR6880
EC310-CR6G60
EC310-CRA060
COM4
COM5 COM3
DC-In
Power
HDD
COM1
COM2
VGA
USB 3.0
LAN
Speaker-out
Reset
COM6
LAN Alert
GPIO
USB 2.0
PCI slot
GPIO
COM3
COM4
COM5
DC-In
Power
HDD
COM1
COM2
VGA
USB 3.0
LAN
Speaker-out
Reset
COM6
LAN Alert
GPIO
PCI slot
COM4
COM5
COM3
DC-In
Power
HDD
COM1
COM2
VGA
USB 3.0
LAN
Speaker-out
Reset
COM6
LAN Alert
COM10
COM7
COM8
COM9
PCI slot
Page 76
76
5
Ports and Connectors
The rear panel I/O ports consist of the following:
EC310 - CR6880
• DC-in power jack: 3-pole Phoenix terminal block
• Speaker-out: 2W 3.5mm audio jack
• VGA: DB-15 D-sub
• Gigabit LAN: RJ45 with LEDs
• COM: DB-9 D-sub (RS232/422/485)
• COM: 9-pole terminal block (RS232/422/485)
• Power LED
• USB 3.0 Type A
• USB 2.0 Type A
• GPIO: 9-pole terminal block
• Reset button
• HDD LED
• Alert LED
EC310 - CR6G60
• DC-in power jack: 3-pole Phoenix terminal block
• Speaker-out: 2W 3.5mm audio jack
• VGA: DB-15 D-sub
• Gigabit LAN: RJ45 with LEDs
• COM: DB-9 D-sub (RS232/422/485)
• USB 3.0 Type A
• GPIO: 9-pole terminal block
• Reset button
• Power LED
• HDD LED
• Alert LED
EC310 - CRA060
• DC-in power jack: 3-pole Phoenix terminal block
• Speaker-out: 2W 3.5mm audio jack
• VGA: DB-15 D-sub
• Gigabit LAN: RJ45 with LEDs
• COM: DB-9 D-sub (RS232/422/485)
• COM: 5-pole terminal block (RS232/422/485)
• USB 3.0 Type A
• Reset button
• Power LED
• HDD LED
• Alert LED
Page 77
77
5
Ports and Connectors
For EC320/321
EC320/321-CR6880
COM4
COM5 COM3
DC-In
Power
HDD
COM1
COM2
VGA
USB 3.0
LAN
Speaker-out
Reset
COM6
LAN
Alert
GPIO
USB 2.0PCI/PCIe x16 slots
EC320/321-CR6G60
GPIO
COM3
COM4
COM5
DC-In
Power
HDD
COM1
COM2
VGA
USB 3.0
LAN
Speaker-out
Reset
COM6
LAN
Alert
GPIO
PCI/PCIe x16 slots
EC320/321-CRA060
COM4COM6COM10 COM8
COM5
COM3
DC-In
Power
HDD
COM1
COM2
VGA
USB 3.0
LAN
Speaker-out
Reset
LAN Alert
COM7
COM9
PCI/PCIe x16 slots
Page 78
78
5
Ports and Connectors
The rear panel I/O ports consist of the following:
EC320/321 - CR6880
• DC-in power jack: 3-pole Phoenix terminal block
• Speaker-out: 2W 3.5mm audio jack
• VGA: DB-15 D-sub
• Gigabit LAN: RJ45 with LEDs
• COM: DB-9 D-sub (RS232/422/485)
• COM: 9-pole terminal block (RS232/422/485)
• Power LED
• USB 3.0 Type A
• USB 2.0 Type A
• GPIO: 9-pole terminal block
• Reset button
• HDD LED
• Alert LED
EC20/321 - CR6G60
• DC-in power jack: 3-pole Phoenix terminal block
• Speaker-out: 2W 3.5mm audio jack
• VGA: DB-15 D-sub
• Gigabit LAN: RJ45 with LEDs
• COM: DB-9 D-sub (RS232/422/485)
• USB 3.0 Type A
• GPIO: 9-pole terminal block
• Reset button
• Power LED
• HDD LED
• Alert LED
EC320/321 - CRA060
• DC-in power jack: 3-pole Phoenix terminal block
• Speaker-out: 2W 3.5mm audio jack
• VGA: DB-15 D-sub
• Gigabit LAN: RJ45 with LEDs
• COM: DB-9 D-sub (RS232/422/485)
• COM: 5-pole terminal block (RS232/422/485)
• USB 3.0 Type A
• Reset button
• Power LED
• HDD LED
• Alert LED
Page 79
79
5
Ports and Connectors
LAN Ports
The LAN port allows the system board to connect to a local area network by means of a network hub.
BIOS Setting
Confi gure “Wake on LAN” in the Advanced menu (“SuperIO Confi guration” sub- menu) of the BIOS. Refer to chapter 7 for more information.
Driver Installation
Install the LAN drivers. Refer to chapter 8 for more information.
Page 80
80
5
Ports and Connectors
USB Ports
USB allows data exchange between your computer and a wide range of simulta­neously accessible external Plug and Play peripherals.
The system board is equipped with USB 3.0 port.
Page 81
81
5
Ports and Connectors
The VGA port is used for connecting a VGA monitor. Connect the monitor’s 15-pin D-shell cable connector to the VGA port. After you plug the monitor’s cable con­nector into the VGA port, gently tighten the cable screws to hold the connector in place.
BIOS Setting
Confi gure the onboard VGA in the Advanced menu (“ACPI Settings” submenu) of the BIOS. Refer to chapter 7 for more information.
Driver Installation
Install the graphics driver. Refer to chapter 8 for more information.
VGA Port
Page 82
82
5
Ports and Connectors

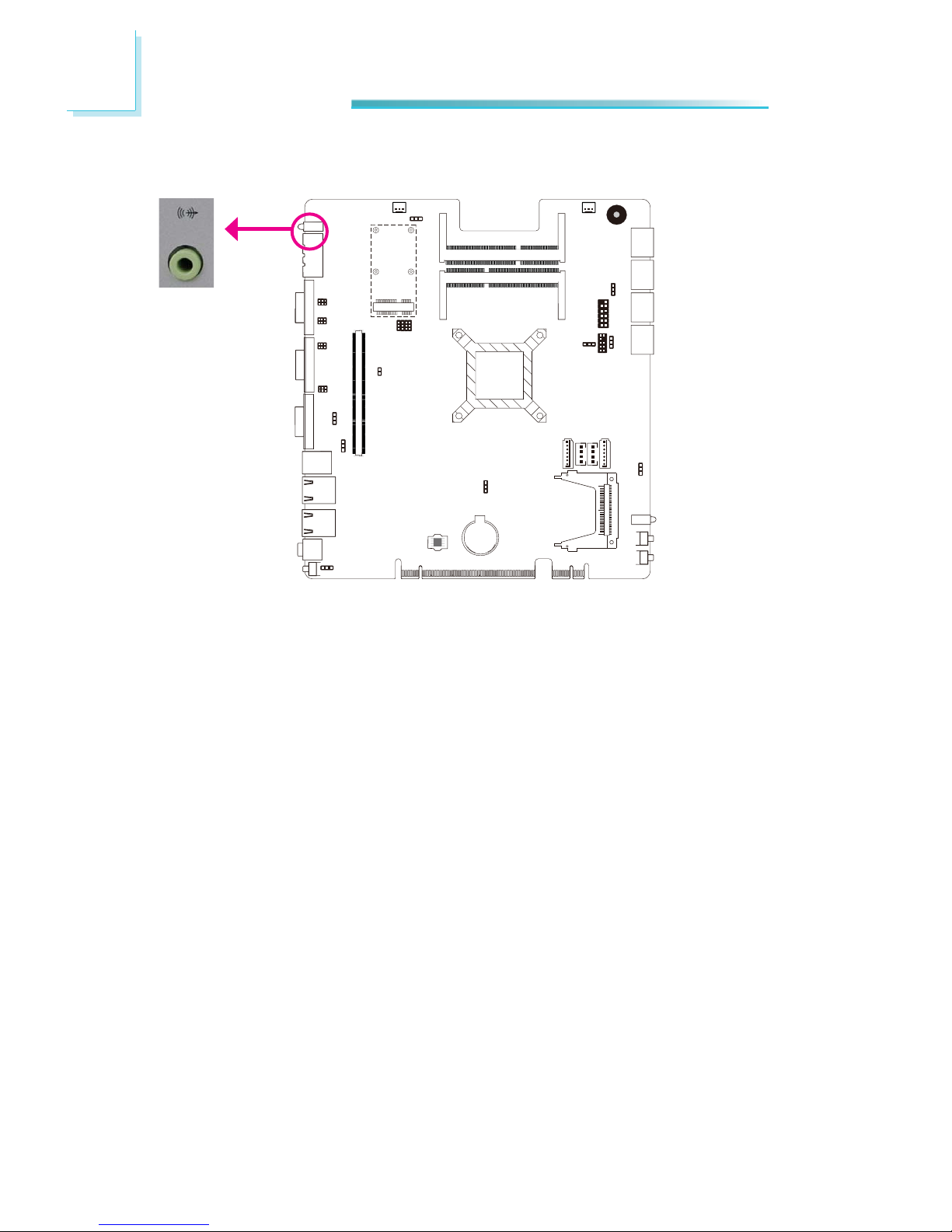

Speaker-out
This jack is used to connect a headphone or external speakers.
VGA
Speaker out
Page 83
83
5
Ports and Connectors

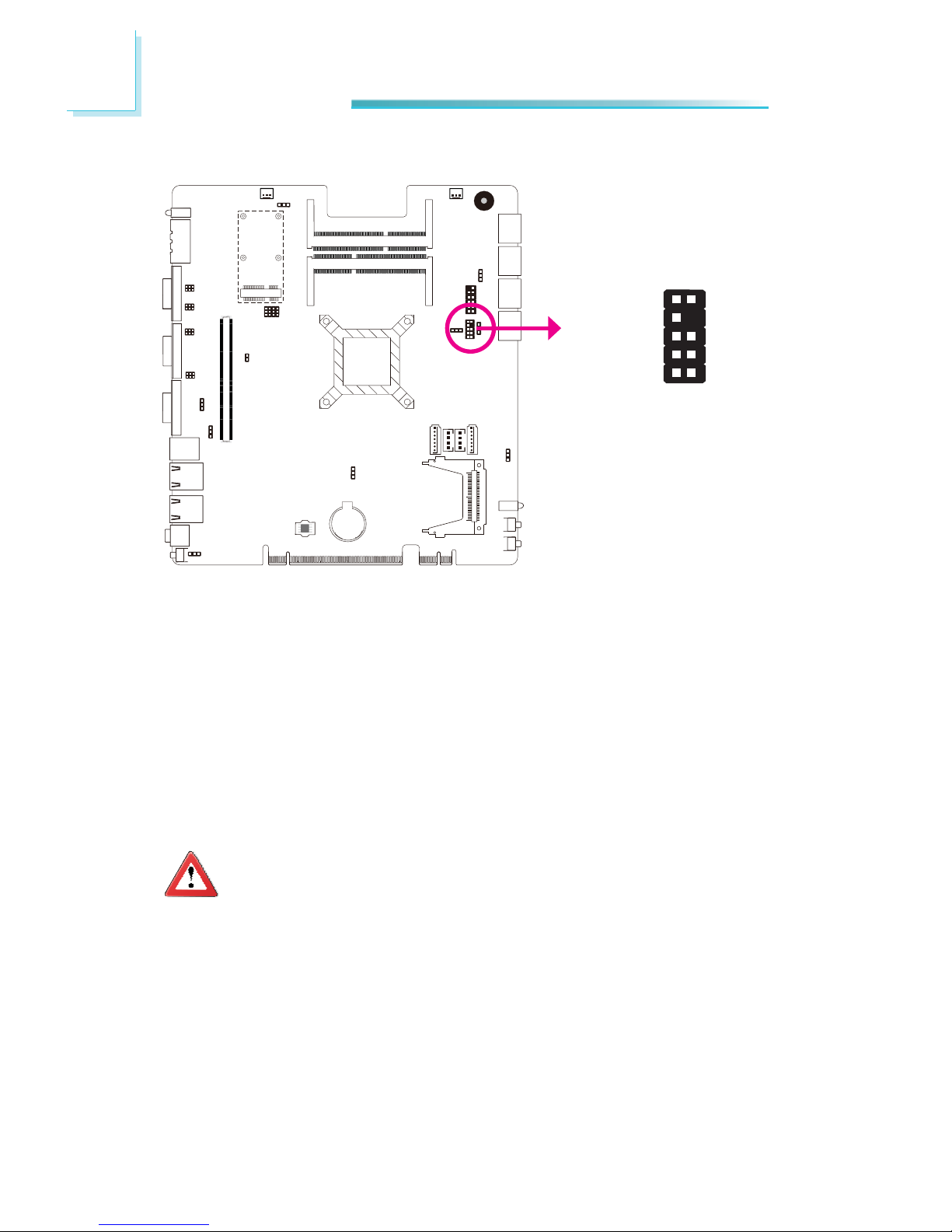

Digital Input/Output
The Digital I/O connector provides powering-on function to an external device that is connected to this connector.
Pin
Digital Output/ Input
Pin Assignment
1 DIO1
2
DIO2
3 DIO3
4 DIO4
5 DIO5
6 DIO6
7 DIO7
8 DIO8
9 GND
Page 84
84
5
Ports and Connectors
COM Port
COM 1 and COM 2 are fi xed at RS232.
COM 1’s pin defi nition will vary according to its jumper setting. Refer to “COM 1 RS232/RS422/RS485 Select” in this chapter for more information.
The serial ports are asynchronous communication ports with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices.
COM 1 / COM 2
DCD
TXD
RXD
DTR
GND
123 45
689
7
DSR
CTS
RTS
RI
RX+
TX+
RX-
TX-
GND
123 45
689
7
N.C.
N.C.
N.C.
N.C.
DATA+
N.C.
DATA-
N.C.
GND
123 45
689
7
N.C.
N.C.
N.C.
N.C.
RS232
RS422
Full Duplex
RS485
Page 85
85
5
Ports and Connectors
EC300/310/320/321-CRA060
COM 3 to COM 10 RS232/RS422/RS485 Select
1-2 On: RS232
(default)
3-4 On: RS422
Full Duplex
5-6 On: RS485
64
2
531
JP1 (for COM 3) to JP8 (for COM 10) are used to confi gure the COM ports to RS232, RS422 (Full Duplex) or RS485.
The pin function of the COM ports will vary according to the jumper’s setting.
JP1 / JP2 / JP3 / JP4 / JP5 / JP6 / JP7 / JP8
64
2
64
2
531531
COM 3
(JP1)
COM 4
(JP2)
RS232
RS422
Full Duplex
RS485
COM 3 / COM 4 / COM 5 / COM 8 / COM 9 / COM 10
RTS
TXD
CTS
RXD
GND
12345
COM 5
(JP3)
COM 6
(JP4)
COM 7
(JP5)
COM 8
(JP6)
COM 9
(JP7)
COM 10
(JP8)
RX+
TX+
RX-
TX-
GND
12345
DATA+
N.C.
DATA-
N.C.
GND
12345
COM 6 / COM 7
DCD
TXD
RXD
DTR
GND
123 45
689
7
DSR
CTS
RTS
RI
RX+
TX+
RX-
TX-
GND
123 45
689
7
N.C.
N.C.
N.C.
N.C.
DATA+
N.C.
DATA-
N.C.
GND
123 45
689
7
N.C.
N.C.
N.C.
N.C.
JP1
JP2 JP3 JP4 JP5 JP6 JP7 JP8
Page 86
86
5
Ports and Connectors
COM 6 and COM 7 RS232/Power Select
JP9 and JP10 are used to confi gure COM 6 and COM 7 to pure RS232 or RS232 with power.
The pin function of COM 6 and COM 7 will vary according to JP9’s and JP10’s set­ting respectively.
JP9 / JP10
COM 6 / COM 7
COM 6
(JP9)
COM 7 (JP10)
JP10
JP9
1-3, 2-4 On:
RS232 (default)
64
2
531
3-5(+12V), 4-6(+5V) On:
RS232 with power
64
2
531
DCD
TXD
RXD
DTR
GND
123 45
+5VTDRD
DTR-
GND
12345
689
7
DSR
CTS
RTS
RI
RTS-
+12V
DSR-
CTS-
6789
Page 87
87
5
Ports and Connectors
EC300/310/320/321-CR6880
COM 3 to COM 6 RS232/RS422/RS485 Select
JP1 JP2 JP5 JP8
COM 3
(JP1)
COM 4
(JP2)
COM 5
(JP5)
COM 6
(JP8)
1-2 On: RS232
(default)
3-4 On: RS422
Full Duplex
5-6 On: RS485
64
2
531
JP1 (for COM 3), JP2 (for COM 4), JP5 (for COM 5) and JP8 (for COM6) are used to confi gure the COM ports to RS232, RS422 (Full Duplex) or RS485.
The pin function of the COM ports will vary according to the jumper’s setting.
JP1 / JP2 / JP5 / JP8
64
2
64
2
531531
COM 3 / COM 4
COM 5 / COM 6
DCD
TXD
RXD
DTR
GND
123 45
689
7
DSR
CTS
RTS
RI
RX+
TX+
RX-
TX-
GND
123 45
689
7
N.C.
N.C.
N.C.
N.C.
DATA+
N.C.
DATA-
N.C.
GND
123 45
689
7
N.C.
N.C.
N.C.
N.C.
DTR
RxD
CTS
284
DCD
TxD
GND
1
3
5
RTS
RI
7
9
DSR
6
Tx-
Rx-
N.C.
284
Rx+
Tx+
GND
1
3
5
N.C.
N.C.
7
9
N.C.
6
N.C.
DATA-
N.C.
284
DATA+
N.C.
GND
1
3
5
N.C.
N.C.
7
9
N.C.
6
Page 88
88
5
Ports and Connectors
COM 3 to COM 6 RS232/Power Select
JP3
JP6
JP4
JP7
COM 3
(JP3)
COM 4
(JP6)
COM 5
(JP4)
COM 6
(JP7)
JP3, JP4, JP6 and JP7 are used to confi gure COM 3 to COM 6 to pure RS232 or RS232 with power.
The pin function of COM 3 to COM 6 will vary according to JP3’s, JP4’s, JP6’s and JP7’s setting respectively.
JP3 / JP4 / JP6 / JP7
COM 3 / COM 4
1-3, 2-4 On:
RS232 (default)
64
2
531
3-5(+12V), 4-6(+5V) On:
RS232 with power
64
2
531
DCD
TXD
RXD
DTR
GND
123 45
689
7
DSR
CTS
RTS
RI
+5VTDRD
DTR-
GND
12345
RTS-
+12V
DSR-
CTS-
6789
DTR
RxD
CTS
284
DCD
TxD
GND
1
3
5
RTS
RI
7
9
DSR
6
COM 5 / COM 6
+5V
TD
GND
1
3
5
RTS-
+12V
7
9
DTR-
RD
CTS-
284
DSR-
6
Page 89
89
5
Ports and Connectors
EC300/310/320/321-CR6G60
JP1 JP2 JP5
JP8
COM 3
(JP1)
COM 4
(JP2)
COM 5
(JP5)
COM 6
(JP8)
1-2 On: RS232
(default)
3-4 On: RS422
Full Duplex
5-6 On: RS485
64
2
531
JP1 (for COM 3), JP2 (for COM 4), JP5 (for COM 5) and JP8 (for COM 6) are used to confi gure the COM ports to RS232, RS422 (Full Duplex) or RS485.
The pin function of the COM ports will vary according to the jumper’s setting.
JP1 / JP2 / JP5 / JP8
64
2
64
2
531531
COM 3 / COM 4 / COM 5 / COM 6
DCD
TXD
RXD
DTR
GND
123 45
RX+
TX+
RX-
TX-
GND
123 45
DATA+
N.C.
DATA-
N.C.
GND
123 45
COM 3 to COM 6 RS232/RS422/RS485 Select
689
7
DSR
CTS
RTS
RI
689
7
N.C.
N.C.
N.C.
N.C.
689
7
N.C.
N.C.
N.C.
N.C.
Page 90
90
5
Ports and Connectors
COM 3 to COM 6 RS232/Power Select
JP3, JP4, JP6 and JP7 are used to confi gure COM 3 to COM 6 to to pure RS232 or RS232 with power.
The pin function of COM 3 to COM 6 will vary according to JP3’s, JP4’s, JP6’s and JP7’s setting respectively.
JP3 / JP4 / JP6 / JP7
COM 3 / COM 4 / COM 6 / COM 7
JP6JP3
1-3, 2-4 On:
RS232 (default)
64
2
531
3-5(+12V), 4-6(+5V) On:
RS232 with power
64
2
531
DCD
TXD
RXD
DTR
GND
123 45
DSR
+5VTDRD
DTR-
GND
12345
6789
JP4
JP7
COM 3
(JP3)
COM 4
(JP6)
COM 5
(JP4)
COM 6
(JP87)
689
7
CTS
RTS
RI
RTS-
+12V
DSR-
CTS-
Page 91
91
5
Ports and Connectors
VGA
I/O Connectors
Chassis Instrusion Connector
1
2
Ground
Chassis signal
The board supports the chassis intrusion detection function. Connect the chas­sis intrusion sensor cable from the chassis to this connector. When the system’s power is on and a chassis intrusion occurred, an alarm will sound. When the system’s power is off and a chassis intrusion occurred, the alarm will sound only when the system restarts.
Hardware Monitor for Windows
Install the “Hardware Monitor for Windows” utility. By default, the chassis intru­sion detection function is disabled. When enabled, a warning message will appear when the chassis is open. The utility can also be confi gured so that a beeping alarm will sound when the chassis is open. Refer to the “Hardware Monitor for Windows” section in chapter 8 for more information.
Page 92
92
5
Ports and Connectors
VGA
The Serial ATA connectors are used to connect Serial ATA devices. Connect one end of the Serial ATA cable to a SATA connector and the other end to your Serial ATA device.
SATA (Serial ATA) Connectors
SATA 1
SATA 0
1
TXN
GND
RXP
RXN
GND
7
TXP
GND
Page 93
93
5
Ports and Connectors
VGA
HDD Power
The HDD power connector supplies power to the SATA drive. Connect one end of the provided power cable to the HDD power connector and the other end to your storage device.
HDD Power
+12V
+5V
Ground
1
Ground
Page 94
94
5
Ports and Connectors
VGA
Mini PCIe Slot
Mini PCIe Slot
Install Mini PCI Express cards such as network cards or other cards that comply to the Mini PCI Express specifi cations into the Mini PCI Express slot.
Page 95
95
5
Ports and Connectors
VGA
Cooling Fan Connector
The fan connector is used to connect the cooling fan. The cooling fan will provide adequate airfl ow throughout the chassis to prevent overheating the system board components.
12V
Sensor
Ground
3
1
CPU Fan
System Fan
12V
Sensor
Ground
3
1
Page 96
96
5
Ports and Connectors
VGA
PS/2 Keyboard/Mouse Connector
10 9
12
KB CLK
GND
NC
MS CLK
MS DATA
CHASSIS GND
GND
+5V_STB
KB DATA
+5V_STB
The PS/2 Keyboard/Mouse connector is used to connect PS/2 keyboard and PS/2 mouse by means of a PS/2 cable.
Wake-On-PS/2 Keyboard/Mouse
The Wake-On-PS/2 Keyboard/Mouse function allows you to use the PS/2 key­board or PS/2 mouse to power-on the system. To use this function:
• Jumper Setting
JP1 must be set to “2-3 On: +5V_standby”. Refer to “PS/2 Power Select” in
chapter 4 for more information.
Important:
The +5V_standby power source of y
our power supply must support
720mA.
Page 97
97
5
Ports and Connectors
VGA
Front Panel Connectors
HDD-LED - HDD LED
This LED will light when the hard drive is being accessed.
RESET SW - Reset Switch
This switch allows you to reboot without having to power off the system.
PWR-BTN - Power Switch
This switch is used to power on or off the system.
PWR-LED - Power/Standby LED
When the system’s power is on, this LED will light. When the system is in the S1 (POS - Power On Suspend) state, it will blink every second. When the system is in the S3 (STR - Suspend To RAM) state, it will blink every 4 seconds.
Pin Pin Assignment Pin Pin Assignment
HDD-LED 3 HDD Power PWR-LED 2 LED Power
5
Signal 4 LED Power
RESET SW 7 Ground 6 Signal
9
RST Signal PWR-BTN 8 Ground
11
N.C. 10 Signal
12 11
21
HDD-LED
RESET-SW
PWR-LED
PWR-BTN
Page 98
98
5
Ports and Connectors
VGA
The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source of power when the main power is shut off.
Safety Measures
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufac­turer.
• Dispose of used batteries according to local ordinance.
Battery
Battery
Page 99
99
5
Ports and Connectors
VGA
CompactFlash Socket
CompactFlash socket
The CompactFlashTM socket is used for inserting a CompactFlashTM card. Compact­Flash
TM
card is a small removable mass storage device designed with fl ash tech- nology - a non-volatile storage solution that does not require a battery to retain data indefi nitely. The CompactFlash
TM
technology is widely used in products such as portable and desktop computers, digital cameras, handheld data collection scanners, PDAs, Pocket PCs, handy terminals and personal communicators.
Page 100
6
100
Mounting Options
Chapter 6 - Mounting Options
The Wall Mounting kit includes the following:
• 2 Wallmount brackets
• Bracket screws
Wall Mounting
1. If rubber feet has been previously attached at the bottom of the system, please remove them first.
Rubber feet
Loading...
