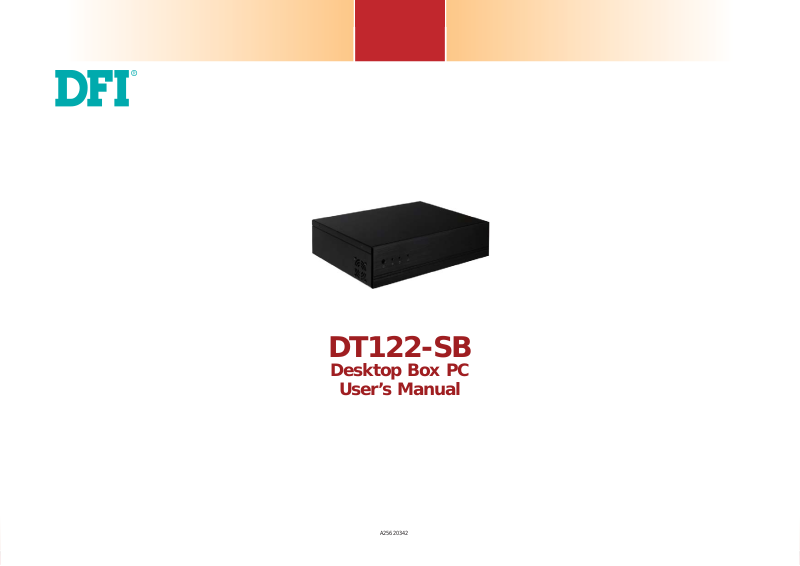

Page 1

DT122-SB

Desktop Box PC

User’s Manual

A25620342

Chapter 1 Introduction

www.dﬁ .com

Page 2

Copyright

FCC and DOC Statement on Class B

This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.

Changes after the publication’s first release will be based on the product’s revision. The website will always provide the most updated information.

Trademarks

Product names or trademarks appearing in this manual are for identification purpose only and are the properties of the respective owners.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compli-

ance could void the user’s authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

Chapter 1 Introduction

www.dﬁ .com

Page 3

Trademarks ........................................................................................................2

FCC and DOC Statement on Class B .....................................................2

About this Manual ..........................................................................................4

Warranty ..............................................................................................................4

Static Electricity Precautions ......................................................................4

Safety Measures ..............................................................................................4

About the Package .........................................................................................5

Chapter 1 - Introduction .............................................................................6

Overview .......................................................................................................6

Key Features ................................................................................................6

Specifications ...............................................................................................7

Getting to Know the DT122-SB ..............................................................8

Mechanical Dimensions .............................................................................9

Motherboad Dimensions ...........................................................................9

Chapter 2 - Getting Started .....................................................................10

Preparing the System .............................................................................. 10

Installing Devices .....................................................................................10

Configuring the BIOS ..............................................................................10

Installing the Operating System ..........................................................10

Installing the Drivers ...............................................................................10

Chapter 3 - Installing Devices ..............................................................11

Installing a 2.5” or 3.5” SATA Drive ...................................................12

Installing a 2.5” SATA Drive ....................................................................... 12

Installing a 3.5” SATA Drive ....................................................................... 14

Installing the PCI and PCIe x16 Expansion Card ............................ 15

Chapter 4 - Jumper Settings .................................................................17

Clear CMOS ................................................................................................17

PS/2 Power Select ....................................................................................17

USB Power Select .....................................................................................18

Power-on Select ........................................................................................18

COM 1 / COM 2 RS232/422/485 Select ............................................19

COM 1 / COM 2 RS232/Power Select ................................................. 19

Chapter 5 - Ports and Connectors ........................................................ 20

Bottom Panel I/O Ports ...........................................................................20

PS/2 Mouse and PS/2 Keyboard ................................................................. 20

COM (Serial) Ports ..................................................................................... 21

VGA Port ...................................................................................................21

DVI-I Port .................................................................................................22

RJ45 LAN Ports ......................................................................................... 22

USB Ports .................................................................................................23

Audio ........................................................................................................ 24

I/O Connectors ..........................................................................................25

S/PDIF Connector ...................................................................................... 25

Digital I/O Connector .................................................................................25

SATA (Serial ATA) Connectors .....................................................................26

Cooling Fan Connectors ............................................................................. 26

Chassis Intrusion Connector ....................................................................... 27

Power Connectors .....................................................................................27

Standby Power LED ...................................................................................28

Front Panel Connectors .............................................................................. 28

Expansion Slots .........................................................................................29

Battery .....................................................................................................29

Chapter 6 - Mounting Options .............................................................. 30

Wall Mount ................................................................................................... 30

Chapter 7 - BIOS Setup ........................................................................... 32

Overview.......................................................................................................32

AMI BIOS Setup Utility .............................................................................33

Main ......................................................................................................... 33

Advanced .................................................................................................. 33

Chipset ..................................................................................................... 40

Boot ......................................................................................................... 44

Security .................................................................................................... 45

Save & Exit ...............................................................................................46

Updating the BIOS ...................................................................................46

Chapter 8 - Supported Software ......................................................... 47

Chapter 9 - Raid .......................................................................................... 59

RAID Levels ...............................................................................................59

Settings ....................................................................................................... 59

Chapter 10 - Intel AMT Settings ......................................................... 62

Overview.......................................................................................................62

Enable Intel® AMT in the AMI BIOS ...................................................62

Enable Intel® AMT in the Intel® Management Engine BIOS Extension (MEBX) Screen

......................................................................63

Appendix A - NLITE and AHCI Installation Guide ........................76

Appendix B - Watchdog Sample Code ..............................................82

Appendix C - System Error Message ................................................. 83

Appendix D - Troubleshooting Checklist .......................................... 84

Chapter 1 Introduction

www.dﬁ .com

Page 4

About this Manual

Static Electricity Precautions

An electronic file of this manual is included in the CD. To view the user’s manual in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click “User’s Manual” on the main menu.

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications.

2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work.

4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered.

It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of the components, contacts

or connections.

5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con nectors by their ends.

Important:

Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range.

Chapter 1 Introduction

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installation or servic-

ing. After installation or servicing, cover the system chassis before plugging the power cord. Battery:

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend by the manufacturer.

• Dispose of used batteries according to local ordinance.

www.dﬁ .com

Page 5

Safety Precautions

About the Package

• Use the correct DC input voltage range.

• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend by the manufacturer.

• Dispose of used batteries according to local ordinance.

• Keep this system away from humidity.

• Place the system on a stable surface. Dropping it or letting it fall may cause damage.

• The openings on the system are for air ventilation to protect the system from overheating. DO NOT COVER THE OPENINGS.

• Place the power cord in such a way that it will not be stepped on. Do not place anything on top of the power cord. Use a power cord that has been approved for use with the system and that it matches the voltage and current marked on the system’s electrical range label.

• If the system will not be used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

• If one of the following occurs, consult a service personnel:

- The power cord or plug is damaged.

- Liquid has penetrated the system.

- The system has been exposed to moisture.

- The system is not working properly.

The package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.

• 1 DT122-SB system unit

• 1 HDD drive bay kit

• 1 CD disk includes

- Manual

- Drivers

• 1 Quick Installation Guide

Optional Items

• Power Cord The board and accessories in the package may not come similar to the information listed

above. This may differ in accordance to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

Before Using the System

Before powering-on the system, prepare the basic system components. If you are installing the system board in a new system, you will need at least the following

internal components.

• Memory module

• Storage devices such as hard disk drive, CD-ROM, etc. You will also need external system peripherals you intend to use which will normally include at

least a keyboard, a mouse and a video display monitor.

- The system dropped or is damaged.

- The system has obvious signs of breakage.

• The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace the outlet.

• Disconnect the system from the DC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning.

Chapter 1 Introduction

www.dﬁ .com

Page 6

Chapter 1 - Introduction

Overview

Chapter 1

Key Features

PROCESSOR CHIPSET LAN COM DISPLAYS USB

AUDIO

DT122-SB

3rd/2nd Generation Intel® CoreTM processors Intel® Q67 2 LAN ports 2 COM ports DVI-I (DVI-D Signal), 1 VGA 4 Type A USB 2.0/1.1 ports

2 Type A USB 2.0/1.1 ports (optional)

Mic-in, Line-in, Line-out

Chapter 1 Introduction

www.dﬁ .com

Page 7

Specifications

Chapter 1

Processor System

Memory

Graphics

Storage

Ethernet

Audio COM

USB

Power

Cooling System Environment

Vibration

Shock

• Processors:

- 3rd generation Intel

: Intel

CoreTM i5-3550S (6M Cache, up to 3.7GHz); 65W

CoreTM i3-3220 (3M Cache, 3.3GHz); 55W

: Intel

Pentium® G2120 (3M Cache, 3.1 GHz); 55W

- 2nd generation Intel

CoreTM i3-2120 (3M Cache, 3.3 GHz); 65W

:Intel

Pentium® G850 (3M Cache, 2.9 GHz); 65W

• Chipset: Intel

CoreTM processors (22nm process technology)

CoreTM processors (32nm process technology)

Q67 Express chipset

• Two DDR3 DIMM sockets

• Supports DDR3 1333/1600MHz (3rd generation processors) Supports DDR3 1066/1333MHz (2nd generation processors)

• Supports up to 16GB memory

• Intel® HD Graphics

• Display ports: DVI-I (DVI-D signal) and VGA

• DVI-I supports up to 1920x1200 @ 60Hz resolution

• VGA supports up to 2048x1536 @ 75Hz resolution

• Up to 2 2.5" or 1 3.5" SATA drive bay

• 1 optical drive bay (optional)

• Intel® WG82579LM with iAMT8.0 Gigabit Ethernet Phy

• Intel

WG82574L PCI Express Gigabit Ethernet controller

• Realtek® ALC262 2-channel High Deﬁ nition Audio

• 2 DB-9 RS232/422/485 COM ports

• 2 DB-9 RS232 COM ports (optional)

• 4 Type A USB 2.0/1.1 ports

• 2 Type A USB 2.0/1.1 ports (optional)

• Power type

- ATX

• Power input voltage

- AC 100-240V, 3.5A, 250W

• 1 CPU cooler

• Temperature

- Operating: 0

- Storage: -20

• Humidity

- 90% RH at 45

C ~ 45oC

C ~ 60oC

C, 1 week

• Operating: 1G, 5~500Hz

• Non-operating: 1.5G, 5~25Hz

• IEC 68-2-64 compliant

• Operating: 3G peak acceleration (11 msec. duration)

• Non-operating: 10G peak acceleration (11 msec. duration)

• IEC 68-2-27 compliant

I/O Ports

Expansion

Construction

Mounting

Dimensions Weight

OS Support

• Front Panel

- 1 Power button

- 1 Reset button

2 LED indicators: Power, HDD

• Rear Panel

- 1 PS/2 Mouse

- 1 PS/2 Keyboard

- 2 DB-9 RS232/422/485 COM

- 1 DB-15 VGA

- 1 DVI-I (DVI-D signal)

- 2 RJ45 LAN

- 4 USB 2.0

- Mic-in, Line-in and Line out

• 1 expansion slot

- 1 PCIe x16 or 1 PCI slot

• Front panel: aluminum

• Rear chassis: sheet metal

• 2 types of wall mount bracket

- Type A - Type B

• Brackets and screws (optional)

• 300mm x 75mm x 217mm (W x H x D)

•

TBD

• Windows 7, Windows 7 Embedded, Windows XP, Windows XP Embedded, Linux Kernel 2.6

Chapter 1 Introduction

www.dﬁ .com

Page 8

Getting to Know the DT122-SB

Chapter 1

Front View

Reset Button

Power LED

Power Button

HDD LED

Power Button

Press to power-on or power-off the system.

Reset Button

Press to reset the system.

HDD LED

Indicates the status of the hard drive.

Power LED

Indicates the power status of the system.

Bottom View

PS/2 Mouse

COM 2

COM 1

PS/2 KB

VGA Port

Use to connect a VGA device.

DVI-I Port

Used to connect a DVI device.

COM Ports

Used to connect serial devices.

USB Ports

Used to connect USB 3.0/2.0/1.1 devices.

LAN Ports

Used to connect the system to a local area network.

Line-out

Used to connect to a speaker.

Expansion slot

USB 2.0VGA

DVI-I

(DVI-D Signal)

Line-in

Line-out

LAN 1-2

Mic-in

Chapter 1 Introduction

Line-in

Used to connect any audio devices such as Hi-fi set, CD player, tape player, AM/FM radio tuner,

synthesizer

, etc

Mic-in

Used to connect an external microphone.

PS/2 KB/Mouse

Used to connect a PS/2 keyboard and PS/2 mouse.

Expansion Slot

Used to insert an expansion card.

www.dﬁ .com

Page 9

Chapter 1

Mechanical Dimensions

217.20

Left View

Rear View

300.00

Front View

74.00

Right View

Motherboard Dimensions

10.16

0.00

46.94

6.17

0.00

1.57

17.73

36.88

59.40

SB100

89.88

125.92

157.48

163.83

151.76

10.16

22.86

Chapter 1 Introduction

146.43

154.94

159.84

0.00

9.73

157.48

154.94

www.dﬁ .com

Page 10

www.dﬁ .com

Chapter 2 Getting Started

Chapter 2 - Getting Started

Chapter 2

Preparing the System

Before you start using the system, you need the following items:

• SATA hard drive

• AC power adapter

• PS/2 or USB keyboard

• PS/2 or USB mouse

• CD-ROM drive (for installing software/drivers)

• Screwdriver

• Memory module (optional)

Installing Devices

The following are devices that can be installed in the system.

• Memory module

• SATA hard drive

• Mini PCIe card

Configuring the BIOS

To get you started, you may need to change configurations such as the date, time and the type of hard disk drive.

1. Power-on the system.

2. After the memory test, the message “Press DEL to run setup” will appear on the screen. Press the Delete key to enter the AMI BIOS setup utility.

Installing the Operating System

Most operating system software are provided in a CD therefore you need to install a CD-ROM drive in order to use the CD.

Make sure a SATA drive is already installed.

1. Refer to the following chapters for information on connecting a CD-ROM drive and installing a SATA drive.

2. Refer to your operating system manual for instructions on installing the operating system.

Installing the Drivers

The system package includes a CD disk. The CD includes drivers that must be installed to provide the best system performance. Refer to the Supported Software chapter for instructions on installing the drivers.

Page 11

Chapter 3

Chapter 3 - Installing Devices

1. Make sure the system and all other peripheral devices connected to it has been powered-off.

2. Disconnect all power cords and cables.

3. The 4 mounting screws on the sides of the system are used to secure the cover to the chassis.

Remove these screws and then put them in a safe place for later use.

Mounting

screw

Mounting

screw

5. The DIMM sockets and SATA drive bay are readily accessible after removing the chassis cover.

2.5"/3.5" SATA drive bay

DIMM socket

4. After removing the mounting screws, slide the cover backwards.

Slide the Cover Backward

Chapter 3 Installing Devices

www.dﬁ .com

Page 12

Chapter 3

Installing a 2.5" or 3.5" SATA Drive Installing a 2.5” SATA Drive

1. Remove the 4 mounting screws that secure the drive bay to the chassis and then remove the drive bay.

Mounting screw

Drive bay

Mounting screw

2. Turn to the other side of the drive bay and remove the 4 mounting screws that secure the HDD brackets to the drive bay.

3. Align the mounting holes of the SATA drive with the mounting holes on the HDD bracket and then use the provided mounting screws to secure the drive in place.

Mounting screw

HDD bracket

SATA drive

Mounting screw

Chapter 3 Installing Devices

Drive bay

www.dﬁ .com

Page 13

Chapter 3

4. Turn to the other side of the drive bay. Use the provided mounting screws from step 2 to secure the SATA drive (with HDD bracket) onto the drive bay.

Drive bay

Mounting screw

5. Place the SATA drive bay assembly into the chassis. Secure the SATA drive bay with the

mounting screws you removed in step 1.

Mounting screw

6. Connect the SATA data cable and SATA power cable to the connectors on the SATA drive.

SATA power cable

SATA data cable

Chapter 3 Installing Devices

Mounting screw

www.dﬁ .com

Page 14

Chapter 3

lnstalling a 3.5" SATA Drive

1. Remove the 4 mounting screws that secure the drive bay to the system.

Mounting screw

Drive bay

Mounting screw

2. Insert the spacer into the anti-shock bumper. You will ﬁ nd the spacers in the HDD drive bay kit

that comes with the DT122 package.

spacer

4. Use the provided mounting screws to secure the SATA drive onto the drive bay.

Mounting screw

Drive bay

5. Place the drive bay into the chassis. Secure the drive bay with the mounting screws you removed in step 1.

Mounting screw

spacer

Drive bay

3. Place the SATA drive on the drive bay. Align the mounting holes of the SATA drive with the mounting holes on the drive bay.

SATA drive

Drive bay

Chapter 3 Installing Devices

6. Connect the SATA data cable and SATA power cable to the connectors on the SATA drive.

SATA data cable

SATA power cable

www.dﬁ .com

Page 15

Chapter 3

Installing the PCI or PCIe x16 Expansion Card

Important:

When inserting the riser card, please select a card within 175mm (as shown on the next picture).

The PCIe x16 on the motherboard is used to insert a TS200-1P or TS200-1E riser card.

To install the expansion card, you need to remove the mounting bracket and the mounting

screw that secure the bracket to the chassis and then remove the bracket the brackets in a safe place for later use.

. Put the screw and

T200-1P

Bracket

Mounting bracket and mounting screw

PCI slot

Mounting screw

Chapter 3 Installing Devices

T200-1E

PCIe x16 slot

Mounting bracket

www.dﬁ .com

Page 16

Chapter 3

2. Insert the Expansion card with a bracket into the PCI or PCIe x16 slot that is on the riser card.

Replace the screw you removed in step 1 to secure the bracket in place.

Bracket Mounting bracket

PCI

Expansion card

Rear view

and mounting screw

Note:

The Expansion card used in the above illustrations may not resemble the actual cards. These illustr

ations are for reference only.

Chapter 3 Installing Devices

www.dﬁ .com

Page 17

Chapter 4 - Jumper Settings

Clear CMOS

Chapter 4

PS/2 Power Select

JP9

1-2 On: Normal

If you encounter the following,

a) CMOS data becomes corrupted. b) You forgot the supervisor or user password.

you can reconfigure the system with the default values stored in the ROM BIOS.

To load the default values stored in the ROM BIOS, please follow the steps below.

1. Power-off the system and unplug the power cord.

2. Set JP9 pins 2 and 3 to On. Wait for a few seconds and set JP9 back to its

default setting, pins 1 and 2 On.

312

(default)

Clear CMOS Data

312

2-3 On:

312

1-2 On: +5V

(default)

312

2-3 On:

+5V_standby

JP2

JP2 is used to select the power of the PS/2 keyboard and PS/2 mouse ports. Selecting +5V_ standby will allow you to use the PS/2 keyboard or PS/2 mouse to wake up the system.

Important:

The +5VSB power source of your power supply must support ≥720mA.

3. Now plug the power cord and power-on the system.

Chapter 4 Jumper Settings

www.dﬁ .com

Page 18

Chapter 4

USB Power Select

USB 2-5 (JP7)

USB 0-1/8-9 (JP4)

312

1-2 On: +5V

(default)

These jumpers are used to select the power of the USB ports. Selecting +5V_standby will allow you to use a USB device to wake up the system.

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the +5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the +5V_standby power source of your power supply must support ≥2A.

312

2-3 On:

+5V_standby

Power-on Select

JP8

To power-on via WOL after G3:

1. Set JP8 pins 2 and 3 to On.

2. Set the “After G3” field to Power Off/WOL.

3. Set the “GbE Wake Up From S5” to Enabled.

The BIOS fields are in the “South Bridge Configuration” submenu (Chipset menu) of the AMI BIOS utility.

312

1-2 On: Power-on via power button (default)

312

2-3 On: Power-on via AC power; or Power-on via WOL after G3

Chapter 4 Jumper Settings

To power-on via AC Power:

1. Set JP8 pins 2 and 3 to On.

2. Set the “After G3” field to Power On.

www.dﬁ .com

Page 19

Chapter 4

COM 1/ COM 2 RS232/RS422/RS485 Select

JP6

JP1

COM 2

COM 1

JP1 (for COM1) and JP6 (for COM2) are used to configure the COM ports to RS232, RS422 (Full Duplex) or RS485.

The pin function of the COM ports will vary according to the jumper’s setting.

JP1/JP6

COM1/COM2 RS232/Power Select

JP3 JP5

1-3 (RI), 2-4 (DCD) On:

6 4 2

RS232 (default)

3 1

3-5 (+5V), 4-6 (+12V) On: RS232 with power

3 1

531

1-2 On: RS232

(default)

DCD-TDRD

DTR-

RTS-

DSR-

RS232

GND

RI-

CTS-

12345

6789

Chapter 4 Jumper Settings

3-4 On: RS422

12345

531

Full Duplex

COM 1/ COM 2

RXD+

TXD+

RXD-

TXD-

N.C.

6789

N.C.

RS422

Full Duplex

531

5-6 On: RS485

DATA+

N.C.

DATA-

N.C.

RS485

N.C.

12345

6789

www.dﬁ .com

Page 20

Chapter 5 - Ports and Connectors

Chapter 5

Bottom Panel I/O Ports

PS/2 Mouse

COM 2

COM 1

PS/2 KB

(DVI-D Signal)

The rear panel I/O ports consist of the following:

• PS/2 mouse/keyboard port

• COM port

• VGA port

• DVI-I port (DVI-D signal only)

• 2 Intel LAN ports

• 4 USB ports

• Line-out jack

• Line-in jack

• Mic-in jack

USB 2.0VGA

DVI-I

Line-in

Line-out

Mic-in

LAN 1-2

PS/2 Mouse and PS/2 Keyboard

PS/2 Mouse

PS/2 KB

These ports are used to connect a PS/2 mouse and a PS/2 keyboard. The PS/2 mouse port uses IRQ12.

Wake-On-PS/2 Keyboard/Mouse

The Wake-On-PS/2 Keyboard/Mouse function allows you to use the PS/2 keyboard or PS/2 mouse to power

• Jumper Setting

-on the system. To use this function:

Chapter 5 Ports and Connectors

JP2 must be set to “2-3 On: +5V_standby”. Refer to “PS/2 Power Select” in this chapter for more inf

ormation

• BIOS Setting

Configure the PS/2 keyboard/mouse wake up function in the Advanced menu (“ACPI Power Management Configur

ation” submenu) of the BIOS. Refer to chapter 7 for more information.

Important:

The +5V_standby power source of your power supply must support ≥720mA.

www.dﬁ .com

Page 21

Chapter 5

COM (Serial) Ports

COM 3

COM 4

COM 2

COM 1

COM 1 and COM 2:

RS232/422/485

COM 3 and COM 4:

RS232

COM 3 and COM 4 are fixed at RS232.

The pin function of COM 1 and COM 2 ports will vary according to JP1/JP6’s setting. Refer to “COM1/COM2 RS232/RS422/RS485 Select” in this chapter for more information.

The serial ports are asynchronous communication ports with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices.

Connecting External Serial Ports

Your COM port may come mounted on a card-edge bracket. Install the card-edge bracket to

vailable slot at the rear of the system chassis then insert the serial port cable to the COM

an a connector. Make sure the colored stripe on the ribbon cable is aligned with pin 1 of the COM connector.

1 2

VGA Port

VGA

The VGA port is used for connecting a VGA monitor. Connect the monitor’s 15-pin D-shell cable connector to the VGA port. After you plug the monitor’s cable connector into the VGA port, gently tighten the cable screws to hold the connector in place.

BIOS Setting

Configure VGA in the Chipset menu (“North Bridge Configuration” submenu) of the BIOS. Refer to chapter 3 f

Driver Installation

Install the graphics driver. Refer to chapter 4 for more information.

or more information.

BIOS Setting

Configure the serial ports in the Advanced menu (“Super IO Configuration” submenu) of the

. Refer to chapter 3 for more information.

BIOS

Chapter 5 Ports and Connectors

www.dﬁ .com

Page 22

Chapter 5

DVI-I Port

DVI-I

(DVI-D signal only)

The DVI-I port is used to connect an LCD monitor. This port supports DVI-D signal only.

Connect the display device’s cable connector to the DVI-I port. After you plug the cable connector into the port, gently tighten the cable screws to hold the connector in place.

BIOS Setting

Configure the display device in the Chipset menu (“North Bridge Configuration” submenu) of the BIOS

. Refer to chapter 3 for more information.

RJ45 LAN Ports

LAN 1

LAN 2

Features

• Intel W82579LM with iAMT8.0 Gigabit LAN Phy

• Intel W82574L PCI Express Gigabit LAN controller

The LAN ports allow the system board to connect to a local area network by means of a network hub.

BIOS Setting

Chapter 5 Ports and Connectors

Configure the onboard LAN in the Chipset menu (“South Bridge Configuration” submenu) of the BIOS

. Refer to chapter 7 for more information.

Driver Installation

Install the LAN drivers. Refer to chapter 8 for more information.

www.dﬁ .com

Page 23

Chapter 5

USB Ports

VCC

-Data

+Data

GND

N. C.

-Data

GND

+Data

Key

2 1

USB 9

USB 8

USB 2-3

USB 4-5

USB 1

USB 0

VCC

USB allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

The system board is equipped with two onboard USB 2.0/1.1 ports. The two 10-pin connectors allow you to connect 4 additional USB 2.0/1.1 ports. The additional USB ports may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis and then insert the USB port cables to a connector.

Wake-On-USB Keyboard/Mouse

The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse to w

ake up a system from the S3 (STR - Suspend To RAM) state. To use this function:

• Jumper Setting

JP4 and JP7 must be set to “2-3 On: +5V_standby”. Refer to “USB Power Select” in this chap-

or more information.

ter f

Important:

BIOS Setting

Configure the onboard USB in the Advanced menu (“USB Configuration” submenu) of the

. Refer to chapter 3 for more information.

BIOS

Driver Installation

You may need to install the proper drivers in your operating system to use the USB device.

efer to your operating system’s manual or documentation for more information.

Chapter 5 Ports and Connectors

www.dﬁ .com

Page 24

Chapter 5

Audio

Rear audio

Mic-in

Line-in

Line-out

GND

2 1

Mic2-L

Line2-JD

Presence Signal

Key

Mic2-JD

Mic2-R

Line2-L

Line2-R

Front_IO_Sense

Front audio

Rear Audio

The system board is equipped with 3 audio jacks. A jack is a one-hole connecting interface for inserting a plug.

BIOS Setting

Configure the onboard audio in the Chipset menu (“South Bridge” submenu) of the BIOS. Re-

er to chapter 7 for more information.

Driver Installation

Install the audio driver. Refer to chapter 8 for more information.

-in Jack (Pink)

• Mic

This jack is used to connect an external microphone.

• Line-in Jack (Light Blue)

This jack is used to connect any audio devices such as Hi-fi set, CD player, tape player, AM/ FM radio tuner, synthesizer, etc.

• Line-out Jack (Lime)

This jack is used to connect a headphone or external speakers.

Front Audio

The front audio connector allows you to connect to the second line-out and mic-in jacks that are at the front panel of y

our system.

Chapter 5 Ports and Connectors

www.dﬁ .com

Page 25

Chapter 5

I/O Connectors

S/PDIF Connector

SPDIF out

Key

Ground

+5V

The S/PDIF connector is used to connect an external S/PDIF port. Your S/PDIF port may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then connect the audio cable to the S/PDIF connector. Make sure pin 1 of the audio cable is aligned with pin 1 of the S/PDIF connector.

SPDIF in

Digital I/O Connector

DIO connector

5VSB

Ground

+12V

DIO power

connector

The Digital I/O connector provides powering-on function to external devices that are connected to these connectors.

Pin Pin Assignment Pin Pin Assignment

1 DIO7 2 DIO6 3 DIO5 4 DIO4 5 DIO3 6 DIO2 7 DIO1 8 DIO0

+5V

Chapter 5 Ports and Connectors

www.dﬁ .com

Page 26

Chapter 5

SATA (Serial ATA) Connectors

SATA 3.0 6Gb/s

SATA 0

Features

ATA 1

SATA 2.0 3Gb/s

SATA 4

SATA 5

GND

RXP

RXN

GND

TXN

TXP

GND

Cooling Fan Connectors

Speed

Control

Sense Power

Ground

System fan

The fan connectors are used to connect cooling fans. The cooling fans will provide adequate airflow throughout the chassis to prevent overheating the CPU and system board components.

BIOS Setting

The Advanced menu (“Hardware Health Configuration” submenu) of the BIOS will display the current speed of the cooling f

Sense

Power

CPU fan

ans. Refer to chapter 3 for more information.

• SATA 0 and SATA 1 support data transfer rate up to 6Gb/s

• SATA 4 and SATA 5 support data transfer rate up to 3Gb/s

• Integrated Advanced Host Controller Interface (AHCI) controller

• Supports RAID 0, RAID 1, RAID 5 and RAID 10

The Serial ATA connectors are used to connect Serial ATA devices. Connect one end of the Serial ATA cable to a SATA connector and the other end to your Serial ATA device.

BIOS Setting

Configure the Serial ATA drives in the Advanced menu (“IDE Configuration” submenu) of the

. Refer to chapter 3 for more information.

BIOS

Chapter 5 Ports and Connectors

www.dﬁ .com

Page 27

Chapter 5

Chassis Intrusion Connector

Ground Chassis

signal

The board supports the chassis intrusion detection function. Connect the chassis intrusion sensor cable from the chassis to this connector. When the system’s power is on and a chassis intrusion occurred, an alarm will sound. When the system’s power is off and a chassis intrusion occurred, the alarm will sound only when the system restarts.

MyGuard Hardware Monitor

Install the “MyGuard Hardware Monitor” utility. By default, the chassis intrusion detection function is disabled. When enabled, a w utility can also be configured so that a beeping alarm will sound when the chassis is open. Refer to the “MyGuard Hardware Monitor” section in chapter 4 for more information.

2 1

arning message will appear when the chassis is open. The

Power Connectors

+12V

Ground

Use a power supply that complies with the ATX12V Power Supply Design Guide Version 1.1. An ATX12V power supply unit has a standard 24-pin ATX main power connector that must be inserted into the 24-pin connector. The 4-pin +12V power connector enables the delivery of more +12VDC current to the processor’s Voltage Regulator Module (VRM).

Ground

4 2

ATX power

+3.3VDC

-12VDC

+3.3VDC

COM

+5VDC

COM

PS_ON#

+5VDC

COM

+12VDC

+5VSB

PWR_OK

+5VDC

+3.3VDC

+12VDC

12 24

COM

+5VDC

Chapter 5 Ports and Connectors

The power connectors from the power supply unit are designed to fit the 24-pin and 4-pin connectors in only one orientation. Make sure to find the proper orientation before plugging the connectors.

Important:

Insufficient power supplied to the system may result in instability or the add-in boards and peripherals not functioning properly. Calculating the system’s approximate power usage is important to ensure that the power supply meets the system’s consumption requirements.

www.dﬁ .com

Page 28

Chapter 5

Standby Power LED

This LED will lit red when the system is in the standby mode. It indicates that there is power on the system board. Power-off the PC and then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.

Front Panel Connectors

HDD-LED

RESET-SW

HDD-LED - HDD LED

This LED will light when the hard drive is being accessed.

RESET SW - Reset Switch

This switch allows you to reboot without having to power off the system.

PWR-BTN - Power Switch

PWR-LED

PWR-BTN

Chapter 5 Ports and Connectors

This switch is used to power on or off the system.

PWR-LED - Power/Standby LED

When the system’s power is on, this LED will light. When the system is in the S1 (POS - Power On Suspend) state, it will blink every second. When the system is in the S3 (STR - Suspend To RAM) state, it will blink every 4 seconds.

Pin Pin Assignment Pin Pin Assignment

HDD-LED

RESET SW

3 HDD Power

Signal 4 LED Power

7 Ground 6 Signal

RST Signal PWR-BTN 8 Ground

N.C. 10 Signal

PWR-LED

2 LED Power

www.dﬁ .com

Page 29

Chapter 5

Expansion Slots

PCI Express x16

PCI Express x16 Slot

Install PCI Express x16 graphics card, that comply to the PCI Express specifications, into the PCI Express x16 slot. T the slot then press it down firmly until it is completely seated in the slot. The retaining clip of the slot will automatically hold the graphics card in place.

o install a graphics card into the x16 slot, align the graphics card above

Battery

The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source of power when the main power is shut off.

Safety Measures

• Danger of explosion if battery incorrectly replaced.

eplace only with the same or equivalent type recommend by the manufacturer.

• R

• Dispose of used batteries according to local ordinance

Chapter 5 Ports and Connectors

www.dﬁ .com

Page 30

Chapter 6

Chapter 6 - Mounting Options

Wall Mount

There are 2 types of wall mount brackets:

• Type A

• Type B

Type A wall mount kit include:

• 2 type A wall mount brackets

2. At the sides of the system, use the mounting screws removed in step 1 to secure the wall mount brackets on each side of the system.

Wall mount bracket

Mounting screw

1. If the mounting screw has been previously attached to the top cover of the system, please remove them ﬁ rst.

Mounting screw

Chapter 6 Mounting Options

319.00

16 2

180.00

80.00

120.00

160.00 28.60

16 2

Ø5.00 Ø3.60

4-#6-32

Ø4.00 Ø8.50

300.00

74.00

4.00

78.00

www.dﬁ .com

Page 31

Chapter 6

Type B wall mount kit include:

• 2 type B wall mount brackets

• Bracket screws

1. The 4 mounting holes on the sides of the system are used to mount the type B wall mount

bracket.

2. Use the provided mounting screws to secure the type B wall mount brackets on each side of

the system.

Wall mount bracket

5.00

55.00

R2.50

40.00

300.00

335.00

360.00

Ø8.50

5.00

R2.50

40.00

4.00

55.00

78.00

Wall mount bracket

Chapter 6 Mounting Options

www.dﬁ .com

Page 32

Chapter 7

Chapter 7 - BIOS Setup

Overview

The BIOS is a program that takes care of the basic level of communication between the CPU and peripherals. It contains codes for various advanced features found in this system board. The BIOS allows you to configure the system and save the configuration in a battery-backed CMOS so that the data retains even when the power is off. In general, the information stored in the CMOS RAM of the EEPROM will stay unchanged unless a configuration change has been made such as a hard drive replaced or a device added.

It is possible that the CMOS battery will fail causing CMOS data loss. If this happens, you need to install a new CMOS battery and reconfigure the BIOS settings.

Note:

The BIOS is constantly updated to improve the performance of the system board;

ore the BIOS screens in this chapter may not appear the same as the actual

theref one. These screens are for reference purpose only.

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering the BIOS Setup Utility

The BIOS Setup Utility can only be operated from the keyboard and all commands are keyboard commands. The commands are available at the right side of each setup screen.

The BIOS Setup Utility does not require an operating system to run. After you power up the system, the BIOS message appears on the screen and the memory count begins. After the memory test, the message “Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously.

Legends

Keys Function

Right and Left arrows

Up and Down arrows

<Esc>

+ (plus key)

- (minus key)

Tab <F1> <F4>

<Enter>

Scrolls forward through the values or options of the highlighted ﬁ eld.

Moves the highlight left or right to select a menu.

Moves the hightlight up or down between submenu or ﬁ elds.

Exit to the BIOS Setup Utility.

Scrolls backward through the values or options of the highlighted

ﬁ eld.

Select a ﬁ eld.

Displays General Help

Saves and exits the Setup program.

Press <Enter> to enter the highlighted submenu.

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When ““ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>.

Chapter 7 BIOS Setup

www.dﬁ .com

Page 33

Chapter 7

AMI BIOS Setup Utility Advanced Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Main

BIOS Information BIOS Vendor Core Version Compliency Project Version Build Date and Time

System Language

System Date System Time

Access Level

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sun-

y to Saturday. Month displays the month, from January to December. Date displays

da the date, from 1 to 31. Year displays the year, from 1980 to 2099.

Advanced

Boot Security

American Megatrends

4.6.5.3 UEFI 2.3; PI 1.2 1DPFA 0.21 x64 05/02/2013 13:52:59

[English]

[TUE 09/03/2013] [15:01:04]

Administrator

Save & ExitChipset

Choose the system default language.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Important:

Setting incorrect field values may cause the system to malfunction.

Main



ACPI Power Management Conﬁ guration



PC Health Status



Trusted Computing



CPU Conﬁ guration



SATA Conﬁ guration



Intel TXT(LT) Conﬁ guration



AMT Conﬁ guration



USB Conﬁ guration



F71879 Super IO Conﬁ guration



Second Super IO Conﬁ guration



Network Stack

Advanced

Save & ExitChipset Boot Security

ACPI Power Management Conﬁ guration.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour

-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to

military

23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

Chapter 7 BIOS Setup

www.dﬁ .com

Page 34

Chapter 7

ACPI Power Management Configuration

This section is used to configure the ACPI Power Management.

Advanced

ACPI Power Management Conﬁ guration

ACPI Sleep State

Resume by PME Resume by Ring Resume by RTC Alarm

[S1 (CPU Stop Clock) ]

[Enabled] [Disabled] [Disabled]

Select the highest ACPI sleep state the system will enter, when the SUSPEND button is pressed.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

ACPI Sleep State

Selects the highest ACPI sleep state the system will enter when the Suspend button is pressed.

S1(POS)

Enables the Power On Suspend function.

S3(STR) Enables the Suspend to RAM function.

Resume by PME

Enable this field to use the PME signal to wake up the system.

Resume by Ring

Set this field to Enabled to use the modem ring-on function. This will allow your system to

-on to respond to calls coming through an external or internal modem.

power

Resume by RTC Alarm

When Enabled, the system uses the RTC to generate a wakeup event.

PC Health Status

This section displays the SIO hardware health monitor.

Advanced

System Hardware Monitor



Smart Fan Function

Case Open Beep CPU

Temperature System Temperature CPU FAN Speed System FAN Speed Vcore +5.0V +12V VDIMM +3.3V VS5V

[Disabled]

: +57 C : +40 C : 5535 RPM : N/A : +1.032 : +4.952 V : +12.144 V : +1.552 V : +3.248 V : +5.032V

Smart Fan Function

Advanced

CPU Smart Fan Control

Boundary 1 Boundary 2 Boundary 3 Boundary 4 Speed Count 1 Speed Count 2 Speed Count 3 Speed Count 4 Speed Count 5 System Smart Fan(1) Control Boundary 1 Boundary 2 Boundary 3 Boundary 4 Speed Count 1 Speed Count 2 Speed Count 3 Speed Count 4 Speed Count 5

[Automatic]

60 50 40 30 100 75 50 40 30 [Automatic] 60 50 40 30 100 75 50 40 30

CPU Smart Fan Control

Smart Fan Function

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable CPU SmartFan

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Chapter 7 BIOS Setup

When this feature is set to Automatic, the CPU’

s fan speed will rotate accord

ing to the CPU’s temperature. The higher the temperature, the faster the speed of rotation

www.dﬁ .com

Page 35

Chapter 7

Boundary 1 to Boundary 4

The range is from 0-127.

Speed Count 1 to Speed Count 5

The range is from 1-100.

Case Open Beep

Set this field to Enabled to allow the system to alert you of a chassis intrusion event.

Trusted Computing (optional)

This section configures settings relevant to Trusted Computing innovations.

Advanced

Conﬁ guration

Security Device Support

Current Status Information NO Security Device Found

[Disabled]

Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

TPM Support

Enables or Disables TPM. O.S. will not show TPM. Resetting the platform is required.

Chapter 7 BIOS Setup

www.dﬁ .com

Page 36

Chapter 7

CPU Configuration

This section is used to configure the CPU. It will also display the detected CPU information.

CPU Conﬁ guration Intel(R) Pentium(R) CPU G850 @ 2.90GHz

CPU Signature Microcode Patch Max CPU Speed Min CPU Speed CPU Speed Processor Cores Intel HT Technology Intel VT-x Technology Intel SMX Technology 64-bit

L1 Data Cache L1 Code Cache L2 Cache L3 Cache

Active Processor Cores

Intel Virtualization Technology

Advanced

206a7 26 2900 MHz 1600 MHz 2900 MHz 2 Not Supported Supported Not Supported Supported

32 kB x 2 32 kB x 2 256 kB x 2 3072 kB

[All]

[Disabled]

Enabled for Windows XP and Linux (OS Optimised for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for HyperThreading Technology) When disabled only one thread per enabled core is enabled.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Active Processor Cores

Number of cores to enable in each processor package.

Intel Virtualization Technology

When this field is set to Enabled, the VMM can utilize the additional hardware capabilities

vided by Vanderpool Technology.

pro

SATA Configuration

This section is used to configure SATA functions.

Advanced

SATA Controller(s)

SATA Mode Selection

Serial ATA Port 0 Software Preserve Serial ATA Port 1 Software Preserve Serial ATA Port 4 Software Preserve Serial ATA Port 5 Software Preserve

[Enabled]

[IDE]

Empty Unknown Empty Unknown Empty Unknown Empty Unknown

Enable or disable SATA device.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

SATA Mode

IDE Mode This option configures the Serial A

TA drives as Parallel ATA storage devices.

AHCI Mode This option allows the Serial ATA devices to use AHCI (Advanced Host Controller Interface).

RAID Mode This option allows you to create RAID or Intel Matrix Storage configuration on Serial ATA devices.

Chapter 7 BIOS Setup

SATA Mode Selection

Determines how SATA controller(s) operate.

www.dﬁ .com

Page 37

Chapter 7

If AHCI or RAID is selected in the SATA Mode field, it will display the following information:

Advanced

SATA Controller(s)

SATA Mode Selection

Aggressive LPM Support SATA Controller Speed

Serial ATA Port 0 Software preserve Port 0

Hot Plug External SATA SATA device type Spin up device

Serial ATA Port 1 Software preserve Port 1

Hot Plug External SATA SATA device type Spin up device

Serial ATA Port 2 Software preserve Port 2

Hot Plug External SATA Spin up device

Serial ATA Port 3 Software preserve Port 3

Hot Plug External SATA Spin up device

Serial ATA Port 4 Software preserve Port 4

Hot Plug External SATA Spin up device

Serial ATA Port 5 Software preserve Port 5

Hot Plug External SATA Spin up device

[Enabled]

[AHCI]

[Enabled] [Gen3]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Hard Disk Driver] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Hard Disk Driver] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Disabled]

Determines how SATA



controller(s) operate.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit



Intel TXT (LT) Configuration

This section is used to configure the Intel Trusted Execution technology.

Advanced

Intel Trusted Execution Technology Conﬁ guration Intel TXT support only can be enabled/disabled if SMX

is enabled. VT and VT-d support must also be enabled prior to TXT.

Secure Mode Extension (SMX) Intel TXT(LT) Support

Enabled [Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Intel TXT(LT) Support

The options are Enabled and Disabled.

Aggressive LPM Support

Enable PCH to aggressively enter link power state.

SATA Controller Speed

Indicates the maximum speed the SATA controller can support.

Serial ATA Port 0 to Serial ATA Port 5

These fields are used to configure the connected SATA devices.

Chapter 7 BIOS Setup

www.dﬁ .com

Page 38

Chapter 7

AMT Configuration

This section is used to configure the AMT function.

Advanced

Intel AMT

MEBx Selection Screen Un-conﬁ gure ME

[Enabled]

[Disabled] [Disabled]

MEBx Selection Screen

OEMFLag Bit 2: enable or disable MEBx selection screen.

Un-configure ME

OEMFLag Bit 15: Un-configure ME without password.

Enable or disable Intel (R) Active Management Technology. Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires additional ﬁ rmware in the SPI device.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

USB Configuration

This section is used to configure USB.

Advanced

USB Conﬁ guration USB Devices:

2 Hubs

Legacy USB Support

EHCI Hand-off

[Enabled]

[Disabled]

Legacy USB Support

Enabled Enables legacy USB

Auto Disables support for legacy when no USB devices are connected.

Disabled Keeps USB devices available only for EFI applications.

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Chapter 7 BIOS Setup

EHCI Hand-off

This is a workaround for OSes that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driv

er.

www.dﬁ .com

Page 39

Chapter 7

F71879 Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Advanced

F71879 Super IO Conﬁ guration

F71879 Super IO Chip



Restore AC Power Loss

WatchDog Timer Super IO WatchDog Timer

Fintek F71879

[Power Off]

[Disabled]

Restore AC Power Loss help.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Restore AC Power Loss

Off When power returns after an AC power f

ailure, the system’s power is off. You must press

the Power button to power-on the system. On

When power returns after an AC power failure, the system will automatically power-on. Last State

When power returns after an AC power failure, the system will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.

WatchDog Timer

This field is used to select the time interval of the Watchdog timer. If the system hangs or f

ails to function, it will reset at the set time interval so that your system will continue to

operate.

Second Super IO Configuration

This section is used to configure the serial port functions.

Advanced

Second Super IO Conﬁ guration Second Super IO Chip



Serial Port 1 Conﬁ guration



Serial Port 2 Conﬁ guration



Serial Port 3 Conﬁ guration



Serial Port 4 Conﬁ guration

Fintek-F81217

Serial Port 1 Configuration to Serial Port 4 Configuration

Advanced

Serial Port 1 Conﬁ guration

Serial Port

Device Settings

Change Settings

[Enabled]

IO=220h; IRQ=11;

[Auto]

Set Parameters of Serial Port 1 (COMA)

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Serial Port (COM)

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Chapter 7 BIOS Setup

Serial Port

Enables or disables the serial port.

Change Settings

Selects the IO/IRQ setting of the I/O device.

www.dﬁ .com

Page 40

Chapter 7

Network Stack

This section configures settings relevant to the network stack Configuration.

Advanced

Network Stack

[Enabled]

Enable or disable UEFI network stack.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults ESC: Exit

Chipset

This section is to configure relevant chipset functions.

Advanced

Main



South Bridge



North Bridge



ME Subsystem

Chipset

Boot Security

Save & Exit

North Bridge Parameters

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Chapter 7 BIOS Setup

www.dﬁ .com

Page 41

Chapter 7

South Bridge

Chipset

Intel PCH RC Version Intel PCH SKU name Intel PCH Rev ID



PCI Express Conﬁ guration



USB Conﬁ guration

Onboard 82579 LAN Controller Wake on LAN

High Precision Event Timer Conﬁ guration

High Precision Timer After G3

1.5.0.0 Q67 05/B3

[Enabled] [Enabled]

[Enabled] [Power on]

PCI Express Conﬁ guration Settings.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Onboard 82579 LAN Controller

Enables or disables LAN.

Wake on LAN

Enabled or disable intergrated LAN to wake the system. (The Wake On LAN cannot be disabled if ME is on at Sx state.

)

High Precision Timer

Enables or disables the high precision event timer.

After G3

Power Off / WOL

ower-on the system via WOL after G3.

P Power On

Power-on the system after G3.

PCI Express Configuration

Chipset

PCI Express Conﬁ guration

OnBoard 82574 LAN Controller

USB Configuration

Chipset

USB Conﬁ guration

EHCI 1

EHCI 2 USB Ports Per

USB Port #0 Disable USB Port #1 Disable USB Port #2 Disable USB Port #3 Disable USB Port #4 Disable USB Port #5 Disable USB Port #8 Disable USB Port #9 Disable

-Port Disable Control

[Enabled]

[Enabled] [Enabled]

[Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled]

[Auto]

Enable/Disable LAN.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Control the USB EHCI (USB 2.0) functions. One EHCI controller must always be enabled.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Chapter 7 BIOS Setup

EHCI Controller 1 and EHCI Controller 2

These fields are used to enable or disable Enhanced Host Controller Interface (USB 2.0).

USB Ports Per-Port Disable Control

Control each of the USB ports (0-13) disabling.

USB Port 0 to USB Port 9

Enables or disables the selected USB port.

www.dﬁ .com

Page 42

Chapter 7

North Bridge

System Agent Bridge Name System Agent RC Version VT-d Capability



Graphics Conﬁ guration



NB PCIe Conﬁ guration



Memory Conﬁ guration

Chipset

Sandy Bridge

1.5.0.0 Unsupported

Check to enable VT-d function on MCH

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Graphics Configuration

Chipset

Graphics Conﬁ guration IGFX VBIOS Version IGfx Frequency

Primary Display

Internal Graphics DVMT

Pre-Allocated

DVMT Total Gfx Mem

2137 350 MHz

[Auto]

[Auto] [64M] [256M]

Select which of IGFX/ PEG/PCI graphics device should be primary display or select SG for switchable Gfx.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Internal Graphics

Keep IGD enabled based on the setup options.

DVMT Pre-Allocated

Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the internal graphics device.

DVMT Total Gfx Memory

Select DVMT 5.0 Total Graphics Memory size used by the internal graphics device.

Chapter 7 BIOS Setup

www.dﬁ .com

Page 43

Chapter 7

NB PCIe Configuration

Chipset

NB PCIe Conﬁ guration PEG

PEG- Gen x

Enable PEG

To enable or disable the PEG.

Not Present

[Gen1]

[Enabled]

Conﬁ gure PEG B0:D1:F0 Gen1-Gen3.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Memory Configuration

Chipset

Memory Information Memory RC Version

Memory Frequency Total Memory DIMM#0 DIMM#1 CAS Latency (tCL) Minimum delay time CAS to RAS (tRCDmin) ROW Precharge (tRPmin) Active to Precharge (tRASmin) XMP Proﬁ le 1 XMP Proﬁ le 2

1.5.0.0 1333 Mhz 2048 MB (DDR3) Not Present 2048 MB (DDR3) 9

9 9 24 Not Supported Not Supported

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Chapter 7 BIOS Setup

www.dﬁ .com

Page 44

Chapter 7

ME Subsystem

Chipset

Intel ME Subsystem Conﬁ guration ME FW Version

Me FW Image Re-Flash

N/A

[Disable]

Me FW Image Re-Flash

Enables or disables Me FW Image Re-Flash function.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Boot

Main

Boot Conﬁ guration

Setup Prompt Timeout

Bootup NumLock State Quiet Boot

CSM16 Module Version

Boot Option Priorities



CSM parameters

Setup Prompt Timeout

Selects the number of seconds to wait for the setup activation key. 65535(0xFFFF) denotes indefinite w

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By

ault, the system boots up with NumLock on wherein the function of the

def numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Advanced

Boot

[On] [Disabled]

07.69

Security

Save & ExitChipset

aiting.

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indeﬁ nite waiting.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Chapter 7 BIOS Setup

Quiet Boot

Enables or disables the quiet boot function.

www.dﬁ .com

Page 45

Chapter 7

CSM Parameters

Launch CSM

Boot option ﬁ lter Launch PXE OpROM policy Launch Storage OpROM policy

Other PCI device ROM priority

Boot

[Enabled]

[UEFI and Legacy] [Do not launch] [Legacy only]

[UEFI OpROM]

This option controls if CSM will be launched.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Boot option filter

This option controls what devices system can boot to.

Launch PXE OpROM policy

Controls the execution of UEFI and Legacy PXE OpROM.

Launch Storage OpROM policy

Controls the execution of UEFI and Legacy Storage OpROM.

Security

Main

Password Description If ONLY the Administrator’s password is set,

then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password lenth must be in the following range: Minimum lenth 3 Maximum lenth 20

Administrator Password

User Password

UEFI Secure Boot Management

Administrator Password

Sets the administrator password.

User Password

Sets the user password.

Advanced

Boot Security

Save & ExitChipset

Set Setup Administrator Password

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Other PCI device ROM priority

For PCI devices other than Network, Mass storage or video defines which OpROM to launch.

Chapter 7 BIOS Setup

www.dﬁ .com

Page 46

Chapter 7

Save & Exit

Main

Save Changes and Reset

Discard Changes and Reset Restore Defaults

Boot Override

Launch EFI Shell from ﬁ le system device

Save Changes and Reset

To save the changes, select this field and then press <Enter>. A dialog box will appear. Select Y

Discard Changes and Reset

To discard the changes, select this field and then press <Enter>. A dialog box will appear. Select Y

Advanced

Chipset

Boot Security Save & Exit

Reset the system after saving the changes.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

es to reset the system after saving all changes made.

es to reset the system setup without saving any changes.

Updating the BIOS

To update the BIOS, you will need the new BIOS file and a flash utility, AFUDOS.EXE. Please contact technical support or your sales representative for the files.

To execute the utility, type: A:> AFUDOS BIOS_File_Name /b /p /n then press <Enter>.

C:\AFU\AFUDOS>afudos ﬁ lename /B /P /N

+--------------------------------------------------------------------------------------------------------+

| |

+--------------------------------------------------------------------------------------------------------+

Reading ﬁ le ..............................

Erasing ﬂ ash .............................

Writing ﬂ ash .............................

Verifying ﬂ ash ..........................

Erasing BootBlock ....................

Writing BootBlock ....................

Verifying BootBlock .................

C:\AFU\AFUDOS>

AMI Firmware Update Utility(APTIO) v2.25

done done done done done done done

| |

Restore Defaults

To restore and load the optimized default values, select this field and then press <Enter>. A dialog bo

x will appear. Select Yes to restore the default values of all the setup options.

Launch EFI Shell from file system device

Attempts to launch EFI shell application (Shellx64.efi) from one of the available filesystem devices.

Chapter 7 BIOS Setup

www.dﬁ .com

Page 47

Chapter 8

Chapter 8 - Supported Software

The CD that came with the system board contains drivers, utilities and software applications required to enhance the performance of the system board.

Insert the CD into a CD-ROM drive. The autorun screen (Mainboard Utility CD) will appear. If after inserting the CD, “Autorun” did not automatically start (which is, the Mainboard Utility CD screen did not appear), please go directly to the root directory of the CD and double-click “Setup”.

Intel Chipset Software Installation Utility

The Intel Chipset Software Installation Utility is used for updating Windows® INF files so that the Intel chipset can be recognized and configured properly in the system.

To install the utility, click “Intel Chipset Software Installation Utility” on the main menu.

1. Setup is now ready to install the utility. Click Next.

Chapter 8 Supported Software

2. Read the license agreement then click Yes.

www.dﬁ .com

Page 48

Chapter 8

3. Go through the readme document for system requirements and installation tips then click Next.

4. Setup is now installing the driver. Click Next to continue.

Microsoft DirectX 9.0C (for Windows XP only)

To install the utility, click “Microsoft DirectX 9.0C” on the main menu.

1. Click “I accept the agreement” then click Next.

2. To start installation, click Next.

5. Click “Yes, I want to restart this computer now” then click Finish.

Restarting the system will

allow the new software installation to take effect.

Chapter 8 Supported Software

3. Click Finish. Reboot the system for DirectX to take effect.

www.dﬁ .com

Page 49

Chapter 8

Microsoft .NET Framework 3.5 (for Windows XP only)

Note:

Before installing Microsoft .NET Framework 3.5, make sure you have updated your Windows XP oper

To install the driver, click “Microsoft .NET Framework 3.5” on the main menu.

1. Read the license agreement carefully.

Click “I have read and

accept the terms of the License Agreement” then click Install.

ating system to Service Pack 3.

3. Click Exit.

2. Setup is now installing the driver.

Chapter 8 Supported Software

www.dﬁ .com

Page 50

Chapter 8

Intel Graphics Drivers (for Windows Vista)

To install the driver, click “Intel Graphics Drivers” on the main menu.

1. Setup is now ready to install the graphics driver. Click Next.

By default, the “Automatically run WinSAT and enable the Windows Aero desktop theme” is enabled. With this enabled, after installing the graphics driver and the system rebooted, the screen will turn blank for 1 to 2 minutes (while WinSAT is running) before the Windows Vista desktop appears. The “blank screen” period is the time Windows is testing the graphics performance.

We recommend that

you skip this process by disabling this function then click Next.

2. Read the license agreement then click Yes.

3. Go through the readme document for system requirements and installation tips then click Next.

Chapter 8 Supported Software

4. Setup is currently installing the driver. After installation has completed, click Next.

www.dﬁ .com

Page 51

Chapter 8

5. Click “Yes, I want to restart this computer now” then click Finish.

Restarting the system will

allow the new software installation to take effect.

Intel Graphics Drivers (for Windows XP)

To install the driver, click “Intel Graphics Drivers” on the main menu.

1. Setup is ready to install the graphics driver. Click Next.

2. Read the license agreement then click Yes.

Chapter 8 Supported Software

3. Go through the readme document for more installation tips then click Next.

www.dﬁ .com

Page 52

Chapter 8

4. Setup is currently installing the driver. After installation has completed, click Next.

5. Click “Yes, I want to restart this computer now.” then click Finish.

Restarting the system will

allow the new software installlation to take effect.

Audio Drivers

To install the driver, click “Audio Drivers” on the main menu.

1. Setup is now ready to install the audio driver. Click Next.

2. Follow the remainder of the steps on the screen; clicking “Next” each time you finish a step.

3. Click “Yes, I want to restart my computer now” then click Finish.

Restarting the system will

allow the new software installation to take effect.

Chapter 8 Supported Software

www.dﬁ .com

Page 53

Chapter 8

Intel LAN Drivers

To install the driver, click “Intel LAN Drivers” on the main menu.

1. Setup is ready to install the driver. Click Next.

2. Click “I accept the terms in the license agreement” then click “Next”.

4. Click Install to begin the installation.

5. After completing installation, click Finish.

3. Select the program featuers you want installed then click Next.

Chapter 8 Supported Software

www.dﬁ .com

Page 54

Chapter 8

Intel Management Engine Interface

To install the driver, click “Intel Management Engine Interface” on the main menu.

1. Setup is ready to install the driver. Click Next.

2. Read the license agreement then click Yes.

4. Setup is currently installing the driver. After installation has completed, click Next.

5. After completing installation, click Finish.

3. Go through the readme document for more installation tips then click Next.

Chapter 8 Supported Software

www.dﬁ .com

Page 55

Chapter 8

MyGuard Hardware Monitor

1. Locate for the MyGuard folder in the provided disc.

2. In the MyGuard folder, right-click on the “setup” file.

3. Select Run As Administrator.

4. Double-click Setup.

Important:

erform steps 1-3 only when

P using Windows 7 or Windows Vista.

5. Setup is ready to install the utility. Click Next.

7. Setup is currently installing the utility.

8. After completing installation, click Finish to exit setup.

6. Click Install to begin installation.

Chapter 8 Supported Software

www.dﬁ .com

Page 56

Chapter 8

F6 Floppy Configuration Utility

This is used to create a floppy driver diskette needed when you install Windows® XP using the F6 installation method. This will allow you to install the operating system onto a hard drive when in AHCI mode.

1. Insert a blank floppy diskette.

2. Locate for the drivers in the CD then copy them to the floppy diskette. The CD includes drivers for both 32-bit and 64-bit operating systems. The path to the drivers are shown below.

32-bit CD Drive:\AHCI_RAID\F6FLOPPY\f6flpy32

64-bit CD Drive:\AHCI_RAID\F6FLOPPY\f6flpy64

Adobe Acrobat Reader 9.3

To install the reader, click “Adobe Acrobat Reader 9.3” on the main menu.

1. Click Next to install or click Change Destination Folder to select another folder.

2. Click Install to begin installation.

Chapter 8 Supported Software

3. Click Finish to exit installation.

www.dﬁ .com

Page 57

Chapter 8

Infineon TPM Driver and Tool (optional)

To install the driver, click “Infineon TPM driver and tool (option)” on the main menu.

1. TPM requires installing the Microsoft Visual C++ package prior to installing the driver. Click Install.

2. The setup program is preparing to install the driver.

4. Click “I accept the terms in the license agreement” and then click “Next”.

5. Enter the necessary information and then click Next.

3. The setup program is ready to install the driver. Click Next.

Chapter 8 Supported Software

6. Select a setup type and then click Next.

www.dﬁ .com

Page 58

Chapter 8

7. Click Install.

8. The setup program is currently installing the driver.

10. Click Yes to restart the system.

Restarting the system will

allow the new software installation to take effect.

9. Click Finish.

Chapter 8 Supported Software

www.dﬁ .com

Page 59

Chapter 9

Chapter 9 - Raid

The system board allows configuring RAID on Serial ATA drives. It supports RAID 0, RAID 1, RAID 5 and RAID 10.

Settings

To enable the RAID function, the following settings are required.

RAID Levels

RAID 0 (Striped Disk Array without Fault Tolerance)

RAID 0 uses two new identical hard disk drives to read and write data in parallel, interleaved stacks. Data is divided into stripes and each stripe is writ drives. This improves the I/O performance of the drives at different channel; however it is not fault tolerant. A failed disk will result in data loss in the disk array.

RAID 1 (Mirroring Disk Array with Fault Tolerance)

RAID 1 copies and maintains an identical image of the data from one drive to the other drive. If a driv other drive since it contains a complete copy of the drive’s data. This enhances data protection and increases fault tolerance to the entire system. Use two new drives or an existing drive and a new drive but the size of the new drive must be the same or larger than the existing drive.

RAID 5

RAID 5 stripes data and parity information across hard drives. It is fault tolerant and provides bet

RAID 10 (Mirroring and Striping)

RAID 10 is a combination of data striping and data mirroring providing the benefits of both RAID 0 and RAID 1. Use f configuration.

e fails to function, the disk array management software directs all applications to the

ter hard drive performance and more storage capacity.

our new drives or an existing drive and three new drives for this

ten alternately between two disk

1. Connect the Serial ATA drives.

2. Configure Serial ATA in the AMI BIOS.

3. Configure RAID in the RAID BIOS.

4. Install the RAID driver during OS installation.

5. Install the Intel Rapid Storage Drivers.

Step 1: Connect the Serial ATA Drives

Refer to chapter 2 for details on connecting the Serial ATA drives.

Important:

1. Make sure you have installed the Serial ATA drives and connected the data cables otherwise you won’t be able to enter the RAID BIOS utility.

2. Treat the cables with extreme caution especially while creating RAID. A damaged cable will ruin the entire installation process and operating system. The system will not boot and you will lost all data in the hard drives. Please give special attention to this warning because there is no way of recovering back the data.

Step 2: Configure Serial ATA in the AMI BIOS

1. Power-on the system then press <Del> to enter the main menu of the AMI BIOS.

Configure Serial ATA in the appropriate fields.

3. Save the changes in the Save & Exit menu.

Chapter 9 Raid

4. Reboot the system.

Step 3: Configure RAID in the RAID BIOS

When the system powers-up and all drives have been detected, the Intel RAID BIOS status message screen will appear The utility allows you to build a RAID system on Serial ATA drives.

. Press the <Ctrl> and <I> keys simultaneously to enter the utility.

www.dﬁ .com

Page 60

Chapter 9

Step 4: Install the RAID Driver During OS Installation

The RAID driver must be installed during the Windows ing the F6 installation method. This is required in order to install the operating system onto a hard drive or RAID volume when in RAID mode or onto a hard drive when in AHCI mode.

1. Start Windows Setup by booting from the installation CD.

2. Press <F6> when prompted in the status line with the ‘Press F6 if you need to install a third party SCSI or RAID driver’ message.

3. Press <S> to “Specify Additional Device”.

4. At this point you will be prompted to insert a floppy disk containing the RAID driver. Insert the RAID driver diskette.

5. Locate for the drive where you inserted the diskette then select RAID or AHCI controller that corresponds to your BIOS setup. Press <Enter> to confirm.

You have successfully installed the driver. However you must continue installing the OS. Leave the floppy disk in the floppy drive until the system reboots itself because Windows setup will need to copy the files again from the floppy disk to the Windows installation folders. After Windows setup has copied these files again, remove the floppy diskette so that Windows setup can reboot as needed.

XP or Windows® 2000 installation us-

Step 5: Install the Intel Rapid Storage Drivers

The Intel Rapid Storage Drivers can be installed from within Windows. It allows RAID volume management (create, delete, migrate) from within the operating system. It will also display useful SATA device and RAID volume information. The user interface, tray icon service and monitor service allow you to monitor the current status of the RAID volume and/or SATA drives. It enables enhanced performance and power management for the storage subsystem.

1. Insert the provided CD into an optical drive.

2. Click “Intel Rapid Storage Technology for Raid/AHCI” on the main menu.

3. Setup is ready to install the utility. Click Next.

4. Read the warning carefully then click Next.

Chapter 9 Raid

www.dﬁ .com

Page 61

Chapter 9

5. Read the license agreement then click Yes.

6. Go through the readme document to view system requirements and installation information then click Next.

8. Click “Yes, I want to restart my computer now” then click Finish.

7. Setup is currently installing the driver. After installation has completed, click Next.

Chapter 9 Raid

www.dﬁ .com

Page 62

Chapter 10

Chapter 10 - Intel AMT Settings

Overview

Intel Active Management Technology (Intel® AMT) combines hardware and software solution to provide maximum system defense and protection to networked systems.

Enable Intel® AMT in the AMI BIOS

1. Power-on the system then press <Del> to enter the main menu of the AMI BIOS.

2. In the Advanced menu,

select AMT Configuration.

The hardware and software information are stored in non-volatile memory. With its built-in manageability and latest security applications, Intel

AMT provides the following functions.

• Discover

Allows remote access and management of networked systems even while PCs are powered

off; significantly reducing desk-side visits.

• Repair

Remotely repair systems after OS failures. Alerting and event logging help detect problems

quickly to reduce downtime.

• Protect

Intel AMT’s System Defense capability remotely updates all systems with the latest security

software. It protects the network from threats at the source by proactively blocking incoming threats, reactively containing infected clients before they impact the network, and proactively alerting when critical software agents are removed.

Main



ACPI Power Management Conﬁ guration



PC Health Status



Trusted Computing



CPU Conﬁ guration



SATA Conﬁ guration



Intel TXT(LT) Conﬁ guration



AMT Conﬁ guration



USB Conﬁ guration



F71879 Super IO Conﬁ guration



F81217 Second Super IO Conﬁ guration



Network Stack

Advanced

Save & ExitChipset Boot Security

3. In the Advanced menu, select Enable in the AMT field.

Advanced

Intel AMT

MEBx Selection Screen Un-conﬁ gure ME

[Enabled]

[Disabled] [Disabled]

ACPI Power Management Conﬁ guration.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Chapter 10 Intel AMT Settings

www.dﬁ .com

Page 63

Chapter 10

4. In the Save & Exit menu, select Save Changes and Reset then select OK.

Main

Save Changes and Reset

Discard Changes and Reset Restore Defaults

Boot Override

Launch EFI Shell from ﬁ le system device

Advanced

Chipset

Boot Security Save & Exit

Reset the system after saving the changes.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable Intel® AMT in the Intel® Management Engine BIOS Extension (MEBX) Screen

1. When the system reboots, the following message will be displayed. Press <Ctrl-P> as soon as the message is displayed; as this message will be displayed for only a few seconds.

American Megatrends

2. You will be prompted for a password. The default password is “admin”. Enter the default password in the space provided under Intel(R) ME Password then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

Main Menu

Chapter 10 Intel AMT Settings

MEBx Login

> Intel (R) ME General Settings > Intel (R)

AMT Conﬁ guration

MEBx Exit

Intel (R) ME Password

[] = Move highlight [ENTER] = Select Entry [ESC]= Exit

www.dﬁ .com

Page 64

Chapter 10

3. Enter a new password in the space provided under Intel(R) ME New Password then press Enter. The password must include:

• 8-32 characters

• Strong 7-bit ASCII characters excluding : , and ” characters

• At least one digit character (0, 1, ...9)

• At least one 7-bit ASCII non alpha-numeric character, above 0x20, (e.g. !, $, ;)

• Both lower case and upper case characters

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

Main Menu

MEBx Login

> Intel (R) ME General Settings > Intel (R) MEBx Exit

Intel (R) ME Password

[] = Move highlight [ENTER] = Select Entry [ESC]= Exit

AMT Conﬁ guration

Intel (R) ME Password

4. You will be asked to verify the password. Enter the same new password in the space provided under V

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

MEBx Login

> Intel (R) ME General Settings > Intel (R) MEBx Exit

Intel (R) ME Password

[] = Move highlight [ENTER] = Select Entry [ESC]= Exit

5. Select Intel(R) ME General Settings then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

erify Password then press Enter.

Main Menu

AMT Conﬁ guration

Verify Password

Main Menu

Chapter 10 Intel AMT Settings

> Intel (R) ME General Settings

> Intel (R) AMT Conﬁ guration MEBx Exit

[] = Move highlight [ENTER] = Select Entry [ESC]= Exit

www.dﬁ .com

Page 65

Chapter 10

6. Select Change Intel(R) ME Password then press Enter. You will be prompted for a password. The default password is “admin”. Enter the default

password in the space provided under Intel(R) ME New Password then press Enter.

• 8-32 characters

• Strong 7-bit ASCII characters excluding : , and ” characters

• At least one digit character (0, 1, ...9)

• At least one 7-bit ASCII non alpha-numeric character, above 0x20, (e.g. !, $, ;)

• Both lower case and upper case characters

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

INTEL (R) ME PLATFORM CONFIGURATION

> Change ME Password

Local FW Updtate <Enabled> > Power Control

Intel (R) ME New Password

[] = Move highlight [ENTER] = Select Entry [ESC]= Exit

7. Select Local FW Update then press Enter

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

INTEL (R) ME PLATFORM CONFIGURATION

> Change ME Password Local FW > Power Control

<ENTER> = Complete Entry [ESC]= Discard Changes

8. In the Intel(R) ME Platform Configuration menu, select Power Control then press

Enter

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

> Change ME Password Local FW Updtate <Enabled>

> Power Control

Updtate <Enabled>

Disabled Enabled Password Protected

INTEL (R) ME PLATFORM CONFIGURATION

. Select Enabled then press Enter.

Chapter 10 Intel AMT Settings

Intel (R) ME New Password

[] = Move highlight [ENTER] = Select Entry [ESC]= Exit

www.dﬁ .com

Page 66

Chapter 10

9. In the Intel(R) ME Power Control menu, select Intel(R) ME ON in Host Sleep States then press Enter. Select an option then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

INTEL (R) ME POWER CONTROL

Intel (R) ME ON in Host Sleep States <Desktop: ON in S0>

Timeout 1

Idle

Desktop: ON in S0 Desktop: ON in S0, ME Wake in S3, S4-5

[] = Move highlight [ENTER] = Select Entry [ESC]= Discard changes

10. In the Intel(R) ME Power Control menu, select Idle Timeout then press Enter the timeout value.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

INTEL (R) ME POWER CONTROL

Intel (R) ME ON in Host Sleep States <Desttop ON in S0> Idle Timeout 1

Timeout Value (1-65535)

. Enter

11. Select Previous Menu until you return to the Main Menu. Select Intel(R) AMT Con- figuration then press Enter

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

INTEL (R) AMT CONFIGURATION

Manageability Feature Selection < Enabled> > SOL/ IDER/ KVM > User Consent

Password Policy <Anytime> > Network Setup

Activate Netwok Access Unconﬁ gure Network Access <Full Unprovision> > Remote Setup And Conﬁ guration

[] = Move highlight [ENTER] = Select Entry [ESC]= Exit

12. In the Intel(R) AMT Configuration menu, select Manageability Feature Selection then press Enter. Select disabled then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

INTEL (R) AMT CONFIGURATION

Manageability Feature Selection < Enabled> > SOL/ IDER/ KVM > User Consent

Password Policy <Anytime> > Network Setup

Activate Netwok Access Unconﬁ gure Network Access <Full Unprovision> > Remote Setup And Conﬁ guration

Disabled Enabled

<ENTER> = Complete Entry [ESC]= Discard Changes

Chapter 10 Intel AMT Settings

<ENTER> = Complete Entry [ESC]= Discard Changes

www.dﬁ .com

Page 67

Chapter 10

13. In the Intel(R) AMT Configuration menu, select SOL/IDER/KVM then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

SOL/ IDER/ KVM

Username and password < Enabled> SOL <Enabled> IDER <Enabled> KVM Feature Selection <Enabled> Legacy Redirection Mode <Disabled>

Menu for FW Redirection Conﬁ guration

[] = Move highlight [ENTER] = Select Entry [ESC]= Exit

14. In the SOL/IDER/KVM menu, select Username and Password then press Enter Select disabled then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

SOL/ IDER/ KVM

Username and password < Enabled> SOL <Enabled> IDER <Enabled> KVM Feature Selection <Enabled> Legacy Redirection Mode <Disabled>

Disabled Enabled

15. In the SOL/IDER/KVM menu, select SOL then press Enter Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

SOL/ IDER/ KVM

Username and password < Enabled> SOL <Enabled> IDER <Enabled> KVM Feature Selection <Enabled> Legacy Redirection Mode <Disabled>

Disabled Enabled

<ENTER> = Complete Entry [ESC]= Discard Changes

16. In the SOL/IDER/KVM menu, select IDER then press Enter. Select disabled then press

Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

SOL/ IDER/ KVM

Username and password < Enabled> SOL <Enabled> IDER <Enabled> KVM Feature Selection <Enabled> Legacy Redirection Mode <Disabled>

Disabled Enabled

. Select disabled then press

<ENTER> = Complete Entry [ESC]= Discard Changes

Chapter 10 Intel AMT Settings

<ENTER> = Complete Entry [ESC]= Discard Changes

www.dﬁ .com

Page 68

Chapter 10

17. In the SOL/IDER/KVM menu, select KVM then press Enter. Select disabled then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

SOL/ IDER/ KVM

Username and password < Enabled> SOL <Enabled> IDER <Enabled> KVM Feature Selection <Enabled> Legacy Redirection Mode <Disabled>

Disabled Enabled

<ENTER> = Complete Entry [ESC]= Discard Changes

18. In the SOL/IDER/KVM menu, select Legacy Redirection Mode then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

SOL/ IDER/ KVM

Username and password < Enabled> SOL

<Enabled> IDER <Enabled> KVM Feature Selection <Enabled> Legacy Redirection Mode <Disabled>

19. Select Enabled then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

SOL/ IDER/ KVM

Username and password < Enabled> SOL <Enabled> IDER <Enabled> KVM Feature Selection <Enabled> Legacy Redirection Mode <Disabled>

Disabled Enabled

<ENTER> = Complete Entry [ESC]= Discard Changes

20.

Select Previous Menu until you return to the Intel(R) AMT Configuration menu. Select

User Consent then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

USER CONSENT

User Opt-in < KVM> Opt-in Conﬁ guration from Remote IT < Enabled>

Menu for FW

[] = Move highlight [ENTER] = Select Entry [ESC]= Exit

Redirection Conﬁ guration

Chapter 10 Intel AMT Settings

Conﬁ

[] = Move highlight [ENTER] = Select Entry [ESC]= Exit

gure when user consent should be required.

www.dﬁ .com

Page 69

Chapter 10

21. In the User Consent Configuration menu, select User Opt-in then press Enter. Select None then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

USER CONSENT

User Opt-in < KVM> Opt-in Conﬁ guration from Remote IT < Enabled>

NONE KVM ALL

<ENTER> = Complete Entry [ESC]= Discard Changes

22. In the User Consent Configuration menu, select Opt-in Configurable from Remote IT then press Enter

Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

User Opt-in < KVM> Opt-in Conﬁ guration from Remote IT < Enabled>

. Select Disable Remote Control of KVM Opt-in Policy then press

USER CONSENT

Disabled Enabled

23. Select Previous Menu until you return to the Intel(R) AMT Configuration menu. Select Password Policy then press Enter

You may choose to use a password only during setup and configuration or to use a pass-

word anytime the system is being accessed.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

INTEL (R) AMT CONFIGURATION

Manageability Feature Selection < Enabled> > SOL/ IDER/ KVM > User Consent

Password Policy <Anytime> > Network Setup

Activate Netwok Access Unconﬁ gure Network Access <Full Unprovision> > Remote Setup And Conﬁ guration

[ENTER] = Select Entry [ESC]= Exit

24. In the Intel(R) AMT Configuration menu, select Network Setup then press Enter

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

Manageability Feature Selection < Enabled>

> SOL/ IDER/ KVM

> User Consent

Password Policy <Anytime> > Network Setup Activate Netwok Access Unconﬁ > Remote Setup And Conﬁ guration

gure Network Access <Full Unprovision>

Default Password Only During Step And Conﬁ guration Anytime

INTEL (R) AMT CONFIGURATION

[ENTER] = Access

<ENTER> = Complete Entry [ESC]= Discard Changes

Chapter 10 Intel AMT Settings

[] = Move highlight [ENTER] = Select Entry [ESC]= Exit

www.dﬁ .com

Page 70

Chapter 10

25. In the Intel(R) Network Setup menu, select Intel(R) ME Network Name Settings then press Enter

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

> Intel (R) ME Network Name Settings

TCP/ IP Settings

[] = Move highlight [ENTER] = Select Entry [ESC]= Exit

26. In the Intel(R) ME Network Name Settings menu, select Host Name then press Enter. Enter the computer’s host name then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

Host Name _

Domain Name _

Shared/ Dedicated FQDN <Shared>

Dynamic DNS Update <Disabled>

INTEL (R) ME NETWORK SETUP

INTEL (R) ME NETWORK NAME SETTINGS

27. Select Domain Name then press Enter. Enter the computer’s domain name then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

INTEL (R) ME NETWORK NAME SETTINGS

Host Name _

Domain Name _ Shared/ Dedicated FQDN <Shared> Dynamic DNS Update <Disabled>

Computer Domain Name

<ENTER> = Complete Entry [ESC]= Discard Changes

28. Select Shared/Dedicated FQDN then press Enter. Select Shared or Dedicated then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

INTEL (R) ME NETWORK NAME SETTINGS

Host Name _

Domain Name _ Shared/ Dedicated FQDN <Shared> Dynamic DNS Update <Disabled>

Computer Host Name

<ENTER> = Complete Entry [ESC]= Discard Changes

Chapter 10 Intel AMT Settings

Dedicated shared

<ENTER> = Complete Entry [ESC]= Discard Changes

www.dﬁ .com

Page 71

Chapter 10

29. Select Dynamic DNS Update then press Enter. Select Enabled or Disabled then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

INTEL (R) ME NETWORK NAME SETTINGS

Host Name _

Domain Name _ Shared/ Dedicated FQDN <Shared> Dynamic DNS Update <Disabled>

Disabled Enabled

<ENTER> = Complete Entry [ESC]= Discard Changes

30. Select Previous Menu until you return to the Intel(R) ME Network Setup menu.

Select TCP/IP Settings then press Enter

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

TCP/ IP SETTINGS

> Wired LAN IPV4 Conﬁ guration

31. In the TCP/IP Settings menu, select Wired LAN IPV4 Configuration then press

32. Select Previous Menu until you return to the Intel(R) AMT Configuration menu. Select

Enter

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

WIRED LAN IPV4 CONFIGURATION

DHCP Mode <Enabled>

Disabled Enabled

<ENTER> = Complete Entry [ESC]= Discard Changes

Activate Network Access then press Enter

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

INTEL (R) AMT CONFIGURATION

Manageability Feature Selection < Enabled>

> SOL/ IDER/ KVM

> User Consent

Password Policy <Anytime> > Network Setup Activate Netwok Access Unconﬁ > Remote Setup And Conﬁ guration

gure Network Access <Full Unprovision>

Activiates the current network settings

and opens the ME netwotk interface

Continue: (Y/N)

. Type Y then press Enter.

[] = Move highlight [ENTER] = Select Entry [ESC]= Exit

Chapter 10 Intel AMT Settings

[] = Move highlight [ENTER] = Select Entry [ESC]= Exit

www.dﬁ .com

Page 72

Chapter 10

33. In the Intel(R) AMT Configuration menu, select Unconfigure Network Access then

press Enter. Type Y then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

INTEL (R) AMT CONFIGURATION

Manageability Feature Selection < Enabled>

> SOL/ IDER/ KVM

> User Consent

Password Policy <Anytime> > Network Setup Activate Netwok Access Unconﬁ gure > Remote Setup And Conﬁ

<ENTER> = Complete Entry [ESC]= Discard Changes

34. In the Intel(R) AMT Configuration menu, select Remote Setup And Configuration then press Enter

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

Manageability Feature Selection < Enabled>

> SOL/ IDER/ KVM

> User Consent

Password Policy <Anytime> > Network Setup Activate Netwok Access

Unconﬁ

> Remote Setup And Conﬁ guration

Network Access <Full Unprovision>

guration

Full Unprovision

Partial Unprovision

INTEL (R) AMT CONFIGURATION

gure Network Access <Full Unprovision>

35. In the Intel(R) Automated Setup And Configuration menu, select Current Provi- sioning Mode then press Enter

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

INTEL (R) AUTOMATED SETUP AND CONFIGURATION

Current Provisioning Mode

Provisioning Record

Provisioning Server IPV4/IPV6 _ Provisioning Server FQDN _ > RCFG > TLS

PSK

> TLS PKI

[] = Move highlight [ENTER] = Select Entry [ESC]= Exit

36. In the Intel(R) Automated Setup And Configuration menu, select Provisioning Record then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

INTEL (R) AUTOMATED SETUP AND CONFIGURATION

Current Provisioning Mode

Provisioning Record

Provisioning Server IPV4/IPV6 _ Provisioning Server FQDN _ > RCFG > TLS

PSK

> TLS PKI

Provision Record is not present

Provisioning Mode:PKI

[] = Move highlight [ENTER] = Select Entry [ESC]= Exit

Chapter 10 Intel AMT Settings

[ESC] = Exit

[] = Move highlight [ENTER] = Select Entry [ESC]= Exit

www.dﬁ .com

Page 73

Chapter 10

37. Select Previous Menu until you return to the Intel(R) Automated Setup And Config- uration menu. Select Provisioning Server IPV4/IPV6 then press Enter. Type server address then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

INTEL (R) AUTOMATED SETUP AND CONFIGURATION

Current Provisioning Mode

Provisioning Record

Provisioning Server IPV4/IPV6 _ Provisioning Server FQDN _ > RCFG

PSK

> TLS > TLS PKI

<ENTER> = Complete Entry [ESC]= Discard Changes

38. In the Intel(R) Automated Setup And Configuration menu, select Provisioning Server FQDN then press Enter. Type FQDN of provisioning server then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

INTEL (R) AUTOMATED SETUP AND CONFIGURATION

Current Provisioning Mode

Provisioning Record

Provisioning Server IPV4/IPV6 _ Provisioning Server FQDN _ > RCFG

PSK

> TLS > TLS PKI

Provisioning server address

Enter FQDN of provisioning server

39. In the Intel(R) Remote Configuration menu, select Start Configuration then press Enter

. Type Y then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

INTEL (R) REMOTE CONFIGURATION

Start Conﬁ guration

This will activate Remote Conﬁ guration.

[ESC] = Exit

[] = Move highlight [ENTER] = Select Entry [ESC]= Exit

40. In the Intel(R) Automated Setup And Configuration menu, select TLS PSK then

press Enter

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

Set PID and PPS ** _ Delete PID and PPS **

Enter PID (e.g. ABCD-1234)

INTEL (R) TLS PSK CONFIGURATION

Continue: (Y/N)

<ENTER> = Complete Entry [ESC]= Discard Changes

Chapter 10 Intel AMT Settings

<ENTER> = Complete Entry [ESC]= Exit

www.dﬁ .com

Page 74

Chapter 10

41. In the Intel(R) Remote Configuration menu, select Set PID and PPS ** then press Enter. Type PID code then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

INTEL (R) TLS PSK CONFIGURATION

Set PID and PPS ** _ Delete PID and PPS **

Enter PID (e.g. ABCD-1234)

<ENTER> = Complete Entry [ESC]= Exit

42. In the Intel(R) Remote Configuration menu, select Delete PID and PPS ** then

press Enter

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

. Type Y then press Enter.

INTEL (R) AUTOMATED SETUP AND CONFIGURATION

Set PID and PPS **

Delete PID and PPS **

43. Select Previous Menu until you return to the Intel(R) Automated Setup And Configuration menu. Select TLS PKI then press Enter

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

INTEL (R) AUTOMATED SETUP AND CONFIGURATION

Current Provisioning Mode

Provisioning Record

Provisioning Server IPV4/IPV6 _

Provisioning Server FQDN _

> RCFG

> TLS PSK

> TLS PKI

[] = Move highlight [ENTER] = Select Entry [ESC]= Exit

44. In the Intel(R) Remote Configuration menu, select Remote Configuration ** then

press Enter

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

Remote Conﬁ guration ** <Enabled> PKI DNS Sufﬁ

> Manage Hashes

. Select Disabled then press Enter.

INTEL (R) REMOTE CONFIGURATION

x _

This will delete the PID and PPS entries.

CAUTION:

Continue: (Y/N)

[] = Move highlight [ENTER] = Select Entry [ESC]= Exit

Chapter 10 Intel AMT Settings

Disabled Enabled

<ENTER> = Complete Entry [ESC]= Discard Changes

www.dﬁ .com

Page 75

Chapter 10

45. In the Intel(R) Remote Configuration menu, select PKI DNS Suffix then press Enter. Type PKI DNS Suffix then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

INTEL (R) REMOTE CONFIGURATION

Remote Conﬁ guration ** <Enabled> PKI DNS Sufﬁ

x _

> Manage Hashes

Enter PKI DNS Sufﬁ x

<ENTER> = Complete Entry [ESC]= Discard Changes

46. In the Intel(R) Remote Configuration menu, select Manage Hashes then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

INTEL (R) REMOTE CONFIGURATION

Hash Name Active Default Algorithm

VeriSign Class 3 Active: [*] Default: [*] SHA1 VeriSign Class 3 Active: [*] Default: [*] SHA1 Go Daddy Class 2 Active: [*] Default: [*] SHA1 Comodo AAA CA Active: [*] Default: [*] SHA1 Starﬁ eld Class 2 Active: [*] Default: [*] SHA1 VeriSign Class 3 Active: [*] Default: [*] SHA1 VeriSign Class 3 Active: [*] Default: [*] SHA1 VeriSign Class 3 Active: [*] Default: [*] SHA1 GTE CyberTrust G1 Active: [*] Default: [*] SHA1 Baltimore Cyber Tr Active: [*] Default: [*] SHA1 Cyber Trust Global Active: [*] Default: [*] SHA1 Verizon Global Ro Active: [*] Default: [*] SHA1 Entrust. net CA (2 Active: [*] Default: [*] SHA1

[Ins]= Add New ash [Delete] = Delete Hash [+] = Activate Hash [] =Move highlight [ENTER] = View Hash [Esc]= Exit

47. Select Previous Menu until you return to the Main Menu. Select Exit then press Enter Type Y then press Enter.

Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441

Main Menu

> Intel (R) ME General Settings

> Intel (R) AMT Conﬁ guration

MEBx Exit

Are you sure you want to exit? (Y/N)

Exit

[] = Move highlight [ENTER] = Select Entry [ESC]= Exit

Chapter 10 Intel AMT Settings

www.dﬁ .com

Page 76

Appendix A

Appendix A - NLITE and AHCI Installation Guide

nLite

nLite is an application program that allows you to customize your XP installation disc by integrating the RAID/AHCI drivers into the disc. By using nLite, the F6 function key usually required during installation is no longer needed.

Note:

The installation steps below are based on nLite version 1.4.9. Installation procedures

y slightly vary if you’re using another version of the program.

1. Download the program from nLite’s offical website.

http://www.nliteos.com/download.html

2. Install nLite.

4. Insert the XP installation

disc into an optical drive.

5. Launch nLite. The Welcome

screen will appear. Click

Next.

Important:

Due to its coding with Visual.Net, you may need to first install .NET Framework prior to installing nLite.

Download relevant RAID/AHCI driver files from Intel’s website. The drivers you choose will

3. depend on the operating system and chipset used by your computer.

The downloaded driver files

should include iaahci.cat, iaAHCI.inf, iastor.cat, iaStor. inf, IaStor.sys, license.txt and TXTSETUP.OEM.

6. Click Next to temporarily save the Windows installation files to the designated default folder.

If you want to save them

in another folder, click Browse, select the folder and then click Next.

Appendix A NLITE and AHCI Installation Guide

www.dﬁ .com

Page 77

Appendix A

7. Click Next.

8. In the Task Selection dialog box, click Drivers and Bootable ISO. Click Next.

9. Click Insert and then select Multiple driver folder to select the drivers you will integrate. Click Next.

10. Select only the drivers ap-

propriate for the Windows version that you are using and then click OK.

Integrating 64-bit drivers

into 32-bit Windows or vice versa will cause file load errors and failed installation.

Appendix A NLITE and AHCI Installation Guide

www.dﬁ .com

Page 78

Appendix A

11. If you are uncertain of the southbridge chip used on your motherboard, select all RAID/AHCI controllers and then click OK.

12. Click Next.

13. The program is currently integrating the drivers and applying changes to the installation.

14. When the program is finished applying the changes, click Next.

Appendix A NLITE and AHCI Installation Guide

www.dﬁ .com

Page 79

Appendix A

15. To create an image, select the Create Image mode under the General section and then click Next.

16. Or you can choose to burn it directly to a disc by selecting the Direct Burn mode under the General section.

Select the optical device

and all other necessary settings and then click Next.

17. You have finished customizing the Windows XP installation disc. Click Finish.

Enter the BIOS utility to

configure the SATA controller to RAID/AHCI. You can now install Windows XP.

Appendix A NLITE and AHCI Installation Guide

www.dﬁ .com

Page 80

Appendix A

AHCI

The installation steps below will guide you in configuring your SATA drive to AHCI mode.

1. Enter the BIOS utility and configure the SATA controller to IDE mode.

2. Install Windows XP but do not press F6.

3. Download relevant RAID/AHCI driver files supported by the motherboard chipset from Intel’s website.

Transfer the downloaded

driver files to C:\AHCI.

4. Open Device Manager and right click on one of the Intel Serial ATA Storage Controllers, then select Update Driver.

If the controller you

selected did not work, try selecting another one.

5. In the Hardware Update Wizard dialog box, select “No, not this time” then click Next.

6. Select “Install from a

list or specific location (Advanced)” and then

click Next.

7. Select “Don’t search. I

will choose the driver to install” and then click Next.

Appendix A NLITE and AHCI Installation Guide

www.dﬁ .com

Page 81

Appendix A

8. Click “Have Disk”.

9. Select C:\AHCI\iaAHCI.inf and then click Open.

10. Select the appropriate

AHCI Controller of your hardware device and then click Next.

11. A warning message appeared because the selected SATA controller did not match your hardware device.

Ignore the warning and

click Yes to proceed.

12. Click Finish.

13. The system’s settings have been changed. Windows XP requires that you restart the computer. Click Yes.

14. Enter the BIOS utility and modify the SATA controller from IDE to AHCI. By doing so, Windows will work normally with the SATA controller that is in AHCI mode.

Appendix A NLITE and AHCI Installation Guide

www.dﬁ .com

Page 82

Appendix B - Watchdog Sample Code

;Software programming example:

;--------------------------------------------;(1) Enter Super IO Conﬁ guration mode ;--------------------------------------------MOV DX,2EH MOV AL,87H OUT DX,AL OUT DX,AL

;------------------------------------------------------------------------------------------;(2) Conﬁ guration Logical Device 7, register CRF5/CRF6 (WDT Control /WDT timer) ;------------------------------------------------------------------------------------------MOV DX,2EH MOV AL,07H ;Ready to Program Logical Device OUT DX,AL

MOV DX,2FH MOV AL,07H ;Select Logical Device 7 OUT DX,AL

MOV DX,2EH MOV AL, F6H ;Select watchdog timer register OUT DX,AL

Appendix B

MOV DX,2FH MOV AL,10H ;Set watchdog timer value OUT DX,AL

MOV DX,2EH MOV AL, F5H ;Select watchdog Control Register OUT DX,AL

MOV DX,2FH MOV AL,61H ;Set Watchdog Control Value OUT DX,AL

;---------------------------------------------------------------;(1) Exit extended function mode ;---------------------------------------------------------------MOV DX,2EH MOV AL,AAH OUT DX,AL

Appendix B Watchdog Sample Code

www.dﬁ .com

Page 83

Appendix C

Appendix C - System Error Message

When the BIOS encounters an error that requires the user to correct something, either a beep code will sound or a message will be displayed in a box in the middle of the screen and the message, PRESS F1 TO CONTINUE, CTRL-ALT-ESC or DEL TO ENTER SETUP, will be shown in the information box at the bottom. Enter Setup to correct the error.

Error Messages

One or more of the following messages may be displayed if the BIOS detects an error during the POST. This list indicates the error messages for all Awards BIOSes:

CMOS BATTERY HAS FAILED

The CMOS battery is no longer functional. It should be replaced.

Hard Disk(s) fail (20)

HDD initialization error.

Hard Disk(s) fail (10)

Unable to recalibrate fixed disk.

Hard Disk(s) fail (08)

Sector Verify failed.

Keyboard is locked out - Unlock the key

The BIOS detects that the keyboard is locked. Keyboard controller is pulled low.

Important

Danger of explosion if battery incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the battery manufacturer’s instructions.

CMOS CHECKSUM ERROR

Checksum of CMOS is incorrect. This can indicate that CMOS has become corrupt. This error may have been caused by a weak battery. Check the battery and replace if necessary.

DISPLAY SWITCH IS SET INCORRECTLY

The display switch on the motherboard can be set to either monochrome or color. This indicates the switch is set to a different setting than indicated in Setup. Determine which setting is correct, either turn off the system and change the jumper or enter Setup and change the VIDEO selection.

FLOPPY DISK(S) fail (80)

Unable to reset floppy subsystem.

FLOPPY DISK(S) fail (40)

Floppy type mismatch.

Hard Disk(s) fail (80)

HDD reset failed.

Keyboard error or no keyboard present

Cannot initialize the keyboard. Make sure the keyboard is at being pressed during the boot.

Manufacturing POST loop

System will repeat POST procedure infinitely while the k also used for the M/B burn in test at the factory.

BIOS ROM checksum error - System halted

The checksum of ROM address F0000H-FFFFFH is bad.

Memory test fail

The BIOS reports memory test fail if the memory has error(s).

eyboard controller is pull low. This is

tached correctly and no keys are

Hard Disk(s) fail (40)

HDD controller diagnostics failed.

Appendix C System Error Message

www.dﬁ .com

Page 84

Appendix D - Troubleshooting Checklist

Appendix D

The picture seems to be constantly moving.

Troubleshooting Checklist

This chapter of the manual is designed to help you with problems that you may encounter with your personal computer. To efficiently troubleshoot your system, treat each problem individually. This is to ensure an accurate diagnosis of the problem in case a problem has multiple causes.

Some of the most common things to check when you encounter problems while using your system are listed below.

1. The power switch of each peripheral device is turned on.

2. All cables and power cords are tightly connected.

3. The electrical outlet to which your peripheral devices are connected is working. Test the outlet by plugging in a lamp or other electrical device.

4. The monitor is turned on.

5. The display’s brightness and contrast controls are adjusted properly.

6. All add-in boards in the expansion slots are seated securely.

7. Any add-in board you have installed is designed for your system and is set up correctly.

Monitor/Display

If the display screen remains dark after the system is turned on:

1. Make sure that the monitor’s power switch is on.

2. Check that one end of the monitor’s power cord is properly attached to the monitor and the other end is plugged into a working AC outlet. If necessary, try another outlet.

3. Check that the video input cable is properly attached to the monitor and the system’s display adapter.

4. Adjust the brightness of the display by turning the monitor’s brightness control knob.

1. The monitor has lost its vertical sync. Adjust the monitor’s vertical sync.

2. Move away any objects, such as another monitor or fan, that may be creating a magnetic field around the display.

3. Make sure your video card’s output frequencies are supported by this monitor.

The screen seems to be constantly wavering.

1. If the monitor is close to another monitor, the adjacent monitor may need to be turned off. Fluorescent lights adjacent to the monitor may also cause screen wavering.

Power Supply

When the computer is turned on, nothing happens.

1. Check that one end of the AC power cord is plugged into a live outlet and the other end properly plugged into the back of the system.

2. Make sure that the voltage selection switch on the back panel is set for the correct type of voltage you are using.

3. The power cord may have a “short” or “open”. Inspect the cord and install a new one if necessary.

Floppy Drive

The computer cannot access the floppy drive.

1. The floppy diskette may not be formatted. Format the diskette and try again.

2. The diskette may be write-protected. Use a diskette that is not write-protected.

3. You may be writing to the wrong drive. Check the path statement to make sure you are writing to the targeted drive.

4. There is not enough space left on the diskette. Use another diskette with adequate storage space.

Appendix D Troubleshooting Checklist

www.dﬁ .com

Page 85

Appendix D

Hard Drive

Hard disk failure.

1. Make sure the correct drive type for the hard disk drive has been entered in the BIOS.

2. If the system is configured with two hard drives, make sure the bootable (first) hard drive is configured as Master and the second hard drive is configured as Slave. The master hard drive must have an active/bootable partition.

Excessively long formatting period.

If your hard drive takes an excessively long period of time to format, it is likely a cable connection problem. However, if your hard drive has a large capacity, it will take a longer time to format.

Serial Port

The serial device (modem, printer) doesn’t output anything or is outputting garbled characters.

1. Make sure that the serial device’s power is turned on and that the device is on-line.

2. Verify that the device is plugged into the correct serial port on the rear of the computer.

3. Verify that the attached serial device works by attaching it to a serial port that is working and configured correctly. If the serial device does not work, either the cable or the serial device has a problem. If the serial device works, the problem may be due to the onboard I/O or the address setting.

4. Make sure the COM settings and I/O address are configured correctly.

System Board

1. Make sure the add-in card is seated securely in the expansion slot. If the add-in card is loose, power off the system, re-install the card and power up the system.

2. Check the jumper settings to ensure that the jumpers are properly set.

3. Verify that all memory modules are seated securely into the memory sockets.

4. Make sure the memory modules are in the correct locations.

5. If the board fails to function, place the board on a flat surface and seat all socketed components. Gently press each component into the socket.

6. If you made changes to the BIOS settings, re-enter setup and load the BIOS defaults.

Keyboard

Nothing happens when a key on the keyboard was pressed.

1. Make sure the keyboard is properly connected.

2. Make sure there are no objects resting on the keyboard and that no keys are pressed during the booting process.

Appendix D Troubleshooting Checklist

www.dﬁ .com

DFI DT122-SB User Manual

Copyright

FCC and DOC Statement on Class B

Trademarks

Table of Contents

About this Manual

Static Electricity Precautions

Warranty

Safety Measures

Safety Precautions

About the Package

Before Using the System

Chapter 1 - Introduction

Overview

Key Features

Specifications

Getting to Know the DT122-SB

Mechanical Dimensions

Chapter 2 - Getting Started

Preparing the System

Installing Devices

Configuring the BIOS

Installing the Operating System

Installing the Drivers

Chapter 3 - Installing Devices

Chapter 4 - Jumper Settings

Clear CMOS

PS/2 Power Select

USB Power Select

Power-on Select

COM1/COM2 RS232/Power Select

Chapter 5 - Ports and Connectors

Bottom Panel I/O Ports

I/O Connectors

Chapter 6 - Mounting Options

Wall Mount

Chapter 7 - BIOS Setup

Overview

AMI BIOS Setup Utility Advanced Main

Updating the BIOS

Chapter 8 - Supported Software

Chapter 9 - Raid

Chapter 10 - Intel AMT Settings

Appendix A - NLITE and AHCI Installation Guide

Appendix B - Watchdog Sample Code

Appendix C - System Error Message

Appendix D - Troubleshooting Checklist
