DFI BL631-D User Manual

BL631-D
System Board User’s Manual
935-BL6311-000G
A10410953
Copyright
This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any ex­press or implied warranties of merchantability or fitness for any par­ticular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer re­serves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or en­tity of such revisions or changes.
© 2009. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for iden­tification purpose only and are the properties of the respective own­ers.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio fre­quency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communi­cations. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following meas­ures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.
Table of Contents
About this Manual................................................................................
Warranty.................................................................................................
Static Electricity Precaution................................................................
Safety Measures.....................................................................................
About the Package...............................................................................
Before Using the System Board.........................................................
Chapter 1 - Introduction....................................................................
Specifications...................................................................................................................................
Features..............................................................................................................................................
Chapter 2 - Hardware Installation....................................................
System Board Layout ..........................................................................................................
System Memory..........................................................................................................................
CPU.......................................................................................................................................................
Jumper Settings............................................................................................................................
Rear Panel I/O Ports.............................................................................................................
I/O Connectors..........................................................................................................................
Chapter 3 - BIOS Setup......................................................................
Award BIOS Setup Utility.................................................................................................
Updating the BIOS..................................................................................................................
Chapter 4 - Supported Softwares.....................................................
Drivers, Utilities and Software Applications......................................................
Installation Notes.......................................................................................................................
Appendix A - Watchdog Timer.............................................................
Appendix B - System Error Messages...............................................
Appendix C - Troubleshooting..........................................................
5 5 6 6 7 7
8 8
10
14 14 15 19 24 29 39
59 59
100
102 102 114
115 117 119
About this Manual
An electronic file of this manual is included in the CD. To view the user’s manual in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click “User’s Manual” on the main menu.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifica­tions.
2. The warranty is void if the product has been subjected to physi­cal abuse, improper installation, modification, accidents or unau­thorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjust­ments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered.
Introduction
1
6
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts or connections.
5. Avoid touching the pins or contacts on all modules and connec­tors. Hold modules or connectors by their ends.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade in­struction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requir­ing ESD protection.
Safety Measures
To avoid damage to the system:
Use the correct AC input voltage range
..
..
.
To reduce the risk of electric shock:
Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.
Battery:
Danger of explosion if battery incorrectly replaced.
Replace only with the same or equivalent type recommend
by
the manufacturer.
Dispose of used batteries according to local ordinance.
1
Introduction
7
About the Package
The system board package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.
; The system board ; A user’s manual ; One IDE cable ; Two USB port cables ; Two Serial ATA data cables ; Two Serial ATA power cables ; One bracket mounted with a COM port ; One “Main Board Utility” CD ; One I/O shield ; One QR (Quick Reference)
The system board and accessories in the package may not come similar to the information listed above. This may differ in accordance to the sales region or models in which it was sold. For more infor­mation about the standard package in your region, please contact your dealer or sales representative.
Before Using the System Board
Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will need at least the following internal components.
A CPU
Memory module
Storage devices such as hard disk drive, CD-ROM, etc.
You will also need external system peripherals you intend to use which will normally include at least a keyboard, a mouse and a video display monitor.
Introduction
1
8
Processor
Chipset
System Memory
BIOS
Energy Efficient Design
Damage Free Intelligence
Audio
Chapter 1 - Introduction
Specifications
• LGA 775 socket for:
- Intel® CoreTM2 Quad / Intel® CoreTM2 Duo
- Intel® Wolfdale 45nm processors
• Suppor ts Intel Enhanced Memory 64 Technology (EMT64T)
• Supports Enhanced Intel SpeedStep Technology (EIST)
• 1333*/1066/800MHz FSB *Available on CPUs that support 1333MHz FSB
• Intel
®
chipset
- Intel® Q35 Express chipset
Intel® ICH9 I/O Controller Hub
• Four 240-pin DDR2 DIMM sockets
• Supports dual channel (128-bit wide) memor y interface
• Supports 667MHz and 800MHz DDR2 SDRAM
• Supports maximum of 8GB system memory using 512Mbit or 1Gbit technology for x8 and x16 devices *ECC DDR2 DIMMs are not supported
• Award BIOS
• 8Mbit flash memory
• Suppor ts ACPI specification and OS Directed Power Management
• Suppor ts ACPI STR (Suspend to RAM) function
• Wake-On-Events include:
- Wake-On-PS/2 Keyboard/Mouse
- Wake-On-USB Keyboard/Mouse
- Wake-On-LAN
- Wake-On-Ring
- RTC timer to power-on the system
• System power management supported
• Microsoft
®
/Intel®APM 1.2 compliant
• Soft Power supported - ACPI v1.0a specification
• AC power failure recovery
• Monitors CPU/system/AUX temperature and overheat alarm
• Monitors CPU(V)/5V/1.5V/dimm(V)/12V/VBAT(V)/3.3V/V3.3sb(V) voltages and failure alarm
• Monitors CPU/system/2nd fan speed and failure alarm
• Read back capability that displays temperature, voltage and fan speed
• Watchdog timer function
• Realtek ALC885 8-channel HD Audio Codec
• High-performance DACs with 106dB dynamic range (A-Weight), ADCs with 101dB dynamic range (A-Weight)
1
Introduction
9
Graphics
LAN
Serial ATA
IDE
Rear Panel I/O Ports
/O Connectors
Expansion Slots
Temperature
Humidity
PCB
• Integrated Intel GMA3100
- Up to 384MB maximum video memory
- 2048x1536 at 75 Hz maximum resolution
- Suppor ts DVI port through Serial Digital Video Out (SDVO) interface
- Dual screen display through CRT and DVI-I (DVI-D signal only) ports
• Two Realtek RTL8111B PCI Express Gigabit controllers
• Suppor ts 10Mbps, 100Mbps and 1Gbps data transmission
• IEEE 802.3 (10/100Mbps) and IEEE 802.3ab (1Gbps) compliant
• Supports Serial ATA interfaces which are compliant with SATA
1.0 specification
• Supports up to 4 SATA devices
• SATA speed up to 3Gb/s
• JMicron JMB368 PCI Express to PATA host controller
• Supports up to 2 UltraDMA 33/66/100Mbps IDE devices
• 1 mini-DIN-6 PS/2 mouse port
• 1 mini-DIN-6 PS/2 keyboard port
• 1 DB-15 VGA port
• 1 DVI-I port (DVI-D signal only)
• 2 RJ45 LAN por ts
• 6 USB 2.0/1.1 ports
• Center/subwoofer, rear R/L, side R/L, line-in, line-out (front R/L) and mic-in jacks
• 3 connectors for 6 additional external USB 2.0/1.1 ports
• 2 connectors for 2 external serial por ts
• 1 DIO connector
• 1 parallel connector
• 1 front audio connector for line-out and mic-in jacks
• 1 CD-in internal audio connector
• 1 S/PDIF-in/out connector
• 1 connector for IrDA interface
• 4 Serial ATA connectors
• 1 40-pin IDE connector
• 1 floppy connector
• 1 24-pin ATX power connector
• 1 8-pin 12V power connector
• 1 chassis open connector
• 1 front panel connector
• 3 fan connectors
• 1 PCI Express x16 slot
• 2 PCI Express x1 slots
• 3 PCI slots
•0
o
C to 60oC
• 10% to 90%
• 4 layers, ATX form factor
• 30.5cm (12") x 24.4cm (9.6")
Introduction
1
10
Features
The Watchdog Timer function allows your
application to regularly “clear” the system at the set time interval. If the system hangs or fails to function, it will reset at the set time interval so that your system will continue to operate.
DDR2 is a higher performance DDR technology
whose data transfer rate delivers bandwidth of 4.3 GB per second and beyond. That is twice the speed of the conven­tional DDR without increasing its power consumption. DDR2 SDRAM modules work at 1.8V supply compared to 2.6V memory voltage for DDR modules. DDR2 also incorporates new innovations such as the On-Die Termination (ODT) as well as larger 4-bit pre­fetch against DDR which fetches 2 bits per clock cycle.
The graphics flexibility of the built-in Intel GMA3100 delivers exceptional 3D graphics performance. It sup-
ports analog CRT and DVI-I interfaces.
DVI (Digital Visual Interface) is a form of video inter-
face technology made to maximize the quality of flat panel LCD monitors and modern video graphics cards. Data is transmitted using the TMDS (Transition Minimized Differential Signaling) protocol, providing a digital signal from the PC’s graphics subsystem to the display.
The onboard Realtek ALC885 is a High Definition audio codec and the 6 audio
jacks at the rear I/O panel provides 8­channel audio output for advanced 7.1-channel super surround sound audio system. ALC885 also suppor ts S/PDIF output, allowing digital connections with DVD systems or other audio/video multimedia.
watchdog timer
DDR2
graphics
DVI
7.1 + 2 channel audio
1
Introduction
11
S/PDIF is a standard audio file transfer format that
transfers digital audio signals to a device without having to be converted first to an analog format. This prevents the quality of the audio signal from degrading whenever it is converted to analog. S/PDIF is usually found on digital audio equipment such as a DAT machine or audio processing device. The S/PDIF connector on the system board sends surround sound and 3D audio signal out­puts to amplifiers and speakers and to digital recording devices like CD recorders.
The JMicron JMB368 chip supports up to two UltraDMA 100Mbps IDE devices.
Serial ATA is a storage interface that is compliant
with SATA 1.0 specification. With speed of up to 3Gbps, it improves hard drive performance faster than the standard parallel ATA whose data transfer rate is 100MB/s.
The two Realtek PCI Express Gigabit LAN con­trollers suppor t up to 1Gbps data transmission.
The system board is equipped with an IrDA connec-
tor for wireless connectivity between your computer and peripheral devices. The IRDA (Infrared Data Association) specifi­cation supports data transfers of 115K baud at a distance of 1 meter.
The system board supports USB 2.0 and USB 1.1
ports. USB 1.1 supports 12Mb/second bandwidth while USB 2.0 supports 480Mb/second bandwidth providing a marked improvement in device transfer speeds between your com­puter and a wide range of simultaneously accessible external Plug and Play peripherals.
USB
SERIAL ATA
irda
gigabit lan
S/PDIF
ide
Introduction
1
12
PCI Express is a high bandwidth I/O
infrastructure that possesses the ability to scale speeds by forming multiple lanes. The system board currently supports the physical layer of x1 and x16 lane widths.
The x1 PCI Express lane supports transfer rate of 2.5 Gigabytes (250MBbps) per second. The PCI Express architecture also provides a high performance graphics infrastructure by enhancing the capability of a x16 PCI Express lane to provide 4 Gigabytes per second transfer rate.
This feature allows the system that is in the
Suspend mode or Soft Power Off mode to wake-up/power-on to respond to calls coming from an external mo­dem or respond to calls from a modem PCI card that uses the PCI PME (Power Management Event) signal to remotely wake up the PC.
Important:
The 5V_standby power source of your power supply must sup­port ≥720mA.
This feature allows the network to remotely
wake up a Soft Power Down (Soft-Off) PC. It is supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Management Event) signal. However, if your system is in the Suspend mode, you can power-on the system only through an IRQ or DMA interrupt.
Important:
The 5V_standby power source of your power supply must sup­port ≥720mA.
This function allows you to use the PS/2 key-
board or PS/2 mouse to power-on the sys­tem.
Important:
The 5V_standby power source of your power supply must sup­port ≥720mA.
wake-on-lan
wake-on-PS/2
wake-on-ring
pci express
1
Introduction
13
This function allows you to use a USB key­board or USB mouse to wake up a system
from the S3 (STR - Suspend To RAM) state.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the 5V_standby power source of your power sup­ply must support
1.5A. For 3 or more USB ports, the
5V_standby power source of your power supply must support
2A.
The RTC installed on the system board allows your system to automatically power-on on the set date
and time.
The system board is designed to meet the ACPI
(Advanced Configuration and Power Interface) speci­fication. ACPI has energy saving features that enables PCs to imple­ment Power Management and Plug-and-Play with operating systems that support OS Direct Power Management. Currently, only Win­dows
®®
®®
®
2000/XP supports the ACPI function. ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM function.
With the Suspend to RAM function enabled, you can power-off the system at once by pressing the power button or selecting “Standby” when you shut down Windows
®®
®®
®
2000/XP without having to go through the sometimes tiresome process of closing files, applications and operating system. This is because the system is capable of stor­ing all programs and data files during the entire operating session into RAM (Random Access Memory) when it powers-off. The oper­ating session will resume exactly where you left off the next time you power-on the system.
Important:
The 5V_standby power source of your power supply must sup­port ≥720mA.
When power returns after an AC power fail­ure, you may choose to either power-on the system manually or let the system power-on
automatically.
rtc timer
ACPI STR
wake-on-USB
Power failure recovery
14
2
Hardware Installation
System Board Layout
Chapter 2 - Hardware Installation
1
Front panel
1
1
S/PDIF
IrDA
1
USB 2-3
1
PCIE x16
USB 4-5
USB 0-1
1
FDD
2nd fan
1
System fan
1
DDR2-1
DDR2-2
DDR2-3
DDR2-4
Mouse
KB
USB 10 USB 11
LAN 1
USB 8 USB 9
LAN 2
USB 6 USB 7
1
1
1
1
COM 2
1
COM 1
Parallel
IDE
1
24
12
ATX p o we r
1
13
SATA 1
SATA 0
1
+12V power
1
Chassis open
DIO
1
1
Front audio
CD-in
1
CPU fan
1
Line-in Line-out Mic-in
Center/Subwoofer
Rear R/L
Side R/L
Top:VGA
Bottom: DV -II
PS/2 power select (JP1)
USB 6/7/8/9/10/11
power select (JP3)
Factory use only (J24)
Socket 775
Realtek
RTL8111B
Realtek
RTL8111B
Chrontel CH7307C
4
5
8
Battery
1
Power-on
select (JP6)
Intel
Q35
Intel
ICH9
JMB368
1
PCIE x16 / DVI
select (JP8)
10 20 30
1 11 21
PCI 1
PCI 2
PCI 3
I/O
chip
Clear CMOS (JP5)
1
SATA 5
SATA 4
1
1
USB 0/1/2/3/4/5
power select (JP2)
Standby Power LED
SPI Flash BIOS
Realtek
ALC885
PCIE x1
PCIE x1
2
91
2
9
2
19
1
2
25
210
1
210
9
1
210
9
2
39
40
15
2
Hardware Installation
System Memory
Warning:
Electrostatic discharge (ESD) can damage your system board, proces­sor, disk drives, add-in boards, and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protec­tion by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any proce­dures requiring ESD protection.
.
.
.
.
.
.
.
.
The system board supports 240-pin DDR2 DIMM sockets. The four DDR2 DIMM sockets on the system board are divided into 2 chan­nels:
Channel A - DDR2-1 and DDR2-2 Channel B - DDR2-3 and DDR2-4
DDR2-1 DDR2-2
DDR2-3 DDR2-4
Channel A
Channel B
16
2
Hardware Installation
The system board supports the following memory interface.
Single Channel (SC)
Data will be accessed in chunks of 64 bits (8B) from the memory channels.
Dual Channel (DC)
Data will be accessed in chunks of 128 bits from the memory chan­nels. Dual channel provides better system performance because it doubles the data transfer rate.
DIMMs are on the same channel.
DIMMs in a channel can be identical or
completely different. However, we highly rec­ommend using identical DIMMs.
Not all slots need to be populated.
DIMMs of the same memory configura-
tion are on different channels.
Single Channel
Dual Channel
BIOS Setting
Configure the system memory in the Advanced Chipset Features submenu of the BIOS.
17
2
Hardware Installation
Installing a DIMM
Note:
The system board used in the following illustrations may not resemble the actual board. These illustrations are for reference only.
1. Make sure the PC and all other peripheral devices connected to
it has been powered down.
2. Disconnect all power cords and cables.
3. Locate the DDR2 socket on the system board.
4. Push the “ejector tabs” which are at the ends of the socket to
the side.
Ejector tab
5. Note how the module is keyed to the socket.
DDR2 sockets
Ejector
tab
Key
Notch
18
2
Hardware Installation
7. Seat the module vertically, pressing it down firmly until it is com­pletely seated in the socket.
8. The ejector tabs at the ends of the socket will automatically snap into the locked position to hold the module in place.
19
2
Hardware Installation
CPU
Overview
The system board is equipped with a surface mount LGA 775 socket. This socket is exclusively designed for installing a LGA 775 packaged Intel CPU.
Important:
1. Before you proceed, make sure (1) the LGA775 socket1. Before you proceed, make sure (1) the LGA775 socket
1. Before you proceed, make sure (1) the LGA775 socket1. Before you proceed, make sure (1) the LGA775 socket
1. Before you proceed, make sure (1) the LGA775 socket comes with a protective cap, (2) the cap is not dam-comes with a protective cap, (2) the cap is not dam-
comes with a protective cap, (2) the cap is not dam-comes with a protective cap, (2) the cap is not dam-
comes with a protective cap, (2) the cap is not dam­aged and (3) the socket’s contact pins are not bent. Ifaged and (3) the socket’s contact pins are not bent. If
aged and (3) the socket’s contact pins are not bent. Ifaged and (3) the socket’s contact pins are not bent. If
aged and (3) the socket’s contact pins are not bent. If the cap is missing or the cap and/or contact pins arethe cap is missing or the cap and/or contact pins are
the cap is missing or the cap and/or contact pins arethe cap is missing or the cap and/or contact pins are
the cap is missing or the cap and/or contact pins are damaged,damaged,
damaged,damaged,
damaged,
contact your dealer immediately contact your dealer immediately
contact your dealer immediately contact your dealer immediately
contact your dealer immediately
..
..
.
2. Make sure to keep the protective cap. RMA requests2. Make sure to keep the protective cap. RMA requests
2. Make sure to keep the protective cap. RMA requests2. Make sure to keep the protective cap. RMA requests
2. Make sure to keep the protective cap. RMA requests will be accepted and processed only if the LGA775will be accepted and processed only if the LGA775
will be accepted and processed only if the LGA775will be accepted and processed only if the LGA775
will be accepted and processed only if the LGA775 socket comes with the protective cap.socket comes with the protective cap.
socket comes with the protective cap.socket comes with the protective cap.
socket comes with the protective cap.
Installing the CPU
1. Make sure the PC and all other peripheral devices connected to it has been powered down.
2. Disconnect all power cords and cables.
3. Locate the LGA 775 CPU socket on the system board.
Important:
The CPU socket must not come in contact with anything other than the CPU. Avoid unnecessary exposure. Remove the protective cap only when you are about to install the CPU.
20
2
Hardware Installation
4. The CPU socket comes with a cover that is attached with a remov­able protective cap. The cap is used to protect the CPU socket against dust and harmful parti­cles. Remove the protec­tive cap only when you are about to install the CPU.
Protective cap
Lever
Cover
5. Lift the protective cap from the location pointed below to detach the cap from the cover.
Lift this part up
6. Unlock the socket by pushing the lever down, moving it away from the side tab of the socket, then lifting it up.
Lever lifted
Ta b
21
2
Hardware Installation
8. Position the CPU above the socket. The gold mark on the CPU must align with pin 1 of the CPU socket.
Important:
Handle the CPU by its edges and avoid touch­ing the pins.
Pin 1 of the socket
Gold mark
9. Insert the CPU into the socket until it is seated in place. The CPU will fit in only one orientation and can easily be in­serted without exerting any force.
Important:
Do not force the CPU into the socket. Forcing the CPU into the socket may bend the pins and damage the CPU.
22
2
Hardware Installation
10. Once the CPU is in place, move the cover down.
11. Push the lever down to lock the socket. The lever should hook onto the side tab to indicate that the CPU is com­pletely secured in the socket.
Cover
Lever
Installing the Fan and Heat Sink
The CPU must be kept cool by using a CPU fan with heat sink. Without sufficient air circulation across the CPU and heat sink, the CPU will overheat damaging both the CPU and system board.
Note:
Use only certified fan and heat sink.
The fan and heat sink package usually contains the fan and
heat sink assembly, and an installation guide. If the installa­tion procedure in the installation guide differs from the one in this section, please follow the installation guide in the package.
1. Before you install the fan / heat sink, you must apply a thermal paste onto the top of the CPU. The thermal paste is usually supplied when you purchase the CPU or fan heat sink assembly. Do not spread the paste all over the surface. When you later place the heat sink on top of the CPU, the compound will dis­perse evenly.
Do not apply the paste if the fan / heat sink already has a patch of thermal paste on its underside. Peel the strip that covers the paste before you place the fan / heat sink on top of the CPU.
23
2
Hardware Installation
Fan
Heat sink Stud
Groove
2. Place the heat sink on top of the CPU. The 4 studs around the heat sink which are used to secure the heat sink onto the system board must match the 4 mounting holes around the socket.
Position each stud so that the groove faces the heat sink then push it down firmly until it clicks into place.
Note:
You will not be able to secure the fan and heat sink assembly in place if the groove is not facing the heat sink.
3. Connect the CPU fan’s cable connector to the CPU fan connector on the system board.
Mounting hole
Mounting hole
24
2
Hardware Installation
Jumper Settings
Clear CMOS Data
If you encounter the following,
a) CMOS data becomes corrupted. b) You forgot the supervisor or user password.
you can reconfigure the system with the default values stored in the ROM BIOS.
To load the default values stored in the ROM BIOS, please follow the steps below.
1. Power-off the system and unplug the power cord.
2. Set JP5 pins 2 and 3 to On. Wait for a few seconds and set JP5 back to its default setting, pins 1 and 2 On.
3. Now plug the power cord and power-on the system.
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
X
JP5
312312
25
2
Hardware Installation
JP1 is used to select the power of the PS/2 keyboard/mouse port. Selecting 5V_standby will allow you to use the PS/2 keyboard or PS/2 mouse to wake up the system.
BIOS Setting
Configure the PS/2 keyboard/mouse wake up function in the Inte­grated Peripherals submenu (“Super IO Device” section) of the BIOS. Refer to chapter 3 for more information.
Important:
The 5V_standby power source of your power supply must sup­port ≥720mA.
PS/2 Power Select
1-2 On: 5V
(default)
2-3 On:
5V_standby
X
JP1
312 312
26
2
Hardware Installation
JP2 and JP3 are used to select the power of the USB ports. Select­ing 5V_standby will allow you to use the USB keyboard or USB mouse to wake up the system.
BIOS Setting
“USB KB Wake-Up From S3” in the Power Management Setup submenu of the BIOS must be set to Enabled. Refer to chapter 3 for more information.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the 5V_standby power source of your power sup­ply must support ≥1.5A. For 3 or more USB ports, the 5V_standby power source of your power supply must support
2A.
USB Power Select
X
USB 6/7/8/9/10/11 (JP3)
X
1-2 On: 5V
(default)
2-3 On:
5V_standby
312
312
1-2 On: 5V
(default)
2-3 On:
5V_standby
312 312
USB 0/1/2/3/4/5 (JP2)
27
2
Hardware Installation

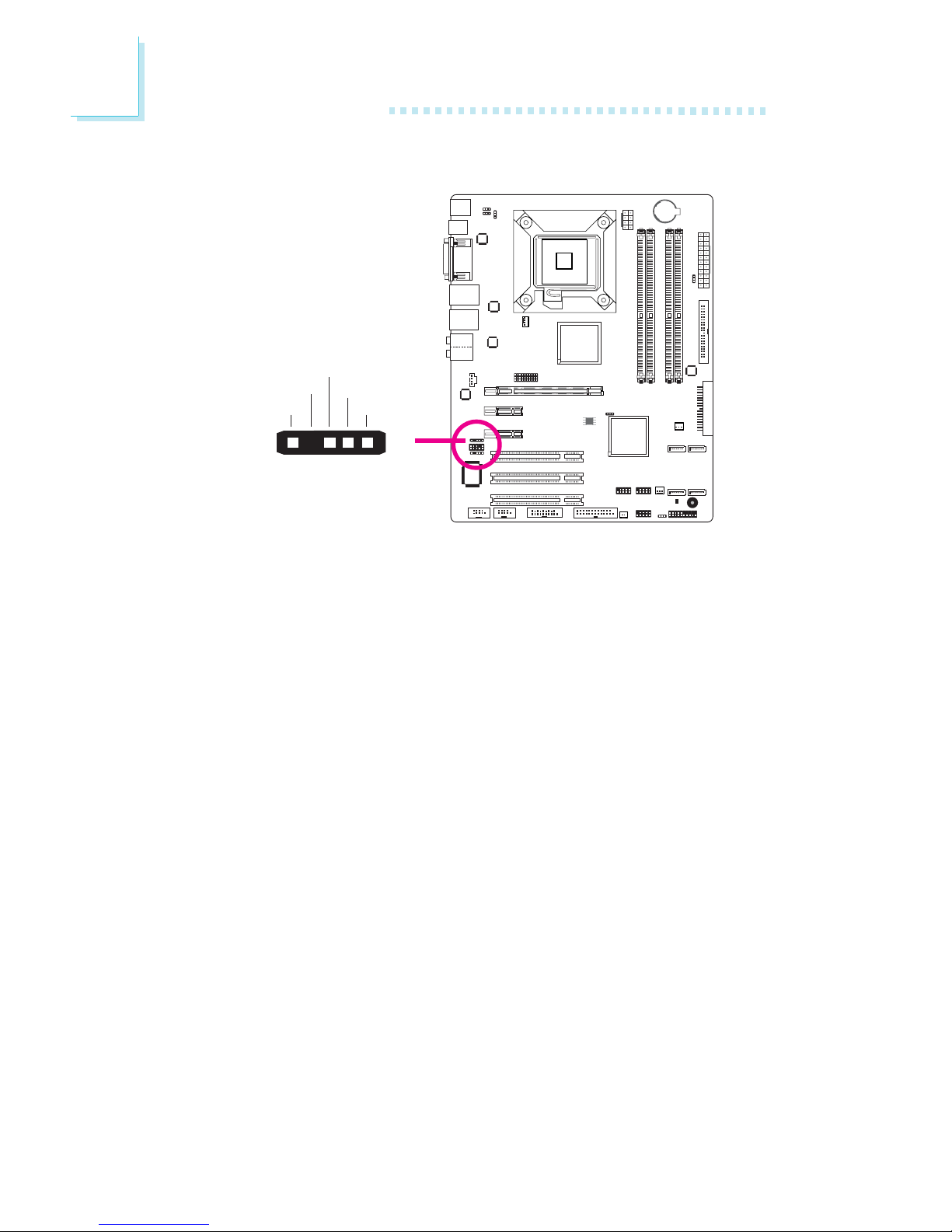

PCIE x16 / DVI Select
The system board allows connecting a device to either the DVI port at the rear panel or to the PCI Express x16 card. However, you cannot use devices connected to both the DVI port and PCI Ex­press x16 card at the same time. Use JP8 to select between using PCIE x16 and DVI.
11
1
JP8
X
21
20
10
30
1-10, 11-20 On:
DVI (default)
11
1
21
20
10
30
11-20, 21-30 On:
PCIE x16
28
2
Hardware Installation
Power-on Select
JP6 is used to select the method of powering on the system. If you want the system to power-on whenever AC power comes in, set JP6 pins 2 and 3 to On. If you want to use the power button, set pins 1 and 2 to On.
X
JP6
2-3 On:
Power-on via
AC power
1-2 On:
Power-on via
power button
(default)
1
3
2
1
3
2
29
2
Hardware Installation
Rear Panel I/O Ports
The rear panel I/O ports consist of the following:
PS/2 mouse port
PS/2 keyboard port
USB ports
VGA port
DVI-I port (DVI-D signal only)
2 LAN ports
Center/Subwoofer port
Rear R/L port
Side R/L port
Line-in jack
Line-out jack
Mic-in jack
PS/2 K/B DVI-I
USB 11
USB 8/9
Mic-in
Side R/L
Center/ Subwoofer
Rear R/L
Line-in
Line-out
PS/2
Mouse
USB 10
VGA
LAN 1 LAN 2
USB 6/7
30
2
Hardware Installation
PS/2 Mouse and PS/2 Keyboard Ports
These ports are used to connect a PS/2 mouse and a PS/2 key­board. The PS/2 mouse port uses IRQ12. If a mouse is not connected to this port, the system will reserve IRQ12 for other expansion cards.
Warning:
Make sure to turn off your computer prior to connecting or disconnecting a mouse or keyboard. Failure to do so may dam­age the system board.
Wake-On-PS/2 Keyboard/Mouse
The Wake-On-PS/2 Keyboard/Mouse function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system. To use this function:
Jumper Setting:
JP1 must be set to “2-3 On: 5V_standby”. Refer to “PS/2 Power Select” in this chapter for more information.
.
.
.
.
.
.
.
.
W
PS/2 Mouse
PS/2 Keyboard
Loading...
+ 92 hidden pages
