DFI AD70-SC, AD70-SR User Manual

AD70-SC

AD70-SR

Rev. A+

System Board Users Manual

Carte Mère Manuel Pour Utilisateur

System-Platine Benutzerhandbuch Manual del Usuario de Placas Base

49310130

This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.

Trademarks

Microsoft® MS-DOS®, WindowsTM, Windows® 95, Windows® 98, Windows® 98 SE, Windows® ME, Windows® 2000 and Windows NT® 4.0 are registered trademarks of Microsoft Corporation. AMD, AthlonTM and DuronTM are registered trademarks of Advanced Micro Devices, Inc. VIA is a registered trademark of VIA Technologies, Inc. Award is a registered trademark of Award Software, Inc. Other trademarks and registered trademarks of products appearing in this manual are the properties of their respective holders.

Caution

To avoid damage to the system:  Use the correct AC input voltage range.

To reduce the risk of electric shock:  Unplug the power cord before removing the system chassis

cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.

Battery:  Danger of explosion if battery incorrectly replaced.  Replace only with the same or equivalent type recommend by

the manufacturer.

 Dispose of used batteries according to the battery

manufacturers instructions.

Joystick or MIDI port:  Do not use any joystick or MIDI device that requires more than

10A current at 5V DC. There is a risk of fire for devices that exceed this limit.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and the receiver.  Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

 Consult the dealer or an experienced radio TV technician for

help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

Quick Setup Guide



Quick Setup

Guide

Table of Contents

Chapter 1

Quick Setup Guide.............................................

Chapter 2

English......................................................................

Chapter 3

Français (French).................................................

Chapter 4

Deutsch (German)................................................

Chapter 5

Español (Spanish)..................................................

Note:

The users manual in the provided CD contains detailed information about the system board. If, in some cases, some information doesnt match those shown in this manual, this manual should always be regarded as the most updated version.



Quick Setup Guide

Quick Setup

Guide

Chapter 1 - Quick Setup Guide

Table of Contents

1.1 System Board Layout..................................................................................................

1.2 Jumpers.....................................................................................................................................

1.3 Ports and Connectors................................................................................................

1.4 Award BIOS Setup Utility.......................................................................................

Important:

To ensure proper boot up and operation of your system, you must power-off the system then turn off the power supplys switch or unplug the AC power cord prior to altering the setting of a jumper or replacing the CPU.

Quick Setup Guide



Quick Setup

Guide

1.1 System Board Layout

AD70-SC

(Supports onboard audio; no RAID)



Quick Setup Guide

Quick Setup

Guide

Note:

The illustrations on the following pages are based on the AD70-SC system board, which is the board that supports onboard audio.

AD70-SR

(Supports RAID; no onboard audio)

Quick Setup Guide



Quick Setup

Guide

1.2 Jumpers

1.2.1 CPU Frequency Ratio - SW1

We do not recommend that you adjust the CPU to a higher frequency ratio because it may result to the CPUs or systems instability and are not guaranteed to provide better system performance. If you are unable to boot up the system with the frequency ratio you selected, please power off the system and set SW1 pins 1-5 to Off (Auto).

Ratio

Auto

5.5x 6x

6.5x 7x

7.5x 8x

8.5x 9x

9.5x

10x

10.5x 11x

11.5x 12x

12.5x

Off On On On On On On On On On On On On On On On On

Off On Off On Off On Off On Off On Off On Off On Off On Off

Off On On Off Off On On Off Off On On Off Off On On Off Off

Off Off Off Off Off On On On On Off Off Off Off On On On On

Off On On On On Off Off Off Off Off Off Off Off On On On On



Quick Setup Guide

Quick Setup

Guide

1.2.2 Clear CMOS Data - JP8

1.2.3 Onboard Audio Codec - JP1 and JP2 (AD70-SC)

1-2 On: Enable the Onboard Audio Codec (default)

2-3 On: Disable the Onboard Audio Codec

2-3 On: Clear CMOS Data

1-2 On: Normal (default)

If you are not using the onboard audio codec, set pins 2 and 3 to On (Disabled) and set the VIA-3058 AC97 Audio (VIA OnChip PCI Device field) in the Integrated Peripherals submenu of the BIOS to Disabled.

JP1

JP2

JP1

123

JP2

Quick Setup Guide



Quick Setup

Guide

1.2.5 Power Select for USB 1 (JP4) and Power Select for USB 2 and USB 3 (JP9)

2-3 On: 5VSB

1-2 On: 5V (default)

1.2.4 CPUs Front Side Bus - JP7

On: 100MHz (200MHz DDR) CPU

(default)

Off: 133MHz (266MHz DDR) CPU

To ensure proper boot up and operation of your system, you must poweroff the system then turn off the power supplys switch or unplug the AC power cord prior to altering the setting of the jumper.

123

JP4

JP9

JP4

JP9



Quick Setup Guide

Quick Setup

Guide

1.2.6 CNR Settings - JP6 (AD70-SC)

2-3 On: Secondary

1-2 On: Primary (default)

123

1.2.7 RAID Settings - JP10 (AD70-SR)

32 1

321

1-2 On: Disable the RAID function

2-3 On: Enable the RAID function (default)

Quick Setup Guide



Quick Setup

Guide

1.3 Ports and Connectors

1.31 PS/2 Mouse and PS/2 Keyboard Ports

Make sure to turn off your computer prior to connecting or disconnecting a mouse or keyboard. Failure to do so may damage the system board.

PS/2 Mouse

PS/2 Keyboard

1.3.2 Parallel Port

Parallel Port



Quick Setup Guide

Quick Setup

Guide

1.3.3 Universal Serial Bus Ports

1.3.4 Serial Ports

COM 1

Serial Port

COM 2

Serial Port

1 VCC 2 UP23 UP2+ 4 Ground 5 Key

6 VCC 7 UP38 UP3+ 9 Ground 10 Ground

11 Ground 12 Ground 13 UP2+ 14 UP215 VCC

Onboard USB Ports (USB 1)

Additional USB Ports (USB 2 / 3)

Quick Setup Guide



Quick Setup

Guide

1.3.5 Game/MIDI Port and Audio Jacks (AD70-SC)

1.3.6 Internal Audio Connectors (AD70-SC)

Game/MIDI Port Audio Jacks

Line-out

Line-in

Mic-in

Additional Line-out/Mic-in (J18)

1Mic+ 2 Ground 3 Mic Power 4 AuD_Vcc (Avcc) 5 AuD_R-Out 6 AuD_R_Return (GND) 7N. C. 8 Key 9 AuD_L_Out 10 AuD_L_Return (GND)

1 Left audio channel 2 Ground 3 Ground 4 Right audio channel

AUX-in / CD-in

Onboard Game/MIDI / Audio



Quick Setup Guide

Quick Setup

Guide

1.3.8 Floppy and IDE Disk Drive Connectors

If you encountered problems while using an ATAPI CD-ROM drive that is set in Master mode, please set the CD-ROM drive to Slave mode. Some ATAPI CD-ROMs may not be recognized and cannot be used if incorrectly set in Master mode.

FDD

IDE

1.3.7 IrDA Connector

1 VCC 2 N. C. 3 IRRX 4 Ground 5 IRTX

The sequence of the pin functions on some IrDA cable may be reversed from the pin function defined on the system board. Make sure to connect the cable to the IrDA connector according to their pin functions.

Quick Setup Guide



Quick Setup

Guide

1.3.9 RAID IDE Disk Drive Connectors (AD70-SR)

Only connect IDE hard drives to the RAID IDE connectors.

PCI slot 3 and RAID IDE use the same IRQ. If you are using add-in cards such as PCI audio card, please do not install it into PCI slot 3.

By default, the Promise RAID controller is enabled. If you are not using this function, set the Promise RAID Control field (Advanced BIOS Features) to Disabled. The IRQ previously occupied by the controller will be available for other devices.



Quick Setup Guide

Quick Setup

Guide

1.3.11 Wake-On-LAN Connector

The 5VSB power source of your power supply must support

≥720mA.

1 +5VSB 2 Ground 3 WOL

1.3.10 Fan Connectors

1On 2 +12V 3 Sense

1 On/Off 2 +12V 3 Sense

1 Ground 2 +12V 3N. C.

CPU Fan

Chassis Fan

Second Chassis Fan

Quick Setup Guide



Quick Setup

Guide

1.3.13 Power Connector

1 3.3V 2 3.3V 3 Ground 4 +5V 5 Ground 6 +5V 7 Ground 8 PW-OK 9 5VSB 10 +12V

11 3.3V 12 -12V 13 Ground 14 PS-ON 15 Ground 16 Ground 17 Ground 18 -5V 19 +5V 20 +5V

The system board requires a minimum of 300W electric current.









1.3.12 Wake-On-Ring Connector

1 Ground 2 RI#

If you are using a modem add-in card, the 5VSB power source of your power supply must support

≥720mA.



Quick Setup Guide

Quick Setup

Guide

1.3.14 DIMM and PCI Standby Power LEDs

DIMM Standby Power LED

This LED will turn red when the systems power is on or when it is in the Suspend state (Power On Suspend or Suspend to RAM). It will not light when the system is in the Soft-Off state.

PCI Standby Power LED

This LED will turn red when the system is in the power-on, Soft-Off or Suspend (Power On Suspend or Suspend to RAM) state.

Important:

Lighted LEDs serve as a reminder that you must power-off the system then turn off the power supplys switch or unplug the power cord prior to installing any memory modules or add-in cards.

3.3VSB Standby for PCI - Jumper JP5

On: Default

3.3VSB Standby Power to PCI slots - PCI 2.2 spec.

Off:

Non-PCI 2.2 spec.

Quick Setup Guide



Quick Setup

Guide

1.3.15 Front Panel Connectors

3 5

14 16

10 18

7 9

13 15 17 19

2 4 6

HD-LED

(Primary/Secondary IDE LED)

G-LED

(Green LED)

ATX-SW

(ATX power switch)

G-SW

(Green switch)

RESET

(Reset switch)

SPEAKER

(Speaker connector)

PWR-LED

(Power/Standby LED)

Pin Assignment

HDD LED Power HDD

Green LED Power Ground

PWRBT+ PWRBT-

Ground SMI

Ground H/W Reset

Speaker Data N. C. Ground Speaker Power

LED Power (+) LED Power (+) LED Power (-) or Standby Signal



Quick Setup Guide

Quick Setup

Guide

1.4 Award BIOS Setup Utility

1.4.1 Main Menu

1.4.2 Standard CMOS Features

Standard CMOS Features

Advanced BIOS Features

Advanced Chipset Features

Integrated Peripherals

Power Management Setup

PnP/PCI Configurations

PC Health Status

Frequency/Voltage Control

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Esc F10

: Quit : Save & Exit Setup

↑↓→←

: Select Item

Time, Date, Hard Disk Type...

The settings on the screen are for reference only. Your version may not be identical to this one.

↑↓→← :Move

Standard CMOS Features

Date (mm:dd:yy) Time (hh:mm:ss)

IDE Primary Master IDE Primary Slave IDE Secondary Master IDE Secondary Slave

Drive A Drive B

Video Halt On

Base Memory Extended Memory Total Memory

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General Help

Thu, Apr 19 2001 4 : 35 : 5

Press Enter None Press Enter None Press Enter None Press Enter None

1.44M, 3.5 in. None

EGA/VGA All, But Keyboard

640K 129024K 130048K

Item Help

Menu Level Change the day, month,

year and century

Enter:Select

F5:Previous Values

+/-/PU/PD:Value F10:Save ESC:Exit

K K K K

Quick Setup Guide



Quick Setup

Guide

1.4.3 Advanced BIOS Features

1.4.4 Advanced Chipset Features

Advanced BIOS Features

Item Help

Menu Level Allows you to choose

the VIRUS warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep

↑↓→← Move F1:General HelpEnter:Select +/-/PU/PD:Value F10:Save ESC:Exit

X X

F6:Fail-Safe Defaults F7:Optimized DefaultsF5:Previous Values

Virus Warning CPU L1 Cache CPU L2 Cache CPU L2 Cache ECC Checking Quick Power On Self Test RAID Chip Boot Device First Boot Device Second Boot Device Third Boot Device Boot Other Device Swap Floppy Drive Boot Up Floppy Seek Boot Up NumLock Status Typematic Rate Setting

Typematic Rate (Chars/Sec) Typematic Delay (Msec)

Security Option OS Select For DRAM > 64MB HDD S.M.A.R.T. Capability EPA Logo Show

Disabled Enabled Enabled Enabled Enabled RAID Floppy HDD-0 LS120 Enabled Disabled Disabled On Disabled

6 250

Setup Non-OS2 Disabled Enabled

The screen above list all the fields available in the Advanced BIOS Features submenu, for ease of reference in this manual. In the actual CMOS setup, you have to use the scroll bar to view the fields. The settings on the screen are for reference only. Your version may not be identical to this one.

Advanced Chipset Features

The settings on the screen are for reference only. Your version may not be identical to this one.

Item Help

Menu Level

↑↓→← Move

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General HelpEnter:Select

F5:Previous Values

+/-/PU/PD:Value F10:Save ESC:Exit

DRAM Clock/Drive Control AGP & P2P Bridge Control CPU & PCI Bus Control System BIOS Cacheable Video RAM Cacheable I/O Recovery Time

Press Enter Press Enter Press Enter Disabled Disabled Disabled

K K K



Quick Setup Guide

Quick Setup

Guide

1.4.6 Power Management Setup

1.4.5 Integrated Peripherals

Integrated Peripherals

Item Help

Menu Level

↑↓→← Move

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General HelpEnter:Select

F5:Previous Values

+/-/PU/PD:Value F10:Save ESC:Exit

VIA OnChip IDE Device VIA OnChip PCI Device Super IO Device Init Display First OnChip USB Controller USB Keyboard Support IDE HDD Block Mode

Press Enter Press Enter Press Enter PCI Slot All Enabled Disabled Disabled

K K K

The settings on the screen are for reference only. Your version may not be identical to this one.

Power Management Setup

ACPI Function ACPI Suspend Type Power Management Option HDD Power Down Suspend Mode Video Off Option Video Off Method MODEM Use IRQ Soft-Off By PWRBTN PWR Lost Resume State Wake Up Events

Enabled S1(POS) User Define Disabled Disabled Suspend -> Off V/H SYNC+Blank 3 Instant-off Keep Off Press Enter

Item Help

Menu Level

↑↓→← Move

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General HelpEnter:Select

F5:Previous Values

+/-/PU/PD:Value F10:Save ESC:Exit

Quick Setup Guide



Quick Setup

Guide

1.4.7 PnP/PCI Configurations

1.4.8 PC Health Status

The settings on the screen are for reference only. Your version may not be identical to this one.

PnP/PCI Configurations

Reset Configuration Data Resources Controlled By

IRQ Resources

PCI/VGA Palette Snoop

* PCI IRQ Assignment *

Slot 1,5 Slot 2 Slot 3 Onboard USB/Slot 4

Disabled Auto(ESCD)

Press Enter

Disabled

Auto Auto Auto Auto

Item Help

Menu Level Default is Disabled.

Select Enabled to reset Extended System Configuration Data (ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the OS cannot boot.

↑↓→← Move

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General HelpEnter:Select

F5:Previous Values

+/-/PU/PD:Value F10:Save ESC:Exit

The settings on the screen are for reference only. Your version may not be identical to this one.

PC Health Status

CPU Fan Protection Current System Temp. Current CPU Temperature Current CPU FAN Speed Current Chassis FAN Speed CPU(V) +3.3 +5 +12

-12

-5 VBAT(V) 5VSB(V)

Disabled 27C/80F 37C/98F

0 RPM 0 RPM

Item Help

Menu Level

↑↓→← Move

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General HelpEnter:Select

F5:Previous Values

+/-/PU/PD:Value F10:Save ESC:Exit

1.75 V

3.35 V

4.90 V

11.85 V

-11.45 V

-5.14 V

3.24 V

5.37 V

V V V V V



Quick Setup Guide

Quick Setup

Guide

1.4.9 Frequency/Voltage Control

The settings on the screen are for reference only. Your version may not be identical to this one.

Frequency/Voltage Control

CPU Vcore Adjust Auto Detect DIMM/PCI Clk Spread Spectrum Modulated CPU Host/PCI Clock

Default Enabled Disabled Default

Item Help

Menu Level

↑↓→← Move

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General HelpEnter:Select

F5:Previous Values

+/-/PU/PD:Value F10:Save ESC:Exit

English

Table of Contents

Chapter 2 - English

Package Checklist

The system board package contains the following items:

þ The system board þ A users manual þ One IDE cable for ATA/33, ATA/66 or ATA/100 IDE drives

(AD70-SC) Two IDE cables for ATA/33, ATA/66 or ATA/100 IDE drives (AD70-SR)

þ One 34-pin floppy disk drive cable þ One RAID Driver floppy diskette (AD70-SR) þ One Main Board Utility CD

If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.

2.1 Features and Specifications.....................................................................................

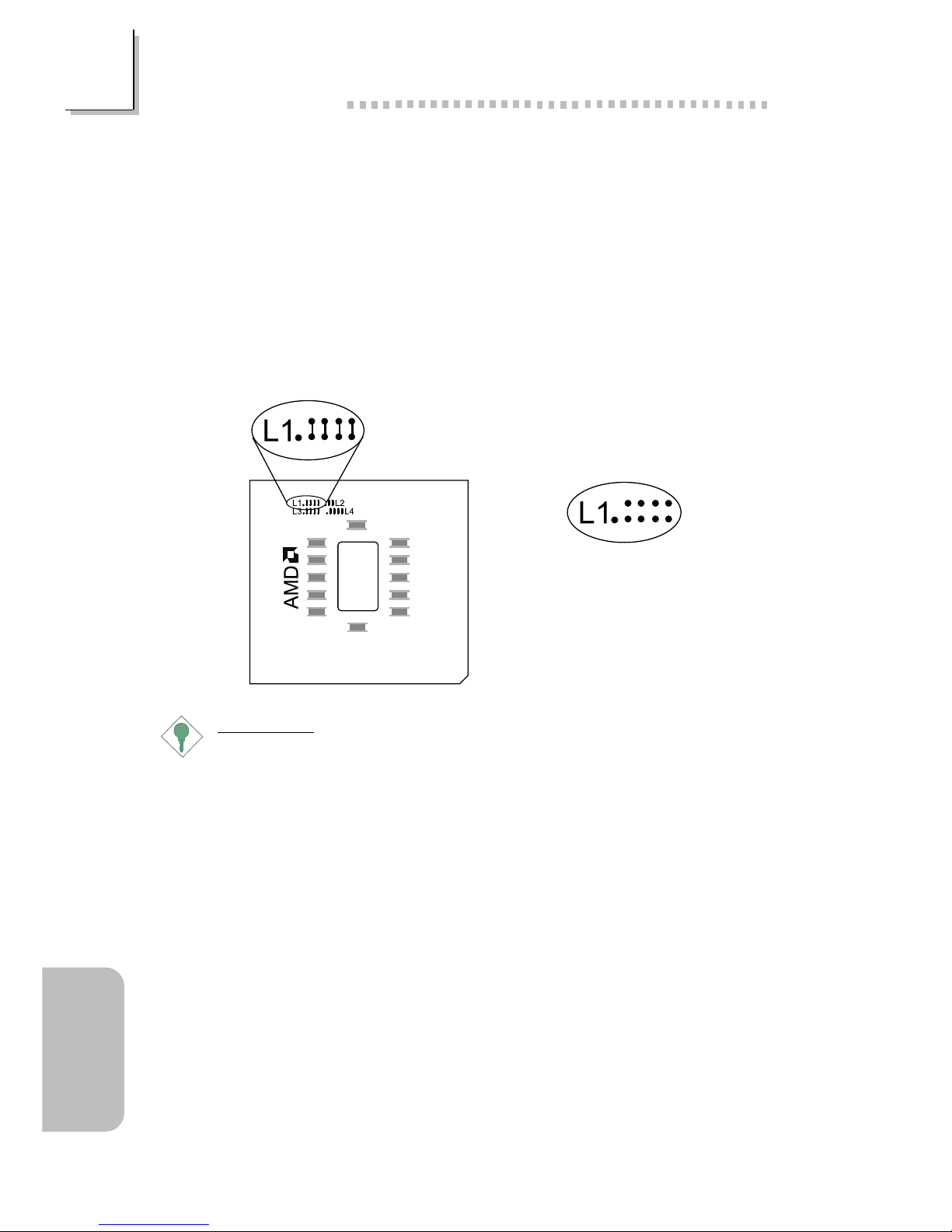

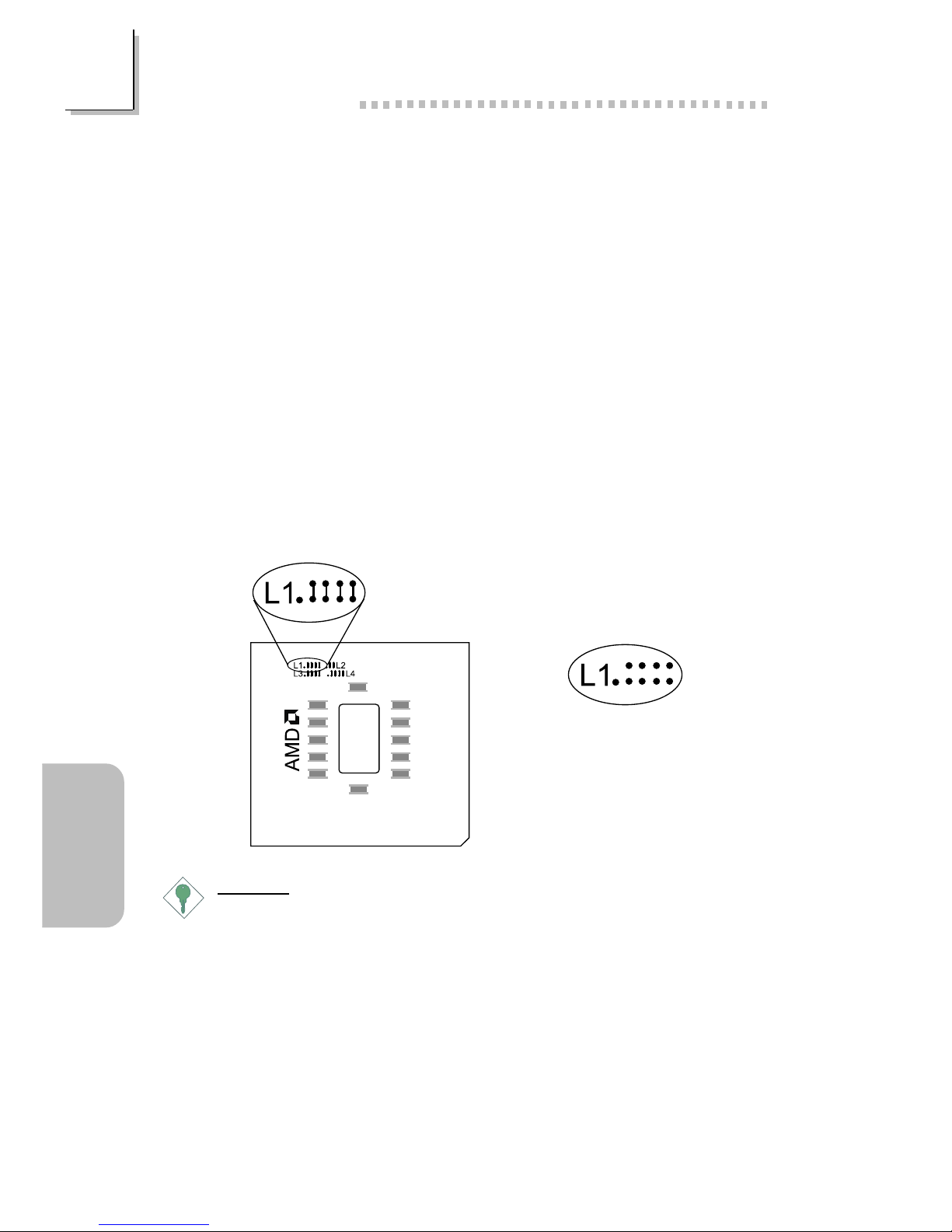

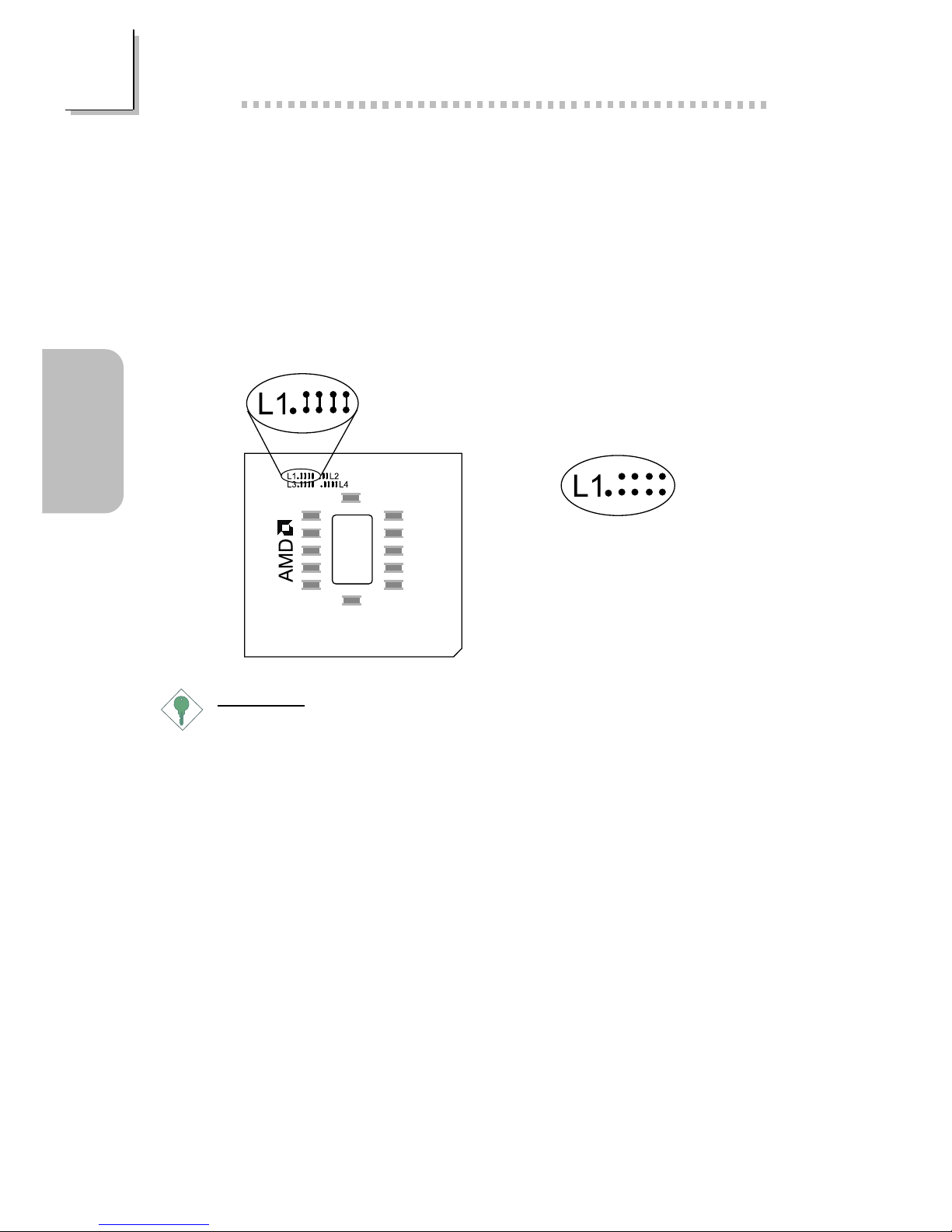

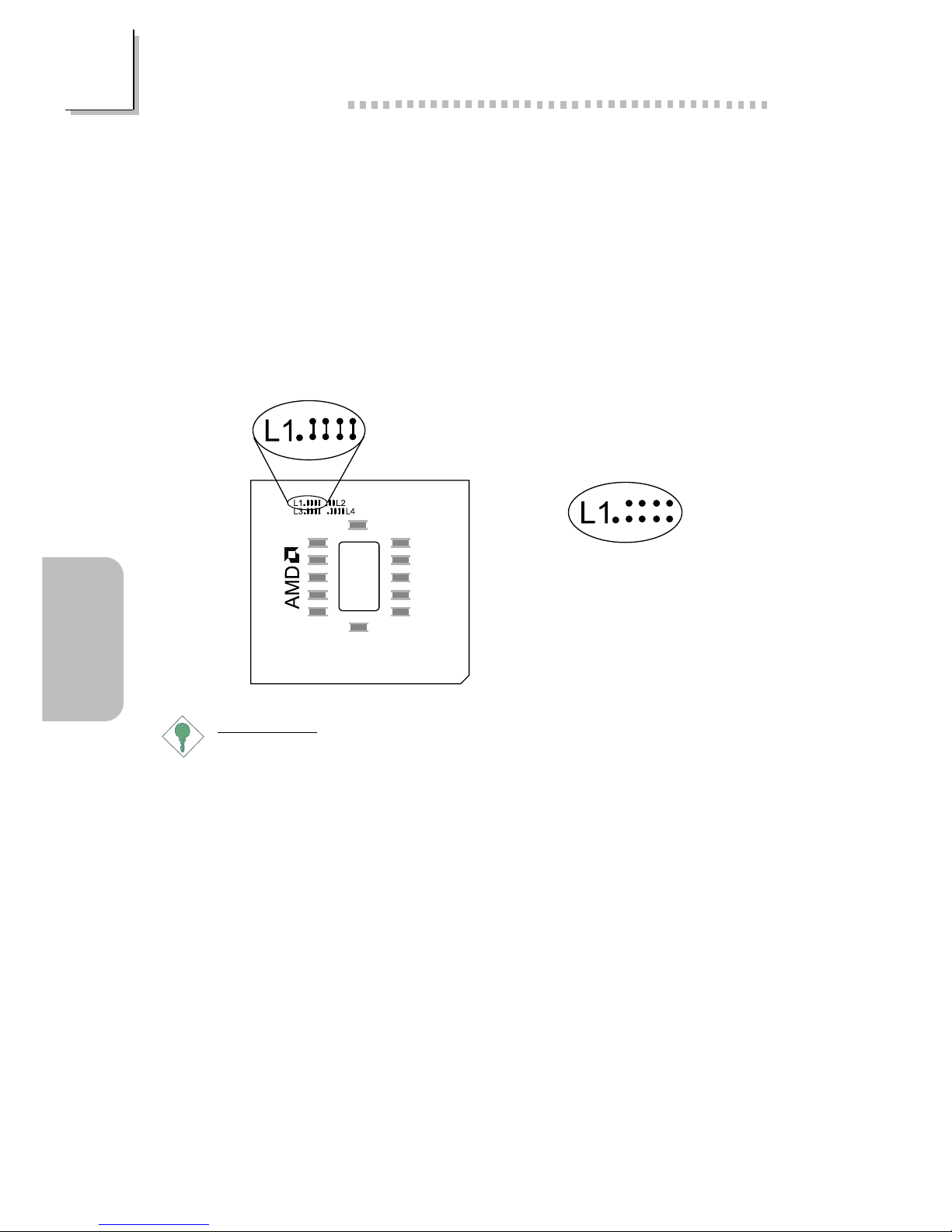

2.2 Identifying a CPU that Supports the Multiplier

Overclocking Function.................................................................................................

2.3 Using the CPU Fan Protection Function...................................................

2.4 Using the Suspend to RAM Function..........................................................

2.5 Supported Softwares...................................................................................................

2.6 Troubleshooting.................................................................................................................

Note:

English

2.1 Features and Specifications

2.1.1 Features

Chipset

 VIA® KT-266 - VT8366 and VT8233

Processor

The system board is equipped with a switching voltage regulator that automatically detects 1.100V to 1.850V.

 AMD AthlonTM/DuronTM 200/266MHz FSB processor (600/650/

700/750/800/850/900/950MHz, 1GHz, 1.3GHz, 1.33GHz or future processors)

Important:

To ensure proper boot up and operation of your system, you must power-off the system then turn off the power supplys switch or unplug the AC power cord prior to replacing the CPU.

System Memory

 Supports up to 3GB memory  Uses 2.5V DDR SDRAM DIMM (PC-200/PC-266)  Three 184-pin DDR SDRAM DIMM sockets  L2 cache memory

- Duron

processor: built-in 64KB Level 2 pipelined burst

cache

- Athlon

processor: built-in 256KB Level 2 pipelined burst

cache

DIMMs

2MBx64 4MBx64 8MBx64

Memory Size

16MB 32MB 64MB

DIMMs

16MBx64 32MBx64 64MBx64

Memory Size

128MB 256MB 512MB

English

Expansion Slots

The AD70-SC system board is equipped with 1 universal AGP slot, 4 dedicated PCI slots and 1 shared PCI/CNR slot.

The AD70-SR system board is equipped with 1 universal AGP slot and 5 dedicated PCI slots.

AGP is an interface designed to support high performance 3D graphics cards. It utilizes a dedicated pipeline to access system memory for texturing, z-buffering and alpha blending. The universal AGP slot supports AGP 2x with up to 533MB/sec. bandwidth and AGP 4x with up to 1066MB/sec. bandwidth for 3D graphics applications. AGP in this system board will deliver faster and better graphics to your PC.

The CNR slot on the AD70-SC system board supports modem riser card only.

Onboard Audio Features (AD70-SC)

 Supports Microsoft® DirectSound/DirectSound 3D  AC97 supported with full duplex, independent sample rate con-

verter for audio recording and playback

ATX Double Deck Ports (PC 99 color-coded connectors)

 Two USB ports  Two NS16C550A-compatible DB-9 serial ports  One SPP/ECP/EPP DB-25 parallel port  One mini-DIN-6 PS/2 mouse port  One mini-DIN-6 PS/2 keyboard port  One game/MIDI port (AD70-SC)  Three audio jacks: line-out, line-in and mic-in (AD70-SC)

Connectors

 Two connectors for 4 additional external USB ports  One connector for IrDA interface  Two RAID IDE connectors (AD70-SR)  Two IDE connectors  One floppy drive interface supports up to two 2.88MB floppy

drives

English

 One ATX power supply connector  One Wake-On-LAN connector  One Wake-On-Ring connector  CPU, chassis and second chassis fan connectors  Two internal audio connectors - AUX-in and CD-in (AD70-SC)  One connector for additional external line-out and mic-in jacks

(AD70-SC)

ATA RAID - Redundant Array of Inexpensive Disk (AD70-SR)

 RAID 0 (striping) or RAID 1 (mirroring) - RAID 0 and RAID 1

cannot coexist

 Two independent IDE channels support up to 4 drives (UDMA

modes 33/66/100 or EIDE)

 Suppor ts PIO modes 0/1/2/3/4, DMA modes 0/1/2 and

UDMA modes 0/1/2/3/4/5

PCI Bus Master IDE Controller

 Two PCI IDE interfaces support up to four IDE devices  Supports ATA/33, ATA/66 and ATA/100 hard drives  PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up

to 16.6MB/sec.)  Bus mastering reduces CPU utilization during disk transfer  Supports ATAPI CD-ROM, LS-120 and ZIP

IrDA Interface

The system board is equipped with an IrDA connector for wireless connectivity between your computer and peripheral devices. It supports peripheral devices that meet the IrDA and ASKIR standard.

USB Ports

The system board supports 6 USB por ts. Two onboard USB ports are located at the ATX double deck por ts of the board. The J20 and J25 connectors on the system board allow you to connect 4 more optional USB ports. These optional USB ports, which are mounted on a card-edge bracket, will be provided as an option. USB allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

English

BIOS

 Award BIOS, Windows® 95/98/2000/ME Plug and Play compat-

ible  Supports SCSI sequential boot-up  Flash EPROM for easy BIOS upgrades  Supports DMI 2.0 function  2Mbit flash memory  Vcore and CPU external bus clock selectable in the BIOS

Desktop Management Interface (DMI)

The system board comes with a DMI 2.0 built into the BIOS. The DMI utility in the BIOS automatically records various information about your system configuration and stores these information in the DMI pool, which is a part of the system board's Plug and Play BIOS. DMI, along with the appropriately networked software, is designed to make inventory, maintenance and troubleshooting of computer systems easier.

2.1.2 System Health Monitor Functions

The system board is capable of monitoring the following system health conditions.

 Monitors CPU/system temperature  Monitors ±12V/±5V/3.3V/VCORE voltages  Monitors CPU/chassis fan speed  Automatic chassis fan on/off control  Read back capability that displays temperature, voltage and fan

speed

If you want a warning message to pop-up or a warning alarm to sound when an abnormal condition occurs, you must install the Hardware Monitor utility. This utility is included in the CD that came with the system board.

+ 75 hidden pages

DFI AD70-SC, AD70-SR User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
