DFI 855GME-MGF User Manual

Download

Page 1

935-855GM1-100

84020501

855GME-MGF

System Board User’s Manual

Carte Mère Manuel Pour Utilisateur

System-Platine Benutzerhandbuch

Manual del Usuario de Placas Base

Руководство ПользователяРуководство Пользователя

Руководство Пользователя

Page 2

Quick Setup Guide

Quick Setup

Guide

This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders. This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes. © 2004. All Rights Reserved.

Trademarks

Product names or trademarks appearing in this manual are for identification purpose only and are the properties of the respective owners.

Caution

To avoid damage to the system, use the correct AC input voltage range

. To reduce the risk of electric shock, unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord. Battery: 1. Danger of explosion if batter y incorrectly replaced. 2. Replace only with the same or equivalent type recommend

by the manufacturer. 3. Dispose of

used batteries according to the battery manufacturer’s

instructions.

Notice

The system board and accessories in the package may not come similar to the information stated in this manual. This may differ in accordance to the sales region or models in which it was sold. For more information about the standard

package in your region, please contact your dealer or sales representative.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission

limits.

Page 3

Quick Setup Guide

Quick Setup

Guide

Table of Contents

Chapter 1

Quick Setup Guide.............................................

Chapter 2

English......................................................................

Chapter 3

Français....................................................................

Chapter 4

Deutsch...............................................................................

Chapter 5

Español............................................................................

Chapter 6

Русский.......................................................................

The user’s manual in the provided CD contains detailed information about the system board. If, in some cases, some information doesn’t match those shown in this manual, this manual should always be regarded as the most updated version.

Le manuel d’utilisateur dans le CD muni contient renseignement détaillé au sujet de carte de système. Si, en quelque cas, quelque renseignement n’appareille de ce que dit dans ce manuel, ce manuel doit toujours être considéré comme la plus nouvelle version.

Das Benutzerhandbuch in der angebotenen CD enthält detaillierte Informationen über die Hauptplatine. Wenn in manchen Fällen manche Informationen nicht denjenigen Informationen dargestellt in diesem Handbuch entsprechen, soll dieses Handbuch als die meist aktualisierte Ausgabe gelten.

El uso explicativo contene información detalle sobre la sistema board en el CD preparativo. Si en algún caso, la información no es igual con el uso explicativo, necesita ver el uso explicativo, esque es más nuevo.

В руководстве пользователя на предоставляемом CD диске содержится подробная информация о материнской плате. Иногда напечатанное руководство может не совпадать руководством на CD, так как последнее наиболее часто обновляется и является самым свежим.

Page 4

Quick Setup Guide

Quick Setup

Guide

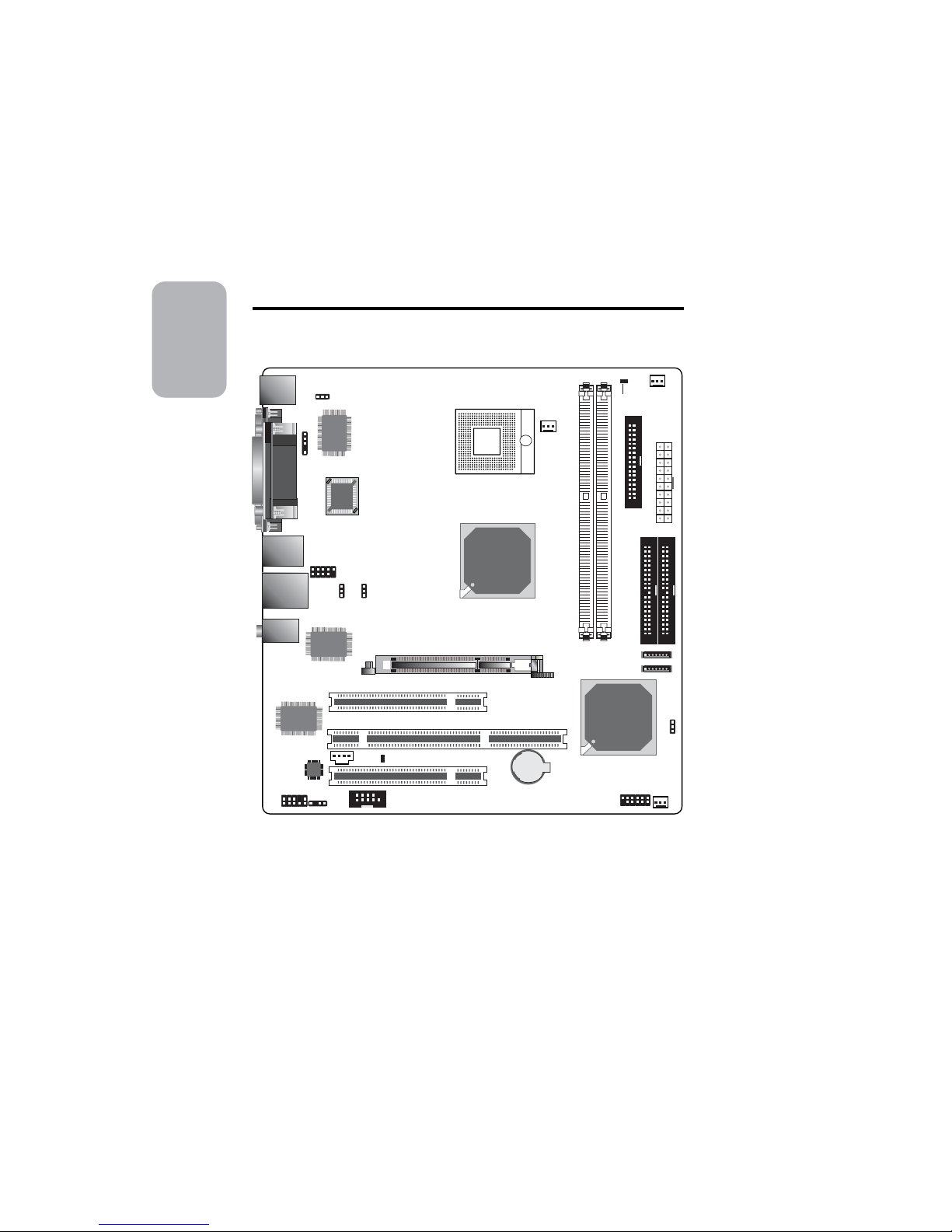

1.1 System Board Layout

Chapter 1 - Quick Setup Guide

Mouse

Parallel

1394_2

USB 3-4

LAN

USB 1-2

Winbond

W83627HF

Mic-in Line-in

Line-out

PS/2 power select (JP2)

IrDA

COM 1

VGA

BIOS

1394_1

Socket

479

USB power select (JP3)

VIA

VT6307

Intel

855GME

Intel

6300ESB

2nd fan

CPU fan

DDR 1DDR 2

DIMM standby power LED

FDD

ATX po we r

IDE 21IDE 1

AGP

Clear

CMOS

(JP10)

Chassis

fan

PCI-X Slot 1

PCI1Slot

PCI standby power LED

PCI2Slot

Realtek

RTL8110S

CD-in

Audio codec

Front audio

S/PDIF-out

COM 2

Battery

Front panel

SATA 2

SATA 1

CPU FSB select (J3)

Page 5

Quick Setup Guide

Quick Setup

Guide

1.2 Jumpers

Important:

The 5VSB power source of your power supply must support

≥

720mA.

2-3 On:

Clear CMOS Data

1-2 On: Normal

(default)

JP10

1.2.1 Clear CMOS Data

1.2.2 PS/2 Power Select

1-2 On: 5V

(default)

2-3 On: 5VSB

JP2

312312

Page 6

Quick Setup Guide

Quick Setup

Guide

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the 5VSB power source of your power supply must support ≥1.5A. If you are using the Wake-On-USB Keyboard/Mouse function for 3 or more USB ports, the 5VSB power source of your power supply must support ≥2A.

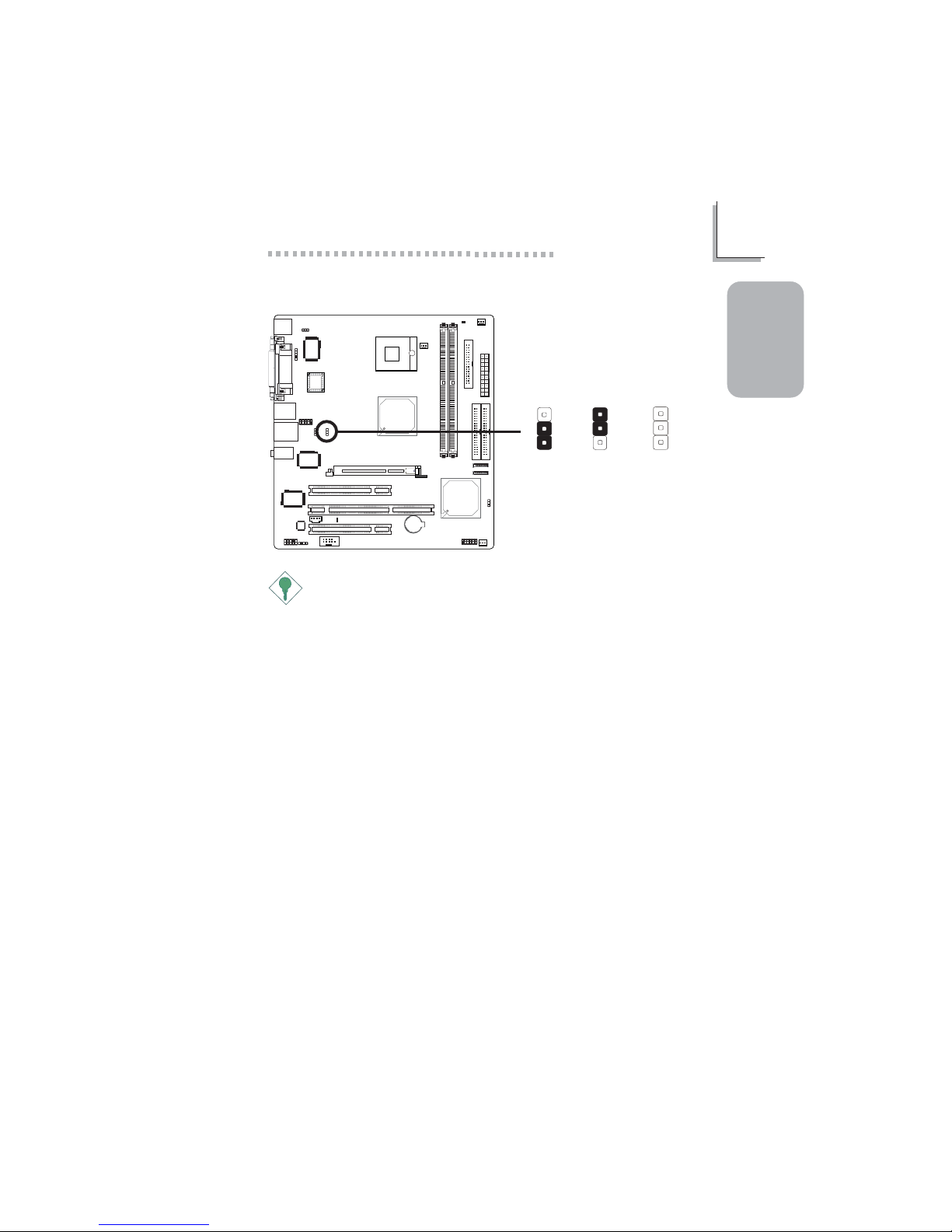

1.2.3 USB Power Select

JP3

1-2 On: 5V

(default)

2-3 On: 5VSB

Page 7

Quick Setup Guide

Quick Setup

Guide

1.2.4 CPU FSB Select

Important:

• If you are using a CPU whose frequency has been locked by the manufacturer, overclocking will have no effect.

• Overclocking may result to the CPU’s or system’s instability and are not guaranteed to provide better system performance. If you are unable to boot your system due to overclocking, make sure to set this jumper back to its default settings.

1-2 On:

Reserved

2-3 On: 400MHz (Default)

All Off:

533MHz

Page 8

Quick Setup Guide

Quick Setup

Guide

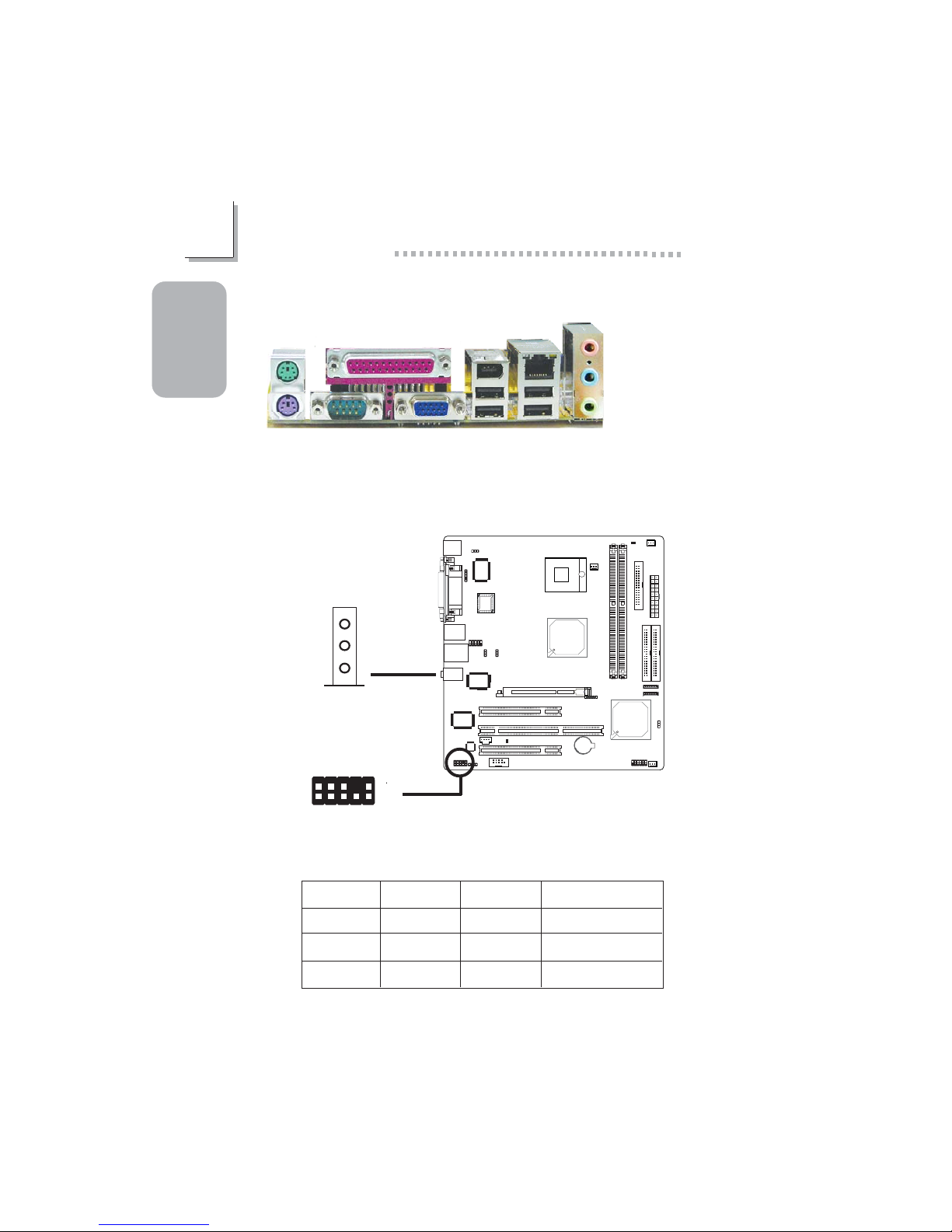

1.4 I/O Connectors

1.3 Rear Panel I/O Ports

PS/2

Mouse

Parallel

COM 1 VGAPS/2 KB

LAN

1394_2

USB 3-4 USB 1-2

Line-out

Line-in

Mic-in

1.4.1 Audio (Rear Audio and Front Audio)

Front audio

Mic

Mic Power

AuD_R_Out

N. C.

AuD_L_Out

GND

AuD_Vcc

Key

AuD_R_Return

AuD_L_Return

Line-out

Line-in

Mic-in

Rear audio

2-channel

Line-in

Line-out

Mic-in

4-channel

Rear R/L

Front R/L

Mic-in

6-channel

Rear R/L

Front R/L

Center/Subwoofer

Light Blue

Lime

Pink

Page 9

Quick Setup Guide

Quick Setup

Guide

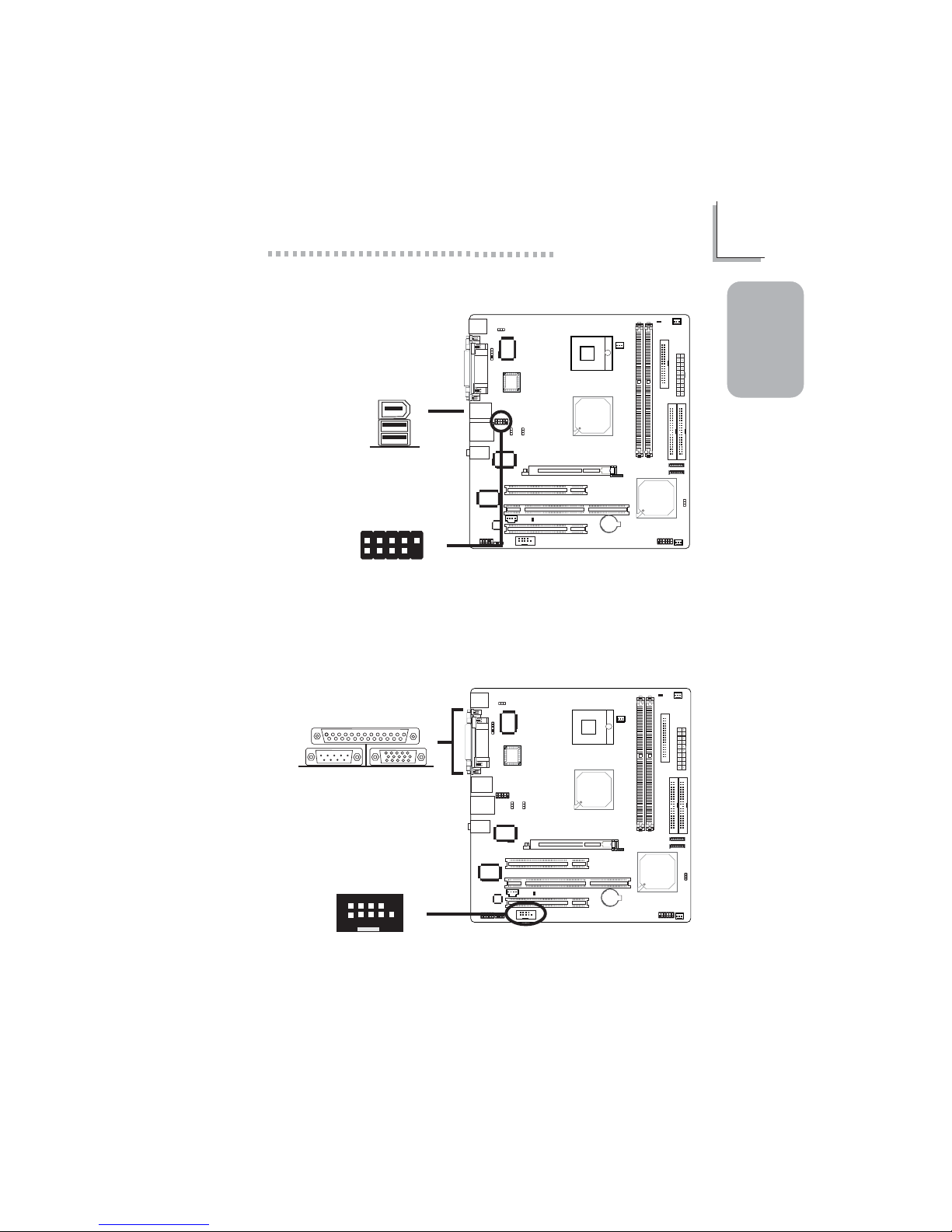

COM 1

1.4.3 Serial Ports

COM 2

DTR

GND

RTS

DSR

CTS

1.4.2 IEEE 1394

1394_2

1394_1

+12V (fused)

TPA+

Ground

TPB+

+12V (fused)

Key

TPA-

Ground

TPB-

Ground

Page 10

Quick Setup Guide

Quick Setup

Guide

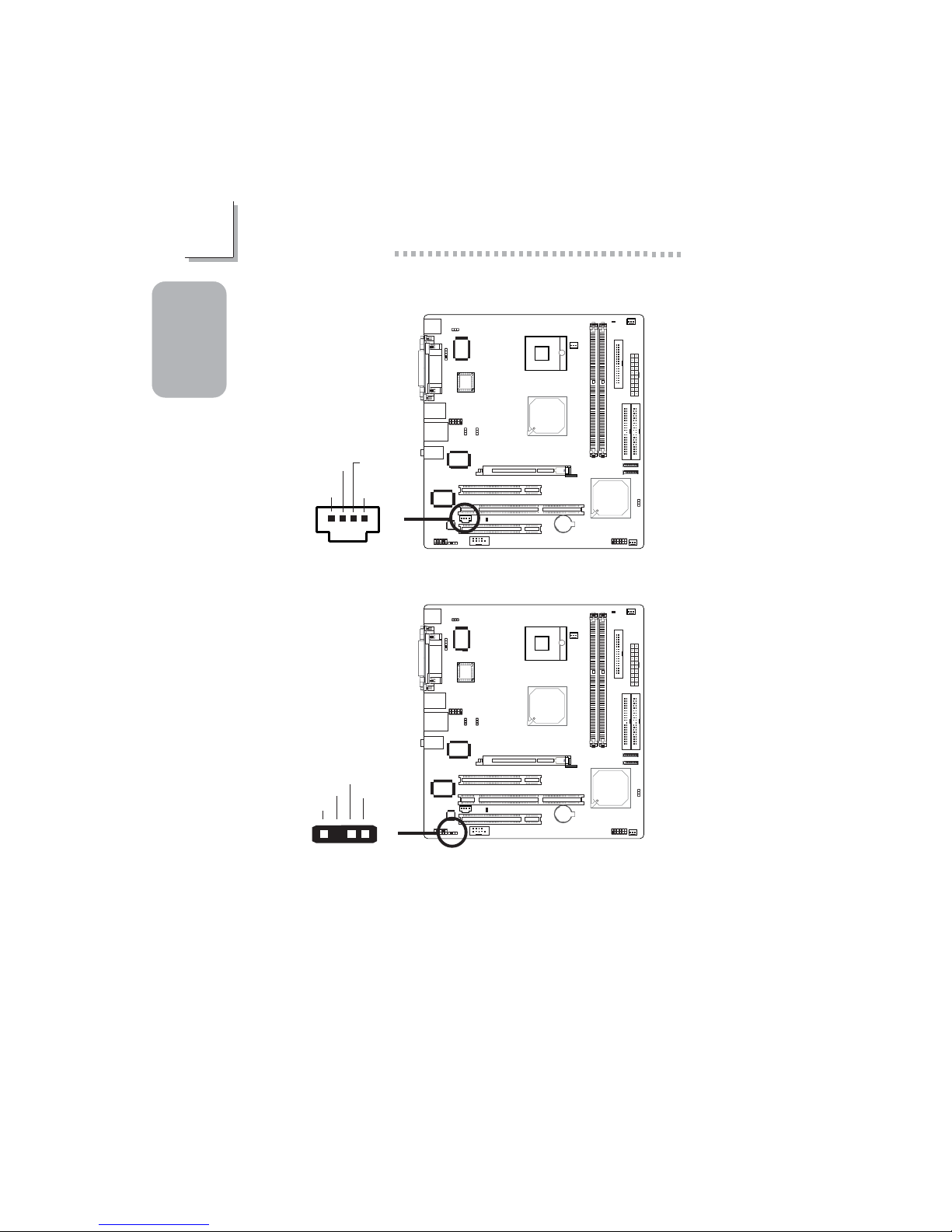

1.4.4 CD-in Internal Audio Connector

Right audio channel

Left audio

channel

Ground Ground

1.4.5 S/PDIF-out Connector

+5V

Key

SPDIF out

GND

Page 11

Quick Setup Guide

Quick Setup

Guide

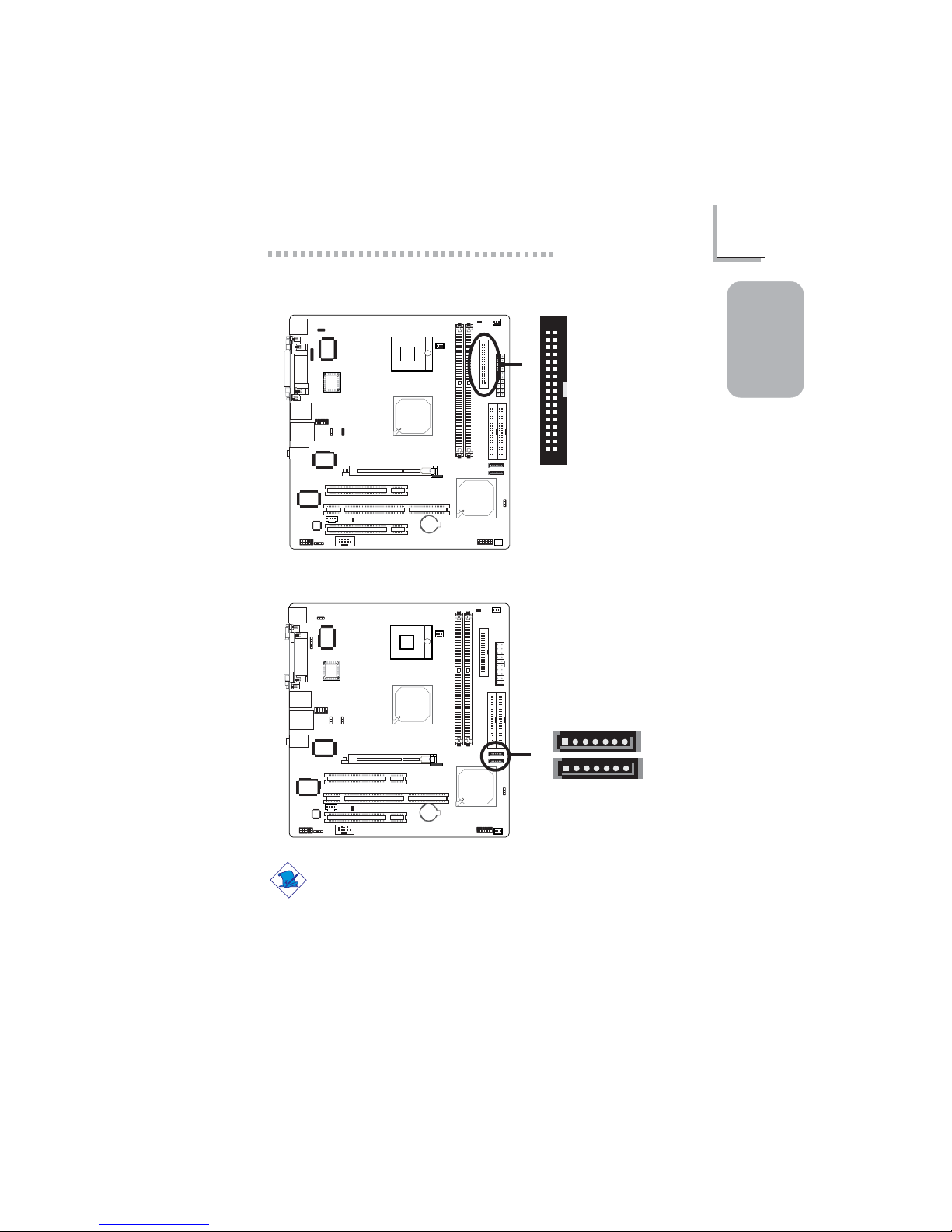

1.4.6 Floppy Disk Drive Connector

1.4.7 Serial ATA Connectors

SATA 2

SATA 1

GND

TXP

TXN

GND

RXN

RXP

GND

Note:

The Intel 6300ESB south bridge chip allows configuring RAID on Serial ATA drives. It supports RAID 0 and RAID 1.

Page 12

Quick Setup Guide

Quick Setup

Guide

Note:

The sequence of the pin functions on some IR cable may be reversed from the pin function defined on the system board. Make sure to connect the cable connector to the IR connector according to their pin functions.

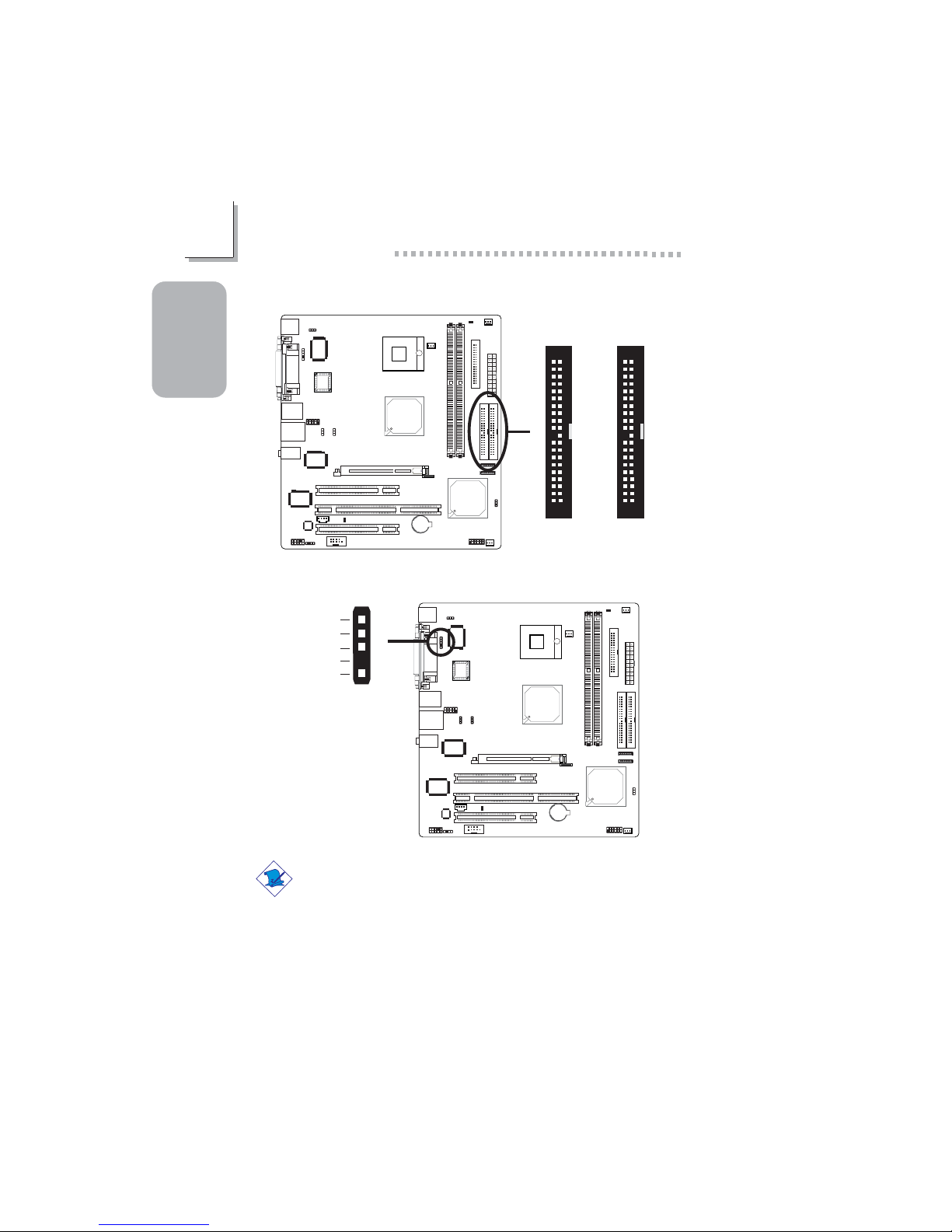

1.4.8 IDE Disk Drive Connectors

IDE 1IDE 2

1.4.9 IrDA Connector

VCC

N. C.

IRRX

Ground

IRTX

Page 13

Quick Setup Guide

Quick Setup

Guide

Important:

To ensure that adequate power is provided, use a 250 Watt (or greater) power supply.

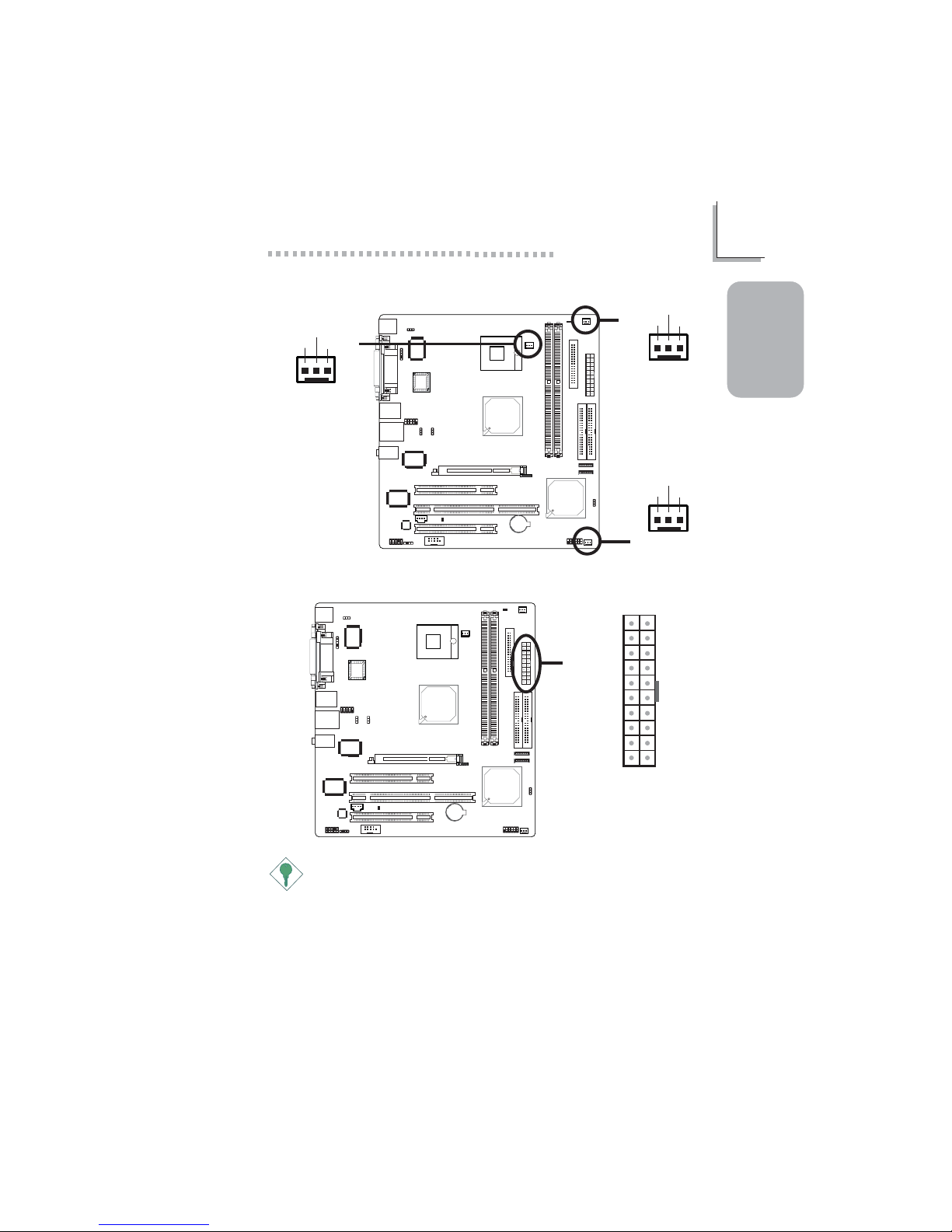

1.4.10 Cooling Fan Connectors

2nd fan

Ground

Power

Sense

CPU fan

Ground

Power

Sense

Chassis fan

Ground

Power

Sense

1.4.11 Power Connector

+12V

111

3.3V

Ground

+5V

Ground

+5V

Ground

PW-OK

5VSB

+5V

3.3V

-12V

Ground

PS-ON

Ground

-5V

+5V

Page 14

Quick Setup Guide

Quick Setup

Guide

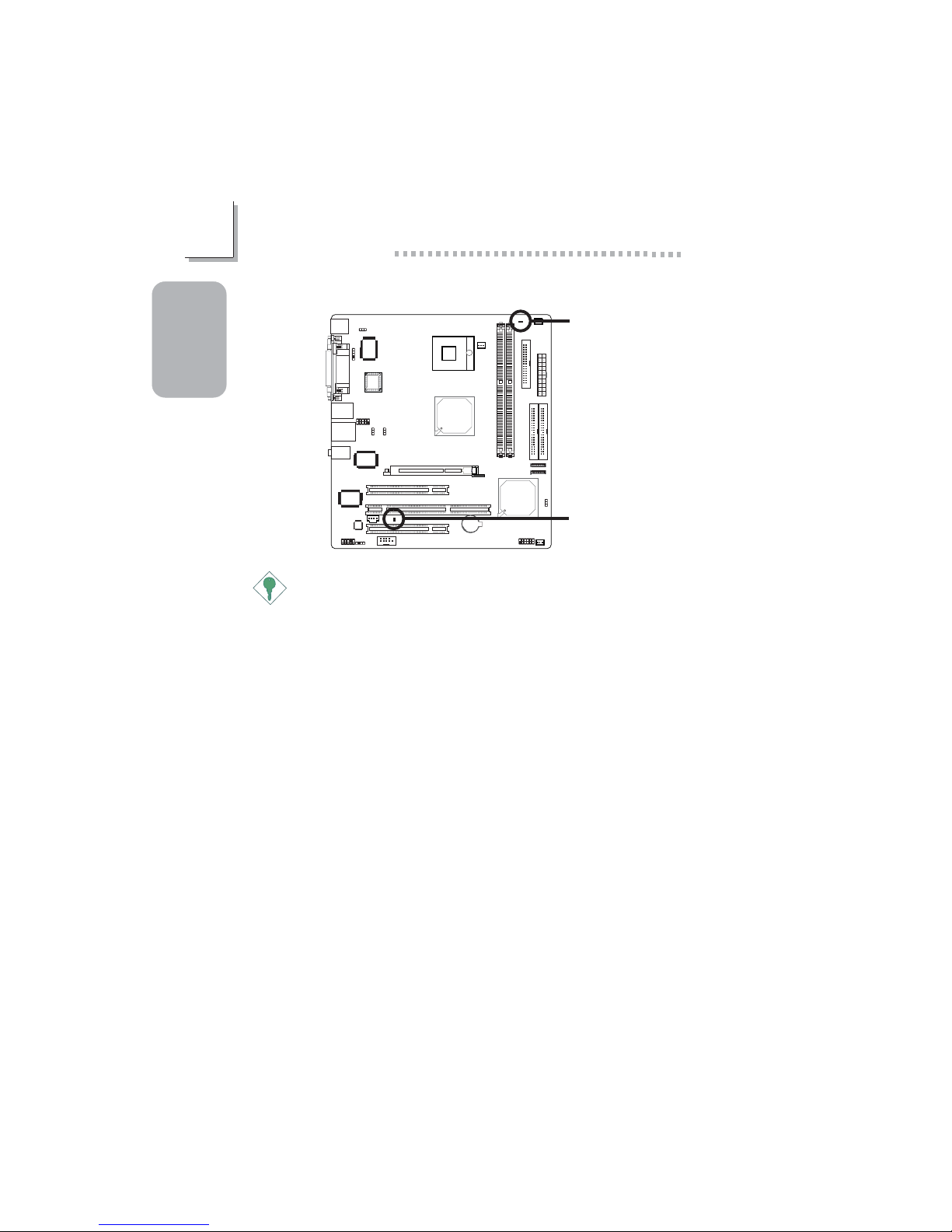

1.4.12 DIMM and PCI Standby Power LEDs

DIMM Standby Power LED

PCI Standby Power LED

Important:

If the DIMM Standby Power LED or PCI Standby Power LED is lighted, you must power-off the system then turn off the power supply’s switch or unplug the power cord prior to installing any memory modules or add-in cards.

Page 15

Quick Setup Guide

Quick Setup

Guide

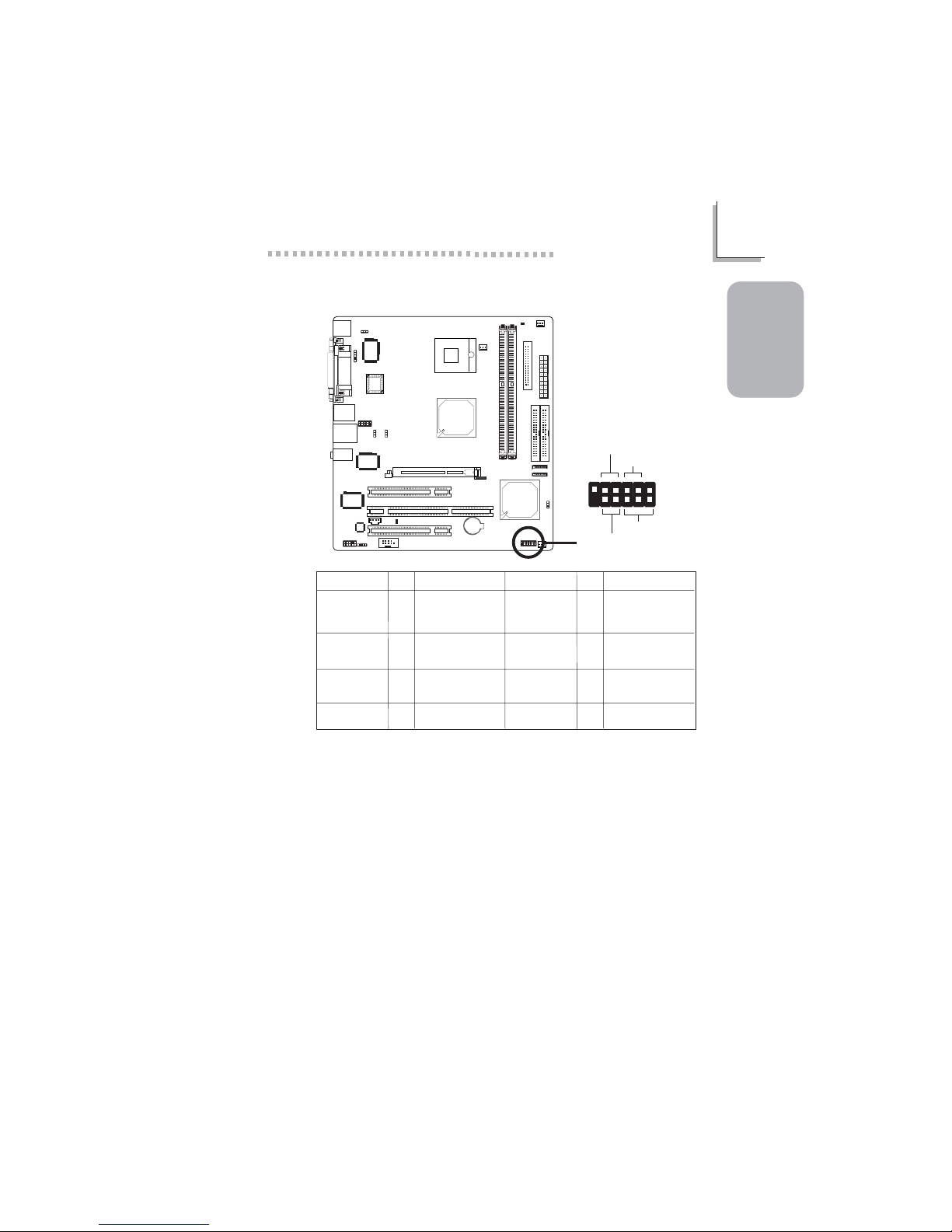

1.4.13 Front Panel Connectors

1 2

11 12

HDD-LED

RESET SW

PWR-LED

PWR-BTN

3 5

7 9

N. C.

HDD-LED

RESET SW

N. C.

Pin Assignment

N. C.

HDD Power Signal

Ground RST Signal

N. C.

2 4 6

PWR-LED

PWR-BTN

Key

Pin Assignment

LED Power LED Power Signal

PWR-BTN Power Signal

Key

Page 16

English

Chapter 2 - English

2.1 Features and Specifications

Processor

• Intel® Pentium® M / Celeron® M processor

- 400MHz system bus

- Supports 64-bit host data bus and 32-bit addressing

• Processor socket: mPGA479M

Chipset

• Intel® 855GME chipset

- Intel® 855GME Graphics Memory Controller Hub (GMCH)

- Intel® 6300ESB I/O Controller Hub

System Memory

• Two 184-pin DDR SDRAM DIMM sockets

• 2.5V unbuffered PC1600 (DDR200), PC2100 (DDR266) or PC2700 (DDR333) DDR SDRAM DIMM with ECC/non-ECC support

• Suppor ts 128Mbit, 256Mbit and 512Mbit technologies providing maximum capacity of 1GB with x16 devices and up to 2GB with high density 512Mbit technology

Note:

ECC is supported on both the integrated graphics and AGP card.

BIOS

• Award BIOS

• 4Mbit flash memory

Energy Efficient Design

• Suppor ts ACPI specification and OS Directed Power Management

• Suppor ts ACPI STR (Suspend to RAM) function

• Wake-On-Events include:

- Wake-On-PS/2 Keyboard/Mouse

- Wake-On-USB Keyboard

- Wake-On-Ring

- Wake-On-LAN

Page 17

English

- RTC timer to power-on the system

• AC power failure recovery

Hardware Monitor

• Monitors CPU/system temperature and overheat alarm

• Monitors 5VSB(V)/VBAT(V)/1.5V/3.3V/5V/12V/CPU(V) voltages and failure alarm

• Monitors CPU/chassis/2nd fan speed and failure alarm

• Read back capability that displays temperature, voltage and fan speed

Onboard Graphics Features

• Up to 64MB of dynamic video memory allocation

• Display core frequency at 133/200/250MHz

• Render core frequency at 100/133/166/200/250MHz

• Intel® Dual-Frequency Graphics Technology

• 2D graphics engine

- Optimized 128-bit BLT engine

- 32-bit Alpha Blended cursor

- 8-bit, 16-bit and 32-bit color

• 3D graphics engine

- Enhanced Hardware Binning Instruction Set

- Bi-Cubic Filtering

- Linear Gamma Blending for Video Mixer Rendering (VMR)

- Video Mixer Rendering (VMR)

- 3D setup and render engine

- DirectX and OpenGL pixelization rules

- 266-MegaTexel/s peak performance

- 16- and 24-bit Z-buffering; 16- and 24-bit W-buffering

- Optimal 3D resolution

- Double and triple render buffer

• Graphics Power Management

- Dynamic Frequency Switching

- Memory Self-Refresh During C3

- Intel® Display Power Saving Technology

Onboard Audio Features

• Realtek ALC655 6-channel audio

• 16-bit stereo full-duplex codec with independent variable sampling rate

• DirectSound 3DTM compatible

• S/PDIF-out interface

Page 18

English

Onboard LAN Features

• RTL8110S Gigabit ethernet controller

• Suppor ts 10Mbps, 100Mbps and 1Gbps data transmission

• IEEE 802.3 (10/100Mbps) and IEEE 802.3ab (1Gbps) compliant

Serial ATA Interface with RAID

• Suppor ts two SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)

• Suppor ts RAID 0 and RAID 1

IDE Interface

• Suppor ts up to UltraDMA 100Mbps hard drives

• PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)

IEEE 1394 Interface

• VIA VT6307

• Suppor ts two 100/200/400 Mb/sec ports

Accelerated Graphics Port (A.G.P.)

• Supports 1.5V AGP 4x data transfers and 2x/4x fast write protocol (3.3V AGP card is not supported)

• AGP 2.0 compliant

Rear Panel I/O Ports

• 1 mini-DIN-6 PS/2 mouse por t

• 1 mini-DIN-6 PS/2 keyboard port

• 1 DB-25 parallel por t

• 1 DB-9 serial por t

• 1 DB-15 VGA port

• 1 IEEE 1394 por t

• 1 RJ45 LAN por t

• 4 USB 2.0/1.1 por ts

• Mic-in, line-in and line-out

I/O Connectors

• 1 connector for an external serial port

• 1 connector for 1 external IEEE 1394 por t

• 1 front audio connector for line-out and mic-in jacks

• 1 CD-in internal audio connector

• 1 S/PDIF-out connector

• 1 connector for IrDA interface

• 2 Serial ATA connectors

Page 19

English

• 2 40-pin IDE connectors

• 1 floppy connector

• 1 ATX power supply connector

• 1 front panel connector

• 3 fan connectors

Expansion Slots

• 1 AGP 4x slot

• 1 PCI-X slot

• 2 PCI slots

Compatibility

• PCI 2.2, Intel AGP 2.0, PCI-X 2.2 and AC ’97 compliant

PCB

• 4 layers, microATX form factor

• 24.4cm (9.61") x 23cm (9.06")

2.2 RAID Configuration

The following describes the steps on configuring RAID.

1. Set the “On-Chip Serial ATA” field to “Enhanced Mode”. (Integrated Peripherals submenu - OnChip IDE Device” section of the Award BIOS.)

2. Set the “SATA Mode” field to “RAID”. (Integrated Peripherals submenu - OnChip IDE Device” section of the Award BIOS.)

3. Reboot the PC.

4. When the system powers-up, press the <Ctrl> and keys simultaneously to run the Intel RAID BIOS Setting Utility. The utility is used to configure the Serial ATA drives to RAID 0 or RAID 1.

5. Install the Intel 6300ESB RAID driver.

If you are in the process of installing Windows® XP or Windows® 2000 on RAID configured Serial ATA drives, you will need the provided Intel RAID floppy diskette. If you are installing the driver on existing Windows® XP or Windows® 2000, install the “6300ESB RAID Drivers” that is in the provided CD.

Page 20

English

Installing the RAID Driver While Installing Windows® XP or Windows® 2000

The steps below will instruct you on installing the 6300ESB RAID driver while in the process of installing Windows® XP or Windows

2000 on a RAID 0 or RAID 1 Volume Serial ATA drives.

1. Start Windows Setup by booting from the installation CD.

2. Press <F6> when prompted at the beginning of Windows setup.

3. Press <S> to select “Specify Additional Device”.

4. At this point you should be prompted to insert a floppy disk containing the 6300ESB RAID driver. Insert the provided floppy diskette.

5. Select “Intel® 6300ESB SATA RAID Controller” from the list then press <Enter>.

6. The next screen should confirm that you have selected the Intel(r) RAID controller. Press <Enter> again to continue.

7. Finish the Windows installation. Leave the floppy disk in the floppy drive until the system reboots itself. Windows setup will need to copy the files from the floppy disk again after the RAID volume is formatted, then Windows setup starts copying files.

Page 21

English

2.3 Package Checklist

The system board package contains the following items:

; The system board ; A user’s manual ; One IDE cable ; One floppy cable ; Two Serial ATA data cables ; One Serial ATA power cable ; One “Main Board Utility” CD ; One Intel RAID driver diskette ; One I/O shield ; One CPU fan and heat sink assembly

If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.

Page 22

Français

Chapter 3 - Français

3.1 Caractéristiques et Spécifications

Processeur

• Les processeurs Intel® Pentium® M / Celeron® M

- Interface du bus système 400MHz

- Supporte 64-bit hôte donnée bus et adressage de 32 bits

• Socket mPGA479M

Chipset

• Intel® 855GME chipset

- Intel® 855GME GMCH

- Intel® 6300ESB I/O Controleur Entrée/Sorrtie

Mémoire Système

• 2 socles DIMM DDR 184-pin

• 2.5V non-tamponnés les modules PC1600 (DDR200), PC2100 (DDR266) et PC2700 (DDR333), ECC/non-ECC

• Suppor te 128Mbit, 256Mbit et 512Mbit technologie pourvoir fournir la capacité maximum 1GB avec dispositifs x16 y jusqu’à 2GB avec 512Mbit technologie

Remarque:

CCE est supporté par la graphique intégrée et par la carte AGP.

BIOS

• Compatible avec Award BIOS

• Mémoire Flash 4Mbit

Design à Haut Rendement Énergétique

• ACPI STR (Suspend to RAM) fonction

• Réveil-Sur-PS/2 Clavier/Souris et Réveil-Sur-USB Clavier

• Eveil Sonnerie et Réveil Par Le Réseau

• Minuterie RTC pour allumer le système

• Récupération après Défaillance d’Alimentation CA

System Health Monitor Fonctions

• Gère l’alarme de température et de surchauffe de CPU/système

• Gère l’alarme de voltage et d’échec de 5VSB(V)/VBAT(V)/1.5V/

3.3V/5V/12V/CPU(V)

Page 23

Français

• Gère la vitesse de ventilateur du ventilateur de CPU/chassis/2nd

• Affichage température, voltage et éventez la vitesse

Fonctions de la Graphique Intégrée

• Jusqu’à 64MB Mémoire Dynamique

• Dynamische videospeicherallozierung à 133/200/250MHz

• Rendez la fréquence de noyau à 100/133/166/200/250MHz

• Intel® Dual-Frequency Graphics technologie

• Fonctions 2D moteur de graphiques

• Fonctions 3D moteur de graphiques

• Fonctions graphiques Power Management

Caractéristiques Audio sur Carte

• Realtek ALC655 6-canaux audio

• Codec full-duplex 16 bits stéréo avec fréquence d’échantillonnage variable indépendante

• DirectSound 3DTM compatible

• Interface sortie S/PDIF

Fonctionnalités Onboard LAN

• RTL8110S Gigabit LAN

• Suppor te 10Mbps, 100Mbps et 1Gbps

• IEEE 802.3 (10/100Mbps) et IEEE 802.3ab (1Gbps) compatible

Interface Serial ATA avec RAID

• Supportant 2 interface SATA (Serial ATA) compatible avec la spécification SATA 1.0 (bande passante à 1.5Gbps)

• Supporte RAID 0 et RAID 1

Contrôleur IDE

• Suppor te des disques durs jusqu’à UltraDMA 100Mbps

• IDE Améliorés Mode 4 PIO (vitesse de transfert de données allant jusqu’à 14Mo/sec.)

Interface IEEE 1394

• VIA VT6307

• Suppor te 2 ports 100/200/400 Mb/séc

AGP (Accelerated Graphics Port)

• Soutien des car tes supplémentaires 1.5V AGP 4x (1066MB par seconde). Les cartes 3.3V AGP ne sont pas soutenues.

• Soutien des spécifications AGP 2.0

Page 24

Français

Le Panneau des Ports Entrée/Sortie en Arrière

• 1 por t souris PS/2

• 1 por t clavier PS/2

• 1 port parallèle DB-25

• 1 por t de DB-9 série

• 1 por t de DB-15 VGA

• 1 por t IEEE 1394

• 1 por t RJ45 LAN

• 4 por ts USB 2.0/1.1

• Mic-in, line-in et line-out prises audio

Connecteurs Entrée/Sortie

• 1 connecteur pour 1 por t série supplémentaires

• 1 connecteur pour 1 IEEE 1394

• 1 connecteur audio de l’avant pour la line-out/l’entrée micro

•1 connecteur CD-in audio internes

•1 connecteur S/PDIF-out

• 1 connecteur IR

•2 connecteurs Serial ATA

• 2 connecteurs IDE

• 1 connecteur de FDD

• 1 connecteur d’alimentation ATX

• 1 connecteur devant panneau

• 3 connecteurs de ventilateurs

Logements d’Extension

• 1 slot AGP 4x

• 1 slot PCI-X

• 2 slots PCI

Compatibilité

• Compatible PCI 2.2, Intel AGP 2.0, PCI-X 2.2 et AC ’97

PCB

• microATX

• 24.4cm (9.61") x 23cm (9.06")

Page 25

Français

3.2 Configuration du RAID

Les instructions suivantes décrivent les étapes essentielles de la configuration du RAID.

1. Activez le champ “On-Chip Serial ATA” en sélectionnant “Enhanced Mode”. (Sous-menu “Integrated Peripherals” dans la section “OnChip IDE Device” du Award BIOS.)

2. Activez le champ “SATA Mode” en sélectionnant “RAID”. (Sousmenu “Integrated Peripherals” dans la section “OnChip IDE Device” du Award BIOS.)

3. Redémarrer PC.

4. Effectuez l’utilitaire Intel RAID BIOS en appuyant sur <Ctrl> et après le démarrage. Cet utilitaire sert à configurer et gérer le RAID sur les disques Serial ATA.

5. Installez les pilotes Intel 6300ESB RAID.

Ci-dessous, vous trouverez les étapes à suivre pour installer le pilote RAID pendant l’installation de Windows® XP ou Windows® 2000 sur un disque Serial ATA configuré pour supporter le RAID.

Installer le pilote RAID

1. Démarrez le système à sor tir du CD d’installation pour effectuer Windows Setup.

2. Appuyez sur <F6> quand vous y serez invité au début de Windows Setup.

3. Appuyez sur <S> pour sélectionner “Specify Additional Device”.

4. Vous serez invité à insérer une disquette contenant le pilote RAID. Insérez la disquette 6300ESB RAID.

5. Sélectionnez “Intel® 6300ESB SATA RAID Controller”.

6. Appuyez sur <Enter>.

7. uivez les instructions sur l’écran pour achever l’installation.

Page 26

Français

3.3 Liste de Vérification de l’Emballage

L’emballage de la carte système contient les éléments suivants:

; 1 carte système ; 1 manuel utilisateur ; 1 câble IDE ; 1 câble FDD ; 2 câble SATA ; 1 câble d’alimentation SATA ; 1 CD “Mainboard Utility” ; 1 disquette Intel RAID ; 1 plaque I/O ; 1 ensemble de ventilateur et de radiateur

Si l’un de ces éléments n’était pas dans l’emballage ou s’il était endommagé, veuillez contacter votre revendeur ou votre représentant.

Page 27

Deutsch

Chapter 4 - Deutsch

4.1 Leistungsmerkmale und Technische Daten

Prozessor

• Intel® Pentium® M / Celeron® M Prozessor

- Interface des Systemreifens 400MHz

- Supports 64-bit Wir t Datenüber tragungsweg und 32-bit

Wenden

• Prozessor socket: mPGA479M

Chipset

• Intel® 855GME chipset

- Intel® 855GME GMCH

- Intel® 6300ESB I/O Steuerungsplattenmitte

Systemspeicher

• 2 Sockel 184-pin DDR DIMM

• 2.5V ungepuffert PC1600 (DDR200), PC2100 (DDR266) und PC2700 (DDR333), ECC/non-ECC

• Unterstützung 128Mbit, 256Mbit and 512Mbit Technologie stellen Sie die maximale Kapazität zur Verfügung 1GB mit Vorrichtungen x16 und bis zu 2GB mit hohe Dichte 512Mbit Technologie

Beachten Sie:

ECC wird durch die integrierte Graphik und die AGP-Karte unterstützt.

BIOS

• Kompatibilität mit Award BIOS

• Flash-Speicher (4Mbit)

Energomisches Design

• ACPI STR (Suspend to RAM) funktion

• Wecken bei Betätigung der PS/2 Tastatur/Maus

• Wecken bei USB-Tastatur

• Wecken bei Klingeln

• Wecken des Systems durch das Netzwerk

• RTC-Taktgeber zum Einschalten des Systems

• Wiederherstellung der Wechselstromversorgung nach einem Ausfall

Page 28

Français

Deutsch

System Health Monitor Funktions

• Überwachung der Temperatur des CPU/Systems sowie Warnsignal bei Überhitzung

• Überwachung der Spannungen des 5VSB(V)/VBAT(V)/1.5V/3.3V/ 5V/12V/CPU(V)

• Überwachung der Geschwindigkeit des CPU/Chassis/2nd Ventilators

• Anzeige Temperatur, Spannung und lockern Sie Geschwindigkeit auf

Bordgraphikmerkmäle

• Bis zu 64MB dynamische videospeicherallozierung

• Anzeige Kernfrequenz an 133/200/250MHz

• Übertragen Sie Kernfrequenz an 100/133/166/200/250MHz

• Intel® Dual-Frequency Graphics Technologie

• 2D Graphikmaschine Funktion

• 3D Graphikmaschine Funktion

• Graphiken Power Management

Audiomerkmale auf Platine

• Realtek ALC655 6-Kanal-Audioausgang

• 16-bit Stereo mit unabhängiger und variabler Abtastfrequenz

• Kompatibilität DirectSound 3D

• S/PDIF-Aus-Schnittstelle

Merkmale des LAN auf Platine

• RTL8110S Gigabit LAN

• Unterstützung 10Mbps, 100Mbps und 1Gbps

• IEEE 802.3 (10/100Mbps) und IEEE 802.3ab (1Gbps) Kompatibilität

Serial ATA Schnittstelle mit RAID

• Unterstützt 2 SATA (Serielle ATA)-Schnittstelle, die mit SATA 1.0 Spezifikation (1.5Gigabits Schnittstelle) konform ist.

• Unterstützt RAID 0 und RAID 1

IDE-Controller

• Unterstützung der Festplatten bis zum UltraDMA 100Mbps

• Erweitertes IDE des PIO-Modus 4 (Datenübertragungsgeschwindigkeit von bis zu 14MB/Sek.)

Page 29

Deutsch

IEEE 1394 Schnittstelle

• VIA VT6307

• Uunterstützt 2 Ports 100/200/400 Mbps

AGP (Accelerated Graphics Port)

• Unterstützt 1.5V AGP 4x (1066MB/sek.) Erweiterungskarten.

3.3V AGP Karten werden nicht unterstützt.

• Unterstützt AGP 2.0 Spezifikationen

Ein-/Ausgabe-Porte an der Rückwand

• 1 Mini-DIN-6-Anschluß für eine PS/2-Maus

• 1 Mini-DIN-6-Anschluß für eine PS/2-Tastatur

• 1 DB-25-Parallelanschluß

• 1 serieller DB-9-Anschlüsse

• 1 VGA DB-15-Anschlüsse

• 1 IEEE 1394-Anschlüsse

• 1 RJ45 LAN-Anschlüsse

• 4 USB 2.0/1.1-Anschlüsse

• Mic-in, line-in und line-out Audio-Anschlußbuchsen

Ein-/Ausgabe-Steckverbinder

•1 Anschlußfassung für 1 zusätzliche externe serieller Anschlüsse

• 1 Anschluß für eine externe IEEE 1394 Schnittstelle

• 1 Frontaudioanschluß für die externe line-out und mic-in

• 1 interne Audioanschlüsse (CD-in)

• 1 S/PDIF-out Anschluß

• 1 IR-Anschluß

• 2 Serial-ATA-Anschlüsse

• 2 IDE-Anschlüsse

• 1 Floppy-Anschlüsse

• 1 Anschlußstecker für das ATX-Netzgerät

• 1 Frontabdeckung Stecker

• 3-ventilator-Anschlüsse

Erweiterungssteckfasssungen

• 1 AGP 4x-Einbauplätzen

• 1 PCI-X-Einbauplätzen

• 2 PCI-Einbauplätzen

Kompatibilität

• Kompatibilität mit PCI 2.2, Intel AGP 2.0, PCI-X 2.2 und AC ’97

Page 30

Français

Deutsch

Die Druckplatte

• microATX

• 24.4cm (9.61") x 23cm (9.06")

4.2 RAID-Konfiguration

Das folgende beschreibt die Schritte auf zusammenbauenüberfall.

1. Stellen Sie das Feld “On-Chip Serial ATA” auf “Enhanced Mode”. (Submenu Integrated Peripherals - “OnChip IDE Device” Teil Award BIOS.)

2. Stellen Sie das Feld “SATA Mode” auf “RAID”. (Submenu Integrated Peripherals - “OnChip IDE Device” Teil Award BIOS.)

3. Laden Sie den PC neu.

4. Drücken Sie nach dem Starten Ihres Computers die Taste <Ctrl> und , um Intel RAID BIOS Utility aufzurufen, die zur Einstellung und Verwaltung von RAID-Disks der Serial ATAInterfaces notwendig ist.

5. Stellen Sie die Drivers Intel 6300ESB RAID.

Die Einstellung des RAID Driver während der Installation von Windows® XP oder Windows® 2000.

Die Einstellung des RAID Driver

1. Star ten Sie die Windows-Einstellung vom Einstell-CD.

2. Drücken Sie die Taste <F6>, um die Windows-Installation zu beginnen.

3. Drücken Sie <S> , um “Specify Additional Device” zu wählen.

4. Sie bekommen den Hinweis, die Diskette mit dem RAID Driver einzulegen. Legen Sie die Diskette 6300ESB RAID ein.

5. Wählen Sie “Intel® 6300ESB SATA RAID Controller”.

6. Drücken Sie <Enter>.

7. Folgen Sie den weiteren Hinweisen.

Page 31

Deutsch

4.3 Verpackungsliste

In der Verpackung der Systemplatine sind folgende Artikel enthalten:

; 1 Systemplatine ; 1 Benutzerhandbuch ; 1 IDE-Kabel ; 1 FDD-Kabel ; 2 SATA-Kabel ; 1 SATA-Energiekabel-Kabel ; 1 CD mit “Mainboard Utility” ; 1 Diskette Intel RAID driver ; 1 I/O-Shutzdeckel ; 1 Ventilator und Kühlblech

Fehlt einer dieser Artikel oder weist einer dieser Artikel Beschädigungen auf, wenden Sie sich an Ihren Händler oder Vertreter.

Page 32

Español

Chapter 5 - Español

5.1 Características y Especificaciones

Procesador

• Procesador Intel® Pentium® M / Celeron® M

- Interface de la barra sistémica 400MHz

- Soporta ómnibus de datos 64-bit de anfitrión y dirección

32-bit

• Zócalo: mPGA479M

Chipset

• Intel® 855GME chipset

- Intel® 855GME GMCH

- Intel® 6300ESB Hub de Controlador I/O

Memoria de Sistema

• 2 184-pin DDR DIMM asientos

• 2.5V unbuffered PC1600 (DDR200), PC2100 (DDR266) o PC2700 (DDR333) DIMMs, ECC/non-ECC

• Sopor ta 128Mbit, 256Mbit y 512Mbit tecnología proporcione la capacidad máxima 1GB con dispositivos x16 y hasta 2GB con tecnología de alta densidad 512Mbit

Nota:

ECC se apoya en ambos los gráficos integrados y tarjeta de AGP.

BIOS

• Award BIOS, Memoria Instante (4Mbitios)

Diseño Energia Eficiente

• ACPI STR (Suspend to RAM) función

• PS/2 Teclado/Ratón und USB Teclado de Wake-On

• Wake-On-Ring y Wake-On-LAN

• Temporizador de RTC para encender el sistema

• Recuperación de Fracaso de Energía AC

Funciones de Monitor de Salud del Sistema

• Monitores de los CPU/sistema temperaturas y alarma acalorada.

• Monitores de voltajes de 5VSB(V)/VBAT(V)/1.5V/3.3V/5V/12V/ CPU(V)

Page 33

Español

• Vigila la velocidad del abanico del abanido del CPU/chassis/2nd

• Demostración temperaturas, voltajes y aviente la velocidad

Características de Gráficos Interno

• Hasta 64MB of asignación de memoria video dinámica

• Frecuencia de la base de la exhibición en 133/200/250MHz

• Rinda la frecuencia de la base en 100/133/166/200/250MHz

• Intel® Dual-Frequency Graphics tecnología

• 2D motor de los gráficos

• 3D motor de los gráficos

• Gráficos Power Management

Características de Audio En Tablero

• Realtek ALC655 6-canal audio

• 16-bit dúplex completo estéreo de con independiente frecuencia de muestreo variable

• DirectSound 3DTM compatible

• Interfáz de S/PDIF-out

Características de LAN Interno

• RTL8110S Gigabit LAN

• Soporta 10Mbps, 100Mbps y 1Gbps

• IEEE 802.3 (10/100Mbps) y IEEE 802.3ab (1Gbps) compatibilidad

Interfaz Serial ATA con RAID

• Permite 2 interfaz SATA (Serie ATA) la cual es compatible con la especificación SATA 1.0 (interfaz 1.5Gbps)

• Soporta RAID 0 y RAID 1

Controlador de IDE

• Soporta las unidades duras hasta de UltraDMA 100Mbps

• PIO Modo 4 Realzada IDE (tasa de transferencia de dato hasta 14MB/seg.)

Interfaz IEEE 1394

• VIA VT6307

• Soporta 2 ports 100/200/400 Má/sec

AGP (Accelerated Graphics Port)

• Soporta placas 1.5V AGP 4x (1066Mb/seg.). Tarjetas AGP 3.3V no se soportan.

• Sopor ta especificaciones AGP 2.0

Page 34

Español

Panel de reverso de conectores de entrada - Salida

• 1 puerto de ratón PS/2 mini-DIN-6

• 1 puer to de teclado mini-DIN-6 PS/2

• 1 puer to paralelo de DB-25

• 1 puerto de serie DB-9

• 1 puer to de VGA DB-15

• 1 puer to de IEEE 1394

• 1 puer to de RJ45 LAN

• 4 puer tos de USB 2.0/1.1

• Mic-in, line-in y line-out enchufes de audio

I/O Conectores

• 1 conector para 1 puerto de serie externo adicional

• 1 conector para un puerto de IEEE 1394

• 1 conectador audio delantero para la salida extrema de line-out y el micro

• 1 conector de CD-in audio interno

• 1 conector S/PDIF-out

• 1 conector de IR

• 2 conectores de Serial ATA

• 2 conectores de IDE

• 1 conector de FDD

• 1 conector de fuente de alimentación de ATX

• 1 conector de conectador del panel delantero

• 3 conectores de abanicos

Ranuras de Expansión

• 1 slot AGP 4x

• 1 slot PCI-X

• 2 slots PCI

Compatibilidad

• Sumisión de PCI 2.2, Intel AGP 2.0, PCI-X 2.2 y AC ’97

La Placa Imprenta

• microATX

• 24.4cm (9.61") x 23cm (9.06")

Page 35

Español

5.2 Configuración RAID

A continuación le mostramos los pasos básicos que ha de seguir para llevar a cabo la configuración RAID.

1. Establezca el valor de la opción “On-Chip Serial ATA” como “Enhanced Mode”. (submenú Integrated Peripherals – sección “OnChip IDE Device” de la BIOS Award.)

2. Establezca el valor de la opción “SATA Mode” como “RAID”. (submenú Integrated Peripherals – sección “OnChip IDE Device” de la BIOS Award.)

3. Reanude la PC.

4. Ejecute la utilidad BIOS RAID de Intel pulsando la tecla <Ctrl> y durante el arranque del sistema. Esta utilidad se emplea para configurar y gestionar la función RAID tanto en las unidades Serial ATA.

5. Instale los controladores Intel 6300ESB RAID.

Los siguientes pasos le indican cómo instalar el controlador RAID durante el proceso de instalación de Windows® XP o Windows

2000 en unidades Serial ATA configuradas como RAID.

Instalación del Controlador RAID

1. Inicie la instalación de Windows arrancando desde el CD de instalación.

2. Pulse <F6> durante el arranque de la instalación.

3. Pulse <S> para seleccionar otros dispositivos adicionales.

4. En este punto, se le solicitará que introduzca un disco flexible conteniendo el controlador RAID. Inserte el disco etiquetado como 6300ESB RAID.

5. Pulse “Intel® 6300ESB SATA RAID Controller” et pulse <Enter>.

6. Pulse <Enter>.

7. Siga las instrucciones que se muestran en pantalla para

Page 36

Español

completar la instalación.

5.3 Lista de Chequeo del Paquete

El paquete del tablero de sistema contiene los siguientes artículos:

; 1 tablero de sistema ; 1 manual de usuario ; 1 cable de IDE ; 1 cable de FDD ; 2 cable SATA ; 1 cable de alimentacion SATA ; 1 CD de “Mainboard Utility” ; 1 disquette flojo Intel 6300ESB RAID ; 1 tapa protectora I/O ; 1 montaje del ventilador y del disipador de calor

Si cualquieres de estos artículos están perdidos o dañados, favor de ponerse en contacto con su tratante o representantes de venta para la asistencia.

Page 37

Русский

Глава Глава

Глава

6 6

- -

Русский языкРусский язык

Русский язык

6.1 Характеристики и свойства6.1 Характеристики и свойства

6.1 Характеристики и свойства

ПроцессорПроцессор

Процессор

• Процессор Intel® Pentium® M / Celeron® M

- Интерфейс системной шины 400MHz

- Поддерживает 64-bit “host data bus” и “32-bit

addressing”

• Socket: mPGA479M

ЧипсетЧипсет

Чипсет

• Intel® 855GME chipset

- Intel® 855GME GMCH

- Intel® 6300ESB I/O Controller Hub

Оперативная ПамятьОперативная Память

Оперативная Память

• 2 184-pin DDR DIMM гнезда

• 2.5V, PC1600 (DDR200), PC2100 (DDR266) è PC2700 (DDR333), ECC/non-ECC

• Поддерживает 128Mbit, 256Mbit и 512Mbit до 1GB x16 “devices” и до 2GB 512Mbit

Замечание:Замечание:

Замечание:

ECC поддерживается встроенной графикой и AGP картой.

BIOSBIOS

BIOS

• Award BIOS, 4Mbit Flash Память

Энергомичный ДизайнЭнергомичный Дизайн

Энергомичный Дизайн

• ACPI STR (Suspend to RAM)

• Активизация На Движение Мыши

• Активизация На Нажатие Кнопки USB Клавиатуры

• Активизация На Входящий Звонок

• Активизация На Сетевое Событие

• RTC Таймер для Включения Системы

• Скачки Напряжения

Функции Мониторинга Состояния СистемыФункции Мониторинга Состояния Системы

Функции Мониторинга Состояния Системы

• Mониторинг температуры процессора/системы

Page 38

Русский

• Mониторинг напряжений 5VSB(V)/VBAT(V)/1.5V/3.3V/ 5V/12V/CPU(V)

• Mониторинг скорости вращения вентилятора CPU/ chassis/2nd

ГрафикаГрафика

Графика

• До 64МБ динамической видео памяти

• Частота ядра 133/200/250MГц

• Частота рендеринга 100/133/166/200/250Гц

• Intel® Dual-Frequency Graphics Technology

• 2D движок, 3D движок

• Технология Graphics Power Management

Встроенный ЗвукВстроенный Звук

Встроенный Звук

• Realtek ALC655 6-channel канальный звуковой выход

• Полнодуплексный 16-bit кодек с независимым изменением частоты сжатия

• DirectSound 3DTM compatible

• интерфейса S/PDIF-out

Встроенные сетевые функцииВстроенные сетевые функции

Встроенные сетевые функции

• RTL8110S Gigabit LAN

• Полнодуплексная поддержка на 10 Mbps, 100 Mbps и 1Gbps

• Поддерживает IEEE 802.3 (10/100Mbps) и IEEE

802.3ab (1Gbps)

Интерфейс Serial AИнтерфейс Serial A

Интерфейс Serial A

A A

è RAIDè RAID

è RAID

• Поддерживает 2 порта SATA (Serial ATA), совместимый со спецификацией SATA 1.0

• RAID 0 è RAID 1

Интерфейс IDEИнтерфейс IDE

Интерфейс IDE

• Поддерживает жесткие диски до UltraDMA 100Mbps

• PIO Mode 4 Расширенный IDE (скорость передачи данных до 14МБ/сек.)

Интерфейс IEEE 1394Интерфейс IEEE 1394

Интерфейс IEEE 1394

• VIA VT6307

• Поддерживает 2 порта 100/200/400 Mб/сек

AGP (Accelerated Graphics Port)AGP (Accelerated Graphics Port)

AGP (Accelerated Graphics Port)

• Поддерживает карты 1.5V AGP 4x (1066Mб/сек.). AGP карты 3.3V не поддерживаются.

Page 39

Русский

• Поддерживает спецификации AGP 2.0

Порты Ввода/Вывода (I/O) задней панелиПорты Ввода/Вывода (I/O) задней панели

Порты Ввода/Вывода (I/O) задней панели

• 1 ìèíè-DIN-6 PS/2 ïîðò äëÿ ìûøè

• 1 мини-DIN-6 PS/2 порт для клавиатуры

• 1 DB-25 параллельный порт

• 1 внешнего DB-9 порта и 1 VGA DB-15 порта

• 1 IEEE 1394 ïîðò è 1 RJ45 LAN ïîðò

• 4 USB 2.0/1.1 порта

• Mic-in, line-in и line-out гнезда для звука

Разъемы Ввода/ВыводаРазъемы Ввода/Вывода

Разъемы Ввода/Вывода

• 1 разъем для 1-х дополнительных внешних serial портов

• 1 разъем для внешнего IEEE 1394 порта

• 1 передний аудио разъем для внешнего линейного выхода и микрофона

• 1 внутренних звуковых разъема (CD-in)

• 1 S/PDIF-out разъем

• 1 разъем для интерфейса IR

• 2 Serial ATA разъема

• 2 IDE разъема и 1 разъем FDD

• 1 разъема питания ATX

• 1 Фронт панель разъем

• 3 Разъемы для вентилятора

СлотыСлоты

Слоты

• 1 AGP 4x слотов, 1 PCI-X слотов è 2 PCI слотов

СовместимостьСовместимость

Совместимость

• PCI 2.2, Intel AGP 2.0, PCI-X 2.2 è AC ’97

Печатная платаПечатная плата

Печатная плата

• microATX , 24.4cm (9.61") x 23cm (9.06")

6.2 Конфигурация RAID6.2 Конфигурация RAID

6.2 Конфигурация RAID

Описание настройки RAID.

1. Установите поле “On-Chip Serial ATA” на “Enhanced Mode”. (подменю Integrated Peripherals - “OnChip IDE Device” раздел Award BIOS.)

Page 40

Русский

2. Установите поле “SATA Mode” на “RAID”. (подменю Integrated Peripherals - “OnChip IDE Device” раздел Award BIOS.)

3. Перезагрузите компьютер.

4. Запустите утилиту Intel RAID BIOS, нажав кнопку <Ctrl> и после включения компьютера. Утилита нужна для настройки и управления дисками RAID интерфейсов Serial ATA.

5. Установите драйверы Intel 6300ESB RAID.

Далее вы узнаете, как установить RAID драйвер во время инсталляции Windows® XP или Windows® 2000.

Установка драйвера RAIDУстановка драйвера RAID

Установка драйвера RAID

1. Запустите установку Windows с установочного CD.

2. Нажмите <F6> для начала установки Windows.

3. Нажмите <S> для выбора “Specify Additional Device”.

4. Вам предложат вставить дискету с RAID драйвером. Вставьте дискету Intel 6300ESB RAID.

5. Выберите “Intel 6300ESB SATA RAID Controller”.

6. Нажмите <Enter>.

8. Следуйте дальнейшим инструкциям.

6.3 Комплектация6.3 Комплектация

6.3 Комплектация

Комплектация поставки материнской платы:

; 1 Системная плата

; 1 Руководство пользователя ; 1 IDE шлейф ; 1 FDD шлейф ; 2 шлейф Serial ATA ; 1 шлейф шнуром питания Serial ATA ; 1 CD ñ “Mainboard Utility” ; 1 дискета Intel RAID

; 1 защитная крышка I/O ; 1 вентилятора

Если в комплекте из этого чего-то не хватает или что-то испорчено, пожалуйста, свяжитесь со своим дилером

или продавцом.
