DFI 648FX-ALE, 648FX-AL User Manual

648FX-AL

648FX-ALE

Rev. A+
System Board
User’s Manual

73300323

Copyright

This publication contains information that is protected by copy­right. No par t of it may be reproduced in any form or by any
means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose. The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.

© 2003. All Rights Reserved.

Trademarks

Windows® 98, Windows® 98 SE, Windows® ME, Windows® 2000,
Windows NT® 4.0 and Windows® XP are registered trademarks
of Microsoft Corporation. Intel® and Pentium® 4 are registered
trademarks of Intel Corporation. Award is a registered trademark
of Award Software, Inc. Other trademarks and registered trade­marks of products appearing in this manual are the properties of
their respective holders.

Caution

To avoid damage to the system:

• Use the correct AC input voltage range

..

..

.

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.

Battery:

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend

by

the manufacturer.

• Dispose of used batteries according to the battery
manufacturer’s

instructions.

Joystick or MIDI port:

• Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for
help.

Notice:

1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.

2. Shielded interface cables must be used in order to comply with
the emission limits.

Notice

This user’s manual contains detailed information about the system
board. If, in some cases, some information doesn’t match those
shown in the multilingual manual, the multilingual manual should
always be regarded as the most updated version. The multilingual
manual is included in the system board package.

To view the user’s manual, insert the CD into a CD-ROM drive. The
autorun screen (Mainboard Utility CD) will appear. Click the
“TOOLS” icon then click “Manual” on the main menu.

System Board

This user’s manual is for the 648FX-AL and 648FX-ALE system
boards. The only difference between these boards is the 648FX­AL system board supports onboard IEEE 1394A.

Table of Contents

Chapter 1 - Introduction

1.1 Features and Specifications..............................................................................

1.2 Hyper-Threading Technology Functionality Require-

ments.........................................................................................................................................

1.3 Package Checklist.....................................................................................................

Chapter 2 - Hardware Installation

2.1 System Board Layout .........................................................................................

2.2 System Memory..........................................................................................................

2.3 CPU...........................................................................................................................................

2.4 Jumper Settings............................................................................................................

2.5 Rear Panel I/O Ports.............................................................................................

2.6 I/O Connectors...........................................................................................................

Chapter 3 - BIOS Setup

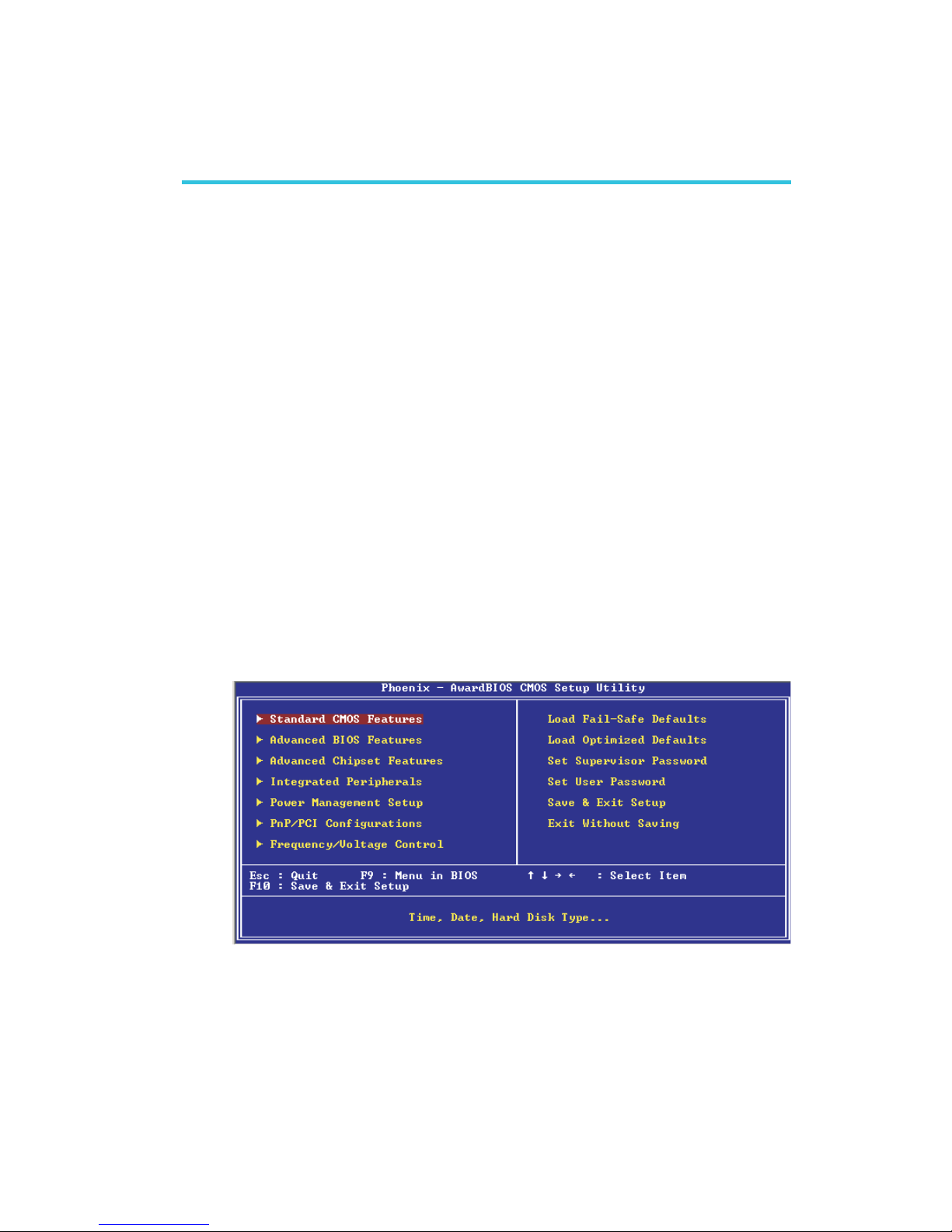

3.1 Award BIOS Setup Utility..................................................................................

3.2 Updating the BIOS.....................................................................................................

Chapter 4 - Supported Softwares

4.1 Desktop Management Interface..................................................................

4.2 Drivers, Utilities and Software Applications.................................

4.3 3D Audio Configuration......................................................................................

4.4 Installation Notes.........................................................................................................

7

14
14

15
17
19
24
26
37

51
93

95

98
108
111

Introduction

1

6

Appendix A - Enabling the Hyper-Threading

Technology

A.1 Enabling the Hyper-Threading Technology...................................

Appendix B - Using the Suspend to RAM

Function

B.1 Using the Suspend to RAM Function...............................................

Appendix C - System Error Messages

C.1 POST Beep..................................................................................................................

C.2 Error Messages..........................................................................................................

Appendix D - Troubleshooting

D.1 Troubleshooting Checklist..............................................................................

112

115

119
119

121

1

Introduction

7

1.1 Features and Specifications

1.1.1 Features

Chipset

• 648FX-AL

- North bridge: SiS® 648FX

- South bridge: SiS® 963

• 648FX-ALE

- North bridge: SiS® 648FX

- South bridge: SiS® 963L

Processor

The system board is equipped with Socket 478 for installing one
of the following supported processors.

• Intel® Pentium® 4 Processor with Hyper-Threading Technology

- 800MHz/533MHz system data bus

• Intel® Pentium® 4 Northwood processor

- 533MHz/400MHz system data bus

• Intel® Celeron® Northwood processor

- 400MHz system data bus

Note:

Refer to section 1.2 and appendix A for more information on
the Hyper-Threading Technology.

System Memory

• Three 184-pin DDR DIMM sockets

• Supports 6 banks up to 3GB using PC1600 (DDR200),
PC2100 (DDR266), PC2700 (DDR333) or PC3200 (DDR400)
unbuffered DDR SDRAM DIMM, 2.6V type

• 16Mb, 64Mb, 128Mb, 256Mb and 512Mb SDRAM technology
with page size from 2KB up to 16KB

Chapter 1 - Introduction

Introduction

1

8

Expansion Slots

The system board is equipped with 1 AGP slot and 5 PCI slots.

AGP (Accelerated Graphics Port)

AGP is an interface designed to support high performance 3D
graphics cards. It utilizes a dedicated pipeline to access system
memory for texturing, z-buffering and alpha blending. The univer­sal AGP slot supports AGP 8x with up to 2132MB/sec. bandwidth
and AGP 4x with up to 1066MB/sec. bandwidth for 3D graphics
applications. AGP in this system board will deliver faster and bet­ter graphics to your PC.

Onboard Audio Features

• AC'97 2.2 extension compliant codec

• Supports Microsoft® DirectSound/DirectSound 3D

• AC’97 suppor ted with full duplex, independent sample rate
converter for audio recording and playback

• S/PDIF-in/out interface

• 6-channel audio output

S/PDIF

S/PDIF is a standard audio file transfer format that transfers digital
audio signals to a device without having to be converted first to
an analog format. This prevents the quality of the audio signal
from degrading whenever it is converted to analog. S/PDIF is usu­ally found on digital audio equipment such as a DAT machine or
audio processing device. The S/PDIF connector on the system
board sends surround sound and 3D audio signal outputs to am­plifiers and speakers and to digital recording devices like CD re­corders.

6-channel Audio

The 6-channel audio output function is supported by using the
surround connector, the audio jacks at the rear panel and
configuring the audio driver. Please refer to chapters 2 and 4

1

Introduction

9

Onboard LAN Features

• Uses Phy fast ethernet controller

• Integrated IEEE 802.3, 10BASE-T and 100BASE-TX compatible
PHY

• 32-bit PCI master interface

• Integrated power management functions

• Full duplex support at both 10 and 100 Mbps

• Supports IEEE 802.3u auto-negotiation

• Supports wire for management

IEEE 1394A Interface (648FX-AL only)

IEEE 1394A is fully compliant with the 1394A OHCI (Open Host
Controller Interface) 1.1 specification. It supports up to 63 de­vices that can run simultaneously on a system. 1394A is a fast
external bus standard that supports data transfer rates of up to
400Mbps. In addition to its high speed, it also supports iso­chronous data transfer which is ideal for video devices that need
to transfer high levels of data in real-time. 1394A suppor ts both
Plug-and-Play and hot plugging.

• Uses Agere FW803 chip

• Supports three 100/200/400 Mb/sec ports

PCI Bus Master IDE Controller

• Two PCI IDE interfaces support up to four IDE devices

• Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives

• UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate
up to 133MB/sec.)

• Bus mastering reduces CPU utilization during disk transfer

• Supports ATAPI CD-ROM, LS-120 and ZIP

IrDA Interface

The system board is equipped with an IrDA connector for wire­less connectivity between your computer and peripheral devices.
The IRDA (Infrared Data Association) specification supports data
transfers of 115K baud at a distance of 1 meter.

Introduction

1

10

USB Ports

The system board supports USB 2.0 and USB 1.1 ports. USB 1.1
supports 12Mb/second bandwidth while USB 2.0 supports
480Mb/second bandwidth providing a marked improvement in
device transfer speeds between your computer and a wide range
of simultaneously accessible external Plug and Play peripherals.

BIOS

• Award BIOS, Windows® 98/2000/ME/XP Plug and Play
compatible

• Supports SCSI sequential boot-up

• Flash EPROM for easy BIOS upgrades

• Supports DMI 2.0 function

• 2Mbit flash memory

Desktop Management Interface (DMI)

The system board comes with a DMI 2.0 built into the BIOS. The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in
the DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventory, maintenance and troubleshooting of
computer systems easier.

Rear Panel I/O Ports (PC 99 color-coded connectors)

• 2 USB 2.0/1.1 ports

• 1 RJ45 LAN port

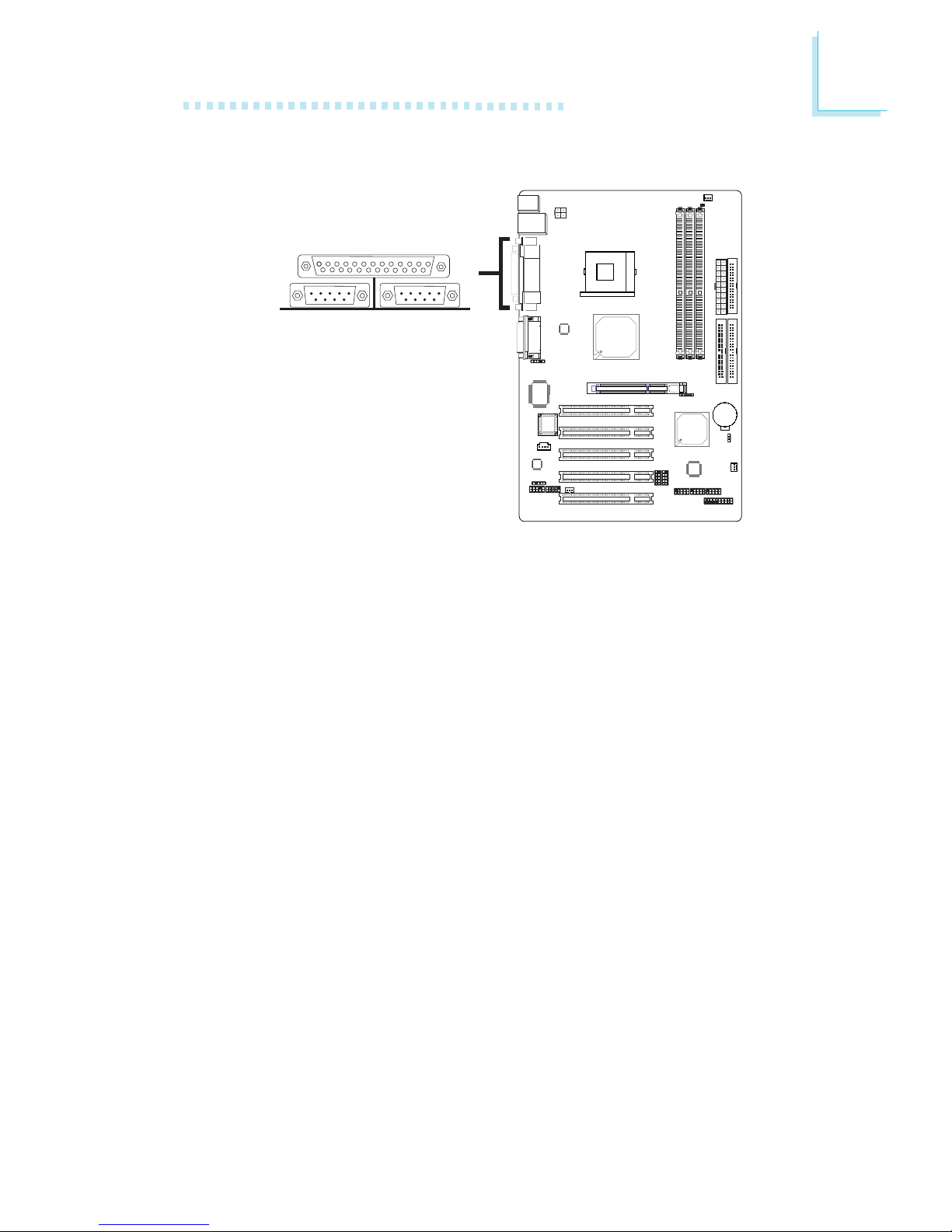

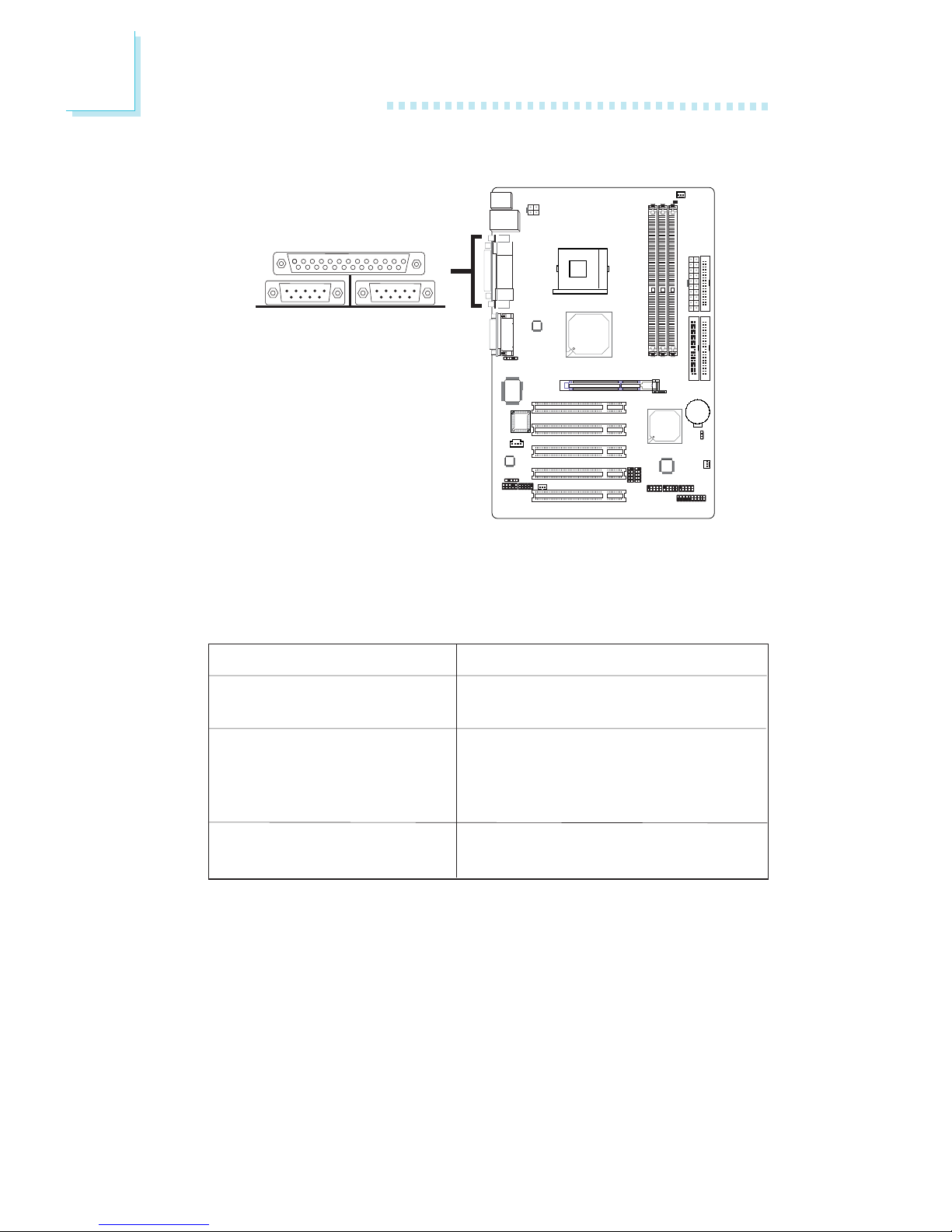

• 2 DB-9 serial ports

• 1 DB-25 parallel port

• 1 mini-DIN-6 PS/2 mouse port

• 1 mini-DIN-6 PS/2 keyboard port

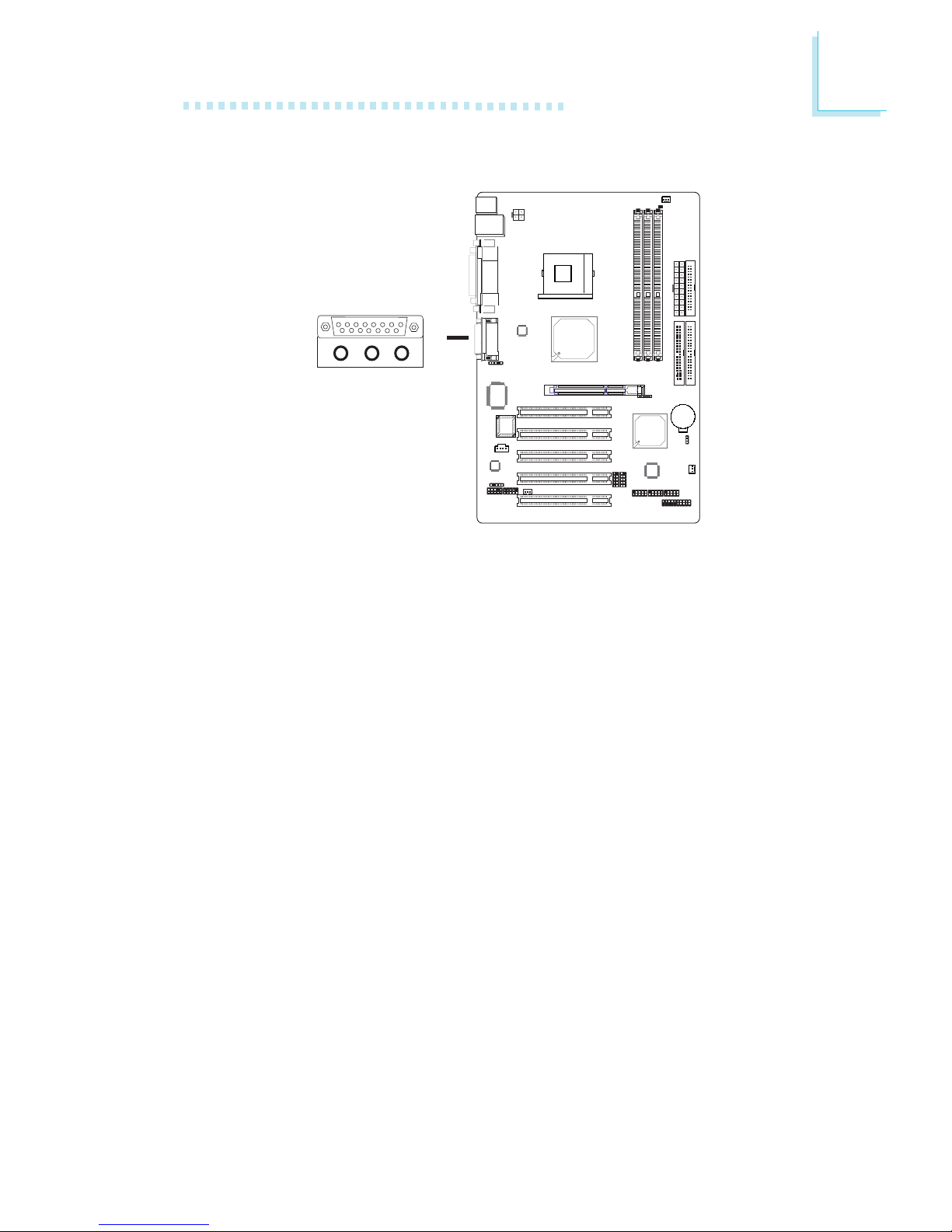

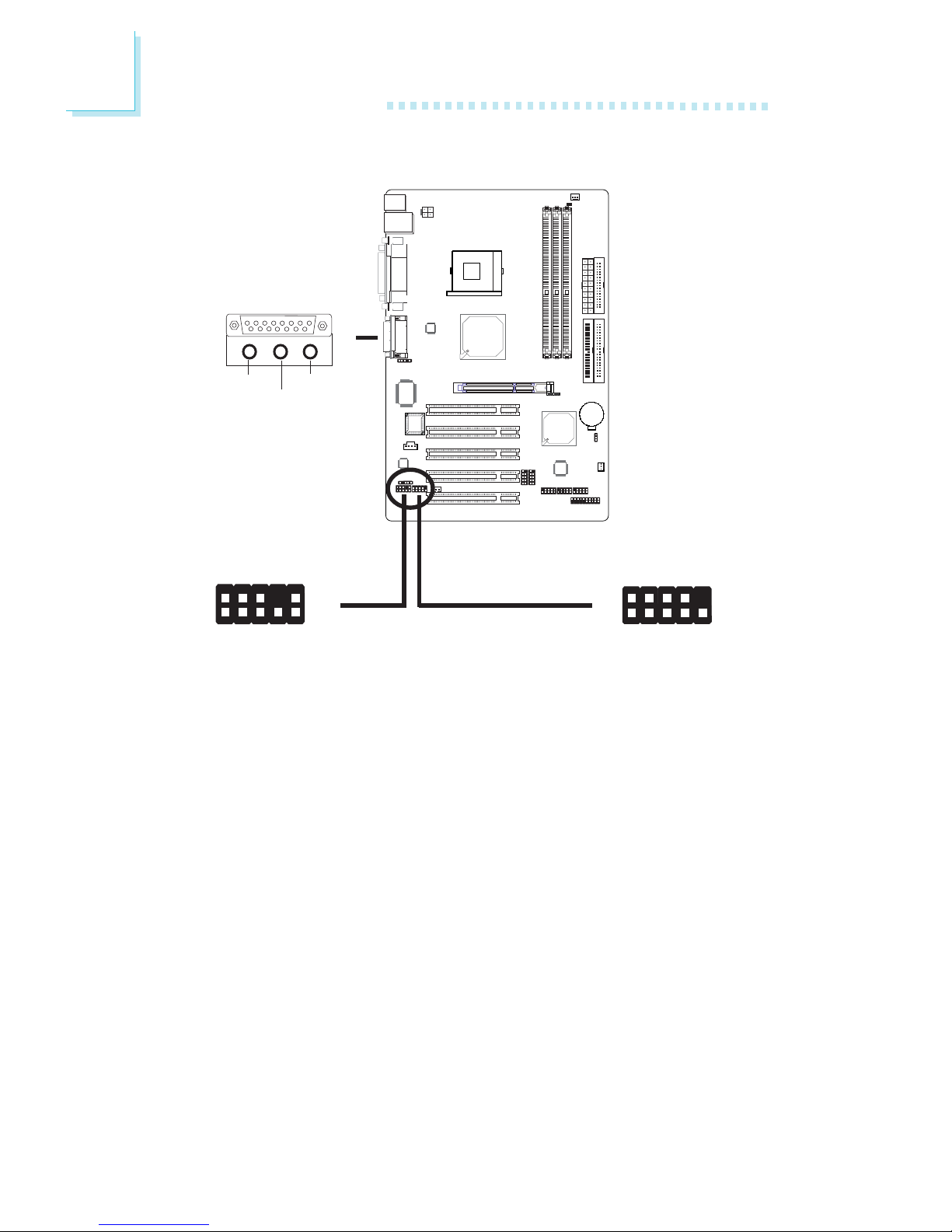

• 1 game/MIDI port

• 3 audio jacks: line-out, line-in and mic-in

1

Introduction

11

I/O Connectors

• 2 connectors for 4 additional external USB 2.0/1.1 por ts

• 3 connectors for 3 external IEEE 1394A por ts (648FX-AL

only)

• 1 front audio connector for external line-out and mic-in jacks

• 1 CD-in internal audio connector

• 1 S/PDIF-in/out connector

• 1 surround connector

• 1 connector for IrDA interface

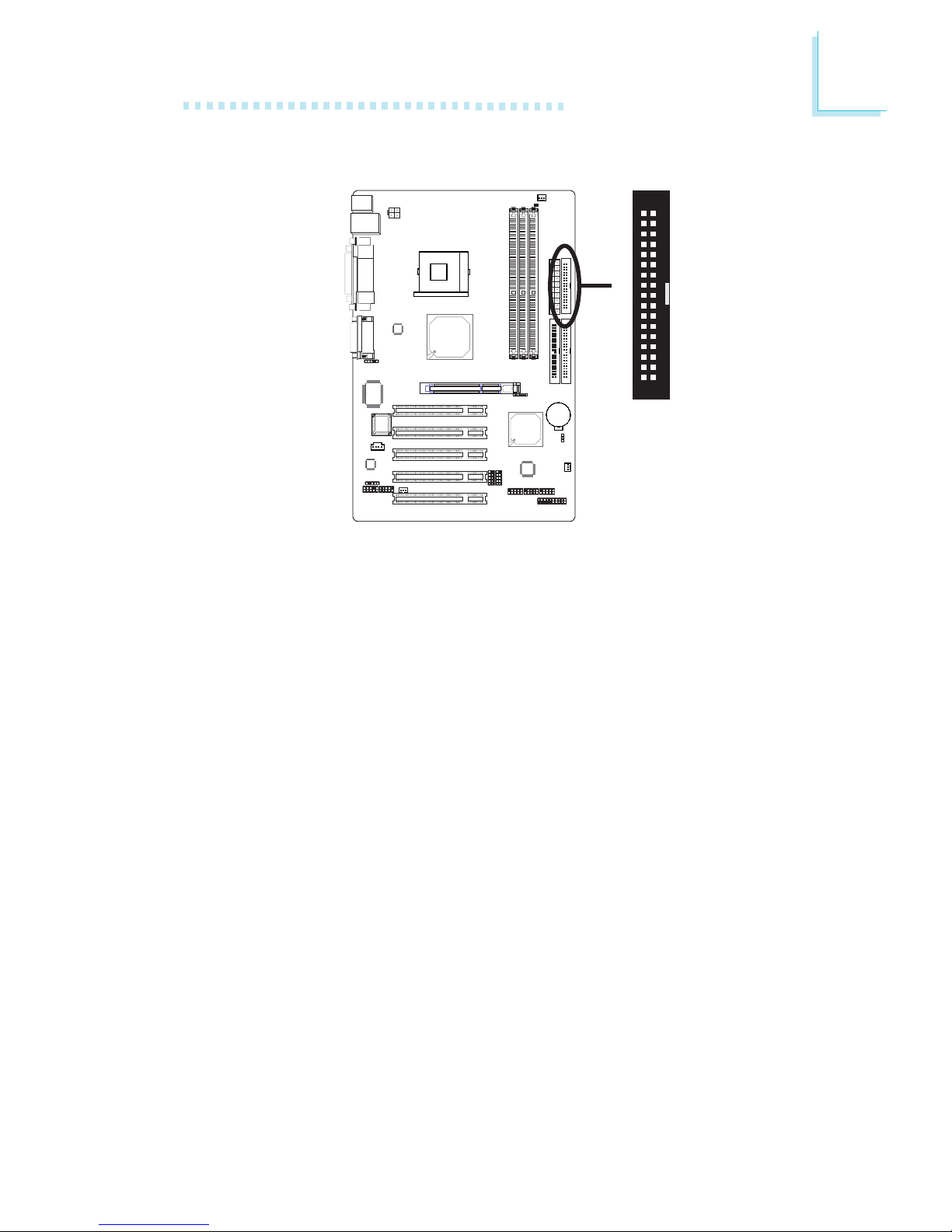

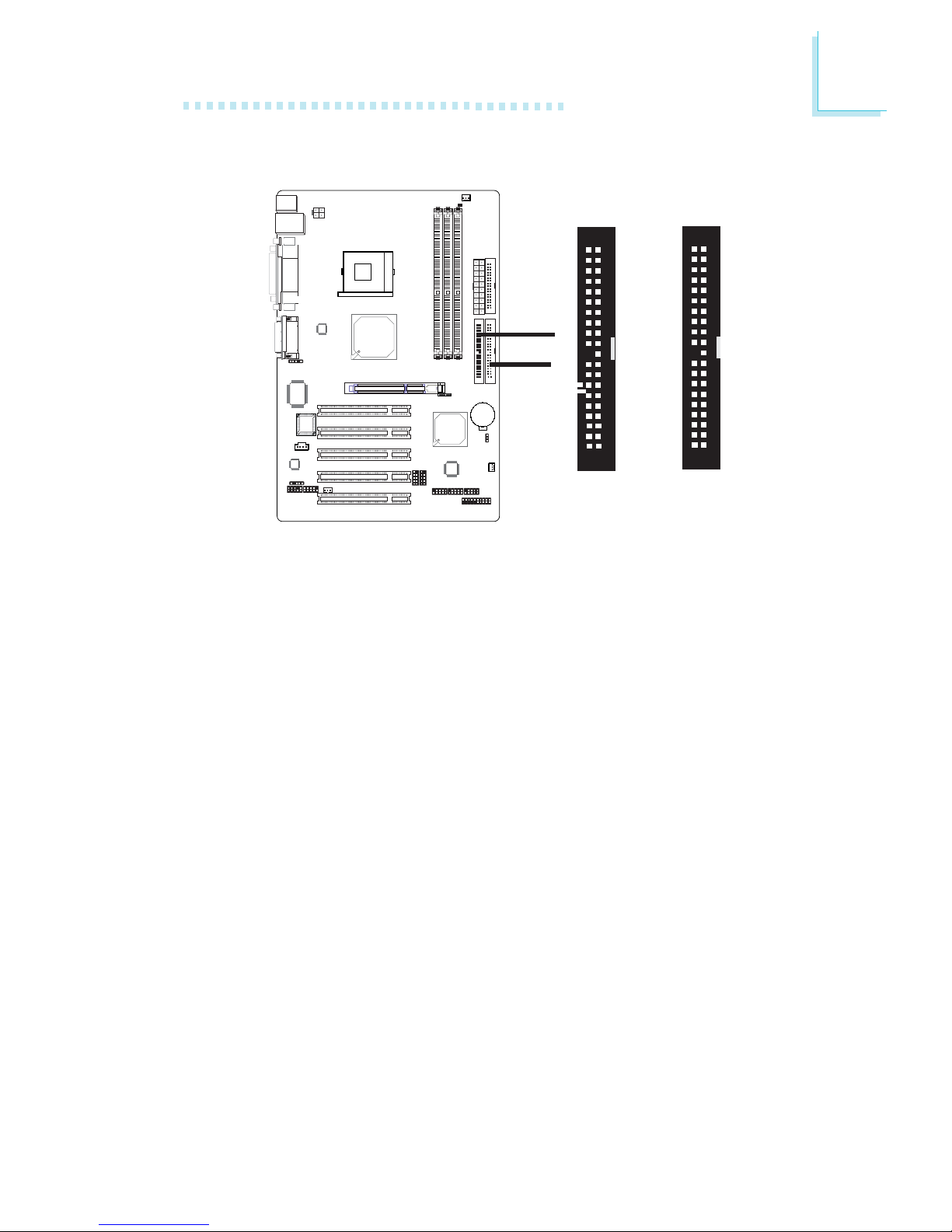

• 2 IDE connectors

• 1 floppy drive connector

• 2 ATX power supply connectors

• 1 Wake-On-LAN connector

• CPU fan and chassis fan connectors

1.1.2 Intelligence

Dual Function Power Button

Depending on the setting in the “Soft-Off By PWRBTN” field of
the Power Management Setup, this switch will allow the system to
enter the Soft-Off or Suspend mode.

Wake-On-Ring

This feature allows the system that is in the Suspend mode or Soft
Power Off mode to wake-up/power-on to respond to calls com­ing from an external modem or respond to calls from a modem
PCI card that uses the PCI PME (Power Management Event) sig­nal to remotely wake up the PC.

Important:

If you are using a modem add-in card, the 5VSB power source
of your power supply must support a minimum of ≥720mA.

Introduction

1

12

Wake-On-LAN

This feature allows the network to remotely wake up a Soft
Power Down (Soft-Off) PC. It is supported via the onboard LAN
port, via a PCI LAN card that uses the PCI PME (Power Manage­ment Event) signal or via a LAN card that uses the Wake-On­LAN connector. However, if your system is in the Suspend mode,
you can power-on the system only through an IRQ or DMA
interrupt.

Important:

The 5VSB power source of your power supply must support

≥

720mA.

Wake-On-Keyboard/Wake-On-Mouse

This function allows you to use the PS/2 keyboard or PS/2
mouse to power-on the system.

Important:

The 5VSB power source of your power supply must support

≥

720mA.

Wake-On-USB Keyboard/Mouse

This function allows you to use a USB keyboard or USB mouse
to wake up a system from the S3 (STR - Suspend To RAM) state.

Important:

• If you are using the Wake-On-USB Keyboard/Mouse func­tion for 2 USB ports, the 5VSB power source of your power
supply must support ≥1.5A.

• If you are using the Wake-On-USB Keyboard/Mouse func­tion for 3 or more USB ports, the 5VSB power source of
your power supply must support ≥2A.

RTC Timer to Power-on the System

The RTC installed on the system board allows your system to
automatically power-on on the set date and time.

1

Introduction

13

ACPI STR

The system board is designed to meet the ACPI (Advanced Con­figuration and Power Interface) specification. ACPI has energy sav­ing features that enables PCs to implement Power Management
and Plug-and-Play with operating systems that support OS Direct
Power Management. Currently, only Windows

®®

®®

®

98/2000/ME/XP
supports the ACPI function. ACPI when enabled in the Power
Management Setup will allow you to use the Suspend to RAM
function.

With the Suspend to RAM function enabled, you can power-off
the system at once by pressing the power button or selecting
“Standby” when you shut down Windows

®®

®®

®

98/2000/ME/XP with­out having to go through the sometimes tiresome process of
closing files, applications and operating system. This is because the
system is capable of storing all programs and data files during the
entire operating session into RAM (Random Access Memory)
when it powers-off. The operating session will resume exactly
where you left off the next time you power-on the system.

Important:

The 5VSB power source of your power supply must support

≥

1A.

AC Power Failure Recovery

When power returns after an AC power failure, you may choose to
either power-on the system manually, let the system power-on
automatically or return to the state where you left off before power
failure occurs.

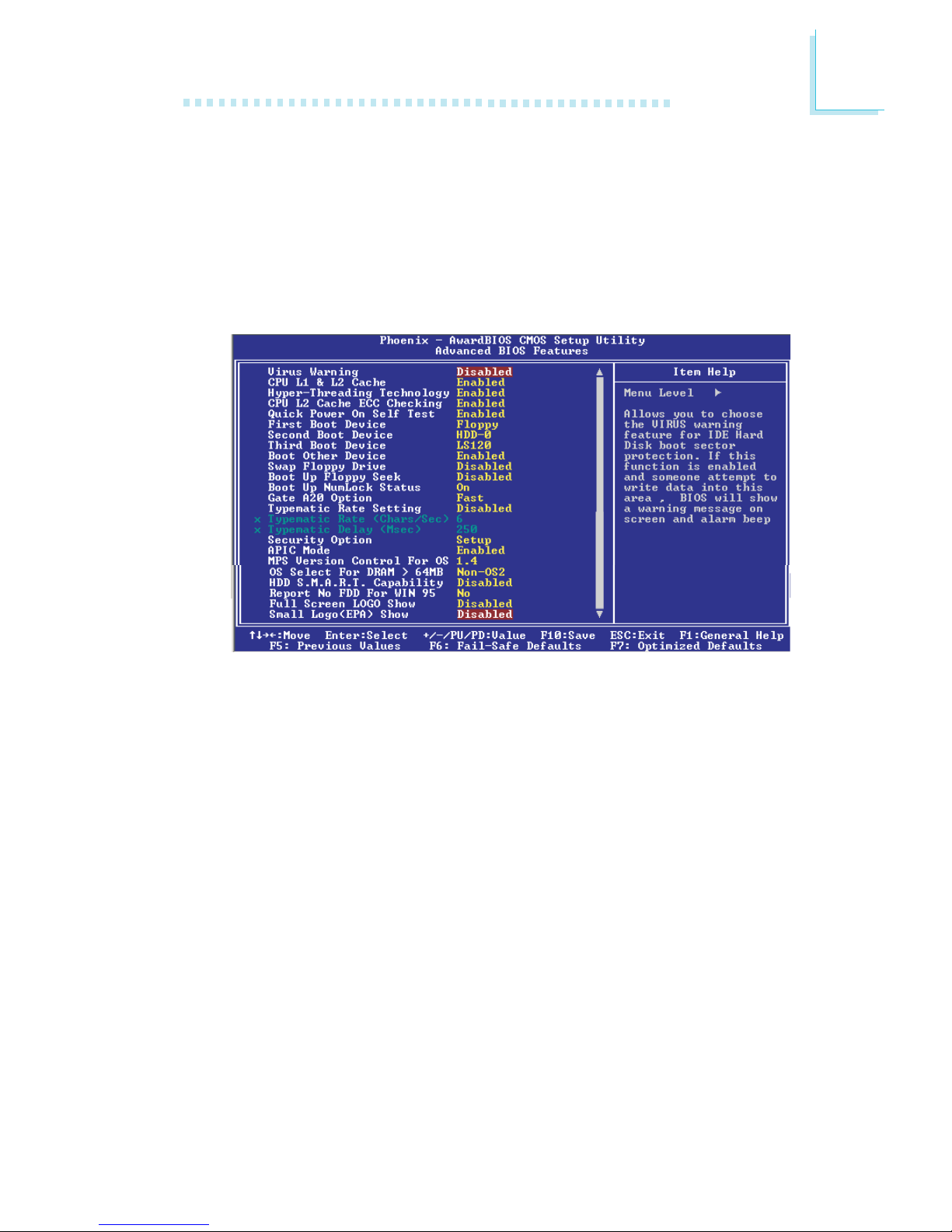

Virus Protection

Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table of
your hard disk drive.

Introduction

1

14

1.2 Hyper-Threading Technology Functionality
Requirements

Enabling the functionality of Hyper-Threading Technology for your
computer system requires ALL of the following platforms.

Components:

• CPU - an Intel® Pentium® 4 Processor with HT Technology

• Chipset - an Intel® chipset that supports HT Technology

• BIOS - a BIOS that supports HT Technology and has it enabled

• OS - an operating system that includes optimizations for HT
Technology

Please refer to Appendix A for information about enabling the
functionality of the Hyper-Threading Technology. For more infor­mation on Hyper-Threading Technology, go to: www.intel.com/
info/hyperthreading.

1.3 Package Checklist

The system board package contains the following items:

; The system board
; A user’s manual
; One IDE cable for ATA/33, ATA/66, ATA/100 or ATA/133 IDE

drives

; One 34-pin floppy disk drive cable
; One “Mainboard Utility” CD

 One card-edge bracket mounted with IEEE 1394A port(s)

(648FX-AL only) - optional

If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

15

2

Hardware Installation

2.1 System Board Layout

Chapter 2 - Hardware Installation

KB/Mouse

Line-out

Line-in

LAN
USB 1-2

COM 1

COM 2

Parallel

Game

Mic-in

1

+12V power

Socket 478

LAN

Phy

SiS

648FX

1

IrDA

I/O

chip

BIOS

1

Audio

Codec

CD-in

S/PDIF

1

1

1

Front audio

SURR_CON

1

WOL

DDR 1

DDR 2

DDR 3

1

CPU fan

DIMM LED

1

AT X

power

1

FDD

11

IDE 1IDE 2

Battery

1

Chassis fan

1

Clear

CMOS

SiS

963

Agere

chip

11

USB

3-4

USB

5-6

111

1394-1 1394-2 1394-3

1

SPEAKER

RESET

PWR-LED

ATX-SW

AGP Slot

PCI Slot 1

PCI Slot 2

PCI Slot 3

PCI Slot 4

PCI Slot 5

HD-LED

648FX-AL

(Supports onboard IEEE 1394A)

16

2

Hardware Installation

Note:

The illustrations on the following pages are based on the system
board that supports onboard IEEE 1394A.

KB/Mouse

Line-out

Line-in

LAN
USB 1-2

COM 1

COM 2

Parallel

Game

Mic-in

1

+12V power

Socket 478

LAN

Phy

SiS

648FX

1

IrDA

I/O

chip

BIOS

1

Audio
Codec

CD-in

S/PDIF

1

1

1

Front audio

SURR_CON

1

WOL

DDR 1

DDR 2

DDR 3

1

CPU fan

DIMM LED

1

AT X

power

1

FDD

11

IDE 1IDE 2

Battery

1

Chassis fan

1

Clear

CMOS

SiS

963L

11

USB

3-4

USB

5-6

1

SPEAKER

HD-LED

RESET

PWR-LED

ATX-SW

AGP Slot

PCI Slot 1

PCI Slot 2

PCI Slot 3

PCI Slot 4

PCI Slot 5

648FX-ALE

17

2

Hardware Installation

2.2 System Memory

Warning:

Electrostatic discharge (ESD) can damage your system board,
processor, disk drives, add-in boards, and other components. Perform
the upgrade instruction procedures described at an ESD workstation
only. If such a station is not available, you can provide some ESD
protection by wearing an antistatic wrist strap and attaching it to a
metal part of the system chassis. If a wrist strap is unavailable,
establish and maintain contact with the system chassis throughout
any procedures requiring ESD protection.

The system board supports DDR SDRAM DIMM. Double Data
Rate SDRAM (DDR SDRAM) is a type of SDRAM that doubles
the data rate through reading and writing at both the rising and
falling edge of each clock. This effectively doubles the speed of
operation therefore doubling the speed of data transfer.

Refer to chapter 1 (System Memory section) for detailed specifi­cation of the memory supported by the system board.

.

.

.

.

.

.

.

.

DDR 1
DDR 2
DDR 3

18

2

Hardware Installation

2.2.1 Installing the DIM Module

A DIM module simply snaps into a DIMM socket on the system
board. Pin 1 of the DIM module must correspond with Pin 1 of the
socket.

1. Pull the “tabs” which are at the ends of the socket to the side.

2. Position the DIMM above the socket with the “notch” in the
module aligned with the “key” on the socket.

3. Seat the module vertically into the socket. Make sure it is
completely seated. The tabs will hold the DIMM in place.

Pin 1

Notch
Key

Tab

Tab

19

2

Hardware Installation

2.3 CPU

2.3.1 Overview

The system board is equipped with a surface mount 478-pin CPU
socket. This socket is exclusively designed for installing an Intel
processor.

2.3.2 Installing the CPU

1. Locate Socket 478 on the system board.

2. Unlock the socket by pushing the lever sideways, away from the
socket, then lifting it up to a 90o angle. Make sure the socket is
lifted to at least this angle otherwise the CPU will not fit in properly.

Lever

20

2

Hardware Installation

3. Position the CPU above the socket then align the gold mark on
the corner of the CPU (designated as pin 1) with pin 1 of the
socket.

Important:

Handle the CPU by its edges and avoid touching the pins.

Gold mark

4. Insert the CPU into the socket until it is seated in place. The
CPU will fit in only one orientation and can easily be inserted
without exerting any force.

Important:

Do not force the CPU into the socket. Forcing the CPU into
the socket may bend the pins and damage the CPU.

Pin 1

21

2

Hardware Installation

5. Once the CPU is in place, push down the lever to lock the
socket. The lever should click on the side tab to indicate that the
CPU is completely secured in the socket.

2.3.3 Installing the Fan and Heat Sink

The CPU must be kept cool by using a CPU fan with heatsink.
Without sufficient air circulation across the CPU and heat sink, the
CPU will overheat damaging both the CPU and system board.

Note:

• Only use Intel® certified fan and heat sink.

• An Intel® boxed processor package contains a retention

mechanism, heat sink, fan and installation guide. If the
installation procedure in the installation guide differs from
the one in this section, please follow the installation guide in
the package.

• If you are installing a non-boxed processor, the heat sink,
fan and retention mechanism assembly may look different
from the one shown in this section but the procedure will
more or less be the same.

22

2

Hardware Installation

1. The system board comes with the retention module base already
installed.

Retention

module base

Retention

hole

Retention

hole

Retention

hole

Retention

hole

2. Position the fan / heat sink and retention mechanism assembly
on the CPU, then align and snap the retention legs’ hooks to the
retention holes at the 4 corners of the retention module base.

Note:

You will not be able to snap the hooks into the holes if the
fan / heat sink and retention mechanism assembly did not
fit properly onto the CPU and retention module base.

Unsnapped

Fan / heat sink
and retention
mechanism
assembly

Snapped

23

2

Hardware Installation

3. The retention levers at this time remains unlocked as shown in
the illustration below.

Retention lever

Retention lever

4. Move the retention levers to their opposite directions then push
them down. This will secure the fan / heat sink and retention
mechanism assembly to the retention module base.

Note:

You will not be able to push the lever down if the direction
is incorrect.

5. Connect the CPU fan’s cable connector to the CPU fan
connector on the system board.

24

2

Hardware Installation

2.4 Jumper Settings

2.4.1 Jumper Settings for Clearing CMOS Data

If you encounter the following,

a) CMOS data becomes corrupted.
b) You forgot the keyboard, supervisor or user password.
c) You are unable to boot-up the computer system because the

processor’s ratio/clock was incorrectly set in the BIOS.

you can reconfigure the system with the default values stored in the
ROM BIOS.

To load the default values stored in the ROM BIOS, please follow
the steps below.

1. Power-off the system and unplug the power cord.

2. Set JP1 pins 2 and 3 to On. Wait for a few seconds and set
JP1 back to its default setting, pins 1 and 2 On.

3. Now plug the power cord and power-on the system.

If your reason for clearing the CMOS data is due to incorrect
setting of the processor’s ratio/clock in the BIOS, please proceed
to step 4.

2-3 On:

Clear CMOS Data

1-2 On: Normal

(default)

X

JP1

1

3

2

1

3

2

25

2

Hardware Installation

4. After powering-on the system, press <Del> to enter the main
menu of the BIOS.

5. Select the Frequency/Voltage Control submenu and press
<Enter>.

6. Set the “CPU Clock Ratio” or “CPU Frequency” field to its
default setting or an appropriate frequency ratio or bus clock.
Refer to the Frequency/Voltage Control section in chapter 3
for more information.

7. Press <Esc> to return to the main menu of the BIOS setup
utility. Select “Save & Exit Setup” and press <Enter>.

8. Type <Y> and press <Enter>.

26

2

Hardware Installation

2.5 Rear Panel I/O Ports

PS/2

Mouse

PS/2

K/B

RJ45

LAN

USB 1-2

COM 1

Parallel GAME/MIDI

Line-

out

Line-inMic-

in

COM 2

The rear panel I/O ports consist of the following:

• PS/2 mouse port

• PS/2 keyboard port

• LAN port

• USB ports

• Parallel port

• Serial ports

• Game/MIDI port

• Line-out, line-in and mic-in jacks

27

2

Hardware Installation

2.5.1 PS/2 Mouse and PS/2 Keyboard Ports

The system board is equipped with an onboard PS/2 mouse
(Green) and PS/2 keyboard (Purple) ports - both at location CN1
of the system board. The PS/2 mouse port uses IRQ12. If a mouse
is not connected to this port, the system will reserve IRQ12 for
other expansion cards.

Warning:

Make sure to turn off your computer prior to connecting or
disconnecting a mouse or keyboard. Failure to do so may
damage the system board.

Wake-On-Keyboard/Mouse

The Wake-On-Keyboard/Mouse function allows you to use the
keyboard or mouse to power-on the system. To use this function:

• BIOS Setting:

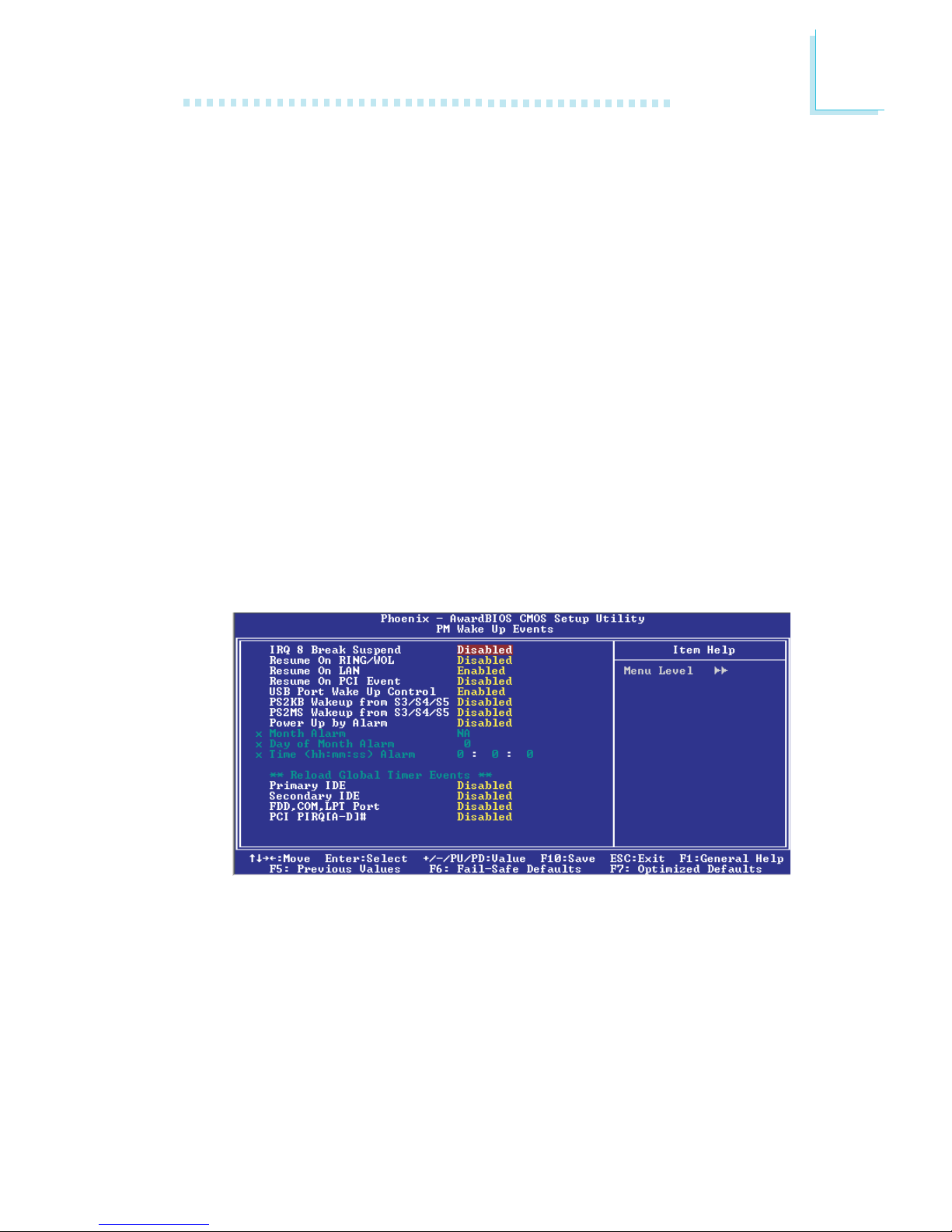

“PS2KB Wakeup From S3/S4/S5” and “PS2MS Wakeup From
S3/S4/S5” (“PM Wake Up Events” section) in the Power Man­agement Setup submenu of the BIOS must be set accordingly.
Refer to chapter 3 for more information.

PS/2 Mouse

PS/2 Keyboard

W

.

.

.

.

.

.

.

.

28

2

Hardware Installation

RJ45 LAN

2.5.2 RJ45 LAN Port

The system board is equipped with an onboard RJ45 LAN port at
location CN7 of the system board. It allows the system board to
connect to a local area network by means of a network hub.

BIOS Setting

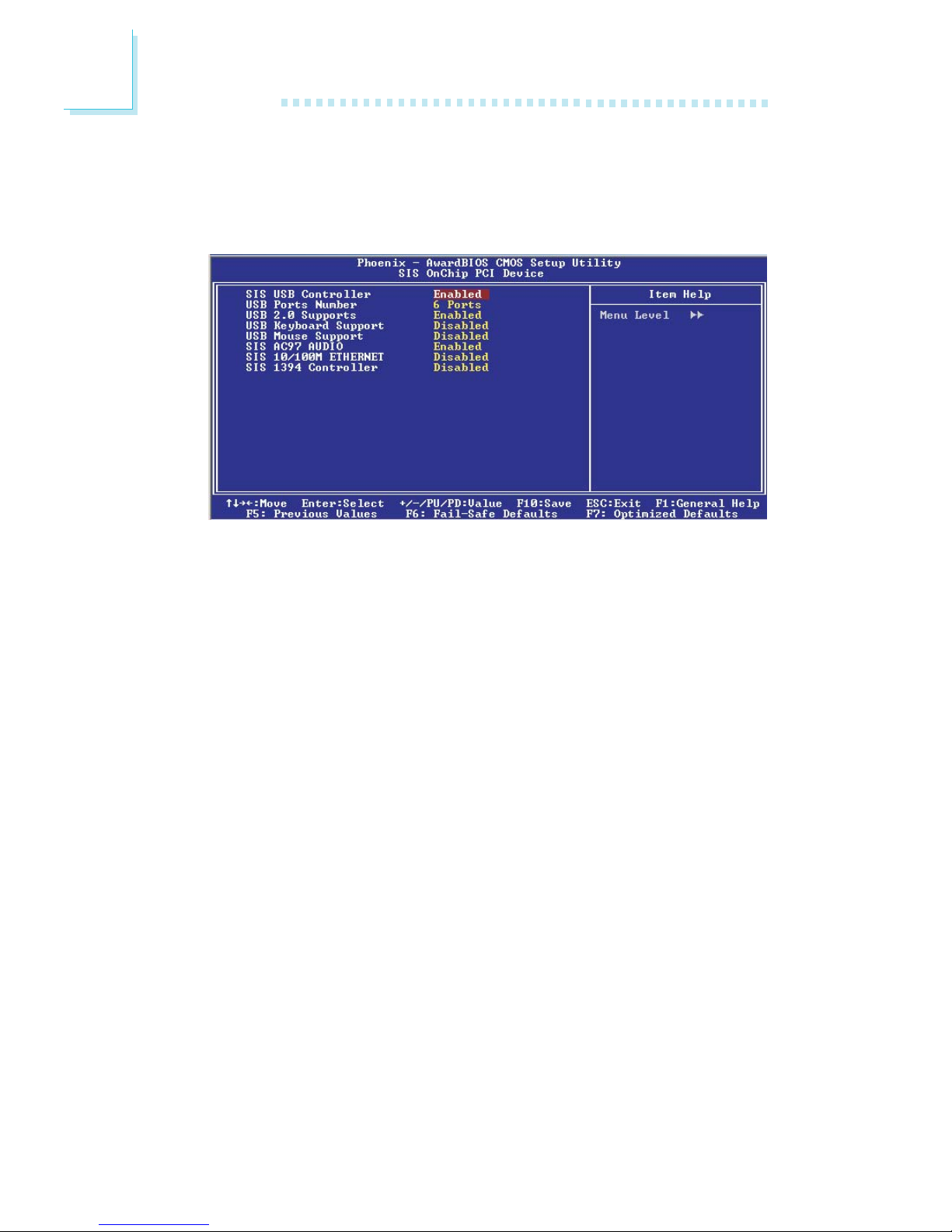

Enable or disable the onboard LAN in the Integrated Peripherals
submenu (“SIS OnChip PCI Device” section) of the BIOS. Refer
to chapter 3 for more information.

To wake up the system via the LAN port, set the “Resume On
LAN” field (“PM Wake Up Events” section) in the Power Man­agement Setup submenu of the BIOS to Enabled.

Driver Installation

Install the “LAN Drivers”. Refer to chapter 4 for more informa­tion.

W

29

2

Hardware Installation

12

10 9

VCC VCC

-Data -Data

+Data +Data

Ground Ground

Key Key

12

10 9

VCC VCC

-Data -Data

+Data +Data

Ground Ground

Key Key

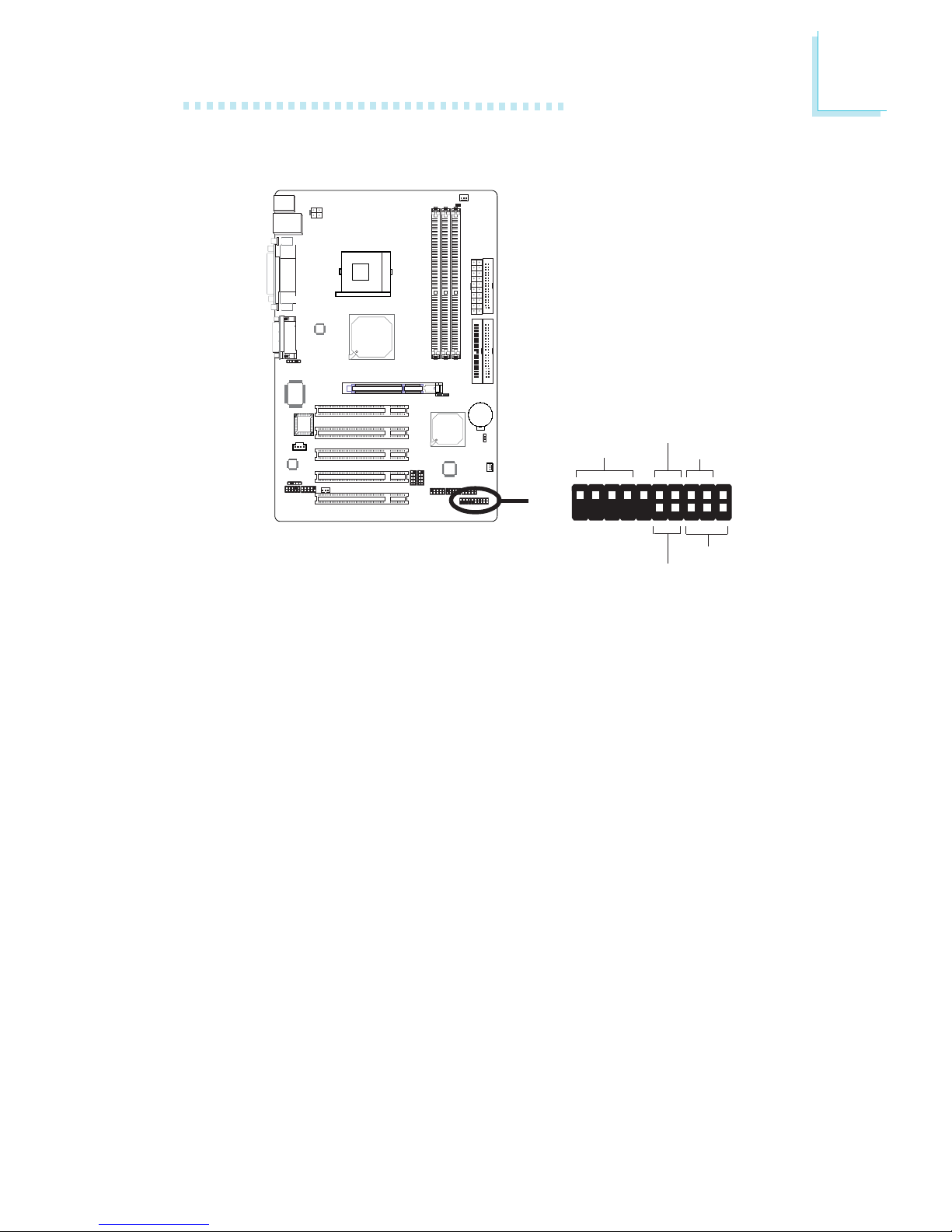

2.5.3 Universal Serial Bus Ports

Two onboard USB 2.0/1.1 ports (Black) are at locations CN7 of
the system board.

J10 (USB 3-4) and J11 (USB 5-6) connectors allow you to con­nect 4 additional USB 2.0/1.1 ports. The additional USB por ts,
which are mounted on card-edge brackets, will be provided as
options. If you wish to use the optional USB ports, install the
card-edge bracket to the system chassis then insert the connec­tor that is attached to the USB port cables to J10 and/or J11.

BIOS Setting

Configure the onboard USB in the Integrated Peripherals
submenu (“SIS OnChip PCI Device” section) of the BIOS. Refer
to chapter 3 for more information.

If you are using a USB 2.0 device, you must enable the USB 2.0
function in the same BIOS submenu mentioned above.

USB 2
USB 1

W

W

USB 3-4

USB 5-6

W

30

2

Hardware Installation

Driver Installation

You may need to install the proper drivers in your operating
system to use the USB device. Refer to your operating system’s
manual or documentation for more information.

If you are using a USB 2.0 device, install the “SiS USB 2.0 Driv­ers”. Refer to chapter 4 for more information.

Wake-On-USB Keyboard/Mouse

The Wake-On-USB Keyboard/Mouse function allows you to use a
USB keyboard or USB mouse to wake up a system from the S3
(STR - Suspend To RAM) state. To use this function:

• BIOS Setting:
“USB Port Wake Up Control” (“PM Wake Up Events” sec­tion) in the Power Management Setup submenu of the BIOS
must be set to Enabled. Refer to chapter 3 for more informa­tion.

Important:

• If you are using the Wake-On-USB Keyboard/Mouse func­tion for 2 USB ports, the 5VSB power source of your power
supply must support ≥1.5A.

• If you are using the Wake-On-USB Keyboard/Mouse func­tion for 3 or more USB ports, the 5VSB power source of
your power supply must support ≥2A.
