DFI 586ITB User Manual

Download
Page 1
586ITB
Rev. A System Board User’s Manual
+
- 33870428 -
Page 2
Table of Contents
Chapter 1: Introduction............................................................ 5
Chapter 2: Hardware Installation ............................................... 9
Installing the System Board .................................................10
Board Layout ....................................................................12
System Memory ................................................................14
DIMM ........................................................................14
SIMM ........................................................................15
Cache Memory .................................................................18
Processor Installation .........................................................18
Jumper Settings for Intel Processors ..............................20
Jumper Settings for AMD-K5/K6 Processors.......................21
Installing Upgrade CPUs................................................22
Installing A Fan/Heatsink................................................24
Jumper settings for Modem Ring-on.......................................25
Factory Testing Jumpers......................................................26
Ports and Connectors.........................................................27
Serial Ports.................................................................27
Parallel Port ................................................................27
Floppy Disk Drive Controller ...........................................28
IDE Hard Disk Interface .................................................29
Universal Serial Bus Connectors......................................31
IrDA Connector............................................................32
Installing Expansion Cards...................................................33
Chapter 3: Software Installation ...............................................34
Award BIOS CMOS Setup Utility ...........................................34
Standard CMOS Setup..................................................35
BIOS Features Setup ....................................................39
Chipset Features Setup .................................................43
Power Management Setup .............................................43
PNP/PCI Configuration Setup..........................................47
Load Fail-Safe Settings..................................................49
Load Optimal Settings...................................................50
Page 3
Integrated Peripherals ...................................................50
Supervisor Password ....................................................54
User Password ............................................................54
IDE HDD Auto Detection................................................55
HDD Low Level Format .................................................57
Save & Exit Setup ........................................................58
Exit Without Saving.......................................................58
System Error Report ..........................................................59
Driver Installation...............................................................61
Chapter 4: Troubleshooting Checklist .............................................64
Appendix A: Types of Modules ......................................................67
Appendix B: Memory and I/O Maps................................................69
Appendix C: Connector Pin Assignments .......................................71
Caution:
Danger of explosion if battery incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the battery manufacturer’s instructions.
Page 4
Chapter 1 Introduction
The 586ITB, equipped with a 321-pin Zero Insertion Force (ZIF) CPU socket, is a Pentium processor-class system board supporting Intel Pentium processors running at 90MHz, 100MHz, 120MHz, 133MHz, 150MHz, 166MHz and 200MHz frequencies. The 586ITB also supports Intel Pentium processors with MMX™ technology - 166/200/233MHz, future Intel Pentium OverDrive processors, AMD K5™ PR90/PR100/ PR120/PR133/PR150/PR166, and AMD K6™ PR2-166/PR2-200/PR2-
233. The 586ITB system board can support 8MB to 256MB of system
memory. It is equipped with two DIMM sockets using x64 EDO, fast page mode or SDRAM, and 4 SIMM sockets using EDO or fast page mode x32 DRAM. This system board also supports 512KB pipeline burst SRAM.
The 586ITB design is based on the Peripheral Component Interconnect (PCI) local bus and Industry Standard Architecture (ISA) standards. It is equipped with 3 dedicated PCI slots, 2 dedicated 16-bit ISA slots and 1 shared PCI/ISA slot.
The 586ITB is equipped with two NS16C550A-compatible serial connec­tors, an SPP/ECP/EPP parallel connector, a shrouded floppy disk header, and two shrouded PCI IDE headers with bus mastering capa­bilities that highly reduce CPU use during disk transfer. This system board is also equipped with one PS/2 mouse connector, one PS/2 or AT keyboard port, two USB ports and one IrDA connector for wireless con­nectivity between your computer and peripheral devices.
The 586ITB system board is a Baby AT form factor board designed to fit into an ATX form factor case. Using an ATX power supply, you can either shut down your computer by pressing the Power button located on the front bezel of your computer or by executing the Shut Down command under the Windows 95 operating system if you have power management in the BIOS setup correctly enabled.
4
Page 5
With ATX power supply being used, the 586ITB system board can sup­port ACPI Specification, Modem Wake-Up, PC 97 Compliance, and Dual Function Power Button to enhance its performance. ACPI (Ad­vanced Configuration Power Interface) has energy saving features which enable operating systems to reliably manage and coordinate power planes, PnP (Plug-and-Play) peripherals, and cooling fans. ACPI is the specification of Microsoft's PC 97 "OnNow" design allowing con­tinual "power on" with reduced energy consumption. The Modem Wake­Up feature allows the "sleeping" PC to power on to respond to incoming calls.
PC 97 Compliance defines the adherence to Plug-and-Play compatibil­ity, hardware power management, and 32-bit device drivers for Windows 95 & Windows NT specifications. PC 97 makes PCs easier to use through maximum cooperation between the operating system and hardware. Dual Function Power Button allows two distinct OFF modes. In Sleep mode, a PC powers down but not off. In Soft-Off, a PC shuts down but requires a reboot to "awaken" it.
5
Page 6
Features and Specifications
Processor
• Intel Pentium processors with MMX™ technology - 166/200/ 233MHz
• Intel Pentium 90/100/120/133/150/166/200MHz
• Future Pentium OverDrive processors
• AMD K5™ PR90/PR100/PR120/PR133/PR150/PR166
• AMD K6™ PR2-166/PR2-200/PR2-233
Chipset
• Intel 82430TX PCIset
Cache Memory
• 512KB pipeline burst, direct map write-back cache installed on the system board
System Memory
• 8MB to 256MB memory
• Two 168-pin DIMM sockets using x64 EDO (60/70ns), fast page mode (60/70ns), or SDRAM (10/12/13ns), 3.3V
• Four 72-pin SIMM sockets using EDO or fast page mode x32 DRAM, 60/70ns, 5V
BIOS
• Award BIOS, Windows 95 Plug and Play compatible
• Flash EPROM for easy BIOS upgrades
Energy Efficient Design
• Supports ACPI specification and OS Directed Power Management (ATX power supply only)
• System power management supported
• CPU stopped clock control
• Hardware supports SMI green mode
• Microsoft/Intel APM 1.2 compliant
• Soft Power supported - ACPI v1.0a specification (using ATX power supply only)
6
Page 7
PCI IDE Interface
• Ultra DMA/33 supported (Synchronous DMA mode - data transfer rate up to 33MB/sec.)
• DMA Mode 2 Bus Master IDE (data transfer rate up to 22.2MB/sec.)
• PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up to
16.6MB/sec.)
• Bus mastering reduces CPU utilization during disk transfer
• ATAPI CD-ROM supported
Integrated I/O
• Ultra I/O controller
• Two NS16C550A-compatible high speed UARTs
• One SPP/ECP/EPP parallel port
• Supports 360KB, 720KB, 1.2MB, 1.44MB, and 2.88MB floppy drives
CPU Socket
• 321-pin ZIF socket (Intel Socket 7)
• Equipped with a switching voltage regulator which can support 10A current to the CPU core
Connectors

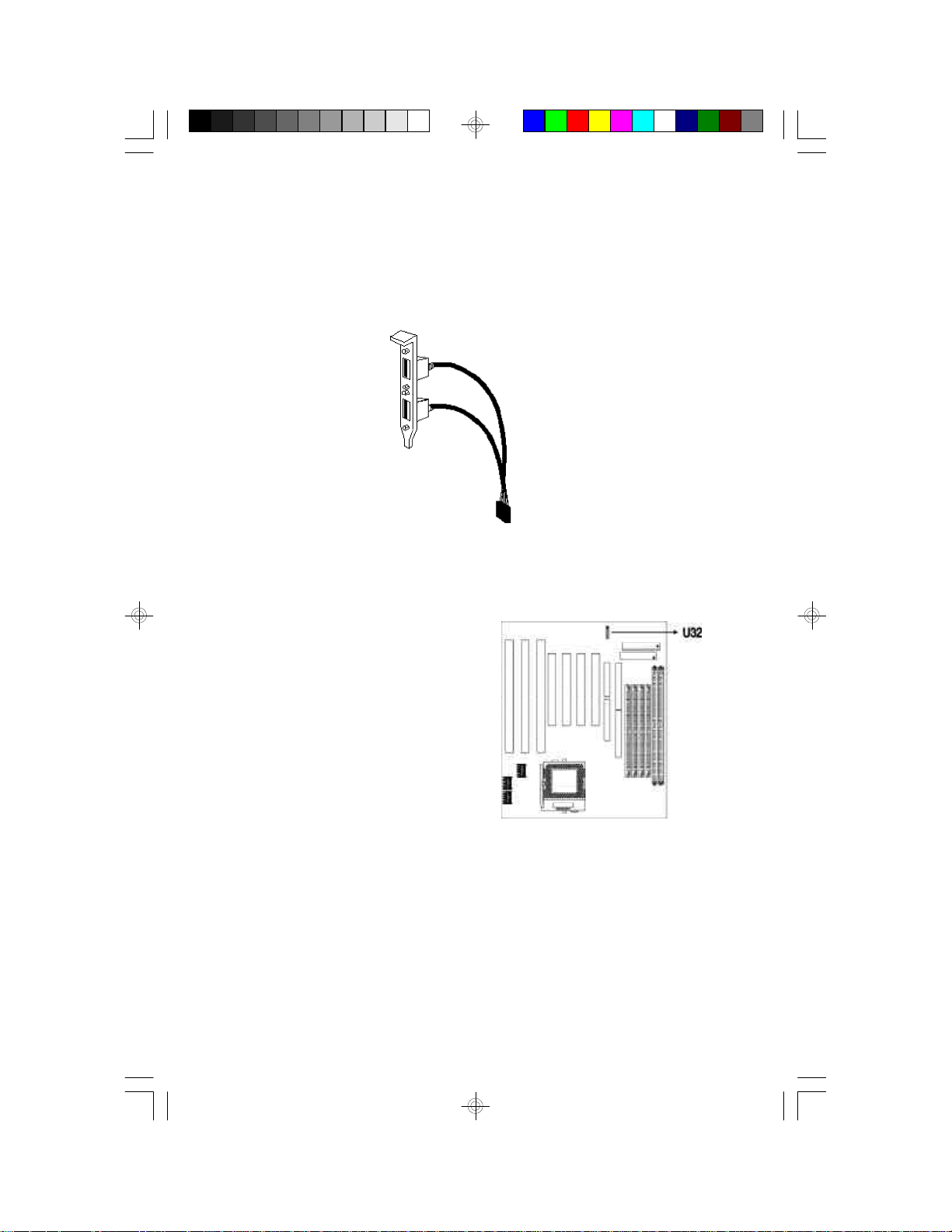

• 2 connectors for external USB (Universal Serial Bus) ports
• 1 connector for IrDA interface
• 2 serial connectors
• 1 parallel port
• 2 IDE connectors
• 1 floppy connector
• 1 PS/2 mouse connector
• 1 PS/2 or AT keyboard port
• 1 20-pin ATX power supply connector
• 1 12-pin standard AT power supply connector
Expansion Slots
• 3 dedicated PCI slots
• 2 dedicated 16-bit ISA slots
• 1 shared PCI/ISA slot
PCB
• 4 layers, Baby AT form factor
• 25cm (9.84") x 22cm (8.66")
7
Page 8
Package Checklist
The 586ITB package contains the following items:
• The 586ITB system board
• The 586ITB user’s manual
• Serial, mouse and printer port cables Option 1:
- One card-edge bracket with a 9-pin and 25-pin serial port cables
- One card-edge bracket with a 25-pin printer port cable and a PS/2
mouse port cable
Option 2:
- One card-edge bracket with two 9-pin serial port cables and a
PS/2 mouse port cable
- One 25-pin printer port cable for chassis mounting
• One 40-pin IDE hard disk cable
• One 34-pin floppy disk drive cable
• One IDE driver diskette
• Five spare jumpers
• One card-edge bracket with two USB ports (optional)
If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.
8
Page 9
Chapter 2
Hardware Installation
This chapter summarizes the steps to install the 586ITB system board into your system unit. It also includes a description of the area in which you must work and directions for memory installation. Before installing the system board, obtain the memory you plan to install. Refer to the System Memory section for the number and type of memory modules needed for the amount of memory you require.
Preparing the Area
Before unpacking the system board, make sure the location you have selected is relatively free of dust and static electricity. Excessive expo­sure to dust, static electricity, direct sunlight, excessive humidity, ex­treme cold, and water can damage the operational capabilities of your system board. Avoid placing the unit on surfaces such as carpeted floors. These areas also attract static electricity which can damage some circuits on your system board.
Make sure the power source has a properly grounded, three-pronged socket. It is essential that the power connection be properly grounded for correct functioning of your system board. For further protection, we recommend that you use a surge suppressor. This will protect the sys­tem board from damage that may result from a power surge on the electrical line.
Move items that generate magnetic fields away from your system board since magnetic fields can also damage your system board. Once you have selected the ideal location, unpack the 586ITB system board care­fully.
Handling the System Board
It is quite easy to inadvertently damage your system board even before installing it in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in handling the system board to ensure against electrostatic build-up.
9
Page 10
Static Electricity Precautions
1. To prevent electrostatic build-up, leave the board in its anti-static bag until you are ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface with the system board components facing up.
4. Hold the system board by its edges only. Be careful not to touch any of the components, contacts or connections, especially gold contacts, on the board.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules and connectors by their ends.
Warning:
Electrostatic discharge (ESD) can damage your processor, disk drives, add-in boards, and other components. Perform the upgrade instruction procedures described at an ESD station only. If such a station is not available, you can provide some ESD protection by wearing an anti­static wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.
Installing the System Board
If you are installing the 586ITB system board, the following outlines the basic installation steps. Before installing the system board into your sys­tem unit, you should prepare the tools you will need.
You will need:
• One medium size, flat-bladed screwdriver
• One medium Phillips screwdriver
• One needle-nosed pliers
• One small nutdriver
1. Unlock your system unit. Turn off the power and disconnect all power cords and cables.
10
Page 11
2. Remove the system unit cover. Refer to the manufacturer’s instruc­tions if necessary.
3. Detach all connectors from the old system board and remove ex­pansion cards seated in any expansion slots.
4. Loosen the screws holding the original system board and remove the board from the system. Save the screws.
5. Remove the 586ITB from its original packing box. Be careful to avoid touching all connectors and pins on the board. Please refer to the handling instructions on pages 9-10 for proper handling tech­niques.
6. Insert the memory modules into the memory banks on the 586ITB. The quantity and location of the memory modules depends on the memory configuration and type of modules you intend to use.
7. Install the CPU. Be sure pin 1 of the CPU is aligned with pin 1 of the socket.
8. Set the corresponding jumpers.
9. Install the prepared 586ITB system board into the case and replace the screws.
10. Reinstall all cards and connectors and replace the system unit
cover. Reconnect all power cords and cables.
Use only the ATX (CN8) or AT (JP27) power connector, not both. If you are using an ATX power supply, install the 20-pin ATX power cable connector into location CN8 on the system board. The 20-pin connector can be inserted into CN8 only if pin 1 of the connector is aligned with pin 1 of CN8.
11
Page 12

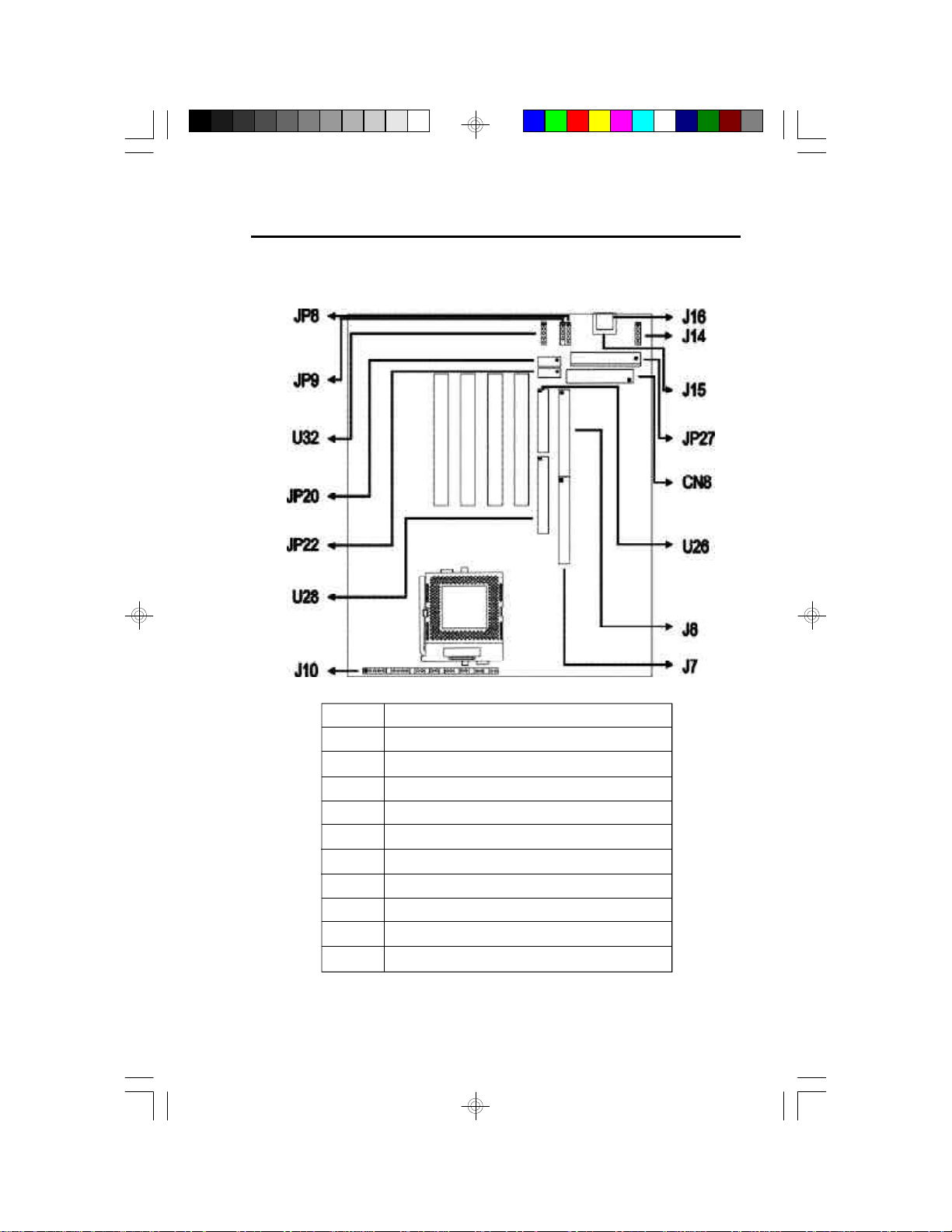

Board Layout
square denotes pin 1
12
Page 13
Jumpers
JP1, JP2, JP15, JP28 and JP29 Intel and AMD processors

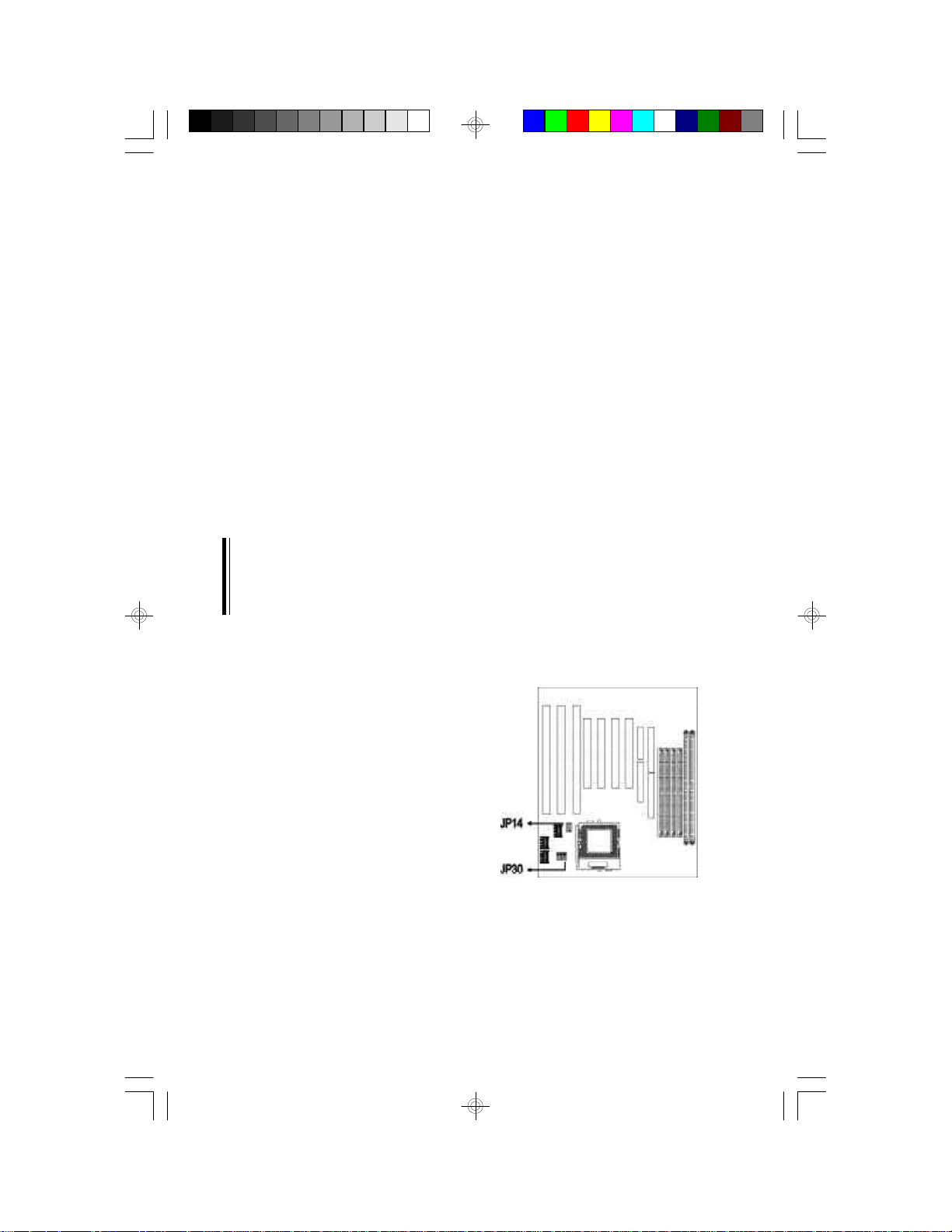

JP21 - Modem Ring-on select JP14 and JP30 Factory Testing Jumpers
Refer to
pages 18-21
pages 25-26 page 26
Sockets
DM0 and DM1 - DIMM sockets SM1 to SM4 - SIMM sockets U1 - ZIF socket
Expansion slots
PCI Slots 0, 1, 2, 3 - 32-bit PCI slots ISA Slots 1, 2, 3, 4 - 16-bit ISA slots
Connectors - refer to pages 71-73

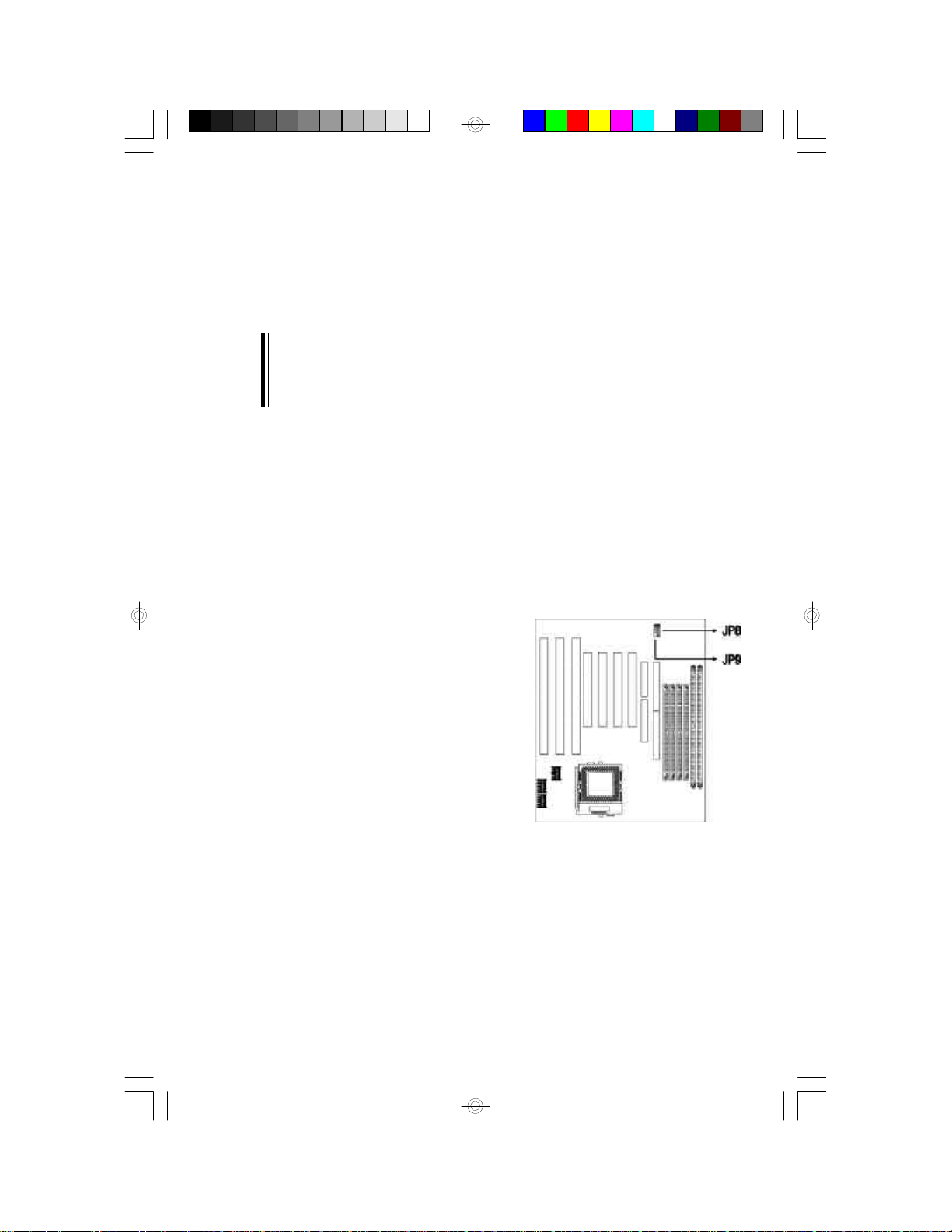

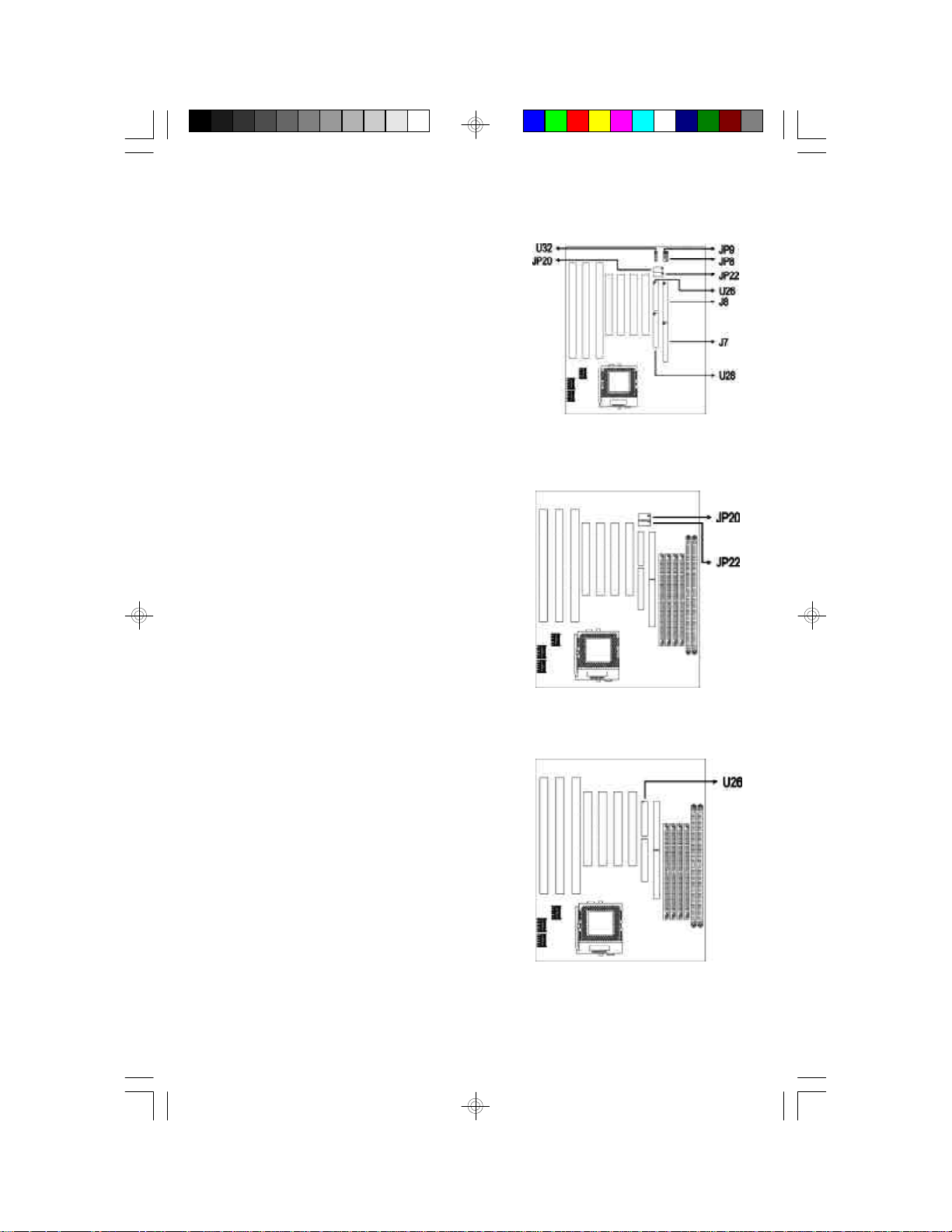

JP8 - USB 1 connector JP9 - USB 2 connector JP20- COM 1 serial port JP22- COM 2 serial port JP27- AT power connector CN8 - ATX power connector U26 - Parallel printer port U28 - Floppy disk drive connector U32 - IrDA connector
Refer to
pages 14-15 pages 15-17 pages 22-24
Refer to
page 33 page 33
J7 - Primary IDE HDD connector J8 - Secondary IDE HDD connector J14 - PS/2 mouse port J15 - AT keyboard port J16 - PS/2 keyboard port J10 - Keylock connector
Speaker connector Reset switch connector SMI switch connector Power switch connector Green LED connector HDD LED connector ATX LED connector
13
Page 14
System Memory
The 586ITB system board supports two kinds of memory modules: DIMM and SIMM. DIMM, which uses SDRAM, performs better than SIMM, which uses DRAM. Refer to page 12 for the locations of the DIM and SIM sockets.
Important:
DIM and SIM modules cannot exist on the 586ITB system board at the same time. Use either SIMM or DIMM only, and not both.
DIMM
The two 168-pin DIMM (Dual In-line Memory Module) sockets use x64 EDO, FPM and SDRAM. The 586ITB system board can support 8MB to 32MB memory using 1MBx64, 2MBx64 or 4MBx64 DIMM. The table below shows the supported DIM modules and their corresponding memory sizes.
DIMMs
1MBx64 2MBx64 4MBx64
Memory Size
8MB 16MB 32MB
The table below summarizes the DIMM sockets and modules needed for the corresponding memory sizes.
14
Memory Size
8MB 8MB 16MB 16MB 16MB 24MB 24MB 32MB
DIM 0
1MBx64
none
2MBx64
none 1MBx64 1MBx64 2MBx64 4MBx64
DIM 1
none
1MBx64
none 2MBx64 1MBx64 2MBx64 1MBx64
none
Memory Size
32MB 32MB 40MB 40MB 48MB 48MB 64MB
DIM 0
none 2MBx64 1MBx64 4MBx64 2MBx64 4MBx64 4MBx64
DIM 1
4MBx64 2MBx64 4MBx64 1MBx64 4MBx64 2MBx64 4MBx64
Page 15
Installing the DIM Module
A DIM module simply snaps into a socket on the system board. Pin 1 of the DIM module must correspond with pin 1 of the socket.
Notch
Tab
Pin 1
Key
1. Pull the “tabs” which are at the ends of the socket to the side.
2. Position the DIMM above the socket with the “notches” in the mod­ule aligned with the “keys” on the socket.
3. Seat the module vertically into the socket. Make sure it is com­pletely seated. The tabs will hold the DIMM in place.
SIMM
The SIMM (Single In-line Memory Module) sockets are divided into two banks on the system board, Bank 0 and Bank 1. Each bank consists of 2 SIMM sockets.
You will need either 2 or 4 pieces of SIM modules, depending on the amount of memory you intend to install. The system board will not work if you install 1 or 3 pieces. Make sure you insert the same type of SIMMs in one bank. You can install SIMMs in either of the banks, Bank 0 or Bank 1, but you must populate one bank first before going to the next bank.
Tab
The 586ITB system board can support 8MB to 256MB of memory using 1MBx32, 2MBx32, 4MBx32, 8MBx32, or 16MBx32 72-pin SIMMs. The table on the next page shows the supported SIM modules and their corresponding memory sizes.
15
Page 16
SIMMs
1MBx32 2MBx32 4MBx32 8MBx32 16MBx32
Memory Size
4MB 8MB 16MB 32MB 64MB
The table below summarizes the bank locations and modules needed for the corresponding memory sizes.
Memory Size
8MB
8MB 16MB 16MB 16MB 24MB 24MB 32MB 32MB 32MB 40MB 40MB 48MB 48MB 64MB 64MB 64MB 72MB 72MB 80MB 80MB
SIMM1
1MBx32
—
2MBx32
— 1MBx32 1MBx32 2MBx32 4MBx32
— 2MBx32 1MBx32 4MBx32 2MBx32 4MBx32 8MBx32
— 4MBx32 1MBx32 8MBx32 2MBx32 8MBx32
Bank 0
SIMM2
1MBx32
—
2MBx32
— 1MBx32 1MBx32 2MBx32 4MBx32
— 2MBx32 1MBx32 4MBx32 2MBx32 4MBx32 8MBx32
— 4MBx32 1MBx32 8MBx32 2MBx32 8MBx32
SIMM3
—
1MBx32
— 2MBx32 1MBx32 2MBx32 1MBx32
— 4MBx32 2MBx32 4MBx32 1MBx32 4MBx32 2MBx32
— 8MBx32 4MBx32 8MBx32 1MBx32 8MBx32 2MBx32
Bank 1
SIMM4
—
1MBx32
— 2MBx32 1MBx32 2MBx32 1MBx32
— 4MBx32 2MBx32 4MBx32 1MBx32 4MBx32 2MBx32
— 8MBx32 4MBx32 8MBx32 1MBx32 8MBx32 2MBx32
16
Page 17
Bank 0
Bank 1
Memory Size
96MB
96MB 128MB 128MB 128MB 136MB 136MB 144MB 144MB 160MB 160MB 192MB 192MB 256MB
SIMM1
4MBx32 8MBx32
16MBx32
— 8MBx32 1MBx32
16MBx32
2MBx32
16MBx32
4MBx32
16MBx32
8MBx32
16MBx32 16MBx32
SIMM2
4MBx32 8MBx32
16MBx32
— 8MBx32 1MBx32
16MBx32
2MBx32
16MBx32
4MBx32
16MBx32
8MBx32
16MBx32 16MBx32
SIMM3
8MBx32 4MBx32
—
16MBx32
8MBx32
16MBx32
1MBx32
16MBx32
2MBx32
16MBx32
4MBx32
16MBx32
8MBx32
16MBx32
SIMM4
8MBx32 4MBx32
16MBx32
8MBx32
16MBx32
1MBx32
16MBx32
2MBx32
16MBx32
4MBx32
16MBx32
8MBx32
16MBx32
Installing a SIM Module
A SIM module simply snaps into a socket on the system board. Pin 1 of the SIM module must correspond with Pin 1 of the socket.
—
notch
key
1. Position the SIMM above the socket with the “notch” in the module aligned with the “key” on the socket.
2. Seat the module at a 45° angle into the bank. Make sure it is com­pletely seated. Tilt the module upright until it locks in place in the socket.
17
Page 18
Cache Memory
The 586ITB system board can sup­port 512KB pipeline burst, direct map write-back cache SRAM. Your system board comes with a 512KB cache, which is the maximum cache memory supported by the system board, mounted at locations U5 and U6. One SRAM is mounted on location U7 for tag SRAM to store the cacheable addresses.
Processor Installation
The 586ITB allows for easy installa­tion of processors. Make sure all jumpers are set correctly before ap­plying power or you may damage the processor or system board. Use a needle-nosed plier to move the jump­ers if necessary.
Jumper JP28 is used to set the exter­nal system bus clock of your processor. Refer to the following pages for the external system bus clock that corresponds to your processor and set this jumper accordingly. The clock generator will determine the external bus clock that must be sent to the processor through this setting.
Jumper JP1 and JP2 are used to set the frequency ratio of your processor. Refer to the following pages for the frequency ratio that corresponds to your processor and set these jumpers accordingly.
After setting these jumpers, an Intel processor will multiply the external bus clock by the frequency ratio to become the internal clock speed. Internal clock speed is the commonly used speed of Intel processors in the market and is the actual operating clock of the processor (external bus clock x frequency ratio = internal clock speed).
18
Page 19
AMD processors use the PR-rating system which is the overall processor performance rating.
Jumpers JP15 and JP29 are used to set the voltage of your processor. Make sure these jumpers are set correctly, otherwise your system will hang.
The table below shows the External System Bus Clock of the CPUs sup­ported by the system board and their corresponding PCI Clock and ISA Bus Clock.
External System Bus Clock
60MHz 66MHz
PCI Clk
30MHz 33MHz
ISA Bus Clk
7.5MHz
8.25MHz
19
Page 20
Jumper Settings for Intel Processors
Intel® Processors
90/120/150MHz 100/133/166/200MHz
MMX-166/200/233MHz
* Default
Intel® Processors
90/100MHz/MMX-233MHz 120/133MHz 150/166MHz/MMX-166MHz 200MHz/MMX-200MHz
* Default
CPU Voltages
2.8V
2.9V
3.2V
3.3V
3.5V*
* Default
Ext. System Bus Clk
60MHz 66MHz*
Freq. Ratio
1.5x * 2x
2.5x 3x
Pins 7-8
On On On On On
Pins 5-6
Off Off On On On
JP28
1-2 On 1-2 Off
JP1
1-2 On 2-3 On 2-3 On 1-2 On
Pins 3-4
Off Off Off Off On
JP2
1-2 On 1-2 On 2-3 On 2-3 On
Pins 1-2
Off On Off On On
JP28
JP1 JP2
Pins 3-4
On On On On On
JP15JP29
Pins 1-2
Off Off Off Off Off
7 8
4 2
JP29
JP15
1 2
3 1
20
Page 21
Jumper Settings for AMD-K5/K6 Processors
PR-Rating
K5:PR90/PR120/PR150 K5:PR100/PR133/PR166 K6:PR2-166/PR2-200/
PR2-233
PR-Rating
K5:PR90/PR100/ PR120/PR133
K5:PR150/PR166 K6:PR2-166 K6:PR2-200 K6:PR2-233
CPU Voltages
2.8V
2.9V
3.2V
3.3V
3.5V*
* Default
Ext. System Bus Clk
60MHz 66MHz 66MHz
Freq. Ratio
1.5x 2x
2.5x 3x
3.5x
Pins
Pins
5-6
7-8
Off
On
Off
On
On
On
On
On
On
On
JP1
1-2 On
2-3 On 2-3 On 1-2 On 1-2 On
Pins 3-4
Off Off Off Off On
JP28
1-2 On 1-2 Off 1-2 Off
JP2
1-2 On
1-2 On 2-3 On 2-3 On 1-2 On
Pins 1-2
Off On Off On On
JP28
JP1
Pins 3-4
On On On On On
JP2
JP15JP29
Pins 1-2
Off Off Off Off Off
7 8
4
2
JP29
JP15
1 2
3 1
21
Page 22
Installing Upgrade CPUs
The 586ITB is equipped with a 321­pin Zero Insertion Force (ZIF) socket at location U37 of the sys­tem board. This socket is designed for easy removal of an old CPU and easy insertion of an upgrade CPU. The ZIF socket allows you to carefully place the new CPU into its position. If you need to apply ex­cessive force to insert the CPU, you are not installing the CPU cor­rectly.
Warning:
Open the socket only if you are actually installing a CPU. The warranty on the original CPU will be voided if the S/N seal is broken. Before proceeding with the upgrade, take note of the following. The micropro­cessor and heatsink may be hot if the system has been running. To avoid the possibility of a burn, power the system off and let the proces­sor and heatsink cool for 20 minutes.
The 321-pin ZIF socket consists of five rows of pin holes on each side. To prevent improper CPU installation, the ZIF socket has a Plug/Keying mechanism. Several holes in the socket are plugged so that the CPU will go in only one way. If you cannot easily insert the CPU, verify that pin 1 of the CPU is aligned with pin 1 of the socket.
Zero Insertion Force (ZIF) Socket
22
Page 23
To install an upgrade CPU, do the following:
1. Make sure the handle on the side of the ZIF socket is up. To raise the handle, push it down, slightly pull it out to the side, then raise it as far as it will go. It may be necessary to initially apply a small amount of sideways force to free the handle from its retaining “tab”. Once clear of the “tab”, the handle will open relatively eas­ily. The top plate will slide back. Do not use screwdrivers or other tools to open the socket, or you may damage the system or socket.
Handle
Lifting the Handle
2. Once the lever is completely up, remove the old CPU carefully by lifting it straight out of the socket. You are now ready to insert the new CPU.
Pin 1
23
Page 24
3. Position the CPU above the ZIF socket. Make sure pin 1 of the CPU is aligned with pin 1 of the socket. Lower the chip until the pins are inserted properly in their corresponding holes. Remember that very little force is needed to install the CPU. If the CPU is not easily inserted, verify whether or not pin 1 of the CPU is aligned with pin 1 of the socket. Applying too much pressure can damage the CPU or the socket.
Pin 1
Positioning the CPU Above the ZIF Socket
4. Push the handle down until the handle locks into place. The top plate will slide forward. You will feel some resistance as pressure starts to secure the CPU in the socket. This is normal and will not damage the CPU. However, if the handle is not completely closed, damage to the CPU and/or system board may result.
Installing A Fan/Heatsink
You must choose a fan/heatsink suitable for the processor installed on your system board. Position the fan/heatsink on the CPU such that the air from the side of the fan/heatsink will flow across the heat regulators on the system board. See the figure below.
24
Page 25
Clearance Requirements
Your CPU comes with a heatsink mounted on top. To maintain proper airflow once the upgrade is installed on the system board, the CPU and heatsink require certain space clearances. The clearance above the CPU’s fan/heatsink must be at least 0.4 inches. The clearance on at least 3 of 4 sides of the processor and heatsink must be at least 0.2 inches. All cables (for floppy drive, hard drive, CD-ROM, etc.) must be routed clear of the CPU and its airspace.
Fan Exhaust
The CPU must be kept cool by using a fan with heatsink. The tempera­ture of the air entering the fan/heatsink cannot exceed 45oC (113oF). The ambient or room temperature must be below 37oC (99oF).

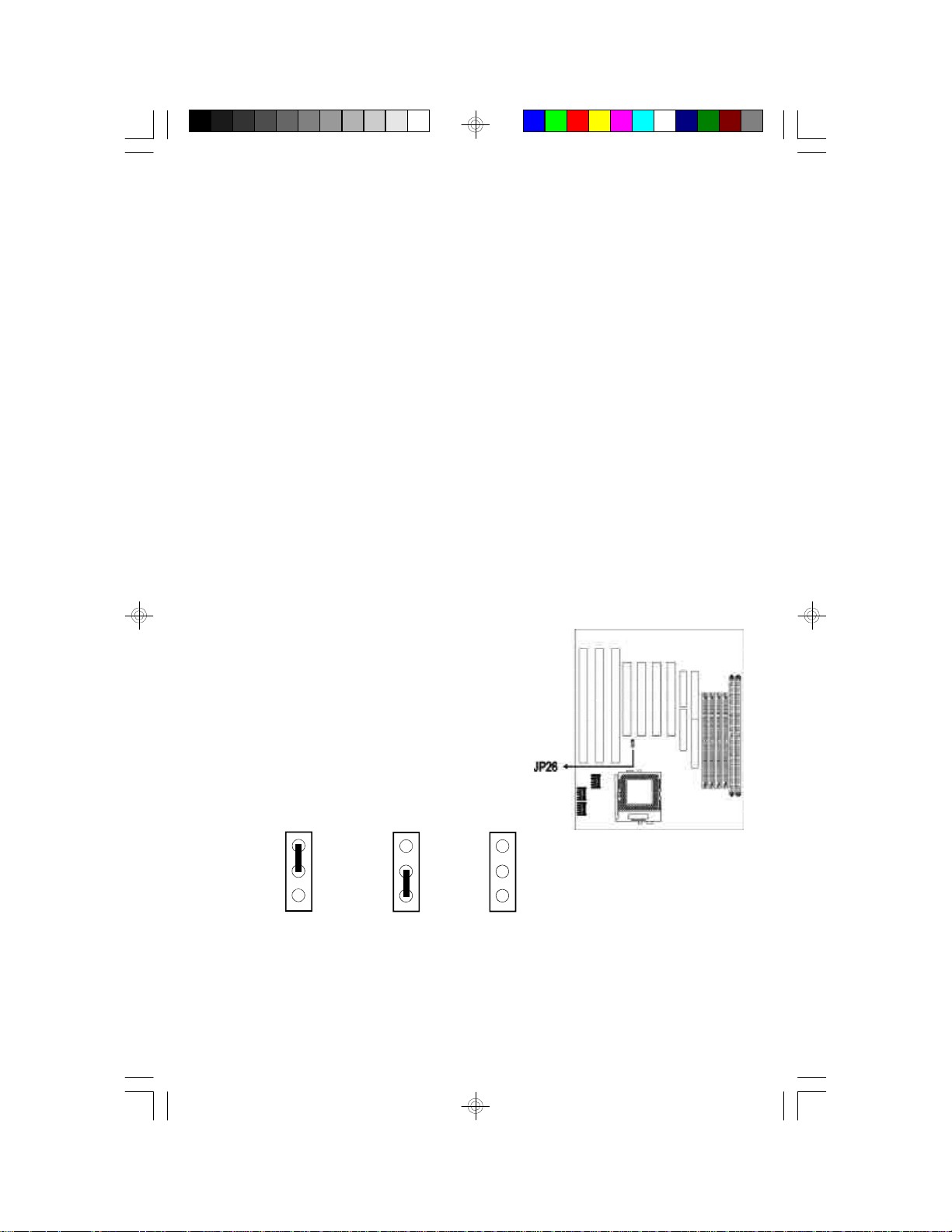

Jumper Settings for Modem Ring-on
Jumper JP26
Modem Ring-on Select The 586ITB board is equipped with
an autodetection of receiving mo­dem ring when your system is in power-off situation. Set jumper JP26 pins 1, 2 to on when connect­ing COM1 port (CN1), set pins 2, 3 to on when connecting COM2 port (CN3), or set to off to ignore auto detection.
1 2
3
1-2 On: COM 1
1 2
3
2-3 On: COM 2
1 2
3
Off: Disabled
(default)
25
Page 26
With a modem being installed, you can remotely transmit or access data without physically going to your system. To “wake up” your sys­tem, follow the steps below.
1. If your ATX power supply has an On/Off switch, set this to On so that even when you have shut down your system, it will always remain in “standby” mode. Note that when you need to use this function, you have to shut down your system by the icons under Windows 95.
2. Enable Power Management. This will allow your system to enter Suspend mode after you have finished accessing data. Refer to the Power Management Setup section for more information.
3. Set Jumper JP26 accordingly. This will depend on the COM port where your modem is connected.
Important:
Before connecting your cable to COM1 or COM2 (depending on your setting), you must turn on the power of modem first to avoid your ATX power supply being interfered.
Factory Testing Jumpers
The jumpers below are for factory testing only and should always be set to their default configura­tion. Reconfiguring these jumpers will cause problems with your system board.
JP14: 5-6 On, 7-8 On JP30: All Off
26
Page 27
Ports and Connectors
The 586ITB system board is equipped with two serial connectors (JP20 & JP22), one parallel printer connectors (U26), one shrouded floppy disk header (U28), two shrouded IDE hard disk headers (J7 & J8), two connectors for exter­nal USB ports (JP8 & JP9), and one IrDA connector (U32).
Serial Connectors
The 586ITB is equipped with two serial connectors at locations JP20 (COM 1) and JP22 (COM 2) of the system board. These serial connec­tors are RS-232C asynchronous communication connectors with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices.

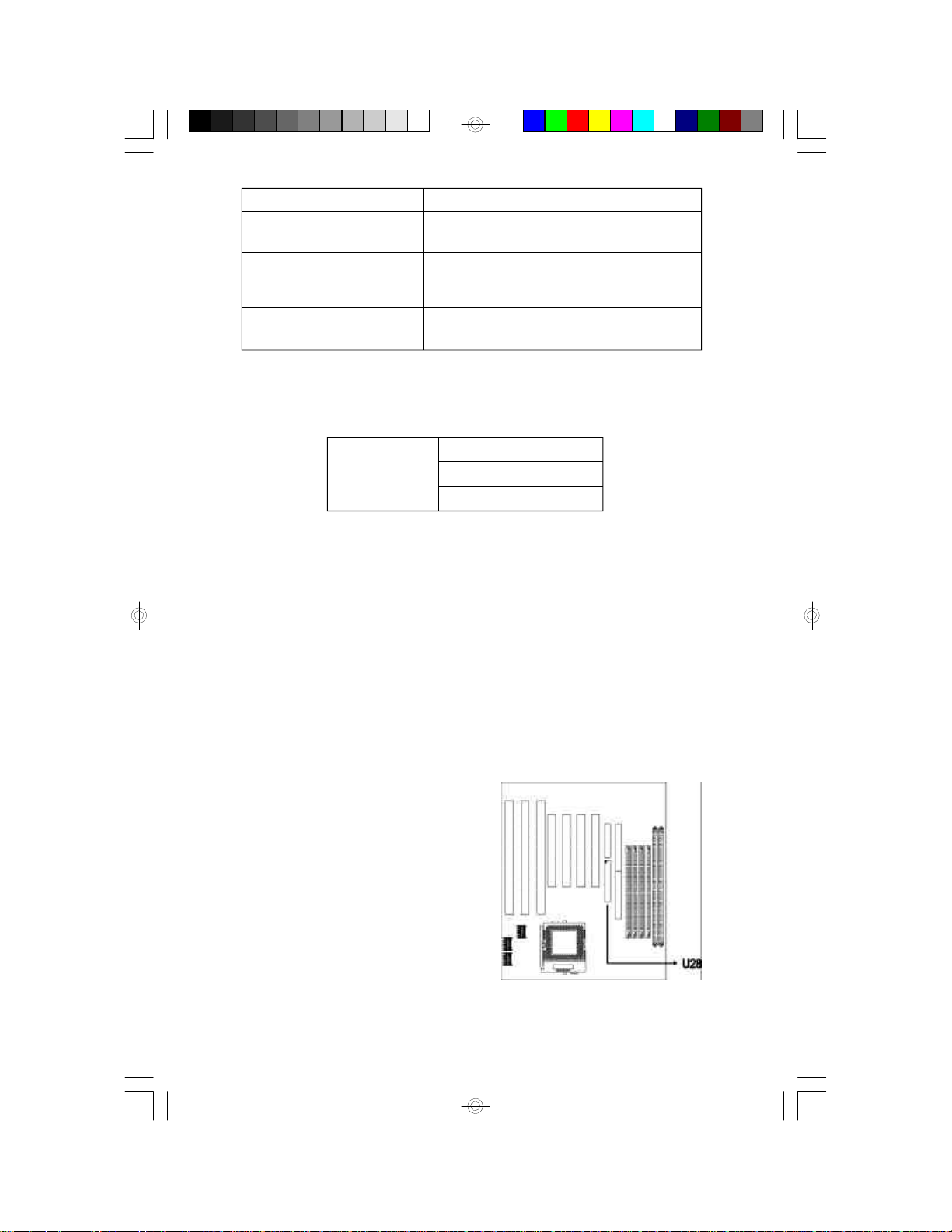

Parallel Connector
The 586ITB system board has a standard printer connector (U26) for interfacing your PC to a parallel printer. It supports SPP, ECP and EPP modes. You can set the connector's mode in the Integrated Peripherals setup of the Award BIOS (Refer to Chapter 3).
27
Page 28
Setting
SPP (Standard Parallel Port)
ECP (Extended Capabilities Port)
EPP (Enhanced Parallel Port)
Function
Allows normal speed operation but in one direction only.
Allows parallel port to operate in bidirectional mode and at a speed higher than the maxi­mum data transfer rate.
Allows bidirectional parallel port operation at maximum speed.
The parallel connector on your system board can be set to any of the following system I/O addresses:
I/O Address
3BC-3BE Hex 378-37A Hex (default) 278-27A Hex
Floppy Disk Drive Controller
The 586ITB system board is equipped with a shrouded floppy disk header that supports two standard floppy disk drives. You can install any 360KB, 720KB, 1.2MB, 1.44MB, or 2.88MB floppy disk drives. To prevent improper floppy cable installation, the shrouded floppy disk header has a keying mechanism. The 34-pin connector on the floppy cable can be placed into the header only if pin 1 of the connector is aligned with pin 1 of the header.
Connecting the Floppy Disk Cable
1. Install the 34-pin header con­nector into the shrouded floppy disk header (U28) on the sys­tem board. The colored edge of the ribbon should be aligned with pin 1 of connector U28.
28
Page 29
2. Install the other 34-pin header connector(s) into the disk drive(s). Align the colored edge of the daisy chained ribbon cable with pin 1 of the drive edge connector(s). The end-most connector should be attached to the drive you want to designate as Drive A.
IDE Hard Disk Interface
The 586ITB system board is equipped with two shrouded PCI IDE headers that will interface four Enhanced IDE (Integrated Drive Elec­tronics) hard disk drives.
Note:
Only Enhanced IDE hard drives or ATAPI CD-ROMs can be connected to the IDE interface.

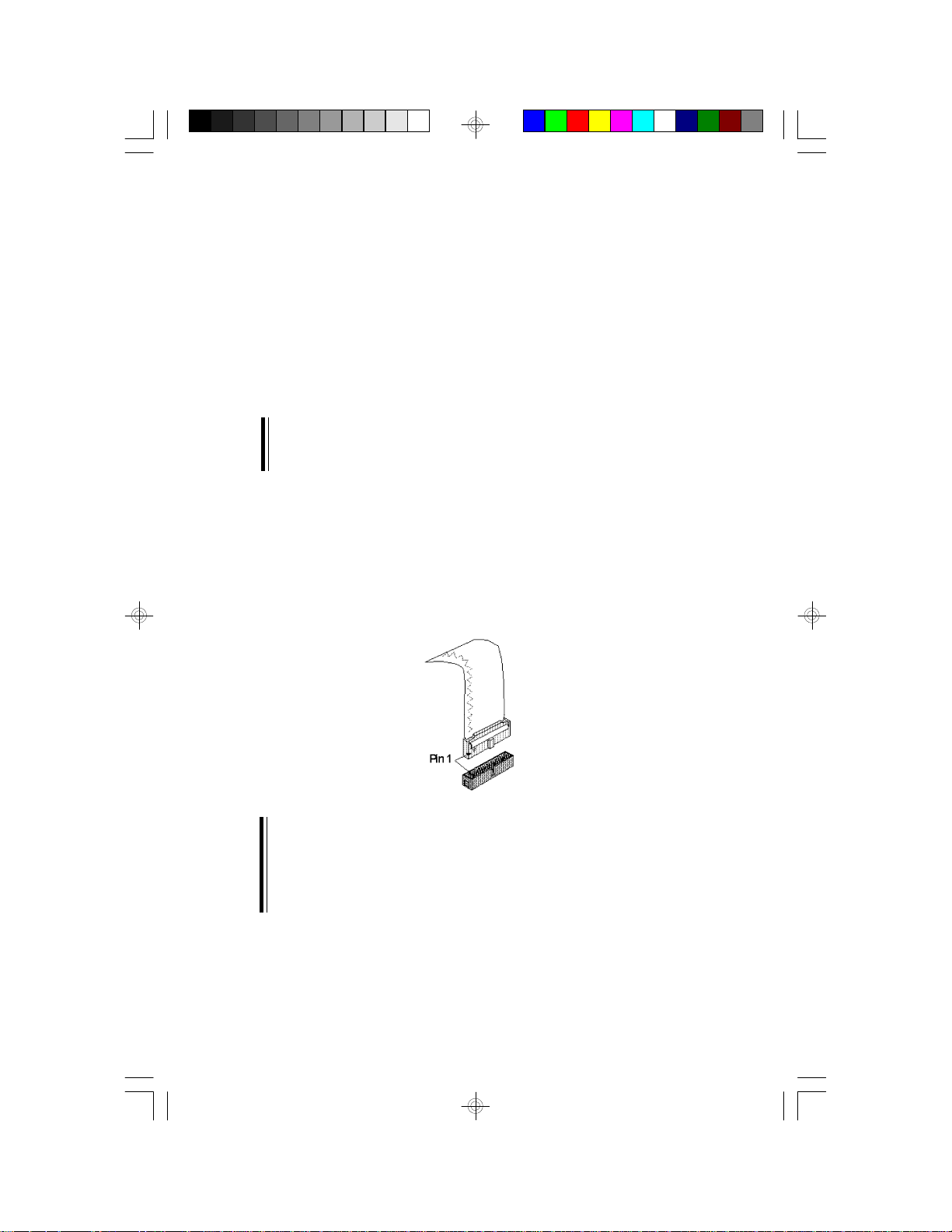

Connecting the IDE Hard Disk Interface
To prevent improper IDE cable installation, each shrouded PCI IDE header has a keying mechanism. The 40-pin connector on the IDE cable can be placed into the header only if pin 1 of the connector is aligned with pin 1 of the header.
Header
Note:
An IDE cable with a standard 40-pin connector (without the keying mechanism) can be installed in the shrouded PCI IDE header. Be ex­tremely careful to match the colored edge of the ribbon with pin 1 of the header.
29
Page 30
Connecting the Hard Disk Cable
1. If you are connecting two hard drives, install the 40-pin con­nector of the IDE cable into the primary shrouded IDE header (connector J7). If you are add­ing a third or fourth IDE device, install the 40-pin connector of the other IDE cable into the secondary shrouded IDE header (connector J8).
2. Install the other 40-pin header connector(s) into the device with the colored edge of the ribbon cable aligned with pin 1 of the drive edge connector(s).
Note:
Refer to your disk drive user’s manual for information about selecting proper drive switch settings.
Adding a Second IDE Hard Drive
When using two IDE drives, one must be set as the master and the other as the slave. Follow the instructions provided by the drive manu­facturer for setting the jumpers and/or switches on the drives.
We recommend that you use Enhanced IDE hard drives from the same manufacturer. In a few cases, drives from two different manufacturers will not function properly when used together. The problem lies in the hard drives, not the 586ITB system board.
Preparing an IDE Drive for Use
IDE disk drives are already low-level formatted, with any bad-track er­rors entered, when shipped by the drive manufacturer. Do not attempt to do a low-level format or you may cause serious damage to the drive.
30
Page 31
To use an IDE drive, you need to enter the drive type (this information is provided by the drive manufacturer) into the system’s CMOS setup table. Then run FDISK and FORMAT provided with DOS. You may also use the IDE HDD Auto Detection function which will allow the BIOS to auto detect your hard drive type. Refer to the IDE HDD Auto Detection section for details.
Warning:
Do not run FDISK and FORMAT programs on a drive that has already been formatted or you will lose all programs and data stored on the drive.
Using 586ITB with CD-ROM Drives
If you encountered problems while using an ATAPI CD-ROM drive that is set in Master mode, please set the CD-ROM drive to Slave mode. Some ATAPI CD-ROMs may not be recognized and cannot be used if incorrectly set in Master mode.
Universal Serial Bus Connectors
The 586ITB system board is equipped with two connectors, at locations JP8 (USB 1) and JP9 (USB 2) on the system board, for external USB ports. USB allows data exchange between your com­puter and a wide range of simulta­neously accessible peripherals. Make sure “USB Controller” in the Integrated Peripherals setup of the Award BIOS is Enabled.
Connecting the USB Ports
As an option, one card-edge bracket mounted with two USB port cables may be provided with the system board. The ends of the cables are at­tached to a connector. Mount the card-edge bracket to the system chassis.
31
Page 32
Connect the cable to JP8 and JP9 on the system board. The USB port cables can be inserted only if pin 1 of the cable (red wire) is aligned with pin 1 of JP8 and JP9. Pin 5 of JP9 has been removed and the hole in the USB cable connector, which corresponds to pin 5, has been plugged to prevent incorrectly inserting the connector. Make sure “USB Controller” in the Inte­grated Peripherals setup of the Award BIOS is Enabled.
USB port cables (optional)
IrDA Connector
The 586ITB system board is equipped with an IrDA connector for wireless connectivity between your computer and peripheral de­vices. Connect your IrDA cable to connector U32 on the 586ITB sys­tem board. Make sure “Onboard IR Controller” in the Integrated Periph­erals setup of the Award BIOS is Enabled. Carefully read this section in Chapter 3 of this manual for in­structions prior to using your IrDA device.
32
Page 33
Installing Expansion Cards
The 586ITB system board is equipped with 3 dedicated PCI slots, 2 dedicated 16-bit ISA slots and 1 shared PCI/ISA slot. All PCI and ISA slots are bus masters.
33
Page 34
Chapter 3 Software Installation
After you power up your system, the BIOS message appears on your screen and the memory count begins.
After the memory test, the following message will appear on the screen:
Press DEL to enter setup
If the message disappears before you respond, restart your system or press the “Reset” button located on the front panel of your computer. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously.
If you have set a password and selected “System” in the Security Op­tion of the BIOS Features Setup menu, you will be prompted for the password every time the system is rebooted or any time you try to enter Setup. Type in the correct password and press <Enter>.
If you selected “Setup” in the Security Option, you will be prompted for the password only when you try to enter Setup. Refer to the “BIOS Features Setup” section for more information.
Award CMOS Setup Utility
While booting up, press <Ctrl> <Alt> <Esc> simultaneously or <Del> to enter the Setup utility. A screen similar to the one on the next page will appear.
34
Page 35
ROM PCI/ISA BIOS
CMOS SETUP UTILITY
AWARD SOFTWARE, INC.
STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP PNP/PCI CONFIGURATION LOAD FAIL-SAFE SETTINGS LOAD OPTIMAL SETTINGS
: Quit
Esc
: Save & Exit Setup
F10
INTEGRATED PERIPHERALS SUPERVISOR PASSWORD USER PASSWORD IDE HDD AUTO DETECTION HDD LOW LEVEL FORMAT SAVE & EXIT SETUP EXIT WITHOUT SAVING
↑↓→←
(Shift) F2
: Select Item : Change Color
Use the arrow keys to highlight the option you want and press <Enter>. The following describes each of these options.
Note:
The settings on the BIOS setup screens on the following pages are for reference only. Some of the settings will vary according to your system’s configuration and should not be referred to as the standard default setting.
Standard CMOS Setup
Use the arrow keys to highlight “Standard CMOS Setup” and press <Enter>. A screen similar to the one below will appear.
Date (mm:dd:yy) : Mon, Jul 29 1996 Time (hh:mm:ss) : 13: 27: 50
HARD DISKS Primary Master Primary Slave Secondary Master Secondary Slave
Drive A : 1.44M, 3.5 in. Drive B : None
Video : EGA/VGA Halt on : All Errors
: Quit
Esc
: Save & Exit Setup
F10
: : : :
TYPE Auto Auto Auto Auto
SIZE
ROM PCI/ISA BIOS STANDARD CMOS SETUP AWARD SOFTWARE, INC.
HEAD
CYLS 0 0 0 0
↑↓→←
(Shift)F2
0 0 0 0
PRECOMP 0 0 0 0
: Select Item : Change
LANDZ 0 0 0 0
SECTOR 0 0 0 0
Base Memory : 640K
Extended Memory : 64512K
Other Memory : 384K
Total Memory : 65536K
PU/PD/+/- : Modify
0 0 0 0
MODE Auto Auto Auto Auto
35
Page 36
Date
The date format is <day>, <month>, <date>, <year>.
Day Month Date Year
Displays a day, from Sunday to Saturday Displays the month, from January to December Displays the date, from 1 to 31 Displays the year, from 1900 to 2099
Time
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00.
Hour Minute Second
Displays hours from 00 to 23 Displays minutes from 00 to 59 Displays seconds from 00 to 59
Primary Master, Primary Slave, Secondary Master and Secondary Slave
These categories allow you to enter the appropriate specifications for the type of hard disk drive(s) installed in your system. There are 45 predefined types and 4 user definable types for IDE hard drives. Type 1 to Type 45 are predefined. Type “User” is user-definable.
Press <PgUp> or <PgDn> to select a numbered hard disk type or type the number and press <Enter>. The hard disk will not work properly if you enter improper information for this category. You can use "User" type to define your own drive type manually.
If you select "User" type, you will need to know the information listed below. Enter the information and press <Enter>. This information should be included in the documentation from your hard disk vendor or the system manufacturer.
36
Page 37
If the controller of the HDD interface is ESDI, you must select “Type 1”. If the controller of the HDD interface is SCSI, you must select “None”. If you select Type “Auto”, the BIOS will auto-detect the HDD & CD-ROM
drive at the POST stage and show the IDE for the HDD & CD-ROM drive.
Type Cyls Heads Precomp Landzone Sectors Mode
Drive type Number of cylinders Number of heads Write precomp Landing zone Number of sectors Mode type
If a hard disk has not been installed, select “None” and press <Enter>.
Drive A and Drive B
These categories identify the types of floppy disk drives installed. The following are the options for drives A and B.
None 360K, 5.25 in.
1.2M, 5.25 in. 720K, 3.5 in.
1.44M, 3.5 in.
2.88M, 3.5 in.
No floppy drive is installed 5-1/4 inch PC-type standard drive; 360 kilobyte capacity 5-1/4 inch AT-type high-density drive; 1.2 megabyte capacity 3-1/2 inch double-sided drive; 720 kilobyte capacity 3-1/2 inch double-sided drive; 1.44 megabyte capacity 3-1/2 inch double-sided drive; 2.88 megabyte capacity
Note:
Choosing an incorrect type might cause your system to format the floppy disk improperly, and you will not be able to access your data.
37
Page 38
Video
This category selects the type of video adapter used for the primary system monitor. Although secondary monitors are supported, you do not have to select the type in Setup. The default setting is EGA/VGA (BIOS default, Setup default).
EGA/VGA
CGA 40 CGA 80 Mono
Enhanced Graphics Adapter/Video Graphics Array. For EGA, VGA, SVGA and PGA monitor adapters.
Color Graphics Adapter. Power up in 40-column mode. Color Graphics Adapter. Power up in 80-column mode. Monochrome adapter. Includes high resolution monochrome
adapters.
Halt On
This category determines whether the system will stop if an error is de­tected during power up. The default setting is All Errors (BIOS default, Setup default).
No Errors All Errors
All, But Keyboard
All, But Diskette
All, But Disk/Key
The system boot will not stop for any errors detected. The system boot will stop whenever the BIOS detects a non-
fatal error. The system boot will not stop for a keyboard error; it will stop
for all other errors. The system boot will not stop for a disk error; it will stop for
all other errors. The system boot will not stop for a disk or keyboard error; it
will stop for all other errors.
Memory
The base memory size, extended memory size and the other memory size cannot be altered; your computer automatically detects and dis­plays them.
38
Page 39
Base Memory
Extended Memory
Other Memory
This refers to the amount of base or conventional memory installed on the system board.
This is the amount of memory located above 1MB in the memory address map of the CPU.
This memory size refers to the memory located in the ad­dress space between 640K and 1024K. DOS uses this area to load device drivers to keep base memory free for application programs. The most appropriate use of this area is for Shadow RAM.
BIOS Features Setup
The BIOS Features Setup allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.
ROM PCI/ISA BIOS
BIOS FEATURES SETUP
AWARD SOFTWARE, INC.
Virus Warning CPU Internal Cache External Cache Quick Power On Self Test Boot Sequence Swap Floppy Drive Boot Up Floppy Seek Boot Up NumLock Status Typematic Rate Setting Typematic Rate (Chars/Sec) Typematic Delay (Msec) Security Option PCI/VGA Palette Snoop OS Select For DRAM > 64MB
: Disabled : Enabled : Enabled : Disabled : A, C, SCSI : Disabled : Enabled : On : Disabled : 6 : 250 : Setup : Disabled : Non-OS2
Video BIOS Shadow C8000-CBFFF Shadow CC000-CFFFF Shadow D0000-D3FFF Shadow D4000-D7FFF Shadow D8000-DBFFF Shadow DC000-DFFFF Shadow
ESC
: Quit
F1
: Help
F5
: Old Values
F6
: Load Fail-Safe Settings
F7
: Load Optimal Settings
: Enabled : Disabled : Disabled : Disabled : Disabled : Disabled : Disabled
↑↓→←
PU/PD/+/­(Shift) F2
: Select Item : Modify : Color
Virus Warning
This category protects the boot sector and partition table of your hard disk drive. When this item is enabled, the Award BIOS will monitor the boot sector and partition table of the hard disk drive. If an attempt is made to write to the boot sector or partition table of the hard disk drive, the BIOS will halt the system and the following error message will appear.
39
Page 40
! WARNING !
Disk boot sector is to be modified
Type “Y” to accept write or “N” to abort write
Award Software, Inc.
After seeing this message, if necessary, you will be able to run an anti­virus program to locate and remove the problem before any damage is done.
Many disk diagnostic programs which attempt to access the boot sector table will cause the warning message to appear. If you are running such a program, we recommend that you first disable this category. Also, disable this category if you are installing or running certain operating systems like Windows 95 or the operating system may not install nor work.
Enabled
Disabled
BIOS issues a warning when any program or virus sends a Disk Format command or attempts to write to the boot sector of the hard disk drive.
No warning message will appear when the boot sector of the hard disk drive is accessed.
CPU Internal Cache and External Cache
These categories speed up memory access. The default value is en­abled. Enable the External Cache for better performance.
Enabled Disabled
Enables the internal/external cache. Disables the internal/external cache.
Quick Power On Self Test
This category speeds up Power On Self Test (POST) after you power on your system. If it is set to Enabled, the BIOS will shorten or skip some check items during POST.
Enabled Disabled
Enables quick POST. Normal POST.
40
Page 41
Boot Sequence
This category determines which drive to search first for the disk operat­ing system (i.e. DOS). The default is A, C, SCSI.
The options are: A, C, SCSI; C, A, SCSI; C, CDROM, A; CDROM, C, A; D, A, SCSI; E, A, SCSI; F, A, SCSI; SCSI, A, C; SCSI, C, A; or C only.
Swap Floppy Drive
Enabled
Disabled
When this option is enabled and the system is booting from the floppy drive, the system will boot from drive B instead of drive A.
When this option is disabled and the system is booting from the floppy drive, the system will boot from drive A.
Boot Up Floppy Seek
During POST, the BIOS will determine if the floppy disk drive installed is 40 or 80 tracks. 360K type is 40 tracks while 720K, 1.2M, 1.44M and
2.88M are all 80 tracks.
Enabled
Disabled
The BIOS will check whether the floppy disk drive installed is 40 or 80 tracks. Note that the BIOS cannot distinguish be­tween 720K, 1.2M, 1.44M or 2.88M drive types as they are all 80 tracks.
The BIOS will not search for the type of floppy disk drive by track number. Note that there will not be any warning mes­sage if the drive installed is 360KB.
Boot Up NumLock Status
This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on.
On Off
The function of the numeric keypad is the number keys. The function of the numeric keypad is the arrow keys.
41
Page 42
Security Option
This category allows you to limit access to your system and Setup or just to Setup.
System
Setup
The system will not boot and access to Setup will be denied if the correct password is not entered at the prompt.
The system will boot, but access to Setup will be denied if the correct password is not entered at the prompt.
PCI/VGA Palette Snoop
This is used to select whether to allow MPEG ISA/VESA VGA cards to work with PCI/VGA or not.
Enabled Disabled
PCI/VGA working with MPEG ISA/VESA VGA cards. PCI/VGA not working with MPEG ISA/VESA VGA cards.
OS Select for DRAM > 64MB
This item allows you to access the memory that is over 64MB in OS/2. The options are: Non-OS2 and OS2.
Video BIOS Shadow
Determines whether video BIOS will be copied to RAM. Video Shadow will increase the video speed. Note that some graphics boards require that this option be disabled.
Enabled Disabled
Video shadow is enabled. Video shadow is disabled.
C8000-CBFFF Shadow to DC000-DFFFF Shadow
These categories determine whether option ROMs will be copied to RAM.
42
Page 43
Enabled Disabled
Optional shadow is enabled. Optional shadow is disabled.
Chipset Features Setup
This section gives you instructions on how to configure the system based on the specific features of the chipset. This chipset manages bus speeds and access to system memory resources. It also coordinates communications between the conventional ISA bus and the PCI bus. These items should not be altered unless necessary. Depending on your add-in boards, you may not or should not enable some of those features. The default settings have been chosen because they provide the best operating conditions for your system. The only time you might consider making any changes would be if you discovered some incom­patibility or that data was being lost while using your system.
ROM PCI/ISA BIOS
CHIPSET FEATURES SETUP
AWARD SOFTWARE, INC.
Auto Configuration DRAM Timing DRAM Leadoff Timing DRAM Read Burst (EDO/FP) DRAM Write Burst Timing Fast EDO Lead Off Refresh RAS# Assertion Fast RAS To CAS Delay DRAM Page Idle Timer DRAM Enhanced Paging Fast MA to RAS# Delay SDRAM (CAS Lat/RAS-to-CAS) System BIOS Cacheable Video BIOS Cacheable 8 Bit I/O Recovery Time 16 Bit I/O Recovery Time Memory Hole At 15M-16M Extented CPU-PIIX4 PHLDA# Host-to-PCI Bridge Retry PCI Concurrency Mem. Drive Str. (MA/RAS)
: Enabled : Normal : 11/7/4 : x444/x444 : x444 : Disabled : 5 Clks : 3 : 4 Clks : Enabled : 2 Clks : 3/3 : Disabled : Disabled : 4 : 2 : Disabled : Disabled : Disabled : Enabled : 16mA/16mA
ESC
: Quit
F1
: Help
F5
: Old Values
F6
: Load Fail-Safe Settings
F7
: Load Optimal Settings
↑ ↓ → ←
PU/PD/+/­(Shift) F2
: Select Item : Modify : Color
Power Management Setup
Power Management Setup allows you to configure your system to most effectively save energy. If you like to use the soft power down feature of Windows 95, you must enable the Power Management below. Select Min. Power, Max. Power or User Defined. Either one can be used as long as it is NOT disabled.
43
Page 44
ROM PCI/ISA BIOS
POWER MANAGEMENT SETUP
AWARD SOFTWARE, INC.
Power Management PM Control by APM Video Off Method Video Off After
Doze Mode Standby Mode Suspend Mode HDD Power Down Throttle Duty Cycle VGA Active Monitor Soft-Off by PWR-BTTN Resume by Ring Resume by Alarm
** Break Event From Suspend ** IRQ 8 Clock Event
: Disabled : Yes : V/H SYNC+Blank : Standby
: Disabled : Disabled : Disabled : Disabled : 62.5% : Enabled : Hold 4 Sec. : Enabled : Disabled
: Disabled
** Reload Global Timer Events ** IRQ [3-7, 9-15], NMI Primary IDE 0 Primary IDE 1 Secondary IDE 0 Secondary IDE 1 Floppy Disk Serial Port Parallel Port
ESC
: Quit
F1
: Help
F5
: Old Values
F6
: Load Fail-Safe Settings
F7
: Load Optimal Settings
: Enabled : Disabled : Disabled : Disabled : Disabled : Disabled : Enabled
: Disabled
↑ ↓ → ←
PU/PD/+/­(Shift) F2
: Select Item : Modify : Color
Power Management
This category allows you to select the type (or degree) of power saving by changing the length of idle time that elapses before each of the following modes are activated: Doze Mode, Standby Mode, and Sus­pend Mode.
Disable (default)
Min. Power Saving
Max. Power Saving
User Defined
PM Control by APM
Yes
No
44
No power management. Disables the Doze, Standby and Suspend modes.
Minimum power management. Doze Mode = 1 hr., Standby Mode = 1 hr., and Suspend Mode = 1 hr.
Maximum power management. Doze Mode = 1 min., Standby Mode = 1 min., and Suspend Mode = 1 min.
Allows you to set each mode individually. When enabled, each option ranges from 1 min. to 1 hr.
An Advanced Power Management device will be activated to enhance the Max. Power Saving mode and stop the CPU’s internal clock. Use this option in Windows 95. (default)
The system BIOS will ignore APM when initiating the Power Management mode.
Page 45
Video Off Method
This determines the manner in which the monitor is blanked.
V/H SYNC + Blank
Blank Screen
DPMS
This selection will cause the system to turn off the vertical and horizontal synchronization ports and write blanks to the video buffer.
This option only writes blanks to the video buffer.
Initializes display power management signaling. Use this option if your video board supports it.
Video Off After
N/A Suspend
Standby
Doze
The system BIOS will never turn off the screen. The screen is off when the system is in the Suspend
mode. The screen is off when the system is in the Standby
mode. The screen is off when the system is in the Doze
mode.
Doze Mode, Standby Mode, Suspend Mode and HDD Power Down
These Green PC power saving categories are user configurable only when the Power Management category is set to User Defined.
Doze Mode
Standby Mode
When enabled and after the set time of system inactivity, the CPU clock will run at a slower speed (1/2 of full speed) while all other devices still operate at full speed.
When enabled and after the set time of system inactivity, the CPU clock will run at a speed slower than the speed during Doze mode (1/3 of full speed) while all other devices still oper­ate at full speed.
45
Page 46
Suspend Mode
HDD Power Down
When enabled and after the set time of system inactivity, the CPU and onboard peripherals will be shut off.
This is used to define the continuous HDD idle time that elapses before the HDD enters the power saving mode (mo­tor off). When enabled and after the set time of system inac­tivity, the hard disk drive will be powered down while all other devices remain active.
Throttle Duty Cycle
This category allows you to select the rate of reduction with your exter­nal system bus clock to save power.
Options Default
12.5%, 25.0%, 37.5%, 50.0%, 62.5%, 75.0%, and 87.5%.
62.5%.
VGA Active Monitor
This category allows you to enable or disable the VGA activities that cause the system to wake up from power saving mode.
Enabled
Disabled
VGA activities will cause the system to wake up from power saving mode.
VGA activities will not cause the system to wake up from power saving mode.
Soft-Off by PWR-BTTN (for ATX power supply only)
This category allows you to select the power-off time with pressing power button.
Hold 4 Sec.
Instant­Off
This option allows you to power off your system by pressing power button for 4 sec. at least. If you press power button once with this option, your system will not be powered off and will be in suspend mode.
This option allows you to press power button once and power off your system instantly.
46
Page 47
Resume by Ring (for ATX power supply only)
Set “Resume by Ring” to COM 1or COM 2. This will depend on the COM port where your modem is connected. Refer to pages 25 and 26 for detailed information.
Resume by Alarm (for ATX power supply only)
This category allows you to set the day and time of resumption for your computer automatically.
Enabled
Disabled
Enables to set the alarm time. When setting Enabled, you can set the day and time with the next two showing items of the Resume by Alarm. Set the IRQ 8 Clock Event under Break Event From Suspend to Enabled when selecting this option.
Disables to set the alarm time. (default)
Break Event From Suspend and Reload Global Timer Events
These are I/O events whose occurrence can prevent the system from entering a power saving mode or can awaken the system from such a mode. In effect, the system remains alert for anything which occurs to a device which is configured as enabled, even when the system is in a power saving mode.
When an I/O device wants to gain the attention of the operating system, it signals this by causing an IRQ to occur. When the operating system is ready to respond to the request, it interrupts itself and performs the service.
PNP/PCI Configuration
This section describes configuring the PCI bus system. It covers some very technical items, and it is strongly recommended that only experi­enced users make any changes to the default settings.
47
Page 48
ROM PCI/ISA BIOS
PNP/PCI CONFIGURATION
AWARD SOFTWARE, INC.
PNP OS Installed Resources Controlled By Reset Configuration Data
: No : Auto : Disabled
PCI IDE IRQ Map To
Primary IDE INT# Secondary IDE INT#
Assign IRQ for VGA
ESC
: Quit
F1
: Help
F5
: Old Values
F6
: Load Fail-Safe Settings
F7
: Load Optimal Settings
: PCI-Auto : A : B : Enabled
↑ ↓ → ←
PU/PD/+/­(Shift) F2
: Select Item : Modify : Color
PNP OS Installed
This category is used to disable or enable your Plug and Play with your operating system.
Yes
Select this option when you need Windows 95 to detect Plug and Play devices automatically.
No
Select this option when you need Plug and Play devices to be detected by BIOS for some compatible resources. We recommand that you select this option to choose the PnP de­vices by BIOS. (default)
Resources Controlled By
The Award Plug and Play BIOS has the capacity to automatically con­figure all of the boot and Plug and Play compatible devices.
Auto
Manual
The system will automatically detect the settings for you. The categories that follow will not be shown on the PNP/PCI Con­figuration screen.
This allows you to set the IRQ/DMA (you have assigned your add-in card) to Legacy ISA or PCI/ISA PnP. For non-PnP ISA cards, select Legacy ISA. For PnP ISA or PCI cards, select PCI/ISA PnP.
48
Page 49
Reset Configuration Data
Enabled Disabled
The BIOS will reset the configuration data once automatically. The BIOS will not reset the configuration data.
PCI IDE IRQ Map To
This category is used to configure your system to the type of IDE disk controller in use.
ISA
PCI-Auto
Designates which ISA slot is installed with an IDE controller card; that is, if you are using an IDE controller card.
The system will scan and determine the PCI slot that is in­stalled with an IDE controller card.
Primary IDE INT# and Secondary IDE INT#
The Primary and Secondary IDE INT# categories are used to select the PCI interrupt (A, B, C, or D) that is associated with the connected hard drives.
Assign IRQ for VGA
If Enabled, the system will automatically set an IRQ for the VGA card installed. Your VGA card will need an IRQ address only when using the video capture function of the card. If you are not using this function and a new device requires an IRQ address, you can set this function to Disabled. The IRQ address (previously occupied by the VGA card) will be available for your new device.
Load Fail-Safe Settings
The “Load Fail-Safe Settings” option loads the troubleshooting default values permanently stored in the ROM chips. These settings are not optimal and turn off all high performance features. You should use these values only if you have hardware problems. Highlight this option on the main menu and press <Enter>. The message below will appear.
49
Page 50
Load Fail-Safe Settings (Y/N)? N
If you want to proceed, type <Y> and press <Enter>. The default set­tings will be loaded.
Load Optimal Settings
The “Load Optimal Settings” option loads optimized settings from the BIOS ROM. Use the Setup default values as standard values for your system.
Highlight this option on the main menu and press <Enter>. The mes­sage below will appear.
Load Optimal Settings (Y/N)? N
Type <Y> and press <Enter> to load the Setup default values.
Integrated Peripherals
ROM PCI/ISA BIOS
INTEGRATED PERIPHERALS
AWARD SOFTWARE, INC.
IDE HDD Block Mode IDE Primary Master PIO IDE Primary Slave PIO IDE Secondary Master PIO IDE Secondary Slave PIO IDE Primary Master UDMA IDE Primary Slave UDMA IDE Secondary Master UDMA IDE Secondary Slave UDMA On-chip Primary PCI IDE On-chip Secondary PCI IDE USB Keyboard Support
: Enabled : Auto : Auto : Auto : Auto : Auto : Auto : Auto : Auto : Enabled : Enabled : Disabled
KBC input clock Onboard FDC Controller Onboard Serial Port 1 Onboard Serial Port 2 Onboard IR Controller
Onbpard Parallel Port Parallel Port Mode
ESC
: Quit
F1
: Help
F5
: Old Values
F6
: Load Fail-Safe Settings
F7
: Load Optimal Settings
: 8MHz : Enabled : 3F8/IRQ4 : 2F8/IRQ3 : Disabled
: 378/IRQ7 : SPP
↑ ↓ → ←
PU/PD/+/­(Shift) F2
: Select Item : Modify : Color
IDE HDD Block Mode
Enabled
Disabled
50
The IDE HDD uses the block mode. The system BIOS will check the hard disk drive for the maximum block size the system can transfer. The block size will depend on the type of hard disk drive installed.
The IDE HDD uses the standard mode.
Page 51
IDE Primary Master/Slave PIO and IDE Secondary Master/Slave PIO
Your system supports five modes, 0 (default) to 4, which primarily differ in timing. When Auto is selected, the BIOS will select the best available mode after checking your hard drive or CD-ROM.
Auto
0-4
The BIOS will automatically set the system according to your hard disk drive’s timing.
You can select a mode that matches your hard disk drive’s timing. Caution: Do not use the wrong setting or you will have drive or CD-ROM errors.
IDE Primary Master/Slave UDMA and IDE Secondary Master/Slave UDMA
These categories allow you to set the Ultra DMA in use. When Auto is selected, the BIOS will select the best available option after checking your hard drive or CD-ROM.
Auto Disabled
The BIOS will automaticaly detect the settings for you. The BIOS will not detect these categories.
On-Chip Primary PCI IDE and On-Chip Secondary PCI IDE
These categories allow you to enable or disable the primary and sec­ondary IDE controller. The default is Enabled. Select Disabled if you want to add a different hard drive controller.
USB Keyboard Support
This category allows you to enable or disable the USB Keyboard Sup­port. The default is Disabled. Select Enabled if you are in MS-DOS and your keyboard is not working.
KBC input clock
This category allows you to select the input clock of your keyboard.
51
Page 52
Options Default
6MHz, 8MHz, 12MHz and 16MHz 8MHz
Onboard FDC Controller
Enabled Disabled
Enables the onboard floppy disk controller. Disables the onboard floppy disk controller.
Onboard Serial Port 1 and Onboard Serial Port 2
Auto
3F8/IRQ4, 2F8/IRQ3 3E8/IRQ4, 2E8/IRQ3
Disabled
The system will automatically select an I/O address for the onboard serial port 1 and serial port 2.
Allows you to manually select an I/O address for the onboard serial port 1 and serial port 2.
Disables the onboard serial port 1 and/or serial port 2.
Onboard IR Controller
The 586ITB system board supports IrDA function for wireless connectiv­ity between your computer and peripheral devices. You may not use IrDA (U32) and the COM 2 serial port (JP22) at the same time. If you are using the COM 2 serial port, make sure “Onboard IR Controller” is Disabled.
To use the IrDA function, follow the steps below.

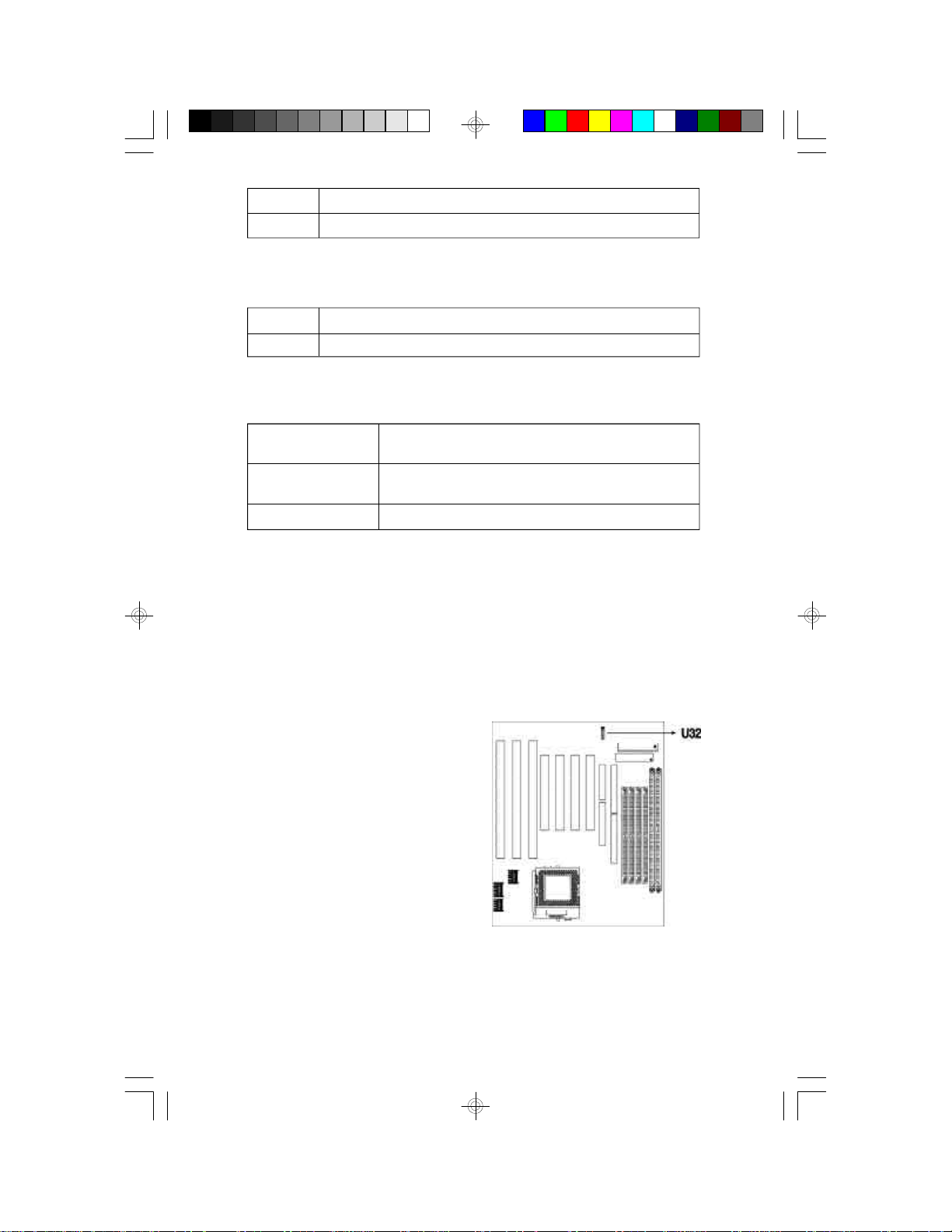

1. Connect your IrDA cable to connector U32 on the 586ITB system board.
2. Set “Onboard IR Controller” to Enabled.
3. If Enabled, the following op­tions will appear right after “Onboard IR Controller”.
52
Page 53
IR Address Select
This is used to select an I/O address for the IrDA peripheral/device installed. The options are: 3F8H, 2F8H, 3E8H and 2E8H. Default setting: 2E8H.
IR Mode
Set “IR Mode” to the type of IrDA standard supported by your IrDA peripheral/device. The options are: IrDA (HP mode) and ASKIR (Sharp mode). Default setting: IrDA.
IR Transmission Delay
If this option is Enabled, transmission of data will be slower. This is recommended when you encounter transmission problem with your device. The options are: Enabled and Disabled.
IR IRQ Select
Selects an IRQ for the IrDA peripheral/device installed. The options are: IRQ3, IRQ4, IRQ10 and IRQ11. The default setting is IRQ10.
Onboard Parallel Port
378/IRQ7 3BC/IRQ7 278/IRQ5
Disabled
Selects the I/O address and IRQ for the onboard parallel port.
Disables the onboard parallel port.
Parallel Port Mode
Parallel Port Mode will appear only if you selected an I/O address and IRQ in the Onboard Parallel Port option (shown above). This option ap­plies to a standard specification and will depend on the speed of your device.
SPP EPP ECP ECP+EPP
Selects the parallel port mode according to the type of printer device connected to your onboard parallel port.
53
Page 54
If you selected EPP, “EPP Mode Select” will appear. This option applies to standard specification. The options are EPP1.9 and EPP1.7. Default setting: EPP1.7.
If you selected ECP, “ECP Mode Use DMA” will appear. This is used to select a DMA channel for the parallel port. The options are 1 and 3. Default setting: 3.
If you selected ECP+EPP, “ECP Mode Use DMA” and “EPP Mode Se­lect” will both appear on the screen.
Supervisor Password
If you want to protect your system and setup from unauthorized entry, set a supervisor’s password with the “System” option selected in the BIOS Features Setup.
If you want to protect access to setup only, but not your system, set a supervisor’s password with the “Setup” option selected in the BIOS Fea­tures Setup. You will not be prompted for a password when you cold boot the system.
Use the arrow keys to highlight the “Supervisor Password” option and press <Enter>. The message below will appear.
Enter Password:
Type in the password. You are limited to eight characters. When done, the message below will appear:
Confirm Password:
You are being asked to verify the password. Type in exactly the same password. If you type in a wrong password, you will be prompted to enter the correct password again.
To delete or disable the password function, highlight “Supervisor Pass­word” and press <Enter>, instead of typing in a new password. Press the <Esc> key to return to the main menu.
54
Page 55
User Password
If you want another user to have access only to your system but not to setup, set a user’s password with the “System” option selected in the BIOS Features Setup.
If you want a user to enter a password when trying to access setup, set a user’s password with the “Setup” option selected in the BIOS Fea­tures Setup. Using a user’s password to enter Setup allows a user to access only the “User Password” option that appears on the main screen. Access to all other options is denied.
To set, confirm, verify, disable or delete a user’s password, follow the procedures described in the section “Supervisor Password”. If you for­get your password, refer to the procedure described in the same sec­tion.
IDE HDD Auto Detection
This option detects the hard disk parameters for the hard disk drives installed in your system. Highlight this option and press <Enter>. A screen similar to below will appear.
ROM PCI/ISA BIOS
CMOS SETUP UTILITY
AWARD SOFTWARE, INC.
HARD DISKS TYPE SIZE CYLS HEAD RECOMP LANDZ SECTOR MODE Primary Master:
Select Primary Master Option (N=Skip): N
OPTIONS SIZE CYLS HEAD RECOMP LANDZ SECTOR MODE 2 (Y) 853 827 32 0 1653 63 LBA
1 853 1654 16 65535 1653 63 Normal 3 853 827 32 65536 1653 63 Large
Note: Some OS (like SCO-UNIX) must be “NORMAL” for installation
ESC: Skip
Enter your choice, and press <Enter> to accept the parameters or press <Esc> to abort. The parameters of the hard disk will be displayed in the Standard CMOS Setup.
55
Page 56
Hard Drive Mode
The system board supports three HDD modes: Normal, LBA and Large. If your hard disk drive does not support LBA mode, the “LBA” option will not be displayed. If your HDD has 1024 or fewer cylinders, the “Large” option will not be displayed. If your hard drive is larger than 2.1GB, be sure that your operating system supports it or you may need to create separate partitions.
Normal Mode
Normal mode is the generic access mode in which neither the BIOS nor the IDE controller will make any transformations during hard-drive ac­cess.
The maximum number of cylinders, heads and sectors for Normal mode are 1024, 16 and 63, respectively.
no. Cylinders (1024) x no. Heads ( 16) x no. Sectors ( 63) x bytes per sector ( 512)
528 megabytes
If you set your HDD to Normal mode, the maximum accessible HDD will be 528 megabytes even though the physical size of the HDD may be greater than that.
LBA (Logical Block Addressing) Mode
LBA mode is a HDD accessing method to overcome the 528 megabyte limitation. The number of cylinders, heads and sectors shown on the screen may not be the actual number for the HDD.
During HDD accessing, the IDE controller will transform the logical ad­dress described by the sector, head and cylinder number into its own physical address inside the HDD.
The maximum HDD size supported by the LBA mode is 8.4 gigabytes. It is obtained by the following formula.
56
Page 57
no. Cylinders (1024) x no. Heads ( 255) x no. Sectors ( 63) x bytes per sector ( 512)
8.4 gigabytes
Large Mode
Large mode is the extended HDD access mode supported by the sys­tem board. Some IDE HDDs have more than 1024 cylinders without LBA support (in some cases, you may not want the LBA mode). This system board provides another alternative to support these kinds of HDDs.
The BIOS tells the operating system that the number of cylinders is half the actual number and that the number of heads is double the actual number. During disk access, the reverse conversion is done by the INT13h routine.
Maximum HDD size:
no. Cylinders (1024) x no. Heads ( 32) x no. Sectors ( 63) x bytes per sector ( 512)
1 gigabyte
Note:
To support LBA or Large mode, address translation software is included in the Award BIOS HDD Service Routine (INT13h). If you are running an operating system that bypasses the BIOS INT13 Service Routine, LBA and Large Mode may fail.
HDD Low Level Format
The HDD Low Level Format utility is designed as a tool to save you time formatting your hard disk. It automatically looks for the necessary information of the drive you selected. This utility also searches for bad tracks and lists them for your reference. Highlight this option and press <Enter>. A screen similar to the one below will appear.
57
Page 58
ROM PCI/ISA BIOS
CMOS SETUP UTILITY
AWARD SOFTWARE, INC.
Hard Disk Low Level Format Utility
SELECT DRIVE
BAD TRACK LIST
PREFORMED
Current select drive is : C
DRIVE: C CYLINDER: 0 HEAD: 0
CYLS
1654
HEAD
RECOMP
16
0
0
0
0
0
0
Primary Master: Primary Slave: Secondary Master: Secondary Slave:
Up/Down-Select item ENTER-Accept ESC-Exit/Abort
SIZE
853
0 0 0
Copyright (C) Award Software, Inc. 1992-94 All Rights Reserved
65536
LANDZ
1653 0 0 0
0 0 0
No. CYLS HEAD
SECTOR
63
0 0 0
MODE
AUTO AUTO AUTO AUTO
Warning:
Do not use this HDD Low Level Format feature for IDE hard drives. They already have been low-level formatted at the factory. Do a high­level format only for these drives. Refer to the manual that comes with your operating system.
Save & Exit Setup
When all the changes have been made, highlight “Save & Exit Setup” and press <Enter>. The message below will appear:
Save to CMOS and Exit (Y/N)? N
Type “Y” and press <Enter>. The modifications you have made will be written into the CMOS memory, and the system will reboot. You will once again see the initial diagnostics on the screen. If you wish to make additional changes to the setup, press <Ctrl> <Alt> <Esc> simul­taneously or <Del> after memory testing is done.
Exit Without Saving
When you do not want to save the changes you have made, highlight “Exit Without Saving” and press <Enter>. The message below will appear:
Quit Without Saving (Y/N)? N
58
Page 59
Type “Y” and press <Enter>. The system will reboot and you will once again see the initial diagnostics on the screen. If you wish to make any changes to the setup, press <Ctrl> <Alt> <Esc> simultaneously or <Del> after memory testing is done.
System Error Report
When the BIOS encounters an error that requires the user to correct something, either a beep code will sound or a message will be dis­played in a box in the middle of the screen and the message, PRESS F1 TO CONTINUE, CTRL-ALT-ESC or DEL TO ENTER SETUP, will be shown in the information box at the bottom. Enter Setup to correct the error.
POST Beep
There are two kinds of beep codes in the BIOS. One code indicates that a video error has occured and the BIOS cannot initialize the video screen to display any additional information. This beep code consists of a single long beep followed by three short beeps. The other code indi­cates that a DRAM error has occured. This beep code consists of a single long beep.
Error Messages
One or more of the following messages may be displayed if the BIOS detects an error during the POST. This list indicates the error messages for all Awards BIOSes:
CMOS BATTERY HAS FAILED
The CMOS battery is no longer functional. It should be replaced.
Caution:
Danger of explosion if battery incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the battery manufacturer’s instructions.
59
Page 60
CMOS CHECKSUM ERROR
Checksum of CMOS is incorrect. This can indicate that CMOS has be­come corrupt. This error may have been caused by a weak battery. Check the battery and replace if necessary.
DISPLAY SWITCH IS SET INCORRECTLY
The display switch on the motherboard can be set to either mono­chrome or color. This indicates the switch is set to a different setting than indicated in Setup. Determine which setting is correct, either turn off the system and change the jumper or enter Setup and change the VIDEO selection.
FLOPPY DISK(S) fail (80)
Unable to reset floppy subsystem.
FLOPPY DISK(S) fail (40)
Floppy type mismatch.
Hard Disk(s) fail (80)
HDD reset failed.
Hard Disk(s) fail (40)
HDD controller diagnostics failed.
Hard Disk(s) fail (20)
HDD initialization error.
Hard Disk(s) fail (10)
Unable to recalibrate fixed disk.
Hard Disk(s) fail (08)
Sector Verify failed.
Keyboard is locked out - Unlock the key
The BIOS detects that the keyboard is locked. Keyboard controller is pulled low.
60
Page 61
Keyboard error or no keyboard present
Cannot initialize the keyboard. Make sure the keyboard is attached correctly and no keys are being pressed during the boot.
Manufacturing POST loop
System will repeat POST procedure infinitely while the keyboard con­troller is pull low. This is also used for the M/B burn in test at the fac­tory.
BIOS ROM checksum error - System halted
The checksum of ROM address F0000H-FFFFFH is bad.
Memory test fail
The BIOS reports memory test fail if the memory has error(s).
Driver Installation
To install the IDE drivers supported by the 586ITB system board, please refer to the “Readme” file contained in the provided diskette for detail information.
All steps or procedures to install software drivers are subject to change without notice as the softwares are occassionally updated. Please refer to the readme files for the latest information.
Windows 95 OS Installation
If this is the first time for you to install Windows 95 to your PC system with one of the the following versions: Win95, Win95+, Win95 OSR1 (Windows 95 OEM Service Release 1), Win95 OSR2 (Windows 95 OEM Service Release 2.0) and Win95 OSR2.1 (Windows 95 OEM Ser­vice Release 2.0 plus USB Supplement), please follow steps shown be­low to install.
1. Copy the Cab files of Win95 within Win95 CD to Win95 under Drive C first.
2. Go into Win95 under Drive C. (C:\windows>)
3. Type "Setup" and press "Enter" to start installing Win95.
61
Page 62
Note:
If you do not copy files of Win95 to Drive C first, CD-ROM will not be found while it installs to printer and the installation will be stopped. This is because the versions of Win95, Win95+, Win95 OSR1, Win95 OSR2 and Win95 OSR2.1 do not include some new hardware drivers within TX chipset.
Solve Warning Messages with Windows 95 IDE
If the version of Windows 95 under your IDE is one of the Win95 OSR2 or Win95 OSR2.1, there may be some warning messages appearing while you boot up your system. This problem occurs for Win95 has not recognized the TX chipset on the 586ITB board. To change files for Win95 by knowing TX chipset, you may need to change some filies in Win95. Please follow setps shown below.
Version
OSR2
OSR2.1
Files
1. MSHDC.INF
2. MACHINE.INF
1. MSHDC.INF
2. MACHINE.INF
3. USB.INF
1. Insert the IDE driver into Drive A.
2. Enter Win95 MS-DOS prompt window.
3. Type "CD windows" and press "Enter". (C:\windows>)
4. Type "CD INF" and press "Enter". (C:\windows\INF>)
5. Change "MSHDC.INF", "MACHINE.INF" and "USB.INF" to "MSHDC.000", "MACHINE.000" and "USB.000".
Ex: C:\windows\INF>copy MSHDC.INF MSHDC.000
C:\windows\INF>copy MACHINE.INF MACHINE.000 C:\windows\INF>copy USB.INF USB.000 (only Win95 OSR2.1)
62
Page 63
6. Go back to your prompt to A: and type "CD OSR2" or "CD OSR2.1" and press "Enter". Then copy "MSHDC.INF", "MACHINE.INF" and "USB.INF within the diskette to Drive C.
Ex: A:\OSR2>copy MSHDC.INF C:
A:\OSR2>copy MACHINE.INF C: A:\OSR2.1>copy USB.INF C: (only Win95 OSR2.1)
7. After finishing copy, click "Control Panel" under Setting of Start.
8. Choose "Device Manager" on the top of "System Properties" screen.
9. Choose "View devices by connection" and click on "Plug & Play BIOS".
10. Click on "PCI BUS" and choose "Remove" on the buttom of the screen, then click "OK".
11. Windows 95 will display messages when various hardware compo­nents in the system are recognized. When prompted to install a driver, select the "Windows Default driver" or appropriate device drivers from disk.
12. Select "Yes" to restart the system. (Steps 11 and 12 may occur several times.)
63
Page 64
Chapter 4 Troubleshooting Checklist
This chapter of the manual is designed to help you with problems that you may encounter with your personal computer. To efficiently troubleshoot your system, treat each problem individually. This is to ensure an accurate diagnosis of the problem in case a problem has multiple causes.
When you encounter problems while using your system first check that:
1. The power switch of each peripheral device is turned on.
2. All cables and power cords are tightly connected.
3. The electrical outlet to which your peripheral devices are connected is working. Test the outlet by plugging in a lamp or other electrical device.
4. The monitor is turned on.
5. The display’s brightness and contrast controls are adjusted properly.
6. All add-in boards in the expansion slots are seated securely.
7. Any add-in board you have installed is designed for your system and is set up correctly.
Monitor/Display
If the display screen remains dark after the system is turned on:
1. Make sure that the monitor’s power switch is on.
2. Check that one end of the monitor’s power cord is properly attached to the monitor and the other end is plugged into a working AC outlet. If necessary, try another outlet.
3. Check that the video input cable is properly attached to the monitor and the system’s display adapter.
4. Adjust the brightness of the display by turning the monitor’s brightness control knob.
64
Page 65
Hard Drive
Hard disk failure.
1. Make sure the correct drive type for the hard disk drive has been entered in the BIOS.
2. If the system is configured with two hard drives, make sure the bootable (first) hard drive is configured as Master and the second hard drive is configured as Slave.
Excessively long formatting period.
1. If your hard drive takes an excessively long period of time to format, it is likely a cable connection problem.
Parallel Port
The parallel printer doesn’t respond when you try to print.
1. Make sure that your printer is turned on and that the printer is on­line.
2. Make sure your software is configured for the right type of printer attached.
3. Verify that the onboard LPT port’s I/O address and IRQ settings are configured correctly.
4. Verify that the attached device works by attaching it to a parallel port that is working and configured correctly. If it works, the printer can be assumed to be in good condition. If the printer remains inoperative, replace the printer cable and try again.
Serial Port
The serial device (modem, printer) doesn’t output anything or is outputting garbled characters.
1. Make sure that the serial device’s power is turned on and that the device is on-line.
2. Verify that the device is plugged into the correct serial port on the rear of the computer.
65
Page 66
3. Verify that the attached serial device works by attaching it to a serial port that is working and configured correctly. If the serial device does not work, either the cable or the serial device has a problem. If the serial device works, the problem may be due to the onboard I/O or the address setting.
4. Make sure the COM port settings and I/O address are configured correctly.
Keyboard
Nothing happens when a key on the keyboard was pressed.
1. Make sure the keyboard is properly connected.
2. Make sure there are no objects resting on the keyboard and that no keys are pressed during the booting process.
System Board
1. Make sure the add-in card is seated securely in the expansion slot. If the add-in card is loose, power off the system, re-install the card and power up the system.
2. Check the jumper settings to ensure that the jumpers are properly set.
3. Verify that all SIMMs are seated securely into the SIMM sockets.
4. Make sure the SIMMs are in the correct locations.
5. If the board fails to function, place the board on a flat surface and seat all socketed components. Gently press each component into the socket.
6. If you made changes to the BIOS settings, re-enter setup and load the BIOS defaults.
66
Page 67
Appendix A
Types of Modules
The following modules have been tested with this board. Most untested brands will work but a few may fail to do so.
DIMM
1MBx64 1MBx64 2MBx64 2MBx64 2MBx64 4MBx64 4MBx64 4MBx64
SIMM
1MBx32/x36 1MBx32 2MBx32/x36 2MBx32 2MBx32 2MBx32/x36
Brand
Fujitsu NEC SEC NEC Mitsubishi SEC SEC NEC
Brand
Fujitsu OKI OKI NEC Micron TI
Chip Number
D4516161G5-7JF D4516161G5-7JF KM416S1120AT-G12 D4516821G5-A12-7F M5M4V16S30CTP KM44S4020AT-G12 KM44S4020AT-G10 D4516821G5-A12-7F
Chip Number
81C1000A-70 M51440A-70 M511000B-70 424400-60 40447-60
TMS4400DJ-70 2MBx32 2MBx32 2MBx32 4MBx32/x36 4MBx32/x36
Micron Micron NEC Hitachi Fujitsu
MT4C4007-70 (EDO)
MT4C4007-60 (EDO)
4218165-60 (EDO)
7400AS-70
8117400-70
67
Page 68
SIMM
Brand
Chip Number
4MBx32/x36 4MBx32/x36 4MBx32 4MBx32 8MBx32 16MBx32
Mitsubishi Hitachi NEC NEC NEC LGS
422A06-70 5117400AS-70 4217400-60 4217405-70 (EDO) 4217405-60 (EDO) 71C16100AJ6
68
Page 69
Memory Address Map
Address Name Function
0000000 to 640KB System System Board Memory 009FFFF Board RAM
00A0000 to 128KB Video Reserved for Graphics 00BFFFF Display Memory Display Memory
00C0000 to 160KB I/O Reserved for ROM on 00E7FFF Expansion ROM I/O Adapter Card
00E8000 to 96KB ROM on System Board BIOS 00FFFFF the System Board
0100000 to Maximum System Board Memory 7FFFFFF Memory 128MB
Appendix B
Memory and I/O Maps
69
Page 70
I/O Address Map
I/O Address Function
0000-001F DMA Controller 1, 8237A-5 0020-003F Interrupt Controller 1, 8259A, Master 0040-005F Timer, 8254-2 0060-006F 8742 (Keyboard Controller) 0070-007F Real-time Clock, NMI
0080-009F DMA Page Memory, 74LS612 00A0-00BF Interrupt Controller 2, 8259A 00C0-00DF DMA Controller 2, 8237A-5 00E8 Shadow RAM and Cache Control Bit 00F0 Clear Numeric Processor
00F1 Reset Numeric Processor Extension 00F8-00FF Numeric Processor Extension 01F0-01F8 Fixed Disk 0200-0207 Game I/O 0278-027F Parallel Printer Port 2 02F8-02FF Serial Port 2 0300-031F Prototype Card 0360-036F Reserved 0378-037F Parallel Printer Port 1 0380-038F SDLC, Bisynchronous 2 03A0-03AF Bisynchronous 1 03B0-03BF Monochrome Display and Printer Adapter 03C0-03CF Reserved 03D0-03DF Color/Graphics Monitor Adapter 03F0-03F7 Diskette Controller 03F8-03FF Serial Port 1
(Non-maskable Interrupt) Mask
Extension Busy
70
Note:
The I/O address hex 0000 to 00FF are reserved for the system board I/O. Hex 0100 to 03FF are available on the I/O channels.
Page 71
Connectors
Appendix C
Connectors
JP8 JP9 JP20 JP22 JP27 CN8 U26 U28 U32 J7 J8
USB 1 connector USB 2 connector COM 1 serial port COM 2 serial port AT power connector ATX power connector Parallel printer port Floppy disk drive connector IrDA connector Primary IDE hard disk drive connector Secondary IDE hard disk drive connector
71
Page 72
J14 J15 J16 J10
PS/2 mouse port AT keyboard port PS/2 keyboard port keyboard lock connector Speaker connector Reset switch connector SMI switch connector Power switch connector Green LED connector HDD LED connector ATX LED connector
72
Page 73
Pin Assignments
JP8 - USB 1 connector
Pin
1
2 3 4 5
Function
+5V
-Data +Data Ground Ground
J14 - PS/2 mouse port
Pin
1
2 3 4 5
Function
Mouse Data N. C. Ground +5V Mouse Clock
CN8 - ATX power connector
JP9 - USB 2 connector
Pin
1
2 3 4 5
Function
+5V
-Data +Data Ground Key
U32 - IrDA connector
Pin
1
2
3 4 5
Function
IrTX Ground IrRXL N.C. +5V
Pin
1 2 3 4 5 6 7 8 9
10
Function
N. C. N. C. Ground +5V Ground +5V Ground PW-OK 5VSB +12V
Pin
11 12 13 14 15 16 17 18 19 20
Function
N. C.
-12V Ground PS-ON Ground Ground Ground
-5V +5V +5V
73
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
