DFI 486-OCV Plus User Manual

486-OCV Plus
System Board
User’s Manual

- D21840429 -

v Copyright 1994, by DFI Inc.

All rights reserved.
No part of this document may be copied or reproduced

in any form or by any means without the prior written
consent of DFI, Inc.

DFI, Inc. makes no warranties with respect to this
documentation and disclaims any implied warranties of
merchantability, quality, or fitness for any particular
purpose. The information in this document is subject to
change without notice. DFI, Inc. reserves the right to
make revisions to this publication and to make changes
to any and/or all parts of its content, at any time,
without obligation to notify any person or entity of such
changes. Further, DFI, Inc. assumes no responsibility
for any errors that may appear in this document.

DFI is a registered trademark, and 486-OCV Plus is a
trademark of Diamond Flower, Inc. All other product
names mentioned are trademarks or registered trade­marks of their respective companies.

v Table of Contents v

Introduction .................................................................................

Features and Specifications .................................................

Installation Overview .................................................................

Preparing the Area ................................................................

Handling the System Board ..................................................

Tips in Handling the System Board ...............................

Hardware Installation .............................................................

Memory Installation .........................................................

Installing the Modules ..............................................

Board Configuration ........................................................

Jumper Settings .......................................................

Jumper Settings for VL-Bus Add-On Board .....

Jumper Settings of Internal/External/CMOS
Clean, Display Type and Diagnostic/

Password Clear ..................................................

Cache Configuration ................................................

Jumper Settings for Cache Memory .................

CPU Installation and Upgrade .......................................

CPU Configuration ..................................................

Jumper Settings for CPUs .................................

Installing Upgrade CPUs ........................................

Installing the System Board ..................................................

Initial Setup Program .................................................................

AMI BIOS Setup Utilities .......................................................

Standard CMOS Setup ..................................................

Advanced CMOS Setup .................................................

Auto Configuration with BIOS Defaults .........................

Auto Configuration with Power-on Defaults ..................

1-1

1-2

2-1

2-1
2-2
2-2
2-2
2-2
2-6
2-7
2-8
2-8

2-11
2-14
2-16
2-18
2-18
2-19
2-22
2-26

3-1

3-2
3-3
3-5
3-7
3-7

Change Password .........................................................

Auto Detect Hard Disk ..................................................

Hard Disk Utility .............................................................

Write to CMOS and Exit ................................................

Do not write to CMOS and Exit ....................................

3-8

3-9
3-10
3-11
3-11

Troubleshooting Checklist ......................................................

Appendix A: Types of Modules ..............................................

Appendix B: System Error Report .........................................

Appendix C: Memory & I/O Maps ...........................................

Appendix D: 16-Bit ISA I/O Pin Assignments .......................

Appendix E: VL-Bus I/O Pin Assignments ...........................

Appendix F: System Overview ...............................................

Appendix G: Connector Pin Assignments ............................

Appendix H: AMI BIOS Hard Disk Table ...............................

4-1

A-1
B-1
C-1
D-1

E-1

F-1
G-1
H-1

v Introduction

The 486-OCV Plus system board is designed so that it
may be equipped with Intel's 80486DX, 80486DX2,
80486SX, and 80486 OverDriveTM Processors which can
run from speeds of 25MHz to 66MHz. It may also use
a PentiumTM OverDrive Processor running at 50MHz or
66MHz. This Pentium-based system board is twice as
fast as the 80486DX-33 and accommodates almost all of
the existing programs designed for 386 or 486-based
systems. The system board also supports a Cyrix or
AMD 486DX CPU running at 40MHz.

The 486-OCV Plus is a jumperless-upgrade board
allowing you to easily upgrade your CPU from a 486SX
to 486DX or DX2 for example, without altering any
jumpers. However, if you change your CPU speed from
25MHz to 33MHz, 40MHz or 50MHz, or change a
Cyrix CPU to an Intel or AMD CPU, you may have to
alter a few jumpers.

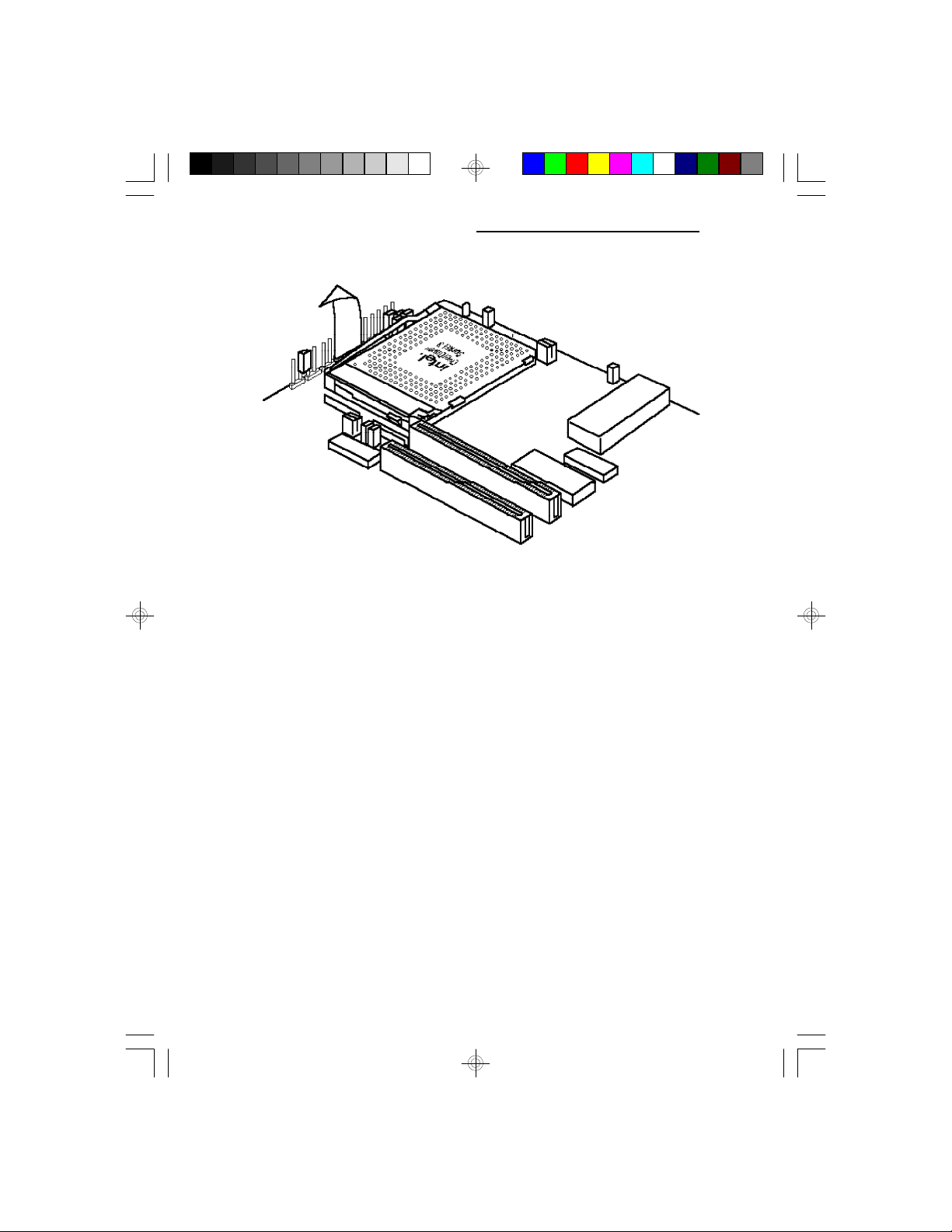

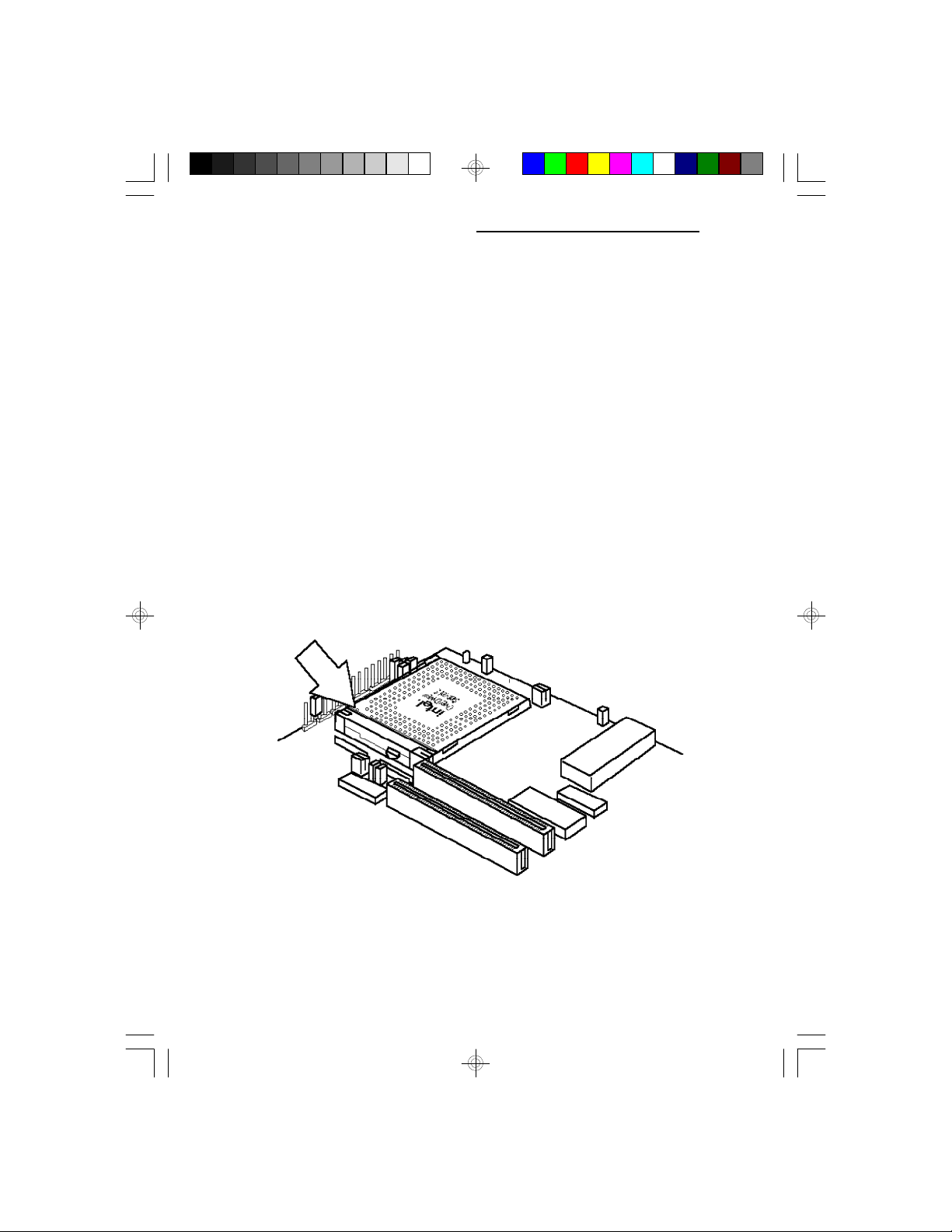

The 486-OCV Plus is equipped with a Zero Insertion
Force socket to make upgrading your CPU easy. It also
supports an optional Flash EPROM. Flash EPROM is a
memory chip for the storage of BIOS which can be
erased in bulk or modified using a software utility.

486-OCV Plus

The 486-OCV Plus system board is also equipped with
two VESA compliant local bus slots. The VL-Bus of
the 486-OCV Plus system board operates at the same
frequency (up to 40MHz) and phase as the CPU, sup­porting all DMA and system I/O bus mastering cycles.

Introduction u 1-1

PentiumTM OverDrive Ready System Board

The 486-OCV Plus uses 256Kx36, 512Kx36, 1Mx36,
2Mx36, 4Mx36 and 8Mx36 HSIM modules with speeds
of at least 80ns. The memory can be configured to
twenty-one different sizes from 1MB to 64MB. The
system is equipped with two 32-bit VESA VL-Bus and
eight 16-bit ISA expansion slots.

Features and Specifications

• Intel 80486DX running at 33/40/50MHz,
80486DX2 running at 50/66MHz, 80486
OverDriveTM Processor, PentiumTM OverDrive
Processor running at 50/66MHz, or 80486SX
running at 25/33MHz

Cyrix or AMD 486DX running at 40MHz

• Uses AMI BIOS: 27512-20 (1)

• Uses OPTi 82C499 chip set

• Cache organization: direct map, write back and bank

interleave

• Supports 64K, 128K and 256K cache sizes

• Memory configurable from 1MB to 64MB

• Uses 256Kx36, 1Mx36 and 4Mx36 HSIMM

Uses 512Kx36, 2Mx36 and 8Mx36 (for Banks 0 and
2 only)

• Supports memory with parity check

• 8MHz bus clock

• Software programmable cache and DRAM wait states

• Supports system BIOS and Video BIOS Shadow

RAM function

• Supports sixteen edge triggered interrupts

• Hidden refresh or slow refresh supported

• Optional Flash memory BIOS supported

• Supports PentiumTM OverDrive Processor Zero

Insertion Force socket

• Supports one PS/2 mouse port

• An optional diagnostic LCD port

1-2 u Introduction

486-OCV Plus

• Supports VESA VL-Bus devices (2 VESA Master/
Slave)
ISA DMA Master access to local device
Local Master access to an ISA device
Fully compatible with VESA VL-Bus rev. 1.0

• Two 32-bit VL-Bus and eight 16-bit ISA slots

• Maximum card length
Full-length cards in all VL-Bus slots and in three
ISA slots

9.75" cards in three ISA slots

• Four layer PCB

• Baby AT size

• Operating temperature: 0oC - 40oC

• One year limited warranty

Warning:

If your 486-OCV Plus system board is using a 486DX
50 CPU, we recommend that you do not install any
VL-Bus devices. The VL-Bus connectors, compliant
with VESA VL-Bus standard rev. 1.0, limit the speed of
a VL-Bus device operating across the connector
(e.g. an add-on board) to 40MHz.

The table below, based on the VESA VL-Bus
specification, shows the recommended number of
installed VL-Bus devices at various CPU speeds. This
table is only a recommendation, not a requirement. Any
VL-Bus add-on board must correspond with the CPU
speed, whether it is buffered or unbuffered.

CPU Speed Unbuffered Buffered

<= 33MHz 2 slots/2 devices 3 slots/3 devices
40MHz 1 slot/2 devices not recommended
>= 50MHz 0 slot/2 devices not recommended

Introduction u 1-3

PentiumTM OverDrive Ready System Board

v Installation Overview

This chapter summarizes the steps in installing the
486-OCV Plus system board into your system unit. It
also includes a description of the area in which you must
work and directions for memory installation. Before
installing the system board, obtain the memory you plan
to install.

Preparing the Area

Before unpacking the system board, make sure the
location you have selected is relatively free of dust and
static. Excessive exposure to dust, static electricity,
direct sunlight, excessive humidity, extreme cold and
water can damage the operational capabilities of your
system board. Avoid soft surfaces such as beds and
carpeted floors which can hinder air circulation. These
areas also attract static electricity which can damage
some circuits on your system board.

Be sure that the power source has a properly grounded,
three-pronged socket. It is essential that the power
connection be properly grounded for correct functioning
of your system board. For further protection, we rec­ommend that you use a surge protection socket. This
will protect the system board from damage that may
result from a power surge on the line.

Move items that generate magnetic fields away from
your system board, since magnetic fields can also dam­age your system board. Once you have selected the
ideal location, unpack the 486-OCV Plus system board
carefully.

2-1 u Installation Overview

Handling the System Board

It is quite easy to inadvertently damage your system
board even before installing it to your system unit.
Static electrical discharge can damage computer compo­nents without causing any signs of physical damage. You
must take extra care in handling the system board to
ensure that no static build-up is present.

Tips in Handling the System Board

1) To prevent electrostatic build-up, leave the board in

its anti-static bag until you are ready to install it.

2) Wear an antistatic wriststrap.

3) Do all preparation work on a static-free surface with

components facing up.

4) Hold the system board by its edges only. Be careful

not to touch any of the components, contacts or
connections, especially gold contacts on the board.

486-OCV Plus

5) Avoid touching the pins or contacts on all modules

and connectors. Hold modules and connectors by
their ends.

Hardware Installation

Memory Installation

The 486-OCV Plus system board can support 1MB to
64MB of memory using HSIMMs. HSIMM is an
acronym for High Density Single In-line Memory Mod­ule.

Installation Overview u 2-2

PentiumTM OverDrive Ready System Board

An HSIMM consists of several RAM chips soldered
onto a small circuit board. An HSIMM connects to the
system board via a 72-pin card-edge connector.

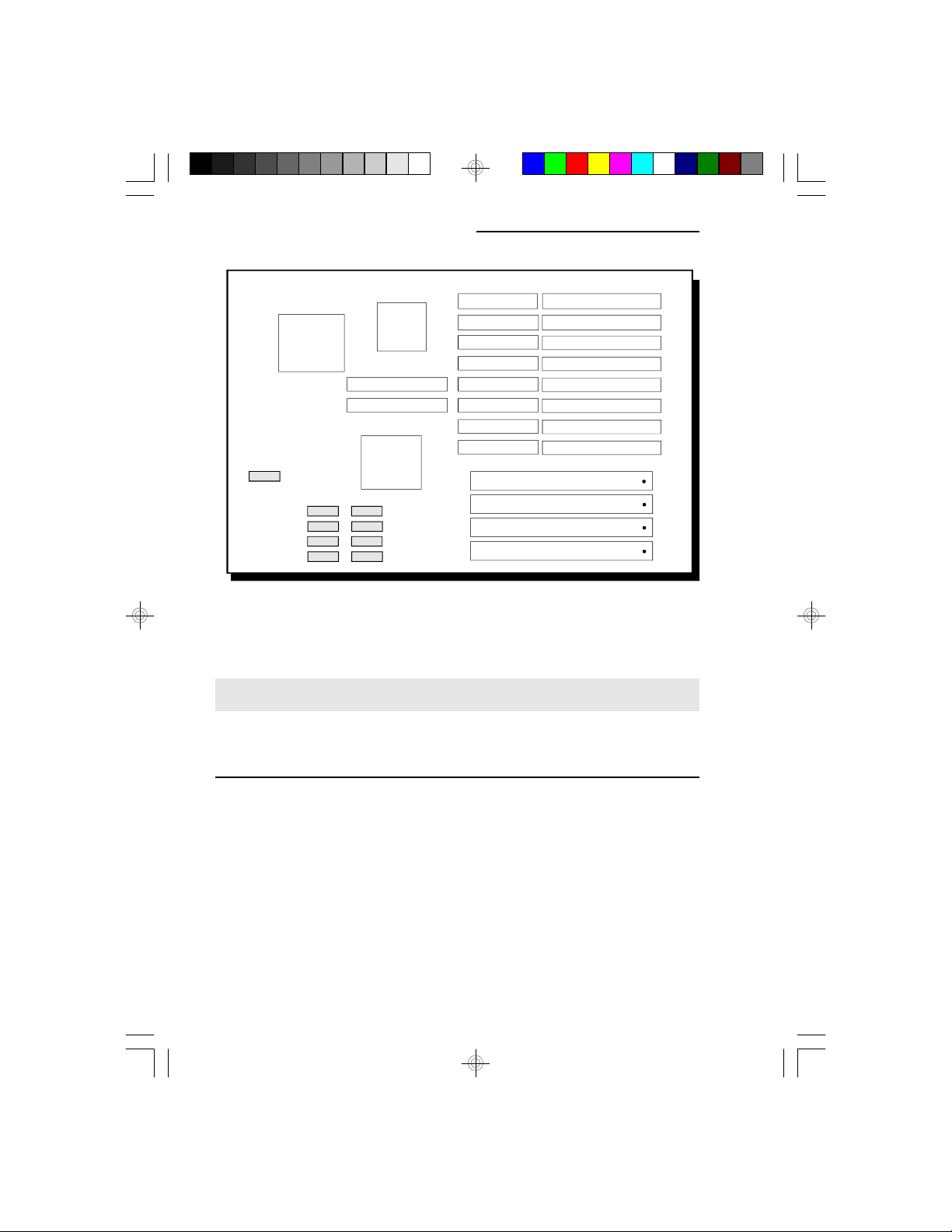

The HSIMM sockets are divided into four banks on the
system board. The 486-OCV Plus system board uses
256Kx36, 512Kx36, 1Mx36, 2Mx36, 4Mx36 and 8Mx36
HSIM modules.

Note:

The 8Mx36 HSIM module must be the standard size
module. Mechanical problem may occur if a longer
size of module is installed.

You will need 1 to 4 pieces of HSIM modules, depend­ing on the amount of memory you intend to install.
Your system board can be configured with 1MB, 2MB,
4MB, 5MB, 6MB, 8MB, 9MB, 12MB, 13MB, 16MB,
18MB, 20MB, 24MB, 28MB, 32MB, 34MB, 36MB,
40MB, 48MB, 52MB or 64MB of onboard memory.

To install the HSIM modules, first populate Bank 0, then
Bank 1 and so on. Failure to do so will cause the
system board to work improperly.

The following table summarizes the bank locations and
modules needed for the corresponding memory sizes.
Each bank consists of 1 HSIMM socket.

2-3 u Installation Overview

486-OCV Plus

Memory Size Bank 0 Bank 1 Bank 2 Bank 3

1MB 256Kx36 - - ­2MB 256Kx36 256Kx36 - ­2MB 512Kx36 - - ­4MB 1Mx36 - - ­5MB 256Kx36 1Mx36 - ­6MB 256Kx36 256Kx36 1Mx36 ­6MB 512Kx36 - 1Mx36 ­8MB 1Mx36 1Mx36 - ­8MB 2Mx36 - - ­9MB 1Mx36 1Mx36 256Kx36 ­9MB 2Mx36 - 256Kx36 ­12MB 1Mx36 1Mx36 1Mx36 ­12MB 2Mx36 - 1Mx36 ­13MB 256Kx36 1Mx36 1Mx36 1Mx36
13MB 256Kx36 1Mx36 2Mx36 ­16MB 1Mx36 1Mx36 1Mx36 1Mx36
16MB 2Mx36 - 2Mx36 ­16MB 4Mx36 - - ­18MB 256Kx36 256Kx36 4Mx36 ­18MB 512Kx36 - 4Mx36 ­20MB 1Mx36 4Mx36 - ­20MB 4Mx36 1Mx36 - ­24MB 1Mx36 1Mx36 4Mx36 ­24MB 2Mx36 - 4Mx36 ­24MB 1Mx36 4Mx36 1Mx36 ­24MB 4Mx36 1Mx36 1Mx36 ­28MB 1Mx36 1Mx36 4Mx36 1Mx36
28MB 2Mx36 - 4Mx36 1Mx36
28MB 1Mx36 4Mx36 1Mx36 1Mx36
28MB 1Mx36 4Mx36 2Mx36 ­28MB 4Mx36 1Mx36 1Mx36 1Mx36
28MB 4Mx36 1Mx36 2Mx36 ­32MB 4Mx36 4Mx36 - ­32MB 8Mx36 - - -

Installation Overview u 2-4

PentiumTM OverDrive Ready System Board

Memory Size Bank 0 Bank 1 Bank 2 Bank 3

34MB 256Kx36 256Kx36 4Mx36 4Mx36
34MB 512Kx36 - 8Mx36 ­36MB 1Mx36 4Mx36 4Mx36 ­36MB 4Mx36 1Mx36 4Mx36 ­36MB 4Mx36 4Mx36 1Mx36 ­36MB 8Mx36 - 1Mx36 ­40MB 1Mx36 1Mx36 4Mx36 4Mx36
40MB 2Mx36 - 8Mx36 ­40MB 1Mx36 4Mx36 4Mx36 1Mx36
40MB 4Mx36 1Mx36 4Mx36 1Mx36
40MB 4Mx36 4Mx36 1Mx36 1Mx36
40MB 8Mx36 - 2Mx36 ­48MB 4Mx36 4Mx36 4Mx36 ­48MB 8Mx36 - 4Mx36 ­52MB 1Mx36 4Mx36 4Mx36 4Mx36
52MB 1Mx36 4Mx36 8Mx36 ­52MB 4Mx36 1Mx36 4Mx36 4Mx36
52MB 4Mx36 1Mx36 8Mx36 ­52MB 4Mx36 4Mx36 4Mx36 1Mx36
52MB 8Mx36 - 4Mx36 1Mx36
64MB 4Mx36 4Mx36 4Mx36 4Mx36
64MB 8Mx36 - 8Mx36 -

2-5 u Installation Overview

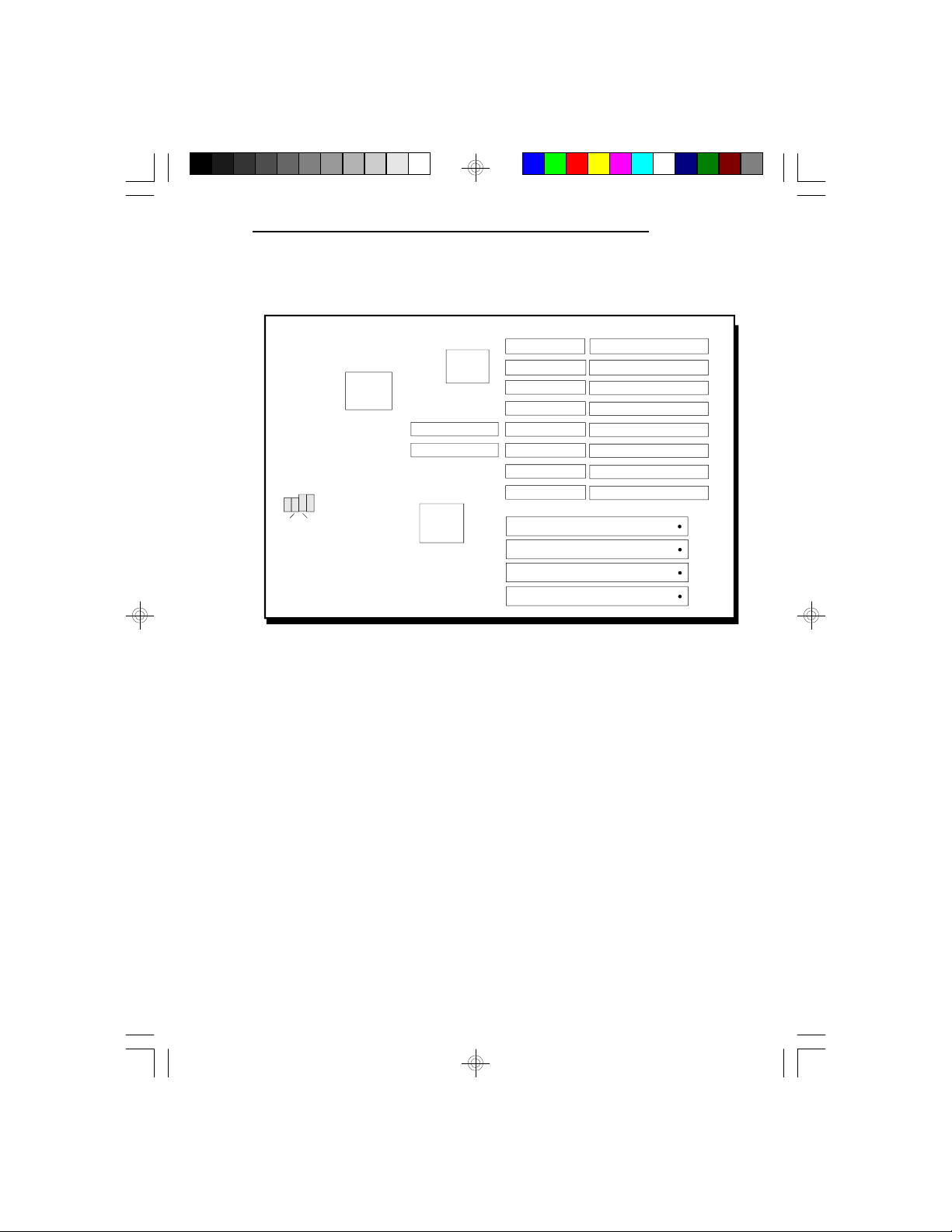

OPTi

82C499

Pin 1 of the HSIMM socket

Bank 0

Bank 1

Bank 2

Bank 3

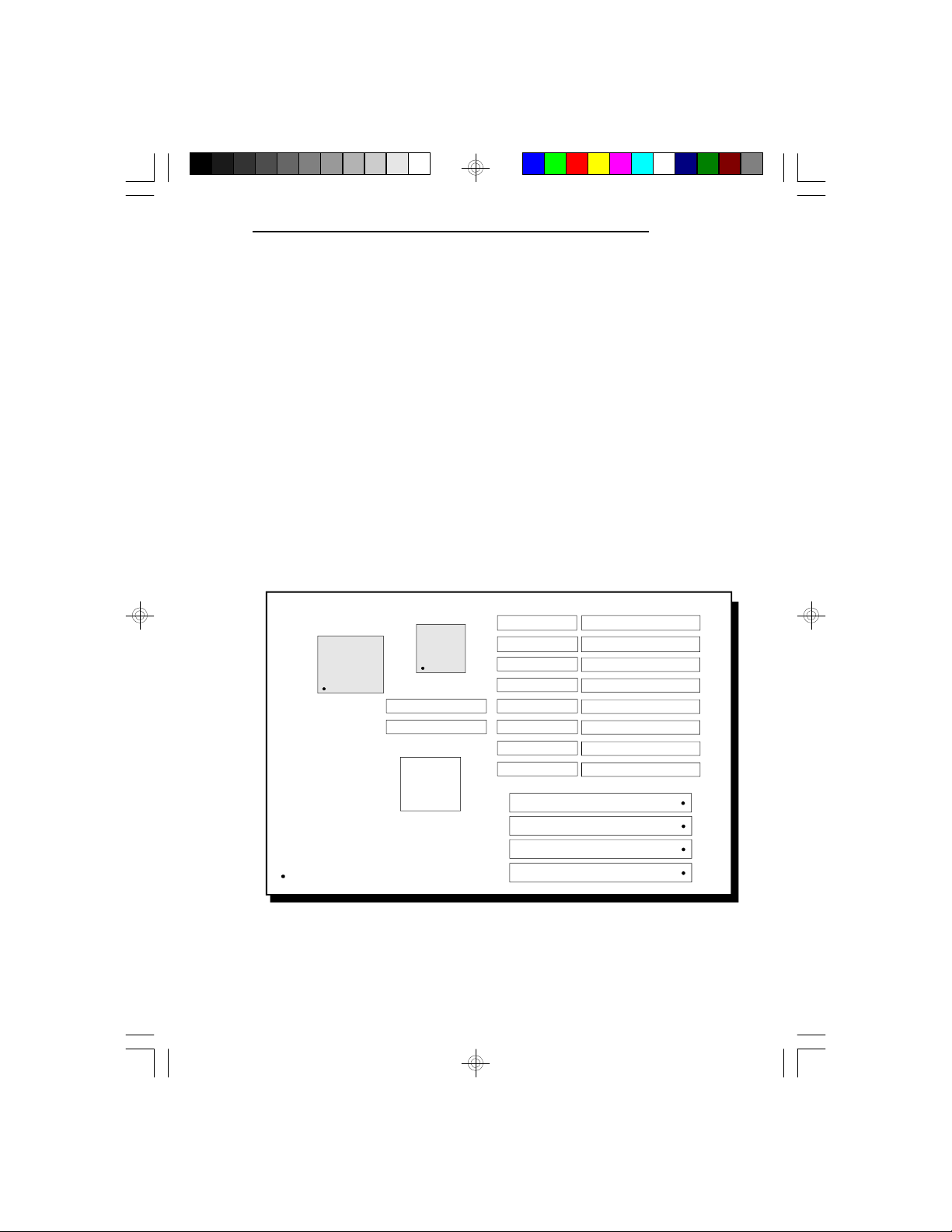

Locations of the HSIMM Sockets on the System Board

Installing the Modules

486-OCV Plus

HSIMMs simply snap into a socket on the system board.
Pin 1 of the HSIMM must correspond with Pin 1 of the
socket.

Installation Overview u 2-6

PentiumTM OverDrive Ready System Board

1. Position the HSIM module above the HSIMM
socket with the chips of the module facing the center
of the system board.

2. Seat the module at an angle into the bank. Make
sure it is completely seated. Tilt the module upright
until it locks in place in the socket.

Board Configuration

The 486-OCV Plus is designed with jumpers and con­nectors onboard. Make sure that the jumpers are set
correctly before installing the system board into your
system unit.

J1

J2

J3

J4

J5

J6

J7

JP6

JP7 JP8

JP9

JP12 JP14

JP13

JP23

JP38

JP18

JP24

JP31

JP25 JP26

JP34

SL1

SL2

OPTi

82C499

Locations of Jumpers and Connector Pins

on the 486-OCV Plus System Board

2-7 u Installation Overview

JP32

JP39

JP29

J8

J10

J11

J9

Jumper Settings

Jumper Settings for VL-Bus Add-On Board

If a VL-Bus add-on board is installed in the 486-OCV
Plus system board, make sure Jumpers JP18, JP23, JP24
and JP34 are set correctly.

JP18

JP23 JP24

JP34

OPTi

82C499

486-OCV Plus

Locations of Jumpers JP18, JP23, JP24 and JP34

on the 486-OCV Plus System Board

Installation Overview u 2-8

PentiumTM OverDrive Ready System Board

Jumper JP23

High Speed Mode for VL-Bus Board

Set Jumper JP23 to Off only if the VESA VL-Bus
add-on board installed in the VL-Bus slots support Zero
Wait State. If you are not sure that your add-on
board(s) support Zero Wait State, set JP23 to On;
otherwise, a system error may occur.

On: One Wait State

Off: Zero Wait State

Jumper JP24

CPU Speed for VL-Bus Board

If a VL-Bus board is installed in the 486-OCV Plus
system board, Jumper JP24 must be set to On if the
CPU speed is greater than 33MHz. If the CPU speed is
less than or equal to 33MHz, set JP24 to Off.

On

CPU Speed > 33MHz

CPU Speed <= 33MHz

Off

2-9 u Installation Overview

486-OCV Plus

Jumper JP18

VL-Bus Ready Signal Select

If a VESA VL-Bus add-on board is installed in either
one of the VL-Bus slots and the 486-OCV Plus system
board is using a 486-50DX CPU, we recommend that
you set Jumper JP18 to "Delay 1 PCLK". Your system
board might not work properly if Jumper JP18 is set to
"No Delay".

321

1-2 On: Delay 1 PCLK

(Default)

2-3 On:

No Delay

321

Jumper JP34

VL-Bus Address Select

If the 486-OCV Plus system board is using a 40MHz or
50MHz 486DX CPU, VESA VL-Bus add-on boards
may not work when Jumper JP34 is set to "No Delay".
In this case, we recommend that you set Jumper JP34
pins 1-2 and 3-4 to On, "Delay 1 PCLK".

Set JP34 pins 2-3 to On if your system board is using a
386-25/33/40MHz or 486-25/33MHz CPU. If it is not
set to these recommended settings, your system might
hang.

21 3 4

1 4

2 3

1-2, 3-4 On:

Delay 1 PCLK

Installation Overview u 2-10

2-3 On: No Delay

(Default)

PentiumTM OverDrive Ready System Board

* If Jumper JP34 is set to Delay 1 PCLK, the 486-OCV

Plus will only support one VL-Bus Master in Slot
SL2.

Jumper Settings of Internal/External/CMOS Clean, Display Type
and Diagnostic/Password Clear

Jumper J11 enables or disables the internal battery,
external battery or CMOS Clean. JP29 allows you to
select between a color or monochrome display. JP39
allows you to perform diagnostic test and clear the
password.

JP39

JP29

OPTi

82C499

Locations of Jumpers J11, JP29 and JP39

on the 486-OCV Plus System Board

2-11 u Installation Overview

J10

J11

486-OCV Plus

Jumper J11

Internal Battery/CMOS Clean Select

The 486-OCV Plus comes with an internal battery. If
there is a problem with the internal battery, or if you
prefer to connect an external battery, set Jumper J11
pins 1-2-3 to Off and connect an external battery to
Connector J10.

321

1-2-3 Off: External Battery Enable

(Default)

If, for some reason, the CMOS becomes corrupted, the
system can be reconfigured with the default values
stored in the ROM chips. To load the default values, set
J11 pins 2 and 3 to On for approximately one to two
days, then return to the default position.

1-2 On:

321

2-3 On: CMOS Clean

321

Internal Battery Enable

Note:

After CMOS has been reset, you must either set the
jumper to Internal or External battery enable. If you
set the jumper to External battery enable, make sure
you connect an external battery to Connector J10.

Installation Overview u 2-12

PentiumTM OverDrive Ready System Board

Jumper JP29

Display Type Select

Jumper JP29 sets the display adapter to color or mono.
This jumper must match the type of display adapter
installed. If you change your video adapter, make sure
that this jumper is changed accordingly.

On: Color Display

Off: Mono Display

(Default)

Jumper JP39

Diagnostic/Password Clear

If you had enabled the Password Checking Option in the
Advanced CMOS Setup and forgot your password, set
Jumper JP39 to On. The 486-OCV Plus system board
will perform diagnostic test and clear the password
stored in your CMOS. Set JP39 to Off after you have
cleared the password.

On: Diagnostic/

Password Clear

Off: Normal

(Default)

2-13 u Installation Overview

Cache Configuration

The 486-OCV Plus system board can be configured to
three different cache sizes: 64KB, 128KB and 256KB.
128KB of cache memory is the default size. Either
8K x 8 (20ns) or 32K x 8 (20ns) chips are used for
cache depending on the size of cache desired. Regard­less of the amount of cache memory installed, one 8K x
8 (20ns), one 16K x 8 or one 32K x 8 (20ns) SRAM is
needed for tag RAM to store the cacheable addresses.
Because only one SRAM is installed for tag RAM, the
cacheable system RAM size is dependent on the size of
cache installed on your system board. The system board
can automatically detect the cacheable system RAM size
based on the size of cache installed in the 486-OCV Plus
system board.

The following table summarizes the cacheable system
RAM size for the corresponding cache size.

Cache Memory Cacheable System RAM Size

486-OCV Plus

64KB 16MB and below
128KB 32MB and below
256KB 64MB (maximum memory)

Important:

When cache size is 64KB or 128KB, an 8K x 8 (20ns)
SRAM should be inserted in socket U3 for tag RAM.
When cache size is 256KB, use a 16K x 8 or 32K x 8
(20ns) SRAM.

Installation Overview u 2-14

PentiumTM OverDrive Ready System Board

U3

U14
U15
U16
U17

U19

U20
U21
U22

Locations of the SRAM Sockets on the

486-OCV Plus System Board

Cache Size U14/U15/U16/U17 U19/U20/U21/U22 U3

64KB 8K x 8 8K x 8 8K x 8
128KB* 32K x 8 None 8K x 8

256KB 32K x 8 32K x 8 16K x 8 or 32K x 8

* Default setting

2-15 u Installation Overview

Jumper Settings for Cache Memory

JP9

JP6

486-OCV Plus

JP7 JP8

OPTi

82C499

Locations of Jumpers JP6-JP9 on the

486-OCV Plus System Board

Installation Overview u 2-16

PentiumTM OverDrive Ready System Board

Cache Memory Size

Jumpers 64KB 128KB* 256KB

JP6 Off On On
JP7 Off Off On
JP8 2-3 On 1-2 On 2-3 On
JP9 2-3 On 1-2 On 2-3 On

* Default setting

On Off

1

2

3

2-17 u Installation Overview

1

2

3

1-2 On2-3 On

CPU Installation and Upgrade

The 486-OCV Plus is equipped with a Zero Insertion
Force (ZIF) socket to make upgrading flexible and easy.
Make sure the jumpers are set correctly before applying
power, or you may damage the CPU or system board.

CPU Configuration

Location U8 of the 486-OCV Plus system board is a
237-pin ZIF socket for the Intel 486TM family of CPUs,
486 OverDriveTM Processors, and the Pentium
OverDrive Processor. This makes upgrading easy and
affordable. Location U26 is a 196-pin PQFP [Plastic
Quad Flatpack Package] for 80486SX.

486-OCV Plus

TM

U8

ZIF

Socket

Location of Pin 1

U26

OPTi

82C499

Locations of the CPU Sockets on the 486-OCV Plus

Installation Overview u 2-18

PentiumTM OverDrive Ready System Board

Jumper Settings for CPUs

JP38

OPTi

JP12 JP14

JP13

JP25

82C499

Locations of Jumpers JP12-JP14, JP25 and JP38

on the 486-OCV Plus System Board

Jumpers JP12-JP14 and JP25

Clock Selection

These jumpers should be set to match the speed of the
CPU installed on the 486-OCV Plus system board.

2-19 u Installation Overview

486-OCV Plus

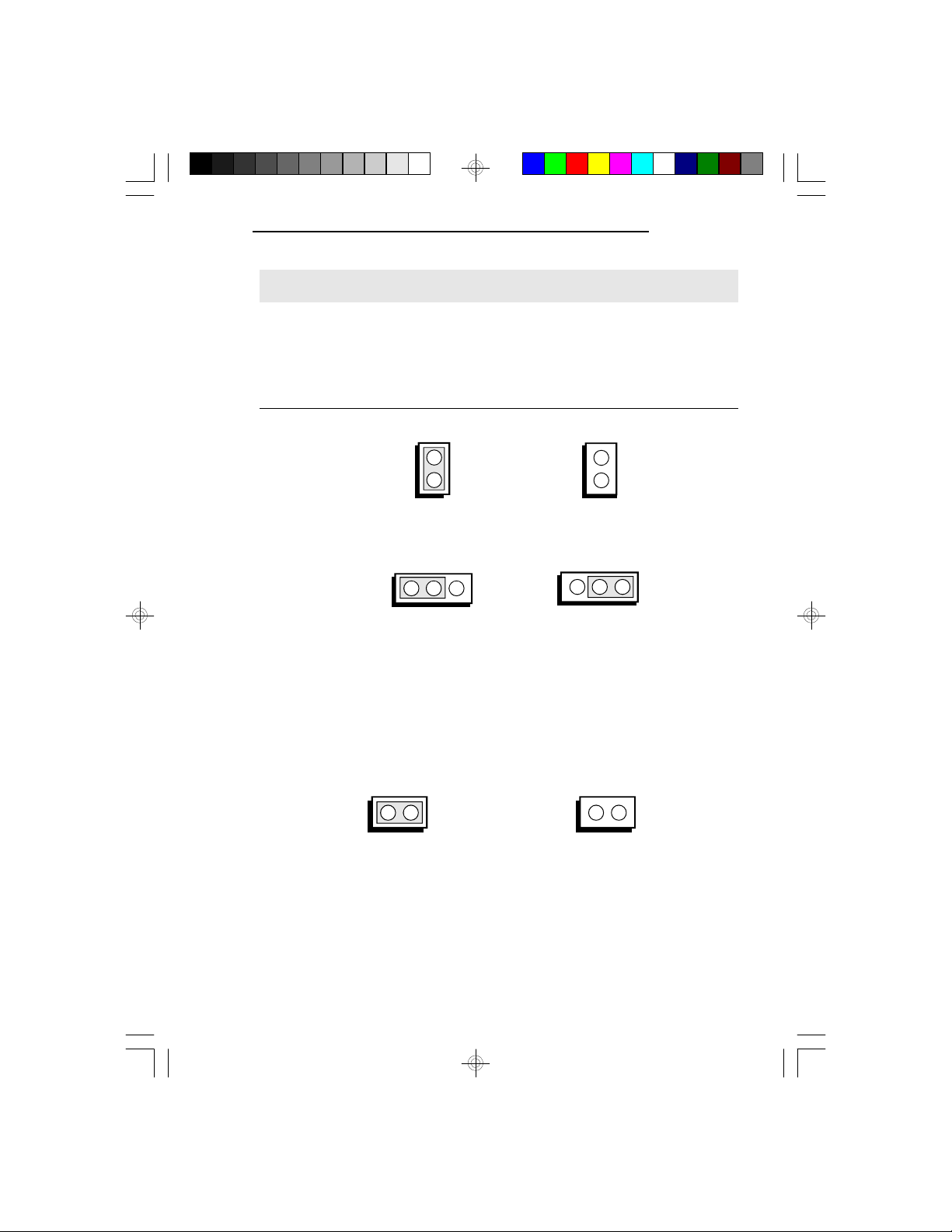

486SX/DX-25, 486DX2-50, Pentium

OverDrive Processor 50MHz

486SX/DX-33, 486DX2-66, Pentium

OverDrive Processor 66MHz
486SX/DX-40
486DX-50

On Off

123

2-3 On

Jumper JP38

CPU Type Selection

JP12

TM

TM

Off

On

On
Off

JP13

Off

Off

On
Off

JP14

On

On

Off
On

123

JP25

2-3 On

2-3 On

1-2 On
1-2 On

1-2 On

Jumper JP38 should be set to match the type of CPU
installed on the 486-OCV Plus system board.

On:

Cyrix CPU

Installation Overview u 2-20

Off:

Intel/AMD CPU

PentiumTM OverDrive Ready System Board

The jumpers below are for factory testing only and
should always be set to their default configurations.
Reconfiguring these jumpers will cause problems with
your 486-OCV Plus system board.

JP26: 1-2 On
JP31: 1-2 On
JP32: BIOS ROM Type Select

1-2 On: Flash RAM 28F001BX-T
2-3 On: Flash RAM 28F010 or 64KB ROM

2-21 u Installation Overview

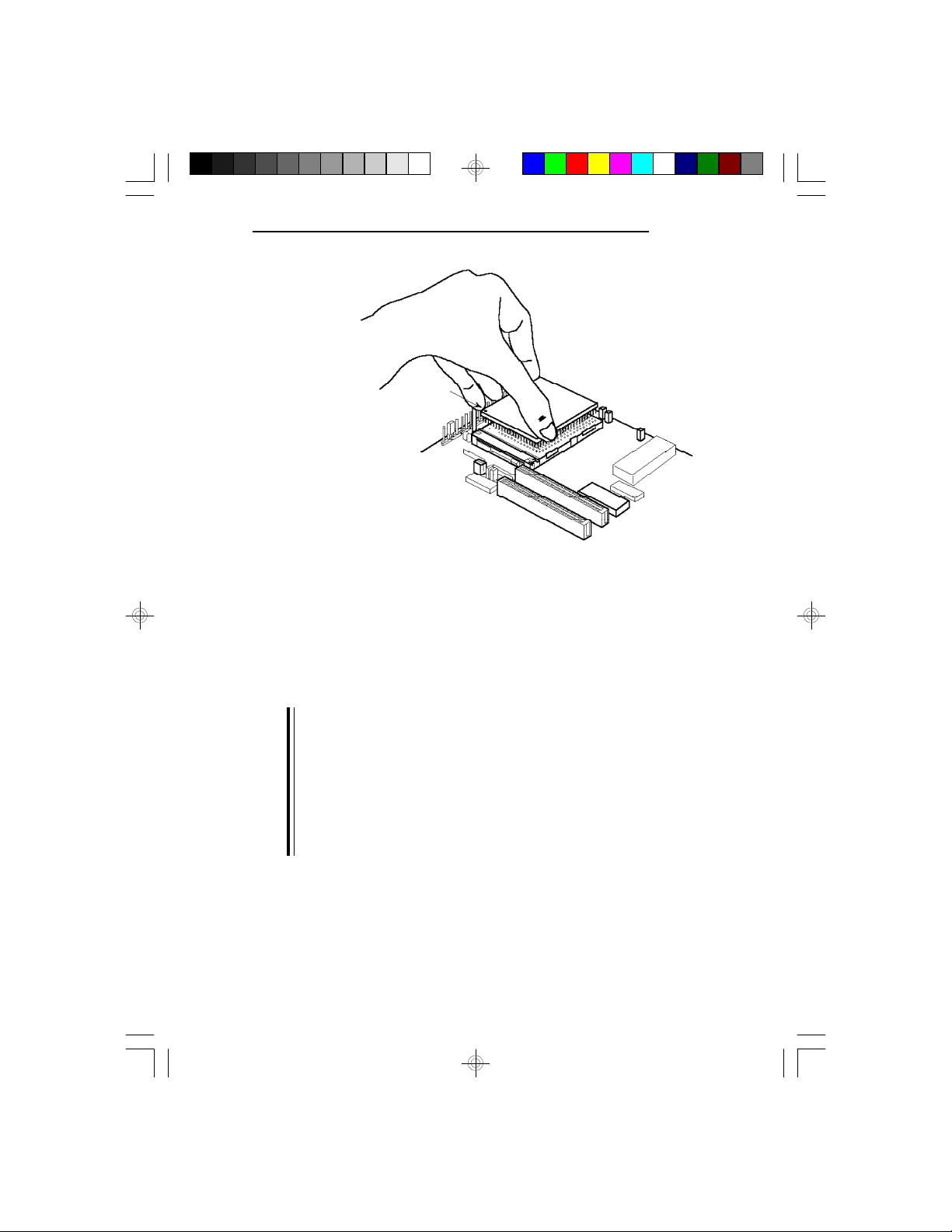

Installing Upgrade CPUs

The 486-OCV Plus is equipped with a 237-pin Zero
Insertion Force (ZIF) socket at location U8 of the
system board. The 486-OCV Plus accommodates all of
the Intel 486TM and 5V PentiumTM family of OverDrive
processors, and Cyrix or AMD 486DX-40 CPU. The
ZIF socket allows easy CPU upgrades and minimizes the
chance of breaking off CPU pins.

Warning:

Open the socket only if actually installing an upgrade
CPU. The warranty on the original CPU will be voided
if the S/N seal is broken. Installation of an OverDrive
Processor will not affect the original system warranty.

The 237-pin ZIF socket consists of four rows of pin
holes on each side.

486-OCV Plus

TM

Zero Insertion Force (ZIF) Socket

Installation Overview u 2-22

PentiumTM OverDrive Ready System Board

Install the 80486SX, 80486DX, 80486DX2 or the 80486
OverDriveTM Processor, which only has three rows of
pins, in the three inner rows of the socket. The
outermost row of pin holes should be visible on all four
sides of the socket when any of these CPUs is installed.
The PentiumTM OverDrive Processor has four rows of
pins on each side and should be installed so it covers all
the pin holes of the ZIF socket.

To install, simply move the handle upward. Remove the
original CPU from the socket. If the board has an
486SX CPU soldered on at U26, you should leave it
intact.

Position the upgrade CPU above the socket. Make sure
pin 1 of the CPU is aligned with pin 1 of the socket.
Lower the chip until the pins are inserted properly in
their corresponding holes.

Pin 1

Pin 1 of the ZIF Socket

2-23 u Installation Overview

486-OCV Plus

CPU Pin 1

Positioning the CPU Above the ZIF Socket

Gently push the handle down until the handle locks into
place. You will hear a click when the handle is secure.
When you want to remove the chip, simply lift the
handle and remove the chip.

Warning:

The cables (floppy drive, hard drive, CD-ROM, etc.)
must be routed clear of the CPU with a minimum of

0.25" horizontal clearance to allow heat dissipation.
A minimum of 1.4" vertical clearance (measured above

the socket surface) must be kept free above the CPU.
Do not run cables or other obstructions in this area.

Installation Overview u 2-24

PentiumTM OverDrive Ready System Board

Cable

Adequate airflow for cooling must be provided over the
CPU. For PentiumTM OverDrive Processors, the airflow
must be adequate to keep the system temperature below
40oC, measured 0.5 inch above the CPU and assuming a
room temperature of 25oC.

2-25 u Installation Overview

Installing the System Board

Before installing the system board into your system unit,
you should prepare the tools you will use:

You will need:

• one medium size, flat-bladed screwdriver

• one medium Philips screwdriver

Step 1

Unlock your system unit. Turn off the power and dis­connect all power cords and cables.

Step 2

Remove the system unit cover. Refer to the manufac­turer's instructions if necessary.

Step 3

486-OCV Plus

Step 4

Remove expansion cards seated in any of the expansion
slots and detach all connectors from the old system
board.

Loosen the screws holding the original system board and
remove the board from the system. Save the screws.

Installation Overview u 2-26

PentiumTM OverDrive Ready System Board

Step 5

Insert the SIM modules into the SIMM banks on the
486-OCV Plus. The quantity and location of the SIM
modules is dependent upon the memory configuration
and type of modules you intend to use.

Step 6

Set the corresponding jumpers.

Step 7

Install the prepared 486-OCV Plus system board into the
case and replace the screws.

Step 8

Reinstall all cards and connectors and replace the system
unit cover. Reconnect all power cords and cables.

2-27 u Installation Overview

v Initial Setup Program

After you power up your system, the BIOS message
appears on your screen and the memory count begins.

After the memory test, the message below will appear on
the screen if your CMOS Setup is correct:

Enter CURRENT Password:

The default password is AMI. You have three chances
to type the correct password. If the password is still
incorrect after the third try, the system will lock up.
You must turn your system off and back on to restart it.
You can change the password under the change pass­word option. Refer to the "Change Password" section
on page 3-8 for more information. A screen similar to
the one shown below will appear. If the password
option is disabled, you will directly access this screen.

486-OCV Plus

Initial Setup Program u 3-1

PentiumTM OverDrive Ready System Board

AMI BIOS Setup Utilities

If you want to change your CMOS setup, press <Del>
when the message, "Hit <Del> if you want to run setup",
appears on the screen. Again, if you enabled the pass­word option, you will be prompted to the message
below:

Enter CURRENT Password:

The default password is AMI. For information on how
to change the password, refer to the "Change Password"
section on page 3-8. After entering the correct pass­word, the screen below appears. If the password option
is disabled, you will directly access this screen.

Use the arrow keys to highlight the option you want and
hit the <ESC> key.

Note:

Before you access the setup utilities, a warning message
will appear.

3-2 u Initial Setup Program

This message warns you that inappropriate modifications
may cause problems. Press <Enter> to continue or
<Esc> to abort. If the system fails after the setup
procedure, power off the computer and turn it on again.
Wait for the message, "Hit <Del> if you want to run
setup", and press <Del>.

Standard CMOS Setup

If you highlight "Standard CMOS Setup" and press
<Enter>, a screen similar to the one below will appear:

486-OCV Plus

Initial Setup Program u 3-3

PentiumTM OverDrive Ready System Board

The upper right hand corner shows the base memory
size and extended memory size of your system. You
cannot alter these items; your computer automatically
detects and displays them.

The left side of the screen lists the modifiable param­eters. You can change the date, time, hard disk drive (C
and D), type of floppy drive (A and B), primary display,
and keyboard options. The Daylight Savings function is
intended for use in notebook computers and is not
supported by the 486-OCV Plus, so it does not matter
how it is set.

On the lower right hand corner is a calendar that shows
the current date.

The box at the lower left provides information on each
highlighted parameter.

Navigation and menu selection instructions are located
below the information box. Use the up or down arrow
key to move between options. Once you have high­lighted the option you wish to change, use the <Page
Up> or <Page Down> key to view the available selec­tions for that option.

If you have added a hard drive, you must select the
appropriate type for the drive. The 486-OCV Plus has
46 pre-set types and one user-definable type.

The table in Appendix H gives a complete listing of the
available drive types. Any given hard drive must be set
to one specific drive-type number. Please refer to your
hard drive documentation to find the appropriate type
number.

3-4 u Initial Setup Program

If none of the pre-set types is appropriate for your hard
drive, choose 47, which is the user-definable type. To
use this type, highlight either hard disk C or D, depend­ing on your hard drive configuration. Use the <Page
Up> key until type 47 is showing. Fill in all the param­eters as specified by the drive manufacturer. To move
between parameters, hit the <Enter> key.

When you are through making changes, press <Esc> to
return to the main menu.

Advanced CMOS Setup

If you highlight "Advanced CMOS Setup" and press
<Enter>, a screen similar to the following one will
appear:

486-OCV Plus

Use the arrow keys to move the highlight bar to the
options you wish to change or modify. Use the <Page
Up> or <Page Down> keys to make the corresponding
changes.

Initial Setup Program u 3-5

PentiumTM OverDrive Ready System Board

Set the password checking option to "Always" or
"Setup" if you want to enable this option. Setting it to
"always" will prompt you for a password every time you
cold boot your system or access setup. When you set
the option to "Setup", you will be prompted for a pass­word only when trying to access setup.

The Boot Sector Virus Protection option may be set to
"enabled" or "disabled". When enabled, the BIOS issues
a warning when any program or virus sends a Disk
Format command or attempts to write to the boot sector
of the hard disk drive.

Note:

Your system must have an American Megatrend Key­board Controller BIOS, version F or later, for this
option to work.

If the changes made are incorrect, or you change your
mind, press <F6> or <F7> to return to the default
settings. Press <Esc> after making the changes to return
to the main menu.

3-6 u Initial Setup Program

Auto Configuration with BIOS Defaults

If, for some reason, the CMOS becomes corrupted, the
system can be reconfigured with the default values
stored in the ROM chips. The BIOS Setup default
values should provide optimum performance for the
system. You should use these values unless you are
possibly having hardware problems.

Highlight this option on the main menu and press
<Enter>. The message below will appear.

Load BIOS Setup Default Values from ROM Table (Y/N)? N

Type "Y" and press <Enter> to return to the BIOS setup
default values. After pressing <Enter>, you will be
returned to the main menu.

Auto Configuration with Power-on Defaults

The Power-on defaults are similar to the BIOS Setup
defaults. These defaults are the most stable values for
the system and should be used if you are possibly having
hardware problems.

486-OCV Plus

Highlight this option on the main menu and press
<Enter>. The message below will appear.

Load Power-on Default Values from ROM Table (Y/N)? N

Type "Y" and press <Enter> to return to the Power-on
default values. After pressing <Enter>, you will be
returned to the main menu.

Initial Setup Program u 3-7

PentiumTM OverDrive Ready System Board

Change Password

The default password is AMI. If you want to change
the password, make sure you set the Password Checking
Option to "Always" or "Setup" under Advanced CMOS
Setup. If not, the error message below will appear on
the screen:

<Password Option> must be enabled in Advanced CMOS Setup

Press any key to continue

Use the arrow keys to highlight the Change Password
Option and press <Enter>. The message below will
appear.

Enter Current Password:

The preset password is AMI. Type AMI or the current
password and press <Enter>. The message below will
appear:

Enter NEW Password:

Type in the the new password. You are limited to six
ASCII characters. If you type more than six characters,
you will get the following error message:

Error, press any key

3-8 u Initial Setup Program

486-OCV Plus

Press any key on the keyboard to return to the message
below:

Enter NEW Password:

Type in a password that is six characters long or shorter.
When done, you will be asked to verify the new
password:

Re-enter NEW Password:

Type in exactly the same password. Failure to do so
will yield the error message shown below:

Error, press any key
If you receive this error, you will have to start all over.
After typing in the new password, the message below

will appear:

New password installed

Press the <Esc> key to return to the main menu.

Auto Detect Hard Disk

This option detects the hard disk parameters for the hard
disk drives installed in your system. Highlight this
option and press <Enter>. A screen similar to the
following one will appear.

Initial Setup Program u 3-9

PentiumTM OverDrive Ready System Board

The screen displays the parameters detected and allows
you to accept or reject the parameters. Type "Y" and
press <Enter> to accept the parameters or press <Esc>
to abort. If you select "Y", the parameters for hard disk
Type 47 will be displayed in Standard CMOS Setup. If
you select "N", the parameters in the Standard CMOS
Setup will remain the same.

Hard Disk Utility

This option will format, set the interleave mode, and do
a media analysis of your hard drives. Highlight this
option and press <Enter>. A screen similar to the
following one will appear.

Note:

DO NOT use this utility on IDE hard drives. Using
this utility can severely damage your IDE hard drive.

3-10 u Initial Setup Program

Use the arrow keys to select the desired options, and
press <Esc> to exit when done.

Write to CMOS and Exit

When all the changes have been made, highlight "Write
to CMOS and Exit" and press <Enter>. The message
below will appear:

Write to CMOS and Exit (Y/N)? N

Type "Y" and press <Enter>. The modifications you
have made will be written into the CMOS memory, and
the system will reboot. You will once again see the
initial diagnostics on the screen. If you wish to make
additional changes to the setup, press <Del> after
memory testing is done.

Do Not Write to CMOS and Exit

When you do not want to save the changes you have
made, highlight this option and press <Enter>. The
message below will appear:

486-OCV Plus

Want to quit without saving(Y/N)? N

Type "Y" and press <Enter>. The system will reboot
and you will once again see the initial diagnostics on the
screen. If you wish to make any changes to the setup,
press <Del> after memory testing is done.

Initial Setup Program u 3-11

PentiumTM OverDrive Ready System Board

v Troubleshooting Checklist

If you experience difficulty with the 486-OCV Plus
system board, please refer to the checklist below. If you
still cannot isolate the problem, please contact your
dealer.

1) Check the jumper settings to ensure that the jumpers
are properly set. If in doubt, refer to the “Board
Configuration” section.

2) Verify that all SIM modules are seated securely into
the bank sockets.

3) Make sure that the SIM modules are in the correct
locations.

4) Check that all populated memory banks are
completely filled. If not, fill them completely.

5) If your board fails to function, place the board on a
flat surface and seat all socketed components (gently
press each component into the socket).

4-1 u Troubleshooting Checklist

v Appendix A: Types of Modules

The 486-OCV Plus system board allows you to populate
memory with 256Kx36, 512Kx36, 1Mx36, 2Mx36,
4Mx36 and 8Mx36 SIM modules. The following mod­ules have been tested with this board. Most untested
brands will work but a few may fail to do so.

For SIM 256Kx36 Modules

Brand Chip Number

Hitachi HM514280-JP8
OKI M516256B-80J
Fujitsu 81C4256-80

For SIM 512K36 Modules

Brand Chip Number

486-OCV Plus

Panasonic MN41C256SJ-08
Hitachi HM514280-JP8
OKI M514256B-80J
NEC 44256-70

For SIM 1Mx36 Modules

Brand Chip Number

Toshiba TC514400ASJL-70
Fujitsu 814400-80
OKI M511000B-70J
NEC 424400-80

Appendix A u A-1

PentiumTM OverDrive Ready System Board

For SIM 2Mx36 Modules

Brand Chip Number

Fujitsu 814400-80
OKI M511000B-70J

A-2 u Appendix A

v Appendix B: System Error Report

During the POST (Power On Self Test) routines, which
are performed each time the system is powered on,
errors may occur. Errors can be fatal or non-fatal.

Fatal Errors

Fatal errors are those which will not allow a system to
continue the boot-up procedure. If a fatal error occurs,
you should consult your system manufacturer for repair.

Beep Count Error Message

1 Refresh Failure
2 Parity Error
3 Base 64KB Memory Failure
4 Timer Not Operational
5 Processor Error
6 8042 - Gate A20 Failure
7 Processor Exception Interrupt Error
8 Display Memory Read/Write Error
9 ROM Checksum Error
10 CMOS Shutdown Read/Write Error

486-OCV Plus

Appendix B u B-1

PentiumTM OverDrive Ready System Board

Non-Fatal Errors

Non-fatal errors are those which, in most cases, allow
the system to continue the boot-up process. The error
messages normally appear on the screen.

Error Message

1. CH-2 Timer Error

2. INTR #1 Error

3. INTR #2 Error

4. CMOS Battery State Low

5. CMOS Checksum Failure

6. CMOS Options Not Set

7. CMOS Display Type Mismatch

8. Display Switch Not Proper

9. Keyboard is Locked...Unlock It

10. Keyboard Error

11. KB/Interface Error

12. CMOS Memory Size Mismatch

13. FDD Controller Failure

14. HDD Controller Failure

15. C: Drive Error

16. D: Drive Error

17. C: Drive Failure

18. D: Drive Failure

19. CMOS Time & Date Not Set

20. Cache Memory Bad, Do not Enable Cache

21. 8042 Gate-A20 Error

22. Address Line Short!

23. DMA #2 Error/DMA #3 Error/DMA Error

24. No ROM Basic

25. Diskette Boot Failure/Invalid Boot Diskette

26. On Board Parity Error/Off Board Parity Error/

Parity Error????

B-2 u Appendix B

v Appendix C: Memory & I/O Maps

Memory Address Map

Address Name Function

0000000 to 640K System System Board Memory
009FFFF Board RAM

00A0000 to 128K Video Reserved for Graphics Display
00BFFFF Display Memory Memory

00C0000 to 192K I/O Reserved for ROM on I/O
00EFFFF Expansion ROM Adapter Card

00F0000 to 64K ROM on System Board BIOS
00FFFFF the System Board

0100000 to Maximum System Board Memory
3FFFFFF Memory 63M

486-OCV Plus

Appendix C u C-1

PentiumTM OverDrive Ready System Board

I/O Address Map

I/O Address Function

000-01F DMA Controller 1, 8237A-5
020-03F Interrupt Controller 1, 8259A, Master
040-05F Timer, 8254-2
060-06F 8742 (Keyboard Controller)
070-07F Real-time Clock, NMI

080-09F DMA Page Memory, 74LS612
0A0-08F Interrupt Controller 2, 8259A
0C0-0DF DMA Controller 2, 8237A-5
0E8 Shadow RAM and Cache Control Bit
0F0 Clear Numeric Processor

0F1 Reset Numeric Processor Extension
0F8-OFF Numeric Processor Extension
1F0-1F8 Fixed Disk
200-207 Game I/O
278-27F Parallel Printer Port 2
2F8-2FF Serial Port 2
300-31F Prototype Card
360-36F Reserved
378-37F Parallel Printer Port 1
380-38F SDLC, Bisynchronous 2
3A0-3AF Bisynchronous 1
3B0-3BF Monochrome Display and Printer Adapter
3C0-3CF Reserved
3D0-3DF Color/Graphics Monitor Adapter
3F0-3F7 Diskette Controller
3F8-3FF Serial Port 1

(Non-maskable Interrupt) Mask

Extension Busy

Note:

The I/O address hex 000 to 0FF are reserved for the
system board I/0. Hex 100 to 3FF are available on the
I/O channels.

C-2 u Appendix C

486-OCV Plus

v Appendix D: 16-Bit ISA I/O Pin Assignments

B

Gnd

Reset Drv

+5V DC

IRQ9

-5V DC
DRQ2

-12V DC
OWS

+12V DC

Gnd

-SEMEMW

-SEMEMR

-IOW

-IOR

-Dack3

-DRQ3

-Dack1
DRQ1

-Refresh
CLK

IRQ7
IRQ6
IRQ5
IRQ4
IRQ3

-Dack2
T/C

Bale

+5V DC

OSC

Gnd

-Mem CS16

-I/O CS16
IRQ10
IRQ11
IRQ12
IRQ13
IRQ14

-Dack0
DRQ0

-Dack5
DRQ5

-Dack6
DRQ6

-Dack7
DRQ7

+5V DC

-Master
Gnd

A

- 01 -

- 02 -

- 03 -

- 04 -

- 05 -

- 06 -

- 07 -

- 08 -

- 09 -

- 10 -

- 11 -

- 12 -

- 13 -

- 14 -

- 15 -

- 16 -

- 17 -

- 18 -

- 19 -

- 20 -

- 21 -

- 22 -

- 23 -

- 24 -

- 25 -

- 26 -

- 27 -

- 28 -

- 29 -

- 30 -

- 31 -

D

- 01 -

- 02 -

- 03 -

- 04 -

- 05 -

- 06 -

- 07 -

- 08 -

- 09 -

- 10 -

- 11 -

- 12 -

- 13 -

- 14 -

- 15 -

- 16 -

- 17 -

- 18 -

-I/O Chck
SD7
SD6
SD5
SD4
SD3
SD2
SD1
SD0

-I/O Chrdy
AEN
SA19
SA18
SA17
SA16
SA15
SA14
SA13
SA12
SA11
SA10
SA9
SA8
SA7
SA6
SA5
SA4
SA3
SA2
SA1
SA0

C

SBHE
LA23
LA22
LA21
LA20
LA19
LA18
LA17

-Memr

-Memw
SD08
SD09
SD10
SD11
SD12
SD13
SD14
SD15

Appendix D u D-1

PentiumTM OverDrive Ready System Board

v Appendix E: VL-Bus I/O Pin Assignments

B

DAT00
DAT02
DAT04
DAT06
DAT08

DAT10
DAT12

DAT14
DAT16
DAT18
DAT20

DAT22
DAT24
DAT26
DAT28
DAT30

ADR31

ADR29
ADR27
ADR25
ADR23
ADR21
ADR19

ADR17
ADR15

ADR13
ADR11
ADR09
ADR07
ADR05

ADR03
ADR02

RESET#

RDYRTN#

BRDY#

BLAST#

LBS16#

GND

Vcc

GND

Vcc

GND

GND

Vcc

GND

D/C#

M/IO#

W/R#

GND

IRQ9

ID0
ID1

GND

LCLK

Vcc

- 01 -

- 02 -

- 03 -

- 04 -

- 05 -

- 06 -

- 07 -

- 08 -

- 09 -

- 10 -

- 11 -

- 12 -

- 13 -

- 14 -

- 15 -

- 16 -

- 17 -

- 18 -

- 19 -

- 20 -

- 21 -

- 22 -

- 23 -

- 24 -

- 25 -

- 26 -

- 27 -

- 28 -

- 29 -

- 30 -

- 31 -

- 32 -

- 33 -

- 34 -

- 35 -

- 36 -

- 37 -

- 38 -

- 39 -

- 40 -

- 41 -

n/c

- 42 -

- 43 -

- 44 -

- 45 -

- 48 -

- 49 -

- 50 -

- 51 -

- 52 -

- 53 -

- 54 -

- 55 -

- 56 -

- 57 -

- 58 -

A

DAT01
DAT03
GND
DAT05
DAT07
DAT09
DAT11
DAT13
DAT15
GND
DAT17
Vcc
DAT19
DAT21
DAT23
DAT25
GND
DAT27
DAT29
DAT31
ADR30
ADR28
ADR26
GND
ADR24
ADR22
Vcc
ADR20
ADR18
ADR16
ADR14
ADR12
ADR10
ADR08
GND
ADR06
ADR04
WBACK#
BE0#
Vcc
BE1#
BE2#
GND
BE3#
ADS#

LRDY#
LDEV<x>#
LREQ<x>#
GND
LGNT<x>#
Vcc
ID2
ID3
ID4
LKEN#
LEADS#

Note:

Side "A" of the connector is the add-in board
component side.
Side "B" of the connector is the add-in board solder
side.

E-1 u Appendix E

486-OCV Plus

Pin Name No. LBC1LBC2LBM3LBT

ADR<31..2> 30 O I O I
ADS# 1 O I O I
BE<3..0> 4 O I O I
BLAST# 1 O I O I
BRDY# 1 I O I O
D/C# 1 O I O I
DAT<31..0> 32 I/O I/O I/O I/O
ID<4..0> 5 O O I I
IRQ9 1 I I O O
LBS16# 1 I O I O
LCLK 1 O O I I
LDEV<x>#
LEADS# 1 O I O I
LGNT<x>#

4

4

1 I N/A N/A O

1 O O I N/A
LKEN# 1 O O I I
LRDY# 1 I I N/A O
LREQ<x>#

4

1 I I O O
M/IO# 1 O I O I
RDYRTN# 1 O O I I
RESET# 1 O O I I
W/R# 1 O I O I
WBACK# 1 O O I N/A
(power) 8
(ground) 14
(reserved) 1

Total per slot 112

1

Direction of signals for the LBC if the host CPU or a system I/O bus
master is active.

2

Direction of signals for the LBC if an LBM is active.

3

Direction of signals for any LBM while it owns the VL-Bus.

4

One unique signal per slot or device.

Note:

LBC = VL Local Bus Controller
LBM = VL Local Bus Master
LBT = VL Local Bus Target

Appendix E u E-2

PentiumTM OverDrive Ready System Board

v Appendix F: System Overview

82C206 Integrated Peripherals Controller

The 486-OCV Plus uses an 82C206 integrated peripher­als controller that supports the following:

DMA Channels

DMA Controller 1 DMA Controller 2

Ch0-Reserved for User Ch4-Cascade for CTRL 1
Ch1-SDLC Ch5-Reserved for User
Ch2-Diskette (IBM Personal Computer) Ch6-Reserved for User
Ch3-Reserved for User Ch7-Reserved for User

Note:

DMA controller 1 supports 8-bit data transfer
DMA controller 2 supports 16-bit data transfer

Address generation for DMA Channels 3 to 0

Source DMA Page Memory DMA Controller 1

Address A23 A16 A15 A0

Address generation for DMA Channels 7 to 5

Source DMA Page Memory DMA Controller 2

Address A23 A17 A16 A1

F-1 u Appendix F

Page Memory Address

I/O Port Address Page Memory

0081H DMA Channel 2
0082H DMA Channel 3
0083H DMA Channel 1
0087H DMA Channel 0
0089H DMA Channel 6
008AH DMA Channel 7
008BH DMA Channel 5

System Interrupts

NMI Parity or I/O Channel Check

Note:

The non-maskable interrupt (NMI) of the 486-OCV Plus
is used to report memory parity errors. The memory
parity is derived from the system board memory and I/O
adapter optional memory.

486-OCV Plus

Interrupt Controller 1 Interrupt Controller 2

IRQ0-Timer Output 0 (Out 0) IRQ8-Realtime Clock INT
IRQ1-Keyboard (Output Buffer Full) IRQ9-Software Redirected

IRQ2-Interrupt from INTR2 IRQ10-Reserved
IRQ3-Serial Port 2 IRQ11-Reserved
IRQ4-Serial Port 1 IRQ12-PS/2 Mouse
IRQ5-Parallel Port 2 IRQ13-Coprocessor
IRQ6-Diskette Controller IRQ14-Fixed Disk Controller

IRQ7-Parallel Port 1 IRQ15-Reserved

to INT 0AH (IRQ2)

Appendix F u F-2

PentiumTM OverDrive Ready System Board

Note:

Any or all interrupts including NMI may be masked.
The 15 levels of system interrupts from high to low are
ordered as: IRQ0>IRQ1>IRQ8>IRQ9>IRQ10>IRQ11
>IRQ12>IRQ13>IRQ14>IRQ15>IRQ3>IRQ4>IRQ5>
IRQ6>IRQ7.

System Timers

Channel 0 System Timer (IRQ0)

Channel 1 Refresh Request Generator

(15us Rate Generator Period Signal)

Channel 2 Tone Generation for Speaker

Real-Time Clock

Address Function

F-3 u Appendix F

00 Seconds
01 Second Alarm
02 Minutes
03 Minute Alarm
04 Hours
05 Hour Alarm
06 Day of Week
07 Date of Month
08 Month
09 Year
0A Register A
0B Register B
0C Register C
0D Register D

RAM Module

The DRAM memory on the 486-OCV Plus system board
can be expanded to a total of 64MB using 256Kx36,
512Kx36, 1Mx36, 2Mx36, 4Mx36 and 8Mx36
HSIMMs. The DRAM controller uses a page mode
design with an access time of 80ns or less.

Cache Module

The 486-OCV Plus supports 64KB/128KB of direct map
cache using 8Kx8 (20ns) SRAMs or 256KB using
32Kx8 (20ns) SRAMs.

Burst Cycles

The 486 microprocessor accepts burst cycles for any bus
request that requires more than one data cycle. During
burst cycles, a new data item is strobed into the 486
microprocessor for every clock, rather than every other
clock as in non-burst cycles.

486-OCV Plus

Appendix F u F-4

PentiumTM OverDrive Ready System Board

v Appendix G: Connector Pin Assignments

Jumper J1

Diagnostic LCD Port

Connector J2

Keyboard Connector

Pin

1
2
3
4
5
6
7
8
9

10

Pin

1
2
3
4
5

Function

Vcc
XD0
XD1
XD2
XD3
XD4
XD5
XD6
XD7
Gnd

Function

Keyboard Clock
Keyboard Data
NC
Ground
5V

G-1 u Appendix G

Jumper J3

Speaker Connector

486-OCV Plus

Jumper J4

Keylock Connector

Pin

1
2
3
4

Pin

1
2
3
4
5

Function

Speaker
NC
Ground
VCC

Function

LED Power
Key
Ground
Keyboard Inhibitor
Ground

Appendix G u G-2

PentiumTM OverDrive Ready System Board

Jumper J5

Turbo LED Connector

Jumpers J6/J8

Reset Switch Connectors

Jumper J7

Turbo Switch Connector

Pin

1
2

Pin

1
2

Pin

1
2

Function

-LED
Power

Function

Ground
Reset Switch

Function

Switch
GND

G-3 u Appendix G

Jumper J9

PS/2 Mouse Connector

486-OCV Plus

Pin

1
2
3
4
5
6

Jumper J10

External Battery Connector

Pin

1
2
3
4

Function

Mouse Data
N. C.
Gnd
+5V
Mouse Clock
N. C.

Function

Battery +3.6V
NC
Ground
Ground

Appendix G u G-4

PentiumTM OverDrive Ready System Board

Power Connector PL1 and PL2

Connectors

PL1

PL2

Pin

1
2
3
4
5
6

1
2
3
4
5
6

Function

Power Good
+5V
+12V

-12V
Ground
Ground

Ground
Ground

-5V
+5V
+5V
+5V

G-5 u Appendix G

486-OCV Plus

v Appendix H: AMI BIOS Hard Disk Table

Type Cyln Head WPcom LZone Sect Size

1 306 4 128 305 17 10MB
2 615 4 300 615 17 20MB
3 615 6 300 615 17 31MB
4 940 8 512 940 17 62MB
5 940 6 512 940 17 47MB
6 615 4 65535 615 17 20MB
7 462 8 256 511 17 31MB
8 733 5 65535 733 17 30MB
9 900 15 65535 981 17 112MB
10 820 3 65535 828 17 20MB
11 855 5 65535 855 17 35MB
12 855 7 65535 855 17 50MB
13 306 8 128 319 17 28MB
14 733 7 65535 733 17 43MB
16 612 4 0 663 17 20MB
17 977 5 300 977 17 41MB
18 977 7 65535 977 17 57MB
19 1024 7 512 1024 17 60MB
20 733 5 300 732 17 30MB
21 733 7 300 732 17 43MB
22 733 5 300 733 17 30MB
23 306 4 0 336 17 10MB
24 925 7 0 925 17 54MB
25 925 9 65535 925 17 69MB
26 754 7 754 754 17 44MB
27 754 11 65535 754 17 69MB
28 699 7 256 699 17 41MB
29 823 10 65535 823 17 68MB

Appendix H u H-1

PentiumTM OverDrive Ready System Board

Type Cyln Head WPcom LZone Sect Size

30 918 7 918 918 17 53MB
31 1024 11 65535 1024 17 94MB
32 1024 15 65535 1024 17 128MB
33 1024 5 1024 1024 17 43MB
34 612 2 128 612 17 10MB
35 1024 9 65535 1024 17 77MB
36 1024 8 512 1024 17 68MB
37 615 8 128 615 17 41MB
38 987 3 987 987 17 25MB
39 987 7 987 987 17 57MB
40 820 6 820 820 17 41MB
41 977 5 977 977 17 41MB
42 981 5 981 981 17 41MB
43 830 7 512 830 17 48MB
44 830 10 65535 830 17 69MB
45 917 15 65535 918 17 114MB
46 1224 15 65535 1223 17 152MB
47 User defined

H-2 u Appendix H

486-OCV Plus

System Board

User’s Manual

- 21840429 -
