Dexter Laundry STACK DRYER User Manual

DEXTER STACK DRYER
PROGRAMMING
PROCEDURES
AND
FEATURES

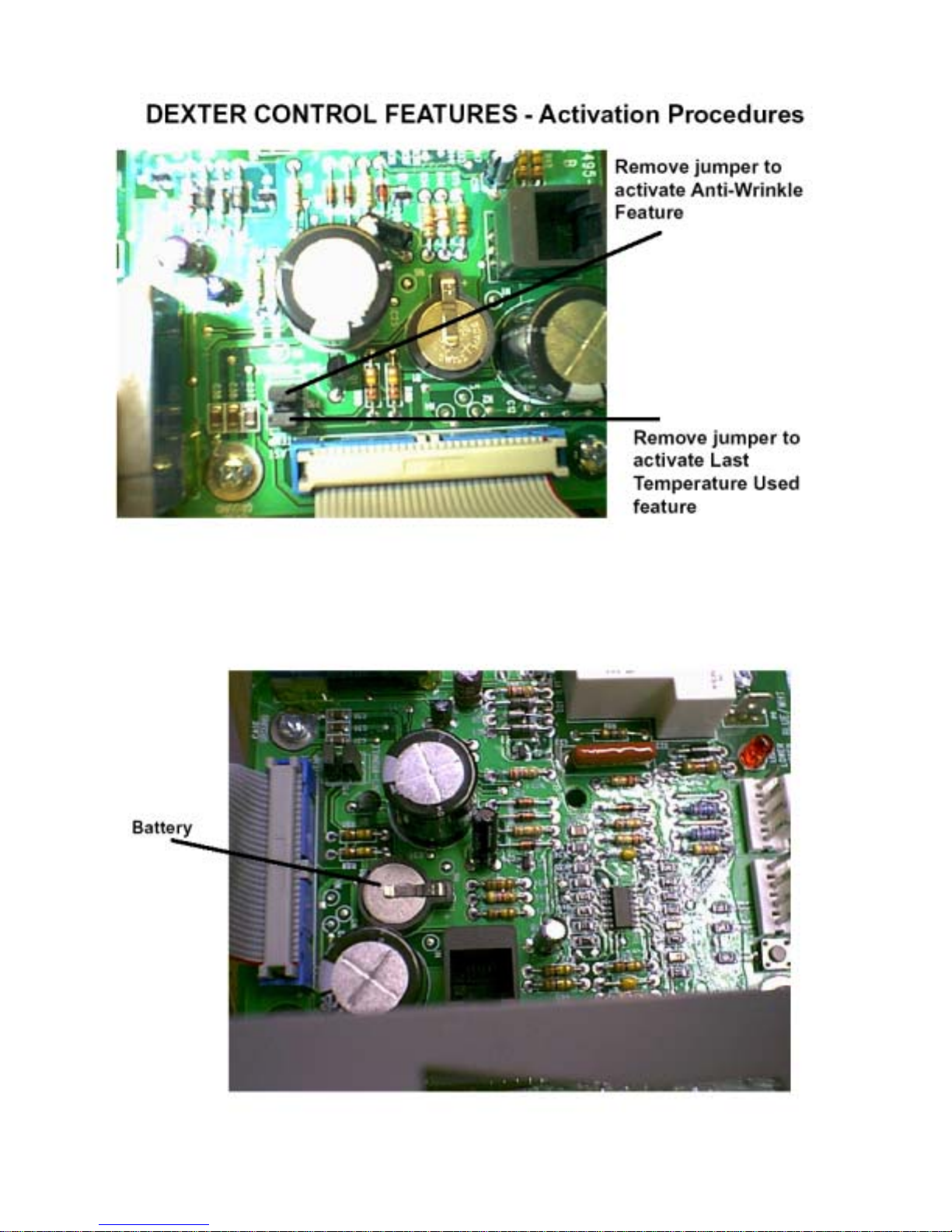

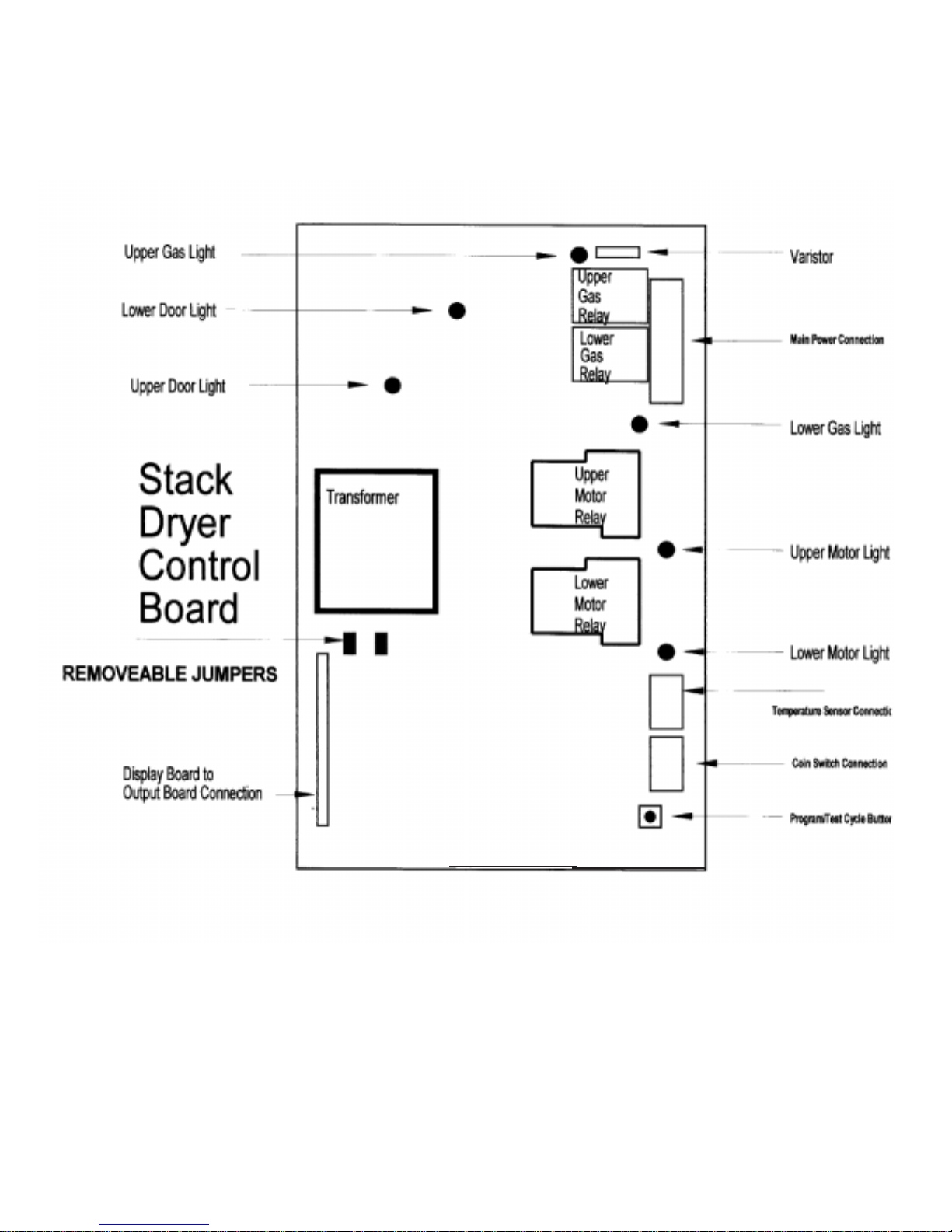

DESCRIPTION OF CONTROL

The single electronic control unit controls all coin counting, timing, temperature control and
displaying of information for both tumblers.

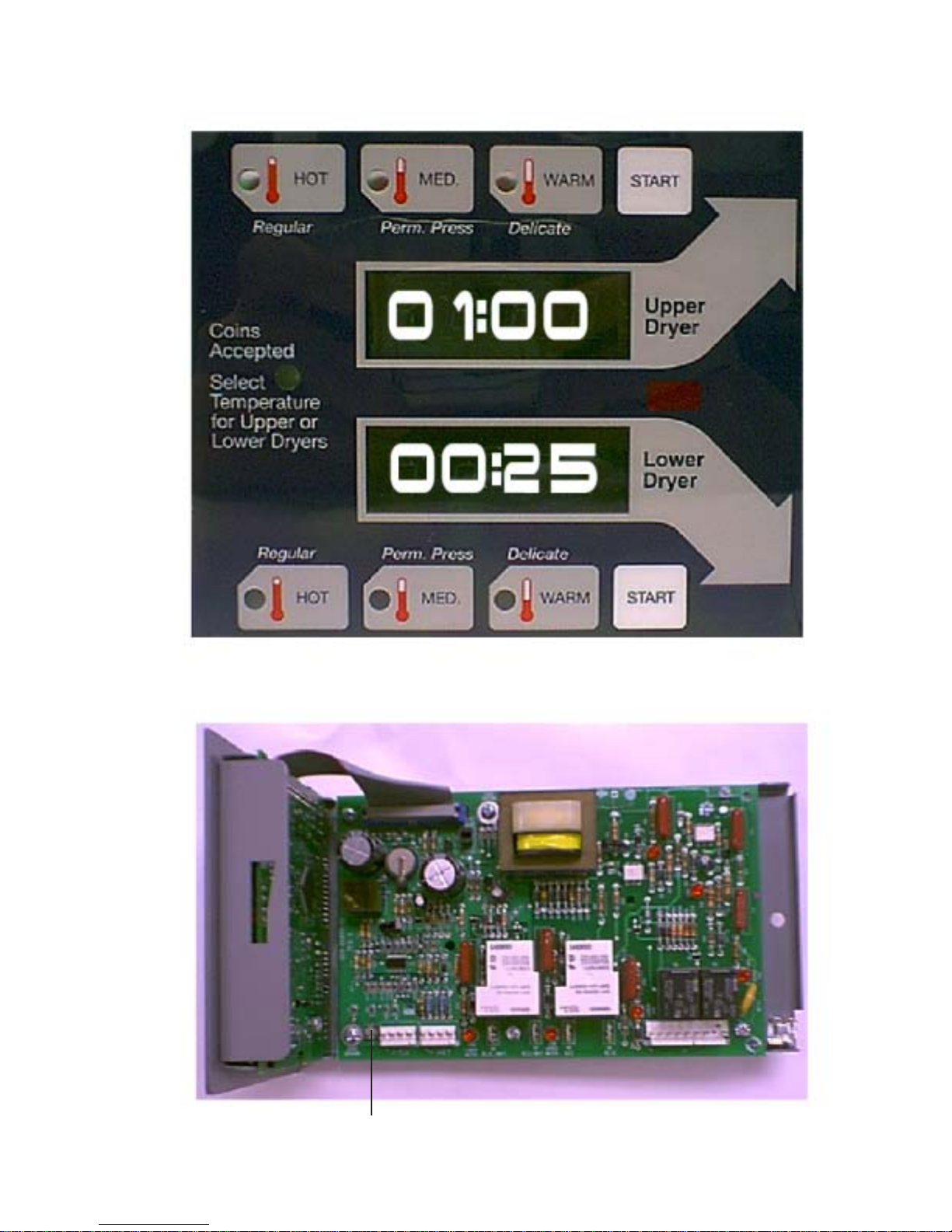

Each digital display shows vend price when its particular tumbler is waiting for coins to be
inserted. When a tumbler is in use, the display shows the number of minutes remaining to be
used on that tumbler.
The small green light to the left of the displays flashes to indicate that money has been added
to the coin acceptor . The flashing stops when the customer credits the coins to one tumbler or
the other by touching a start button or temperature selection button for the appropriate tumbler .
At this time the purchased time is reflected by the digital display .
The three temperature selection buttons for each tumbler also have indicator lights to indicate
which selection of temperature has been made. At the end of the cycle, the digital display
flashes until the operator opens the door to remove his load.
T emperature readout for each tumbler is available by pressing the temperature that is in use
along with the start button for that tumbler .

OPERATING INSTRUCTIONS

1. Load clothes into the tumbler and close the door.

2. Deposit the vend price that is shown in the display . Choose the desired temperature for the
tumbler to be used and then push the start button.

3. Additional time may be purchased and is added to the displayed time by touching the st art
button or temperature selection button.

Characteristics of running dryer:

T emperature selection may be changed at any time with the dryer running.
Running time may be extended any time that time is showing on the display even if the added
amount is less than the original vend price.

PROGRAMMED DATA:

Adjustable parameters are vend price, temperatures, and cool-down times. Hours run and
money count information can be displayed and these registers are resettable to zero.
There are sixteen programming steps. These sixteen steps are: (all temperatures are degrees
Fahrenheit).

PROGRAMMING ORIGINAL
STEP DESCRIPTION RANGE INCREMENTS SETTINGS

00 Lower drum hour meter 0 to 9999 hr. — 0
01 Upper drum hour meter 0 to 9999 hr. — 0
02 Left coin audit 0 to $9999 — 0
03 Right coin audit 0 to $9999 — 0
04 Hot temp. setting 150-190 5 175
05 Medium temp. setting 120-170 5 150
06 Warm temp. setting 1 10-150 5 125
07 Left coin input 0-100 5 cents .10
08 Right coin input 0-100 5 cents 25
09 V end price 0-100 5 cents 25
10 Time lef t coin 0-99:55 minutes 5 sec. 3.20
11 Time right coin 0-99:55 minutes 5 sec. 10:00
12 Time for free vend 0-99:55 minutes 5 sec. 10:00
13 Cool down time Hot cycle 0-10:00 minutes 5 sec. 2:00
14 Cool down time Medium 0-10:00 minutes 5 sec. 2:00
15 Cool down time Warm cycle 0-10:00 minutes 5 sec. 2:00
16 Temperature Type display Centigrade or Fahrenheit C or F
