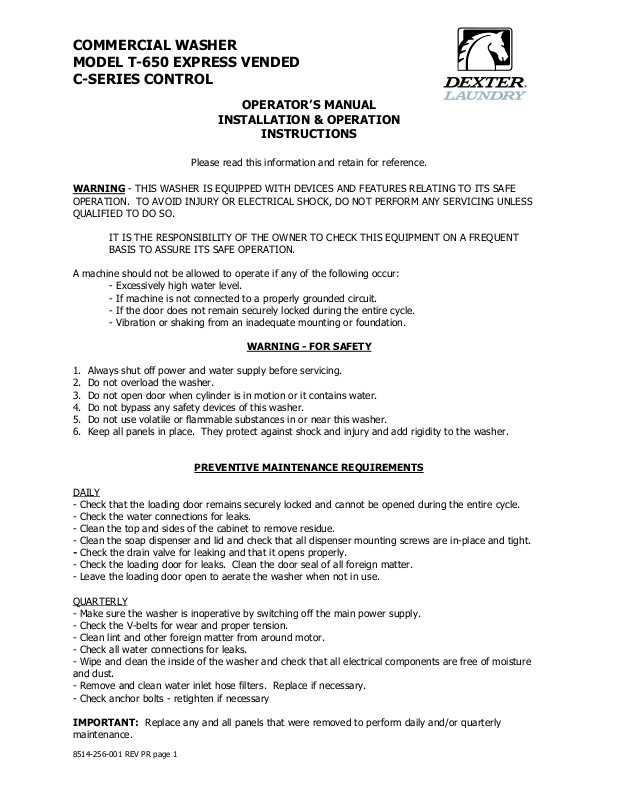

Dexter T-650 Operator’s Manual

COMMERCIAL WASHER
MODEL T-650 EXPRESS VENDED
C-SERIES CONTROL

OPERATOR’S MANUAL

INSTALLATION & OPERATION

INSTRUCTIONS

Please read this information and retain for reference.

WARNING - THIS WASHER IS EQUIPPED WITH DEVICES AND FEATURES RELATING TO ITS SAFE
OPERATION. TO AVOID INJURY OR ELECTRICAL SHOCK, DO NOT PERFORM ANY SERVICING UNLESS
QUALIFIED TO DO SO.

IT IS THE RESPONSIBILITY OF THE OWNER TO CHECK THIS EQUIPMENT ON A FREQUENT
BASIS TO ASSURE ITS SAFE OPERATION.

A machine should not be allowed to operate if any of the following occur:

- Excessively high water level.

- If machine is not connected to a properly grounded circuit.

- If the door does not remain securely locked during the entire cycle.

- Vibration or shaking from an inadequate mounting or foundation.

WARNING - FOR SAFETY

1. Always shut off power and water supply before servicing.

2. Do not overload the washer.

3. Do not open door when cylinder is in motion or it contains water.

4. Do not bypass any safety devices of this washer.

5. Do not use volatile or flammable substances in or near this washer.

6. Keep all panels in place. They protect against shock and injury and add rigidity to the washer.

PREVENTIVE MAINTENANCE REQUIREMENTS

DAILY

- Check that the loading door remains securely locked and cannot be opened during the entire cycle.

- Check the water connections for leaks.

- Clean the top and sides of the cabinet to remove residue.

- Clean the soap dispenser and lid and check that all dispenser mounting screws are in-place and tight.

- Check the drain valve for leaking and that it opens properly.

- Check the loading door for leaks. Clean the door seal of all foreign matter.

- Leave the loading door open to aerate the washer when not in use.

QUARTERLY

- Make sure the washer is inoperative by switching off the main power supply.

- Check the V-belts for wear and proper tension.

- Clean lint and other foreign matter from around motor.

- Check all water connections for leaks.

- Wipe and clean the inside of the washer and check that all electrical components are free of moisture
and dust.

- Remove and clean water inlet hose filters. Replace if necessary.

- Check anchor bolts - retighten if necessary

IMPORTANT: Replace any and all panels that were removed to perform daily and/or quarterly
maintenance.

8514-256-001 REV PR page 1

MODEL T-650 EXPRESS 40 LB. WASHER

CAPACITY

TABLE OF CONTENTS

Page No.
Washer Specifications 2
Mounting Dimensions 3
Installation Instructions 4
Operating Instructions 8
Programming the Washer Control 10
Water Level Adjustment 24
Displayed Washer Faults 25
Servicing and Troubleshooting 31
Accessories and Contact Information 35

WASHER SPECIFICATIONS

40LBS/6 CUBIC FT. (18.2 kg/170 L)

CYLINDER SIZE

ELECTRICAL

DRIVE SYSTEM

WASH SPEED

INTERMEDIATE
EXTRACT

FINAL EXTRACT

MACHINE CONTROL

WATER INLET

DRAIN VALVE

25” DIA X 21 1/8” DEEP (63.5cm X 53.7cm)

208-240 VAC, 60 HZ, 1 OR 3 PHASE

SOFT START REVERSING INVERTER DRIVE, 2 HP MOTOR

50 RPM

412 RPM (60 G’S)

750 RPM (200 G’S)

PROGRAMMABLE COMPUTER

2 SOLENOID OPERATED VALVES
FLOW RATE: 9 GAL/MIN EACH, 30-120 PSI

3” DIAMETER (7.6 cm)

8514-256-001 REV PR page 2

8514-256-001 REV PR page 3

INSTALLATION INSTRUCTIONS

All washers must be installed in accordance with all local, state and national
building, electrical, plumbing and other codes in effect in the area.

WARNING - THESE INSTALLATION AND SERVICING
INSTRUCTIONS ARE FOR USE BY QUALIFIED PERSONNEL ONLY.
TO AVOID INJURY AND ELECTRICAL SHOCK DO NOT PERFORM
ANY SERVICING OTHER THAN THAT CONTAINED IN THE
OPERATING INSTRUCTIONS, UNLESS QUALIFIED.

FOUNDATION REQUIREMENTS

This machine is designed for use on or over bare concrete floor - not to be used above
combustible flooring. The washer must be securely bolted and grouted to a
substantial concrete floor, or mounted and grouted upon a suitable base that is
securely bolted and grouted to a substantial concrete floor. CARE MUST BE
STRESSED WITH ALL FOUNDATION WORK TO INSURE A STABLE UNIT INSTALLATION,
ELIMINATING POSSIBILITIES OF EXCESSIVE VIBRATION. All installations must be
made on sound concrete floors, 8 inches (203 mm) or thicker. Anchor bolts or
expansion anchors must be of a quality grade and a minimum of 3/4-inch (19 mm)
diameter. Six bolts are required to mount the washer to the steel base or concrete pad.

MOUNTING

A concrete pedestal or steel-mounting base that elevates the machine approximately 4
inches (102 mm) above the floor level is recommended to provide easy access to the
loading door. Allow a minimum of 24 inches (610mm) of clearance behind the rear of
the machine, to provide access for motor removal. Refer to Fig. 1-1 and 1-2 for
machine bolt-down dimensions.

If an elevated concrete pedestal is desired, it should be embedded into the existing
floor. Anchor bolts should be 3/4" x 8" (19 mm x 200 mm), grade 8 or better, headed
by a 4 inch (10 cm) square fish plate and should protrude 2 1/2” (64 mm) above the
finished surface of the pedestal. EXPANSION ANCHORS ARE NOT RECOMMENDED FOR
USE IN CONCRETE PEDESTALS, BECAUSE THE ANCHORS ARE TOO CLOSE TO AN
EDGE, CAUSING IT TO BREAK OUT. (See Fig. 1-1 and 1-3.)

8514-256-001 REV PR page 4

Figure 1-3

MACHINE MOUNTING DETAIL

CONCRETE PEDESTAL MOUNTING

Figure 1-1

8514-256-001 REV PR page 5

FLOOR OUTLINE

Figure 1-2

PLUMBING

Water supply hoses are furnished with each machine. The threaded connections on the
hoses are ¾-11 ½ NHT.

Separate hot and cold water lines must be provided, maintaining 30 psi to 120 psi (207 kPa
to 827 kPa) water flow pressure. A 140F (60C) degree hot water supply is recommended
for best washing results. Do not exceed 180F (82C) degree water temperature.

DRAIN

The drain outlet tube at the rear of the machine is 3 inches (76 mm) in diameter. Any
drain hose used must be lower than the drain valve to assure proper draining.

ELECTRICAL

WARNING

SHUT OFF POWER AND WATER BEFORE OPENING ANY SERVICE PANELS.

The Dexter T-650 single/three-phase 208-240VAC 60 Hz washing machines are intended to
be permanently installed appliances. No power cord is provided. The machine should be
connected to an individual branch circuit not shared by lighting or other equipment. The
connection should be sheathed in liquid tight flexible conduit, or equivalent, with
conductors of the proper size and insulation. A qualified technician should make such
connections in accordance with the wiring diagram. (Suggest a minimum wire size of 12
ga.)

TO MAKE ELECTRICAL CONNECTIONS: Disconnect all power to the washer. Remove the
top panel of the washer and locate the power terminal block near the back of the control
compartment.

 If power is 208-240-3PH-60Hz, connect L1, L2, L3 and ground. If there is a high leg it

must be connected to L3. However, failure due to a voltage surge on the high leg is
not covered by equipment warranty. Contact Dexter Laundry with any questions.

 If power is 208-240-1PH-60Hz, connect L1, L2 and Ground.

NOTE: It is important that the grounding screw next to the power terminal block TB­1 be connected to a good external ground.

8514-256-001 REV PR page 6

FUSING REQUIREMENTS:

SINGLE- and THREE -PHASE 208-240VAC MODELS - 15 AMP TIME-DELAY (DUAL
ELEMENT) FUSE (or equivalent circuit breaker)

CONTROLS TRANSFORMER

The controls transformer is located inside the control trough and steps a range of 208 to
240 volts down to 115 volts. There are two terminals on the controls transformer for the
primary (incoming) power. Use the terminal marked “208V” for power supplies between
208 and 219 volts. Use the terminal marked “240V” for power supplies between 220 and
240 volts.

CHECKOUT

After all mounting, plumbing and electrical work is completed; the washer should be run
through a cycle and checked for water leaks and proper functioning.

The cylinder should turn in a counterclockwise direction (viewed from the front of the
machine) during intermediate spin and final spin. If spin is clockwise, the T1 and T2
motor wires going to T1 and T2 on the variable frequency drive should be swapped.
Remove power to the machine before swapping wires.

8514-256-001 REV PR page 7

OPERATING INSTRUCTIONS - STARTING THE WASHER

A. Load the clothes into the cylinder and latch the door securely. Be sure
clothing does not get caught between the door gasket and tub front when
closing the door. Maximum load is 40 pounds clothes, dry weight. Do not load
the washer with more than 40 lbs.

B. Select the appropriate cycle temperatures for the load being washed.

C. Add low sudsing powdered detergent into the “detergent” compartment of
the automatic dispenser on the top of the washer. If desired add fabric softener
to the “fabric softener” compartment. Use the amount of fabric softener as
recommended by the manufacturer.

If liquid wash products are used in the “detergent” compartment, they must be
added at the beginning of the wash cycle.

If the machine is set for pre-wash, washing products can be added to the round
opening of the dispenser or put in with the clothes when loading the washing
machine.

D. Insert coins, tokens or debit card to meet the displayed vend price. The
display will count down the amount needed to meet the vend price. Once the
vend price is met, the display will read “PRESS START” and the start button LED
will blink. If the door is not closed and latched, the display will read “CLOSE
DOOR” and the control will wait until the door is latched to continue. Pressing the
start button will begin the cycle and activate the ON light. The display will show
the remaining cycle time in minutes. The clothes door will lock and remain
locked until the end of the cycle.

END OF CYCLE

When the cycle is complete a 3-second tone will sound and the display will read “CYCLE
DONE THANK YOU” until the door is opened. The door can now be opened. Leave the
clothes door open when the machine is not in use.

8514-256-001 REV PR page 8

EMERGENCY STOP / SAFETY DOOR LOCK

This machine is equipped with a Safety Door Lock that locks the door closed from when
the cycle is started until the cycle is complete. The door lock prevents opening the door
for up to 3 minutes if the power is interrupted during the cycle.

The Emergency Stop button pauses the washer and allows the door to be opened
during the cycle after the Safety Door Lock releases. When the Emergency Stop button
is pressed an alarm will sound and the display will begin counting down and read “STOP
3”, “STOP 2”, “STOP 1”. If the button is released before 3 seconds elapse, the alarm
will stop and the cycle will continue normally. If the Emergency Stop is held down for 3
seconds, the display will count down and the washer will begin stopping movement and
water flow and begin draining water from inside the washer. Though the machine may
stop wash movement quickly, it may take up to 3 minutes for the door to unlock.
During that time the alarm will continue to sound and the display will read “STOPPING”.
When the alarm stops, the door may be opened. The washer may be restarted by
closing and latching the door, and pressing the Start button. If the washer was stopped
more than once before the final extract, the cycle will be cancelled. If the washer was
stopped during final extract, the cycle will be ended. If the washer is stopped for more
than 1 hour, the cycle will be terminated.

8514-256-001 REV PR page 9

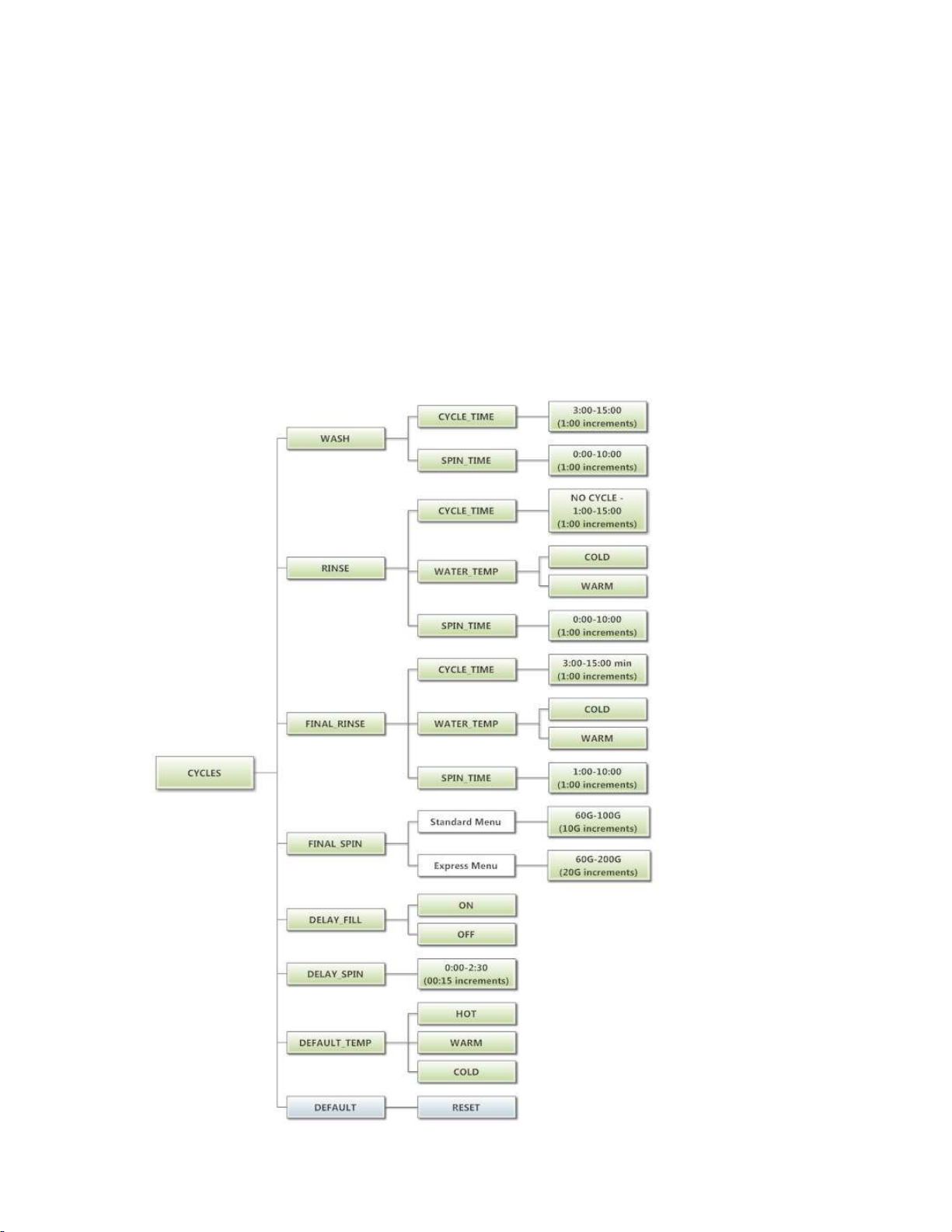

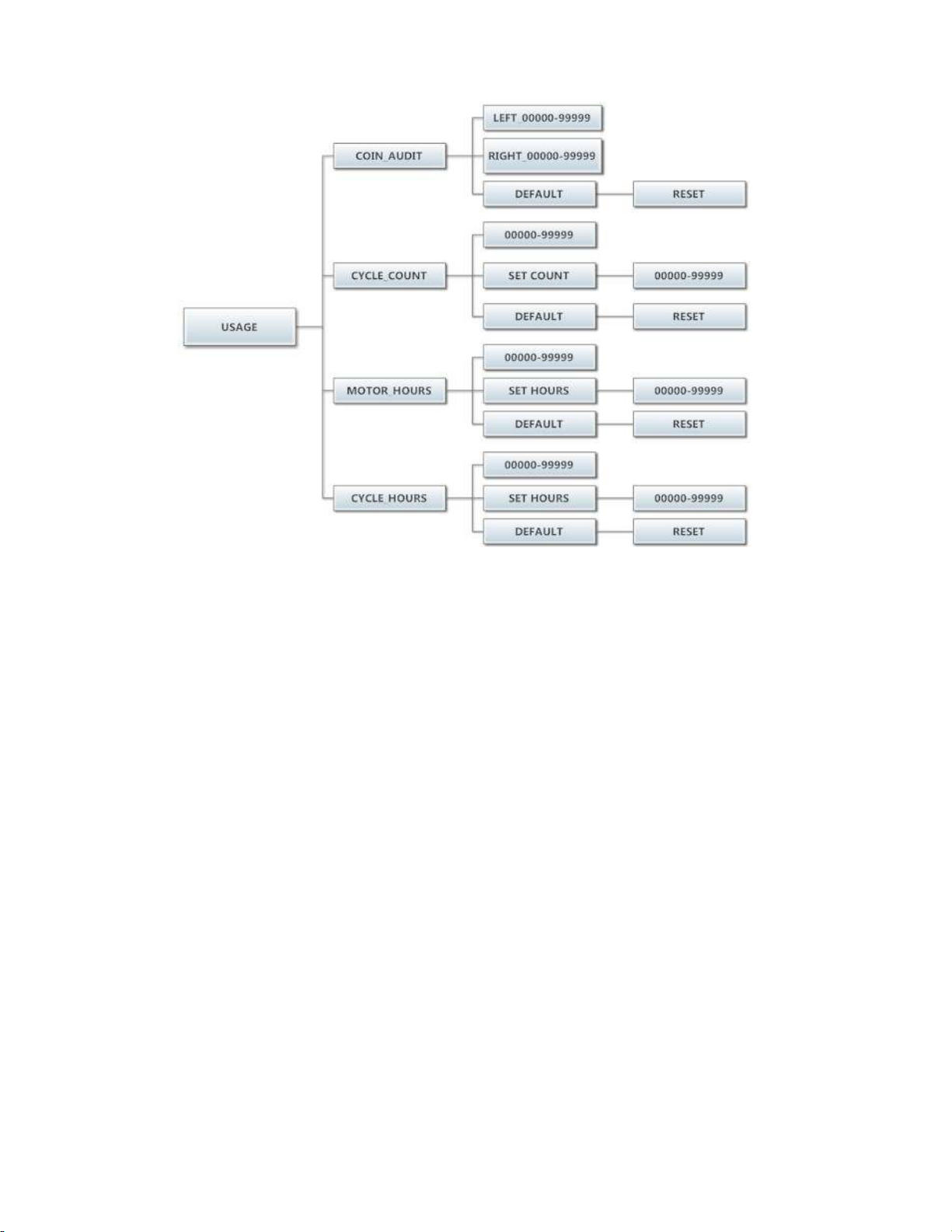

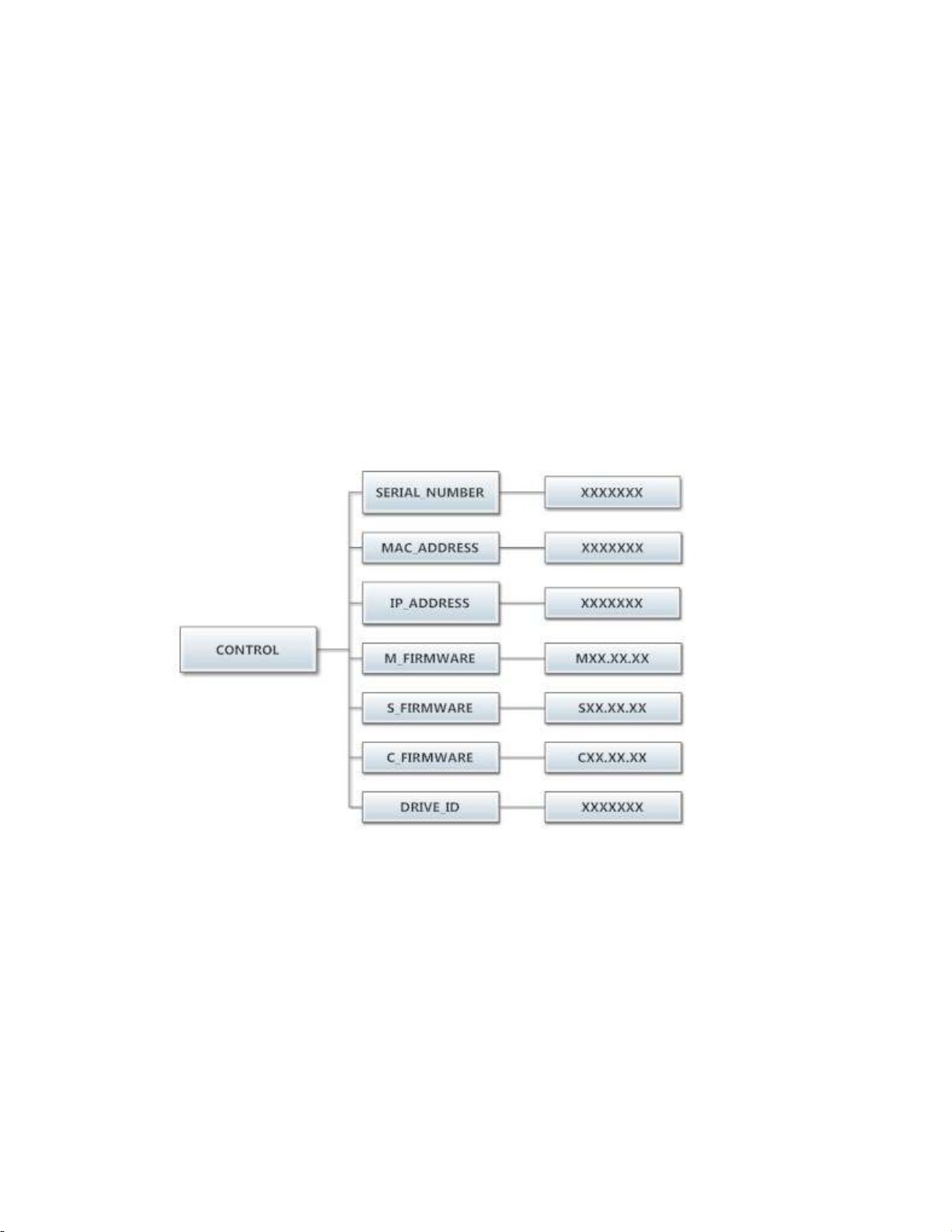

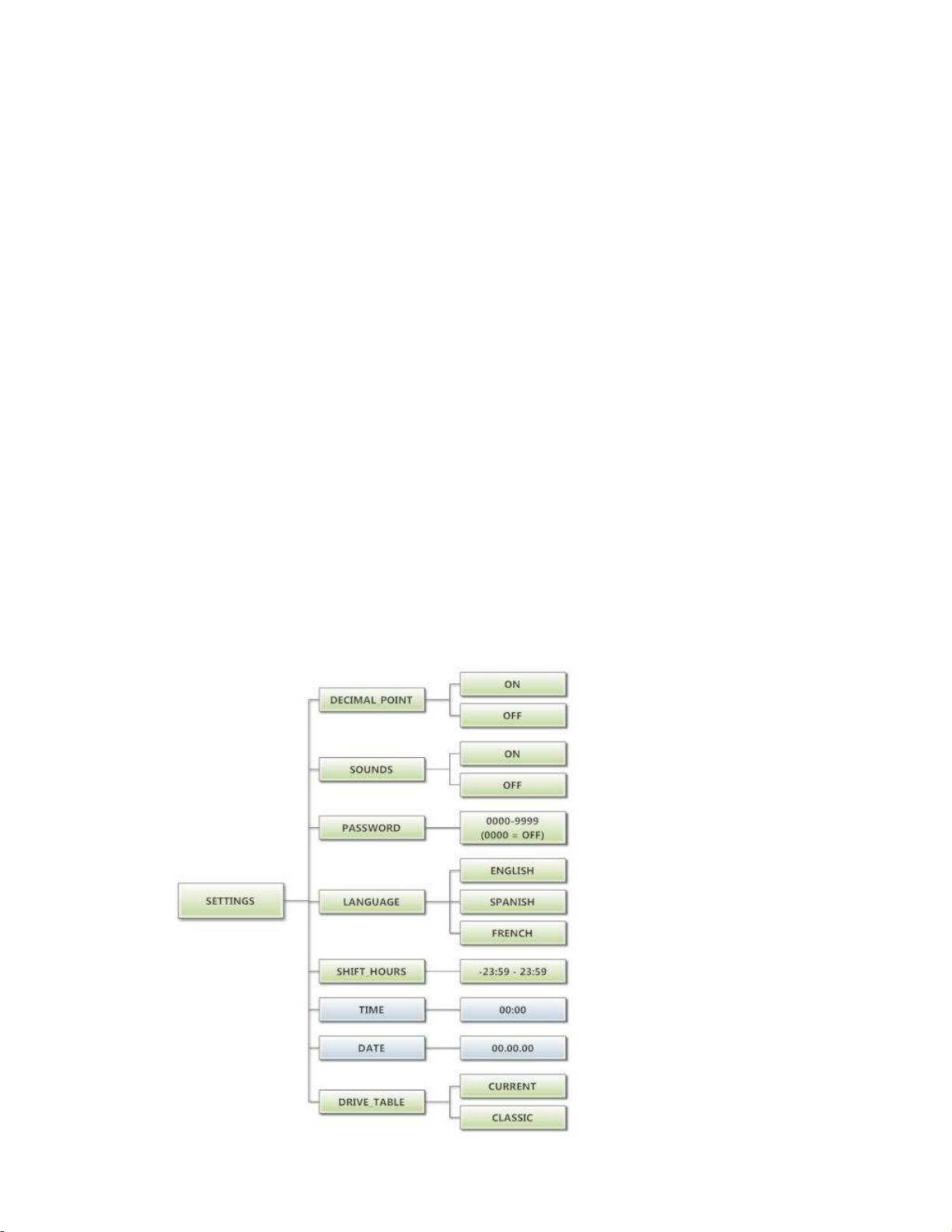

PROGRAMMING THE WASHER CONTROL

The washer control can be programmed to prompt the user for alternate vend prices,
change washer cycle times, temperatures and many other options. This can be
accomplished in two ways:

1. Manual programming utilizing the “Start”, “Hot”, “Warm” and “Cold” buttons

2. USB download of a customizable User File. For instructions on using the USB
download feature, please contact your local Dexter distributor or visit
dexterlive.com.

MANUAL PROGRAMMING:

The washer must be in idle mode for the manual programming menus to be accessed.
Idle mode is when the washer is not actively running a wash cycle and the vend price is
displayed on the screen.

To enter the manual programming mode, the top of the washer must be unlocked and
lifted slightly (it may be necessary to remove the screws for the soap box). The
programming button is then pressed for 1 second. The control should display
“PROGRAMMING”.

See the figure below for the location of the programming button in relation to the USB
port (The USB port is exposed when the washer top is lifted).

8514-256-001 REV PR page 10

When manual programming mode is entered, the “Start”, “Hot”, “Warm” and “Cold”
buttons perform alternate functions.

Button Name Alternate Function in Programming Mode

Start

Hot

Warm

Cold

Becomes the action to accept the displayed option or
the “Enter” key
Becomes the action to move UP through displayed
options (Press & hold for accelerated scrolling)
Becomes the action to move DOWN through displayed
options (Press & hold for accelerated scrolling)
Becomes the action to move back a step (1 press) or
EXIT from programming mode (press for 3 seconds)

These alternate functions allow the user to move through a menu of options to choose
various programmable settings. The figure below shows the top level menu. Choosing
an option from the top level menu will then display the next level of options (the sub
menu).

8514-256-001 REV PR page 11

Quick Test Option:

When the Quick Test Option is chosen, the washer will begin a shortened wash cycle
without the displayed vend price being met. The purpose of this shortened cycle is to
test all major components for proper operation.
Error Codes should all function normally during this test. The display will show customer
prompts in a similar way to a normal wash cycle. Exceptions to this are that the “ADD
BLEACH” prompt will not occur because of reduced cycle time. Final Extract speed is
specific to the customer’s programming.

Rapid Advance Option:

Similar to the Quick Test, when the Rapid Advance Option is chosen, the washer will
begin a wash cycle without the displayed vend price being met. However, in this case, it
will be a normal default cycle with an additional feature available. The “Start” button
LED will flash, prompting the user that, when pressed, the washer shall rapid advance
to the next step in the cycle. The display will show “ADVANCE” when the cycle is
advancing. The water level needs to be empty before this advance occurs. During the
time waiting for the tub to empty, the “ADVANCE” prompt will be held on the display
and the start pushbutton LED stops flashing. The Rapid Advance shall allow the tub to
empty of water and the tub to stop before beginning either spin or the next bath.

The Rapid Advance mode can be exited by pressing the programming button. This will
end the cycle. When the Rapid Advance mode is used, the cycle time will no longer be
correct. By skipping steps with Rapid Advance, the door may not open immediately at
the end of the cycle.

Error Code Historical Log:

The last five occurring error codes will be stored in the control with a time and date
stamp. The purpose of this option is only to observe the history of these code
occurrences (no changes can be made).

The time is based off the Real Time Clock, but potentially shifted by the user’s manual
programming changes (Shift Hours option) and/or network time override. As additional
error codes occur, the oldest of the five logged codes is cleared from memory.

8514-256-001 REV PR page 12

Prices Option:

This option allows the user to set values for coin acceptor inputs and to set the vend
price. It also allows the user to return the values to factory defaults. After changing
prices using the “Up” or “Down” buttons, the “Enter” button must be pressed again for
the control to store the changes that have been made.

1. “RIGHT COIN” and “LEFT COIN” are the two possible inputs from coin acceptors.

2. “SET VEND” is the actual Base Vend Price (or Vend Price A) that is shown on the
control display.

To reset either the coin acceptor inputs or the vend price to factory default, press
“Enter” when the “DEFAULT” prompt is shown. Press “Enter” again when the “RESET”
prompt is shown to confirm the action.

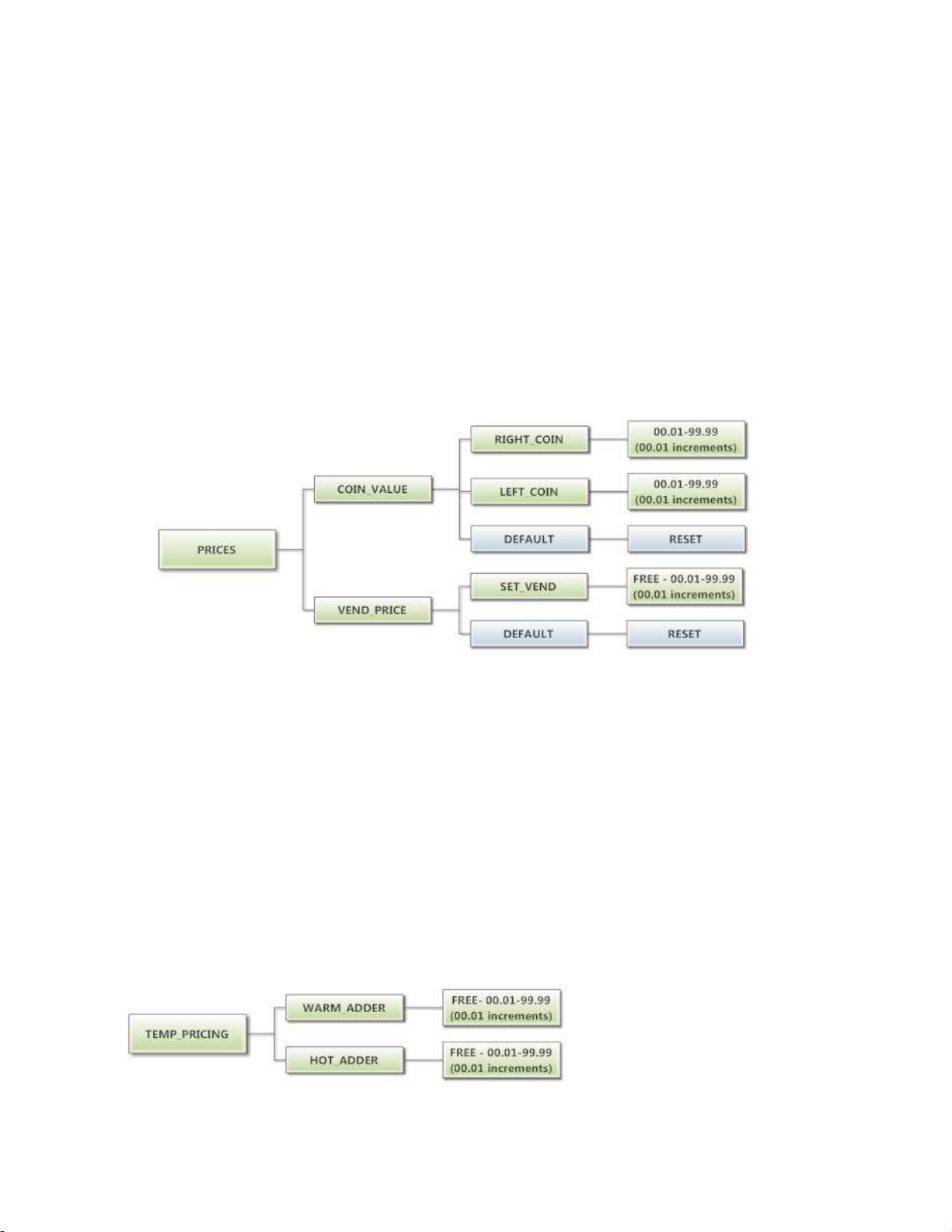

The figure below shows the sub menu options for Prices:

Temp Pricing Option:

The Temperature Pricing option allows for the user to prompt the customer for varying
vend prices based on the water temperature the customer selects. If a value other then
0 is programmed for either the “WARM ADDER” or “HOT ADDER”, the feature becomes
active. The programmed value is added to the base vend price when that particular
water temperature is chosen.

When the customer adds coins to meet the adjusted vend price and starts the washer,
the temperature selections available to the customer are limited to those with vend
prices equal to or less than the amount entered.

The figure below shows the sub menu options for Temp Pricing:

8514-256-001 REV PR page 13

Cycles Option:

This option allows the user to set the bath time and spin time for the “Wash” bath. It
also allows the user to set bath time, water temperature and spin time for “Rinse” and
“Final rinse” baths. (Water temperature for the “Wash” bath is chosen by the customer
using the “Hot”, “Warm” and “Cold” buttons on the front of the machine). For the
“Final Spin” it also allows the user to set the spin speed (see additional description
below).

It also allows the user to return the values to factory defaults. To reset all values in the
Cycles option to factory default, press “Enter” when the “DEFAULT” prompt is shown.
Press “Enter” again when the “RESET” prompt is shown to confirm the action.

1. “Final Spin” is the spin that occurs after all selected baths & intermediate spins
have been completed. It is a higher spin speed than previously occurring
intermediate spins. The benefit of this higher spin speed is that more water is
extracted from the wash load, which minimizes the drying time needed.
However, in some cases, if the Dexter installation guidelines are not followed
properly, it may be necessary to reduce the spin speed of the “Final Spin”.

The “Final Spin” can be adjusted in increments of 10 G for washers with a 100G
maximum spin speed and increments of 20 G for washers with a 200G maximum
spin speed. The factory default “Final spin” speeds are the maximum values.

Model Adjustable Final Spin

Range
T-300 60G to 100G
T-350 60G to 200G
T-400 60G to 100G
T-450 or T-450 SWD 60G to 200G
T-600 60G to 100G
T-650 60G to 200G
T-750 60G to 200G
T-900 60G to 100G
T-950 60G to 200G
T-1200 60G to 100G
T-1450 60G to 200G

2. “Delay Fill” is meant to be used in applications where the amount of available
water pressure is limited. In these cases, the washer may not be able to fill the
tub in sufficient time to allow for effective washing performance.

When the “Delay Fill” option is “On”, the water valves shall be turned on, the
washer shall agitate, but the cycle time shall be paused. The washer shall
continue in this state until the proper water level is reached. Once the proper
water level is reached, the cycle shall continue. A single selection of “On” or “Off”
shall apply to all baths in the cycle. The factory default setting is “Off”.

8514-256-001 REV PR page 14

3. “Delay Spin” is meant to be used in applications where the amount of drain
capacity is limited. In these cases the washer cannot empty the tub in sufficient
time to allow for a spin cycle to occur.

When a time value (other than 0) is programmed for the “Delay Spin” option, the
end of each bath will be extended by the selected time. Therefore, extra time will
be allowed for the drain valve to be open and compensate for slow drain
capacity. The factory default setting is 0 seconds.

4. “Default Temp” allows the user to choose which water temperature (“Hot”,
“Warm”, or “Cold”) will be active during Idle mode. The customer can, of course,
choose other temperatures for the wash bath based on other options described
in this manual.

The figure below shows the sub menu options for Cycles:

8514-256-001 REV PR page 15

Plus Cycle Options:

The “Plus Cycle” options allow for the user to prompt the customer for varying vend
prices based on additional wash baths chosen. In general, the user can program the
additional wash baths in a similar manner to what was described in the “Cycles” Options
section.

It also allows the user to return the programmable values to the factory default setting.
No plus cycle options are active using the factory default. To reset all values in the Plus
Cycles option to factory default, press “Enter” when the “DEFAULT” prompt is shown.
Press “Enter” again when the “RESET” prompt is shown to confirm the action.

1. “Pre-Wash”- If the user programs a “Cycle Time” for “Pre-Wash” other than 0
(“No Cycle”), the feature becomes active. However, the customer will not be
prompted to pay an additional vend price for “Pre-Wash” unless the user
programs the Price to a value other than 0 (“Free”). With the “Pre-Wash”
feature active, an additional bath and, optionally, an additional spin, will occur
before the standard Wash bath described in the Cycles Options section.

With the “Pre-Wash” feature active and a “Price” value programmed, the
customer will be prompted to add additional coins if they wish to purchase the
“Pre-Wash” feature. This will occur after they have entered coins to meet the
Base Vend price. If the customer does not meet the vend price of the “Pre­Wash” feature, the prompt will time out and the “Pre-Wash” bath will not occur.

2. “Extend Wash”- If the user programs an “Extend Time” for “Extend Wash” other
than 0, the feature becomes active. However, the customer will not be prompted
to pay an additional vend price for “Extend Wash” unless the user programs the
Price to a value other than 0 (“Free”).

With the “Extend Wash” feature active, the standard Wash bath described in the
Cycles section will be extended for the additional time selected. With the “Extend
Wash” feature active and a “Price” value programmed, the customer will be
prompted to add additional coins if they wish to purchase the “Extend Wash”
feature. This will occur after they have pressed the “Start” button to begin the
normal Wash cycle. If the customer does not meet the vend price of the “Extend
Wash” feature, the prompt will time out and the additional time will not be added
to the Wash bath.

3. “Extra Rinse”- If the user programs a “Cycle Time” for “Extra Rinse” other than 0
(“No Cycle”), the feature becomes active. However, the customer will not be
prompted to pay an additional vend price for “Extra Rinse” unless the user
programs the Price to a value other than 0 (“Free”).

With the “Extra Rinse” feature active, an additional bath and, optionally, an
additional spin, will occur after the standard “Final Rinse” bath described in the
Cycles Options section. With the “Extra Rinse” feature active and a Price value
programmed, the customer will be prompted to add additional coins if they wish
to purchase the “Extra Rinse” feature. This prompt will occur during the standard

8514-256-001 REV PR page 16

“Final Rinse” bath. If the customer does not meet the vend price of the “Extra
Rinse” feature, the prompt will time out and the “Extra Rinse” bath will not occur.

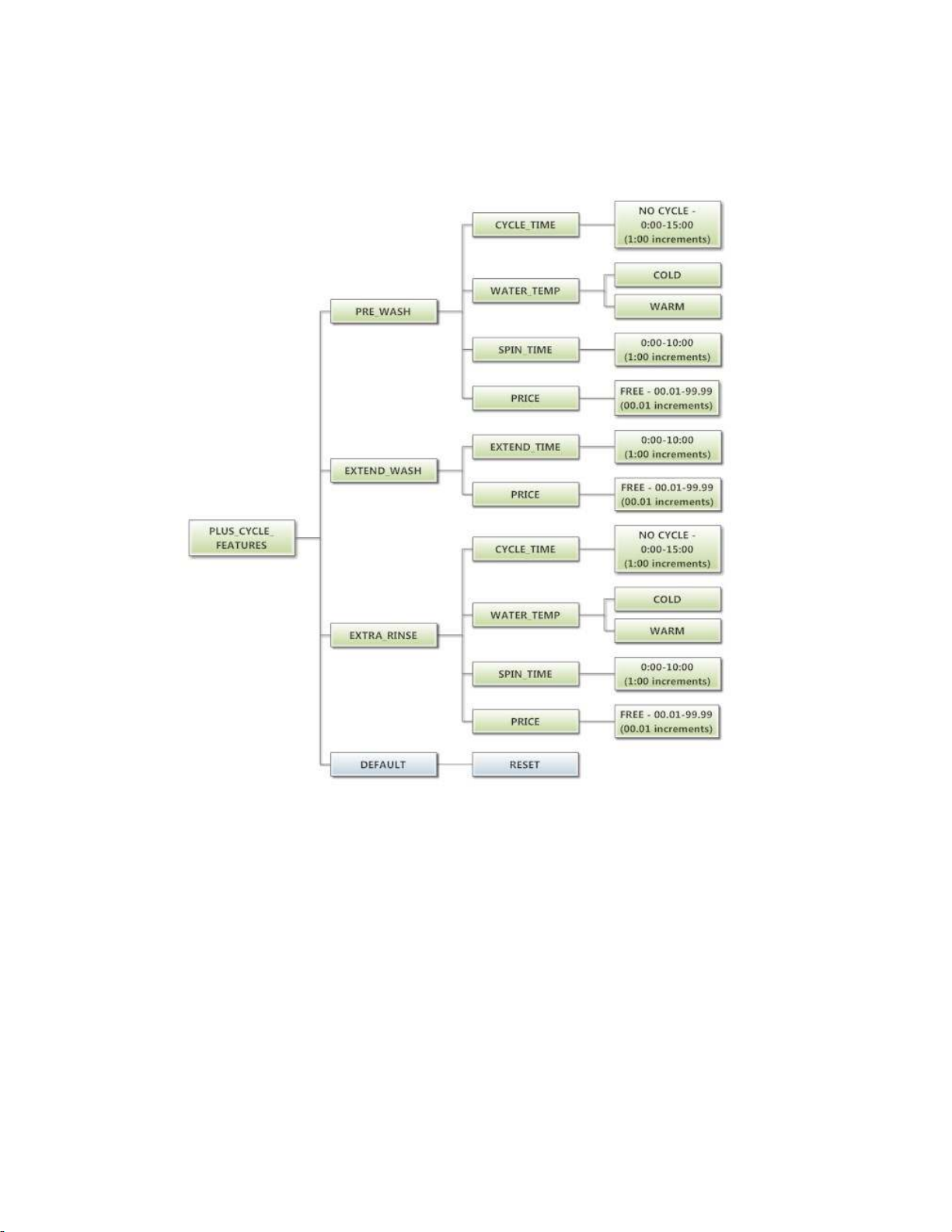

The figure below shows the sub menu options for Plus Cycle Options:

8514-256-001 REV PR page 17

Settings:

The “Settings” options allow for the user to make various programming changes to
change how the control operation affects the customer. See below for detailed
information on each next level option.

1. “Decimal Point”- If the user programs the Decimal Point to “OFF”, control display
will not show a decimal point on any vend price values. The factory default is
“ON”.

2. “Sounds”- If the user programs the Sounds to “OFF”, the control will not sound
the enunciator at the end of a wash cycle. The factory default is “ON”.

3. “Password”- If the user programs the password to any value other then 0000,
the control will prompt the user to enter a password (the programmed value)
before manual programming can be accessed. The factory default is “0000” (no
password).

a. Note that if the user forgets the Password, it can be reset to factory

default (no password), by performing a hard reset on the control. Please
refer to the appropriate section of this manual to understand how to
perform a hard reset.

b. The individual digits of the Password can be set by using the “Up” or

“Down” buttons to change the number that is flashing. Once the desired
number is chosen for a single digit, press the “Enter” button to move to
the next one. Once all four desired digits are chosen, the “Enter” button
must be held down for 3 seconds to confirm that the complete password
should be set.

4. “Language”- The control uses English for the default language of the customer
prompts. Alternatively, the user can choose Spanish or French for the customer
display prompts. However, all other prompts, such as Manual Programming, USB
Programming and any Error Codes will still display in English.

5. “Shift Hours”- This feature allows the user to shift the time used by the control
from the time kept internally by the control. The control uses a Real Time Clock
(RTC) to internally track the time and date. The RTC continues operation even if
the control loses external power. The RTC is set for Central Standard Time and
no daylight savings. Because the machine may be located in another time zone,
the user can choose to create an alternate time & date that tracks in parallel to
the RTC. When this alternate time is chosen, or shifted from the RTC, the
alternate time will be used to, for example, track error code occurrences and set
time-of-day pricing changes.

a. The hours in “SHIFT HOURS” can be set by using the “Up” or “Down”

buttons to change the number that is flashing. Once the desired hour shift
is chosen, press the “Enter” button to move to the minutes. Once the
hours and minute shift are both chosen, the “Enter” button must be held
down for 3 seconds to confirm that the complete shifted time is set.

6. “Time”- The control uses a Real Time Clock (RTC) to internally track the time and
date. The RTC continues operation even if the control loses external power. The
RTC is set for Central Standard Time and no daylight savings. However, if a
problem occurs and the RTC time is not accurate, it can be reset to the current
time using this option.

a. The hours in “TIME” can be set by using the “Up” or “Down” buttons to

change the number that is flashing. Once the desired hour is chosen,

8514-256-001 REV PR page 18

press the “Enter” button to move to the minutes. Once the hours and
minute are both chosen, the “Enter” button must be held down for 3
seconds to confirm that RTC is meant to be reset to the complete entry.

7. “Date”- Similar to “Time”, if a problem occurs and the RTC date is not accurate, it
can be reset to the current date using this option.

a. The day of the month in “DATE” can be set by using the “Up” or “Down”

buttons to change the number that is flashing. Once the desired day of
the month is chosen, press the “Enter” button to move to the month of
the year. Once the desired month of the year is chosen, press the “Enter”
button to move to the year. Once the day, month and year are all chosen,
the “Enter” button must be held down for 3 seconds to confirm that RTC is
meant to be reset to the complete entry.

8. “Drive Table”- The control knows what model of washer it is installed in based on
various inputs including information it receives from the Variable Frequency Drive
(VFD). However, because multiple VFD’s can be used on the same model,
depending on when it was manufactured, the “DRIVE TABLE” option is available.
Any new washer should have the “DRIVE TABLE” programmed to the “CURRENT”
option. However, in older washers that have been retrofitted with a new control,
the “CLASSIC” option should be chosen. Contact your local Dexter distributor for
more information.

To reset all values in the Settings options to factory default, press “Enter” when the
“DEFAULT” prompt is shown. Press “Enter” again when the “RESET” prompt is shown to
confirm the action.

The figure below shows the sub menu options for Settings:

8514-256-001 REV PR page 19

Usage Menu:

The Usage menu allows for the user to track data about machine usage. See below for
detailed information on each sub menu option.

1. “Coin Audit”: The coin audit field shows the accumulation of coin pulses that
were sent to the control over each of the left and right coin inputs. Note that this
is a count of coin pulses, not an accumulated report of vend value.

a. The user can also return the coin audit amounts to the factory default

setting (zero). To reset all coin audit values, press “Enter” when the
“DEFAULT” prompt is shown. Press “Enter” again when the “RESET”
prompt is shown to confirm the action.

2. “Cycle Count”: The cycle count field shows the accumulation of wash cycles that
have occurred. Note that this is a count of cycles, not of hours accumulated. The
user can also set the count value to a designated number. For example, if it is
necessary to replace the control on a machine, the new control could be
programmed to show the cycle count value that was recorded by the previously
installed control. The individual digits of the count can be set by using the “Up”
or “Down” buttons to change the number that is flashing. Once the desired digit
of the count is chosen, press the “Enter” button to move to the next digit. Once
the complete count is chosen, the “Enter” button must be held down for 3
seconds to confirm the action.

a. The user can also return the cycle count to the factory default setting

(zero). To reset the cycle count, press “Enter” when the “DEFAULT”
prompt is shown. Press “Enter” again when the “RESET” prompt is shown
to confirm the action.

3. “Motor Hours”: The motor hours field shows the accumulated hours of operation
for the motor. In many cases, it will match the cycle hours of the machine.
However, separate fields are provided in the event that a motor is replaced on a
machine. The user can set the motor hours to a designated number. For
example, if it is necessary to replace the control on a machine, the new control
could be programmed to show the motor hours that were recorded by the
previously installed control. The individual digits of the hours count can be set by
using the “Up” or “Down” buttons to change the number that is flashing. Once
the desired digit of the hours is chosen, press the “Enter” button to move to the
next digit. Once the complete hours are chosen, the “Enter” button must be held
down for 3 seconds to confirm the action.

a. The user can also return the motor hours to the factory default setting

(zero). To reset the motor hours, press “Enter” when the “DEFAULT”
prompt is shown. Press “Enter” again when the “RESET” prompt is shown
to confirm the action.

4. “Cycle Hours”: The cycle hours field shows the accumulated hours of operation
for the washer. In many cases, it will match the motor hours of the machine.
However, separate fields are provided in the event that a motor is replaced on a
machine. See the Motor Hours description for more information.

8514-256-001 REV PR page 20

The figure below shows the sub menu options for Usage:

8514-256-001 REV PR page 21

Control Menu:

The Control menu allows for the user to observe important technical information for the
control. No changes can be made at this menu. See below for detailed information on
each sub menu.

1. “Serial Number”: This is the control serial number.

2. “MAC Address”: The MAC Address is a unique identifier designated to the control
by the manufacturer. It allows the control to be recognized by network routers.

3. “IP Address”: The IP Address is the identifier given to the control by a network
system.

4. “M Firmware”: The M Firmware is the Main Firmware currently loaded onto the
control.

5. “S Firmware”: The S Firmware is the Secondary Firmware currently loaded onto
the control.

6. “C Firmware”: The C Firmware is the Communications Firmware currently loaded
onto the control.

The figure below shows the sub menu options for Control:

8514-256-001 REV PR page 22

COIN WASHER DEFAULT CYCLE

The following table shows the complete details for the coin washer default cycle.

Bath

Bath Cycle

Time (min.)

Water

Temp.

Delay Fill Spin Time

(min.)

Prewash 0 Cold Off 0

Wash 9 Warm Off 0

Extend Wash 0 n/a n/a n/a

Rinse 4 Cold Off 1

Final Rinse 5 Cold Off n/a
Extra Rinse Spin n/a n/a n/a 0
Extra Rinse Bath 0 Cold Off n/a

Final Extract Spin

n/a n/a n/a 6

WASHERS WITHOUT COIN ACCEPTORS

If you purchased a washer without a coin acceptor and are installing a payment device
of your choice, refer to the washer wiring diagram for proper connection. You may also
need to contact the payment device supplier for additional information.

RAPID ADVANCE MODE

Rapid Advance mode may be manually entered by pushing and holding the Cold water
temperature button and then pushing and holding the programming button on the
controller for three seconds. There will be no observed change to the washer or the
display. The Rapid Advance mode can be entered from either the Idle mode or during
the cycle. To rapid advance to the next step in the wash cycle, push the start button.
The display will show “ADVANCE”. The washer will advance to the next bath segment.
The water will drain before the advance will occur.

The Rapid Advance mode will not end until the final bath segment is completed. The
final segment cannot be skipped in Rapid Advance mode.

Notes: 1. When the Rapid Advance mode is used, the cycle time will no longer be

correct.

2. By skipping steps with rapid advance, the door may not open immediately at
the end of the cycle.

8514-256-001 REV PR page 23

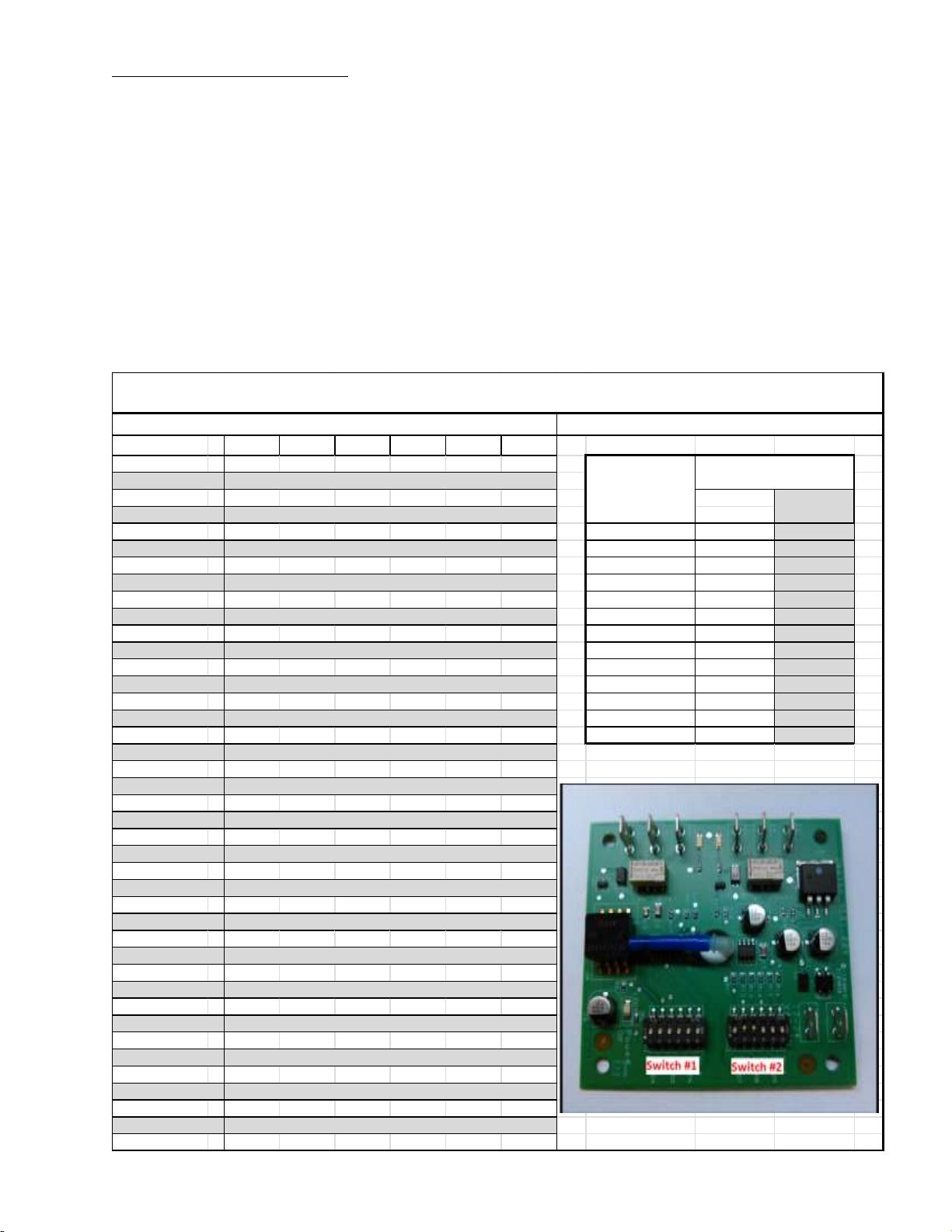

WATER LEVEL ADJUSTMENT

5.00

off

off

off

off

off

off

5.25onoff

off

off

off

off

5.50

offonoff

off

off

off

Switch #1

Switch #2

5.75onon

off

off

off

off

Depth (in):

Depth (in):

6.00

off

offonoff

off

off

T-300

5.25

7.00

6.25onoffonoff

off

off

T-350

5.25

6.25

6.50

offonon

off

off

off

T-400

7.00

9.00

6.75onononoff

off

off

T-450

6.00

6.25

7.00

off

off

offonoff

off

T-450 SWD

5.00

7.00

7.25onoff

offonoff

off

T-600

7.25

9.25

7.50

offonoffonoff

off

T-650

6.50

8.25

7.75onon

offonoff

off

T-750

6.00

-

8.00

off

offonon

off

off

T-750 SWD

9.25

-

8.25onoffonon

off

off

T-900

6.00

-

8.50

offonononoff

off

T-950

6.00

-

8.75onononon

off

off

T-1200

6.00

-

9.00

off

off

off

offonoff

T-1450

6.75

-

9.25onoff

off

offonoff

9.50

offonoff

offonoff

9.75onon

off

offonoff

10.00

off

offonoffonoff

10.25

on

offonoffonoff

10.50

offonon

offonoff

10.75

ononon

offonoff

11.00

off

off

offonon

off

11.25

on

off

offonon

off

11.50

offonoffonon

off

11.75

ononoffonon

off

12.00

off

offonononoff

12.25

on

offonononoff

12.50

offonononon

off

12.75

ononononon

off

13.00

off

off

off

off

off

on

13.25

on

off

off

off

off

on

13.50

offonoff

off

off

on

13.75

ononoff

off

off

on

14.00

off

offonoff

off

on

14.25

on

offonoff

off

on

14.50

offonon

off

off

on

14.75

ononon

off

off

on

15.00

off

off

offonoff

on

The water level of all baths can be adjusted by changing the switch settings on the
electronic pressure sensor. Vended washers are shipped with the pressure sensor
harness connected to Switch #1 and factory set for an energy-efficient water level.
Switch #2 is factory set for the classic water level. To use Switch #2, move the org/yel
wire from the terminal marked 21 to the terminal marked 31 and move the red wire
from the terminal marked 22 to the terminal marked 32.

Water level adjustments can also be made in 1/4” increments by adjusting the switch
positions for the desired level. It is not recommended for the water level to be set
above the factory Switch #2 settings. Refer to the following chart for the switch
settings and the factory default settings:

Water Level Chart

Switch Positions:

Depth (in): Pos 1 Pos 2 Pos 3 Pos 4 Pos 5 Pos 6

Factory Settings:

Vended

Model

8514-256-001 REV PR page 24

DISPLAYED WASHER FAULTS

Displayed

Fault
Code Description

DOOR

LOCK

ERROR

Delay Immediate

Action

Solution

SLOW FILL

ERROR

Delay Immediate
Action The washer cycle will continue

Solution

MEMORY

ERROR

Error Delay Immediate

Door Lock

Error

Slow Fill Error Condition

Checksum or

Out of Range

Condition

Condition

Action Stop the washer and turn off all the outputs.

Solution

This error is when the Door Locked signal is not
received within one second after the start of the cycle.
A

fter three attempts to start the washer.

When the error occurs, the Door Lock Motor will be
turned off; all other outputs will be turned off.

Check VFD fault light. Check to hear if door motor
engaged. Turn off the power to the washer. Check
wire connections to door /lock switches. Check wire
connections from switches to controller. Check P-4
Door/Lock wire connections at PCB controller. Adjust
the door lock mechanism. (See on line service manual
or video)

This error is when a low water level is not reach within
7 minutes.

Turn off the power to the washer. Check the operation
of the water valves. Check the incoming water
pressure. Check for blocked or restricted water flow.
Check to ensure the drain valve is functioning
properly.
Memory error in the controller. The memory
checksum is wrong or a parameter value is out of
range.

Check VFD fault light before turning off power. Try a
soft Reset of the controller with the white button. If
problem persist replace PCB controller.

Washer controller communication error on the I2C

COMM

ERROR1

Solution

8514-256-001 REV PR page 25

I2C Bus Error Condition

Delay

Action Stop the washer and turn off all outputs.

bus. Both the main slave micro and the master micro
can be in this error state. The slave micro error is
recoverable at any time, if I2C communication
resumes. The master micro error is permanent.

The main slave starts displaying this error after 6
seconds of no (valid) I2C activity. The master micro
goes into this permanent error state after 8 seconds of
no (valid) I2C activity

Check VFD fault light before turning off power. Try the
data cable first. Move around cable and remove any
side loading tension from data cable connector ends.
Check connection P23 to P15. Turn power back on to
the washer. If the problem returns, replace the PCB
washer controller.

Condition Invalid washer size jumper (harness) configuration.

Immediate (after the wrong size jumper configuration
is read). Washer size/type inputs are read only at
power up, before starting a cycle, once every 24
hours, and in factory test mode.

COMM

ERROR2

Wrong Washer

Size Jumper

Configuration

Delay

Action Stop the washer.

Check VFD fault light before turning off power. If the
controller was installed in a different size machine
before being installed in this machine, a problem can
occur. If someone has been doing repairs on the
washer, check for the correct size drive. It can also be

Solution

caused by pressure switch harness. Check to ensure
the correct harness in installed. The control can be
reset by holding program button on controller during
startup (soft reset). Check orange wire at Molex
connector on controller coming from pressure switch
or replace pressure switch harness.

Condition

The washer size or washer type configuration has
changed.

Immediate (after the size jumper configuration is

COMM

ERROR3

Washer Size or

Type Changed

Delay

read). Washer size/type inputs are read only at power
up, before starting a cycle, once every 24 hours, and
in factory test mode.

Action Stop the washer.

Check VFD fault light before turning off power. Check
to ensure all the harnesses are properly connected to
the controller. Check to ensure the VFD drive

Solution

horsepower is proper for this size of washer. The
control can be reset by holding program button on
controller during startup (soft reset). Check orange
wires at Molex connector on controller coming from
pressure switch.

VFD Non

COMM

ERROR4

Existent or

communication

Condition

This error is when the washer controller cannot
communicate with the drive.

fault

Delay Delay time is 2 seconds

Stop the machine and clear the cycle. Keep the door

Action

locked until the machine has stopped moving and then
unlock the door.

Check the data communication cable between the
washer computer and the variable frequency drive
(VFD).
Step 1: Make sure the cable did not become
unplugged during operation.

Step 2: Make sure that the cable is not being pulled

Solution

sideways at either the washer controller, or the VFD,
plug end. If both ends of the communications cable
are plugged in the washer computer and VFD and
there is no tension on the communications cable
pulling it from side to side, then replace the cable.
Step 3: Inspect both female connection points at PCB
controller and at VFD. These may need replacement if
they cannot be reset.

8514-256-001 REV PR page 26

COMM

ERROR5

VFD

Communication

Fault

Condition

This error is a data error on communications between
the controller and the VF drive

Delay Delay time is 12 seconds.

Stop the machine and clear the cycle. Keep the door

Action

locked until the machine has stopped moving and then
unlock the door.

The CE errors are communications errors. Data Cable
noise can cause the majority of these errors. Check
VFD fault light before turning off power. Check the

Solution

data cable between the controller and the drive.
Replace data cable if it appears damaged and fault
appears again. Please note that this fault will occur if
you turned main power off and on too quickly. (See
Note below)

SLOW
DRAIN
ERROR

Drain Error Condition

This error is when an empty water level is not reach
within 7 minutes.

Delay Immediate

The washer cycle will continue. Do not spin the

Action

tumbler without reaching an empty water level. If
empty water level is not reached, agitate during the
normal spin time.

Check VFD fault light before turning off power. Check
to ensure the drain valve is operating properly (slow

Solution

drain has potential to cause this code). Check to
ensure the pressure switch tube is clear of any
blockage, and the pressure switch is operating
properly. Check the pressure switch harness.

SPIN STOP

ERROR

Stop Error Condition

This error is when the washer does not stop spinning
within 150 seconds after receiving the command.

Delay Immediate

Action

Keep the door locked until the machine has stopped
moving and then unlock the door.

Check VFD fault light before turning off power. Inspect
the braking resistors and measure the resistance.

Solution

Check connecting wiring from braking resistor to the
drive mounted in the top of the washer. Reset the
drive and try again. Possibly incorrectly programmed
drive.

8514-256-001 REV PR page 27

DRIVE

ERROR1

Condition

Washer size/

VFD size

Delay

mismatch

Action

Solution

This error is when the drive size does not match the
washer size.

Immediate. (after the size jumper configuration is
read). Washer size/type inputs are read only at power
up, before starting a cycle, once every 24 hours and in
factory test mode

Stop the machine and clear the cycle. Keep the door
locked until the machine has stopped moving and then
unlock the door

Check VFD fault light before turning off power. If the
controller was installed in a different size machine
before being installed in this machine, a problem can
occur. If someone has been doing repairs on the
washer, check for the correct size drive. It can also be
caused by pressure switch harness. Check to ensure
the correct harness in installed. The control can be
reset by holding program button on controller during
startup (soft reset). Check orange wire at Molex
connector on controller coming from pressure switch
or replace pressure switch harness.

PCB

ERROR1

Controller

Internal Fault

Condition

This error is an internal failure of the washer controller
electronics.

Delay Immediate

Stop the machine and clear the cycle. Keep the door

Action

locked until the machine has stopped moving and then
unlock the door.

Check VFD fault light before turning off power. Try a

Solution

soft Reset of the controller with the white button. If
problem. Replace PCB controller.

DRIVE OC

VFD Over-

current Fault

Condition This error is an over-current on the VF drive

Delay Delay time is 35 seconds

Stop the machine and clear the cycle. Keep the door

Action

locked until the machine has stopped moving and then
unlock the door.

Step 1: Check to make sure the washer cylinder turns
freely by hand. If it turns freely, continue to step 2. If
it does not, remove the belt and see if the motor turns
freely by hand. If the motor turns freely, then check
for obstructions in the cylinder or check the bearings.
If the motor does not turn freely, replace the motor.

Solution

Step 2: Check the motor wires for a short circuit

between leads. If there are motor leads that have
conductors touching, separate them and insulate
them. If the wires are broken, splice them together or
replace the motor.
Step 3: Check braking resistors to see if they measure
the correct resistance. If a resistor does not measure
the proper value, replace it.

8514-256-001 REV PR page 28

DRIVE OV

Delay Delay time is 35 seconds.

Action

Solution

VFD Over-

voltage Fault

Condition This error is over-voltage on the VF drive

Stop the machine and clear the cycle. Keep the door
locked until the machine has stopped moving and then
unlock the door.

Step 1: Measure the supply voltage to the VFD on the
L1, L2 (or N), and L3 (if connected to three phrase
power). The supply voltage should be from 187 to 264
VAC or 108 to 132 VAC for a 120 VAC VFD. Also make
sure the supply wires on L1, L2 (or N) and L3 (if
connected to three phase power) are securely
connected.
Step 2: Check the braking resistor connections at the
VFD. The terminal screws should be tight. One of the
braking resistor wires should be connected to terminal
B2.
Step 3: Measure each braking resistor separately to
make sure they are the correct resistance. (200 for 1,
2 and 3 Hp VFD and 160 for 5 Hp and higher VFD).
Step 4: If you have a 240 VAC, high leg voltage
supply, try disconnecting the high leg. If this cures the
problem, leave the high leg disconnected, connect a
transient voltage surge suppressor (with some form of
filtering) at the voltage supply panel, connect a line
choke on the high leg or install a VFD filter.

DRIVE OH

VFD Overheat

Fault

Condition This error is over-heating on the VF drive

Delay Delay time is 12 seconds.

Stop the machine and clear the cycle. Keep the door

Action

locked until the machine has stopped moving and then
unlock the door

Step 1: Make sure the cooling fins on the VFD heat
sink and the ventilation louvers on the VFD cooling fan

Solution

cover are clean.
Step 2: Start a washer cycle and make sure the VFD
cooling fan operates after the cylinder starts turning.

DRIVE OL

VFD Overload

Fault

Condition This error is overload on the VF drive

Delay Delay time is 12 seconds.

Stop the machine and clear the cycle. Keep the door

Action

locked until the machine has stopped moving and then
unlock the door

(Check drive fault code before powering down). Check
the washer motor to ensure it turns freely. Check the

Solution

wiring for loose connections to the drive and motor.
Measure the braking resistor values. Check for
damaged motor wires. Check V-Belt tension and adjust
to 1” deflection at center. Check braking resistors.

8514-256-001 REV PR page 29

DRIVE GFI

Delay Delay time is 12 seconds.

Action

Solution

DRIVE LV

Delay Delay time is 12 seconds.

Action

Solution

DRIVE IF

Delay Delay time is 12 seconds.

Action

Solution

INVALID

DRIVE

Delay

Action

Solution

VFD Ground

Fault

VFD Low

Voltage

VFD Internal

Fault

Drive is not the

correct Dexter

version of the

Delta E-drive

Condition This error is a ground fault interruption on the VF drive

Stop the machine and clear the cycle. Keep the door
locked until the machine has stopped moving and then
unlock the door.

Check VFD light code before turning off power. Check
the wiring connections to the drive and motor. Check
the ground wiring of the drive, motor and incoming
connection to ensure a proper ground is present.
Check for damaged motor wires.

Condition This error is low voltage on the VF drive

Stop the machine and clear the cycle. Keep the door
locked until the machine has stopped moving and then
unlock the door.

Check VFD light code before turning off power. Turn
the power off to the washer. Check the wiring
connections to the drive and motor. If no problem is
observed, turn on power to the washer and test. (See
Note) Measure the incoming line voltage.

Condition This error is an internal VF drive error

Stop the machine and clear the cycle. Keep the door
locked until the machine has stopped moving and then
unlock the door.

Check VFD fault light before turning off power. Turn
the power off to the washer. Wait one minute. Turn
the power on to the washer. If problem reappears,
contact your Dexter representative.

Condition

The error indicates the VF drive is not a Dexter version
of the Delta E-drive.

Immediate (after the Dexter indication value is read
from drive). Drive indication value is read only at
power up, before starting a cycle, once every 24
hours, and in factory test mode.

Stop the machine and clear the cycle. Keep the door
locked until the machine has stopped moving and then
unlock the door.

VFD has been replaced, disconnected, or removed.
Drive is not the correct Dexter version of the Delta E­drive. Replace drive with Dexter Delta E-drive.

Note: Whenever power is turned off to the washer, it must remain off for one minute. The washer will not
operate properly if this is not done.

8514-256-001 REV PR page 30

SERVICING AND TROUBLESHOOTING

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation. Verify proper operation after servicing.

ATTENTION. Lors des opérations d'entretien des commandes, étiqueter tous les fils avant de les déconnecter.
Toute erreur de câblage peut être une source de danger et de panne.

If any of the following symptoms occur on this washer, check the suggested remedies listed below. If all
probable causes have been eliminated and the symptom still exists, contact your local Dexter agent for
further troubleshooting assistance. See contact information at the end of this manual. Parts & Service
Manuals from Dexter are also available for further troubleshooting assistance.

Symptom

Machine does

not start

Door Switch

Control breaker or Fuse

Control Transformer

Coin Acceptor

Check PCB board Check all wire connections for loose contacts.

Check wiring between PCB

Check Relay PCB Check all wire connections for sure contact.

Check Door Locking Motor

Machine will

not accept

and count

coins

Control Breaker or fuse

Main PCB Replace

Door does not

lock

Door locking motor

Door Switch

Probable Cause Suggested Remedy

Power supply

Coin Acceptor

Power Supply

Door Closed Safety Switch Check door closed switch at door hinge for proper operation.

Door Handle Closed Switch

Check display for fault

code

Check these areas: Circuit breakers, Voltage, Power leads, Power
connections. Is front display LED showing a dollar amount?

Check for continuity through door switch when door is closed. If no
continuity, adjust or replace door switch.

Check 1.5 amp (T-950, T-1200 and T-1450 use 2.5amp) breaker or
fuse for continuity. If no continuity, replace breaker or fuse.

Check voltage output from control transformer for 120VAC. If
voltage is incorrect, replace transformer.

Check coin acceptor switch for any type of blockage or damage.
Clean, adjust or replace the acceptor.

Check data cable. This is the cable with the phone type connectors
on the main PCB control and the VFD. With the power removed
unplug and check for damage, replug and retry washer.

Check that 120 volts AC power is at motor after start button is
pushed.

Check coin acceptor switch for any type of blockage or damage.
Clean, adjust or replace the acceptor.

Check these areas: Circuit breakers, Voltage, Power leads, Power
connection

Check single door closed switch at left side of door handle to close
when handle is vertical.

Check breaker or fuse for continuity. If no continuity, replace
breaker or fuse. The T-300 through T-900 use the 1.5 amp fuse.
The T-950, T-1200 and T-1450 use a 2.5 amp fuse.

Does “DOOR LOCK ERROR” show on the front of display? If yes
follow tests described in fault code section.

Check to insure that motor is receiving 120 VAC from main relay
PCB. If it is, replace motor.

Check for continuity through door latch switch when door closed. If
no continuity, adjust or replace door switch.

8514-256-001 REV PR page 31

Door will not

open

Door Locking Motor

Thermoactuator

Check to see if thermoactuator and its mechanism are stuck or
binding and not allowing the door lock motor to open. Check to be
sure that the locking thermoactuator is not receiving 120VAC during
the last 1 1/2 minutes of the cycle. Also check to see that the
unlocking thermoactuator is receiving 120VAC during the last minute
of the cycle. If the thermoactuators do not receive voltage at the
correct times, change the PCB relay board. If the timing and voltage
are correct, replace the thermoactuator.

Check the door lock motor. Make sure the motor is not stuck or in a
bind. If motor does not move freely, replace locking motor.

Door Rod

No hot water
in detergent
dispenser

Water Inlet

Water Check to insure that water is turned on and operating.
P-20 Wire Harness Check black & white harness.

Hot water

does not

enter tub in

wash

Water Inlet Check water inlet screens for blockage and clean if necessary.

Water Check to insure that water is turned on and operating.

Pressure Switch

No cold water

to tub in

wash

Water Inlet Screens Check water inlet screens for blockage and clean if necessary.
Water Check to insure that water is turned on and operating.

Pressure Switch

Water comes

in but level

does not rise

Water Valve Coil

Water Valve Coil

Black or white wire at

controller and main relay

PCB

Water Valve Coil

Black or white wire at

controller and main relay

PCB

Drain Valve (open)

Black or white wire at

controller and main relay

PCB

Check to see that door rod from locking motor to lock assy is long
enough to allow lock assy to disengage. If not, adjust rod.

Check coil continuity at terminals and replace if no continuity. 120 V
power only on for 20 second in wash bath.

Check water inlet screens for blockage and clean screens if
necessary.

Check coil continuity at terminals and replace if no continuity. Check
for 120 V power from main relay PCB.

Check black and white wire at Molex plug on main PCB controller
P21 connection and at PCB relay board P20 connection.

Check pressure switch continuity between terminal contacts. If no
continuity, check pressure switch hose for obstruction. If the hose is
okay then change pressure switch.

Check coil continuity at terminals and replace if no continuity. Check
for 120 V power from main relay PCB.

Check black and white wire at Molex plug on main PCB controller
P21 connection and at PCB relay board P20 connection.

Check pressure switch continuity between terminal contacts. If no
continuity, check pressure switch hose for obstruction. If the hose is
okay then change pressure switch.

Check these areas:

• Drain valve blockage.

• Drain valve motor and gear train. If there is power to the valve
but drain valve does not close, replace drain valve and motor.

• Power to the drain valve. If no power to drain valve, check
(brn/yel) wire at PCB relay board. If there is no power on the
(brn/yel) wire when the washer is in a wash cycle replace relay
board.

Check black and white wire at Molex plug on main PCB controller
P21 connection and at PCB relay board P20 connection.

8514-256-001 REV PR page 32

Water does

not flush

softener

compartment.

Water Inlet Screens Check water inlet screens for blockage and clean if necessary.
Water Check to insure that water is turned on and operating.

Pressure Switch

Water level

too high

Water drains

slowly

Water Valve Coil Check coil continuity at terminals and replace if no continuity.

Check pressure switch continuity between terminal contacts. If no
continuity, check pressure switch hose for obstruction. If the hose is
okay then change pressure switch.

Check for blockage in pressure switch hose. Check for pressure

Pressure Switch

Drain System

switch opening circuit across terminals. Replace switch if contacts do
not open.

Check hoses and drain valve for blockage. Check to make sure
building drain is of adequate size. Check building drains for
blockage.

Machine does

not turn

Machine

tumbles in

one direction

VFD Inspect yellow enable wires from main relay PCB and at VFD

Excessive

vibration

Drive Belt Worn drive belt can cause vibration and noise.

Loading

Machine does

not spin

Machine

starts and

does not

operate

Machine does

not stop

Braking Resistors

Check VFD by removing top panel. If no display turn power off to

VFD

VFD See DISPLAYED WASHER FAULTS section for more info.

Mounting System

Pressure Switch

VFD

Main PCB Main PCB controls time of the cycle and the end of cycle.

machine at breaker for 2 minutes and turn power back on to reset.
If still no display replace VFD.

Check these areas:

• Strength of mounting structure, concrete or base.

• Mounting bolts may be loose and need tightening.

Small loads contribute to out of balance loading and increase
vibration.

Check pressure switch for continuity across terminals #21 & #22
indicating pressure switch has reset to the empty position. If no
continuity, change pressure switch.

Check yellow enable wires from PCB relay board connection P13 &
P14 to the VFD. Check connection of orange wire at P15 from door
switches.

Check braking resistors for continuity. Verify ohms resistance at
braking resistors with wires removed.

Door may need adjustment due to abuse or wear. Check tightness

Water

leakage

around

loading door

Signs of a

damaged E-

Stop button.

Door Adjustment

Stop button

around perimeter using a dollar bill. Adjust left to right tightness by
shims at door lock or hinge side. It is important to center gasket to
tub opening before tightening door to hinge bolts. Chalk may be
used on tub front to show point of contact with tub. If gasket is
deformed, worn, or damaged, replace. Refer to parts section for
door gasket expander kit.

Machine accepts coins, When machines starts the buzzer will sound
and then the machine stops. The display will then show “OPEN
DOOR”. Replace stop button.

8514-256-001 REV PR page 33

IMPORTANT

TRANSIENT VOLTAGE SURGE SUPPRESSORS

Like most electrical equipment your new machine can be damaged or have its life
shortened by voltage surges due to lightning strikes which are not covered by factory
warranty. Local power distribution problems also can be detrimental to the life of
electrical components. We recommend the installation of transient voltage surge
suppressors for your new equipment. These devices may be placed at the power
supply panel for the complete installation and don’t require an individual device for each
machine.

These surge protectors help to protect equipment from large spikes and also from small
ongoing spikes in the power that occur on a day to day basis. These smaller surges can
shorten overall life of electrical components of all types and cause their failure at a later
date. Although they can’t protect against all events, these protective devices have a
good reputation for significantly lengthening the useful life of electronic components.
Electronic components are helped to have a longer useful life when they are supplied
with the clean stable electrical power they like.

We are including the following names and phone numbers of a few suppliers of these
devices for those who don’t currently have a source.

MANUFACTURER CONTACT PHONE

Innovative Technology, Inc Distributor 1-800-809-2772 or
(Part of Eaton Corporation) www.itvss.com

EFI Electronics Corporation Factory 1-800-877-1174
(Part of Schneider Electric)

MCG Surge Protection Factory 1-800-851-1508 or
www.mcgsurge.com

Advanced Protection Factory 1-800-237-4567 or
Technologies Inc. www.aptsurge.com

8514-256-001 REV PR page 34

ACCESSORIES

INSTALLATION: (Furnished) QTY.

9990-027-011 Hose, Water Supply 2
8641-242-000 Washer, Inlet Hose 2
9565-003-001 Strainer, Inlet Hose 4

Contact distributor or Dexter Laundry, Inc. if a steel-mounting base is required.

For service and parts information, contact your local Dexter agent. To find your local
Dexter agent, use the Distributor Locator at the website shown below. If a Dexter
agent is not available, contact Dexter Laundry, Inc. directly as listed below:

Mailing Address: 2211 West Grimes Avenue Phone: [phone]

Fairfield, IA 52556
USA

Website: www.dexter.com

8514-256-001 REV PR page 35
