Dexin RFMP0102 User Manual

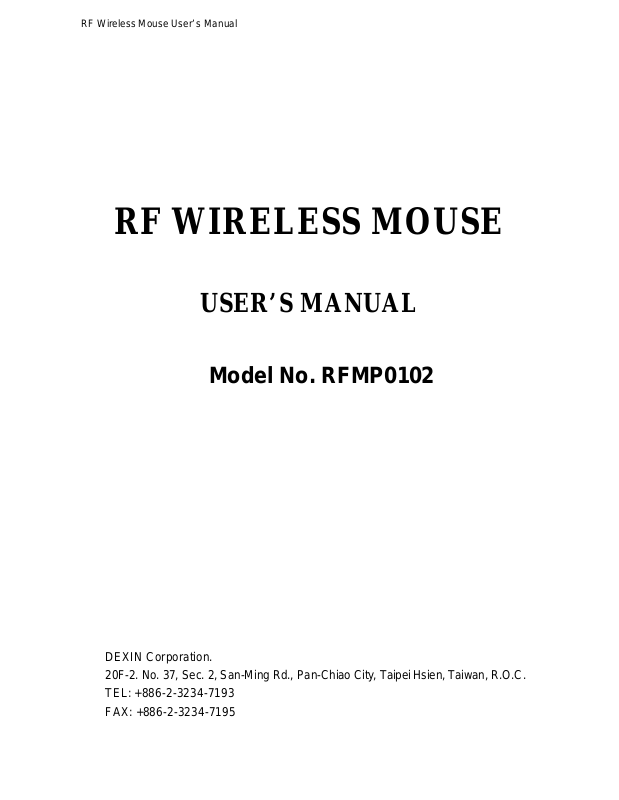

RF Wireless Mouse User’ s Manual

RF WIRELESS MOUSE

USER’S MANUAL

DEXIN Corporation.

Model No. RFMP0102

20F-2. No. 37, Sec. 2, San-Ming Rd., Pan-Chiao City, Taipei Hsien, Taiwan, R.O.C.
TEL: [phone]
FAX: [phone]

RF Wireless Mouse User’ s Manual

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT
CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE
UNDESIRED OPERATION.

Federal Communications Commission Requirements

The equipment has been tested and found to comply with the limits for Class B Digital
Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction, may cause harmful interference
to radio communication. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:

l Reorient of relocate the receiving antenna.
l Increase the separation between the equipment and receiver.
l Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.
l Consult the dealer or an experienced radio/TV technician for help.
The changes or modifications not expressly approved by the party responsible for
compliance could void the user’ s authority to operate the equipment.

RF Wireless Mouse User’ s Manual

Getting Start

(Please refer Fig.1 on Quick Installation)
Welcome to purchase this Radio Frequency (RF) wireless multimedia mouse. By
using the advanced RF technology, there is no line-of-sight required between receiver
and this mouse. The mouse doesn't have to aim at the receiver when using. When
you unfold the package, it should contains:

1. Mouse

2. Receiver

3. Driver Diskettes

4. User’ s Manual
If any part is missing, please contact your dealer for a replacement immediately.

Connecting the Receiver

(Please refer Fig.3 on Quick Installation)
Before using this RF wireless mouse, you need to connect the included receiver to
your computer first.

PS/2 version

If you are purchasing a PS/2 version, please follow the steps to finish the connecting:

PS/2 mouse cable connector

1. Turn off your computer

2. Remove the current mouse

3. Plug the mouse cable end into the PS/2 mouse port

4. Restart the computer and the mouse will be automatically detected by

Windows95, 98, or NT

USB version

If you are purchase a USB version RF multimedia mouse, just simply plug the USB
connector into a type-A USB connector. USB version is hot-pluggable. Hence it is not
necessary to turn off your computer to connect the receiver to your computer.

USB connector
