Dexin MWP5016B Users Manual

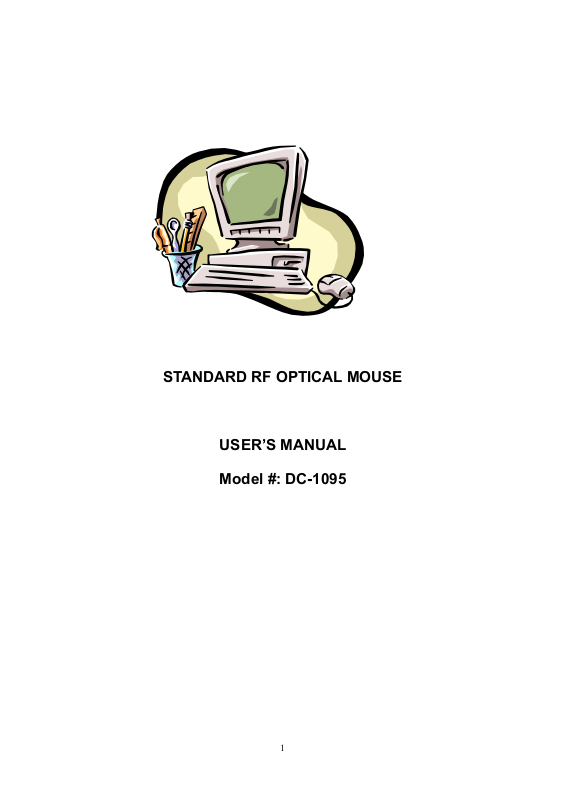

STANDARD RF OPTICAL MOUSE

USER’S MANUAL

Model #: DC-1095

1

Important Ergonomic Information

Some experts believe that using any mouse or trackball may cause serious injury to hands,

wrists, arms, neck, or back. If you feel pain, numbness, or weakness in these areas, see

a qualified health professional.

TO REDUCE THE RISK OF INJURY, FOLLOW THESE PRECAUTIONS:

z Take frequent breaks, Get up and walk around several times every hour.

z Vary your tasks throughout the day.

z Keep your shoulders relaxed with your elbows at your side. Position your keyboard

and mouse so you do not have to reach.

z Adjust your chair and keyboard so your upper arms and wrists are straight.

z Avoid resting your wrists on sharp edges.

System Requirement

z Mouse compatible with standard Microsoft mode

z 3rd button and wheel function require Win98/2000/Me/XP

z If without driver installed: 4th & 5th button require Win2000/XP if without driver installed.

Before you begin

z Keep this installation guide for future reference! It contains Important Troubleshooting

Information.

z Keep your old PS/2 mouse as a back-up device.

Getting Started

Congratulations on your purchase of an RF (Radio Frequency) wireless & multimedia
mouse. By using the advanced RF technology, a 360° of operation is possible, and no

line-of-sight is required between the receiver and the mouse. The DC-1095 Mouse doesn't

have to aim at the receiver when using.

Package Contains

Your DC1095 Mouse package includes the following:

1. DC-1095 Mouse (Transmitter)

2. DC-1095 Mini Receiver

3. User’s manual

4. One AA size of NiMH rechargeable battery

5. Charge base for RF Mouse.

6. CD-ROM Driver Windows 95/98/2000/NT/ME/XP

Note：If any part is missing, please contact your dealer for a replacement immediately.

2

Precaution

! Although this RF mouse comes with a 1.2V rechargeable battery, it is also possible to

use a standard AA size battery. But be sure not to put the mouse on the charger when

a standard AA battery is installed in the battery chamber.

! For optimal performance, place the receiver at least 8 inches or 20 centimeters away

from other electrical devices, such as the computer, the computer monitor, speakers or

other external storage drives.

! For a better transmission distance, avoid using this device on a metal plate or

desktop because a large surface of iron, aluminum, copper and other metal will be a

shielding or ground to the RF antenna of the mouse and receiver. Operating on a metal

may cause the transmission distance shorter.

! For this RF optical mouse, it is not suggested operate the mouse on a dark surface

for the consideration of saving battery power, so the LED is not illuminated too bright.

Although the working surface is not strictly restricted, it is strongly recommended to operate

an optical mouse on a white paper to obtain the best performance.

! If your notebook computer or PC has a metal (contains Al or Mg) case, the metal

housing of the LCD panel will isolate partial radiation of the RF signal from the mouse. This

will possibly result in reducing the distance of transmission when you operate the mouse

right in front of the notebook or PC, and the receiver is connected on the back of the

notebook or PC. However, the RF mouse should work properly while you are operating

the mouse just beside your notebook computer or PC

Installation Guide

Step 1. Connecting the Receiver

By using this DC-1095 mouse, you need to keep a free USB port for the included

receiver.

Please follow the steps below to finish the connecting:

1. Turn off your computer.

2. Plug the USB connector end of the receiver into the USB port. Of your notebook

( or PC) or your charge base if the charge base is already connected to your

notebook or PC through the USB cable.

3. Prepare your original Microsoft Windows CD.

4. Turn the notebook or PC power on, then follow the instructions of Windows to

complete the registration of a new USB device.

Step 2. Setting up the correct channel for both of receiver and mouse

This RF wireless mouse provides 2 different RF channels, and 256 identification codes to

avoid interference with other radio devices or other same model of RF wireless mouse.

3
