DeWalt DCF835, DCF885, DCF895 User Manual

DCF835
DCF885

2

English (original instructions) 3

13

23

33

Copyright DeWA LT

1

Figure 1

Figure 2

h

i

b

a

g

e

f

g

c

d

g

e

f

k

j

i

2

Figure 3

Figure 4

c

d

c

d

ENGLISH

3

CORDLESS IMPACT DRIVER
DCF835, DCF885

Congratulations!

You have chosen a DeWA LT tool. Years of
experience, thorough product development and
innovation make DeWA LT one of the most reliable
partners for professional power tool users.

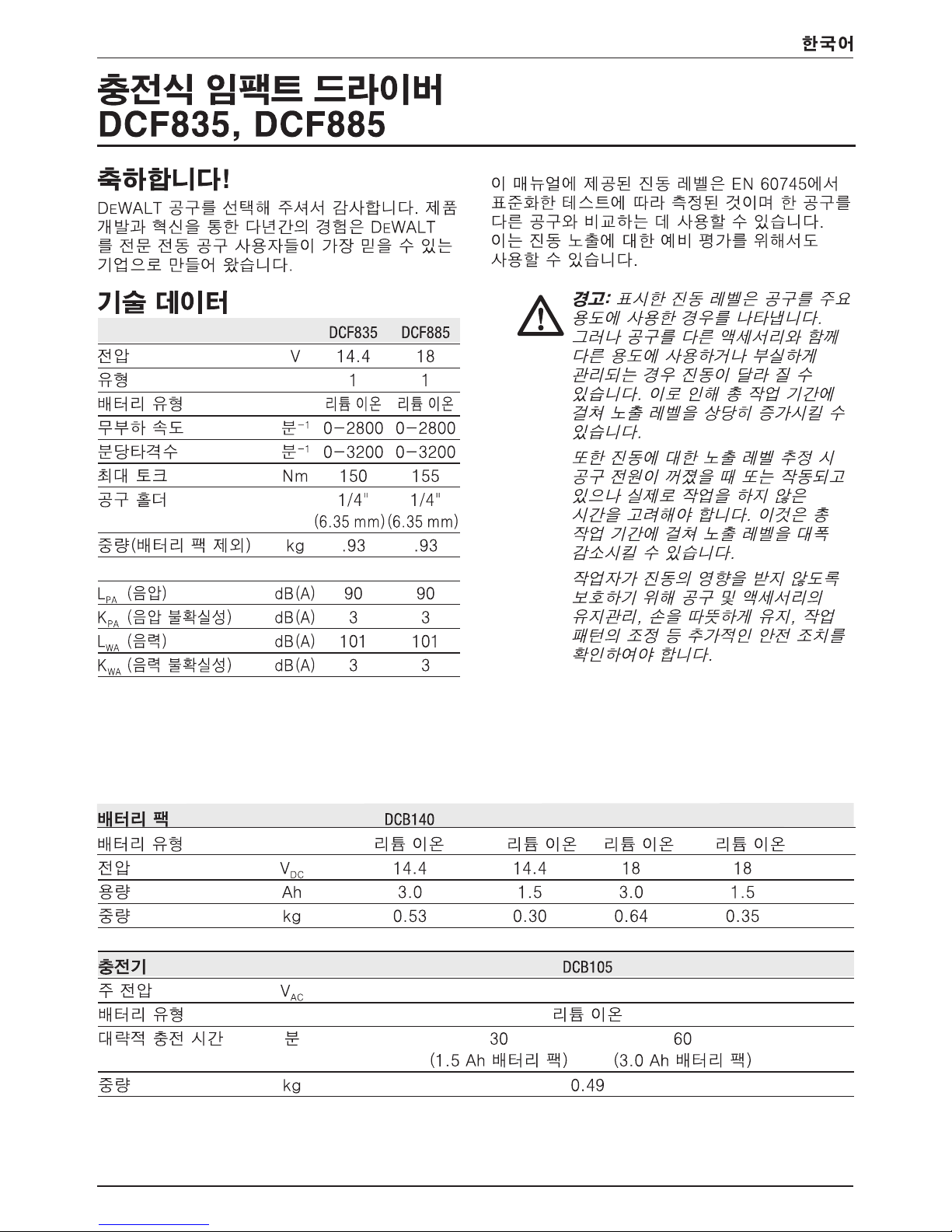

Technical Data

DCF835 DCF885

Voltage V 14.4 18
Type 1 1
Battery Type Li-Ion Li-Ion
No load speed min

-1

0–2800 0–2800

Impact rate min

-1

0–3200 0–3200
Max torque Nm 150 155
Tool holder 1/4" 1/4"

(6.35 mm) (6.35 mm)
Weight (without battery pack) kg .93 .93

LPA (sound pressure) dB(A)

90 90

KPA (sound pressure uncertainty) dB(A)

3 3

LWA (sound power) dB(A)

101 101

KWA (sound power uncertainty) dB(A)

3 3

The vibration emission level given in this information
sheet has been measured in accordance with a
standardised test given in EN 60745 and may be
used to compare one tool with another. It may be
used for a preliminary assessment of exposure.

WARNING: The declared vibration

emission level represents the main
applications of the tool. However if the
tool is used for different applications,
with different accessories or poorly
maintained, the vibration emission may
differ. This may significantly increase the
exposure level over the total working
period.

An estimation of the level of exposure to

vibration should also take into account
the times when the tool is switched off
or when it is running but not actually
doing the job. This may significantly
reduce the exposure level over the total
working period.

Identify additional safety measures to

protect the operator from the effects of
vibration such as: maintain the tool and
the accessories, keep the hands warm,
organisation of work patterns.

Battery pack DCB140 DCB141 DCB180 DCB181

Battery type Li-Ion Li-Ion Li-Ion Li-Ion
Voltage V

DC

14.4 14.4 18 18

Capacity A

h

3.0 1.5 3.0 1.5

Weight kg 0.53 0.30 0.64 0.35

Charger DCB105

Mains voltage V

AC

220~240 V
Battery type Li-Ion
Approx. charging time min 30 60

(1.5 Ah battery packs) (3.0 Ah battery packs)

Weight kg 0.49

ENGLISH

4

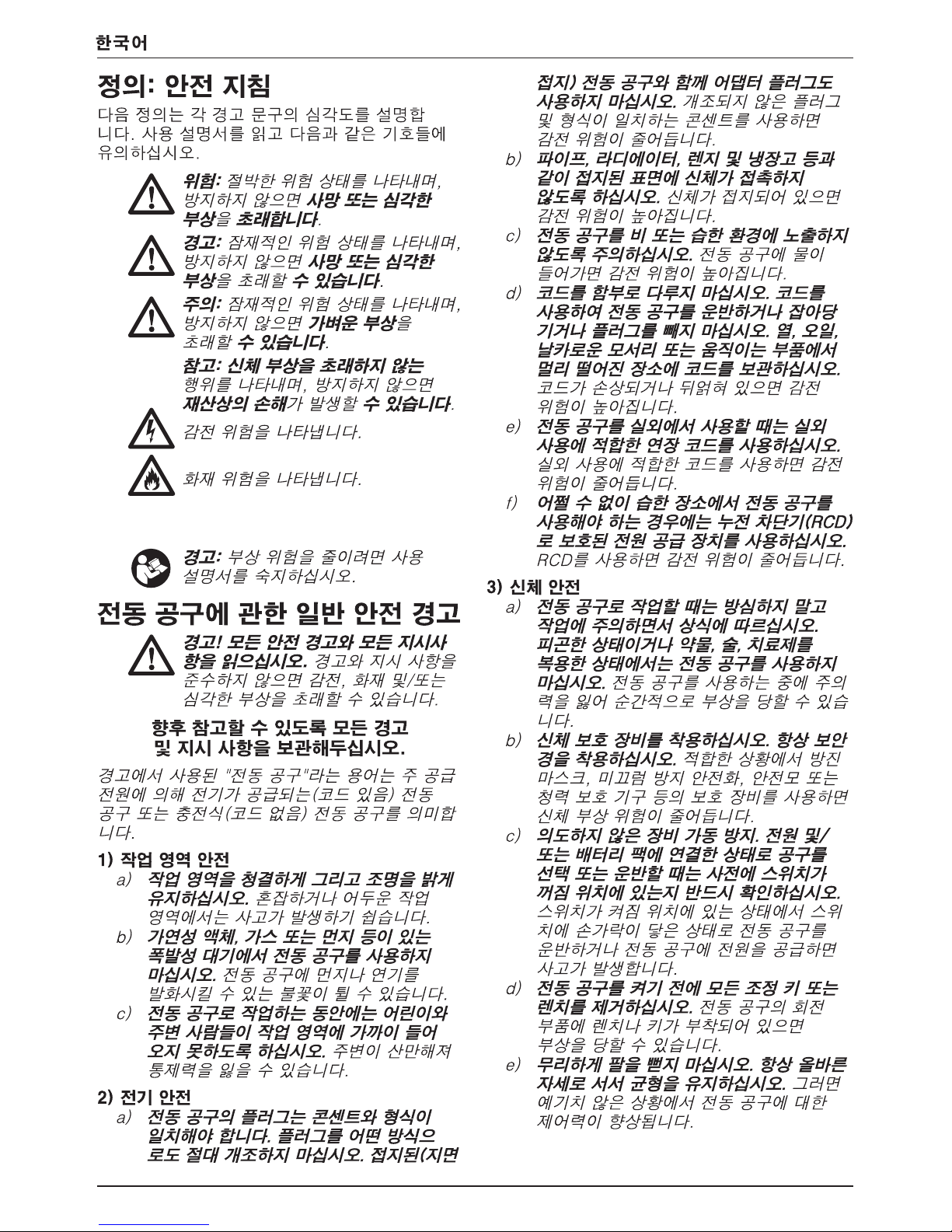

Definitions: Safety Guidelines

The definitions below describe the level of severity
for each signal word. Please read the manual and
pay attention to these symbols.

DANGER: Indicates an imminently

hazardous situation which, if not avoided,
will result in death or serious injury.

WARNING: Indicates a potentially

hazardous situation which, if not
avoided, could result in death or
serious injury.

CAUTION: Indicates a potentially

hazardous situation which, if not
avoided, may result in minor or

moderate injury.

NOTICE: Indicates a practice not

related to personal injury which, if
not avoided, may result in property
damage.

Denotes risk of electric shock.

Denotes risk of fire.

WARNING: To reduce the risk of injury,

read the instruction manual.

General Power Tool Safety Warnings

WARNING! Read all safety warnings

and all instructions. Failure to follow

the warnings and instructions may result
in electric shock, fire and/or serious
injury.

SAVE ALL WARNINGS AND INSTRUCTIONS

FOR FUTURE REFERENCE

The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery­operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive

atmospheres, such as in the presence of
flammable liquids, gases or dust. Power

tools create sparks which may ignite the dust
or fumes.

c) Keep children and bystanders away while

operating a power tool. Distractions can
cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet.

Never modify the plug in any way. Do
not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs

and matching outlets will reduce risk of
electric shock.

b) Avoid body contact with earthed or

grounded surfaces such as pipes,
radiators, ranges and refrigerators. There

is an increased risk of electric shock if your
body is earthed or grounded.

c) Do not expose power tools to rain or wet

conditions. Water entering a power tool will
increase the risk of electric shock.

d) Do not abuse the cord. Never use the

cord for carrying, pulling or unplugging
the power tool. Keep cord away from
heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the
risk of electric shock.

e) When operating a power tool outdoors,

use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use

reduces the risk of electric shock.

f) If operating a power tool in a damp

location is unavoidable, use a residual
current device (RCD) protected supply.

Use of an RCD reduces the risk of electric
shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and

use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A moment of

inattention while operating power tools may
result in serious personal injury.

b) Use personal protective equipment.

Always wear eye protection. Protective
equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce
personal injuries.

c) Prevent unintentional starting. Ensure

the switch is in the off position before
connecting to power source and/or
battery pack, picking up or carrying the
tool. Carrying power tools with your finger

on the switch or energising power tools that
have the switch on invites accidents.

d) Remove any adjusting key or wrench

before turning the power tool on. A
wrench or a key left attached to a rotating
part of the power tool may result in personal
injury.

ENGLISH

5

e) Do not overreach. Keep proper

footing and balance at all times. This

enables better control of the power tool in
unexpected situations.

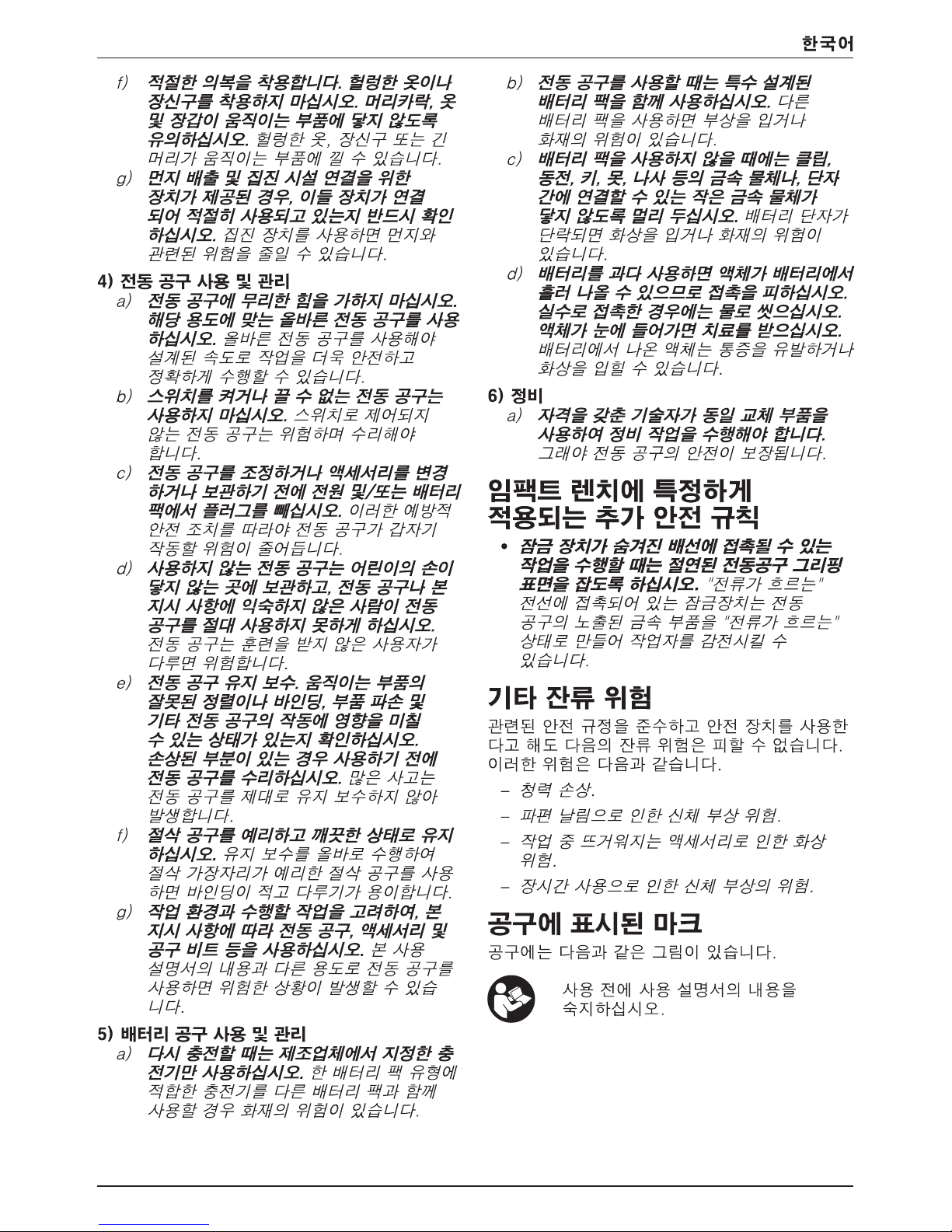

f) Dress properly. Do not wear loose

clothing or jewellery. Keep your hair,
clothing and gloves away from moving
parts. Loose clothes, jewellery or long hair

can be caught in moving parts.

g) If devices are provided for the connection

of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce

dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the

correct power tool for your application.

The correct power tool will do the job
better and safer at the rate for which it
was designed.

b) Do not use the power tool if the switch

does not turn it on and off. Any power
tool that cannot be controlled with the switch
is dangerous and must be repaired.

c) Disconnect the plug from the power

source and/or the battery pack from
the power tool before making any
adjustments, changing accessories, or
storing power tools. Such preventive safety

measures reduce the risk of starting the
power tool accidentally.

d) Store idle power tools out of the reach

of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.

Power tools are dangerous in the hands of
untrained users.

e) Maintain power tools. Check for

misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool’s operation.
If damaged, have the power tool repaired
before use. Many accidents are caused by

poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are
easier to control.

g) Use the power tool, accessories and

tool bits etc., in accordance with these
instructions taking into account the
working conditions and the work to
be performed. Use of the power tool for

operations different from those intended
could result in a hazardous situation.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified

by the manufacturer. A charger that is

suitable for one type of battery pack may
create a risk of fire when used with another
battery pack.

b) Use power tools only with specifically

designated battery packs. Use of any
other battery packs may create a risk of
injury and fire.

c) When battery pack is not in use, keep it

away from other metal objects like paper
clips, coins, keys, nails, screws or other
small metal objects that can make a
connection from one terminal to another.

Shorting the battery terminals together may
cause burns or a fire.

d) Under abusive conditions, liquid may be

ejected from the battery, avoid contact.
If contact accidentally occurs, flush with
water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the

battery may cause irritation or burns.

6) SERVICE

a) Have your power tool serviced by a

qualified repair person using only identical
replacement parts. This will ensure that the

safety of the power tool is maintained.

Additional Specific Safety Rules for
Impact Wrenches

• Hold power tool by insulated gripping

surfaces when performing an operation
where the fastener may contact hidden
wiring. Fasteners contacting a “live” wire may

make exposed metal parts of the power tool
“live” and could give the operator an electric
shock.

Residual Risks

In spite of the application of the relevant safety
regulations and the implementation of safety
devices, certain residual risks cannot be avoided.
These are:

– Impairment of hearing.

– Risk of personal injury due flying particles.

– Risk of burns due to accessories becoming hot

during operation.

– Risk of personal injury due to prolonged use.

ENGLISH

6

Markings on Tool

The following pictograms are shown on the tool:

Read instruction manual before use.

DATE CODE POSITION

The Date Code, which also includes the year of
manufacture, is printed into the housing surface that
forms the mounting joint between tool and battery.

Example:

2011 XX XX

Year of Manufacture

Important Safety Instructions for All
Battery Chargers

SAVE THESE INSTRUCTIONS: This manual
contains important safety and operating instruc tions
for the DCB105 battery charger.

 • Beforeusingthecharger,readallinstructions

and cautionary markings on charger, battery
pack and product using the battery pack.

WARNING: Shock hazard. Do not allow

any liquid to get inside charger. Electric
shock may result.

CAUTION: Burn hazard. To reduce

the risk of injury, charge only DeWA LT
rechargeable battery packs. Other types
of batteries may overheat and burst
resulting in personal injury and property
damage.

CAUTION: Children should be

supervised to ensure that they do not
play with the appliance.

NOTICE: Under certain conditions, with

the charger plugged in to the power
supply, the exposed charging contacts
inside the charger can be shorted by
foreign material. Foreign materials of
a conductive nature such as, but not
limited to, steel wool, aluminum foil or
any buildup of metallic particles should
be kept away from charger cavities.
Always unplug the charger from the
power supply when there is no battery
pack in the cavity. Unplug charger
before attempting to clean.

 • DONOTattempttochargethebatterypack

with any chargers other than the ones in
this manual. The charger and battery pack are

specifically designed to work together.

 • Thesechargersarenotintendedfor

any uses other than charging D

eWA LT

rechargeable batteries. Any other uses
may result in risk of fire, electric shock or
electrocution.

 • Donotexposechargertorainorsnow.

 • Pullbyplugratherthancordwhen

disconnecting charger. This will reduce risk
of damage to electric plug and cord.

 • Makesurethatcordislocatedsothatitwill

not be stepped on, tripped over or otherwise
subjected to damage or stress.

 • Donotuseanextensioncordunlessit

is absolutely necessary. Use of improper
extension cord could result in risk of fire,
electric shock or electrocution.

 • When operating a charger outdoors, always

provide a dry location and use an extension
cord suitable for outdoor use. Use of a cord

suitable for outdoor use reduces the risk of
electric shock.

 • Donotblocktheventilationslotsonthe

charger.Theventilationslotsarelocated

on the top and sides of the charger. Place
the charger in a position away from any heat
source.

 • Donotoperatechargerwithdamagedcord

or plug — have them replaced immediately.

 • Do not operate charger if it has received

a sharp blow, been dropped or otherwise
damaged in any way. Take it to an authorised

service centre.

 • Donotdisassemblethecharger;takeitto

an authorised service centre when service or
repair is required. Incorrect reassembly may

result in a risk of electric shock, electrocution or
fire.

 • Incaseofdamagedpowersupplycordthe

supply cord must be replaced immediately by
the manufacturer, its service agent or similar
qualified person to prevent any hazard.

 • Disconnectthechargerfromtheoutlet

beforeattemptinganycleaning.Thiswill

reduce the risk of electric shock. Removing
the battery pack will not reduce this risk.

• NEVERattempt to connect 2 chargers together.

 • Thechargerisdesignedtooperateon

ENGLISH

7

standard220~240Vhouseholdelectrical

power. Do not attempt to use it on any other
voltage. This does not apply to the vehicular

charger.

SAVE THESE INSTRUCTIONS

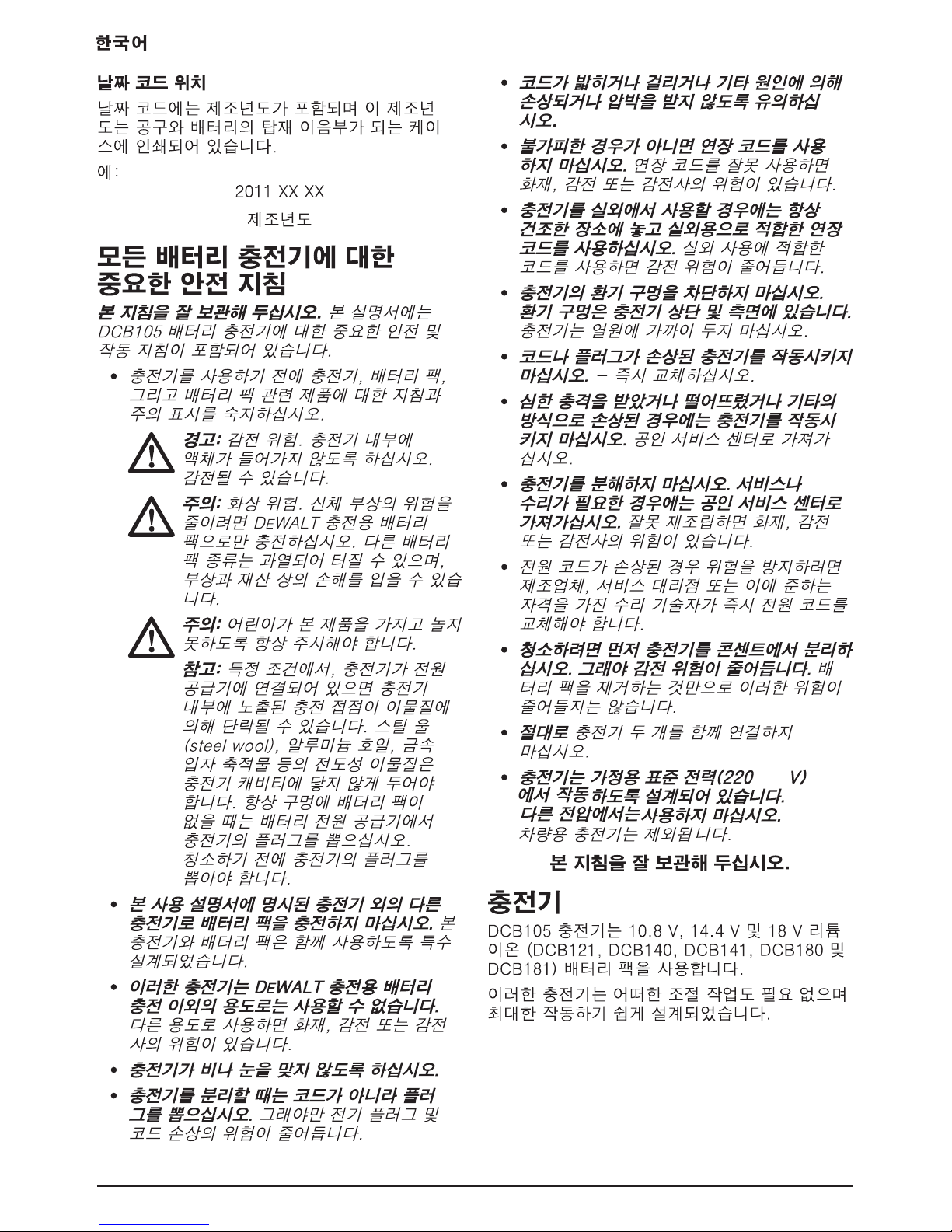

Chargers

The DCB105 charger accepts 10.8 V, 14.4 V and
18 V Li-Ion (DCB121, DCB140, DCB141, DCB180
and DCB181) battery packs.

This charger requires no adjustment and is designed
to be as easy as possible to operate.

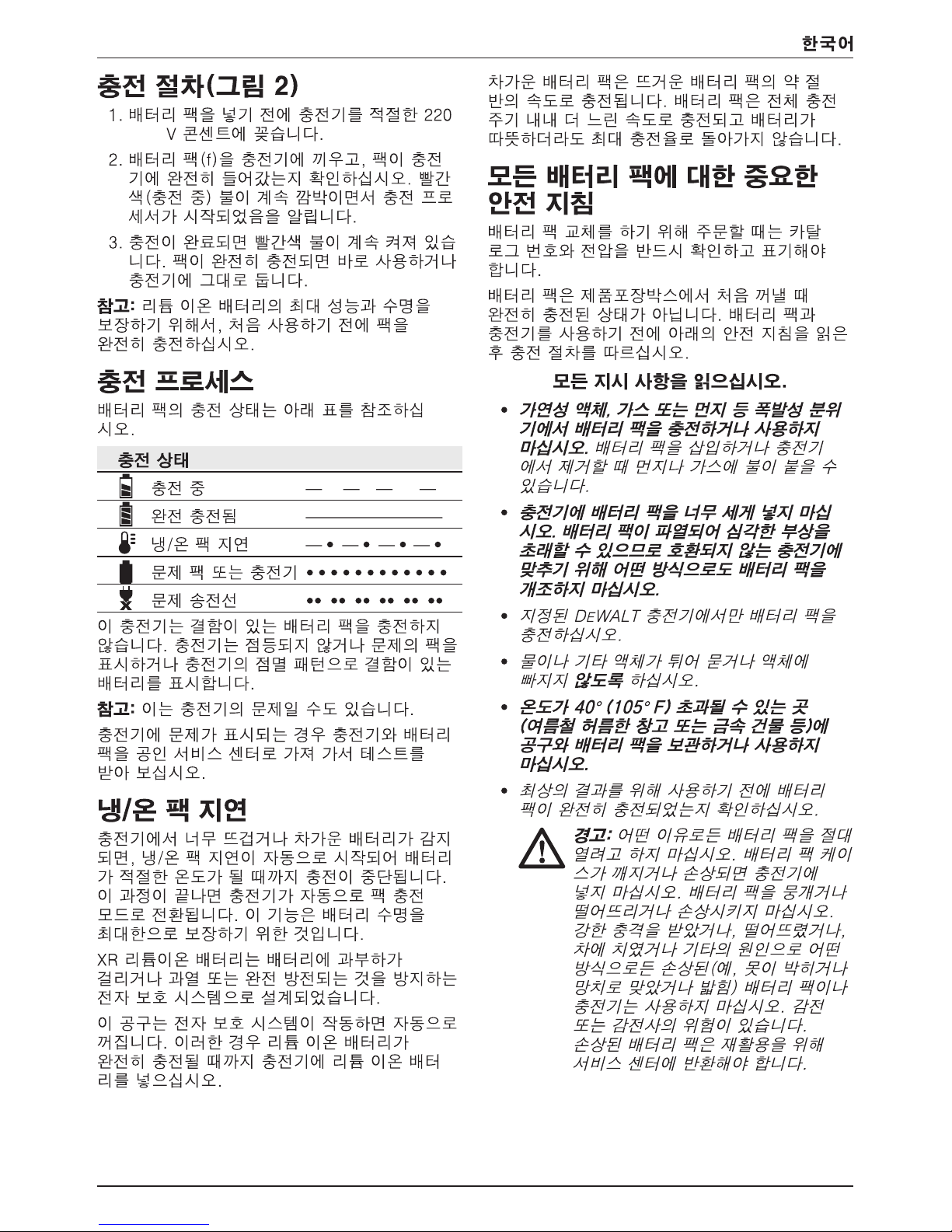

Charging Procedure (figure 2)

1. Plug the charger into an appropriate 220~240 V
outlet before inserting the battery pack.

2. Insert the battery pack (f) into the charger,
making sure the pack is fully seated in the
charger. The red (charging) light will blink
continuously indicating that the charging
process has started.

3. The completion of charge will be indicated by
the red light remaining ON continuously. The
pack is fully charged and may be used at this
time or left in the charger.

NOTE: To ensure maximum performance and life of
Li-Ion batteries, fully charge the pack before first use.

Charging Process

Refer to the table below for the state of charge of
the battery pack.

State of charge

charging –– –– –– ––

fully charged –––––––––––––––––

 hot/coldpackdelay ––•––•– – • ––•

x

 problempackorcharger ••••••••••••

 problempowerline ••••••••••••

This charger will not charge a faulty battery pack.
The charger will indicate faulty battery by refusing to
light or by displaying problem pack or charger blink
pattern.

NOTE: This could also mean a problem with a
charger.

If the charger indicates a problem, take the charger
and battery pack to be tested at an authorised
service centre.

Hot/Cold Pack Delay

When the charger detects a battery that is too hot
or too cold, it automatically starts a hot/cold pack
delay, suspending charging until the battery has
reached an appropriate temperature. The charger
then automatically switches to the pack charging
mode. This feature ensures maximum battery life.

XR Li-Ion tools are designed with an Electronic
Protection System that will protect the battery
against overloading, overheating or deep discharge.

The tool will automatically turn off if the Electronic
Protection System engages. If this occurs, place the
Li-Ion battery on the charger until it is fully charged.

A cold battery pack will charge at about half the rate
of a warm battery pack. The battery pack will charge
at that slower rate throughout the entire charging
cycle and will not return to maximum charge rate
even if the battery warms.

Important Safety Instructions for All
Battery Packs

When ordering replacement battery packs, be sure
to include the catalog number and voltage.

The battery pack is not fully charged out of the
carton. Before using the battery pack and charger,
read the safety instructions below and then follow
the charging procedures outlined.

READ ALL INSTRUCTIONS

 • Donotchargeorusethebatterypack

in explosive atmospheres, such as in the
presence of flammable liquids, gases or
dust. Inserting or removing the battery pack

from the charger may ignite the dust or fumes.

• Never force the battery pack into charger.

Do not modify the battery pack in any way
to fit into a non-compatible charger as
battery pack may rupture causing serious
personal injury.

 • Chargethebatterypacksonlyindesignated

DeWA LT chargers.

• DONOTsplash or immerse in water or other

liquids.

 • Donotstoreorusethetoolandbattery

pack in locations where the temperature
may reach or exceed 40˚ C (105° F) (such as
outside sheds or metal buildings in summer).

 • Forbestresults,makesurethebatterypackis

fully charged before use.

ENGLISH

8

WARNING: Never attempt to open

the battery pack for any reason. If
the battery pack case is cracked or
damaged, do not insert it into the
charger. Do not crush, drop or damage
battery pack. Do not use a battery
pack or charger that has received a
sharp blow, been dropped, run over
or damaged in any way (e.g., pierced
with a nail, hit with a hammer, stepped
on). Electric shock or electrocution may
result. Damaged battery packs should
be returned to the service centre for
recycling.

CAUTION: When not in use, place

tool on its side on a stable surface
where it will not cause a tripping or
falling hazard. Some tools with large

battery packs will stand upright on the
battery pack but may be easily knocked
over.

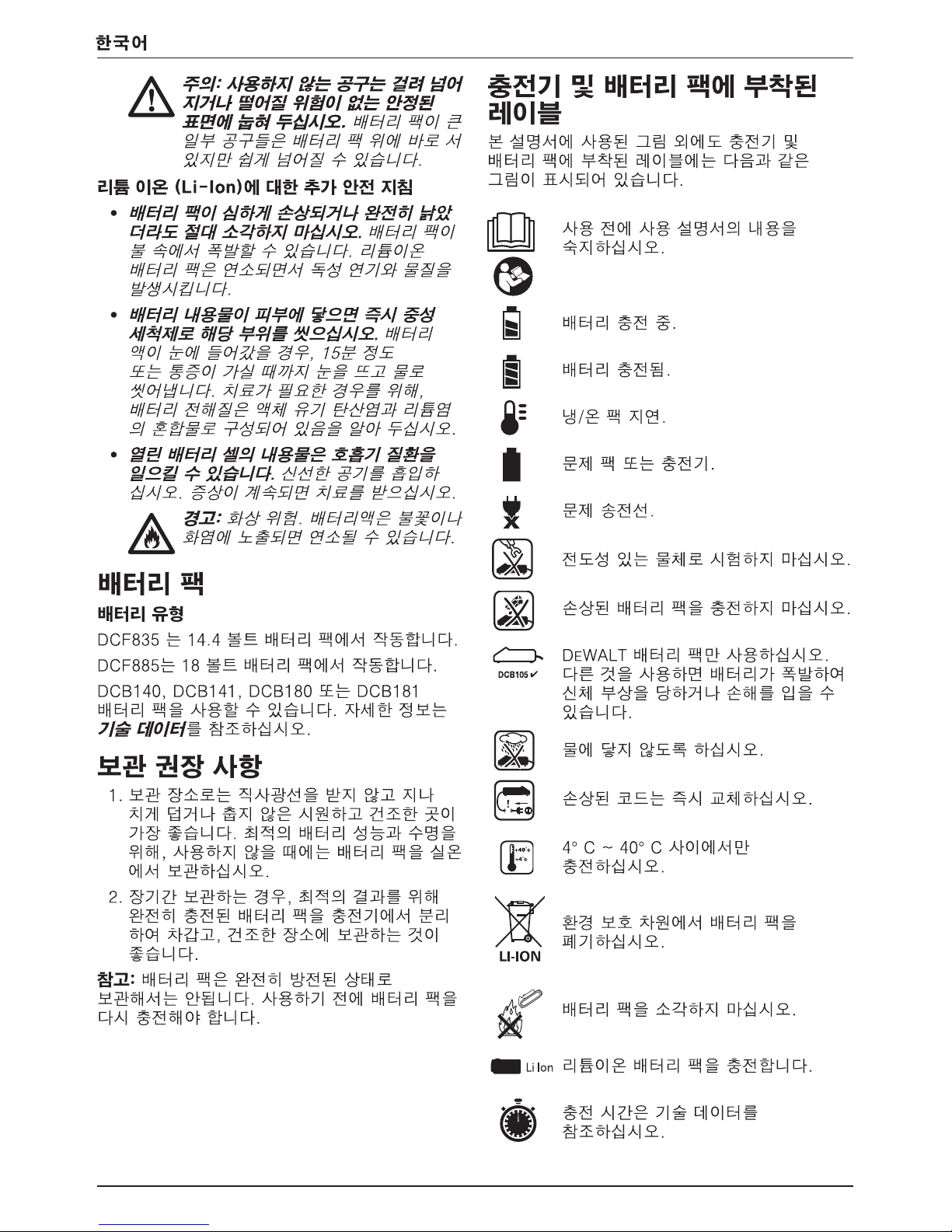

SPECIFIC SAFETY INSTRUCTIONS FOR LITHIUM ION
(Li-Ion)

 • Donotincineratethebatterypackevenifit

is severely damaged or is completely worn
out. The battery pack can explode in a fire.

Toxic fumes and materials are created when
lithium ion battery packs are burned.

 • Ifbatterycontentscomeintocontactwith

the skin, immediately wash the area with
mild soap and water. If the battery liquid gets

into the eye, rinse water over the open eye for
15 minutes or until irritation ceases. If medical
attention is needed, the battery electrolyte
is composed of a mixture of liquid organic
carbonates and lithium salts.

 • Contentsofopenedbatterycellsmaycause

respiratory irritation. Provide fresh air. If
symptoms persists, seek medical attention.

WARNING: Burn hazard. Battery liquid

may be flammable if exposed to spark
or flame.

Battery Pack

BATTERY TYPE

The DCF835 operates on 14.4 volt battery packs.

The DCF885 operates on 18 volt battery pack.

The DCB140, DCB141, DCB180 or DCB181 battery
packs may be used. Refer to Technical Data for
more information.

Storage Recommendations

1. The best storage place is one that is cool and
dry away from direct sunlight and excess heat
or cold. For optimum battery performance and
life, store battery packs at room temperature
when not in use.

2. For long storage, it is recommended to store a
fully charged battery pack in a cool, dry place
out of the charger for optimal results.

NOTE: Battery packs should not be stored
completely depleted of charge. The battery pack will
need to be recharged before use.

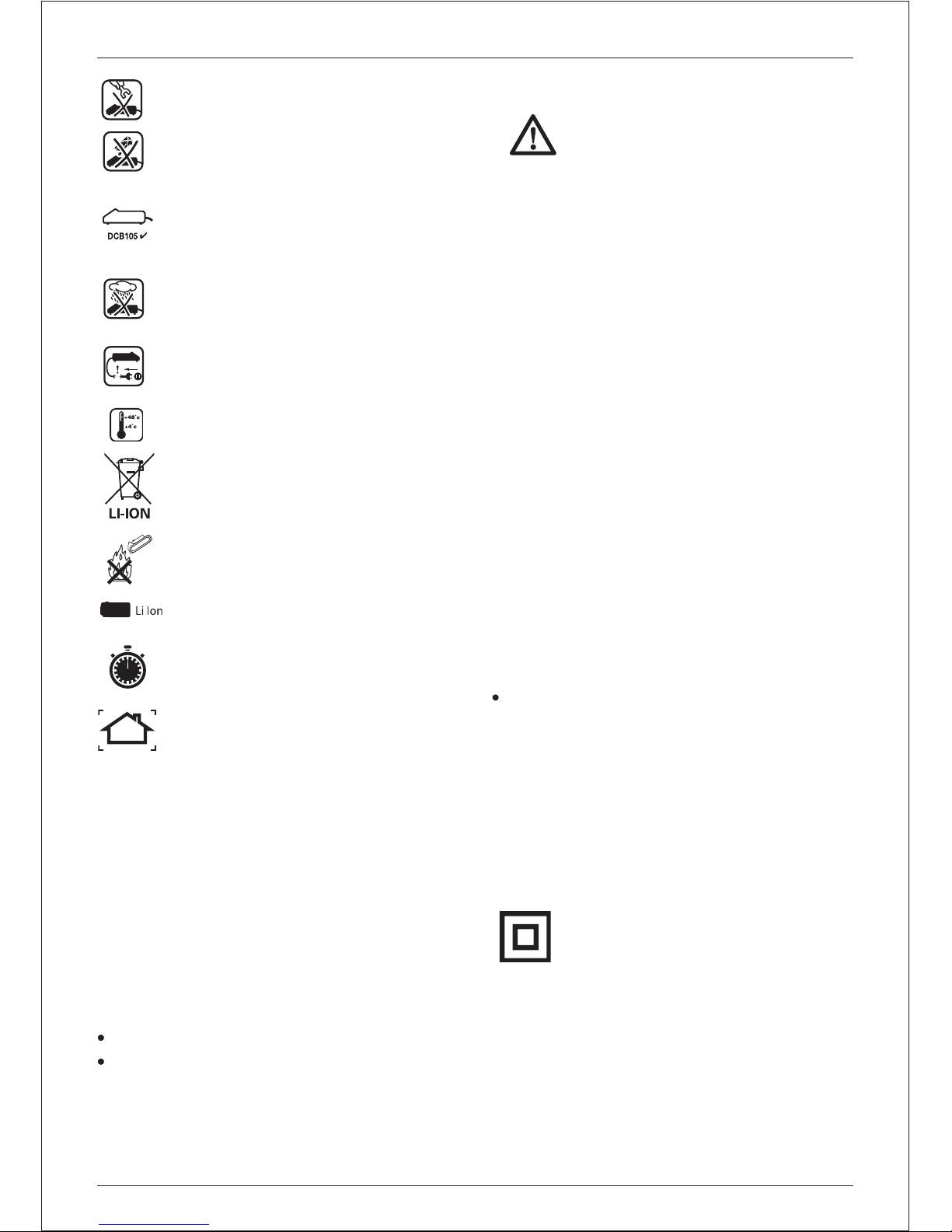

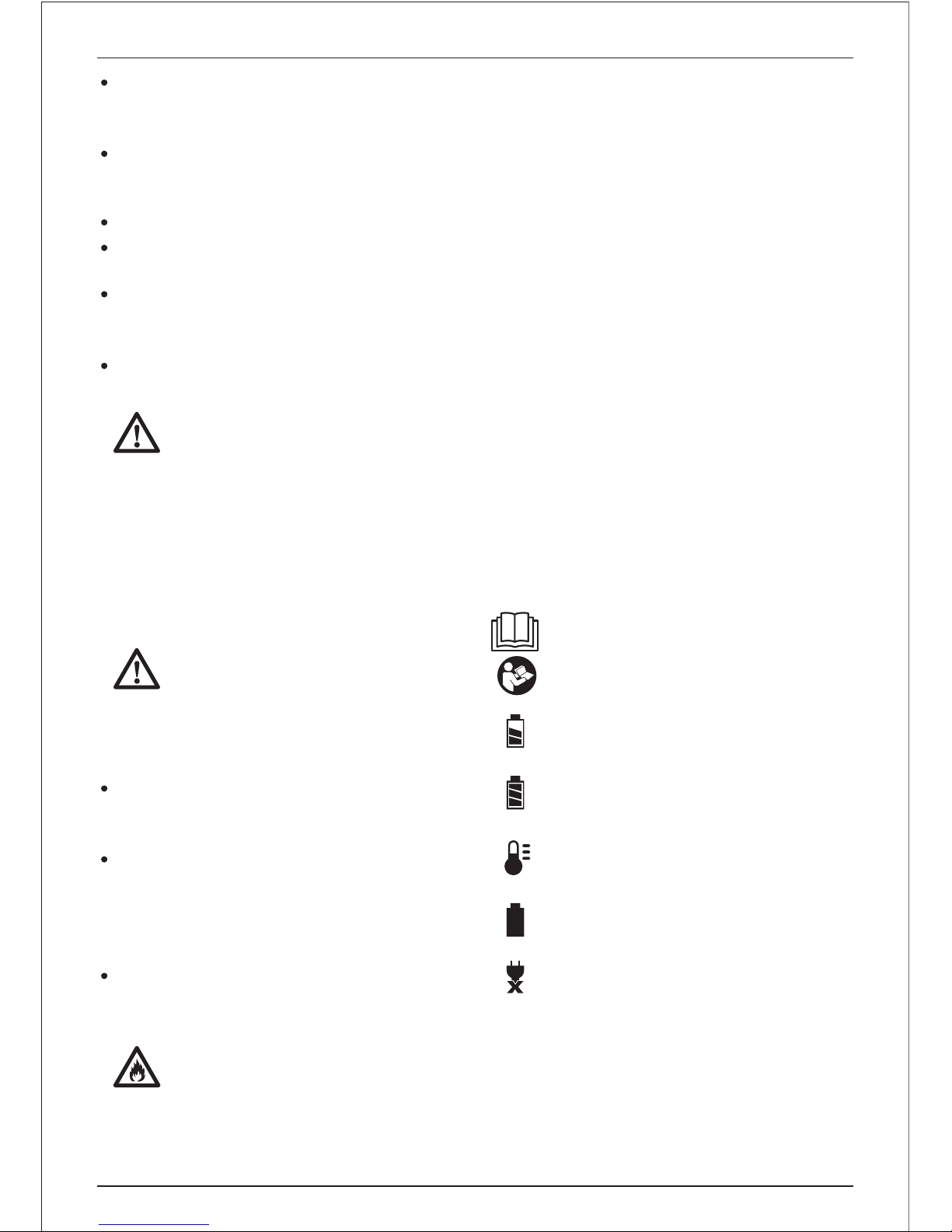

Labels on Charger and Battery Pack

In addition to the pictographs used in this manual,
the labels on the charger and the battery pack show
the following pictographs:

Read instruction manual before use.

Battery charging.

Battery charged.

Hot/cold pack delay.

x

Problem pack or charger.

Problem powerline.

Do not probe with conductive objects.

Do not charge damaged battery packs.

Use only with DeWA LT battery packs.

Others may burst causing personal injury
and damage.

Do not expose to water.

Have defective cords replaced

immediately.

Charge only between 4° C and 40° C.

ENGLISH

9

Discard the battery pack with due care for

the environment.

Do not incinerate the battery pack.

Charges Li-Ion battery packs.

See technical data for charging time.

Only for indoor use.

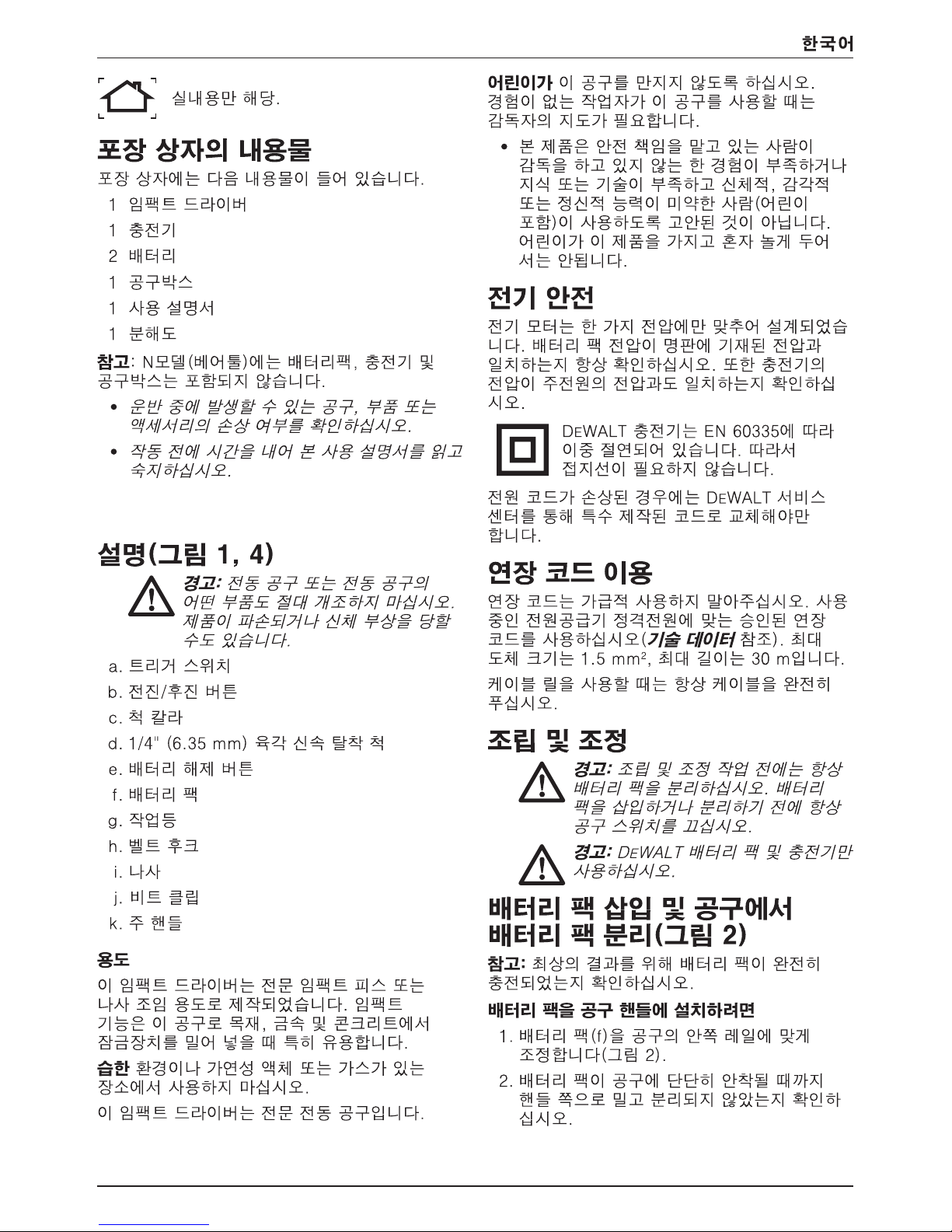

Package Contents

The package contains:

1 Impact Driver

1 Charger

2 Batteries

1 Kitbox

1 Instruction manual

1 Exploded drawing

NOTE: Battery packs, chargers and kitboxes are not
included with N-models.

• Check for damage to the tool, parts or
accessories which may have occurred during
transport.

• Take the time to thoroughly read and
understand this manual prior to operation.

Description (figure 1, 4)

WARNING: Never modify the power

tool or any part of it. Damage or
personal injury could result.

a. Trigger switch

b. Forward/reverse button

c. Chuck collar

d. 1/4" (6.35 mm) hex quick-release chuck

e. Battery release button

f. Battery pack

g. Worklight

h. Belt hook

i. Screw

j. Bit clip

k. Main handle

INTENDED USE

This impact driver is designed for professional
impact screwdriving applications. The impact
function makes this tool particularly useful for driving
fasteners in wood, metal and concrete.

DO NOT use under wet conditions or in presence of
flammable liquids or gases.

This impact driver is a professional power tool.

DO NOT let children come into contact with the
tool. Supervision is required when inexperienced
operators use this tool.

 • Thisproductisnotintendedforusebypersons

(including children) suffering from diminished
physical, sensory or mental abilities, or for lack
of experience and/or for want of knowledge or
skills unless they are supervised by a person
responsible for their safety. Children should
never be left alone to play with this product.

Electrical Safety

The electric motor has been designed for one
voltage only. Always check that the battery pack
voltage corresponds to the voltage on the rating
plate. Also make sure that the voltage of your
charger corresponds to that of your mains.

Your DeWALT charger is double insulated

in accordance with EN 60335; therefore
no earth wire is required.

If the supply cord is damaged, it must be replaced
by a specially prepared cord available through the

D

eWA LT service organisation.

Using an Extension Cable

An extension cord should not be used unless
absolutely necessary. Use an approved extension
cable suitable for the power input of your charger
(see Technical Data). The minimum conductor size
is 1.5 mm2; the maximum length is 30 m.

When using a cable reel, always unwind the cable
completely.

ASSEMBLY AND ADJUSTMENTS

WARNING: Prior to assembly and

adjustment, always remove the battery
pack. Always switch off the tool before
inserting or removing the battery pack.

ENGLISH

10

WARNING: Use only DeWA LT battery

packs and chargers.

Inserting and Removing the
Battery Pack from the Tool (figure 2)

NOTE: For best results, make sure your battery
pack is fully charged.

TO INSTALL THE BATTERY PACK INTO THE TOOL HANDLE

1. Align the battery pack (f) with the rails inside the
tool’s handle (figure 2).

2. Slide it into the handle until the battery pack is
firmly seated in the tool and ensure that it does
not disengage.

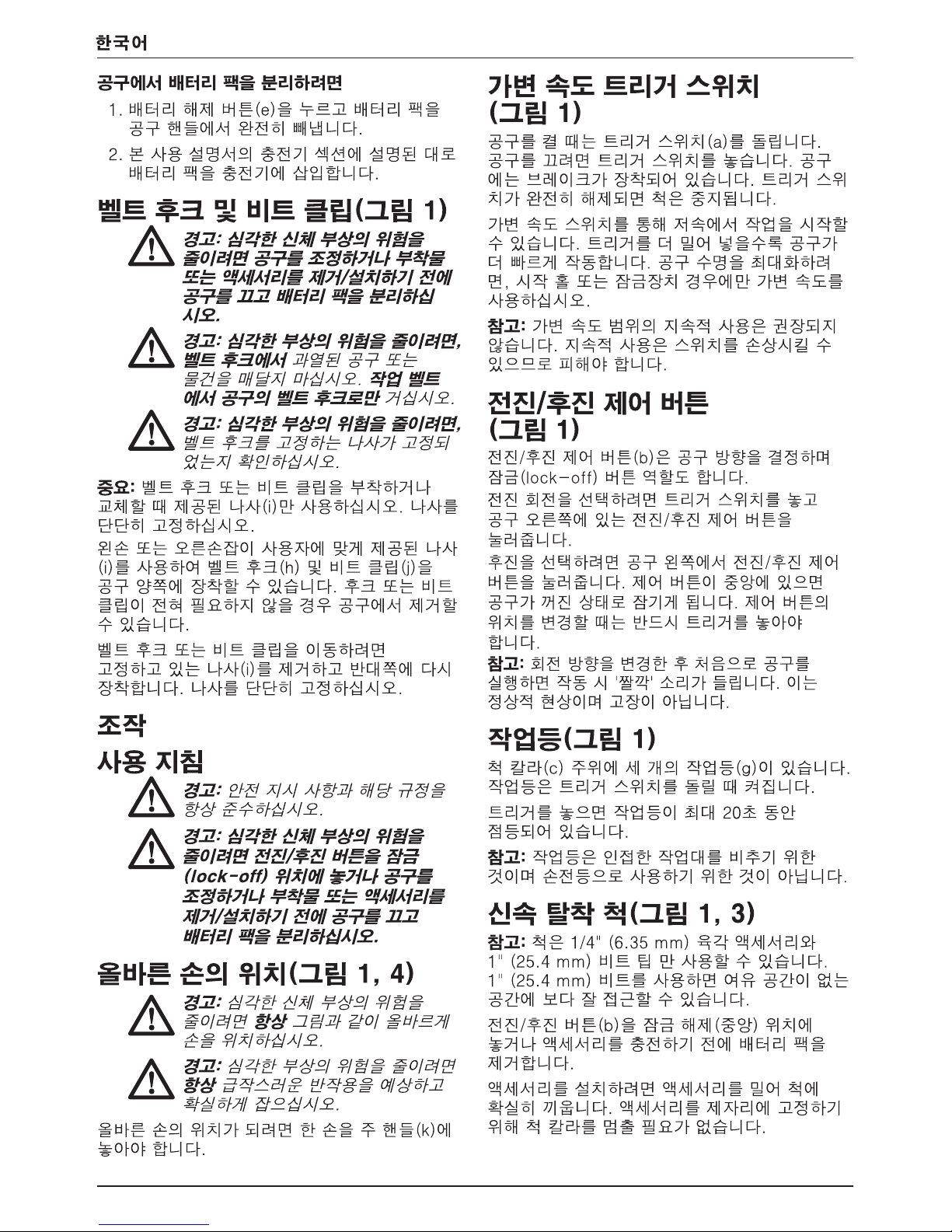

TO REMOVE THE BATTERY PACK FROM THE TOOL

1. Press the battery release button (e) and firmly
pull the battery pack out of the tool handle.

2. Insert battery pack into the charger as
described in the charger section of this manual.

Belt Hook and Bit Clip (figure 1)

WARNING: To reduce the risk of

serious personal injury, turn tool
off and disconnect battery pack
before making any adjustments or
removing/installing attachments or
accessories.

WARNING: To reduce the risk of

serious personal injury, DO NOT

suspend tool overhead or suspend
objects from the belt hook. ONLY hang
tool’s belt hook from a work belt.

WARNING: To reduce the risk of

serious personal injury, ensure the

screw holding the belt hook is secure.

IMPORTANT: When attaching or replacing the
belt hook or bit clip, use only the screw (i) that is
provided. Be sure to securely tighten the screw.

The belt hook (h) and bit clip (j) can be be attached
to either side of the tool using only the screw (i)
provided, to accommodate left- or right- handed
users. If the hook or bit clip is not desired at all, it
can be removed from the tool.

To move belt hook or bit clip, remove the screw
(i) that holds it in place then reassemble on the
opposite side. Be sure to securely tighten the screw.

OPERATION

Instructions for Use

WARNING: Always observe the safety

instructions and applicable regulations.

WARNING: To reduce the risk

of serious personal injury, place
the forward/reverse button in
the lock-off position or turn tool
off and disconnect battery pack
before making any adjustments or
removing/installing attachments or
accessories.

Proper Hand Position (figure 1, 4)

WARNING: To reduce the risk of

serious personal injury, ALWAYS use
proper hand position as shown.

WARNING: To reduce the risk of

serious personal injury, ALWAYS hold
securely in anticipation of a sudden
reaction.

Proper hand position requires one hand on the main
handle (k).

Variable Speed Trigger Switch
(figure 1)

To turn the tool on, squeeze the trigger switch (a). To
turn the tool off, release the trigger switch. Your tool
is equipped with a brake. The chuck will stop when
the trigger switch is fully released.

The variable speed switch enables you to start
the application at a slow speed. The further you
squeeze the trigger, the faster the tool will operate.
For maximum tool life, use variable speed only for
starting holes or fasteners.

NOTE: Continuous use in variable speed range is
not recommended. It may damage the switch and
should be avoided.

Forward/Reverse Control Button
(figure 1)

A forward/reverse control button (b) determines the
direction of the tool and also serves as a lock-off
button.

To select forward rotation, release the trigger switch
and depress the forward/reverse control button on
the right side of the tool.

To select reverse, depress the forward/reverse
control button on the left side of the tool. The center
position of the control button locks the tool in the off
position. When changing the position of the control
button, be sure the trigger is released.

ENGLISH

11

NOTE: The first time the tool is run after changing the
direction of rotation, you may hear a click on start up.
This is normal and does not indicate a problem.

Worklights (figure 1)

There are three worklights (g) located around the
chuck collar (c). The worklights will be activated
when the trigger switch is squeezed.

When the trigger is released the worklight will stay
illuminated for up to 20 seconds.

NOTE: The worklights are for lighting the immediate
work surface and are not intended to be used as a
flashlight.

Quick-Release Chuck (figure 1, 3)

NOTE: The chuck accepts 1/4" (6.35mm) hex
accessories and 1" (25.4mm) bit tips only. Using 1"
(25.4mm) bits allows better access in tight spaces.

Place the forward/reverse button (b) in the locked
off (center) position or remove battery pack before
changing accessories.

To install an accessory, push accessory to fully insert
into chuck. The chuck collar does not need to be
pulled up to lock accessory in place.

To remove an accessory, pull the chuck collar away
from the front of the tool. Remove the accessory
and release the collar.

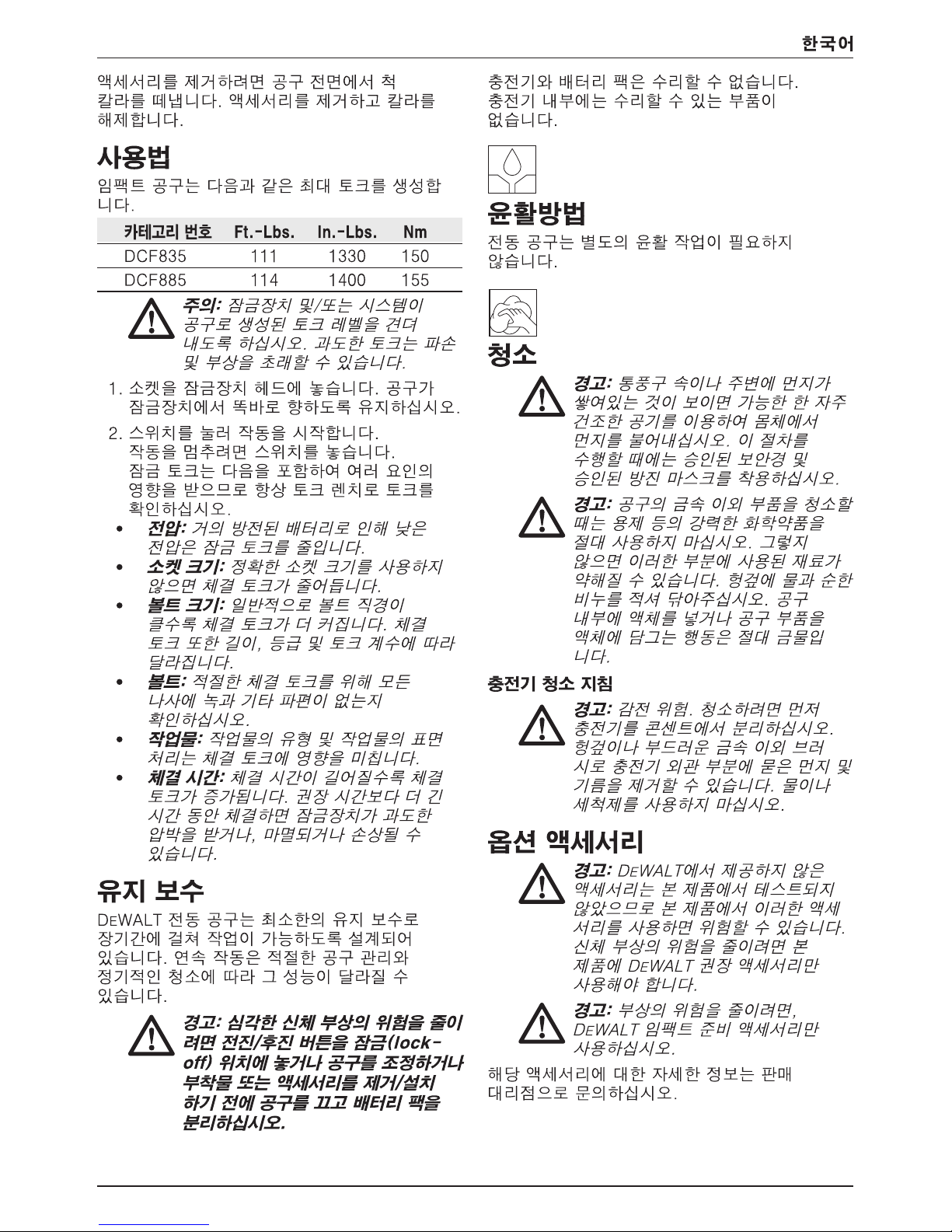

Usage

Your impact tool generates the following maximum
torque:

Cat # Ft.-Lbs. In.-Lbs. Nm

DCF835 111 1330 150
DCF885 114 1400 155

CAUTION: Ensure fastener and/or

system will withstand the level of torque
generated by the tool. Excessive torque
may cause breakage and possible
personal injury.

1. Place the socket on the fastener head. Keep
the tool pointed straight at the fastener.

2. Press switch to start operation. Release the
switch to stop operation. Always check torque
with a torque wrench, as the fastening torque is
affected by many factors including the following:

• Voltage: Low voltage, due to a nearly

discharged battery, will reduce fastening
torque.

• Socket size: Failure to use the correct

socket size will cause a reduction in fastening
torque.

• Bolt Size: Larger bolt diameters generally

require higher fastening torque. Fastening
torque will also vary according to length,
grade, and torque coefficient.

• Bolt: Ensure that all threads are free of rust

and other debris to allow proper fastening
torque.

• Material: The type of material and surface

finish of the material will affect fastening
torque.

• Fastening Time: Longer fasten ing time

results in increased fastening torque. Using
a longer fastening time than recom mended
could cause the fasteners to be overstressed,
stripped or damaged.

MAINTENANCE

Your DeWALT power tool has been designed to
operate over a long period of time with a minimum
of maintenance. Continuous satisfactory operation
depends upon proper tool care and regular cleaning.

WARNING: To reduce the risk

of serious personal injury, place
the forward/reverse button in
the lock-off position or turn tool
off and disconnect battery pack
before making any adjustments or
removing/installing attachments or
accessories.

The charger and battery pack are not serviceable.
There are no serviceable parts inside.

Lubrication

Your power tool requires no additional lubrication.

Cleaning

WARNING: Blow dirt and dust out of

the main housing with dry air as often as
dirt is seen collecting in and around the
air vents. Wear approved eye protection
and approved dust mask when
performing this procedure.

WARNING: Never use solvents or

other harsh chemicals for cleaning the
non-metallic parts of the tool. These
chemicals may weaken the materials
used in these parts. Use a cloth

ENGLISH

12

dampened only with water and mild
soap. Never let any liquid get inside the
tool; never immerse any part of the tool
into a liquid.

CHARGER CLEANING INSTRUCTIONS

WARNING: Shock hazard. Disconnect

the charger from the AC outlet before
cleaning. Dirt and grease may be
removed from the exterior of the charger
using a cloth or soft non-metallic brush.
Do not use water or any cleaning
solutions.

Optional Accessories

WARNING: Since accessories, other

than those offered by DeWA LT, have
not been tested with this product, use
of such accessories with this tool could
be hazardous. To reduce the risk of
injury, only DeWA LT recommended
accessories should be used with this
product.

WARNING: To reduce the risk of

injury, only use D

eWA LT impact-ready

accessories.

Consult your dealer for further information on the
appropriate accessories.

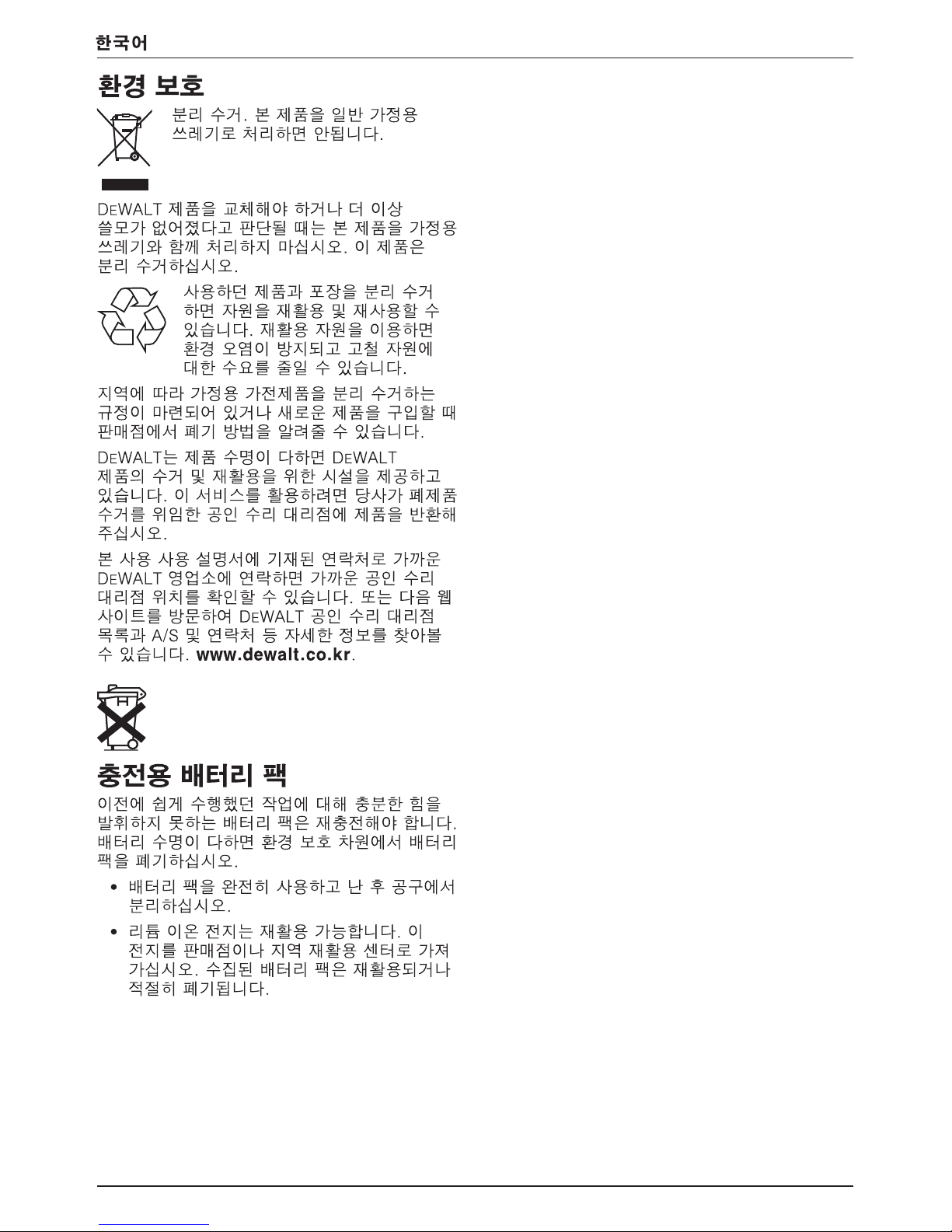

Protecting the Environment

Separate collection. This product must

not be disposed of with normal
household waste.

Should you find one day that your D

eWA LT product

needs replacement, or if it is of no further use to you,
do not dispose of it with household waste. Make this
product available for separate collection.

Separate collection of used products

and packaging allows materials to be
recycled and used again. Re-use of
recycled materials helps prevent
environmental pollution and reduces
the demand for raw materials.

Local regulations may provide for separate collection
of electrical products from the household, at
municipal waste sites or by the retailer when you
purchase a new product.

DeWA LT provides a facility for the collection and
recycling of D

eWA LT products once they have

reached the end of their working life. To take
advantage of this service please return your product

to any authorised repair agent who will collect them
on our behalf.

You can check the location of your nearest
authorised repair agent by contacting your local

D

eWA LT office at the address indicated in this

manual. Alternatively, a list of authorised DeWALT
repair agents and full details of our after-sales
service and contacts are available on the Internet at:
www.2helpU.com.

Rechargeable Battery Pack

This long life battery pack must be recharged when
it fails to produce sufficient power on jobs which
were easily done before. At the end of its technical
life, discard it with due care for our environment:

 • Runthebatterypackdowncompletely,then

remove it from the tool.

 • Li-Ioncellsarerecyclable.Takethemtoyour

dealer or a local recycling station. The collected
battery packs will be recycled or disposed of
properly.
