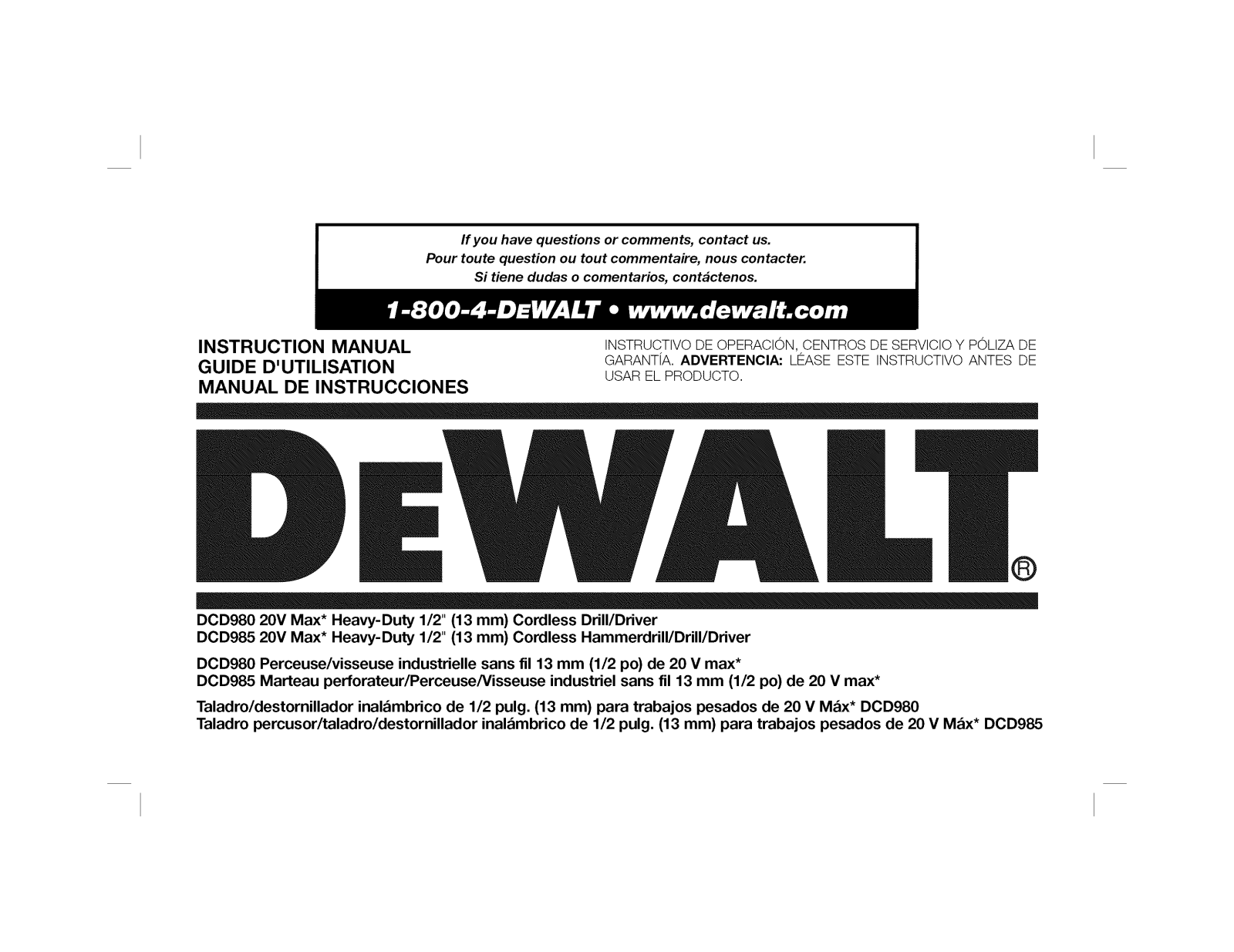

DeWalt DCD985B TYPE 2 Owner’s Manual

If you have questions or comments, contact us.

Pour toute question ou tout commentaire, nous contacter.

Si tiene dudas o comentarios, contactenos.

INSTRUCTION MANUAL
GUIDE D'UTILISATION

INSTRUCTIVO DE OPERACION, CENTROS DE SERVICIO Y POLIZA DE
GARANT[A. ADVERTENOIA: LEASE ESTE INSTRUCTIVO ANTES DE

USAR EL PRODUCTO.

MANUAL DE INSTRUCCIONES

®

DCD980 20V Max* Heavy-Duty 1/2" (13 mm) Cordless Drill/Driver
DCD985 20V Max* Heavy-Duty 1/2" (13 mm) Cordless Hammerdrill/Drill/Driver

DCD980 Perceuse/visseuse industrielle sans fil 13 mm (1/2 po) de 20 V max*
DCD985 Marteau perforateur/Perceuse/Visseuse industriel sans fil 13 mm (1/2 po) de 20 V max*

Taladro/destornillador inal_mbrico de 1/2 pulg. (13 mm) para trabajos pesados de 20 V M_x* DCD980
Taladro percusor/taladro/destornillador inal_mbrico de 1/2 pulg. (13 mm) para trabajos pesados de 20 V M_x* DCD985

f

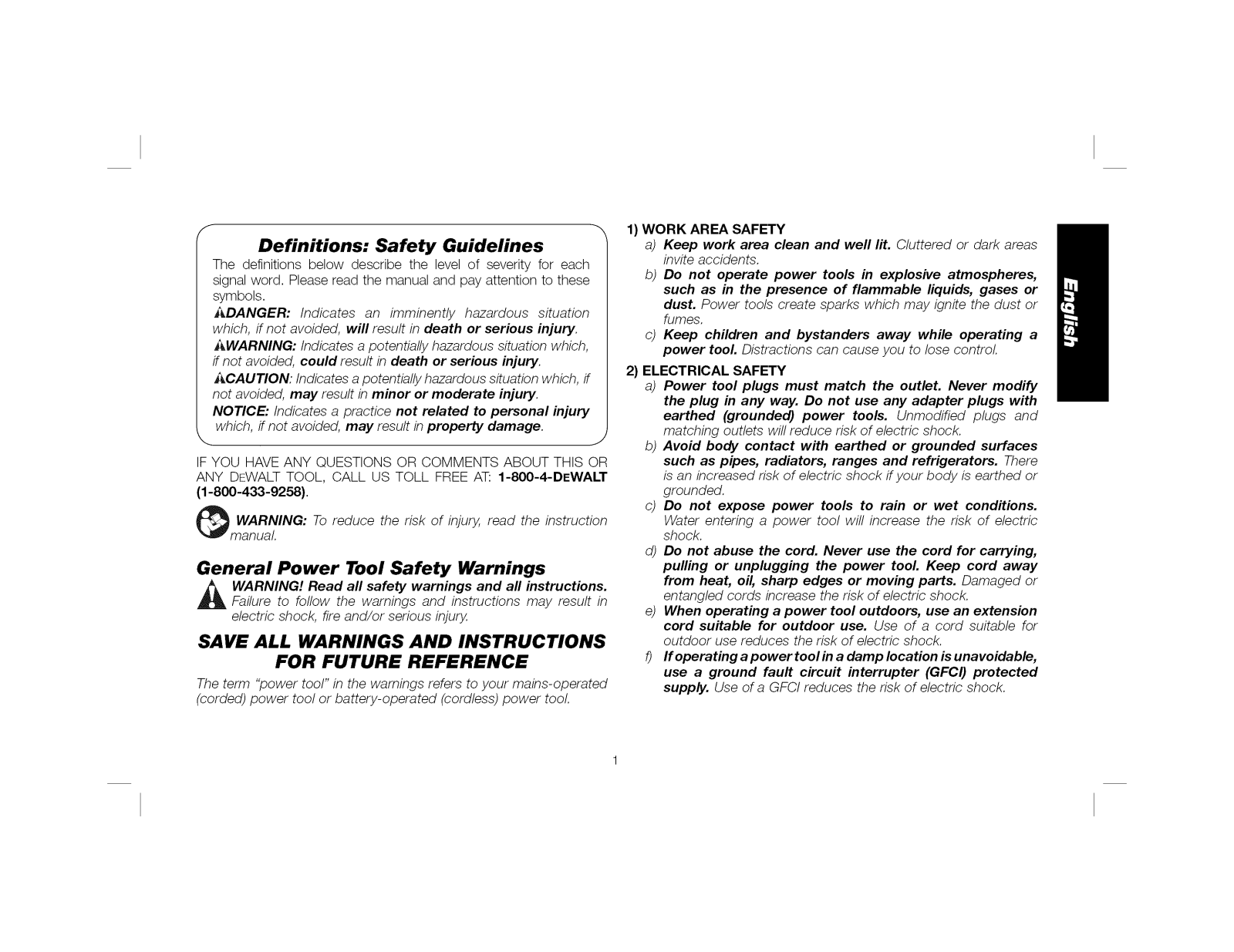

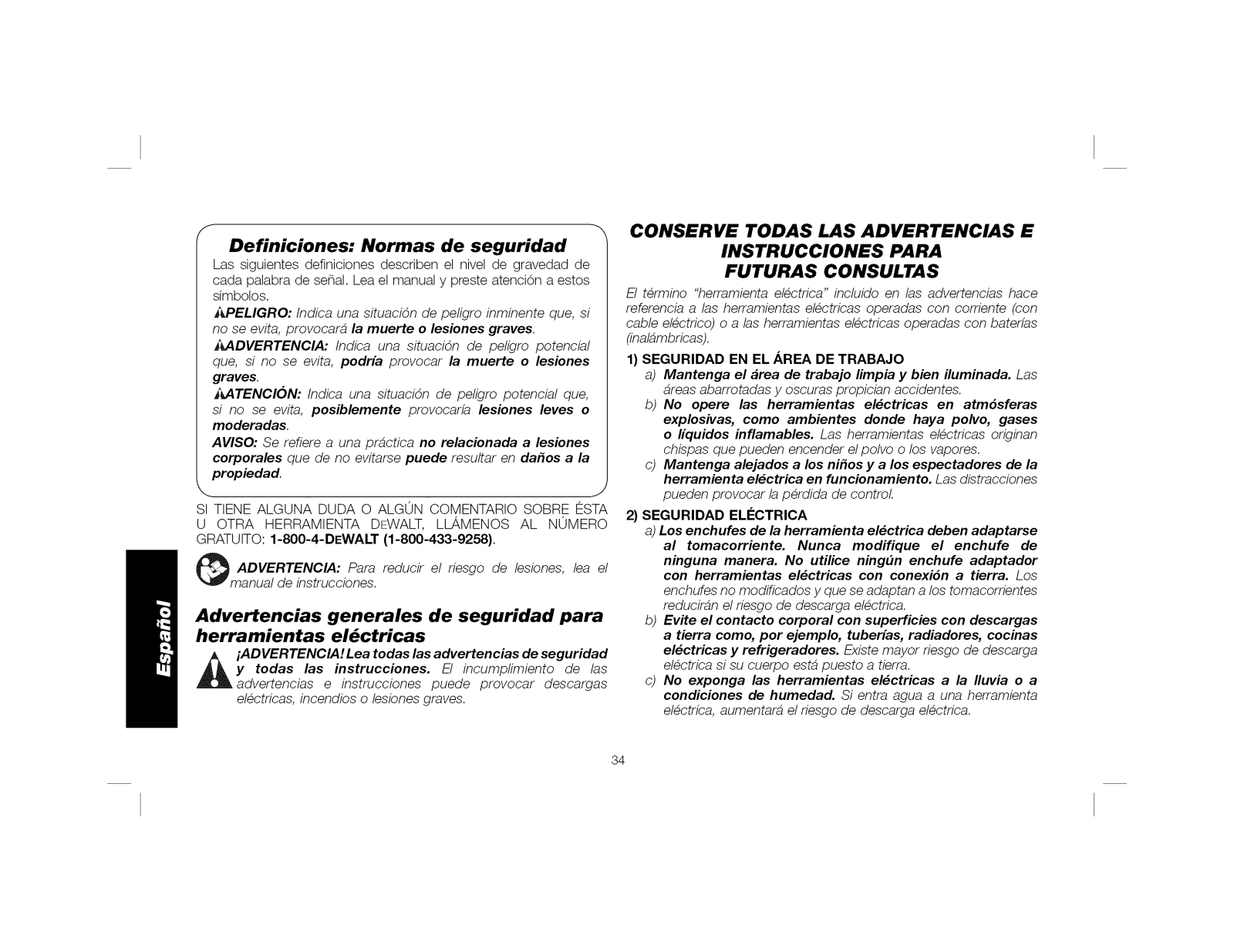

Definitions: Safety Guidelines

The definitions below describe the level of severity br each
signal word. Please read the manual and pay attention to these
symbols.

_DANGER: Indicates an imminently hazardous situation

which, if not avoided, will result in death or serious injury.

_WARNING: Indicates a potentially hazardous situation which,

if not avoided, could result in death or serious injury.

J_,CAUTION: Indicates a potentially hazardous situation which, if

not avoided, may result in minor or moderate injury.
NOTICE: Indicates a practice not related to personal injury

k which, if not avoided, may result in property damage.
IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR

ANY DEWALT TOOL, CALL US TOLL FREE AT: 1-800-4-DEWALT

(1-800-433-9258}.

_ WARNING: To reduce the risk of injury, read the instruction

manual.

General Power Tool Safety Warnings

A WARNIN!! Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in
electric shock, fire and/or serious injury,

SAVE ALL WARNINGS AND INSTRUCTIONS

FOR FUTURE REFERENCE

The term "power tool" in the warnings refers to your mains-operated
(corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas

invite accidents.

b) Do not operate power tools in explosive atmospheres,

such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust or
fumes.

c) Keep children and bystanders away while operating a

power tool. Distractions can cause you to lose control

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify

the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and

matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces

such as pipes, radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is earthed or

grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric
shock.

d) Do not abuse the cord. Never use the cord for carrying,

pulling or unplugging the power tool Keep cord away

from heat, oil, sharp edges or moving parts. Damaged or

entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension

cord suitable for outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric shock.

If operating a powertool in a damp location is unavoidable,
use a ground fault circuit interrupter (GFCI) protected

supply. Use of a GFCI reduces the risk of electric shock.

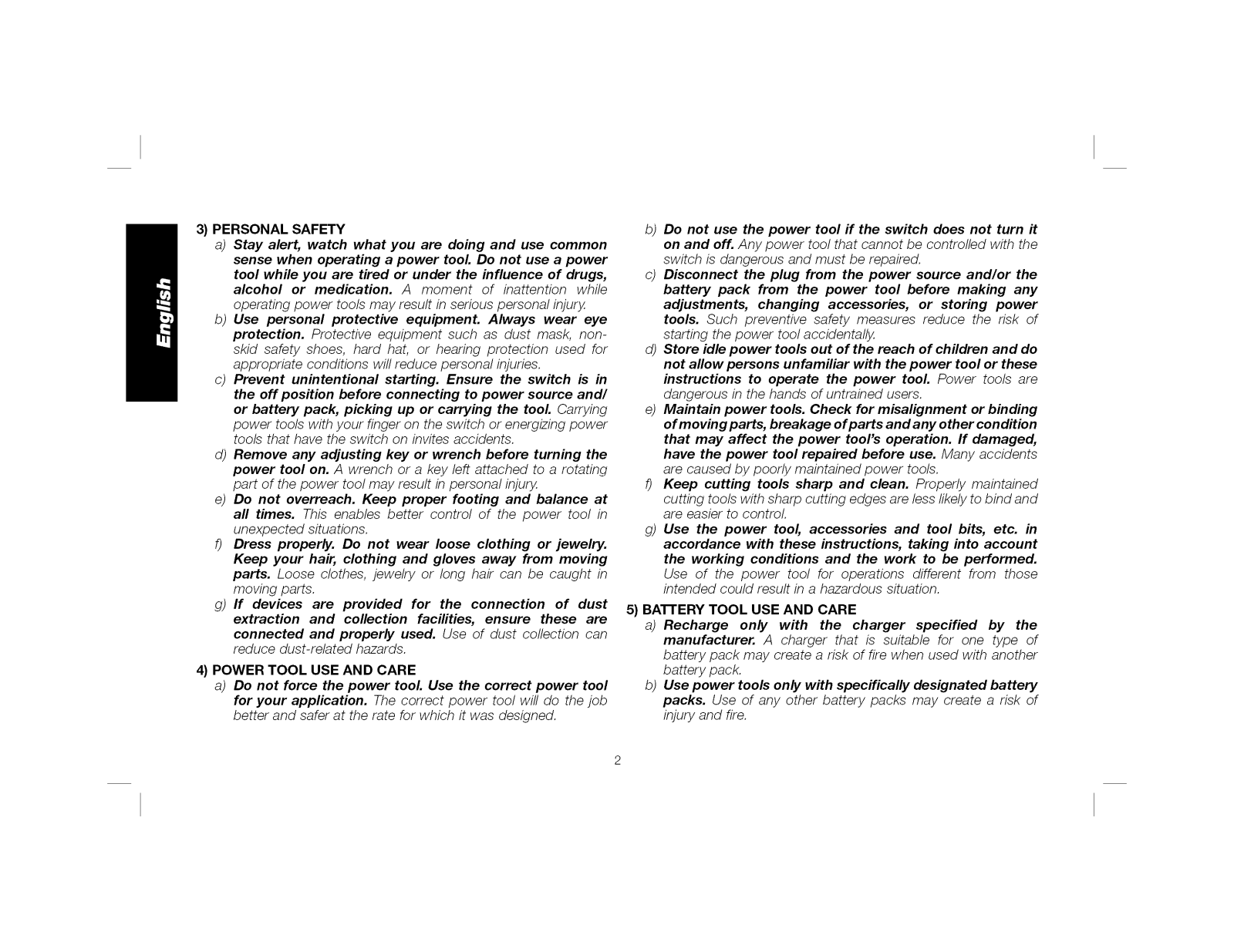

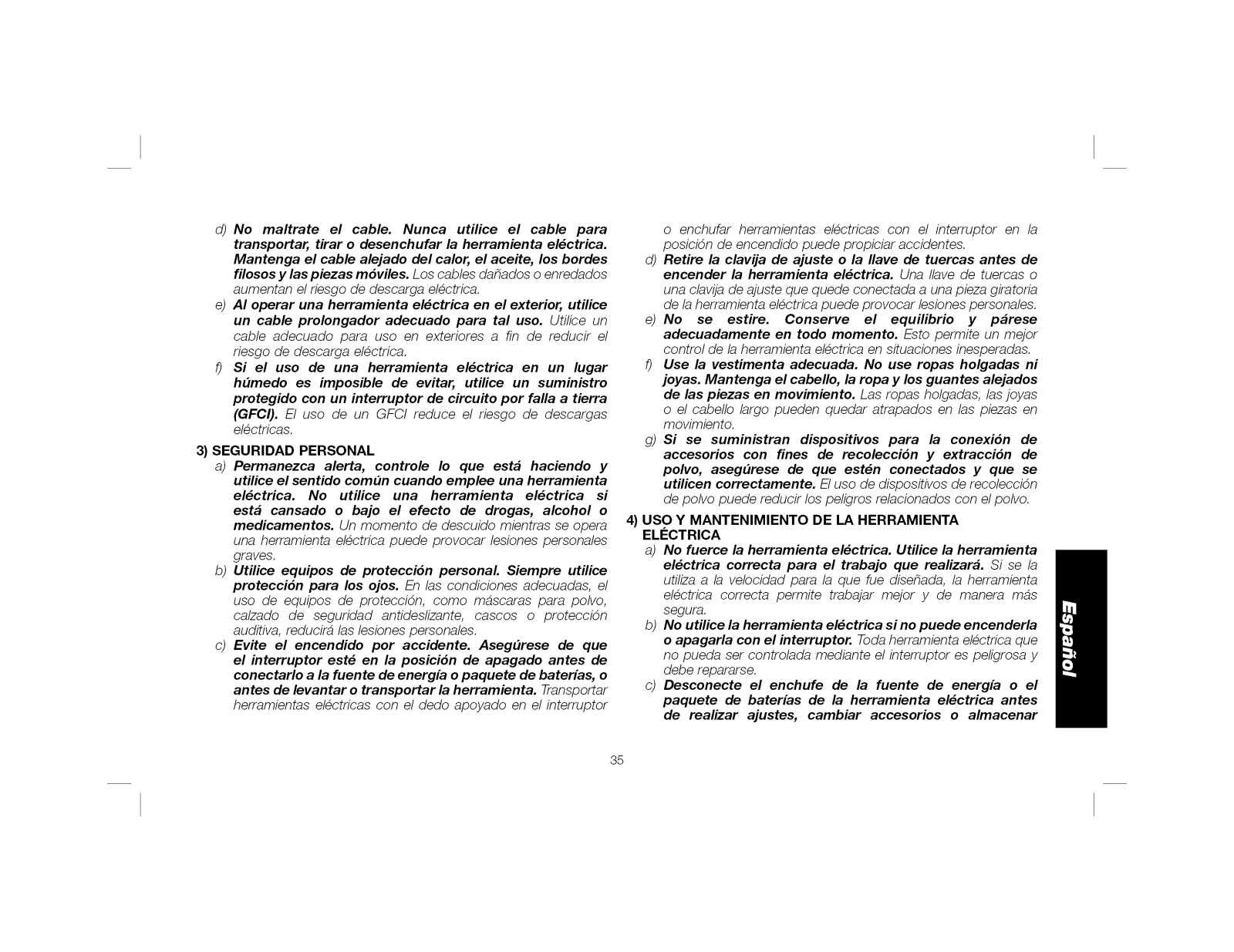

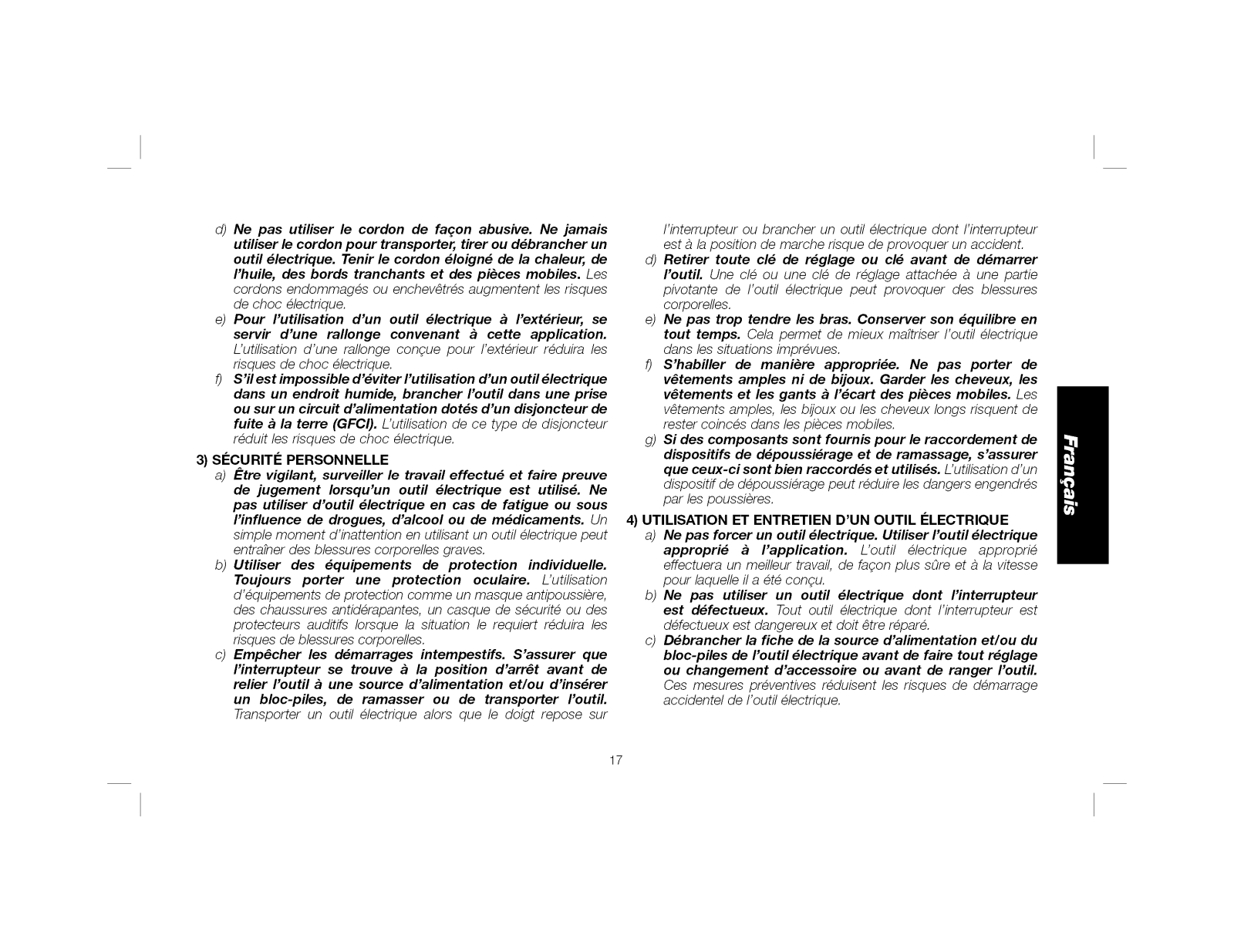

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common

sense when operating a power tool. Do not use a power
tool while you are tired or under the influence of drugs,

alcohol or medication. A moment of inattention while

operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye

protection. Protective equipment such as dust mask, non-

skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in

the off position before connecting to power source and/
or battery pack, picking up or carrying the tool. Carrying

power tools with your finger on the switch or energizing power

tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the

power tool on. A wrench or a key left attached to a rotating
part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at

all times. This enables better control of the power tool in

unexpected situations.

f) Dress properly. Do not wear loose clothing or jewelry.

Keep your hair, clothing and gloves away from moving

parts. Loose clothes, jewelry or long hair can be caught in

moving parts.

g) If devices are provided for the connection of dust

extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can

reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool Use the correct power tool

for your application. The correct power tool will do the job
better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it

on and off. Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the

battery pack from the power tool before making any
adjustments, changing accessories, or storing power

tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.

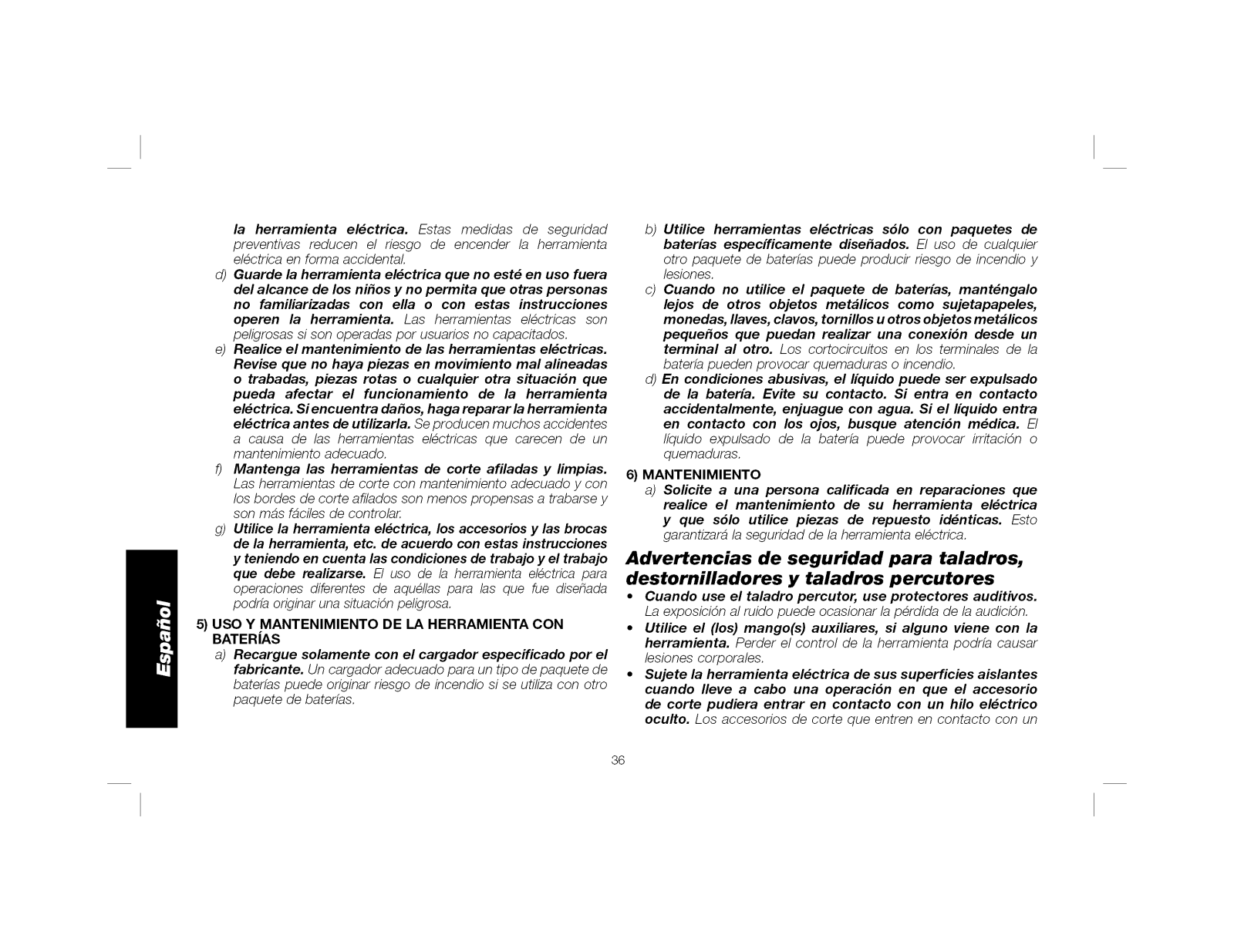

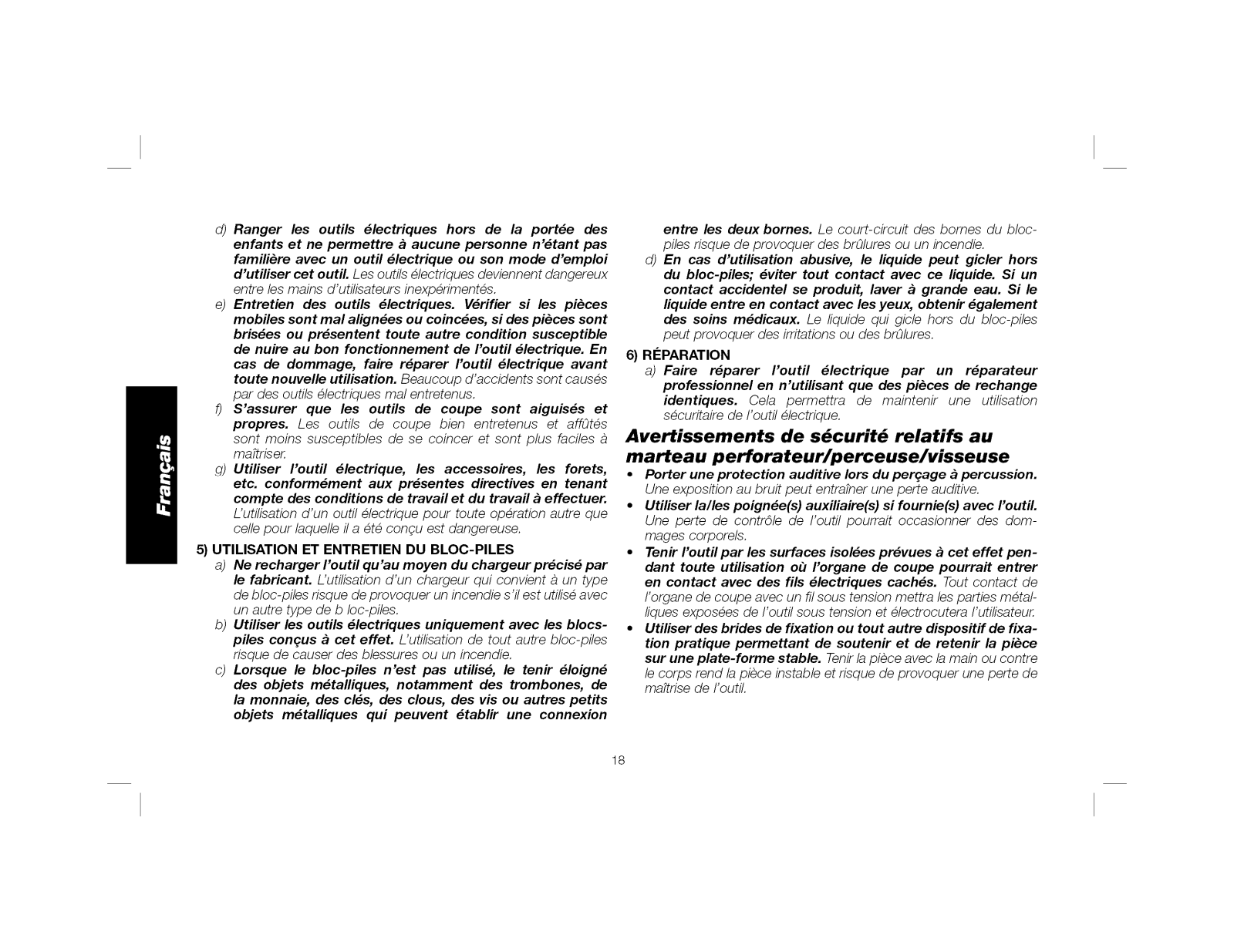

d) Store idle power tools out of the reach of children and do

not allow persons unfamiliar with the power tool or these
instructions to operate the power tool Power tools are

dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding

ofmoving parts, breakage of parts and any other condition
that may affect the power tool's operation. If damaged,

have the power tool repaired before use. Many accidents

are caused by poorly maintained power tools.
Keep cutting tools sharp and clean. Properly maintained

cutting tools with sharp cutting edges are less likely to bind and
are easier to control

g) Use the power tool, accessories and tool bits, etc. in

accordance with these instructions, taking into account
the working conditions and the work to be performed.

Use of the power tool for operations different from those
intended could result in a hazardous situation.

5) BATFERY TOOL USE AND CARE

a) Recharge only with the charger specified by the

manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with another

battery pack.

b) Use power tools only with specifically designated battery

packs. Use of any other battery packs may create a risk of

injury and fire.

c)When battery pack is not in use, keep H away from other

metal objects like paper clips, coins, keys, nails, screws,

or other small metal objects that can make a connection
from one terminal to another. Shorting the battery terminals

together may cause bums or a fire.

d) Under abusive conditions, liquid may be ejected from

the battery; avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes, additionally seek

medical help. Liquid ejected from the battery may cause

irritation or bums.

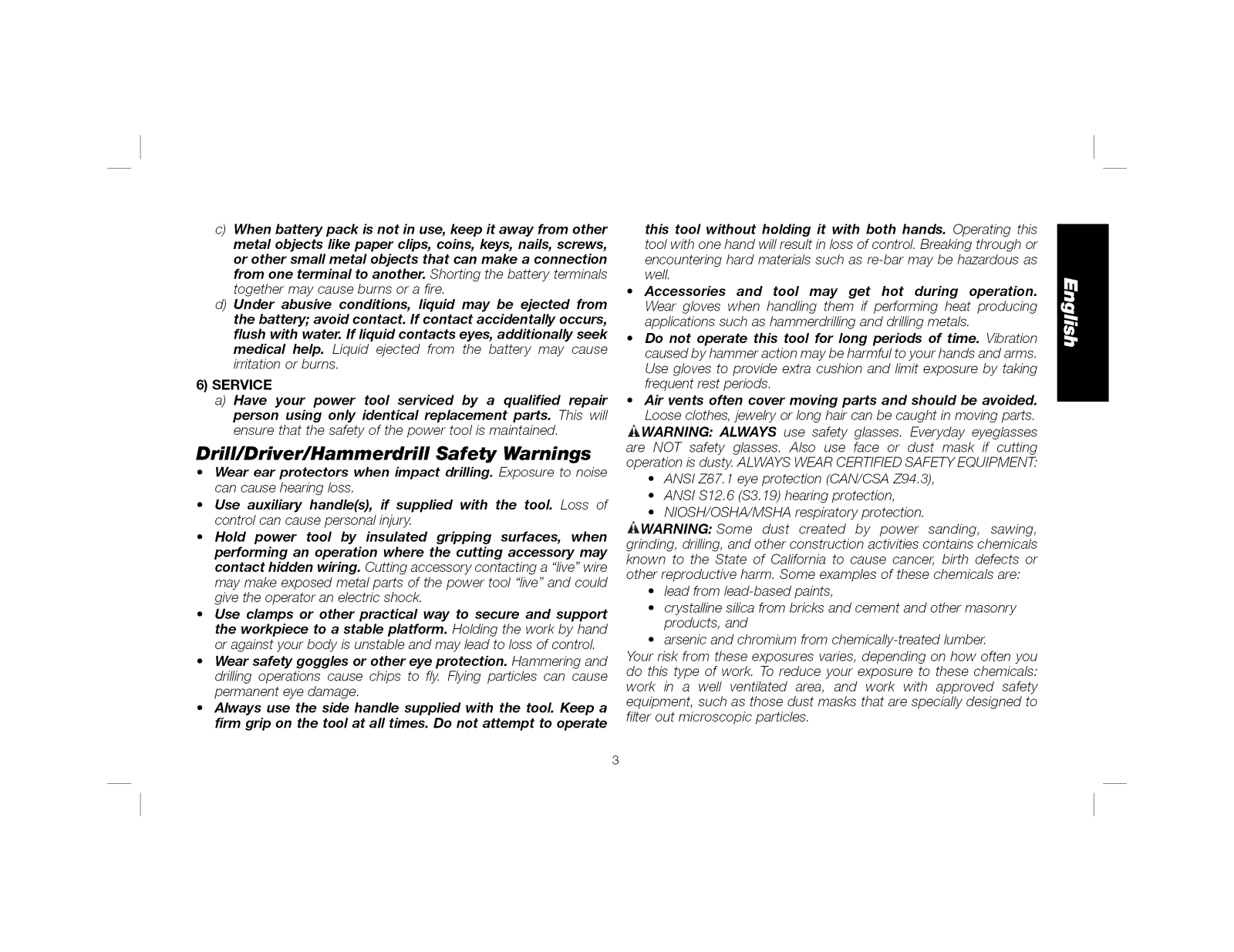

6} SERVICE

a) Have your power tool serviced by a qualified repair

person using only identical replacement parts. This will

ensure that the safety of the power tool is maintained.

Drill/Driver/Hammerdrill Safety Warnings

• Wear ear protectors when impact drilling. Exposure to noise

can cause hearing loss.

• Use auxiliary handle(s), if supplied with the tool. Loss of
control can cause personal injury.

• Hold power tool by insulated gripping surfaces, when

performing an operation where the cutting accessory may

contact hidden wiring. Cutting accessory contacting a "live" wire
may make exposed metal parts of the power tool "live" and could

give the operator an electric shock.

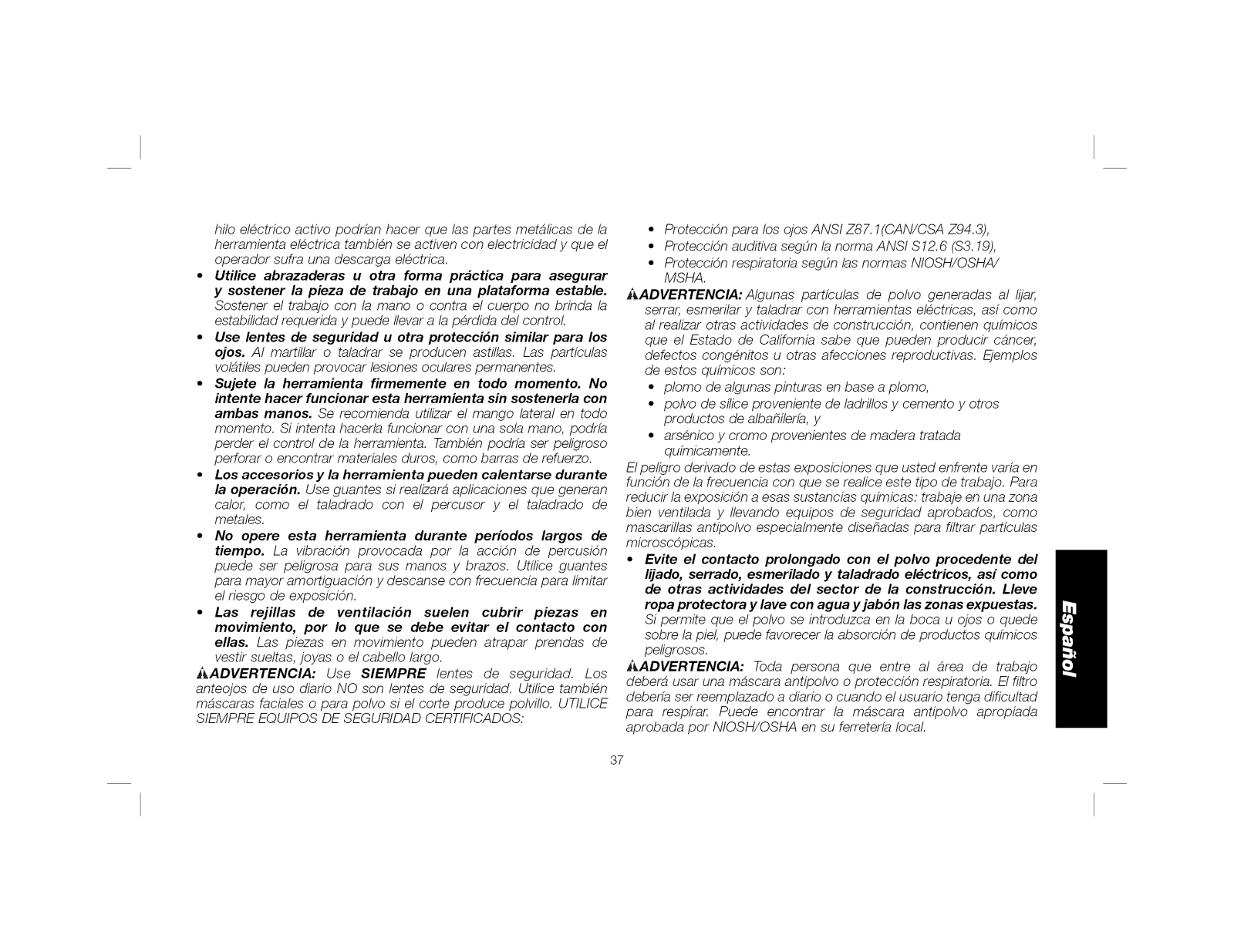

• Use clamps or other practical way to secure and support
the workpiece to a stable platform. Holding the work by hand
or against your body is unstable and may lead to loss of control.

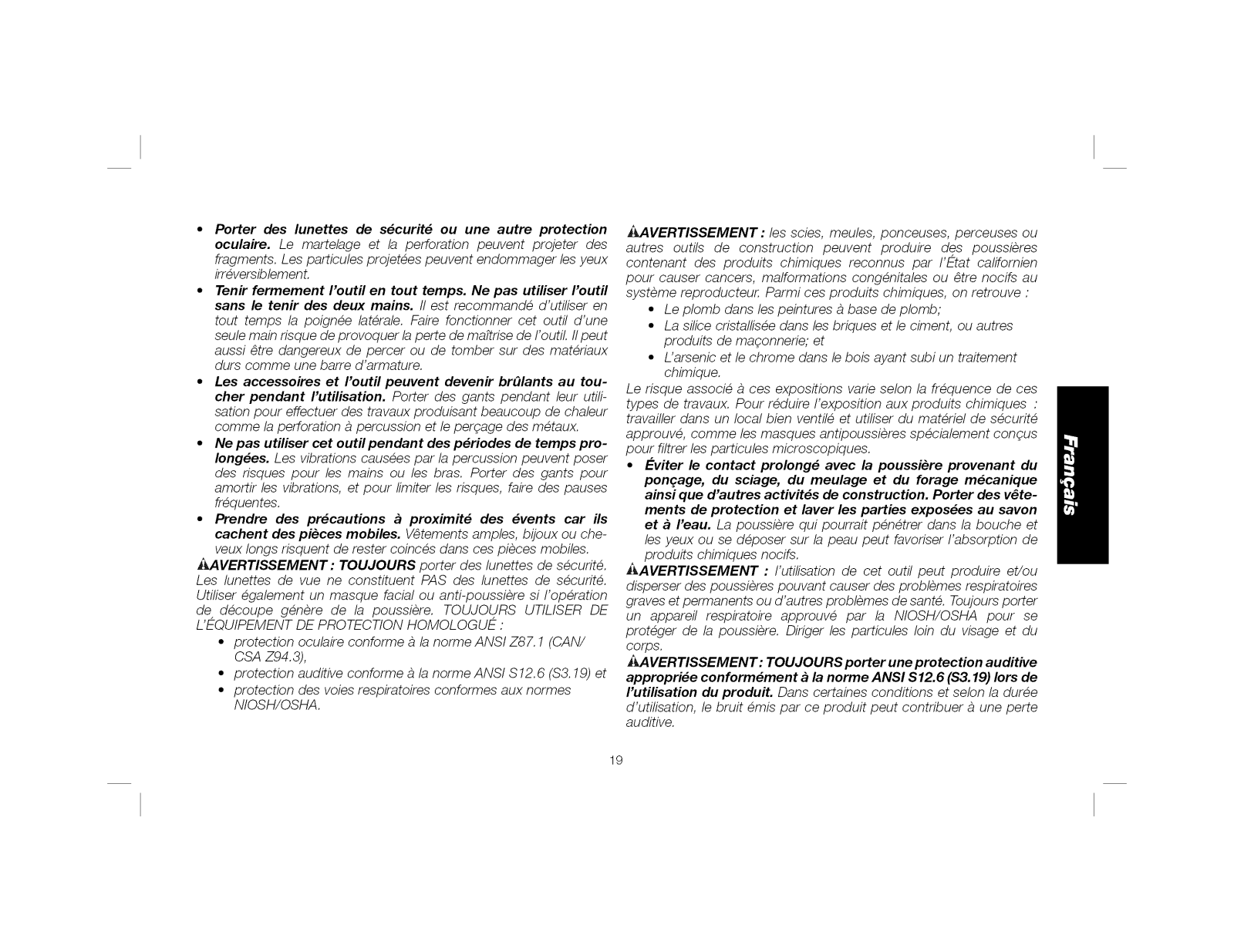

• Wear safety goggles or other eye protection. Hammering and
drilling operations cause chips to fly. Flying particles can cause

permanent eye damage.

• Always use the side handle supplied with the tool. Keep a

firm grip on the tool at all times. Do not attempt to operate

this tool without holding it with both hands. Operating this

tool with one hand will result in loss of control. Breaking through or
encountering hard materials such as re-bar may be hazardous as
well.

• Accessories and tool may get hot during operation.
Wear gloves when handling them if performing heat producing

applications such as hammerdrllling and drilling metals.

• Do not operate this tool for long periods of time. Vibration
caused by hammer action may be harmful to your hands and arms.

Use gloves to provide extra cushion and limit exposure by taking
frequent rest periods.

• Air vents often cover moving parts and should be avoided.
Loose clothes, jewelry or long hair can be caught in moving parts.

_WARNING: ALWAYS use safety glasses. Everyday eyeglasses
are NOT safety glasses. Also use face or dust mask if cutting
operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT"

• ANSI Z87. 1 eye protection (CAN/CSA Z94.3),

• ANSI $12.6 ($3.19) hearing protection,

• NIOSH/OSHA/MSHA respiratory protection.

_WARNING: Some dust created by power sanding, sawing,

grinding, drilling, and other construction activities contains chemicals

known to the State of California to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,

• crystalline silica from bricks and cement and other masonry
products, and

• arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:

work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed to

filter out microscopic particles.

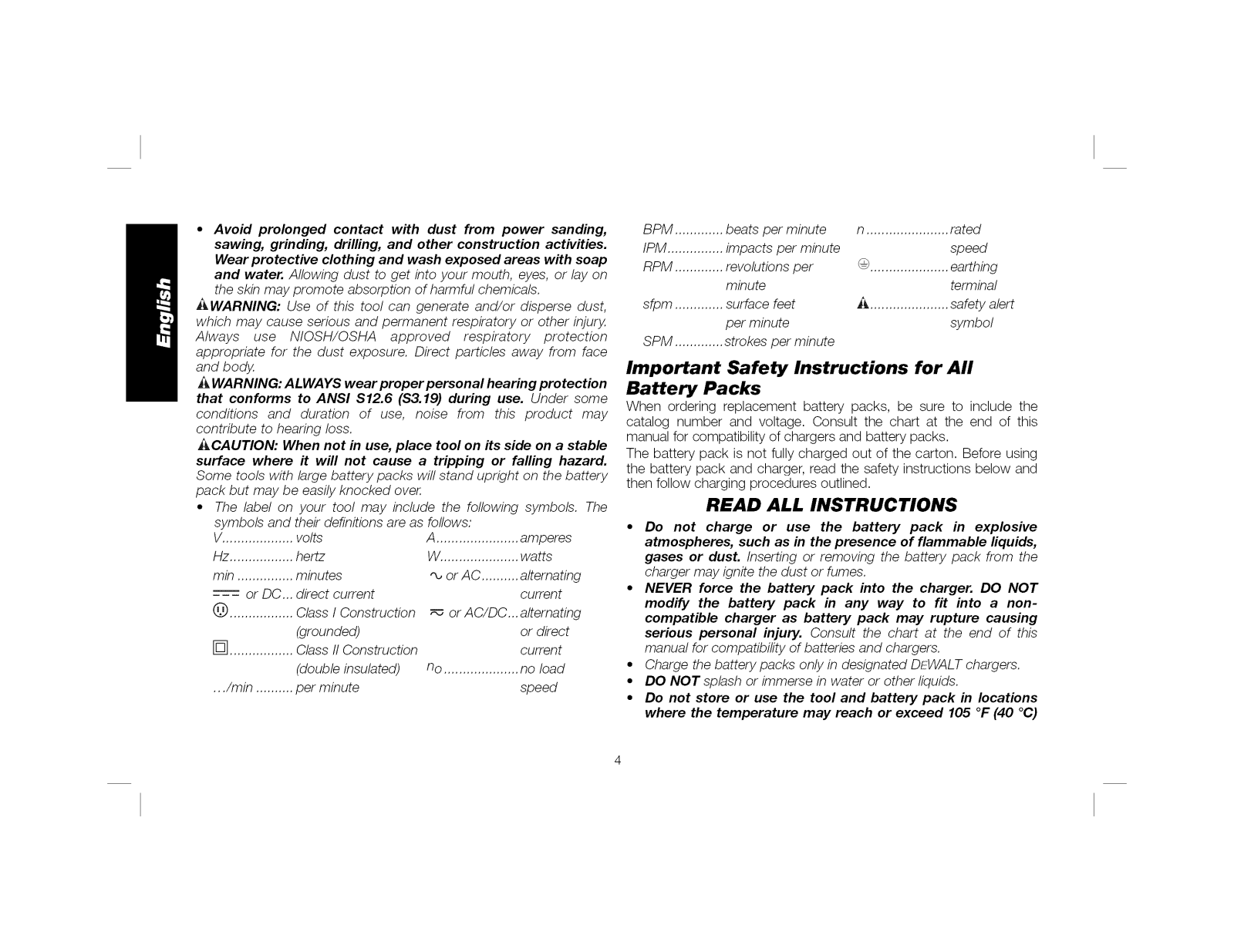

• Avoid prolonged contact with dust from power sanding,
sawing, grinding, drilling, and other construction activities.

Wear protective clothing and wash exposed areas with soap

and water. Allowing dust to get into your mouth, eyes, or lay on

the skin may promote absorption of harmful chemicals.
_,WARNING: Use of this tool can generate and/or disperse dust,
which may cause serious and permanent respiratory or other injury.

Always use NIOSH/OSHA approved respiratory protection

appropriate for the dust exposure. Direct particles away from face
and body.

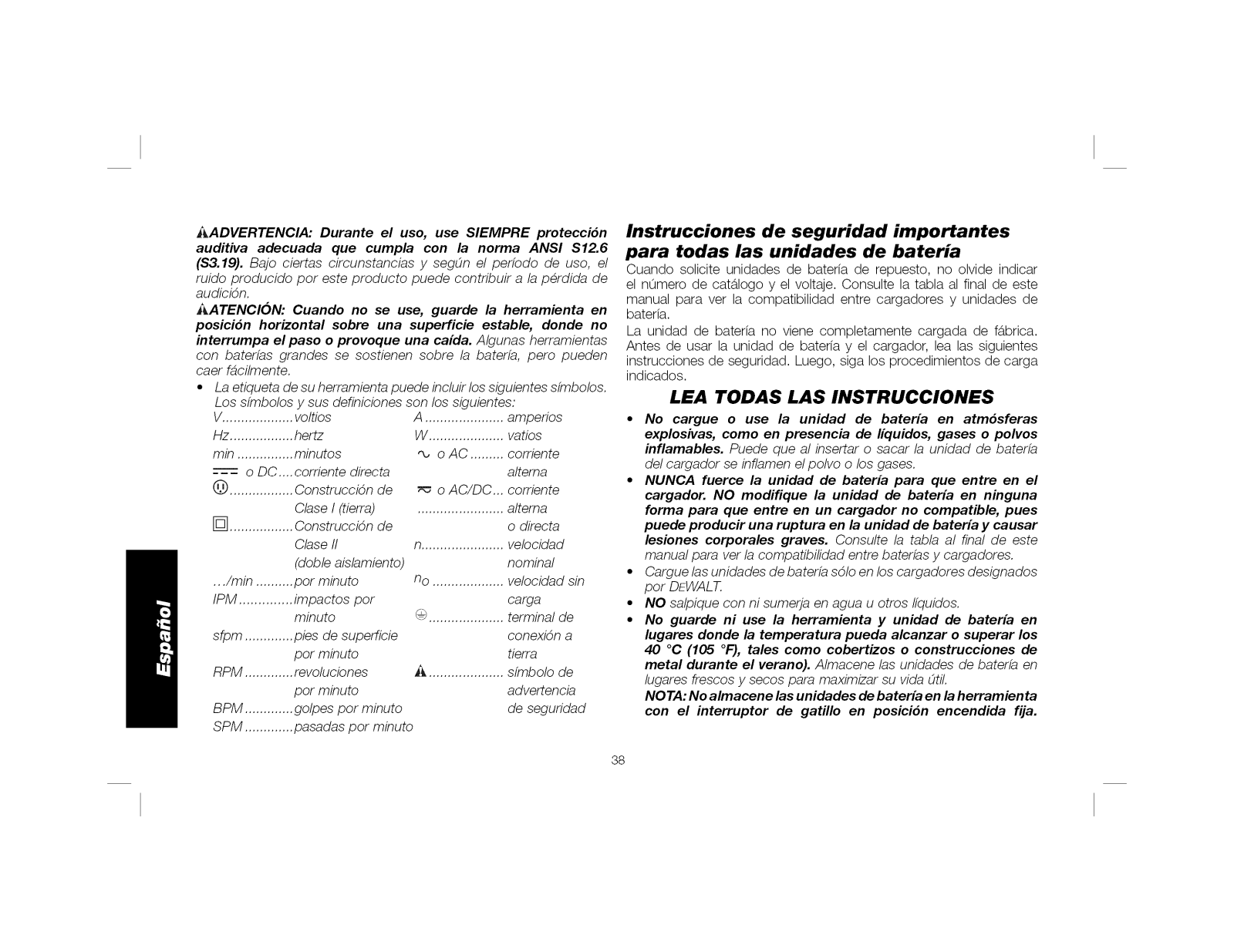

A WARNING: ALWAYS wear proper personal hearing protection
that conforms to ANSI $12.6 ($3.19) during use. Under some

conditions and duration of use, noise from this product may
contribute to hearing loss.

_CAUTION: When not in use, place tool on its side on a stable
surface where # will not cause a tripping or falling hazard.

Some tools with large battery packs will stand upright on the battery

pack but may be easily knocked over.

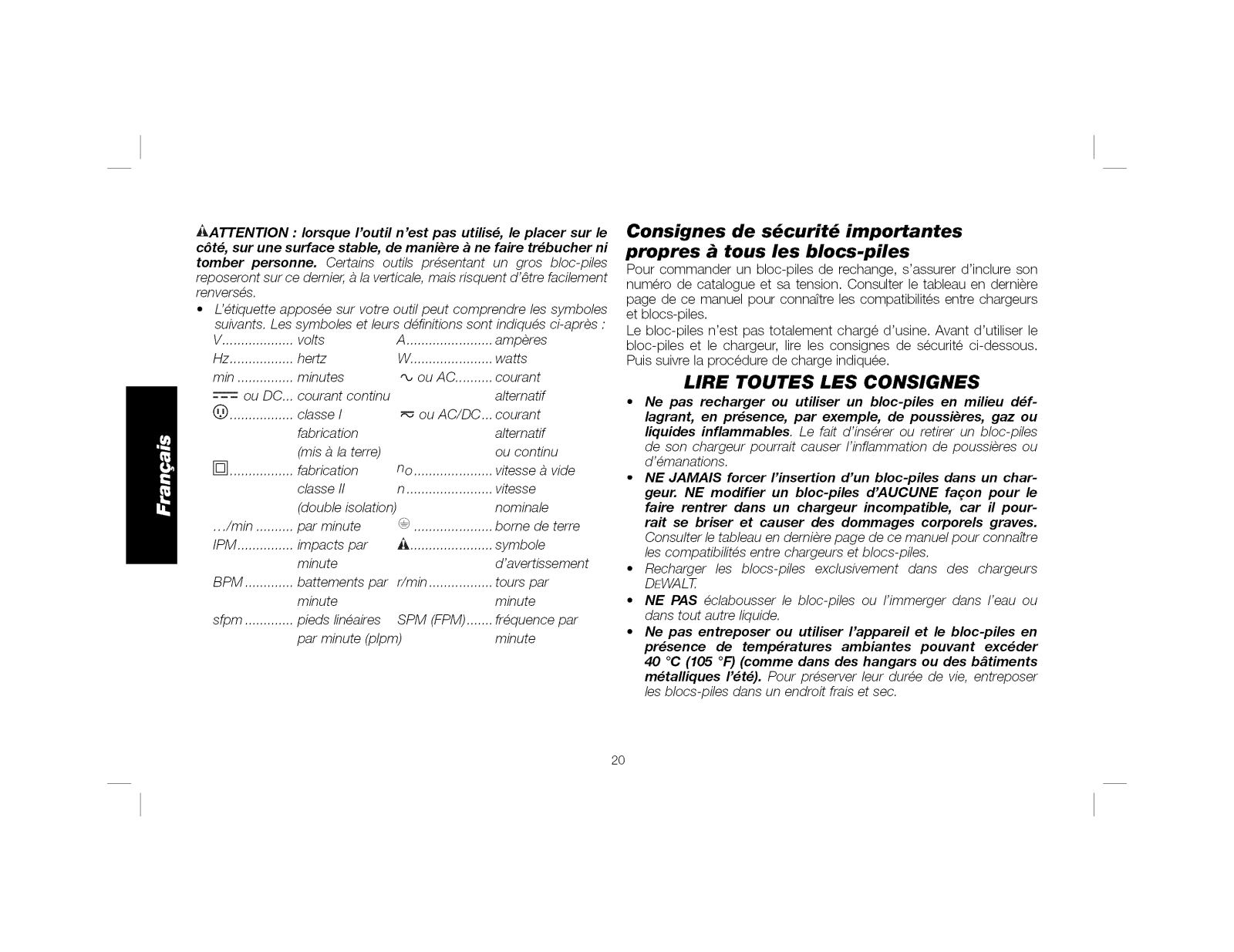

• The label on your tool may include the following symbols. The

symbols and their definitions are as follows:

V................... volts A...................... amperes

Hz................. hertz W..................... watts

min ............... minutes "_ or AC .......... alternating

--- or DC... direct current current

_) ................. Class I Construction _ or AC/DC... alternating

(grounded) or direct

[] ................. Class II Construction current

(double insulated) no.................... no load

.../min .......... per minute speed

BPM ............. beats per minute

IPM ............... impacts per minute

RPM ............. revolutions per

minute

sfpm ............. surface feet

per minute

SPM ............. strokes per minute

n...................... rated

speed

..................... earthing

terminal

_J,..................... safety alert

symbol

Important Safety Instructions for All

Battery Packs

When ordering replacement battery packs, be sure to include the
catalog number and voltage. Consult the chart at the end of this

manual for compatibility of chargers and battery packs.
The battery pack is not fully charged out of the carton. Before using

the battery pack and charger, read the safety instructions below and
then follow charging procedures outlined.

READ ALL INSTRUCTIONS

• Do not charge or use the battery pack in explosive
atmospheres, such as in the presence of flammable liquids,

gases or dust. Inserting or removing the battery pack from the

charger may ignite the dust or fumes.

• NEVER force the battery pack into the charger. DO NOT

modify the battery pack in any way to fit into a non-
compatible charger as battery pack may rupture causing

serious personal injury. Consult the chart at the end of this

manual for compatibility of batteries and chargers.

• Charge the battery packs only in designated DEWALT chargers.

• DO NOT splash or immerse in water or other liquids.

• Do not store or use the tool and battery pack in locations

where the temperature may reach or exceed 105 °F (40 °C)

(such as outside sheds or metal buildings in summer). For

best life store battery packs in a cool, dry location.

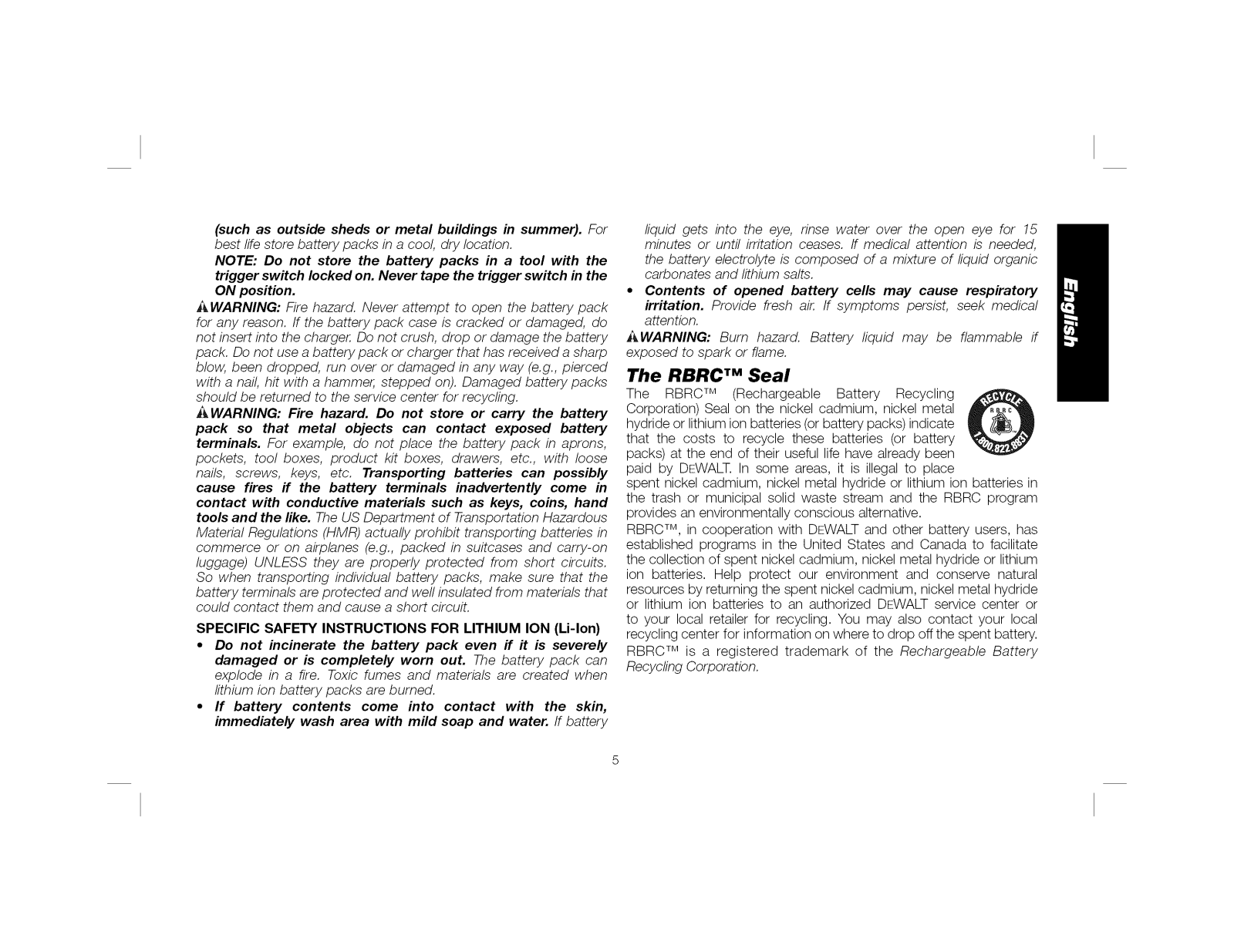

NOTE: Do not store the battery packs in a tool with the
trigger switch locked on. Never tape the trigger switch in the

ON position.

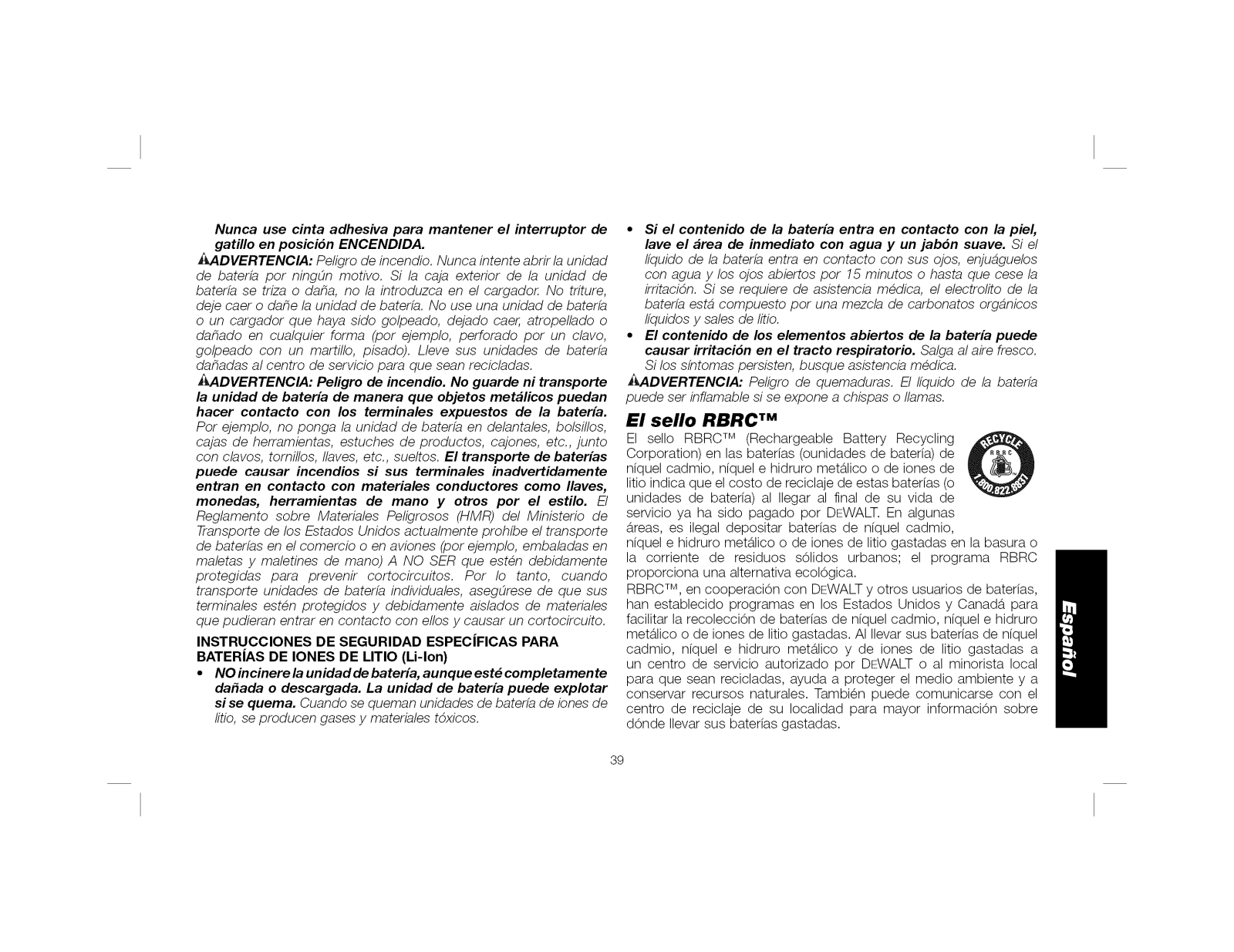

_WARNING: Fire hazard. Never attempt to open the battery pack
for any reason. If the battery pack case is cracked or damaged, do

not insert into the charger. Do not crush, drop or damage the battery

pack. Do not use a battery pack or charger that has received a sharp

blow, been dropped, run over or damaged in any way (e.g., pierced
with a nail, hit with a hammer, stepped on). Damaged battery packs

should be returned to the service center for recycling.
A WARNING: Fire hazard. Do not store or carry the battery

pack so that metal objects can contact exposed battery

terminals. For example, do not place the battery pack in aprons,

pockets, tool boxes, product kit boxes, drawers, etc., with loose

nails, screws, keys, etc. Transporting batteries can possibly

cause fires if the battery terminals inadvertently come in
contact with conductive materials such as keys, coins, hand

tools and the like. The US Department of Transportation Hazardous

Material Regulations (HMR) actually prohibit transporting batteries in
commerce or on airplanes (e.g., packed in suitcases and carry-on

luggage) UNLESS they are properly protected from short circuits.
So when transporting individual battery packs, make sure that the

battery terminals are protected and well insulated from materials that
could contact them and cause a short circuit.

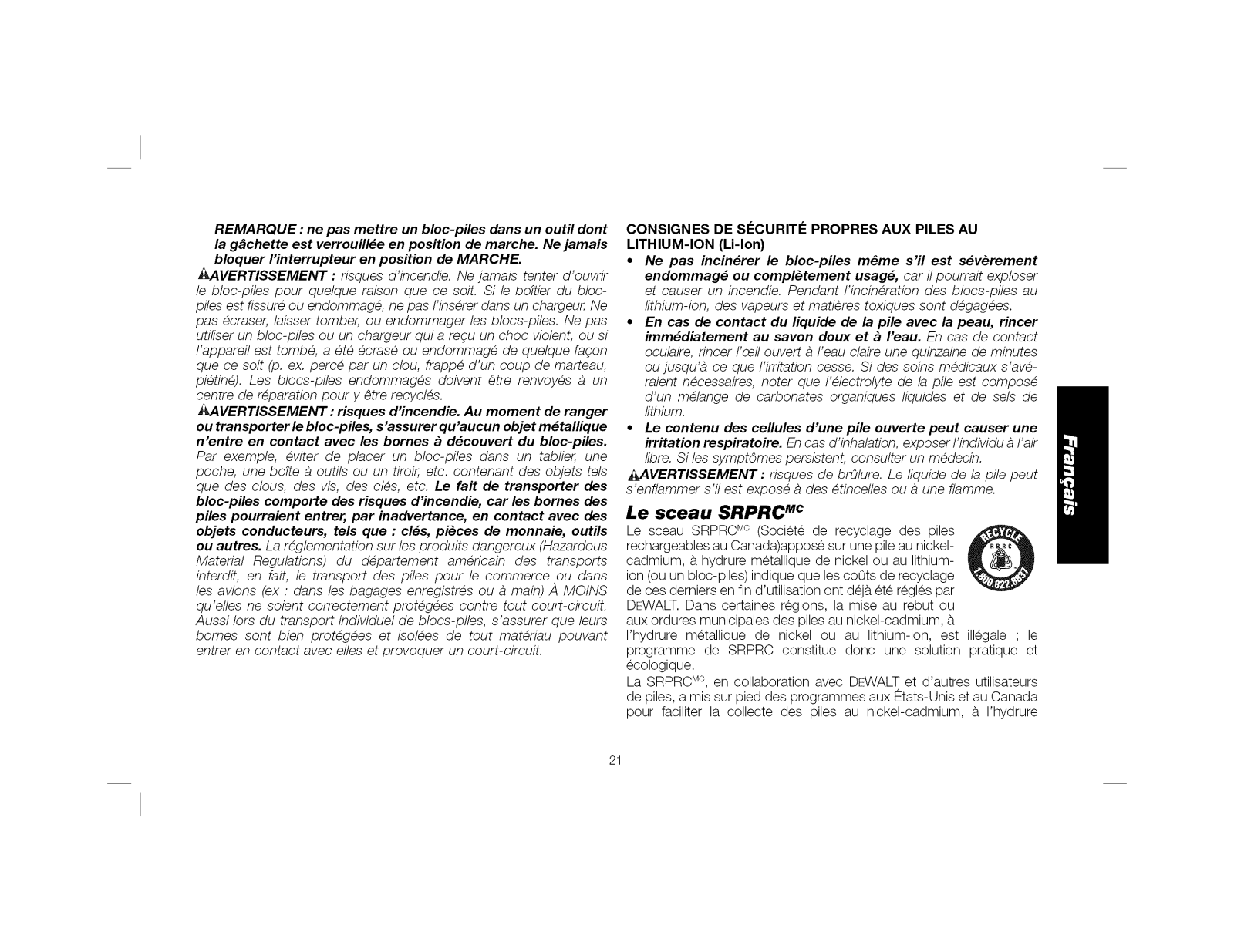

SPECIFIC SAFETY INSTRUCTIONS FOR LITHIUM ION (Li-lon)

• Do not incinerate the battery pack even if it is severely

damaged or is completely worn out. The battery pack can

explode in a fire. Toxic fumes and materials are created when
lithium ion battery packs are burned.

• If battery contents come into contact with the skin,
immediately wash area with mild soap and water. If battery

liquid gets into the eye, rinse water over the open eye for 15
minutes or until irritation ceases. If medical attention is needed,

the battery electrolyte is composed of a mixture of liquid organic
carbonates and lithium salts.

• Contents of opened battery cells may cause respiratory
irritation. Provide fresh air. If symptoms persist, seek medical

attention.

A WARNING: Bum hazard. Battery liquid may be flammable if
exposed to spark or flame.

The RBRC TM Seal

The RBRC TM (Rechargeable Battery Recycling
Corporation) Seal on the nickel cadmium, nickel metal

hydride or lithium ion batteries (or battery packs) indicate
that the costs to recycle these batteries (or battery

packs) at the end of their useful life have already been
paid by DEiWALT.In some areas, it is illegal to place

spent nickel cadmium, nickel metal hydride or lithium ion batteries in
the trash or municipal solid waste stream and the RBRC program

provides an environmentally conscious alternative.
RBRCTM, in cooperation with DEWALT and other battery users, has

established programs in the United States and Canada to facilitate
the collection of spent nickel cadmium, nickel metal hydride or lithium

ion batteries. Help protect our environment and conserve natural
resources by returning the spent nickel cadmium, nickel metal hydride
or lithium ion batteries to an authorized DEWALT service center or

to your local retailer for recycling. You may also contact your local
recycling center for information on where to drop off the spent battery.

RBRC TM is a registered trademark of the Rechargeable Battery

Recycling Corporation.

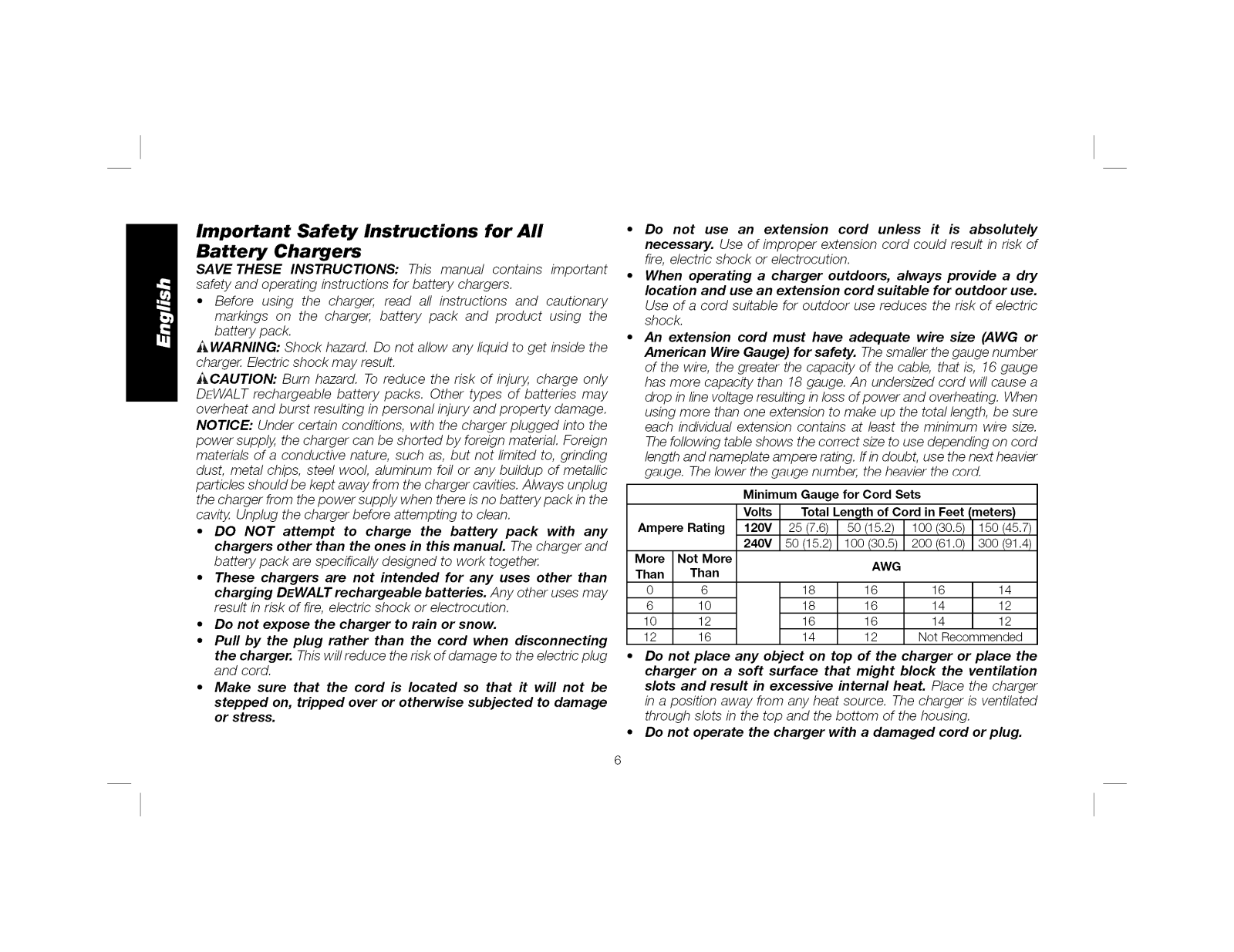

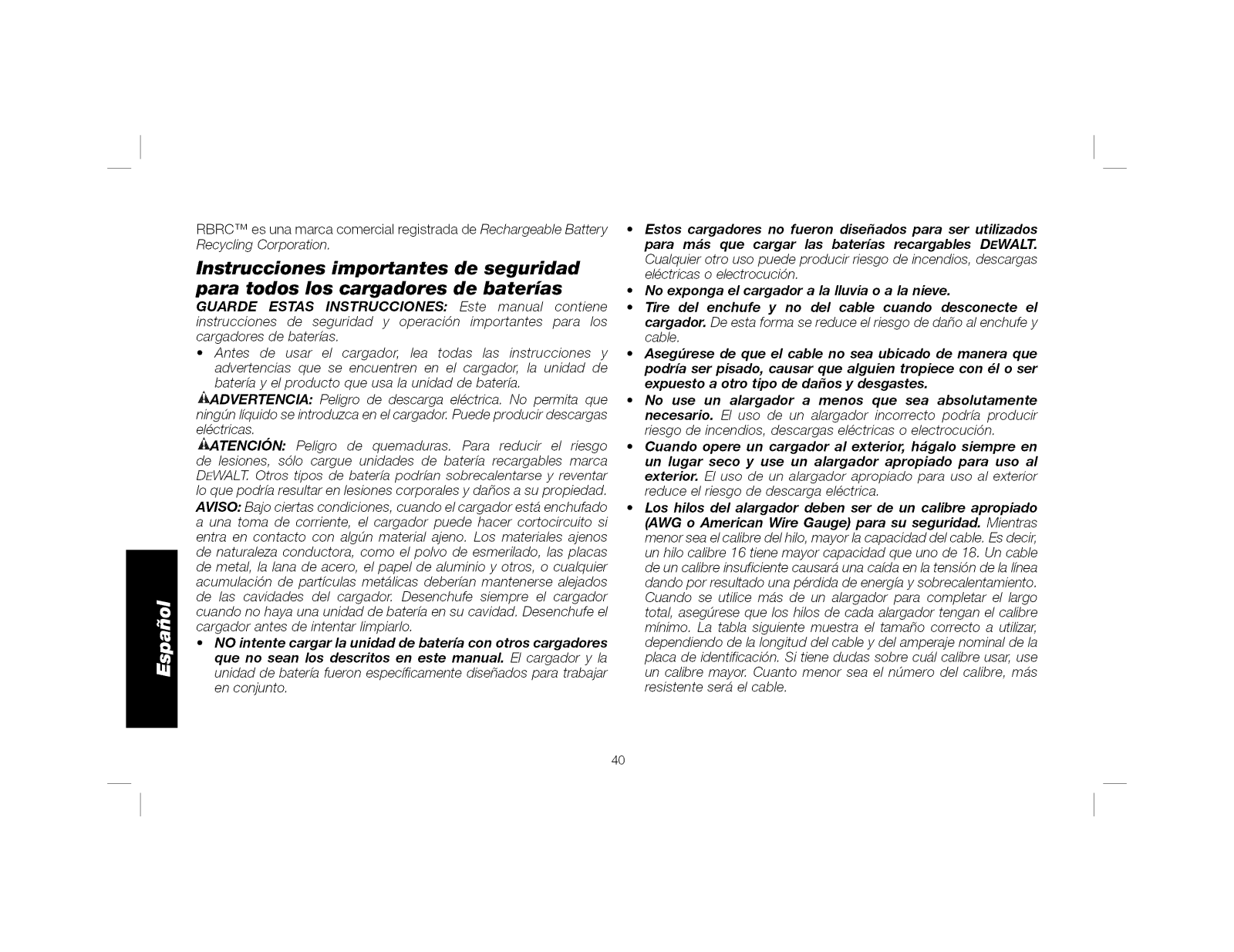

Important Safety Instructions for All

Battery Chargers

SAVE THESE INSTRUCTIONS: This manual contains important

safety and operating instructions for battery chargers.

• Before using the charger, read all instructions and cautionary
markings on the charger, battery pack and product using the

battery pack.

i_,WARNING: Shock hazard. Do not allow any liquid to get inside the
charger. Electric shock may result.

i_CAUTION: Bum hazard. To reduce the risk of injury, charge only
DEWALT rechargeable battery packs. Other types of batteries may

overheat and burst resulting in personal injury and property damage.
NOTICE: Under certain conditions, with the charger plugged into the

power supply, the charger can be shorted by foreign material Foreign

materials of a conductive nature, such as, but not limited to, grinding
dust, metal chips, steel wool aluminum foil or any buildup of metallic

particles should be kept away from the charger cavities. Always unplug

the charger from the power supply when there is no battery pack in the
cavity, Unplug the charger before attempting to clean.

• DO NOT attempt to charge the battery pack with any
chargers other than the ones in this manual The charger and

battery pack are specifically designed to work together.

• These chargers are not intended for any uses other than
charging DEWALT rechargeable batteries. Any other uses may

result in risk of fire, electric shock or electrocution.

• Do not expose the charger to rain or snow.

• Pull by the plug rather than the cord when disconnecting
the charger. This will reduce the risk of damage to the electric plug

and cord.

• Make sure that the cord is located so that it will not be

stepped on, tripped over or otherwise subjected to damage

or stress.

Do not use an extension cord unless it is absolutely
necessary. Use of improper extension cord could result in risk of

fire, electric shock or electrocution.

When operating a charger outdoors, always provide a dry
location and use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric
shock.

An extension cord must have adequate wire size (AWG or
American Wire Gauge) for safety. The smaller the gauge number

of the wire, the greater the capacity of the cable, that is, 16 gauge
has more capacity than 18 gauge. An undersized cord will cause a

drop in line voltage resulting in loss of power and overheating. When
using more than one extension to make up the total length, be sure
each individual extension contains at least the minimum wire size.

The following table shows the correct size to use depending on cord
length and nameplate ampere rating. Ifin doubt, use the next heavier

gauge. The lower the gauge number, the heavier the cord.

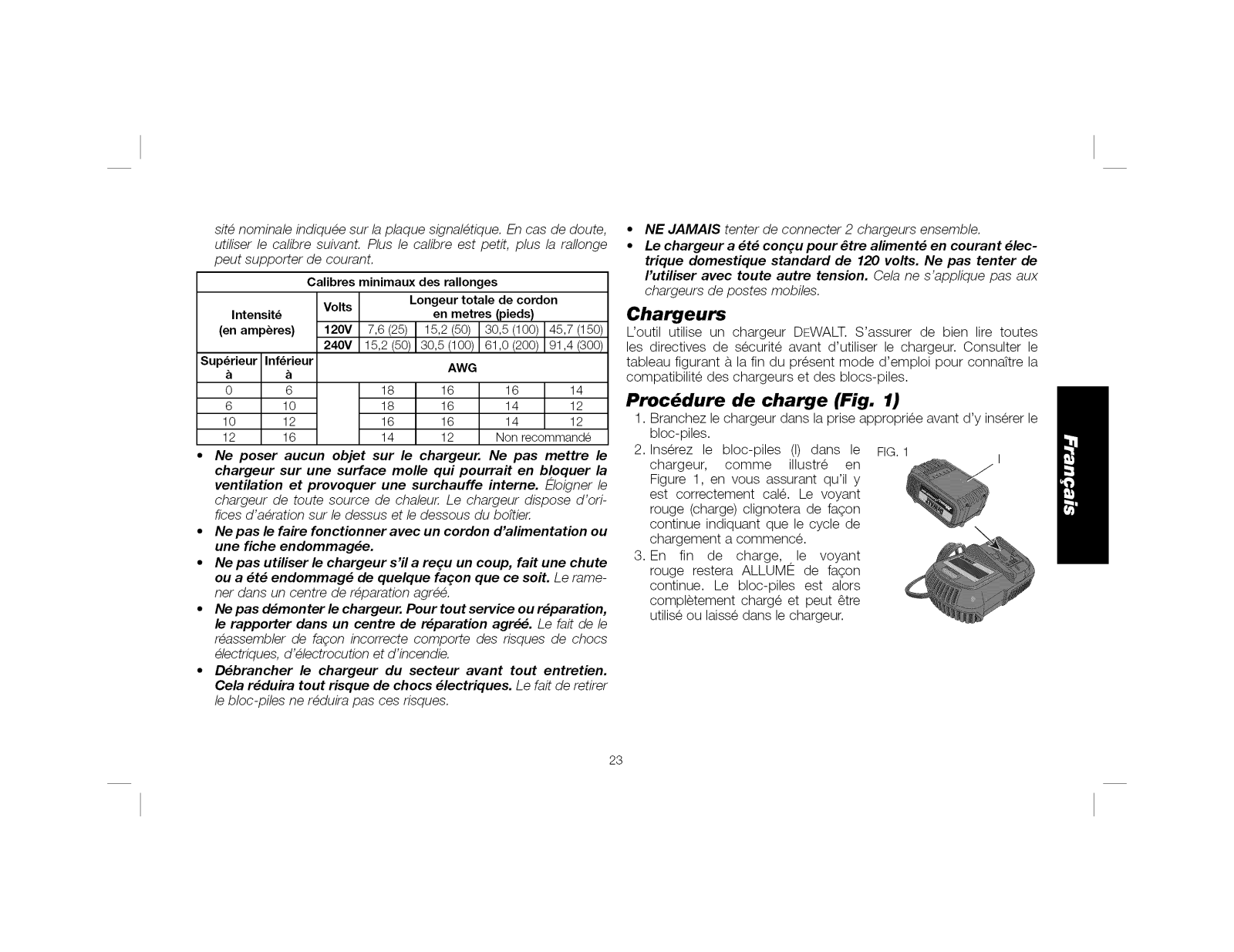

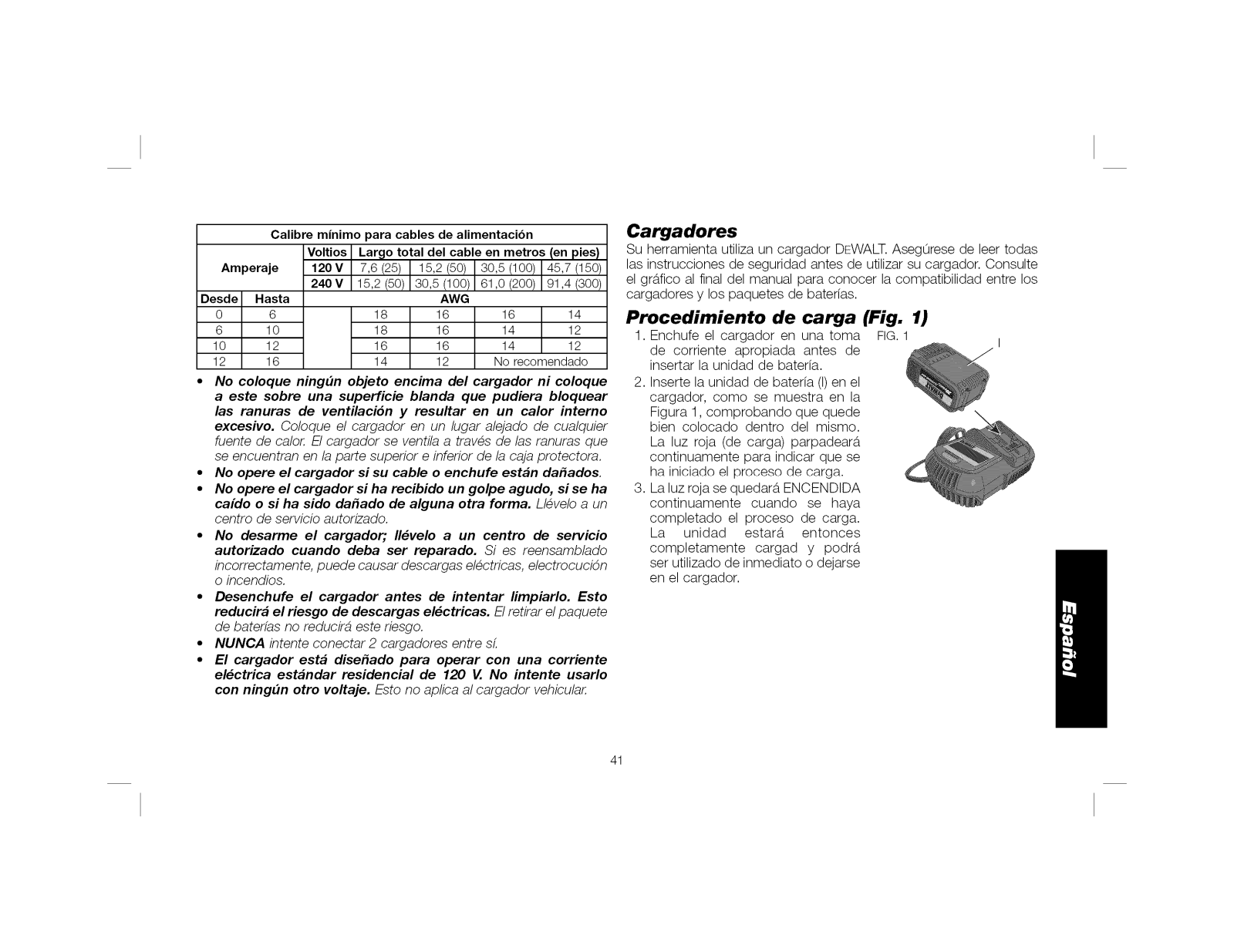

Minimum Gauge for Cord Sets
Volts

Ampere Rating 120V

240V

More Not More

Than Than

0 6
6 10

10 12
12 16

Total Length of Cord in Feet (meters)

25 (7.6) 50 (15.2) 100 (30.5) I 150 (45.7)

50 (15.2) 100 (30.5) 200 (61.0) I 300 (91.4)

AWG

18 16 16 14
18 16 14 12

16 16 14 12
14 12 NotRecommended

• Do not place any object on top of the charger or place the

charger on a soft surface that might block the ventilation
slots and result in excessive internal heat. Place the charger

in a position away from any heat source. The charger is ventilated
through slots in the top and the bottom of the housing.

• Do not operate the charger with a damaged cord or plug.

• Do not operate the charger if it has received a sharp blow,
been dropped or otherwise damaged in any way. Take it to an

authorized service center.

• Do not disassemble the charger; take it to an authorized
service center when service or repair is required. Incorrect

reassembly may result in a risk of electric shock, electrocution or fire.

• Disconnect the charger from the outlet before attempting

any cleaning. This will reduce the risk of electric shock.

Removing the battery pack will not reduce this risk.

• NEVER attempt to connect 2 chargers together.

• The charger is designed to operate on standard 120V

household electrical power. Do not attempt to use it on any
other voltage. This does not apply to the vehicular charger.

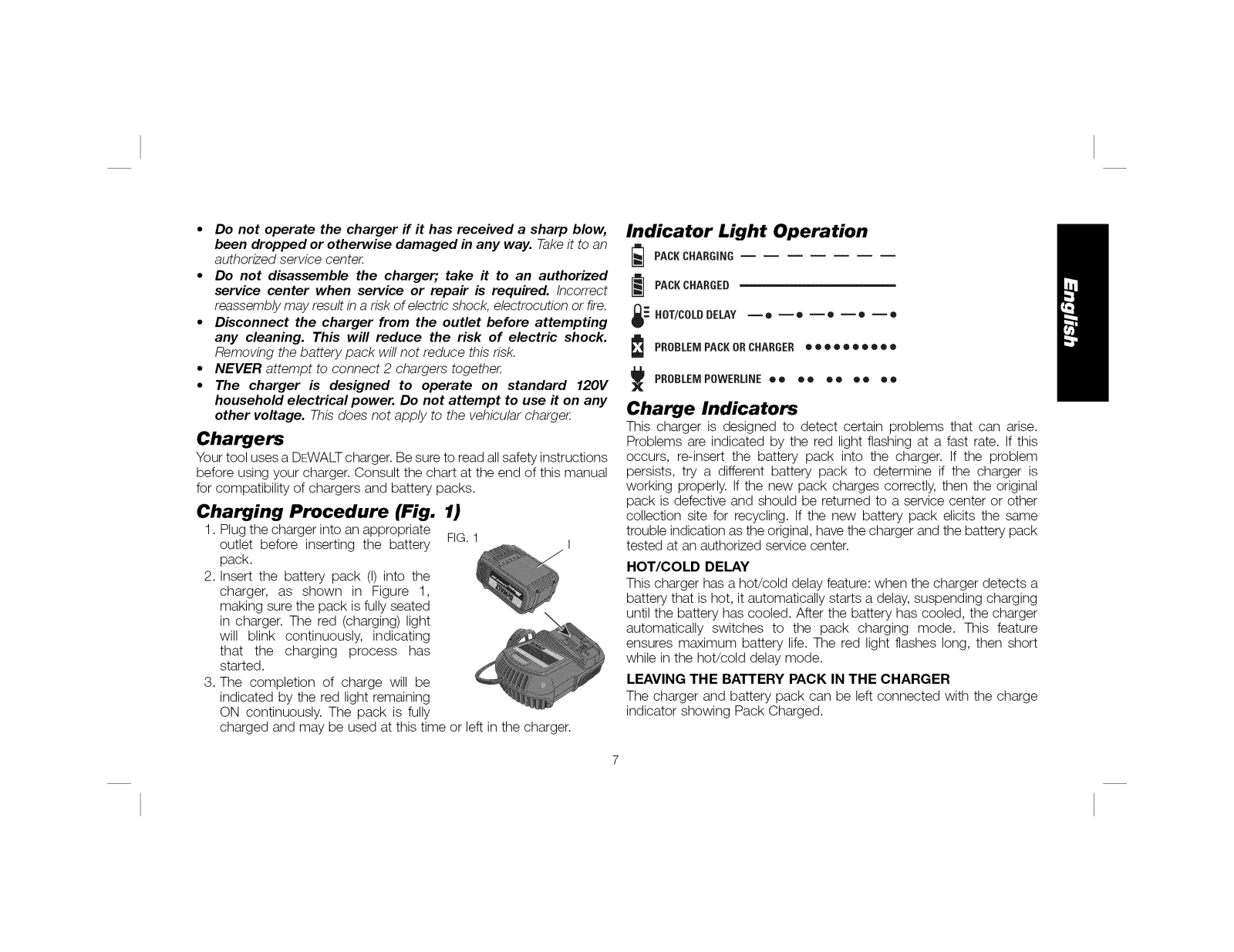

Chargers

Your tool uses a DEWALTcharger. Be sure to read all safety instructions
before using your charger. Consult the chart at the end of this manual

for compatibility of chargers and battery packs.

Charging Procedure (Fig. 1)

1. Plug the charger into an appropriate FIG.1
outlet before inserting the battery I

pack.

2. Insert the battery pack (I) into the
charger, as shown in Figure 1,

making sure the pack is fully seated
in charger. The red (charging) light

will blink continuously, indicating
that the charging process has

started.

3. The completion of charge will be
indicated by the red light remaining

ON continuously. The pack is fully
charged and may be used at this time or left in the charger.

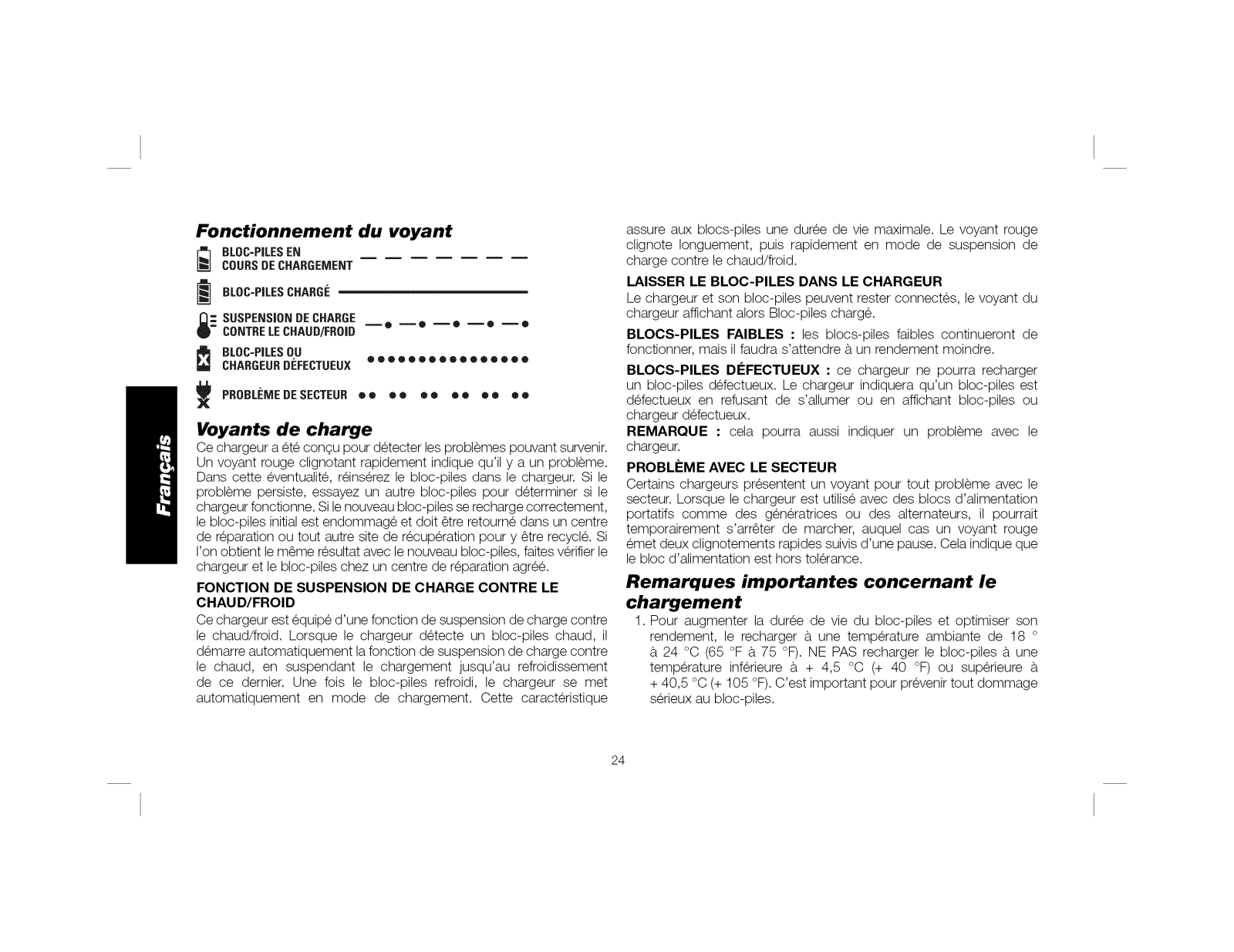

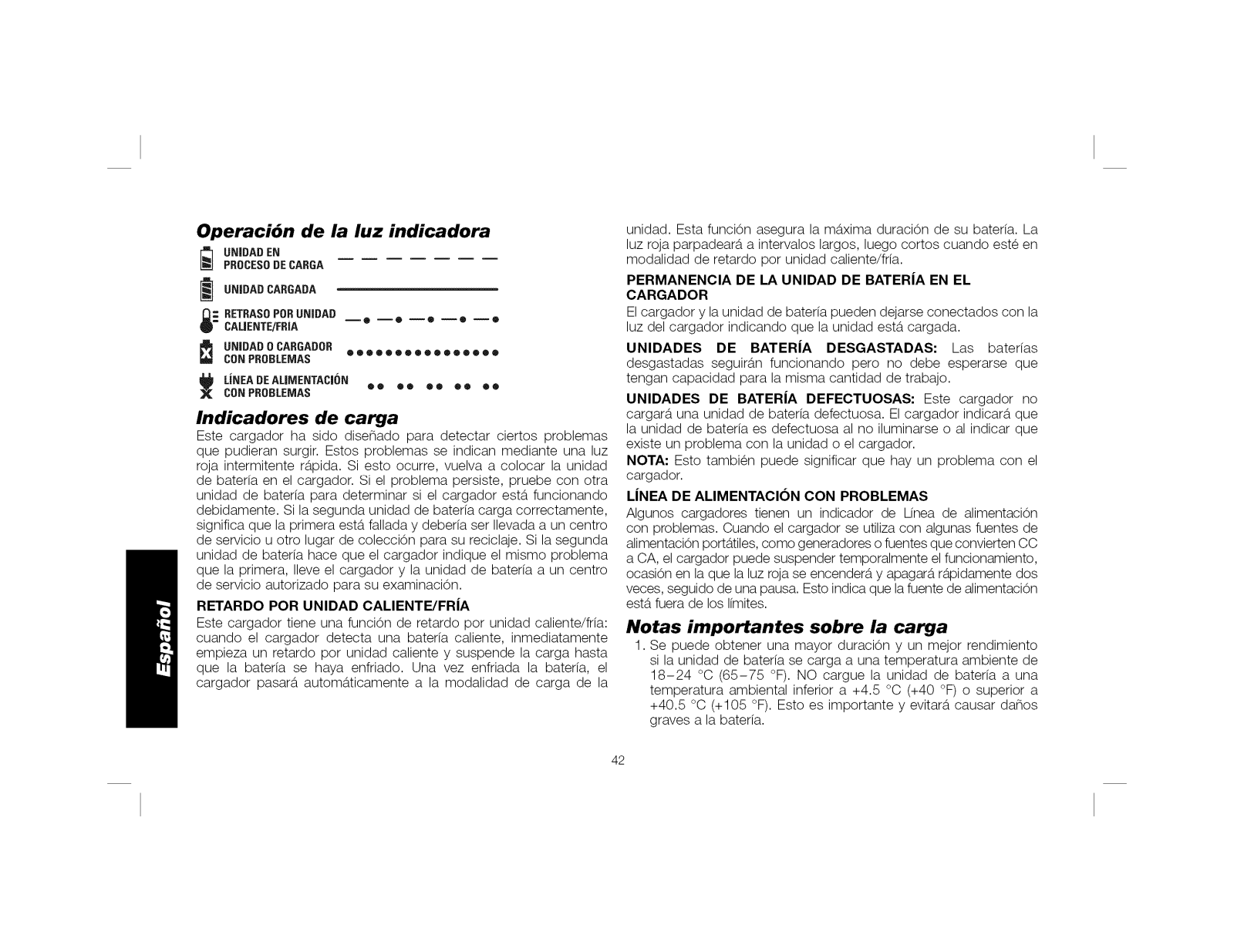

Indicator Light Operation

PACKCHARGING
PACKCHARGED

)=- OT/COLDDELAY-- e -- • -- e -- e -- ®

PROBLEMPACKORCHARGERe• • =)• • • • • •

PROBLEMPOWERLINEeo ®® ee eo e®

Charge Indicators

This charger is designed to detect certain problems that can arise.

Problems are indicated by the red light flashing at a fast rate. If this
occurs, re-insert the battery pack into the charger. If the problem

persists, try a different battery pack to determine if the charger is
working properly. If the new pack charges correctly, then the original

pack is defective and should be returned to a service center or other
collection site for recycling. If the new battery pack elicits the same
trouble indication as the original, have the charger and the battery pack

tested at an authorized service center.

HOT/COLD DELAY

This charger has a hot/cold delay feature: when the charger detects a
battery that is hot, it automatically starts a delay, suspending charging
until the battery has cooled. After the battery has cooled, the charger

automatically switches to the pack charging mode. This feature
ensures maximum battery life. The red light flashes long, then short

while in the hot/cold delay mode.

LEAVING THE BATTERY PACK IN THE CHARGER

The charger and battery pack can be left connected with the charge
indicator showing Pack Charged.

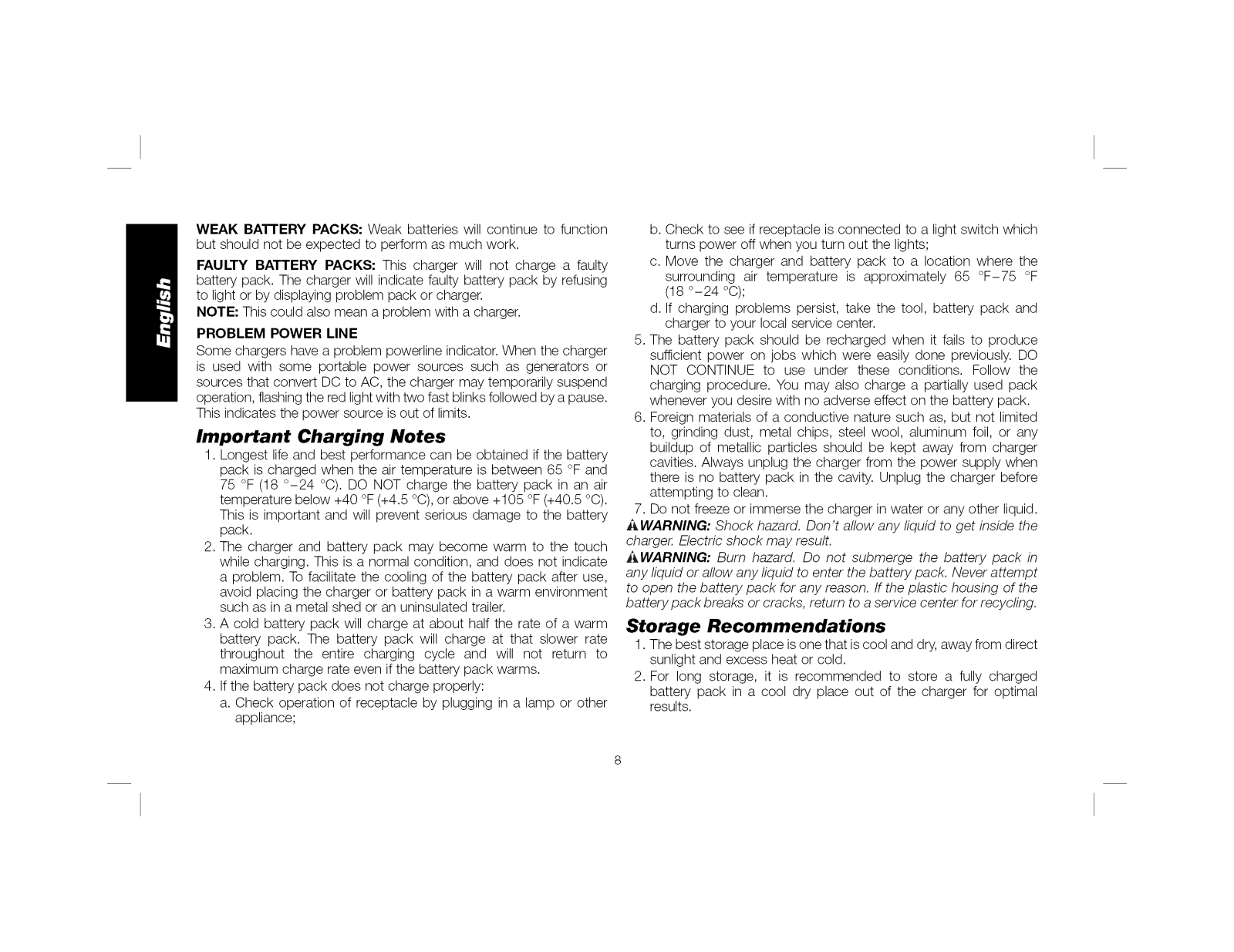

WEAK BA'I-FERY PACKS: Weak batteries will continue to function
but should not be expected to perform as much work,

FAULTY BATTERY PACKS: This charger will not charge a faulty
battery pack, The charger will indicate faulty battery pack by refusing

to light or by displaying problem pack or charger,

NOTE: This could also mean a problem with a charger,
PROBLEM POWER LINE

Some chargers have a problem powerline indicator. When the charger
is used with some portable power sources such as generators or
sources that convert DC to AC, the charger may temporarily suspend
operation, flashing the red light with two fast blinks followed by a pause.
This indicates the power source is out of limits.

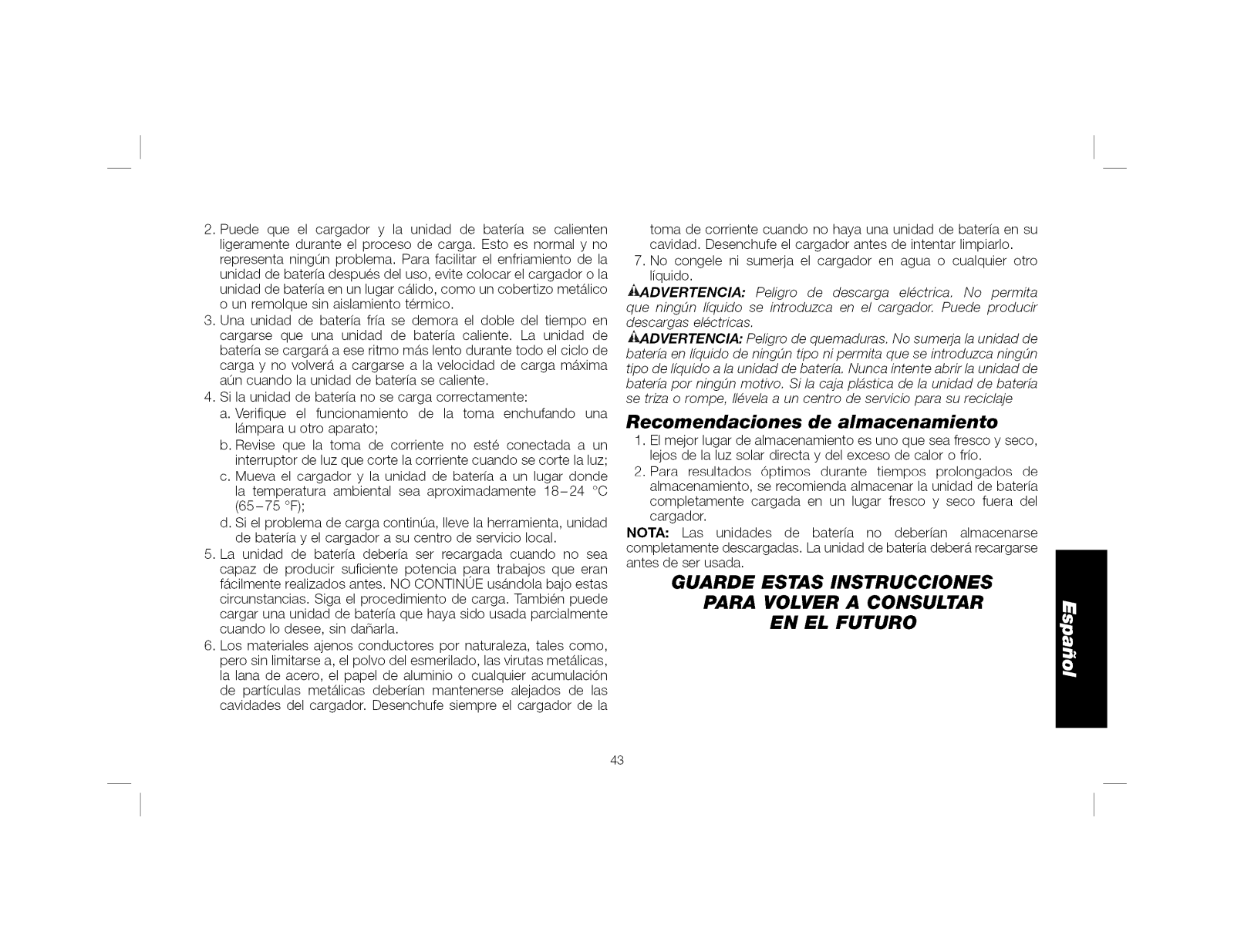

Important Charging Notes

1. Longest life and best performance can be obtained if the battery
pack is charged when the air temperature is between 65 °F and

75 °F (18 °-24 °C). DO NOT charge the battery pack in an air
temperature below +40 °F (+4.5 °C), or above +105 °F (+40.5 °C).
This is important and will prevent serious damage to the battery

pack.

2. The charger and battery pack may become warm to the touch
while charging. This is a normal condition, and does not indicate

a problem. To facilitate the cooling of the battery pack after use,
avoid placing the charger or battery pack in a warm environment

such as in a metal shed or an uninsulated trailer.

3. A cold battery pack will charge at about half the rate of a warm
battery pack. The battery pack will charge at that slower rate
throughout the entire charging cycle and will not return to
maximum charge rate even if the battery pack warms.

4. If the battery pack does not charge properly:
a. Check operation of receptacle by plugging in a lamp or other

appliance;

b. Check to see if receptacle is connected to a light switch which

turns power off when you turn out the lights;

c. Move the charger and battery pack to a location where the

surrounding air temperature is approximately 65 °F-75 °F
(18 °-24 °C);

d. If charging problems persist, take the tool, battery pack and

charger to your local service center.

5. The battery pack should be recharged when it fails to produce
sufficient power on jobs which were easily done previously. DO

NOT CONTINUE to use under these conditions. Follow the
charging procedure. You may also charge a partially used pack

whenever you desire with no adverse effect on the battery pack.

6. Foreign materials of a conductive nature such as, but not limited
to, grinding dust, metal chips, steel wool, aluminum foil, or any

buildup of metallic particles should be kept away from charger
cavities. Always unplug the charger from the power supply when

there is no battery pack in the cavity. Unplug the charger before
attempting to clean.

7. Do not freeze or immerse the charger in water or any other liquid.

WARNING: Shock hazard. Don't allow any liquid to get inside the

charger. Electric shock may result.
i_WARNING: Bum hazard. Do not submerge the battery pack in

any liquid or allow any liquid to enter the battery pack. Never attempt
to open the battery pack for any reason. If the plastic housing of the

battery pack breaks or cracks, return to a service center for recycling.

Storage Recommendations

1. The best storage place is one that iscool and dry, away from direct
sunlight and excess heat or cold.

2. For long storage, it is recommended to store a fully charged
battery pack in a cool dry place out of the charger for optimal

results.

NOTE: Battery packs should not be stored completely depleted of
charge. The battery pack will need to be recharged before use.

SAVE THESE INSTRUCTIONS

FOR FUTURE USE

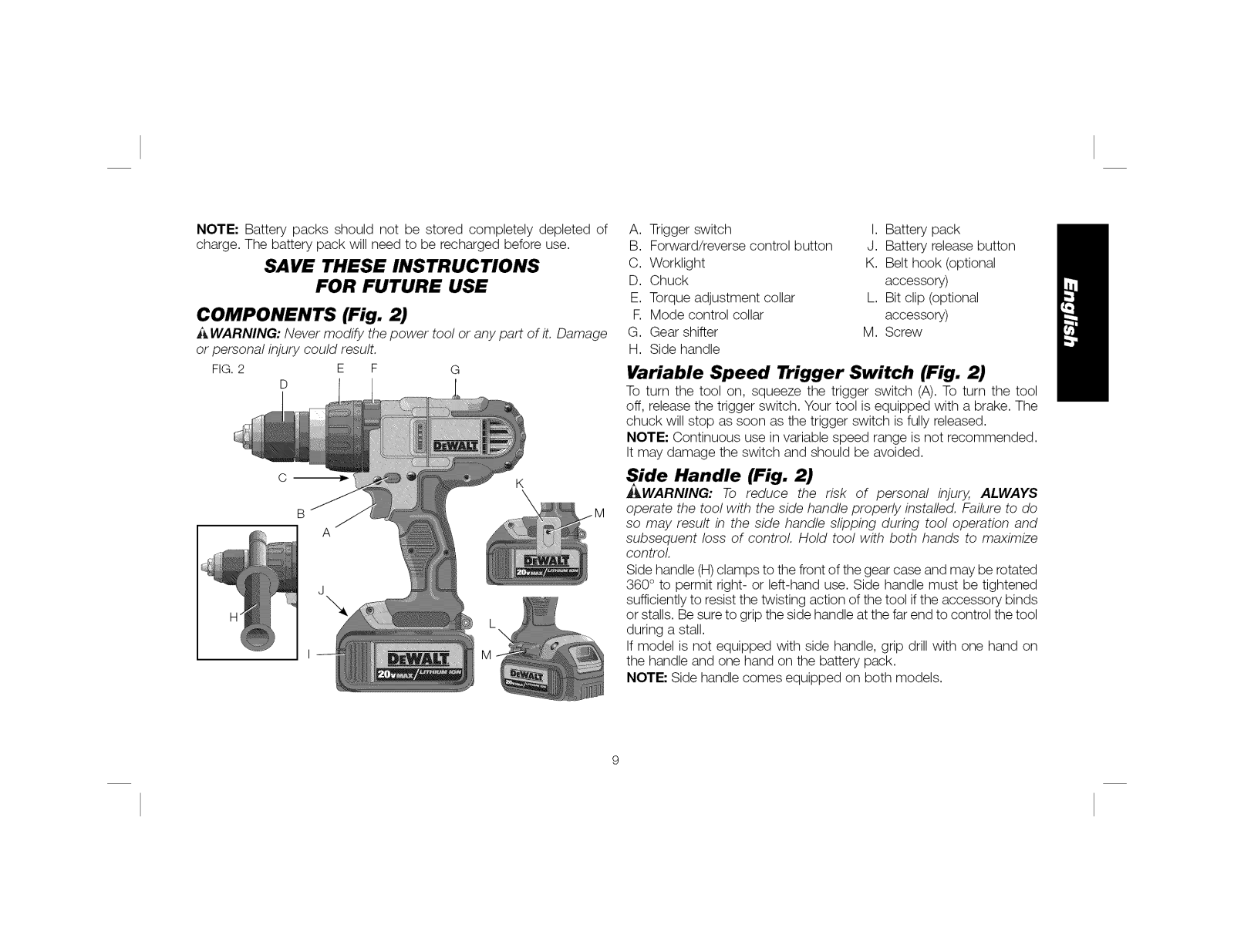

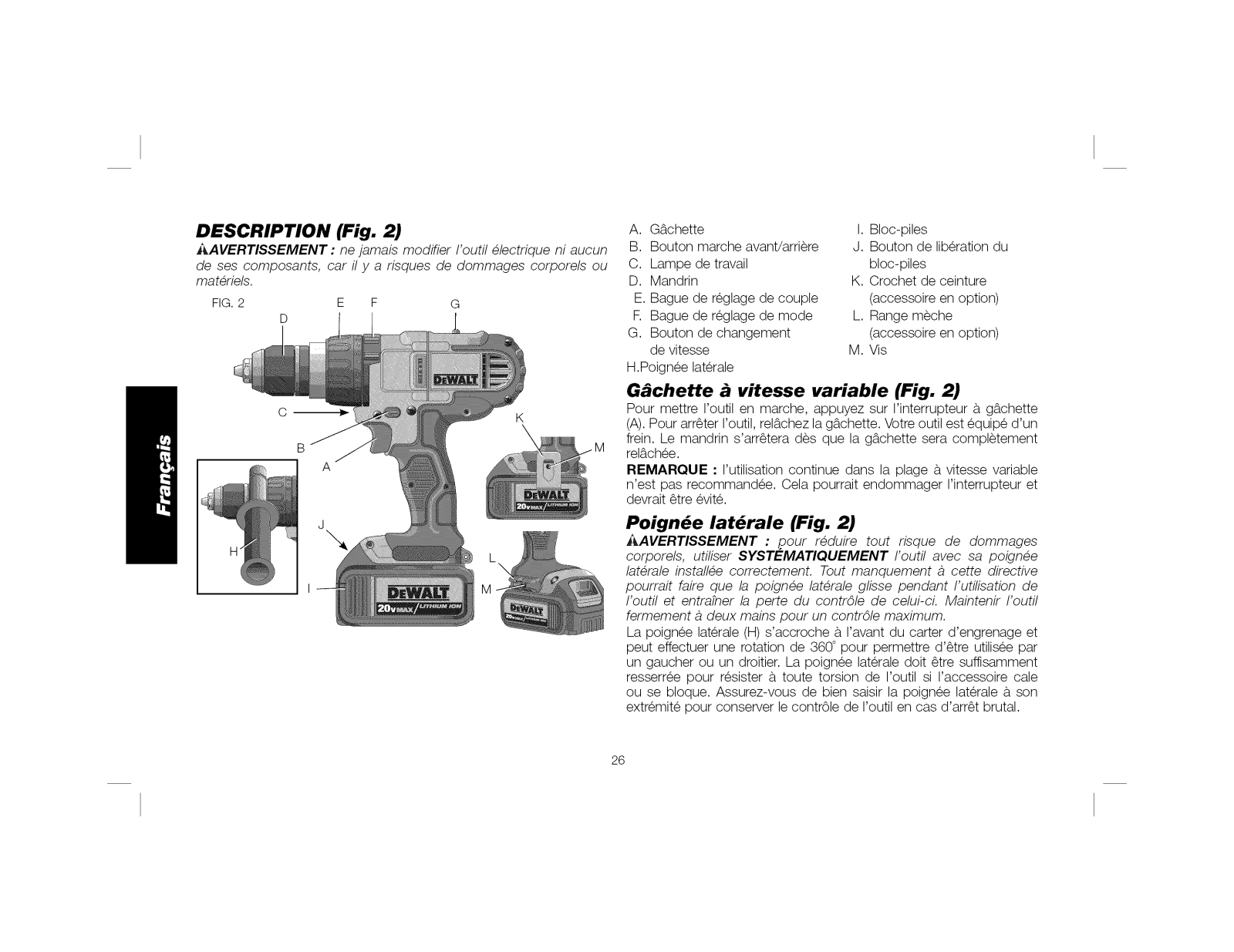

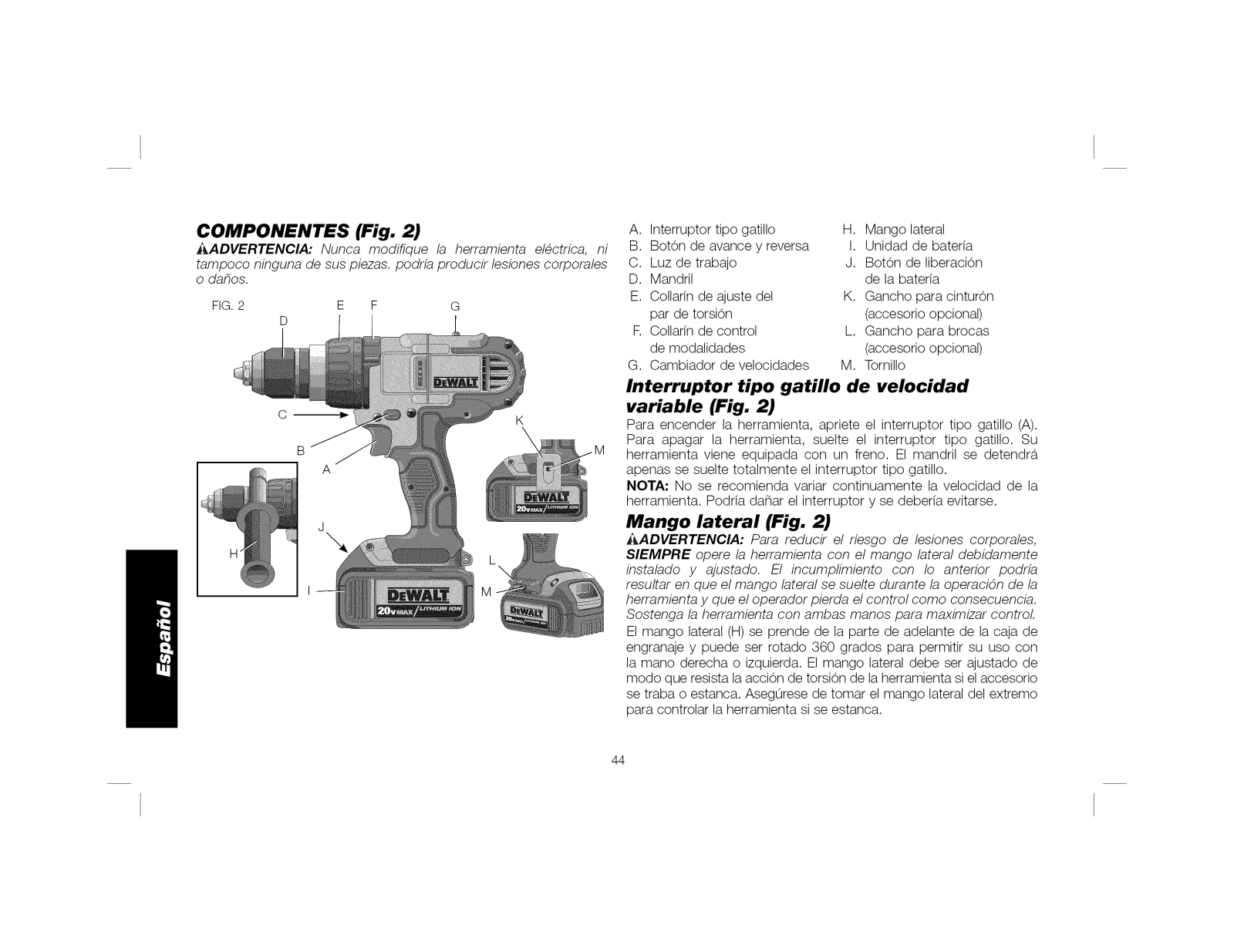

COMPONENTS (Fig. 2)

i_ WARNING: Never modify the power tool or any part of it. Damage

or personal injury could result.

FIG. 2 E F

D

C

B

A

G

K

L

M

A. Trigger switch

B. Forward/reverse control button

C. Worklight

D. Chuck

E. Torque adjustment collar

F. Mode control collar

G. Gear shifter

I. Battery pack
J. Battery release button
K. Belt hook (optional

accessory)

L. Bit clip (optional

accessory)

M. Screw

H. Side handle

Variable Speed Trigger Switch (Fig. 2)

To turn the tool on, squeeze the trigger switch (A). To turn the tool
off, release the trigger switch. Your tool is equipped with a brake. The

chuck will stop as soon as the trigger switch is fully released.
NOTE" Continuous use in variable speed range is not recommended.

It may damage the switch and should be avoided.

Side Handle (Fig. 2)

_WARNING: To reduce the risk of personal injury, ALWAYS
operate the tool with the side handle properly installed. Failure to do

M

so may result in the side handle slipping during tool operation and
subsequent loss of control Hold tool with both hands to maximize
control

Side handle (H)clamps to the front of the gear case and may be rotated
360° to permit right- or left-hand use. Side handle must be tightened

sufficiently to resist the twisting action of the tool if the accessory binds
or stalls. Be sure to grip the side handle at the farend to control the tool

during a stall.
If model is not equipped with side handle, grip drill with one hand on

the handle and one hand on the battery pack.
NOTE" Side handle comes equipped on both models.

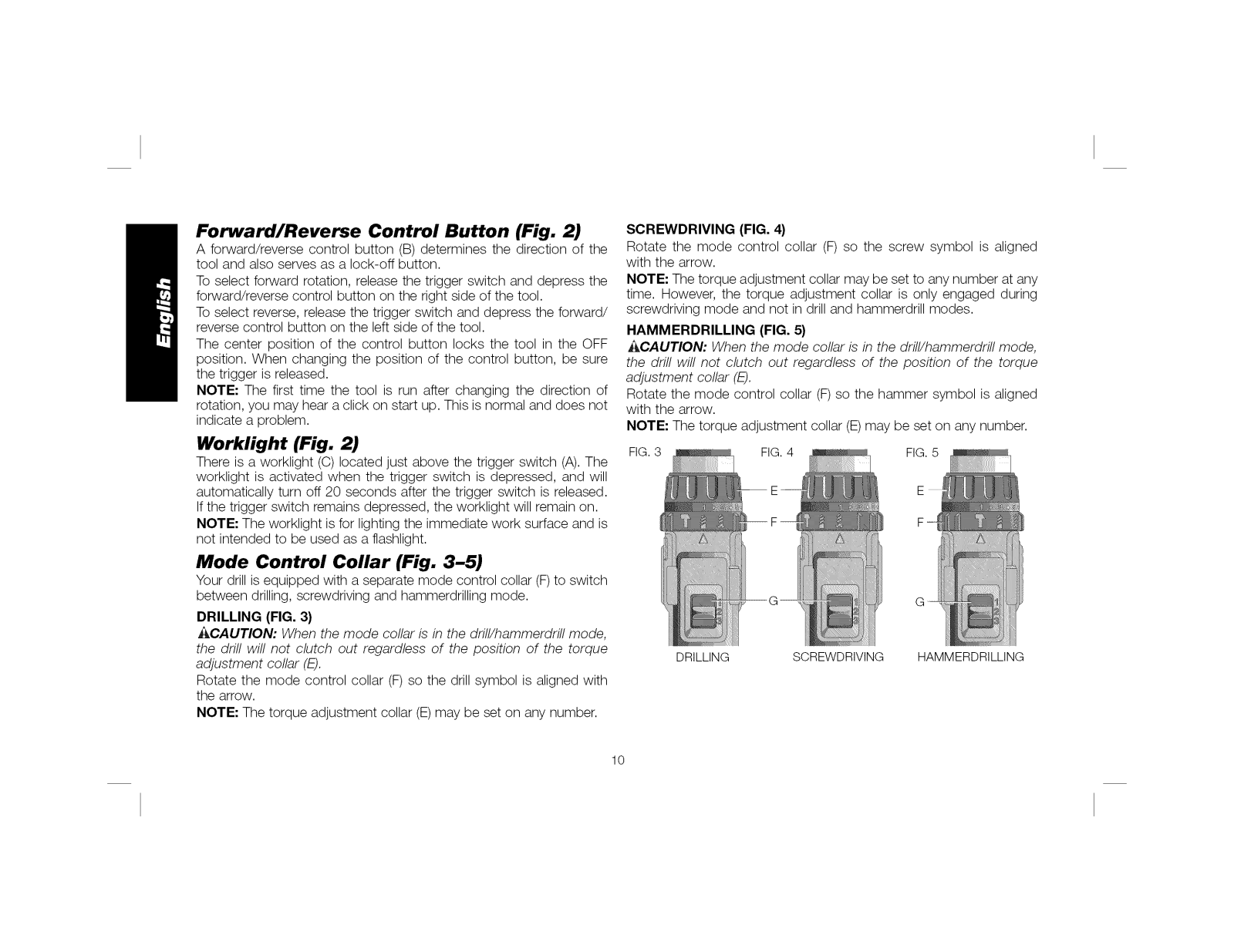

Forward/Reverse Control Button (Fig. 2)

A brward/reverse control button (B) determines the direction of the
tool and also serves as a lock-off button.

To select forward rotation, release the trigger switch and depress the
forward/reverse control button on the right side of the tool.
Toselect reverse, release the trigger switch and depress the forward/

reverse control button on the left side of the tool.
The center position of the control button locks the tool in the OFF

position. When changing the position of the control button, be sure
the trigger is released.
NOTE: The first time the tool is run after changing the direction of
rotation, you may hear a click on start up. This is normal and does not
indicate a problem.

Worklight (Fig. 2)

There is a worklight (C) located just above the trigger switch (A). The
worklight is activated when the trigger switch is depressed, and will
automatically turn off 20 seconds after the trigger switch is released.

Ifthe trigger switch remains depressed, the worklight will remain on.
NOTE: The worklight is for lighting the immediate work surface and is

not intended to be used as a flashlight.

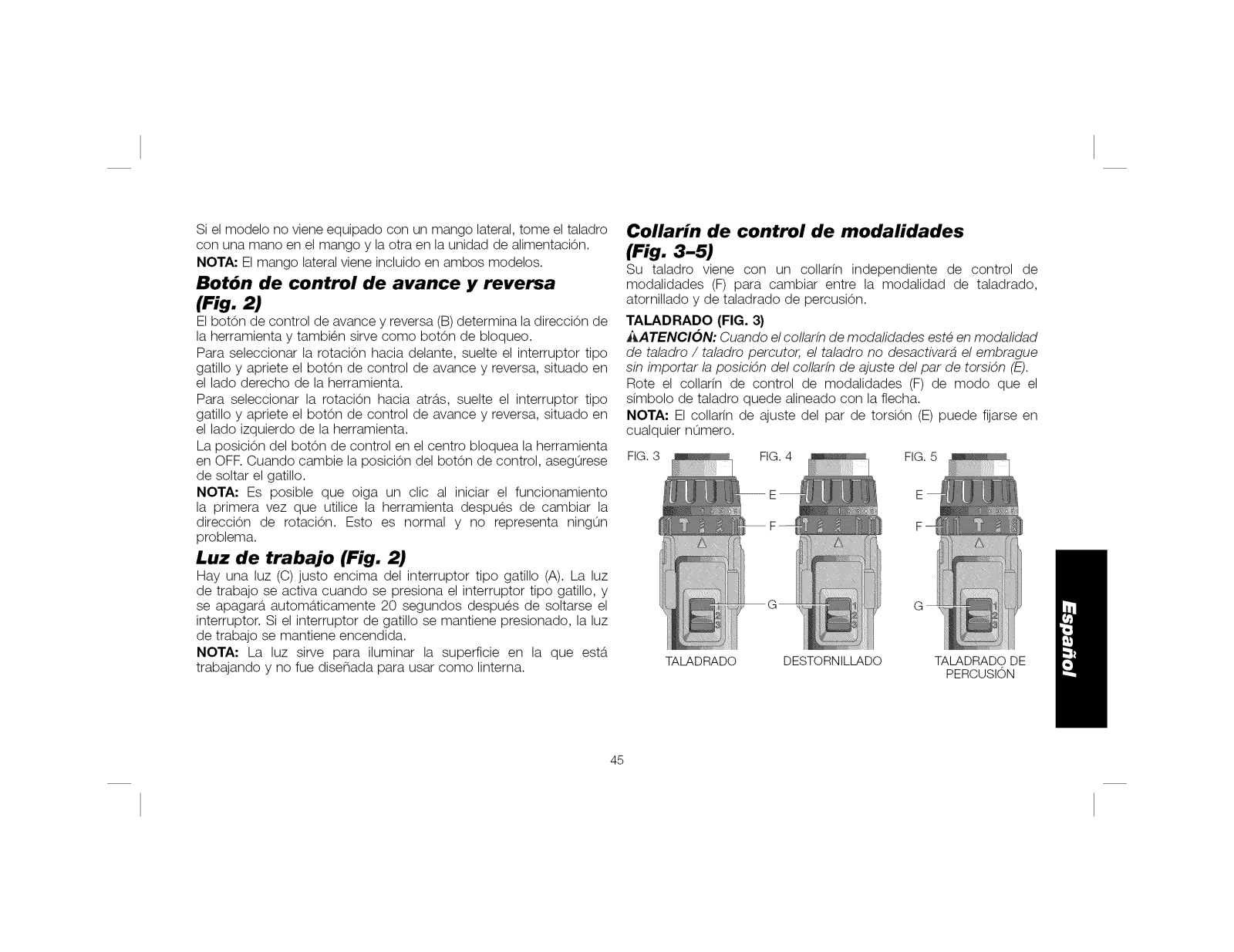

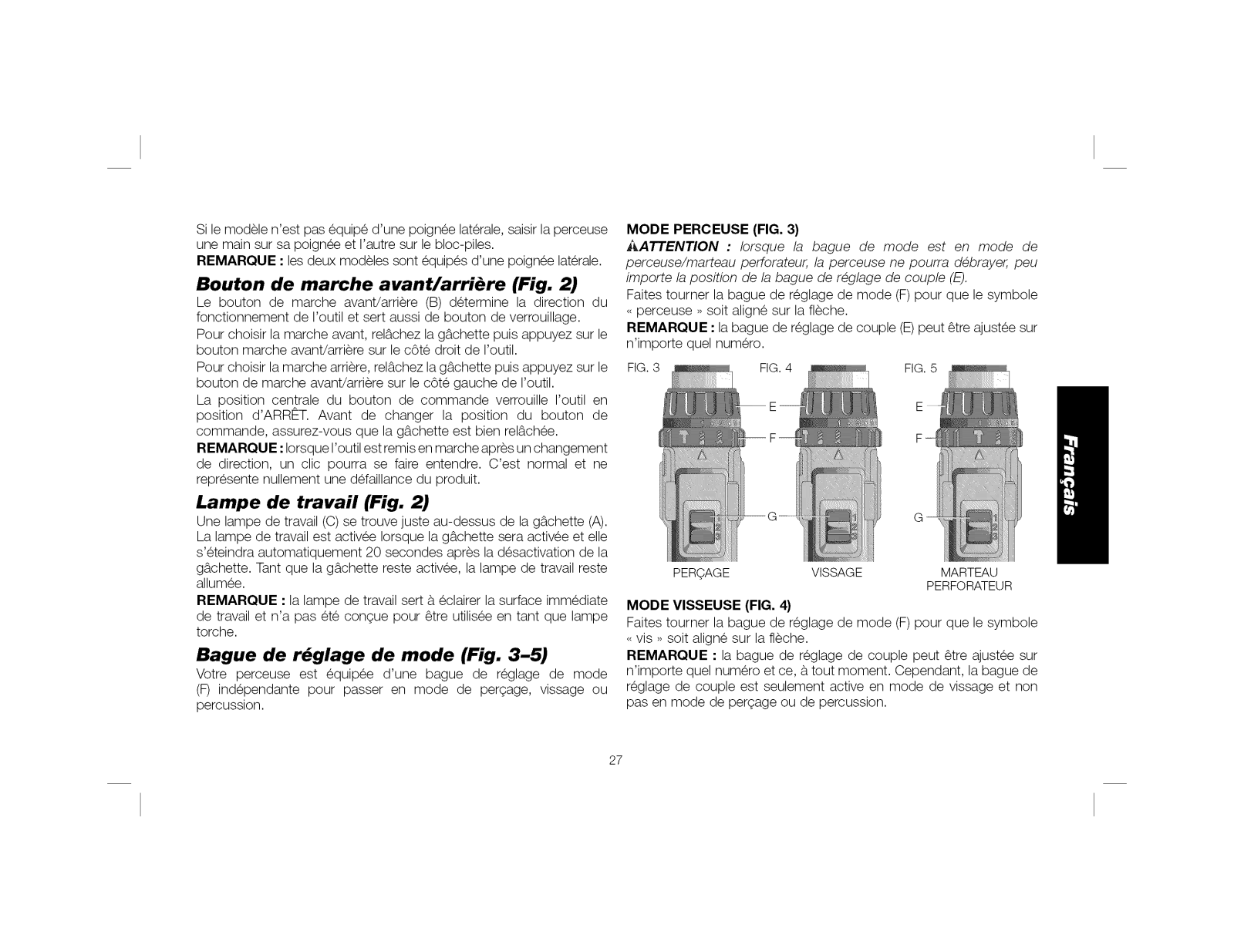

Mode Control Collar (Fig. 3-5)

Your drill is equipped with a separate mode control collar (F)to switch
between drilling, screwdriving and hammerdrilling mode.

DRILLING (FIG. 3)

ACAUTION: When the mode collar is in the drill/hammerdrill mode,
the drill will not clutch out regardless of the position of the torque
adjustment collar (E).

Rotate the mode control collar (F) so the drill symbol is aligned with
the arrow.

NOTE: The torque adjustment collar (E) may be set on any number.

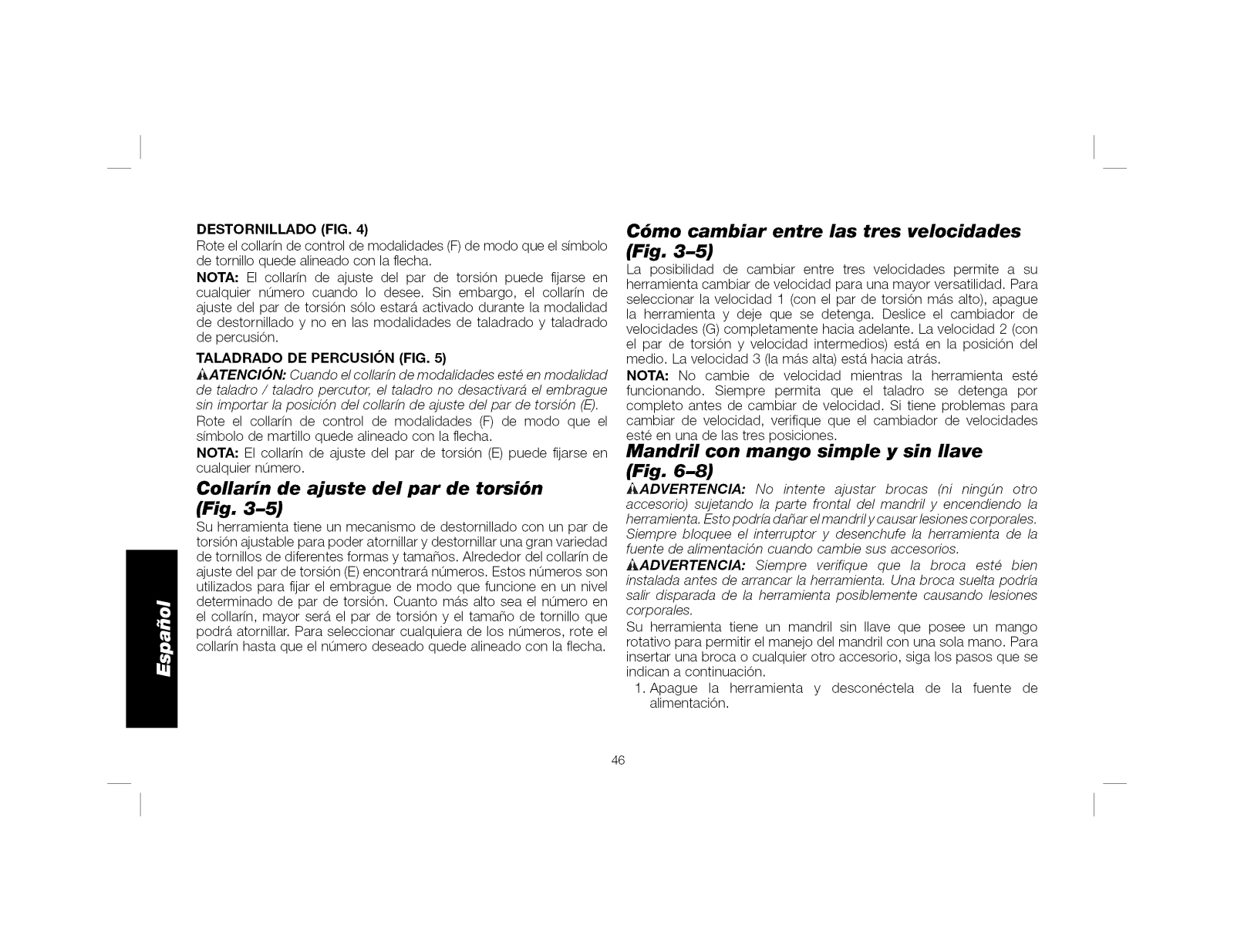

SCREWDRIVING (FIG. 4)

Rotate the mode control collar (F) so the screw symbol is aligned
with the arrow.

NOTE: The torque adjustment collar may be set to any number at any
time. However, the torque adjustment collar is only engaged during

screwdriving mode and not in drill and hammerdrill modes.

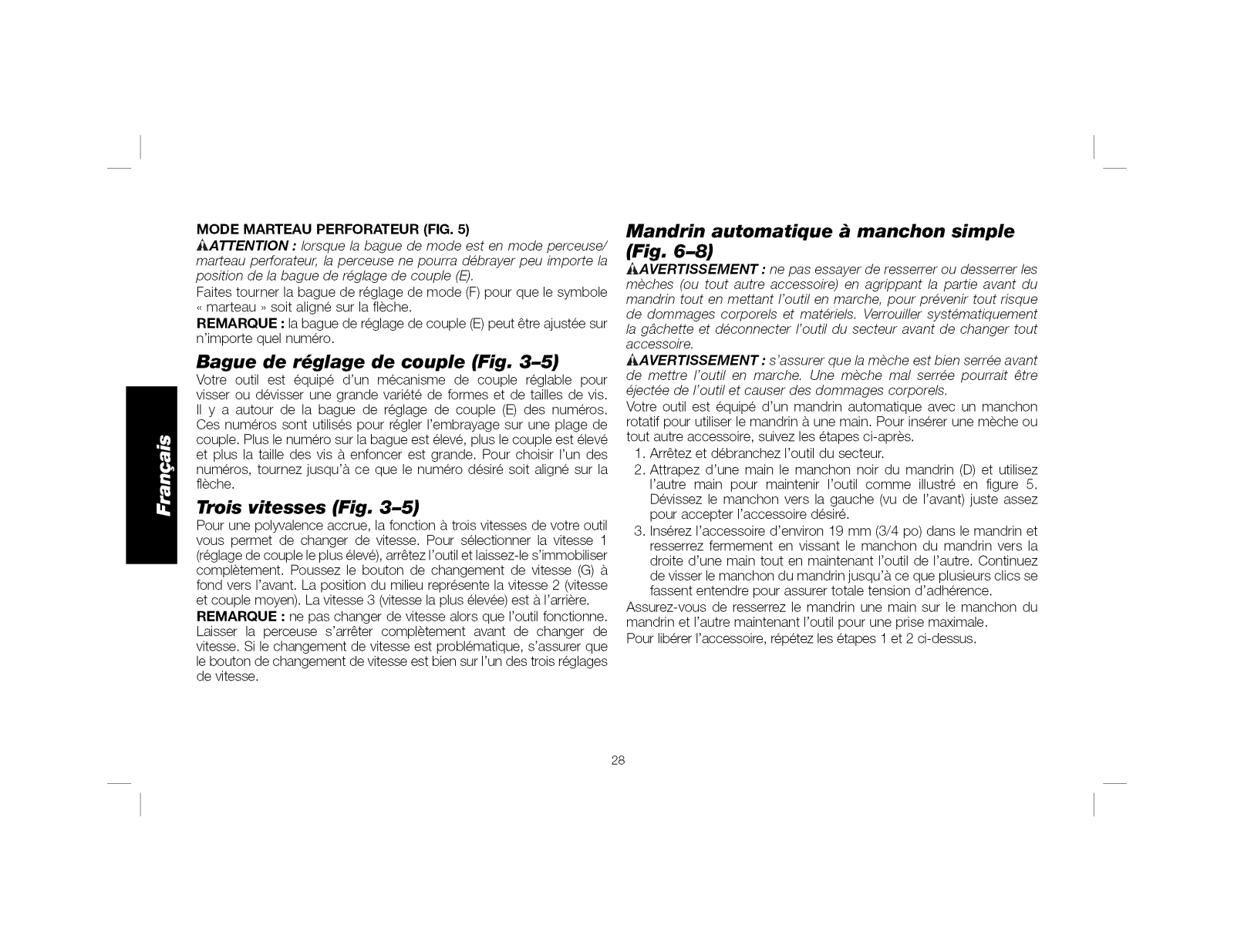

HAMMERDRILLING (FIG. 5}

_CAUTION: When the mode collar is in the drill/hammerdrill mode,
the drill will not clutch out regardless of the position of the torque
adjustment collar (E).

Rotate the mode control collar (F) so the hammer symbol is aligned
with the arrow.

NOTE: The torque adjustment collar (E) may be set on any number.

FIG. 4FIG. 3 FIG. 5

E

F

DRILLING

SCREWDRIVING HAMMERDRILLING

10

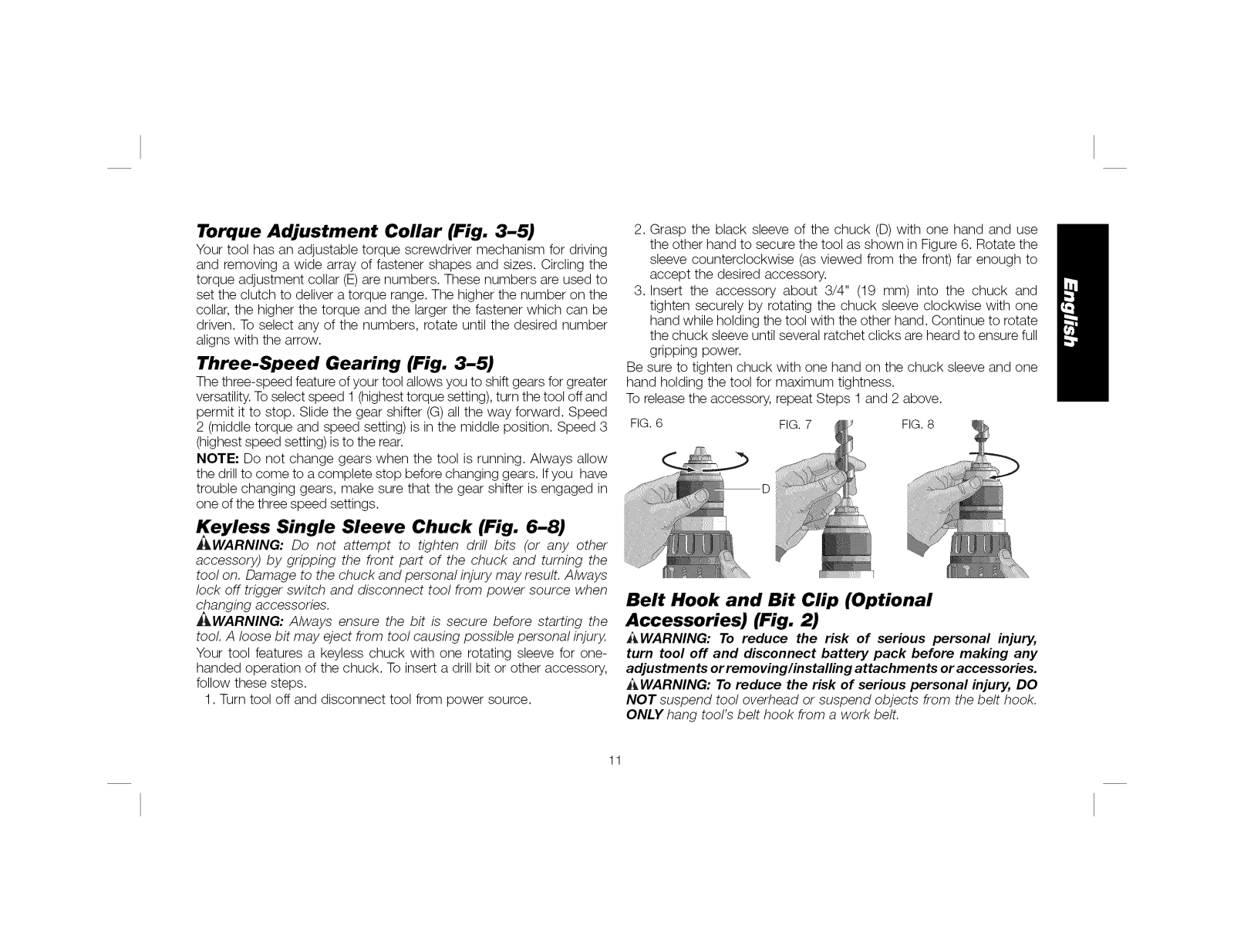

Torque Adjustment Collar (Fig. 3-5)

Your tool has an adjustable torque screwdriver mechanism for driving
and removing a wide array of fastener shapes and sizes. Circling the

torque adjustment collar (E)are numbers. These numbers are used to
set the clutch to deliver a torque range. The higher the number on the
collar, the higher the torque and the larger the fastener which can be

driven. To select any of the numbers, rotate until the desired number
aligns with the arrow.

Three-Speed Gearing (Fig. 3-5)

The three-speed feature of your tool allows you to shift gears for greater
versatility.To select speed 1 (highest torque setting), turn thetool off and

permit it to stop. Slide the gear shifter (G)all the way forward. Speed
2 (middle torque and speed setting) is in the middle position. Speed 3
(highest speed setting) is to the rear.
NOTE: Do not change gears when the tool is running. Always allow
the drillto come to a complete stop before changing gears. If you have
trouble changing gears, make sure that the gear shifter is engaged in

one of the three speed settings.

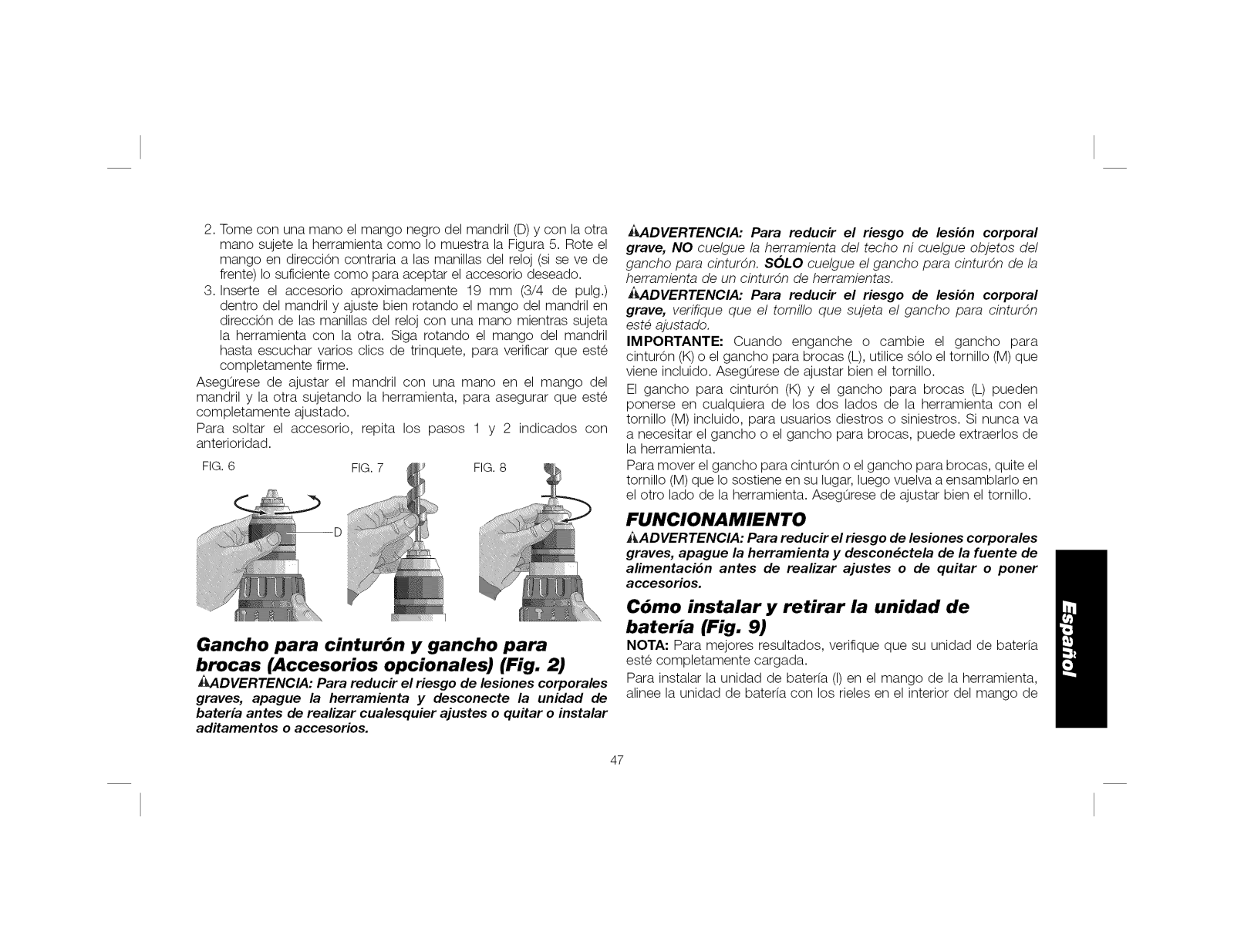

eyless Single Sleeve Chuck (Fig. 6-8)

WARNING: Do not attempt to tighten drill bits (or any other

accessory) by gripping the front part of the chuck and turning the
tool on. Damage to the chuck and personal injury may result. Always

lock off trigger switch and disconnect tool from power source when
changing accessories.

_WARNING: Always ensure the bit is secure before starting the
tool A loose bit may eject from tool causing possible personal injury.

Your tool features a keyless chuck with one rotating sleeve for one-
handed operation of the chuck. To insert a drill bit or other accessory,
follow these steps.

1. Turn tool off and disconnect tool from power source.

2. Grasp the black sleeve of the chuck (D) with one hand and use
the other hand to secure the tool as shown in Figure 6. Rotate the

sleeve counterclockwise (as viewed from the front) far enough to
accept the desired accessory.

3. Insert the accessory about 3/4" (19 mm) into the chuck and
tighten securely by rotating the chuck sleeve clockwise with one
hand while holding the tool with the other hand. Continue to rotate

the chuck sleeve until several ratchet clicks are heard to ensure full
gripping power.

Be sure to tighten chuck with one hand on the chuck sleeve and one
hand holding the tool for maximum tightness.

Torelease the accessory, repeat Steps 1and 2 above.

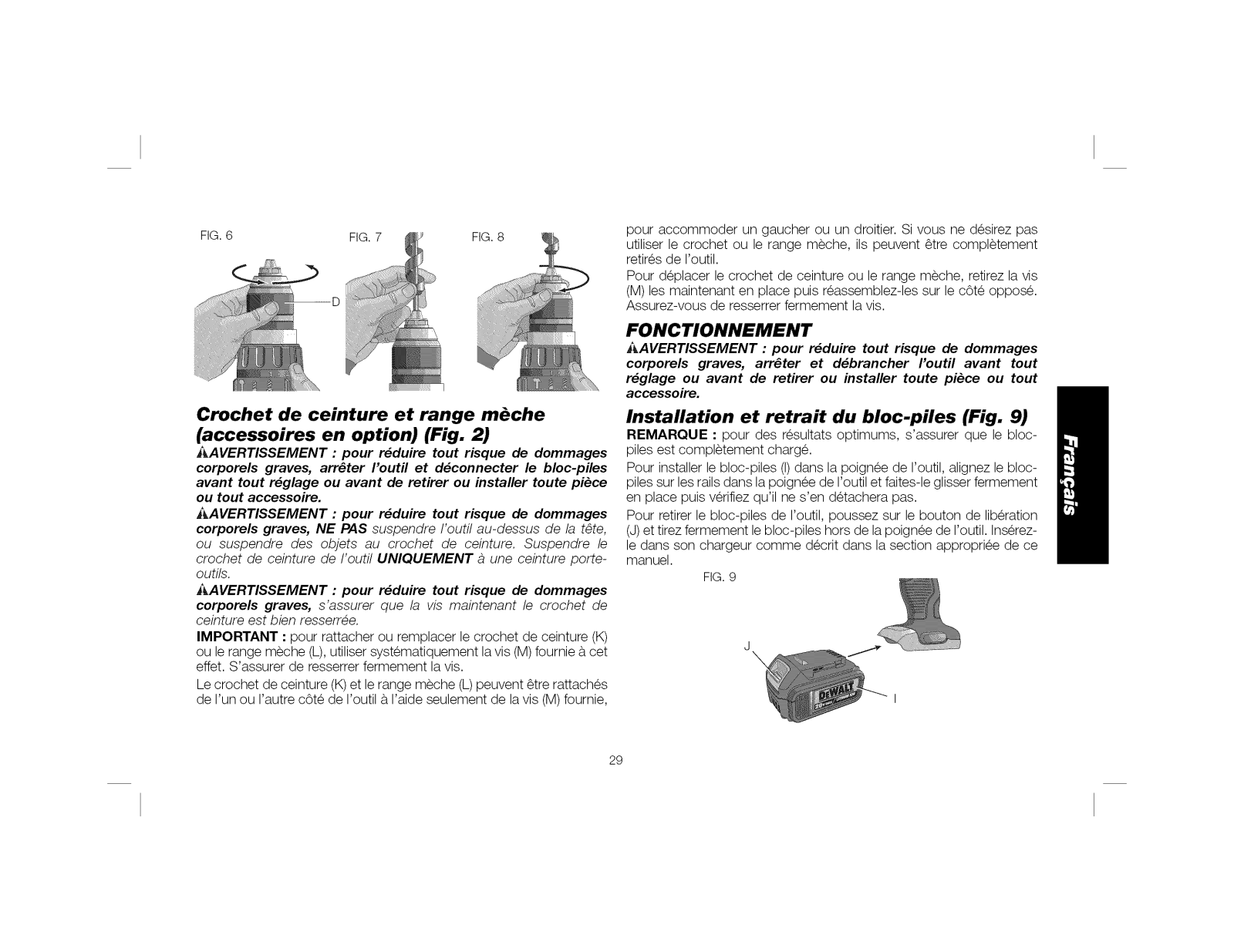

FIG. 6

FIG. 7

Belt Hook and Bit Clip (Optional

Accessories) (Fig. 2)

_WARNING: To reduce the risk of serious personal injury,
turn tool off and disconnect battery pack before making any

adjustments or removing/installing attachments or accessories.
_ WARNING: To reduce the risk of serious personal injury, DO

NOT suspend tool overhead or suspend objects from the belt hook.

ONLY hang tool's belt hook from a work belt.

11

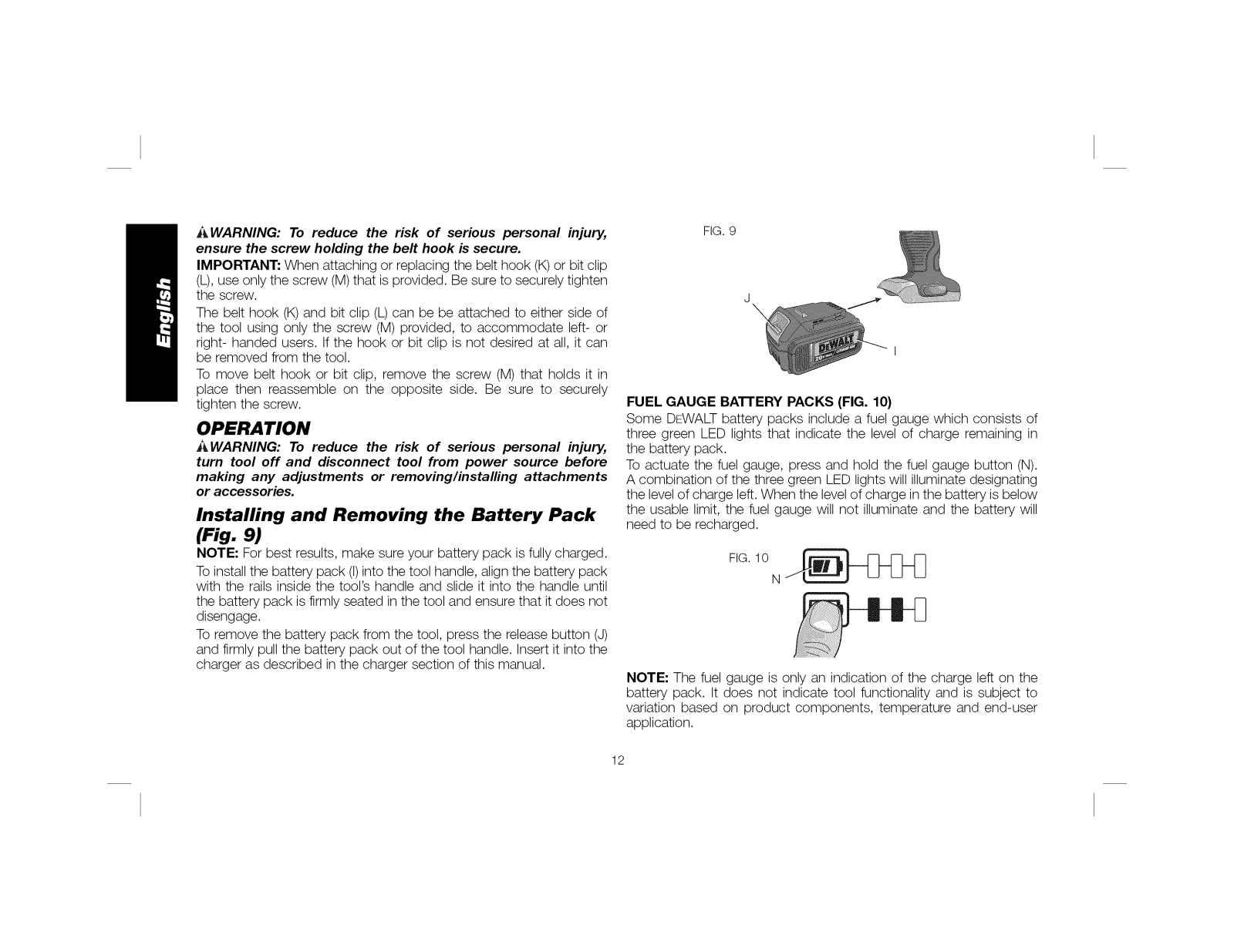

i_WARNING: To reduce the risk of serious personal injury,

ensure the screw holding the belt hook is secure.
IMPORTANT: When attaching or replacing the belt hook (K)or bit clip

(L), use only the screw (M)that is provided. Be sure to securely tighten
the screw.

The belt hook (K) and bit clip (L) can be be attached to either side of
the tool using only the screw (M) provided, to accommodate left- or
right- handed users. If the hook or bit clip is not desired at all, it can

be removed from the tool.
To move belt hook or bit clip, remove the screw (M) that holds it in

place then reassemble on the opposite side. Be sure to securely
tighten the screw.

OPERATION

_WARNING: To reduce the risk of serious personal injury,
turn tool off and disconnect tool from power source before

making any adjustments or removing/installing attachments
or accessories.

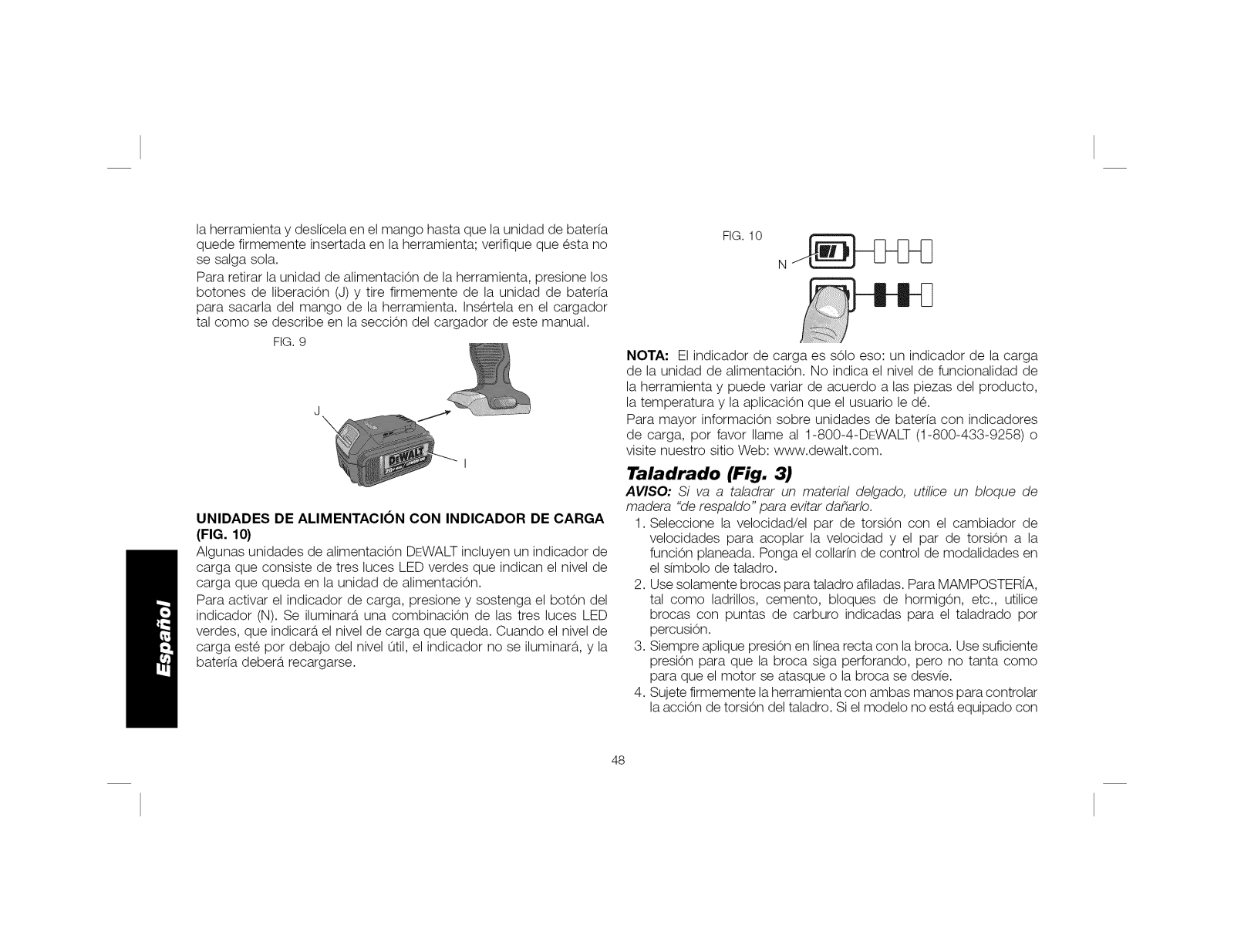

Installing and Removing the Battery Pack
(Fig. 9)

NOTE: For best results, make sure your battery pack is fully charged.
Toinstall the battery pack (I)into the tool handle, align the battery pack

with the rails inside the tool's handle and slide it into the handle until
the battery pack is firmly seated in the tool and ensure that it does not

disengage.
To remove the battery pack from the tool, press the release button (J)

and firmly pull the battery pack out of the tool handle. Insert it into the
charger as described in the charger section of this manual.

FIG. 9

J

\

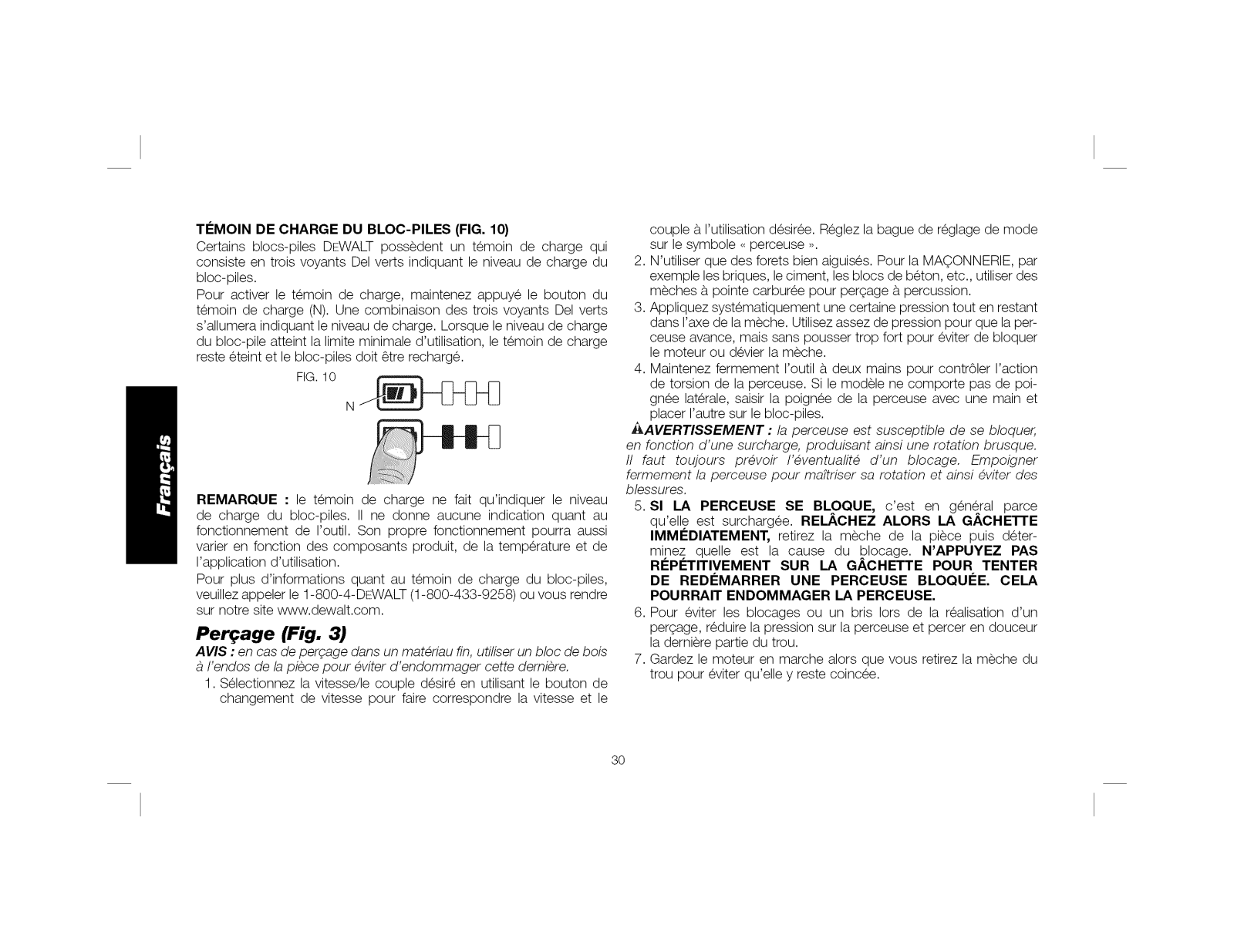

FUEL GAUGE BA'n'ERY PACKS (FIG. 10)

Some DEWALT battery packs include a fuel gauge which consists of
three green LED lights that indicate the level of charge remaining in

the battery pack.
To actuate the fuel gauge, press and hold the fuel gauge button (N).
A combination of the three green LED lights will illuminate designating

the level of charge left. When the level of charge in the battery is below
the usable limit, the fuel gauge will not illuminate and the battery will
need to be recharged.

FIG.10 [[_==i'__

N

NOTE: The fuel gauge is only an indication of the charge left on the
battery pack. It does not indicate tool functionality and is subject to

variation based on product components, temperature and end-user
application.

uuu

12

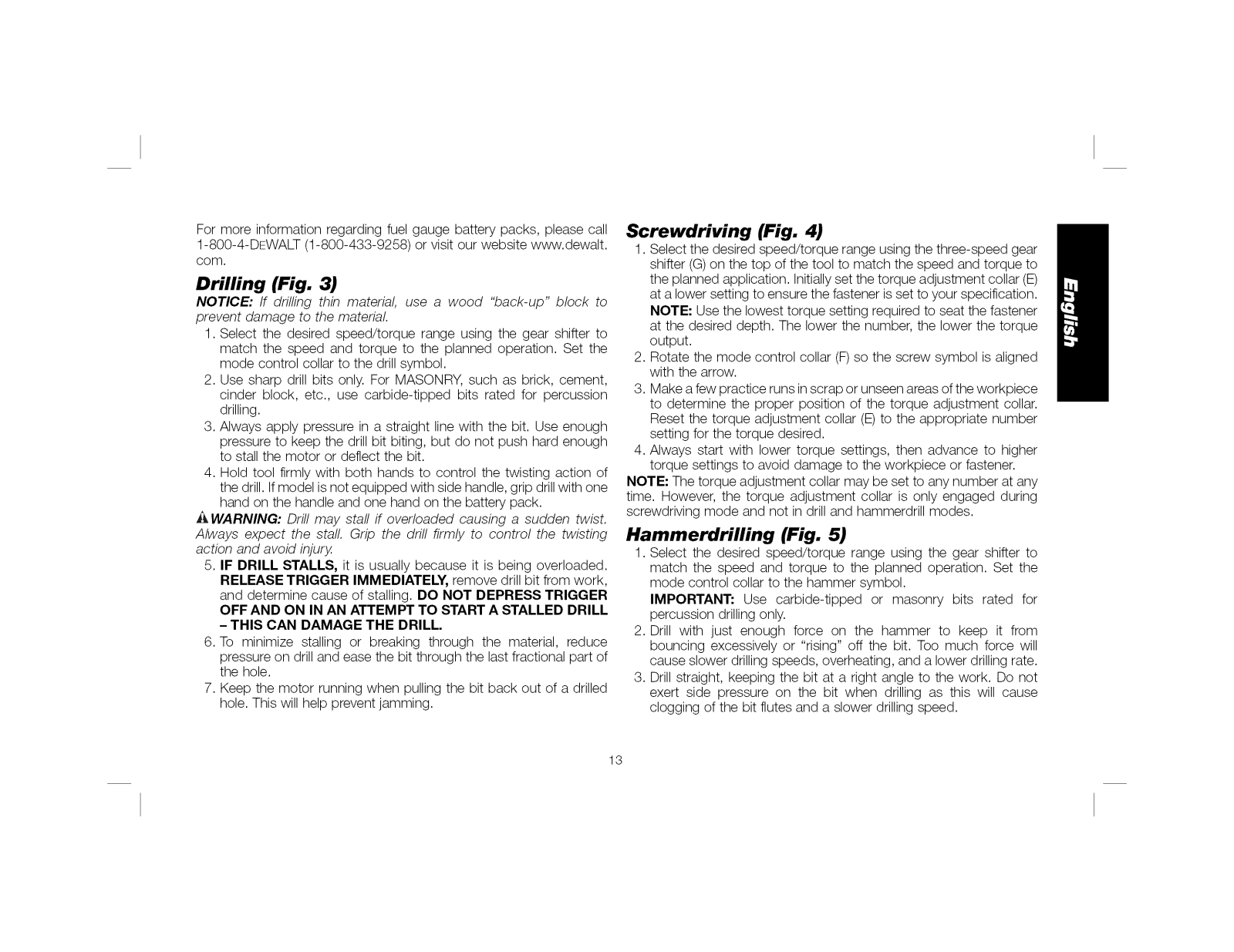

For more information regarding fuel gauge battery packs, please call
1-800-4-DEWALT (1-800-433-9258) or visit our website www.dewalt.

com.

Drilling (Fig. 3)

NOTICE: If drilling thin material, use a wood "back-up" block to

prevent damage to the material

1. Select the desired speed/torque range using the gear shifter to
match the speed and torque to the planned operation. Set the

mode control collar to the drill symbol.

2. Use sharp drill bits only. For MASONRY, such as brick, cement,
cinder block, etc., use carbide-tipped bits rated for percussion

drilling.

3. Always apply pressure in a straight line with the bit. Use enough
pressure to keep the drill bit biting, but do not push hard enough
to stall the motor or deflect the bit.

4. Hold tool firmly with both hands to control the twisting action of
the drill. Ifmodel is not equipped with side handle, grip drillwith one

hand on the handle and one hand on the battery pack.

WARNING: Drill may stall if overloaded causing a sudden twist.

Always expect the stall. Grip the drill firmly to control the twisting

action and avoid injury.

5. IF DRILL STALLS, it is usually because it is being overloaded.
RELEASE TRIGGER IMMEDIATELY, remove drill bit from work,

and determine cause of stalling. DO NOT DEPRESS TRIGGER
OFF AND ON IN AN ATTEMPT TO START A STALLED DRILL

- THIS CAN DAMAGE THE DRILL.

6. To minimize stalling or breaking through the material, reduce
pressure on drill and ease the bit through the last fractional part of

the hole.

7. Keep the motor running when pulling the bit back out of a drilled
hole. This will help prevent jamming.

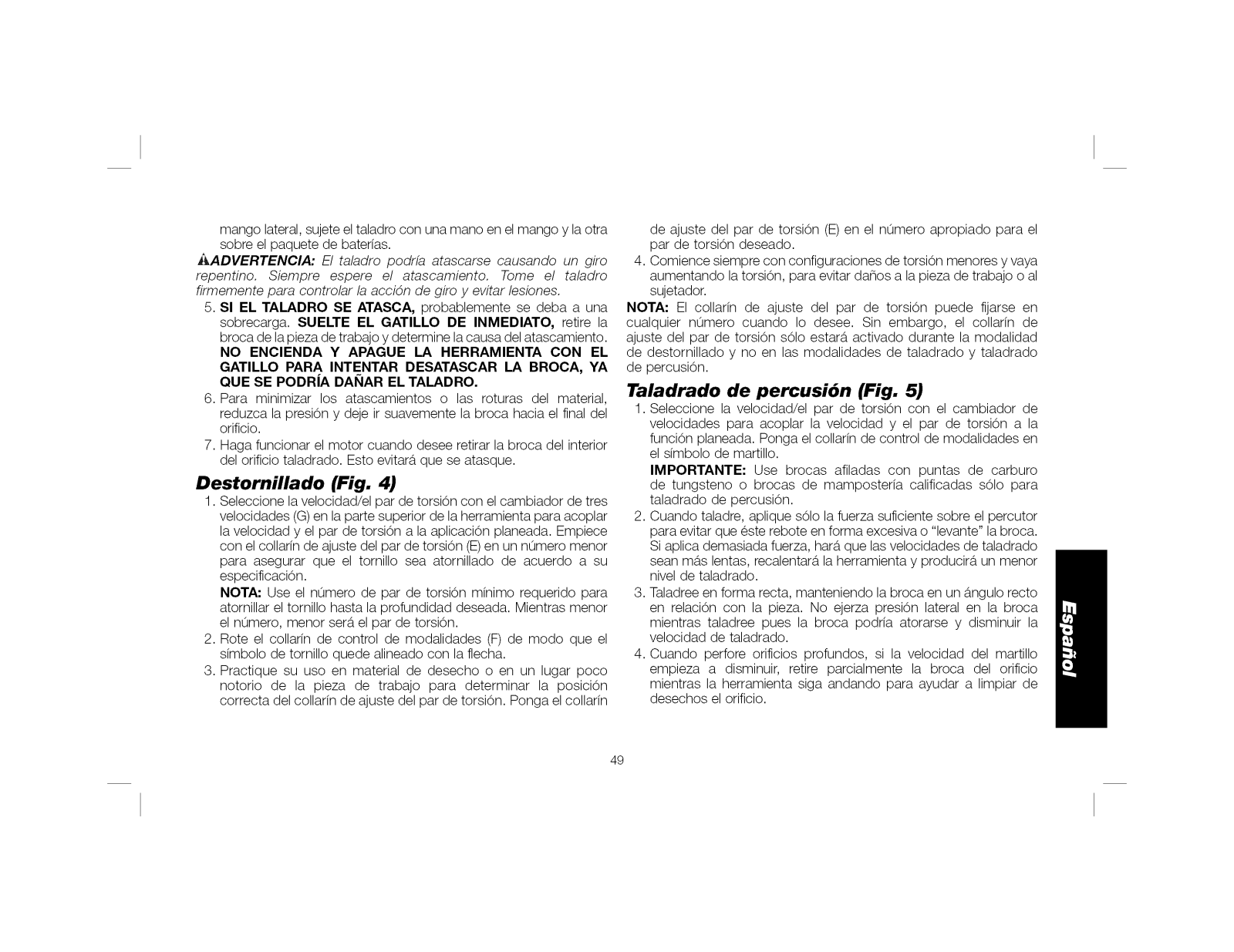

Screwdriving (Fig. 4)

1. Select the desired speed/torque range using the three-speed gear
shifter (G)on the top of the tool to match the speed and torque to

the planned application. Initiallyset the torque adjustment collar (E)
at a lower setting to ensure the fastener is set to your specification.

NOTE: Use the lowest torque setting required to seat the fastener
at the desired depth. The lower the number, the lower the torque

output.

2. Rotate the mode control collar (F) so the screw symbol is aligned
with the arrow.

3. Make a few practice runs in scrap or unseen areas of the workpiece
to determine the proper position of the torque adjustment collar.
Reset the torque adjustment collar (E) to the appropriate number

setting for the torque desired.

4. Always start with lower torque settings, then advance to higher
torque settings to avoid damage to the workpiece or fastener.

NOTE: The torque adjustment collar may be set to any number at any
time. However, the torque adjustment collar is only engaged during

screwdriving mode and not in drill and hammerdrill modes.

Hammerdrilling (Fig. 5)

1. Select the desired speed/torque range using the gear shifter to
match the speed and torque to the planned operation. Set the

mode control collar to the hammer symbol.
IMPORTANT: Use carbide-tipped or masonry bits rated for

percussion drilling only.

2. Drill with just enough force on the hammer to keep it from
bouncing excessively or "rising" off the bit. Too much force will

cause slower drilling speeds, overheating, and a lower drilling rate.

3. Drill straight, keeping the bit at a right angle to the work. Do not
exert side pressure on the bit when drilling as this will cause

clogging of the bit flutes and a slower drilling speed.

13

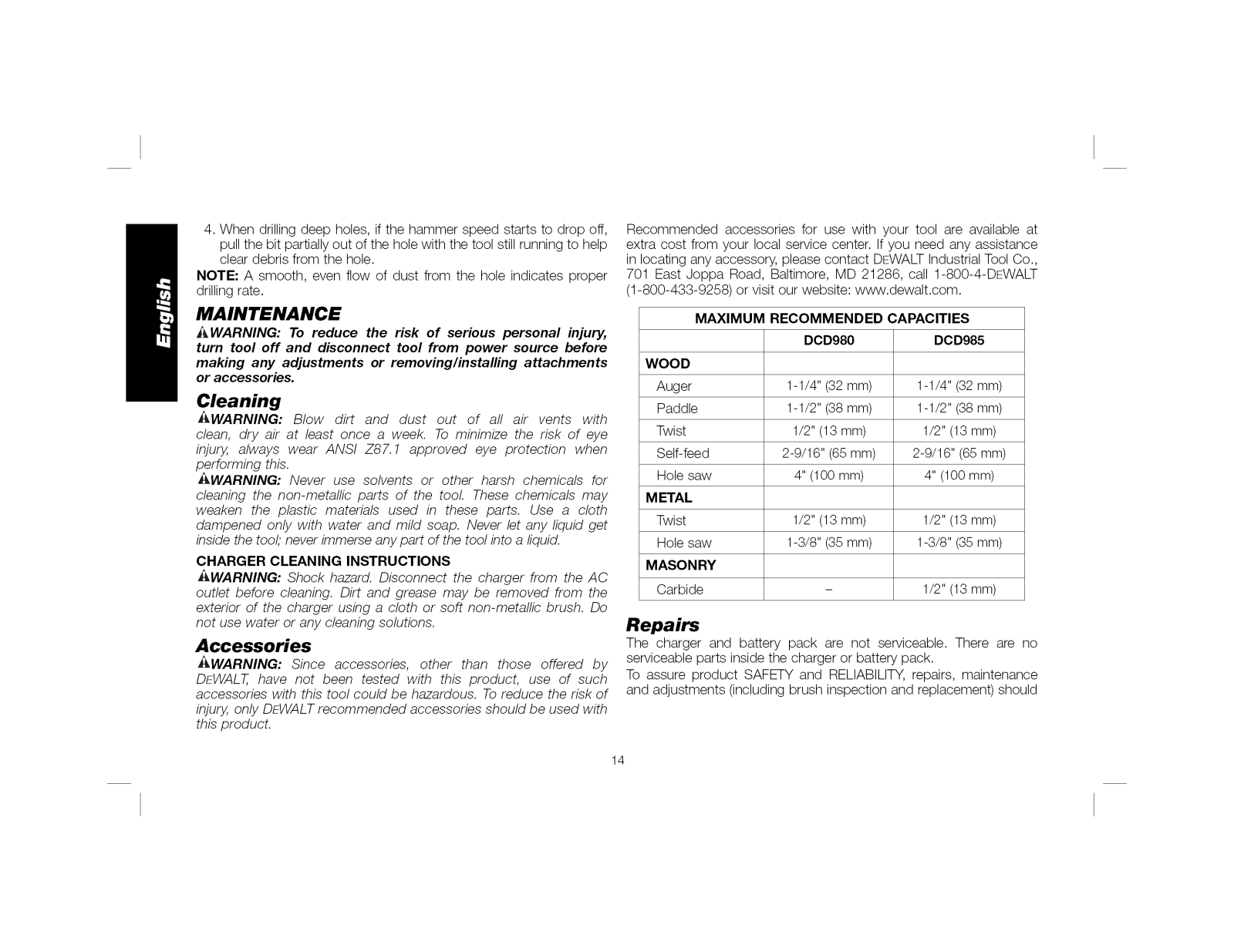

4. When drilling deep holes, if the hammer speed starts to drop off,
pull the bit partially out of the hole with the tool still running to help

clear debris from the hole.

NOTE" A smooth, even flow of dust from the hole indicates proper
drilling rate.

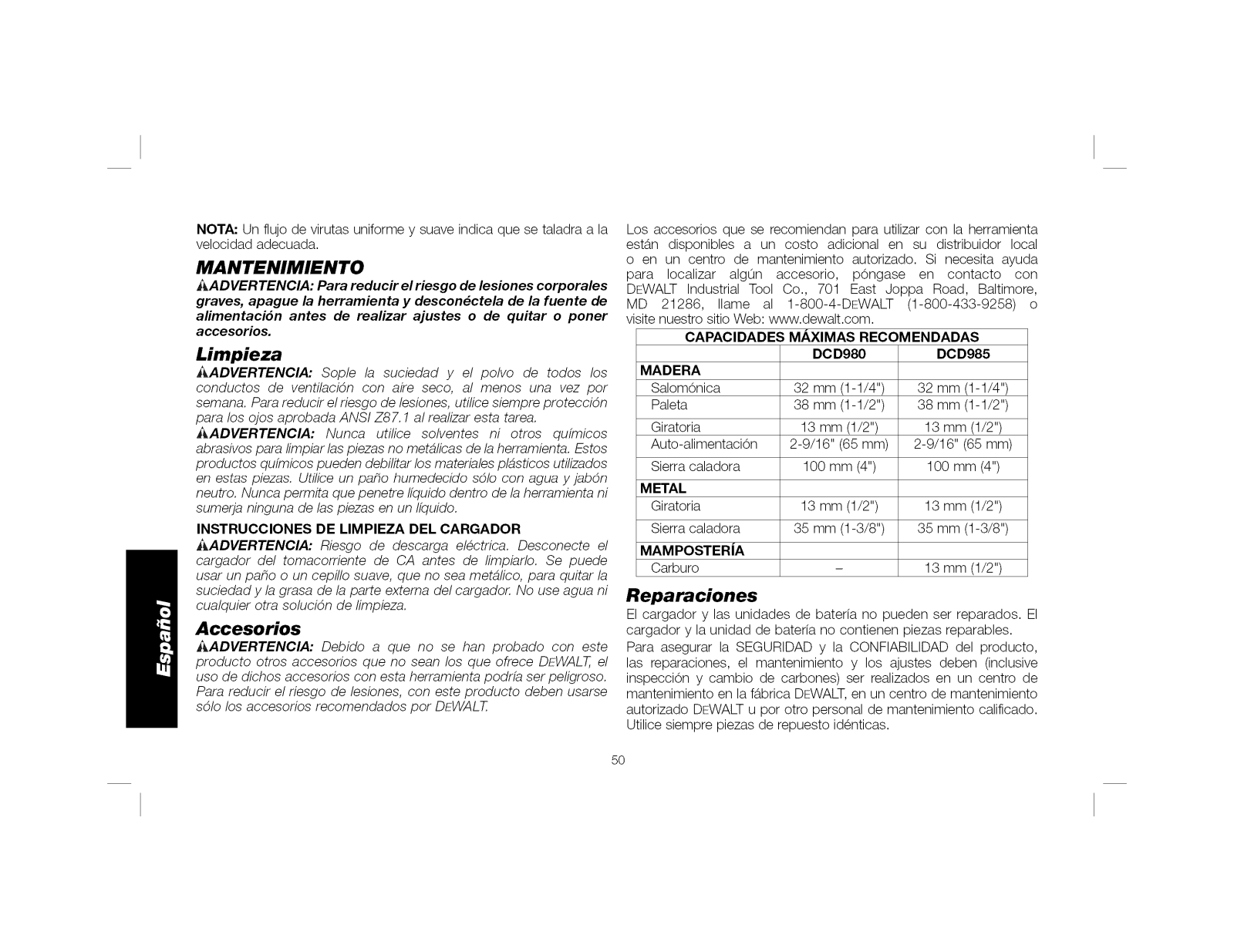

MAINTENANCE

i_WARNING: To reduce the risk of serious personal injury,
turn tool off and disconnect tool from power source before
making any adjustments or removing/installing attachments

or accessories.

Cleaning

AWARNING: Blow dirt and dust out of all air vents with

clean, dry air at least once a week. To minimize the risk of eye
injury, always wear ANSI Z87.1 approved eye protection when

performing this.

_WARNING: Never use solvents or other harsh chemicals tot

cleaning the non-metallic parts of the tooL These chemicals may
weaken the plastic materials used in these parts. Use a cloth

dampened only with water and mild soap. Never let any liquid get
inside the tool,"never immerse any part of the tool into a liquid.

CHARGER CLEANING INSTRUCTIONS

AWARNING: Shock hazard. Disconnect the charger from the AC
outlet before cleaning. Dirt and grease may be removed from the
exterior of the charger using a cloth or soft non-metallic brush. Do
not use water or any cleaning solutions.

Accessories

AWARNING: Since accessories, other than those offered by
DEWALT, have not been tested with this product, use of such

accessories with this tool could be hazardous. To reduce the risk of
injury, only DEWALT recommended accessories should be used with
this product.

Recommended accessories for use with your tool are available at
extra cost from your local service center. If you need any assistance

in locating any accessory, please contact DEWALT Industrial Tool Co.,
701 East Joppa Road, Baltimore, MD 21286, call 1-800-4-DEWALT
(1-800-433-9258) or visit our website: www.dewalt.com.

MAXIMUM RECOMMENDED CAPACITIES

DCD980 DCD985

WOOD

Auger 1-1/4" (32 mm) 1-1/4" (32 mm)

Paddle 1-1/2" (38 mm) 1-1/2" (38 mm)

Twist 1/2" (13 mm) 1/2" (13mm)
Self-feed 2-9/16" (65 mm) 2-9/16" (65 mm)

Hole saw 4" (100ram) 4" (100 ram)

M ETAL

Twist 1/2" (13 mm) 1/2" (13mm)

Hole saw 1-3/8" (35 mm) 1-3/8" (35 mm)

MASO NRY

Carbide - 1/2" (13mm)

Repairs

The charger and battery pack are not serviceable. There are no
serviceable parts inside the charger or battery pack.

To assure product SAFETY and RELIABILITY, repairs, maintenance
and adjustments (including brush inspection and replacement) should

14

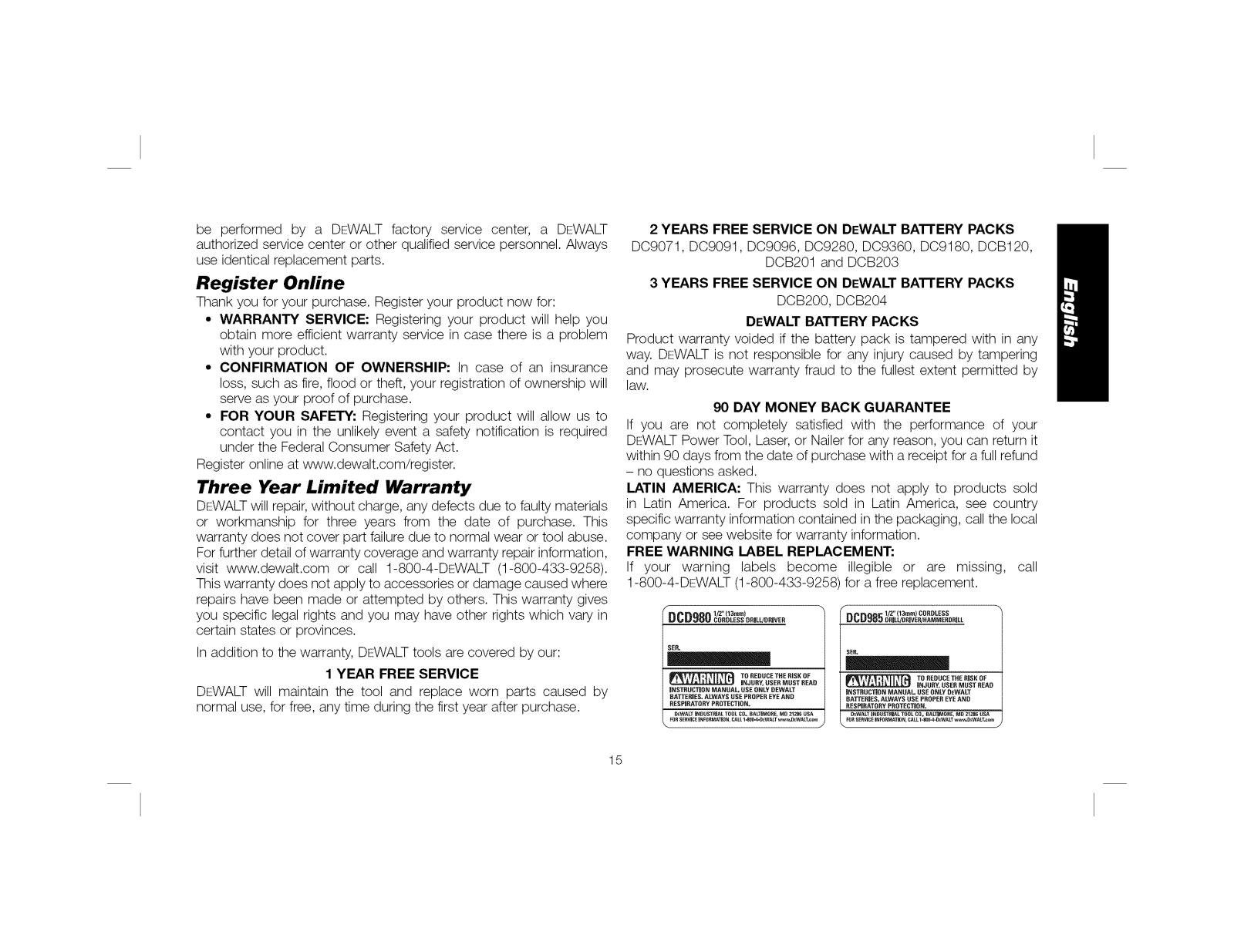

be perbrmed by a DEWALT factory service center, a DEWALT
authorized service center or other qualified service personnel. Always
use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you
obtain more efficient warranty service in case there is a problem
with your product.

• CONFIRMATION OF OWNERSHIP: In case of an insurance
loss, such as fire, flood or theft, your registration of ownership will

serve as your proof of purchase.

• FOR YOUR SAFETY: Registering your product will allow us to
contact you in the unlikely event a safety notification is required
under the Federal Consumer Safety Act.

Register online at www.dewalt.com/register.

Three Year Limited Warranty

DEWALTwill repair,without charge, any defects due to faulty materials
or workmanship for three years from the date of purchase. This
warranty does not cover part failure due to normal wear or tool abuse.
For further detail of warranty coverage and warranty repair information,
visit www.dewalt.com or call 1-800-4-DEWALT (1-800-433-9258).
This warranty does not apply to accessories or damage caused where
repairs have been made or attempted by others. This warranty gives
you specific legal rights and you may have other rights which vary in
certain states or provinces.

In addition to the warranty, DEWALT tools are covered by our:

1 YEAR FREE SERVICE

DEWALT will maintain the tool and replace worn parts caused by
normal use, for free, any time during the first year after purchase.

2 YEARS FREE SERVICE ON DEWALT BATTERY PACKS

DC9071, DC9091, DC9096, DC9280, DC9360, DC9180, DCB120,

DCB201 and DCB203

3 YEARS FREE SERVICE ON DEWALT BATTERY PACKS

DCB200, DCB204

DEWALT BATTERY PACKS

Product warranty voided if the battery pack is tampered with in any
way. DEWALT is not responsible for any injury caused by tampering
and may prosecute warranty fraud to the fullest extent permitted by

law.

90 DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your
DFWALT Power Tool, Laser, or Nailer for any reason, you can return it

within 90 days from the date of purchase with a receipt for a full refund

- no questions asked.
LATIN AMERICA: This warranty does not apply to products sold

in Latin America. For products sold in Latin America, see country
specific warranty information contained in the packaging, call the local
company or see website for warranty information.

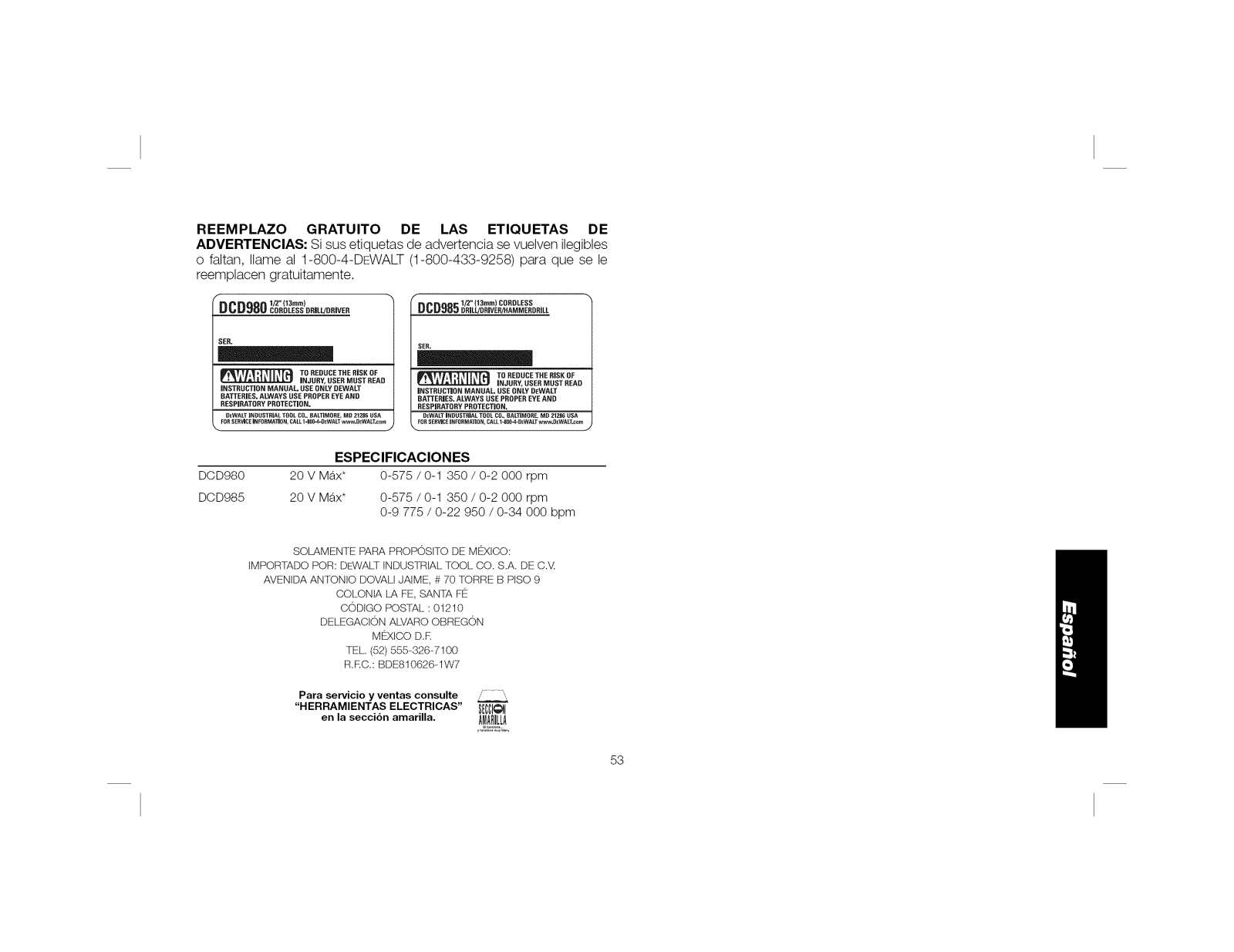

FREE WARNING LABEL REPLACEMENT:

If your warning labels become illegible or are missing, call
1-800-4-DEWALT (1-800-433-9258) for a free replacement.

f 1/Z' (13ram)

DCD980 CORDLESSORiLL/ORiVER

SER.

TO REDUCE THE RISK OF

JNSTRUCTJ0N MANUAL, USE ONLY OEWALT

BATTERIES. ALWAYS USE PROPER EYE AND
RESPIRATORY PROTECTJ0N.

9_WALT iNDUSTRiAL TOOL CO., BALTIMORE, MD 21286 USA

FORSERVICEI,_0RMA_I0NrCAL_I"_O÷O_WA_TWW_.D_WALT.c_,

iNJURY, USER MUST READ

/ N _'_ n_OC 112" (13ram) CORDLESS

U t,,_U_O;3 OBJLL/DRIVER/UAMMERORILL

_ TOREOOCETItERiSR OE

mNSTRUCTIONMANUAl. URE ONLYOEWALI
BArrERiES_ ALWAYSUSEPROREREYEANO

RESRIRATORYPROTEDTION_

O_WALTI_DU_I._L _lmLCO_8A_MORE_MO_ U_

\ •

INJURY, OSERMOST REAU

15

F

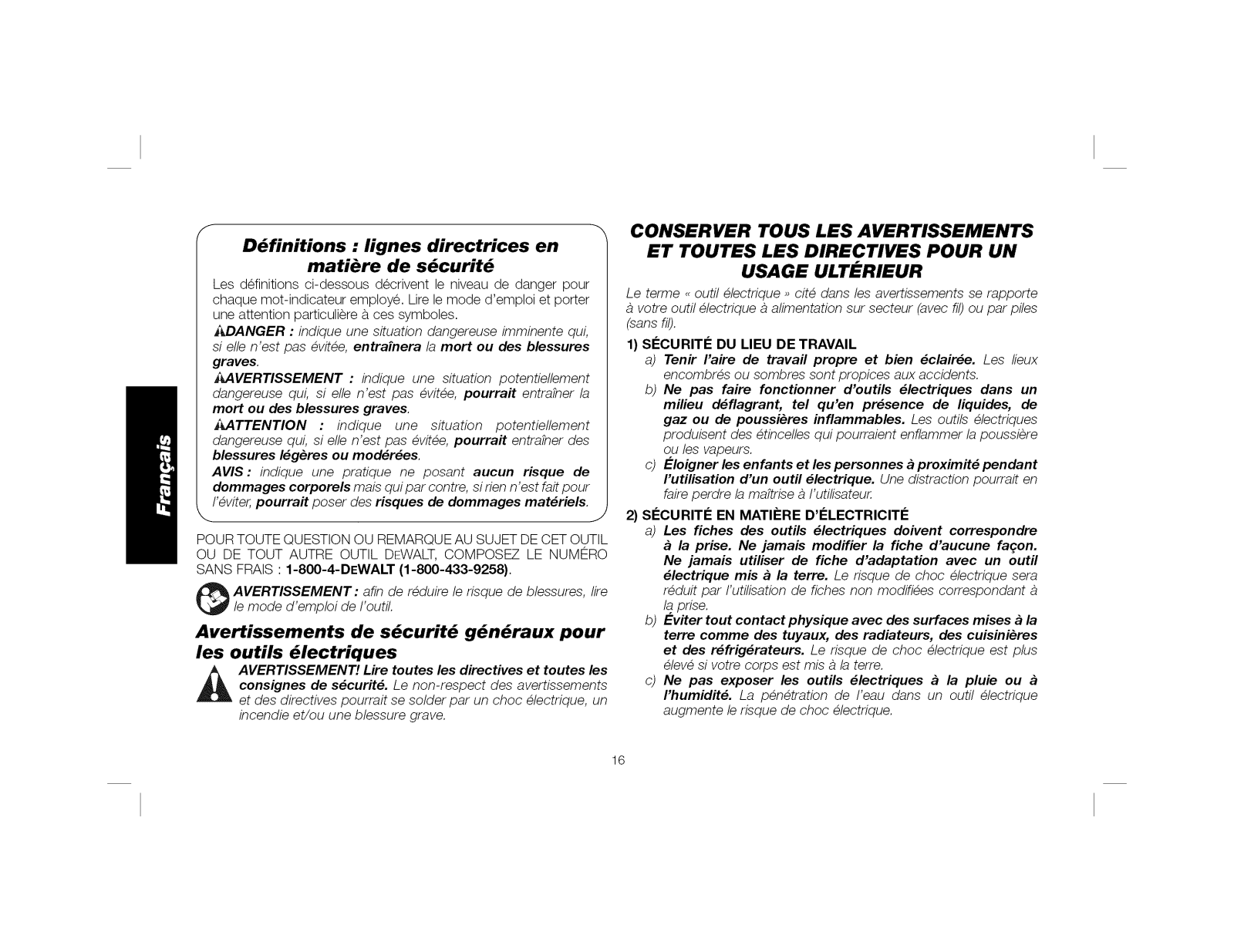

D_finitions : lignes directrices en

mati_re de s_curit_

Les definitions ci-dessous decrivent le niveau de danger pour

chaque mot-indicateur employe. Lire le mode d'emploi et porter

une attention particuliere a.ces symboles.
_ANGER : indique une situation dangereuse imminente qui,

si elle n'est pas evitee, entraTnera la mort ou des blessures
graves.

_VERTISSEMENT : indique une situation potentie//ement
dangereuse qui, si e//e n'est pas evitee, pourrait entra_ner /a
mort ou des blessures graves.

J_,ATTENTION : indique une situation potentie//ement
dangereuse qui, si elle n'est pas evitee, pourrait entra_ner des

blessures I_g_res ou modifies.

AVIS : indique une pratique ne posant aucun risque de

dommages corporels mais qui par contre, si rien n'est fairpour

k /'eviter, pourraff poser des risques de dommages materiels.
POUR TOUTE QUESTION OU REMARQUE AU SUJET DE CET OUTIL

OU DE TOUT AUTRE OUTIL DEWALT, COMPOSE LE NUMC:RO
SANS FRAIS : 1-800-4-DEWALT (1-800-433-9258).

_ VERTISSEMENT : afin de reduire le risque de blessures, life

le mode d'emploi de I'outil.

Avertissements de s_curit_ g_n_raux pour
les outils _lectriques

consignes de s_curit_. Le non-respect des avertissements

A AVERTISSEMENT! Life toutes les directives et toutes les

et des directives pourrait se solder par un choc dectrique, un
incendie et/ou une blessure grave.

CONSERVER TOUSLES AVERTISSEMENTS

ET TOUTES LES DIRECTIVES POUR UN

USAGE ULTERIEUR

Le terme _ outil dectrique _ cite clans les avertissements se rapporte

votre outil dectrique a alimentation sur secteur (avec ill) ou par piles

(sansfi/).

1) S#CURIT# DU LIEU DE TRAVAIL

a) Ten#" I'aire de travail propre et bien _clair_e. Les Iieux

encombres ou sombres sont propices aux accidents.

b) Ne pas faire fonctionner d'outils _lectriques clans un

milieu d_flagrant, tel qu'en presence de liquides, de
gaz ou de poussi_res inflammables. Les outi/s dectriques

produisent des etincelles qui pourraient enflammer la poussiere

ou les vapeurs.

c) E-Ioigner les enfants et les personnes a proximit_ pendant

I'utilisation d'un outil electrique. Une distraction pourrait en
faire perdre la ma_trisea I'utilisateur.

2) S#CURIT# EN MATIERE D'#LECTRICIT#

a) Les fiches des outils _lectriques doivent correspondre

la prise. Ne jamais modifier la fiche d'aucune faqon.

Ne jamais utiliser de fiche d'adaptation avec un outil

_lectrique mis a la terre. Le risque de choc dectrique sera
reduit par I'utilisation de fiches non modifiees correspondant

laprise.

b) Eviter tout contact physique avec des surfaces mises a la

terre comme des tuyaux, des radiateurs, des cuisini_res
et des r_frig_rateurs. Le risque de choc dectrique est plus

deve si votre corps est mis a la terre.

c) Ne pas exposer les outils _lectriques a la pluie ou

I'humidit_. La penetration de /'eau dans un outi/ dectrique
augmente le risque de choc dectrique.

16
