Devon IT TC2D Thin Client
Quick Setup Guide
TC2D
Notes, Cautions, and Warnings
NOTE:
A NOTE indicates important information that helps you
make better use of your computer.
CAUTION: A CAUTION indicates potential damage
to hardware or loss of data if instructions are not followed.
WARNING: A WARNING indicates a potential for
property damage, personal injury, or death.
Devon IT TC2D Thin Client
Quick Setup Guide
Before Setting Up Your TC2D
NOTE:
Place the thin client in its vertical orientation for best
performance.
Your TC2D terminal is shipped with the following items:
1
Power Cord
2
Adapter
3
Terminal Stand (pre-installed)
4
Quick Setup Guide
5
Warranty and Support Information
6
End User License Agreement
7
Safety, Environmental, and Regulatory Information
8
DVI-I to DVI-D/VGA Splitter
NOTE:
Inspect all parts visually for damage. If anything is damaged,
please contact Devon IT immediately to report the issue.
Setup and Features Information
1
Power Button
2
Network Activity Indicator LED
3
Audio Line Out
4
Microphone
6
USB 2.0 Connectors (2)
5
Network Connector
6
USB 2.0 Connectors (2)
7
DVI Connector
8
PS/2 Connector
9
Power Connector
10
Security Cable Slot

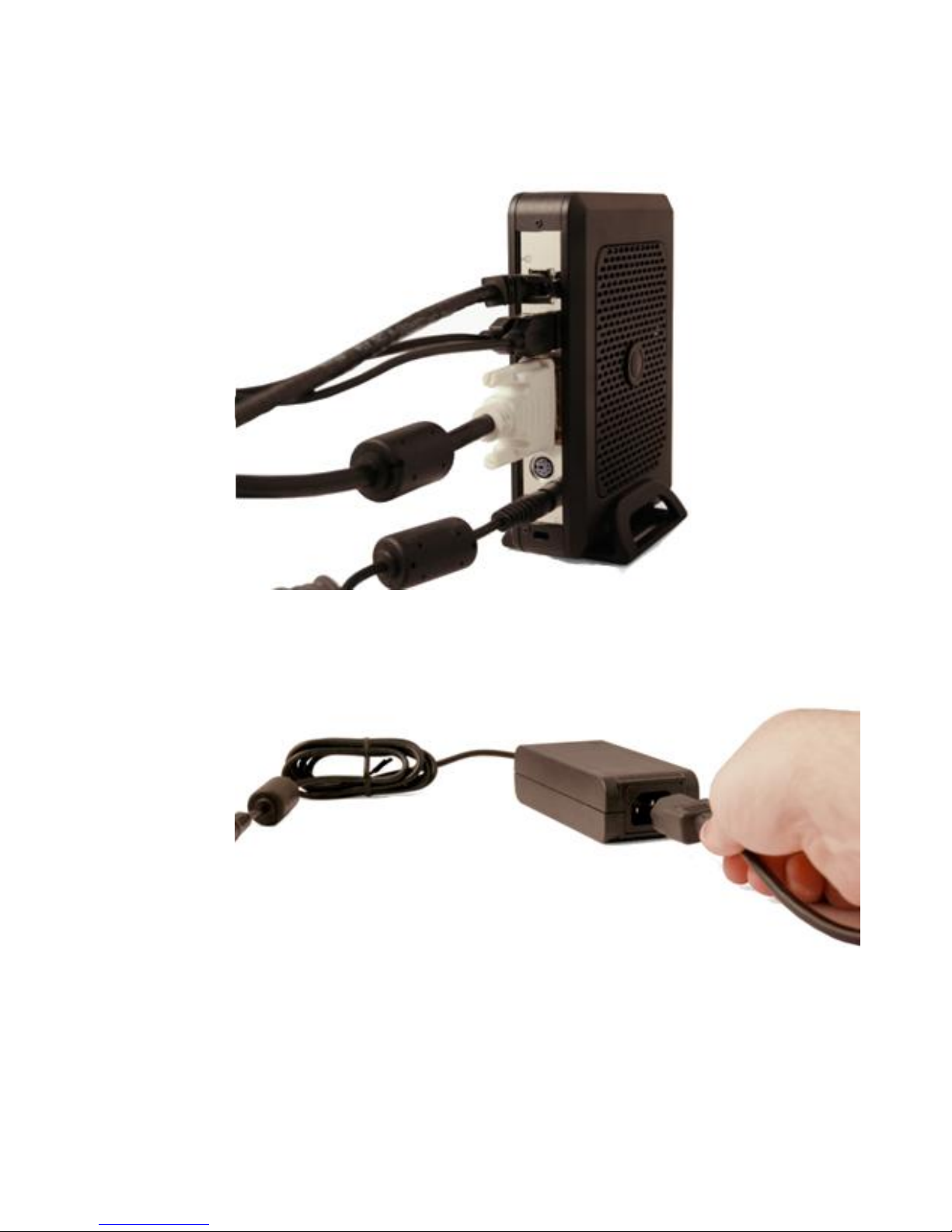

Quick Setup
1
Connect the monitor to the DVI Connector on the back
of the unit.
2
Connect the mouse and keyboard to the PS/2 or USB
connectors, depending on what type you have.
3
Connect the network cable to the Network Connector
on the unit and the other end of the cable to your local
network.
4
Connect the power supply to the TC2D’s power
connector on the back of the unit.
5
Plug the power cord into a surge-protected AC outlet.
CAUTION: To prevent overheating, and thus voiding your
warranty, do not place anything on or over the thin client.
6
Press the
Power
button to turn on the unit.
WARNING: Make all necessary connections before powering
the unit on. Failure to do so may make the unit appear as if is
not functioning properly. Do not shut the thin client down by
removing the power cord. Loss of power can damage the
unit.
WARNING: Excessive sound pressure from earphones and
headphones can cause hearing loss. Adjust the equalizer to
increase or decrease the earphones’ and headphones’
sound pressure levels.
CAUTION: It is important to not interrupt the power to the
thin client while executing a firmware upgrade. Loss of
power can result in a damaged operating system.
Specifications
NOTE:
The following specifications are only those required
by law to ship with your thin client. For a complete and
current listing of the specifications for your thin client,
go to devonit.com/support.
Environmental
Temperature:
Operating
32
°
to 95
°
F (0° to 35
°
C)
Storage
-4° to 140° F (-20
°
to 60
°
C)
Relative humidity
20% to 80% non-condensing
Altitude:
Operating
-15.2 to 2000 m (-50 to 6561.7 ft)
Storage
-15.2 to 10,665 m (-50 to 35,000 ft)
Getting Help
Please visit the support page on our website,
http://www.devonit.com/support, to find web forms that allow
you to create inquiry tickets with the technical support
department and submit Return Material Authorization (RMA)
forms for our products.
Support Center phone lines are open 24 hours, 7 days a week.
Toll Free:
1-800-369-7290
Local Phone:
610-757-4220
Warranty information and registration can be found at:
http://www.devonit.com/products/products-warranty.php
Devon IT TC2D Thin Client
Quick Setup Guide
TC2D
Devon IT, Inc.
1100 First Ave.
King of Prussia, PA 19406
devonit.com
