devolo Magic 2 WiFi User Manual
Transmission speeds Wi-Fi 867 (mbps, 2x2 MIMO/ 5 GHz), Wi-Fi 300 (mbps, 2x2 MIMO/ 2,4 GHz)
Ethernet 10/100/1000 (mbps)
Powerline 1200/2400 (mbps)
Modulation • Carrier Powerline OFDM - 4096/1024/256/64-QAM, QPSK, BPSK
Wi-Fi DSSS (IEEE 802.11b) • Wi-Fi OFDM (IEEE 802.11a, g, n, ac) • WiFi 32
Range (in m) Powerline: 500
Wi-Fi: 300
Security WPA/WPA2
WPS PIN, WPS PBC
MAC-Address Filter
Wi-Fi Time Schedule
128 Bit AES
LEDs PLC (multi)
WiFi
Buttons Pairing
Wi-Fi on/o
Factory Default
Socket • Connector • Countries Type F (CEE 7/4) • F (CEE 7/4) • (DE,NL,ES,PT,AT,SE,FI,NO,GR,HU,SI)
Power output to integrated socket 16 A
Device port 2 x Ethernet RJ45
4 x Antenna
Power consumption Maximum W/A: 12,0 W
Typical W/A: 9,0 W
Stand-By W/A: 3,4 W
Power supply internal
196-250 V AC
50 Hz
Attenuation lter 2 - 80 MHz
Filter characteristics -22 db to -45 db
Temperature (Storage • Operating) -25°C to 70°C • 0°C to 40°C
Dimensions (in mm, without plug) 152 x 76 x 40

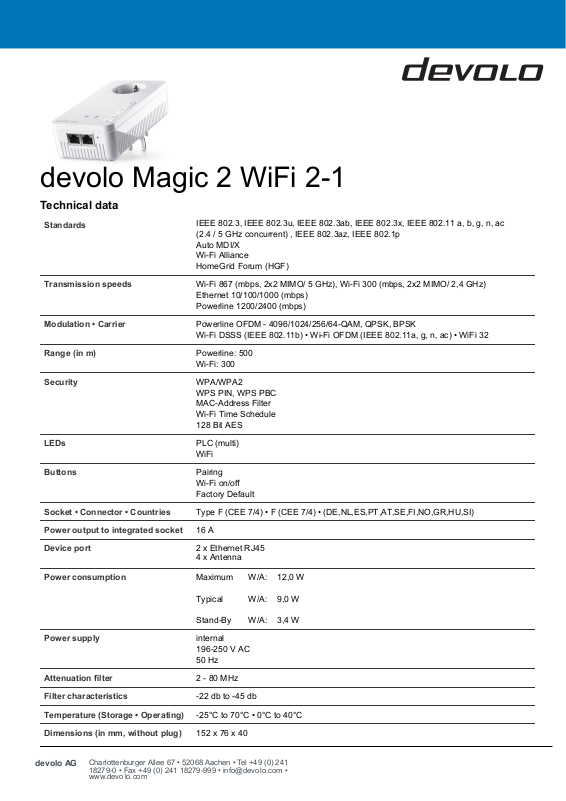

devolo Magic 2 WiFi 2-1
Technical data
Charlottenburger Allee 67 • 52068 Aachen • Tel +49 (0) 241
18279-0 • Fax +49 (0) 241 18279-999 • info@devo lo.com •
www.devolo.com
devolo AG
Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.11 a, b, g, n, ac
(2.4 / 5 GHz concurrent) , IEEE 802.3az, IEEE 802.1p
Auto MDI/X
Wi-Fi Alliance
HomeGrid Forum (HGF)
Ambient conditions 10-90% Humidity (non-condensing)
Operating systems from version
Android 5.1
iOS 10
Windows 7 (32/64Bit)
Ubuntu-Linux 16.04 (32/64 Bit)
MAC OS X 10.9
Certications CE compliant
Additional features Interfaces can be enabled/disabled, HTML conguration page
Sales information
Warranty (in years) 3
Accessories Printed Install Flyer
Ethernet Cable(s)
Single adapter Starter Kit Multiroom Kit
8382 (EU)
EAN: 4250059683822
Weight: 570 g
Dimensions: 190 x 118 x 92 mm
8390 (EU)
EAN: 4250059683907
Weight: 890 g
Dimensions: 188 x 231 x 92 mm
8398 (EU)
EAN: 4250059683983
Weight: 1265 g
Dimensions: 188 x 231 x 92 mm
WEEE additional information:
Weight WEEE: 360 g
Paper (Green Dot): 175 g
Plastic (Green Dot): 2 g
other (Green Dot): 0 g
© 2018 devolo AG, Germany. All rights reserved.
Technical data subject to change without notice.
Version: en_EU 03.09.2018
WEEE additional information:
Weight WEEE: 625 g
Paper (Green Dot): 225 g
Plastic (Green Dot): 4 g
other (Green Dot): 0.2 g
WEEE additional information:
Weight WEEE: 985 g
Paper (Green Dot): 240 g
Plastic (Green Dot): 6 g
other (Green Dot): 0.2 g
devolo AG
Charlottenburger Allee 67 • 52068 Aachen • Tel +49 (0) 241
18279-0 • Fax +49 (0) 241 18279-999 • info@devo lo.com •
www.devolo.com
