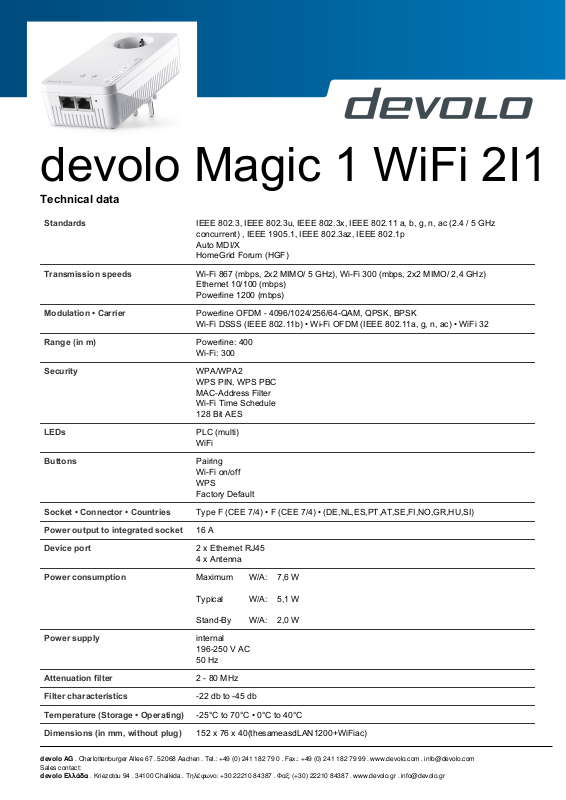

devolo Magic 1 WiFi 2I1 Specification

devolo Magic 1 WiFi 2I1

Technical data

Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.11 a, b, g, n, ac (2.4 / 5 GHz

concurrent) , IEEE 1905.1, IEEE 802.3az, IEEE 802.1p
Auto MDI/X
HomeGrid Forum (HGF)

Transmission speeds Wi-Fi 867 (mbps, 2x2 MIMO/ 5 GHz), Wi-Fi 300 (mbps, 2x2 MIMO/ 2,4 GHz)

Ethernet 10/100 (mbps)
Powerline 1200 (mbps)

Modulation • Carrier Powerline OFDM - 4096/1024/256/64-QAM, QPSK, BPSK

Wi-Fi DSSS (IEEE 802.11b) • Wi-Fi OFDM (IEEE 802.11a, g, n, ac) • WiFi 32

Range (in m) Powerline: 400

Wi-Fi: 300

Security WPA/WPA2

WPS PIN, WPS PBC
MAC-Address Filter
Wi-Fi Time Schedule
128 Bit AES

LEDs PLC (multi)

WiFi

Buttons Pairing

Wi-Fi on/off
WPS
Factory Default

Socket • Connector • Countries Type F (CEE 7/4) • F (CEE 7/4) • (DE,NL,ES,PT,AT,SE,FI,NO,GR,HU,SI)

Power output to integrated socket 16 A

Device port 2 x Ethernet RJ45

4 x Antenna

Power consumption Maximum W/A: 7,6 W

Typical W/A: 5,1 W

Stand-By W/A: 2,0 W

Power supply internal

196-250 V AC
50 Hz

Attenuation filter 2 - 80 MHz

Filter characteristics -22 db to -45 db

Temperature (Storage • Operating) -25°C to 70°C • 0°C to 40°C

Dimensions (in mm, without plug) 152 x 76 x 40(thesameasdLAN1200+WiFiac)

devolo AG . Charlottenburger Allee 67 . 52068 Aachen . Tel.: [phone] . Fax.: [phone] . www.devolo.com . [e-mail]
Sales contact:
devolo Ελλάδα . Kriezotou 94 . 34100 Chalkida . Τηλέφωνο: [phone] . Φαξ: ([phone] . www.devolo.gr . [e-mail]

Ambient conditions 10-90% Humidity (non-condensing)

Operating systems Windows 7 (32 Bit), Windows 7 (64 Bit)

Windows 8.x (32 Bit), Windows 8.x (64 Bit), Windows 8.x Pro (32 Bit), Windows 8.x Pro
(64 Bit), Windows 10.x Pro (32 Bit), Windows 10.x Pro (64 Bit)
MAC OS X 10.10, MAC OS X 10.11, MAC OS X 10.12
Windows, MAC OS X, Ubuntu-Linux

Certifications CE Class B (EU, CH, NO)

Additional features Interfaces can be enabled/disabled, HTML configuration page

Sales information

Warranty (in years) 3

Accessories Printed Install Flyer

Ethernet Cable(s)

Single adapter Starter Kit Network Kit

8358 (EU)

EAN: 4250059683587
Weight: 570 g
Dimensions: 190 x 118 x 92 mm

WEEE additional information:

Weight WEEE: 360 g
Paper (Green Dot): 175 g
Plastic (Green Dot): 2 g
other (Green Dot): 0 g

8366 (EU)

EAN: 4250059683662
Weight: 890 g
Dimensions: 188 x 231 x 92 mm

WEEE additional information:

Weight WEEE: 625 g
Paper (Green Dot): 225 g
Plastic (Green Dot): 4 g
other (Green Dot): 0.2 g

8374 (EU)

EAN: 4250059683747
Weight: 1265 g
Dimensions: 188 x 231 x 92 mm

WEEE additional information:

Weight WEEE: 985 g
Paper (Green Dot): 240 g
Plastic (Green Dot): 6 g
other (Green Dot): 0.2 g
