DeVilbiss DV54 AutoAdjust CPAP Series, IntelliPAP DV54 AutoAdjust CPAP Series Owner's Manual

DeVilbiss® IntelliPAP™ Positive Airway Pressure Device

DV54 AutoAdjust® CPAP Series

CAUTION–Federal (U.S.A.) law restricts this device to sale by, or on the order of a physician.

Assembled in USA of US & Imported Parts. Latex Free. Instruction Guide

Dispositivo de presión positiva en las vías respiratorias

IntelliPAP™ de DeVilbiss

®

Serie DV54 AutoAdjust

®

CPAP

PRECAUCIÓN: La ley federal de EE. UU. limita la venta de este dispositivo a médicos o a personas que
dispongan de la correspondiente orden médica.

Montaje efectuado en EE. UU. con piezas fabricadas en EE. UU. e importadas. UU. Sin
látex. Guía de instrucciones

Appareil de ventilation spontanée en pression positive

IntelliPAP™ de DeVilbiss

®

DV54 AutoAdjust® CPAP Series

ATTENTION– En vertu de la loi fédérale américaine, cet appareil ne peut être vendu que par un médecin
ou sur ordonnance de ce dernier.

Assemblé aux États-Unis avec des pièces des États-Unis et des pièces importées. Sans latex.
Guide d’instructions

ES

EN

FR

2

A-DV54

EN

tAble of contents

ENGLISH ............................................................................................................3

ESPAÑOL ......................................................................................................... 25

FRANÇAIS ......................................................................................................49

Table of ConTenTs

Symbol Definitions ..................................................................................................................3

Important Safeguards ..............................................................................................................3

Introduction .............................................................................................................................5

Intended Use/Indications for Use.....................................................................................5

Contraindictions ...............................................................................................................5

What Is Obstructive Sleep Apnea (OSA) .........................................................................5

How CPAP Therapy Works .............................................................................................6

Acclimating To Your Therapy ...........................................................................................6

Benefits Of Your Therapy ................................................................................................7

Helpful Resources ............................................................................................................7

Key Features ............................................................................................................................8

Unpacking The Contents .................................................................................................8

IntelliPAP Device ..............................................................................................................8

Keypad ..............................................................................................................................8

System Assembly without Humidification ...............................................................................9

Keypad and Display .................................................................................................................9

Operation ..............................................................................................................................10

Start Up ..........................................................................................................................10

Using The Comfort Delay Feature ................................................................................10

Shut Down .....................................................................................................................11

Advanced Menu Controls .....................................................................................................11

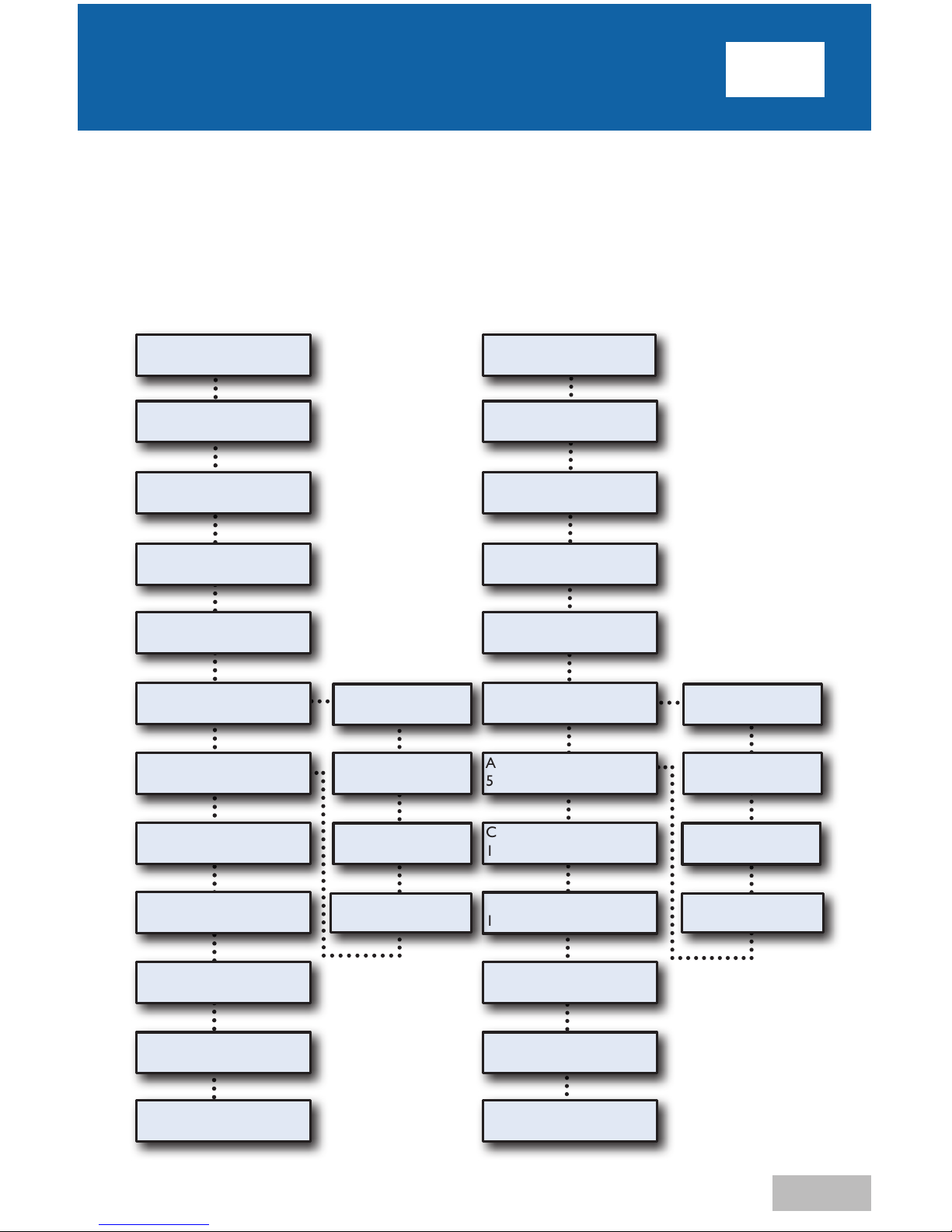

Advanced Menu List .......................................................................................................12

IntelliPAP Enable Menu List............................................................................................13

AutoAdjust Patient Menu ...............................................................................................14

CPAP Patient Menu ........................................................................................................14

Patient Messages ...................................................................................................................15

Reminders ......................................................................................................................15

Notifications ...................................................................................................................15

IntelliPAP Travel Information .................................................................................................16

IntelliPAP DC Operation .......................................................................................................16

Battery Power ................................................................................................................16

Supplemental Oxygen ...........................................................................................................16

Accessories/Replacement Items ............................................................................................18

Maintenance ..........................................................................................................................19

Cleaning .................................................................................................................................20

Troubleshooting .....................................................................................................................21

Specifications .........................................................................................................................23

Warranty ................................................................................................................................24

EN

ES

FR

3

A-DV54

EN

symbol Definitions/
importAnt sAfeguArDs

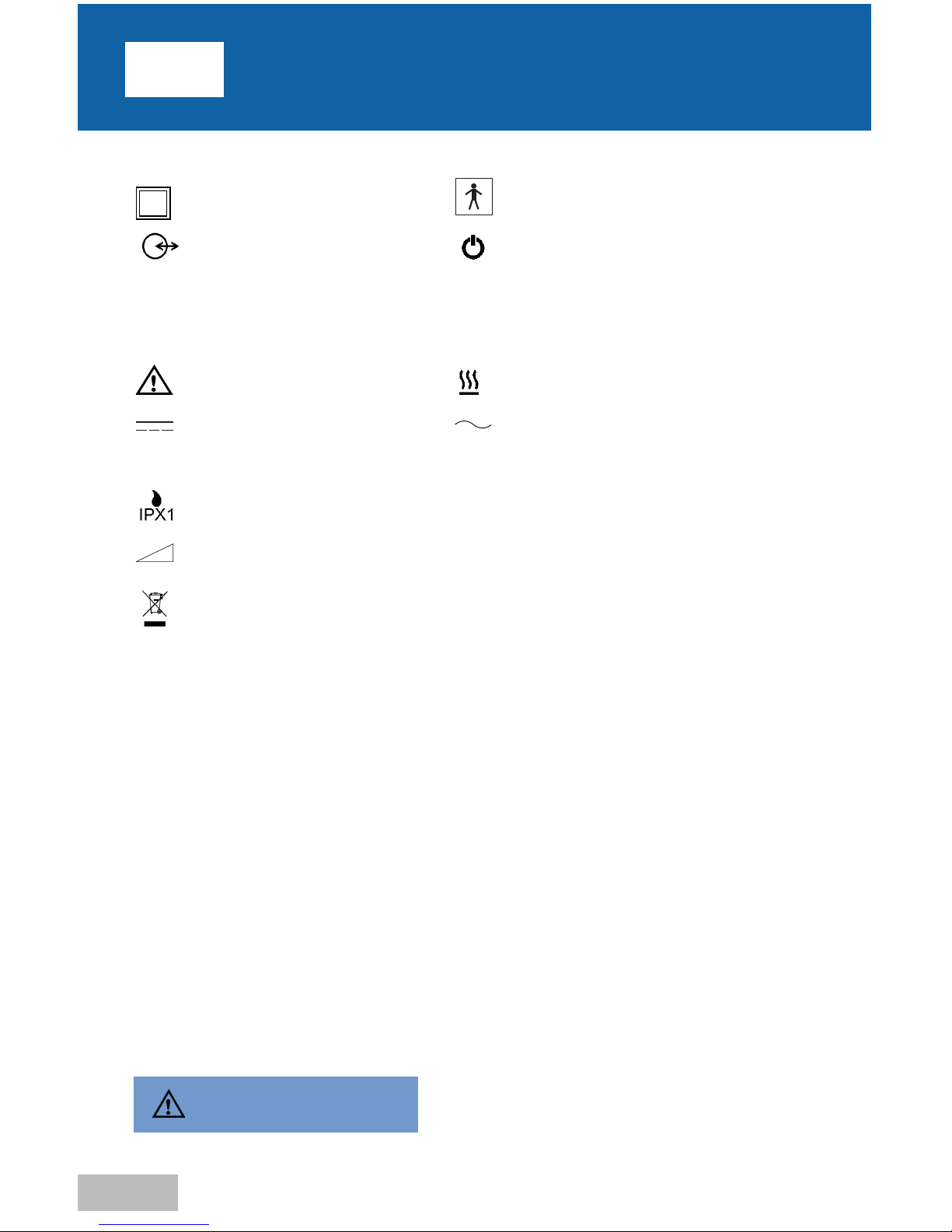

symbol DefiniTions

Class II electrical protection–double Type BF equipment– applied part

insulated

Data Port Input/Output Standby – turns the blower on or off



Next Item on LCD display



Increase value shown on LCD display



Previous Item on LCD display



Decrease value shown on LCD display

Attention - Consult Accompanying Heat

Documents

DC Input: 12 VDC, center pin is 100 – 240 Volts AC input 50/60 Hz
positive

 Locked  Unlocked

IPX1 Drip-Proof, Vertical

Delay – starts the delay cycle in CPAP mode, if prescribed

– reduces pressure to lower pressure limit in AutoAdjust mode

This device contains electrical and/or electronic equipment that must be recycled per

EC Directive 2002/96/EC - Waste Electrical and Electronic Equipment (WEEE)

IMPORTANT SAFEGUARDS

When using electrical products, basic safety precautions should always be followed. Read all
instructions before using this device. Important information is highlighted by the following
terms.

DANGER Urgent safety information for hazards that will cause serious injury or death.

WARNING Important safety information for hazards that might cause serious injury.

CAUTION Information for preventing damage to the product.

NOTE Information to which you should pay special attention.

Please ReaD all insTRUCTions befoRe UsinG
THis DeViCe.

SAVE THESE INSTRUCTIONS

DANGER

Electric Shock Hazard – Do not use while bathing.
Electric Shock Hazard – Do not immerse this device into water or any

other liquid.

4

A-DV54

EN

importAnt sAfeguArDs

Electric Shock Hazard – Do not attempt to open or remove the enclosure.
There are no user-serviceable internal components. If service is required,
return the product to your home care provider. Opening or tampering
with the product will void the warranty.

The DeVilbiss IntelliPAP™ should be used only with masks recommended
by DeVilbiss, your physician or respiratory therapist.

To avoid rebreathing of exhaled air, do not use a CPAP mask unless the
device is turned on and providing a supply of air. Venting in the mask
should never be blocked. When the device is turned on and providing a
fresh supply of air, exhaled air is flushed out of the mask vent. However,
when the device is not operating, exhaled air may be rebreathed.
Rebreathing of exhaled air for longer than several minutes can in some
circumstances lead to suffocation. This warning applies to most CPAP
devices.

The DeVilbiss IntelliPAP is not a life support device and may stop
operating with certain device faults or with a power failure. It is intended
to be used on spontaneously breathing individuals weighing 66 lbs/30 Kg
or greater.

To avoid electric shock, always unplug power cord from wall outlet power
source when performing cleaning.

Use only accessories recommended by DeVilbiss.

CAUTION–The circular data port connector located on the back of the IntelliPAP is used to

attach accessories to the device. The connector must only be used with accessories approved for
use by DeVilbiss. Do not attempt to attach any other device to this connector as it may damage
the CPAP or the accessory device.

CAUTION–Never rinse or place the device in water. Never allow liquids to get into or around
any of the ports, switches or air filter; doing so will result in device damage. If this occurs,
discontinue use and remove the power cord from the power source. Allow the device to
completely dry before use.

CAUTION–Do not place the IntelliPAP where it can be bumped onto the floor or where the
power cord may create a trip hazard.

CAUTION–Only the DeVilbiss DV5 series Heated Humidifier system is recommended for use
with the IntelliPAP. Other humidifier systems may prevent the device from detecting snoring and
may cause inappropriate pressure levels in the mask.

CAUTION–Oxygen is a prescription gas and should only be administered under the supervision
of a physician.

WARNING

5

A-DV54

EN

introDuction

inTRoDUCTion

Intended Use/Indications for Use

The DeVilbiss® IntelliPAP™ Model DV5 Series is intended for use in treating obstructive
sleep apnea in patients 66 lbs/30 kg and above.

Contraindication

Do not use IntelliPAP if your upper airway has been bypassed.

NOTE– Symptoms of dryness of the throat, nasal passages, and the mouth are common with positive airway

pressure therapy. This is especially true in dry climates and during the cold season when humidity in
the air is typically lower than at other times. The IntelliPAP features an optional humidifier system
to help minimize these effects.

What Is Obstructive Sleep Apnea (OSA)?

Obstructive Sleep Apnea (OSA) is a breathing disorder that affects more than 22 million
Americans – approximately 4% of middle-aged men and 2% of middle-aged women.

Physiological factors such as size of tonsils, shape of the nose, narrowing of the upper airway,
or any combination of these can contribute to the potential for having OSA. During sleep,
your airway can relax so much that it begins to collapse and becomes obstructed. Relaxation
allows the tissue at the back of your throat to vibrate as you breathe causing snoring. But as
your airway collapses more fully, it blocks your airflow and stops your breathing altogether.
(In fact, the word “apnea” is derived from a Greek term meaning “without breath.”)

This stoppage occurs repeatedly throughout the night, each episode lasting from just a few
seconds to more than a minute. As your blood oxygen level drops to dangerous levels, your
central nervous system triggers a sudden gasp for breath, partially awakening you and
preventing you from experiencing the sustained, deep sleep your body needs. As a result, it
is common to feel fatigued, stressed and irritable the following day – a less-than-optimal and
potentially dangerous condition in which to work, drive, and make decisions.

There are important medical concerns as well. OSA starves your heart, brain, and organs of
life-sustaining oxygen. Over time, this deprivation can seriously impact your health

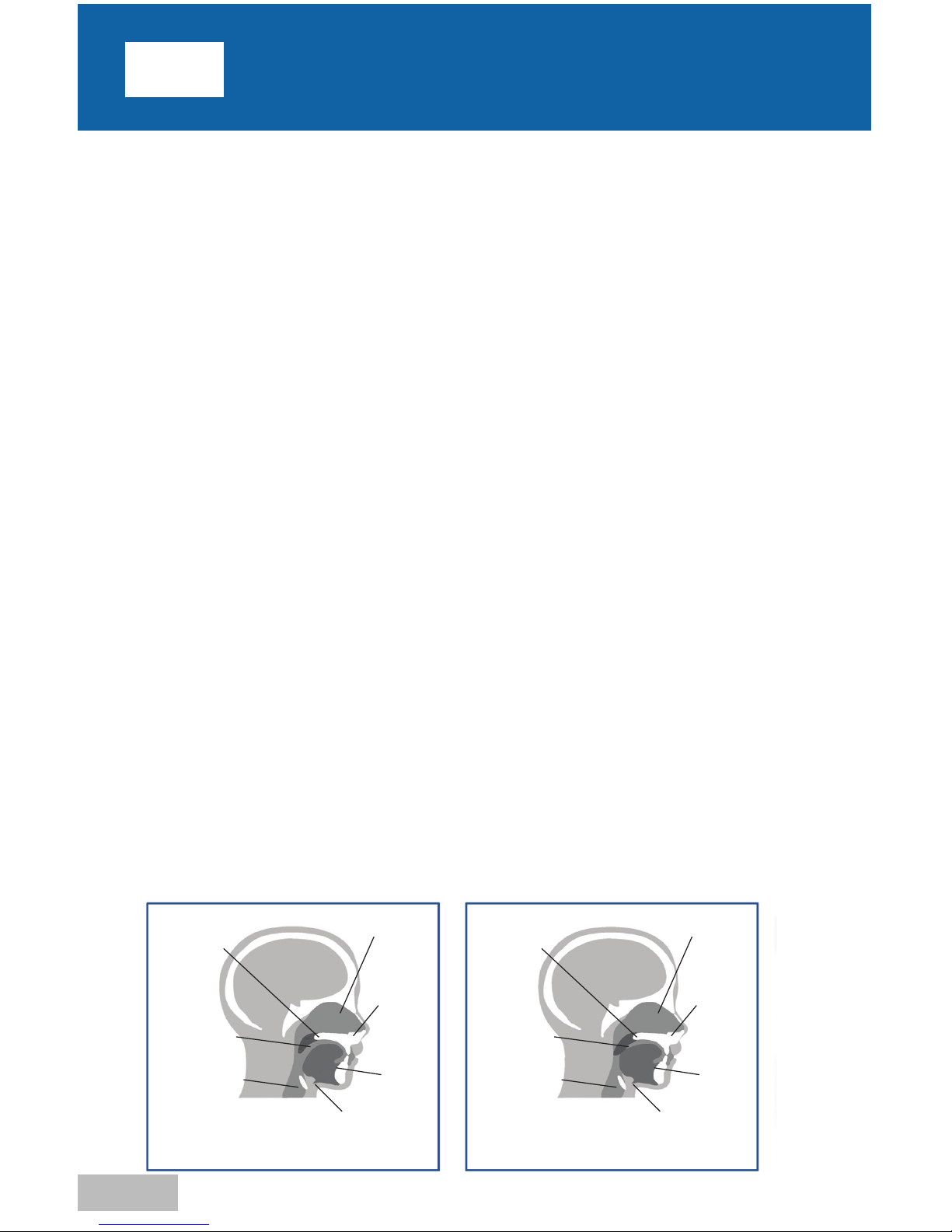

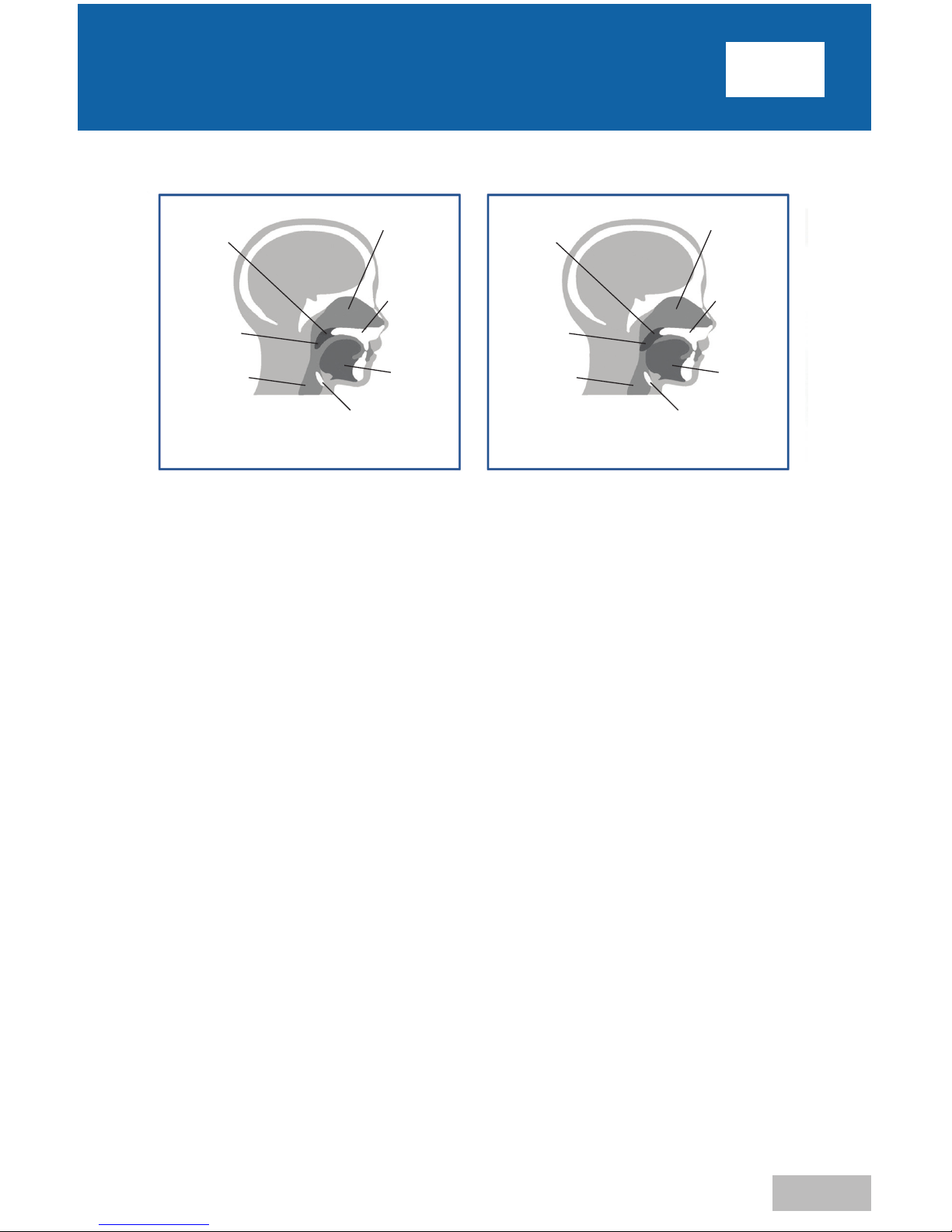

During an apneic episode the soft

palate collapses blocking the airway

Unobstructed Airway

Soft Palate

Uvula

Pharynx

Epiglottis

Tongue

Hard Palate

Nasal Cavity

Soft Palate

Uvula

Pharynx

Epiglottis

Tongue

Hard Palate

Nasal Cavity

6

A-DV54

EN

introDuction

potentially resulting in memory loss, impotence, hypertension, coronary disease, strokes,
and heart attacks. Recent studies indicate that OSA has the same risk factor for heart
disease as smoking, high cholesterol and alcohol, and estimate that as many as 38,000
people a year die from the effects of OSA.

Clearly, OSA is a serious medical condition that requires attention and treatment.

How CPAP Therapy Works

There are several treatments for OSA including surgery and CPAP therapy. However, CPAP
therapy has proven very effective for most patients. CPAP stands for “continuous positive
airway pressure” which is exactly what the DeVilbiss IntelliPAP device delivers to your
upper airway, acting as an “air splint” to keep the passage open while you sleep.

This reduces or eliminates the obstruction, allowing you to enjoy the deep, refreshing,
uninterrupted sleep you need. More importantly, your body will get the rest and oxygen it
needs with more continuous, uninterrupted sleep – helping you avoid some of the serious
health risks associated with OSA. And the IntelliPAP is designed to provide this therapy to
you quietly and comfortably so that you can sleep through the night without distraction.

The DeVilbiss IntelliPAP AutoAdjust® system automatically adjusts air pressure by
measuring your snoring and breathing patterns on a breath-by-breath basis, and
compensating to meet your pressure needs. Your breathing patterns are continuously
analyzed, stored and used to make any needed pressure adjustment.

The rate of pressure adjustment can be as high as 10 cmH2O in a 10 minute period with
changes made gradually enough to prevent disturbing your sleep yet quickly enough to
respond to your pressure needs. In the absence of respiratory events, the pressure is
reduced to maximize your comfort. The IntelliPAP AutoAdjust is also capable of operating in
CPAP mode – without the automatic functionality described above – to give your physician
maximum versatility in prescribing treatment for your sleep condition.

Acclimating To Your Therapy

Naturally anything new – including CPAP therapy – takes some getting used to. Having your
mouth or nose (or both) covered by a mask may make you feel anxious or claustrophobic.
Feeling the rush of air from your IntelliPAP may cause discomfort or concern. But don’t
worry – every successful, long-term CPAP user began where you are today with the same
reactions and concerns, and overcame them to enjoy the full benefits of their therapy.

Here are some steps to help you gradually ease into your therapy and overcome your
anxieties:

1. Try attaching the mask to the CPAP unit, and switching the unit “On.” Practice
breathing through the mask for one hour while watching television, reading, or
performing some other sitting activity.

2. If you nap, use the CPAP during this time.

3. Use CPAP at least during the first initial 3-4 hours of nighttime sleep.

4. Use CPAP through an entire night of sleep.

7

A-DV54

EN

introDuction

American Academy of Sleep Medicine

One Westbrook Corporate Ctr, Ste 920
Westchester IL 60154
Phone: [phone]
Fax: [phone]
www.aasmnet.org

American College of Chest Physicians

3300 Dundee Rd
Northbrook, IL 60062-2348
Phone: [phone] or [phone]
Fax: [phone]
www.chestnet.org

The Sleep Apnoea Trust

12a Bakers Piece,
Kingston Blount
Oxon.
OX39 4SW
Tel: [phone]
www.sleepapnoea-trust.org

National Heart, Lung & Blood Institute
Information Center

P.O. Box 30105
Bethesda, MD 20824-0105
Phone: [phone]
Fax: [phone]
www.nhlbi.nih.gov

American Academy of Neurology

1080 Montreal Avenue
St. Paul, Minnesota 55116
Phone: [phone] or [phone]
Fax: [phone]
www.aan.com

American Sleep Apnea Association

1424 K Street NW, Suite 302
Washington, DC 20005
Phone: [phone]
Fax: [phone]
www.sleepapnea.org

National Center on Sleep Disorder Research
National Heart Lung & Blood Institute (NIH)

6701 Rockledge Drive
Bethesda, MD 20892
Phone: [phone]
Fax: [phone]
www.nhlbi.nih.gov/sleep

National Sleep Foundation

1522 K Street, NW, Suite 500
Washington, DC 20005
Phone: [phone]
Fax: [phone]

www.sleepfoundation.org

Advance through the above steps one step at a time and progress to the next step as soon
as you can carry out the current step without anxiety.

Benefits Of Your Therapy

As a DeVilbiss IntelliPAP user, you are on your way to living a happier, healthier life – a life
free from the sleep disruptions and health risks associated with OSA. After you become
acclimated to CPAP therapy, you may be surprised at how much better you feel, both
physically and emotionally. CPAP therapy may give you the opportunity to finally experience
the deep, restful sleep you’ve been missing out on. Many patients find they have more
energy, better judgment, and improved concentration during the day. With effective therapy
you’ll be less stressed, less irritable and more like your old self again, with a healthy, positive
outlook on life. In fact, you may well wish you’d gotten your IntelliPAP sooner!

Helpful Resources

As you begin your IntelliPAP therapy, remember: you’re not in this alone! You’re part of a large
and growing network of CPAP users, and many resources are available to answer your questions,
address your concerns, and help make your therapy as effective and effortless as possible.

8

A-DV54

EN

Key feAtures

Key feaTURes

Unpacking The Contents

The following items are included in your DeVilbiss IntelliPAP system:

1. IntelliPAP device 5. Air supply tubing

2. Spare filter pack 6. User manual

3. AC line cord 7. DVD

4. Carrying case

If any of the above items are missing, please contact your home care provider.

NOTE– If you received a humidifier with your IntelliPAP system, please refer to the humidifier’s instruction

guide for additional information.

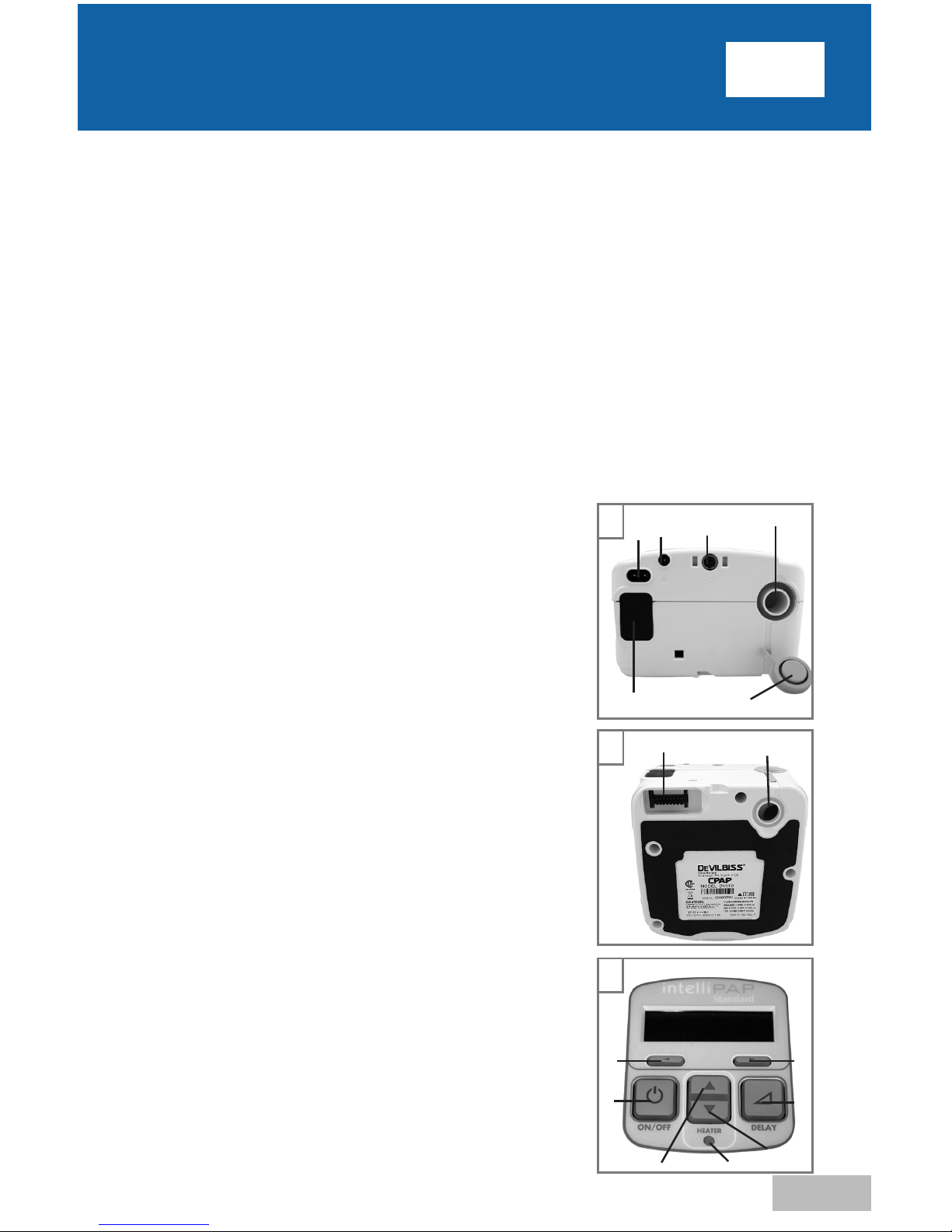

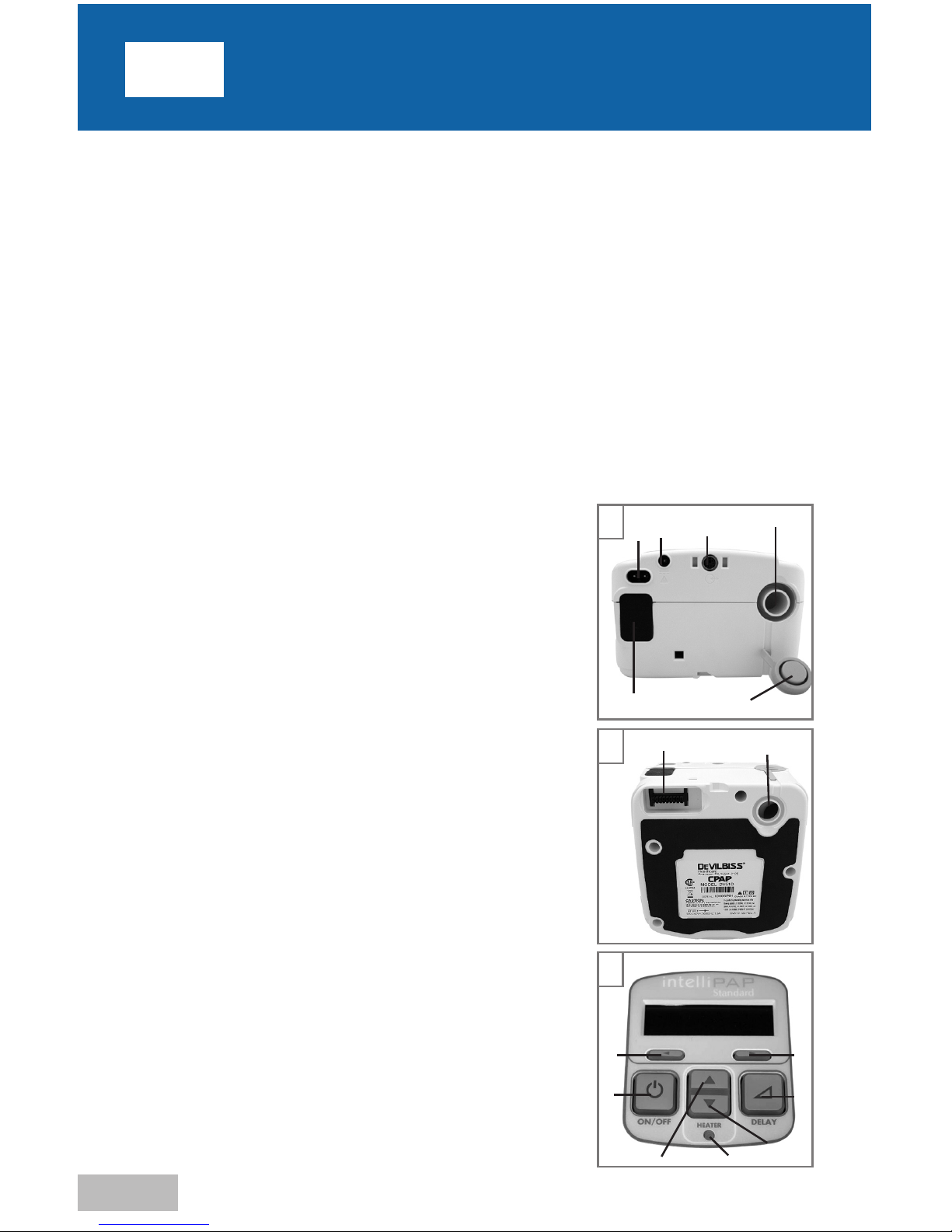

DeVilbiss IntelliPAP Device (Figures A and B)

1. Keypad/LCD Display (see Figure C)

2. Air Supply Port on Back

3. Air Supply Port on Bottom (for optional humidifier)

4. Air Supply Port Plug

5. Heater Power Connector (for optional humidifier)

6. AC Power Connector

7. DC Power Connector

8. Data Port

9. Power Cord (appropriate to
your wall outlet) (not shown)

10. Air Inlet Filter Opening

Keypad (Figure C)

1. On/Off

2. Previous Item

3. Next Item

4. Delay

5. Decrease Value

6. Increase Value

7. Heater Power LED (for optional humidifier)

Ask your home care provider for information about other
DeVilbiss masks, equipment, and accessories.

B

3

5

A

2

8

4

10

7

6

C

1

4

3

2

6

7

5

9

A-DV54

EN

system Assembly

sysTem assembly wiTHoUT HUmiDifiCaTion

NOTE– If your system includes a humidifier, please refer to the instructions provided with the humidifier for

assembly and operation.

1. Locate the air supply port and heater accessory connector on the bottom of the IntelliPAP
device. Ensure that each opening has the appropriate soft cover securely attached.

2. Place the IntelliPAP on a stable surface such as a nightstand or table. If you wish, you
may also place the device on the floor at the bedside, being careful to place the unit
where it won’t be kicked or stepped on. Ensure that the air inlet in the back of the
device is not blocked by anything such as curtains or bedding.

NOTE– Never place the IntelliPAP system on a soft surface such as a bed or couch during operation.
CAUTION– The height of the IntelliPAP system must always be lower than the interface mask when using

a humidifier to prevent water from getting into the CPAP mask.

3. Insert the power cord into the back of the device. Make sure the power cord is fully
inserted into the connector. Plug the other end of the power cord into the AC wall outlet.

4. Attach the air supply tubing to the air supply interface in the back of the device.

5. Prepare the mask (supplied by your home care provider) by referring to the mask’s
instruction guide.

6. Connect the air supply tubing to the mask.

NOTE– The air supply tubing supplied with the device is specially designed to prevent kinking and allow you

to receive smooth airflow. Use only the 22 mm diameter, smooth-bore, kink-resistant tubing
supplied with this device or an air supply tubing recommended by your home care provider.

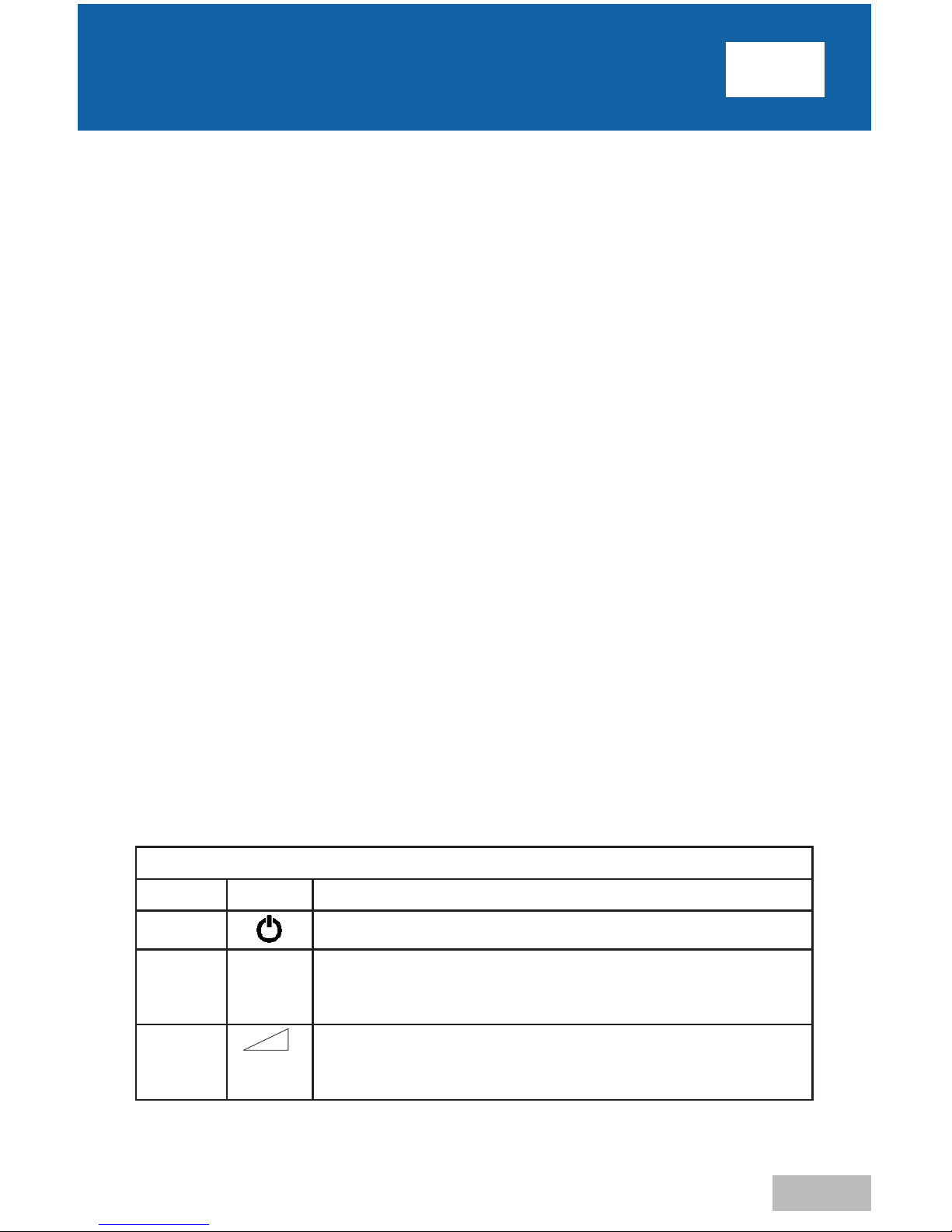

Keypad And Display

Basic DeVilbiss IntelliPAP Controls

Name Symbol Function

ON/OFF The ON/OFF button starts and stops the flow of air from the

device.

HEATER




If your IntelliPAP has a heater/ humidifier attached, these buttons
adjust the heater setting. Increase the setting for more humidity
and decrease the setting for less humidity.

DELAY The Delay button activates the comfort delay feature and only

functions if this feature has been enabled. To understand how to
set the parameters of this feature, please refer to the Using the
Comfort Delay Feature found on page 10.

NOTE– The additional control buttons that you see on the IntelliPAP control panel provide advanced

controls for specific settings. Please refer to the ‘Advanced Menu Controls’ section on page 11 for
more details.

10

A-DV54

EN

operAtion

oPeRaTion

Startup

To begin operation, verify that your IntelliPAP is connected to a
‘live’ power source. When plugged in, the LCD display should
appear as noted.

Put on your CPAP mask and press the ON/OFF button on the keypad to turn on airflow OR
put on your CPAP mask and take a few breaths to turn on airflow automatically. The
pressure in your mask will rise to the set pressure in about 10 seconds.

NOTE– If the device does not automatically start after taking 2-3 breaths, this feature may have been

disabled. If Auto ON/OFF is disabled, you must manually press the ON/OFF button to start and
stop the device.

The keypad display shows the actual mask pressure while the
device is in use. Because this is the actual pressure, the device
pressure reading may vary slightly as you breathe. Your display
should appear as noted.

If your DeVilbiss IntelliPAP system includes a humidifier, its heater
controls and status are displayed as noted in the image.

NOTE– If the display on your device is not similar to those listed above, refer

to the chapter section titled “Patient Messages” on page 15.

Using The Comfort Delay Feature

Your IntelliPAP has a comfort delay feature to help make it easier for you to fall asleep. The
airflow will start at a low pressure and then gradually ramp-up to the prescribed setting over
the last few minutes of the specified delay time.

NOTE– When the delay comfort feature is activated, a message will flash on the display periodically,

indicating the amount of time remaining in the delay.

You can adjust the amount of time spent in comfort delay by using
the advanced device controls. The Delay Time can be adjusted
from 0 to 45 minutes in 5-minute increments. Refer to page 12 for
details.

NOTE– If you are unable to change the delay time, your provider has locked this setting. Refer to the

keypad menu guide on page 12 for details.

Comfort delay is available in both IntelliPAP Standard and IntelliPAP AutoAdjust models, and
in all modes of operation.

Comfort Delay Feature In Standard CPAP Mode

When you use the comfort delay feature while your device is operating in CPAP mode, the
airflow you receive at the beginning of your therapy is temporarily lowered to a pressure
selected by your physician when the device was setup.

OFF

P:10.0 Auto

Delay Running
10 Minutes Left

P:10.0 Auto

Heat:Off

11

A-DV54

EN

ADVAnceD menu controls

Press the delay button to activate the comfort delay feature. The airflow pressure will drop to
the prescribed comfort delay pressure.

In the final 10 minutes of the delay period, the pressure will gently rise to the pressure
prescribed for your therapy. You may repeat the comfort delay by pressing the delay button
again if you have not fallen asleep during the first use.

Comfort Delay Feature in AutoAdjust Mode

When you use the comfort delay feature while your IntelliPAP is operating in AutoAdjust
mode, the airflow you receive at the beginning of your therapy is the lowest pressure
prescribed by your physician when the device was setup.

You do not need to activate the comfort delay; it will turn on automatically. The airflow
pressure will rise only to the low pressure setting and remain there for the duration of the
delay period. The AutoAdjust will not adjust the pressure setting during the comfort delay
period, allowing you to fall asleep without responding to early respiratory events.

Shut Down

Press the ON/OFF button to turn the device off. You may also simply remove your mask.
After a few seconds the device will display the message “Mask Off. Please check mask fit.” If
you do not put the mask on again the device will automatically turn off in about 20 seconds.
Pressing any button will remove the message from the display.

NOTE– If the DeVilbiss IntelliPAP does not turn off automatically, the feature may have been disabled. In this

case you must manually turn the device off.

aDVanCeD menU ConTRols

With the device on, press the “Next” or “Previous” buttons on the keypad to scroll through
the items on the display. Not all of the features in the table below are available in all models;
some are optional and some depend on what your physician and/or home care provider has
selected. The table shows the items you may see, and describes the feature associated with
each item. Also, some features are only available in AutoAdjust Mode or with the DeVilbiss
SmartLink™ Therapy Management Module – these are noted in the ‘Mode’ column below. If
you do not see some of these options, your model or configuration does not support them.

Name Symbol Function

PREVIOUS ITEM Pressing this button displays the previous menu option.

NEXT ITEM Pressing this button displays the next menu option.

SETTING CHANGE These buttons allow you to adjust the setting that is

shown on the display.

Please note that the values displayed are examples only.









12

A-DV54

EN

ADVAnceD menu controls

Advanced Menu List

Display Example Mode Description

All

This is the default screen when the IntelliPAP is
turned on. The actual mask pressure and heater
setting are shown. The displayed pressure may vary
slightly while breathing. If the heater system is not
connected, the heat setting will be blank.

AutoAdjust

Mode

This is a prescription setting which limits the
maximum pressure at which the IntelliPAP will
operate if in AutoAdjust mode. Your home care
provider programs this setting for you during device
setup.

AutoAdjust

Mode

This is a prescription setting which sets the
minimum pressure at which the IntelliPAP will
operate in AutoAdjust mode. Your home care
provider programs this setting for you during device
setup.

CPAP
Mode

This is a prescription setting which controls the
operating pressure.

All

Selectable delay time setting. Your provider has set
the delay time. If the unlocked symbol is shown,
you are able to adjust this setting. If the locked
symbol is shown, this setting can only be adjusted
by your provider.

CPAP
Mode

This is a prescription setting which controls the
operating pressure during the delay time.

All

The standard tubing length supplied with the device
is 6 feet (1.8 meters). However, you can adjust your
IntelliPAP to accommodate an air supply tubing
length of 10 feet (3.0 meters). Replacement tubing
can be obtained through your home care provider
(part numbers listed at the end of this manual).

All

Pressing the down key enters the Enable menu.
Refer to next section for Enable Menu details.

All

This setting changes the contrast for the LCD
display. This only needs to be adjusted if you find it
difficult to see the display from your viewing angle.

All

The total number of hours (in 1/10 hour
increments) that the IntelliPAP has been providing
therapy.

All

The total number of hours (in 1/10 hour
increments) that the IntelliPAP has been in
operation.

Compliance Meter

123456.7 hours

Hourmeter

123456.7 hours

LCD Contrast Adj
50 %

Enable Menu
Press 

P: 5.0 Auto

Heat:Off

Upper Limit

15.0 cmH20

Lower Limit

5.0 cmH20

Set Pressure

10.0 cmH20

Delay Time 
45 minutes

Tubing Length 

1.8 m (6 ft)

Delay Pressure

5.0 cmH20

13

A-DV54

EN

ADVAnceD menu controls

Display Example Mode Description

All

Shows version of installed firmware.

All

Shows the serial number of the device.

All

SmartCodeTM is used for therapy management
reporting; therapy information is encoded in a series
of letters and numbers, and includes a special
character for error checking to ensure accuracy.

Intellipap Enable Menu List

The Enable menu is available in all modes and is a sub-menu that allows you to control
various functions of your IntelliPAP. It is accessed by pressing the down button while in this
Advanced Menu.

Display Example Description

This option controls the Auto-ON feature, which automatically
starts the flow of air after breathing once or twice into the
mask.

This option controls the Auto-OFF feature, which
automatically stops the flow of air after taking off the mask.
The device may require up to 30 seconds to turn OFF
depending on the kind of mask used.

This option controls the mask fit check feature. The air flow to
your mask is constantly measured and if the amount of airflow
exceeds 95 liters/minute for more than 10% of the time used,
a notification will be created. This notification will be displayed
the next time you use the IntelliPAP.

Pressing the up key exits the Enable menu.

Serial Number
HD123456

Firmware Version
V0.01 01/06/2006

Auto-ON
Enabled

Auto-OFF
Enabled

Mask Fit Check
Enabled

Exit Menu
Press 

SmartCode
FF28D9

14

A-DV54

EN

ADVAnceD menu controls

The following chart shows by Mode each Display you will scroll through using the Next or
Previous buttons on the keypad. Pressing the Down key at the Enable Menu Display will
allow you to enter this submenu - then use Next or Previous buttons to scroll through it;
press the Up button to return to main menu. Once the final Display is reached, pressing the
Next button will return you to the first Display.

MENU - AutoAdjust Mode

MENU - CPAP Mode

DV54 AutoAdjust Patient Menu Layout

Auto-ON
Enabled

Auto-OFF
Enabled

P:10.0 CPAP

Heat:5

Set Pressure

10.0 cmH20

Delay Pressure

5.0 cmH20

Compliance Meter

123456.7 hours

Serial Number
HD123456

Hourmeter

123456.7 hours

Firmware Version
V0.019 05/01/2007

LCD Contrast Adj
50%

P:10.0 Auto

Heat:5

Upper Limit

15.0 cmH20

Lower Limit

5.0 cmH20

Compliance Meter

123456.7 hours

Serial Number
HD123456

Hourmeter

123456.7 hours

Firmware Version
V0.09 05/01/2007

LCD Contrast Adj
50%

Auto-ON
Enabled

Auto-OFF
Enabled

Mask Fit Check
Enabled

Enable Menu
Press 

Delay Time 
10 minutes

Tubing Length 

1.8 m (6 ft)

Exit Menu
Press 

Exit Menu
Press 

Enable Menu
Press 

Delay Time 
10 minutes

SmartCode
FF28D9

SmartCode
FF28D9

Tubing Length 

1.8 m (6 ft)

Mask Fit Check
Enabled

15

A-DV54

EN

pAtient messAges

PaTienT messaGes

Your IntelliPAP will alert you of issues that may require some action on your part in order to
make your therapy more effective. These messages are displayed when the device is turned
on, either by pressing the ON/OFF button or by breathing into the mask. You can press any
key or button to clear the message from the display, but the IntelliPAP will operate normally
even if the message is not cleared.

Two kinds of messages are displayed: Reminders and Notifications.

Reminders

Reminders alert you when parts of your system need to be replaced. Some components of
your system wear over time and, if not replaced, may compromise your therapy. If you see
a message on the display that is not listed below, you may have the optional DeVilbiss
SmartLink™ Module attached to your device, which provides additional messages. Refer to
the documentation that was provided with the SmartLink Module.

Clean Filter – The filter should be checked every 10 days for signs
of dirt or wear so that it can be cleaned as needed. This message
helps to remind you to check it regularly.

Notifications

Notifications identify conditions in your IntelliPAP that may require action by you or your
home care provider in order to maintain a high level of therapy. If you see a message on the
display that is not listed below, you may have the optional DeVilbiss SmartLink Module
attached to your device, which provides additional messages. Refer to the documentation that
was provided with the SmartLink Module.

NOTE-The values displayed are examples only.
Delay Running xx Minutes Left – While a comfort delay is active,

this message is flashed on the display every 5 seconds to let you
know how much time is left in the delay.

Mask Leak – This message means the IntelliPAP has detected a
large amount of airflow during therapy for at least 10% of the time
during your previous use session. This notification is displayed when
the device is turned on. If this message is displayed, put on the mask and adjust the headgear
to ensure the mask is properly fitted to your face. Follow the mask manufacturer’s directions
for adjusting the mask and headgear for proper fitting. Available on AutoAdjust models.

Mask Off – This message appears whenever a high airflow
condition occurs. High airflow is normally due to a poor mask fit or
a removed mask. Check for leak around the mask seal and make
adjustments as necessary according to the mask manufacturer’s instructions. This message
will be displayed until the high airflow problem is corrected. If the high airflow condition
persists for about 20 seconds, the device will automatically turn off (if AutoOFF is enabled).

Device Fault – If a device fault message is displayed, refer to
Troubleshooting for instructions.

Mask leak =
25 % Check Fit.

Mask Off. Please
check mask fit.

Device Fault E07
Call Provider

Delay Running
10 Minutes Left

Clean Filter

16

A-DV54

EN

trAVel/Dc operAtion/

supplementAl oxygen

inTelliPaP TRaVel infoRmaTion

International Power Changes

Your DeVilbiss IntelliPAP is equipped with a universal power supply. This means that it is
automatically capable of accepting line voltages of 100 to 240V~ 50/60Hz. You do not need
to make any adjustments to the device if you are traveling to another country where the line
voltage is different than your domestic line voltage. Simply contact your home care provider
for the correct style power cord for the region in which you will be traveling (refer to
Accessories/Replacement Items for the correct part number).

Altitude

Your IntelliPAP automatically compensates for changes in altitude between sea level and
9000 ft (2750 m). You do not need to make adjustments to the device for changes in
altitude.

inTelliPaP DC oPeRaTion

Battery Power

Your IntelliPAP can be operated from a 12V DC power source in a motor home, boat or
other recreational vehicle. The power source can be used with a 12V DC accessory cable
or a 12 V DC stand-alone battery. Both parts are available from your home care provider
(refer to Accessories/Replacement Items for the correct part numbers). Both accessory
cables are required for stand-alone battery operation. The stand-alone battery connection
uses clamps that attach to the terminal connections of the battery.

NOTE– The heater for the IntelliPAP’s humidification system will not operate directly from a 12V DC power

source. If you need humidification, passover humidification is still available. Alternately, instead of
connecting12V DC power directly to the IntelliPAP, you can pass the DC power through an inverter
that will deliver AC power to the system. This will allow the heater to function. The power rating of
the inverter must be at least 200 watts @ 110V~ / 400 watts @ 220V~.

NOTE– The IntelliPAP will automatically switch power sources between AC and 12V DC if both sources are

available. If your unit is connected to both AC and 12V DC power sources, it will operate on AC
power as long as AC power is present, and automatically switch to 12V DC power if AC power is
lost. When AC power is restored, it will return to the AC source. You do not need to reset or adjust
any settings when the power source switches, but remember that your heater will not operate on
12V DC.

sUPPlemenTal oXyGen

Supplemental oxygen is sometimes prescribed in addition to CPAP for treatment of
Obstructive Sleep Apnea. If your physician prescribed oxygen for your sleep therapy, you
can add the oxygen in one of two ways:

1. Obtain the optional oxygen adapter (part #7353D-601) from your home care provider
and connect it to the outlet port on the IntelliPAP. Connect one end of the air supply

17

A-DV54

EN

supplementAl oxygen

tubing to the open end of the adapter and the other end of the air supply tubing to the
mask.

2. If your mask is equipped with an oxygen port, your physician may request that you
apply oxygen directly to your mask.

WARNING-OXYGEN USE

Oxygen supports combustion. To avoid possible physical injury, do not
smoke while using this device with supplemental oxygen. Do not use this
device near hot objects, volatile substances or sources of open flames.

Always turn on the IntelliPAP before turning on the oxygen source. Turn
the oxygen source off before turning off the IntelliPAP.

This device is not suitable for use in the presence of a flammable
anesthetic mixture with air or oxygen, or nitrous oxide.

At a fixed flow rate of supplemental oxygen, the inhaled oxygen
concentration will vary depending on the pressure setting, patient
breathing pattern, mask selection, and leak rate. This warning applies to
most types of CPAP devices.

Never allow the oxygen source to run continuously while connected to the
IntelliPAP if the device is not in use. If the IntelliPAP is not being used,
turn off the oxygen flow.

CAUTION– Oxygen is a prescription gas and should only be administered under the supervision

of a physician.

CAUTION–The flow setting of the oxygen source must be specified by a physician.

18

A-DV54

EN

Accessories/

replAcement items

aCCessoRies/RePlaCemenT iTems

Replacement Items

Air-inlet filter (4/pk) .............................................................................................. DV51D-602

Optional fine particle filter (4/pk) ......................................................................... DV51D-603

Air supply tubing (6') .............................................................................................. 7351D-616

Air supply plug ...................................................................................................... DV51D-604

Heater connection cover .....................................................................................DV51D-605

Oxygen adapter ...................................................................................................... 7353D-601

Carrying case ........................................................................................................DV51D-610

Power Items

AC power cords

USA ................................................................................................................... DV51D-606

Europe, except U.K. ........................................................................................ DV51D-607

U.K. .................................................................................................................. DV51D-608

Australia ........................................................................................................... DV51D-609

DC power cord .................................................................................................... DV51D-619

DC battery clamp-on adapter ..............................................................................DV51D-696

Masks Recommended For Use With The DeVilbiss IntelliPAP:

DeVilbiss FlexSet® Mask ...............................................................................................9354D

DeVilbiss FlexSet® Shallow Mask ...................................................................................9354S

DeVilbiss FlexSet® Gel Mask.........................................................................................9354G

DeVilbiss FlexSet® Gel Shallow ................................................................................... 9354GS

DeVilbiss FlexAire® Mask..............................................................................................9353D

DeVilbiss FlexAire® Shallow Mask ................................................................................. 9353S

DeVilbiss Serenity® Mask ..............................................................................................9352D

DeVilbiss Serenity® Shallow Mask .................................................................................9352S

DeVilbiss Serenity® Gel Mask .......................................................................................9352G

DeVilbiss Serenity® Gel Shallow ................................................................................. 9352GS

Optional Heated Humidifier

DeVilbiss Heated Humidifier (cradle and chamber) ....................................................DV5HH

19

A-DV54

EN

mAintenAnce

inTelliPaP mainTenanCe

DANGER

Electric shock hazard – Do not attempt to open or remove the enclosure;
there are no user-serviceable components inside. If service is required,
contact your home care provider for instructions on obtaining service of
your device. Opening or attempting to service your device will void the
warranty.

WARNING

If the operation of the device appears to deviate from normal operation or
begins to produce unusual sounds, discontinue use and contact your home
care provider for assistance.

If the device has been dropped, verify functionality of the device. If the
device does not function or the enclosure is damaged, discontinue use and
contact your provider.

If the device does not appear to be functioning properly refer to the
Troubleshooting section for instructions.

Pressure Accuracy–The IntelliPAP is designed to provide accurate pressure performance

from the factory without additional calibration. No routine service is required for a period of
2 years of use, provided the device is used in accordance with the manufacturer’s directions.
After 2 years the device should be inspected.

NOTE– Some countries require periodic servicing and calibration of this kind of medical device. Contact your

home care provider for further information.

Standard Air-Inlet Filter–Check the filter every 10 days and clean it if necessary. Replace
the filter every 6 months or sooner if it is damaged. The standard filter is designed to filter
particles larger than 3.0 microns in size. The IntelliPAP MUST have the standard filter in
place during operation.

Optional Fine Particle Filter–Check the filter every 10 days, and replace it if it is dirty or
damaged; otherwise replace the filter every 30 days. The optional fine particle filter is
designed to filter particles as small as 0.3 microns in size and larger.

Filter Maintenance–Refer to Cleaning for instructions.

20

A-DV54

EN

cleAning

inTelliPaP CleaninG

WARNING

To avoid electric shock, always unplug the power cord from the wall outlet
power source before cleaning.

CAUTION– Never rinse or place the device in water. Never allow liquids to get into or around

any of the ports, switches or air filter; doing so will result in product damage. If this
occurs, do not use the device. Contact your home care provider for service.

Device Cabinet

1. Unplug the IntelliPAP from the power source. Wipe the enclosure with a clean, damp
cloth every few days to keep the enclosure dust free.

2. Allow the device to dry completely before plugging it into a power source.

Filters

Air-Inlet Filter (Standard)

1. The air-inlet filter should be checked every 10 days and cleaned as necessary. The filter
is located in the rear of the device.

CAUTION– Proper filter function is important for the operation of the device and to protect the

device from damage.

2. To clean, remove the dark outer foam filter from the frame.

3. Wash the filter in a solution of warm water and dishwashing detergent, and rinse with
water. Allow the filter to dry completely. If the filter (part #DV51D-602) is damaged,
contact your home care provider for a replacement.

4. Ensure the filter is completely dry before installation and use.

Fine Particle Filter (Optional)

1. If you have an optional fine particle filter (part #DV51D-603), inspect this filter and
replace it if it shows signs of dirt or damage. Do not wash.

2. Install the fine particle filter behind the standard filter.

NOTE– If the fine particle filter is not installed first according to the directions, the life of the filter will be

reduced requiring more frequent replacement.

Tubing

The air supply tubing should be cleaned daily. Remove the tubing from the device and mask.
Use a mild detergent and water to clean the inside of the tubing. Rinse the tubing and allow
to air dry.

Mask and Headgear

Clean the mask and headgear according to the manufacturer’s instructions.

21

A-DV54

EN

troubleshooting

TRoUblesHooTinG

DANGER

Electric Shock Hazard - Do not remove the device cabinet; there are no
user-serviceable internal components. The cabinet should only be removed
by a qualified DeVilbiss provider.

If you are having trouble with the operation of your DeVilbiss IntelliPAP, please refer to the
table below for a list of problems with possible causes and remedies. If you are unable to
resolve the problem by following the instructions, contact your home care provider for
assistance.

Problem Probable Cause Remedy

Nothing shows
on the display.

1. Device is not plugged in or
the power cord is not fully
inserted.

2. There is no outlet power.

1a. Verify that power cord is firmly

connected to the IntelliPAP and
the power outlet.

1b. If you are using a DC power

source make sure the cable
connections are secure. Verify
that your battery is charged.

2. Locate a suitable functioning
power source.

The IntelliPAP
does not start
when breathing
into the mask.

1. The Auto-ON feature has
been disabled.

2. There is no power to the
device.

3. Breath is not deep enough for
the Auto-ON feature to
detect.

4. You are using a full face mask
that has an anti-asphyxia
valve.

5. The air supply port plug is
missing or not fully inserted.

6. The humidifier chamber is
not fully engaged into the
cradle or is missing.

1. Use the ON/OFF button to
start and stop the device.

2. Verify that the power cord is
firmly connected to the device
and the power outlet.

3. Breathe deeply in and out to
start the IntelliPAP

4. Auto-ON may not work
because your exhaled breath
escapes through the open valve.
Use the ON/OFF button to
start and stop the device.

5. Make sure the air supply port
plug is fully inserted into the
unit.

6. Slide the humidifier chamber
fully into the slot. Verify the
latching lever snaps into place.

The airflow has
stopped
unexpected
during use.

1. The Auto-OFF feature has
detected large airflow because
of loosely fitting mask.

2. During use your mouth opens
and you being to mouth
breathe.

1. Ensure you have a good mask fit;
adjust the mask and headgear as
needed.

2. Contact your home care
provider for a chin strap or
different mask which will help
prevent mouth breathing.

If problem is not resolved with
above remedies, disable Auto-OFF
feature in Advanced Menu options.

22

A-DV54

EN

troubleshooting

Problem Probable Cause Remedy

The display
shows a device
fault.

An error has occurred in the
device and requires servicing.

Contact your home care provider
for service.

Symptoms of
OSA have
recurred.

1. Air filter may be occluded.

2. Sleep apnea condition has
changed.

1. Clean or replace the air filter
and relocate device away from
drapes and other dusty surfaces.

2. Contact your physician.

Your skin
becomes
irritated where
the mask
touches your
face.

1. Headgear is too tight or
improperly adjusted.

2. Your mask may not be
properly sized or is not the
most appropriate shape for
you.

1. Loosen the headgear to reduce
the contact pressure on your
face.

2. Contact your physician or home
care provider.

Dryness of
throat or nose.

Inadequate humidity. 1. Add a DeVilbiss DV5 Heated

Humidifier.

2. Increase the heater setting on

the humidifier.

Condensation of
water is
collecting in the
hose causing a
gurgling noise.

1. Your humidification setting is
too high.

2. The room temperature
fluctuates from higher to
lower levels through the
night.

Reduce the humidifier heater
setting and/or increase the
temperature of the room.

Air from flow
generator seems
to be too warm.

1. The air filter(s) is/are dirty.

2. The air inlet port is blocked.

3. The room temperature is too
high.

4. The IntelliPAP is located near
a heater.

1. Refer to the Cleaning section for
instructions on filter
maintenance.

2. Unblock the air inlet.

3. Reduce the room temperature.

4. Locate the device away from
the heat source so the air
being drawn into the device is
at room temperature.

If the problem persists contact
your home care provider.

Nasal, sinus or
ear pain,
possibly with
runny nose.

You may have a reaction to air
flow pressure.

Discontinue use and contact your
physician.

23

A-DV54

EN

specificAtions

sPeCifiCaTions

Size ................................................ 4.2” H x 6.5” W x 6.9” D (10.7 cm x 16.5 cm x 17.5 cm)

Weight ............................................................................................................ 2.7 lbs. (1.22 kg)

Electrical Requirements ......................................................................... 100-240V~, 50/60 Hz

Maximum Power Consumption ....................................65 watts max from AC power source

(flow generator only)

AutoAdjust CPAP Pressure Range .......................................................................3-20 cmH2O

Operating Temperature Range .....................................................41°F to 104°F (5°C to 40°C)

Operating Humidity Range .................................................... 0% to 95% RH non-condensing

Operating Atmospheric Conditions ...................................................... Sea level to 9,000 feet

Storage & Transportation Temperature Range .....................-40°F to 158°F (-40°C to +70°C)

Storage & Transportation Humidity Range ............................ 0% to 95% RH non-condensing

Maximum Limited Pressure .......................................................20 cmH2O under normal use

Sound Level (tested per ISO 17510) ............................................................................. 26 dBA

Filter Specifications

Standard Filter > 3.0 micron particles
Optional Fine Particle Filter > 0.3 micron particles

Max Flow Rates

83 L/m @ 6.5 cmH2O (1/3 max pressure)
134 L/m @ 13 cmH2O (2/3 max pressure)
163 L/m @ 20 cmH2O (max pressure)

Pressure Accuracy ..............................................................................................± 1.0 cmH2O

Pressure Swings

(cmH2O peak to peak at 500mL tidal volume, sine wave profile)

Breaths per minute 10 15 20
@ 6.5 cmH2O 0.5 0.5 0.5
@ 13 cmH2O 1.0 1.0 1.0
@ 20 cmH2O 1.0 1.0 1.0

Warranty .....................................................................................................Three-year limited

Equipment classification with respect to protection from electric shock.....................Class II

Degree of protection from electric shock ............................................. Type BF Applied Part

Degree of protection against ingress of liquids ................................................................IPX1

Equipment not suitable for use in the presence of a flammable anesthetic mixture with air or
with oxygen or nitrous oxide.

Mode of operation ................................................................................................ Continuous
