DeVilbiss D26675 Operator's Manual

Air Compressor

Compact Air Compressor

OPERATOR’S MANUAL

SAFETY ● ASSEMBLY

●

OPERATION ● MAINTENANCE ● STORAGE

●

TROUBLESHOOTING ● ESPAÑOL● FRANÇAIS

D26675 Rev. 0 4/28/02

Read Operator’s Manual. Do not operate equipment until you have read this
Operator’s Manual for Safety, Assembly, Operation, and Maintenance

Instructions.

Register your product on line at www.devap.com

2- ENG

D26675

TABLE OF CONTENTS

SAFETY GUIDELINES-DEFINITIONS . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . .2-6

ON-RECEIPT INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

DUTY CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-11

SERVICE AND ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-28

FRANÇAIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29-44

SAFETY GUIDELINES - DEFINITIONS

Indicates an
imminently hazardous

situation which, if not avoided, will
result in death or serious injury.

Indicates a
potentially

hazardous situation which, if not
avoided, could

result in death or

serious injury.

Indicates a
potentially hazardous

situation which, if not avoided, may
result in minor or moderate injury.

Used without the
safety alert symbol

indicates a potentially hazardous
situation which, if not avoided, may
result in pr

operty damage.

This manual contains information that is important for you to know and
understand. This information relates to protecting YOUR SAFETY and
PREVENTING EQUIPMENT PROBLEMS. To help you recognize this
information, we use the symbols below. Please read the manual and pay
attention to these symbols.

IMPORTANT SAFETY INSTRUCTIONS

Some dust created by power sanding, sawing, grinding,

drilling, and other construction activities contains chemicals
known (to the State of California) to cause cancer, birth defects or other
reproductive harm. Some example of these chemicals are:

●

lead from lead-based paints

●

crystalline silica from bricks and cement and other masonry products

●

arsenic and chromium from chemically-treated lumber

Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, always wear
MSHA/NIOSH approved, properly fitting face mask or respirator when using
such tools.

When using air tools, basic safety precautions should always be followed to
reduce the risk of of personal injury.

3- ENG

D26675

IMPORTANT SAFETY INSTRUCTIONS

Save these instructions

Improper operation or maintenance of this product could result in serious injury and
property damage. Read and understand all warnings and operation instructions before
using this equipment.

HAZARD

WARNING: Risk of explosion or fire

How To Prevent It

What Could Happen

It is normal for electrical contacts within
the motor and pressure switch to spark.

If electrical sparks from compressor
come into contact with flammable
vapors, they may ignite, causing fire or
explosion.

Restricting any of the compressor
ventilation openings will cause serious
overheating and could cause fire.

Unattended operation of this product
could result in personal injury or
property damage. To reduce the risk of
fire, do not allow the compressor to
operate unattended.

Always operate the compressor in a well
ventilated area free of combustible

materials, gasoline, or solvent vapors.

If spraying flammable materials, locate
compressor at least 20 feet away from
spray area. An additional length of hose

may be required.

Store flammable materials in a secure
location away from compressor.

Never place objects against or on top
of compressor. Operate compressor in
an open area at least 12 inches away
from any wall or obstruction that would

restrict the flow of fresh air to the
ventilation openings.

Operate compressor in a clean, dry well
ventilated area. Do not operate unit

indoors or in any confined area.

Always remain in attendance with the

product when it is operating.

Always disconnect electrical power by
moving pressure switch lever to the off
position and drain tank daily or after
each use.

4- ENG

D26675

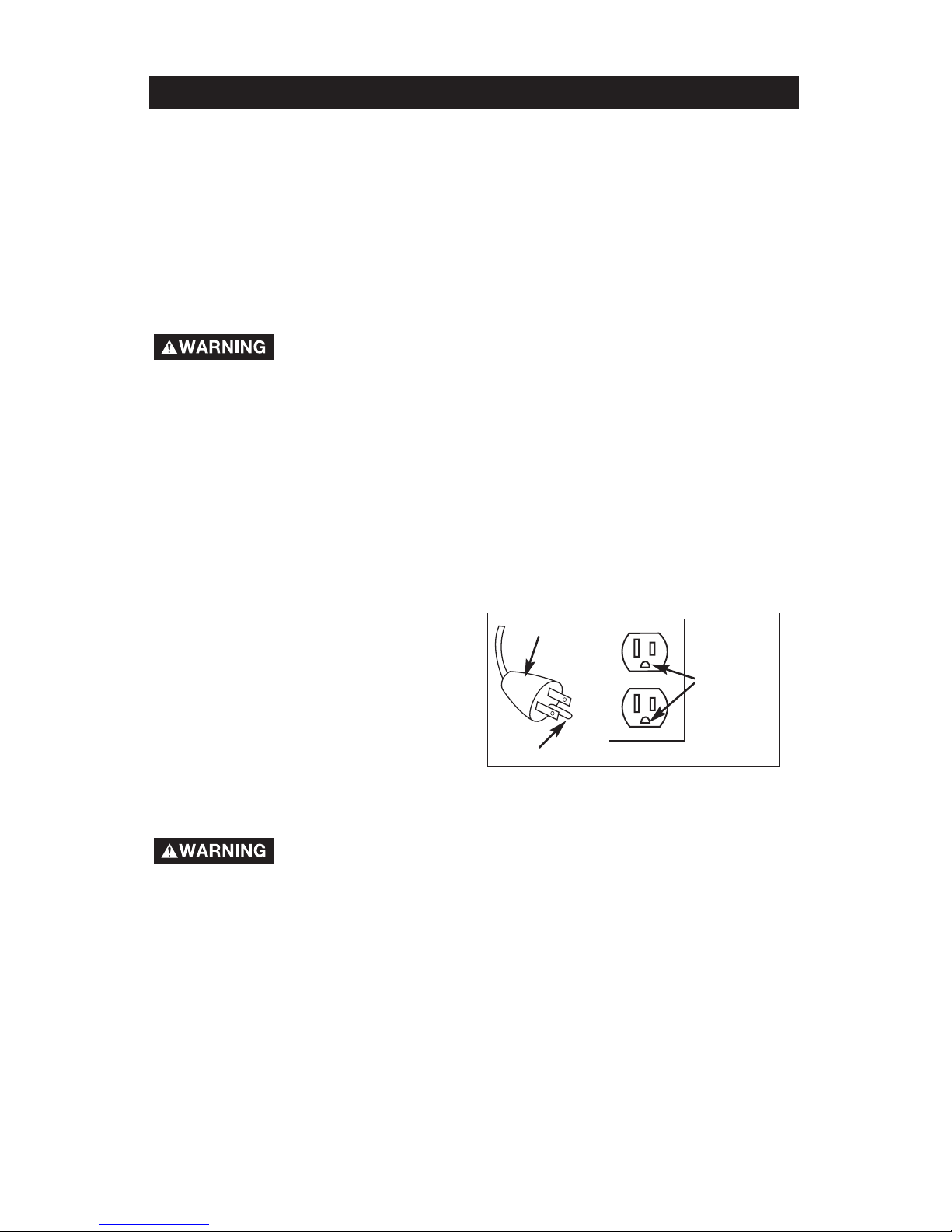

WARNING: Risk of Electrical Shock

HOW TO PREVENT IT

WHAT CAN HAPPEN

HAZARD

Your air compressor is powered by
electricity. Like any other electrically
powered device, If it is not used properly
it may cause electric shock.

Repairs attempted by unqualified
personnel can result in serious injury or
death by electrocution.

Electrical Grounding: Failure to provide
adequate grounding to this product
could result in serious injury or death
from electrocution.

See grounding instructions.

Never operate the compressor outdoors
when it is raining or in wet conditions.

Never operate compressor with
protective covers removed or damaged.

Any electrical wiring or repairs required
on this product should be performed by
authorized service center personnel in
accordance with national and local
electrical codes.

Make certain that the electrical circuit

to which the compressor is connected

provides proper electrical grounding,
correct voltage and adequate fuse
protection.

WARNING: Risk from Flying Objects

HOW TO PREVENT IT

WHAT CAN HAPPEN

The compressed air stream can cause
soft tissue damage to exposed skin and
can propel dirt, chips, loose particles,

and small objects at high speed,
resulting in property damage or personal
injury.

Always wear ANSI Z87.1 approved safety
glasses with side shields when using the
compressor.

Never point any nozzle or sprayer
toward any part of the body or at other
people or animals.

Always turn the compressor off and
bleed pressure from the air hose and tank

before attempting maintenance, attaching
tools or accessories.

HAZARD

5- ENG

D26675

HOW TO PREVENT IT

WHAT CAN HAPPEN

WARNING: Risk to Breathing

HAZARD

The compressed air directly from your
compressor is not safe for breathing.
The air stream may contain carbon

monoxide, toxic vapors, or solid
particles from the tank. Breathing these
contaminants can cause serious injury
or death.

Sprayed materials such as paint, paint

solvents, paint remover, insecticides,
weed killers, may contain harmful vapors

and poisons.

Air obtained directly from the compressor
should never be used to supply air for
human consumption. In order to use air

produced by this compressor for
breathing, suitable filters and in-line

safety equipment must be properly
installed. In-line filters and safety
equipment used in conjunction with the
compressor must be capable of treating
air to all applicable local and federal
codes prior to human consumption.

Work in an area with good cross
ventilation. Read and follow the safety
instructions provided on the label or
safety data sheets for the materials you
are spraying. Use a NIOSH/ MSHA
approved respirator designed for use

with your specific application.

HOW TO PREVENT IT

WHAT CAN HAPPEN

WARNING: RISK OF BURNS

Touching exposed metal such as the
compressor head or outlet tubes, can
result in serious burns.

Never touch any exposed metal parts
on compressor during or immediately
after operation. Compressor will remain
hot for several minutes after operation.

Do not reach around protective shrouds
or attempt maintenance until unit has
been allowed to cool.

HAZARD
