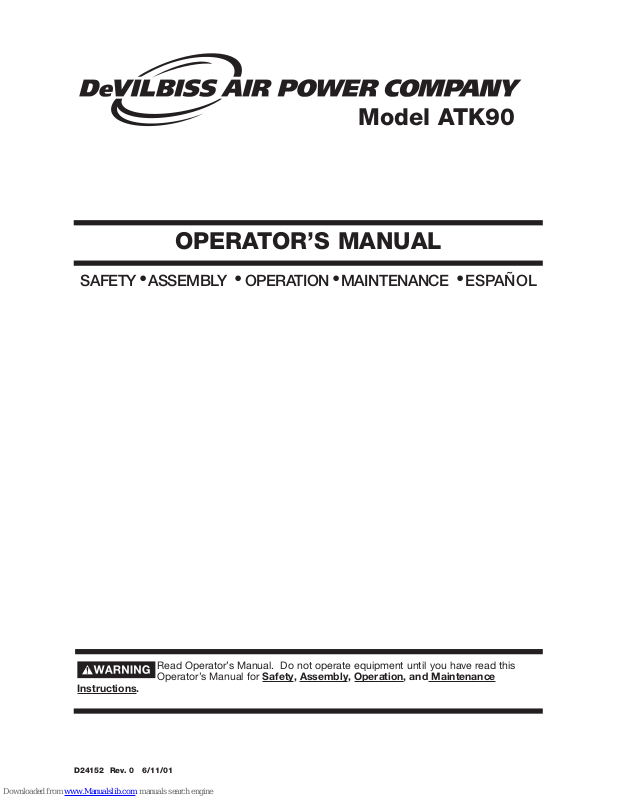

DeVilbiss ATK90 Operator's Manual
Model ATK90
OPERATOR’S MANUAL
SAFETY ● ASSEMBLY
●
OPERATION ● MAINTENANCE ● ESPAÑOL
D24152 Rev. 0 6/11/01
Read Operator’s Manual. Do not operate equipment until you have read this
Operator’s Manual for Safety, Assembly, Operation, and Maintenance
Instructions.
2- ENG
D24152
SAFETY GUIDELINES - DEFINITIONS
Indicates an
imminently hazardous
situation which, if not avoided, will
result in death or serious injury
.
Indicates a potentially
hazardous situation
which, if not avoided, could
result in
death or serious injury.
Indicates a potentially
hazardous situation
which, if not avoided, may
result in
minor or moderate injury
.
Used without the
safety alert symbol
indicates a potentially hazardous
situation which, if not avoided, may
result in pr
operty damage.
SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we
use the symbols below. Please read the manual and pay attention to these sections.
This manual contains information that is important for you to know and understand. This information
relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you
recognize this information, we use the symbols below. Please read the manual and pay attention to
these sections.
IMPORTANT SAFETY INSTRUCTIONS
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known (to the State of California) to
cause cancer, birth defects or other reproductive harm. Some example of these chemicals are:
l
lead from lead-based paints
l
crystalline silica from bricks and cement and other masonry products
l
arsenic and chromium from chemically-treated lumber
Your risk from these exposures varies, depending on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well ventilated area, and work with approved safety
equipment, always wear MSHA/NIOSH approved, properly fitting face mask or respirator when using
such tools.
When using air tools, basic safety precautions should always be followed to reduce the risk of of
personal injury.
3- ENG
D24152
IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN SERIOUS
INJURY AND PROPERTY DAMAGE. READ AND UNDERSTAND ALL WARNINGS AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT.WHEN USING AIR TOOLS, BASIC
SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF
PERSONAL INJURY.
SA
VE!
IMPORTANT SAFETY INSTRUCTIONS
SA
VE!
HAZARD
WHAT COULD HAPPEN HOW TO PREVENT IT
RISK OF EYE OR HEAD
INJURY
• Air powered equipment and
power tools are capable of
propelling materials such as
metal chips, saw dust, and
other debris at high speed,
which could result in serious
eye injury.
• Compressed air can be hazardous. The air stream can
cause injury to soft tissue areas
such as eyes, ears, etc.
Particles or objects propelled
by the stream can cause injury.
• Tool attachments can be come
loose or break and fly apart
propelling particles at the
operator and others in the work
area.
• Always wear ANSI approved
Z87.1 safety glasses with side
shields.
• Never leave operating tool
unattended. Disconnect air
hose when tool is not in use.
• For additional protection use
an approved face shield in
addition to safety glasses.
RISK OF FIRE OR
EXPLOSION
• Abrasive tools such as sanders
and grinders, rotating tools
such as drills, and impact tools
such as wrenches, hammers,
and reciprocating saws are
capable of generating sparks
which could result in ignition of
flammable materials.
• Exceeding the maximum pressure rating of tools or
accessories could cause an
explosion resulting in serious
injury.
• Make sure that any attachments are securely assembled.
• Never operate tools near
flammable substances such
as gasoline, naptha, cleaning
solvents, etc.
• Work in a clean, well ventilated
area free of combustible
materials.
• Never use oxygen, carbon
dioxide or other bottled gases
as a power source for air tools.
• Use compressed air regulated
to a maximum pressure at or
below the rated pressure of
any attachments.
RISK OF LOSS OF
HEARING
• Long term exposure to noise
produced from the operation
of air tools can lead to
permanent hearing loss.
• Always wear ANSI S3.19
hearing protection.
RISK TO BREATHING
INHALATION HAZARD
• Abrasive tools, such as
grinders, sanders, and cut-off
tools generate dust and
abrasive materials which can
be harmful to human lungs and
respiratory system.
• Some materials such as
adhesives and tar, contain
chemicals whose vapors
could cause serious injury with
prolonged exposure.
• Always wear MSHA/NIOSH
approved, properly fitting face
mask or respirator when using
such tools.
• Always work in a clean, dry,
well ventilated area.
4- ENG
D24152
HAZARD
WHAT COULD HAPPEN HOW TO PREVENT IT
RISK OF INJURY
• Tools left unattended, or with
the air hose attached can be
activated by unauthorized
persons leading to their injury
or injury to others.
• Power tools can throw
materials throughout the work
area.
• Power tools can become
activated by accident during
maintenance or tool changes.
• Power tools can cause the
workpiece to move upon
contact leading to injury.
• Loss of control of the tool can
lead to injury to self or others.
• Poor quality, improper, or
damaged tools such as grinding
wheels, chisels, sockets, drills,
etc., can fly apart during
operation, propelling particles
throughout the work area
causing serious injury.
• Remove air hose when tool is
not in use and store tool in
secure location away from
reach of children.
• Use only parts, fasteners, and
accessories recommended by
the manufacturer.
• Keep work area clean and free
of clutter. Keep children and
others away from work area
during operation of the tool.
• Keep work area well lit.
• DO NOT use inflator nozzles
for duster applications.
• Remove air hose to lubricate
or add grinding attachments,
sanding discs, drills, etc. to the
tool.
• Never carry the tool by the
hose.
• Avoid unintentional starting.
Don't carry hooked-up tool
with finger on trigger.
• Repair servicing should be
done only by an authorized
service representative.
• Use clamps or other devices
to prevent movement.
• Never operate tool while under
the influence of drugs or
alcohol.
• Don't overreach. Keep proper
footing and balance at all
times.
• Keep handles dry, clean, and
free from oil and grease.
• Stay alert. Watch what you are
doing. Use common sense. Do
not operate tool when you are
tired.
• Always use tool attachments
rated for the speed of the
power tool.
• Never use tools which have
been dropped, impacted or
damaged by use.
• Use only impact grade sockets on an impact wrench.
• Do not apply excessive force
to the tool – let the tool
perform the work.
• Using inflator nozzles for
duster applications can cause
serious injury.
5- ENG
D24152
HAZARD
WHAT COULD HAPPEN HOW TO PREVENT IT
RISK OF
ENTANGLEMENT
• Tools which contain moving
elements, or drive other
moving tools, such as grinding
wheels, sockets, sanding
discs, etc. can become entangled in hair, clothing, jewelry
and other loose objects,
resulting in severe injury.
• Never wear loose fitting
clothes, or apparel which
contains loose straps or ties,
etc. which could become
entangled in moving parts of
the tool.
• Remove any jewelry, watches,
identifications, bracelets,
necklaces, etc. which might
become caught by the tool.
• Keep hands away from moving
parts. Tie up or cover long hair.
• Always wear proper fitting
clothing and other safety
equipment when using this
tool.
RISK OF
CUT OR BURNS
• Tools which cut, shear, drill,
punch, chisel, etc. are capable
of causing serious injury.
• Keep the working part of the
tool away from hands and
body.
