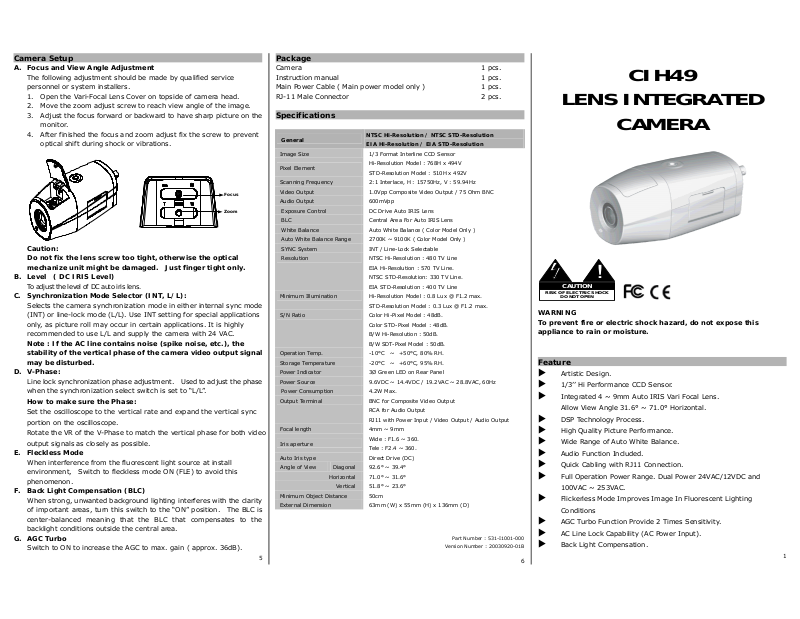

Camera Setup
A. Focus and View Angle Adjustment
The following adjustment should be made by qualified service
personnel or system installers.
1. Open the Vari-Focal Lens Cover on topside of camera head.
2. Move the zoom adjust screw to reach view angle of the image.
3. Adjust the focus forward or backward to have sharp picture on the
monitor.
4. After finished the focus and zoom adjust fix the screw to prevent
optical shift during shock or vibrations.
Caution:
Do not fix the lens screw too tight, otherwise the optical
mechanize unit might be damaged. Just finger tight only.
B. Level ( DC IRIS Level)
To adjust the level of DC auto iris lens.
C. Synchronization Mode Selector (INT, L/L):
Selects the camera synchronization mode in either internal sync mode
(INT) or line-lock mode (L/L). Use INT setting for special applications
only, as picture roll may occur in certain applications. It is highly
recommended to use L/L and supply the camera with 24 VAC.
Note : If the AC line contains noise (spike noise, etc.), the
stability of the vertical phase of the camera video output signal
may be disturbed.
D. V-Phase:
Line lock synchronization phase adjustment. Used to adjust the phase
when the synchronization select switch is set to “L/L”.
How to make sure the Phase:
Set the oscilloscope to the vertical rate and expand the vertical sync
portion on the oscilloscope.
Rotate the VR of the V-Phase to match the vertical phase for both video
output signals as closely as possible.
E. Fleckless Mode
When interference from the fluorescent light source at install
environment, Switch to fleckless mode ON (FLE) to avoid this
phenomenon.
F. Back Light Compensation (BLC)
When strong, unwanted background lighting interferes with the clarity
of important areas, turn this switch to the “ON” position. The BLC is
center-balanced meaning that the BLC that compensates to the
backlight conditions outside the central area.
G. AGC Turbo
Switch to ON to increase the AGC to max. gain ( approx. 36dB).
Focus
Zoom
5
Package
Camera 1 pcs.
Instruction manual 1 pcs.
Main Power Cable ( Main power model only ) 1 pcs.
RJ-11 Male Connector 2 pcs.
Specifications
General
Image Size 1/3 Format Interline CCD Sensor
Pixel Element
Scanning Frequen cy 2:1 Interlace, H : 15750Hz, V : 59.94Hz
Video Output 1.0Vpp Composite Vi deo Output / 75 Ohm BNC
Audio Output 600mVpp
Exposure Control DC Drive Auto IRIS Lens
BLC Central Area For Auto IRIS Lens
White Balance Auto White Balance ( Color Model Only )
Auto White Balance Range 2700K ~ 9100K ( Color Model Only )
SYNC System INT / Line-Lock Selectable
Resolution NTSC Hi-Resolution : 480 TV Line
Minimum Illumination Hi-Resolution Model : 0.8 Lux @ F1.2 max.
S/N Ratio Color Hi-Pixel Model : 48dB.
Operation Temp. -10°C ~ +50°C, 80% RH.
Storage Temperature -20°C ~ +60°C, 95% RH.
Power In dicator 3Ø Gree n LED on Rear Pane l
Power Source 9.6VDC ~ 14.4VDC / 19.2VAC ~ 28.8VAC, 60Hz
Power Consumption 4.2W Max.
Output Terminal BNC for Composite Vide o Output
Focal leng th 4mm ~ 9mm
Iris aperture
Auto Iris type Direct Drive (DC)
Angle of View Diagonal 92.6° ~ 39.4°
Horizontal 71.0° ~ 31.6°
Vertical 51.8° ~ 23.6°
Minimum Object Distance 50cm
External Dimension 63mm (W) x 55mm (H) x 136mm (D)
NTSC Hi-Resolution / NTSC STD-Resolution
EIA Hi-Resolution / EIA STD-Resolution
Hi-Resolution Model : 768H x 494V
STD-Resolution Model : 510H x 492V
EIA Hi-Resolution : 570 T V Line.
NTSC STD-Resolution: 330 TV Line.
EIA STD-Resolution : 400 TV Line
STD-Resolution Model : 0.3 Lux @ F1.2 max.
Color STD-Pixel Model : 48dB.
B/W Hi-Resolution : 50dB .
B/W SDT-Pixel Model : 50dB.
RCA for Audio Output
RJ11 with Power Input / Video Output / Audio Output
Wide : F1.6 ~ 360.
Tele : F2.4 ~ 360.
Part Number : 531-I1001-000
Version Number : 20030920-01B
WARNING
To prevent fire or electric shock hazard, do not expose this
appliance to rain or moisture.
Feature
X Artistic Design.
X 1/3’’ Hi Performance CCD Sensor.
X Integrated 4 ~ 9mm Auto IRIS Vari Focal Lens.
X DSP Technology Process.
X High Quality Picture Performance.
X Wide Range of Auto White Balance.
X Audio Function Included.
X Quick Cabling with RJ11 Connection.
X Full Operation Power Range. Dual Power 24VAC/12VDC and
X Flickerless Mode Improves Image In Fluorescent Lighting
X AGC Turbo Function Provide 2 Times Sensitivity.
X AC Line Lock Capability (AC Power Input).
X Back Light Compensation.
6
CIH49
LENS INTEGRATED
CAMERA
！
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Allow View Angle 31.6° ~ 71.0° Horizontal.
100VAC ~ 253VAC.
Conditions
1
RF EMISSIONS
This Class B digital apparatus complies with Canadian ICES-003.
Cet Appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
PRECAUTIONS
Do not attempt to disassemble the camera! There are no
user-serviceable parts inside. Refer servicing to qualified service
personnel.
Handle the camera with care. Improper handling or storage could
damage the camera.
Do not expose the camera to moisture, or try to operate it in wet areas.
Should the camera become wet, immediately turn power off and refer
servicing to qualified personnel.
Never face the camera towards the sun, even when not in use! Use
caution when operating the camera in the vicinity of spotlights or other
bright lights and light reflecting objects.
Do not operate the camera beyond its temperature, humidity or power
supply ratings. Use the camera under conditions where temperatures
are within –10°C to +50°C, and relative humidity is below 80% (non
condensing).
When the came ra i s n ot i n u se, en sure t he len s i s ke pt pro pe rly in place
to protect the CCD sensor.
Do not touch the CCD sensor directly with your fingers. If necessary,
use soft cloth moistened with alcohol to wipe off the dust.
2
Part Descriptions
2. Connect the AC power cord to an electrical outlet of AC100V ~ AC253V
Vari-Focal Lens.
Microphone.
Power Socket,
100VAC - 250VAC Power Input
BNC, Video Output
RJ-11 Connecter
RCA Connecter,
Audio Output
Terminal Block,
24VAC/12VDC Power Input
LED
Power Indication
B. Dual Power Model (12VDC/24VA C).
Vari-Focal Lens Cover.
Bracket Mounting Screw
Hole. 1 / 4", 7mm deep.
C. Video Cable
Cover For DIP Switch and
Function Adjust.
D. Audio Connection
E. RJ-11 Easy Caballing Connection
CONNECTION
Important Note:
Qualified service personnel or system installers should make the
installation. Ensure the power is OFF before handling the power cable,
no matter AC main power mode or low voltage AC24V/DC12V mode.
A. Main Power Model (100VAC-240VAC 50Hz) :
1. Connect the AC power cord (supplied as standard accessory) to the
power cord socket of the camera.
3
50Hz/60Hz.
Notes:
z Connect the power cord firmly. The power cord should be long
enough for panning and tilting. If the cable is too short, the power
cord plug may be pulled off the camera when the camera pans or
tilts.
z Brown: Live, Reference line lock. Blue: Neutral.
z This camera voltage could accept range rated is AC90V ~ AC260V.
But recommend range is AC100V ~ AC253V.
The series model has an AC/DC compatible input terminal. DC12V or
AC24V power supply cable can be connected to this terminal. The
camera detects the power source automatically.
Recommended wire gauge size. Φ0.65mm(AWG22), Stranded wire
0.32m ㎡(AWG22), Element wireφ0.18Min.
1. 12V DC Power Supply
Connect the power cable to the AC/DC compatible input terminal on
the rear panel of the camera. +12VDC should connect is the RED
terminal. 0VDC to the white terminal. Black terminal for Earth
connection.
2. 24V AC Power Supply
Connect the power cable to the AC/DC compatible input terminal on
rear panel of the camera.
Notes:
z If the cable is too short, the power cable may be pulled off the
camera when the camera pans or tilts.
z Red: Live, Reference line lock, Black: GND,. White: Neutral.
z Voltage range: Rated AC12V ~ AC28V. or DC10V ~ DC30V.
Connection the coaxial cable with BNC female to BNC connecter on
the rear panel of camera. Measure set the termination switch to the
75Ω position on the last monitor, and to the Hi-Z position on the other
monitors. Do not change the positions after setting.
Connection the audio signal through the RCA connector to the rear
panel of camera.
Refer below picture of the pin assign to connect 6pin multi flat cable for
system connections. While caballing, the impedances of cable must
be considering, It is recommend minimum of power input must higher
then 15VDC with 3000cm/100ft cable.
1. NC
2, DC Powerinput
3, NC
4, Video Output
5, Audio Output
6, GND
6pin Multi-flat cable
3000cm / 100ft approx.
4
