CAMERA SPECIFICATIONS:
PAL Hi -Res PAL Std-Res NTSC Hi-Res NTSC Std-Res
Image Size 1/3” CCD
Pixel Element 752(H) x 582(V) 500(H) x 582(V) 768(H) x 494(V) 510(H) x 492(V)
Scanning
Frequency
2:1Interlance
H : 15.625KHz / V:50Hz
2:1Interlance
H : 15.734KHz / V:59.9Hz
Resolution >480 TV Lines >330 TV Lines >480 TV Lines >330 TV Lines
Minimum
Illumination
1.2Lux @F1.3 1.0Lux @F2.0 1.2Lux @F1.3 1.0Lux @F2.0
Environment
Regulation
Equivalent IP65 Equivalent IP66 Equivalent IP65 Equivalent IP66
S/N Ratio >48dB >46dB >48dB >46dB
Exposure Control
DC Drive;
Auto Iris
AES
DC Drive;
Auto Iris
AES
Electronics
Shutter
-----
1/50 ~ 1/100000
Auto Control
-----
1/60 ~ 1/100000
Auto Control
Day/Night
Function
Chrome Killer
Auto Control by Luminance Detect
Backlight
Compensation
Centre weighted
IR Illumination 18 pieces IR LED with CDS Control
IR Spectrum 850nm
Effective Range 40 Feet
Sync System Internal
Video Output
Signal
1.0Vpp, 75 ohm Unbalance
ATW Range 2500K ~ 9700K
Power Supply DC12V+/- 10%
Power
Consumption
5W Max
with IR LED
4.5W Max
with IR LED
5W Max
with IR LED
4.5W Max
with IR LED
Operation
Temperature
-10°C to ~ +50°C
Less than 80% R.H.
Storage
Temperature
-20°C to ~ +60°C
Weights 580g 480g 580g 480g
LENS
Lens
3.8 ~ 9.5mm;
F1.3
3.6mm;
F2.0
3.8 ~ 9.5mm;
F1.3
3.6mm;
F2.0
Part Number : 531-BA000-000
Version Number : 20050427-01B
5

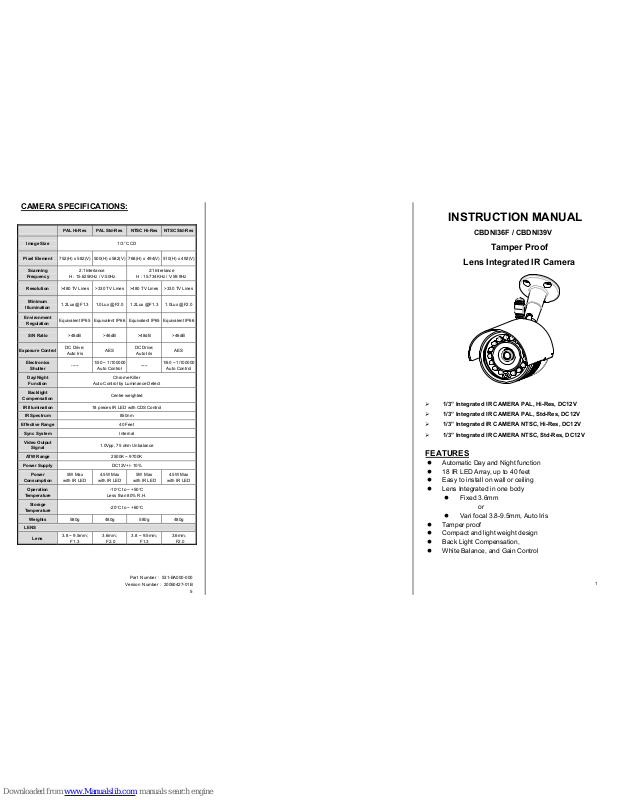

INSTRUCTION MANUAL
CBDNI36F / CBDNI39V
Tamper Proof
Lens Integrated IR Camera
¾ 1/3” Integrated IR CAMERA PAL, Hi-Res, DC12V
¾ 1/3” Integrated IR CAMERA PAL, Std-Res, DC12V
¾ 1/3” Integrated IR CAMERA NTSC, Hi-Res, DC12V
¾ 1/3” Integrated IR CAMERA NTSC, Std-Res, DC12V
FEATURES
z Automatic Day and Night function
z 18 IR LED Array, up to 40 feet
z Easy to install on wall or ceiling
z Lens Integrated in one body
z Fixed 3.6mm
or
z Vari focal 3.8-9.5mm, Auto Iris
z Tamper proof
z Compact and light weight design
z Back Light Compensation,
z White Balance, and Gain Control
1
PRECAUTIONS
1. Do not attempt to disassemble the camera. To prevent
electric shock, do not remove screws or cover. There are
no user-serviceable parts inside. Refer servicing to
qualified service personnel.
2. Handle the camera with care. Do not abuse the camera.
Avoid striking or shaking it. Improper handling or storage
could damage the camera.
3. Do not operate the camera beyond its temperature,
humidity or power source ratings
2
INSTALLATION
3. Attach the sunhood to camera
As per the drawing, slide on the sunhood.
. Attach the camera with bracket into ceiling/wall
1.
2.
2 :Video out cable.
A and focus
.
limits.
3
. Check that power is off before handling the power
U.
4
5. Connecting cables
1 : Power input cable.
6. djusting view angle
(Hi-Res models only)
Adjust the rings for focus and field of view
Caution: Never turn the rings over their
ATTENTION
1
1. Drilling holes in ceiling/wall
Use the bracket to mark the
appropriate mounting positions on
ceiling or wall.
Drill holes on ceiling or wall and
insert anchors.
2. Connecting camera to bracket
Depending on ceiling mount or wall
mount, affix the bracket to the
appropriate mounting threads.
cable.
2. Check 12vDC polarity before connecting to the PS
Wrong polarity will damage camera.
Packing List
a x 1
x 1
4
1. Camer
2. Sunhood
3. Bracket x 1
4. Accessory Package x 1
5. Drilling template. x 1
6. Instruction Manual. x 1
N
ote: If installing the vari focal unit place the
sunhood on after step 6
