Lens not Included

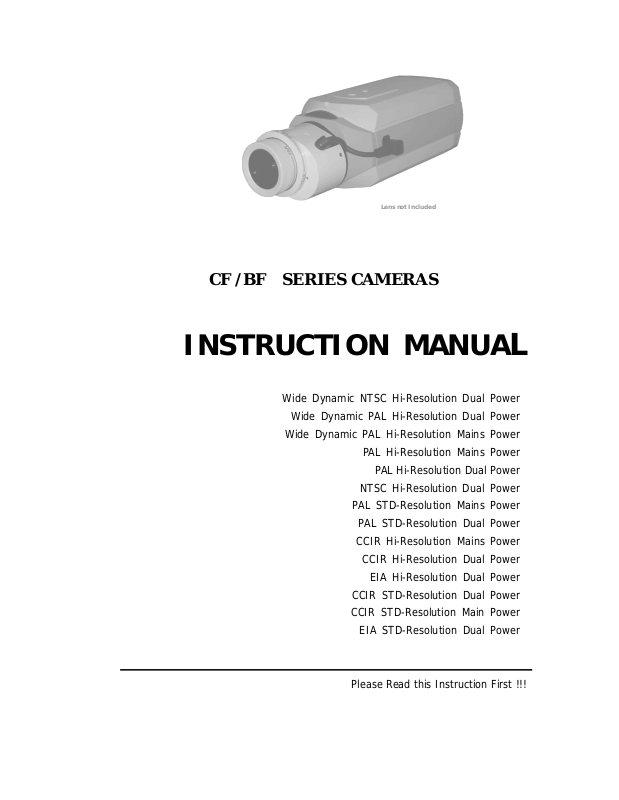

CF /BF SERIES CAMERAS

INSTRUCTION MANUAL

Wide Dynamic NTSC Hi-Resolution Dual Power

Wide Dynamic PAL Hi-Resolution Dual Power

Wide Dynamic PAL Hi-Resolution Mains Power

PAL Hi-Resolution Mains Power

PAL Hi-Resolution Dual Power

NTSC Hi-Resolution Dual Power

PAL STD-Resolution Mains Power

PAL STD-Resolution Dual Power

CCIR Hi-Resolution Mains Power

CCIR Hi-Resolution Dual Power

EIA Hi-Resolution Dual Power

CCIR STD-Resolution Dual Power

CCIR STD-Resolution Main Power

EIA STD-Resolution Dual Power

Please Read this Instruction First !!!

PRODUCT SAFETY

Warning

 Installation and servicing is only carried out by suitable qualified and experienced

personnel.

 Mains cameras contain hazardous voltage.  Do not open covers as there is a risk of injury or death by electric shock.  No servicing part inside camera.  Low voltage cameras must be powered from a UL listed class 2 power supply.  For outdoor use, an appropriate protective housing conforming to IP65 or better must

be used.

 Mains camera are not evaluated by UL.

This camera range is designed for use in general-purpose CCVT applications and no other purpose. Only operate your camera between the temperature of -10ºC to +50ºC ( 14ºF to 122ºF ). Do not operate your camera outside its specified power supply range. Camera must only be used in clean,

To PREV EN T FIRE O R SHOCK H A ZA R D , DO NO T EXP O SE THIS

AP P L IA NCE T O RA IN OR M OISTU R E

dry, dust-free environments unless housed in suitable protective housings to IP65 or better.

ELECTROMAGNETIC COMPATIBILITY (EMC)

CAUTION This is a class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

INTENDED PURPOSE : SECURITY AND SURVEILLANCE CCTV APPLICATIONS. The product must be installed and maintained in accordance with good installation practice to enable the product to function as intended and to prevent problems.

MANUFACTURER'S DECLARATION OF CONFORMANCE The manufacturer declares that the equipment supplied with this manual is compliant with the essential protection requirements of the EMC directive 89/336 and the Low Voltage Directive L VD 73/23 EEC. Conforming to the requirements of standards EN 55022 for emissions, IEC801 parts 2, 3 and 4 for immunity and EN 60065 for Electrical Equipment safety.

CONTENTS

Product Safety Electromagnetic Compatibility (EMC) Manufacturer's Declaration of Conformance Contents Introduction Packing List Part Descriptions Controls and Switches Backlight compensation Sharpness on/off Gamma Selection Automatic Gain Control on/off Electronic Iris (EI) on/off Synchronizations Selection (LL / INT) Power LED on/off Line Lock Phase Adjustment Potentiometer Auto-iris lens Type Selector Switch (Video Drive or Direct DC Drive) Auto-iris lens Connector Composite Video Output BNC Connector Power Supply Mains power supply Auto-switching power supply Back Focus Adjustment Installing Fixed & manual Iris Lenses Installing Direct (or D.C.) Drive Lenses Installing Video Drive Lenses Camera Mounting Specifications

INTRODUCTION

Read all of these instructions before using this camera. Retain them for reference for the lifetime of the camera. Note that not all cameras have all of the features described in this manual. Refer to the table below for the features of individual cameras. All cameras are fitted with a Direct Drive (DD) and Video Drive Auto Iris (AI) lens connector, have adjustable back focus and accept C and CS lenses.

Option

Wide Dynamic NTSC Dual Power

Wide Dynamic PAL Dual Power

Wide Dynamic PAL Mains Power

PAL Hi-Res. Dual power

PAL Hi-Res. Mains power

PAL STD-Res. Dual power

PAL STD-Res. Mains power

CCIR Hi-Res. Dual power

CCIR Hi-Res. Mains power

NTSC Hi-Res Dual power

NTSC STD-Res. Dual power

EIA Hi-Res. Dual power

CCIR STD-Res, Dual Power

CCIR STD-Res. Main Power

Monochrome Colour Digital Signal Process 1/3 CCD Sensor Size PAL / CCIR Scanning System NTSC / EIA Scanning System Wide Dynamic 4x Auto Frame Integration Resolution 480 480 480 480 480 330 330 580 580 480 330 580 400 400 400 Sensitivity 0.6 0.6 0.6 0.6 0.6 0.4 0.4 0.2 0.2 0.6 0.4 0.2 0.1 0.1 0.1 Lens Auto Detect Direct Drive / Video Drive Line Lock and Phase Adjustable Auto Electronics Shutter AGC Turbo Backlight Compensation ON/OFF Low – light Color Killer Simple Back Focus Adjustment

Power Supply Requirements:

EIA STD-Res. Dual Power

12VDC / 24VAC SPS 100VAC ~ 230VAC Universal

PACKING LIST'

Camera x 1pcs. Dust Cover x 1pcs. Instruction Manual x 1pcs. Mains Power cable (Available for Main Power model only) x 1pcs.

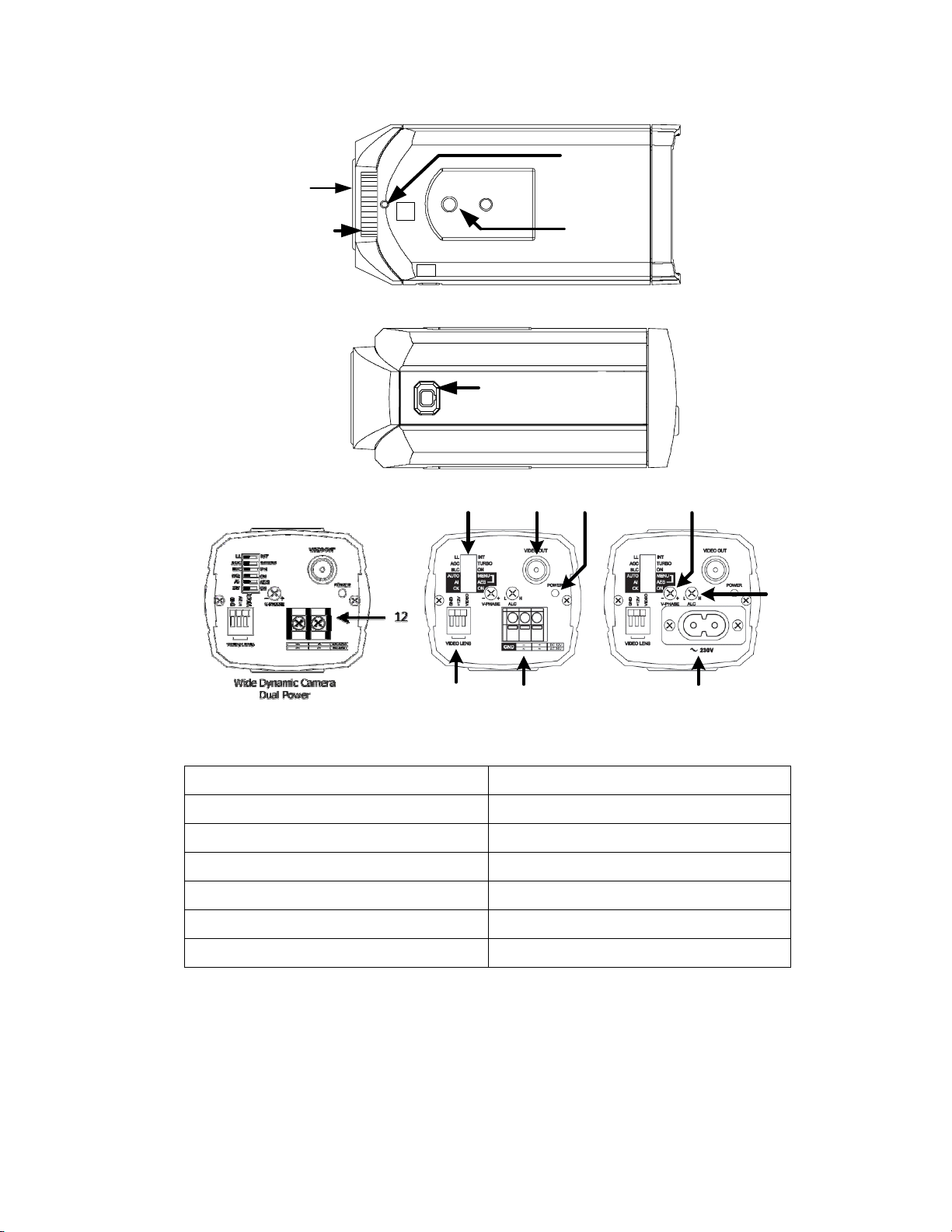

PART DISCRIPTION AND DIMENSION

1. Lens Mount. 8. Variable Resistor for Line Lock Phase Adjustment.

2. Back Focus Adjustment. 9. Variable Resistor for DC Le ns Adjustment.

3. Back Focus Lock Screw. 10. LED for power Indication.

4. Bracket Mounting Screw Hole 11. 3 pin Terminal Block for Video Lens Drive.

5.. 4 Pin Lens Connector for DC Drive Lens. 12. Terminal Block for Power Input ( Dual Power )

6. Switches for Function ON/OFF. 13. Figure 8 Power Socket for Mains Power.

7. BNC Composite Video Output.

12 13

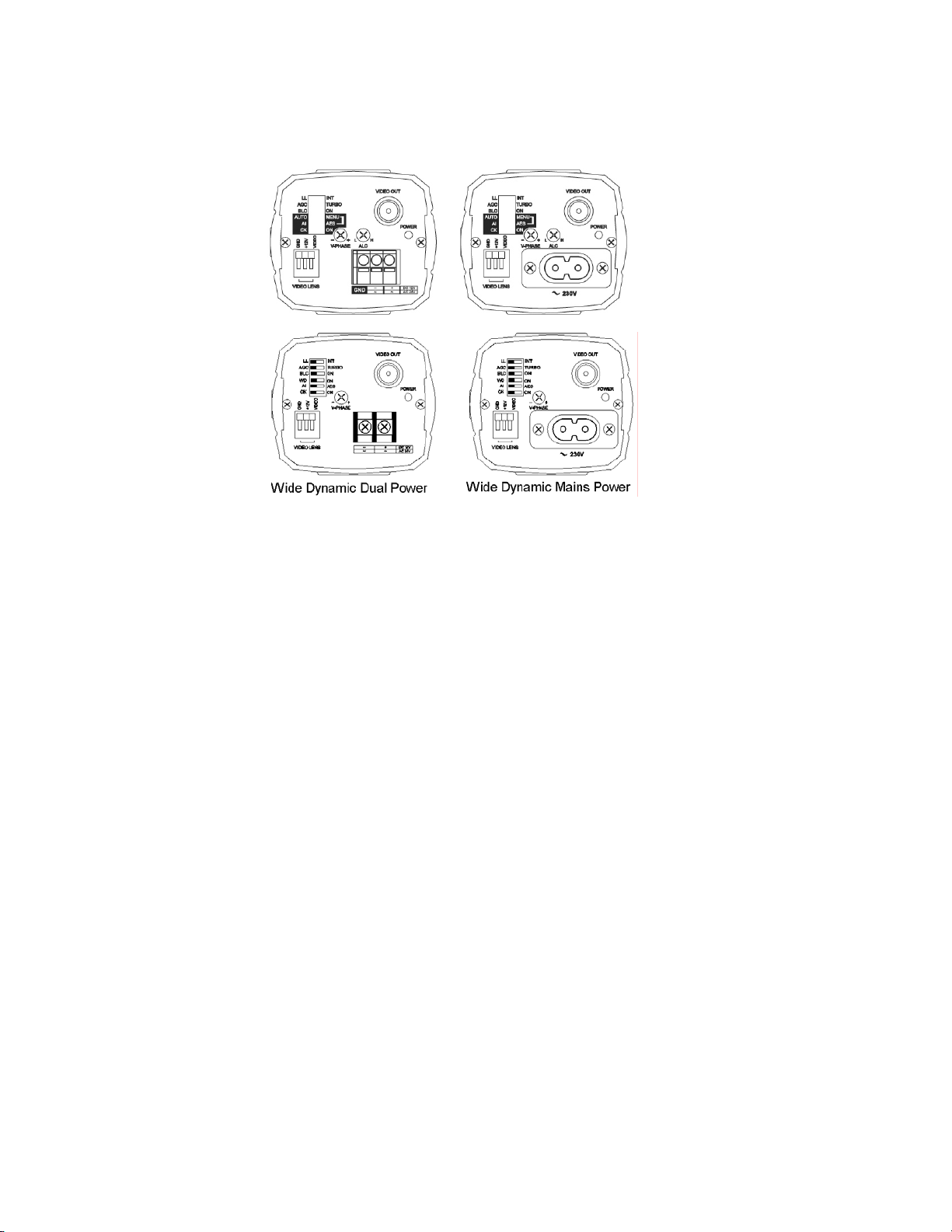

CONTROLS AND SWITCHES

Refer to the figure below for the various adjustmen ts, controls and functions selectable from the 6pin DIP-switch switches.

LL / INT

This switch is used to select the synchronization mode of the camera. When the camera is connected to an AC supply, the Line-lock (LL) mode can be used. This locks the camera's frame rate to the mains frequency so that each camera in the system can be triggered at the same point on the supply's AC-cycle. See also Line Lock Phase Adjustment Potentiometer. The d efault setting is INT.

AGC and TURBO

The Automatic Gain Control feature can improve picture quality when the level of scene illumination is low. Select TURBO for most applications. Setting to AGC will remove “noise” from the image, which will also limit the sensitivity of the camera.

BLC / ON

Switch to ON to enable the BackLight Compensation. This feature can be used to eliminate the effect of an area of strong background lighting in a scene. If strong background lighting, such as a window, exists in a scene, the camera will try to compensate for it by reducing the overall exposure. This would mean that the areas surrounding the window would become too dark. The default setting is off (BLC). BLC ON will only function with a manual iris lens when th e Electronic Iris feature is switched on. For direct drive and video drive lenses, BLC ON will still func tion even t hough the Elec tronic Iris feature i s switched off.

Auto / Manual Lens Type Selection ( Not available for Wide Dynamic Camera )

When set to AUTO the camera will automatically d etect w hich type of lens is attached and configure itself accordingly. Plugging a DC lens into the side connector will enable DD lens drive. Connecting a Video Iris lens to the connector on the rear will select Video Iris dr ive. No connection will default to AES mode.

AUTO is the default setting.

WD ON / Off

AI / AES Mode Selection

This switch operates when Auto / Man is set to MAN mode. Setting to AES forces Electronic Iris mode, compensates for excessive light levels by automatically adjusting the shutter speed of the camera. AI will force DD or Video Iris mode, depending w hich type of lens is connected.

CK / ON

Chroma Killer. When set to on and AGC is in TURBO mode, chroma information is suppressed within the image in low light. The resulting monochrome image produces a higher resolution image by removing chroma noise contained in the image. This also permits more efficient recording with a DVR.

LINE LOCK PHASE ADJUSTMENT POTENTIOMETER

When the camera is in line-lock mode it is possible to adjust the point on the AC cycle at which the camera triggers. This facility is provided so that cam eras that are connected to different mains phases may st ill be synchronized. The line lock phase adjustment potentiometer allows the line lock phase trigger point to be adjusted by :1:120°. Rotating the potentiometer clockwise advances the trigger point and turning it anticlockwise retards the trigger point. The factory default setting is the zero c rossing point. If all cameras in a system are on the same mains phase then no line lock phase adjustment should be made-see also Synchronization Selection (LL/INT).

ALC LEVEL ADJUSTMENT POTENTIOMETER

The DD lens level is controlled by this potentiometer. The video output signal is converted into a DC voltage by circuitry within the camera. The potentiome ter sets a reference voltage against which this derived DC voltage is compared. If the DC voltage is less than the reference level, the lens iris opening is increased. If the DC voltage i s greater than the reference level, the lens iris opening is decreased. This control loop attempts to continually match the DC voltage derived from the video signal, to the reference voltage set by the potentiometer. This feature allows the installer to set the required video output amp litude (e.g. 1Vpp) that the lens should strive to maintain.

POWER LED ON/OFF

In normal operation, the LED on the rear panel of the camera is illuminated when power is connected to the camera.

COMPOSITE VIDEO OUTPUT BNC CONNECTOR

Connect a video coaxial cable terminated with a 75 Ohm BNC connector to the BNC socket marked VIDEO OUT.

POWER SUPPLY

Cameras are available in AC mains, and AC and DC low voltage types. The voltage required to operate the camera is clearly marked on the rear panel of the camera. Low voltage cameras must be powered from a UL listed class 2 power supply. The typical power consumption of a camera is less than 5 Watts.

Mains power supply:

Cameras that are intended to operate directly from the mai ns supply are fitted with a det achable power supply co rd. The operating voltage is 100~250VAC

Low Voltage power supply:

These cameras are fitted with an automatic switching power supply that will operate between 11-28 VD C and 20-29 VAC. Connections are indicated above the terminals on the rear panel of the camera. The power supply must be a UL listed class 2 type.

LENS SELECTION

Suitable lens types are C and CS mount in fixed iris, manual iri s, au to iris or direct drive versions. Cameras are factory set for CS mount lenses. If using a C mount lens, rotate the back focus adjustmen t mechanism fully clockwise (when viewed from the front of the camera) before fitting the lens, see Back Focus Adjustment.

Back Focus Adjustment Lock Screw.

BACK FOCUS ADJUSTMENT

There is a back focus adjustment accessible at front of the camera housing, that is used to adjust the back focal length or coarse picture focus. The range of adjustment allows both C and CS mount lenses to be used without the need

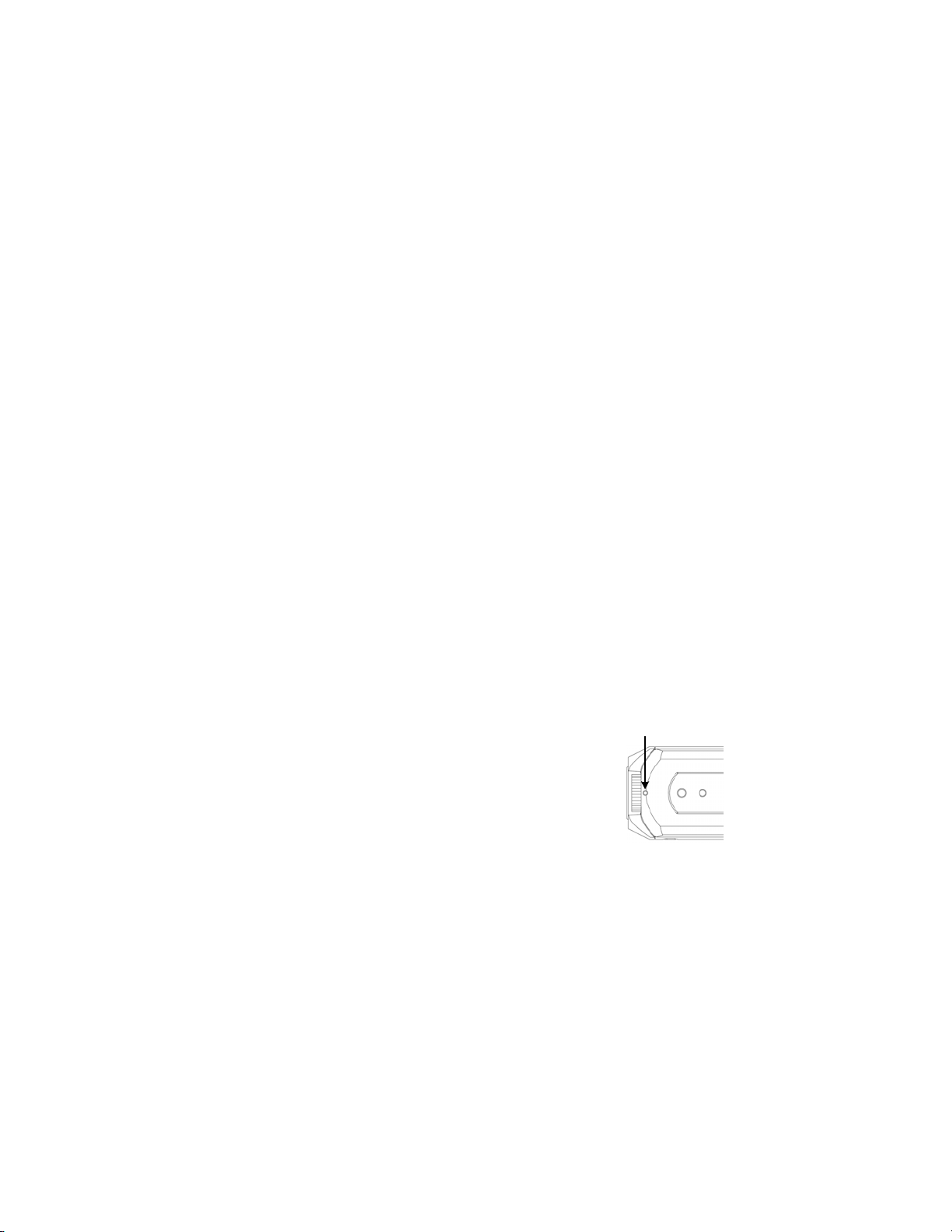

Figure 1

for a spacer ring. To use the back focus mechanism:

1. Unlock the back focus mechanism using the Back Focus adjustment lock screw (figure 1).

2. Rotate the back focus adjustment ring as required. When viewed from the front of the camera, clockwise

adjustment moves the CCD sensor away from the back of the lens; counter clockwise adjustment moves the CCD sensor towards the back of the lens

3. Lock the back focus mechanism.

Installing Fixed IRIS lenses & Manual Iris lenses

1. Turn the back focus adjustment ring fully clockwise (when viewed from the front -see Back Focus Adjustment), if using a C-mount lens.

2. Fit the lens to the camera.

3. Ensure the Electronic Iris (EI) and Automatic Gain Control (AGC) features are both turned ON (AUTO or MAN & AES and TURBO).

4. If the lens has an IRIS, open this fully.

5. If the lens has a focusing ring fitted, set it to infinity (00) and then adjust the back focus.

6. If the lens has an IRIS, close accordingly if a greater depth of field is required.

Installing Direct (OR D.C.) Drive lenses

1. Turn the back focus adjustment ring fully cloc kwise (when viewed from the front) if fitting a C-mount lens.

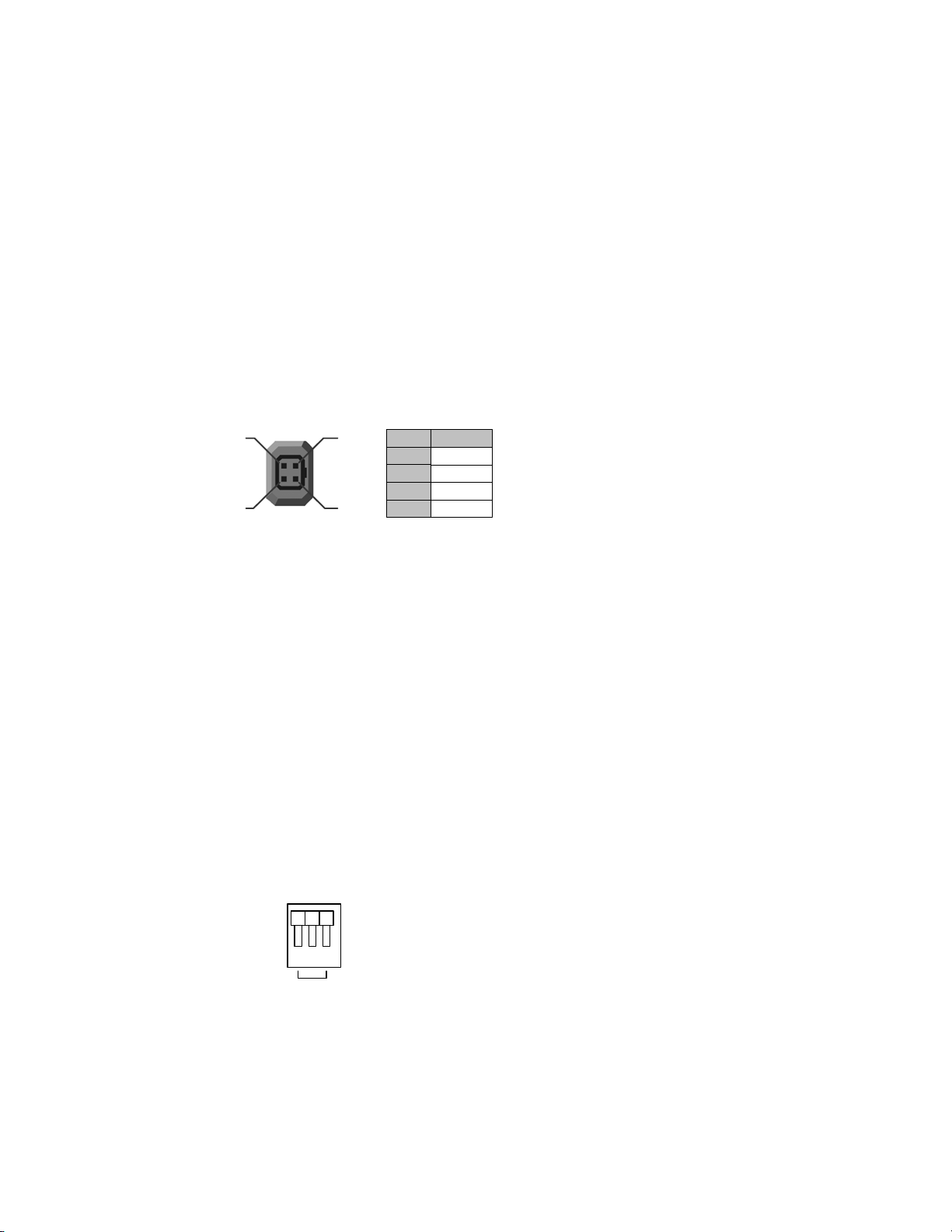

2. Fit the lens to the camera and connect it according to the diagram below.

Pin 4

Pin 3

Pin 2

Pin 1

PIN # Pin 1 Pin 2 Pin 3 Pin 4

DC Drive Damp Damp + Drive + Drive -

WARNING The maximum load for this type of lens must not exceed 25mA.

3. Set the lens type selector switch to AUTO (or MAN and AI).

4. Set the AGC switch to AGC.

5. If the lens has a focusing ring fitted, set it to infinity (00) and then adjust the back focus.

6. With typical scene illumina ti on, set the ALC Level adjustment potentiometer for the correct exposure. This can be achieved either visually or more accurately by using an oscilloscope or level meter to set the output of the camera to 1 V peak-peak.

7. Ensure the Automatic Gain Control feature is turned to TURBO.

Installing Video Drive Lenses

1. Turn the back focus adjustment ring fully cloc kwise (when viewed from the front) if fitting a C-mount lens.

2. Fit the lens to the camera and connect it according to the diagram below.

GND

VIDEO

+12V

VIDEO LEVEL

WARNING The maximum load for this type of lens must not exceed 50mA.

3. Set the lens type selector switch to AUTO (or MAN and AI).

4. Set the AGC switch to AGC.

5. If the lens has a focusing ring fitted, set it to infinity (00) and then adjust the back focus.

6. With typical scene illuminati on, set the Lens Level adjustment potentiometer on the lens for the corr ect exposure. This can be achieved either visually or more accurately by using an oscilloscope or level meter to set the output of the camera to 1 V peak-peak. If the scene lighting conditions are extremely uneven, it may be necessary to adjust the lens' s Peak Average potentiometer. Refer to the lens instructions.

7. Ensure the Automatic Gain Control feature i s switched to TURBO.

CAMERA MOUNTING

Mounting points are provided on the top and bottom of the camera and are used to mount the camera on a bracket or tripod. They are designed to accept standard photographic mounting bol ts (1/4" BSW or 20 U NC). The mounting bracket must be capable of supporting the weight of the camera and its lens. In cases where the lens is substantially heavier than the camera, it is bet ter to use the mounting point on the lens itself. NOTE: Ensure that any fixings used to mount the bracket are adequate to support the load of the camera and bracket on the surface to which the bracket is fixed.

SPECIFICATIONS

General Wide Dynamic NTSC Dual Power

Image Size 1/3 Format Interline CCD Sensor Ye, Cy, Mg, G, color complementary mosaic filter Pixel Element 768 (H) × 494 (V) approx. 380K pixels 752 (H) × 582 (V) approx. 440K pixels Scanning Frequency NTSC 2 : 1 Interlace / H : 15750Hz , V : 59.94Hz PAL 2 : 1 Interlace / H : 15625Hz , V : 50Hz Operation Temperature -10˚C ~ +50˚C Storage Temperature -20˚C ~ +60˚C

Output Terminal BNC 75Ohm Unbalance Input Terminal Dual Power 2 pin Screw Type Terminal Block 2 pin Screw Type Terminal Block Main Power ----- European Power Socket Power Operation Range Dual Power 12VDC +/- 10% , 24VAC +/- 10% 60Hz 12VDC +/- 10% , 24VAC +/- 10% 50Hz Main Power ----- AC100V ~ AC250V 50Hz Power Consumption 4.5W Max. Power Indicator 3ø Green LED on Rear Panel IRIS Connector Video Drive 3pin Push Lock Terminal Block on Rear DC Drive 4pin Connector on Side ( Panasonic Standard ) Lens Mount CS ~ C Mount Adjustable Back Focus Adjust CS Mount 11mm ~ C Mount 18mm Mounting Hole 1/4” Top and Bottom External Dimension 58mmW x 66mmH x 131mmL

Functional Specification

Exposure Control Auto Detect : Auto Electronics Shutter / Video Auto IRIS / DC Auto IRIS

AES Auto Luminance Control 1/60 ~ 1/100000 sec Max. Auto Luminance Control 1/50 ~ 1/100000 sec Max

Auto IRIS Control Video Drive / DC Drive Separate Output

Video IRIS Output 1.0Vpp ( 100IRE Video Output )

DC IRIS Output 650mV at 85Ohm Impendent

Wide Dynamic Range 52dB ON / OFF

BLC Center Area for Auto IRIS and AES

White Balance Auto White Balance

Auto White Balance Range 2500K ~ 9500K

Day & Night Color Killer Auto Detect by Luminance < Fuzzy 30IRE ~ 80IRE>

AGC Boost Enhance AGC Gain to Max. 36dB

Color Killer Fuzzy ON / OFF

SYNC System INT / Line Lock

Line Lock Phase Adjust Range 0˚~ 270˚

Frequency Range 60Hz +/- 1Hz 50Hz +/- 1Hz

Video Specification

Resolution Normal Mode 480 TV Line

CK Mode 500 TV Line Minimum Illumination 0.6Lux @ F=1.2 ( 50IRE Video Output ) Video Output 1.0Vpp 75Ohm BNC unbalance S/N Ratio 50dB AGC Preset Gain 30dB H Aperture 10 IRE ( r 0.45 100IRE Video Output ) V Aperture 10 IRE ( r 0.45 100IRE Video Output ) Gamma Compensation 0.45

Function Control or Adjustment

Exposure Control Auto Detect : Auto Electronics Shutter / Auto IRIS Manual Exposure Control AES / Video Drive / DC Drive Color Killer Fuzzy ON / OFF BLC ON / OFF Switchable Wide Dynamic ON / OFF Selectable SYNC System INT / LL Switchable on Rear Panel V-Phase Via Resistor on Rear panel

Wide Dynamic PAL Dual Power Wide Dynamic PAL Main Power

General

PAL Hi-Resolution Dual Voltage PAL Hi-Resolution Mains Voltage

PAL STD-Resolution Dual Voltage PAL STD-Resolution Mains Voltage

CCIR Hi- Resolution Dual Voltage CCIR Hi- Resolution Mains Voltage

Image Size

Pixel Element 752 (H) × 582 (V) approx. 440K pixels 500 (H) × 582 (V) approx.290K pixels 752 (H) × 582 (V) approx.440K pixels

Scanning Frequency PAL 2 : 1 Interlace H : 15625Hz , V : 50Hz

Operation Temperature -10˚C ~ +50˚C Storage Temperature -20˚C ~ +60˚C Output Terminal BNC 75Ohm Unbalance Input Termina LV Power 3pin Push Lock Terminal Block Mains Power Figure 8 wire end lead Power Source LV Power DC12V / AC24V +/- 20% Mains Power AC100V ~ AC240V Power Consumption 4.2W Max, Power Indicator 3mm Green LED on Rear Panel

IRIS Connector

Lens Mount CS ~ C Mount Adjustable Back Focus Adjust CS Mount 11mm ~ C Mount 18mm Mounting Hole 1/4” Top and Bottom External Dimension 67.5mm (W) x 58.5mm (H) x 133.5mm (D)

Functional Specification

Exposure Control Auto Electronics Shutter / Video Auto RIS / DC Auto IRIS AES Auto Luminance Control 1/50 ~ 1/100000 sec Max. Auto IRIS Control Video Drive / DC Drive Video IRIS Output 1.0Vpp ( 100IRE Video Output ) DC IRIS Output 650V at 85Ohm Impendent BLC Center Area for Auto IRIS and AES White Balance Auto White Balance 2500K ~ 9500K AGC Turbo Enhance AGC Gain to Max. 36dB SYNC System INT / Line Lock Line Lock Phase Range 0˚~ 270˚ Frequency Range 50Hz +/- 1Hz

Video Specification

Resolution 480 TV Line 330 TV Line 580 TV Line Minimum Illumination

Video Output 1.0Vpp 75Ohm BNC unbalance S/N Ratio 50dB AGC LOW Gain 36dB AGC HIGH Gain 30dB H Aperture 10 IRE ( r 0.45 100IRE Video Output ) V Aperture 10 IRE ( r 0.45 100IRE Video Output ) Gamma Compensation 0.45

Function Control or Adjustment

Exposure Control Auto Electronics Shutter / Auto IRIS Lenses Drive Video or DC Drive - auto detect BLC ON / OFF Switchable AGC Selectable AGC Normal / AGC Turbo SYNC System INT / LL Switchable on Rear Panel V-Phase Via variable resistor on Rear panel Lens Level Control Via Resistor on Rear Panel (For DC Drive Lenses only)

1/3 Format Interline CCD Sensor Ye, Cy, Mg, G, color complementary mosaic filter

DC Iris 4pin Connector on Side ( Panasonic Standard )

Video iris 3pin Push Lock Terminal Block

0.6Lux @ F=1.2 ( 50IRE Video Output )

0.4Lux @ F=1.2 ( 50IRE Video Output )

1/3 Format Interline CCD Solid State Image Sensor

CCIR 2 : 1 Interlace H : 15625Hz , V : 50Hz

0.2 Lux @ F=1.2 ( 50IRE Video Output )

General NTSC Hi-Resolution Low Voltage NTSC STD-Resolution Dual Power

Image Size 1/3 Format Interline CCD Sensor Ye, Cy, Mg, G, color complementary mosaic filter Pixel Element 768 (H) × 494 (V) approx. 380K pixels 510 (H) × 492 (V) approx. 250K pixels Scanning Frequency NTSC 2 : 1 Interlace / H : 15750Hz , V : 59.94Hz Operation Temperature -10˚C ~ +50˚C Storage Temperature -20˚C ~ +60˚C Output Terminal BNC 75Ohm Unbalance Input Terminal 3pin Push Lock Terminal Block Power Source DC12V / AC24V +/- 20% Power Consumption 4.2W Max, Power Indicator 3ø Green LED on Rear Panel

IRIS Connector

Lens Mount CS ~ C Mount Adjustable Back Focus Adjust CS Mount 11mm ~ C Mount 18mm Mounting Hole 1/4” Top and Bottom External Dimension

Functional Specification

Exposure Control Auto Electronics Shutter / Video Auto RIS / DC Auto IRIS AES Auto Luminance Control 1/60 ~ 1/100000 sec Max. Auto IRIS Control Video Drive / DC Drive Video IRIS Output 1.0Vpp ( 100IRE Video Output ) DC IRIS Output 650V at 85Ohm Impendent BLC Center Area for Auto IRIS and AES White Balance Auto 2500K ~ 9500K AGC Boost Enhance AGC Gain to Max. 36dB SYNC System INT / Line Lock Line Lock Phase Range 0˚~ 270˚ Frequency Range 60Hz +/- 1Hz

Video Specification

Resolution 480 TV Line 330 TV Line Minimum Illumination 0.66Lux @ F=1.2 ( 50IRE Video Output ) Video Output 1.0Vpp 75Ohm BNC unbalance S/N Ratio 50dB AGC HIGH Gain 36dB AGC LOW Gain 30dB H Aperture 10 IRE ( r 0.45 100IRE Video Output ) V Aperture 10 IRE ( r 0.45 100IRE Video Output ) Gamma Compensation 0.45

Function Control or Adjustment

DC Iris 4pin Connector on Side ( Panasonic Standard )

Video iris 3pin Push Lock Terminal Block

General EIA Hi-Resolution Dual Power

Image Size 1/3 Format Interline CCD Solid State Image Sensor Pixel Element 768 (H) × 494 (V) approx. 380K pixels Scanning Frequency EIA 2 : 1 Interlace / H : 15750Hz , V : 59.94Hz Operation Temperature -10˚C ~ +50˚C Storage Temperature -20˚C ~ +60˚C Output Terminal BNC 75Ohm Unbalance Input Terminal 3pin Push Lock T erminal Block Power Source DC12V / AC24V +/- 20% Power Consumption 3.2W Max, Power Indicator 3ø Green LED on Rear Panel

IRIS Connector

Lens Mount CS ~ C Mount Adjustable Back Focus Adjust CS Mount 11mm ~ C Mount 18mm Mounting Hole 1/4” Top and Bottom External Dimension

Functional Specification

Exposure Control Auto Electronics Shutter / Video Auto RIS / DC Auto IRIS AES Auto Luminance Control 1/60 ~ 1/100000 sec Max. Auto IRIS Control Video Drive / DC Drive Video IRIS Output 1.0Vpp ( 100IRE Video Output ) DC IRIS Output 650V at 85Ohm Impendent BLC Center Area for Auto IRIS and AES AGC Boost Enhance AGC Gain to Max. 36dB SYNC System INT / Line Lock Line Lock Phase Range 0˚~ 270˚ Frequency Ra nge 60Hz +/- 1Hz

Video Specification

Resolution 580 TV Line Minimum Illumination 0.2 Lux @ F=1.2 ( 50IRE Video Output ) Video Output 1.0Vpp 75Ohm BNC unbalance S/N Ratio 50dB AGC Turbo Gain 36dB AGC Preset Gain 30dB H Aperture 10 IRE ( r 0.45 100IRE Video Output ) Gamma Compensation 0.45

Function Control or Adjustment

DC Iris 4pin Connector on Side ( Panasonic Standard )

Video iris 3pin Push Lock Terminal Block

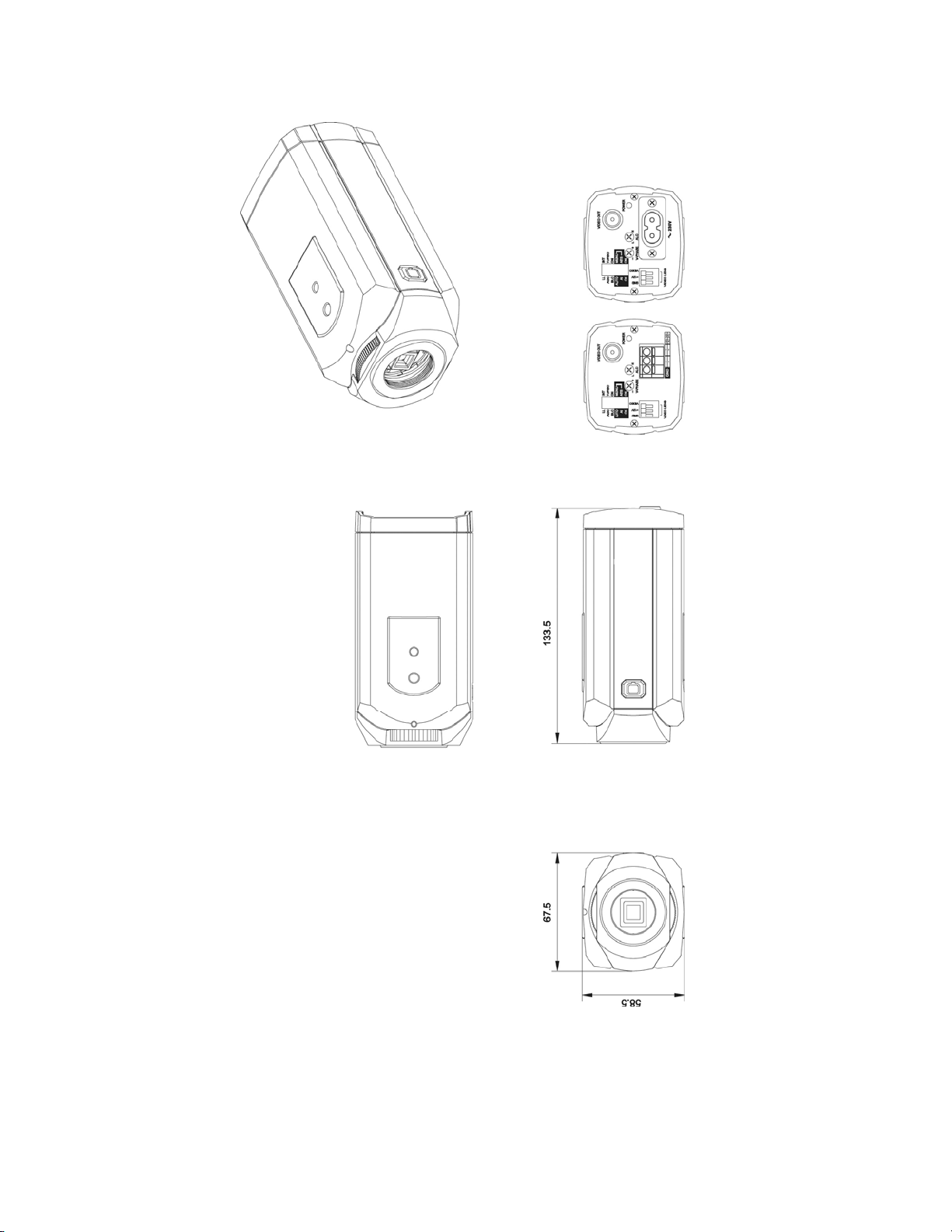

Drawing and Dimension - standard Range Camera

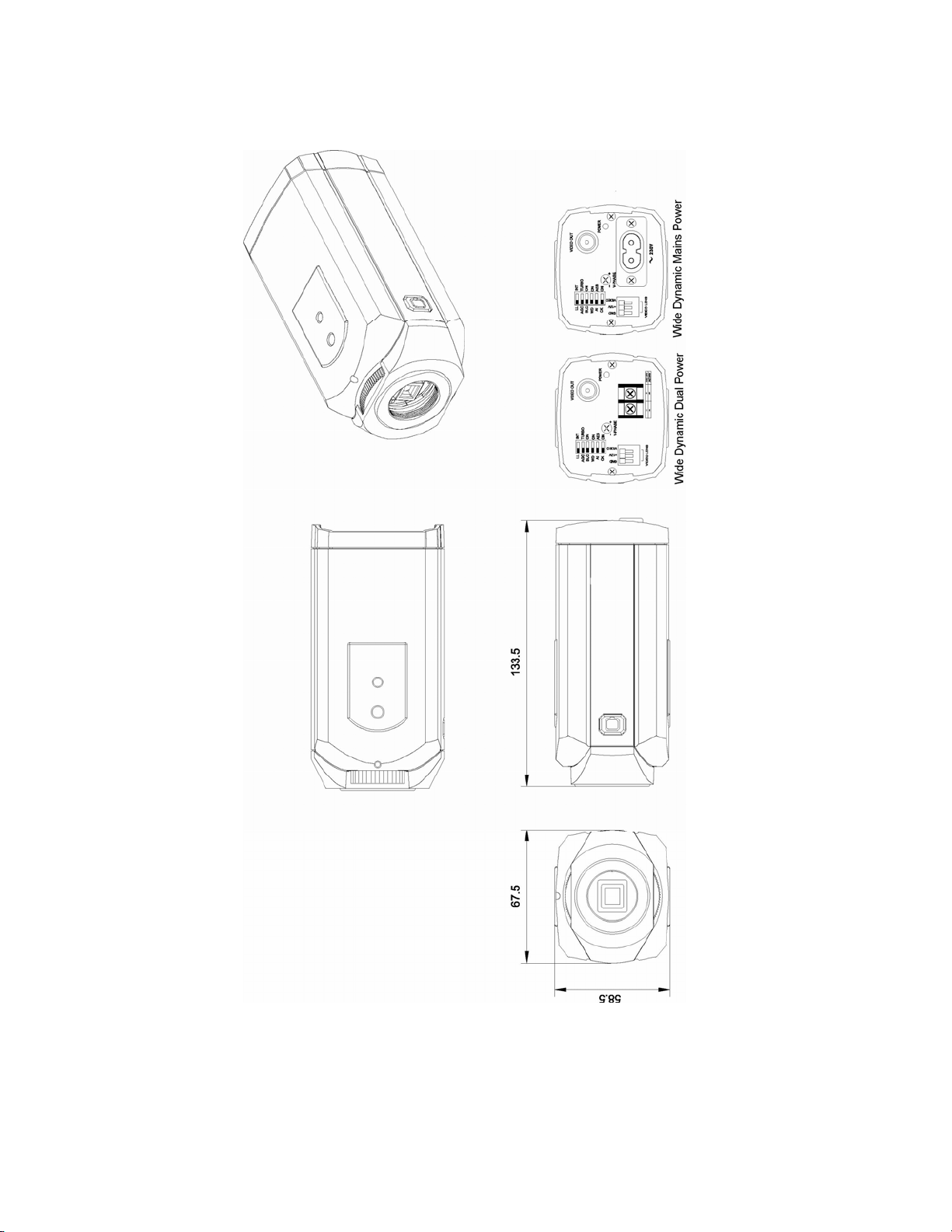

Drawing and Dimension – Wide Dynamic Camera
