DEVA BROADCAST DB7007 DEVA Broadcast DB7007.pdf

MAINTENANCE AND OPERATION

INSTRUCTION MANUAL

DB7007

Advanced FM Radio Re-Broadcast Receiver

with IP Audio & MP3 Backup Players

Publish Date: 20-Jun-2019

Contents

Introduction ........................................................................................................................................ 6

Typographic conventions .................................................................................................................. 7

General Information .......................................................................................................................... 8

Product Features ................................................................................................................................ 9

Technical Specications ................................................................................................................ 10

Panel Indicators, Switches and Connectors................................................................................... 12

OLED Display ............................................................................................................................... 12

Soft Buttons ................................................................................................................................... 12

Navigational Buttons ..................................................................................................................... 12

Front panel .................................................................................................................................... 12

Phones ...................................................................................................................................... 12

Indicators .................................................................................................................................. 13

LED bargraphs ......................................................................................................................... 14

Rear Panel ..................................................................................................................................... 15

Rear Panel Alarm Terminal .......................................................................................................... 16

Before you start ................................................................................................................................ 17

Safety Precautions ......................................................................................................................... 17

Operating Environment Recommendations................................................................................... 17

RF Environment – precautions, installation specications and antenna types .............................18

De-emphasis and Pre-emphasis selection ..................................................................................... 18

Connecting – AC Power and Voltage Selection ............................................................................ 19

Operation .......................................................................................................................................... 20

Re-broadcasting limitations .......................................................................................................... 20

Signal Strength ......................................................................................................................... 20

Multipath Distortion ................................................................................................................. 20

Co-channel Interface ................................................................................................................ 21

First time power on ....................................................................................................................... 22

Front Panel LCD Display, Navigational & Soft Buttons .............................................................. 23

Header Area ............................................................................................................................. 23

Soft Buttons ............................................................................................................................... 24

How to change device parameters ........................................................................................... 25

Set-up menu title ................................................................................................................. 25

Navigation area .................................................................................................................. 25

Numerical parameter ........................................................................................................... 25

Enumerated parameter ........................................................................................................ 25

IP address ............................................................................................................................ 26

IP port .................................................................................................................................. 26

Date ......................................................................................................................................26

Time ...................................................................................................................................... 26

Timer .................................................................................................................................... 26

String .................................................................................................................................... 27

Main screen working area ............................................................................................................. 29

Operating Modes and Pages ........................................................................................................... 30

Bandscan Page .............................................................................................................................. 31

Span control state ................................................................................................................ 33

Marker control state ............................................................................................................ 35

Parameter control state ....................................................................................................... 36

Bandscan page parameters ..................................................................................................37

Levels Page ................................................................................................................................... 38

Graphs Page ..................................................................................................................................41

Settings Page ................................................................................................................................. 45

Main Station ............................................................................................................................. 45

Backup Station .......................................................................................................................... 46

Tuner ......................................................................................................................................... 46

Backup ...................................................................................................................................... 47

MPX .......................................................................................................................................... 48

MPX out Conguration .......................................................................................................... 48

Stereo Generator ..................................................................................................................... 49

Injection levels ......................................................................................................................... 49

MPX limiter ............................................................................................................................. 49

RDS ........................................................................................................................................... 50

Communication......................................................................................................................... 51

Security ..................................................................................................................................... 53

Keyboard lock ...................................................................................................................... 53

Keyboard unlock .................................................................................................................. 54

Alarms....................................................................................................................................... 55

GP Outputs ............................................................................................................................... 56

Audio/MPX Outputs.................................................................................................................. 56

Device ....................................................................................................................................... 57

Status Page .................................................................................................................................... 58

[RDS Decoder] PAGE ................................................................................................................... 60

RDS/RBDS Page Main view ..................................................................................................... 60

RDS/RBDS RAW Data view ....................................................................................................61

RDS/RBDS AF list view ............................................................................................................ 61

RDS/RBDS Statistics view ........................................................................................................ 61

RDS/RBDS Sequence view ...................................................................................................... 62

WEB Interface .................................................................................................................................. 63

Manual IP address Identication .................................................................................................. 63

Network Discovery ........................................................................................................................ 63

Access ............................................................................................................................................ 64

Main Screen ................................................................................................................................... 65

RDS/RBDS Screen ......................................................................................................................... 70

BandScan Screen ........................................................................................................................... 71

Status Screen ................................................................................................................................. 72

Log Screen ..................................................................................................................................... 73

General Settings Screen ................................................................................................................ 74

Tuner Settings Screen .................................................................................................................... 75

RF Loss Protection Mode ......................................................................................................... 76

PI Protection Mode ..................................................................................................................77

Backup Settings Screen ................................................................................................................. 78

MP3 les upload via FTP ......................................................................................................... 79

MPX Settings Screen ..................................................................................................................... 79

RDS/RBDS Settings Screen ........................................................................................................... 80

Alarms Settings Screen .................................................................................................................. 81

Communication Settings Screen .................................................................................................... 82

Network .................................................................................................................................... 82

HTTP Server ............................................................................................................................. 83

FTP Server ................................................................................................................................ 83

SNMP Agent ............................................................................................................................. 83

Syslog ........................................................................................................................................ 83

GSM Modem ............................................................................................................................. 83

Audio Stream Server ................................................................................................................. 83

E-mail ....................................................................................................................................... 84

UECP UDP Relay & UECP TCP Server .................................................................................84

USB Port ................................................................................................................................... 84

Outputs Settings Screen .................................................................................................................85

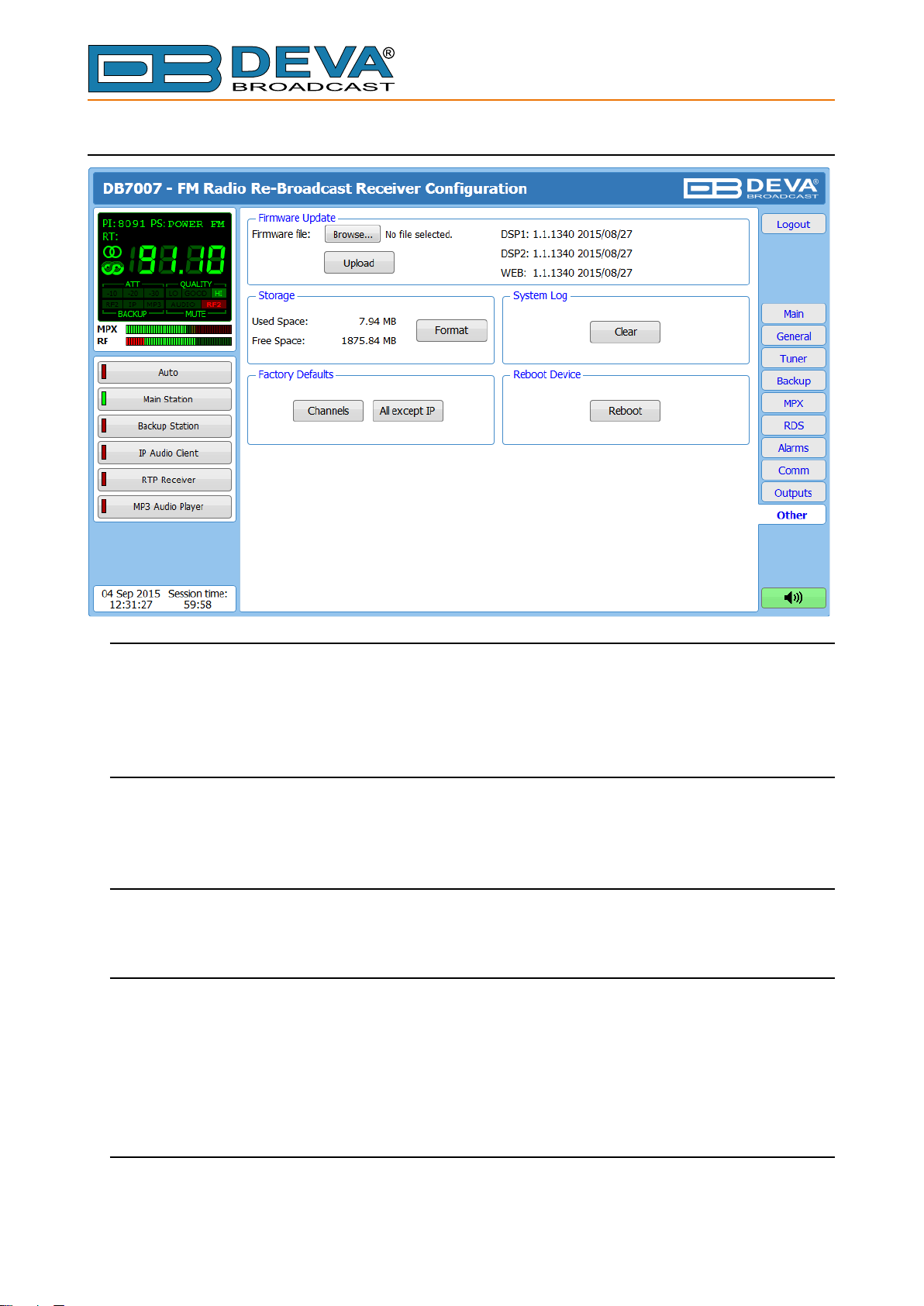

Other Settings Screen .................................................................................................................... 86

Firmware Update .................................................................................................................... 86

Storage ...................................................................................................................................... 86

System Log ................................................................................................................................ 86

Factory Defaults ....................................................................................................................... 86

Reboot ....................................................................................................................................... 86

APPENDIX 1 .................................................................................................................................... 87

Alarm Triggers .............................................................................................................................. 87

Alarm Notication ......................................................................................................................... 89

APPENDIX A ...................................................................................................................................90

RDS: Europe vs America .............................................................................................................. 90

The RDS System ........................................................................................................................... 90

APPENDIX B ................................................................................................................................... 91

Download/Upload les via FTP ....................................................................................................91

1. FTP Server Settings ......................................................................................................... 91

2. IP Router and Port Translation Settings ..........................................................................91

3. Example of FTP Client (FileZilla) Settings ..................................................................... 92

APPENDIX C.1 ................................................................................................................................ 93

PTY Code Description Used in RBDS Mode – North America ..................................................... 93

APPENDIX C.2 ................................................................................................................................ 94

PTY Code Description Used in RDS Mode – Europe, Asia .......................................................... 94

WARRANTY TERMS AND CONDITIONS .................................................................................95

Product Registration Card .............................................................................................................. 96

THIS PAGE

IS INTENTIONALLY

LEFT BLANK

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Introduction

DEVA Broadcast Ltd. is an international communications and high-technology manufacturing
organization, its corporate headquarters and facility located in Burgas, Bulgaria. The company
serves the broadcast and corporate markets worldwide – from consumers and small businesses to
the largest global organizations. It is dedicated to the research, design, development and provision
of advanced products, systems and services. DEVA launched its own brand back in 1997 and has
nowadays evolved to become known as a market leader and internationally reputed manufacturer
of user-friendly, cost-effective and innovative broadcast products.

Creativity and innovation are deeply woven into DEVA corporate culture. Through successful
engineering, marketing and management our team of dedicated professionals creates future­oriented solutions to improve customers’ performance. You may rely that all issues communicated
to our crew would be addressed accordingly. We pride ourselves on our pre and post-sales support
and purchase services, which along with the outstanding quality of our radio gear have won us due
respect and the market authority position.

DEVA best-of-breed solutions have become the best sellers for our partners. The strategic
partnerships which have been formed with industry leaders during all these years that we have been
operating on the broadcasting market, have proved us a reliable business partner and a valuable

asset, as our dealers worldwide would conrm. In constant pursuit of precision and long-term

satisfaction, DEVA enhances the reputation of our partners and clients alike. Furthermore, we have
already a proven merit as a credible partner provider.

Our portfolio offers complete line of high quality and competitive products for FM and Digital
Radio, Radio Networks, Telecommunication Operators and regulation authorities. For almost
two decades of intensive software and hardware development, we have achieved a unique price­performance and endurance of our product lines. Our company’s multitude of equipment and
services is in line with the latest technologies and key trends. The most recognizable characteristics
attributed to DEVA products are their clear-cut, streamlined design, easiness of use and cost­effectiveness: simplicity of forms but multiplicity of functions.

For us there is no stage when we deem that we have reached the most satisfactory level in our
work. Our engineers are in constant pursuit of new ideas and technologies to be captured in DEVA
solutions. Simultaneously, a strict control is being exercised at each step of any new development.
Experience and hard work are our fundament but the continuous improving process is what we
never leave aside. DEVA participates on a regular basis in all landmark broadcasting events, not
only to promote its products, but to exchange valuable know-how and experience. We are also
engaged in international large-scale projects involving radio and audio solutions which makes us
even more competitive on the global market.

All DEVA products are developed and produced in accordance with the latest ISO 9001 quality
control standards.

- 6 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Typographic conventions

This manual uses the following typographic conventions:

Style Used for

NOTE

Example

“Menu” on page XX. References

[OK] Interface Interactive buttons.

Settings

Important notes and recommendations
Used when example text is cited

Menu paths are represented as follows: Settings> General> Backup

Tel: [phone], Fax: [phone]

- 7 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

General Information

DB7007 is a second generation digitally-tuned FM Re-Broadcast Receiver. Considering the
needs of the most demanding broadcasters and continuously supplementing new features to our
devices, DEVA has enhanced DB7007 to be smarter and fully functional unit, equipped with two
high-selective DSP-based FM tuners.

Thanks to the built-in monitoring system, upon audio loss at the inputs, DB7007 will not only
notify the maintenance staff, but will also automatically switch to the second back-up RF Station.
In case a fail of the second station is detected, DB7007 will shift to the incorporated IP Stream,
MP3/AAC back-up audio source player. It is essential that the back-up sources priority is user-

dened. The audio les and playlists can be uploaded in the device’s internal memory directly

from your PC, via any FTP client. When the signal at the default input is restored, the DB7007 will

automatically switch back to it. Depending on your preferences, several types of alarm notications

are utilized - E-mail, SNMP and SMS (via the optional GSM modem).

The DB7007 has an easy to read, high-resolution OLED graphical display, front panel alarm
indicators and ultra-bright bargraphs with up to 40 LED segment indicators that allow reading at a
glance of the MPX, Left and Right audio and the RF level, as well. The RF (IF) signal is digitized
as soon as it enters the device and all signal processing is then made through DSP algorithms,

thus guaranteeing measurement reproducibility over time. The IF bandwidth lters guarantees
unprecedented signal selectivity, while the difcult adjacent-channel problem will be completely

solved. DEVA advanced DB7007 will measure all important parameters of the FM transmission.

Additionally, the RDS information contained in the processed MPX signal is easily visualized
and represented as RDS/RBDS Data and detailed RDS/RBDS Statistics. The utilized Band
Analyzer function presents an overview of all available FM signals, plus the RF signal strength.
Scans can be performed within any section of the FM band in 4 different frequency steps. The
consequently generated spectrum diagram visualizes the relation RF Level vs. Frequency.

Adhering to the underlying principle of all DEVA products to be as much user-friendly as
possible, the DB7007 can be also easily controlled through the built-in Web server - you can use a
standard web browser to monitor the status or to make any adjustments (iOS and Android devices
are also supported); the supplied free of charge DEVA Device Manager Software or alternatively,
through the very intuitive user interface.

Designed to ensure premium broadcasting experience, DB7007 will meet and even exceed

your expectations for a rst rank re-broadcast receiver.

- 8 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Product Features

• Two independent DSP based Digital FM Tuners

• Dual antenna ports with built-in RF attenuator

• Up to 100 dBµV direct RF Antenna Input

• Selectable wide range IF lter bandwidths

• User selectable, 87.1-107.9 MHz (CCIR), 65-74 MHz (OIRT), 76-95 MHz (Japan)

• Built-in DSP based Stereo Re-encoder

• Advanced SNMP Ver.2C support

• Professional AES/EBU, SPDIF and Optical Digital audio outputs

• Wide angle, easy to read OLED display

• Very Intuitive Navigational Menu

• Selectable De-emphasis - 50µs and 75µs

• Real Time Audio Program Streaming

• Remote Listening via optional GSM modem

• Apple and Android devices support

• SNTP for automatic sync of the built-in clock

• RDS and RBDS decoder with BER meter

• TCP/IP Remote monitoring and control via SNMP and WEB Interface

• Alarm dispatch via E-mail, SMS, SNMP and GPO

• Multiformat Backup IP Audio player

• Built-in Backup MP3 Player

• Lots of Storage for over 24 hours of non-repeating audio playback

• Adjustable MIN/MAX alarms for RF, Pilot, L & R Audio Levels

• Adjustable MIN/MAX alarms for MPX & RDS

• Digital Volume Control of all Audio Sources

• Complete status reporting with SMS via optional GSM modem

• Protected access to the device settings

• Balanced Analog Audio Outputs on XLR Connectors

• USB communication interface for local connectivity

• Headphone output with front panel level control

• Easy and intuitive Windows Application

• Firmware updates will ensure improved operation

• Accurate front-panel metering for local use

• Restore Factory Parameters option

• Wide operating voltage range: 100-240V AC

• 19” Professional Case for high RF immunity

• Easy Installation and Setup

- 9 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

TECHNICAL SPECIFICATIONS

RF INPUT

Tuning Range User selectable, 87.1-107.9 MHz (CCIR), 65-74 MHz (OIRT),

76-95 MHz (Japan)
Tuning Step 10, 20, 50, 100 kHz
Tuner Sensitivity 30 dBµV
Antenna Ports Dual, 2 x BNC Connectors, 50Ω
Antenna Ports Isolation > 40 dB
Internal Attenuator 0, 10, 20 and 30 dB
Dynamic range 100 dB

FM DEMOD

IF Filter Bandwidth 15 Increments (25kHz - 157kHz, Auto)
Frequency Response ±0.1 dB, 10 Hz to 86 kHz
Dynamic range 90 dB

STEREO DECODER

Frequency Response (L&R) ±0.1 dB, 10 Hz to 15 kHz
SNR (Stereo) 60 dB, 50 µs de-emphasis
THD 0.1%, 10 Hz to 15 kHz, 50 µs de-emphasis
Separation 50 dB, 50 Hz to 10 kHz, 50 µs de-emphasis
Crosstalk 52 dB

BACKUP IP AUDIO PLAYER

Number of Streams one main and two alternative streams with auto-switch on failure
Stream Clients shoutcast, icecast
Stream Formats PCM (32, 44.1, 48kHz), MPEG1 Layer 3 (MP3), HE-AAC (v.1

and v.2)
Bit Rates All standard bit rates, including VBR
Number of Channels Mono, Stereo
Buffer Size Adjust 5Kb to 64Kb
Digital Gain Adjust -10db to +10dB

BACKUP MP3 PLAYER

Storage Capacity 2Gb on SD Card
Supported encoders HE-AAC (v.1 and v.2), MPEG-1 Layer 3
MP3 bit rates 32-320 kbps and VBR
Sample rates All sampling frequencies specied by MPEG1 L1/L2/L3 (32,

44.1 and 48kHz); MPEG2 L1/L2/L3 (16kHz, 22.05kHz and

24kHz) and MPEG2.5 L3 (8kHz, 11.025kHz, and 12kHz)
Supported le types *.MP3, *.AAC, *.M4A, *.M3U
Playback modes Alphabetical ascending and descending, Shufe, Playlist and

Shufed playlist
Remote le management Build-in FTP server

Digital Gain Adjust -10db to +10dB

- 10 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

RDS DECODER

Standards European RDS CENELEC; United States RBDS NRSC
Error Correction & Counting Yes
AF Decoding Yes
CT (Time/Date) Yes
PI, PTY, DI, MS Yes
TA/TP Yes
RT (Radio Text), RT+ Yes
PS (Program Service name) Yes
ODA Yes
Group Analyzer Yes
BER Analyzer Yes
Group Sequence Display Yes
RDS RAW Data Display Yes

METERING ACCURACY

RF Level ±1 dB, 0 to 100 dBµV
Total, Pos, Neg ±2 kHz, 10 to 100 kHz, 1 kHz resolution
Pilot, RDS ±0.5 kHz, 1 to 12 kHz, 0.2 kHz resolution
Audio ±1 dB, +10.0 to -55.0 dB, 0.1 dB resolution

OUTPUTS

Composite +12 dBu @ 75kHz, 75Ω, unbalanced BNC Connector
Audio (L, R) +6 dBu, 600Ω balanced XLR Connector
AES3 (L, R) 5.0 Vp-p, 110Ω , balanced XLR Connector
SPDIF (L, R) 3.0 Vp-p, 110Ω, unbalanced BNC Connector
Optical (L, R) Transmitter, TOSLINK
Alarms Programmable terminals on rear panel, optoisolated
Headphone 6,3mm (1/4”) Phone Jack

COMMUNICATION INTERFACES

USB B-type Connector
Ethernet 10/100 Base-T RJ45 Connector
GSM Modem 15 pin Male D-Sub Connector

MEASUREMENT STORAGE

Storage 2GB Build-in Memory Card
Data format Text, CSV

POWER

Voltage 100-240V / 50-60 Hz / 25W
Connector IEC320

SIZE AND WEIGHT

Dimensions (W;H;D) 485 x 44 x 180 mm
Shipping Weight 540 x 115 x 300 mm / 2.7kg

- 11 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Panel Indicators, Switches and Connectors

NOTE: Unless where otherwise clearly stated, all front panel and display indicators,

measurements and graphs represent the information received from the Main Station tuner (ANT1).

OLED DISPLAY

DB7007 has easy to read, high-resolution OLED graphical display that visualizes all

measurements of the received signal and DB7007 settings.

SOFT BUTTONS

Used for navigation through the menus, quick access to the parameters, modes, functions and to
alter their values. The Soft Buttons indicators are placed on the bottom side of the OLED display.
Depending on the currently selected menu context the indicators change their function. The Soft
Buttons will be referred as (left-to-right) [SB1], [SB2], [SB3] and [SB4].

NAVIGATIONAL BUTTONS

[UP], [DOWN], [LEFT], [RIGHT] and [OK] buttons, as the Soft Buttons, are used to navigate
through the menus selecting various functions and parameters of DB7007.

FRONT PANEL

NOTE: Unless where otherwise clearly stated, all front panel and display indicators,

measurements and graphs represent the information received from the Main Station tuner (ANT1).

Phones

Phones jack to monitor the signal. Headphones volume can be adjusted in two methods:

1. Using the [UP] and [DOWN] buttons in the home screen;

2. Through the front panel navigational menu: Settings> Audio / MPX Outputs> Phones
Volume.

- 12 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Indicators

• Mpath – Indicates the presence of strong multipath distortion of the RF signal. The indication
threshold and time can be set trough: Settings> Device> Loss> Multipath Threshold /

Multipath Timeout

• ANT 1 – Indicates that the Main Station is the current audio source.

• ANT 2 – Indicates that the Backup Stationis the current audio source.

• MP3 – Indicates that the MP3 backup player is the current audio source.

• IP Audio – Indicates that either the IP Audio Client or the RTP receiver is the current audio

source.

• RF LOSS – will be indicated whenever the level of the RF signal of the Main Station drops
below the selected threshold. The RF LOSS detection threshold and time can be set trough:

Settings> Main Station> RF Loss Threshold / RF Loss Timeout

- 13 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

• AUDIO LOSS will be indicated whenever the level of the Left and Right audio channels
drops below the selected threshold. The AUDIO LOSS detection threshold and time can be
set trough: Settings> Device> Loss> Audio Threshold / Audio Timeout

• RDS LOSS will be indicated whenever the level of the RDS drops below the selected
threshold. The RDS LOSS detection time can be set trough: Settings> Device> Loss> RDS

Loss Timeout

LED bargraphs

• MPX – composed of 26 segments, the bargraph indicating the deviation in kHz (European
RDS mode) and in % (US RDBS mode).

• RF – composed of 10 segments,the bargraph shows the measurements from 10 dBµV to
100 dBµV.

• Left Audio Channel – composed of 40 segments, the bargraph shows the measurements
from -50 dB to +10 dB;

• Right Audio Channel – composed of 40 segments, the bargraph shows the measurements
from -50 dB to +10 dB;

- 14 -

REAR PANEL

1

2

3 45

6

7

8910

11

12

13

14

3. Mains connector, 110-240VAC, IEC-320 C14 type;

4. Fuse holder – 1A;

5. Audio Left Output - XLR;

6. Audio Right Output - XLR;

7. Audio AES/EBU Output - XLR;

8. Audio SPDIF Output - RCA;

9. Audio Optical Output - TOSLINK;

10. MPX Output - BNC;

11. RF Input 1 (Antenna 1) - BNC;

12. RF Input 2 (Antenna 2) - BNC;

13. Ethernet T-BASE10/100 RJ45;

14. USB – type B;

15. GSM Modem – Male D-Sub 15 pins High Density;

16. GPO – Opto-isolated, Female D-Sub 15 pins.

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: [phone], Fax: [phone]

E-mail: of[e-mail] ,Web: www.devabroadcast.com

- 15 -

E-mail: of[e-mail] ,Web: www.devabroadcast.com

REAR PANEL ALARM TERMINAL

12345678

9101112131415

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: [phone], Fax: [phone]

1 - GPO1 Collector 9 - GPO1 Emitter
2 - GPO2 Collector 10 - GPO2 Emitter
3 - GPO3 Collector 11 - GPO3 Emitter
4 - GPO4 Collector 12 - GPO4 Emitter
5 - GPO5 Collector 13 - GPO5 Emitter
6 - GPO6 Collector 14 - GPO6 Emitter
7 - GPO7 Collector 15 - GPO7 Emitter

8 - GND

1

LOAD

GPO1

1

9

GPO1

9

LOAD

- 16 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Before you start

SAFETY PRECAUTIONS

• The servicing of electronic equipment should be performed only by qualied personnel;

• Before removing the covers DB7007 must be switched off and the mains cable unplugged;

• When the equipment is open, the power supply capacitors should be discharged using a

suitable resistor;

• Never touch the wires or the electrical circuits;

• Use insulated tools only;

• Never touch the metal semiconductor. They might carry high voltages;

• For removing and installing electronic components, follow the recommendations for

handling MOS components.

ATTENTION: DB7007 has an internal Lithium battery. Do not try to re-charge this battery!

Please contact us for detailed instructions in case the battery should be changed.

OPERATING ENVIRONMENT RECOMMENDATIONS

For normal operation of DB7007, we recommend following the instructions listed below.

• Install the unit in places with good air conditioning. DB7007 is designed to operate within the
ambient temperature range of 10 to 50°C. The equipment rack should be ventilated in order
for the device to keep its internal temperature below the maximum ambient temperatures;

• We do not recommend installation in rooms with high humidity, dusty places or other
aggressive conditions;

• Locate the device away from abnormally high RF elds;

• Use only checked power supply cables. We strongly recommend the usage of shielded

cables;

• Connect DB7007 only to reliable power supply sources. In case of unstable power supply,
please use Uninterruptible Power Supply (UPS);

• Use the device only with its top cover on to avoid electromagnetic anomalies. Otherwise,
this may cause problems with the normal functionality of the unit;

• For the normal remote operation of the unit, connect DB7007 to a good quality Internet
connection;

• For the normal operation of DB7007, check if the network settings past through all the
required data trafc.

- 17 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

RF ENVIRONMENT – PRECAUTIONS, INSTALLATION SPECIFICATIONS AND ANTENNA TYPES

The observation of the RF Environment, in which DB7007 is functioning, is necessary for
ensuring normal and reliable function of the device. In order for the device to work properly, the
best conditions according the standards listed below should be provided.

The usage of an external antenna is required because DB7007 is used for off air re-broadcasting
away from the transmitter site. Proper outdoor FM antenna, antenna location and direction should
be selected. The three most popular antenna types are: omni directional, unidirectional dipole and
directional multi-element array antenna.

Because of the low antenna gain, the bad signal to noise ratio (compared to any directional
antenna) and its high multipath interfaces reception, we do not recommend the usage of omni
directional antenna with DB7007.

The other type antennas: unidirectional dipole and directional multi-element array antenna are
much proper for your needs. We recommend the usage of factory made antenna or antenna system,
manufactured specially for the FM Radio Band 88 – 108 MHz.

The recommended working RF signal strength is in the range of 55-90 dBμV. If the input RF

level is above this range, we recommend using external RF attenuators with attenuation value
between 20 – 90dB.

After selecting the antenna type that will meet your needs, the next step is its installation. The
following important principles should be considered:

- Install the antenna far enough from walls, roofs, buildings or any transmitting equipment;

- The minimum spacing between the antenna and the closest object should be more than 3

meters.

One unit DB7007 re-broadcast receiver is used for re-broadcasting of one transmitter site,
transmitting more than one program. In such cases, the best antenna that can be used is a directional
antenna directed exactly to this site.

DE-EMPHASIS AND PRE-EMPHASIS SELECTION

As well known, there are three different de-emphasis selections. One of the problems with the
high quality VHF FM transmissions is that the increased audio bandwidth means that background
noise can often be perceived. It is particularly noticeable towards the treble end of the audio
spectrum, where it can be heard as a background hiss. To overcome this, it is possible to increase
the level of the treble frequencies at the transmitter. The frequencies are correspondingly attenuated
at the receiver in order to restore the balance. This also has the effect of reducing the treble
background hiss which is generated in the receiver. The process of increasing the treble signals
is called pre-emphasis, and reducing the treble signals in the receiver is called de-emphasis. The
rate of pre-emphasis and de-emphasis is expressed as a time constant. It is the time constant of the
capacitor-resistor network used to give the required level of change.

In UK, Europe and Australia the time constant is 50μs whereas in North America it is 75μs. The

de-emphasis and pre-emphasis should be selected depending on the region you are located or can
be disabled.

- 18 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

CONNECTING – AC POWER AND VOLTAGE SELECTION

Before connecting the AC Power, make sure that the fuse rating is in accordance with the mains
supply at your location. DB7007. Power Supply Factory Settings are:

- 100-240 VAC;

- 1Amp Fuse.

CAUTION:

DB7007 will be damaged permanently if improper AC power supply voltage is applied. The
warranty DOES NOT cover damages caused by applying improper supply voltage or usage of
improper fuse.

- 19 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Operation

RE-BROADCASTING LIMITATIONS

Signal Strength

The signal strength is a major factor when a signal is re-broadcasted, measured and evaluated.
FM compared to AM is less susceptible to the inherent noise of the radio reception.

When speaking about FM broadcasting, it is the monaural reception which can tolerate and

prot from a much narrower IF bandwidth. The stereo reception adds all noise present in the 23 –

53 kHz sub-band. The amplitude component (AM) of the sub band is converted down to audible
noise and added to the program signal. That is why the noise performance of FM-stereo can be as
much as 20 dB worse than that of monaural broadcast.

Better reception and measurement can be obtained by using highly directional outdoors antenna.
This will improve the signal strength and contribute in eliminating the multipath distortion.

Multipath Distortion

In FM reception, regardless of overall signal strength, a very important consideration is that

obstacles, which an FM signal may encounter in the line-of-sight path tend to reect and disperse

the signal in many directions. In many locations, especially in urban areas where many tall
buildings interfere with the direct transmitted signal or in suburban areas surrounded by hills or
mountains, an FM receiver may pick up a station’s primary signal but, also, several secondary

reections coming from various directions. These reections arrive at the receiver out-of-phase,

slightly delayed in time with the primary signal and tend to blur or distort the principal signal. The

degree of distortion depends on the number and relative strength of the reections.

The result, known as multipath distortion in FM reception can range from a low-level fuzziness
to a severely distorted sound quality, particularly at the high frequencies or treble. Multipath
distortion is especially troublesome in FM stereo reception.

DB7007 has a multipath distortion detector and Front panel multipath LED indicator with
adjustable threshold. A bar graph indicator representing the multipath level of the received signal
can be reached under LEVELS menu.

- 20 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Co-channel Interface

In many populated areas, there is not enough space in the radio spectrum and stations might
be jam-packed. Poor frequency planning may also result in the mutual interface between the
broadcasting stations.

The inherent broad bandwidth of DB7007 re-broadcast receiver is vulnerable from stations
working on the nearby frequencies, where signal strength will be the most important factor – the
stronger the interfering station, the stronger the interference effect.

We recommend you to observe the independent positive and negative deviation readings in
order to identify adjacent channel interference. If the positive deviation is higher than the negative
one, interference from a strong station above the monitored frequency would be indicated and
vice–versa. For example, the negative deviation can probably be trusted as an indication of total

carrier modulation, though this should be conrmed in free of interference RF environment.

Anyhow, the program deviation should be fairly symmetrical about the carrier frequency. Using
the built-in Attenuator can be of some help, but the usage of an outdoors directional antenna could
improve the situation with unwanted adjacent working stations. Other solutions include a band-

pass lter at the primary frequency or a trap at the interfering frequency.

- 21 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

FIRST TIME POWER ON

This chapter will guide you through the initial set up of DB7007 FM Radio re-Broadcast
Receiver. Applying these principles, you can simplify the process and save yourself extra time and
effort.

The items needed for the conguration are a pair of headphones and connection to an outdoor

antenna. The different types of antenna are described previously in this manual (see “RF

Environment - precautions, installation specications and antenna types” on page 18)

1. Install the unit on its operation place;

2. Before connecting the AC Power, make sure that the fuse rating is in accordance with the
mains supply at your location. DB7007 Power Supply Factory Settings are: 100-240 VAC;
1Amp Fuse;

3. Connect the antenna cable to the RF antenna input connector located on the rear panel of
the device;

4. Plug the headphones into the front panel jack;

5. Use the front panel navigational menu to set the desired station – Settings> Tuner>
Frequency. The station should be clearly heard through the phones. If needed, reposition
the antenna in order to improve the reception.

These are the rst basic steps in DB7007 operation. Detailed explanation on how to congure

and explore your device is given in the next chapters.

- 22 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

FRONT PANEL LCD DISPLAY, NAVIGATIONAL & SOFT BUTTONS

NOTE: Unless where otherwise clearly stated, all front panel and display indicators,

measurements and graphs represent the information received from the Main Station tuner (ANT1).

DB7007’s OLED display has three function areas: Header, Soft Buttons and Main Screen Work

area.

Header Area

The Header is located on the left part of the screen. The header content is determined according

to the work area context and may include the following functions:

– Frequency Indicator, showing the currently selected frequency, in MHz, is located

in the upper left corner;

– Attenuator Indicator – represents the currently selected position of the active

Antenna Input. Attenuator’s position can be set manually or automatically by the device;

– Indicator for Stereophonic Information-contains information about the received

signal and currently selected de-emphasis time constant;

– Indicator for RDS presence of information contained in the received signal;

– Decoded PS information from RDS signal;
– Indicator showing the RF signal level at selected antenna input;
– Indicator showing the phones audio volume;

– Indicator showing the currently selected IF band-pass lter bandwidth.

- 23 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Soft Buttons

The soft buttons are located on the bottom of the OLED display making the direct transition
from one page to another possible. The function of all Soft Button corresponds to the selected
menu page. Most pages have the same or similar functional areas. The corresponding functions as
Function, Menu Page, Parameter to be changed, etc., linked with the Soft buttons will appear as
labels above them.

For example:

[Home] – Transition to home page will be made;

[About] – Will open a screen containing information on the manufacturer;

[RDS Decoder]

[Back] – Return to previous page;

NOTE: On some pages, the Header and Soft button area will disappear in order to reveal the

content underneath.

- 24 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

How to change device parameters

Set-up menu title

Shows the path to the currently selected menu. Note that the parameter should be included
in the settings menu title. For example: Setup> Communication>HTTP> Port is different from
Setup> Communication>FTP>Data Port.

Navigation area

Selection of branches / parameters is made in this area. The selected item is highlighted. All
parameters are listed on the left side of the navigational area. All parameter values are displayed
on the right side against the parameter name. As the branches have no values associated, tree dots
are shown instead. This indicates that a transition to a sub-menu is available.

Front panel buttons usage:

[OK] – Depending on the selected menu element can perform different actions:

• Menu branch – transition to selected sub-menu will be made;

• Menu parameter – when the name of a parameter is illuminated, pressing [OK] will highlight

the value and switch to edit mode;

• Menu complex parameter (such as Alarm) – the parameter editor screen will be shown.

[UP] / [DOWN] – If edit mode is active, the value of the selected parameter will be changed.
Otherwise, are used for navigation through the menu;

[LEFT] / [RIGHT] – Change the selection when the parameter value is in edit mode;

[SB4] – Return one level up or cancel edit mode.

There are several parameter types available in DB7007. The way of editing depends of the
parameter type. Every parameter type has its own editing rules.

Numerical parameter

Represents numerical value.

Example: The value Frequency can be changed in the range of 87.10 MHz to 108.10 MHz and
Frequency Step of 10 kHz, 20 kHz, 50 kHz, 100 kHz and 200 kHz.

Front panel buttons usage:

[UP] / [DOWN] – Change the value of the parameter with one step. The step value may vary
depending on the selected parameter. The value always stays in permitted parameter range;

[OK] – Accept the changed value and exit edit mode;

[SB4] – will discard the value and cancel edit mode.

Enumerated parameter

Represent the selection of a value among set of predened enumerated values.

Example: The value De-emphasis can be selected from Flat, 50µs, and 75µs.

Front panel buttons usage:

[UP] / [DOWN] – Cycle through the possible values;

[OK] – Accept the changed value and exit edit mode;

[SB4] – will discard the value and cancel edit mode.

- 25 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

IP address

Represents an IPv4 address.

Example: ,

Front panel buttons usage:

[LEFT] / [RIGHT] – Select edit marker position;

[UP] / [DOWN] – Cycle through the possible values;

[OK] – Accept the changed value and exit edit mode;

[SB4] – Discards all changes and cancels edit mode.

IP port

Represents TCP or UDP port.

Example:

Front panel buttons usage: Refer to IP address.

Date

Represent date from the calendar.

Example:

Front panel buttons usage:

[LEFT] / [RIGHT] – Selects previous/next segment from the date;

[UP] / [DOWN] – Cycle through the possible values;

[OK] – Accept the changed value and exit edit mode;

[SB4] – Discards all changes and cancels edit mode.

Time

Represent time information.

Example:

Front panel buttons usage: Refer to Date.

Timer

Represents relative time interval.

Example:

Front panel buttons usage:

[UP] / [DOWN] – Increments/decrements value with one step. The unit value will be changed
automatically from seconds to minutes and vice-versa;

[OK] – Accept the changed value and exit edit mode;

[SB4] – Discards all changes and cancels edit mode.

- 26 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

String

Represents string.

Example:

Front panel buttons usage:

[LEFT] / [RIGHT] – Select edit marker position. If [RIGHT] button is pressed when the marker
is at the last character, a space character will be added at the end of the string. When the [LEFT]
button is pressed all trailing spaces will be removed;

[UP] / [DOWN] – Cycle through the possible values. Depending on the string context there
is a limitation in the permitted char set. For example phone number string can contain only
1234567890+ and blank space characters;

[OK] – Accept the changed value and exit edit mode. Some strings, like e-mail addresses, must
pass a validation check. If the validation fails, message box will appear. Press [OK] to dismiss the
message. Note that edit mode will not be left.

For example:

If [OK] is pressed

If [OK] is pressed

- 27 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

[Insert] – Inserts blank space before the selected character:

– before;

– after.

[Delete] – Deletes the selected character:

Tel: [phone], Fax: [phone]

– before;

– after.

[Cancel] – Discards all changes and cancels edit mode.

- 28 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

MAIN SCREEN WORKING AREA

The Main part of the OLED Screen is where the information changes dynamically, depending
on the selected working mode. The Menu Screen (shown below) appears upon pressing of the [OK]
button. The DB7007’s Menu Page contains selectable icons and software buttons for selecting
modes and functions. Pressing [LEFT] and [RIGHT] arrow buttons will change the icon selection
on the Menu page. The current selection is shown as rectangle focus frame around the icon.
Pressing [OK] button will navigate to the corresponding page.

The following operating modes and pages can be selected using the navigational buttons:

– Bandscan page;

– Levels page;

– Graphs page;

– Settings page;

– Status page.

- 29 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Operating Modes and Pages

Upon power-up and boot process of DB7007, the Home page will be displayed. Transition to
Home page can be made from any page where [SB1] with this option is available. The home screen

contains header area, the most important ags and attributes of the decoded RDS signal (if present)

and currently selected frequency indicator. Press any soft button to enter the desired menu.

- 30 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

BANDSCAN PAGE

Select Bandscan icon from the Menu page and press [OK] to enter it. The last Bandscan data
will be displayed.

Empty grid will be displayed if no bandscan data is available at the moment.

To ensure better reading of the data plot, the header area and the soft buttons labels will be
hidden automatically short time after the soft button is released. Pressing a button will display the
function labels again.

- 31 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

There are three control states in Bandscan page – Span control, Marker control and Parameter

control. The states can be identied by the labels of the soft buttons. If the labels appear as shown

on the picture below, the page is in Marker control state.

For example: When the following menu is selected pressing [SB3] will change the screen from
Marker to Span control and vice-versa. All Soft buttons labels will change according to the sub-
menu. The control state of the page will change upon every [SB3] pressing.

Pressing the [OK] button either in Marker or Span control state will make transition to Parameter
control state. The screen will be visible until the [OK]button is pressed again or the timeout of 2
seconds elapses.

Diagram representing the control state transitions:

Span control

state

SB3 press

Marker control

state

2 sec timeout

OK press

OK press

2 sec timeout

Parameter

control

state

- 32 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Span control state

[SB1], [SB2] and arrow buttons control the Span of the data plot. Depending on the Span
control state the soft buttons have different usage.

– [SB1] cycles through available span values for X axis of the data plot. The
possible values vary between 3 MHz and 21 MHz in 1 MHz increments. Note that changing X
span may also change the center frequency in order to keep data plot in bounds. When a key is
pressed next span value will be selected and displayed on the screen.

5MHz X span is selected

– [SB1] cycles through available span values for Y axis of the data plot. The
possible values are 30 dBμV, 60 dBμV, 90 dBμV, and 120 dBμV. Note that in order to keep the
data plot in bounds changing Y span may also change the Y reference. When the button is pressed
new value will be selected and displayed on the screen.

120 dBμV Y span is selected

- 33 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

[LEFT] / [RIGHT] buttons – change the center frequency of the data plot on 500 kHz increments.

The center frequency permitted values depend on the currently selected X span. The selected

center frequency value is briey displayed on the screen.

95 MHz center frequency is selected

[UP] / [DOWN] Buttons – changes Y axis reference (the value for the bottom of the Y scale).

Permitted values vary from -20dBμV to 110dBμV in 10dBμV increments. The upper limit of the

Y reference depends on the currently selected Y span. Upon selection, the Y reference is briey

displayed on the screen.

10 dBμV reference is selected

- 34 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Marker control state

Two markers, named “A” and “B” are available in Bandscan page. [SB1], [SB2], [LEFT] and

[RIGHT] buttons control the visibility and position of the Markers.

Buttons [Marker A] / [Marker B] control the markers appearance. According to your needs the

markers can be:

• hidden – marker is not visible;

• shown – marker is visible but not selected;

• selected – marker is visible and selected.

When markers “A” and/or “B” are visible (shown or selected) a readout about X and Y axes
will appear on the left side of the data plot. If both markers are visible, the differential “Marker B
minus Marker A” value will be displayed at the bottom left of the screen.

The selected marker is represented as highlighted, dashed line; marker’s readout is also
highlighted. Only one marker at a time can be selected. If only one of the markers is visible, it will
be always selected.

Marker A is shown, Marker B is selected

Following is a diagram explaining the transition between these states:

Marker

is hidden

SB1 or SB2 press

SB1 or SB2

press

Marker

is selected

Marker

is shown

[LEFT] / [RIGHT] Buttons – move the selected marker to the left or right with one screen pixel
increment.

NOTE: The step resolution of marker movement depends from the selected X span.

[UP] / [DOWN] Buttons –are used to change the Y reference like in Span control state.

- 35 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Parameter control state

Parameter control state allows specic parameters to be set before starting the bandscan.

[OK] – show/hide parameter control

[LEFT] / [RIGHT] – cycle through the available parameters.

[UP] / [DOWN] – change the value of the selected parameter.

The name and value of the selected parameter appears briey on the data plot.

NOTE: Parameter control state will automatically disappear from the screen if no button is

pressed for 2 seconds.

- 36 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Bandscan page parameters

Bandscan: Start / Stop – Used for starting/stopping of the bandscan process. Information about

the progress will be displayed on the right bottom corner of the data plot. Upon completion, the
Bandscan parameter value will be automatically set to Stop.

Running bandscan can be stopped manually by setting the Bandscan parameter value to “Stop”.

Start Frequency: – set the start frequency of the bandscan.

End Frequency: – set the end frequency of the bandscan.

Step: 10, 20, 50 or 100 kHz – set the step increments of the band. Small steps lead to higher

resolution but slower bandscan;

RF Input: Antenna 1/Antenna 2 – select the antenna input to be used during bandscan;

Pressing [SB4] in Bandscan page will lead back to the previous page.

NOTE: Leaving the page will not stop the bandscan process. The process will continue until it

is nished or the Bandscan parameter value is set to “Stop”.

- 37 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

LEVELS PAGE

Enter the Main Menu page and select the Level icon, press [OK] button to enter the menu.
Levels page shows bar graph representation of the different signals, measured by DB7007. The
parameters are divided into groups. Each bar graph displays the low, average and high values
of the signal. The number in the center below represents the average value. The shaded color
number, placed on the left and right bottom edges, denotes the measurement range of the signal.
Measurement units and name of the signal are written above the corresponding bar graph.

Group 1. RF carrier related parameters

The RF level at the selected antenna input is measured in dBμV. The RF attenuation is included
in the level calculation.

The Frequency offset of the RF carrier is measured in kHz. This signal measures the misalignment
between the modulation and demodulation frequency. As the misalignment is expected to be
small, a large offset will indicate disturbance (for example adjacent channel breakthrough). The
Frequency offset is measured with better accuracy if there is no modulation of the carrier. The

usable range depends on the selected IF lter bandwidth.

The Multipath reception level is measured in % (percents). The multipath detector measures

the amplitude uctuations of the signal. The FM signal is broadcasted with a xed level; therefore
the level uctuations will indicate degraded signal quality. At multipath conditions, large level
uctuations can be measured. To achieve better re-broadcast, install the antenna at the reception

point with the lowest multipath level.

IF Bandwidth – Shows the current IF lter bandwidth.

- 38 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Group 2. Stereo multiplex related parameters

MPX Positive and MPX Negative – These bar graphs represent the positive and negative
deviation component of the MPX signal.

Pilot – Represents the deviation caused by Pilot tone injection. Our practice shows thatfor best
results the pilot deviation should be about 7.5kHz of the total deviation of the RF carrier.

RDS – Represents the deviation caused by RDS subcarrier. Our practice shows that for best
results the RDS deviation should be about 5kHz of the total deviation of the RF carrier.

Group 3. Audio related levels

Left and Right audio channels

- 39 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Group 4. Reception quality related levels

Ultrasonic Noise – Indicates the MPX signal amplitudein the approximate bandwidth of 80

kHz – 150 kHz.

Stereo Blend – A value of 100% indicates that no reduction is applied. The level of stereo
blending depends on the following input signals: RF Signal Level, Multipath, Ultrasonic Noise
and Pilot tone deviation.

High Cut – Audio disturbance effect is mostly present in the high frequencies. A value of 100%
indicates that no “high cut” is applied. The applied High Cut level depends on the following input
signals: RF Signal Level, Multipath and Ultrasonic Noise.

Soft Mute – If a disturbance is present in the received signal, the perceived effect can be reduced
by attenuating the audio signal. The reduction of audio volume is called “soft mute”. A value of
0% indicates that no “soft mute” is applied. Soft Mute depends on the following input signals: RF
Signal Level, Multipath and Ultrasonic Noise.

- 40 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

GRAPHS PAGE

Enter the Main Menu page and select the Graphs icon, press [OK] button to enter the menu.
Graph page represents the value of a measured signal over time. The X axis of the data plot area
represents the elapsed time in seconds. New peak value sample is added to the data graph every
125ms. Up to 20 seconds of measurement history is available for each signal. The newest sample
is on the right side of the graph. The current signal name and measurement unit are displayed in
the top left corner of the data plot.

A bar graph indicator, placed on the right part of the screen, is used to display the instantaneous
value of the selected signal. The low, average and high values of the measured signal are represented
in shaded color. The following signals can be selected:

• RF level – from -10dBμV to 110dBμV;

• Multipath level from 0% to 100% (percent);

- 41 -

E-mail: of[e-mail] ,Web: www.devabroadcast.com

• MPX Total deviation from 0 kHz to 125 kHz;

• Pilot level from 0 kHz to 15 kHz;

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: [phone], Fax: [phone]

• RDS level from 0 kHz to 15 kHz;

- 42 -

• Left audio level from -60 dB to 10 dB;

• Right audio level from -60 dB to 10 dB;

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: [phone], Fax: [phone]

E-mail: of[e-mail] ,Web: www.devabroadcast.com

• Stereo Blend from 0% to 100%;

- 43 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

• Frequency Offset of the RF carrier from -50 kHz to 50 kHz;

• Temperature in the device from -10°C to 90°C.

Tel: [phone], Fax: [phone]

- 44 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

SETTINGS PAGE

Enter the main menu page, select Settings and press [OK].

The Settings menu is organized into a hierarchical tree menu and all similar parameters are
grouped into sections (branches).

Main Station

The Main Station is the main audio source of DB7007. From here you could set the Frequency,
Attenuator Ant 1, RF Loss and PI Protection settings.

- 45 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Backup Station

From here you could set the Frequency, Attenuator Ant 2, RF Loss and PI Protection settings
of the Backup Station.

Tuner

These settings provide all the needed adjustments to the algorithm which DB7007 processes the
signal. From here the settings applied to the Frequency Step, De-emphasis, RDS Mode, Audio

Processing and Average and Peak (used for setting the indicators response times) could be applied.

Audio Processing considered – If set to Auto, the corresponding parameter will depend on

the quality of the received signal (RF Level, Multipath, and etc.). If any changes in the signal are
detected, the unit will automatically adjust to the correct values.

For further information, please refer to “Tuner Settings Screen” on page 75

- 46 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Backup

Once silence on the current audio source is registered, the DB7007 will automatically switch to
the next available backup audio source. From here you could set the backup sources priority and
set Audio Loss Threshold, Audio Loss Timeout, Audio Recover Th., Audio Recover Timeout,
Stream Client, RTP and Backup Files Order. Based on these settings, the DB7007 will make sure
your station has audio 24/7.

- 47 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

MPX

The Stereo MPX is signal used for FM Stereo broadcasting and represents a complex combination
of the following signals:

- Sum of the left and right audio channels occupying the band from 0 to 15kHz;

- Difference signal (Left minus Right) located in the band 23-53kHz;

- Pilot tone at exactly 19 kHz;

- RDS signal, used for transmitting text and other data, may also be added. It occupies a narrow

band around 57kHz.

DB7007 has a built-in stereo generator and Radio Data Systems (RDS/RBDS) encoder. The

amount of each signal contained in the nal MPX signal is called injection level.

MPX out Conguration

Settings> MPX>MPX Source

There are three types of MPX signal that you can choose from:

1. RAW MPX – Directly modulated by your station RAW MPX without any further processing;

2. Stereo & RDS Gen – Generated by the internal stereo and RDS generators;

3. Calibration Tone 400Hz – used to adjust the transmitter MPX input.

NOTE: Raw MPX is used only when Main Station is the current audio source. Stereo & RDS

Gen is used automatically for all other audio sources. Calibration Tone is active regardless of the
current audio source.

- 48 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Stereo Generator

Settings> MPX> Stereo Mode

The composite multiplex signal, including the pilot tone, is generated through the build-in
Stereo generator. The stereo generator can operate in two modes - Stereo and Mono. In order to
overcome the noise of the treble frequencies the Emphasis can be set to Flat, 50μs or 70μs.

Injection levels

The MPX signal is a combination of Audio, Pilot and RDS Signal. This option allows you to
adjust the amount of each signal included in the MPX. The recommended and default values are:

0dB Audio gain, 7.5kHz Pilot and 5.0kHz RDS.

MPX limiter

Settings> MPX

The regulatory authorities, in some countries, require the total MPX Power not to exceed
0dBr. Therefore, DB7007 has a built-in MPX ITU limiter that restrains the deviation below the
predened threshold. The default threshold is 0dBr.

- 49 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

RDS

Settings> RDS

The use of RDS/RBDS Encoder will allow branding of your station and will enable the
transmission of the Program Service name (PS), Program Identication code (PI), Trafc
Announcement (TA) and other useful features.

The RDS/RBDS Encoder has four different working modes:

1. Original – Re-broadcast of the original RDS/RBDS data received from the station;

2. Orig/Local fallback – Upon loss of the Original RDS/RBDS the Local data will be used;

3. Replace with local – User-dened combination of the original and local RDS/RBDS data.

One or more values from the following can be modied: Program Identication Code(PI),
Program service(PS), Radio Text(RT), Alternative Frequencies(AFs), Program type(PTY),
Decoder Identication control code (DI), Music/Speech (M/S), Trafc program code(TP),
Trafc Announcement(TA);

4. Local only – User-dened RDS/RBDS data.

NOTE: Original RDS data is taken from the active radio station, either Main or Backup. If one

of the other audio sources is currently active, RDS Local values are in use, regardless of the RDS
Data Source setting.

- 50 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Communication

Grants you access to the General Setup (to enable or disable the functions included in the
menu), General Setup, Ethernet, SNMP, HTTP, FTP, SNTP, Email, Streamer, Syslog, UECPTCP
Server, UECP UDP Relay, GSM Modem.

- 51 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

- 52 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Security

From here you could set-up, change or disable the password protected access to the Front
Panel or Remote access.

Keyboard lock

To prevent unauthorized local access, the DB7007 offers password protected keyboard locking.
By default the keyboard is unprotected. To enable this function, using the front panel navigational
menu, go to Setup> Security> Front Panel, then press [OK] and Enable the Access Control
function. Set the preferred 5 digit password and Access Timeout. Once the keyboard lock function
is enabled, every attempt to use it will require a password:

ENTER PASSWORD:0****. Access will be denied upon false entry.

- 53 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Keyboard unlock

If the keyboard unlock function has been activated by mistake, try to unlock it using the default
password 01234. In order to deactivate the code protection, once the front panel menu is unlocked
follow the menu path Setup> Security> Front Panel> Access Control and then select Disabled.
If you do not manage to unlock the front panel with the default password, nevertheless whether it
has been changed intentionally or not, DB7007 should be returned to its factory defaults in order
for the password security to be disabled.

NOTE: The password consists of 5 digits. The leading zeroes are not shown in the menu, but

should be specied when entering the unlock password. For example, if your password is 123,
when entering the password 00123 should be written.

- 54 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Alarms

Is a special parameter type with its own dialog editor. Each alarm parameter is composed of the
following sub-parameters:

• Low threshold – the lower alarm limit of the measured signal. If the value stays below this
limit for predened time “low alarm” event will be generated;

• High threshold – the higher alarm limit of the measured signal. If the value stays above this
limit for predened time “high alarm” event will be generated;

• Trigger time – waiting time before a “low alarm” or “high alarm” event is generated;

• Release time – waiting time before an “Idle alarm” event is generated;

• Set of notication channels – In case of alarm, maintenance staff will be immediately alerted

via SMS, E-mail, SNMP or GPO, which allows technicians to restore the normal service
as soon as possible.

1 2 3

5 6

4

Depicted above is the structure of the alarm editor dialog for the: RF Alarm, MPX Alarm, Pilot

Alarm, RDS Alarm, Left Alarm, Right Alarm, Temperature Alarm, Fan Speed Alarm.

The bar graph indicates the signal range of the alarm. The highlighted area represents the
permitted signal value range. If current signal value (pos. 4) is in this range, no alarm event will be
generated. Basic elements of the alarm editor dialog:

1. Lower limit of the alarm range;

2. Low threshold value;

3. Measurement unit;

4. Current value of the signal;

5. High threshold;

6. Higher limit of the alarm range.

Alarm edit dialog, front panel buttons usage:

[LEFT] / [RIGHT] – Selects previous/next sub-parameter of the alarm.

[UP] / [DOWN] – Change the value of the selected (highlighted) sub-parameter. The value
always stays in the permitted parameter range. Low threshold value cannot exceed the high
threshold and vice-versa;

[OK] – Accept the value and exits edit dialog;

[SB2] – Toggles ON/OFF the low alarm generation;

[SB3] – Toggles ON/OFF the high alarm event generation;

[SB4] – Discards all changes and cancels edit mode.

- 55 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

GP Outputs

This subsection of the menu is intended for set-up of the GPO’s functions, type, and pulse level.

Audio/MPX Outputs

Allows you to adjust the Phones Volume, Audio Volume, GSM Volume, MPX Volume and to
Disable/ Enable the Digital Output of DB7007.

- 56 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

Device

Allows you to change the name of the device, set-up the Date/Time, change the default settings
of the OLED graphical display (menu Front Panel), specify the Weblog Max Days and nally to
return the device to its Factory Defaults.

DB7007’s tuning range is user selectable, 87.1-108 MHz (CCIR), 65-74 MHz (OIRT), 76-95
MHz (Japan). Changing/selecting the Region setting, will modify all tuner frequencies so that they
could be within the FM band limits of the region chosen. This includes all Presets and Logger
Channel frequencies.

- 57 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

STATUS PAGE

The basic/general information on the device is found here:

Device – Model, Serial number, Firmware version in use, Calibration, Storage capacity;

IP address – IP, Network Mask, Gateway, Primary DNS, Secondary DNS

- 58 -

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Alarms – the current alarm status is available here.

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: [phone], Fax: [phone]

- 59 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

[RDS DECODER] PAGE

Pressing[RDS Decoder] will open the RDS decoder page. Where the decoded RDS information
could found. The [RDS Decoder] soft button is available on both - the main screen and menu.

RDS/RBDS Page Main view

- 60 -

RDS/RBDS RAW Data view

RDS/RBDS AF list view

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: [phone], Fax: [phone]

E-mail: of[e-mail] ,Web: www.devabroadcast.com

RDS/RBDS Statistics view

- 61 -

RDS/RBDS Sequence view

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: [phone], Fax: [phone]

E-mail: of[e-mail] ,Web: www.devabroadcast.com

- 62 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

WEB Interface

DB7007 is also controlled through a built-in web server. A standard web browser can be used
to monitor its status or to make some adjustments. There are two options for access to the WEB
interface of DB7007:

• via a standard WEB browser by specifying the device’s IP address (the IP address should be
manually identied rst);

• via the “Network discovery” option.

MANUAL IP ADDRESS IDENTIFICATION

Connect the device to a local network or to the Internet by the applied LAN cable. Through the
front panel navigational menu pressing the [OK] button will enable you to enter the device main
menu.

Using the [RIGHT] navigational button nd the Status section located at the end of the menu.
Press the [OK] button to enter the Status section. Via the front panel navigational menu press the
[DOWN] button.

This operation will visualize the screen containing information about the IP address of the

device. Open a new WEB Browser and enter the device IP address in the address eld then press

[Enter].

NOTE: Due to the inability of some WEB browsers to read the IP address format displayed

on the screen of the device, the numbers included in the IP address must be written without the
leading zeros. For example: 192.168.020.095 must be written as 192.168.20.95

A window that requires username and password will appear. Default values being Username:
user or admin, Password:pass

NETWORK DISCOVERY

This is a network setting that denes whether your computer can see (nd) other computers and

devices on the network and whether other computers on the network can see your computer. By
default, Windows Firewall blocks network discovery but you can enable it.

1. Open Advanced sharing settings by clicking the Start button, and then on “Control Panel”.
In the search box, type “network”, click “Network and Sharing Center”, and then, in the left
pane click “Change advanced sharing settings”;

2. Select your current network prole;

3. Click Turn on network discovery, and then click save changes.

NOTE: If you’re prompted for an administrator password or conrmation, type the password,

provide conrmation or contact your system administrator.

If you have already enabled this function on your computer DB7007 will be automatically
added to the Device list section. The device will be ready for usage and no additional adjustments
will be required except user name and password.

- 63 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

ACCESS

DB7007 provides you with a protected access to the device settings. You can choose between
two types of log in:

1. As an ADMINISTRATOR – it will give you full control over the settings (username:
admin, password: pass);

2. As a USER – this type of log-in will allow you to monitor the device and to choose different
stations without applying settings (username: user, password: pass).

In order to make the necessary adjustments to the device, please log in as an ADMINISTRATOR.

- 64 -

MAIN SCREEN

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: [phone], Fax: [phone]

E-mail: of[e-mail] ,Web: www.devabroadcast.com

The Main Screen of the WEB Interface shows all the mandatory parameters represented as LED

readings.

On the top left corner of the screen is placed the online representation of DB7007’s front panel
OLED graphical display. It contains information on all mandatory parameters and applied settings.
This is a constant part of the WEB interface windows, hence allowing easy access to the most
important information.

Below are the interactive buttons, used for quick selection of DB7007’s preferred working mode.

In case the Backup source is activated, you will be notied immediately via one of the possible

methods (E-mail, SMS, SNMP and GPO) and with a message alerting that the backup source is
on-air. Depending on the activated backup source, additional section containing information on the
signal status will appear on the bottom part of the screen (as depicted below).

- 65 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

When Backup Station is activated as a backup source, the main control window will look as
follows:

- 66 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

When the IP audio Player is activated as a backup source, the main control window will look
as follows:

The section contains information on the Left & Right Audio Levels, station’s name, title, codec,
sample and bit rate.

- 67 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

When the RTP Receiver is activated as a backup source, the main control window will look as
follows:

The section contains information on the Left & Right Audio Levels, sender, codec, sample and
bit rate.

- 68 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

When the MP3 Audio Player is activated as a backup source, the main control window will look
as follows:

The section contains information on the Left & Right Audio Levels, le name, codec, sample

and bit rate.

- 69 -

RDS/RBDS SCREEN

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: [phone], Fax: [phone]

E-mail: of[e-mail] ,Web: www.devabroadcast.com

All basic elements of the RDS/RBDS are displayed on the screen – PI, PS, RT, TA/TP, etc.
Represented as a list, also available are the Alternative frequencies (AF). DB7007 supports one of
the most used ODA Applications - Radio Text Plus. If your Radio station has RT+, DB7007 will
display the information.

Total groups received

All received groups are systematized into a table, representing the percentage/quantity of the
groups in the received RDS/RBDS signal. The user selects how the Total groups received data
should be represented: as Percents [%] or as [Count], by selecting the corresponding button.

BER

Indicator with graphics is placed at the right bottom part of the screen, showing 60 sec. history
of the BER quantities.

NOTE: The bit error rate or bit error ratio (BER) is the number of bit errors, divided by the total

number of transferred bits during the observed time interval. Result closer or equal to 0 indicates
that no bit errors are detected and vice versa - result closer or equal to 1 indicates that the received
transferred bits are only errors.

- 70 -

BANDSCAN SCREEN

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: [phone], Fax: [phone]

E-mail: of[e-mail] ,Web: www.devabroadcast.com

The Bandscan application utilizes four different types of band scan, depending on the preferred
signal frequency step. The bandscanning mode could be customized by setting low and high
frequency of the scan. Once you have set the frequency step and low/high frequency, the [Start]
button should be pressed in order for the bandscan process to be initiated.

- 71 -

STATUS SCREEN

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: [phone], Fax: [phone]

E-mail: of[e-mail] ,Web: www.devabroadcast.com

The status tab shows the alarm status of each parameter, along with the basic device and network
status (IP address, MAC, etc.). If a GSM modem is connect to the DB7007, information on its
current status will also be available.

The Alarm parameters (RF, MPX, Pilot etc.) have several conditions:

- In range - OK;

- Out of range - red LOW or HIGH;

- Signal monitoring is not enabled - n/a.

If a GPO is triggered, the relevant indicator will be lit.

NOTE: If you have connected a GSM modem to the DB7007 and there is still no information

in the ‘GSM’ section, please check the cables and settings applied to the modem. If you continue

to experience the same difculties, please contact us at [e-mail]

- 72 -

LOG SCREEN

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: [phone], Fax: [phone]

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Here are listed all the Device System Events, including the front panel activity WEB.

The local measurements and logs are saved in the internal device memory. All log les can be

downloaded via the built-in FTP server using any kind of FTP client.

For information on how the connection between the DB7007 and an FTP Client should be
congured, please refer to “Download/Upload les via FTP” on page 91.

- 73 -

GENERAL SETTINGS SCREEN

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: [phone], Fax: [phone]

E-mail: of[e-mail] ,Web: www.devabroadcast.com

DB7007 provides you with protected access to the device settings. You can choose between two
types of log in (Security):

• As an Admin – It will give you full control over the device’s settings;

• As a User – that will allow you to just monitor the device and to choose different stations,

while the Settings bar remains locked.
These credentials are also used to access the FTP server.
In order for the security of DB7007 to be enhanced, a new username and password could be set.
Alias – allow the name of the device to be changed. Later on, it will be used as a title name on

all WEB pages. Customizing the name will make the device more recognizable.

Region – DB7007’s tuning range is user selectable, 87.1-107.9 MHz (CCIR), 65-74 MHz (OIRT),

76-95 MHz (Japan). Changing/selecting the Region setting, will modify all tuner frequencies so
that they could be within the FM band limits of the region chosen. This includes all Presets and
Logger Channel frequencies.

WEB Log – the maximum storage time of the system log les is chosen from here. If the le is

older than the specied maximum, the information will be deleted.

Date & Time – used to manually set the current Date and Time. [Copy Local Time] button will

set the Date and Time to correspond to that of your computer.

SNTP Internet Time – Synchronizes automatically the DB7007 clock to a millisecond with the

Internet time server. Enable this function in order to use it. (Specifying the server closest to your
location will improve the accuracy).

Fan Alarm – Detects abnormal operation of the built-in fan. Dene the parameters under which

a fan alarm to be generated.

Temperature Alarm – Detects abnormal temperature of the equipment. Dene the parameters

under which a temperature alarm to be generated.

Fan Control – set the preferred speed of the built-in Fan.

NOTE: In order for the applied settings to be used press the [Save] button, placed on the

bottom right part of the screen.

- 74 -

TUNER SETTINGS SCREEN

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: [phone], Fax: [phone]

E-mail: of[e-mail] ,Web: www.devabroadcast.com

The Tuner Section gives full control over the tuner and Audio Processing settings. These

settings provide all the needed adjustments to the algorithm which DB7007 processes the RF
signal.

Main Station – here is specied the main frequency to be used, and PI protection parameters.

The RF Loss Audio Mute and Timeout are also set in this section. Upon loss of Main Station’s RF,
DB7007 will automatically switch to one of the backup sources. The priority of the sources is user-

dened. For further information, please refer to “Backup Settings Screen” on page 78.

Backup Station – similar settings as in the Main Station are applied in this section.
Average & Peak Adjustments section is used for setting of the indicators response times. Attack

and Release times set the rate in which the indicators’ level will change in response to the signal.
For most of the applications (including this one), the recommended attack time is shorter than the
release time.

Peak-hold time – Permits retaining and displaying the peak value reached by the signal for a

period of time predened by the user.

- 75 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

RF Loss Protection Mode

The RF signal strength can vary by vast amounts. When the RF level is too low, the signal is

distorted and buzzing. In order for this effect to be avoided, a value for the signal quality as per the
RF level could be set, thus allowing the audio to be muted if the RF level is lower than the one set

(for the specied timeout).Once the audio is muted, the built-in silence detector will observe this

event. After the Audio Loss timeout expires, the DB7007 will switch to the back-up station, or the
next by priority backup source.

The function is available for both the Main and Backup stations. The desired values are applied

in the RF Loss Audio Mute and RF Loss Timeout.

When the mode is activated, the following warning message will appear:

- 76 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

PI Protection Mode

If the unit detects another station on the same frequency, with different PI or without RDS/

RBDS, the DB7007 will mute the audio and will switch to the back-up station, or the next by
priority backup source.

The function is available for both, the Main and Backup stations. In order the function to be

activated, you will have to enable the PI protection in the relevant sub-section and specify your
station’s PI/CALL so that it could be monitored.

When the mode is activated, the following warning message will appear:

- 77 -

BACKUP SETTINGS SCREEN

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: [phone], Fax: [phone]

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Through this screen are applied all needed settings to the alternative sources. The backup

sources priority is user-dened and can be set through the relevant section. The main source is

only one and cannot be changed. If the audio from the main source disappears, the DB7007 will

automatically switch to the rst backup source; if it also fails, the unit will switch to the second,

etc. Once a source with higher priority is restored, the unit will switch back to it.

Audio Loss and Audio Recover – Select the appropriate levels of loss and recovery of the audio

signal. Do not forget to set the corresponding timeouts.

IP Audio Client – Specify URL, Decoder, Gain and Pre-buffer time. Several options for

decoder are available. The proper one can be chosen from the drop-down menu.

– Connection - Select connection type. On Demand will instruct IP Audio Client to establish a

connection only when it is the current audio source, otherwise it will stay disconnected. This mode
is useful for metered Internet connections. When set to Always ON the IP Audio Client will keep
the connection active even when it is not the current source.

NOTE: On Demand does not apply if IP Audio Client is the Main backup priority. In this case

it will work in Always ON mode.

NOTE: If Silence is detected while in On Demand mode, DB7007 will switch to the next

backup priority and will disconnect the IP Audio Client connection. It will not return to IP Audio

Client again before it switches to Main rst.

RTP Receiver – Specify Port, Decoder, Gain, Pre-buffer adjustments and Multicast group IP.

FOR YOUR INFORMATION: A multicast address (Mcast group) is a logical identier for a

group of hosts in a computer network, that are available to process datagrams or frames intended
to be multicasted for a designated network service.

- 78 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

MP3 les upload via FTP

DB7007 has a built-in backup audio le player. It plays tracks from SD Card storage which

are uploaded over the FTP. All backup audio les must be located in the folder named Audio
(that could be found in the root of the SD card). Subfolders are not allowed. The playlist le, if

used,must be named playlist.m3u.

For information on how the connection between the DB7007 and an FTP Client should be

congured, please refer to “Download/Upload les via FTP” on page 91.

MPX SETTINGS SCREEN

MPX Source – Set the preferred MPX Source. The following options are available:

• [Raw MPX] – demodulated MPX received from the Main Station station;

• [Stereo & RDS Gen] – MPX generated from the built-in Stereo and RDS Generator;

• [Calibration Tone 400Hz] – single tone of 400Hz, used for calibrating of the inputs of the

devices connected to the MPX output.

NOTE: Raw MPX is used only when Main Station is the current audio source. Stereo & RDS

Gen is used automatically for all other audio sources. Calibration Tone is active regardless of the
current audio source.

General Settings – The settings of the stereo generator are applied through this section. [Stereo]

or [Mono] processing and user-dened Emphasis could be set.

Injection levels – Set the levels of the components included in the obtained nal stereo multiplex

signal.

Phase Adjustments – The phase of the Pilot is set through this section.
MPX ITU Limiter– The regulatory authorities, in some countries, require the total MPX Power

not to exceed 0dBr. Therefore, DB7007 has a built-in MPX ITU limiter that restrains the deviation
below the predened threshold. The default Threshold is 0dBr.

- 79 -

RDS/RBDS SETTINGS SCREEN

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: [phone], Fax: [phone]

E-mail: of[e-mail] ,Web: www.devabroadcast.com

RDS Data Source:

• [Original] – Original RDS/RBDS data received from the station;

• [Original/Local fallback] – Upon loss of the original RDS/RBDS the local data will be used;

• [Replace with local] – User-dened combination of the original and local RDS/RBDS data;

• [Local only] – User-dened local RDS/RBDS data only.

When [Replace with local] RDS data source is chosen, the RDS/RBDS parameters could be

replaced with the specied in RDS Local Values section. Whether a parameter would be changed
to its local value on the y, is specied in section RDS Replacement Rules.

NOTE: Original RDS data is taken from the active radio station, either Main or Backup. If one

of the other audio sources is currently active, RDS Local values are in use, regardless of the RDS
Data Source setting.

RDS Local Values – RDS/RBDS Local Values are dened through this section.

AF Local Values – Set the total needed number of alternative frequencies and their value. The

option Replace AFs is also available.

- 80 -

ALARMS SETTINGS SCREEN

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: [phone], Fax: [phone]

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Alarm notications
E-mail – global enable/disable E-mail notication;

SMS – global enable/disable SMS notication;
SNMP – global enable/disable SNMP notication;
GPO – global enable/disable GPO actions.

The settings applied to each of the available alarms (RF, MPX, Left Audio, Right Audio, Pilot

and RDS) are identical and are explained in details below:

Range – interactive slider used to adjust the Low & High thresholds at which an alarm will be

generated;

Trigger Time – waiting time before Active Alarm is generated;
Release Time – waiting time before Idle Alarm is generated;

NOTE: For detailed information on Alarm trigger and notications refer to “APPENDIX 1:

Alarm Triggers” on page 87.

- 81 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

COMMUNICATION SETTINGS SCREEN

Tel: [phone], Fax: [phone]

WARNING: The applied changes will take effect upon pressing the [Save] button. All settings

marked with the symbol

require reboot, therefore the [Save & Reboot] button should be used.

NOTE: If the new value is invalid or out of range, the edited eld will become red.

Network

The network addresses could be set manually (static IP) or automatically via a DHCP server.

To set static IP Address, Netmask, Gateway and DNS addresses, the DHCP should be disabled. In
order for the built-in DHCP client to be activated, the function should be enabled. When the DHCP

client is activated, all assigned values will be shown in the relevant elds on the Status screen If

due to any reason, the DHCP procedure cannot be completed, DB7007 will use AutoIP and will
generate an IP Address.

- 82 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

HTTP Server

Specify the HTTP Server Port and Session time. The WEB Interface session timeout is set

through Session Time slider.

FTP Server

[Enabled]/[Disabled] the FTP Server. Specify the Comm Port and Data Port to be used.

SNMP Agent

Specify Agent ID, Agent Port, Read/Write Communities, Manager IP, Manager Port and

Agent ses. time (Agent session timeout).

Agent - [Enabled]/[Disabled] SNMP Agent.
Agent ID is used for identication of the device among others, when an SNMP notication is

being sent.

Once all needed settings are applied, use the [Test] button to generate a test notication, which

upon success will be received by the SNMP Manager.

Press the [Download] button to download the DB7007’s SNMP MIB le. The MIB le may

vary from one rmware revision to another. Downloading this le from the device, guarantees that
you have the proper MIB le.

Syslog

[Enabled] or [Disabled] the syslog feature. Specify Server address and Server Port to be used.

GSM Modem

Up to ve numbers for SMS control and alarm notications could be set. Baudrate is mandatory

for the proper operation of the GSM Modem.

We recommend that a test SMS to be generated (via pressing the [Test] button), once all needed

settings are applied. Upon success, the SMS will be delivered to all the specied GSM numbers.

Example of Test SMS Message:

DB7007 Test Message.

NOTE: The current condition of the GSM Modem could be checked in the “Status Screen”.

Audio Stream Server

Specify Server Port for audio streaming, and Quality (64, 96, 128, 192 or 256 kbps). The audio

stream could be heard using suitable audio player (Media Player, Winamp, etc.) or through the
WEB interface by pressing the [Listen] button.

- 83 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

E-mail

Enter the desired alarm recipients in E-mail 1 and/or E-mail 2 elds. Fill in your e-mail account

settings: Sender, Username and Password, Server, SNMP port and Connection type.

We recommend you to use the [Test] button and generate a test e-mail, which upon success will

be delivered to the specied E-mail 1 and/or E-mail 2.

Example of Test E-mail Message:

DB7007 Test Message.
Please do not reply to this e-mail.

UECP UDP Relay & UECP TCP Server

The unit can relay the received RDS as a UECP stream. There are two possible options:
Option 1 – via UDP, where the device sends the received RDS as UECP encoded UDP packets

unconditionally to the specied IP Address and Port. The receiver could be an RDS/RBDS Encoder

SmartGen, other RDS Encoder, or Monitoring Software.

Option 2 – via TCP. The unit has built in server and a Monitoring Software to receive the UECP

encoded RDS data could be connected to the unit.

USB Port

[Enabled]/[Disabled] USB port.

- 84 -

OUTPUTS SETTINGS SCREEN

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: [phone], Fax: [phone]

E-mail: of[e-mail] ,Web: www.devabroadcast.com

The general purpose outputs settings are applied through this page. The Audio output and MPX

output sections allow setting the audio and MPX outputs, according to your needs.

Function, Type and Pulse time for each of the GPOs could be set individually. You can choose

between the following functions: Alarm GPO, RDS Lock, TA Flag and TP Flag. Type is used
for specifying of the active level. When an alarm is generated, the output can change the level to

Active High/Low or to generate High/Low Pulse.

NOTE: If the GPO’s function is not assigned as Alarm GPO and the selfsame is chosen as a

preferred alarm, notications will not be indicated, nevertheless one is being generated.

- 85 -

OTHER SETTINGS SCREEN

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: [phone], Fax: [phone]

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Firmware Update

To update the device rmware, select the new rmware le. After having pressed the [Upload]

button, a dialog window will appear. Conrm the rmware update and wait for the process to

complete. Information on DSP1, DSP2 and WEB is also found in this section.

Storage

Information about the device storage space is found in this section. The internal storage could

be deleted by pressing the [Format] button.

System Log

By pressing the [Clear] button, all recorded in the system log information will be deleted.

Factory Defaults

Pressing the [All except IP] button will delete all settings except for the Network settings (IP

Address).

To restore DB7007 to its Factory Defaults you should press [All except IP]. A new window

will appear - conrm that you want to restore the factory defaults and wait for the process to be

completed. On completion of the process, the settings should have the proper default values.

Reboot

To start Rebooting of DB7007, press the [Reboot] button. A dialog warning window will appear.

Conrm that you want to reboot the device and wait for the process to be completed.

- 86 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

APPENDIX 1

ALARM TRIGGERS

After collecting all the data, the DSP-based core compares the values measured with the

predened by the user threshold levels, for all the alarms monitored. In case that a parameter
is beyond limits, the device will initiate the sending of an alarm notication via the selected

communication path. All the alarm events are stored in the device’s log. It is essential that, if there
is a very short fault of the signal, with duration shorter than the alarm Trigger time, the device
would not trigger an alarm.

There are several Alarm Triggers for the following parameters: RF, MPX, Left/ Right Audio,

Pilot and RDS levels. An option for dening different limits for each of the parameters is present.
All these values, the Trigger time and the Release time have to be assigned separately for each of
the alarms.

Block Diagram of Alarm Automata

- 87 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

When an observation event takes place, the alarm trigger’s state will refresh, if necessary. Should

we consider an instance when the alarm trigger is in Idle state, having in mind that an alarm is
not triggered immediately when a parameter level passes beyond threshold: If the parameter level
becomes stable, within thresholds, and the alarm Trigger time is not elapsed, then the alarm trigger
remains in Idle state. If the alarm Trigger time expires and the parameter level is still beyond
limits, the Alarm trigger would change its state to High/Low. This would result in predened

actions - alarm notications (E-mail, SMS, SNMP trap) and save a log record. The state will not

be immediately switched into Idle when the parameter stabilizes, within threshold levels, not up
until the alarm Release time is elapsed. Meanwhile, if the parameter crosses again any threshold,
the Alarm trigger will remain in active state. If the parameter remain within the threshold levels
and the alarm Release time expires, then the Alarm trigger would switch into Idle state and again

predened actions would be initiated.

LEVEL

Hi Threshold

Alarm Idle No Alarm

Period > Alarm Trigger Time

Period < Alarm Trigger Time

Notification
for Active Alarm

Alarm Active Alarm IdleAlarm Idle No Alarm

Notification
for Idle Alarm

Period > Alarm Release Time

TIME

- 88 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

ALARM NOTIFICATION

The E-mail, SMS, SNMP trap Alarm Notications contain the following information - device’s

Alias, date and time of Alarm triggered, frequency and information about the Alarm activation/
deactivation. The basic signal parameters are also included.

Example for E-mal Notication:

Date: 04 Nov 2012, 07:31:11
DB7007 reports ACTIVE alarm on 99.90MHz
Alarm: RDS > 6.5kHz
Signal parameters:
RF: 51.5dBuV
MPX Total: 89.9kHz
Pilot: 7.5kHz
RDS: 11.4kHz
Left: -7.2dB
Right: -8.2dB

Example for SMS Notication:

ACTIVE ALARM

27.09.2013 09:08:34
FREQ:95.7MHz
RF:35.0dBuV *L*
MPX:60.3kHz
Left:-2.8dB
Right:-3.1dB
Pilot:7.92kHz
RDS:4.12kHz

NOTE: L means LOW (below threshold), H for HIGH (above threshold).

ATTENTION: Because of the SMS length limitations, only the most important parameters are

included.

- 89 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

APPENDIX A

RDS: EUROPE VS AMERICA

The European Broadcasting Union (EBU) and its member countries originated the concept of

“Radio Data” transmission. The European RDS specication, CENELEC Standard EN50067, was
rst published in 1984. It was revised in 1986, 1990, 1991 and 1992.

European RDS has grown in use following initial adoption of the Standard. RDS is nearly

universal throughout Europe; it is almost impossible to nd a European FM broadcasting station

that does not carry a radio data subcarrier.

The popularity of RDS in Europe is very much in contrast with initial reluctance on the part

of US broadcasters to embrace this technology. This can be ascribed to material differences in
broadcasting practices.

Almost without exception, FM broadcasting in the United States is ‘detached’ and independent

- each station originates its own programming. America’s National Public Radio might be
considered as an exception, though for most of the broadcast day even NPR stations originate, or
at least schedule, their own programs.

Most of European broadcasting is similar to the concept of network radio that was common in

the US prior to the 1950s. In Europe, a central program originator may have many transmitting
facilities of modest power situated throughout the country, at several different frequencies to
blanket a designated service area. The European disposition, toward lower-power transmitters can
be found on the “local radio” level, as well.

The European concept of a service area equates to the US broadcaster’s market. The subtle

difference between these designations further characterizes broadcasting practices and ethics.

RDS benets the European broadcaster through almost an altruistic endeavor to be of service to

his listeners. The US broadcaster is marketing his programming and is primarily interested in how
he can create additional revenue from RDS.

THE RDS SYSTEM

RDS is a digital data channel, transmitted as a low-level subcarrier above the range of the

composite stereo program signal in the FM baseband. The data transmission (baud) rate is
comparatively low, yet it is quite robust because of data redundancy and effective error correction.

It is not within the scope of this Manual to cover the details of RDS subcarrier coding and

modulation. For this, the reader is directed to the Specication appropriate to his location either
the CENELEC EN50067 Specication for Europe or the United States NRSC Specication. Since
the Manual will deal with specic implication of RDS implemented with the Radio Explorer II, it

is assumed that the user is familiar with the RDS concept.

- 90 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

APPENDIX B

DOWNLOAD/UPLOAD FILES VIA FTP

In order for a connection to be established the following setting should be applied:

1. FTP Server Settings

The built-in FTP Server has four important parameters that should be congured: Command

Port, Data Port, User name and Password. These parameters are to be used in the FTP client’s

connection conguration. Further information on how to change the FTP Server’s settings and

their respective default values can be found in the device’s User manual.

WE RECOMMEND the usage of FileZilla (https://lezilla-project.org). This is a widespread

open source software distributed free of charge, hence available for downloading from the Internet.

NOTE: The FTP Server can manage only one connection at a time. TheFTP Server works in

Passive mode. Hence, the FTP Client should also be set in passive mode.

2. IP Router and Port Translation Settings

If the connection to the device is made through a Network address translation (NAT) router or

rewall, the port forwarding feature of the router should be congured. The port forwarding is
usually set in the rewall section of the router’s menu. As each router has different port forwarding
procedure, we recommend you to refer to its complete manual. To allow proper data ow through

the router, the FTP Command and FTP Data ports should be open.

NOTE: The FTP port numbers to be used in the port forwarding feature conguration can be

found in the device.

- 91 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

3. Example of FTP Client (FileZilla) Settings

In some cases, FileZilla’s “Quick connect” feature is not able to connect with the DEVA unit.

That is why we recommend the device to be assigned in the program manually.

Enter the FTP Client and go to: File> Site manager> New Site. A dialog box requiring obligatory

information about the device will appear. Fill in the needed information and press “OK”.

Select “Transfer Settings” sub-menu and apply the settings as shown below:

- 92 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

APPENDIX C.1

PTY Code Description Used in RBDS Mode – North America

PTY Short Name

1 News

2 Information

3 Sports

4 Talk

5 Rock

6 Classic Rock

7 Adult Hits

8 Soft Rock

9 Top 40

10 Country

11 Oldies

12 Soft

13 Nostalgia

14 Jazz

15 Classical

16 Rhythm and Blues

17 Soft R and B

18 Foreign Language

19 Religious Music

20 Religious Talk

21 Personality

22 Public

23 College

24 Spanish Talk

25 Spanish Music

26 Hip-Hop

27-28 Unassigned

29 Weather

30 Emergency Test

31 Emergency

Description

News reports, either local or network in origin.

Programming that is intended to impart advice.

Sports reporting, commentary, and/or live event coverage, either local or
network in origin.

Call-in and/or interview talk shows either local or national in origin.

Album cuts.

Rock oriented oldies, often mixed with hit oldies, from a decade or more ago.

An up-tempo contemporary hits format with no hard rock and no rap.

Album cuts with a generally soft tempo.

Current hits, often encompassing a variety of rock styles.

Country music, including contemporary and traditional styles.

Popular music, usually rock, with 80% or greater non-current music.

A cross between adult hits and classical, primarily non-current softrock originals.

Big-band music.

Mostly instrumental, includes both traditional jazz and more modern “smooth
jazz.”

Mostly instrumentals, usually orchestral or symphonic music.

A wide range of musical styles, often called “urban contemporary.”

Rhythm and blues with a generally soft tempo.

Any programming format in a language other than English.

Music programming with religious lyrics.

Call-in shows, interview programs, etc. with a religious theme.

A radio show where the on-air personality is the main attraction.

Programming that is supported by listeners and/or corporate sponsors instead
of advertising.

Programming produced by a college or university radio station.

Call-in shows, interview programs, etc. in the Spanish language

Music programming in the Spanish language

Popular music incorporating elements of rap, rhythm-and-blues, funk, and soul

Weather forecasts or bulletins that are non-emergency in nature.

Broadcast when testing emergency broadcast equipment or receivers. Not
intended for searching or dynamic switching for consumer receivers. Receivers
may, if desired, display “TEST” or “Emergency Test”.

Emergency announcement made under exceptional circumstances to give
warning of events causing danger of a general nature. Not to be used for
searching - only used in a receiver for dynamic switching.

NOTE: These denitions can differ slightly between various language versions.

- 93 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

APPENDIX C.2

PTY Code Description Used in RDS Mode – Europe, Asia

PTY Short Name Description

1 News Short accounts of facts, events and publicly expressed views, reportage and actuality.
2 Current affairs Topical program expanding or enlarging upon the news, generally in different presentation

style or concept, including debate, or analysis.
3 Information Program the purpose of which is to impart advice in the widest sense.
4 Sport Program concerned with any aspect of sport.
5 Education Program intended primarily to educate, of which the formal element is fundamental.
6 Drama All radio plays and serials.
7 Culture Programs concerned with any aspect of national or regional culture.
8 Science Programs about the natural sciences and technology.
9 Varied Used for mainly speech-based programs usually of light-entertainment nature, not covered

by other categories. Examples include: quizzes, games, personality interviews.
10 Pop Commercial music, which would generally be considered to be of current popular appeal,

often featuring in current or recent record sales charts.
11 Rock Contemporary modern music, usually written and performed by young musicians.
12 Easy Listening Current contemporary music considered to be “easy-listening”, as opposed to Pop, Rock

or Classical, or one of the specialized music styles, Jazz, Folk or Country. Music in this

category is often but not always, vocal, and usually of short duration.
13 Light classics Classical Musical for general, rather than specialist appreciation. Examples of music in this

category are instrumental music, and vocal or choral works.
14 Serious classics Performances of major orchestral works, symphonies, chamber music etc., and including

Grand Opera.
15 Other music Musical styles not tting into any of the other categories. Particularly used for specialist

music of which Rhythm & Blues and Reggae are examples.
16 Weather Weather reports and forecasts and Meteorological information.
17 Finance Stock Market reports, commerce, trading etc.
18 Children’s

programs

19 Social Affairs Programs about people and things that inuence them individually or in groups. Includes:

20 Religion Any aspect of beliefs and faiths, involving a God or Gods, the nature of existence and ethics.
21 Phone In Involving members of the public expressing their views either by phone or at a public forum.
22 Travel Features and programs concerned with travel to near and far destinations, package tours and

23 Leisure Programs concerned with recreational activities in which the listener might participate.

24 Jazz Music Polyphonic, syncopated music characterized by improvisation.
25 Country Music Songs which originate from, or continue the musical tradition of the American Southern

26 National Music Current Popular Music of the Nation or Region in that country’s language, as opposed to

27 Oldies Music Music from the so-called “golden age” of popular music.
28 Folk Music Music which has its roots in the musical culture of a particular nation, usually played on

29 Documentary Program concerned with factual matters, presented in an investigative style.
30 Alarm Test Broadcast when testing emergency broadcast equipment or receivers. Not intended for

31 Alarm Emergency announcement made under exceptional circumstances to give warning of events

For programs targeted at a young audience, primarily for entertainment and interest, rather

than where the objective is to educate.

sociology, history, geography, psychology and society.

travel ideas and opportunities. Not for use for Announcements about problems, delays, or

roadworks affecting immediate travel where TP/TA should be used.

Examples include, Gardening, Fishing, Antique collecting, Cooking, Food & Wine etc.

States. Characterized by a straightforward melody and narrative story line.

International ‘Pop’ which is usually US or UK inspired and in English.

acoustic instruments. The narrative or story may be based on historical events or people.

searching or dynamic switching for consumer receivers.. Receivers may, if desired, display

“TEST” or “Alarm Test”.

causing danger of a general nature. Not to be used for searching - only used in a receiver for

dynamic switching.

- 94 -

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: of[e-mail] ,Web: www.devabroadcast.com

Tel: [phone], Fax: [phone]

WARRANTY TERMS AND CONDITIONS

I. TERMS OF SALE: DEVA Broadcast Ltd. products are sold with an understanding of “full
satisfaction”; that is, full credit or refund will be issued for products sold as new if returned to the
point of purchase within 30 days following their receipt, provided that they are returned complete
and in an “as received” condition.

II. CONDITIONS OF WARRANTY: The following terms apply unless amended in writing
by DEVA Broadcast Ltd.

A. The Warranty Registration Card supplied with this product must be completed and returned
to DEVA Broadcast Ltd. within 10 days of delivery.
