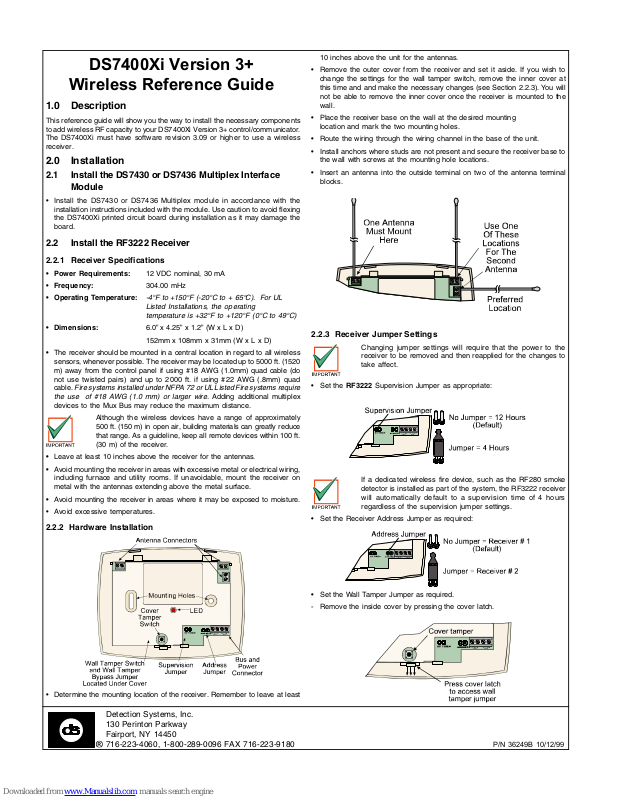

DS7400Xi Version 3+
Wireless Reference Guide
Detection Systems, Inc.
130 Perinton Parkway
Fairport, NY 14450
716-223-4060, 1-800-289-0096 FAX 716-223-9180
P/N 36249B 10/12/99
1.0 Description
This reference guide will show you the way to install the necessary components
to add wireless RF capacity to your DS7400Xi Version 3+ control/communicator.
The DS7400Xi must have software revision 3.09 or higher to use a wireless
receiver.
2.0 Installation
2.1 Install the DS7430 or DS7436 Multiplex Interface
Module
• Install the DS7430 or DS7436 Multiplex module in accordance with the
installation instructions included with the module. Use caution to avoid flexing
the DS7400Xi printed circuit board during installation as it may damage the
board.
2.2 Install the RF3222 Receiver
2.2.1 Receiver Specifications
• Power Requirements: 12 VDC nominal, 30 mA
• Frequency: 304.00 mHz
• Operating Temperature: -4°F to +150°F (-20°C to + 65°C). For UL
Listed Installations, the operating
temperature is +32°F to +120°F (0°C to 49°C)
• Dimensions: 6.0” x 4.25” x 1.2” (W x L x D)
152mm x 108mm x 31mm (W x L x D)
• The receiver should be mounted in a central location in regard to all wireless
sensors, whenever possible. The receiver may be located up to 5000 ft. (1520
m) away from the control panel if using #18 AWG (1.0mm) quad cable (do
not use twisted pairs) and up to 2000 ft. if using #22 AWG (.8mm) quad
cable. Fire systems installed under NFPA 72 or UL Listed Fire systems require
the use of #18 AWG (1.0 mm) or larger wire. Adding additional multiplex
devices to the Mux Bus may reduce the maximum distance.
Although the wireless devices have a range of approximately
500 ft. (150 m) in open air, building materials can greatly reduce
that range. As a guideline, keep all remote devices within 100 ft.
(30 m) of the receiver.
• Leave at least 10 inches above the receiver for the antennas.
• Avoid mounting the receiver in areas with excessive metal or electrical wiring,
including furnace and utility rooms. If unavoidable, mount the receiver on
metal with the antennas extending above the metal surface.
• Avoid mounting the receiver in areas where it may be exposed to moisture.
• Avoid excessive temperatures.
2.2.2 Hardware Installation
• Determine the mounting location of the receiver. Remember to leave at least
10 inches above the unit for the antennas.
• Remove the outer cover from the receiver and set it aside. If you wish to
change the settings for the wall tamper switch, remove the inner cover at
this time and and make the necessary changes (see Section 2.2.3). You will
not be able to remove the inner cover once the receiver is mounted to the
wall.
• Place the receiver base on the wall at the desired mounting
location and mark the two mounting holes.
• Route the wiring through the wiring channel in the base of the unit.
• Install anchors where studs are not present and secure the receiver base to
the wall with screws at the mounting hole locations.
• Insert an antenna into the outside terminal on two of the antenna terminal
blocks.
2.2.3 Receiver Jumper Settings
Changing jumper settings will require that the power to the
receiver to be removed and then reapplied for the changes to
take affect.
• Set the RF3222 Supervision Jumper as appropriate:
If a dedicated wireless fire device, such as the RF280 smoke
detector is installed as part of the system, the RF3222 receiver
will automatically default to a supervision time of 4 hours
regardless of the supervision jumper settings.
• Set the Receiver Address Jumper as required:
• Set the Wall Tamper Jumper as required.
- Remove the inside cover by pressing the cover latch.
DS7400Xi Version 3+ Wireless Reference Guide Page 2
- Set the wall tamper jumper.
For UL Certificated Installations, tamper switches must be enabled.
3.0 Wiring and Power Up
- Remove power from the control panel.
- Connect the DS7430 Multiplex Module terminals to the RF3222 Receiver
(or receivers if you are using two) terminals as shown below, using 4conductor, 22-gauge or larger wire. Shielded cable is not required and
do not use twisted pair wire. If you are using a DS7436 Multiplex Module,
you may connect the receiver to either multiplex bus. If using two receivers
and the DS7436 Multiplex Module, you may connect both to one multiplex
bus or one to each bus.
- Apply power to the control panel. The red LED on the receiver should
turn on.
4.0 Receiver LED Operation
The following describes the status of the receiver based on the LED condition.
LED on - The receiver is functioning normally.
LED off - Power failure has occurred or the receiver is not wired correctly.
LED turns off momentarily - The receiver acknowledged receiving an RF
signal from a remote RF device.
LED blinks rapidly - The receiver is being programmed with zone and
transmitter I.D.s from the DS7400Xi control panel. This condition will occur
upon initialization (power-up) of the system or when new zone information
has been programmed into the system. The rapid blink should last for less
than one minute.
FCC COMPLIANCE NOTICE:
This device complies with Part 15 of the FCC Rules and with RSS-210 of
Industry and Science Canada. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that
may cause undesirable operation.
Changes or modifications not expressly approved by Detection Systems,
Inc. can void the users authority to operate the equipment.
5.0 Panel Programming Information
5.1 Receiver Programming: Program Address 0168
The DS7400Xi control panel can accept 1 or 2 receivers on the multiplex bus.
The panel must be programmed for the number of receivers used and which
zones are assigned to each receiver.
Data Digit 1 defines if there are 0, 1, or 2 receivers.
Data Digit 2 defines the zones covered by receiver #1 and receiver #2. If there
is only one receiver, Data Digit 2 should be 0.
5.2 Jamming Threshold: Program Address 3912
The Jamming Threshold determines what noise levels above the ambient noise
will cause a Jammed RF Receiver Trouble condition. A higher offset will ignore
greater amounts of noise, but may cause the loss of valid alarms.
DS7400Xi Version 3+ Wireless Reference Guide Page 3
5.3 Multiplex Zone Type: Program Address 0166
In Address 0166, the zones are assigned to be multiplex (wired) or wireless
RF zones. Data Digits 1 and 2 also determine if wireless keypads will be used
with the system. Zones are assigned in groups of 8. You cannot assign an
individual zone to be mux or wireless.
Receiver Programming, Address 0168, must be set before
selecting wireless zones.
Data Digit 1 defines if there are wireless keypads and if Zones 9 - 32 are
multiplex or RF zones.
Data Digit 2 defines if Zones 33 - 64 are multiplex or RF zones.
Data Digit 3 defines if zones 65 - 96 are multiplex or RF zones.
Data Digit 4 defines if zones 97-128 are multiplex or RF zones
6.0 Adding Wireless RF Devices to the System
6.1 Adding RF3341 Keypads
If using wireless keypads, please observe the following:
• There must be at least one wired keypad in the system.
• If only one wired keypad is used, it must be keypad #1.
• Wireless keypads must not be assigned as master keypads.
• The system may have a maximum of 5 wireless keypads.
• Wireless keypads can only be assigned as keypads 1-5.
• Both a wired and a wireless keypad may be assigned to the same address.
• If both a wired and a wireless keypad are assigned to the same address,
select the option for the appropriate wired keypad in Addresses 0173-0175.
• If a wireless keypad without a wired counterpart is desired, assign the wireless
keypad as 0 (Disabled).
• Wireless keypads may be assigned to any partition.
6.1.1 Installing the RF3341 Keypad
Select if the keypad will be supervised by the control panel. Select ON
(Supervised) only if the keypad will always be in radio range of the control
panel receivers. If the keypad is moved beyond the range of the receivers, a
keypad fault condition will be displayed at the wired keypads. Select OFF
(Unsupervised) if the keypad will be removed from the premises.
6.1.2 Keypad Assignment Programming: Programming
Addresses 0173-0180
Keypad Assignment Programming is where you assign the keypad type.
Data Digit 1 defines the first keypad in the address.
Data Digit 2 defines the second keypad in the address.
DS7400Xi Version 3+ Wireless Reference Guide Page 4
6.1.2 Keypad Partition Assignment: Programming
Addresses 0208-0215
Keypad Partition Assignment is where both wired and wireless keypads are
assigned to a partition. Wireless keypads may only be keypads 1-5. Wireless
keypads may be assigned to any partition.
Data Digit 1 defines the first keypad in the address.
Data Digit 2 defines the second keypad in the address.
6.1.3 Programming Wireless keypads
Once the Keypad Assignment Programming (Addresses 0173-0180) and
Keypad Partition Assignment Programming (Addresses 0208-0215) have been
completed, the wireless keypads may be programmed into the system. The
keypads will appear as zones 130 (for keypad #1) through zone 134 (for keypad
5). See Section 7 - Programming Wireless RF Devices for programming the
keypads.
6.1.4 Wireless keypad A, B and C keys
The A, B and C keys will only be operational if programmed in your control/
communicator. See “Emergency Key Programming”, Program Addresses 01810182, in your control panel Reference Guide.
6.1.5 Programming the Option Key
The operation of the Option key will be the same on all keypads and
keyfobs if they are assigned to the same partition.
The RF3341 Keypad has an Option key which may be programmed to drive
the control panel outputs. The Option key may be used to drive any of the three
panel outputs or any of the 15 custom programmable outputs.
Programming the Alarm Output, Programmable Output 1 or Programmable
Output 2: Program Addresses 0146-0148 to follow the Option key.
• The outputs may be assigned to follow the Keypads in one or all partitions
in the Output Partition Assignment Addresses 0149-0150.Outputs may also
be programmed to “Chirp” (a 1/2 second sounder output) when the panel is
armed or disarmed.
Programming the Output Functions to follow the wireless keypad Option
key..
6.2 Adding RF3332 and RF3334 Keyfobs
NOTE: Keyfobs are zone inputs. They do not require Keypad
Assignment programming.
Each RF3332 (2-Button) or RF3334 (4-Button) Keyfobs occupies 1 RF zone. It
is possible to have up to 120 Keyfobs on a system. The RF3334 Keyfob can
also have programmed outputs.
6.2.1 Zone Programming for Keyfobs:
Programming Addresses 0026-0145
• Each Keyfob must be assigned to a zone.
Any zones used by RF devices must be programmed as RF
zones before the wireless devices can be activated. See Section
5.3 Multiplex Zone Type for programming information.
Data Digit 1 must be set to 5.
Data Digit 2 defines if the Keyfob will arm one or all partitions and if force
arming is allowed.
DS7400Xi Version 3+ Wireless Reference Guide Page 5
6.2.2 Assigning Keyfobs to a Partition:
Programming Address 1252 - 1311
• Each Keyfob must be assigned to one or all partitions. If one of the “All
Partitions” options was selected for the zone (see Section 6.2.1) you do not
need to assign a partition to the zone.
• The partition assignment for odd numbered zones is programmed into the
first data digit of these addresses. The partition assignment for even numbered
zones is programmed into the second data digit.
6.2.3 Programming Wireless keyfobs
Once the Keyfob Zone Programming (Addresses 0026-0145) and Keyfob
Partition Assignment Programming (Addresses 1252-1311) have been
completed, the wireless Keyfobs may be programmed into the system. See
Section 7 - Programming Wireless Devices for programming the Keyfobs.
If the system is using two receivers, please note the following:
Because keyfobs are assigned to a zone and zones are assigned
to a receiver, the coverage of the keyfob is limited to the assigned
receiver.
6.2.4 Wireless keyfob Panic Function
The Panic function will only be operational if programmed in your control/
communicator. See “Emergency Key Programming”, Program Address 0182,
in your control panel Reference Guide.
6.2.5 Output Programming for the RF3334 Keyfob
The RF3334 Keyfob has two key outputs which may be programmed to drive
the control panel outputs. Either key may be used drive any of the three panel
outputs or any of the 15 custom programmable outputs.
The operation of the Option
key will be the same on all keypads and keyfobs
if they are assigned to the same partition.
Programming the Alarm Output, Programmable Output 1 or Programmable
Output 2: Program Addresses 0146-0148.
• For any of these addresses, the first digit must be *0 for Keyfobs.
• The outputs may be assigned to follow the Keyfobs in one or all partitions in
the Output Partition Assignment Addresses 0149-0150.Outputs may also
be programmed to “Chirp” (a 1/2 second sounder output) when the panel is
armed or disarmed.
Programming the Output Functions to follow the Keyfob Output Buttons.
DS7400Xi Version 3+ Wireless Reference Guide Page 6
7.0 Programming Wireless RF Devices
All Wireless RF devices (Keypads, Keyfobs, PIRs, Smoke Detectors and
Contact Points) must be programmed into the DS7400Xi panel in order to be
recognized.
Each wireless device will have a unique ID code attached to the device in the
form of a two part bar code sticker or a number set as shown below:
It is suggested that you keep one part of the sticker for your records and leave
the second part attached to the device.
7.1 Zone Programming
Any zones used by RF devices must be programmed as RF
zones before the wireless devices can be activated. See Section
5.3 Multiplex Zone Type for programming information.
To install a RF (Wireless) device perform the following:
• Program the control panel.
- Refer to section 11.2-11.4, Zone Programming in your DS7400Xi Version
3+ Reference Guide P/N 28995.
This section allows you to define the RF (Wireless) Zone’s address (zone
number), its type (always a single input zone, selection 0), which zone
or output function it will follow (1-15) and its partition (1-8). The Zone
Functions for RF zones must always be set for “Alarm on Short” or
“Alarm on Open”. DO NOT program the zone functions for “Trouble
on Short”.
For example:
Program zone 9 to be a single zone input device
that follows zone function 1 and is in partition 1.
Procedure:
Enter the programmer’s mode (Default code = 9876#0).
Enter zone address 0026.
Enter the data digits as [0] and [1] followed by the
[#] button.
Enter Partition Assignment address 1252.
Enter the data digits as [0] and [0] followed by the
[#] button.
Exit the programmer’s mode or program another address.
• Once the zone programming is done, you are ready to program the RF
devices. Perform the following:
- Enter the programmer’s mode (Default code = 9876#0).
You may exit the programming mode at any time by pressing the [*]
key for two seconds. If no keystrokes are detected for thirty minutes,
the panel will automatically exit the programmers mode.
- Enter the RF programming mode by entering [9] [9] [9] [0] followed by
the [#] button.
You may exit the RF programming mode at this time by pressing
the “Off” key.
- If no RF zones have been programmed into the panel the following
message will appear:
- If the panel has been programmed with RF zones the RF Installers Menu
will then appear:
• Select “Add RF Zone” by pressing the 1 key.
• If all of the RF zones have been added, the following message will appear:
• If zones are ready to be added, the display below will appear:
• The zone number shown will be the lowest number zone available to be
added. You may step forward to other programmed and ready to be added
zones by pressing the “ON” key on the keypad. If you step through all the
zones and the message “Last RF Zone - Press Off” appears, you may return
to the first available zone for programming by pressing the “On” key. You
cannot step backward through the zones - only forward.
RF input zones will appear on the display as zones 009-128. If
RF keypads are used, they will appear as zones 130 (for keypad
#1) through zone 134 (for keypad 5).
• When the desired zone number is shown in the display, press the # key to
accept that zone number and display the following:
• At this time, enter the 9 digit code from the ID sticker on the device. The
system will confirm acceptance of the device with a single beep from the
keypad and display the following message:
• Pressing the “On” key at this time will prompt the system to the next zone
ready to be added to the system or display the message “No Zones To Add
Press Off” if there are no zones to be added.
• A three beep tone from the keypad will indicate that the device was not
accepted by the system for one of the following reasons.
• If the display shows the following message, it indicates that the sensor code
has already been added to the system. The sensor shown can be removed
from the system (see Section 7.3) or another sensor may be added to the
system.
• Pressing the # key will attempt to program the zone again.
• If the following message appears, it indicates that the device ID number
was not entered correctly:
• Pressing the “Off” key will exit the Add RF Zone mode. The system will
pause while the RF zones are configured.
DS7400Xi Version 3+ Wireless Reference Guide Page 7
7.2 Testing RF Zones
From the main menu, select Test RF Zone (selection 2).
• If there are no RF zones programmed into the system or if the zones have
not been “Added”, the display will read:
• If RF zones are programmed into the system and the sensors have been
“Added”, the display will show the first RF sensor available for testing:
• You may test the zone shown by pressing the # key or advance to another
zone by pressing the ”On” key. When a zone is selected you will be prompted
to activate the point. You may activate the point by creating an alarm or
tamper condition.
• The test values will now be displayed.
• The information displayed will be the Zone Number and the “P” or Packet
Count (when transmitting information the transmitter sends the same
information 4 or 8 times in “Packets” and the receiver must receive at least
1 of these packets. The number of packets sent depends on the device
sending the information and the type of information. The number of packets
does not reflect the actual strength of the signal). “Good” “marginal” or
“Relocate” will also appear depending on the relative signal strength. If the
signal is Good, the keypad will beep 8 times, 4 times for a Marginal signal
and only once for a Relocate signal. The “L” represents the relative signal
strength above the ambient noise level and is displayed as a value of 0-99.
The “A” represents the ambient noise level and is displayed as a value of 0-
99.
• Pressing the # key will allow you to select another zone. Pressing the “Off”
key exits the test mode.
7.3 Removing RF Zones
Removing RF zones is a two step process. First, the zone must
be removed from the receiver using the procedure below. After
the zone has been removed from the receiver you must then
remove the zone from its zone programming address (0026-
0145) by setting the appropriate zone programming address to
00.
From the Main Menu, select “Removing RF Zones” (selection 3).
• If no RF zones have been programmed or “Added” the following message
will be displayed:
• If there are RF zones that may be removed, the first available zone will be
displayed:
• You may select the zone displayed or advance to another zone by pressing
the “On” key. If the # key is selected at this time, the panel scans the
receiver to remove the ID for the specified sensor. When completed, the
display shows the following message:
• Pressing the # key at this time will present the next zone that can be removed.
Press the “Off” key to exit the Remove Zone mode.
7.4 RF Zone Troubles
RF Zone Troubles will only appear on the display after a user code followed by
[#] [8] [7] has been entered into the keypad. One or more of the following
messages will appear if there is a problem with a RF Zone:
• Missing Zone indicates that the sensor zone failed to receive a report from
the sensor during the supervisory period of 4 or 12 hours.
• Trouble Zone indicates that the RF sensor has determined that there is
some type of trouble with itself. Not all types of sensors have the capacity
to report troubles.
• Zone Trouble may indicate a shorted sensor zone.
• Tamper Zone indicates that the cover tamper has been violated on the
sensor
• Low Battery indicates that the sensor battery is low.
7.5 Receiver Trouble Displays
Receiver #1 refers to the receiver with the lower zone numbers.
Receiver #2 refers to the receiver with the upper zone numbers.
See Section 2.2.3 - Receiver Jumper Settings for additional
information.
The Keypad displays may show the following receiver troubles:
• RF Receiver Tamper Indicates that one of the receivers covers have been
removed or tampered with. Receiver #1 refers to the receiver with the lower
zone numbers.
• RF Receiver Jammed indicates that the receiver may be getting interference
from outside sources. Such types of interference may be caused by older
Cell Phones, multichannel cordless phones, some business/police/fire band
radios and “Walkie Talkies”. Receiver #1 refers to the receiver with the lower
zone numbers.
DS7400Xi Version 3+ Wireless Reference Guide Page 8
• RF Receiver Trouble indicates that the receiver has not received any
supervisory signals from any of the sensors during the supervision interval.
Check the receiver antennas and test all the sensors. If the sensor tests
are unsuccessful, then the problem is likely to be in the receiver. Receiver
#1 refers to the receiver with the lower zone numbers.
• RF Receiver Communications indicates that the receiver is not
communicating with the multiplex interface module at the control panel.
Check for open, shorted, reversed or miswired connections between the
multiplex interface module and the receiver. Be sure the receiver has +12
vdc power from the control panel. The multiplex module or the receiver may
also be at fault.
Loading...
