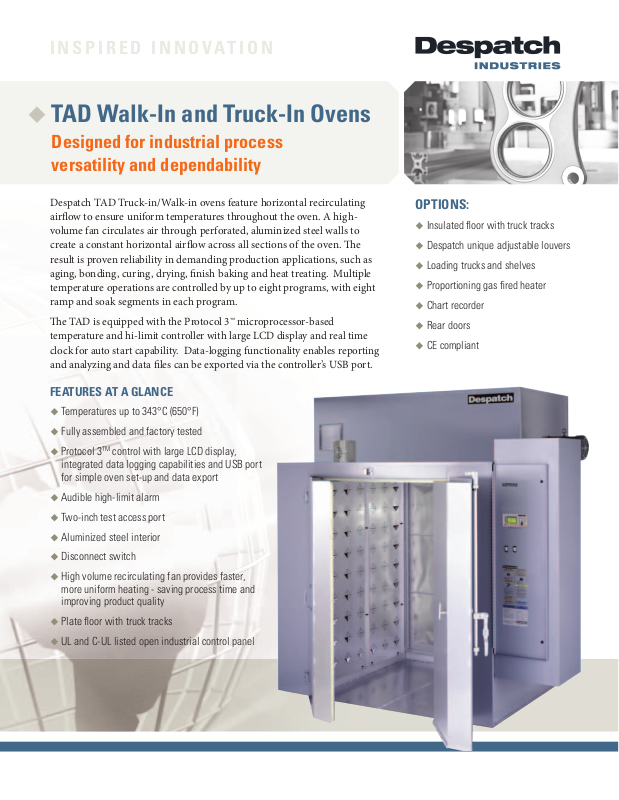

Despatch TAD2-52 User Manual

INSPIRED INNOVATION

 TAD Walk-In and Truck-In Ovens

Designed for industrial process
versatility and dependability

Despatch TAD Truck-in/Walk-in ovens feature horizontal recirculating
air ow to ensure uniform temperatures throughout the oven. A high­volume fan circulates air through perforated, aluminized steel walls to
create a constant horizontal air ow across all sections of the oven.  e
result is proven reliability in demanding production applications, such as
aging, bonding, curing, drying,  nish baking and heat treating. Multiple
temperature operations are controlled by up to eight programs, with eight
ramp and soak segments in each program.

 e TAD is equipped with the Protocol 3™ microprocessor-based
temperature and hi-limit controller with large LCD display and real time
clock for auto start capability. Data-logging functionality enables reporting
and analyzing and data  les can be exported via the controller’s USB port.

FEATURES AT A GLANCE

 Temperatures up to 343°C (650°F)

 Fully assembled and factory tested

 Protocol 3

integrated data logging capabilities and USB port
for simple oven set-up and data export

TM

control with large LCD display,

OPTIONS:

 Insulated fl oor with truck tracks

 Despatch unique adjustable louvers

 Loading trucks and shelves

 Proportioning gas fi red heater

 Chart recorder

 Rear doors

 CE compliant

 Audible high-limit alarm

 Two-inch test access port

 Aluminized steel interior

 Disconnect switch

 High volume recirculating fan provides faster,

more uniform heating - saving process time and
improving product quality

 Plate fl oor with truck tracks

 UL and C-UL listed open industrial control panel

TAD 2-52 3-10 3-21

PHYSICAL SPECIFICATIONS

Chamber size (width x depth x height) 38 x 38 x 63 in.

Capacity in cubic feet (liters) 52.6 (1490) 104 (2945) 216 (6116)

Overall size (width x depth x height)

*Includes 7 in (18 cm) exhaust stack.

Electrical: 60 hertz - 3 phase

(FLA- approx. full load amps)
50 hertz is also available

Exhaust outlet 7 in. (17.8 cm) 7 in. (17.8 cm) 9 in. (22.9 cm)

Doors 1 2 2

Insulation thickness Walls: 5 in. (12.7 cm) Insulated floor option: 3 in. (7.6 cm) for all models

Truck centers 24 in. (61 cm) 32 in. (81.3 cm) 48 in. (122 cm)

Approximate net weight 1850 lbs (844 kg) 3020 lbs (1377 kg) 5150 lbs (2336 kg)

Approximate shipping weight 2050 lbs (930 kg) 3220 lbs (1461 kg) 5400 lbs (2450 kg)

240 volts

480 volts 32.8 FLA / 24 kW 51 FLA / 36 kW 71.2 FLA / 48 kW

96.5 x 96.5 x 160 cm

83.3 x 48.5 x 95* in.
212 x 123 x 241* cm

65.9 FLA / 24 kW 104.1 FLA / 36 kW 140.2 FLA / 48 kW

FUNCTIONAL SPECIFICATIONS

Time to temp with no load
40˚C to 177˚C (104˚F to 350˚F)

Time to temp with no load
40˚C to 260˚C (104˚F to 500˚F)

Time to temp with no load
40˚C to 343˚C (104˚F to 650˚F)

Temperature uniformity at set point +/- 1.5% after stabilization

Minimum operating temp 40˚C (104˚F) 40˚C (104˚F) 40˚C (104˚F)

Maximum Operating Temperature 343˚C (650˚F)

Recirculating fan

Control stability +/- 0.5˚C/5˚C on all models ( represents the change in ambient

15 minutes 15 minutes 15 minutes

30 minutes 30 minutes 30 minutes

50 minutes 50 minutes 50 minutes

2 HP / 1700 CFM (802 l/s)

temperature.)

48 x 52 x 72 in.
122 x 132 x 183 cm

100.5x 62.5 x102 in.
255 x 159 x 259 cm

5 HP / 3800 CFM
(1793 l/s)

72 x 72 x 72 in.
183 x 183 x 183 cm

126.5 x85.5 x102 in.
321 x 217 x 259 cm

10 HP / 6000 CFM
(2832 l/s)

TAD front view cross section
showing airflow pattern.

Notes: Uniformity figures are based
on a nine-point test conducted in
an empty oven after stabilization
period. Uniformity can vary slightly
depending on unit and operating
conditions. Minimum operating
temperature and cooling times are
based on 20°C ambient temperature
measured at the fresh air inlet with
the fresh air and exhaust dampers fully
open. Specifications are subject to
change without notice. If the existing
specifications differ from yours, ask
about our customizing capabilities.

TAD models are not to be used with
flammable solvents, materials or
containers. If your process involves
flammable solvents please inquire
about our TFD models.
