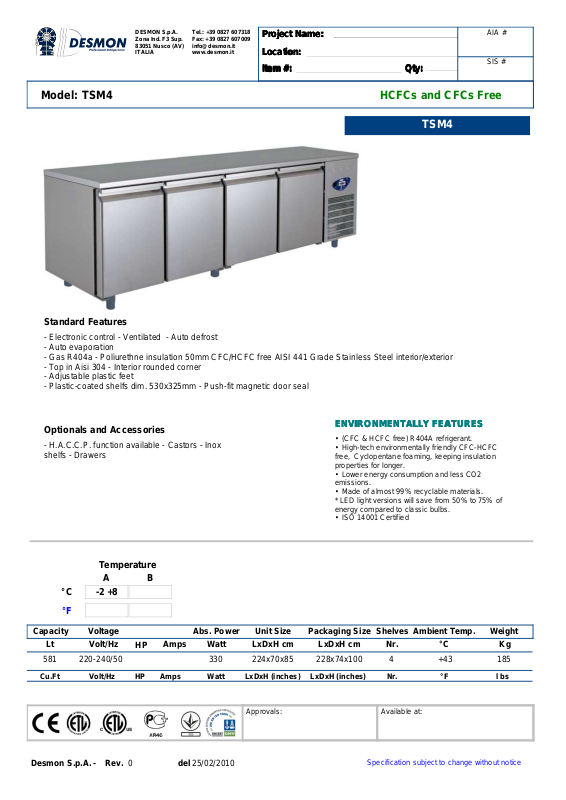

Model: TSM4 HCFCs and CFCs Free
TSM4
Standard Features
- Electronic control - Ventilated - Auto defrost
- Auto evaporation
- Gas R404a - Poliurethne insulation 50mm CFC/HCFC free AISI 441 Grade Stainless Steel interior/exterior
- Top in Aisi 304 - Interior rounded corner
- Adjustable plastic feet
- Plastic-coated shelfs dim. 530x325mm - Push-fit magnetic door seal
ENVIRONMENTALLY FEATURES
ENVIRONMENTALLY FEATURES
Optionals and Accessories
- H.A.C.C.P. function available - Castors - Inox
shelfs - Drawers
ENVIRONMENTALLY FEATURESENVIRONMENTALLY FEATURES
• (CFC & HCFC free) R404A refrigerant.
• High-tech environmentally friendly CFC-HCFC
free, Cyclopentane foaming, keeping insulation
properties for longer.
• Lower energy consumption and less CO2
emissions.
• Made of almost 99% recyclable materials.
* LED light versions will save from 50% to 75% of
energy compared to classic bulbs.
• ISO 14001 Certified
Temperature
° C
A
-2 +8
B
° F
Capacity
Lt
581
Cu.Ft Volt/Hz Watt LxDxH (inches) LxDxH (inches) Nr. ° F l bs
Desmon S.p.A. - Rev.
Voltage
Volt/Hz
220-240/50
Abs. Power
Watt
330
Amps
0
25/02/2010
del
Unit Size
LxDxH cm
224x70x85
Approvals: Available at:
Packaging Size
LxDxH cm
228x74x100
Shelves
Ambient Temp.
Nr.
4
Specification subject to change without notice
° C
+43
Weight
Kg
185
DESMON S.p.A.
Zona Ind. F3 Sup.
83051 Nusco (AV)
ITALIA
Tel.: +39 0827 607318
Fax: +39 0827 607009
info@desmon.it
www.desmon.it
Project Name:
Project Name:
Project Name:Project Name:
Location:
Location:
Location:Location:
Item #:
Item #: Qty:
Item #:Item #:
Qty:
Qty:Qty:
Model: TSM4 HCFCs and CFCs Free
ARCHITECT CORNER
AIA #
SIS #
STANDARD FEATURES
DESIGN
DESIGN
DESIGNDESIGN
Desmon counters are manufactured in Italy
with enduring ergonomic features to protect
your long term investment.
Designed using the highest technologies,
quality materials and components to provide
the user with colder product temperatures,
lower utility costs, exceptional food safety
and the best value in today’s food service
marketplace.
CABINET CONSTRUCTION
CABINET CONSTRUCTION
CABINET CONSTRUCTIONCABINET CONSTRUCTION
All made in stainless steel, not only on solid
doors and front side as other manufacturers.
The finest stainless available; latest
generation, higher tensile strength for fewer
dents and scratches. . (External bottom in
galvanized steel – Aluminium inside on some
Basic versions).
• Higher insulation rates thanks to high-tech
environmentally friendly CFC free,
Cyclopentane foaming keeping insulation
properties longer than other foams.
• Panel thickness 2” (Basic & Silver) 2½’’
(Gold) instead of average 2’’ on other
brands.
• Interior - attractive, ETL Sanitation & CE
“rounded corners”.
REFRIGERATION SYSTEM
REFRIGERATION SYSTEM
REFRIGERATION SYSTEMREFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) R404A refrigerant.
• Evaporator coil & condenser balanced for low
power consumption - holding the widest
temperature range in its class:
Temperature Range, getting the best in food
preservation:
• Coolers adjustable from 28°F to 46°F - (-2°C
to +8°C).
• Freezers adjustable from 14°F to -13°F (10°C to -25°C).
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan blades
with a more
efficient low velocity, high volume
airflow design. Ensuring faster temperature
recovery and shorter run times in the busiest of
food service environments.
DOORS
DOORS
DOORSDOORS
• Stainless steel exterior and interior. •Door
extends full width of cabinet shell.
• Guaranteed door handle.
• Positive seal self-closing door (Gold line).
• Guaranteed door hinges and torsion type
closure system (On Gold line).
• Magnetic door gasket of one piece
construction, removable without tools for ease
of cleaning.
SHELVING
SHELVING
SHELVINGSHELVING
• GN 1/1 Version: Adjustable, heavy duty PVC
coated wire 20 43/50"L x 12 19/32 "D (530mm
x 325mm).
Two (2) guides included per shelf.
Pastry Version: Adjustable, heavy duty pan or
PVC coated shelf 23 5/8"L x 15 3/4 "D
LIGHTING
LIGHTING
LIGHTINGLIGHTING
Lights on doors available on certain models.
MODEL FEATURES
MODEL FEATURES
MODEL FEATURESMODEL FEATURES
• Exterior temperature digital display
adjustable with alarm and HACCP advanced
control unit standard on every GOLD models.
• Evaporator is epoxy coated to
eliminate the potential of corrosion.
• ETL Sanitation and CE “Rounded Corners”
compliant for open food product.
ELECTRICAL
ELECTRICAL
ELECTRICALELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a dedicated outlet.
Cord and plug set included: Voltages:
115V/60Hz/1 phase -15/20 amp or
230V/50Hz/1 phase -16 amp or
230V/60 Hz – 16 amp
WARRANTY
WARRANTY
WARRANTYWARRANTY
Two year warranty on parts
Desmon S.p.A. - Rev.
0
25/02/2010
del
Specification subject to change without notice
