DESMON S.p.A.
Door lock - Drawer set 1/3/1/2/2/3 - Glass door
Zona Ind. F3 Sup.
83051 Nusco (AV)
ITALIA
Tel.: +39 0827 607318
Fax: +39 0827 607009
info@desmon.it
www.desmon.it
Project Name:
Location:
AIA #
SIS #
Item #: Qty:

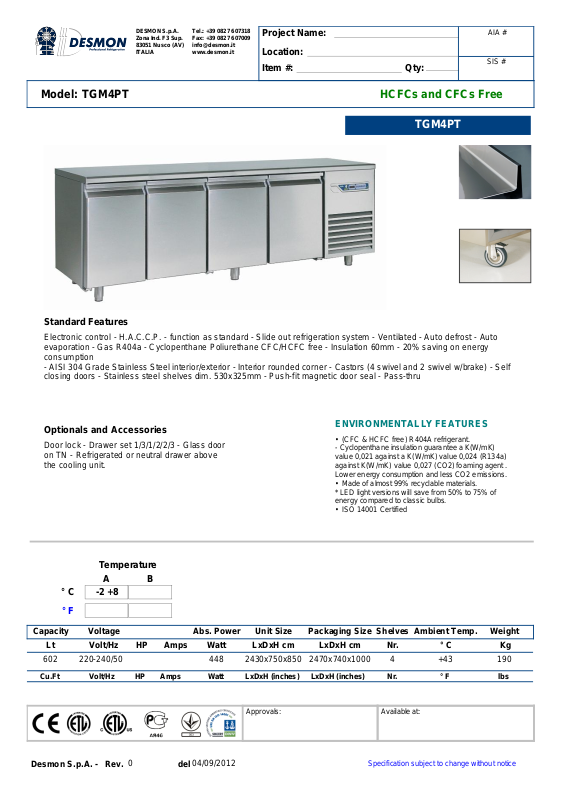

Model: TGM4PT HCFCs and CFCs Free
TGM4PT
Standard Features
Electronic control - H.A.C.C.P. - function as standard - Slide out refrigeration system - Ventilated - Auto defrost - Auto
evaporation - Gas R404a - Cyclopenthane Poliurethane CFC/HCFC free - Insulation 60mm - 20% saving on energy
consumption
- AISI 304 Grade Stainless Steel interior/exterior - Interior rounded corner - Castors (4 swivel and 2 swivel w/brake) - Self
closing doors - Stainless steel shelves dim. 530x325mm - Push-fit magnetic door seal - Pass-thru
Optionals and Accessories
on TN - Refrigerated or neutral drawer above
the cooling unit.
ENVIRONMENTALLY FEATURES
• (CFC & HCFC free) R404A refrigerant.
- Cyclopenthane insulation guarantee a K(W/mK)
value 0,021 against a K(W/mK) value 0,024 (R134a)
against K(W/mK) value 0,027 (CO2) foaming agent .
Lower energy consumption and less CO2 emissions.
• Made of almost 99% recyclable materials.
* LED light versions will save from 50% to 75% of
energy compared to classic bulbs.
• ISO 14001 Certified
Temperature
° C
A
-2 +8
B
° F
Capacity
602
Cu.Ft Volt/Hz Watt LxDxH (inches)
Desmon S.p.A. - Rev.
Voltage
220-240/50
Amps
HP
0
Abs. Power
04/09/2012
del
448
Unit Size
LxDxH cm
2430x750x850
Approvals: Available at:
Packaging Size
LxDxH cm
2470x740x1000
LxDxH (inches)
Shelves
4
Nr. ° F lbs
Specification subject to change without notice
° C
+43
Weight
Kg
190
DESMON S.p.A.
Zona Ind. F3 Sup.
83051 Nusco (AV)
ITALIA
Tel.: +39 0827 607318
Fax: +39 0827 607009
info@desmon.it
www.desmon.it
Project Name:
Location:
Item #: Qty:
Model: TGM4PT HCFCs and CFCs Free
ARCHITECT CORNER
AIA #
SIS #
STANDARD FEATURES
DESIGN
Desmon counters are manufactured in Italy
with enduring ergonomic features to protect
your long term investment.
Designed using the highest technologies,
quality materials and components to provide
the user with colder product temperatures,
lower utility costs, exceptional food safety
and the best value in today’s food service
CABINET CONSTRUCTION
All made in stainless steel, not only on solid
doors and front side as other manufacturers.
The finest stainless available; latest
generation, higher tensile strength for fewer
dents and scratches. . (External bottom in
galvanized steel – Aluminium inside on some
Basic versions).
• Higher insulation rates thanks to high-tech
environmentally friendly CFC free,
Cyclopentane foaming keeping insulation
properties longer than other foams.
• Panel thickness 2” (Basic & Silver) 2½’’
(Gold) instead of average 2’’ on other
brands.
• Interior - attractive, ETL Sanitation & CE
“rounded corners”.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) R404A refrigerant.
• Evaporator coil & condenser balanced for low
power consumption - holding the widest
temperature range in its class:
Temperature Range, getting the best in food
preservation:
• Coolers adjustable from 28°F to 46°F - (-2°C
to +8°C).
• Freezers adjustable from 14°F to -13°F (10°C to -25°C).
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan blades
with a more
efficient low velocity, high volume
airflow design. Ensuring faster temperature
recovery and shorter run times in the busiest of
food service environments.
DOORS
• Stainless steel exterior and interior. •Door
extends full width of cabinet shell.
• Guaranteed door handle.
• Positive seal self-closing door (Gold line).
• Guaranteed door hinges and torsion type
closure system (On Gold line).
• Magnetic door gasket of one piece
construction, removable without tools for ease
of cleaning.
SHELVING
• GN 1/1 Version: Adjustable, heavy duty PVC
coated wire 20 43/50"L x 12 19/32 "D (530mm
x 325mm).
Two (2) guides included per shelf.
Pastry Version: Adjustable, heavy duty pan or
PVC coated shelf 23 5/8"L x 15 3/4 "D
LIGHTING
Lights on doors available on certain models.
MODEL FEATURES
• Exterior temperature digital display
adjustable with alarm and HACCP advanced
control unit standard on every GOLD models.
• Evaporator is epoxy coated to
eliminate the potential of corrosion.
• ETL Sanitation and CE “Rounded Corners”
compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a dedicated outlet.
Cord and plug set included: Voltages:
115V/60Hz/1 phase -15/20 amp or
230V/50Hz/1 phase -16 amp or
230V/60 Hz – 16 amp
WARRANTY
Two year warranty on parts
Desmon S.p.A. - Rev.
0
04/09/2012
del
Specification subject to change without notice
