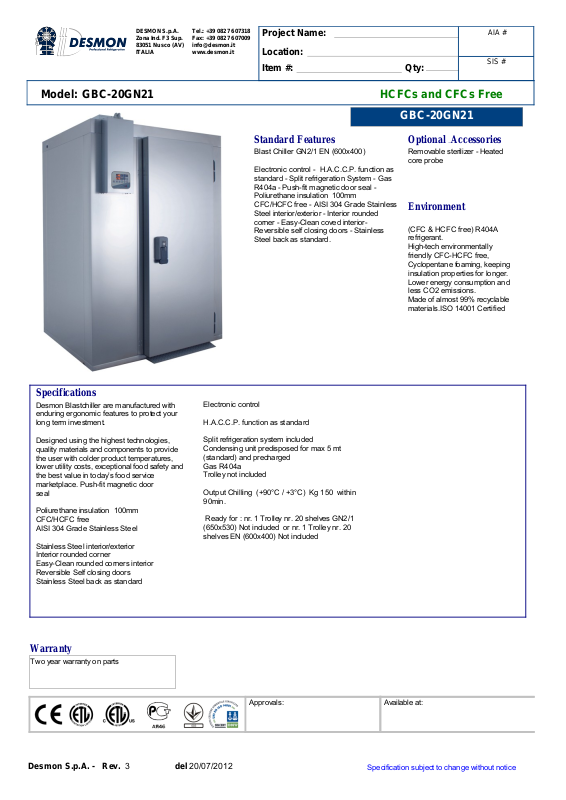

Desmon GBC-20GN21 User Manual
DESMON S.p.A.
Zona Ind. F3 Sup.
83051 Nusco (AV)
ITALIA
Tel.: +39 0827 607318
Fax: +39 0827 607009
info@desmon.it
www.desmon.it
Project Name:
Location:
AIA #
SIS #
Item #: Qty:
Model: GBC-20GN21 HCFCs and CFCs Free
GBC-20GN21
Specifications
Desmon Blastchiller are manufactured with
enduring ergonomic features to protect your
long term investment.
Standard Features
Blast Chiller GN2/1 EN (600x400)
Electronic control - H.A.C.C.P. function as
standard - Split refrigeration System - Gas
R404a - Push-fit magnetic door seal Poliurethane insulation 100mm
CFC/HCFC free - AISI 304 Grade Stainless
Steel interior/exterior - Interior rounded
corner - Easy-Clean coved interiorReversible self closing doors - Stainless
Steel back as standard.
Electronic control
H.A.C.C.P. function as standard
Optional Accessories
Removable sterilizer - Heated
core probe
Environment
(CFC & HCFC free) R404A
refrigerant.
High-tech environmentally
friendly CFC-HCFC free,
Cyclopentane foaming, keeping
insulation properties for longer.
Lower energy consumption and
less CO2 emissions.
Made of almost 99% recyclable
materials.ISO 14001 Certified
Designed using the highest technologies,
quality materials and components to provide
the user with colder product temperatures,
lower utility costs, exceptional food safety and
the best value in today’s food service
marketplace. Push-fit magnetic door
seal
Poliurethane insulation 100mm
CFC/HCFC free
AISI 304 Grade Stainless Steel
Stainless Steel interior/exterior
Interior rounded corner
Easy-Clean rounded corners interior
Reversible Self closing doors
Stainless Steel back as standard
Warranty
Two year warranty on parts
Split refrigeration system included
Condensing unit predisposed for max 5 mt
(standard) and precharged
Gas R404a
Trolley not included
Output Chilling (+
90min.
Ready for : nr. 1 Trolle
(650x530) Not included or nr. 1 Trolley nr. 20
shelves EN (600x400) Not included
90°C / +3°C) Kg 150 within
y nr. 20 shelves GN2/1
Approvals: Available at:
Desmon S.p.A. - Rev.
3
20/07/2012
del
Specification subject to change without notice
DESMON S.p.A.
ARCHITECT CORNER
Zona Ind. F3 Sup.
83051 Nusco (AV)
ITALIA
Tel.: +39 0827 607318
Fax: +39 0827 607009
info@desmon.it
www.desmon.it
Project Name:
Location:
AIA #
SIS #
Item #: Qty:
Model: GBC-20GN21 HCFCs and CFCs Free
380V/50Hz/3P
Ship Weight
Desmon S.p.A. - Rev.
Voltage
Kg
Abs. Power
4500W
Dimensions
1500x1340x2130
3
20/07/2012
del
Comp. H.P. Total Max Amps
Packing
1640x1470x2470+960x1060x880
Specification subject to change without notice
Ambient Temp.
38 °C
