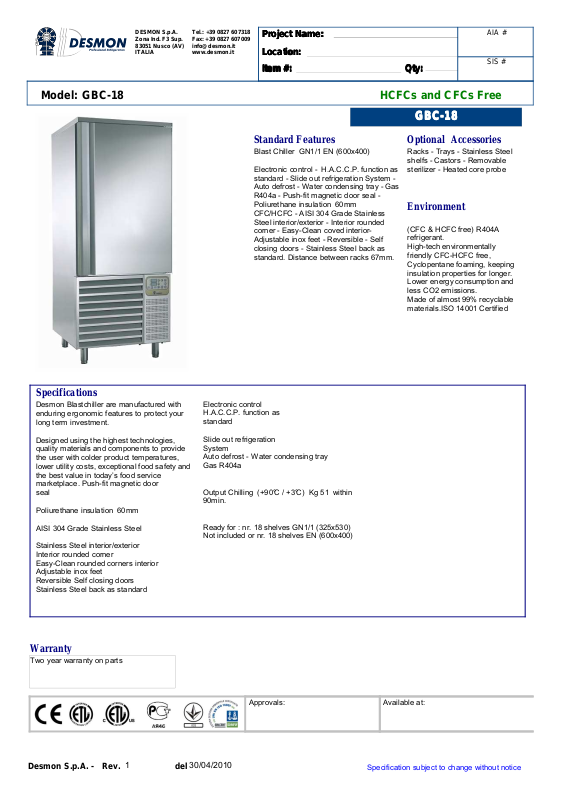

Desmon GBC-18 User Manual
DESMON S.p.A.
Zona Ind. F3 Sup.
83051 Nusco (AV)
ITALIA
Tel.: +39 0827 607318
Fax: +39 0827 607009
info@desmon.it
www.desmon.it
Project Name:
Project Name:
Project Name:Project Name:
Location:
Location:
Location:Location:
Item #:
Item #: Qty:
Item #:Item #:
Qty:
Qty:Qty:
AIA #
SIS #
Model: GBC-18 HCFCs and CFCs Free
GBC-18
GBC-18
GBC-18GBC-18
Specifications
Desmon Blastchiller are manufactured with
enduring ergonomic features to protect your
long term investment.
Designed using the highest technologies,
quality materials and components to provide
the user with colder product temperatures,
lower utility costs, exceptional food safety and
the best value in today’s food service
marketplace. Push-fit magnetic door
seal
Poliurethane insulation 60mm
CFC/HCFC
AISI 304 Grade Stainless Steel
Stainless Steel interior/exterior
Interior rounded corner
Easy-Clean rounded corners interior
Adjustable inox feet
Reversible Self closing doors
Stainless Steel back as standard
Standard Features
Blast Chiller GN1/1 EN (600x400)
Electronic control - H.A.C.C.P. function as
standard - Slide out refrigeration System Auto defrost - Water condensing tray - Gas
R404a - Push-fit magnetic door seal Poliurethane insulation 60mm
CFC/HCFC - AISI 304 Grade Stainless
Steel interior/exterior - Interior rounded
corner - Easy-Clean coved interiorAdjustable inox feet - Reversible - Self
closing doors - Stainless Steel back as
standard. Distance between racks 67mm.
Electronic control
H.A.C.C.P. function as
standard
Slide out refrigeration
System
Auto defrost - Water condensing tray
Gas R404a
Output Chilling (+90
90
min.
Ready for : nr. 18 shelves GN1/1 (325x530)
Not included or nr. 18 shelves EN (600x400)
°C / +3°C) Kg 51 within
Optional Accessories
Racks - Trays - Stainless Steel
shelfs - Castors - Removable
sterilizer - Heated core probe
Environment
(CFC & HCFC free) R404A
refrigerant.
High-tech environmentally
friendly CFC-HCFC free,
Cyclopentane foaming, keeping
insulation properties for longer.
Lower energy consumption and
less CO2 emissions.
Made of almost 99% recyclable
materials.ISO 14001 Certified
Warranty
Two year warranty on parts
Desmon S.p.A. - Rev.
Approvals: Available at:
1
30/04/2010
del
Specification subject to change without notice
DESMON S.p.A.
Zona Ind. F3 Sup.
83051 Nusco (AV)
ITALIA
Tel.: +39 0827 607318
Fax: +39 0827 607009
info@desmon.it
www.desmon.it
Project Name:
Project Name:
Project Name:Project Name:
Location:
Location:
Location:Location:
Item #:
Item #: Qty:
Item #:Item #:
Qty:
Qty:Qty:
Model: GBC-18 HCFCs and CFCs Free
ARCHITECT CORNER
AIA #
SIS #
Voltage
380V/50Hz/3P
Ship Weight
170Kg
Desmon S.p.A. - Rev.
Abs. Power
3321W
Dimensions
800x830x2130
1
30/04/2010
del
Comp. H.P. Total Max Amps
Packing
840x870x2260
Specification subject to change without notice
Ambient Temp.
38 °C
