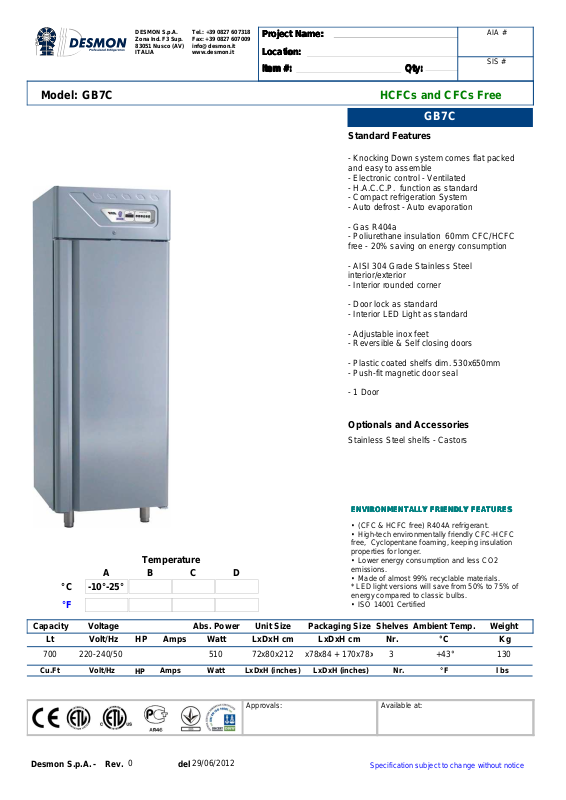

Model: GB7C HCFCs and CFCs Free

GB7C

- Knocking Down system comes flat packed
and easy to assemble

- Electronic control - Ventilated

- H.A.C.C.P. function as standard

- Compact refrigeration System

- Auto defrost - Auto evaporation

- Gas R404a

- Poliurethane insulation 60mm CFC/HCFC
free - 20% saving on energy consumption

- AISI 304 Grade Stainless Steel
interior/exterior

- Interior rounded corner

- Door lock as standard

- Interior LED Light as standard

° C

° F

A

-10° -25°

Temperature

B C

- Adjustable inox feet

- Reversible & Self closing doors

- Plastic coated shelfs dim. 530x650mm

- Push-fit magnetic door seal

- 1 Door

Optionals and Accessories

Stainless Steel shelfs - Castors

ENVIRONMENTALLY FRIENDLY FEATURES

ENVIRONMENTALLY FRIENDLY FEATURES

ENVIRONMENTALLY FRIENDLY FEATURESENVIRONMENTALLY FRIENDLY FEATURES

• (CFC & HCFC free) R404A refrigerant.

• High-tech environmentally friendly CFC-HCFC
free, Cyclopentane foaming, keeping insulation
properties for longer.

• Lower energy consumption and less CO2

D

emissions.

• Made of almost 99% recyclable materials.
* LED light versions will save from 50% to 75% of
energy compared to classic bulbs.

Capacity

Lt

700

Cu.Ft Volt/Hz Watt LxDxH (inches) LxDxH (inches) Nr. ° F l bs

Desmon S.p.A. - Rev.

Voltage

Volt/Hz

220-240/50

Abs. Power

Watt

510

Amps

0

29/06/2012

del

Unit Size

LxDxH cm

72x80x212

Approvals: Available at:

Packaging Size

LxDxH cm

Shelves

Ambient Temp.

Nr.

3

Specification subject to change without notice

° C

+43°

Weight

Kg

130

DESMON S.p.A.
Zona Ind. F3 Sup.
83051 Nusco (AV)
ITALIA

Tel.: [phone]
Fax: [phone]
[e-mail]
www.desmon.it

Project Name:

Project Name:

Project Name:Project Name:
Location:

Location:

Location:Location:
Item #:

Item #: Qty:

Item #:Item #:

Qty:

Qty:Qty:

Model: GB7C HCFCs and CFCs Free

ARCHITECT CORNER

AIA #

SIS #

STANDARD FEATURES

DESIGN

DESIGN

DESIGNDESIGN

Desmon reach-ins are manufactured in Italy
with enduring ergonomic features to protect
your long term investment.
Designed using the highest technologies,
quality materials and components to provide
the user with colder product temperatures,
lower utility costs, exceptional food safety
and the best value in today’s food service
marketplace.

CABINET CONSTRUCTION

CABINET CONSTRUCTION

CABINET CONSTRUCTIONCABINET CONSTRUCTION

Save on shipping costs with Desmon's
modular refrigeration. These units are
shipped in a flat pack and are not assembled
until they arrive at their final destination. This
can reduce shipping and storage costs by up
to 50%. Install refrigeration units in areas that
previously would have been impossible to
access. Move your modular units in one
piece at a time and build them up where they
will be finally used.
Higher insulation rates thanks to high-tech
environmentally friendly CFC free,
Cyclopentane foaming keeping insulation
properties longer than other foams.

REFRIGERATION SYSTEM

REFRIGERATION SYSTEM

REFRIGERATION SYSTEMREFRIGERATION SYSTEM

Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) R404A refrigerant.

• Thermostatic valve on Monoblock freezer
versions.

• Evaporator coil & condenser balanced for low
power consumption - holding the widest
temperature range in its class:
Temperature Range, getting the best in food
preservation:

• Coolers adjustable from -2°C to +8°C (28°F to
46°F) - .

• Freezers adjustable from -10°C to -25°C.
(14°F to -13°F)

• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan blades
with a more efficient low velocity, high volume
airflow design. Ensuring faster temperature
recovery and shorter run times in the busiest of
food service environments.

• Top mounted condensing unit easily
accessible for maintenance. Engine’s heat
doesn’t cause thermal dispersion into the cold­room.

DOORS

DOORS

DOORSDOORS

• Stainless steel exterior and interior. Door
extends full width of cabinet shell.

• Guaranteed door handle.

• Positive seal self-closing door.
* Guaranteed door hinges and torsion type
closure system.

• Magnetic door gasket of one piece
construction, removable without tools for ease
of cleaning.

SHELVING

SHELVING

SHELVINGSHELVING

• GN 2/1 Version: Adjustable, heavy duty PVC
coated wire - size:
530mm x 650mm
(20 43/50" x 20 43/50 ")
Pastry Version: Adjustable, heavy duty pan or
shelf size
600mm x 400mm
(23 5/8" x 15 3/4 ").

LIGHTING

LIGHTING

LIGHTINGLIGHTING

Version with lights includes:

• LED lighting – safety shielded. Lights
activated by micro-switch mounted above door.

• Glass door LED lights available

MODEL FEATURES

MODEL FEATURES

MODEL FEATURESMODEL FEATURES

Exterior adjustable temperature digital display
with alarm and HACCP advanced control unit
standard on every GOLD and PLATINUM
model.

• Evaporator is epoxy coated to
eliminate the potential of corrosion.

• ETL Sanitation and CE “Rounded Corners”
compliant for open food product.

ELECTRICAL

ELECTRICAL

ELECTRICALELECTRICAL

• Unit completely pre-wired at factory and
ready for final connection to a dedicated outlet.
Cord and plug set included: Voltages:

 115V/60Hz/1 phase -15/20 amp or
 230V/50Hz/1 phase -16 amp or
 230V/60 Hz – 16 amp

WARRANTY

WARRANTY

WARRANTYWARRANTY

Two year warranty on parts
