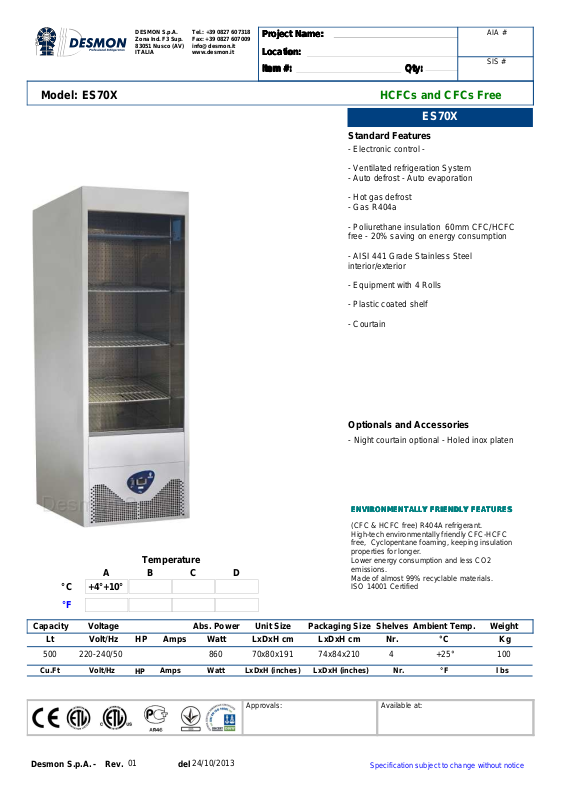

Desmon ES70X User Manual
DESMON S.p.A.
Standard Features
HPHPAmps
Zona Ind. F3 Sup.
83051 Nusco (AV)
ITALIA
Tel.: +39 0827 607318
Fax: +39 0827 607009
info@desmon.it
www.desmon.it
Project Name:
Project Name:
Project Name:Project Name:
Location:
Location:
Location:Location:
Item #:
Item #: Qty:
Item #:Item #:
Qty:
Qty:Qty:
AIA #
SIS #
Model: ES70X HCFCs and CFCs Free
ES70X
- Electronic control -
- Ventilated refrigeration System
- Auto defrost - Auto evaporation
- Hot gas defrost
- Gas R404a
- Poliurethane insulation 60mm CFC/HCFC
free - 20% saving on energy consumption
- AISI 441 Grade Stainless Steel
interior/exterior
- Equipment with 4 Rolls
- Plastic coated shelf
° C
A
+4° +10°
Temperature
B C
- Courtain
Optionals and Accessories
- Night courtain optional - Holed inox platen
ENVIRONMENTALLY FRIENDLY FEATURES
ENVIRONMENTALLY FRIENDLY FEATURES
ENVIRONMENTALLY FRIENDLY FEATURESENVIRONMENTALLY FRIENDLY FEATURES
(CFC & HCFC free) R404A refrigerant.
High-tech environmentally friendly CFC-HCFC
free, Cyclopentane foaming, keeping insulation
properties for longer.
Lower energy consumption and less CO2
D
emissions.
Made of almost 99% recyclable materials.
ISO 14001 Certified
° F
Capacity
Lt
500
Cu.Ft Volt/Hz Watt LxDxH (inches) LxDxH (inches) Nr. ° F l bs
Desmon S.p.A. - Rev.
Voltage
Volt/Hz
220-240/50
01
Amps
Abs. Power
24/10/2013
del
Watt
860
Unit Size
LxDxH cm
70x80x191
Approvals: Available at:
Packaging Size
LxDxH cm
74x84x210
Shelves
Ambient Temp.
Nr.
4
Specification subject to change without notice
° C
+25°
Weight
Kg
100
DESMON S.p.A.
Zona Ind. F3 Sup.
83051 Nusco (AV)
ITALIA
Tel.: +39 0827 607318
Fax: +39 0827 607009
info@desmon.it
www.desmon.it
Project Name:
Project Name:
Project Name:Project Name:
Location:
Location:
Location:Location:
Item #:
Item #: Qty:
Item #:Item #:
Qty:
Qty:Qty:
Model: ES70X HCFCs and CFCs Free
ARCHITECT CORNER
AIA #
SIS #
STANDARD FEATURES
DESIGN
DESIGN
DESIGNDESIGN
Desmon reach-ins are manufactured in Italy
with enduring ergonomic features to protect
your long term investment.
Designed using the highest technologies,
quality materials and components to provide
the user with colder product temperatures,
lower utility costs, exceptional food safety
and the best value in today’s food service
marketplace.
CABINET CONSTRUCTION
CABINET CONSTRUCTION
CABINET CONSTRUCTIONCABINET CONSTRUCTION
All made in stainless steel, not only on solid
doors and front side as other manufacturers.
The finest stainless available; latest
generation, higher tensile strength for fewer
dents and scratches. (External back &
bottom in galvanized steel.
Higher insulation rates thanks to high-tech
environmentally friendly CFC free,
Cyclopentane foaming keeping insulation
properties longer than other foams.
Panel thickness: 60mm (2 3/8") .
Internal Rounded Corners on all models.
Heavy duty galvanized frame
rail for corrosion protection inside
and out.
REFRIGERATION SYSTEM
REFRIGERATION SYSTEM
REFRIGERATION SYSTEMREFRIGERATION SYSTEM
Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) R404A refrigerant.
Thermostatic valve .
Evaporator coil & condenser balanced for low
power consumption - holding the widest
temperature range in its class:
Temperature Range, getting the best in food
preservation:
Coolers adjustable from +4°C to +10°C
(39,20°F to 50°F) - .
DOORS
DOORS
DOORSDOORS
Open cabinet (night courtain optional)
SHELVING
SHELVING
SHELVINGSHELVING
- Adjustable, heavy duty PVC coated wire size: 520mm x 585mm
(20 31/64" x 23 3/64 ")
- Hole inox platen .
LIGHTING
LIGHTING
LIGHTINGLIGHTING
Version with lights includes:
Fluorescent lamp
MODEL FEATURES
MODEL FEATURES
MODEL FEATURESMODEL FEATURES
Exterior adjustable temperature digital display
l.
Evaporator is epoxy coated to
eliminate the potential of corrosion.
ELECTRICAL
ELECTRICAL
ELECTRICALELECTRICAL
Unit completely pre-wired at factory and ready
for final connection to a dedicated outlet. Cord
and plug set included: Voltages:
230V/50Hz/1 phase -16 amp
WARRANTY
WARRANTY
WARRANTYWARRANTY
Two year warranty on parts - Two
years labor warranty and traveling
Desmon S.p.A. - Rev.
01
24/10/2013
del
Specification subject to change without notice
