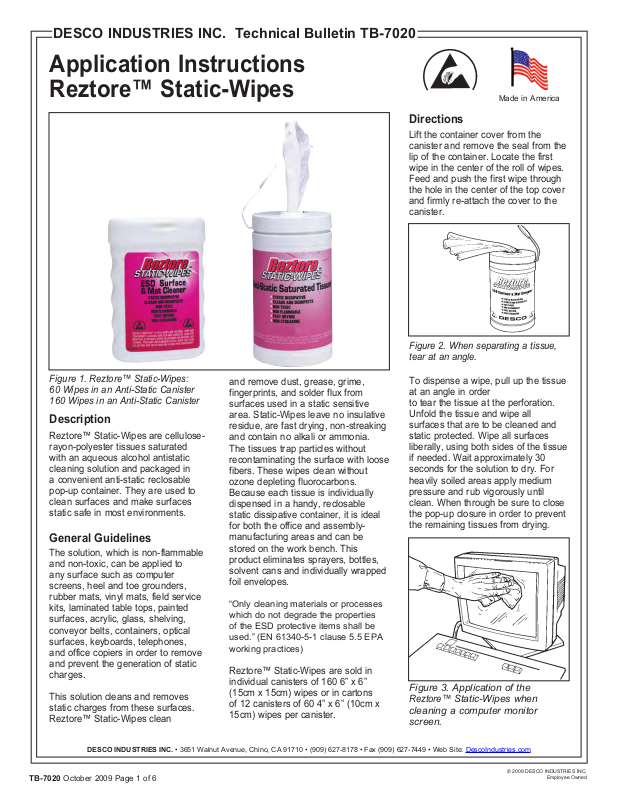

DESCO INDUSTRIES INC. Technical Bulletin TB-7020

Application Instructions
Reztore™ Static-Wipes

Figure 1. Reztore™ Static-Wipes:
60 Wipes in an Anti-Static Canister
160 Wipes in an Anti-Static Canister

Description

Reztore™ Static-Wipes are cellulose­rayon-polyester tissues saturated
with an aqueous alcohol antistatic
cleaning solution and packaged in
a convenient anti-static reclosable
pop-up container. They are used to
clean surfaces and make surfaces
static safe in most environments.

General Guidelines

The solution, which is non-flammable
and non-toxic, can be applied to
any surface such as computer
screens, heel and toe grounders,
rubber mats, vinyl mats, field service
kits, laminated table tops, painted
surfaces, acrylic, glass, shelving,
conveyor belts, containers, optical
surfaces, keyboards, telephones,
and office copiers in order to remove
and prevent the generation of static
charges.

This solution cleans and removes
static charges from these surfaces.
Reztore™ Static-Wipes clean

and remove dust, grease, grime,
fingerprints, and solder flux from
surfaces used in a static sensitive
area. Static-Wipes leave no insulative
residue, are fast drying, non-streaking
and contain no alkali or ammonia.
The tissues trap particles without
recontaminating the surface with loose
fibers. These wipes clean without
ozone depleting fluorocarbons.
Because each tissue is individually
dispensed in a handy, reclosable
static dissipative container, it is ideal
for both the office and assembly­manufacturing areas and can be
stored on the work bench. This
product eliminates sprayers, bottles,
solvent cans and individually wrapped
foil envelopes.

“Only cleaning materials or processes
which do not degrade the properties
of the ESD protective items shall be
used.” (EN 61340-5-1 clause 5.5 EPA

working practices)

Reztore™ Static-Wipes are sold in
individual canisters of 160 6” x 6”
(15cm x 15cm) wipes or in cartons
of 12 canisters of 60 4” x 6” (10cm x
15cm) wipes per canister.

Made in America

Directions

Lift the container cover from the
canister and remove the seal from the
lip of the container. Locate the first
wipe in the center of the roll of wipes.
Feed and push the first wipe through
the hole in the center of the top cover
and firmly re-attach the cover to the
canister.

Figure 2. When separating a tissue,
tear at an angle.

To dispense a wipe, pull up the tissue
at an angle in order
to tear the tissue at the perforation.
Unfold the tissue and wipe all
surfaces that are to be cleaned and
static protected. Wipe all surfaces
liberally, using both sides of the tissue
if needed. Wait approximately 30
seconds for the solution to dry. For
heavily soiled areas apply medium
pressure and rub vigorously until
clean. When through be sure to close
the pop-up closure in order to prevent
the remaining tissues from drying.

Figure 3. Application of the
Reztore™
cleaning a computer monitor
screen.

Static-Wipes when

DESCO INDUSTRIES INC. • 3651 Walnut Avenue, Chino, CA 91710 • [phone] • Fax [phone] • Web Site: DescoIndustries.com

TB-7020 October 2009 Page 1 of 6

© 2009 DESCO INDUSTRIES INC.

Employee Owned

Specifications

Appearance of solution:

Transparent clear violet

pH:

6-8

Odor:

Slight floral alcohol
Solubility:

Water, acetone, alcohols
Toxicity, Irritation, Sensitivity:

Non-toxic by dermal contact or
inhalation

Flammability:
Non-flammable

Ion Level: (mg/l)

Fluoride 0.3
Sulfate <0.5
Nitrate 1.2
Bromide <0.5
Phosphate <0.5

CANISTER SPECIFICATIONS:
Height:

160 Wipes 7 inches (18cm)
60 Wipes 4.4 inches (10cm)
Diameter:
160 Wipes 4.4 inches (10cm)
60 Wipes Oval 3” x 1.6”
(7.5cm x 4cm)

Material:
High density polyethylene with internal
antistatic agent.

WIPE SPECIFICATIONS:
Appearance:

White, non-woven cellulose-rayon­polyester blend.

Electrical Properties
(Dry Film):

Resistance, point to point (RTT):

10E7 Ohms (per ANSI/ESD S4.1)

Static Decay Rate:

<0.01 seconds (per FTMS 101C
M-4046)

Testing

It is recommended to test the surface
after cleaning to ensure that all
insulative contaminants such as grime
or dirt have been removed. Reztore™
Static-Wipes are specifically designed
to leave behind a coating which has
a surface resistance of 108 Ohms or
lower.

Field Test

For quick and easy verification of
surface resistance we recommend the
use of a megohmmeter. These are
available from many Desco Industries
companies. For testing of static
fields, we recommend the use of a
static field meter. These instruments
are also available from many Desco
Industries companies.

Features

• Cleans bench surfaces

• Leaves static dissipative layer on
surface

• Presaturated with the right amount
of solution -- no waste or debris

• Non-toxic

• Non-streaking, quick drying

• Non-aerosol

• No CFC’s - water based

• No alkali or ammonia

• Neutral pH

• Low volatile organic solvents

• Handy reclosable static dissipative
dispenser

• Durable lint-free wipe

NOTE: Reztore™ Static-Wipes
do not have a set life span. The
chemicals are not known to degrade
over time when stored at the proper
temperature conditions as stated in
the Material Safety Data Sheet. We
also recommend that the product be
stored in its original container and be
sealed when not in use.

Limited Warranty

Desco Industries Inc. expressly
warrants that for a period of one
(1) year from the date of purchase,
Desco Industries Inc. Reztore™
Static-Wipes will be free of defects
in material. Within the warranty
period, the material will be replaced
at Desco Industries Inc. option, free
of charge. Call our Customer Service
Department at 781-821-8370 or 00
44 (0) 1892-665313 in Europe for a
Return Material Authorization (RMA)
and proper shipping instructions and
address. You should include a copy
of your original packing slip, invoice,
or other proof of purchase date. Any
material under warranty should be
shipped prepaid to the Desco Industries
Inc. factory. Warranty replacements will
take approximately two weeks.

Warranty Exclusions

THE FOREGOING EXPRESS
WARRANTY IS MADE IN LIEU OF ALL
OTHER PRODUCT WARRANTIES,
EXPRESSED AND IMPLIED,
INCLUDING MERCHANTABILITY
AND FITNESS FOR A PARTICULAR
PURPOSE WHICH ARE
SPECIFICALLY DISCLAIMED. The
express warranty will not apply to
defects or damage due to accidents,
neglect, misuse, alterations, operator
error, or failure to properly maintain,
clean, or repair products.

Limit of Liability

In no event will Desco Industries Inc.
or any seller be responsible or liable
for any injury, loss, or damage, direct
or consequential, arising out of the use
of or the inability to use the product.
Before using, users shall determine
the suitability of the product for their
intended use, and users assume all risk
and liability whatsoever in connection
therewith.

DESCO INDUSTRIES INC. • 3651 Walnut Avenue, Chino, CA 91710 • [phone] • Fax [phone] • Web Site: DescoIndustries.com

TB-7020 Page 2 of 6

© 2009 DESCO INDUSTRIES INC.

Employee Owned

Material Safety Data Sheet
May be used to comply with ANSI Z400.1-2004,
29 CFR 1910.1200, European 2001/58/EC,
REACH 1907/2006/EC, and GHS. Standard
must be consulted for specific requirements.

NFPA Designation 704

Degree of Hazard
4 = Extreme 1 = Slight
3 = High 0 = Insignificant
2 = Moderate

HMIS RATING: Health: 1 Reactivity: 0 Flammability: 0 Personal Protection: B

Health

(Blue)

1

Special Hazard

Flammability

1

0

0

(Red)

Reactivity

(Yellow)

REZTORE™ STATIC WIPES

SECTION 1 — CHEMICAL PRODUCT AND COMPANY IDENTIFICATION

Product Name/Identity: Reztore™ Static Wipes
Chemical Name: Reztore™ Static-Wipes
Manufacturer: Desco Industries, Inc
Address: One Colgate Way

Canton, MA 02021

Telephone: [phone]
Emergency Number: 781-821-8370
Date Prepared: 2009-05-27

SECTION 2 — HAZARDS IDENTIFICATION

Routes of Entry
Eyes: A high concentration of liquid, mist, or vapour may cause irritation of the connective tissue.
Skin: Repeated or continuous contact may cause irritation of the skin.
Ingestion: None known.
Inhalation: Irritation of nose, throat, and lack of breath. Exposure to vapors in high concentration may

have same effect as with inhalation.

SECTION 3 — COMPOSITION/INFORMATION ON INGREDIENTS

Hazardous Ingredients: CAS No. Weight (%)

Trade Secret #00030507MA105 Non Hazardous 1-5%
Isopropanol* 67-63-0 5-25%
Water 7732-18-5 60-100%

*These items are listed and subjected to the reporting requirements of the SARA Title III Section 313 Inventory of
the Emergency Planning and Community Right-To-Know Act of 1986 and of 40 CFR372.

SECTION 4 — FIRST AID MEASURES

Emergency and First Aid Procedures:
Eye Contact: Flush with water for at least 15 minutes.
Skin Contact: Wash with soap and water.
Ingestion: DO NOT induce vomiting. Contact a physician.
Inhalation: Move subject to fresh air.

SECTION 5 — FIREFIGHTING MEASURES

Proper Extinguishing Media: Water
Unsuitable Extinguishing Methods: N/A
Protective Equipment & Precautions: Wearing of appropriate protective equipment and clothing
Flash Point (Method Used): N/A
Flammable Limits: N/A
Special Fire Fighting Procedures: Cool containers with water.
Unusual Fire and Explosion Hazards: None known.

DESCO INDUSTRIES INC. • 3651 Walnut Avenue, Chino, CA 91710 • [phone] • Fax [phone] • Web Site: DescoIndustries.com

TB-7020 Page 3 of 6

© 2009 DESCO INDUSTRIES INC.

Employee Owned

SECTION 6 — ACCIDENTAL RELEASE MEASURES

Personal Precautions: Wear protective clothing. Inhalation protection. Extinguish all ignition sources.
Environmental Precautions: Biodegradable.
Cleaning Procedures: Dike and collect material into plastic container. Water, rinse, and drain,

flush small amounts. Use sanitary landfill disposal. Follow state and local
regulations. (RCRA; Subtitle D).

SECTION 7 — HANDLING AND STORAGE

Handling: Use in well-ventilated areas; avoid breathing vapors. Keep containers closed when

not in use. Avoid from freezing.
Storage: Storage temperature: Max. 49°C/120°F - Min. 1°C/34°F
Other Precautions: Keep from freezing.

SECTION 8 — EXPOSURE CONTROL / PERSONAL PROTECTION

Hazardous Ingredients: CAS No. TLV-value

Trade Secret #00030507MA105 Non Hazardous NE
Isopropanol* 67-63-0 400 ppm
Water 7732-18-5 NE

Control Parameters: TLV-valve 400 ppm maximum for Isopropanol
Measures for Technical Control: Preferences of technical measure to prevent or control contact

with the product. Isolating process and personnel, mechanical
ventilation (dilution and local exhaust) and the regulation of
process conditions. In case of non-prevention or non-control, a
proper protective wearing should be used.
Respiratory Protection (Specify Type): Wear MSHA/NIOSH-approved respirator where exposure
limits are exceeded.

Hand Protection: Impervious/Neoprene Gloves
Eye Protection: Chemical Splash Goggles as defined in ANSI Z-87.1 or

a similar standard.

Work/Hygienic Practices: Wash hands before eating, smoking, or using washroom facilities

SECTION 9 — PHYSICAL AND CHEMICAL PROPERTIES

Form: Liquid
Color: Clear violet
Odor: Floral/Alcohol
Boiling Point: >200°F (94°C)
Melting Point: N/A
Specific Gravity (H2O = 1): .98
Solubility in Water: Complete
VOC per Method 24 of EPA: 1% VOC by wt.
pH: 7.0-8.0
Flash Point: Noncombustible
Flammability Limits: N/A

(vol. % in air)

Vapor Pressure (mm Hg): 18.0
Vapor Density (air=1): 1.06
Density at 20°C: 8.17 lbs./gal
Flammability: Classification according to EC-regulations “non-flammable”
Ignition Temperature: N/A
Evaporation Rate: .28

DESCO INDUSTRIES INC. • 3651 Walnut Avenue, Chino, CA 91710 • [phone] • Fax [phone] • Web Site: DescoIndustries.com

TB-7020 Page 4 of 6

© 2009 DESCO INDUSTRIES INC.

Employee Owned

SECTION 10 — STABILITY AND REACTIVITY

Hazardous Polymerization: N/A
Hazardous Decomposition/Byproducts: Thermal decomposition may yield carbon monoxide.
Incompatibility (Materials to Avoid): Strong Oxidizers.
Stability/Reactivity: Stable product at normal conditions.
Conditions to Avoid: Temperatures above 49°C/120°F and below 1°C/34°F

SECTION 11 — TOXICOLOGICAL INFORMATION

Oral LD50; 5045 mg/kg (RAT), Dermal LD50; 5030. 7900 mg/kg (Rabbit),
Inhalation LC50; 16000 ppm, 4 h (RAT).

Carcinogenicity: NTP: None IARC Monographs: None OSHA Regulated: None

SECTION 12 — ECOLOGICAL INFORMATION

No environmental hazards have been reported or known.

Mobility: The product is aqueous and will be separated in aqueous conditions
Degradability: N/A
Bioaccumulation: Not likely
Ecotoxicity: None known
Reference to BimSchV: N/A
Hazard Classification: None hazardous

SECTION 13 — DISPOSAL CONSIDERATIONS

Product: Dike and collect material into plastic container. Water, rinse, and drain, flush small

amounts. Use sanitary landfill disposal. Follow state and local regulations
(RCRA; Subtitle D).

Hazardous Waste Number: Non Hazardous

SECTION 14 — TRANSPORT INFORMATION

This product is not classified for transport under ADR/IMDG regulations

SECTION 15 — REGULATORY INFORMATION

Physical/Chemical Indication: Non-flammable
Risk-Phrase: (R36/38): irritates eyes and skin.
Safety-Phrase: (S2): keep away from children,

(S7): keep containers well closed,
(S24/25): avoid contact with skin and eyes,
(S26):In case of contact with eyes, rinse immediately with plenty of water
and seek medical advice.
EU Classification: This product does not have to be classified according to the
EU Regulations.

(67/548/EEC-88/379/EEC):
EINECS Status: All components are included in the EINECS inventories.
REACH: This product does not require REACH registration.

DESCO INDUSTRIES INC. • 3651 Walnut Avenue, Chino, CA 91710 • [phone] • Fax [phone] • Web Site: DescoIndustries.com

TB-7020 Page 5 of 6

© 2009 DESCO INDUSTRIES INC.

Employee Owned

SECTION 16 — OTHER INFORMATION

HMIS RATING: Health: 1 Reactivity: 0 Flammability: 1 Personal Protection: B

NFPA RATING: Special Hazard: 0 Health: 1 Flammability: 1 Reactivity: 0

Date of last revision: 2009-06-11

Disclaimer

The information given in this publication has been worked up to the best of the knowledge of Desco Industries Inc,
as well as taking into consideration the applicable laws and regulations. We cannot anticipate all conditions under
which this information and our products or the products of the manufacturers in combination with our products
may be used. We accept no responsibility for the results obtained by the application information or the safety and
suitability of our product or product combination with other products. Users are advised to make their own tests to
determine the safety and suitability of each such product or product combination for their own purposes. Unless
otherwise agreed in writing, we sell the products without warranty, and buyers and users assume responsibility and
liability for loss or damage arising from the handling and use of our products, whether used alone or in combination
with other products.

N/A = Not Applicable; NE = None Established

DESCO INDUSTRIES INC. • 3651 Walnut Avenue, Chino, CA 91710 • [phone] • Fax [phone] • Web Site: DescoIndustries.com

TB-7020 Page 6 of 6

© 2009 DESCO INDUSTRIES INC.

Employee Owned
