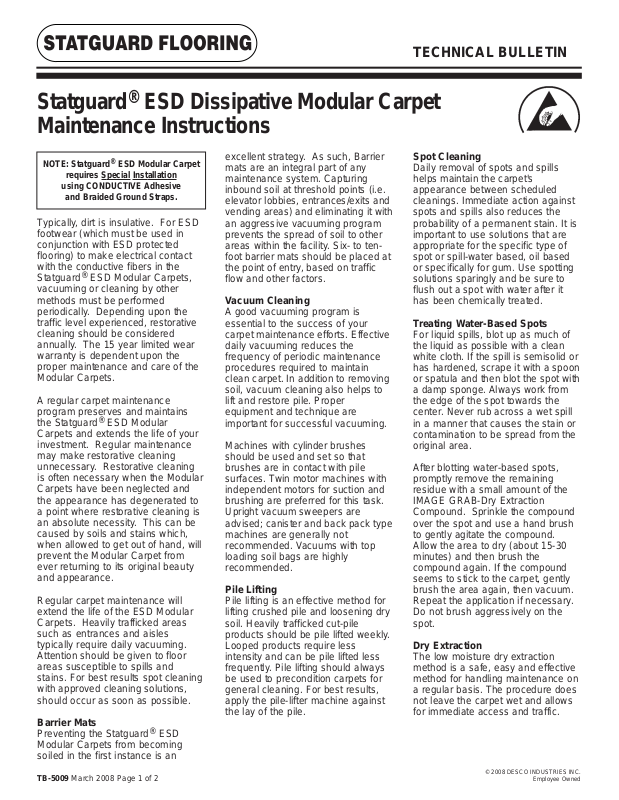

Desco TB-5009 Installation Manual

St atguard®ESD Dissipative Modular Carpet
Maintenance Instructions

excellent strategy. As such, Barrier
mats are an integral part of any
maintenance system. Capturing
inbound soil at threshold points (i.e.
elevator lobbies, entrances/exits and
vending areas) and eliminating it with
an aggressive vacuuming program
prevents the spread of soil to other
areas within the facility. Six- to ten­foot barrier mats should be placed at
the point of entry, based on traffic
flow and other factors.

Vacuum Cleaning

A good vacuuming program is
essential to the success of your
carpet maintenance efforts. Effective
daily vacuuming reduces the
frequency of periodic maintenance
procedures required to maintain
clean carpet. In addition to removing
soil, vacuum cleaning also helps to
lift and restore pile. Proper
equipment and technique are
important for successful vacuuming.

Machines with cylinder brushes
should be used and set so that
brushes are in contact with pile
surfaces. Twin motor machines with
independent motors for suction and
brushing are preferred for this task.
Upright vacuum sweepers are
advised; canister and back pack type
machines are generally not
recommended. Vacuums with top
loading soil bags are highly
recommended.

Pile Lifting

Pile lifting is an effective method for
lifting crushed pile and loosening dry
soil. Heavily trafficked cut-pile
products should be pile lifted weekly.
Looped products require less
intensity and can be pile lifted less
frequently. Pile lifting should always
be used to precondition carpets for
general cleaning. For best results,
apply the pile-lifter machine against
the lay of the pile.

TB-5009 March 2008 Page 1 of 2

Typically, dirt is insulative. For ESD
footwear (which must be used in
conjunction with ESD protected
flooring) to make electrical contact
with the conductive fibers in the
Statguard®ESD Modular Carpets,
vacuuming or cleaning by other
methods must be performed
periodically. Depending upon the
traffic level experienced, restorative
cleaning should be considered
annually. The 15 year limited wear
warranty is dependent upon the
proper maintenance and care of the
Modular Carpets.

A regular carpet maintenance
program preserves and maintains
the Statguard®ESD Modular
Carpets and extends the life of your
investment. Regular maintenance
may make restorative cleaning
unnecessary. Restorative cleaning
is often necessary when the Modular
Carpets have been neglected and
the appearance has degenerated to
a point where restorative cleaning is
an absolute necessity. This can be
caused by soils and stains which,
when allowed to get out of hand, will
prevent the Modular Carpet from
ever returning to its original beauty
and appearance.

Regular carpet maintenance will
extend the life of the ESD Modular
Carpets. Heavily trafficked areas
such as entrances and aisles
typically require daily vacuuming.
Attention should be given to floor
areas susceptible to spills and
stains. For best results spot cleaning
with approved cleaning solutions,
should occur as soon as possible.

Barrier Mats

Preventing the Statguard®ESD
Modular Carpets from becoming
soiled in the first instance is an

Spot Cleaning

Daily removal of spots and spills
helps maintain the carpet's
appearance between scheduled
cleanings. Immediate action against
spots and spills also reduces the
probability of a permanent stain. It is
important to use solutions that are
appropriate for the specific type of
spot or spill-water based, oil based
or specifically for gum. Use spotting
solutions sparingly and be sure to
flush out a spot with water after it
has been chemically treated.

Treating Water-Based Spots

For liquid spills, blot up as much of
the liquid as possible with a clean
white cloth. If the spill is semisolid or
has hardened, scrape it with a spoon
or spatula and then blot the spot with
a damp sponge. Always work from
the edge of the spot towards the
center. Never rub across a wet spill
in a manner that causes the stain or
contamination to be spread from the
original area.

After blotting water-based spots,
promptly remove the remaining
residue with a small amount of the
IMAGE GRAB-Dry Extraction
Compound. Sprinkle the compound
over the spot and use a hand brush
to gently agitate the compound.
Allow the area to dry (about 15-30
minutes) and then brush the
compound again. If the compound
seems to stick to the carpet, gently
brush the area again, then vacuum.
Repeat the application if necessary.
Do not brush aggressively on the
spot.

Dry Extraction

The low moisture dry extraction
method is a safe, easy and effective
method for handling maintenance on
a regular basis. The procedure does
not leave the carpet wet and allows
for immediate access and traffic.

TECHNICAL BULLETIN

© 2008 DESCO INDUSTRIES INC.

Employee Owned

NOTE: Statguard®ESD Modular Carpet

requires S

pecial Inst

allation

using CONDUCTIVE Adhesive

and Braided Ground Straps.

Crystal Clean Application

The Crystal Clean method of
maintenance is a low moisture
procedure similar in some respects
to the dry extraction method.
Benefits include immediate access to
the area without the necessity of
extended drying time.

Hot Water Extraction

Hot water extraction is an effective
method for removing soil and residue
from carpeting. This system is based
on injection of water and cleaning
agents into the carpet, which
suspends the soils and contaminants
in the solution for easy removal by a
built-in vacuum system.

TB-5009 Page 2 of 2

© 2008 DESCO INDUSTRIES INC.

Employee Owned

NOTE: ALTHOUGH THE METHOD
IS TERMED "HOT WATER
EXTRACTION," IT IS TYPICAL TO
USE WATER CLOSER TO ROOM
TEMPERATURE.

As with all other maintenance
methods, always prepare the carpet
by vacuuming and pile lifting.

After cleaning the Statguard®ESD
Modular Carpet we recommend our
Statguard®Carpet Protector. This
protector has an active stain fighter
and antistat ingredient. Please refer
to Technical Bulletin TB-5007.

NOTE: Statguard®ESD Modular Carpet

requires S

pecial Installation

using CONDUCTIVE Adhesive

and Braided Ground Straps.

90 HUDSON ROAD

CANTON, MA 02021

PHONE [phone]

FAX [phone]

StatguardFlooring.com

Limited Warranty

Statguard Flooring warrants that: Statguard®ESD
Modular Carpets will be free from defects in
materials and workmanship for a period of fifteen
(15) years after purchase, and will meet the
minimum technical requirements of ANSI/ESD
S20.20 for ESD Floors.

This warranty shall apply only if such products are
installed following the Statguard Flooring
Installation Instructions document including using
the recommended conductive adhesive and
copper foil grounding strips and have been tested
by an authorized Statguard Flooring personnel
after installation. Such warranty shall be voided is
such products are removed from the site of their
original installation.

Within the warranty period, a credit for purchase
of replacement Statguard®ESD Modular Carpets,
or, at Desco’s option, the Statguard®ESD
Modular Carpets will be repaired or replaced free
of charge. If product credit is issued, the amount
will be calculated by multiplying the unused
portion of the expected ten years life times the
original unit purchase price.

Call Customer Service at

[phone]

for a
Return Material Authorization (RMA) and shipping
instructions and address. Include a copy of your
original packing slip, invoice, or other proof of
purchase date. Any material under warranty
should be shipped prepaid to our factory. Warranty
repairs will take approximately two weeks.

If your material is out of warranty, Statguard
Flooring will quote repair charges necessary to
bring your unit up to factory standards. Call
Customer Service at

[phone]

for a Return
Material Authorization (RMA) shipping instructions
and address. Ship your material prepaid.

Warranty Exclusions

THE FOREGOING EXPRESS WARRANTY IS
MADE IN LIEU OF ALL OTHER PRODUCT
WARRANTIES, EXPRESSED AND IMPLIED,
INCLUDING MERCHANTABILITYAND FITNESS
FOR APARTICULAR PURPOSE WHICH ARE
SPECIFICALLY DISCLAIMED. The express
warranty will not apply to defects or damage due
to accidents, neglect, misuse, alterations, operator
error, or failure to properly maintain, clean or
repair products.

Limit of Liability

In no event will Statguard Flooring or any seller be
responsible or liable for any injury, loss or
damage, direct or consequential, arising out of the
use of or the inability to use the product. Before
using, users shall determine the suitability of the
product for their intended use, and users assume
all risk and liability whatsoever in connection
therewith.
